FILE NO.
NV-E7000
(U.S.A.)
SERVICE MANUAL Portable DVD Navigation
System
PRODUCTCODENo.
949 005 03
REFERENCE No. SM590496
INDEX
SPECIFICATIONS........................................................................................................................................................... 1
ACCESSORIES............................................................................................................................................................... 2
COMPONENT NAMES AND FUNCTIONS ..................................................................................................................... 3
DISASSEMBLY ............................................................................................................................................................. 10
ADJUSTMENT PROCEDURES .................................................................................................................................... 13
EXPLANATION OF MICROCOMPUTER ...................................................................................................................... 15
TROUBLE SHOOTING ................................................................................................................................................. 25
EXPLANATION OF OPERATION(DVD-ROM MECHANISM)....................................................................................... 29
EXPLANATION OF CIRCUIT ........................................................................................................................................ 30
EXPLODED VIEW(DVD-ROM MECHANISM) .............................................................................................................. 33
PARTS LIST(DVD-ROM MECHANISM)........................................................................................................................ 34
EXPLODED VIEW ......................................................................................................................................................... 35
PARTS LIST .................................................................................................................................................................. 36
ABOUT UPGRADES ..................................................................................................................................................... 40
CONNECTING A VIDEO DECK/VIDEO CAMERA ....................................................................................................... 41
BLOCK DIAGRAM......................................................................................................................................................... 42
SCHEMATIC DIAGRAM................................................................................................................................................ 45
WIRING DIAGRAM........................................................................................................................................................ 45
REGARDING CLEANING THE PICKUP ....................................................................................................................... 90

SPECIFICATIONS
_ _
1
Type Liquid crystal color monitor
Drive system TFT active matrix system
Screen size 7V type
Light source Cold cathode tube
Expansion output terminal
14 pin connector
Power supply input terminal
DC 9V (EIAJ terminal)
GPS exterior antenna input terminal
GPS connector
Brake terminal Mini-jack
Headphone output terminal
Stereo mini-jack
Video I/O terminal Mini-jack
Audio I/O terminal/
optic digital audio output terminal
stereo mini-jack/optic
mini-jack
S video output terminal S terminal
I/O TERMINAL
Power source AC 120V, 60Hz
DC 12V
Current 2.0A (when using DC-DC)
Power consumption
18W (when using the navigation
system)
Temperature range
32 to +122°F (0 to +50°C)
(when in NAVI or VIDEO mode)
41 to +95°F (+5 to +35°C)
(when in DVD mode)
Exterior dimensions
About 175X42X137mm
(width x height x depth)
*excluding projections
Weight About 800g (main unit only)
* The specifications and design of this unit are
subject to change for improvements without
prior notification.
* The V-type monitor screen size (7V type) is a
standard based on the dimensions necessary
for an effective screen.
OTHER
GPS antenna Micro-strip flat
antenna
Reception frequency 1575.42MHz
(C/A cord)
Reception system 18 channels
parallel
Reception sensitivity –130dBm
Updating Interval About 1 second
Format Original DVD
format
NAVIGATION
Made for the following disc type:
¡DVD video
¡Music CD (CD-DA)
5 inch (12 cm) and
3 inch (8 cm) diameter
Reading format Non-contact optical
reading
(using a semiconductor
laser)
Frequency range 20Hz to 20kHz
(+1.0dB to –2.0dB)
S/N ratio 85dB or more
High harmonic distortion 0.1% or less
Dynamic range 88dB or more
Wow and flutter Within or under the
measurement limit
DVD VIDEO/CD PLAYER
MONITOR

ACCESSORIES
_ _
2
Parking brake
connector cable
GPS Exterior Antenna and
Installation Parts
1 disc
1 core
Map DVD-ROM
Self-lock connector
AC/DC adapter
2 clips2 cables
12V cigarette lighter
connector cable
1 cable 1 cable
Remote control and
holder
Each 1
Velcro tape
1 pair
AAA battery
2 batterys
Tapping screw (M3x8)
2 screws
Kit for Installation
1 cable
RCA cord (when in
AUDIO mode)
1 cable
RCA cord (when in
VIDEO mode)
Core (Small)
Core (Large)
1 core

_ _
3
COMPONENT NAMES AND FUNCTIONS

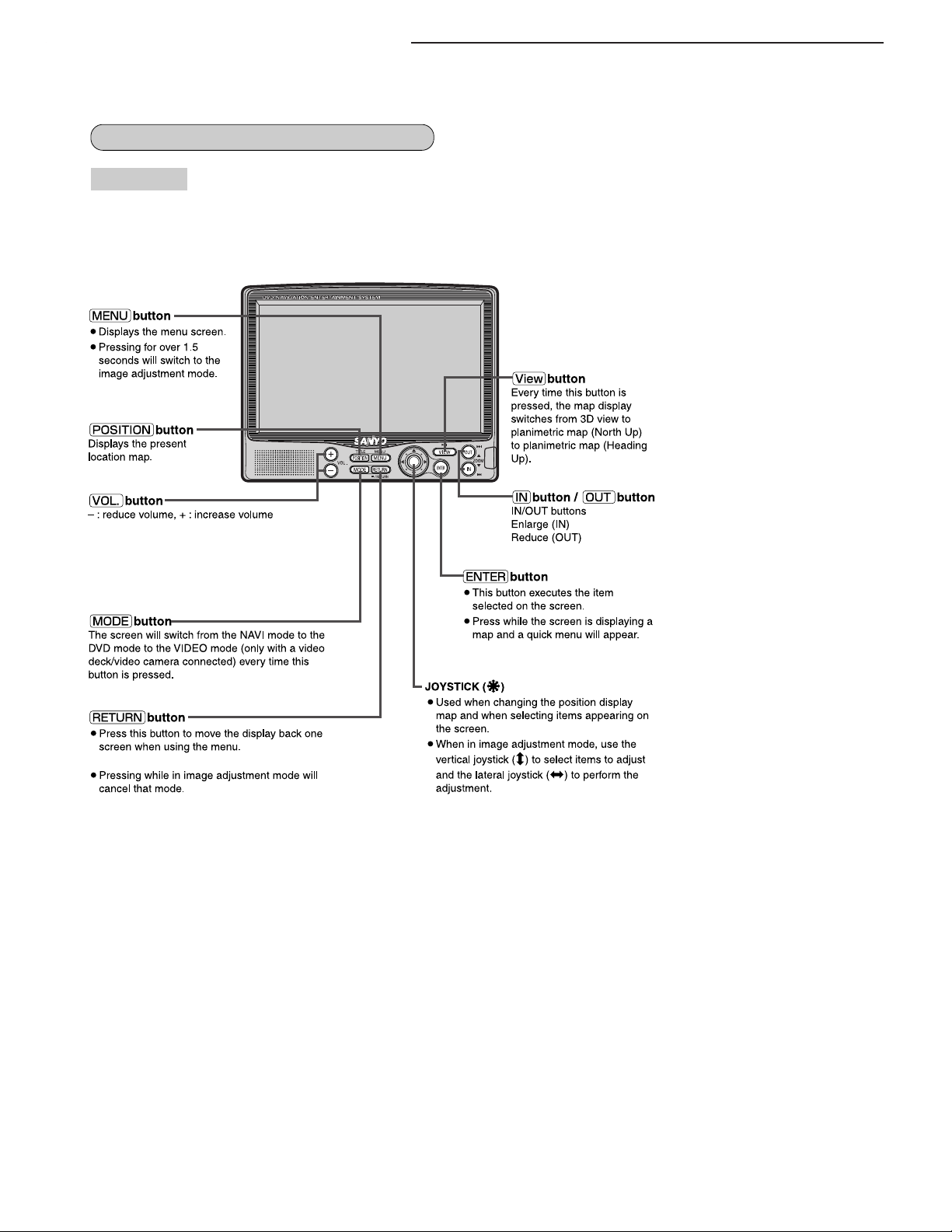

MAIN UNIT
DVD VIDEO/CD OPERATION

_ _
4
COMPONENT NAMES AND FUNCTIONS
Extension terminal
Brake terminal
Connects to the vehicle’s parking
brake signal line.
DC input 9V terminal
Connects to the included 12V
vehicle battery cigarette lighter
cable / the included
AC/DC adaptor.
Headphone terminal
Used when connecting commercially
available headphones.
Audio I/O and optical digital
audio output terminal
Used when connecting the sound
input terminal of a TV or amp
using the included RCA cord
(when in AUDIO mode).
Video I/O terminal
Used when connecting to a TV
image input terminal using the
included RCA cord (when in
VIDEO mode).
Power supply switch
Remote control
infrared receiver
Speaker
Liquid crystal display
Brightness sensor

_ _
5
COMPONENT NAMES AND FUNCTIONS
DVD VIDEO/CD OPERATION

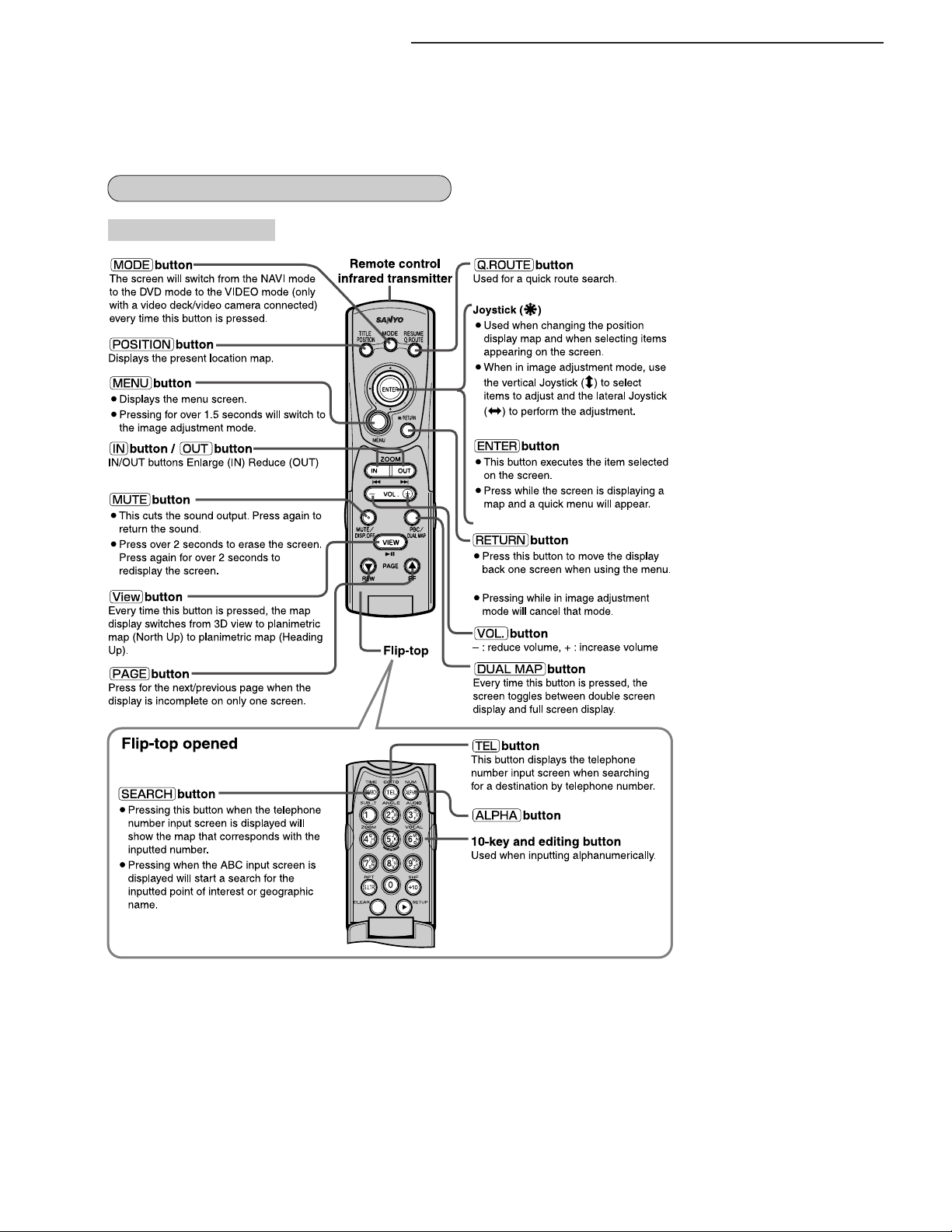

REMOTE CONTROL

_ _
6
COMPONENT NAMES AND FUNCTIONS
10-key button
Used when inputting numeric values.
10-KEY
çbutton
Used to correct values when inputting
numbers using the 10-key buttons.
†button
This button displays the playback time
on the top left corner of the screen.
©button
Displays the chapter search and time
search selection screens.
Nbutton
This button displays the 10-key
numerical value input screen.
ßbutton
(only when playing back DVD
video discs)
Every time this button is pressed, the
subtitle language item is switched
from the list of languages recorded in
the disc.
Abutton
(only when playing back DVD
video discs)
Every time this button is pressed, the
angle is switched.
åbutton
(only when playing back DVD
video discs)
Every time this button is pressed, the
voice language item is switched from
the list of languages recorded in the
disc.
Ωbutton
¡For DVD video discs
Every time this button is pressed, the
screen zooms up 1.5, 2 and 4 times
magnification.
¡For JPEG imaging
Toggles between ZOOM ON and OFF.
Vbutton
(CD)
The sound output is switched every
time this button is pressed.
#button
Every time this button is pressed, the
repeat mode is switched.
Íbutton
(only when in CD mode)
This button is to select shuffle
playback.
!button
Press this button to display the initial
settings screen and setup key.
Flip-top opened

COMPONENT NAMES AND FUNCTIONS
_ _

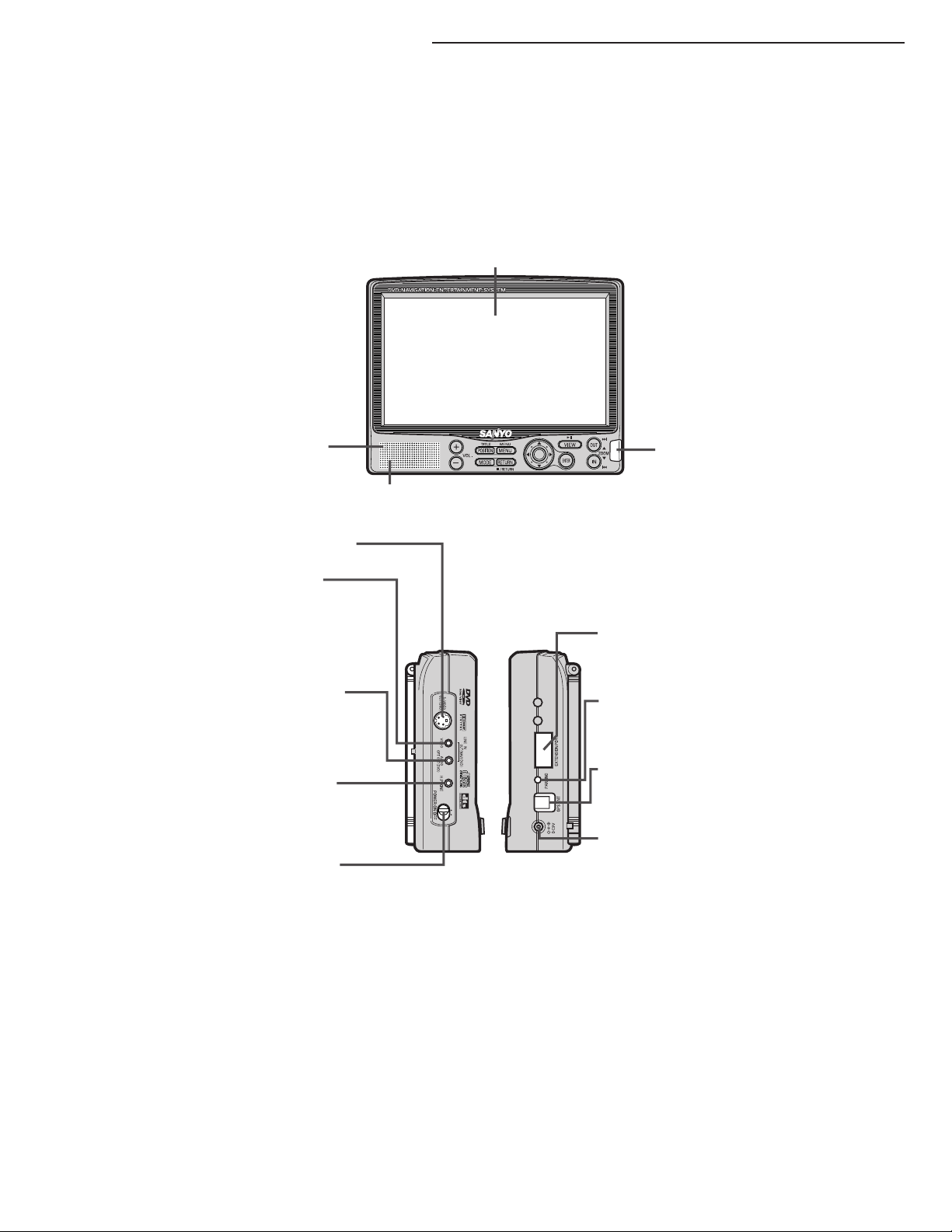

7

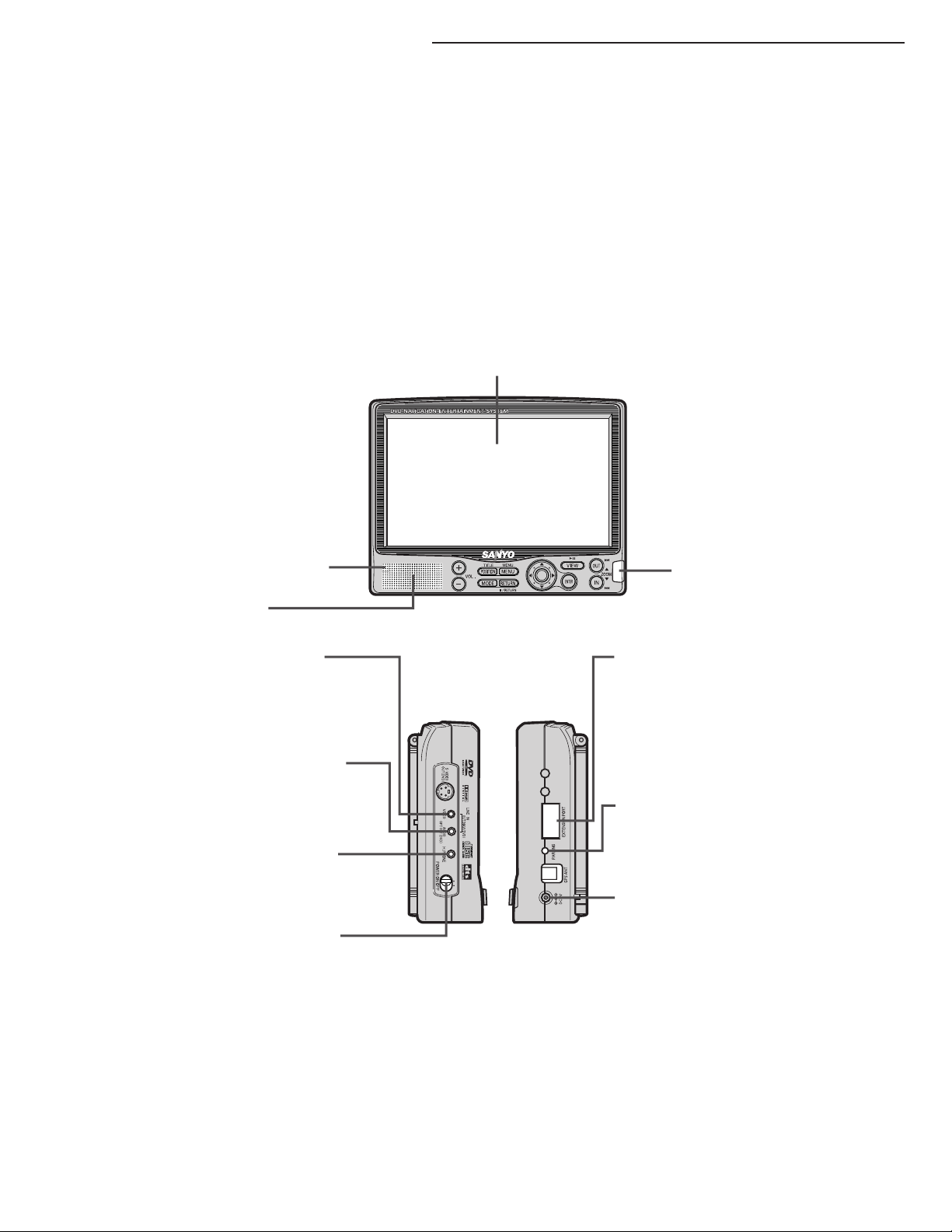

MAIN UNIT
OPERATING THE NAVIGATION UNIT

_ _
8
COMPONENT NAMES AND FUNCTIONS
Extension terminal
Brake terminal
Connects to the vehicle’s parking
brake signal line.
GPS exterior antenna terminal
Connects to the included GPS
exterior antenna.
DC input 9V terminal
Connects to the included 12V vehicle
battery cigarette lighter cable / the
included AC/DC adaptor.
Headphone terminal
Used when connecting commercially
available headphones.
Audio I/O and optical digital
audio output terminal
Used when connecting the sound
input terminal of a TV or amp
using the included RCA cord
(when in AUDIO mode).
Video I/O terminal
Used when connecting to a TV
image input terminal using the
included RCA cord (when in
VIDEO mode).
S-video output terminal
Power supply switch
Remote control
infrared receiver
Speaker
Liquid crystal display
Brightness sensor

_ _
9
COMPONENT NAMES AND FUNCTIONS
REMOTE CONTROL
OPERATING THE NAVIGATION UNIT

_ _
10
DISASSEMBLY
How to remove the PCB - ML,MAIN, DVD MECHANISM,MDVC07 and PCB - ML,DVD.

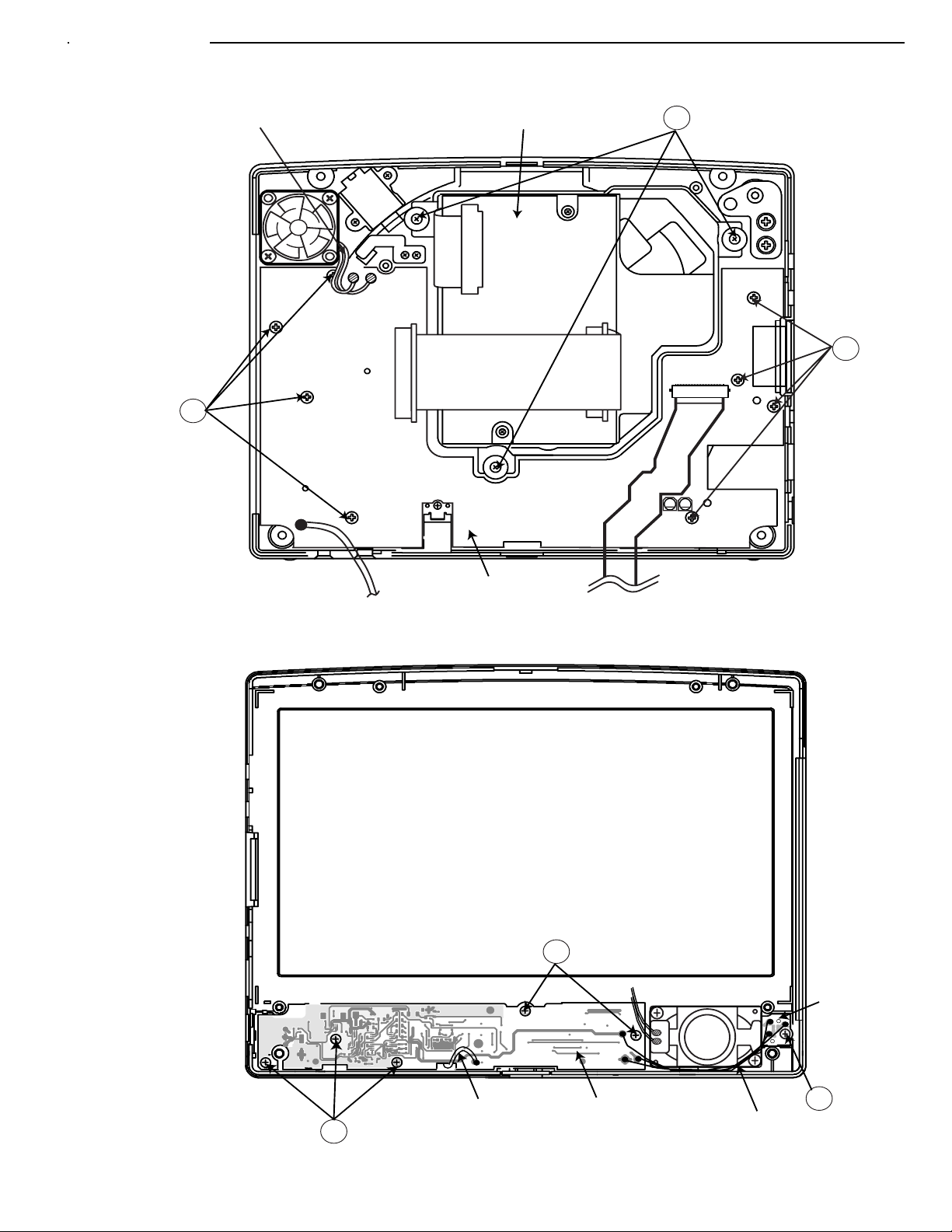

[Refer to figures 1,2,3]
1.Remove 4 screws A which fasten the REAR CABINET ASSY, and the Hook.
Remove FFC,28P which is connected to the PCB - ML,MAIN and PCB - W,LCD.
2.Remove 6 screws B which fasten the PCB - ML,MAIN.
Remove the LEAD WIRES placed on the PCB - ML,DVD side, and FPC.
The PCB - ML,MAIN can be removed.
3.Remove the 3 SPECIAL SCREWS C which fasten the DVD MECHANISM,MDVC07.
Remove FFC,50P which is connected to t he DVD MECHANISM,MDVC07 and
PCB - ML,DVD.
The DVD MECHANISM,MDVC07 can be removed.
4.Remove 8 screws D which fasten the PCB- ML,DVD.
Remove the solder of 2 LEAD WIRES placed on the FAN,MOTOR,DC side.
The PCB - ML,DVD can be removed.
How to remove the PCB- W,LCD [Refer to figures 2]
1.Remove the 2 screws E which fasten the BRACKET, LCD.
2.Remove the solder of 2 LEAD WIRES placed on the SPEAKER side.
The PCB - W,LCD can be removed.
How to remove the PCB - W,KEY. [Refer to figures 2,4]
1.Remove the BUTTON, SCROLL.
2.Remove the 2 screws F which fasten the BRACKET, LCD.
3.Remove FFC,6P.
4.Remove the solder of 3 LEAD WIRES placed on the PCB- W,SENSOR side.
5.Remove the 5 screws G which fasten the PCB - W,KEY.
The PCB - W,KEY can be removed.
How to remove the PCB - W,SENSOR.[Refer to figure 4]
1.Remove SPECIAL SCREW H which fasten the PCB - W,SENSOR.
2.Remove the solder of 3 LEAD WIRES placed on the PCB - W,KEY side.
The PCB - W,SENSOR can be removed.

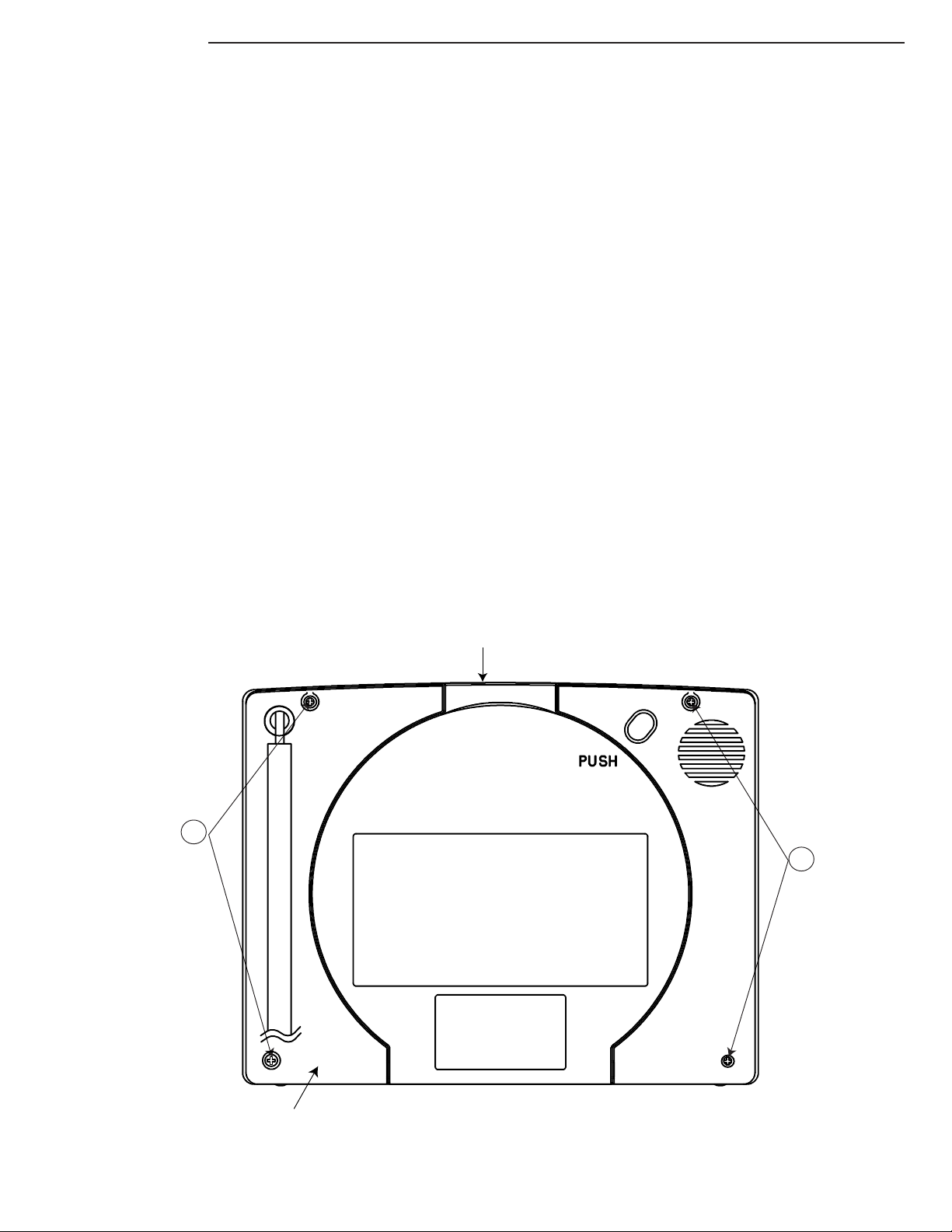

HOOK
A
A
REAR CABINET ASSY Figure1

CS982
CS051
PCB-ML,MAIN
Figure2
B
EE
LEAD WIRE
FFC,6P
LEAD WIRE
LEAD WIRE
B
B
FFC,28P
FPC
LEAD WIRES PLACED
ON SPEAKER SIDE
FF
BRACKET,
LCD BRACKET,
LCD
BRACKET,
LCD
BRACKET,
LCD
+
PCB-W,KEY
PCB-W,LCD
_ _
11
DISASSEMBLY

C796
CS641
CS651
CS601
G
D
C
D
H
G
LEAD WIRE LEAD WIRE
PCB-W,KEY
PCB-ML,DVD
PCB-W,
SENSOR
Figure4
Figure3
LEAD WIRES PLACED
ON FAN,MOTOR,DC SIDE DVD MECHANISM,
MDVC07
FFC,50P
_ _
12
DISASSEMBLY

ADJUSTMENT PROCEDURES
_ _
13
1.Adjustment Conditions
Power supply voltage DC 9.0 V.
Input the suitable signal for each adjustment.
It shifts to TEST MODE by pressing in order of [OUT] [OUT][IN] [IN]
[VOLUME-] [VOLUME [RETURN] [POSITION].
When in TEST MODE, the items can be changed by pressing or
of joystick, and the values can be changed by pressing [VOLUME ] or
.
2.LCD Adjustment
< Adjustment conditions >
In VIDEO MODE, input monochrome10 step signal from VIDEO IN.
Go to TEST MODE and adjust in order of the following.
Adjust each video signal value by default value (COLOR/TINT/ BLACK:
CENTER, DIMMER: MAX, AUTO DIMMER: OFF ).
1 ) B-BAdjustment
Observe VG(CS1, pin 8 ) by Synchro - scope.
Adjust [RGB AMP] to become [4.0V P-P0.1V] between Black - Black
voltage (V
B-B)
2) B -WAdjustment
Observe VG(CS1, pin 8 ) by Synchro - scope.
Adjust [BRIGHT] to become [2.9V P-P0.1V] between Black - White
voltage (VB-W).
3) Red Adjustment
Observe VR(CS1, pin 7 ) by Synchro - scope.
Adjust [SUB R] to become [2.9V P-P0.1V] between Black - White
voltage (VB-W).
4) Blue Adjustment
Observe VB(CS1, pin 6 ) by Synchro - scope.
Adjust [SUB B] to become [2.9V
P-P0.1V] between Black - White
voltage (VB-W)
5) VCOM Adjustment
Observe VCOM(CS1, pin 9 ) by Synchro - scope.
Adjust [COM AMP] to become wave Form [4.0V P-P0.1V]
The steps should be like figure 1 by the above - mentioned adjustment.
][VOLUME-] [VOLUME ]
[ ]
[ ]
[VOLUME-]

_ _
14
SIGNAL
SAME STEPS
BLACK LEVEL
WHITE LEVEL V B B
V B W
V B W BLACK-WHITE VOLTAGE
V B B BLACK-BLACK VOLTAGE
Figure1
Right and left of the both ends of
the white line shall be equalized.
3. FLICKER Adjustment
< Adjustment conditions >
Adjustment shall be done with the combination of a paired LCD module.
Adjustment in TEST MODE.
Display map in NAVI MODE.
Adjust each video signal value by default value.
(BLACK : CENTER. DIMMER : MAX.)
1) FLICKER adjustment
Give a shock to the set, and adjust the [FLICKER] to make the FLICKER
visually optimal.
4. DISPLAY POSITION ADJUSTMENT
< Adjustment conditions >
Display the following screen in NAVI MODE, and adjust the VOLUME on the
reverse side of the LCD module to make the both ends of right and left of the
screen equalize.
Check disc.
ADJUSTMENT PROCEDURES

Pin
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
I/O
1 SDA_D I/O
2 DVD_INT O
3 DVD_RST O
4 VOL_O O
5 DARC_DO O DARC
6 DARC_DI I DARC
7 DARC_CLK O DARC
8 DRAC_CE O DARC
9 DRAC_RST O DARC
10 TV_CLK O TV tuner
TV tuner
TV tuner
TV tuner
11 TV_DATA O
12 TV_LE O
13 TV_LOCK I
14 TV_SD I
15 BYTE I Hi input
16 CNVSS PWR GND
17 AU_SW1 O AUDIO change sw
AUDIO change sw18 AU_SW2 O
19 RST I RESET input
Main clock oscillator input
Main clock oscillator output
Remote control sensor input
20 XOUT O
21 VSS PWR GND
Vortical syncro input
22 XIN I
23 VCC PWR
24 - -
25 VSYNC I
26 DARC_INT I DARC
27 RMC I
28 VD_IN I VIDEO input
29 DOOR I
30 KEY_TX O RS232C output (to NAVI block)
Battery output (to NAVI block)
Parking output (to NAVI block)
Parking input (to NAVI block)
31 BAT_O O
32 PARK_O O
33 PARK_I I
34 CDCHK I GND
35 - -
36 SCL O I2C BUS
I2C BUS37 SDA I/O
38 VICSTX O
39 VCC PWR
40 VICSRX I
41 VSS PWR GND
42 FM_SD I FM tuner SD
FM tuner
FM tuner
FM tuner
FM tuner
43 FM_CE O
44 FM_DO O
45 FM_DI I
46 FM_CLK O
47 - -
48 TV O
49 VIDEO O VIDEO(VIDEO:Hi,Other:Lo)
NAVI(NAVI:Hi,Other:Lo)
DVD(DVD:Hi,Other:Lo)
50 NAVI O
51 DVD O
52 - -
53 RAS O DRAM
54 - -
55 - -
56 POWER O POWER ON/OFF output
57 VSS PWR GND
58 AMP O AMP ON/OFF output
NAVI display(Day/Night)change
59 VCC PWR
60 D_MENU I GND
61 ILM O
62 - -
63 WE O DARM
64 - -
IC501 (M30802)1/2
Signal Function
Power supply4.2 5.5V
Power supply4.2 5.5V
Power Supply 4.2V 5.5V
EXPLANATION OF MICROCOMPUTER
_ _
15

_ _
16
65 CAS O DRAM
66 LMUTE O LINE OUT Mute
Electronic Volume
Electronic Volume
67 VOL_CLK O
68 VOL_DATA O
69
72
73 DA10R O DRAM address
74 VCC PWR
75 DA9 O DRAM address
76 VSS PWR GND
77 DA8
85 DA0
86 NV_BEEP1 I NAVI Beep input
Parking cable plug input
Test mode input
Beep output
Audio mute output
Image mute output
87 NV_BEEP2 I
88 BEEP O
89 SMUTE O
90 DMUTE O
91 VCC PWR
92 - -
93 VSS PWR GND
94
109
110 D7
113 D4
114 - -
115 - -
116 PARK_SW I
117 DISVICS O
118 TEST I
119 D3
122 D0
123 LCD_CLK
124 LCD_DATA
125 LCD_CS
126 DM2 O LCD display mode output
LCD display mode output
127 DM3 O
128 OSD_SW O OSD display output
Dimmer output
Dimmer sensor input
Temperature input
Battery input
Battery reference
129 DIMOUT O
130 VSS PWR GND
131 MODEL_SW I Model(NV-DK700/750)change
132 VCC
133 - -
134 - -
135 - -
136 TEMP I
137 BAT_I I
138 DIMIN I
139 FM_SM I
140 AVSS PWR Analog GND
Analog power supply
141 - -
142 VREF PWR
143 AVCC PWR
144 SCL_D I/O
DRAM
DRAM data
O LCD I/F CLOCK
I/O
I/O
-
--
O DRAM address
-
Pin I/O
IC501 (M30802)2/2
Signal Function
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
Power supply 4.2V 5.5V
Power supply 4.2V 5.5V
Power supply 4.2V 5.5V
EXPLANATION OF MICROCOMPUTER

_ _
17
Pin I/O
1 LVcc PWR +3.3V
2 HD8
3 HD7
4 HD9
5 HD6
6 HD10
7 HD5
8 HD11
9 HD4
10 HD12
11 HD3
12 HD13
13 GND PWR 0V
14 HD2
15 HD14
16 HD1
17 HD15
18 HD0
19 LVcc PWR +3.3V
20 HDREQ I ATAPI DMA transmit request
21 /HRD O ATAPI Read strobe
ATAPI Write strobe
22 /HWR O
23 /HIORDY I ATAPI Wait
24 /HDACK O ATAPI DMA transmit strobe
25 HA1 O ATAPI Address bus
ATAPI Address bus
ATAPI Address bus
26 HA0 O
27 HA2 O
28 /HCS1 O ATAPI Control Register chip select
ATAPI Command Register chip select
29 /HCS3 O
30 GND PWR 0V
31 LVcc PWR +3.3V
32 FM-ASIC I
33 ASIC-FM O
34 BEACON-ASIC I
35 ASIC-BEACON O
36 GYRO-ASIC I
37 ASIC-GYRO O
38 - I Pull-up
39 - -
40 IRQ_FM O
41 IRQ_BEACON O
42 IRQ_GYRO O
43 - -
44 VCK I Clock input(7.15909MHz)
45 SC O 3.579545MHz output
46 PLLCK O 15.7342kHz output
47 GND PWR 0V
48 /CS_CARD O PC card chip select
49 /LOAD I BOOT Soft load
50 SI O Serial data output(Voice Gaideance)
L/R clock(Voice Gaideance)
Clock output(Voice Gaideance)
51 LRCK O
52 SCK O
53 /WAIT_Q2 I Q2i Wait input
54 /CS_Q2UGM O Q2i UGM chip select
I/O ATAPI data bus
ATAPI data bus
I/O
IC861 (LC24072B)1/2
Signal Function
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
EXPLANATION OF MICROCOMPUTER

_ _
18
66 /DACK1
67 /DACK0
68 /WAIT O Wait output
69 /CS6
70 /CS5
71 /CS4
72 /CS0
73 GND PWR 0V
74 /WE1
75 /WE0
76 /RD I Read strobe
77 SA22 I Address bus
Address bus
78 SA5
82 SA1
83 GND PWR 0V
84 SD0
89 SD5
90 GND PWR 0V
91 LVcc PWR +3.3V
92 SD6
99 SD13
100 GND PWR 0V
101 SD14
109 SD22
110 GND PWR 0V
111 SD23
119 SD31
120 GND PWR 0V
I/O
I/O
I/O
I/O Data bus
Data bus
Data bus
Data bus
I
I Chip select input
I Write strobe
O DMA acknowledge
Pin I/O
55 /CS_Q2REG O Q2i inside register chip select
56 ADPCM_SW I ADPCM switch
DMA request
57 GND PWR 0V
58 /RST_3 I Power on reset
59 CKIO I System clock input(39.3216MHz)
60 GND PWR 0V
61 LVcc PWR +3.3V
62 /FCS O Flash memory chip select
Flash memory write strobe
63 /FWE O
64
65
/DREQ1
/DREQ0 O
IC861 (LC24072B)2/2
Signal Function
EXPLANATION OF MICROCOMPUTER

_ _
19
EXPLANATION OF MICROCOMPUTER
IC801 (HD6417706)1/3
Pin Signal I/O Function
1 LLVcc PWR +1.9V
2 XTAL2 O NC
3 EXTAL2 I Pull-up
4 GND PWR 0V
5 SD31
10 SD26
11 GND PWR 0V
12 SD25 I/O
13 LVcc PWR +3.3V
14 SD24
18 SD20
19 GND PWR 0V
20 SD19 I/O
21 LLVcc PWR +1.9V
22 SD18
24 SD16
25 GND PWR 0V
26 SD15 I/O
27 LVcc PWR +3.3V
28 SD14
36 SD6
37 GND PWR 0V
38 SD5 I/O
39 LVcc PWR +3.3V
40 SD4
44 SD0
45 SA0
48 SA3
49 GND PWR 0V
50 SA4 O
51 LVcc PWR +3.3V
52 SA5
60 SA13
61 GND PWR 0V
62 SA14 O
63 LVcc PWR +3.3V
64 SA15
70 SA21
71 GND PWR 0V
72 SA22 O
73 LVcc PWR +3.3V
74 SA23
76 SA25
I/O Data bus
Data bus
Data bus
Data bus
Data bus
Data bus
Data bus
Data bus
Data bus
Address bus
Address bus
Address bus
Address bus
Address bus
Address bus
Address bus
I/O
I/O
I/O
I/O
O
O
O
O
