Sanyo DS19330 User manual

AS
FILE NO.
SERVICE MANUAL
(SUPPLEMENT) Remote Control Color
Television DS19330 (U.S.A.)
(CANADA)
ORIGANALVERSION
Chassis No. 19330-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to
the Original Service Manual
prior to servicing the unit.
G8MDA, PRODUCT CODE 111363880 REFERENCE No. SS780042
THIS CHASSIS IS SIMILARTO MODEL DS19310, CHASSIS NUMBER
19310-04. SERVICE INFORMATION GIVEN INTHIS MANUAL IS ONLYTHE
DIFFERENCE INFORMATION FROM MODEL DS19310, CHASSIS
NUMBER 19310-04. FOR ADDITIONAL SERVICE INFORMATION, REFER
TOTHE SERVICE MANUAL FOR CHASSIS NUMBER 19310-04 USED IN
MODEL DS19310 (SM5110224-04).
AS
POWER
MENU
CH VOL
AUDIO IN
VIDEO IN

1 610 278 9713 CABINET FRONT ASSY 610 303 8988 CAB FRONT ASSY
4 610 289 2581 CABINET BACK 610 307 5297 CABINET BACK
6 610 289 3731 BUTTON UNIT 610 304 5245 BUTTON UNIT
7 610 289 5148 CAP RC 610 267 0851 CAP RC
610 289 8071 DEC SHEET N/A NOT USED
610 297 8810 OWNER’S MANUAL 610 304 4095 OWNER’S MANUAL
DIFFERENCES
MODEL DS19330 (Chassis No. 19330-00) SAME AS MODEL DS19310 (Chassis
No. 19310-04) EXCEPT:
1. INTHE CABINET / ACCESSORY PARTS LIST
MODEL DS19310 (Chassis No. 19310-04) MODEL DS19330 (Chassis No. 19330-00)
Part No. Description
KEY NO. Part No. Description
4
5
6
7
1
3
2
POWER
MENU
CH VOL
AUDIO IN
VIDEO IN
8
AS
April / 2003 / 2000 SMC Printed in U.S.A.
For parts or service contact
21605 Plummer Street
Chatsworth, CA 91311 (U.S.A.)
300 Applewood Crescent,
Concord, Ontario L4K 5C7 (CANADA)
SANYO FISHER SERVICE

Specifications
Power Rating . . . . . . . . . . . . . . . . . . . . . 120V, 60Hz
58W (Avg), 1.4A (Max)
Antenna Input Impedance. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
Receiving Channel . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-125 (CATV)
Remote Ready . . . . . . . . . . 24 Key Remote Control
Sound Output . . . . . . . . . . . . . . . . . . . . . . 1.0 W/CH
Intermediate Frequency
Picture IF Carrier. . . . . . . . . . . . . . . . . . 45.75MHz
Sound IF Carrier . . . . . . . . . . . . . . . . . . 41.25MHz
Color Sub Carrier . . . . . . . . . . . . . . . . . 42.17MHz
Picture Tube. . . . . . . . . . . . . . . . . . A48KRD82X(DT)
Semiconductors
Integrated Circuits. . . . . . . . . . . . . . . . . . . . . . . . 7
Transistors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Except within Tuner and RC Pre-Amp.
Cabinet Dimensions
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 488mm
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452mm
Depth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 467mm
REFERENCE No. SM5110224-04
DS19310, G8EHM, PRODUCT CODE 111355483
AS
FILE NO.
SM5110224
REF : No.
COLOR TELEVISION
Notice
CORRECTION
SERVICE FLASH
PRODUCTION CHANGE
ADD INFORMATION
Please add this notice to the Service Manual listed below. REVISION 04
Category :
DS19310
Model:
U.S.A. / CANADA
Destination:
MARCH / 15 / 2002
Date:
19310-04
Effective from : Chassis No.
NOTE: Match the Chassis No. on the unit’s back cover with the Chassis No. in the Service Manual.
If the Service Manual Chassis No. does not match the unit’s, additional Service Literature is
required. This chassis is similar to Chassis No. 19310-00, however, all Service Information is
given in this Notice for Chassis No. 19310-04 used in Model DS19310.
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . 2
Service Adjustments. . . . . . . . . . . . . . 3 - 8
Service Hints. . . . . . . . . . . . . . . . . . . . . . . 9
Purity and Convergence . . . . . . . . . 10 - 11

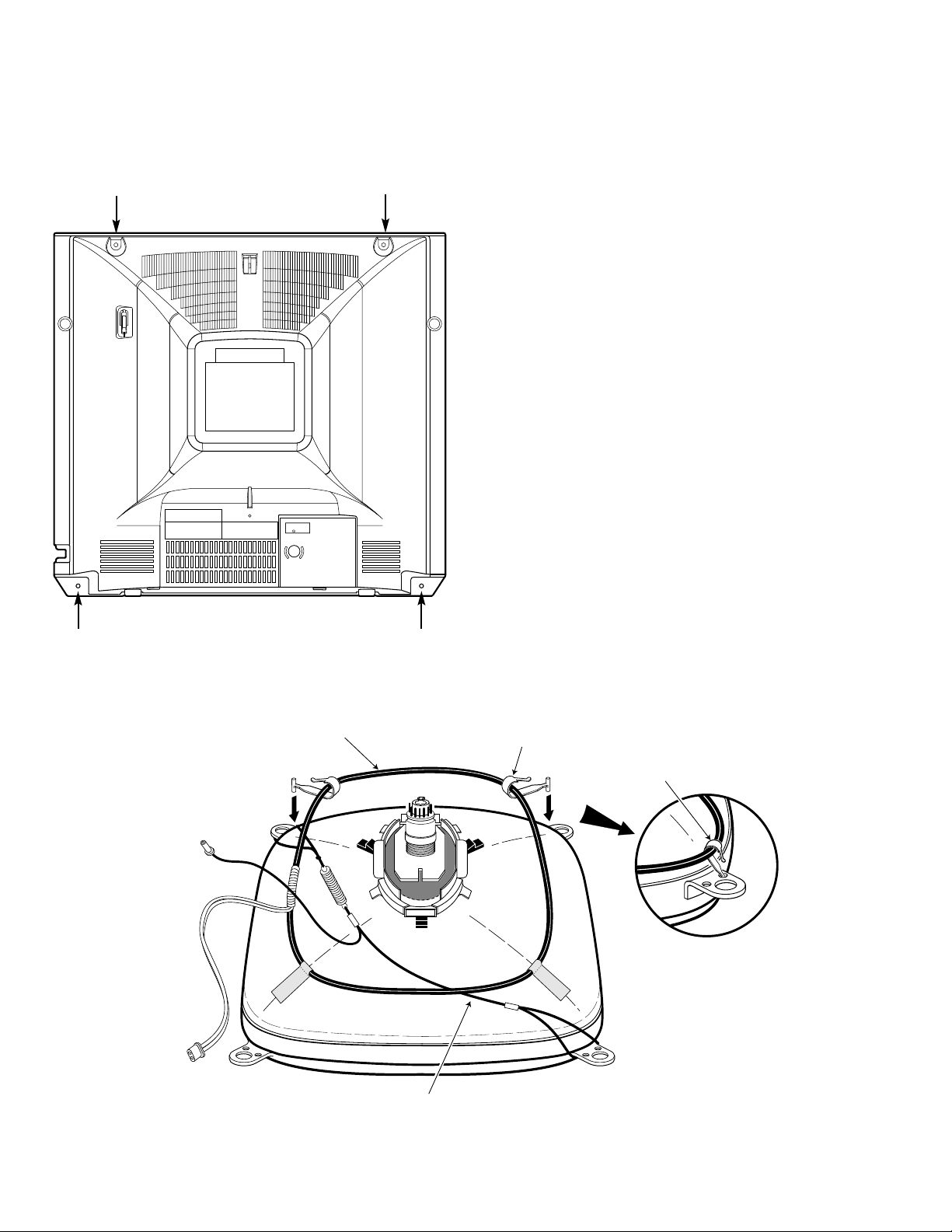

Mechanical Disassemblies. . . . . . . . . . . 12
Chassis Electrical Parts List . . . . . . 13 - 18
Cabinet Parts List . . . . . . . . . . . . . . . . . . 19
Component and Test Point
Locations . . . . . . . . . . . . . . . . . . . 20 - 23
Schematic Insert . . . . . . . . . . . . . . . 25 - 32
Schematic Notes . . . . . . . . . . . . . . . . . 25
Pin Layouts . . . . . . . . . . . . . . . . . . . . . 25
Capacitor and Resistor Codes . . . . . . 25
Block Diagram. . . . . . . . . . . . . . . 26 - 27
Voltage Charts . . . . . . . . . . . . . . . 26 - 27
Waveforms. . . . . . . . . . . . . . . . . . . . . . 28
Schematic Diagrams . . . . . . . . . . 29 - 32

— 2 —
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provid-
ed on the side of the cabinet, inside the cabinet, on the
chassis, and the picture tube.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
DO NOT OPERATE THIS TELEVISION RECEIVER
WITHOUT THE PROTECTIVE SHIELD IN POSITION AND
PROPERLY SECURED.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 µF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in solid-state receivers is
the picture tube. The picture tube is specially constructed to
limit X-Ray emission. For continued X-RADIATION protection,
the replacement tube must be the same type as the original
(including the suffix letter in the part numbers). Excessive high
voltage may produce potentially hazardous X-RADIATION. To
avoid such hazards, the high voltage must be maintained within
specific limits. Refer to the X-RADIATION WARNING NOTE on
the CHASSIS SCHEMATIC in this service manual for specific
high voltage limits. If the high voltage exceeds specified limits,
check the components specified on the chassis schematic
diagram and take the necessary corrective action. Carefully
follow the instructions for the +B Voltage Check and the High
Voltage Check to maintain the high voltage within the specified
limits.
HIGHVOLTAGE HOLD-DOWNTEST
To prevent X-RADIATION from the picture tube due to
excessive high voltage, a HOLD-DOWN circuit is provided in
the high voltage circuit. Every time the receiver is serviced,
the high voltage HOLD-DOWN circuit must be tested for
proper operation. Refer to the HIGH VOLTAGE HOLD-
DOWN TEST in service adjustments.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
star (★) in the parts list and in the schematic diagrams. To
ensure safe product operation, it is necessary to replace
those components with the exact same PARTS.
SAFETY INSTRUCTIONS
0.15 µF 150V AC
1500 ohm
10 watt
Good earth ground
such as a water pipe,
conduit, etc.
AC OUTLET
TELEVISION
RECEIVER
READING SHOULD NOT EXCEED 750 mV.
AC VOLTMETER
(5000 ohms per volt or more sensitivity)
To be touched to all of exposed metal parts.
Voltmeter Hook-up for Leakage Current Check.

GENERAL
Thisset hasan On-screenServiceMenu systemincluded inthe CPUthat allows remote operation formost of the service adjustments.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•While pressing the MENU key, reconnect the AC power cord. The Service Menu Display will now appear. (See Figure 1.)
2. Service Adjustments:
•Press the ▲or ▼key to select the desired service menu item you want to adjust. (See page 4 for On-screen Service
Menu.)
•Use the + or – key to adjust the data.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu display.
SERVICE ADJUSTMENTS
— 3 —
OPT XX
Figure 1. Service Menu Display
TITLE
HEXADECIMAL DATA
IC802 (EEPROM) REPLACEMENT
When IC802 (EEPROM) is replaced, IC801 (CPU) will automatically write the initial reference data into IC802 for basic TV operation.
However, the bus data should be checked and some bus data should be set up before attempting the service adjustments.
(See pages 4 – 5 for detailed information.)
INITIAL BUS DATA SETUP
Note:When IC802 (EEPROM) is replaced, the Service Menu No. 4 VS (V Size), No. 7 VLN (V Linearity) No. 10 VSC (V S Cor.)
No. 21 SBI (Sub Bias), No. 32 BSG (Blk Stk Gain), No. 42 RAD (RF AGC Delay), No. 49 STI (Sub Tint), No. 50 SSH (Sub
Sharp), and No. 51 OPT (Option 1) should be set up for proper TV operation before attempting the service adjust-
ments.
Bus data is in the hexadecimal format.
1. Disconnect the AC power cord (AC 120V line).
2. While pressing the MENU key, reconnect the AC power cord. The Service Menu display will now appear.
3. Select No. 4 VS (V Size) with ▲or ▼key. Adjust the data with + or – key for 50.
4. Select No. 7 VLN (V Linearity) with ▲or ▼key. Adjust the data with + or – key for 15.
5. Select No. 10 VSC (V S Correction) with ▲or ▼key. Adjust the data with + or – key for 0A.
6. Select No. 32 BSG (Blk Stk Gain) with ▲or ▼key. Adjust the data with + or – key for 02.
7. Select No. 42 RAD (RF AGC Delay) with ▲or ▼key. Adjust the data with + or – key for 20.
8. Select No. 49 STI (Sub Tint) with ▲or ▼ key. Adjust the data with + or – key for 17.
9. Select No. 51 OPT (Option 1 with ▲or ▼key. Adjust the data with + or – key for 04.
10. Press the MENU key to turn off the Service Menu display.

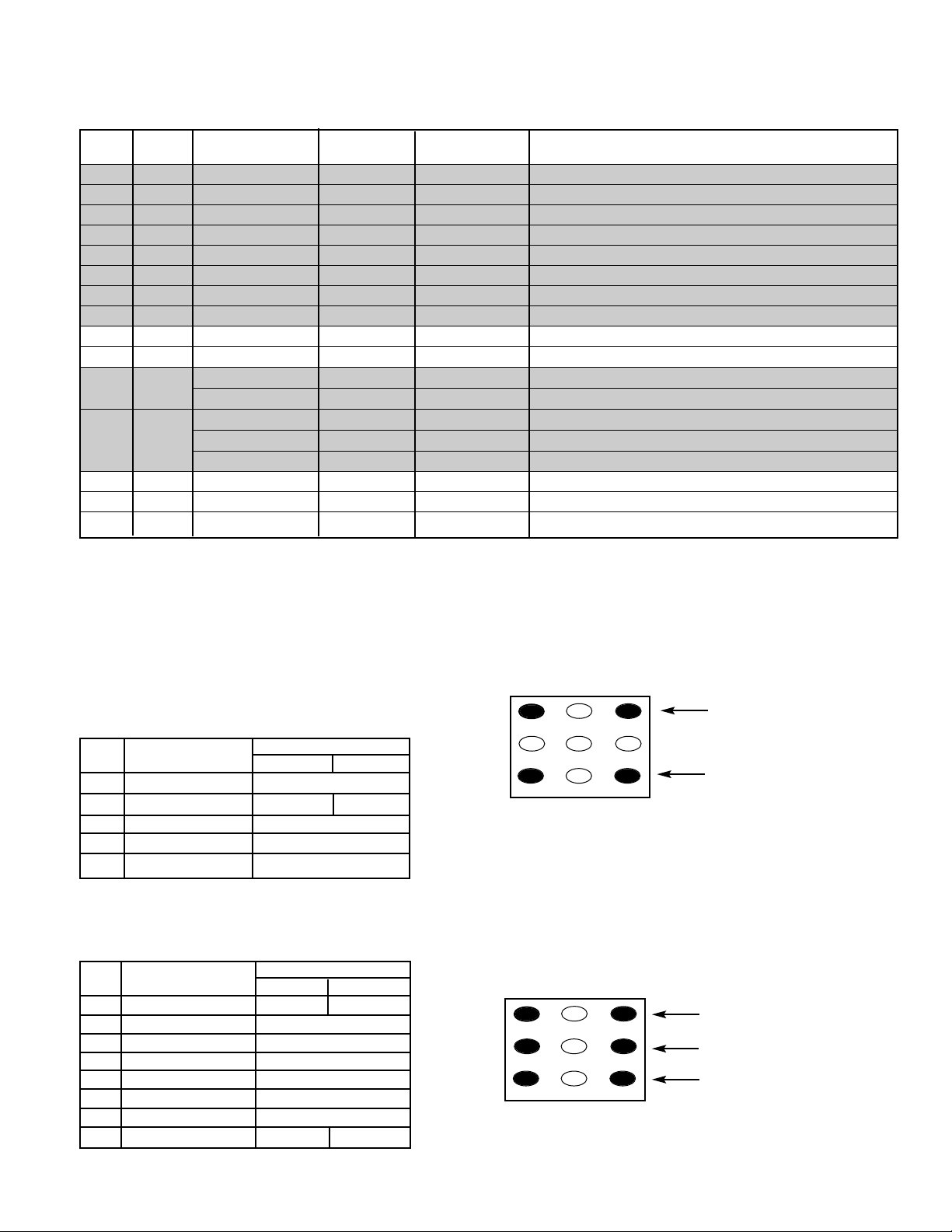

No. TITLE INITIAL REFERENCE INITIAL SETUP RANGE OF DATA FUNCTION
DATA DATA
1 HFR 1E 1E 00~3F Horizontal Frequency
2 AFC 00 00 00, 01 AFC Gain and Gate
3 HP 0E 0E* 00~1F Horizontal Phase (Horizontal Centering)
4 VS 32 50* 00~7F Vertical Size
5 VPO 05 05 00~3F Vertical Position
6 VSP 00 00 00, 01 Vertical Set Up (Sync Sensitivity)
7 VLN 13 15* 00~1F Vertical Linearity
8 CRS 00 00 00~03 Cross B/W
9 GRY 01 01 00, 01 Grey Mode
10 VSC 08 0A* 00~1F Vertical S Correction
11 HBR 03 03 00~07 Horizontal Blanking Right
12 HBL 04 04 00~07 Horizontal Blanking Left
13 CDM 00 00 00, 01 Color Difference Mode
14 VC 07 07 00~07 Vertical Compression
15 RB 00 00 00~FF Red Bias
16 GB 00 00 00~FF Green Bias
17 BB 00 00 00~FF Blue Bias
18 RD 40 40 00~7F Red Drive
19 GD 08 08 00~0F Green Drive Reduction
20 BD 40 40 00~7F Blue Drive
21 SBI 30 30 00~7F Sub Bias
22 OSD 02 02 00~03 On Screen Display Contrast
23 POS 01 01 00, 01 Preshoot Overshoot Switch
24 FLS 01 01 00, 01 Filter System
25 CKO 03 03 00~07 Color Killer operation
26 GYA 00 00 00, 01 G-Y Angle
27 CRG 02 02 00~03 Corring Gain
28 PRE 03 03 00~03 Preshoot Adjust
29 WP 01 01 00, 01 White Peak Limiter 01: OFF 00: ON
30 FSW 00 00 00, o1 Flyback Blanking Switch
31 VBL 00 00 00, 01 Vertical Blanking Switch
32 BSG 01 02* 00~03 Black Stretch Gain
33 BSS 01 01 00~03 Black Stretch Start
34 DCR 01 01 00~03 DC Reset
35 YGM 01 01 00~03 Y Gamma Start
36 CBP 00 00 00, 01 C Bypass
37 AF 01 01 00, 01 Auto Flesh 0: OFF 1: ON
38 BAT 04 04 00~07 Bright ABL Threshold
39 MSD 00 00 00, 01 Mid Stop Defeat
40 ABL 00 00 00, 01 ABL Defeat 0: OFF 1: ON
41 RYA 02 02 00~0F R-Y/B-Y Angle
42 RAD 0F 20* 00~3F RF AGC Delay
43 IAS 00 00 00. 01 IF AGC Switch 0: TV (Normal) 1: AV (IF Gain Minimum)
44 FMM 00 00 00, 01 FM Mute
— 4 —
Table 1. ON-SCREEN SERVICE MENU
When IC802 (EEPROM) is replaced, check the bus data to confirm they are the same as below. The shaded menu should be
checked and be set up or readjusted according to the procedures described in the following pages. Initial Setup Data marked
with an * should be changed from Initial Reference Data. (See page 3 for Initial Bus Data Setup.)

NO. TITLE INITIAL REFERENCE INITIAL SETUP RANGE OF DATA FUNCTION
DATA DATA
45 FL 0F 0F 00~1F FM Level
46 VL 05 05 00~07 Video Level
47 SB 20 20 00~3F Sub Bright
48 SCO 0A 0A 00~1F Sub Color
49 STI 16 17* 00~1F Sub-Tint
50 SSH 12 0C* 00~1F Sub Sharpness
51 OPT 00 04* 00~FF Option 1 (See Note 1 below.)
52 OPT2 00 00 00~FF Option 2 (See Note 2 below.)
53 HR 13 13 00~3F On Screen Display Horizontal Position
54 SBO 05 05 00~FF Sub Bright Offset
55 DRV R40 R40 00~7F Red Drive Adjustment (See Note 3 below.)
R40 R40 00~7F Blue Drive Adjustment (See Note 3 below.)
– 0 0 00~FF Red Bias Adjustment (See Note 4 below.)
56 – 0 0 00~FF Green Bias Adjustment (See Note 4 below.)
– 0 0 00~FF Blue Bias Adjustment (See Note 4 below.)
57 R00 0 0 00~FF N/A
↓↓ ↓ ↓ ↓ ↓
115 R48 0 0 00~FF N/A
— 5 —
Table 1. ON-SCREEN SERVICE MENU (Continued)
When IC802 (EEPROM) is replaced, check the bus data to confirm they are the same as below. The shaded menu should be
checked and be set up or readjusted according to the procedures described in the following pages. Initial Setup Data marked
with an * should be changed from Initial Reference Data. (See page 3 for Initial Bus Data Setup.)
PROGRAM CODE
The microprossesor used in this model is a multi-purpose
type and is used in several different models. To ensure
proper operation and the correct features for your particu-
lar model, the Program Code must be correct.
Note 1. Option Data (NO. 51 OPT) should be set to hexa-
decimal 04. See page 3 INITIAL DATA SETUP step 9 for set
up procedure. If this program code is wrong the TV will not
operate properly.
Note 2. Option Data (NO. 52 OPT2) should be set to hexa-
decimal 00. If this program code is wrong the TV will not
operate properly.
Note 3. Red/Blue Drive Adjustments in Service Menu NO.
55 DRV: Adjust Red and Blue Drive Levels alternately with
1, 3, 7, and 9 keys on the remote control. (See Figure 2.) The
Drive Level adjustment data will be written in the Service
Menu No. 18 RD and 20 BD automatically.
123
456
7 98
RB(–) RB(+)
BB(–) BB(+)
(N/A)
GB(–) (N/A) GB(+)
(N/A)
FOR RED BIAS ADJUSTMENT
FOR BLUE BIAS ADJUSTMENT
FOR GREEN BIAS ADJUSTMENT
Figure 2.
Figure 3.
123
4 5 6
7 98
RD(–) RD(+)
BD(–) BD(+)
(N/A)
(N/A) (N/A) (N/A)
(N/A)
FOR RED DRIVE ADJUSTMENT
FOR BLUE DRIVE ADJUSTMENT
Note 4. Red/Green/Blue Bias Adjustments in Service
Menu NO. 56: Adjust each Bias Level with 1, 3, 4, 6, 7, or 9
key on the remote control. (See Figure 3.) The Bias Level
adjustment data will be written in the Service Menu
No. 15 RB, No. 16 GB, and No. 17 BB automatically.
BIT FUNCTION DATA
01
0, 1 TV/HOTEL/MONITOR NOT USED
2 VIDEO INPUT NONE YES
3, 4 CLOCK NOT USED
5 STEREO/MONO NOT USED
6, 7 SURROUND NOT USED
BIT FUNCTION DATA
01
0 V–GUIDE YES NONE
1 COLOR ENHANCER NOT USED
2 INITIAL CHANNEL NOT USED
3 NOT USED NOT USED
4 PIP NOT USED
5 AV1/AV1, AV2 NOT USED
6 TONE/BASS, TREBLE NOT USED
7 GAME KEY NONE YES

SERVICE ADJUSTMENTS (Continued)
— 6 —
ANTENNA CONNECTIONS
This receiver is designed for UHF/VHF reception. A 75 ohm
terminal is provided for UHF and VHF receptions. When
connecting a CATV antenna system, connect the 75 ohm
coaxial cable directly to the 75 ohm terminal. For 300 ohm
VHF antenna, use an adapter (not included with the TV set).
CIRCUIT PROTECTION
Fuse F601 (4A) is included in the AC line. This fuse must be
replaced with the proper fuse (see Parts List).
+BVOLTAGE CHECK
Connect Voltmeter + lead to TJ1 135V and – lead to ground
(TE7). Connect receiver to AC 120V line. Tune receiver to an
active channel. Reset the picture controls to the AUTO
level. Voltage must measure between +133.0V and +137.0V.
If the voltage is out of this range, the power circuit must be
checked. No +B adjustment is provided on this chassis.
HORIZONTAL CENTERINGADJUSTMENT
1. Tune receiver to an active channel.
2. Check that picture is in the horizontal center of TV screen. If
picture is not centered horizontally, perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord
(120V AC line).
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 3 HP (Horizontal Phase) with ▲or ▼key.
6. Adjust the data with + or – key for horizontal center. To
turn off the Service Menu display, press the MENU key.
VERTICAL SIZEADJUSTMENT
1. Tune receiver to an active channel.
2. Check the vertical size of the picture. If the vertical size is
too large or small, perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord
(120V AC line).
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 4 VS (Vertical Size) with ▲or ▼ key.
6. Adjust the data with + or – key for full scan. To turn off
the Service Menu display, press the MENU key.
VERTICAL CENTERINGADJUSTMENT
1. Tune receiver to an active channel.
2. Check that picture is in the center of TV screen. If picture
center is too low, change resistor R513 (3.9K ohm, 1/6W) to a
470 ohm, 1W. If picture center is too high, add resistor R512
(470 ohm, 1W).
GRAYSCALEADJUSTMENT
1. Set the picture controls to the Auto levels (use MENU
key and ▲or ▼ key or RESET key).
2. Turn off the receiver and disconnect the AC power cord
(120V AC line).
3. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
4. Select NO. 15 RB (Red Bias), NO. 16 GB (Green Bias),
and NO. 17 BB (Blue Bias) with ▲or ▼ key and set each
data to 0 with + or – key.
5. Select NO. 18 RD (Red Drive) and NO. 20 BD (Blue Drive)
with ▲or ▼key and set each data to 40 with + or – key.
6. Set NO. 19 GD (Green Drive Reduction) data to 08, NO. 47
SB (Sub Brightness) data to 20, NO. 48 SCO (Sub Color)
data to 0A, NO. 49 STI (Sub Tint) to 17 and NO. 50 SSH (Sub
Sharpness) data to 0C with ▲or ▼, and + or – keys.
7. Turn Screen Control (T402) to minimum (fully counter-
clockwise).
8. Select the Service Menu NO. 56 (Bias Adjustments) with
▲or ▼key.
9. Advance Screen Control (T402) clockwise to obtain just
visible one color line. If line does not appear, place this
control to maximum (fully clockwise).
10. Raise each Bias Level with 3, 6, and 9 keys to obtain just
visible white line. (See Figure 4.)
11. Select the Service Menu NO. 55 DRV (Drive Adjustments)
with ▲or ▼key.
12. Adjust Red and Blue Drive Levels alternately with 1, 3,
7, or 9 key to produce normal black and white picture in
highlight areas. (See Figure 5.)
13. Check for proper grayscale at all brightness levels.
To turn off the Service Menu display, press the MENU key.
Note: If Grayscale Adjustment is made after picture tube
replacement, check Brightness Level Adjustment.
FOCUSADJUSTMENT
Adjust focus control (T402) for well defined scanning lines.
CAUTION FOR CONTINUED PROTECTION AGAINST
A RISK OF FIRE, REPLACE ONLY WITH
THE SAME TYPE 4A, 125V FUSE.
ATTENTION : POUR MAINTENIR LA PRO-
TECTION CONTRE LES RISQUES
D’ INCENDIE UTILISER UN FUSIBLE DE
RECHANGE DE MEME TYPE 4A, 125V.
4A 125V
123
456
7 98
RB(–) RB(+)
BB(–) BB(+)
(N/A)
GB(–) (N/A) GB(+)
(N/A)
FOR RED BIAS ADJUSTMENT
FOR BLUE BIAS ADJUSTMENT
FOR GREEN BIAS ADJUSTMENT
Figure 4. Remote Control Number keys’ functions in
Service Menu NO. 56
123
4 5 6
7 98
RD(–) RD(+)
BD(–) BD(+)
(N/A)
(N/A) (N/A) (N/A)
(N/A)
Figure 5. Remote Control Number keys’ functions in
Service Menu NO. 55 DRV
FOR RED DRIVE ADJUSTMENT
FOR BLUE DRIVE ADJUSTMENT

— 7 —
VCOADJUSTMENT
Note: VCO must be adjusted after IC101 (Signal
Processor), IC802 (EEPROM) or T151 (VCO Coil) is
replaced.
1. Tune receiver to an active channel.
2. Set the picture controls to the Auto level.
3. Connect digital voltmeter + lead to pin 58 of IC101 and
– lead to ground (TE 7).
4. Confirm a reading of 3.6 ± 0.2 VDC.
5. If voltage is out of specifications adjust T151 for
3.6 ± 0.2 VDC.
RFAGCADJUSTMENT
1. Tune receiver to strongest VHF station in your area.
2. Set contrast and brightness controls for maximum.
3. Turn off the receiver and disconnect the AC power cord
(120V AC line).
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 42 RAD (RF AGC Delay) with ▲or ▼key.
6. Adjust the data with + or – key in the direction which
causes snow to appear; then in the opposite direction
until the snow just disappears.
7. To turn off the Service Menu display, press the MENU key.
BRIGHTNESS LEVELADJUSTMENT
Note: Grayscale, RF-AGC, Video Level, and High Voltage Check
must be adjusted before attempting Brightness Level
Adjustment.
1. Connect a color-bar generator to the antenna terminals.
2. Switch the generator to the crosshatch pattern.
3. Reset the picture controls to the Auto levels.
4. Connect voltmeter (high impedance) + lead to terminal
TP51 and – lead to terminal TP50 on main board. Set
voltmeter for 1.5V ~ 3V range.
5. Turn off the receiver and disconnect the AC power cord
(120V AC line).
6. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
7. Select NO. 47 SB (Sub Brightness) with ▲or ▼key.
8. Adjust the data with + or – key for 820 mVDC.
9. Press the MENU key to turn off the Service Menu display.
10. Check brightness level on every active channel, readjust
(repeat steps 5 ~ 9), if necessary.
Note: Do not set to excessive brightness level, otherwise
the contrast level will be suppressed.
HIGHVOLTAGE HOLD-DOWNTEST
Every time the receiver is serviced, the HIGH VOLTAGE
HOLD-DOWN circuit must be tested for proper operation by
following these steps:
1. Connect receiver to 120V AC line. Tune receiver to active
channel. Reset the picture controls to the Auto levels.
2. Check that the voltage measured between TP7 and TE7
(ground side) is within 16.5 VDC to 21 VDC. If the voltage
is out of this range, the Hold-Down Circuit must be checked.
3. Connect a DC Voltage supply to TP7 and TE7 through a
100 ohm 1/4W resistor. Adjust the DC voltage to 23 VDC.
The receiver should shutdown, losing raster and sound.
Then the receiver should turn off automatically. This
reaction indicates that the Hold-Down circuit is function-
ing properly. If the receiver does not shutdown, a
malfunction is indicated and its cause must be found and
corrected.
4. To obtain picture again, remove the DC Supply and wait
a few minutes. Now turn on the receiver.
HIGHVOLTAGE CHECK
Note: +B (+135V) Voltage Check and Grayscale Adjustment
must be completed before attempting High Voltage
Check.
1. Connect high voltage voltmeter – lead to ground, and
connect + lead to anode of picture tube.
2. Tune receiver to an active channel and confirm TV is
operating properly.
3. Eliminate the beam current by adjusting the contrast and
brightness controls to minimum.
4. Confirm high voltage is within 25.0 KV and 27.0 KV. If
reading is not within range, check horizontal circuit.
No high voltage adjustment is provided on this chassis.

— 8 —
SERVICE ADJUSTMENTS (Continued)
VIDEO LEVEL
1. Connect color-bar generator to antenna terminals.
2. Switch the generator to a white field (100 IRE).
3. Set the picture controls to the Auto levels.
4. Connect oscilloscope + lead to terminal TP16 and
– lead to ground.
5. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
6. While pressing the Menu key, reconnect the AC power
cord. The Service Menu will now appear.
7. Select NO. 46 VL (Video Level) with the ▲or ▼key.
8. Adjust the data with the + or – key for an oscilloscope
reading of 1.0 ± 0.1 VP-P at TP16.
9 Press the MENU key to turn off the Service Menu display
and disconnect oscilloscope from chassis.
SOUNDADJUSTMENT
1. Connect a color-bar generator to the antenna terminals
with audio signal of 1KHz at 100% modulation.
2. Set the picture controls to the Auto levels.
3. Connect oscilloscope + lead to TP21 (pin 75 of IC101 or
C132) and – lead to ground.
4. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
5. While pressing the Menu key, reconnect the AC power
cord. The Service Menu will now appear.
6. Select NO. 45 FL (FM Level) with the ▲or ▼key.
7. Adjust the data with the + or – key for an oscilloscope
reading of 0.72 ± 10% VP-P at TP21.
8. Press the MENU key to turn off the Service Menu display
and disconnect the oscilloscope from the chassis.
Figure 6. Figure 7.
1.0 ± 0.1 VP-P 0.72 ± 10% VP-P

— 9 —
SERVICE HINTS
POWER FAILURE DETECTOR
This unit is equipped with a Power Failure Detector function included in the CPU which checks for an abnormal condition in
the chassis power supplies, including the power supply derived from the Horizontal Output Transformer.
If, while the power is on, a failure is caused by any of the following that results in a low voltage supply, the CPU will turn the
unit off in 1.5 seconds to prevent unnecessary damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
•Stoppage of the Horizontal Output Oscillator caused by the X-Radiation protection Hold-Down Circuit.
If, while the power is off, the power is switched on and any of these failures remains uncorrected, the CPU will shut off the
power within 3 seconds.
Check the following if the unit is turned off by the power failure detector.
1. Disconnect the AC power cord (120V AC line) for at least 10 seconds.
2. Connect a DC Voltmeter to the following TEST POINTS.
3. Press the Power key and check for the proper voltage supplies.
4. If any of these voltages is low, the power failure detector should turn the unit off within 3 seconds.
5. Check all circuits listed above.
Note: This unit is equipped with a Power Surge Protection feature included in the CPU. If power failure occurs three times
within 15 minutes, the CPU will automatically stop functioning to help prevent secondary damage. (TV will not turn on
by pressing the power key.) To reset the operating programs within the CPU, disconnect the AC power cord for at least
10 seconds.
TJ6 5V
D429 Cathode 9.4V
D802 Cathode 15.0V

— 10 —
MAGNET TABS
ANGLE OF MAGNET TABS
SIX-POLE
MAGNET TABS FOUR-POLE
MAGNET TABS
ANGLE
OF TABS
PURITY
MAGNET
TABS
4
3
2
1
FOCUS GAP
(G3-G4)
Figure 3. Adjusting Magnet
Figure 2. Purity and Convergence Magnets
PURITYADJUSTMENTS
1. When replacing picture tube or deflection yoke, mount
deflection yoke and purity and convergence magnets
assembly properly. See Figure 1. Position the picture
tube facing east or west. Demagnetize the picture tube
and receiver using an external degaussing coil. Set
receiver to Service Menu NO. 56 (no vertical sweep)
while degaussing.
2. Place the yoke on tube neck fully forward against glass.
3. Place the CPM on the tube neck aligning the center of
the purity magnet tabs over center of Focus Gap (G3 & G4).
See Figure 2.
4. Connect a color bar generator to the antenna terminal.
Switch the generator to a white field. Move yoke back-
ward on the neck until a uniform white field is obtained.
5. Allow 30 minutes warm up on a blank white field (high
intensity grayscale).
Note: If white field cannot be obtained check Grayscale
Adjustments on page 6.
6. Reset the picture controls to the Auto levels. Select a green
raster, either with the signal generator or by adjusting the
bias controls. If a signal generator is used for this step skip
to Step 11. If the bias controls will be used go to step 7.
7. Adjust Service Menu NO. 15 RB (Red Bias), NO. 16 GB
(Green Bias), and NO. 17 BB (Blue Bias) data each to 0.
8. Select Service Menu NO. 56 (no vertical sweep).
9. Adjust the Screen Control counterclockwise until the
horizontal scan line is no longer visible.
10. Select Service Menu NO. 16 GB (Green Bias) and
increase the data to produce a green raster. If retrace
lines appear reduce screen control slightly.
11. Pull yoke back on tube neck to obtain three-color raster
(blue, green and red).
12. Adjust the angle between the two purity magnet tabs to
center the vertical green belt in the picture tube. Do not
rotate tabs. See Figure 3.
13. Slowly slide the deflection yoke forward until a uniform
green screen is obtained.
14. Check the purity of the red and blue screens for unifor-
mity. Turn off other colors to check (use bias controls or
use generator). If necessary, readjust the yoke position
until all screens are pure.
15. If bias controls and screen control were used to set puri-
ty reset Grayscale and Bright Level. Refer to Grayscale
Adjustment on page 6 and Brightness Level Adustment
on page 7.
16. Confirm that the yoke is not tilted. Tighten the yoke
mounting screw. Adjust convergence next.
RUBBER
WEDGE
DEFLECTION YOKE
DEFLECTION YOKE
MOUNTING SCREW
Figure 1. Deflection Yoke Movement
PURITY AND CONVERGENCEADJUSTMENTS
CAUTION:The Purity and Convergence adjustments have been made at the factory. Readjustments should be made
only after the picture tube or deflection yoke is replaced. Follow the steps below for necessary readjustments.

— 11 —
BLUE
GREEN
RED
BLUE
GREEN
RED
BLUE
GREEN
RED
BLUE
GREEN
RED
Line movement when adjusting
side of yoke in and out.
CENTER CONVERGENCEADJUSTMENT
1. Connect a crosshatch generator to antenna terminals.
2. Set Contrast to low level to eliminate blooming. Reduce
Brightness level to obtain black background if necessary.
3. Adjust the angle between the four-pole magnet tabs 1
and 2 (Figure 2), and superimpose the red and blue ver-
tical lines in the center area of the picture screen. See
Figure 4.
4. Keeping the tabs at the same angle, rotate them together
to superimpose the blue and red horizontal lines in the
center area of the picture screen. See Figure 4.
5. Adjust the six-pole magnet tabs 3 and 4 so the con-
verged red/blue line is superimposed on the green line.
This is the same procedure used in steps 3 and 4. See
Figure 5.
CONVERGENCEADJUSTMENT
BLUE
RED
Adjust four-pole tabs angle to
superimpose blue and red vertical
line.
Adjust four-pole tabs together
to superimpose red and blue
horizontal line.
Figure 4. Blue and Red Line Movement
BLUE / RED
GREEN
Adjust six-pole tabs angle to
superimpose red / blue and
green vertical line.
Adjust six-pole tabs together
to superimpose red / blue and
green horizontal line.
RED
GREEN
BLUE
RED
GREEN
BLUE
Line movement when adjusting
top of yoke in and out.
Figure 7. Side of Yoke Movement
OUTERAREA CONVERGENCEADJUSTMENT
The outer area convergence is performed by positioning of
the yoke as follows:
1. Move the top of the yoke toward or away from the pic-
ture tube. This movement will affect the vertical lines at
the top and bottom and the horizontal lines at the sides.
See Figure 6.
2. Check that splits at 12 o’clock and 6 o’clock positions
are minimized, adjust yoke for best compromise.
Secure with wedge at 12 o’clock position. See Figure 1.
3. Move the side of the yoke toward or away from the pic-
ture tube to converge the horizontal lines at the top and
bottom and the vertical lines at the sides. See Figure 7.
4. Check that splits at 12 o’clock and 6 o’clock are mini-
mized, adjust yoke for best compromise. Secure yoke
position with the side wedges. See Figure 1.
Note: When re-using the rubber wedges, apply a small
amount of silicone rubber adhesive or hot melt to
each of the wedges.
Figure 6. Top of Yoke Movement
Figure 5. Blue/Red and Green Line Movement

— 12 —
MECHANICAL DISASSEMBLIES
CABINET BACK REMOVAL
1. Refer to Figure 1, remove 4 screws.
2. Pull off cabinet back and remove.
CHASSIS REMOVAL
1. Remove cabinet back.
2. Discharge the picture tube anode (2nd anode lead) to the
dag coating (picture tube grounding lead).
3. Disconnect degaussing coil socket (KD), picture tube
socket, deflection yoke connector (KX), speaker
connector (KSP), picture tube ground leads, and 2nd
anode lead.
4. Remove chassis completely by sliding it straight back.
Figure 1. Cabinet Back Removal
PICTURETUBE REMOVAL
CAUTION: Do not disturb the deflection yoke or magnet
assembly on the picture tube neck. Care must be taken to
keep these assemblies intact, unless picture tube is being
replaced. Discharge the picture tube to the coating before
handling the tube.
1. Remove chassis, referring to Chassis Removal instructions.
2. Place cabinet’s front face down on a soft surface.
3. Remove the screw on each corner of the picture tube and
GENTLY lift the picture tube out of the cabinet.
4. Install a replacement picture tube in reverse order.
Properly install the degaussing coil and picture tube
grounding lead on the picture tube. See Figure 2.
Note: If Picture Tube is being replaced, mount the Degaussing
Coil properly on the tube. See Figure 2.
Figure 2. Picture Tube Removal
75
UHF/VHF/CATV
DEGAUSSING
COIL DEGAUSSING
COIL HOLDER
PICTURE-TUBE
GROUNDING LEAD
TO PICTURE TUBE
SOCKET BOARD
GROUND
DEGAUSSING
COIL SOCKET
DEGAUSSING
COIL HOLDER

— 13 —
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS,
X-RADIATION PRECAUTIONS, HIGH VOLTAGE HOLD-DOWN TEST, and PRODUCT SAFETY NOTICE on Page 2.
Notes: Parts having Location Number are located on the following boards.
Numbers under 700 Series . . . . . . . . . . . . . . . . . . . . .On the Main Board.
Numbers 700 Series . . . . . . . . . . . . . . . . . . . . . . . . . . .On the Picture Tube Socket Board.
Numbers 800 Series . . . . . . . . . . . . . . . . . . . . . . . . . . .On the Main Board
Numbers 900 Series . . . . . . . . . . . . . . . . . . . . . . . . . . .Out of Board.
Numbers 1000 Series . . . . . . . . . . . . . . . . . . . . . . . . .On the Main Board
Numbers 1900 series . . . . . . . . . . . . . . . . . . . . . . . . . .On the Main Board
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A STAR (★) INTHIS PARTS LIST ANDTHE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACEMENT
DESIGNATED BYA STAR. NO DEVIATIONS FROM RESISTANCE,WATTAGE,ANDVOLTAGE RATINGS MAY BE MADE
FOR REPLACEMENT ITEMS DESIGNATED BYA STAR.
Schematic
Location Part No. Description Schematic
Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
CAPACITORS
NOTES:
Read description of the Capacitor as follows:
(Example)
CERAMIC 100P K 50V Rated Voltage
Tolerance Symbols:
less than 10PF
A . .Not specified
B . .±0.1PF C . .±0.25PF
D . .±0.5PF F . .±1PF
G . .±2PF R . .+0.25 - 0PF
S . .+0 - 0.25PF E . .+0 - 1PF
more than 10PF
A . .Not specified
B . .±0.1% C . .±0.25%
D . .±0.5% F . .±1%
G . .±2% H . .±3%
J . .±5% K . .±10%
L . .±15% M . .±20%
N . .±30% P . .+100 - 0%
Q . .+30 - 10% T . .+50 - 10%
U . .+75 - 10% V . .+20 - 10%
W .+100 - 10% X . .+40 - 20%
Y . .+150 - 10% Z . .+80 - 20%
Rated Value: P...Pico Farad U...Micro Farad
Material:
CERAMIC . . . . . .Ceramic
MT-PAPER . . . . .Metalized Paper
POLYESTER . . .Polyester
MT-POLYEST . .Metalized Polyester
POLYPRO . . . . .Polypropylene
MT-POLYPRO . .Metalized Polypropylene
COMPO-FILM . .Composite Film
MT-COMPO . . . .Metalized Composite
STYRENE . . . . . .Styrene
TA-SOLID . . . . .Tantalum Solid
AL-SOLID . . . . . .Aluminum Solid
ELECT . . . . . . . .Electrolytic
NP-ELECT . . . . .Non-Polarized Electrolytic
OS-SOLID . . . . .Aluminum Solid with Organic
Semiconductive Electrolytic
C001 403 049 0008 ELECT 1U M 50V
C003 403 235 5701 CERAMIC 5600P K 50V
C004 403 224 6148 CERAMIC 0.01U K 50V
C008 403 043 6006 ELECT 330U M 16V
C011 403 043 0202 ELECT 220U M 16V
C101 403 038 6301 ELECT 220U M 6.3V
C103 403 224 6108 CERAMIC 0.01U K 50V
C106 403 050 6600 ELECT 3.3U M 50V
C131 403 049 0008 ELECT 1U M 50V
C132 403 224 6108 CERAMIC 0.01U K 50V
C133 403 224 6108 CERAMIC 0.01U K 50V
C134 403 224 5705 CERAMIC 1000P K 50V
C136 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
C137 403 364 7508 CERAMIC 10P J 50V
C141 403 224 6108 CERAMIC 0.01U K 50V
C142 403 343 4603 CERAMIC 0.022U K 50V
C143 403 224 6108 CERAMIC 0.01U K 50V
C146 403 224 6108 CERAMIC 0.01U K 50V
C147 403 038 1603 ELECT 100U M 6.3V
C151 404 084 3702 ELECT 0 .47U M 50V
403 048 6308 ELECT 0.47U M 50V
C153 404 084 3702 ELECT 0 .47U M 50V
403 048 6308 ELECT 0.47U M 50V
C161 403 357 9601 CERAMIC 0.1U Z 50V
C211 403 051 0607 ELECT 4.7U M 50V
C212 403 049 9803 ELECT 2.2U M 50V
C221 403 224 6108 CERAMIC 0.01U K 50V
C252 404 086 6602 POLYESTER 0.047U K 63V
403 062 0504 POLYESTER 0.047U K 50V
403 312 2203 POLYESTER 0.047U K 50V
C253 404 084 3702 ELECT 0 .47U M 50V
403 048 6308 ELECT 0.47U M 50V
C256 403 049 0008 ELECT 1U M 50V
C257 403 224 6108 CERAMIC 0.01U K 50V
C258 403 043 9106 ELECT 47U M 16V
C272 403 050 6600 ELECT 3.3U M 50V
C284 403 043 0202 ELECT 220U M 16V

— 14 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C285 403 224 6108 CERAMIC 0.01U K 50V
C401 403 042 2405 ELECT 100U M 16V
C402 403 224 6108 CERAMIC 0.01U K 50V
C403 403 063 0206 POLYESTER 6800P K 50V
403 312 2807 POLYESTER 6800P K 50V
C405 403 086 2607 NP-ELECT 1U M 50V
C406 403 076 0200 CERAMIC 220P K 500V
C407 403 076 3607 CERAMIC 470P K 500V
C408 403 076 3102 CERAMIC 3900P K 500V
★ C411 404 077 4709 MT-POLYPRO 8000P H 1.5K
403 343 8304 MT-POLYPRO 8000P H 1.5KV
★ C417 404 081 2500 MT-POLYPRO 0.24U M 200V
404 087 7707 MT-POLYPRO 0.24U J 250V
403 346 7027 MT-POLYPRO 0.24U J 250V
403 372 6708 MT-POLYPRO 0.24U J 250V
C421 403 038 6301 ELECT 220U M 6.3V
C426 403 224 6108 CERAMIC 0.01U K 50V
C441 403 224 6108 CERAMIC 0.01U K 50V
C482 403 115 0802 ELECT 22U M 100V
C483 404 069 2102 ELECT 47U M 160V
C484 403 051 0607 ELECT 4.7U M 50V
C487 403 054 1502 ELECT 470U M 35V
C491 403 041 8804 ELECT 10U M 16V
C493 404 056 5307 NP-ELECT 2.2U M 100V
C496 403 044 1703 ELECT 470U M 16V
C497 403 038 1603 ELECT 100U M 6.3V
C501 403 049 4204 ELECT 10U M 50V
C502 403 053 2104 ELECT 220U M 35V
C503 403 044 6609 ELECT 10U M 25V
C504 403 042 4805 ELECT 1000U M 16V
C505 404 084 5706 MT-POLYEST 0.47UJ 63V
403 166 7706 MT-POLYEST 0.47U J 63V
403 067 7805 MT-COMPO 0.47U J 50V
C506 404 084 5201 POLYESTER 0.018UK 63V
403 059 0104 POLYESTER 0.018U K 50V
403 312 0100 POLYESTER 0.018U K 50V
C508 403 028 1705 CERAMIC 56P J 50V
C509 404 084 5706 MT-POLYEST 0.47UJ 63V
403 166 7706 MT-POLYEST 0.47U J 63V
403 067 7805 MT-COMPO 0.47U J 50V
★ C511 403 063 2309 POLYESTER 0.068U K 50V
403 312 3002 POLYESTER 0.068U K 50V
C516 403 049 0008 ELECT 1U M 50V
★ C601 404 071 2404 MT-POLYEST 0.22U M 250V
404 066 2204 MT-POLYEST 0.22U M 275V
★ C602 403 075 7111 CERAMIC 1000P K 500V
★ C604 403 075 7111 CERAMIC 1000P K 500V
★ C606 404 073 5304 CERAMIC 470P K 250V
404 088 3500 CERAMIC 470P M 250V
404 088 3609 CERAMIC 470P M 250V
★ C608 403 222 1907 CERAMIC 2200P K 1K
403 263 6305 CERAMIC 2200P K 1K
403 232 0204 CERAMIC 2200P K 1K
C609 404 049 4706 ELECT 330U M 200V
404 085 9000 ELECT 330U M 200V
C612 403 057 3107 POLYESTER 0.1U K 50V
403 311 8909 POLYESTER 0.1U K 50V
C613 403 061 9805 POLYESTER 0.047U J 50V
403 312 2104 POLYESTER 0.047U J 50V
C614 403 056 9704 POLYESTER 0.01U J 50V
403 311 8602 POLYESTER 0.01U J 50V
★ C624 403 266 4902 CERAMIC 1200P K 1K
403 262 2308 CERAMIC 1200P K 1K
★ C625 403 266 4902 CERAMIC 1200P K 1K
403 262 2308 CERAMIC 1200P K 1K
C626 403 042 4805 ELECT 1000U M 16V
C628 404 073 9005 ELECT 220U M 160V
C629 403 043 0202 ELECT 220U M 16V
★ C631 404 073 5304 CERAMIC 470P K 250V
404 088 3500 CERAMIC 470P M 250V
404 088 3609 CERAMIC 470P M 250V
★ C632 404 088 2909 CERAMIC 1000P M 250V
404 088 7102 CERAMIC 1000P M 250V
★ C633 404 073 4109 CERAMIC 1000P K 250V
404 088 2909 CERAMIC 1000P M 250V
404 088 2701 CERAMIC 1000P M 250V
C634 403 043 9106 ELECT 47U M 16V
C683 403 042 7707 ELECT 22U M 16V
C693 403 057 2100 POLYESTER 0.1U J 50V
403 311 8800 POLYESTER 0.1U J 50V
C701 403 235 5315 CERAMIC 1200P K 50V
C711 403 224 5715 CERAMIC 1000P K 50V
C721 403 224 5715 CERAMIC 1000P K 50V
★ C742 403 077 2807 CERAMIC 1000P Z 2K
C801 403 224 6108 CERAMIC 0.01U K 50V
C805 403 039 3507 ELECT 470U M 6.3V
C806 403 039 3507 ELECT 470U M 6.3V
C807 403 234 9809 CERAMIC 18P J 50V
C808 403 234 9809 CERAMIC 18P J 50V
C811 403 235 0607 CERAMIC 100P J 50V
C812 403 235 0607 CERAMIC 100P J 50V
C822 403 041 8804 ELECT 10U M 16V
C831 403 049 0008 ELECT 1U M 50V
C834 403 224 6108 CERAMIC 0.01U K 50V
C841 403 224 6108 CERAMIC 0.01U K 50V
C842 403 224 6108 CERAMIC 0.01U K 50V
C843 403 224 6108 CERAMIC 0.01U K 50V
C862 403 224 6108 CERAMIC 0.01U K 50V
C891 404 084 6901 NP-ELECT 1U M 50V
403 086 2607 NP-ELECT 1U M 50V
C892 403 224 5705 CERAMIC 1000P K 50V
C894 403 323 3602 CERAMIC 0.047U K 50V
C896 403 049 9803 ELECT 2.2U M 50V
C1001 403 041 8804 ELECT 10U M 16V
C1002 403 046 9905 ELECT 4.7U M 25V
C1902 403 038 1603 ELECT 100U M 6.3V
DIODES
D001 408 047 4706 ZENER DIODE MTZJ15B (15V)
D101 407 100 0204 ZENER DIODE MTZJ36A (36V)
407 056 2307 ZENER DIODE RD36EB1 (36V)
408 046 1508 ZENER DIODE MTZJ36A (36V)
D351 407 063 8606 ZENER DIODE MTZJ5.1A (5.1)
407 056 8002 ZENER DIODE RD5.1EB2 (5.1)
★ D421 407 158 1307 ZENER DIODE HZ11B2L (11V)
★ D422 407 158 1307 ZENER DIODE HZ11B2L (11V)
D428 407 099 3309 ZENER DIODE MTZJ13C (13V)
407 054 4808 ZENER DIODE RD13EB3 (13V)
408 046 0303 ZENER DIODE MTZJ13C (13V)

— 15 —
Schematic
Location Part No. Description Schematic Location Part No. Description
D429 408 008 2406 DIODE 1N4148
407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
D481 407 124 6404 DIODE ERA18-04
407 007 6606 DIODE ES1
407 124 5506 DIODE RMPG06G
D482 407 011 4407 DIODE TVR1G
D483 407 124 6404 DIODE ERA18-04
407 007 6606 DIODE ES1
407 124 5506 DIODE RMPG06G
D486 407 099 6102 ZENER DIODE MTZJ10B (10V)
407 054 0008 ZENER DIODE RD10EB2 (10V)
408 041 0407 ZENER DIODE MTZJ10B (10V)
D487 407 005 8602 DIODE ERA15-02
407 088 6502 DIODE MPG06D
407 011 3004 DIODE S5277B
408 009 9404 DIODE 1N4002ID
D490 407 063 8903 ZENER DIODE MTZJ5.6C (5.6V)
407 057 0104 ZENER DIODE RD5.6EB3 (5.6)
408 044 3108 ZENER DIODE MTZJ5.6C (5.6V)
D492 407 006 4108 DIODE ERB44-04
407 007 7603 DIODE EU2
D501 407 005 8602 DIODE ERA15-02
407 088 6502 DIODE MPG06D
407 011 3004 DIODE S5277B
408 009 9404 DIODE 1N4002ID
★ D601 407 005 7605 DIODE EM2B
408 008 8606 DIODE GP15G
407 013 3200 DIODE 1S1887A
★ D602 407 005 7605 DIODE EM2B
408 008 8606 DIODE GP15G
407 013 3200 DIODE 1S1887A
★ D603 407 005 7605 DIODE EM2B
408 008 8606 DIODE GP15G
407 013 3200 DIODE 1S1887A
★ D604 407 005 7605 DIODE EM2B
408 008 8606 DIODE GP15G
407 013 3200 DIODE 1S1887A
D611 407 007 9904 DIODE GMA01
407 012 4406 DIODE 1SS133
★ D612 407 147 5705 PHOTO COUPLE ON3131S
407 104 2402 PHOTO COUPLE PC817C
407 106 6101 PHOTO COUPLE PC817D
407 175 9904 PHOTO COUPLE TLP621-1-BL
D613 407 063 9702 ZENER DIODE MTZJ9.1C (9.1V)
D614 407 006 0100 DIODE ERA91-02
★ D624 407 106 2806 DIODE RU3YX
★ D625 407 009 8806 DIODE RU3AM
D627 408 008 2406 DIODE 1N4148
407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
D629 407 099 7208 ZENER DIODE MTZJ16A (16V)
407 054 7007 ZENER DIODE RD16EB1 (16V)
D680 408 008 2406 DIODE 1N4148
407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
D693 407 099 5501 ZENER DIODE MTZJ6.2C (6.2V)
407 057 2801 ZENER DIODE RD6.2EB3 (6.2V)
D801 408 008 2406 DIODE 1N4148
407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
D802 408 008 2406 DIODE 1N4148
407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
D831 407 222 5903 ZD UDZS-TE-173.6B (3.6V)
D834 408 047 8308 ZENER DIODE MTZJ6.2C (6.2V)
D836 407 149 0807 DIODE 1SS355 TE-17
D843 407 149 0807 DIODE 1SS355 TE-17
INTEGRATED CIRCUITS
IC001 409 275 7903 IC LA4525
★ IC101 409 491 4809 IC LA76834NM-TBM
★ IC501 409 507 0900 IC LA78040N
★ IC601 409 172 8003 IC SE136N
IC681 409 241 8309 IC TA78L05S
409 066 7303 IC UPC78L05J
IC801 410 416 7409 IC LC8634**V-****-TLM
IC802 409 495 6908 IC CAT24WC02P
409 440 8902 IC M24C02-BN6
409 376 1503 IC ST24C02B6
409 497 0706 IC S524C20D21-DCB0
409 333 3700 IC 24LC02B/P
COILS
J001 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
★ LF601 610 031 5938 LINE FILTER
610 223 1212 LINE FILTER
610 031 6089 LINE FILTER
610 031 6096 LINE FILTER
610 031 6119 LINE FILTER
610 031 6126 LINE FILTER
L146 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L164 645 003 9713 INDUCTOR, 15U K
645 016 2657 INDUCTOR, 15U K
L256 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L401 645 017 7682 INDUCTOR, 5.6U, FILTER
L402 610 031 9998 PIPE CORE
652 000 2180 CORE, PIPE
L403 610 031 9998 PIPE CORE
652 000 2180 CORE, PIPE
L602 645 005 0763 CORE, PIPE
L611 610 078 5946 PIPE CORE
L612 610 078 5946 PIPE CORE
L623 610 078 6820 PIPE CORE
L625 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L801 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L811 645 006 2490 INDUCTOR, 1U K
645 016 2411 INDUCTOR, 1U K
L812 645 006 2490 INDUCTOR, 1U K
645 016 2411 INDUCTOR, 1U K
L821 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
★ L901 645 044 9123 ASSY, COIL, DEGAUSSING
★ L902 645 026 3927 YOKE, DEFLECTION

Schematic
Location Part No. Description Schematic Location Part No. Description
TRANSISTORS
Q401 405 040 5600 TR 2SC2228-D
405 029 6901 TR 2SC2228-E
405 040 6102 TR 2SC2228M
★ Q402 405 157 1304 TR 2SD2634-YB
Q486 405 023 5009 TR 2SD400-E-MP
405 023 5306 TR 2SD400-F-MP
Q490 405 023 5009 TR 2SD400-E-MP
405 023 5306 TR 2SD400-F-MP
★ Q601 405 166 7601 TR 2SK2872
Q611 405 013 6801 TR 2SC2274-E
405 013 7006 TR 2SC2274-F
Q612 405 006 6504 TR 2SA984-E
405 006 6702 TR 2SA984-F
Q613 405 013 6801 TR 2SC2274-E
405 013 7006 TR 2SC2274-F
Q627 405 089 0000 TR 2SA1707-S
405 089 0109 TR 2SA1707-T
405 009 6907 TR 2SB985-S
405 009 7003 TR 2SB985-T
Q635 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 157 0505 TR 2SC536NF-NPA
405 151 8705 TR 2SC536NG-NPA
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
Q681 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 157 0505 TR 2SC536NF-NPA
405 151 8705 TR 2SC536NG-NPA
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
Q693 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 157 0505 TR 2SC536NF-NPA
405 151 8705 TR 2SC536NG-NPA
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
Q695 405 001 7605 TR 2SA1015-Y(SAN)
405 004 3208 TR 2SA564A-R(CU)
405 004 4809 TR 2SA608-F-CTV-NP
Q701 406 000 3605 TR 2SC3620(LB-SAN-1)
405 066 4304 TR 2SC2621-C-RA
405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q711 406 000 3605 TR 2SC3620(LB-SAN-1)
405 066 4304 TR 2SC2621-C-RA
405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q721 406 000 3605 TR 2SC3620(LB-SAN-1)
405 066 4304 TR 2SC2621-C-RA
405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q831 405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
R001 401 027 8602 CARBON 8.2K JA 1/6W
R003 401 162 2800 MT-GLAZE 1.8K JA 1/10W
★ R106 401 061 4400 CARBON 33K JA 1W
R131 401 256 6004 MT-GLAZE 27K JA 1/10W
R132 401 024 6700 CARBON 100 JA 1/6W
— 16 —
RESISTORS
NOTES:
Read description of the Resistor as follows:
(Example)
CARBON 4.7K J A 1/4W
Rated Wattage
Performance Symbols:
A..General B...Non-flammable
Z...Low noise
Other...Temperature coefficient
Tolerance Symbols:
A...0.05%B...0.1% C...0.25%
D...0.5% F...1% G...2%
J...5% K...10% M...20%
P...+5 -15%
Rated Value, ohms:
K...1,000 M...1,000,000
Material:
CARBON . . . . . . . .Carbon
MT-FILM . . . . . . . .Metal Film
OXIDE-MT . . . . . .Oxide Metal Film
SOLID . . . . . . . . . .Composition
MT-GLAZE . . . . . .Metal Glaze
WIRE WOUND . . .Wire Wound
CERAMIC RES . . .Ceramic
FUSIBLE RES . . . .Fusible

— 17 —
Schematic
Location Part No. Description Schematic Location Part No. Description
R133 401 255 6401 MT-GLAZE 3K JA 1/10W
R142 401 026 4605 CARBON 33K JA 1/6W
R143 401 150 6209 MT-GLAZE 1K JA 1/10W
R151 401 152 3206 MT-GLAZE 330 JA 1/10W
R161 401 150 5806 MT-GLAZE 100K JA 1/10W
R162 401 150 5806 MT-GLAZE 100K JA 1/10W
R163 401 255 8702 MT-GLAZE 22 JA 1/10W
R164 401 150 6209 MT-GLAZE 1K JA 1/10W
R165 401 162 2701 MT-GLAZE 180 JA 1/10W
R166 401 256 7506 MT-GLAZE 390 JA 1/10W
R211 401 256 7100 MT-GLAZE 680K JA 1/10W
R212 401 256 7100 MT-GLAZE 680K JA 1/10W
R251 401 162 3005 MT-GLAZE 22K JA 1/10W
R252 401 162 3005 MT-GLAZE 22K JA 1/10W
R272 401 027 5502 CARBON 6.8K JA 1/6W
R273 401 150 5905 MT-GLAZE 10K JA 1/10W
R276 401 256 0408 MT-GLAZE 12K JA 1/10W
R281 401 150 5905 MT-GLAZE 10K JA 1/10W
R284 401 256 5601 MT-GLAZE 47 JA 1/10W
R286 401 162 2701 MT-GLAZE 180 JA 1/10W
R287 401 162 2701 MT-GLAZE 180 JA 1/10W
R288 401 162 2701 MT-GLAZE 180 JA 1/10W
R301 401 150 5905 MT-GLAZE 10K JA 1/10W
R353 401 024 7400 CARBON 10K JA 1/6W
R400 401 024 6700 CARBON 100 JA 1/6W
★ R401 401 012 4503 CARBON 100 JA 1/4W
★ R402 401 013 4205 CARBON 120 JA 1/4W
R404 401 025 7409 CARBON 220 JA 1/6W
R405 401 162 4101 MT-GLAZE 5.6K JA 1/10W
R406 401 017 1804 CARBON 2.7K JA 1/4W
★ R407 401 069 8202 OXIDE-MT 8.2K JA 2W
★ R411A 401 066 3705 OXIDE-MT 2.7 JA 2W
R416 401 026 9303 CARBON 47 JA 1/6W
★ R421 401 286 5305 MT-FILM 2.4K FA 1/6W
★ R422 401 052 6802 MT-FILM 10K FA 1/6W
★ R423 401 053 2605 MT-FILM 3.3K FA 1/6W
R426 401 027 5205 CARBON 680 JA 1/6W
R428 401 024 9701 CARBON 12K JA 1/6W
R441 401 150 6209 MT-GLAZE 1K JA 1/10W
R442 401 150 5905 MT-GLAZE 10K JA 1/10W
R443 401 150 5905 MT-GLAZE 10K JA 1/10W
R444 401 150 5905 MT-GLAZE 10K JA 1/10W
R449 401 265 1700 MT-GLAZE 4.7K FA 1/10W
★ R481 401 011 1206 CARBON 68 JB 1/2W
★ R482 401 011 9004 CARBON 1 JB 1/4W
★ R483 401 006 7701 CARBON 1 JB 1/2W
R485 401 256 7209 MT-GLAZE 18K JA 1/10W
★ R486 401 063 4606 OXIDE-MT 8.2 JA 1W
R487 401 026 6609 CARBON 390 JA 1/6W
★ R488 401 065 9609 OXIDE-MT 18 JA 2W
★ R489 401 066 5204 OXIDE-MT 22 JA 2W
R490 401 026 6609 CARBON 390 JA 1/6W
R491 401 024 7004 CARBON 1K JA 1/6W
R492 401 156 8504 MT-FILM 33K FA 1/6W
R493 401 019 4001 CARBON 390K JA 1/4W
★ R495 401 008 3800 CARBON 2.2 JB 1/2W
★ R496 401 061 1706 OXIDE-MT 33 JA 1W
★ R497 401 066 3002 OXIDE-MT 2.2 JA 2W
★ R499 401 059 1602 OXIDE-MT 15 JA 1W
R503 401 026 7002 CARBON 3.9K JA 1/6W
R504 401 026 7002 CARBON 3.9K JA 1/6W
R505 401 006 8401 CARBON 1.5 JA 1/2W
R506 401 027 5007 CARBON 68 JA 1/6W
R507 401 006 8807 CARBON 1.8 JA 1/2W
R508 401 027 5502 CARBON 6.8K JA 1/6W
R509 401 027 5502 CARBON 6.8K JA 1/6W
★ R511 401 060 7402 OXIDE-MT 270 JA 1W
R513 401 008 7501 CARBON 2.2K JA 1/2W
R517 401 025 4606 CARBON 18K JA 1/6W
R518 401 025 4606 CARBON 18K JA 1/6W
★ R601 402 055 3300 WIRE WOUND 1 KA 6W
402 072 2706 WIRE WOUND 1 KA 5W
★ R602 402 000 1603 SOLID 3.3M MA 1/2W
402 088 1502 RESISTER 3.3M JA 1/2W
R603 401 010 9203 CARBON 560K JA 1/2W
★ R604 401 066 3002 OXIDE-MT 2.2 JA 2W
R606 401 019 9600 CARBON 47 JA 1/4W
R607 401 016 1508 CARBON 22 JA 1/4W
R608 401 162 3807 MT-GLAZE 470K JA 1/10W
R609 401 162 3005 MT-GLAZE 22K JA 1/10W
R611 401 027 0309 CARBON 47K JA 1/6W
★ R612 402 001 8502 FUSIBLE RES 10 J- 1/2W
★ R613 401 064 1802 OXIDE-MT 0.39 JA 2W
R614 401 020 0801 CARBON 470 JA 1/4W
R616 401 150 5905 MT-GLAZE 10K JA 1/10W
★ R617 402 001 8106 FUSIBLE RES 680 J- 1/4W
R618 401 012 5708 CARBON 1K JA 1/4W
R619 401 162 3005 MT-GLAZE 22K JA 1/10W
R627 401 150 5905 MT-GLAZE 10K JA 1/10W
R628 401 013 5301 CARBON 1.2K JA 1/4W
R629 401 150 6209 MT-GLAZE 1K JA 1/10W
★ R630 401 060 5002 OXIDE-MT 22K JA 1W
R631 401 022 3107 CARBON 6.8K JA 1/4W
R632 401 150 6209 MT-GLAZE 1K JA 1/10W
R634 401 256 6301 MT-GLAZE 47K JA 1/10W
R683 401 025 7805 CARBON 2.2K JA 1/6W
R691 401 150 5905 MT-GLAZE 10K JA 1/10W
R692 401 256 6608 MT-GLAZE 68K JA 1/10W
R693 401 256 5106 MT-GLAZE 560K JA 1/10W
R694 401 024 7400 CARBON 10K JA 1/6W
R695 401 162 3005 MT-GLAZE 22K JA 1/10W
R701 401 025 3807 CARBON 180 JA 1/6W
R703 401 256 6905 MT-GLAZE 680 JA 1/10W
R704 401 255 9006 MT-GLAZE 82 JA 1/10W
R706 401 009 1508 CARBON 2.7K JA 1/2W
★ R707 401 058 9807 OXIDE-MT 12K JA 1W
R711 401 025 3807 CARBON 180 JA 1/6W
R713 401 256 6905 MT-GLAZE 680 JA 1/10W
R714 401 255 9006 MT-GLAZE 82 JA 1/10W
R716 401 009 1508 CARBON 2.7K JA 1/2W
★ R717 401 058 9807 OXIDE-MT 12K JA 1W
R721 401 025 3807 CARBON 180 JA 1/6W
R723 401 027 5205 CARBON 680 JA 1/6W
R724 401 255 9006 MT-GLAZE 82 JA 1/10W
R726 401 009 1508 CARBON 2.7K JA 1/2W
★ R727 401 058 9807 OXIDE-MT 12K JA 1W
R801 401 256 5809 MT-GLAZE 270K JA 1/10W
R803 401 255 6500 MT-GLAZE 100 JA 1/10W
R804 401 255 6500 MT-GLAZE 100 JA 1/10W
R806 401 162 3708 MT-GLAZE 4.7K JA 1/10W

— 18 —
Schematic
Location Part No. Description Schematic Location Part No. Description
R807 401 150 5905 MT-GLAZE 10K JA 1/10W
R808 401 150 5905 MT-GLAZE 10K JA 1/10W
R809 401 162 3708 MT-GLAZE 4.7K JA 1/10W
R823 401 024 6700 CARBON 100 JA 1/6W
R829 401 024 6700 CARBON 100 JA 1/6W
R831 401 150 5905 MT-GLAZE 10K JA 1/10W
R832 401 150 5905 MT-GLAZE 10K JA 1/10W
R833 401 152 3206 MT-GLAZE 330 JA 1/10W
R834 401 150 5806 MT-GLAZE 100K JA 1/10W
R837 401 024 7400 CARBON 10K JA 1/6W
R842 401 256 0309 MT-GLAZE 820 JA 1/10W
R843 401 256 0309 MT-GLAZE 820 JA 1/10W
R844 401 256 0309 MT-GLAZE 820 JA 1/10W
R846 401 150 6209 MT-GLAZE 1K JA 1/10W
R847 401 162 4101 MT-GLAZE 5.6K JA 1/10W
R848 401 162 4101 MT-GLAZE 5.6K JA 1/10W
R849 401 027 2600 CARBON 5.6K JA 1/6W
R851 401 256 5908 MT-GLAZE 2.7K JA 1/10W
R852 401 256 1702 MT-GLAZE 33K JA 1/10W
R856 401 024 6700 CARBON 100 JA 1/6W
R857 401 024 6700 CARBON 100 JA 1/6W
R862 401 255 6500 MT-GLAZE 100 JA 1/10W
R863 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
R864 401 256 0200 MT-GLAZE 120K JA 1/10W
R865 401 024 7004 CARBON 1K JA 1/6W
R881 401 024 6700 CARBON 100 JA 1/6W
R882 401 024 6700 CARBON 100 JA 1/6W
R883 401 024 6700 CARBON 100 JA 1/6W
R884 401 024 6700 CARBON 100 JA 1/6W
R886 401 150 5905 MT-GLAZE 10K JA 1/10W
R892 401 162 2909 MT-GLAZE 220 JA 1/10W
R893 401 255 6500 MT-GLAZE 100 JA 1/10W
R894 401 255 6005 MT-GLAZE 1M JA 1/10W
R897 401 026 9600 CARBON 470 JA 1/6W
R898 401 162 3609 MT-GLAZE 470 JA 1/10W
R899 401 162 3807 MT-GLAZE 470K JA 1/10W
R1001 401 255 9501 MT-GLAZE 220K JA 1/10W
R1002 401 256 2709 MT-GLAZE 75 JA 1/10W
R1003 401 255 6500 MT-GLAZE 100 JA 1/10W
R1901 401 150 5905 MT-GLAZE 10K JA 1/10W
R1902 401 150 6209 MT-GLAZE 1K JA 1/10W
R1903 401 162 2800 MT-GLAZE 1.8K JA 1/10W
R1904 401 150 6100 MT-GLAZE 2.2K JA 1/10W
R1905 401 256 7605 MT-GLAZE 3.9K JA 1/10W
R1906 401 162 4101 MT-GLAZE 5.6K JA 1/10W
R1907 401 256 0408 MT-GLAZE 12K JA 1/10W
R1909 401 255 6500 MT-GLAZE 100 JA 1/10W
SWITCHES
SW1901 645 006 9673 SWITCH, PUSH (POWER)
SW1902 645 006 9673 SWITCH, PUSH (VOL +)
SW1903 645 006 9673 SWITCH, PUSH (VOL –)
SW1904 645 006 9673 SWITCH, PUSH CH ▲
SW1905 645 006 9673 SWITCH, PUSH CH ▼
SW1906 645 006 9673 SWITCH, PUSH (MENU)
TRANSFORMERS
T151 645 049 3775 TRANS, OSC 45.75MHZ
T401 610 000 7901 DRIVE TRANS
610 000 7918 DRIVE TRANS
645 047 2015 TRANS, DRIVE
652 000 1442 TRANS, DRIVE
★ T402 652 001 0383 TRANS, FLYBACK
★ T601 645 051 4937 TRANS, POWER, PULSE
CRYSTAL/FILTERS
X141A 421 008 9008 SAW F TSF5235P
X161 610 015 3059 TRAP, CERAMIC 4.5MHZ
645 041 1618 TRAP, CERAMIC 4.5MHZ
X251 610 204 4195 CRYSTAL OSCILLATOR
610 245 9746 CRYSTAL OSCILLATOR
610 012 0655 CRYSTAL OSCILLATOR
652 000 1695 OSC, CRYSTAL 3.579545MH¸
X801 645 004 1938 OSC, CRYSTAL 32.768KHZ
645 004 1945 OSC, CRYSTAL 32.768KHZ
MISCELLANEOUS
A100 610 295 5613 ASSY, PWB, MAIN G8EHM
★ A101 645 053 7936 TUNER, U/V
A700 610 295 5620 ASSY, PWB, SOCKET G8EHM
A1901 645 041 1519 UNIT, REMOCON RECEIVER
645 044 0519 UNIT, REMOCON RECEIVER
★ F601 423 018 8101 FUSE 125V 4A
423 007 1601 FUSE 125V 4A
423 007 1809 FUSE 125V 4A
F601A 645 000 5077 HOLDER, FUSE
645 016 0479 HOLDER, FUSE
F601B 645 000 5077 HOLDER, FUSE
645 016 0479 HOLDER, FUSE
★ K701 645 025 6103 SOCKET, CRT 8P
645 028 0306 SOCKET, CRT 8P
K1001 645 040 5952 JACK, RCA-2
★ PS601 408 046 5209 TH PTDAA1BF3R0Q100
★ Q901 414 009 3205 CRT A48KRD82X(DT)
Q901A1 610 117 0154 DY SPACER-D4AK
610 117 7924 DY SPACER
Q901A2 610 117 0154 DY SPACER-D4AK
610 117 7924 DY SPACER
Q901A3 610 117 0154 DY SPACER-D4AK
610 117 7924 DY SPACER
Q901C 610 217 7794 CG PURITY MAGNET
SP901 645 028 0870 SPEAKER, 8
★ W601 645 030 5276 CORD, POWER-2.0MK
★ W902 610 252 5625 ASSY, WIRE GND CONNECTOR
610 287 6574 ASSY, WIRE GND CONNECTOR
610 240 8775 (USA) GND CONNECTOR
