Sony Bravia KD-85XD85 Series User manual

D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\010COV.fm masterpage: Cover
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx
FW-85XD85xx / 75XD85xx / 65XD85xx / 55XD85xx
Television
Reference Guide GB
Guide de référence FR
Guía de referencia ES
Referentiegids NL
Referenzanleitung DE
Guia de referência PT
Guida di riferimento IT
Referensmaterial SE
Referencevejledning DK
Viiteopas FI
Referanseveiledning NO
Przewodnik PL
Referenční příručka CZ
Referenčná príručka SK
Felhasználói útmutató HU
Ghid de referinţă RO
Информация за продукта BG
Οδηγός αναφοράς GR
Başvuru Kılavuzu TR

2GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\010COVTOC_GB.fm masterpage: Left
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Table of Contents
IMPORTANT NOTICE . . . . . . . . . . . . . . . . . . . . 3
Safety information . . . . . . . . . . . . . . . . . . . . . 3
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Parts and Controls . . . . . . . . . . . . . . . . . . . 9
Controls and Indicators . . . . . . . . . . . . . . . . .9
Using Remote Control . . . . . . . . . . . . . . . 10

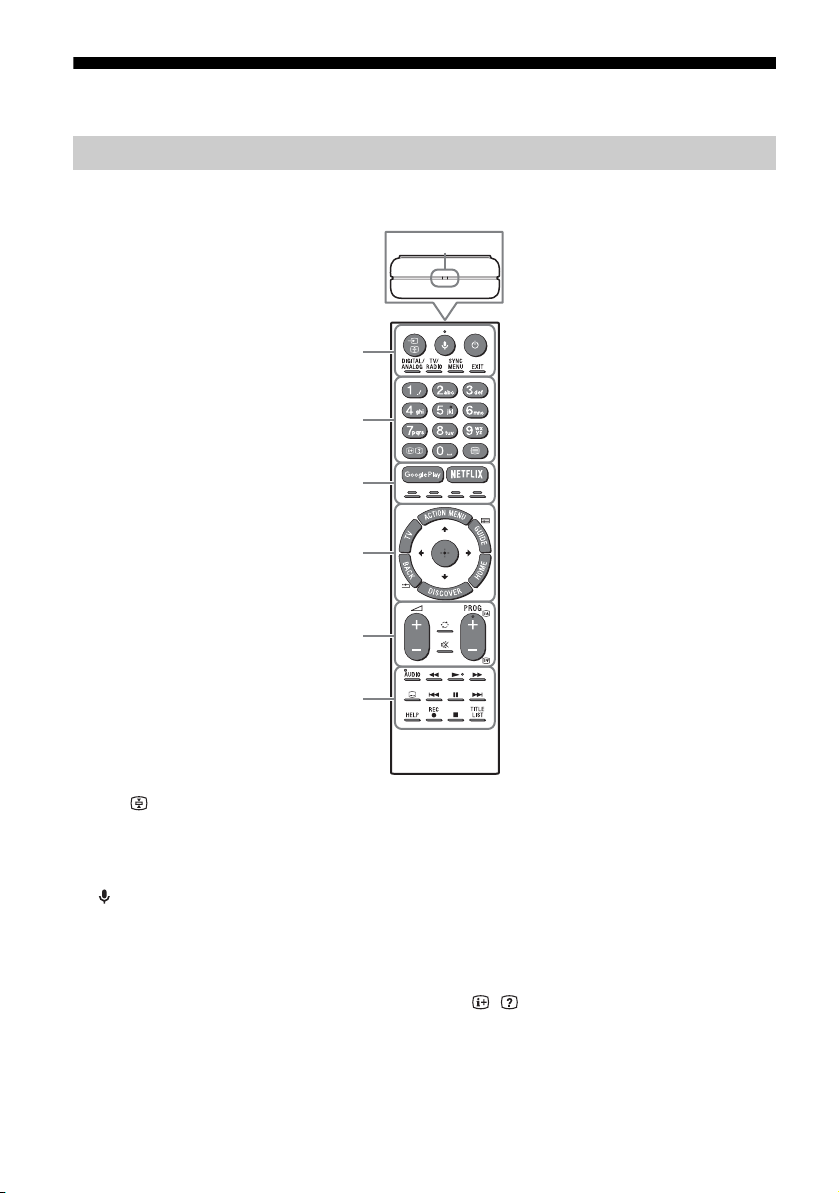

Remote Control Parts Description. . . . . . . . 10

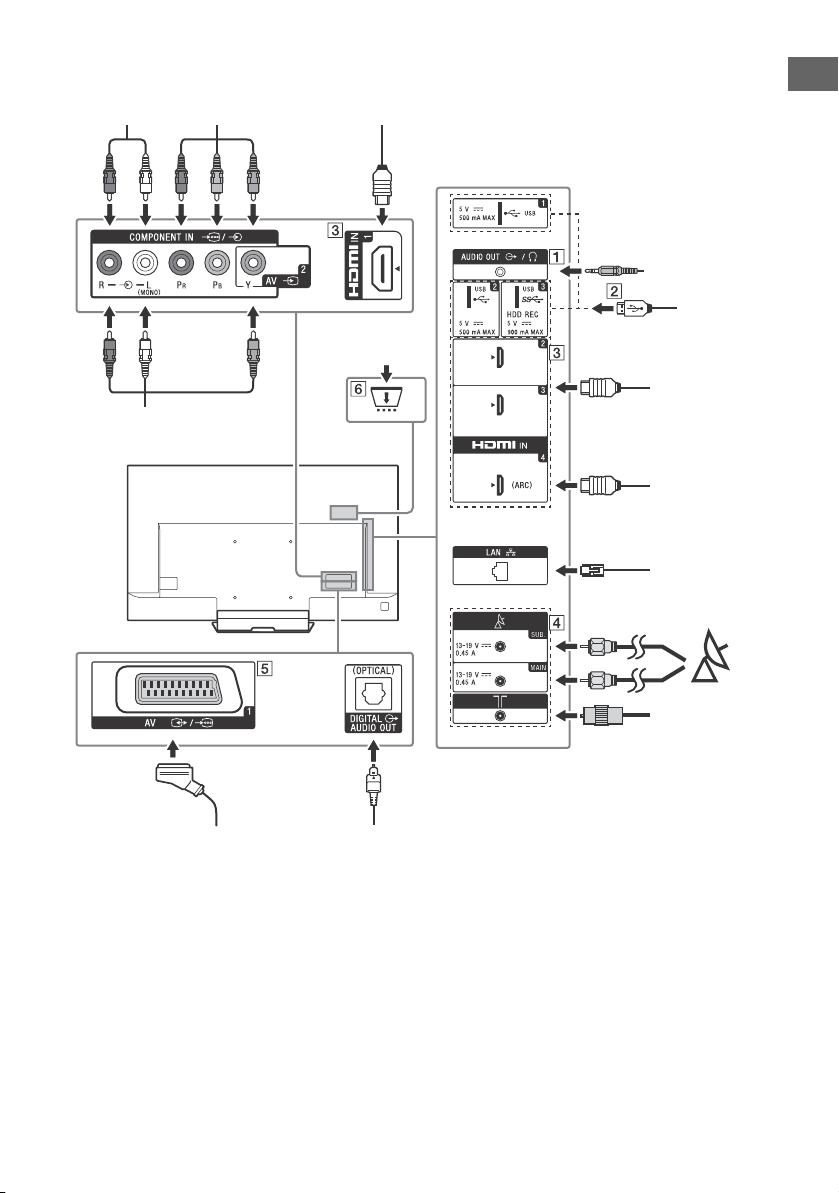

Connection Diagram . . . . . . . . . . . . . . . . 12
Installing the TV to the Wall . . . . . . . . . . 15
Using the supplied Wall-Mount Bracket
(KD-75XD9405, KD-65/55XD9305 only) . . . 15
Using the optional Wall-Mount Bracket . . . 16
KD-85/75XD85xx, FW-85/75XD85xx,
KD-75XD9405 only . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting. . . . . . . . . . . . . . . . . . . . 23
Troubles and Solutions . . . . . . . . . . . . . . . . 23
Specifications . . . . . . . . . . . . . . . . . . . . . . 24
Introduction
Thank you for choosing this Sony product.
Before operating the TV, please read this manual thoroughly and
retain it for future reference.
Note
• Before operating the TV, please read the “Safety information”
(page 3).
• Images and illustrations used in the Setup Guide and this
manual are for reference only and may differ from the actual
product.
• The “xx” that appears in the model name corresponds to a
numeric digit, related to design, colour or TV system.
Location of the Setup Guide
Setup Guide is placed on top of the cushion inside the TV carton.
Help Guide
Help Guide explains the information on how to use the TV's
features. To display Help Guide on the TV, press HELP on the
remote control and select [Help Guide].
Location of the identification label
Labels for the TV Model No., Production Date (year/month) and
Power Supply rating are located on the rear of the TV or package.
For models with supplied mains adaptor:
Labels for the mains adaptor Model No. and Serial No. are located
on the bottom of the mains adaptor.
WARNING
TO PREVENT THE
SPREAD OF FIRE, KEEP
CANDLES OR OTHER OPEN
FLAMES AWAY FROM THIS
PRODUCT AT ALL TIMES.
NOTICE FOR CUSTOMERS IN THE UNITED
KINGDOM
A moulded plug complying with BS1363 is fitted to this equipment
for your safety and convenience.
Should the fuse in the plug supplied need to be replaced with the
same rating of fuse approved by ASTA or BSI to BS 1362 (i.e.,
marked with or ) must be used.
If the plug supplied with this equipment has a detachable fuse
cover, be sure to attach the fuse cover after you change the fuse.
Never use the plug without the fuse cover. If you should lose the
fuse cover, please contact your nearest Sony service station.
How to replace the fuse
Open the fuse compartment with a blade screwdriver, and
replace the fuse.
Please refer to the illustration that actually equipped with the
product.
FUSE

3GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\010COVTOC_GB.fm masterpage: Right
GB
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Notice for Wireless Signal
Hereby, Sony Corporation declares that
this unit is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC.
For details, please access the following URL:
http://www.compliance.sony.de/
Notice for customers: the following information is only applicable
to equipment sold in countries applying EU directives.
TV wireless system may be operated in following countries:
AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT,
NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK,
MD, RS, ME, Kosovo
This equipment can be operated in other non-European
countries.
WARNING
Batteries must not be exposed to excessive heat such as
sunshine, fire or the like.
Never place a television set in an unstable location. A television
set may fall, causing serious personal injury or death. Many
injuries, particularly to children, can be avoided by taking simple
precautions such as:
Using cabinets or stands recommended by the manufacturer of
the television set.
Only using furniture that can safely support the television set.
Ensuring the television set is not overhanging the edge of the
supporting furniture.
Not placing the television set on tall furniture (for example,
cupboards or bookcases) without anchoring both the furniture
and the television set to a suitable support.
Not placing the television set on cloth or other materials that
may be located between the television set and supporting
furniture.
Educating children about the dangers of climbing on furniture
to reach the television set or its controls.
If your existing television set is being retained and relocated, the
same considerations as above should be applied.
Installation/Set-up
Install and use the TV set in accordance with the instructions
below in order to avoid any risk of fire, electric shock or damage
and/or injuries.
Installation
• The TV set should be installed near an easily accessible mains
socket.
• Place the TV on a stable, level surface to prevent it from falling
over and causing personal injury or property damage.
• Install the TV where it cannot be pulled, pushed, or knocked
over.
• Only qualified service personnel should carry out wall-mount
installations.
• For safety reasons, it is strongly recommended that you use
Sony accessories, including:
Supplied Wall-Mount Bracket (KD-75XD9405,
KD-65/55XD9305 only)
Wall-Mount Bracket SU-WL450 (KD-65/55XD9305,
KD-65/55XD85xx, FW-65/55XD85xx only)

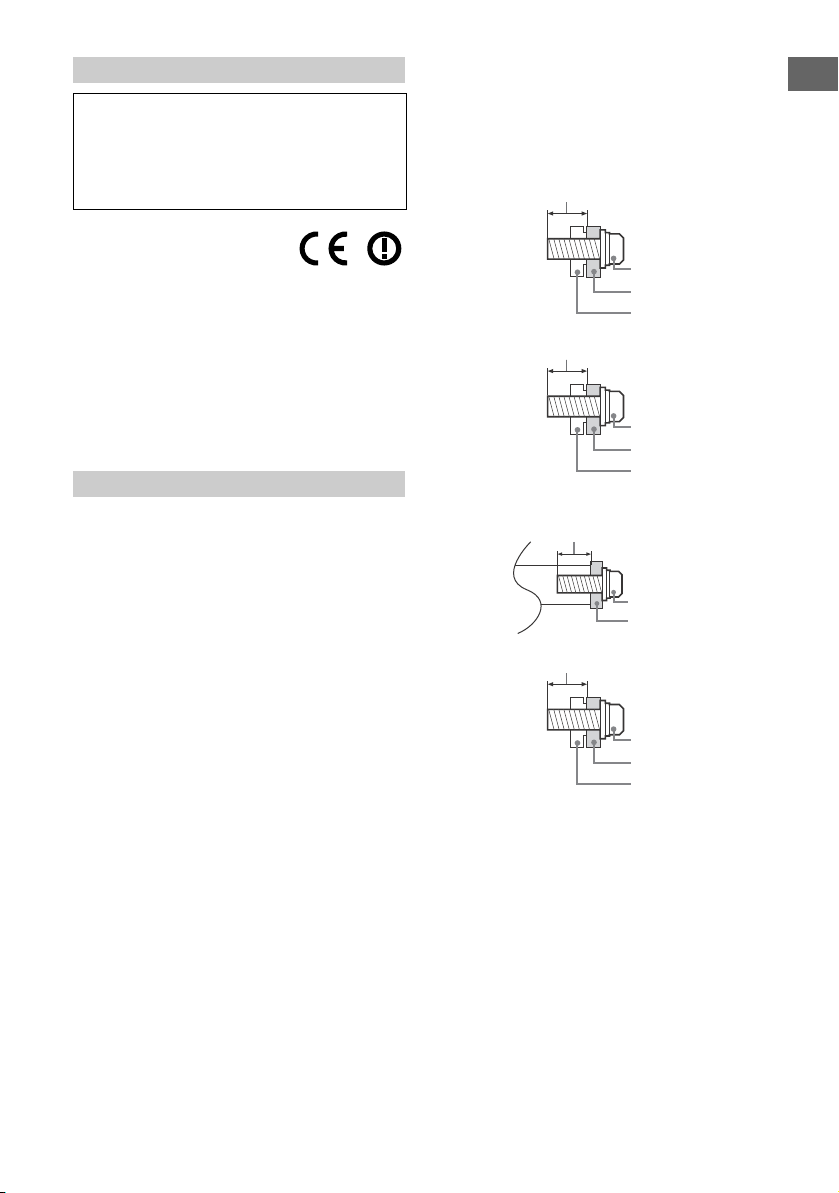

• Be sure to use the screws supplied with the Wall-Mount Bracket
when attaching the Wall-Mount Bracket to the TV set. The
supplied screws are designed as indicated by illustration when
measured from the attaching surface of the Wall-Mount Bracket.
The diameter and length of the screws differ depending on the
Wall-Mount Bracket model.
Use of screws other than those supplied may result in internal
damage to the TV set or cause it to fall, etc.
Supplied Wall-Mount Bracket
KD-75XD9405 only
KD-65/55XD9305 only
Except supplied Wall-Mount Bracket
KD-75XD9405, KD-65/55XD9305 only
Except KD-75XD9405, KD-65/55XD9305
IMPORTANT NOTICE
This product has been manufactured by or on behalf of Sony
Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan.
Inquiries related to product compliance based on European
Union legislation shall be addressed to the authorized
representative, Sony Belgium, bijkantoor van Sony Europe
Limited, Da Vincilaan 7-D1, 1935 Zaventem, Belgium. For any
service or guarantee matters, please refer to the addresses
provided in the separate service or guarantee documents.
Safety information
Screw (M6)
Wall-Mount Bracket
13 mm
TV’s rear cover
Screw (M6)
Wall-Mount Bracket
7 mm
TV’s rear cover
Screw (M6)
Wall-Mount Bracket
8 mm - 12 mm
Screw (M6)
Wall-Mount Bracket
8 mm - 12 mm
TV’s rear cover

4GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\010COVTOC_GB.fm masterpage: Left
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Transporting
• Before transporting the TV set, disconnect all cables.
• Two or more people (four or more people for KD-85XD85xx) are
needed to transport a large TV set.

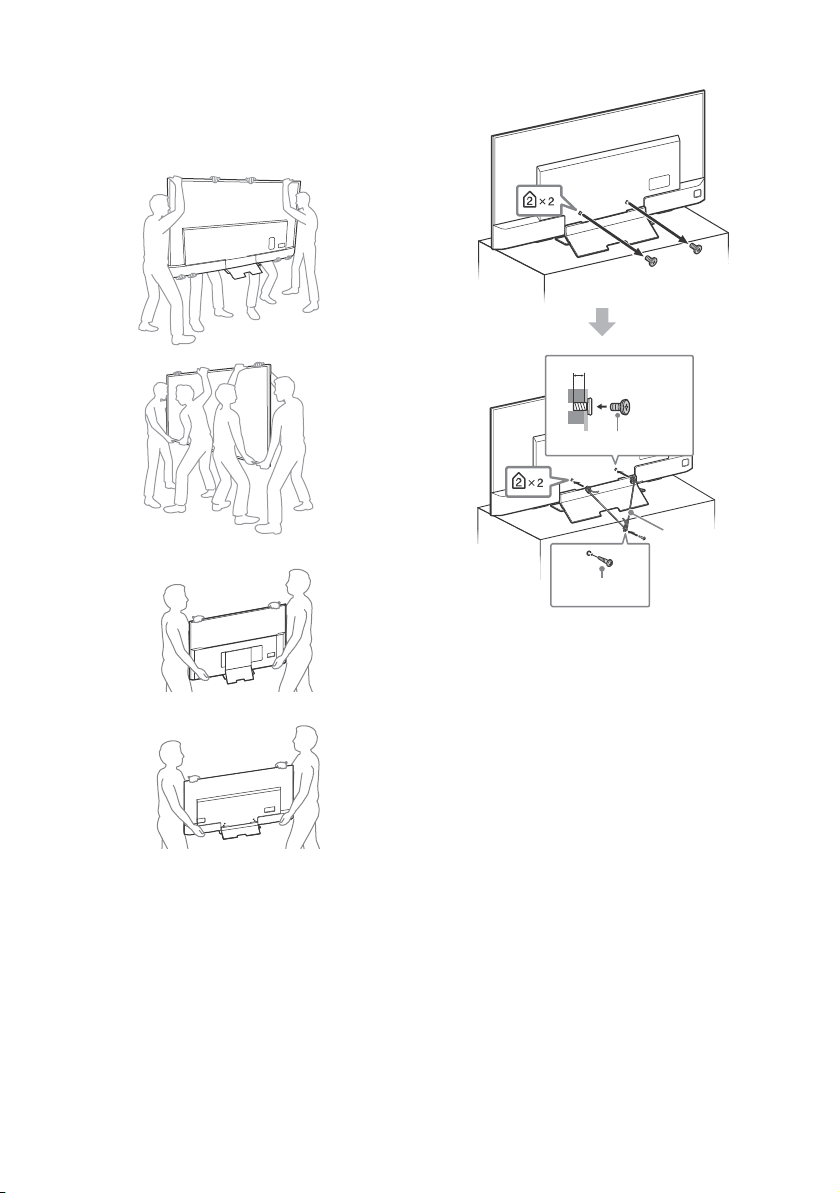

• When transporting the TV set by hand, hold it as shown below.
Do not put stress on the LCD panel and the frame around the
screen.
KD-85XD85xx
KD-75XD9405, KD-65/55XD9305
KD-75/65/55XD85xx
• When transporting the TV set, do not subject it to jolts or
excessive vibration.
• When transporting the TV set for repairs or when moving, pack
it using the original carton and packing material.

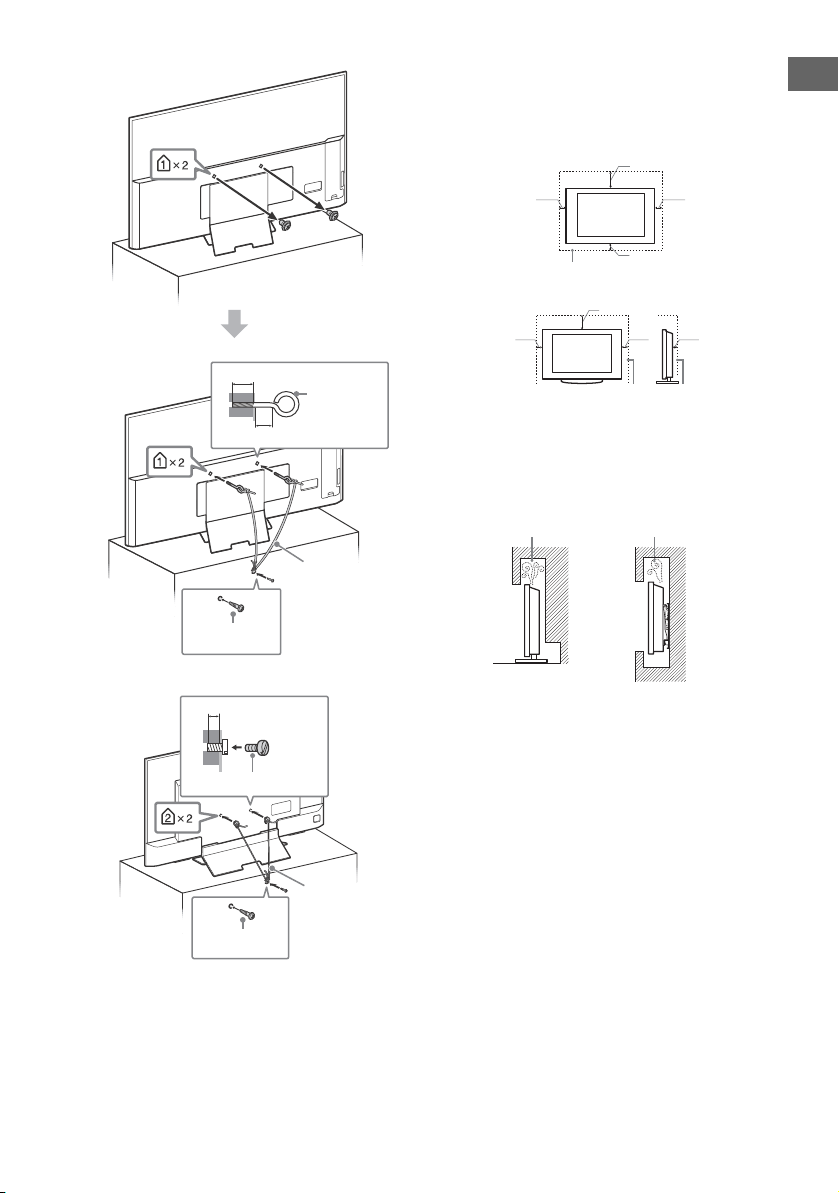

Topple prevention
KD-85/75/65XD85xx
8 mm - 12 mm
Screw (previously removed)
Screw (not
supplied)
Cord (not
supplied)

5GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\010COVTOC_GB.fm masterpage: Right
GB
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)

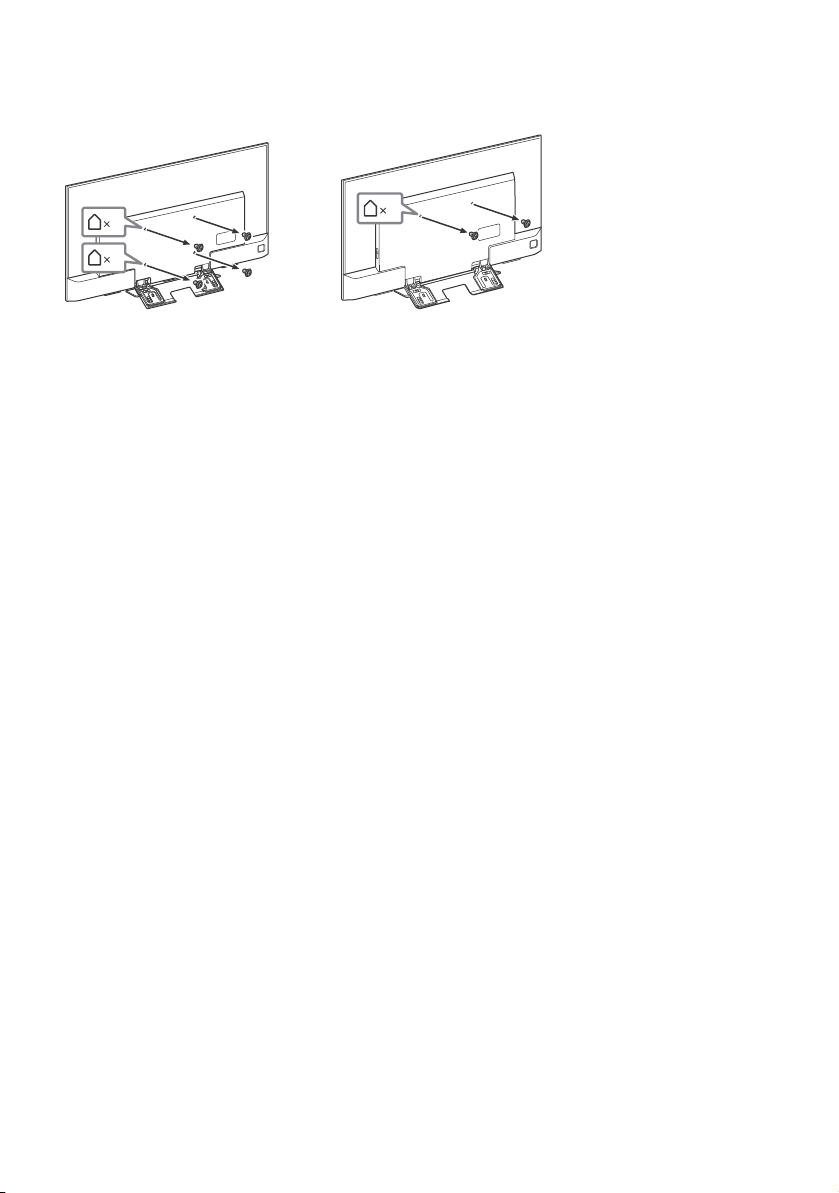

KD-75XD9405, KD-65/55XD9305
KD-55XD85xx
Ventilation
• Never cover the ventilation holes or insert anything in the
cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony Wall-Mount
Bracket in order to provide adequate air circulation.
Installed on the wall
Installed with stand
• To ensure proper ventilation and prevent the collection of dirt or
dust:
Do not lay the TV set flat, install upside down, backwards, or
sideways.
Do not place the TV set on a shelf, rug, bed or in a closet.
Do not cover the TV set with a cloth, such as curtains, or items
such as newspapers, etc.
Do not install the TV set as shown below.
Mains lead
Handle the mains lead and socket as follows in order to avoid any
risk of fire, electric shock or damage and/or injuries:
Use only mains leads supplied by Sony, not other suppliers.
Insert the plug fully into the mains socket.
Operate the TV set on a 220 V - 240 V AC supply only.
When wiring cables, be sure to unplug the mains lead for your
safety and take care not to catch your feet on the cables.
Disconnect the mains lead from the mains socket before
working on or moving the TV set.
Keep the mains lead away from heat sources.
Unplug the mains plug and clean it regularly. If the plug is
covered with dust and it picks up moisture, its insulation may
deteriorate, which could result in a fire.
Note
• Do not use the supplied mains lead on any other equipment.
• Do not pinch, bend, or twist the mains lead excessively. The core
conductors may be exposed or broken.
• Do not modify the mains lead.
• Do not put anything heavy on the mains lead.
• Do not pull on the mains lead itself when disconnecting the
mains lead.
• Do not connect too many appliances to the same mains socket.
• Do not use a poor fitting mains socket.
8 mm - 12 mm
M6 eye bolt
(not supplied)
Screw (not
supplied)
Cord (not
supplied)
18 mm or more
8 mm - 12 mm
M6 screw (not supplied)
Screw (not
supplied)
Cord (not
supplied)
30 cm
10 cm 10 cm
10 cm
Leave at least this space around the set.
30 cm
10 cm 10 cm
Leave at least this space around the set.
6 cm
Air circulation is blocked.
Wall Wall

6GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\010COVTOC_GB.fm masterpage: Left
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
NOTE ON MAINS ADAPTOR (models with
supplied mains adaptor only)
Warning
To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
To prevent fire or shock hazard, do not place objects filled with
liquids, such as vases, on the apparatus. Do not install this
equipment in a confined space, such as a bookshelf or similar
unit.
• Please ensure that the mains socket is installed near the
equipment and shall be easily accessible.
• Be sure to use the supplied mains adaptor and mains lead.
• Do not use any other mains adaptor. It may cause a
malfunction.
• Connect the mains adaptor to an easily accessible mains socket.
• Do not coil the mains lead around the
mains adaptor. The core wire may be cut
and/or it may cause a malfunction of the
media receiver.
• Do not touch the mains adaptor with wet hands.
• If you notice an abnormality in the mains adaptor, disconnect it
from the mains socket immediately.
• The set is not disconnected from the mains source as long as it
is connected to the mains socket, even if the set itself has been
turned off.
• As the mains adaptor will become warm when it is used for a
long time, you may feel hot when touching it by hand.
Prohibited Usage
Do not install/use the TV set in locations, environments or
situations such as those listed below, or the TV set may
malfunction and cause a fire, electric shock, damage and/or
injuries.
Location:
• Outdoors (in direct sunlight), at the seashore, on a ship or other
vessel, inside a vehicle, in medical institutions, unstable
locations, near water, rain, moisture or smoke.
• If the TV is placed in the changing room of
a public bath or hot spring, the TV may be
damaged by airborne sulfur, etc.
• For best picture quality, do not expose the screen to direct
illumination or sunlight.
• Avoid moving the TV from a cold area to a warm area. Sudden
room temperature changes may cause moisture condensation.
This may cause the TV to show poor picture and/or poor colour.
Should this occur, allow moisture to evaporate completely
before powering the TV on.
Environment:
• Do not install the TV in places that are hot, humid, or excessively
dusty; where insects may enter; where it might be exposed to
mechanical vibration, near flammable objects (candles, etc.).
The TV set shall not be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall be placed on the
TV.
• Do not place the TV in a humid or dusty
space, or in a room with oily smoke or
steam (near cooking tables or
humidifiers). Fire, electric shock, or
warping may result.
• Do not install the TV in places subject to extreme temperature
such as in direct sunlight, near a radiator or a heating vent. The
TV may overheat in such condition which can cause
deformation of the enclosure and/or TV malfunction.
Situation:
• Do not use when your hands are wet, with the cabinet removed,
or with attachments not recommended by the manufacturer.
Disconnect the TV set from mains socket and aerial during
lightning storms.
• Do not install the TV so that it sticks out
into an open space. This may result in
injury or damage from a person or object
bumping into the TV.
Broken pieces:
• Do not throw anything at the TV set. The screen glass may break
by the impact and cause serious injury.
• If the surface of the TV set cracks, do not touch it until you have
unplugged the mains lead. Otherwise this may cause an electric
shock.
When not in use
• If you will not be using the TV set for several days, the TV set
should be disconnected from the mains for environmental and
safety reasons.
• As the TV set is not disconnected from the mains when the TV
set is just turned off, pull the plug from the mains to disconnect
the TV set completely.
• Some TV sets may have features that require the TV set to be
left in standby to work correctly.
For children
• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they
are not mistakenly swallowed.
If the following problems occur...
Turn off the TV set and unplug the mains lead immediately if any
of the following problems occur.
Ask your dealer or Sony service centre to have it checked by
qualified service personnel.
When:
Mains lead is damaged.
Poor fitting of mains socket.
TV set is damaged by being dropped, hit or having something
thrown at it.
Any liquid or solid object falls through openings in the cabinet.
About LCD TV Temperature
When the LCD TV is used for an extended period, the panel
surrounds become warm. You may feel hot when touching there
by the hand.
WALL-MOUNT BRACKET (models with supplied
Wall-Mount Bracket only)
Below information shows the correct handling of the Wall-Mount
Bracket. Be sure to read this information thoroughly and use the
Wall-Mount Bracket correctly.
To Customers:
Be sure to observe the following precautions for safety to prevent
a serious injury through fire, electric shock, the product toppling
over, or the product dropping.
• Be sure to subcontract the installation to licensed contractors
and keep small children away during installation.
• Be sure to subcontract moving or dismounting of the TV to
licensed contractors.
• Do not remove screws, etc., after mounting the TV.
• Do not make alterations to the parts of the Wall-Mount Bracket.
• Do not mount any equipment other than the specified product.
• Do not apply any load other than the TV on the Wall-Mount
Bracket.
• Do not lean on or hang from the TV.
• Do not handle the TV with excessive force during cleaning or
maintenance.

7GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\010COVTOC_GB.fm masterpage: Right
GB
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
To Sony Dealers and Contractors:
The following instructions are for Sony dealers and contractors
only. Be sure to read safety precautions described below and pay
special attention to safety during the installation, maintenance
and checking of this product.
• When handling or mounting the TV set, hold it on the sides. Do
not lift the TV by the U-shaped Bar.
• When handling or mounting the
TV set, do not lay down the TV.
• Do not install the Wall-Mount
Bracket on wall surfaces where the
corners or the sides of the TV are
protruding away from the wall
surface.
• Do not install the TV over or under an air conditioner.
• Be sure to install the Wall-Mount Bracket
securely to the wall following the
instructions in the supplied Wall-Mount
Bracket Installation Guide. If any of the
screws are loose or fall out, the Wall-
Mount Bracket may fall and cause injury
or property damage.
• Be sure to use the supplied screws and
attachment parts properly following the
instructions given in the supplied
Wall-Mount Bracket Installation Guide. If
you use substitute items, the TV may fall
and cause bodily injury to someone or
damage to the TV.
• Be sure to assemble the bracket properly following the
instructed procedure explained in the supplied Wall-Mount
Bracket Installation Guide.
• Be sure to tighten the screws securely in the designated
position.
• Be careful not to subject the TV to shock during installation.
• Be sure to install the TV on a wall that is both perpendicular and
flat.
• After proper installation of the TV, secure the cables properly.
• Do not allow the mains lead or
the connecting cables to be
pinched as the internal
conductors may become
exposed and cause a short circuit
or an electrical break.
Viewing the TV
• View the TV in moderate light, as viewing the TV in poor light or
during long period of time, strains your eyes.
• When using headphones, adjust the volume so as to avoid
excessive levels, as hearing damage may result.
(3D compatible models only)
• Some people may experience discomfort (such as eye strain,
fatigue, or nausea) while watching 3D video images or playing
stereoscopic 3D games. Sony recommends that all viewers take
regular breaks while watching 3D video images or playing
stereoscopic 3D games. The length and frequency of necessary
breaks will vary from person to person. You must decide what
works best. If you experience any discomfort, you should stop
watching the 3D video images or playing stereoscopic 3D
games until the discomfort ends; consult a doctor if you believe
necessary. You should also review (i) the instruction manual of
any other device or media used with this television and (ii) our
website (www.sony.eu/support) for the latest information. The
vision of young children (especially those under six years old) is
still under development. Consult your doctor (such as a
pediatrician or eye doctor) before allowing young children to
watch 3D video images or play stereoscopic 3D games. Adults
should supervise young children to ensure they follow the
recommendations listed above.
• Do not use, store, or leave the 3D Glasses or battery near a fire,
or in places with a high temperature, e.g., in direct sunlight, or
in sun-heated cars.
LCD Screen
• Although the LCD screen is made with high-precision
technology and 99.99 % or more of the pixels are effective,
black dots may appear or bright points of light (red, blue, or
green) may appear constantly on the LCD screen. This is a
structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of
this TV set. The image may be uneven or the LCD screen may be
damaged.
• If this TV set is used in a cold place, a smear may occur in the
picture or the picture may become dark. This does not indicate a
failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed
continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This
is not a malfunction.
• The LCD screen contains a small amount of liquid crystal. Follow
your local ordinances and regulations for disposal.
Handling and cleaning the screen surface/
cabinet of the TV set
Be sure to unplug the mains lead connected to the TV set from
mains socket before cleaning.
To avoid material degradation or screen coating degradation,
observe the following precautions.
• To remove dust from the screen surface/cabinet, wipe gently
with a soft cloth. If dust is persistent, wipe with a soft cloth
slightly moistened with a diluted mild detergent solution.
• Never spray water or detergent directly on
the TV set. It may drip to the bottom of the
screen or exterior parts and enter the TV set,
and may cause damage to the TV set.
• Never use any type of abrasive pad, alkaline/acid cleaner,
scouring powder, or volatile solvent, such as alcohol, benzene,
thinner or insecticide. Using such materials or maintaining
prolonged contact with rubber or vinyl materials may result in
damage to the screen surface and cabinet material.
• Do not touch the TV if your hand is covered in any chemical
substance such as hand cream or sunblock.
• Periodic vacuuming of the ventilation openings is
recommended to ensure proper ventilation.
• When adjusting the angle of the TV set, move it slowly so as to
prevent the TV set from moving or slipping off from its table
stand.
Precautions

8GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\010COVTOC_GB.fm masterpage: Left
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Optional Equipment
• Keep optional components or any equipment emitting
electromagnetic radiation away from the TV set. Otherwise
picture distortion and/or noisy sound may occur.
• This equipment has been tested and found to comply with the
limits set out in the EMC Directive using a connection signal
cable shorter than 3 meters.
Recommendation of F-type plug
Projection of the inner wire from the connection part must be less
than 1.5 mm.
Wireless Function of the unit
• Do not operate this unit near medical equipment (pacemaker,
etc.), as this may result in the malfunction of the medical
equipment.
• Although this unit transmits/receives scrambled signals, be
careful of unauthorised interception. We cannot be responsible
for any trouble as a result.
Caution about handling the remote control
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and
new batteries.
• Dispose of batteries in an environmentally friendly way. Certain
regions may regulate the disposal of batteries. Please consult
your local authority.
• Handle the remote control with care. Do not drop or step on it,
or spill liquid of any kind onto it.
• Do not place the remote control in a location near a heat source,
a place subject to direct sunlight, or a damp room.
WALL-MOUNT BRACKET (models withsupplied
Wall-Mount Bracket only)
• If you use the TV installed on the Wall-Mount Bracket for a long
time, the wall behind or above the TV may become discoloured
or the wallpaper may come unglued, depending on the material
of the wall.
• If the Wall-Mount Bracket is removed after installing it on the
wall, the screw holes remain.
• Do not use the Wall-Mount Bracket in a place where it is
subjected to mechanical vibration.
Disposal of the TV set
Disposal of Old Electrical &
Electronic Equipment (Applicable in
the European Union and other
European countries with separate
collection systems)
This symbol on the product or on its packaging
indicates that this product shall not be treated
as household waste. Instead it shall be handed
over to the applicable collection point for the
recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste
handling of this product. The recycling of materials will help to
conserve natural resources. For more detailed information about
recycling of this product, please contact your local Civic Office,
your household waste disposal service or the shop where you
purchased the product.
Disposal of waste batteries
(applicable in the European Union
and other European countries with
separate collection systems)
This symbol on the battery or on the packaging
indicates that the battery provided with this
product shall not be treated as household waste. On certain
batteries this symbol might be used in combination with a
chemical symbol. The chemical symbols for mercury (Hg) or lead
(Pb) are added if the battery contains more than 0.0005 %
mercury or 0.004 % lead. By ensuring these batteries are
disposed of correctly, you will help prevent potentially negative
consequences for the environment and human health which
could otherwise be caused by inappropriate waste handling of
the battery. The recycling of the materials will help to conserve
natural resources. In case of products that for safety, performance
or data integrity reasons require a permanent connection with an
incorporated battery, this battery should be replaced by qualified
service staff only. To ensure that the battery will be treated
properly, hand over the product at end-of-life to the applicable
collection point for the recycling of electrical and electronic
equipment. For all other batteries, please view the section on how
to remove the battery from the product safely. Hand the battery
over to the applicable collection point for the recycling of waste
batteries. For more detailed information about recycling of this
product or battery, please contact your local Civic Office, your
household waste disposal service or the shop where you
purchased the product.
1.5 mm max.
(Reference drawing of the F-type plug)
7 mm max.

9GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Right
GB
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Parts and Controls
KD-75XD9405, KD-65/55XD9305 only
Remote Control sensor*1/ Light
sensor*1 / Illumination LED / 3D Sync
Transmitter*1*2
The illumination LED lights up or blinks
according to the status of the TV.
•White
When turning on the TV/picture off
mode/software update, etc.
•Cyan
When connecting with a mobile device
wirelessly.
• Pink*2
Recording mode.
•Amber
Timer is set.
(Power)
CH +/- (Channel)
+/- (Volume)
(Input select)
Display and select the input source.
TV
Switch to a TV channel or input from other
applications.
*1 Do not place anything near the sensor.
*2 Only on limited region/country/TV model.
Controls and Indicators

Ȫ
ȫ
Ȭ
ȭ
Ȫ
ȫ
ȭ
Ȭ
Except KD-75XD9405, KD-65/55XD9305

10GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Left
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Using Remote Control
The remote control shape, location, availability and function of remote control button may vary
depending on your region/country/TV model.
/(Input select/Text hold)
In TV mode: Display and select the input
source.
In Text mode: Hold the current page.
(Microphone)
Use Voice Function. (e.g., Search various
content by voice.)
(TV standby)
Turn on or turn off the TV (standby mode).
DIGITAL/ANALOG
Switch between digital and analogue mode.
TV/RADIO
Switch between TV or RADIO broadcasts.
SYNC MENU
Display the BRAVIA Sync Menu.
EXIT
Return to the previous screen or exit from
the menu. When an Interactive Application
service is available, press to exit from the
service.
Number buttons
/(Info/Text reveal)
Display information.
(Text)
Display text information.
Remote Control Parts Description
Ȫ
ȩ
ȫ
Ȭ
ȭ
Ȯ
MIC

11GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Right
GB
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Google Play
Access the “Google Play” online service.
NETFLIX (Only on limited region/
country/TV model)
Access the “NETFLIX” online service.
Colour buttons
Execute corresponding function at that time.
ACTION MENU
Display a list of contextual functions.
TV
• Switch to a TV channel or input from other
applications.
• Turn on the TV to display TV channel or
input.
GUIDE/
Display the digital programme guide.
BACK/
Return to previous screen.
HOME
Display the TV Home Menu.
DISCOVER
Bring up the Content Bar to search for
content.
////(Item select/Enter)
+/– (Volume)
Adjust the volume.
(Jump)
Jump back and forth between two channels
or inputs. The TV alternates between the
current channel or input and the last
channel or input that was selected.
(Muting)
Mute the sound. Press again to restore the
sound.
PROG +/–//
In TV mode: Select the channel.
In Text mode: Select the next () or
previous () page.
AUDIO
Change the language for the programme
currently being viewed.
///.//>/
Operate media contents on TV and
connected BRAVIA Sync-compatible device.
(Subtitle setting)
Turn subtitles on or off (when the feature is
available).
HELP
Display Help Menu. Help Guide can be
accessed from here.
REC
Record the current programme with the USB
HDD recording function.
TITLE LIST
Display the Title list.

12GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Left
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Connection Diagram
For more information on connections, refer to the Help Guide (page 2).
KD-85/75XD85xx, KD-75XD9405, KD-65/55XD9305 only
*3
*2
*2
*1
*1
*1
Headphone/Home
Audio System/
Subwoofer
Digital still
camera/
Camcorder/
USB storage
media
HDMI Device
Home Audio System
with Optical Audio
Input
Cable/Antenna/
Set Top Box
Set Top Box
VCR/Video game equipment/
DVD player/Camcorder
HDMI Device
Satellite
DVD player with
component output
Router
Conditional
Access
Module
Home Audio
System with
ARC/HDMI
Device

13GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Right
GB
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Except KD-85/75XD85xx, KD-75XD9405, KD-65/55XD9305
*1
*3
*2
*2
*1
*1
Headphone/
Home Audio
System/
Subwoofer
Digital still
camera/
Camcorder/
USB storage
media
HDMI Device
Home Audio
System with
ARC/HDMI
Device
Cable/Antenna/
Set Top Box
Home Audio System
with Optical Audio Input
Set Top Box
VCR/Video game equipment/
DVD player/Camcorder
HDMI Device
Satellite
DVD player with
component output
Router
Conditional
Access Module

14GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Left
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)

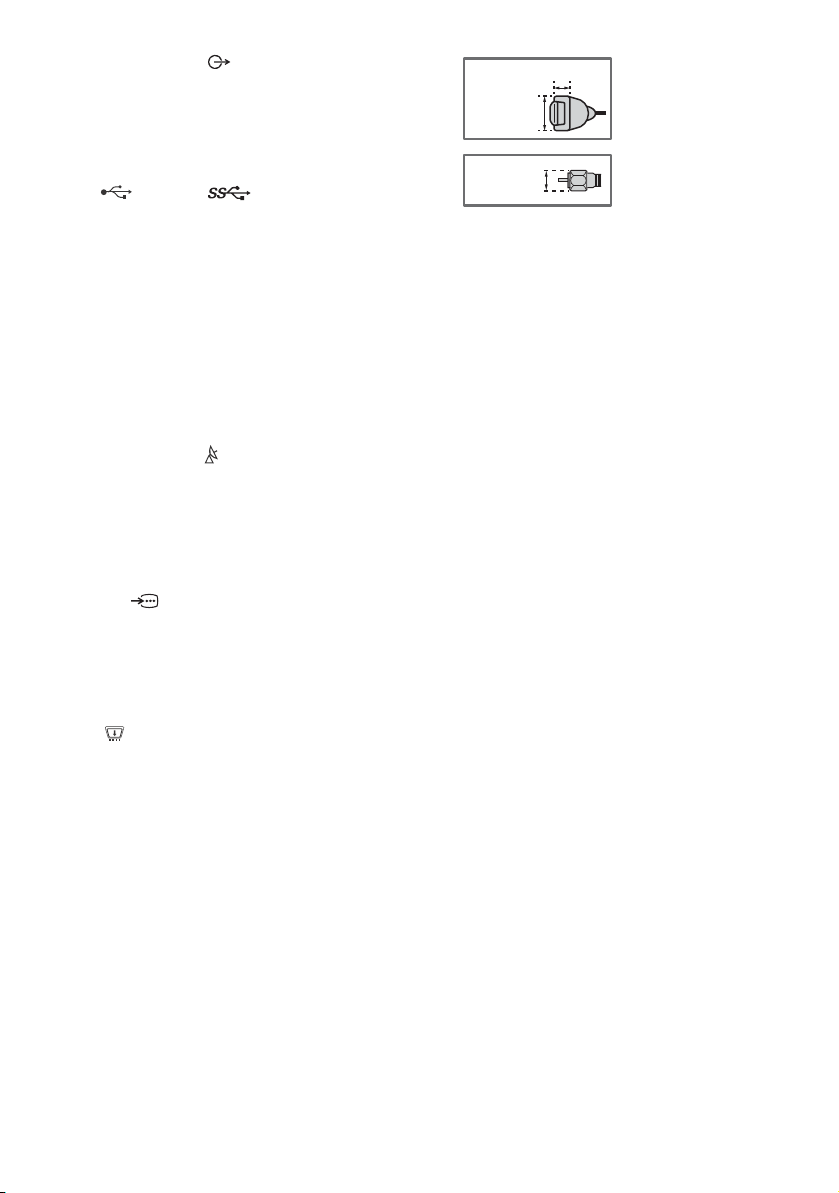

AUDIO OUT*4/
• To listen to the TV's sound through the
connected equipment, press HOME.
Select [Settings] t[Sound] t
[Headphone/Audio out] and then select
the desired item.
USB 1/2, USB 3 (HDD REC)*5
• Connecting a large USB device may
interfere with other connected devices
beside it.
• When connecting a large USB device,
connect to the USB 1 port.
HDMI IN 1/2/3/4
• If connecting a digital audio system that is
compatible with Audio Return Channel
(ARC) technology, use HDMI IN 4. If not, an
additional connection with DIGITAL AUDIO
OUT (OPTICAL) is necessary.
(RF input), (Satellite input)
• Connections for terrestrial/cable and
satellite. Connection steps: MAIN t
Antenna tSUB.
• For SUB. jack, connect only when you are
using twin tuner mode except for Single
Cable Distribution EN50494.
/AV 1
• Connect with a SCART cable. When you
connect an analogue decoder, the TV
tuner outputs scrambled signals to the
decoder, and the decoder unscrambles
the signals before outputting them.
CAM (Conditional Access Module)
• Provides access to pay TV services. For
details, refer to the instruction manual
supplied with your CAM.
• Do not insert the smart card directly into
the TV CAM slot. It must be fitted into the
Conditional Access Module provided by
your authorised dealer.
• CAM is not supported in some countries/
areas. Check with your authorised dealer.
• A CAM message may appear when you
switch to a digital programme after using
the Internet video.
*1
*2
*3 When connecting mono equipment, connect to the
L (MONO) audio jack (socket).
*4 Supports 3-pole stereo mini jack only.
*5 Only on limited region/country/TV model.
< 21 mm
< 12 mm
< 14 mm

15GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Right
GB
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Installing the TV to the Wall
Note
• See page 3 (Safety information) and page 8 (Precautions) on WALL-MOUNT BRACKET before carrying out Wall-Mount
Bracket installation.
• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes
on the rear of the TV.
• Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least four times that
of the TV. See page 24-26 (Specifications) for the TV’s weight.
For instructions on Wall-Mount Bracket installation of your TV model, refer to the supplied Wall-Mount Bracket
Installation Guide.
Using the supplied Wall-Mount Bracket (KD-75XD9405, KD-65/55XD9305 only)
To Customers
Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony
dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable
for any damages or injury caused by mishandling or improper installation, or installing any other than the
specified product. Your Statutory Rights (if any) are not affected.
To Sony Dealers and Contractors
Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly
to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or
improper installation.

16GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Left
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
This TV’s instruction manual only shows the steps on preparing the installation of the TV before
installing to the wall.
To Customers:
For product protection and safety reasons, Sony strongly recommends that installation of your
TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance and examination of
this product.
Use the Wall-Mount Bracket SU-WL450 (not supplied) (KD-65/55XD9305, KD-65/55XD85xx,
FW-65/55XD85xx) to install the TV to the wall.
When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide
supplied with the Wall-Mount Bracket.
Note
• Be sure to store the removed screws in a safe place, keeping them away from children.
For instructions on Wall-Mount Bracket installation of your TV model, refer to the following website:
www.sony.eu/tv/wall-mount-bracket-manual
Using the optional Wall-Mount Bracket
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for
withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers
or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for
any damage or injury caused by mishandling or improper installation.

17GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Right
GB
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
KD-65/55XD9305 only
1Remove the stand cover and terminal covers.
2Remove the screws from the rear of the TV.
3Attach the Wall-Mount Attachment (supplied with the TV) to the rear of the TV (to make it
parallel with the wall).
Note
• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.
• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV.
Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over
torqueing the Wall-Mount Attachment and damaging the TV.
2
1
3
VS(L)
VS(S)
1.5 N∙m {15 kgf∙cm}

18GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Left
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
KD-65/55XD85xx, FW-65/55XD85xx only
Remove the screws from the rear of the TV.
2
1
2
2
KD-65XD85xx, FW-65XD85xx
2
1
KD-55XD85xx, FW-55XD85xx

19GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Right
GB
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as
packaged.
Prepare the TV for the Wall-Mount Bracket before making cable connections.
For product protection and safety reasons, Sony strongly recommends that installation of
your TV on the wall be performed by qualified professionals. Do not attempt to install it
yourself.
• Follow the instructions provided with the Wall-Mount Bracket for your model. Sufficient
expertise is required in installing this TV, especially to determine the strength of the wall for
withstanding the TV’s weight.
• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to
attach the Table-Top Stand. Keep the screws away from small children.
KD-85/75XD85xx, FW-85/75XD85xx only
1Remove the stand cover.
2Remove the screws from the rear of the TV.
KD-85/75XD85xx, FW-85/75XD85xx, KD-75XD9405 only
2
1
2
2
KD-85XD85xx, FW-85XD85xx
2
2
KD-75XD85xx, FW-75XD85xx

20GB
D:\_SONY TV\SY150217_QH 85 EU RG\4584644151\01_4584644151_GB\030ADD_GB.fm masterpage: Left
KD-85XD85xx / 75XD9405 / 75XD85xx / 65XD9305 / 65XD85xx / 55XD9305 / 55XD85xx / FW-85XD85xx /
75XD85xx / 65XD85xx / 55XD85xx
4-584-644-15(1)
3Detach the Table-Top Stand from the TV.
4Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied).
Note
• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.
Wall-Mount Bracket
(not supplied)
Screw (not supplied)
