Sony BRAVIA KD-85X9500B User manual

KD-85X9500B
Television Reference Guide GB
CT

2GB
Table of Contents
Safety information . . . . . . . . . . . . . . . . . . . . . 2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Attaching the Table-Top Stand
(Alternative) . . . . . . . . . . . . . . . . . . . . . . . . 6
Preventing the TV from toppling over . . . . .8
Hiding the camera . . . . . . . . . . . . . . . . . . . . .8
Using the Remote Control . . . . . . . . . . . . . 8
Displaying the Touchpad Operation
Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Launching the Touchpad Tutorial . . . . . . . . .9
Connecting Other Devices. . . . . . . . . . . . . 9
Installing the TV to the Wall . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . 15
Troubles and Solutions . . . . . . . . . . . . . . . . 15
Specifications . . . . . . . . . . . . . . . . . . . . . . 16
Introduction
Thank you for choosing this Sony product.
Before operating the TV, please read this manual thoroughly and
retain it for future reference.
Note
• Before operating the TV, please read “Safety information”
(page 2).
• Instructions about “Installing the TV to the Wall” are included
within this TV’s instructions manual.
• Images and illustrations used in Quick Start Guide and this
manual are for reference only and may differ from actual
product appearance.
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located
on the rear of the TV.
WARNING
Batteries must not be exposed to excessive heat such as
sunshine, fire or the like.
Installation/Set-up
Install and use the TV set in accordance with the instructions
below in order to avoid any risk of fire, electrical shock or damage
and/or injuries.
Installation
• To avoid slipping and causing personal injury, do not step on
the TV protection bag when unpacking the TV set.
• The TV set should be installed near an easily accessible AC
power outlet (mains socket).
• Place the TV set on a stable, level surface to avoid it from falling
down and cause personal injury or damage to the TV.
• Install the TV where it cannot be pulled, pushed, or knocked
over.

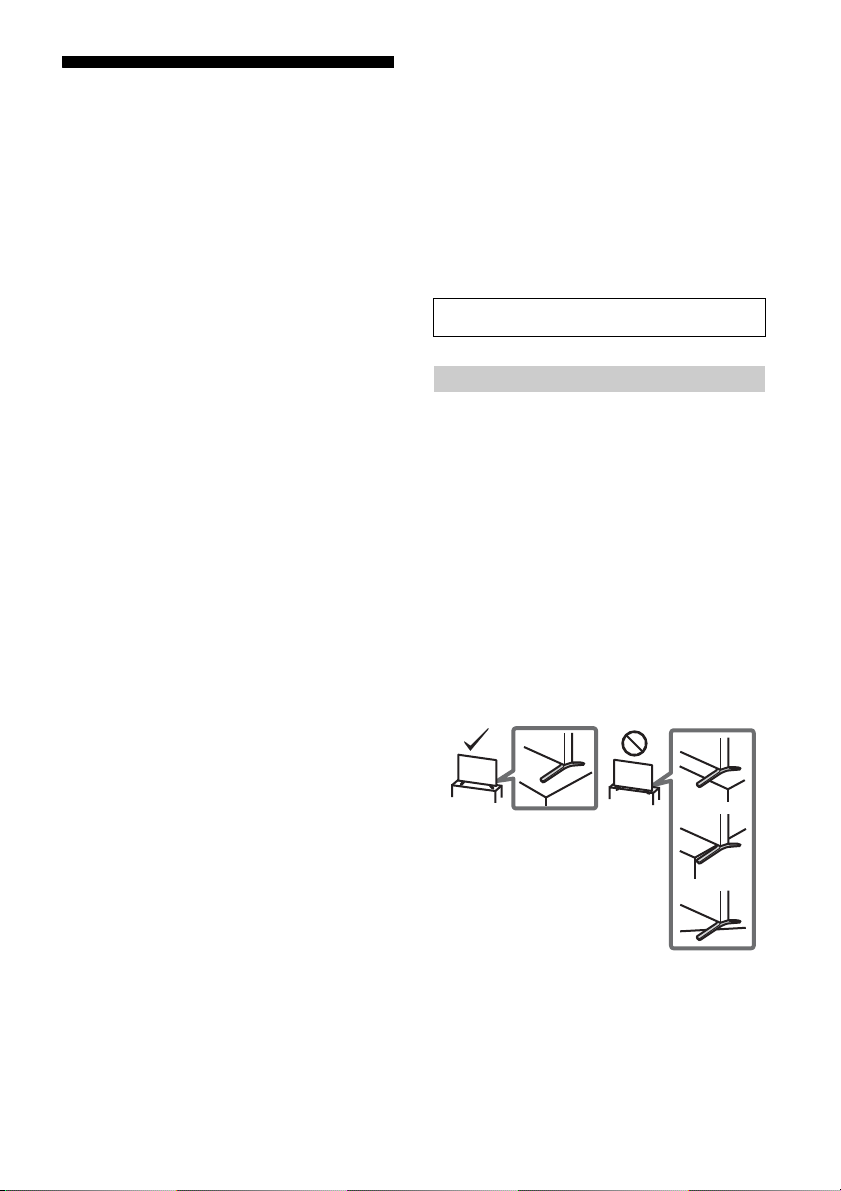

• Install the TV so that the TV's Table-Top Stand does not
protrudes out from the TV stand (not supplied).
If the Table-Top Stand protrudes out from the TV stand, it may
cause TV set to topple over, fall down, and cause personal injury
or damage to the TV.
• Only qualified service personnel should carry out wall
installations.
• For safety reasons, it is strongly recommended that you use
Sony accessories, including:
Wall-Mount Bracket SU-WL500
• Be sure to use the screws supplied with the Wall-Mount Bracket
when attaching the Wall-Mount Bracket to the TV set. The
supplied screws are designed as indicated by illustration when
measured from the attaching surface of the Wall-Mount Bracket.
The diameter and length of the screws differ depending on the
Wall-Mount Bracket model.
This television is designed for use in Hong Kong and ensured
the usage in Hong Kong only.
Safety information

3GB
GB
Use of screws other than those supplied may result in internal
damage to the TV set or cause it to fall, etc.
Transporting
• Before transporting the TV set, disconnect all cables.
• Four or more people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below.
Do not put stress on the LCD panel and the frame around the
screen.
• When transporting the TV set, do not subject it to jolts or
excessive vibration.
• When transporting the TV set for repairs or when moving, pack
it using the original carton and packing material.
Topple prevention
• Be sure to use strong cord that is capable of supporting the
weight of the TV.
Ventilation
• Never cover the ventilation holes or insert anything in the
cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony Wall-Mount
Bracket in order to provide adequate air-circulation.
Installed on the wall
Installed with stand
• To ensure proper ventilation and prevent the collection of dirt or
dust:
Do not lay the TV set flat, install upside down, backwards, or
sideways.
Do not place the TV set on a shelf, rug, bed or in a closet.
Do not cover the TV set with a cloth, such as curtains, or items
such as newspapers, etc.
Do not install the TV set as shown below.
AC power cord (mains lead)
Handle the AC power cord (mains lead) and outlet (mains socket)
as follows in order to avoid any risk of fire, electrical shock or
damage and/or injuries:
Use only Sony supplied AC power cords (mains lead), not those
of other brands.
Insert the plug fully into the AC power outlet (mains socket).
Operate the TV set on a 220–240 V AC supply only.
When wiring cables, be sure to unplug the AC power cord
(mains lead) for your safety and take care not to catch your feet
on the cables.
Disconnect the AC power cord (mains lead) from the AC power
outlet (mains socket) before working on or moving the TV set.
Keep the AC power cord (mains lead) away from heat sources.
Unplug the AC power plug (mains plug) and clean it regularly. If
the plug is covered with dust and it picks up moisture, its
insulation may deteriorate, which could result in a fire.
Note
• Do not use the supplied AC power cord (mains lead) on any
other equipment.
• Do not pinch, bend, or twist the AC power cord (mains lead)
excessively. The core conductors may be exposed or broken.
• Do not modify the AC power cord (mains lead).
• Do not put anything heavy on the AC power cord (mains lead).
• Do not pull on the AC power cord (mains lead) itself when
disconnecting the AC power cord (mains lead).
• Do not connect too many appliances to the same AC power
outlet (mains socket).
• Do not use a poor fitting AC power outlet (mains socket).
Prohibited Usage
Do not install/use the TV set in locations, environments or
situations such as those listed below, or the TV set may
malfunction and cause a fire, electrical shock, damage and/or
injuries.
Location:
• Outdoors (in direct sunlight), at the seashore, on a ship or other
vessel, inside a vehicle, in medical institutions, unstable
locations, near water, rain, moisture or smoke.
• If the TV is placed in the changing room of
a public bath or hot spring, the TV may be
damaged by airborne sulfur, etc.
• For best picture quality, do not expose the screen to direct
illumination or sunlight.
• Avoid moving the TV from a cold area to a warm area. Sudden
room temperature changes may cause moisture condensation.
This may cause the TV to show poor picture and/or poor colour.
Should this occur, allow moisture to evaporate completely
before powering the TV on.
Screw (supplied with the
Wall-Mount Bracket)
Wall-Mount Bracket
8 mm - 12 mm
TV's rear cover
30 cm
10 cm 10 cm
10 cm
Leave at least this space around the set.
30 cm
10 cm 10 cm
Leave at least this space around the set.
6 cm
Air circulation is blocked.
Wall Wall

4GB
Environment:
Places that are hot, humid, or excessively dusty; where insects
may enter; where it might be exposed to mechanical vibration,
near flammable objects (candles, etc). The TV set shall not be
exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the TV.

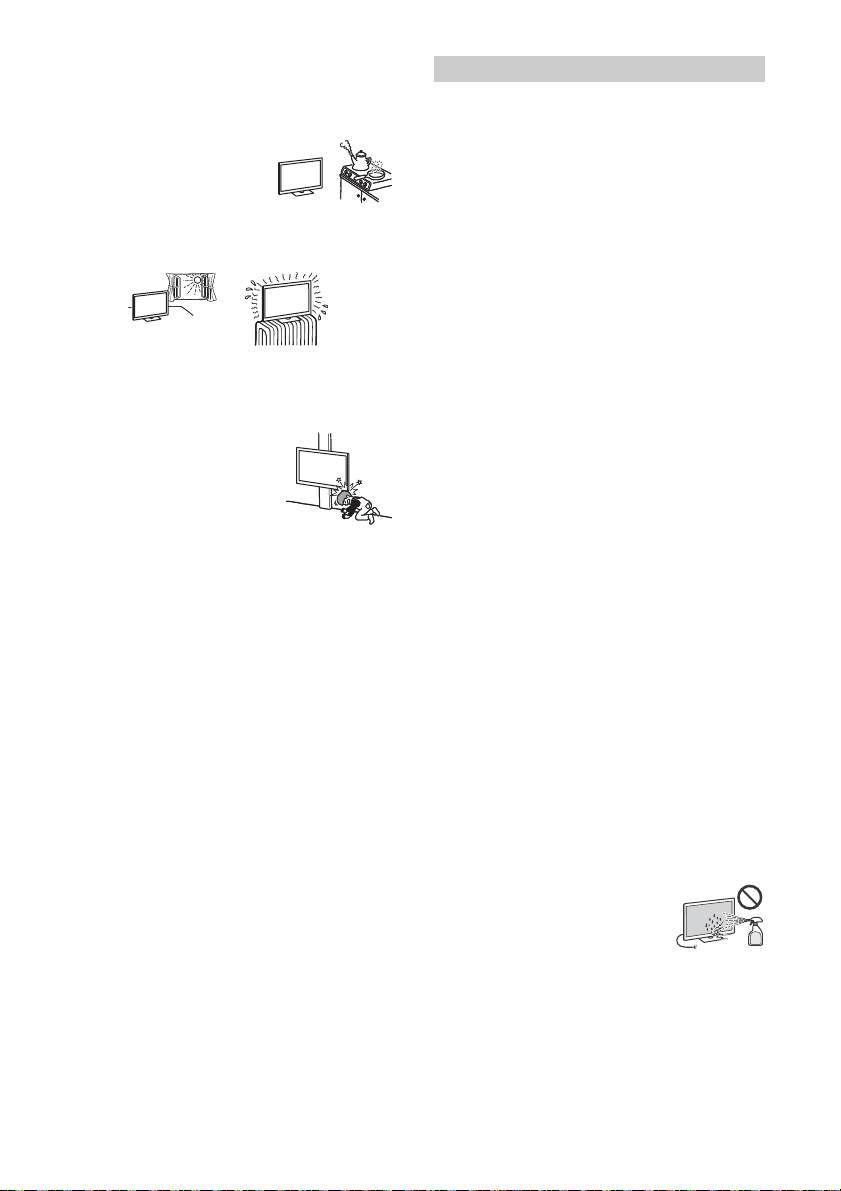

Do not place the TV in a humid or
dusty space, or in a room with oily
smoke or steam (near cooking tables
or humidifiers). Fire, electric shock, or
warping may result.
Do not install the TV in places subject to extreme temperature,
such as in direct sunlight, near a radiator or a heating vent. The
TV may overheat in such conditions which can cause
deformation of the enclosure and/or TV malfunction.
Situation:
• Do not use when your hands are wet, with the cabinet removed,
or with attachments not recommended by the manufacturer.
Disconnect the TV set from AC power outlet (mains socket) and
antenna (aerial) during lightning storms.
• Do not install the TV so that it sticks out
into an open space. Injury or damage
from a person or object bumping into
the TV may result.
Broken pieces:
• Do not throw anything at the TV set. The screen glass may break
by the impact and cause serious injury.
• If the surface of the TV set cracks, do not touch it until you have
unplugged the AC power cord (mains lead). Otherwise electric
shock may result.
When not in use
• If you will not be using the TV set for several days, the TV set
should be disconnected from the AC power (mains) for
environmental and safety reasons.
• As the TV set is not disconnected from the AC power (mains)
when the TV set is just turned off, pull the plug from the AC
power outlet (mains socket) to disconnect the TV set
completely.
• However, some TV sets may have features that require the TV
set to be left in standby to work correctly.
For children
• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they
are not mistakenly swallowed.
If the following problems occur...
Turn off the TV set and unplug the AC power cord (mains lead)
immediately if any of the following problems occur.
Ask your dealer or Sony service centre to have it checked by
qualified service personnel.
When:
AC power cord (mains lead) is damaged.
Poor fitting of AC power outlet (mains socket).
TV set is damaged by being dropped, hit or having something
thrown at it.
Any liquid or solid object falls through openings in the cabinet.
About LCD Monitor Temperature
When the LCD Monitor is used for an extended period, the panel
surrounds become warm. You may feel hot when touching there
by the hand.
Viewing the TV
• Some people may experience discomfort (such as eye strain,
fatigue, or nausea) while watching 3D video images or playing
stereoscopic 3D games. Sony recommends that all viewers take
regular breaks while watching 3D video images or playing
stereoscopic 3D games. The length and frequency of necessary
breaks will vary from person to person. You must decide what
works best. If you experience any discomfort, you should stop
watching the 3D video images or playing stereoscopic 3D
games until the discomfort ends; consult a doctor if you believe
necessary. You should also review (i) the instruction manual of
any other device or media used with this television and (ii) our
website (http://www.sony-asia.com/support) for the latest
information. The vision of young children (especially those
under six years old) is still under development. Consult your
doctor (such as a pediatrician or eye doctor) before allowing
young children to watch 3D video images or play stereoscopic
3D games. Adults should supervise young children to ensure
they follow the recommendations listed above.
• Do not use, store, or leave the 3D Glasses or battery near a fire,
or in places with a high temperature, e.g., in direct sunlight, or
in sun-heated cars.
• When using the simulated 3D function, please note that the
displayed image is modified from the original due to the
conversion done by this television.
• View the TV in moderate light, as viewing the TV in poor light or
during long period of time, strains your eyes.
• When using headphones, adjust the volume so as to avoid
excessive levels, as hearing damage may result.
LCD Screen
• Although the LCD screen is made with high-precision
technology and 99.99% or more of the pixels are effective, black
dots may appear or bright points of light (red, blue, or green)
may appear constantly on the LCD screen. This is a structural
property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of
this TV set. The image may be uneven or the LCD screen may be
damaged.
• If this TV set is used in a cold place, a smear may occur in the
picture or the picture may become dark. This does not indicate a
failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed
continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This
is not a malfunction.
• The LCD screen contains a small amount of liquid crystal. Follow
your local ordinances and regulations for disposal.
Handling and cleaning the screen surface/
cabinet of the TV set
Be sure to unplug the AC power cord (mains lead) connected to
the TV set from AC power outlet (mains socket) before cleaning.
To avoid material degradation or screen coating degradation,
observe the following precautions.
• To remove dust from the screen surface/cabinet, wipe gently
with a soft cloth. If dust is persistent, wipe with a soft cloth
slightly moistened with a diluted mild detergent solution.
• Never spray water or detergent directly on
the TV set. It may drip to the bottom of the
screen or exterior parts and enter the TV set,
and may cause damage to the TV set.
• Never use any type of abrasive pad, alkaline/acid cleaner,
scouring powder, or volatile solvent, such as alcohol, benzene,
thinner or insecticide. Using such materials or maintaining
prolonged contact with rubber or vinyl materials may result in
damage to the screen surface and cabinet material.
• Periodic vacuuming of the ventilation openings is
recommended to ensure to proper ventilation.
• Do not handle the speakers with excessive force during cleaning
or maintenance to prevent any damages.
Precautions

5GB
GB
Optional Equipment
Keep optional components or any equipment emitting
electromagnetic radiation away from the TV set. Otherwise
picture distortion and/or noisy sound may occur.
Wireless Function of the unit
• Do not operate this unit near medical equipment (pacemaker,
etc.), as malfunction of the medical equipment may result.
• Although this unit transmits/receives scrambled signals, be
careful of unauthorised interception. We cannot be responsible
for any trouble as a result.
Caution about handling the remote control
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and
new batteries.
• Dispose of batteries in an environmentally friendly way. Certain
regions may regulate the disposal of batteries. Please consult
your local authority.
• Handle the remote control with care. Do not drop or step on it,
or spill liquid of any kind onto it.
• Do not place the remote control in a location near a heat source,
a place subject to direct sunlight, or a damp room.

6GB
Attaching the Table-Top Stand
(Alternative)
You can change the Table-Top Stand from the
middle to the edge position by referring to the
instructions below.
1
2
Note
• Five or more people are needed to carry out this
installation.
• Ensure that there are no objects in front of the TV.
To bundle the cables
1Attach the cable clampers.
*1Location of cable clamper when the Table-Top Stand
is attached to middle position.
*2Location of cable clamper for Table-Top Stand (edge
or middle position) and Floor Stand.
Edge position
1
23
Thick
cushion
1.5 N∙m
{15 kgf∙cm}
1
32
IR Sensor
3D Sync
Transmitter
*1
*2

7GB
GB
Note
• Using the Port Replicator can simplify cable
management to a single cable connection to the TV.
• To detach the cable clamper from the TV, press the
top of the clamper 1, then pinch 2as illustrated.
2Bundle the AC power cord (mains lead)
with a cable holder, and connecting
cables with cable clampers.
3Remove the stand cover.
4Fix the cable to the stand with
attachments in order to avoid damage
to the cable.
5Attach the stand cover.


8GB
If you do not wish to use the camera, hide it as
illustrated.
Note
• When using the camera, position it at the front top of
the TV.
Using the Remote Control
You can operate the TV by using the supplied
Touchpad Remote Control or IR (infrared)
Remote Control.
Note
• Touchpad Remote Control can only be used after
registration with the TV. You can register the
Touchpad Remote Control by pressing HOME, then
select [Settings] t[System Settings] t
[Touchpad Remote Control Setup].
Touchpad Operation Guide allows you to see
the main gesture commands that are available
for the current TV screen.
1Touch and keep your finger on the
centre of the touchpad to display the
Touchpad Operation Guide.
Preventing the TV from toppling over
Hiding the camera
8-12 mm
M4
Displaying the Touchpad Operation
Guide
Touchpad
Remote Control
IR
Remote Control

9GB
GB
1Press HOME.
2Slide to select [Help], then press the
touchpad.
3Slide up/down to select [Touchpad
Tutorial], then press the touchpad.
Follow the instructions on the screen.
Note
• You can also launch the Touchpad Tutorial by
pressing HOME, then select [Settings] t
[System Settings] t[Touchpad configurations] t
[Start Tutorial].
Connecting Other Devices
For more information on connections, refer to
the i-Manual.
Note
• For connection with Port Replicator, refer to the
installation guide supplied with the Port Replicator.
To connect with an HDMI cable
Note
• Connect 4K devices (4K Media Player, 4K Set Top Box,
etc.) to the HDMI IN 2 or HDMI IN 1 jack of the TV to
enjoy copyright protected content.
To connect with component cables
Launching the Touchpad Tutorial
To HDMI OUT
< 12 mm
< 21 mm
To AUDIO OUT To COMPONENT
OUT (PR/PB/Y)

10GB
To connect with AV composite cables
To connect MHL Device
The TV simultaneously charges the MHL-
compatible connected device while playing
photo/music/video files. You can use the TV
remote control to control the connected MHL-
compatible device.
Note
• If [Auto Input Change (MHL)] is set to [On], the TV
automatically switches to HDMI IN 2/MHL or HDMI IN
4/MHL from other input when MHL-compatible
device is connected to HDMI IN 2/MHL or HDMI IN 4/
MHL jack. The availability of [Auto Input Change
(MHL)] depends on whether the MHL-compatible
device can support this feature.
• If [MHL Charging during Standby] is set to [On], you
can continue charging the MHL-compatible device
even when the TV is in standby mode.
• Connect the 4K smartphone or mobile devices to the
HDMI IN 2/MHL jack.
• Use authorized MHL 3 CABLE with MHL logo for 4K
smartphone or mobile devices.
To VIDEO OUT
Use authorized
MHL 3 CABLE
with MHL logo
(not supplied)
Use authorized
MHL 2 CABLE
with MHL logo
(not supplied)
MHL 3
device
MHL 2
device

11GB
GB

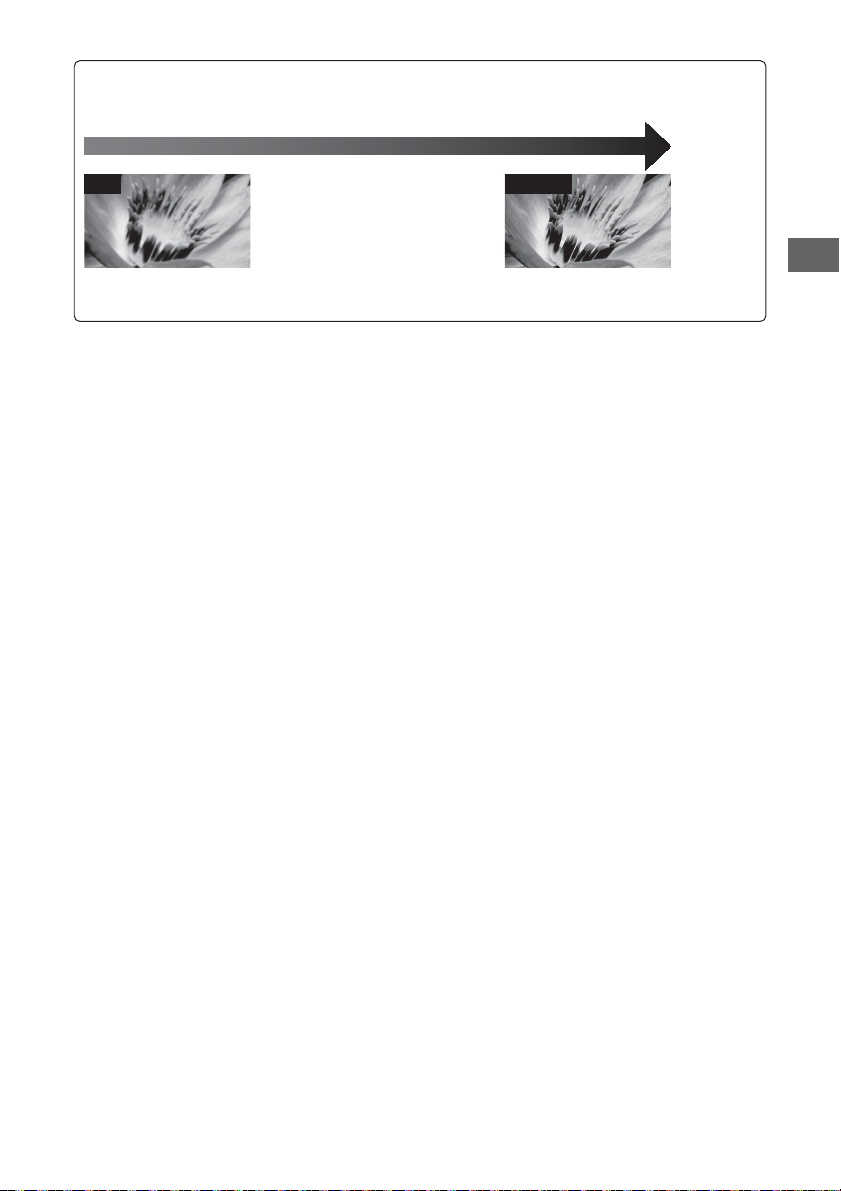

SD 4K/HD
Picture Quality
• AV composite cable
• Antenna (aerial) cable
Standard definition (SD) videos have picture signals with a
vertical resolution of 480 (NTSC) or 576 (PAL/SECAM) lines.
• Component cable • HDMI cable
High definition (HD) videos have picture signals
with a vertical resolution of 720 or 1080 lines.
(For 4K vertical resolution: 2,160 lines)

12GB
Installing the TV to the Wall
This TV’s instruction manual only shows the steps on preparing the installation of the TV before
installing to the wall.
To Custom ers:
For product protection and safety reasons, Sony strongly recommends that installation of your
TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance and examination of
this product.
Use the Wall-Mount Bracket SU-WL500 (not supplied) to install the TV to the wall.
Refer to the Instructions supplied with the Wall-Mount Bracket to properly carry out the installation.
Note
• Be sure to store the removed screws in a safe place, keeping them away from children.
1Attach the Mounting Hook using the four screws supplied with the Wall-Mount Bracket.
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for
withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers
or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for
any damage or injury caused by mishandling or improper installation.
4
1
Mounting Hook
Screw (+PSW 6 × 16)

13GB
GB
2Make sure that the wall has enough space for the TV and is capable of supporting a
weight of at least four times that of the TV. Refer to the following table on installing the TV
to the wall. See page 15-17 (Specifications) for the TV’s weight.
Unit: mm
* Only applicable for 0° for this TV model.
Note
• Figures in the table may differ slightly depending on the installation.
3Connect necessary cables to the TV.
4Detach the Table-Top Stand or Floor Stand from the TV.
Note
• When attaching the Table-Top Stand or Floor Stand again, be sure to fasten the screws (previously removed) to
the original holes on the rear of the TV.
Model Name
KD-
Display dimensions Screen centre dimension Length for mounting
Angle (0°)*
85X9500B 1,954 1,150 173 747 137
Screen centre point

14GB
5Install the TV on the wall.
SU-WL500
Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.
Model Name
KD- Screw location Hook location
85X9500B d, j a
Screw location
When installing the Mounting Hook on the TV.
Hook location
When installing the TV onto the Base Bracket.
a

15GB
GB
Troubleshooting
When the illumination LED is flashing in red,
count how many times it flashes (interval
time is three seconds).
If the illumination LED flashes red, reset the TV
by disconnecting the mains lead from the TV for
two minutes, then turn on the TV.
If the problem persists, contact your dealer or
Sony service centre with the number of times
the Illumination LED flashes red (interval time is
three seconds). Press /on the TV to turn it
off, disconnect the mains lead, and inform your
dealer or Sony service centre.
When the illumination LED is not flashing,
check the items as follows.
You can also refer to [Troubleshooting] in the
i-Manual or perform self-diagnosis by selecting
[Help] [Customer Support] [Self
Diagnostics]. If the problem persists, have your
TV serviced by qualified service personnel.
Troubles and Solutions
There is no picture (screen is dark) and no
sound.
Check the antenna (aerial)/cable connection.
Connect the TV to the AC power (mains), and
press /on the TV or remote control.
Some programmes cannot be tuned.
Check the antenna (aerial).
The remote control does not function.
Replace the batteries.
Your TV may be in SYNC mode.
Press Control Bar (….) and slide left/right to select
[SYNC MENU] then press the touchpad. Select [TV
Control] and then select [Home (Menu)] or
[Options] to control the TV.
When using IR Remote Control, press SYNC
MENU, select [TV Control] and then select [Home
(Menu)] or [Options] to control the TV.
The [Parental Lock] password has been
forgotten.
Enter 9999 for the PIN code. (PIN code 9999 is
always accepted.)
The TV surrounds become warm.
When the TV is used for an extended period, the
TV surrounds become warm.
You may feel hot when touching there by the
hand.
Frozen audio or video, a blank screen, or the
TV does not respond to TV or remote control
buttons.
Perform a simple reset of the TV by unplugging
the AC power cord (mains lead) for two minutes,
then plug it in again.
The /, CH+/–, +/–, ///, , and
HOME buttons cannot be located on the TV.
See below illustration for location of the buttons
on the TV.
The illumination LED is turned on.
If you do not wish to light up the illumination LED,
you can turn it off.
Press HOME, then select [Settings] t
[System Settings] t[General Set-up] t
[Illumination LED] t[Off]. You can also press
OPTIONS, then select [Illumination LED] t[Off].
Cannot connect to a wireless router by WPS.
• If you use WEP security, select [Easy] t [Wi-Fi] t
[Connect by scan list]. Then, select the network
name (SSID) you want to connect.
Cannot find the required network name in
network setup.
• Select [[Manual Entry]] and press to enter
network name.
Rear of TV

16GB
Specifications
System
Panel system
LCD (Liquid Crystal Display) Panel, LED Backlight
TV system
Analogue: B/G, I, D/K, M, L
Digital: DTMB
Colour/video system
Analogue: PAL, SECAM, NTSC3.58, NTSC4.43
Digital: Refer to the i-Manual
Channel coverage
Analogue: UHF/VHF/Cable
Digital: UHF
Sound output
10 W + 10 W + 10 W + 10 W
Wireless technology
Protocol IEEE802.11a/b/g/n
Input/Output jacks
Antenna (aerial)/cable
75 ohm external terminal for VHF/UHF
/ VIDEOIN1
Video/Audio input (phono jacks)
/ COMPONENTIN
YPBPR(Component Video): 1080p (50, 60 Hz),
1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i,
480p, 480i
Audio input (phono jacks)
VIDEO IN 2
Video input (common phono pin with Y input)
HDMI IN 1, 2, 3, 4 (support 4K resolution)
Video (2D): 4096 × 2160p (50, 60 Hz)*,
4096 × 2160p (24 Hz), 3840 × 2160p (50, 60 Hz)*,
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,
60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50,
60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC
Formats
*YCbCr4:2:0 / 8 bit
Video (3D):
Frame Packing: 1080p (30 Hz), 1080/24p,
1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p
Side-by-Side: 1080p (50, 60 Hz), 1080/24p,
1080i (50, 60 Hz), 720p (50, 60 Hz)
Over-Under: 1080p (30, 50, 60 Hz), 1080/24p,
1080i (50, 60 Hz), 720p (50, 60 Hz)
Audio: 5.1 channel linear PCM: 32, 44.1 and
48 kHz, 16, 20 and 24 bits, Dolby Digital
ARC (Audio Return Channel) (HDMI IN 1 only)
MHL (common with HDMI IN 2/4)
Video (2D): 4096 × 2160p (24 Hz)*, 3840 × 2160p
(24, 25, 30 Hz)*, 1080p (50, 60 Hz)*, 1080p (30 Hz),
1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz),
720/24p, 576p, 576i, 480p, 480i
* HDMI IN 2 only
Video (3D):
Frame Packing*: 1080p (30 Hz), 1080/24p, 1080i
(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p
Side-by-Side: 1080p (50, 60 Hz)*, 1080/24p,
1080i (50, 60 Hz), 720p (50, 60 Hz)
Over-Under: 1080p (50, 60 Hz)*, 1080p (30 Hz),
1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)
* HDMI IN 2 only
Audio: 5.1 channel linear PCM: 32, 44.1 and
48 kHz, 16, 20 and 24 bits, Dolby Digital
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM,
Dolby Digital)
HDMI 2 AUDIO IN
Analogue audio input (stereo mini jack)
AUDIO OUT/
Audio output (stereo mini jack)
Headphone jack
(supports Subwoofer out)
1, 2, 3
USB port
LAN
10BASE-T/100BASE-TX connector (Depending on
the operating environment of the network,
connection speed may differ. 10BASE-T/100BASE-
TX communication rate and communication
quality are not guaranteed for this TV.)
Others
Optional accessories
Wall-Mount Bracket: SU-WL500
Wireless subwoofer: SWF-BR100
MHL cable: DLC-MC10/DLC-MC20
Active 3D Glasses: TDG-BT500A
Operating temperature
0 ºC – 40 ºC
Operating humidity
10 % – 80 % RH (non-condensing)

17GB
GB
Power and others
Power requirements
220 V - 240 V AC, 50 Hz
Screen size (measured diagonally) (Approx.)
85 inches / 214.8 cm
Display resolution
3,840 dots (horizontal) × 2,160 lines (vertical)
Power consumption
Indicated on the rear of the TV
Output Rating
USB 1, 3: 5 V, 500 mA MAX
USB 2: 5 V, 800 mA MAX
MHL (HDMI IN 2, 4): 5 V, 900 mA MAX
Dimensions (Approx.) (w × h × d)
TV with Floor Stand
1,954 × 1,576 × 591 mm
TV with Table-Top Stand
1,957 × 1,214 × 452 mm
TV without Floor Stand / Table-Top Stand
1,954 × 1,150 × 103 mm
Stand width (Approx.)
Edge position:
TV with Floor Stand
1,953 mm
TV with Table-Top Stand
1,957 mm
Middle position:
694 mm
Mass (Approx.)
TV with Floor Stand
77.0 kg
TV with Table-Top Stand
73.7 kg
TV without Floor Stand / Table-Top Stand
70.8 kg
Note
• Optional accessories availability depends on
countries/region/TV model/stock.
• Design and specifications are subject to change
without notice.
• Power consumption will increase when Port
Replicator connected to the TV.
• This TV set incorporates MHL 2 for HDMI IN 4/MHL
and MHL 3 for HDMI IN 2/MHL.

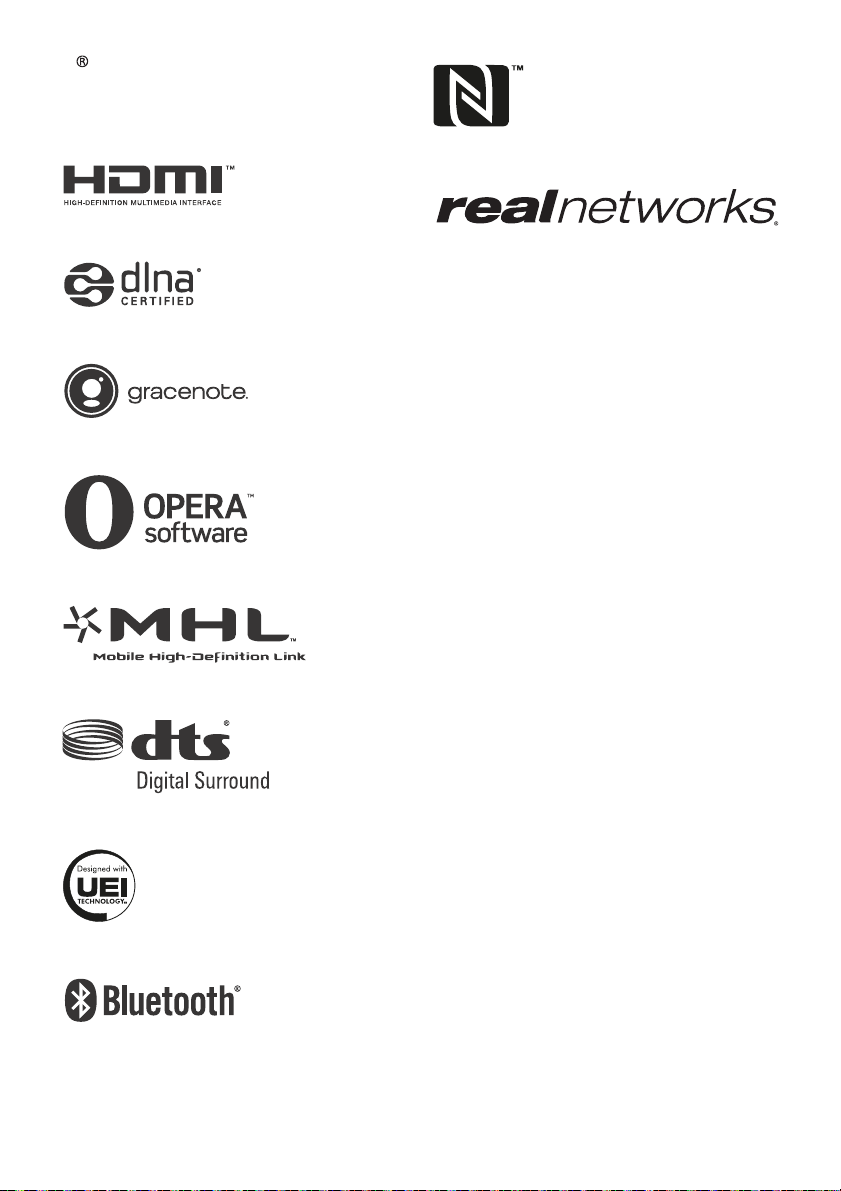

Trademark information
• The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of
HDMI Licensing LLC in the United States
and other countries.
• DLNA®, the DLNA Logo and DLNA
CERTIFIED® are trademarks, service marks,
or certification marks of the Digital Living
Network Alliance.
• Manufactured under license from Dolby
Laboratories.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
• “BRAVIA” and are trademarks of
Sony Corporation.
• TrackID is a trademark or registered
trademark of Sony Mobile Communications
AB.
• Gracenote, Gracenote eyeQ, Gracenote
VideoID, Gracenote Video Explore,
Gracenote MusicID, the Gracenote logo
and logotype, and the “Powered by
Gracenote” logo are either registered
trademarks or trademarks of Gracenote in
the United States and/or other countries.
• Opera® Devices SDK from Opera Software
ASA. Copyright 1995-2014 Opera Software
ASA. All rights reserved.
• Wi-Fi, Wi-Fi Direct and Miracast are
trademarks or registered trademarks of
Wi-Fi Alliance.
• “Sony Entertainment Network logo” and
“Sony Entertainment Network” are
trademarks of Sony Corporation.
• MHL, Mobile High-Definition Link and the
MHL Logo are trademarks or registered
trademarks of MHL Licensing, LLC.
• For DTS patents, see
http://patents.dts.com. Manufactured
under license from DTS Licensing Limited.
DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and
DTS Digital Surround is a trademark of DTS,
Inc. © DTS, Inc. All Rights Reserved.
• Designed with UEI TechnologyTM
Under License from Universal Electronics
Inc. Portions © UEI 2000 – 2013
• The Bluetooth® word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Sony Corporation is
under license. Other trademarks and trade
names are those of their respective
owners.
• The N Mark is a trademark or registered
trademark of NFC Forum, Inc. in the United
States and in other countries.

18GB
• 2014 RealNetworks, Inc. Patents Pending.
All rights reserved. RealNetworks logo is a
trademark of RealNetworks, Inc.
