Congratulations on your purchase of the CLT-2435 cordless telephone.
This phone is designed for reliability, long life, and outstanding performance utilizing the
latest in 2.4- Hz Digital Spread Spectrum technology.
Note: Some illustrations in this manual may differ from the actual unit for
explanation purposes.
●2.4- Hz Digital Spread Spectrum Technology
●Dual Keypad
●Call Manager Features*: Caller ID, Caller ID on Call Waiting and Call Waiting with Options
*Each feature works with your network service. A subscription required.
●50-Number Caller ID List
●Programmable Network Service Key
●Voice Mail Waiting Indicator on Base and Handset
●One-Touch Voice Mail Access on the Handset
●3-Line, 16-Character Backlit Handset Display
●Lighted Handset Keypad and TALK/END Key
●20-Name/Number Directory on the Handset
●10-Number Speed Dial on the Base
●Last 3-Number Redial
●HandsFree Speakerphone in the Handset
●10-Day Standby Battery Life/6-Hour Talk Time
●Out of Range Warning
●30-Channel Auto/Manual Scan
●Call Time Display
●Pulse/Tone Dialing
●Intercom/Page/Handset Locator
●Handset Earpiece and Speaker Volume Controls
●Ringer Volume Control with Off setting
●Belt Clip and Headset Jack
●Wall-Mountable
●Hearing Aid Compatible
2.4-GHz Digital Spread Spectrum echnology utilizes a “wider frequency band”
vs. a “single narrow band” used in standard digital transmissions. The result is the
clarity of digital sound, extended range and a secure conversation with virtually no
interference from other 2.4- Hz cordless phones or radio transmission devices.
The clearest channel is automatically selected for each transmission. The phone
selects one of over 65,000 digital security codes for the handset and base.
These features enhance your phone’s security and also prevent unauthorized calls
as a result of your phone being activated by other equipment.
Introduction
Features
CLT2435 ENG-5/28 5/28/01 13:50 Page ii

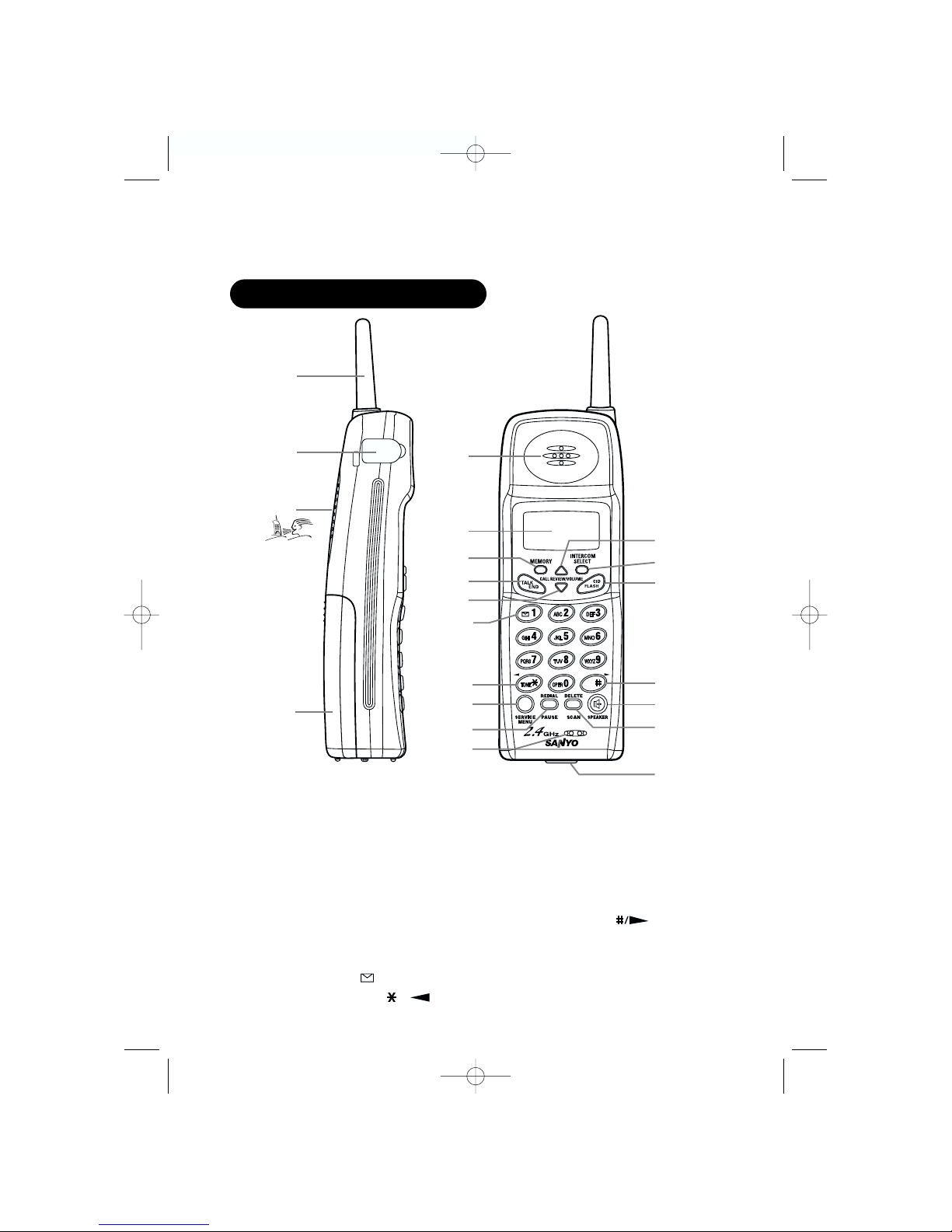

1. Handset antenna
2. Headset jack cover
3. HandsFree speaker
4. Battery compartment
5. Earpiece speaker
6. LCD display
7. MEMORY key
8. TALK/END key
9. CALL REVIEW/VOLUME (down) key
10. Voice Mail key (1/ )
11.
L eft cursor key (TONE/ / )
12. SERVICE MENU key
13. REDIAL/PAUSE key
14. Microphone
15. CALL REVIEW/VOLUME (up) key
16. INTERCOM/SELECT key
17. CID/FLASH key
18. Right cursor key ( )
19. SPEAKER key
20. DELETE/SCAN key
21. Handset charging contacts
16
17
20
21
19
18
15
5
6
7
8
9
10
14
11
12
13
1
2
4
3
Controls and functions
CLT2435 ENG-5/28 5/28/01 13:46 Page iii

34
26
27
25
28
29
30
24
33
31
32
22
23 36
35
37 38 39 40
22. Handset retainer
23. Base charging contacts
24. INTERCOM/PA E/FIND key
25. FLASH key
26. SPEAKER key
27. REDIAL/PAUSE key
28. MEMORY key
29. CALLERS indicator
30. CHAR E/IN USE indicator
31. INTERCOM indicator
32. SPEAKER indicator
33. VOICE MAIL indicator
34. Base antenna
35. Bottom bracket
36. VOLUME control
37. Ringer Volume switch
38. Pulse-Tone switch
39. DC power input
40. TEL LINE jack
CLT2435 ENG-5/28 5/28/01 13:46 Page iv

E1
Introduction/Features ..............................................inside front cover
Controls and Functions............................................inside front cover
Getting started
Read this first..........................................................................................E2
Step 1: Checking the package contents.........................................E3
Step 2: Setting up the base unit .......................................................E4
Desktop use .............................................................................E5
Mounting the base unit on a wall ......................................E7
Step 3: Preparing the battery pack ..................................................E9
Basics
Making a call ........................................................................................E11
HandsFree Speakerphone in the Handset ...................................E12
Receiving a call....................................................................................E14
Call Waiting ..........................................................................................E15
Out of Range ........................................................................................E15
Lighted keypad ....................................................................................E16
Scanning ...............................................................................................E16
Adjusting the ringer and earpiece volume...................................E16
Redialing a call.....................................................................................E17
Directory/speed dial
Using the handset directory.............................................................E19
Using the base station speed-dial memory .................................E26
Caller ID features
Caller ID .................................................................................................E28
When the telephone rings................................................................E30
Viewing the Caller ID list...................................................................E31
Deleting information from the Caller ID list .................................E32
Using the Caller ID list .......................................................................E34
Using Caller ID on Call Waiting service.........................................E36
Advanced calling features
List of features .....................................................................................E37
Voice mail access ...............................................................................E38
Call transfer feature............................................................................E40
Intercom feature..................................................................................E41
3-way conference feature ................................................................E42
Accessing calling features ...............................................................E43
Pre-programmed calling features...................................................E44
Adding new features .........................................................................E45
Call Waiting with Options.................................................................E47
Additional Information
Changing the digital security code ................................................E48
Installing the belt clip.........................................................................E49
Headset installation ...........................................................................E49
Note on power source.......................................................................E50
Maintenance ........................................................................................E50
Troubleshooting...............................................................................E51
Technical Information ....................................................................E52
Warranty ...........................................................................................E53
Sanyo On Site (SOS) Information ...............................................E54
Getting Started
Basics
Directory/
speed-dial
Caller ID
Feat res
Advanced Calling
Feat res
CONTENTS
Additional
Information
CLT2435 ENG-5/28 5/28/01 13:46 Page 1

E2
This cordless telephone must be set up before use. Follow these steps:
Step 1 (page E3)
Unpack and check the telephone and accessories.
Step 2 (page E4 to E8)
Choose the best location to set
up the base unit.
Base unit
Step 3 (page E9 to E10)
Insert the battery pack into the handset. You
must charge the battery pack for a full 15 hours
before using the phone.
Handset
About the digital security code
This cordless telephone uses a digital security code to prevent unauthorized access to
your base unit. This security code prevents other cordless handsets from making calls
through your base unit.
A random security code will be assigned automatically between your base unit and
handset when you charge the battery pack for the first time.
If you want to reset the security code, see page E48.
GETTING STARTED
Read this first
CLT2435 ENG-5/28 5/28/01 13:46 Page 2

E3

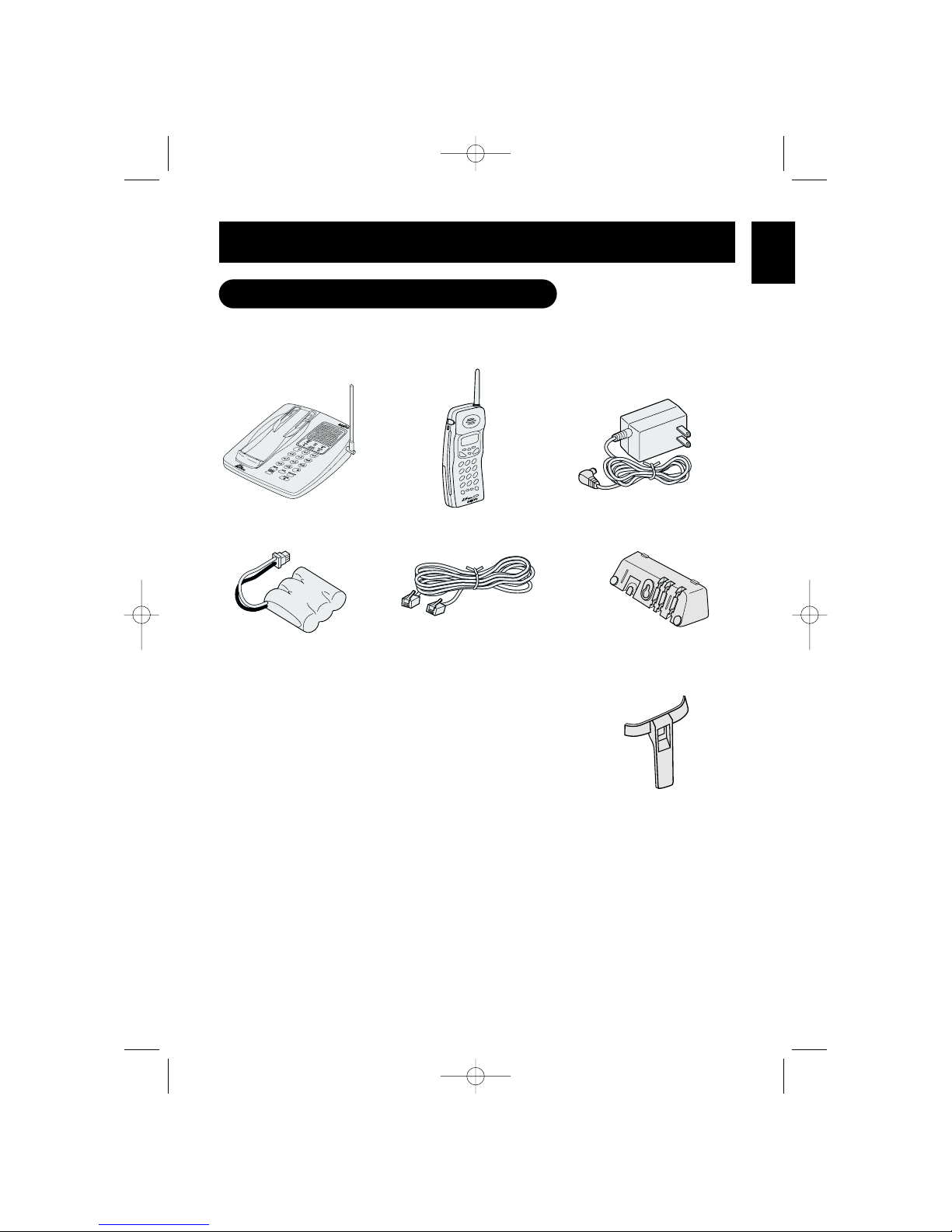

Make sure you have received the following items in the package.
• Base unit • Handset • AC adaptor
(AD 350)
• Rechargeable
battery pack
(SANYO 3KR 600AAL)
• Telephone line
cord (1)
• Bottom bracket
for desktop use
and wall mounting
• This Owner's Manual
• Belt clip
Checking the package contents
GETTING STARTED
CLT2435 ENG-5/28 5/28/01 13:46 Page 3

E4
Avoid places near electrical equipment such as refrigerators, computers, TVs,
microwaves or fluorescent lamps. These may cause interference or reduce the operating
range of the cordless telephone.
Do the following steps:
• Choose the best location
• Connect the base unit
• Choose the dialing mode
• The location should be close to both a phone jack and a continuous power outlet which is
not switchable.
• Be sure there is sufficient space to raise the base antenna fully to a vertical position.
• The base can be placed on a desk, tabletop or mounted on a standard wall plate.
Notes:
Setting up the base unit
GETTING STARTED
CLT2435 ENG-5/28 5/28/01 13:46 Page 4

When connecting the power cord, make sure it does not create a trip or
fire/electrical hazard. Avoid places where it could become chafed.
E5
Connect the base unit
If you want to install the base unit
on the wall, see page E7.
To AC outlet
To telephone outlet
AC adaptor
(supplied)
Telephone line cord
(supplied)
3
2
To TEL LINE
To DC IN 9V

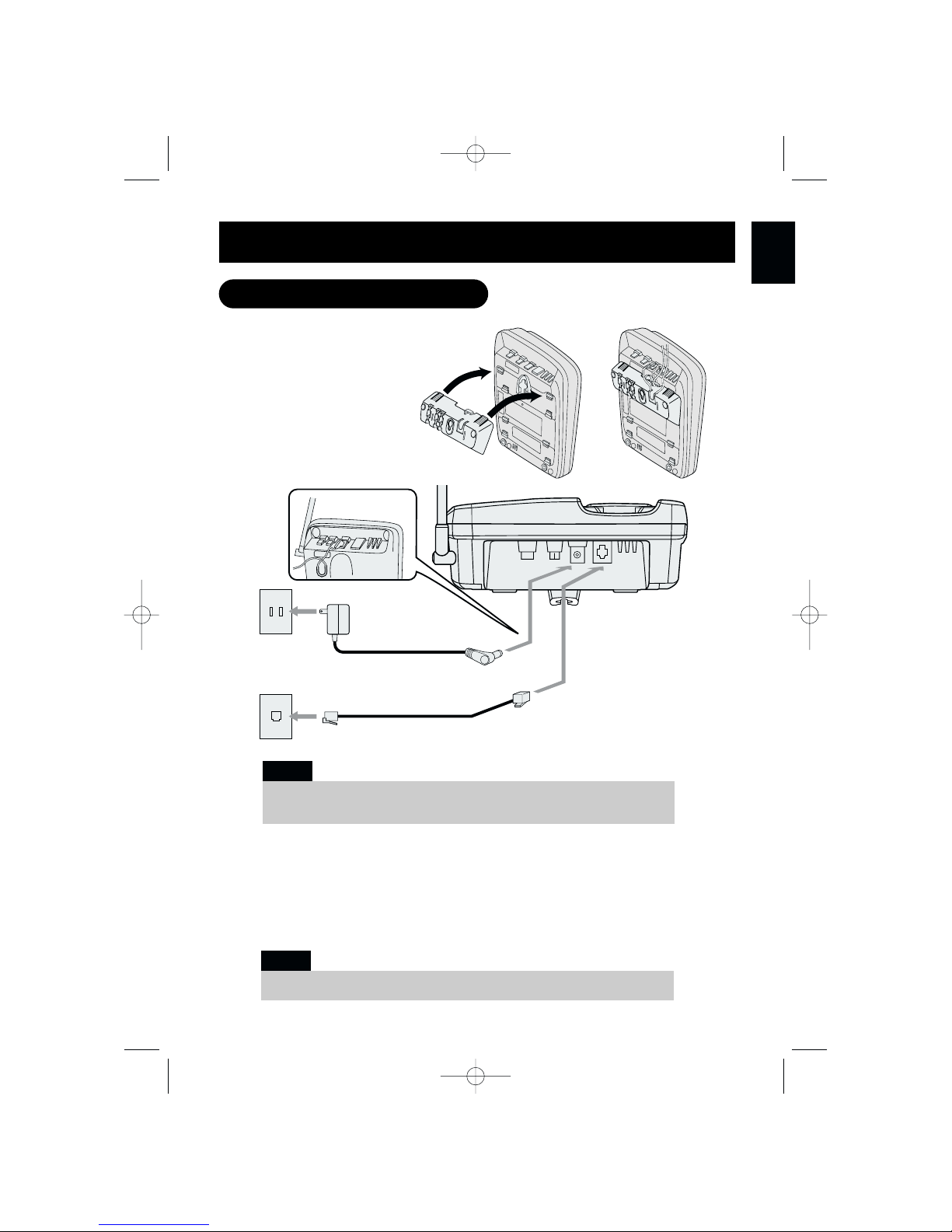

1 Snap the bottom bracket into the notches on the base.
2 Connect the AC adaptor to the DC IN 9V jack and to a standard 120-V AC wall outlet.
Then raise the antenna to a vertical position.
3 Connect the telephone line cord to the TEL LINE jack and to a telephone outlet.
Note:
Desktop use
GETTING STARTED
To assure proper handset charging, the bottom bracket must be attached.
Note:
1
CLT2435 ENG-5/28 5/28/01 13:46 Page 5

E6

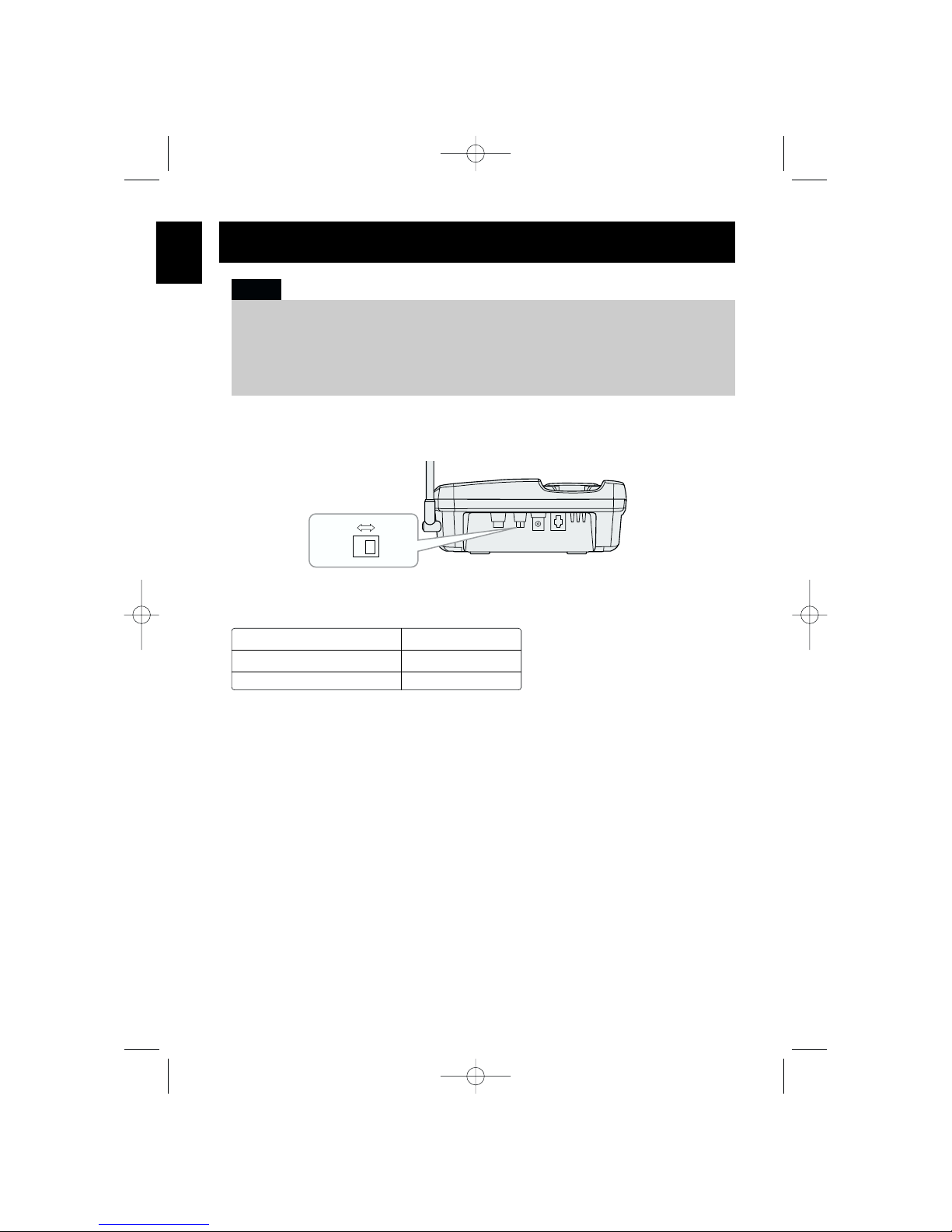

Choose the dialing mode
Depending on your dialing system, set the PULSE-TONE switch as follows:
If your dialing system is Set the switch to
Tone TONE
Pulse PULSE
If you are not sure of your dialing system
Make a trial call with the PULSE-TONE switch set to TONE.
If the call connects, leave the switch as is; otherwise, set to PULSE.
PULSE TONE
•Use only the supplied AD-350 AC adaptor. Do not use any other AC adaptor.
•Connect the AC adaptor to a continuous power supply.
•Place the base unit close to the AC outlet so that you can unplug the AC adaptor easily.
•If your telephone outlet is not modular, contact your telephone company for assistance.
Notes:
GETTING STARTED
CLT2435 ENG-5/28 5/28/01 13:46 Page 6

E7
Standard wall plate mounting
This phone can be mounted on any standard telephone wall plate.

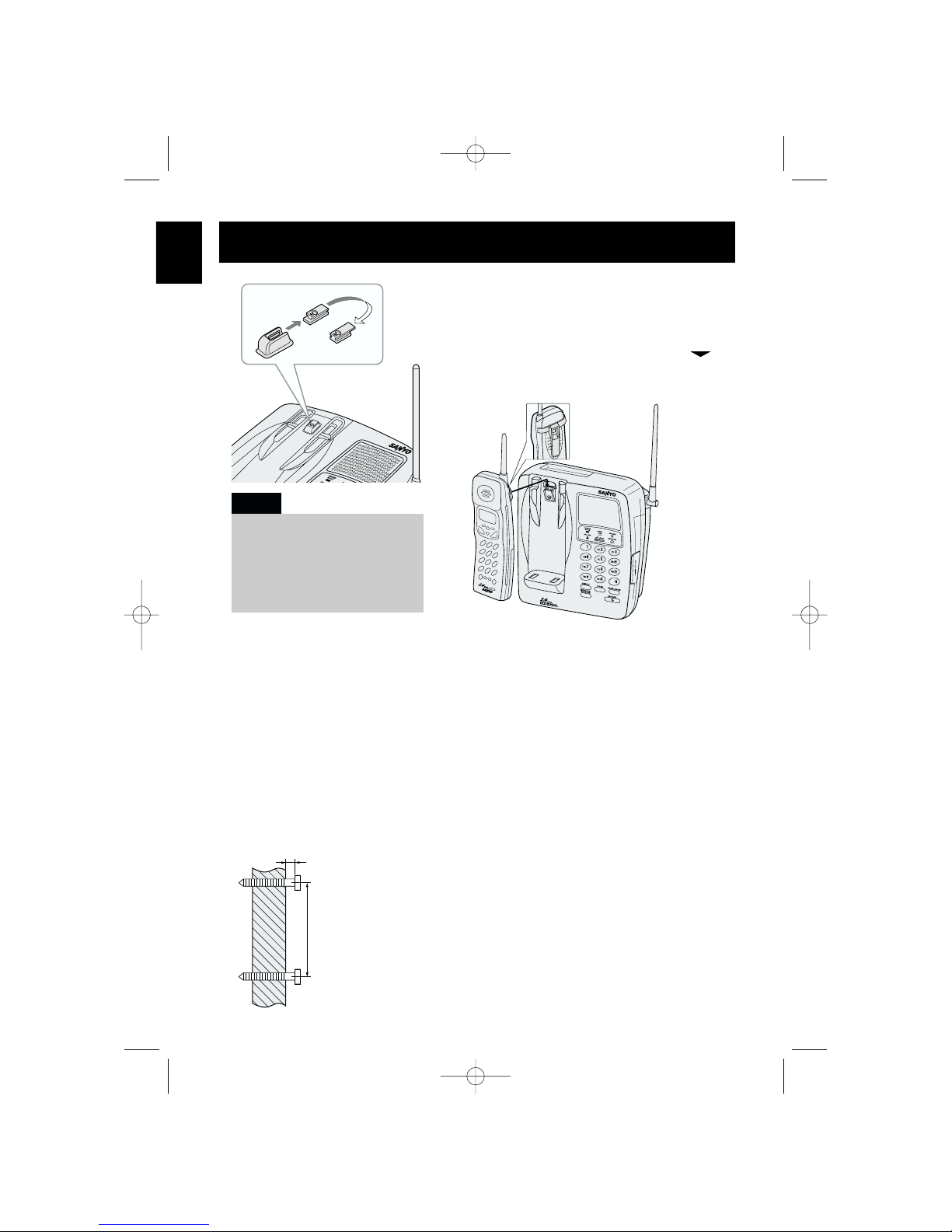

1 Attach the bottom bracket to the base as
shown. Make sure all tabs snap into the
notches on the base.
2 Plug the telephone line cord to the
TEL LINE jack and the small plug of
AC adaptor to the
DC IN 9V jack.
3 Plug the telephone line cord into the
telephone outlet.
4 Fit the AC adaptor cord into the molded
groove. Then wrap the cord around the
strain relief notch.
5 Plug the AC adaptor into a standard
120-V AC wall outlet.
6 Raise the antenna to a vertical position.
7 Align the mounting slots on the base with the
mounting posts on the wall. Push in and
down until the phone is firmly seated.
1
2 7
Mounting the base unit on a wall
GETTING STARTED
CLT2435 ENG-5/28 5/28/01 13:46 Page 7

TOP
1/8 in.
3-15/16 in.
(3 mm)
(100 mm)
E8
Direct wall-mounting
If you do not have a standard wall plate, you can still mount your phone directly to the
wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting location, that could
cause a hazard when inserting screws into the wall.
• Try to mount your phone within 10 –15 feet (3 – 4.5 m) of a working phone jack to
avoid excessive cord lengths.
• Make sure the wall material is capable of supporting the weight of the base and
handset.
• Use #10 screws with anchoring devices suitable for the wall material where the base
unit will be placed.
1 Insert two mounting screws with a minimum length
of 1-3/8 inches (35.5 mm) into the wall, 3-15/16
inches (100 mm) apart. Allow about 1/8 of an inch
(3 mm) between the wall and screwheads for
mounting the phone.
2 Refer to steps 1 through 9 on pages E7 and E8 to
mount the telephone.
8 On the base unit, pull the handset retainer out
of the slot. Rotate it clockwise 180 degrees.
9 Flip the retainer. Slide it back into the slot so
that the lip of the retainer is up and the
points down. The retainer holds the handset in
place.
Handset retainer
When the phone is mounted on
the wall, the handset belt clip
must be attached to hold the
handset in the charging position.
Do not place the handset with the
display facing inside.
Note:
GETTING STARTED
CLT2435 ENG-5/28 5/28/01 13:46 Page 8

E9
Charge the battery pack for a full 15 hours before you start using your phone.
1 Press on the battery cover and slide the cover
down until it comes off.
2 Plug in the battery pack connector with the
correct polarity (black and red wires), then insert
the battery pack into the battery compartment.
3 Slide the battery cover on until it snaps into
place.
4 Place the handset on the base.
5 Make sure that the CHARGE/IN USE
indicator lights. If the indicator does not light,
check to see that the AC adaptor is plugged in
and that the handset makes good contact with
the base charging contacts.
CHARGE/IN USE
Use only the battery pack supplied or the specified
Sanyo types with your phone.
Type: SANYO 3KR-600AAL or SANYO/GE GES-PCF01
Note:
Preparing the battery pack
GETTING STARTED
CLT2435 ENG-5/28 5/28/01 13:46 Page 9

E10
Battery use time (per charge)
With a fully charged battery:
• Six hours continuous use.
• Ten days when the handset is in the standby mode.
Cleaning the battery contacts
To maintain a good charge, it is important to clean the battery contacts with a dry cloth
on the handset and base unit about once a month.
Do not use any liquids or solvents.
GETTING STARTED
Note:
Repeated short chargings may cause memory effect
in the battery pack, which reduces use time of the
battery. It is recommended not to replace the
handset to the base unit after each call.
When the battery charge level becomes low
When the voltage of the battery pack in the handset is
very low and needs to be charged, the phone is
programmed to stop functioning in order to save power.
If the phone is not in use,
Low Battery flashes and none of the keys will operate. If
the phone is in use,
Low Battery flashes and the handset beeps. Complete your
conversation as quickly as possible and return the handset to the base unit for charging.
Low Battery
Note:
While Voice Mail is displayed the battery discharges faster than
in normal standby mode. To conserve the battery charge check
your messages regularly to clear the display. (See page E39)
CLT2435 ENG-5/28 5/28/01 13:46 Page 10

Other Operations

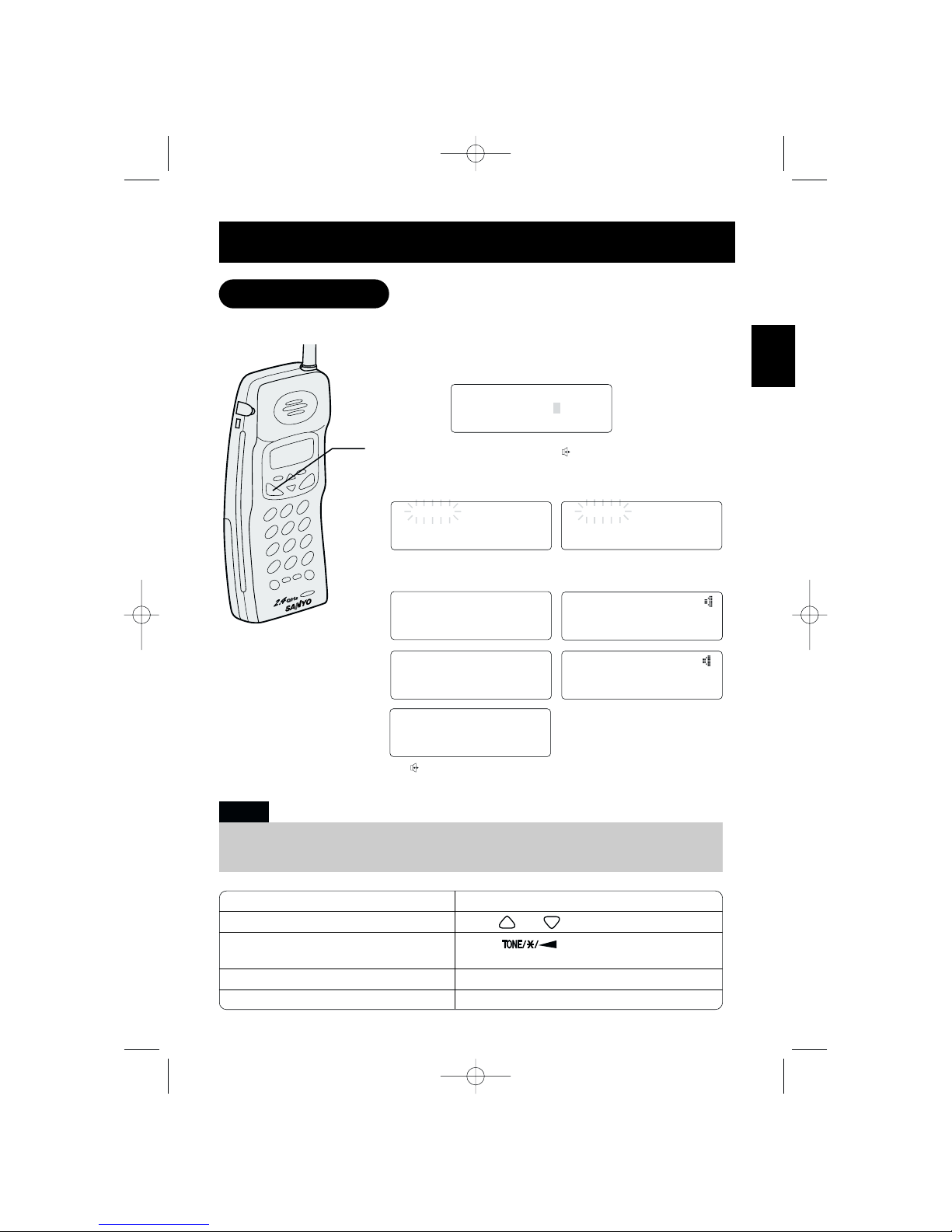

When you want to: Do this:
Adjust the earpiece volume Press or during the call.
Temporarily switch to tone dialing Press . The subsequent numbers
(When the base is set to pulse mode) dialed will be sent as tone dialing.
Enter a pause in the dialing sequence Press REDIAL/PAUSE.
Improve reception Press DELETE/SCAN.
3 The number is dialed.
The call time display
appears about 5 seconds
after line connection.
4 To hang up,
press
TALK/END or SPEAKER (or place the handset on the base).
The call time display remains for about 5 seconds after disconnection.
E11
Dialing from standby mode
1 Enter the phone number. (Up to 32 digits.)
Example :Enter 9057609944
2 Press TALK/END or SPEAKER . Talk flashes in the
display.
The volume setting is displayed. For example, if
the volume is set to high, the display shows:
9057609944
Talk
9057609944
Talk
<High>
Talk 0:00
9057609944
5:15
BASICS
• Press DELETE/SCAN if you enter a wrong number at step 1.
•Press and hold DELETE/SCAN to delete all numbers at once.
•You must press a key within 20 seconds or the phone will return to standby mode.
Notes:
Making a call
With the handset
Press TALK/END Press SPEAKER
Talk
9057609944
Talk
<High>
Talk 0:17
9057609944
CLT2435 ENG-5/28 5/28/01 13:46 Page 11

E12
• Press SPEAKER during a call to switch to HandsFree
conversation using the handset speakerphone.
• Press SPEAKER again to end the call.
• Press TALK/END to return to normal conversation using
the earpiece speaker.
BASICS
HandsFree Speakerphone in the Handset
Dialing from talk mode
1 Press TALK/END or SPEAKER . Talk flashes on the display.
The volume setting is displayed.
For example, if the volume is set to high, the display shows:
The call-time display appears.
2 Dial the phone number.
Example :Enter 9057609944
3 To hang up, press TALK/END or SPEAKER (or place the
handset in the base)
. The call time display remains for about
5 seconds after disconnection.
Talk
Talk
<High>
Talk 0:17
9057609944
10:03
Talk
Talk
<High>
Talk 0:17
9057609944
Press TALK/END Press SPEAKER
CLT2435 ENG-5/28 5/28/01 13:46 Page 12

With the base
E13
BASICS

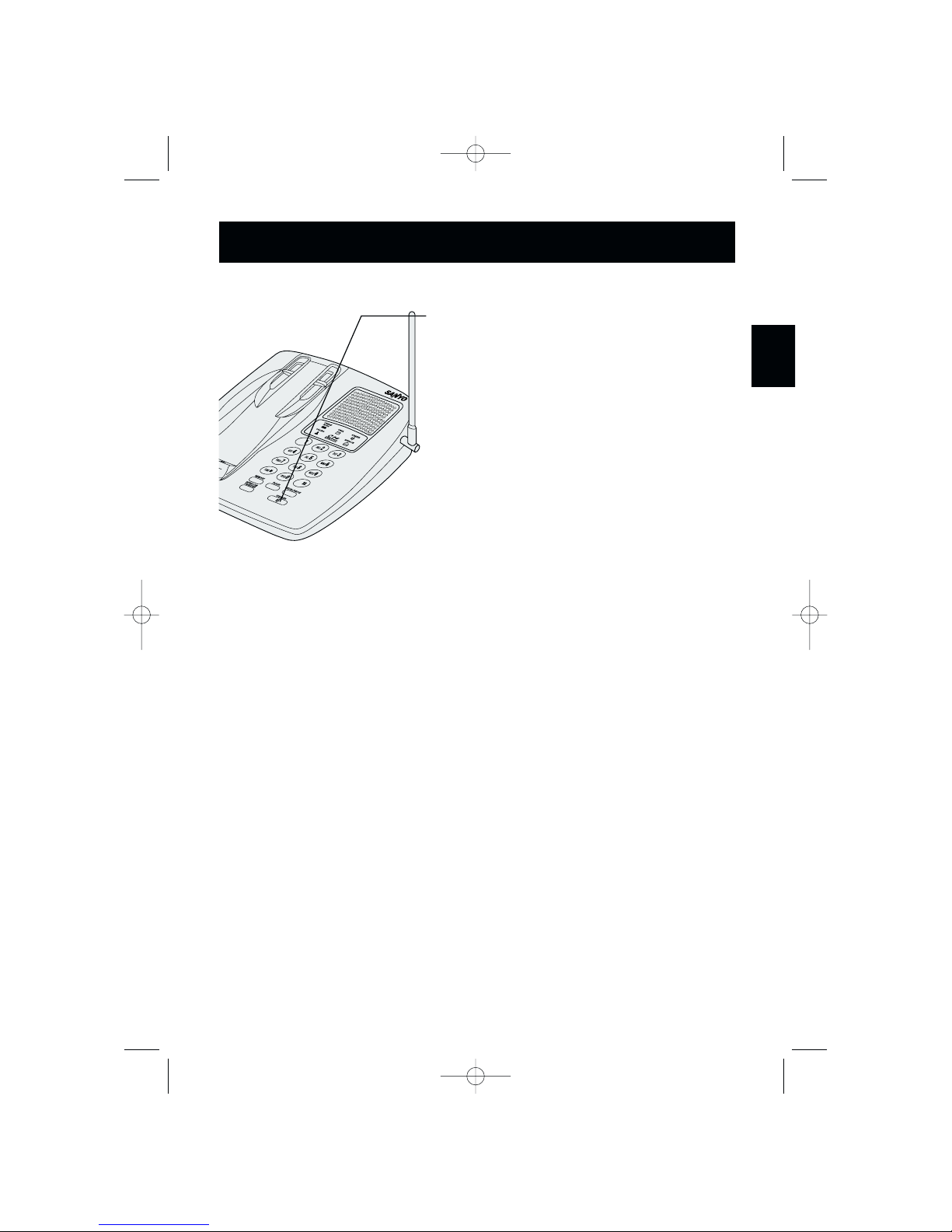

1 Press SPEAKER on the base. The SPEAKER
indicator lights.
2 Dial the number on the keypad.
3 When you finish the call, press SPEAKER on the
base to hang up.
CLT2435 ENG-5/28 5/28/01 13:46 Page 13

E14
1 The phone rings. Inco ing call appears.
2 Press TALK/END or SPEAKER . Talk , the call time
display and the volume setting appear.
You can also press
SPEAKER on the handset to answer the
call.
If you subscribe to Caller ID service, the display may show
the caller’s name/number. (See page E30)
3 Talk with the caller.
4 To hang up, press TALK/END or SPEAKER .
The call time display remains for about
5 seconds after disconnection.
Inco ing Call
Talk 0:02
Talk 0:00
<Nor al>
5:15
Any key answer when ringing
When the handset is off the base, press any handset key to answer the incoming call.
AutoTalk when ringing
When the AutoTalk setting is on, you can simply lift the handset from the base to answer
the call. See “Setting Caller ID options” on page E28 for more details.
Receiving a call
BASICS
With the handset
Press TALK/END Press SPEAKER
Talk 0:00
<Nor al>
Talk 0:02
CLT2435 ENG-5/28 5/28/01 13:46 Page 14

With the base
E15
BASICS
1 The base rings. The CHARGE/IN USE indicator
flashes.
2 Press SPEAKER .
3 When you finish the call, press SPEAKER to
hang up.
Call Waiting
Note: You must subscribe to Call Waiting service to use this feature.
When a call is received during a telephone call already in progress, you hear a beep.
Press CID/FLASH to switch to the new call.
If you also subscribe to Caller ID on Call Waiting (Visual Call Waiting), you will see the
name and number of the second caller. (See page E36.)
Out of Range
During a call, noise will increase if you move too far from
the base unit.
If you pass the range limits of the base unit, you will hear a
beep and
Out of Range appears on the handset
display, your call will terminate within about 30 seconds.
Talk 0:26
Out of Range
CLT2435 ENG-5/28 5/28/01 13:46 Page 15

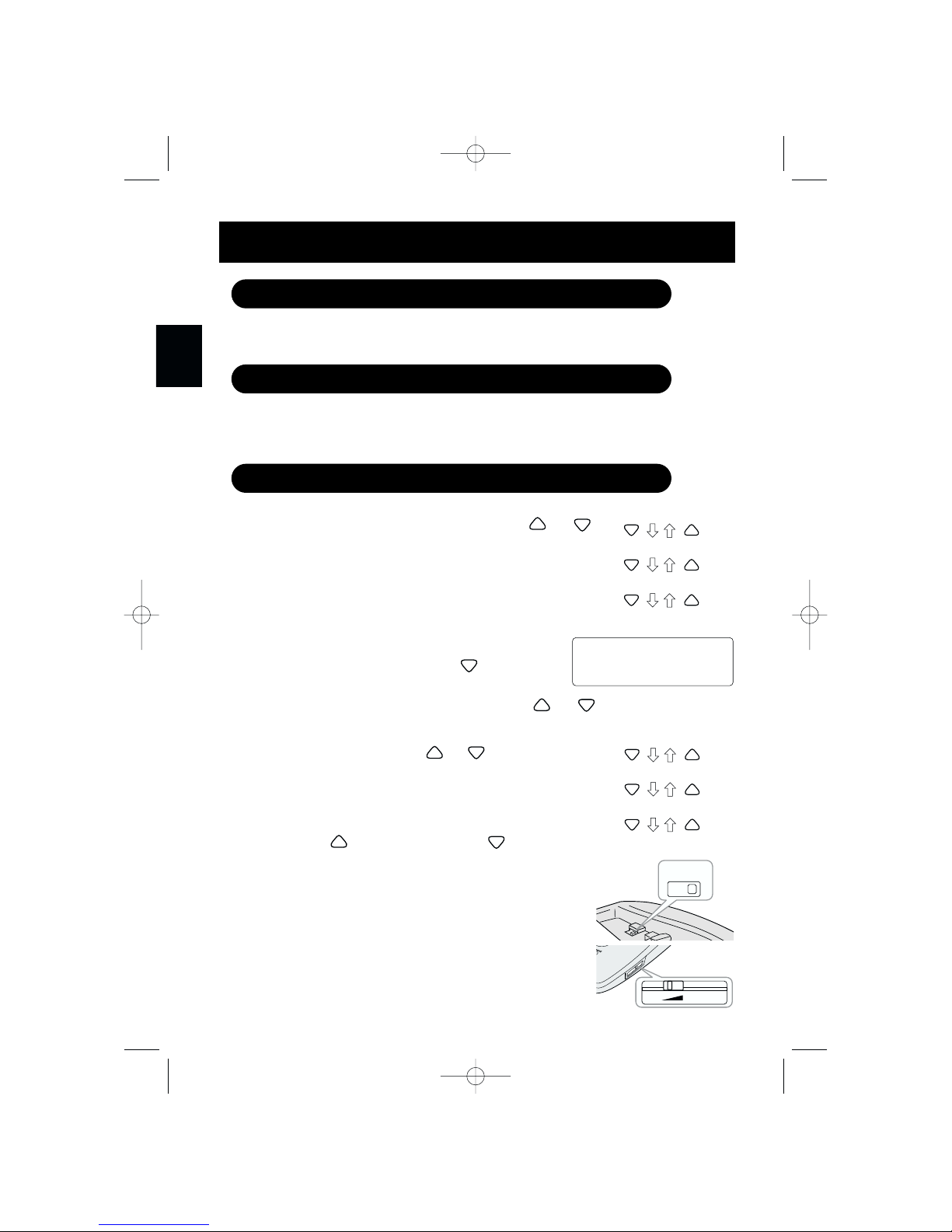

Earpiece volume/handset speaker volume
Pressing CALL REVIEW/VOLUME or during a
telephone call will change the earpiece volume/handset speaker
volume. This setting will remain in effect even after you hang up
the telephone.
When you press in Loud mode or press in Normal
mode, a beep sounds.
Base ringer switch
This switch sets the base ringer HI, LOW, or OFF.
Base speaker volume control
To control the speaker volume of the base, adjust the VOLUME
slide switch as desired.
Ringer volume
In the standby mode, press CALL REVIEW/VOLUME or
on the handset to set the handset ringer volume.
The phone has two ringer tones, each with two volume levels.
<High>
<Mediu >
<Loud>
<Nor al>
Scanning
Lighted keypad
Adjusting the ringer and speaker volume
BASICS
Your phone automatically selects the clearest possible channel every time you receive or
place a call. Should you wish to switch channels during a call, the handset provides a
DELETE/SCAN button.
The dialing keypad and the TALK/END key on the handset light up when you press any
key on the keypad. The light turns off if no key is pressed within 5 seconds.
E16
RING VOL
OFF–LOW-HI
VOLUME
Ringer A High
Ringer A Low
Ringer B High
Ringer B Low
Ringer off
In the standby mode or when you set the ringer volume,
press and hold CALL REVIEW/VOLUME till “Ringer off”
appears.
To resume the Ringer, press CALL REVIEW/VOLUME or .
Ringer Off
CLT2435 ENG-5/28 5/28/01 13:46 Page 16
