Sanyo DW-MS600F User manual
FILE NO.
SPECIFICATIONS
Specifications subject to change without notice
SERVICE MANUAL
SM0918001
REFERENCE No.
DW-MS600F
Dishwasher
Model Product Code AC Specification Destination Remark
DW-MS600F 1 366 955 60 240V, 50Hz, O3 Australia, New Zealand
Power source: 240V, 50Hz
Dimension: 600(W) x 580(D) x 850(H) mm
Net Weight: Approx. 40.35kg

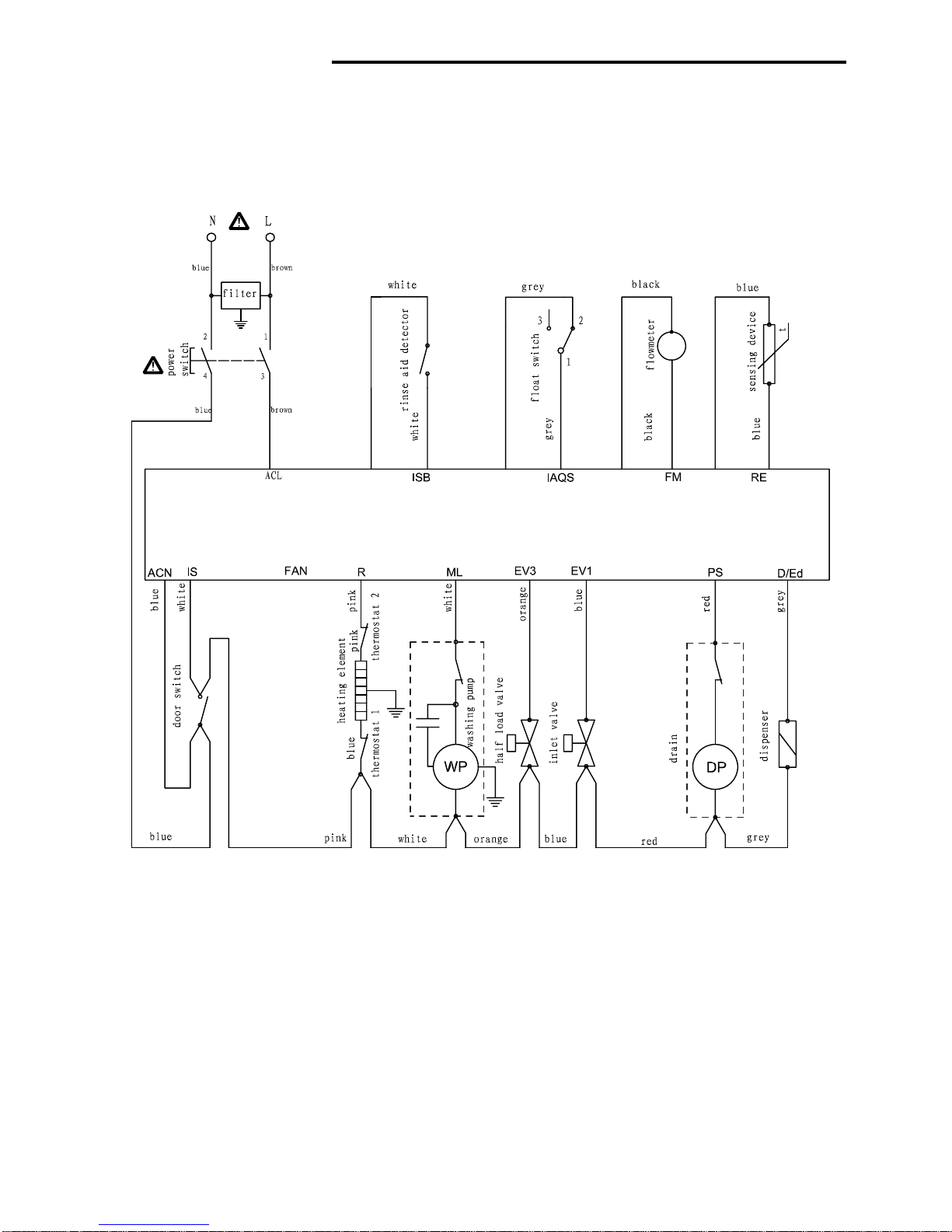

SCHEMATIC DIAGRAM
2
240V/50Hz
CONTROLLER
FM

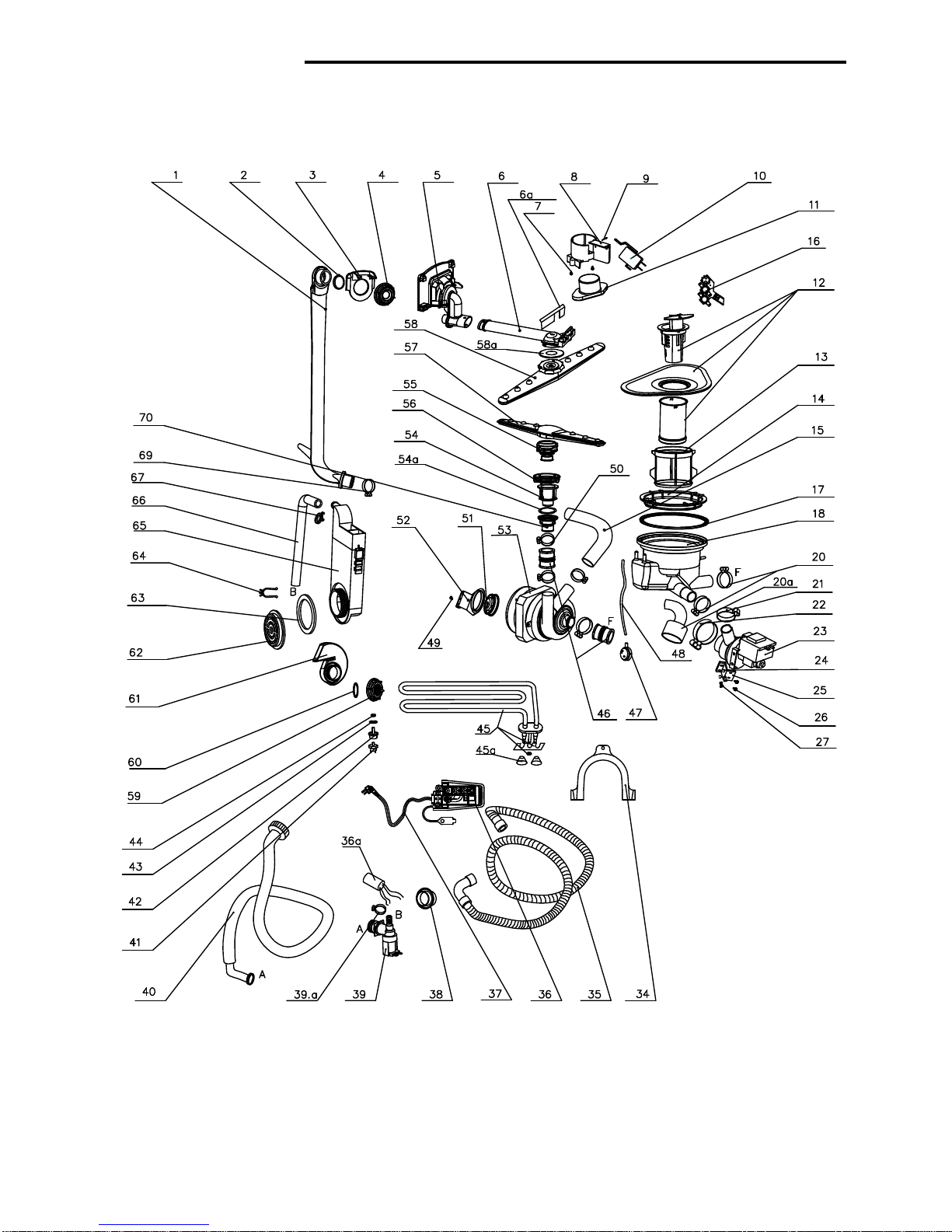

EXPLODED VIEW
3

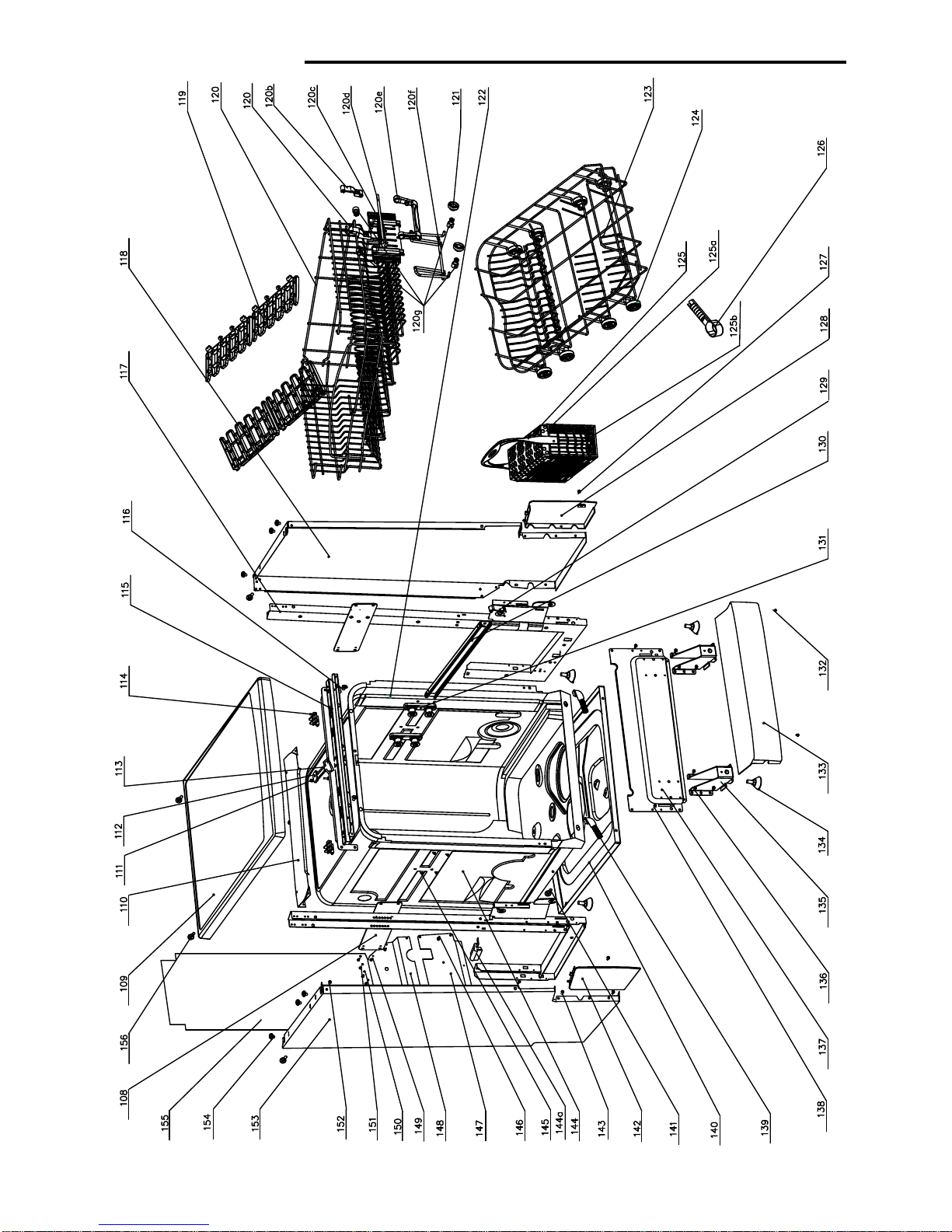

EXPLODED VIEW
4
EXPLODED VIEW
5
a
REF. No. PARTS No. DESCRIPTION Q'TY REMARK
1 FDDWMS600F1 External pipe 1
2 FDDWMS600F2 O Ring I 1
3 FDDWMS600F3 Guide casing 1
4 FDDWMS600F4 External pipe nut 1
5 FDDWMS600F5 Water dispenser 1
6 FDDWMS600F6 Upper sprayer pipe 1
6a FDDWMS600F6A Upper sprayer pipe wedge 1
7 FDDWMS600F7 Tapping screw ST3.5x9 2
8 FDDWMS600F8 Float holder 1
9 FDDWMS600F9 Tapping screw ST2.9x22 1
10 FDDWMS600F10 Micro switch 1
11 FDDWMS600F11 Float 1
12 FDDWMS600F12 Central filter 1
13 FDDWMS600F13 Micro filter 1
14 FDDWMS600F14 Well nut 1
15 FDDWMS600F15 Connect hose of external pipe 1
16 FDDWMS600F16 Sensing device 1
17 FDDWMS600F17 Well gasket 1
18 FDDWMS600F18 Water well 1
20 FDDWMS600F20 OTK 310 2
20a FDDWMS600F20A Drain pump connecting hose 1
21 FDDWMS600F21 OTK 396 1
22 FDDWMS600F22 OTK 440 1
23 FDDWMS600F23 Drain pump 1
24 FDDWMS600F24 Spring washer M6 2
25 FDDWMS600F25 Drain pump support 1
26 FDDWMS600F26 Screw M4x12 2 With Nut M4&Spring washer M4
27 FDDWMS600F27 Screw M6x12 2
34 FDDWMS600F34 Drain hose hook 1
35 FDDWMS600F35 Drain hose 1
36 FDDWMS600F36 Connection box 1
36a FDDWMS600F36A Anti-disturbance controller 1
37 FDDWMS600F37 Power wire 1
38 FDDWMS600F38 Drain hose holder 1
39 FDDWMS600F39 Inlet valve 1
39a FDDWMS600F39A OTK 175 1
40 FDDWMS600F40 Inlet hose 1
41 FDDWMS600F41 Protecting thermostat 1
42 FDDWMS600F42 Thermostat holder 1
43 FDDWMS600F43 O ring II 1
44 FDDWMS600F44 Nut M8 1
45 FDDWMS600F45 Heating elements 1
45a FDDWMS600F45A Heat elements protect rubber 2
46 FDDWMS600F46 Connect hose 2
47 FDDWMS600F47 Pressure switch 1
48 FDDWMS600F48 PVC hose 1
49 FDDWMS600F49 Screw M4x10 1
50 FDDWMS600F50 OTK 310 4
51 FDDWMS600F51 Washing motor support 1
52 FDDWMS600F52 Washing motor cushion 1
53 FDDWMS600F53 Washing motor 1
54 FDDWMS600F54 Outer tie-in 1
54a FDDWMS600F54A Outer tie-in O ring 1
PARTS LIST
6
REF. No. PARTS No. DESCRIPTION Q'TY REMARK
55 FDDWMS600F55 Lower sprayer axes 1
56 FDDWMS600F56 Lower sprayer nut 1
57 FDDWMS600F57 Lower sprayer 1
58 FDDWMS600F58 Upper sprayer 1
58a FDDWMS600F58A Upper sprayer nut gasket 1
59 FDDWMS600F59 Air outlet nut 1
60 FDDWMS600F60 O Ring I 1
61 FDDWMS600F61 Air outlet 1
62 FDDWMS600F62 Water inlet nut 1
63 FDDWMS600F63 Water inlet gasket 1
64 FDDWMS600F64 Clip 1
65 FDDWMS600F65 Water inlet 1
66 FDDWMS600F66 Connect hose of water inlet 1
67 FDDWMS600F67 Clamp 14.9x1.8 1
69 FDDWMS600F69 OTK 310 1
70 FDDWMS600F70 Inner tie-in 1
77 FDDWMS600F77 Inner door 1
78 FDDWMS600F78 Power button 1
79 FDDWMS600F79 Power switch 1
80 FDDWMS600F80 PCB box 1
81 FDDWMS600F81 Door switch 1
82 FDDWMS600F82 Handle assembly 1
83 FDDWMS600F83 PCB board 1
84 FDDWMS600F84 Control panel 1
85 FDDWMS600F85 Handle cover film 1
86 FDDWMS600F86 Button 6
87 FDDWMS600F87 Control panel film 1
88 FDDWMS600F88 Display cover 1
89 FDDWMS600F89 Light cover 3
92 FDDWMS600F92 Outer door 1
93 FDDWMS600F93 Self-lock nut M5 4
94 FDDWMS600F94 M5X10 4
95 FDDWMS600F95 Dowel 2
95a FDDWMS600F95A Door spring bolt 2
96 FDDWMS600F96 Door spring 2
97 FDDWMS600F97 Door hinge 1
98 FDDWMS600F98 Right hinge 1
99 FDDWMS600F99 Left hinge 1
100 FDDWMS600F100 Ring 6 2
101 FDDWMS600F101 Inner door foam 1
102 FDDWMS600F102 Door edge guard piece 2
103 FDDWMS600F103 Dispenser 1
104 FDDWMS600F104 Dispenser bracket 2
105 FDDWMS600F105 Tapping screw ST3.9x13 6
106 FDDWMS600F106 Tapping screw ST3.5x13 8 Stainless
107 FDDWMS600F107 Tapping screw ST3.5x16 4 Stainless
108 FDDWMS600F108 Left frame 1
109 FDDWMS600F109 Ceiling board 1
110 FDDWMS600F110 Upper back crosspiece 1
111 FDDWMS600F111 Head screw M4x16 1 Stainless
112 FDDWMS600F112 Self-locking nut M4 1
113 FDDWMS600F113 Locking hook & Coupling block 1
114 FDDWMS600F114 Top board hook 2
115 FDDWMS600F115 Upper front crosspiece 1
PARTS LIST
7
PARTS LIST
Mar./'05 8
SANYO Electric Co., Ltd.
Osaka, Japan
REF. No. PARTS No. DESCRIPTION Q'TY REMARK
116 FDDWMS600F116 Tapping screw ST3.5x13 2 Truss head
117 FDDWMS600F117 Right frame 1
118 FDDWMS600F118 Right side panel 1
119 FDDWMS600F119 Cup rack 4
120 FDDWMS600F120 Upper basket 1
120a FDDWMS600F120A Left claw 2
120b FDDWMS600F120B Right claw 2
120c FDDWMS600F120C Framework support 2
120d FDDWMS600F120D Orientation pole 2
120e FDDWMS600F120E Adjustable basket handle 2
120f FDDWMS600F120F Slip bracket 2
120g FDDWMS600F120G Upper basket wheel axes 8
121 FDDWMS600F121 Upper basket wheel 4
122 FDDWMS600F122 Tank gasket 1
123 FDDWMS600F123 Lower basket 1
124 FDDWMS600F124 Lower basket wheel 8
125 FDDWMS600F125 Cutlery basket handle 1
125a FDDWMS600F125A Cutlery basket cover 1
125b FDDWMS600F125B Cutlery basket 1
126 FDDWMS600F126 Salt spoon 1
127 FDDWMS600F127 Tapping screw ST3.5x9 2
128 FDDWMS600F128 Right side baseboard 1
129 FDDWMS600F129 Guide end 4
130 FDDWMS600F130 Basket guide 2
131 FDDWMS600F131 Guide support 4
132 FDDWMS600F132 Tapping screw ST3.5x9 2
133 FDDWMS600F133 Baseboard 1
134 FDDWMS600F134 Adjustable foot 4
135 FDDWMS600F135 Support foot 2
136 FDDWMS600F136 Tapping screw ST3.5x9 8
137 FDDWMS600F137 Lower front crosspiece 1
138 FDDWMS600F138 Tapping screw ST3.5x9 2
139 FDDWMS600F139 Float hose 2
140 FDDWMS600F140 Base tray 1
141 FDDWMS600F141 Tapping screw ST3.5x9 2
142 FDDWMS600F142 Left side baseboard 1
143 FDDWMS600F143 Tapping screw ST3.5x9 4 Truss head/washer
144 FDDWMS600F144 Tank 1
144a FDDWMS600F144A Tank band bracing block 2
145 FDDWMS600F145 Tapping screw ST5x20 8 Hex head
146 FDDWMS600F146 Tapping screw ST3.5x9 2
147 FDDWMS600F147 Lower back crosspiece 1
148 FDDWMS600F148 Central back crosspiece 1
149 FDDWMS600F149 Tapping screw ST3.5x9 4
150 FDDWMS600F150 Metal washer 4
151 FDDWMS600F151 Tapping screw ST3.5x9 4 Truss head
152 FDDWMS600F152 Tapping screw ST3.5x9 4 Stainless/washer
153 FDDWMS600F153 Left side panel 1
154 FDDWMS600F154 Tapping screw ST3.5x9 8 Truss head/washer
155 FDDWMS600F155 Back cover board 1
156 FDDWMS600F156 Tapping screw ST3.5x16 2
