A - 1
System configuration
Contents
1. Model type configuration ............................................................................................................ A-2
2. System configuration
(1)Multi type system ................................................................................................................. A-3
(2)Water heat exchanger unit .................................................................................................... A-4

System Configuration
A - 2
1. Type Configuration
■ Outdoor Unit
SGP-E70J2GU2
SGP-E90J2GU2
SGP-E120J2GU2
SGP-E150J2GU2
SGP-E190J2GU2
SGP-E190J2GU2W (hot water dispensing)

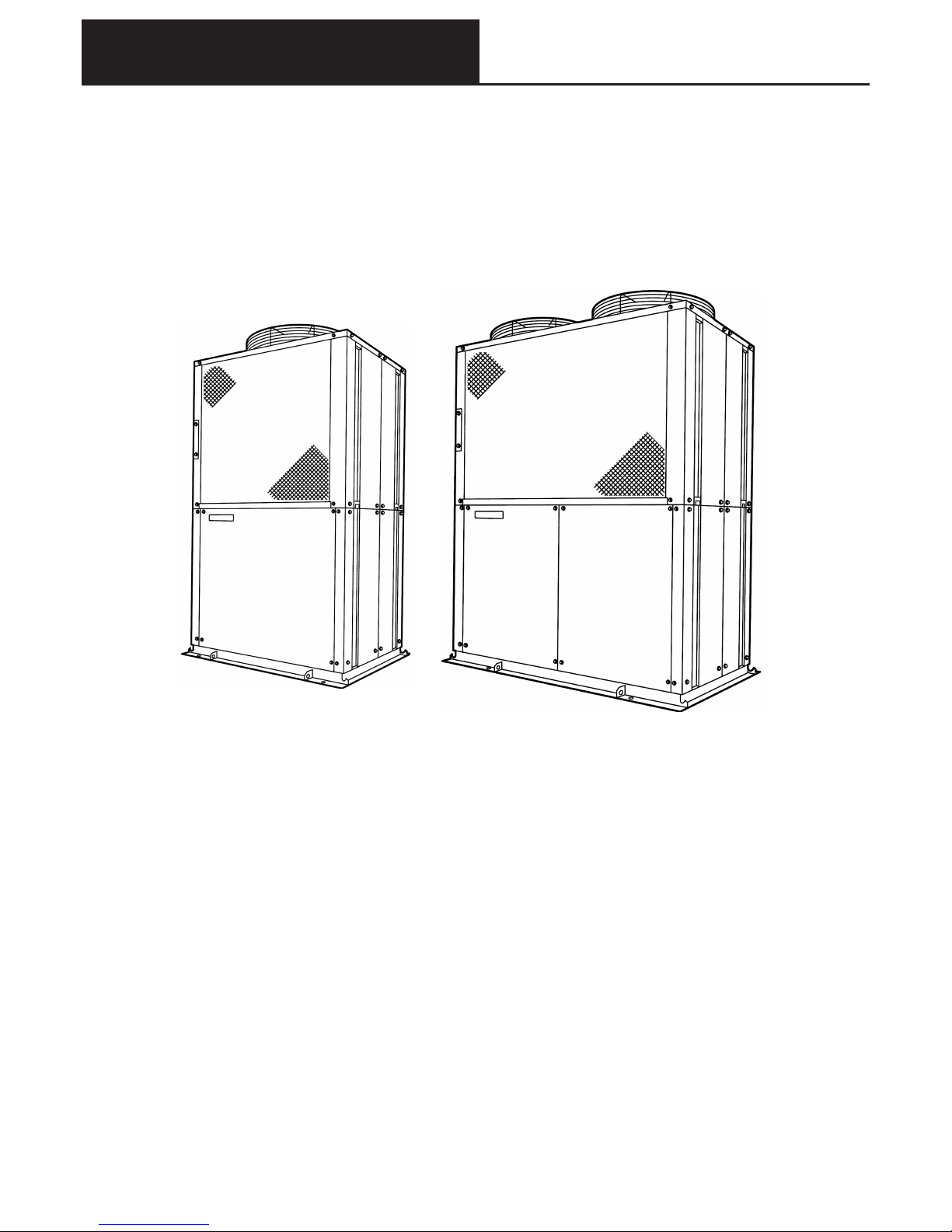

●8 horsepower, 10 horsepower ●13 horsepower, 16 horsepower, 20 horsepower

System Configuration
A - 3
2. System Configuration
Example 1

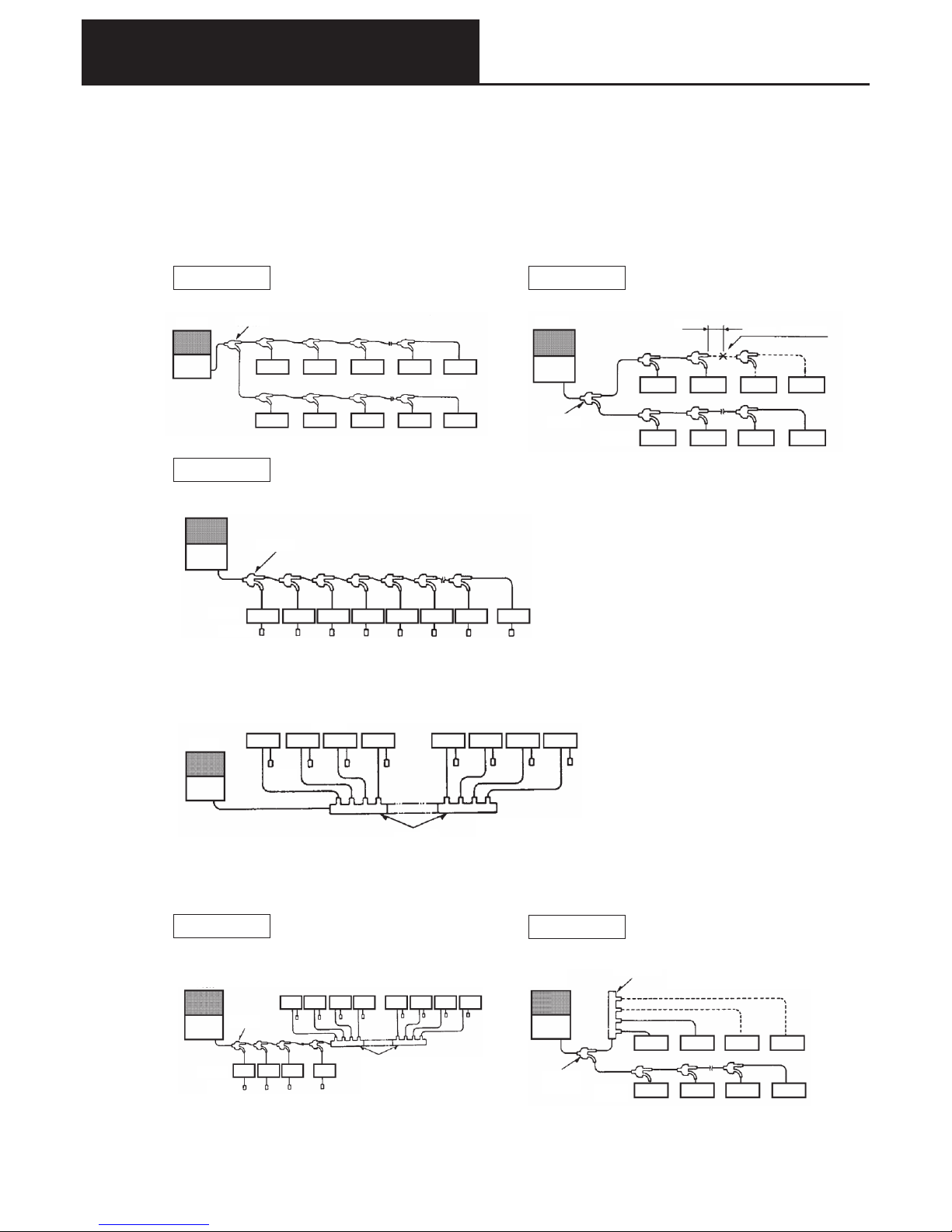

(1) Multi-type system
■Example of use of distribution pipe set (sold separately)
(The number of indoor units that can be connected is in the range 50-200% of the outdoor unit capacity, up to a maximum of
24 units)
●Example of use of header
●Example of use of combined header and pipe branch
●Example of use of pipe branch
Example 2
Example 3 * Line branch type
Example 1
Outdoor unit Pipe branch
Indoor unit
Within 1 meter Shut off valve
(supplied on site)
Outdoor unit
Pipe branch
Indoor unit
Outdoor unit
Pipe branch
Indoor unit
Remote control
Outdoor unit
Pipe branch
Indoor unit
Remote
control
Header
Note: From one header there can be up to 4
branches. For 5 or more branches in a
header system, use 2-3 headers.
Note: After branching from a
header, a pipe cannot be
branched again.
Outdoor unit
Indoor unit
Remote control
Header
Pipe branch
Outdoor unit
Indoor unit
Header
The branch ports of the header are closed
when the unit is shipped. When expanding
the system connect them to the pipework.
Example 2

System Configuration
A - 4
2. System Configuration
■System outline
●70 Type: Indoor 20 unit system
(equivalent to 8 HP)
No. of indoor units connected:
22 type (equivalent to 0.8 hp) and above,
maximum 20 units
SGP-E70J2GU2
Cooling capacity: 22.4kW
Heating capacity: 26.5kW
●90 Type: Indoor 24 unit system
(equivalent to 10 HP)
No. of indoor units connected:
22 type (equivalent to 0.8 hp) and above,
maximum 24 units
SGP-E90J2GU2
Cooling capacity: 28.0kW
Heating capacity: 33.5kW
●120 Type: Indoor 24 unit system
(equivalent to 13 HP)
No. of indoor units connected:
22 type (equivalent to 0.8 hp) and above,
maximum 24 units
SGP-E120J2GU2
Cooling capacity: 35.5 kW
Heating capacity: 42.5 kW
●150 Type: Indoor 24 unit system
(equivalent to 16 HP)
No. of indoor units connected:
22 type (equivalent to 0.8 hp) and above,
maximum 24 units
SGP-E150J2GU2
Cooling capacity: 45.0 kW
Heating capacity: 53.0 kW
●190 Type: Indoor 24 unit system
(equivalent to 20 HP)
No. of indoor units connected:
22 type (equivalent to 0.8 hp) and above,
maximum 24 units
SGP-E190J2GU2
Cooling capacity: 56.0kW
Heating capacity: 67.0kW

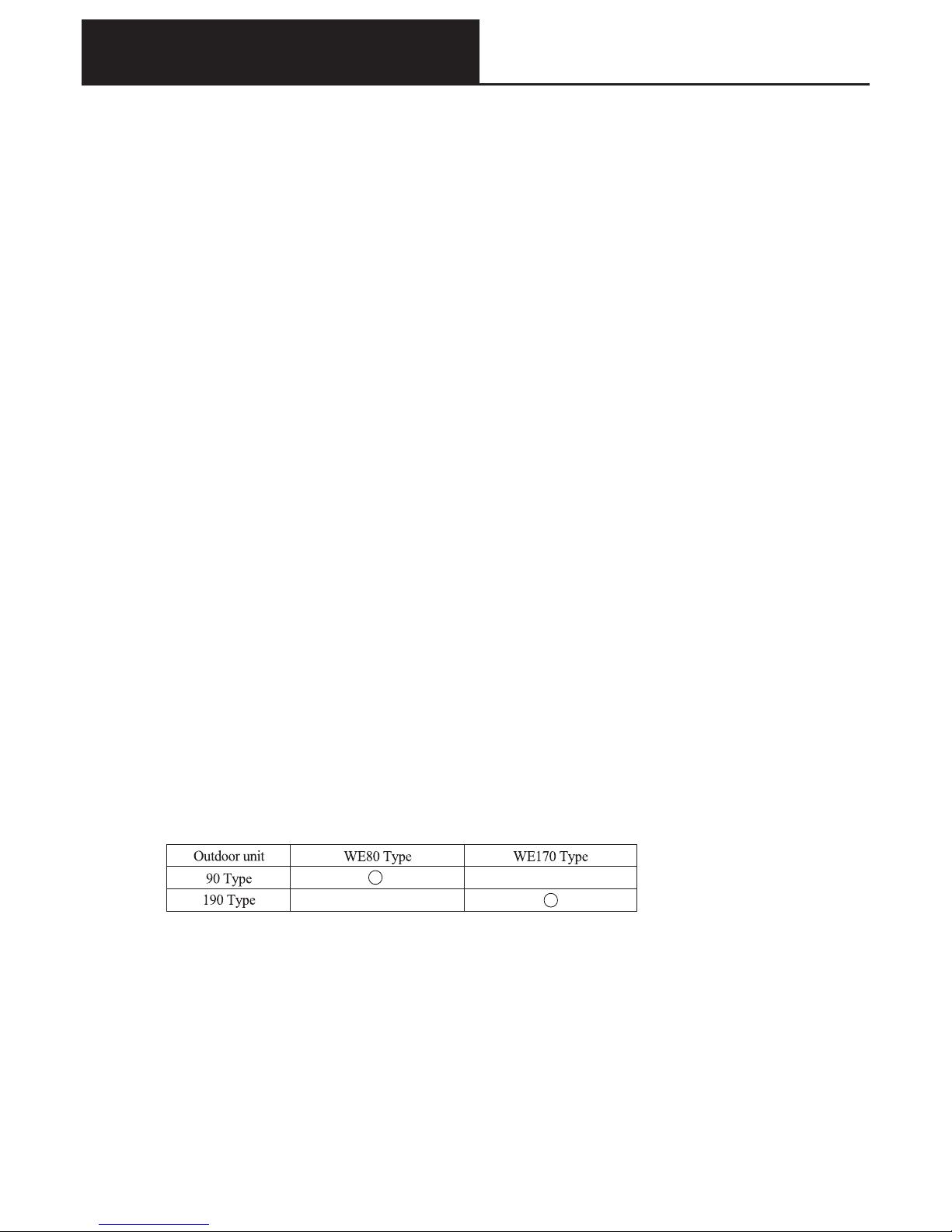

(2) heat exchanger unit

Outdoor unit
Contents
1. Conditions for gas use
(1)Usable gas ........................................................................................................................... B-2
(2)Gas supply pressure ............................................................................................................ B-2
(3)Applicable gas type .............................................................................................................. B-2
(4)Gas maximum flow volume .................................................................................................. B-2
(5)When using propane ............................................................................................................ B-3
2. Specification ............................................................................................................................... B-4

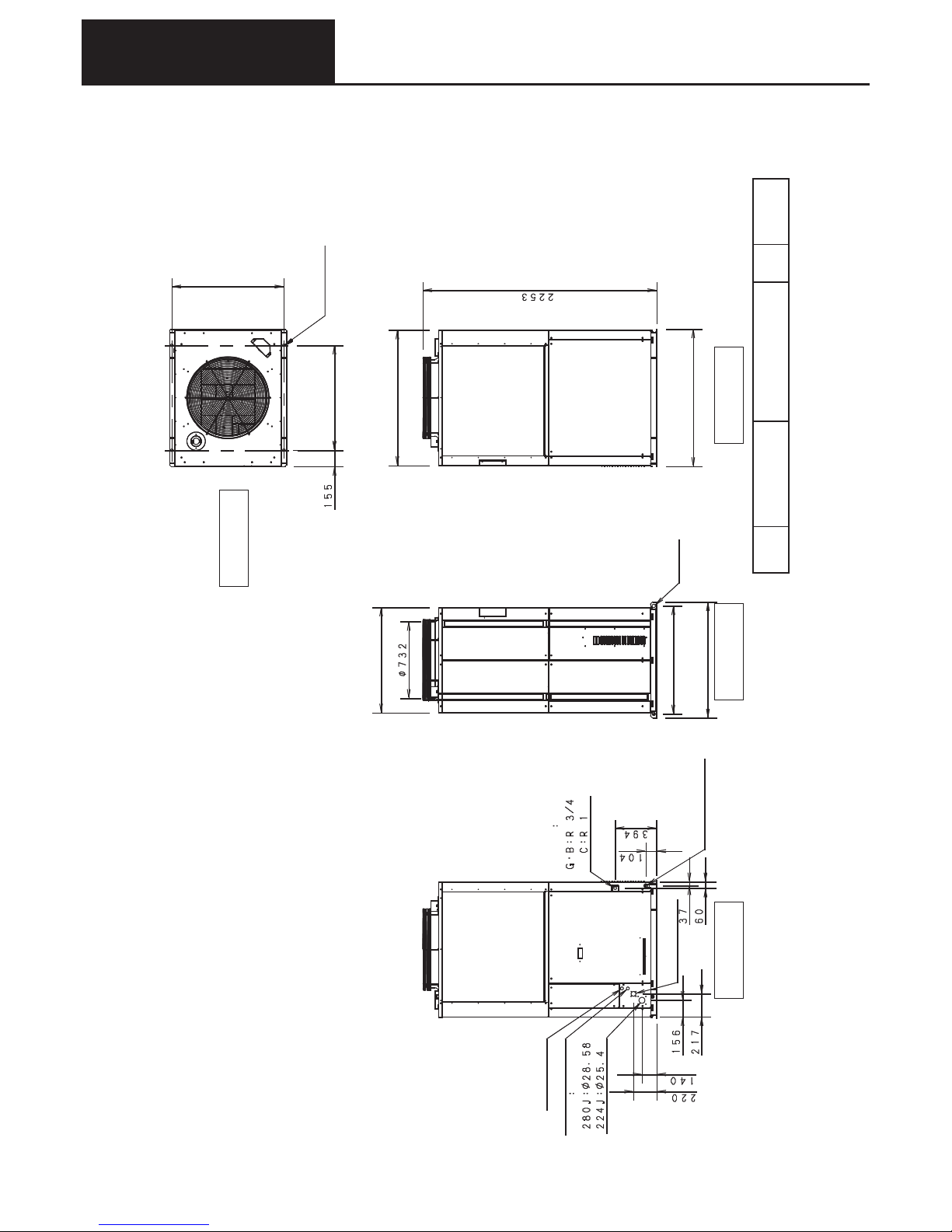

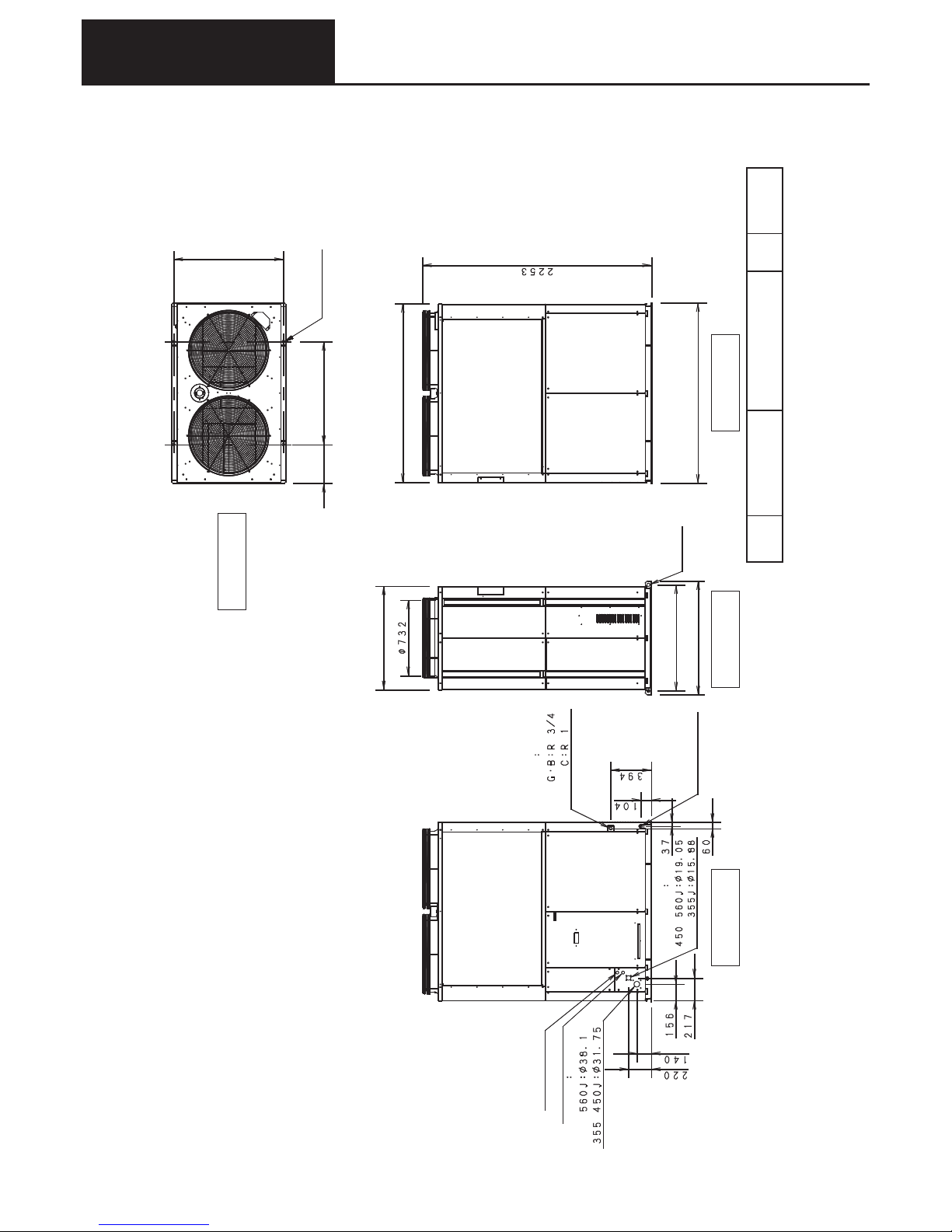

3.External size diagrams
(1)70, 90 type ........................................................................................................................... B-9
(2)120, 150, 190 type ............................................................................................................. B-10
(3)190 type (hot water intake) ................................................................................................. B-11
4. Electrical wiring diagram ........................................................................................................... B-12

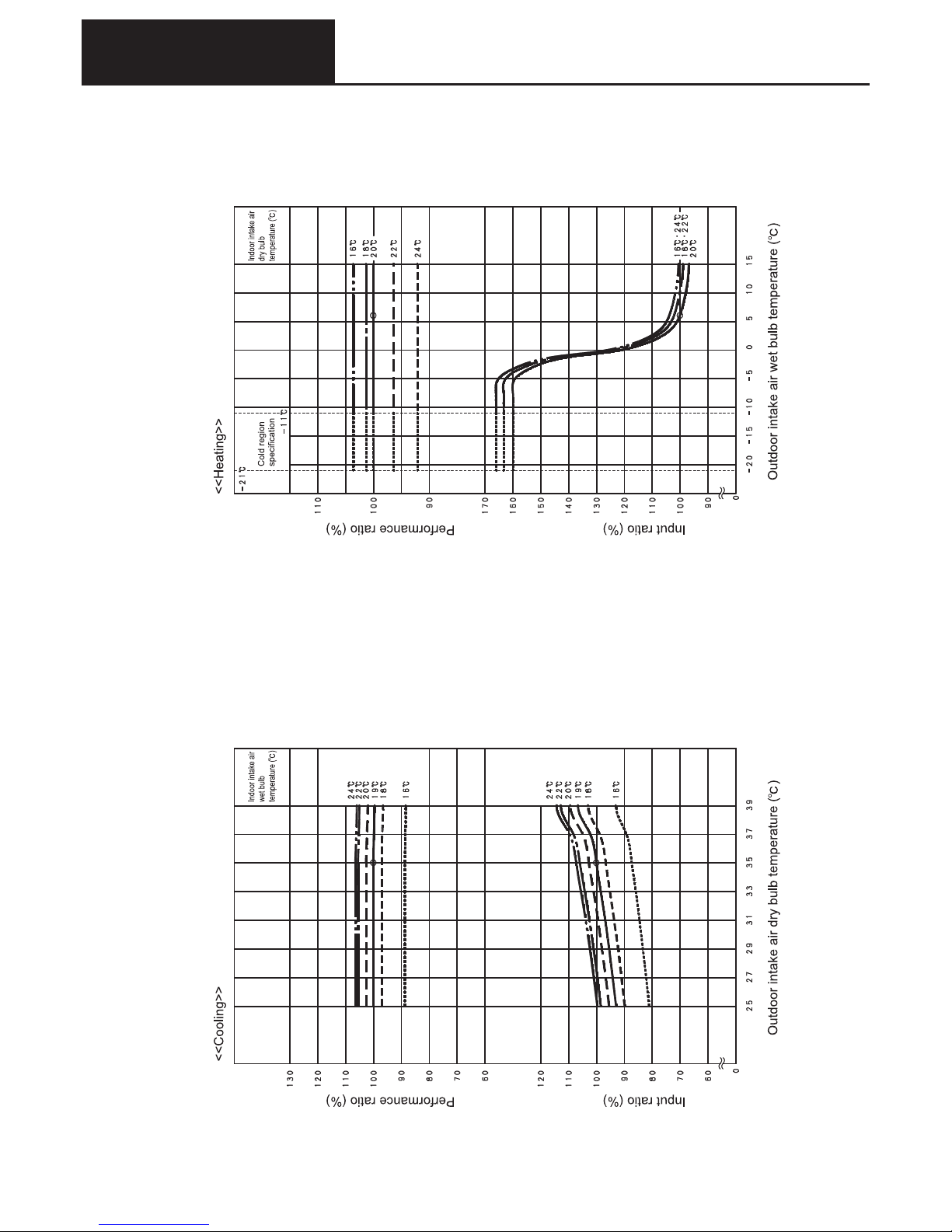

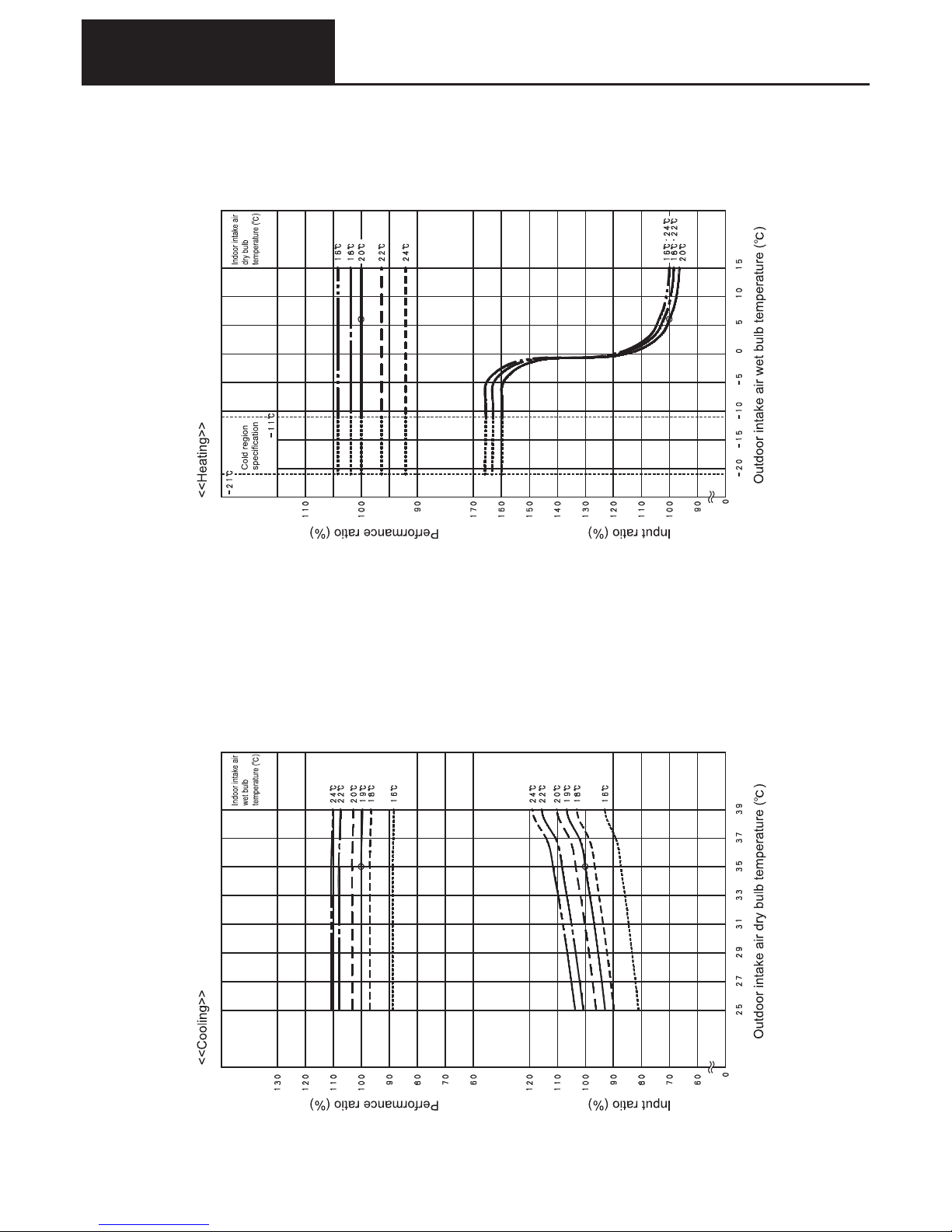

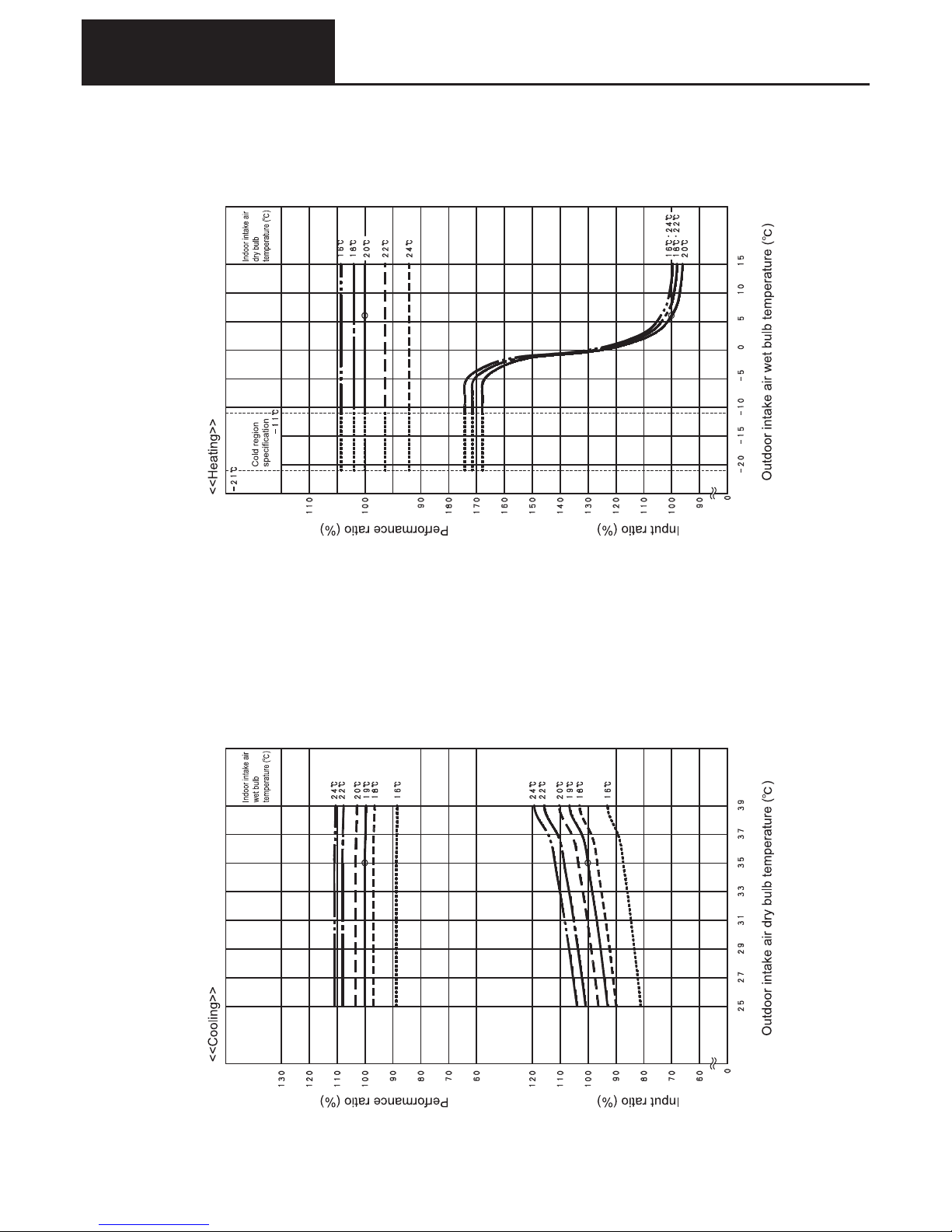

5. Performance characteristics
(1)Performance characteristics graph ..................................................................................... B-13
6. Operating sound characteristics
(1)Standard mode ................................................................................................................... B-18
(2)Quiet mode ........................................................................................................................ B-23
7. Vibration Force
(1)Measurement points ........................................................................................................... B-28
(2)Vibration force .................................................................................................................... B-28
8. Outdoor control board switch/Led layout diagram...................................................................... B-29
B - 1

Outdoor Unit
B - 2
(1) Usable Gas
1Depending upon the calorific value of the natural gas, the setting for the gas fuel flow rate adjustment nozzle will differ.
(2) Gas Supply Pressure
(3)Applicable Gas Type
(4) Gas Maximum Flow Volume
The gas maximum flow volume is the quantity of gas consumed after start up and operating at full capacity, with the gas at 40oC and
at 20 mbar pressure.
G31
95.65 G20 37.78 G25 32.49
1. Conditions for gas use
Gas Supply Min. Normal Max.
G20, G25
(Natural Gas) 17 20 25
G31
(LPG) 25 37 45
(mbar)

Outdoor Unit
B - 3
(5) When using Propane
● When using Propane as the gas fuel (Applicable model type:
SGP-E××× J2GU) it is necessary to adjust the fuel adjustment
valve and the gas type setting.
1Fuel valve setting
• With the power supply breaker for the outdoor unit OFF
Remove the cover of the fuel distribution box.
Remove the 4×20 screws as shown in the diagram (4 locations)
and remove the bypass lid.
Reverse the bypass lid (concave part facing out) and fix it with the
removed screws.
Note: After fixing the lid, check that there is no gas leak. Fires can
be caused by leaking fuel gas etc.
Close the lid of the fuel distribution box.
Attach the “gas type setting/adjustment completed” label in the prescribed PL NAME position in the electrical control box.
2Fuel Gas Type Setting
• Check that the fuel adjustment valve setting has been set before operating the outdoor control board.
Press the home key (S004) for longer than one second and the menu item number will be displayed.
Next, press the up (S007)/down (S006) key to set the menu item number to .
After displaying , is displayed. When is displayed press the set (S005) key. The
green LED (D053) lights up, and the system address setting is displayed.
(For example: )
Next operate the down (S006)/up (S007) key, to display the gas type setting. When the gas type setting is displayed, press the set
(S005) key for longer than one second.
*When setting the gas type, ** is displayed.
(for ** enter 00-09•A0A-0F
A red LED (D052) lights up, indicating that a forced setting is being carried out. In this condition, press the down (S006)/up
(S007) key, and select the gas type.
*The relationship between display and gas type is as shown in the following table.
After completing selection of gas type, press the set (S005) key for longer than 1 second. The red LED (D052) will be
extinguished.
Press the home (S004) key to complete the setting.
*When using propane, change the setting in accordance with the above procedure to .
Display Gas type
(GAS 00) Propane G31
(GAS 01) No use
(GAS 02) Natural gas G20
Up key
(S007)
Down key
(S006) (GAS 03) Natural gas G25
1. Conditions for gas use
Bypass lod
when using LNG
4 x 20 screws when using LPG

Outdoor Unit
B - 4
SGP-E70J2GU2
Model
External dimensions (mm)
Hei ght 2,253
W idth 1,290
Dept h 1,000(+106)
Weight (kg) 700
Performance (kW)
Cooling capacity 22.4
Heating capacity
(Standard) 26.5
Heating capacity
(low temperature) 26.5
Power supply 220-240V
Electrical characteristics 50Hz
Operating
current(A) 2.9
Power consumption
(kW) 0.63
Cooling
(230V)
Power factor (%) 93
Operating
current(A) 3.2
Power consumption
(kW) 0.70
Heating
(230V)
Power factor (%) 94
Start up current (A) 25
Fuel consumption (kW) G/C
Cooling 17.8/20.5
Heating
(standard) 19.4/22.3
Heating
(low temperature) 21.1/24.9
Compressor
Cooling oil volume (L) 2.7(HP-9)
Crank case heater (W) 20
Engine
Displacement(L) 1.274
Rated output(kW) 7.5
Type
Sanyo Genuine GHP
Lubricating oil Quantity
(L) 32
Starter motor DV12V×0.8kW
Starter type AC/DC conversion type
DC starter
Engine cooling water
Quantity(L) 23
Concentration, freezing
temperature 50V/V%, -35
ºC
Cooling water pump rated
output(W) 160
Refrigerant×Quantity(kg) HFC[R407C]×9.5
Air intake Front and rear
Air outlet Top
Piping
Refrigerant gas tube 25.4(brazed)
Refrigerant liquid tube 12.7(brazed)
Fuel gas port R3/4(male screw)
Exhaust gas drain port
diameter(mm) 27 rubber hose
Operating noise dB(A) 56
Blower
Blower type Propeller fan×1
Rated air volume (m
3
/min) 150
Rated output (kW) 0.45
Heater for drain filter (W) 20
Heater for cooling water
Cooling water heater(W) 250
Paint color (Munsell code) Silky shade (1Y8.5/0.5)
Heating(low temperature)
Less than 20ºCDB, 15ºCWB27ºCDB, 19ºCWB 20ºCDB
2ºCDB, 1ºCWB7ºCDB, 1ºCWB35ºCDB
Operating condition Cooling Heating(standard)
Indoor air intake temperature
Outdoor air intake temperature
2. The value of cooling power consumption indicates the electrical power consumed during cooling overload operation when Indoor air intake
temperature is 32ºCDB/23ºCWB, and Outdoor air intake temperature is 43ºCDB.
3. The operating noise was measured at the position of 1.5 meter from the ground and 1 meter from the front of the unit. However, in an actual
installation there are various additional conditions, and normally the noise level is higher than the indicated value.
4. Under fuel consumption, G indicates 100% propane, with a calorific value of 37.78MJ/NM
3
+5%, and C indicates other gas.
5. The values shown in the table are for 50Hz.
6. The specification is subject to change without notice, due to improvements etc.
Notes
1. The cooling capacity and heating capacity described in the tables are the values when the unit operates under the test condition of JIS B 8627
2. Specification

Outdoor Unit
B - 5
2. Specification
SGP-E90J2GU2
Model
External dimensions (mm)
Hei ght 2,2532,2532,253
W idth 1,290
Dept h 1,000(+106)
Weight (kg) 720
Performance (kW)
Cooling capacity 28.0
Heating capacity
(Standard) 33.5
Heating capacity
(low temperature) 33.5
Power supply 220 ~ 240V
Electrical characteristics 50Hz
Operating
current(A) 2.9
Power consumption
(kW) 0.63
Cooling
(230V)
Power factor (%) 93
Operating
current(A) 3.2
Power consumption
(kW) 0.70
Heating
(230V)
Power factor (%) 94
Start up current (A) 25
Fuel consumption (kW) G/C
Cooling 22.6/25.9
Heating
(standard) 24.7/28.3
Heating
(low temperature) 27.2/32.5
Compressor
Cooling oil volume (L) 2.7(HP-9)
Crank case heater (W) 20
Engine
Displacement(L) 1.274
Rated output(kW) 7.5
Type
Sanyo Genuine GHP 10TH
Lubricating oil Quantity
(L) 32
Starter motor DC12V×0.8kW
Starter type AC/DC conversion type DC
starter
Engine cooling water
Quantity(L) 23
Concentration, freezing
temperature 50V/V%, -35
ºC
Cooling water pump rated
output(W) 160
Refrigerant×Quantity(kg) HFC[R407C]×10
Air intake Front and rear
Air outlet Top
Piping
Refrigerant gas tube 28.58(brazed)
Refrigerant liquid tube 12.7(brazed)
Fuel gas port R3/4(male screw)
Exhaust gas drain port
diameter(mm) 27 rubber hose
Operating noise dB(A) 56
Blower
Blower type Propeller fan×1
Rated air volume(m
3
/min) 150
Rated output (kW) 0.45
Heater for drain filter (W) 20
Heater for cooling water
Cooling water heater(W) 250
Paint color (Munsell code) Silky shade (1Y8.5/0.5)
Heating(low temperature)
Less than 20ºCDB, 15ºCWB27ºCDB, 19ºCWB 20ºCDB
2ºCDB, 1ºCWB7ºCDB, 1ºCWB35ºCDB
Operating condition Cooling Heating(standard)
Indoor air intake temperature
Outdoor air intake temperature
2. The value of cooling power consumption indicates the electrical power consumed during cooling overload operation when Indoor air intake
temperature is 32ºCDB/23ºCWB, and Outdoor air intake temperature is 43ºCDB.
3. The operating noise was measured at the position of 1.5 meter from the ground and 1 meter from the front of the unit. However, in an actual
installation there are various additional conditions, and normally the noise level is higher than the indicated value.
4. Under fuel consumption, G indicates 100% propane, with a calorific value of 37.78MJ/NM
3
+5%, and C indicates other gas.
5. The values shown in the table are for 50Hz.
6. The specification is subject to change without notice, due to improvements etc.
Notes
1. The cooling capacity and heating capacity described in the tables are the values when the unit operates under the test condition of JIS B 8627

Outdoor Unit
B - 6
2. Specification
SGP-E120J2GU2
Model
External dimensions (mm)
Hei ght 2,253
W idth 1,735
Dept h 1,000(+106)
Weight (kg) 950
Performance (kW)
Cooling capacity 35.5
Heating capacity
(Standard) 42.5
Heating capacity
(low temperature) 42.5
Power supply 220 ~ 240V
Electrical characteristics 50Hz
Operating
current(A) 5.2
Power consumption
(kW) 1.07
Cooling
(230V)
Power factor (%) 94
Operating
current(A) 5.4
Power consumption
(kW) 1.15
Heating
(230V)
Power factor (%) 94
Start up current (A) 30
Fuel consumption (kW) G/C
Cooling 27.3/30.4
Heating
(standard) 29.6/33.5
Heating
(low temperature) 33.9/40.4
Compressor
Cooling oil volume (L) 4.1(HP-9)
Crank case heater (W) 30
Engine
Displacement(L) 2.472
Rated output(kW) 15.0
Type
Sanyo Genuine AP D-125
Lubricating oil Quantity
(L) 50
Starter motor DC12V×2.2kW
Starter type AC/DC conversion type
DC starter
Engine cooling water
Quantity(L) 27
Concentration, freezing 50V/V%, -35
ºC
Cooling water pump rated
output(W) 160
Refrigerant×Quantity(kg) HFC[R407C]×12
Air intake Front and rear
Air outlet Top
Piping
Refrigerant gas tube 31.75(brazed)
Refrigerant liquid tube 15.88(brazed)
Fuel gas port R3/4(male screw)
Exhaust gas drain port
diameter(mm) 27 rubber hose
Operating noise dB(A) 57
Blower
Blower type Propeller fan×2
Rated air volume (m3/min) 300
Rated output (kW) 0.45
Heater for drain filter (W) 60
Heater for cooling waterA
Coolingwater heater(W) 250
Paint color (Munsell code) Silky shade (1Y8.5/0.5)
Heating(low temperature)
Less than 20ºCDB, 15ºCWB27ºCDB, 19ºCWB 20ºCDB
2ºCDB, 1ºCWB7ºCDB, 1ºCWB35ºCDB
Operating condition Cooling Heating(standard)
Indoor air intake temperature
Outdoor air intake temperature
2. The value of cooling power consumption indicates the electrical power consumed during cooling overload operation when Indoor air intake
temperature is 32ºCDB/23ºCWB, and Outdoor air intake temperature is 43ºCDB.
3. The operating noise was measured at the position of 1.5 meter from the ground and 1 meter from the front of the unit. However, in an actual
installation there are various additional conditions, and normally the noise level is higher than the indicated value.
4. Under fuel consumption, G indicates 100% propane, with a calorific value of 37.78MJ/NM
3
+5%, and C indicates other gas.
5. The values shown in the table are for 50Hz.
6. The specification is subject to change without notice, due to improvements etc.
Notes
1. The cooling capacity and heating capacity described in the tables are the values when the unit operates under the test condition of JIS B 8627

Outdoor Unit
B - 7
2. Specification
SGP-E150J2GU2
Model
External dimensions (mm)
Hei ght 2,253
W idth 1,735
Dept h 1,000(+106)
Weight (kg) 950
Performance (kW)
Cooling capacity 45.0
Heating capacity 53.0
Heating capacity
(low temperature) 53.0
Power supply 220 ~ 240V
Electrical characteristics 50Hz
Operating
current(A) 5.2
Power consumption
(kW) 1.07
Cooling
(230V)
Power factor (%) 94
Operating
current(A) 5.4
Power consumption 1.15
Heating
(230V)
Power factor (%) 94
Start up current (A) 30
Fuel consumption (kW) G/C
Cooling 35.8/40.8
Heating
(standard) 39.0/44.5
Heating
(low temperature) 42.6/51.7
Compressor
Cooling oil volume (L) 4.1(HP-9)
Crank case heater (W) 30
Engine
Displacement(L) 2.472
Rated output(kW) 15.0
Type
Sanyo Genuine AP D-125
Lubricating oil Quantity
(L) 50
Starter motor DC12V×2.2kW
Starter type AC/DC conversion type
DC starter
Engine cooling water
Quantity(L) 27
Concentration, freezing
temperature 50V/V%, -35
ºC
Cooling water pump rated
output(W) 160
Refrigerant×Quantity(kg) HFC[R407C]×12
Air intake Front and rear
Air outlet Top
Piping
Refrigerant gas tube 31.75(brazed)
Refrigerant liquid tube 19.05(brazed)
Fuel gas port R3/4(male screw)
Exhaust gas drain port
diameter(mm) 27 rubber hose
Operating noise dB(A) 57
Blower
Blower type Propeller fan×2
Rated air volume (m
3
/min) 300
Rated output (kW) 0.45
Heater for drain filter (W) 60
Heater for cooling water
Cooling water heater(W) 250
Paint color (Munsell code) Silky shade (1Y8.5/0.5)
Heating(low temperature)
Less than 20ºCDB, 15ºCWB27ºCDB, 19ºCWB 20ºCDB
2ºCDB, 1ºCWB7ºCDB, 1ºCWB35ºCDB
Operating condition Cooling Heating(standard)
Indoor air intake temperature
Outdoor air intake temperature
2. The value of cooling power consumption indicates the electrical power consumed during cooling overload operation when Indoor air intake
temperature is 32ºCDB/23ºCWB, and Outdoor air intake temperature is 43ºCDB.
3. The operating noise was measured at the position of 1.5 meter from the ground and 1 meter from the front of the unit. However, in an actual
installation there are various additional conditions, and normally the noise level is higher than the indicated value.
4. Under fuel consumption, G indicates 100% propane, with a calorific value of 37.78MJ/NM
3
+5%, and C indicates other gas.
5. The values shown in the table are for 50Hz.
6. The specification is subject to change without notice, due to improvements etc.
Notes
1. The cooling capacity and heating capacity described in the tables are the values when the unit operates under the test condition of JIS B 8627

Outdoor Unit
B - 8
SGP-E190J2GU2
Model
SGP-E190J2GU2W
980(SGP-E190J2GU2)
990(SGP-E190J2GU2W)
External dimensions (mm)
Hei ght 2,253
W idth 1,735
Dept h 1,000(+106)
Weight (kg)
Performance (kW)
Cooling capacity 56.0
Heating capacity 67.0
Heating capacity
(low temperature) 67.0
Water heating
capacity(Cooling only) 22.5
Power supply 220 ~ 240V
Electrical characteristics 50Hz
Operating
current(A) 5.2
Power consumption
(kW) 1.07
Cooling
(230V)
Power factor (%) 94
Operating
current(A) 5.4
Power consumption
(kW) 1.15
Heating
(230V)
Power factor (%) 94
Start up current (A) 30
Fuel consumption (kW) G/C
Cooling 43.5/53.0
Heating
(standard) 46.0/54.3
Heating
(low temperature) 54.2/65.0
Compressor
Cooling oil volume (L) 4.1(HP-9)
Crank case heater (W) 30
Engine
Displacement(L) 2.472
Rated output(kW) 15.0
Type Sanyo Genuine AP D-125
Lubricating oil Quantity
(L) 50
Starter motor DC12V×2.2kW
Starter type AC/DC conversion type
DC starter
Engine cooling water
Quantity(L) 27
Concentration, freezing
temperature 50V/V%, -35ºC
Cooling water pump rated
output(W) Quantity(L)
Refrigerant×Quantity(kg) HFC[R407C]×17
Air intake Front and rear
Air outlet Top
Piping
Refrigerant gas tube 38.1(brazed)
Refrigerant liquid tube 19.05(brazed)
Fuel gas port R3/4(male screw)
Hot water intake port Rp 3/4(famale screw)
Exhaust gas drain port
diameter(mm) 27 rubber hose
Operating noise dB(A) 58
Blower
Blower type Propeller fan×2
Rated air volume (m
3
/min) 300
Rated output (kW) 0.45
Heater for drain filter (W) 60
Heater for cooling water
Cooling water heater(W) 250
Paint color (Munsell code) Silky shade (1Y8.5/0.5)
Heating(low temperature)
Less than 20ºCDB, 15ºCWB27ºCDB, 19ºCWB 20ºCDB
2ºCDB, 1ºCWB7ºCDB, 1ºCWB35ºCDB
Operating condition Cooling Heating(standard)
Indoor air intake temperature
Outdoor air intake temperature
2. The value of cooling power consumption indicates the electrical power consumed during cooling overload operation when Indoor air intake
temperature is 32ºCDB/23ºCWB, and Outdoor air intake temperature is 43ºCDB.
3. The operating noise was measured at the position of 1.5 meter from the ground and 1 meter from the front of the unit. However, in an actual
installation there are various additional conditions, and normally the noise level is higher than the indicated value.
4. Under fuel consumption, G indicates 100% propane, with a calorific value of 37.78MJ/NM
3
+5%, and C indicates other gas.
5. The values shown in the table are for 50Hz.
6. The specification is subject to change without notice, due to improvements etc.
Notes
1. The cooling capacity and heating capacity described in the tables are the values when the unit operates under the test condition of JIS B 8627
2. Specification

Outdoor Unit
B - 9
Product number External dimensions drawing Scale
SGP-E70J2GU2 SGP-E90J2GU2 Free
Rear View Left View
Top View
4-φ24 (for anchors)
1000 (anchor pitch)
1060 (anchor pitch)
1310 (frame width)
1290 (external cladding)
1030 (suspension holes)
1106 (frame width)
4-φ30 (suspension holes)
1000 (external cladding)
Inter-unit cable port (φ28)
Electrical power supply port (φ28)
Exhaust gas drain hose (φ27 rubber hose)
Liquid refrigerant pipe : φ12.7
Gas refrigerant pipe
Fuel gas port
Front View
(1)70, 90 Type
3. External dimension drawings

Outdoor Unit
B - 10
Product number External dimensions drawing Scale
SGP-E120J2GU2 SGP-E150J2GU2 SGP-E190J2GU2
Free
Rear View Left View
Top View
Front View
4-φ24 (for anchors)
1000 (anchor pitch)377
1060 (anchor pitch)
1754 (frame width)
1735 (external cladding)
1030 (suspension holes)
1106 (frame width)
4-φ30 (suspension holes)
1000 (external cladding)
Inter-unit cable port (φ28)
Electrical power supply port (φ28)
Exhaust gas drain hose (φ27 rubber hose)
Liquid refrigerant pipe
Gas refrigerant pipe
Fuel gas port
(2)120, 150, 190 Type
3. External dimension drawings

Outdoor Unit
B - 11
Rear View Left View
Top View
Front View
4-φ24 (for anchors)
1000 (anchor pitch)377
1060 (anchor pitch)
1754 (frame width)
1735 (external cladding)
1030 (suspension holes)
1106 (frame width)
4-φ30 (suspension holes)
1000 (external cladding)
Liquid refrigerant pipe φ19.05 Gas refrigerant pipe φ38.1
Inter-unit cable port (φ28)
Electrical power supply port (φ28)
Hot water inlet: Rp3/4
Hot water outlet:Rp3/4
Exhaust gas drain hose (φ27 rubber hose)
Fuel gas port: R3/4
Product number External dimensions drawing Scale
SGP-E190J2GU2W Free
3. External dimension drawings

Outdoor Unit
B - 12
Electric Wiring Diagram
Refrigerant
high pressure
switch
Cooling water pump motor
Applicable to 70,90J2
model type
Applicable to 120-190J2
model type
Refrigerant
low pressure
sensor
Refrigerant
high pressure
sensor
Refrigerant
low pressure
sensor
Refrigerant
high pressure
sensor
Applicable to 70-90J2
model type
Applicable to 120-190j2
model type
expansion valve 1 expansion valve 2
expansion valve
Cooling water
electric three-way
valve
Liquid valve
Bypass valve
Applicable to
120-190J2 model type
Oil level
switch L
Oil level
switch H
Cooling water
level switch Oil pump
Oil solenoid valve 1, 2
Cooling water
heater
Drain filter
heater
Crank case
heater
Four-way
valve
Applicable to 70,90J2
model type
Applicable to 120-190J2
model type
Fan motor 2
Fan motor 1
Earth Communi-
cation
Electrical
power
Circuit breaker
Electro-magnetic
contactor for
DC power supplies
(52S)
Power source device for
starting up the starter
Engine oil
pressure switch
(Engine)
Step motor
(engine governor)
Cam angle
sensor
Crank angle
sensor
(No. 3 gas column, no. 4 gas column)
(No. 1 gas column, no. 2 gas column)
Compressor inlet temperature sensor Compressor outlet temperature sensor Exhaust gas temperature sensor External air temperature sensor Ignition coil 1-4
Fuel gas solenoid valve 1, 2 VGO1: entrance, VGO2: governor
N/P switch Fuel gas adjustment
valve
Fuel gas box
Applicable to BLKψ70,90J2 and GRNψ120-190J2 model type
Current sensor 1
Power transformer
Diode
Cooling water
temperature sensor
Starter
Nickel cadmium battery
Clutch coil
Diode Heat exchanger outlet temperature sensor Heat exchanger inlet temperature sensor 1 Clutch coil temperature sensor Condenser Reactor 1 Reactor 2 Catalyst temperature sensor Hot water outlet temperature sensor
Applied to a model with hot water supplying function
6P terminal board
Applied to a model with odor catalyst
Applied to a model with hot water supplying function
Hot water three-way valve
Fuel gas Low pressure switch

Outdoor Unit
B - 13
(1) Performance characteristics graph
170 Type
Performance characteristics of SGP-E70J2GU2
5. Performance characteristics

Outdoor Unit
B - 14
290 Type
Performance characteristics of SGP-E90J2GU2
5. Performance characteristics

Outdoor Unit
B - 15
3120 Type
Performance characteristics of SGP-E120J2GU2
5. Performance characteristics
