Service Manual
Contents
IFILE NO. I
Mini Component System DC-C30 (AU)
Specifications ................................................................... 1
What to do if ..................................................................... 1
Laser beam safety precaution ..........................................2
CD pick-up maintenance ..................................................2
Service mode ...................................................................2
CD player adjustments .....................................................3
Tape adjustments ............................................................4
Tuner adjustments ...........................................................6
Exploded view

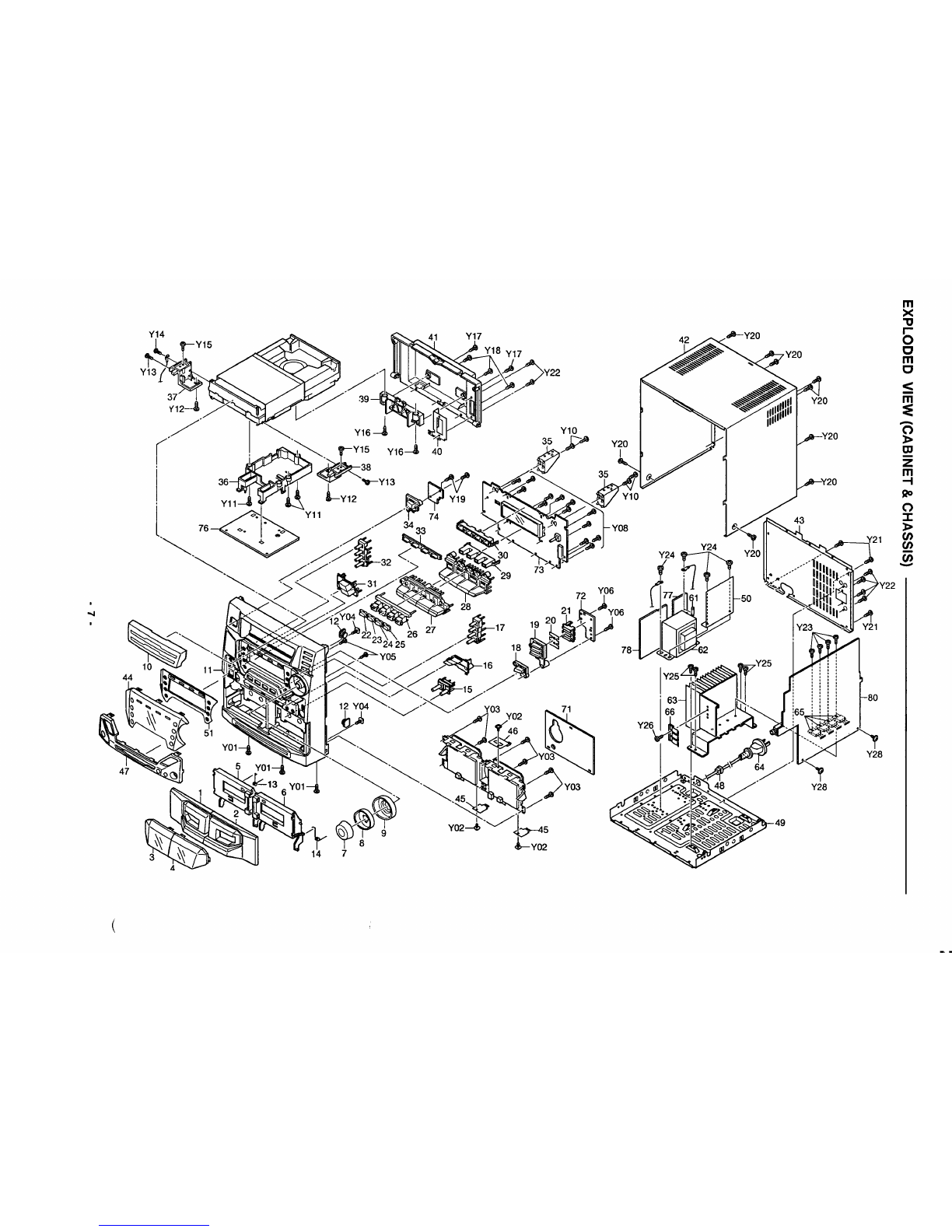

(Cabinet &Chassis) .....................................................7
(Tape mechanism) ........................................................ 15
(CD changer mechanism) ............................................. 16
(CD base mechanism) ..................................................l7
Parts list
(Cabinet &Chassis) ...................................................... 8

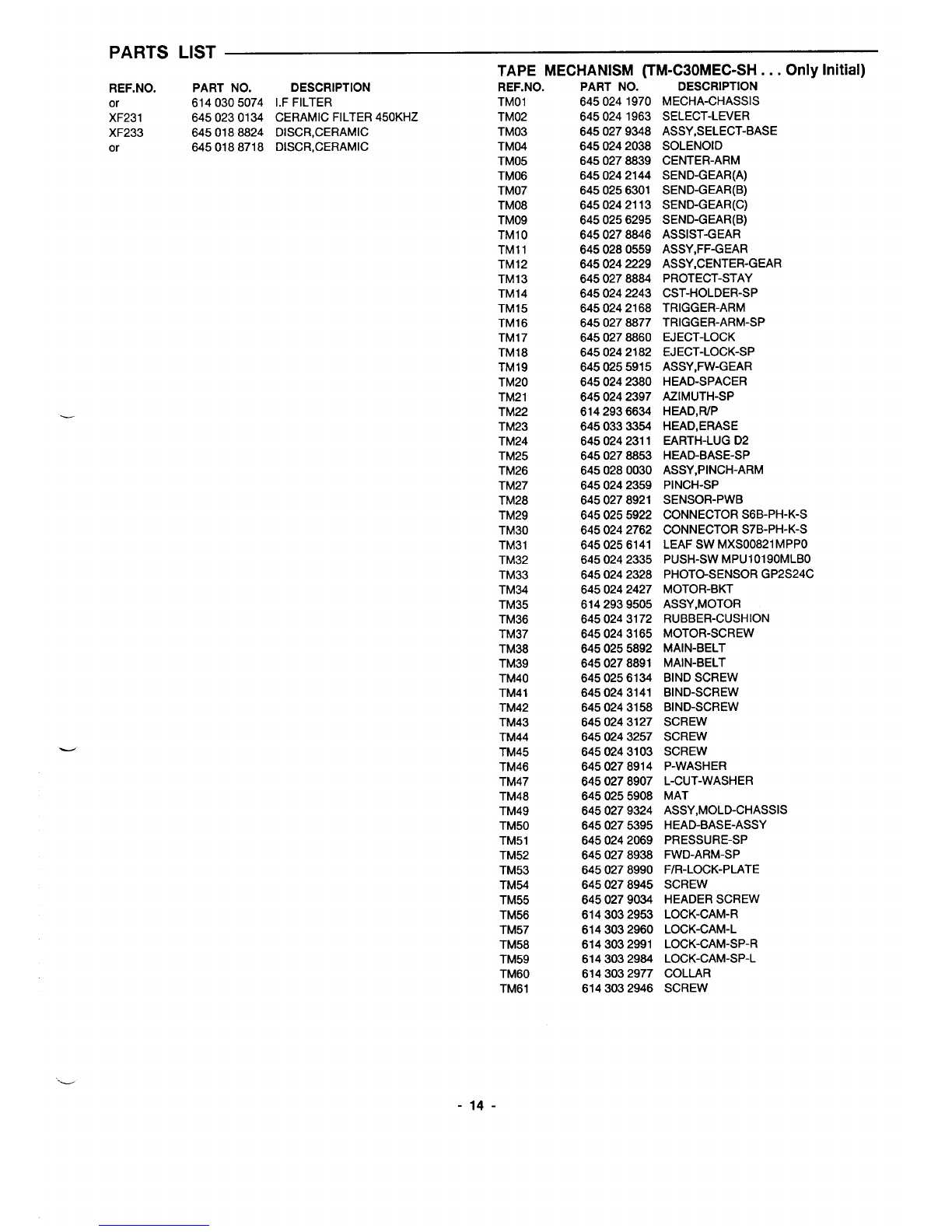

(Tape mechanism) ........................................................ 14
(CD mechanism) ........................................................... 17
PRODUCT CODE No.
12955605
IC block diagram &description ........................................ 18
FL display description ......................................................23
IC &Transistor voltages ...................................................24
Wiring connection ............................................................25
Schematic diagram
(TUNER) .......................................................................26
(AMPLIFIER) .................................................................28
(FRONT) .......................................................................32
(CD) ...............................................................................36
(DEcK) ..........................................................................4o
Wiring diagram
(TUNER &LIFIER) ................................................30
(FRONT) .......................................................................34
(CD) ...............................................................................38
(DECK) ..........................................................................39
(POWER TRANSFORMER) ........................................42
(POWER SWITCH, DISC SWITCH) ...........................43
——— ——— —.— ——— ——— ——— ———
‘This service manual consists of “DC-C30U” (Main unit: 129555 05), T
II
~RB-C30’ (Remote control) and “SX-C30’ (Speaker system: 133 68402)ti
——— ——— ——— ——— —.— .—— ———
REFERENCE No. SM581OO47
SPECIFICATIONS
Tuner section
Reception frequency .............. FM :87.5 MHz -108.0 MHz
AM :522-1710 kHz (9 kHz step)
520-1710 kHz (1OkHz step)
Cassette deck section
Track system ......................... 4-track, 2-channel stereo
Frequency response .............. 120 Hz -14 kHz (Normal tape)
Signal to noise ratio ...............48 dB
Wow and Flutter ..................... 0.12 %(WRMS)
Tape speed ............................ 4.75 cmlsec
Fast forward /Rewind time .... Approx. 110 sec. (C-60)
CD changer section
Type ....................................... Changer, 3-disc
Channels ................................ 2-channel stereo
Sampling frequency ...............44.1 kHz
Pick-up ................................... Optical 3-beam
semiconductor laser
Wow and Flutter ..................... Below measurable limits
General
Output power ......................... 20 Wx2 (at 6ohms, 10%distortion)
input
VIDEO /DVD IN .................550 mV /50k ohms
outputs
SPEAKERS ........................ 6ohms
PHONES ............................. 8-32 ohms
Power requirements ............... AC 230-240 V, 50 Hz
Power consumption ...............65 W
Dimensions (W xHxD) ........ Approx. 270x 300x 321 mm
Weight .................................... Approx. 5.7 kg
LASER BEAM SAFETY PRECAUTION
RB-C30 Wireless remote control
Power requirements ...............2 “AA” batteries
Dimensions (W xHxD) ........ Approx. 56 x168x 26 mm
Weight .................................... Approx. 73 g (without batteries)
SX-C30 Speaker system
Type ....................................... 2way bass reflex
Drivers ................................... Woofer: 12 cm cone type
Tweeter: 5cm cone type
Maximum
Power-handling capacity .....80 Watts (peak)
Nominal impedance ...............6 ohms
Dimensions (W xHxD) ........ Approx. 230x 300x 240 mm
Weight .................................... Approx. 2.9 kg
Specifications subject to change without notice.
●Pick-up that emits alaser beam is used in this CD player section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE
LASER OUTPUT ..........0.6 mW Max. (CW)
WAVELENGTH .............790 nm D
❑on
.......
$!
.Ml
no’
0-
CAUTION -INVISIBLELASERRADIATIONWHENOPENAND I
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL -USYNLIG LASER STRALING VED ABNING, NAR
,0$.,, A, v+~
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGA UDS /ETIELSE
VARNING -OSYNLIG LASER STR LNING NAR DENNA DEL AR OPPNAD
OCH SPARR AR URKOPPIAD. STRALEN AR FARLIG.
VORSICHT -UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEOFFNET UND WENN SICHERHEITSVERRIEGELUNG
UBERBRUCKT 1ST.NICHT, DEM STRAHL AUSSETZEN.
VARO -AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NAKYMATTOMALLE LASERSATEILYLLE. ALA KATSO aTEESEEN.
\
“n m
—-----dr-
-1-
WHAT TO DO IF
. If the operation of the unit or display is not normal, or you wish
to clear the contents of the memory. \
1. Disconnect the power cord from AC outlet.
2. Press the RESET button for at least 30 seconds.
3. Connect the power cord.
4. Press the POWER button to turn the power on.
.
%
RESET
CD PICK-UP MAINTENANCE
About pick-up (Optical lens) Cleaning
Clean the lens with the specified cleaning disc or moisten acotton swab with isopropyl alcohol and cleaning paper.
Specified cleaning disc: LC-1 (Part code: 645026 1961 ..... manufactured by SANYO.)
Regarding procedure of cleaning with moisten cotton swab, please refer to the attached as follows.
1.
2.
3.
Cotton swab wrapped with Cleaning paper.
Add the isopropyl alcohol.
Gently move the tip of cotton swab just like adraw awhirlpool from inside to outside on the surface of lens.
SERVICE MODE
1. Preparation
Press the unit’s STOP and FM MODE buttons at the same time. (This initiates service mode entry status.)
Next, press another button on the unit to switch to the corresponding service mode.
The unit enters aservice mode only if another button is pressed during that 1second.
2. CD Repair
1. Within 1second of activating sewice mode entry status, press the CD BACK button to enter this service mode.
2. When in the CD function mode the LCD segment displays aCD operation indication that is different from its normal indication.
If aCD error occurs, adisplay appears as shown in below.
Also, from the point at which the error occurred onward, the CD operation display is fixed. The fixed displays is canceled by
pressing the STOP button when the CD is stopped.
3. Press the POWER button to cancel this mode.
1=
Disc No.
o
1
E
2
3
4
5
State of CD Error I
Good
Focusing is not possible in focus serch.
The subcode is not input during disc startup.
TOC can not be read.
Focus was lost while the servo was on. (during playing, etc.)
The subcode is not input while the servo in on. (during playing, etc.)
3. Checking the FL connection
1.
2.
3.
4.
Within 1second of activating service mode entry status, press the TUNING UP button to enter this sewlce mode.
FL and LED turns on order when enter this mode.
When every indication turns on, become on and off light indication.
Press the POWER button to cancel this mode.
-2-
CD PLAYER ADJUSTMENTS
1. CABLE CONNECTION
@ASSY, CONNECTOR-S (614 303 5633)
11I
2. ADJUSTMENTS q
(1) Confirm the tracking balance CH1-53XW CH2. KEIIIV: ;; ;-
Cclo:l :C!clol :::;
,; :;, ,I
1.
2.
3.
4.
5.
Connect an Oscilloscope to TP2 (TE) and TP1 (VC).
Turn on the POWER switch.
Set the test disc. (DISC 1)
Press “STOP” button and “FM MODE’ button simultaneously.
Within 1second after pressing the “PLAY/PAUSE” button.
(SERVICE MODE: Tracking balance adjustment mode)
Confirm that the oscilloscope waveform is symmetrical on the
top and bottom in relation to OV (VC).
RF
A
TE
(2) Checking the “eye” pattern
1. Switch “ON” the POWER.
2. Connect an oscilloscope to TP4 (RF) and TP1 (VC).
3. Load the test disc.
4. Press the PLAY button.
5. Check to be sure that the “eye” pattern is at the center of
waveform and that the diamond shape is clearly defined.
6. Press the STOP button.
7. Turn off the POWER switch.
c
t,:: ,
.IA.B
3
Ov(vc)A
B
I200:mV/div.: ‘; ;
11
5ms/div.
a--+ OSCILLOSCOPE
TP1
(vC)”
DED
b
.J
-.
-3-

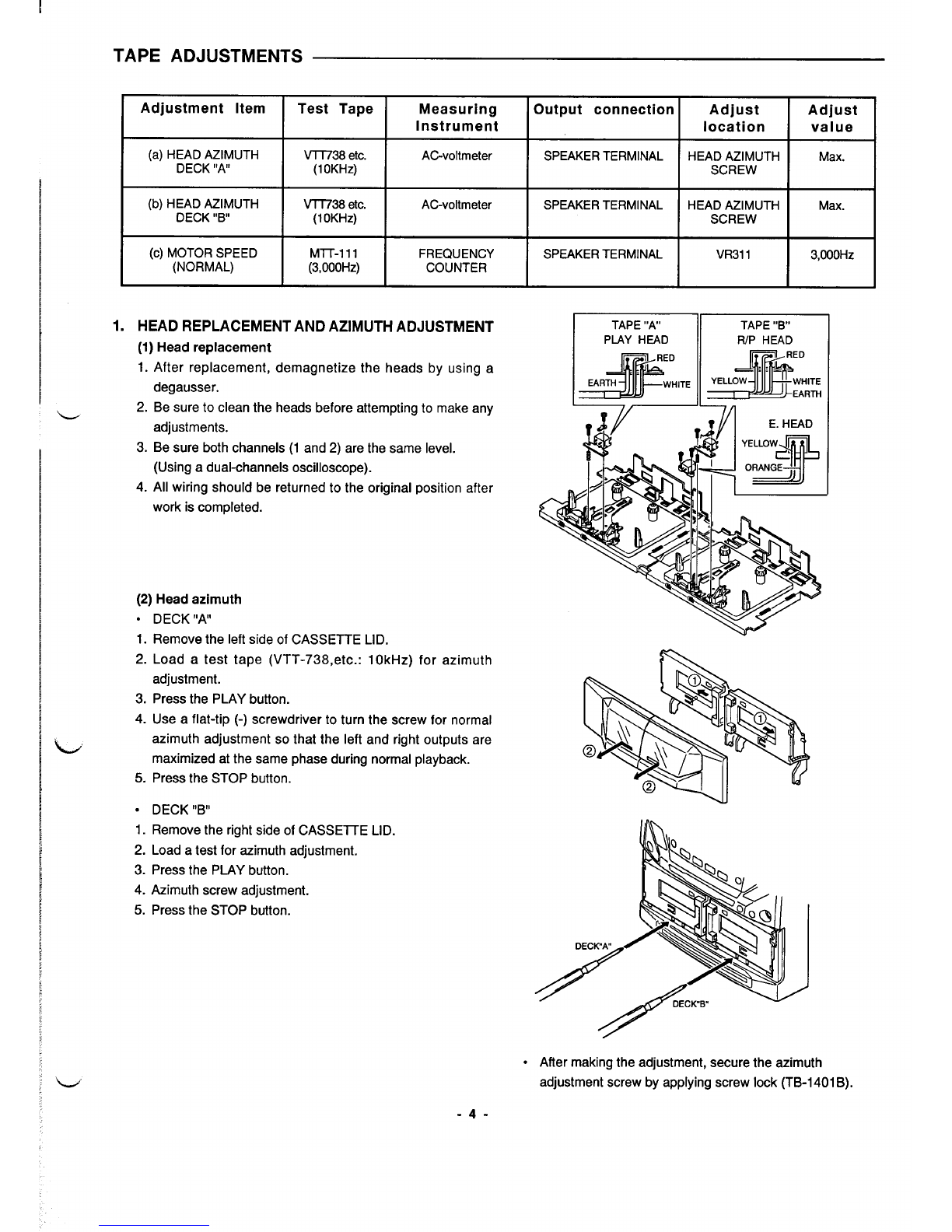

TAPE ADJUSTMENTS
IAdjustment Item Test Tape Measuring
Instrument
F=+%-F=
(c) MOTOR SPEED MlT-l 11 FREQUENCY
(NORMAL) (3,000Hz) COUNTER
1. HEAD REPLACEMENT AND AZIMUTH ADJUSTMENT
(1) Head replacement
1.After replacement, demagnetize the heads by using a
degausser.
2. Be sure to clean the heads before attempting to make any
adjustments.
3. Be sure both channels (1 and 2) are the same level.
(Using adual-channels oscilloscope).
4. All wiring should be returned to the original position after
work is completed.
(2) Head azimuth
●DECK “A”
1. Remove the left side of CASSETTE LID.
2. Load a test tape (VTT-738,etc.: 10kHz) for azimuth
adjustment.
3. Press the PLAY button.
4. Use aflat-tip (-) screwdriver to turn the screw for normal
azimuth adjustment so that the left and right outputs are
maximized at the same phase during normal playback.
5. Press the STOP button.
●DECK “B”
1. Remove the right side of CASSEITE LID.
2. Load a test for azimuth adjustment.
3. Press the PLAY button.
4. Azimuth screw adjustment.
5. Press the STOP button.
-4-
.After making the adjustment, secure the azimuth
adjustment screw by applying screw lock (TB-1 401 B).
I
TAPE ADJUSTMENTS
2. MOTOR REPLACEMENT AND SPEED ADJUSTMENT
(1) Motor replacement
(2) Motor speed
1. Insert the test tape (MIT-111 or etc. 3,000 Hz) into DECK A.
2. Press the PLAY button.
3. AdjustVR311 so that the frequency counter show areading
of 3,020 ~10 tiz.
4. Press the STOP button.
o❑
3. CHECKING THE MECHANISM TORQUES
●Clean the head, capstan and pinch roller before making any measurement.
TAPESPEEO
ADJUSIMREN;
DECK “A & B“
Measurement Take-up torque Back tension Tape tension
Cassette for PLAY :TV-21 11A PIAY:TW-2111A Drivepower cassette
measurement F.FWDIREW :TW-2231 TW-2412
PfAY 25-63 gr.cm 2.0- 6.0 gr.cm 70 gr or more
1=.FWDIREW 60-120 gr.cm
-5-
TUNER ADJUSTMENTS
●Use aplastic screw driver for adjustments.
●MODE :STEREO
●Speaker impedance: 60hm
●TUNING
FM :87.5 -108.0 MHz
AM: 522-171 OKHZ (9 kHz step)
(H)
FM
c
‘~j:}:A (E)
(E)
AM
c
AfiTyNkA (H)
TP12
ff
(E)
J2102
L2101
Iml L2102
❑
R
TP1l
f’
(COVER V)
K!151-A ‘2’07
h
TP25
c
(L CH)
R2325 TP27
w
(E)
R2326 TP26
(R CH)
SG RF Level :75Q open Voltage dBpV
Antenna :75f2 unbalanced, Modulation :1 kHz
dCmi Dev. :*22.5kHz(MONO) *22.5kHz(STEREO) *6.75kHz(PlLOT)
o.rm
Step Adjusting Connection SG set Adjustment Remark
Circuit Input output Frequency Position
1Cover --- Connect Digital DCvoltmeterto 87.5 MHZ Low L21CK2 mcfe than 0.9 V
voltage --- TP1 l(H), TP12(E). 108.0 MHZ High L21CQ less than 8.0 V
2Tracking Connect FM SG to FM Antenna Connect to VTVM 90.0 MHZ Low El 01 Max.
(SG=8dB PV) TP25(L) or TP26(R), TP27(E) 106.0 MHZ High ___
----
2.AM
Step
1
2
Adjusting Conr
Circuit Input
Cover I---
voltage I---
Tracking Connect AM SG to
Test loop Ant.(SG=60dB JJW
?ction
output
Conned Digital DC voltmeter to
TP1 l(H), TP12(E).
Connect to VTVM
TP25(L) or TP26(R), TP27(E).
SG Modulation :1 kHz, 30?X0
Antenna, II
*
=-t=
1404 kHZ IHigh
IE Loop, Distance: 60 cm
Adjustment Remark I
,
--- Imore than 1.0 V1
--- Iless than 8.0 VI
-6-
m
f
EXPLODED VIEW (CABINET &CHASSIS)
/- ,)
-7-
PARTS LIST
.PRODUCT SAFETY NOTICE
“L
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE IEC
SYMBOL AIN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY CAN BE OF
SPECIAL SIGNIFICANCE. WHEN REPLACING ACOMPONENT IDENTIFIED BY A ,USE ONLY THE REPLACEMENT PARTS DESIGNATED,
OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WAITAGE OR VOLTAGE THAT ARE DESIGNATED IN THE PARTS LIST
IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 Wcarbon type and Oohm chip resistors.
Regular type capacitors are less than 50 Vand less than 1000 pF type of Ceramic type and Electrical type.
PACKING &ACCESSORIES
REF. NO. PART NO.
6143036821
6143039341
6143039358
6143037002
6450243745
6450051227
6142450055
6450326547
6450358098
6143030775
CABINET &CHASSIS
REF. NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
L39
PART NO.
6143016366
6143016373
6143016403
6143016410
6142657898
6142657904
6143016502
6143016359
6143016496
6143016427
6143077305
6142708316
6143021896
6143024422
6143016335
6143016298
6143016274
6143016250
6143016243
6143035688
6143016564
6143027461
6143027478
6143027485
6143027492
6143016281
6143016311
6143016328
6143016571
6143003274
6143016304
6143016267
6143016434
6143016236
6143016533
6143003113
6143016526
6143016519
6143021834
DESCRIPTION
CARTON CASE
CUSHION,TOP
CUSHION, BOITOM
INSTRUCTION MANUAL
POLY SHEET-1300X055r3’NC, SET
ASSY,ANTENA,LOOP
ANTENNA
REMOCON,RB-C30, SANY0
BATTERY COVER, SERVICE PARTS
AssY,Box,sPEAKER(sx-c30/ss)
DESCRIPTION
COVER, CASSETTE,LEFT
COVER, CASSETTE, RIGHT
DEC,WINDOW,LEFT
DEC,WINDOW,RIGHT
ASSY,LID,CASSETTE, DECK LEH
ASSY,LID,CASSEITE, DECK RIGHT
KNOB, ROTARY
CAP,VOL
DEC,WINDOW,VOL
DEC,CD,TRAY
ASSY,CABINET,FRONT
ASSY,GEAR
SPRING, WIRE, LID CASSETTE LEFT
SPRING, WIRE, LID CASSETTE RIGHT
BUITON,REC
BUITON,TUNING
BUITON,SOUND
BUITON,CD,OPEN
BUTTON, DISC, SELECT
DEC,SHEET,DISC, DISC SELECT
REFLECTOR, DISC, SELECT
DEC,WINDOW,FUNC,CD
DEC,WINDOW,FUNC,TAPE
DEC,WINDOW,FUNC, TUNER
DEC,WINDOW,FUNC,VIDEO
BUl_fON,FUNCTION
BUITON,CD
BLHTON,TAPE
REFLECTOR, FUNCTION
REFLECTOR SOUND, SOUND
BUITON,PRESET
BUTTON, CLOCK
DEC,WINDOW,SOUND
BUITON,POWER
MOUNTING, FRONTICD MECHA
COVER PICK,CD PICK COVER
MOUNTING, RIGHT, FRONT/CD MECHA
MOUNTING, LEFT, FRONT/CD MECHA
MOUNTING, PANEL REAFUCD MECHA
-8-
REF. NO.
40
41
42
43
44
45
46
47
48
or
49
50
51
PART NO.
6143021902
6143021858
6143056643
6143036593
6143016397
6142891117
6142891100
6143021872
6141291901
6142841884
6142904954
6143056775
6143016380
6142748190
FIXING PARTS
REF. NO.
Yol
Y02
Y03
Y04
Y05
Y06
Y08
Ylo
Y11
Y12
Y13
Y14
Y15
Y16
Y17
Y18
Y19
Y20
Y21
Y22
PART NO.
4110213503
4110243708
4110213503
4110209902
4111653803
4110213503
4110213503
4110213503
4110213503
4110213503
4110211806
4110273101
4110213503
4110213503
4110213701
4110213701
4110213503
4110213701
4110213701
4110213701
DESCRIPTION
TERMINAL,ANT,PANEL REAWANT
PANEL, REAR,CD MECHA
ASSY,CABINET,AFTER BENDING
PANEL,REAR
DEC,WINDOW,FL
MOUNTING, BRACKET,
DECK MECHA BOTTOM[
MOUNTING, BRACKET,
DECK MECHA TOP
PANEL,OPERATION
FIXER,AC CORD
FIXER,AC CORD
ASSY,CABINET,BOTTOM
SHIELD,TRANS
COVER, FL,BASE
LABEL, SAFETY, LASER
DESCRIPTlOM
-..
SCR S-TPG BIN 3X1 O,BOTTOM/FRONT
SCR S-TPG PAN+FLG 2X6,
DECK MECHA/MOUNTING PWB
SCR S-TPG BIN 3X1 O,DECK MECHA
SCR S-TPG BRZ+FLG 3X8,
GEAR CASSETTE
SCR S-TPG BIN 2.3X1 O,
FRONT/PANEL OPERATION
SCR S-TPG BIN 3X1 O,DISC PWB
SCR S-TPG BIN 3X1 O,FRONT PWB
SCR S-TPG BIN 3X1O,
MOUNING FRONT/MOUNTING L
SCR S-TPG BIN 3X1O,
CD MECHWCOVERPICK
SCR S-TPG BIN 3X1O,
MOUNTING CD FRONT
SCR S-TPG BIN 2.6X1O,
CD MECHA/MOUNTING LR
SCR S-TPG BIN 3X8,CD PWB GRAND
SCR S-TPG BIN 3X1O,
CD MECHAfMOUNTING LR
SCR S-TPG BIN 3X1 O,
CD MECHA/MOUNTING REAR
SCR S-TPG BIN 3X1O,
CD MECHJVREAR
SCR S-TPG BIN 3X1 O,
BOTTOM/PANEL REAR
SCR S-TPG BIN 3X1 O,POWER PWB
SCR S-TPG BIN 3X1 O,CABINET TOP
SCR S-TPG BIN 3X1O,
BOTTOM/PANEL REAR
SCR S-TPG BIN 3X1O,
REAWELECT PARTS
PARTS LIST
REF. NO. PART NO.
Y23 4110213503
Y24 4110013905
Y25 4110213503
Y26 4110213503
Y28 4110209902
ELECTRICAL PARTS
REF. NO. PART NO.
61 A4230169803
62 A6450338588
63 A6143027508
84 A6142565308
or A6450321887
65 A4051386403
66 6142916568
CN381 6143036371
or 6143080183
CN382 6143036388
or 6143080190
CN383 6450359460
CN384 6450285509
CN681 6450337413
CN682 6143022107
6143048596
~N691 6450127687
DESCRIPTION
SCRS-TPGBIN3X1 O,POWERAMP
SCRS-TPG BIN4X6,TRANS
SCR S-TPG BIN 3X1 O,
HEATSINWBOTTOM
SCRS-TPGBIN3X1 O,TRHOLDER
SCRS-TPGBRZ+FLG 3X8,
AMPPWB/BOITOM
DECKP.W.BOARD ASSY
DESCRIPTION
FUSE 250V0.63A
POWERTRANSFORMER
HEATSINK,BASE
POWERCORD,FOR AU
CORD,POWER-2.0MK,FOR AU
TRKTD2058Y,POWER AMP
MOUNTING, PWB,TR HOLDER
ASSY,WIRE,DECK A
ASSY,WIRE,DECK A
ASSY,WIRE,DECK B
ASSY,WIRE,DECK B
FLEXIBLE FLAT CABLE,AMP-DECK
FLEXIBLE FLAT CABLE, FRONT-DECK
FLEXIBLE FLAT CABLE,CD
ASSY,WIRE,CD
ASSY,WIRE,CD-BASE MECHA
FLEXIBLE FLAT CABLE, FRONT-CD
REF. NO.
71
C3606
C3607
CN301
or
CN302
or
CN311
or
CN312
or
CN313
or
CN321
or
CN323
or
CN371
or
CN372
or
CN373
or
CN374
D3101
D3102
D3601
D3621
D3622
D3623
D3624
HS301
HS302
IC361
IC362
PART NO.
6143006053
4030617306
4030619607
6450125089
6450054181
6450125096
6450054204
6140354959
6450127823
6140206562
6142239223
6450122729
6450127830
6143036647
6143080336
6143036654
6143080343
6450057373
6450070068
6450058127
6450070099
6450058226
6450096433
6143056317
A4071486701
A4071486701
4070995105
4070124406
4070124406
4070124406
4070124406
6142159347
6142159347
4093462301
4090508200
DESCRIPTION
ASSY,PWB,DECK (Only Initial)
POLYESTER 4700P J50V
POLYESTER 0.047U J50V
SOCKET,FPC 10P
SOCKET,1OP
SOCKET,FPC 12P
SOCKET,12P
SOCKET, DIP 6P
SOCKET, DIP 6P
SOCKET,4P
SOCKET
SOCKET, DIP 7P
SOCKET, DIP 7P
CORD,6P CONNECTOR, A_MECHA
CORD,6P CONNECTOR, A_MECHA
CORD,7P CONNECTOR, B_MECHA
CORD,7P CONNECTOR, B_MECHA
PLUG,3P
PLUG,3P
PLUG,6P
PLUG,6P
PLUG,3P
PLUG,3P
CORD,l PCONNECTOR
DIODE 1A3-I
DIODE 1A3-I
ZENER DIODE MTZJ4.7B
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
HEAT SINK
HEAT SINK
IC BU2090F
IC TC401 lBF
REF. NO.
IC363
IC371
L3601
L3701
L3801
Q3122
or
or
or
;3124
or
or
or
or
Q3125
or
or
or
or
Q3601
or
or
or
or
Q3602
or
or
or
or
or
or
or
Q3605
or
or
or
or
Q3811
or
or
Q3621
;3622
or
or
Q3701
or
Q3702
or
or
or
or
Q3703
or
or
or
or
Q3704
or
or
Q3801
or
Q3802
or
or
-9-
PART NO. DESCRIPTION
4091893404 IC BA7755A
4092511000 IC TA8189N
6450325823 TRANS,0SC,85KHZ
8450040580 INDUCTOR,l MJ
6450040580 INDUCTOR,l MJ
4051413703 TR KTA1271-Y
4050082405 TR 2SB698-F
4050082504 TR 2SB698-G
4050063909 TR 2SA952-K
4050064005 TR 2SA952-L
4051413703 TR KTA1271-Y
4050082405 TR 2SB698-F
4050082504 TR 2SB698-G
4050063909 TR 2SA952-K
4050084005 TR 2SA952-L
4051413703 TR KTA1271-Y
4050082405 TR 2SB698-F
4050082504 TR 2SB698-G
4050083909 TR 2SA952-K
4050084005 TR 2SA952-L
4051413703 TR KTA1271-Y
4050082405 TR 2SB698-F
4050082504 TR 2SB69EG
4050063909 TR 2SA952-K
4050064005 TR 2SA952-L
4051438706 TR KTC3199-GR
4050118609 TR 2SC1740S-S
4050118500 TR 2SC1740S-R
4050179600 TR 2SC3330-T
4050179709 TR 2SC3330-U
4051413307 TR KTC3198-GR
4051413208 TR KTC3198-Y
4050193804 TR 2SC536-G-NP
4050192708 TR 2SC536-F-NP
4051514905 TR KTC3200-GR
4051515001 TR KTC3200-BL
4050111907 TR 2SC1 627-Y
4050128103 TR 2SC2003-L
4051376404 TR 2SC2003-K
4051099204 TR KRC102M-A
4050003103 TR DTC114ES
4050783005 TR BA1 L4M
4051099402 TR KRC111 M
4050003400 TR DTC114TS
4051099204 TR KRC102M-A
4050003103 TR DTC114ES
4050783005 TR BA1 L4M
4051099402 TR KRC111 M
4050003400 TR DTC114TS
4050952708 TR 2SJ40-D
4050952807 TR 2SJ40-E
4051496003 TR 2SJ498
4050859106 TR 2SJ105-GR
4050953408 TR 2SJ105-BL
4050952708 TR 2SJ40-D
4050952807 TR 2SJ40-E
4051496003 TR 2SJ498
4050859108 TR2SJ105-GR
4050953408 TR2SJ105-BL
4051099204 TR KRC102M-A
4050003103 TRDTC114ES
4050783005 TR BA1 L4M
4051099402 TR KRC111 M
4050003400 TR DTC114TS
4050952708 TR 2SJ40-D
4050952807 TR 2SJ40-E
4051496003 TR 2SJ498
PARTS LIST
REF. NO.
or
or
Q3803
or
or
or
or
Q3804
or
or
R3608
VR311
PART NO. DESCRIPTION
4050859106 TR2SJ105-GR
4050953408 TR 2SJ105-BL
4050952708 TR 2SJ40-D
4050952807 TR 2SJ40-E
4051496003 TR 2SJ498
4050859106 TR2SJ105-GR
4050953408 TR2SJ105-BL
4051099204 TRKRC102M-A
4050003103 TRDTC114ES
4050783005 TR BA1 L4M
4010114900 CARBON 82 JA l/2W
6450035685 VR,SEMI,2.2K N
DISC SWITCH P.W.BOARD ASSY
REF. NO. PART NO. DESCRIPTION
72 6143036005 ASSY,PWB,DISC SW (Only Initial)
CN661 6140354959 SOCKET, DIP 6P
or 6450127823 SOCKET, DIP 6P
R6609 4010382101 MT-GLAZE 2.7K JA 1/1OW
R661 o4010386406 MT-GLAZE 4.7K JA 1/1OW
R6611 4010390403 MT-GLAZE 8.2K JA 1/1OW
S6608 6142401002 SWITCH,TACT
or 6450065958 SWITCH,PUSH 1P-lT
or 6142205471 SWITCH,TACT
S6609 6142401002 SWITCH,TACT
or 6450065958 SWITCH,PUSH 1P-IT
or 6142205471 SWITCH,TACT
S661O 6142401002 SWITCH,TACT
or 6450065958 SWITCH,PUSH 1P-lT
or 6142205471 SWITCH,TACT
FRONT P.W.BOARD ASSY
REF. NO.
73
BR601
C6095
CN601
CN602
~N603
or
LCN604
or
CN608
or
CN612
or
D6001
D6002
D6004
D6007
D6201
D6202
D6203
D6204
D6205
D6206
D6207
D6208
DS601
-FL601
PART NO. DESCRIPTION
6143041566 ASSY,PWB,FRONT (Only Initial)
6143021407 HOLDER,FL,FL_MOUNT
4032915608 ELECT 1000U M6.3V
6450325809 PLUG,22P,FRONT-PRE
6140354935 SOCKET,DIP 4P
6450127809 SOCKET,DIP 4P
6450125249 SOCKET,FPC 20P
6450054280 SOCKET,20P
6450125096 SOCKET,FPC 12P
6450054204 SOCKET,12P
6140354959 SOCKET,DIP 6P
6450127823 SOCKET,DIP 6P
6143036623 CORD,4P CONNECTOR,FRONT-PT2
6143080329 CORD,4P CONNECTOR,FRONT-PT2
4070124406 DIODE 1SS133
4070124406 DIODE 1SS133
4070124406 DIODE 1SS133
4070994603 ZENER DIODE MTZJ3.9B
4080348700 LED SLZ-981C-13H-AB-T2,FUNC_LED
4080348700 LED SLZ-981C-13H-AB-T2,FUNC_LED
4080348700 LED SI-Z-981C-13H-AB-T2,FUNC_LED
4080348700 LED SLZ-981C-13H-AB-T2,FUNC_LED
4080406806 LED SLZ-981C-06H-AB-T2,
SOUND_PRESET_LED
4080406806 LED SL3981 C-06H-AB-T2,
SOUND_PRESET_LED
4080406806 LED SLZ-981C-06H-AB-T2,
SOUND_PRESET_LED
4080406806 LED SLZ-981C-06H-AB-T2,
SOUND_PRESW_LED
4072039203 PHOTO DIODE SPS-442-1-E,IR
6450333194 FLOURESCENT TUBE,FL
REF. NO.
IC601
IC602
or
IC604
L6000
or
Q6001
or
or
or
or
Q6002
or
Q6003
or
or
Q6005
or
or
or
or
Q6211
Q6212
Q6213
Q6214
Q6215
Q6216
Q6217
Q6218
S6001
S61OO
or
or
S6101
or
or
S6102
or
or
S6103
or
or
S6104
or
or
S6105
or
;6 106
or
or
S6107
or
or
S6115
or
or
S6116
or
or
S6117
or
:6118
or
or
S6119
PART NO. DESCRIPTION
4103535308 IC LC866548A-5M86,3 MICON
4094261903 IC KlA4558F,0P_AMP
4090397804 IC NJM4558M,0P_AMP
4093462301 IC BU2090F,LED_DRlVER
6450014550 INDUCTOR, IOU K
6450317835 INDUCTOR,1OU K
4051438706 TRKTC3199-GR
4050118500 TR 2SC1740S-R
4050118609 TR 2SC1740S-S
4050179600 TR 2SC3330-T
4050179709 TR 2SC3330-U
4050020308 TR2SA1037K-R
4050055508 TR2SA812-M6
4051413703 TR KTA1271-Y
4050082405 TR 2SB698-F
4050082504 TR 2SB698-G
4051438706 TR KTC3199-GR
4050118500 TR 2SC1740S-R
4050118609 TR2SC1740S-S
4050179600 TR 2SC3330-T
4050179709 TR 2SC3330-U
4051465306 TRKRA102S
4051465306 TRKRA102S
4051465306 TRKRA102S
4051465306 TR KRA102S
4051465306 TR KRA102S
4051465306 TR KRA102S
4051465306 TR KRA102S
4051465306 TRKRA102S
6450333460 SWITCH, ROTARY(ENCODER),VOL
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-1T
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-1T
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-l T
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH lP-l T
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-IT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
6450065958 SWITCH,PUSH 1P-lT
6142205471 SWITCH,TACT
6142401002 SWITCH,TACT
-1o-
PARTS LIST
REF. NO,
or
or
S6 120
or
or
S6121
or
or
S6 123
or
or
S6124
or
or
S6125
or
or
S6126
or
or
S6130
or
or
S6131
or
or
S6132
or
or
S6133
or
or
S6 134
or
or
S6135
or
or
S6136
or
or
S6137
or
or
X6001
X6002
PART NO.
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142401002
6450065958
6142205471
6142527627
6450186103
DESCRIPTION
SWITCH,PUSHIP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSHIP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSHIP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSHIP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSHIP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSHIP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH lP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH lP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH 1P-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH lP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH lP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH 1P-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH lP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH lP-lT
SWITCH,TACT
SWITCH,TACT
SWITCH,PUSH 1P-lT
SWITCH,TACT
RESONATOR,XTAL
0SC,CERAMIC,6MHZ
POWER SWITCH P.W. BOARD ASSY
REF. NO. PART NO.
74 6143015512
S6740 6142401002
or 6450065958
or 6142205471
CD P.W.BOARD ASSY
REF. NO. PART NO.
76 6143045625
CN101 6450058110
CN1ll 6450335525
CN113 6450058127
CN114 6140206562
or 6142239223
CN115 6140206609
or 6142239261
DESCRIPTION
ASSY,PWB,POWER SW (Only Initial)
SWITCH,TACT
SWITCH,PUSH 1P-IT
SWITCH,TACT
DESCRIPTION
ASSY,PWB,CD (Only Initial)
PLUG,4P,TPI-4
SOCKET,FFC 16P,CD_PlCKUP
PLUG,6P,BASEMECHA
SOCKET,4P
SOCKET
SOCKET,8P
SOCKET
REF. NO.
CN122
CN123
CN124
or
CN125
or
D1211
D1221
D1480
or
D1601
D1602
D1603
D1604
D1981
Iclol
IC102
IC103
IC131
IC132
L1451
LG101
Q1301
or
or
Q1401
or
or
R1211
or
R1221
%001
X1451
PART NO.
6450125539
6450060946
6143022084
6143048572
6143022091
6143048589
4070639108
4070995303
4070124406
4070125809
A4071486701
A4071486701
A4071486701
A4071486701
4070995204
4093788104
4094352106
A4093729602
A4094414507
A4094414507
6450317835
6141299082
4050087202
4050087301
4050086809
A4051413604
A4050095207
A4050019302
A4020720207
A4020820709
A4020720207
A4020820709
A4072120505
6142312667
DESCRIPTION
SOCKET,FPC 20P
PLUG,7P
AssY,wlRE,cD-cDMEcHA_4P
ASSY,WIRE,CD-MECHA,4P
AssY,wlRE,cD-cDMEcHA_8P
ASSY,WIRE,CD-MECHA,8P
ZENER DIODE MTZJ6.8B
ZENER DIODE MTZJ5.6B
DIODE 1SS133
DIODE 1SS176
DIODE 1A3-I
DIODE 1A34
DIODE 1A3-I
DIODE 1A3-I
ZENER DIODE MTZJ5.1 B
IC LA9240ML
IC LC78622NE,CD_DSP
IC LA6541
IC TA7291 S(M),CD_MECHA_DRIVER
IC TA7291 S(M),CD_MECHA_DRIVER
INDUCTOR,l OU K
LUG, CD-MECHA
TR 2SB81 O-E
TR 2SB81 O-F
TR 2SB808-F-SPA
TR KTA1 273-Y
TR 2SB927-S
TR 2SA102O-Y
RESISTOR 5.6 J- 2W
RESISTOR 5.6 J- 2W
RESISTOR 5.6 J- 2W
RESISTOR 5.6 J- 2W
THERMISTOR RXE065
RESONATOR
POWER TRANSFORMER, PRIMARY
P.W. BOARD ASSY
REF. NO. PART NO. DESCRIPTION
77 6143034995 ASSY,PWB,PT1 (Only Initial)
FCL41 6450317903 HOLDER,FUSE
or 6450064760 HOLDER,FUSE
FCL42 6450317903 HOLDER,FUSE
or 6450064760 HOLDER,FUSE
L4999 A6142342800 INDUCTOR, FERITE
WR498 6140178203 TERMINAL BOARD
WR499 6140178203 TERMINAL BOARD
POWER TRANSFORMER, SECONDARY
REF. NO.
78
C4936
C4937
C4938
C4955
CN493
or
CN495
D4470
D4471
D4472
D4930
D4931
D4932
D4933
PART NO.
6143035053
4033296201
4033296201
4030626506
4033296102
6450060915
6450096440
6140201253
4070995204
4070124406
4070996102
A4071965800
A4071965800
A4071965800
A4071965800
P.W.BOARD ASSY
DESCRIPTION
ASSY,PWB,PT2 (Only Initial)
ELECT 2200U M35V
ELECT 2200U M35V
POLYESTER 0.056U J50V
ELECT 1000U M35V
PLUG,4P
PLUG,4P
SOCKET,6P
ZENER DIODE MTZJ5.1 B
DIODE 1SS133
ZENER DIODE MTZJ1OB
DIODE 1N5402BD82
DIODE 1N5402BD82
DIODE 1N5402BD82
DIODE 1N5402BD82
-11-
PARTS LIST
REF. NO.
D4934
D4935
D4950
D4951
D4952
D4953
D4970
HS471
IC497
or
or
LUG49
PR493
PR495
Q4470
or
or
or
or
:4471
or
or
or
or
or
Q4950
or
or
or
or
or
R4954
R4955
R4970
R4971
SA471
PART NO. DESCRIPTION
A4071486701 DIODE 1A3-I
A4071486701 DIODE 1A3-I
4070124406 DIODE 1SS133
4070124406 DIODE 1SS133
4070999509 ZENER DIODE MTZJ30B
4070996003 ZENER DIODE MTZJ9.I B
4070124406 DIODE 1SS133
6142702598 HEAT SINK
A4093968704 IC KIA7805PI
A4091452809 IC NJM7805FA
4094636701 IC KIA7805API
6140519808 LUG
A6450142611 PROTECTOR,5A 125V
A6450142611 PROTECTOR,5A 125V
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
A4020810106 FUSIBLE RES 2.2 JA l/4W
A4020811004 FUSIBLE RES 10 JA l/4W
A4020822802 RESISTOR 10 J- 1W
A4020810809 RESISTOR 680 J- 1W
4110213503 SCR S-TPG BIN 3X1O
AMPLIFIER &TUNER P.W.BOARD ASSY
REF. NO.
80
C2457
C4720
C4721
C4722
C4723
C4820
C4821
C4822
C4823
C4902
C4903
CN201
or
CN412
fN422
CN452
CN454
or
CN455
CN460
CN470
CN492
D2101
D2102
PART NO. DESCRIPTION
6143035046 ASSY,PWB,AMP-TU (Only Initial)
4031061603 NP-ELECT 1UQ50V
4030572407 POLYESTER 0.1UJ50V
4030572407 POLYESTER 0.1 UJ50V
4031850108 MT-POLYEST 0.47U J50V
4031849805 MT-POLYEST 0.22U J50V
4030572407 POLYESTER 0.1 UJ50V
4030572407 POLYESTER 0.1 UJ50V
4031850108 MT-POLYEST 0.47U J50V
4031849805 MT-POLYEST 0.22U J50V
4033296201 ELECT 2200U M35V
4033296201 ELECT 2200U M35V
6450050695 TERMINAL, ANT
6450317910 TERMINAL
6450122729 SOCKET, DIP 7P
6142496770 SOCKET
6450090042 JACK, PHONE D6.43
6142498613 SOCKET, VIDEO
6450125089 SOCKET,FPC 10P
6450054181 SOCKET,l OP
6450325816 SOCKET,22P
6143026396 CORD,7P CONNECTOR
6450333071 TERMINAL, SPEAKER
6140201253 SOCKET,6P
4071578109 SVC21 1-B
4071578109 SVC21 1-B
REF. NO.
D2103
or
or
or
D2104
or
or
or
D2151
or
or
or
D2451
or
or
or
D2452
D2462
or
or
or
D4416
D4501
D4900
D4901
D4902
D4903
D4920
D4921
D4940
D4960
D4982
IC211
IC231
IC245
IC458
IC459
L2101
L2102
L2103
or
I-2151
I-2451
or
L2901
Q2451
or
or
Q4401
or
or
or
or
Q4500
or
Q4600
:4700
or
Q4701
or
or
or
or
Q4702
or
or
PART NO. DESCRIPTION
4070124406 DIODE 1SS133
4070125809 DIODE 1SS176
4071536109 DIODE 1SS1 19-041
4070079904 DIODE GMAO1
4070124406 DIODE 1SS133
4070125809 DIODE 1SS176
4071536109 DIODE 1SS1 19-041
4070079904 DIODE GMAO1
4070124406 DIODE 1SS133
4070125809 DIODE 1SS176
4071536109 DIODE 1SS1 19-041
4070079904 DIODE GMAO1
4070124406 DIODE 1SS133
4070125809 DIODE 1SS176
4071536109 DIODE 1SS1 19-041
4070079904 DIODE GMAO1
4071537502 ZENER DIODE GZS3.OB
4070124406 DIODE 1SS133
4070125809 DIODE 1SS176
4071536109 DIODE 1SS1 19-041
A4070079904 DIODE GMAO1
A4071486701 DIODE 1A3-I
4070996102 ZENER DIODE MTZJ1OB
A4071965800 DIODE 1N5402BD82
A4071965800 DIODE 1N5402BD82
A4071965800 DIODE 1N5402BD82
A4071965800 DIODE 1N5402BD82
4070996805 ZENER DIODE MTZJ13B
4070994603 ZENER DIODE MTZJ3.9B
4070996805 ZENER DIODEMTZJ13B
4070996805 ZENER DIODEMTZJ136
4070124406 DIODE 1SS133
4092925807 [C TA8176SN
4093792705 IC LA1832ML
4094394502 IC LC72121 M-D
4094312506 IC LC75385NE-R
4094261804 IC KIA4558S
6450180163 COIL,AIR
6450180224 COIL,AIR
6450021534 INDUCTOR,8.2U K
6450317859 INDUCTOR,8.2U K
6450230127 TUNER
6450014581 INDUCTOR,l 00U K
6450317842 INDUCTOR,l 00U K
6450040511 INDUCTOR,270U J
4051515209 TR KRA107M
4050782404 TR BN1A4P
4050000904 TR DTA114YS
4051413307 TRKTC3198-GR
4051413208 TR KTC3198-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051514400 TR KTD1 303
4050210600 TR 2SD1012-G-SPA
4051514400 TR KTD1303
4050210600 TR 2SD1OI2-G-SPA
4051514400 TR KTD1303
4050210600 TR 2SD1 012-G-SPA
4051413307 TR KTC3196-GR
4051413208 TR KTC3196-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
12 -
PARTS LIST
REF. NO.
or
or
:4710
Q4711
Q4712
or
or
or
or
:4713
Q4714
Q4715
Q4800
or
Q481O
Q4811
Q4812
or
or
or
or
or
Q4813
Q4814
Q4815
Q4920
or
or
or
or
or
Q4921
or
or
or
or
or
Q4940
Q4941
or
or
or
or
Q4960
or
or
or
;4961
or
or
or
or
Q4962
Q4963
or
Q4980
or
or
or
or
Q4981
or
or
or
PART NO. DESCRIPTION
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051515001 TR KTC3200-BL
4051515001 TR KTC3200-BL
4051413406 TR, KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051413208 TR KTC3198-Y
A4051519900 TR KTC3227-Y
A4051520005 TR KTA1274-Y
4051514400 TR KTD1 303
4050210600 TR 2SD1 012-G-SPA
4051515001 TR KTC3200-BL
4051515001 TR KTC3200-BL
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA606-G-NP
4051413208 TR KTC31 96-Y
A4051519900 TR KTC3227-Y
A4051520005 TR KTA1274-Y
4051413406 TR KTA1266-GR
4051413505 TR KTA1 266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
A4051386403 TR KTD2058Y
4051413307 TR KTC3198-GR
4051413208 TR KTC3198-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TR KTC3198-GR
4051413208 TR KTC3198-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
A4051386403 TR KTD2058Y
4051430007 TR KRC107M-A
4050003806 TR DTC1 14YS
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413406 TR KTA1266-GR
4051413505 TR KTA1 266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
REF. NO.
or
or
Q4982
or
or
or
or
or
Q4983
or
or
or
or
Q4984
or
or
or
;4985
or
or
or
or
Q4986
or
or
or
or
or
Q4987
or
or
or
or
R4586
R4740
R4741
R4742
R4743
R4744
R4756
R4757
R4840
R4841
R4842
R4843
R4844
R4856
R4857
R4906
R4920
R4940
R4964
R4991
R4992
S4900
X2301
or
X2451
XF211
or
XF221
or
or
XF222
or
PART NO. DESCRIPTION
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051413307 TR KTC3198-GR
4051413208 TR KTC3198-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
4051413406 TR KTA1266-GR
4051413505 TR KTA1266-Y
4050052002 TR 2SA733-P
4050051906 TR 2SA733-K
4050044502 TR 2SA608-F-NP
4050045004 TR 2SA608-G-NP
4051413307 TR KTC3198-GR
4051413208 TR KTC31 98-Y
4050207402 TR 2SC945A-P
4050207204 TR 2SC945A-K
4050122002 TR 2SC1815-GR
A4020819109 FUSIBLE RES 39 J- l/4W
A4020810304 RESISTOR 0.22 J- 3W
A4020810304 RESISTOR 0.22 J- 3W
A4020810403 RESISTOR 4.7 J- 2W
A4020810304 RESISTOR 0.22 J- 3W
A4020810502 RESISTOR 330 J- 3W
A4020811004 FUSIBLE RES 10 JA l/4W
A4020811004 FUSIBLE RES 10 JA l/4W
A4020810304 RESISTOR 0.22 J- 3W
A4020810304 RESISTOR 0.22 J- 3W
A4020810403 RESISTOR 4.7 J- 2W
A4020810304 RESISTOR 0.22 J- 3W
A4020810502 RESISTOR 330 J- 3W
A4020811004 FUSIBLE RES 10 JA l/4W
A4020811004 FUSIBLE RES 10 JA l/4W
A4020811103 FUSIBLE RES 100 JA l/4W
A4020811103 FUSIBLE RES 100 JA l/4W
A4020818904 RESISTOR 1J- l/2W
A4020810601 RESISTOR lK J- 2W
A4020818904 RESISTOR 1J- l/2W
A4020810304 RESISTOR 0.22 J- 3W
A4020810304 RESISTOR 0.22 J- 3W
6142159828 SWITCH,TACT,RESET
6450100024 OSC,CERAMIC 456 KHZ
6142460870 RESONATOR
6450234965 OSC,CRYSTAL 7.2 MHZ
6450262975 FILTER,BP 108MHZ
6142521045 FILTER,LC
6450107665 CERAMIC FILTER 10.7OMHZ
6142310199 FILTER
6140305074 I.F FILTER
6450107665 CERAMIC FILTER 10.70MHZ
6142310199 FILTER
-13-
PARTS LIST TAPE MECHANISM (TM-C30MEC-SH ...Only Initial]
REF. NO. PART NO. DESCRIPTION J
REF. NO. PART NO. DESCRIPTION
or 6140305074 I.F FILTER TMO1
XF231 6450230134 CERAMIC FILTER 450 KHZ TM02
XF233 6450188824 DISCR,CERAMIC TM03
or 6450188718 DISCR,CERAMIC TM04
TM05
TM06
TM07
TM08
TM09
TM1O
TM1l
TM12
TM13
TM14
TM15
TM16
TM17
TM18
TM19
TM20
TM21
TM22
TM23
TM24
TM25
TM26
TM27
TM28
TM29
TM30
TM31
TM32
TM33
TM34
TM35
TM36
TM37
TM38
TM39
TM40
TM41
TM42
TM43
TM44
TM45
TM46
TM47
TM48
TM49
TM50
TM51
TM52
TM53
TM54
TM55
TM56
TM57
TM58
TM59
TM60
TM61
6450241970 MECHA-CHASSIS
6450241963 SELECT-LEVER
6450279348 ASSY,SELECT-BASE
6450242038 SOLENOID
6450278839 CENTER-ARM
6450242144 SEND-GEAR(A)
6450256301 SEND-GEAR(B)
6450242113 SEND-GEAR(C)
6450256295 SEND-GEAR(B)
6450278846 ASSIST-GEAR
6450280559 ASSY,FF-GEAR
6450242229 ASSY,CENTER-GEAR
6450278864 PROTECT-STAY
6450242243 CST-HOLDER-SP
6450242168 TRIGGER-ARM
6450278877 TRIGGER-ARM-SP
6450278860 EJECT-LOCK
6450242182 EJECT-LOCK-SP
6450255915 ASSY,FW-GEAR
6450242380 HEAD-SPACER
6450242397 AZIMUTH-SP
6142936634 HEAD,WP
6450333354 HEAD, ERASE
6450242311 EARTH-LUG D2
6450278853 HEAD-BASE-SP
6450280030 ASSY,PINCH-ARM
6450242359 PINCH-SP
6450278921 SENSOR-PWB
6450255922 CONNECTOR S6B-PH-K-S
6450242762 CONNECTOR S7B-PH-K-S
6450256141 LEAF SW MXSO0821 MPPO
6450242335 PUSH-SW MPU10190MLB0
6450242328 PHOTO-SENSOR GP2S24C
6450242427 MOTOR-BKT
6142939505 ASSY,MOTOR
6450243172 RUBBER-CUSHION
6450243165 MOTOR-SCREW
6450255892 MAIN-BELT
6450278891 MAIN-BELT
6450256134 BIND SCREW
6450243141 BIND-SCREW
6450243158 BIND-SCREW
6450243127 SCREW
6450243257 SCREW
6450243103 SCREW
6450278914 P-WASHER
6450278907 L-CUT-WASHER
6450255908 MAT
6450279324 ASSY,MOLD-CHASSIS
6450275395 HEAD-BASE-ASSY
6450242069 PRESSURE-SP
6450278938 FWD-ARM-SP
6450278990 F/R-LOCK-PLATE
6450278945 SCREW
6450279034 HEADER SCREW
6143032953 LOCK-CAM-R
6143032960 LOCK-CAM-L
6143032991 LOCK-CAM-SP-R
6143032984 LOCK-CAM-SP-L
6143032977 COLLAR
6143032946 SCREW
,
-14-
EXPLODED VIEW (’TAPE MECHANISM)
J—TM40
—TM24
~
TM41 —
&TM22
TM21 —$ ;
TM54-s jI
TM20
TM53 <
,—TM52
FTM40
—TM24
&
TM41—
TM42 ~
3
=& TM22
TM23 ‘TM21
Ii
------
‘8
I
TM20 I
1
i
:4
I-TM50
------- ./;
:<p ;“
!-a
I/—TM44
—TM05
d%
-------- ---
‘M53*TM51:@ ‘TM07 <
,—TM52
TM26
TM27
,!,
TM
TM26
TM27
)-7 I-wWkl II
&–TM45
~TM46
k—TM19
e
TM39
,lMU4—
II ~~TM15 II ‘M5bTMh3h
-15-
EXPLODED VIEW (CD CHANGER MECHANISM)
CM62 ,..12A
--Q
CM45 ,
CM60 +
CM35+
CM47~
w
CM39y
CM40
CM36 ;‘
T
ICM46
0
@
‘CM43
CM50
,*CM., ,
-~ 1
1CM43
CM50 I
-. .--, I
;“
~ ~ ‘A
bfl
CM26
>
“A. “L. CM05
CM61 LCM61
-16-
PARTS LIST
CD CHANGER MECHANISM (PM-CDC1OTP-SH . . . Only Initial)
REF. NO.
CMO1
CM02
CM03
CM04
CM05
CM06
CM07
CM08
CM09
CM1O
CM1l
CM12
CM13
CM14
CM15
CM16
CM17
CM18
CM19
CM23
CM24
CM25
CM26
CM27
CM28
CM29
CM30
CM31
CM32
CM33
CM34
CM35
CM36
CM37
CM38
PART NO.
6450336072
6450337512
6450335976
6450336898
6450336041
6450336065
6450336058
6450335945
6450335952
6450336713
6450336027
6450336904
6450336911
6450336928
6450335877
6450335864
6450335907
6450336324
6450335990
6450336089
6450336539
6450336461
6450336201
6450336232
6450336270
6450336102
6450336287
6450336225
6450336034
6450336140
6450336157
6450336430
6450335969
6450336980
6450336416
DESCFilPTION
ASSY,CHASSIS
DRAWER 2
ASSY,HOLDER L,DRAWER
ASSY,HOLDER R3B,DRAWER
ASSY,PC BOARD A
ASSY,PC BOARD B
ASSY,PC BOARD C
LEAD WIRE
LEAD WIRE
SPACER SW
ASSY,GEAR DRIVE, SINCHRO
ASSY,CRG 100,CARRIAGE NO.1
ASSY,CRG 200
ASSY,CRG 300
INSULATER
INSULATER
CUSHION
BEVEL GEAR 4
ASSY,GEAR STAR, CARRIAGE LIFT
COVER 2
SHAFT
SLIDER 4
GEAR SPLINE
BEVEL GEAR 1
GEAR IDLER 1
PLATE SPRING
BEVEL GEAR 3
PULLEY C
ASSY,CLAMPER
ARM SLIDER R
ARM SLIDER L
SLIDER 1
ASSY,SLIDER 2,FWD/RVS
ARM STOPPER A2
ARM STOPPER B
REF. NO.
CM39
CM40
CM41
CM43
CM44
CM45
CM46
CM47
CM48
CM49
CM50
CM51
CM52
CM60
CM61
CM62
CM63
CM64
CM65
CM66
CM67
PART NO.
6450336263
6450336218
6450336447
6450336454
6450335778
6450335785
6450337048
6450336393
6450336003
6450336010
6450335723
6143037545
6450335747
6450335648
6450335594
6450337031
6450335563
6450335631
6450335570
6450335600
6450335617
DESCRIPTION
GEAR IDLER A2
GEAR IDLER C
LEVER
LIFTER, CARRIGE LIFT UP
BELT
BELT
SPRING
PULLEY A
ASSY,MOTOR CARRIGE
ASSY,MOTOR DRAWER
SPRING
SPRING
SPRING
WASHER
SCREW
SCREW
SCREW
WASHER
SCREW
SCREW
SCREW
CD BASE MECHANISM (CD213CCM-SNSH ... C)nly [nitiai)
REF. NO. PART NO.
PMO1 6450336751
PMO1-1 6450336812
PM02 6450336744
PM03 6450336805
PM04 6450336799
PM05 6450336829
PM06 6450336775
PM07 6450336782
PM08 6450336768
PM09 6143035626
EXPLODED VIEW (CD BASE MECHANISM)
01
PM02B
DESCRIPTION
ASSY,MOTOR CHASSIS,BASE
GEAR BRP,SLED GEAR
ASSY,MOTOR GEAR,SLED
SLED SHAIT,PICK RAIL
GEAR AS,PICK DRIVE GEAR
SCREW+ P2*3,SLED MOTOR FIX
LEAF SWITCH, LIMIT SWITCH
MOTOR 6P SPWB
CONNECTOR PIN 6P
PICK UP
-fff%j??~,pp”o’
4’
PM07 ““... *_
. .
-17-
-
IC BLOCK DIAGRAM& DESCRIPTION
ICI 01 LA9240ML (Servo Signal Processor)
Uo. Pin Name I/o Function
1FIN2 IConnection Pin for Photo Diode of Pickup.
2FIN1 IFIN2 +FIN1 =RF, FIN2- FIN1 =FE
3EIConnection Pin for Photo Diode of Pickup.
4FIE- F=TE
5TB IInput Pin for DC ingredient of TE Signal.
6TE- 1Connection Pin for Gain Setting Resistor of TE
Signal to TE Signal Pin.
7TE oOutput Pin for Tracking Error Signal.
8TESI IInput Pin for Track Error Sense Comparator.
TE Sinai through Band Pass, and Inputted.
9Scl IInput Pin for Shock Detection.
10 TH IConnection Pin for Time Constant Setting of
Tracking Gain.
11 TA oOutput Pin for TA Amplifier.
12 TD- 1Connection Pin for Constant Tracking Phase
Compensation, Consist of between TD and VR.
13 TD IConnection Pin for Constant of Tracking Phase
Compensation.
14 JP IConnection Pin for Amplitude Setting of Tracking
Jump (Kick Pulse) Signal.
15 TO oOutput Pin for Tracking Control Signal.
16 FD oOutput Pin for Focusing Control Signal.
17 FD- 1Connection Pin for Constant of Focusing Phase
Compensation, Consist of between FD and FA.
18 FA+ IConnectbn Pin for Constant of Faxing Phase
Compensation, Consist of between FD- and FA-.
19 FA- 1Connection Pin for Constant of Focusing Phase
Compensation, Consist of between FA and FE.
al FE oOutput Pin for Focusing Error Signal.
21 FE- 1Connection Pin for Gain Setting Resistor of FE
Signal to FE Signal Pin.
z? AGND -Ground for Analcg Signal.
23 SP oOutput Pin for Single End of Input Signal of the
CV+, CV- Pin.
24 SPI IInput Pin for Spindle Amplifier.
25 SPG IConnection Pin for Gain Setting Resistor, when
Spindle 12 cm Mode.
23 sP- 1Connection Pin for Constant of Spindle Phase
Compensation with SPD Pin.
27 SPD oOutput Pinfor SpindleControlSignal.
28 SLEQ IConnectionPinfor Constant of Sled Phase
Compensation.
29 SLD oOutput Pin for Sled Control Signal.
33 SL- 1Input Pin for Sled Signal from Micro Processor.
31 SL+ I
32 JP- 1Input Pin for Tracking Jump Signal from Digital
33 JP+ ISignal Processor.
-18-
IC BLOCK DIAGRAM &DESCRIPTION
Cl 02 LC78622NE (Digital Signal Processor)
No. Pfn Name Uo Function
1DEFI Iinput terminal for detect signai of defect
2TAi Iinput terminal for test.
3PDO oThe phase comparison output terrninai for
extemai VCO control.
4Vvss -Ground terminai for built-in VCO
5ISET IResistance connection terminal for
eiectric current adjustment of PDO output.
6VVDD -Built-in VCO power supply terminal.
7FR IVCO frequency range adjustment.
8Vss -Ground for Digital
9EFMO oEFM signal output terminal for slice level control.
10 EFMIN IEFM signai input terminai for slice ievel control.
11 TEST2 ITEST pin. Normai time is non connection.
12 CLV+ oOutput terminai for Disc motor controi.
13 CLV- 0Output terminal for Disc motor control.
14 VIP oChange of rough servo Iphase control
Rough servo: “H”, Phase control: “L”
15 HFL iinput terminai of track search signai.
16 TES IInput terminal of tracking error signal.
17 TOFF oOutput terminal of tracking off.
18 TGL oOutput terminal for change of tracking gain.
19 JP+ oOutput terminal for tracking jump controi.
aJP- 0Output terminal for tracking jump controi.
21 PCK oCicck monitor output terminal for EFM data
piayback. (4.3218 MHz)
22 FSEQ oOutput terminal for detect of SYNC signal.
23 DVDD -+5V
24 CONT1 I/o
25 CONT2 I/o This output can controi at serial control from
26 CONT3 I/o micro processor.
27 CONT4 iio
26 CONT5 ilo
29 EMPH oOutput terminal of d~emphasis monitor.
“H”: de-emphasis
30 C2F oOutput terminal of C2 flag
31 DOUT oOutput terminal of digital out
EFMO woo Wss TST11TEST2 TEsT4
PDO ISET FR PCK TAI TEST1 TESTSTESTS Vrm Vss
VCCI Cbck Oscillator RAM Address
t
FSEQ Syrwmous Oetect
EFM Demodulaln
1’ III
CLV-
Subcode Dxrast
(??$
WRO
HFLTESTcfF JP. JP+~TGL CC+JT~~~WNT5 El
Cl C2 Error Detec4&
Cared Control F!ag c=’ 1
DgWl Attenuator
Ml%l
)=_ ______xToD
WEFLG 16M42M FSXXIN ‘R&- R% L~O w-i’L –=DD
XV2S XOL.JT RVSS MUTER LVSS
C2F
(F.C)
-19-
Other manuals for DC-C30
1
Table of contents
Other Sanyo Micro Music System manuals
