Sanyo DC-DA2000 User manual

Service Manual
FILE NO.
REFERENCE No.
Micro Component System DC-DA2000 (AU)
PRODUCT CODE No.
129 662 04
This service manual consists of "DC-DA2000U/AU" (Main unit : 129 661 04) and
"SX-DA2000/UK" (Speaker system : 165 074 00).
Contents
Laser beam safety precaution..........................................1
Tape adjustments ............................................................1
CD pick-up maintenance..................................................1
Tuner adjustments ...........................................................2
Exploded view
(Cabinet & Chassis) ......................................................3
Parts list ...........................................................................4

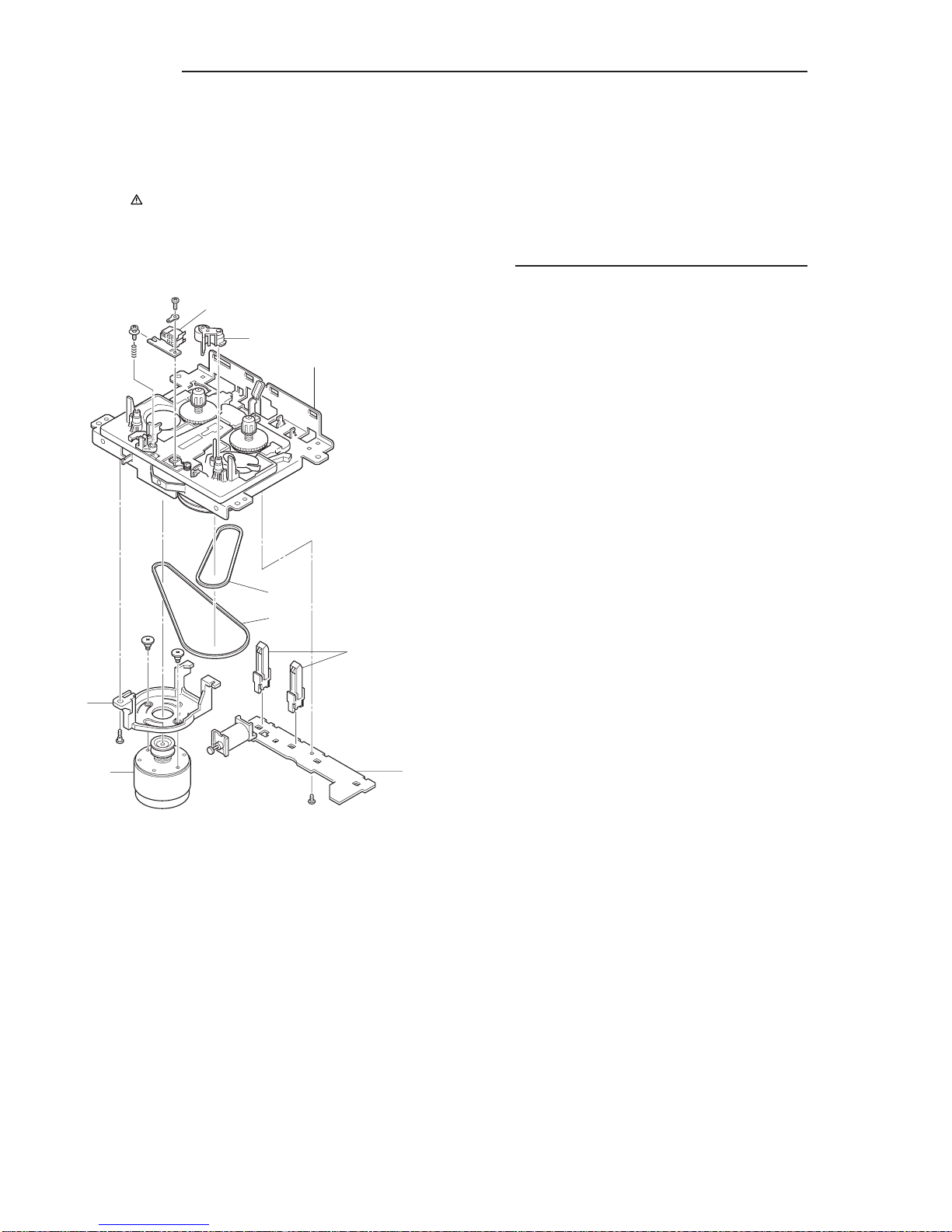

Exploded view & Parts list (Tape mechanism).................7

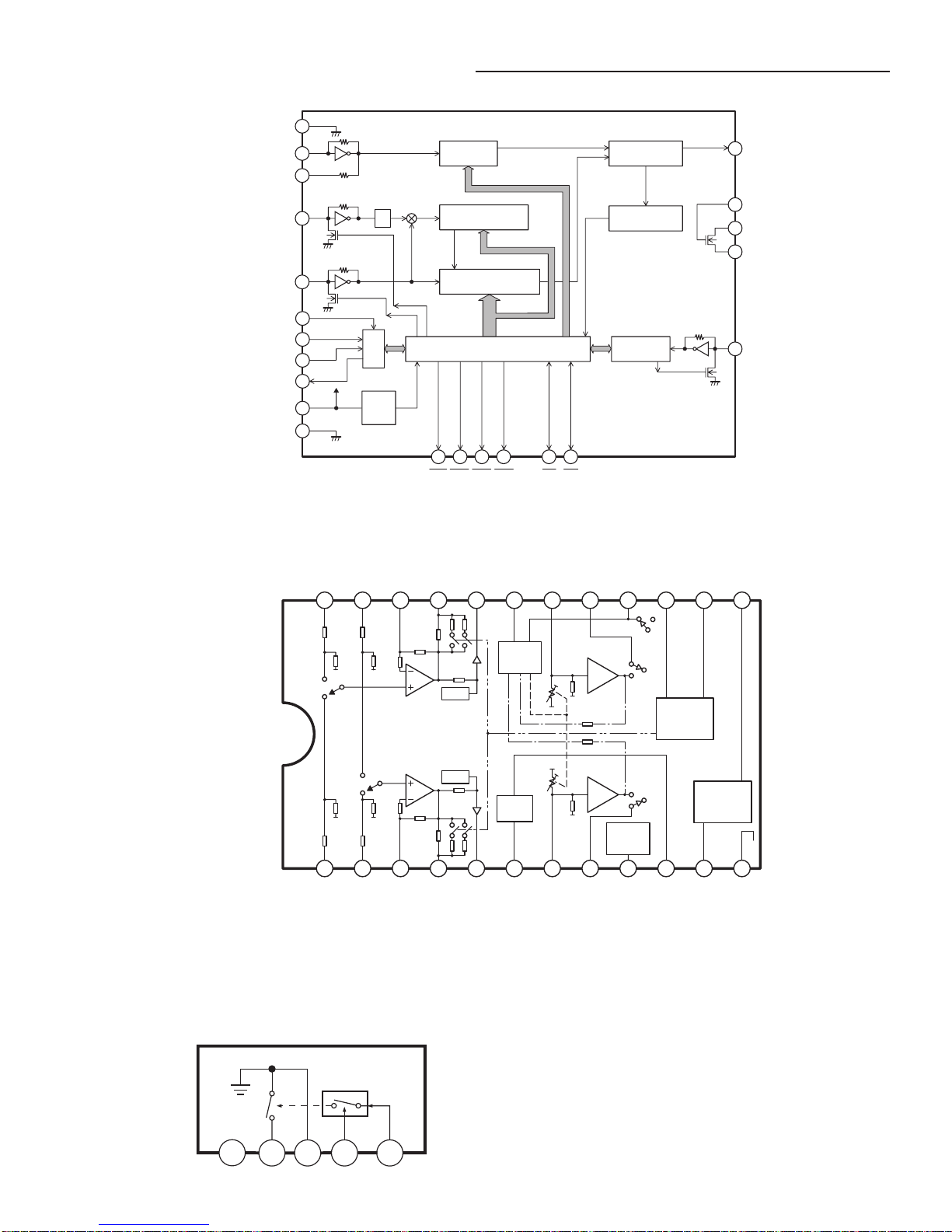

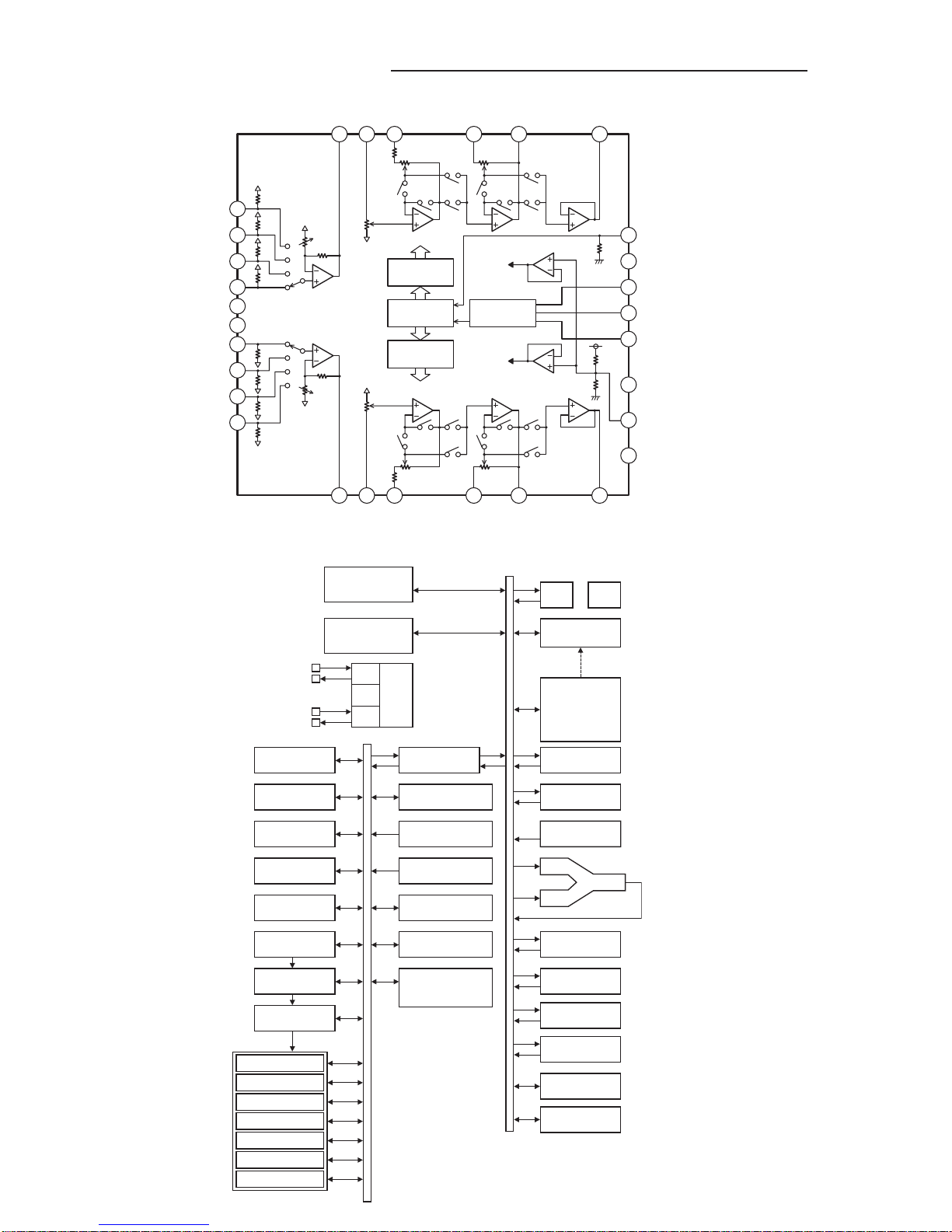

IC block diagram & description ........................................8
LCD display description ...................................................13
Schematic diagram
(FRONT) .......................................................................14
(CD)...............................................................................16
(AMPLIFIER).................................................................20
(TUNER) .......................................................................22
Wiring diagram
(FRONT & CD)..............................................................18
(AMPLIFIER & TUNER) ................................................24
(POWER TRANSFORMER) .........................................26
(SWITCH)......................................................................26
Wiring connection ............................................................27
SM5810417
CD
TAPE

- 1 -
LASER BEAM SAFETY PRECAUTION
• Pick-up that emits a laser beam is used in this CD player section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE
LASER OUTPUT .......... 0.6 mW Max. (CW)
WAVELENGTH ............. 790 nm
TAPE ADJUSTMENTS
•Be sure to clean the heads before attempting to make any adjustment.
•Be sure both channels (1 and 2) are the same level.
(Using a dual-channel oscilloscope)
•Be sure both channel's waveform are same for the phase matching.
•After completion of the adjustment, use the threadlock (TB-1401B) to
secure the azimuth adjustment screws.
1. Remove the cover deck as Fig.1.
2. Load a test tape (VTT-738 etc. : 10kHz) in the Deck.
3. Press the PLAY button. (Normal playback)
4. Use a + tip screwdriver to turn the screw for normal azimuth
adjustment so that the left and right outputs are maximized at
the same phase during normal playback. See Fig.2.
5. Adjust so that the waveforms for the left and right channels are in alignment.
1. Azimuth Adjustment
3. Torque Measurement
2. Tape Speed Adjustment
NORMAL
•Connect the Frequency Counter to TAPE OUT.
1. Insert the test tape (MTT-111N, etc.; 3,000Hz) into the DECK.
2. Press the PLAY button. .
3. Adjust a hole on the motor bottom so that a frequency counter reading of 3,000 5Hz is obtained.See Fig.3.
4. Press the STOP button, and eject the test tape.
Fig.1
Fig.2
hole for adjustment
MOTOR Fig.3
CD PICK-UP MAINTENANCE
About pick-up (Optical lens) Cleaning
Clean a lens with swab of the cotton which moistened it with alcohol, cleaning paper or cleaning disc appointed.
Specified cleaning disc : LC-1 (Part code : 645 026 1961 ..... manufactured by SANYO.)
Show a clean procedure in the following in reference by swab of cotton.
1. Cotton swab is wrapped with Cleaning paper.
2. Add the isopropyl alcohol.
3. Gently move the tip of cotton swab just like a draw a whirlpool from inside to outside on the surface of lens.

- 2 -
1. FM
Connection
Input Output
Alignment voltage IC231 Alignment voltage IC231
3-22pin(TP24,25) is 0.0±0.05V 3-22pin is 0.0±0.05V
Connect Digital DC voltmeter to 87.5MHz L2103 1.00±0.05V
TP11(H), TP12(E). 108.0MHz --- 5.30±0.50V Check Only
2. AM
Connection
Input Output
Connect to VTVM
point TP13(L) or TP14(R) and TP15(E).
--- Connect Digital DC voltmeter to 522kHz L2153 1.00±0.05V
--- TP11(H )and TP12(E). 1710kHz --- 7.50±0.50V Check Only
Connect to VTVM 603kHz L2151
point TP13(L) or TP14(R) and TP15(E). 1404kHz CT252
Remark
Remark
Step
Step
Adjusting
Circuit
Adjusting
Circuit
SG
Frequency
Cover
Voltage
2
Adjustment
XF233
3
FM Antenna SG=66dBuV/EMF
IF
Adjustment
Loop Ant
1
1
Tracking
Loop Ant
---
Cover
Voltage
2
Maximum
98MHz
450KHz
at 999kHz T2002 Maximum
Adjustment
SG
Frequency
IF(0V)
Adjustment
TUNER ADJUSTMENTS
Antenna : 75Ωunbalanced, Modulation : 1 KHz
Dev. : ±22.5kHz(MONO),±22.5kHz(MAIN),±6.75kHz(PILOT)
RF Level : dBuV EMF, Output Level : about 30mV at TP13, TP14, TP15
• Use a plastic screw driver for adjustments. • TUNING
• MODE : TUNER FM : 87.5 - 108MHz
• Speaker impedance : 4 ohm AM : 522 - 1710kHz(9KHz step)
520 - 1710kHz(10KHz step)
Anntena : IRE Loop(SG), Moduration : 1kHz, 30%
RF Level : dBuV EMF, Output Level : about 30mV at TP13, TP14, TP15
E
E
E
E
E
E
E
112
13
24
13 24
12 1
1
E
CN400
CN445
Q4410
D4960
Q4963
Q4961
Q4960
Q4962
J4122
J4427
J4618
J4619
J4620
J4621
J4425
J4426
J4624
J4622
J4617
J4420
J4415
J4416
J4417
J4412
J4423
J4424
J4119
J4419
J4418
+5.6V
AC_SENSE
GND
LID_SW
MAIN_MUTE
TU_DI TU_CE
VOL_CE
VOL_DO
TU_DO D_CLK
CD_R
CD_AGND
CD_L
CD_DGND
ST_BY
+9.0V
SURROUND
REC_OSC
REC_MUTE
BEAT_OUT
MOTOR
PLUNGER
REEL
INITIALIZE
DECK_PACK
G_FWD
G_RVES
R4921
C4560
J4623
IC446
C4993 C4994
D4993
J4625
J4428
X2451
C2457
L2151
L2153
CT252
D2466
L2451
C2451
C2301 XF233 D2103
J2505
D2153
Q2451
J2511
J2510
XF221
XF222
C2321
C2305
C2328
C2327
C2307 C2317
T2002
J2501
C2303
J2601
J2509
J2606
J2605
J2604
J2120
J2603
J2112
C2901
D2451
TDI
TCLK
T-DOUT
TCE
D2151
J2600
D2456
C2116
XF231
+5.6V
L_CH R_CH
+9.0V
GND
J2500
J2122
J2502
IC241
J2118
R2109
VT
J2503
CN202
CN201
S2001
XF211
IC211
J2124
J2123
C2306
J2119
J2121
J2100
L2104
D2102
L2103
C2311
C2313
J2113
J2114
J2504
J2117
J2127
J2126
J2125
J2102
J2103
J2104
J2116
J2107
D2452
C2452
J2111
J2110
J2109
J2108
J2106
J2105
J2602
J2508
J2507
D2101
L2102
J2506
J2101
Q2201
J2115
C2109
D2453
R4403 R4402
R4400
R4401
R4964
R4963
R4942
R4560 R4970
C4997
C4997
C4997
IC231
C2461
R2460
R2459
C2456
C2456
R2453
R2453
C2456
R2453
R2452
C2455
C2141
C2141
C2600
C2600
C2141
C2154
R2131
C2152
C2152
R2151
R2151
C2115
C2115
C2152
C2151
R2149
R2458
R2151
C2453
C2454
R2455
C2304
C2304
R2305
R2305
R2306
R2306
C2319
C2319
R2309
R2309
R2308
R2308
C2308
C2308
C2310
C2310
R2302
R2302
C2902
C2902
R2301
R2301
R2311
R2311
R2312
R2312
C2323
C2323
C2304
R2304
R2305
R2306
C2320
C2319
C2309
C2316 R2307
R2309
R2308 C2308
C2324 C2315
C2310
C2312
R2302
R2454
R2148
C2902
R2801
R2701
R2301 R2311
R2461 R2462 R2463 R2464
R2100
R2712
R2812
C2314
C2302
C2462
C2600
C2322
C2463
C2464
C2318
R2106
R2106
C2105
C2105
C2110
C2110
R2106
R2312
C2115
C2323
C2101
C2105
R2101
C2103
C2104
C2107R2102 R2107 C2110
C2111
R2108
C2112
R2103
C2114
C2113
R2110
R2201
R2204
R2202R2203
C2203
R2205
R2105
R2303
CT252IC231 TP25 TP24 TP11TP12 L2151
L2153L2103
VT
T2002XF233TP15TP13
TP14

- 3 -
EXPLODED VIEW (CABINET & CHASSIS)
16
29
Y03
Y05
Y01
Y06
Y11
Y09
Y13
Y14
Y14
Y14
Y15
Y16
Y16
Y17
Y17
Y18
Y19
Y11
Y10
Y12
Y03
Y04
Y03
Y03
Y02
Y07
Y08
Y08
Y07
15
1
2
34
5
6
7
8
10
9
11
71
73
74
75 26
25
25
72
28
27
20
18
19
21
22
23
24
12
13 14
15
17
51
53
54
57
56
58
52
55
This is a basic exploded view.

- 4 -
PARTS LIST
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND
PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !
!! , USE ONLY THE
REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT
ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE
MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE PRODUCT TO THE CUSTOMER.
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
N.S.P : Not available as service parts.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
1614 326 2077 CARTON CASE
2614 319 7430 CUSHION,REAR
3614 319 7447 CUSHION,FRONT
4614 326 2190 INSTRUCTION MANUAL
5645 047 0509 POLY SHEET-0900X0300*NC
6645 005 1227 ASSY,ANTENA,LOOP
or 645 046 8322 ASSY,ANTENA,LOOP
7614 318 9404 LID,BATTERY,SERVICE
8645 057 4696 REMOCON,RB-DA2000
9614 325 7868 ASSY,BOX,SPEAKER(L,R)
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1614 325 7981 COVER,DECK
2614 326 3043 DEC,WINDOW,DECK
3614 320 3520 SPRING,WIRE,DOOR DECK
4614 319 7096 LID,CASSETTE
5614 323 2230 PANEL
6614 325 7967 ASSY,PANEL,FRONT
7614 319 7072 KNOB,VOLUME
8614 326 3050 DEC,WINDOW,LCD
9614 309 7969 ASSY,GEAR,LID,CASSETTE
10 614 303 1277 LATCH,CAM,DECK,DOOR,LOCKING
11 614 323 2162 BUTTON,OPERATION,11 KEYS
12 614 319 6945 BUTTON,RIGHT,4 KEYS
13 614 325 7974 BUTTON,POWER
14 614 325 8025 REFLECTOR,STANDBY,LED
15 614 310 3899 SPACER,MECHA,MTG CD+DA11
16 614 307 2072 COVER,PICK-UP
17 614 319 7119 MOUNTING,CD
18 614 322 2125 ASSY,GEAR,LID CD
19 614 303 0263 LATCH,PUSH,CD DOOR LOCKING
20 614 319 7201 SPRING,WIRE,DOOR CD
21 614 307 8821 PULLEY
22 614 303 0256 LATCH,MAGNET
23 614 319 7102 LID,CD
24 614 325 8230 DEC,WINDOW,CD
25 614 304 5700 HOLDER,MAIN PCB
26 614 319 8741 BUTTON,POWER
27 614 316 1172 STOPPER
28 614 326 1667 ASSY,CABINET,REAR
29 614 325 6014 ASSY,MECHA,DA11T3CN-SASH
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
Y01 411 156 2105 SCR S-TPG BIN 2.3X6,
PANEL+PANEL FRONT
Y02 411 021 3503 SCR S-TPG BIN 3X10,
F-PANEL+LATCH,CAM
Y03 411 021 3503 SCR S-TPG BIN 3X10,
F-PANEL+DECK MECHA
Y04 614 129 9136 LUG,LEAD FIX
Y05 411 020 8905 SCR S-TPG BRZ+FLG 3X10,
F-PANEL+ASSY.GEAR,DECK
Y06 411 021 3503 SCR S-TPG BIN 3X10,
SWITCH,PWB+MTG CD
Y07 411 021 1806 SCR S-TPG BIN 2.6X10,
MTG CD+DA11
Y08 411 092 0906 WASHER Z 2.6X10X0.5,
MTG CD+DA11
Y09 411 020 8905 SCR S-TPG BRZ+FLG 3X10,
F-PANEL+ASSY.GEAR,CD
Y10 411 021 4906 SCR S-TPG BIN 3X20,
F-PANEL+MOUNTING,CD
Y11 411 021 3503 SCR S-TPG BIN 3X10,
MAIN PCB+MTG CD
Y12 411 184 0906 SCR S-TPG BIN 2.3X10,
LID CD+DEC WINDOW CD
Y13 412 032 6408 SPECIAL SCREW,REAR+P-TRANS
Y14 411 021 6405 SCR S-TPG BIN 3X8,
REAR+SW1 PCB,
REAR+HOLDER
Y15 411 021 3503 SCR S-TPG BIN 3X10,
REAR+STOPPER
Y16 411 098 7800 SCR S-TPG FLT 3X12,
REAR+MTG(L/R)
Y17 411 021 4906 SCR S-TPG BIN 3X20,
REAR+PANEL,FRONT
Y18 411 021 3503 SCR S-TPG BIN 3X10,
REAR+ANT TERMINAL,
REAR+AUDIO TERMINAL
Y19 411 021 3503 SCR S-TPG BIN 3X10,
REAR+MTG CD
ELECTRICAL PARTS
REF.NO. PART NO. DESCRIPTION
51 614 322 2279 ASSY,WIRE,AMP-TAPE MECHA
52 614 326 3760 FLEXIBLE FLAT CABLE,
FRONT-AMP
or 614 327 0874 FLEXIBLE FLAT CABLE,
FRONT-AMP
53 614 326 2794 FLEXIBLE FLAT CABLE,
CD-CD MECHA
or 614 327 0836 FLEXIBLE FLAT CABLE,
CD-CD MECHA
54 614 316 8041 ASSY,WIRE,CD-CD MECHA
55 614 274 2013 CORD,ID CONNECTOR,FM ANT
56 423 016 7908 FUSE 250V 2.5A
57 645 051 8744 TRANS,POWER
58 645 032 1887 CORD,POWER-2.0MK

- 5 -
PARTS LIST
REF.NO. PART NO. DESCRIPTIONFRONT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 325 7219 ASSY,PWB,FRONT (Only Initial)
AC601 614 320 3469 COVER,LED
AH601 614 320 3483 HOLDER,LCD
AS601 614 314 9286 DEC,SHEET,LCD
CN601 645 009 8482 SOCKET,FFC 28P
or 645 012 5324 SOCKET,FPC 28P
D6010 407 012 4406 DIODE 1SS133
D6110 407 012 4406 DIODE 1SS133
D6111 407 012 4406 DIODE 1SS133
D6112 407 225 7300 LED LT03B3-43-URE1
D6113 407 012 4406 DIODE 1SS133
D6301 408 049 3905 LED SLP-9G118C-51HS-T1,
STAND-BY-LED
IC601 410 469 0709 IC LC867232A-51D2
L6010 645 001 5441 INDUCTOR,2.2U K
LCD60 645 050 7397 LCD
Q6107 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q6108 405 017 9709 TR 2SC3330-U
or 405 017 9600 TR 2SC3330-T
or 405 011 8609 TR 2SC1740S-S
or 405 011 8500 TR 2SC1740S-R
or 405 143 8706 TR KTC3199-GR
Q6301 405 146 1209 TR KRC104M
or 405 000 6104 TR DTC144ES
Q6302 405 000 6104 TR DTC144ES
or 405 146 1209 TR KRC104M
S6001 645 054 1230 SWITCH,ROTARY(ENCODER)
S6110 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6111 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6112 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6113 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6114 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6115 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6116 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6117 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
S6210 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6211 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6212 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6213 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6214 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6215 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6216 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6217 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
SE601 407 217 1101 PHOTO DIODE SPS-442-1G
X6102 645 018 6103 OSC,CERAMIC 6.000MHZ
or 645 057 1138 OSC,CERAMIC 6.0MHZ
CD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
72 614 325 7202 ASSY,PWB,CD (Only Initial)
CN111 645 059 0498 SOCKET,FPC 16P
or 645 026 2470 SOCKET,FFC 16P
or 645 033 8168 SOCKET,FPC 16P
CN113 614 310 2472 PLUG,6P
or 645 005 8127 PLUG,6P
D1402 407 099 5204 ZENER DIODE MTZJ5.1B
D1403 407 012 4406 DIODE 1SS133
D1404 407 012 4406 DIODE 1SS133
D1405 407 012 4406 DIODE 1SS133
D1410 407 098 3300 DIODE RL153-BF-S2
D1482 407 012 4406 DIODE 1SS133
IC101 409 503 5701 IC LA9242M-MPB
IC102 409 539 9704 IC LC78629E
IC103 409 486 8706 IC MM1469XH
L1451 645 001 4550 INDUCTOR,10U K
PR140 645 014 2499 PROTECTOR,0.4A 125V
Q1301 405 008 7301 TR 2SB810-F
or 405 008 7202 TR 2SB810-E
or 405 008 6809 TR 2SB808-F-SPA
Q1401 405 009 5306 TR 2SB927-T
or 405 009 5207 TR 2SB927-S
or 405 141 3604 TR KTA1273-Y
X1451 614 231 2667 RESONATOR
or 645 057 1145 OSC,CERAMIC 16.93MHZ
AMPLIFIER & TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
73 614 326 8109 ASSY,PWB,AMP-TU (Only Initial)
C2457 403 259 0508 NP-ELECT 1U M 50V
C4601 403 057 3503 POLYESTER 0.1U K 50V
C4605 403 061 3605 POLYESTER 0.039U J 50V
C4606 403 061 7702 POLYESTER 4700P J 50V
C4607 403 059 3204 POLYESTER 2200P J 50V
C4608 403 060 2807 POLYESTER 0.027U K 50V
C4734 403 058 4608 POLYESTER 0.15U J 50V
C4834 403 058 4608 POLYESTER 0.15U J 50V
C4913 403 329 5907 ELECT 3300U M 25V
CN201 614 221 8273 TERMINAL
CN202 645 038 7715 TERMINAL
or 645 025 4703 TERMINAL,ANTENNA
CN400 645 009 8482 SOCKET,FFC 28P
or 645 012 5324 SOCKET,FPC 28P
CN401 645 006 1875 PLUG,2P,SPEAKER
CN402 645 006 1875 PLUG,2P,SPEAKER
CN440 614 310 2472 PLUG,6P
or 645 005 8127 PLUG,6P
CN441 614 310 2731 PLUG,2P,POWER
or 645 004 2881 PLUG,2P,POWER
CN442 614 276 6835 SOCKET,JACK
CN443 645 011 6384 JACK,PHONE D3.6,HEADPHONE
CN445 614 310 2519 PLUG,10P
or 645 005 8158 PLUG,10P
CT252 645 032 5663 TRIMMER,7PF
D2101 407 157 8109 VARACTOR DI SVC211-B
D2102 407 157 8109 VARACTOR DI SVC211-B
D2103 407 012 4406 DIODE 1SS133
D2151 407 012 4406 DIODE 1SS133

- 6 -
Q4801 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4851 405 033 6706 TR 2SD1468S-R
or 405 033 6805 TR 2SD1468S-S
or 405 021 0600 TR 2SD1012-G-SPA
or 405 021 0204 TR 2SD1012-F-SPA
or 405 151 4400 TR KTD1303
Q4930 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q4931 405 000 0508 TR DTA114ES
or 405 110 5400 TR KRA102M-A
Q4951 405 138 6403 TR KTD2058Y
or 405 095 1602 TR 2SD2061-E
or 405 095 1701 TR 2SD2061-F
Q4960 405 155 0002 TR MPSA56
Q4961 405 155 0002 TR MPSA56
Q4962 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4963 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4992 405 141 3703 TR KTA1271-Y
or 405 008 2405 TR 2SB698-F
or 405 008 2504 TR 2SB698-G
Q4993 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4995 405 141 3703 TR KTA1271-Y
or 405 008 2405 TR 2SB698-F
or 405 008 2504 TR 2SB698-G
R4940 402 081 0205 FUSIBLE RES 27 JA 1/4W
S2001 645 023 5795 SWITCH,LEVER
SA401 411 021 6405 SCR S-TPG BIN 3X8
SA402 411 021 6405 SCR S-TPG BIN 3X8
T2002 645 046 2023 FILTER,450KHZ
or 645 060 4072 FILTER,450KHZ
X2451 645 023 4965 OSC,CRYSTAL 7.2MHZ
XF211 645 059 0047 FILTER,BP
or 645 026 2975 FILTER,BP 108MHZ
or 614 252 1045 FILTER,LC
XF221 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
XF222 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
XF231 645 059 0054 CERAMIC FILTER 450KHZ
or 645 041 9324 CERAMIC FILTER 450KHZ
XF233 645 040 9981 TRANS,IF 10.7MHZ
or 645 039 9923 TRANS,IF 10.7MHZ
or 645 060 4089 TRANS,IF 10.7MHZ
PARTS LIST
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
D2153 407 105 1602 VARACTOR DI SVC342M-V
or 407 105 1305 VARACTOR DI SVC342L-V
D2451 407 012 4406 DIODE 1SS133
D2452 407 153 7502 ZENER DIODE GZS3.0B
D2453 407 012 4406 DIODE 1SS133
D2456 407 012 4406 DIODE 1SS133
D2466 407 012 4406 DIODE 1SS133
D4951 407 099 6102 ZENER DIODE MTZJ10B
D4953 407 012 4406 DIODE 1SS133
D4954 407 012 4406 DIODE 1SS133
D4960 407 012 4406 DIODE 1SS133
D4961 407 012 4406 DIODE 1SS133
D4993 407 012 4406 DIODE 1SS133
HS401 614 319 7065 HEAT SINK
IC211 409 016 0200 IC LA1186N-AUDIO
IC231 409 474 3201 IC LA1844ML
IC241 409 439 4502 IC LC72121M-D
IC440 409 451 7406 IC AN7348K
IC441 409 474 6103 IC LC75342M
IC442 409 295 7402 IC TA8229K
IC443 409 189 3404 IC BA7755A
IC446 409 039 9204 IC NJM78L05A
L2102 645 040 2753 INDUCTOR,AIR —
L2103 645 040 2746 COIL,AIR —
L2104 645 002 1534 INDUCTOR,8.2U K
L2151 645 037 2377 TRANS,ANT,796KHZ
L2153 645 040 2739 TRANS,OSC,796KHZ
L2451 645 031 7842 INDUCTOR,100U K
or 645 001 4581 INDUCTOR,100U K
L4600 645 006 1523 INDUCTOR,470U J
L4601 645 006 1523 INDUCTOR,470U J
L4602 645 037 2858 CORE,PIPE
L4603 645 006 1523 INDUCTOR,470U J
L4604 645 037 2858 CORE,PIPE
L4781 645 002 1459 INDUCTOR,22U K
L4782 645 002 1459 INDUCTOR,22U K
L4881 645 002 1459 INDUCTOR,22U K
L4882 645 002 1459 INDUCTOR,22U K
L4981 645 002 1459 INDUCTOR,22U K
PR495 645 042 2621 PROTECTOR,1.5A 125V
PR496 645 042 2621 PROTECTOR,1.5A 125V
Q2201 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2451 405 036 3702 TR 2SA1564
or 405 151 5209 TR KRA107M
or 405 000 0904 TR DTA114YS
or 405 078 2404 TR BN1A4P
Q4410 405 141 3406 TR KTA1266-GR
or 405 141 3505 TR KTA1266-Y
or 405 004 4502 TR 2SA608-F-NP
or 405 004 5004 TR 2SA608-G-NP
Q4600 405 155 0002 TR MPSA56
Q4601 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4602 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
Q4603 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q4700 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4701 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4751 405 151 4400 TR KTD1303
or 405 021 0204 TR 2SD1012-F-SPA
or 405 021 0600 TR 2SD1012-G-SPA
or 405 033 6706 TR 2SD1468S-R
or 405 033 6805 TR 2SD1468S-S
Q4800 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
POWER TRANSFORMER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 325 7196 ASSY,PWB,DG (Only Initial)
CN215 645 006 4760 HOLDER,FUSE
or 645 031 7903 HOLDER,FUSE
CN216 645 006 4760 HOLDER,FUSE
or 645 031 7903 HOLDER,FUSE
CN420 614 020 1215 SOCKET,2P
CN421 614 322 2262 ASSY,WIRE,PT-AMPWIRE
CN422 614 017 8203 TERMINAL BOARD
CN423 614 017 8203 TERMINAL BOARD
D4280 407 098 3300 DIODE RL153-BF-S2
D4281 407 098 3300 DIODE RL153-BF-S2
D4282 407 098 3300 DIODE RL153-BF-S2
D4283 407 098 3300 DIODE RL153-BF-S2
L4291 645 038 6053 INDUCTOR,181U
or 645 041 3087 INDUCTOR,180U

- 7 -
*
**
**
TM01
TM02
TM03
TM04
TM05
TM06
*
*
EXPLODED VIEW & PARTS LIST (TAPE MECHANISM)
N.S.P : Not supplied as service parts.
*
PARTS LIST
SWITCH P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 328 0446 ASSY,SWITCH (Only Initial)
CN410 614 310 2731 PLUG,2P
or 645 004 2881 PLUG,2P
CN411 614 020 1215 SOCKET,2P
CN412 614 322 2262 ASSY,WIRE
S4100 645 052 2772 SWITCH,PUSH 2P-2TX2
TAPE MECHANISM
REF.NO. PART NO. DESCRIPTION
614 320 4213 ASSY,MECHA,TM-DA280TN-SH
TM01 645 052 2888 RP HEAD C-9142-BD-1025
TM02 645 010 9447 PINCH ROLLER(F) ASSY
TM03 645 045 1959 RF BELT
TM04 645 052 4158 MAIN BELT
TM05 645 045 2048 DETECT SWITCH MXS01190
TM06 645 052 2864 ASSY,MOTOR

- 8 -
IC BLOCK DIAGRAM & DESCRIPTION
IC101 LA9242M-MPB (Servo Signal Processor)
FSS
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49
48
47
46
45
44
43
41
40
39
38
37
36
35
34
33
42
32313029282726252423222120191817
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Vcc1 LDS LDD BH1 PH1 LF2 VR REF1 Vcc2
DRF CE DAT CL CLK DEF
NC
TBC
FSC
DGND
SLI
SLC
RFS-
RFSM
CV+
CV-
SLOF
HFL
TES
TOFF
TGL
JP+
JP-SL+SL-SLDSLEQSPDSP-SPGSPI
SP AGND FE-FE FA-FAFD-
FD
TO
JP
TD
TD-
TA
TH
SCH
TESI
TE
TE-
TB
F
E
FIN1
FIN2
APC RF DET REF
VCA
I/V
BAL VCA INTER FACE
SLC
RF Amp
TE
T.SERVO & T.LOGIC
F.SERVO & F.LOGICK
SPINDLE SERVO
SLED SERVO
IC446 NJM78L05A (Stabilized Power Supply)
Q1 Q2 Q3
Q4
Q5Q6
Q7Q8
R1 R2
R3
R4
R5 R6
R7
R8
R9 R10
R11 R12
R13
R14
R15
R16 R17
Q9
Q10
Q11
Q12
Q13
Q14
Q15
1
2
3VI
Vo
GND
IC442 TA8229K (Power Amplifier)
5
7
6
48
14 15
11
10
9
VCC1VCC2
IN-1
IN-2
NF1
NF2
R
IPPLE
MINAL
B.S.1
B.S.2
OUT-1
OUT-2
POWE
R
GND
Ch-1
-
+
3
2
12
13 Ch-2
-
+
PRE
GND1 PRE GND2
BIAS CIRCUIT
THERMAL CUT-OFF
PROTECTION

- 9 -
IC BLOCK DIAGRAM & DESCRIPTION
IC103 MM1469XH (CD Driver)
IC211 LA1186N-AUDIO (FM Front End)
28 27 26 25 24 23 22 21 20 19 18 17 16 15
1234567 891011121314
Vcc
Vcc
DRIVER MUTE
D.BUFD.BUFD.BUFD.BUF
D.BUFD.BUFD.BUFD.BUF
Level shift
Level shift
Level shift
Level shift
T.S.D
Vref BUFFER
RF MIX REG OSC
RF IN GND IF OUT Vcc
1 2 3 4 5 6 7 8 9
FM
IF FM
DET
LEVEL
DET S-CURVE
AM/FM
IF
BUFF
REG GND
COMP
TUNING
DRIVE
AM
IF AM
DET
VCC
AGC PILOT
CANCEL
PILOT
DET
DECODER
ANTI-BIRDIE
STEREO
SW
FF
38k FF
19k
VCO
304kHz
AM
RF.AMP
AM
MIX
AM
OSC
ALC
BUFF
P-DET
FF
19k 2
123456789101112
24 23 22 21 20 19 18 17 16 15 14 13
IC231 LA1844ML ( Tuner System)

- 10 -
IC BLOCK DIAGRAM & DESCRIPTION
2
1
24
17
16
3
4
5
6
18
15
78910 11 14
19
20
21
22
13
Vssx
XIN
XOUT
FMIN
AMIN
CE
DI
CL
DO
V
DD
Vssd
PD
AIN
AOUT
Vssa
IFIN
IO1 IO2
BO1BO2 BO3 BO4
PHASE DETECTOR
CHARGE PUMP
UNLOCK
DETECTOR
UNIVERSAL
COUNTER
REFERENCE
DIVIDER
SWALLOW COUNTER
1/16, 1/17 4bits
12bits PROGRAMMABLE
DIVIDER
DATA SHIFT REGISTER LATCH
1/2
CCB
I / F
POWER
ON
RESET
IC241 LC72121M-D (Pll Synthesizer)
IC440 AN7348K ( Play/Rec Pre Amp)
Nor/Cro
& Hi/Lo
Logic
R
R
P
RP
P
ALC
Mute
Mute
Logic
A/B Logic
Rec/PB
Ripple
Rejection
Rec
Amp(L)
Rec
Amp(R)
PB Amp(L)
PB Amp(R)
A/Rec
A/Rec
B
B
123457
68910 1211
1314
15
16
17
1819
20
21222324
L-PB AMP
R-PB AMP
R-PB NF
R-PB EO
R-PB OUT
AB SW
R-REC OUT
R-REC IN
REC/PB SW
A/B SW
FILTER
GND VCC
CRO/NOR
HI/LO
ALC
L-REC OUT L-REC IN
ALC
L-PB AMP OUT
L-PB EO L-PB NF R-PB AMP
L-PB AMP
1 4 52 3
IC443 BA7755A (Head Switch)

- 11 -
IC BLOCK DIAGRAM & DESCRIPTION
Interrrupt control
Standby control
CF
RC
X'tal
Clock
generator
IR PLA
ROM
PC
ACC
Base timer Bus interface
B resister
C resister
Port 1
Port 7
Port 8
Port 3
ADC
ALU
PSW
RAR
RAM
SIO0
SIO1
Timer 0
Timer 1
Real time
service
ROM 128 byte
LCD display
controller
S0 to S7 (PA)
S8 to S13 (PB)
S16 to S23 (PC)
S24 to S31 (PD)
S32 to S39 (PE)
S40 to S47 (PF)
COM0 to COM(PL)
INT0 to3
Noise rejection
filter
Stack pointer
Port 0
Watch dog timer
CONTROL
CIRCUIT
LOGIC
CIRCUIT CCB INTERFACE
CONTROL
CIRCUIT
15
14
16
17
18
19
20
21 22 24 25 2623
10 9 7 6 58
11
L4
L3
L2
L1
NC
NC
R1
R2
R3
R4
RSELO RIN RTRE RBASS1 RBASS2 ROUT
LSELO LIN LTRE LBASS1 LBASS2 LOUT
TEST
VSS
CE
DI
CL
VDD
Vref
NC
12
13
1
2
30
29
28
27
4
3
LVref
RVref
IC441 LC75342M (Erectric Volume / 2 band equalizer)
IC601 LC867232A-51D2 (Micro Processor)
