FILE NO.

Service Manual Micro Component System DC-DA70 (AU)

(PA)

PRODUCT CODE No.

129 573 04 (AU)

129 573 05 (PA)

REFERENCE No. SM5810135

SPECIFICATIONS

General

Output power ......................... 4 Wx2(at 4 ohms, 10% distortion)

Outputs .................................. SPEAKERS : 4 ohms

PHONES : 8 - 32 ohms

Power requirements............... AC 230 - 240 V, 50 Hz (AU)

AC 110-120V/220-240V,

50/60Hz (PA)

Power consumption ............... 19 W

Dimensions (W x H x D) ........ Approx. 140 x 210 x 200 mm

Weight.................................... Approx. 2.2 kg

Speaker system

Type....................................... Full range bass reflex

Drivers ................................... 10 cm cone type

Maximum

power-handling capacity ..... 6 W (peak)

Nominal impedance ............... 4 ohms

Dimensions (W x H x D) ........ Approx. 140 x 210 x 184 mm

Weight.................................... Approx. 1.2 kg (per speaker)

Specifications subject to change without notice.

Tuner

Reception frequency.............. FM : 87.5 - 108.0 MHz

AM : 522 - 1710 kHz(9KHz step)

520 - 1710 kHz(10KHz step)

CD player

Channels................................ 2-channel stereo

Sampling frequency ............... 44.1 kHz

Pick-up................................... Optical 3-beam

semiconductor laser

Wave length........................... 790 nm

Wow and Flutter..................... Below measurable limits

Cassette deck section

Track system ......................... 4-track, 2-channel stereo

Frequency response .............. 80 Hz - 15kHz

Signal to noise ratio ............... 40 dB

Wow and Flutter..................... 0.15% (WRMS)

Fast forward / Rewind time .... Approx. 110 sec. (C-60)

PA : This service manual consists of "DC-DA70U" (Main unit : 129 572 05)

and "SX-DA70" (Speaker system : 165 006 00).

AU : This service manual consists of "DC-DA70U" (Main unit : 129 572 04)

and "SX-DA70" (Speaker system : 165 006 00).

- 1 -

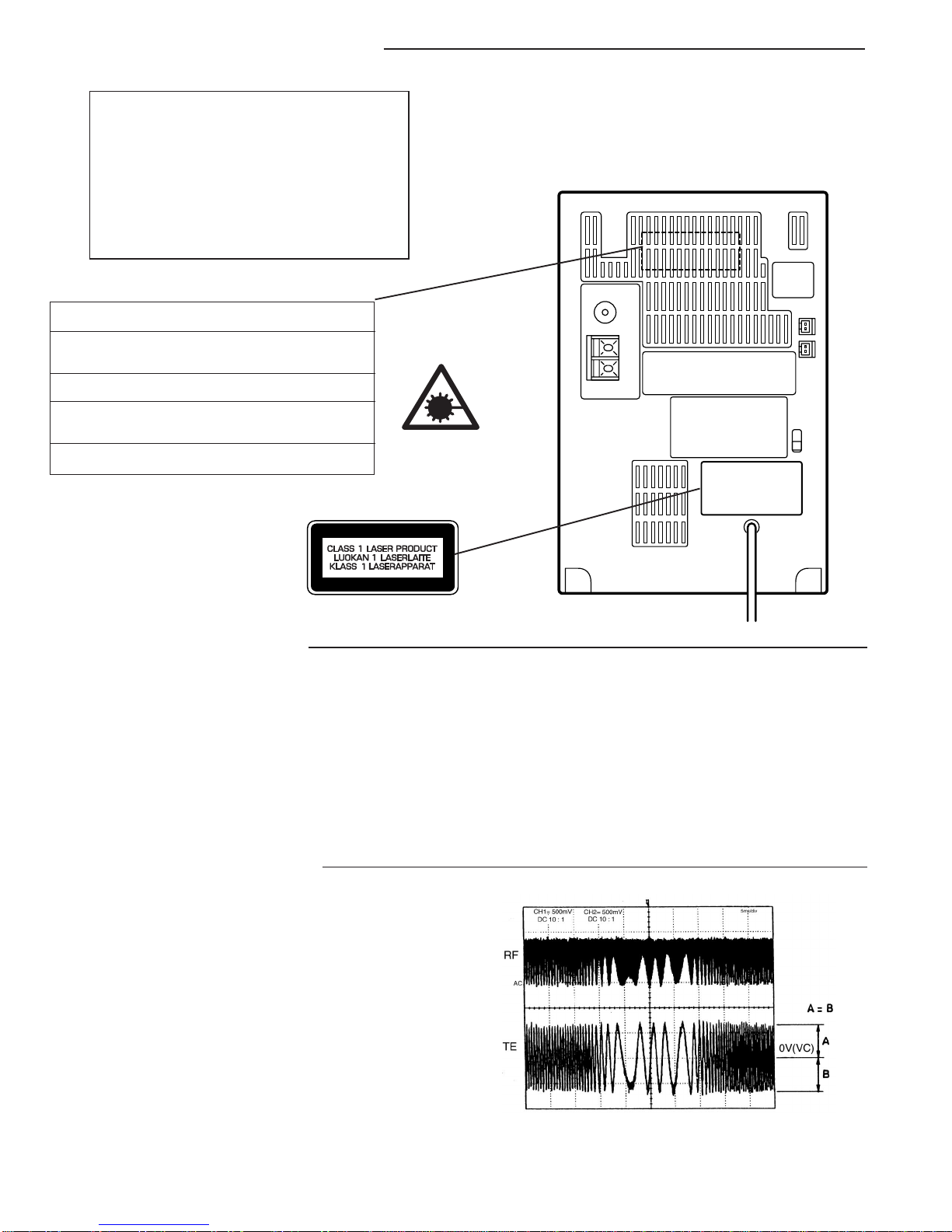

LASER BEAM SAFETY PRECAUTION

• Pick-up that emits a laser beam is used in this CD player section.

CAUTION :

USE OF CONTROLS OR ADJUSTMENTS

OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION

EXPOSURE

LASER OUTPUT..........0.6 mW Max. (CW)

WAVELENGTH .............790 nm

CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.

ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR

SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE

FOR STRÅLING.

VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD

OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.

VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN

DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG

ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.

VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA

NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

CD PICK-UP MAINTENANCE

About pick-up (Optical lens) Cleaning

Clean a lens with swab of the cotton which moistened it with alcohol, cleaning paper or cleaning disc appointed.

Specified cleaning disc : LC-1 (Part code : 645 026 1961 ..... manufactured by SANYO.)

Show a clean procedure in the following in reference by swab of cotton.

1. Cotton swab is wrapped with Cleaning paper.

2. Add the isopropyl alcohol.

3. Gently move the tip of cotton swab just like a draw a whirlpool from inside to outside on the surface of lens.

CD PLAYER ADJUSTMENTS

1. ADJUSTMENTS

(1) Confirm the tracking balance

1. Connect an Oscilloscope to TP2 (TE) and TP4 (VC).

2. Turn on the POWER switch.

3. Set the test disc. (DISC 1)

4. Press "MEMORY" button and "BACK SKIP" button

simultaneously. Within 1 second after pressing the "PLAY/

PAUSE" button.

5. Confirm that the oscilloscope waveform is symmetrical on the

top and bottom in relation to 0V (VC).

200mV/div.

5ms/div.

- 2 -

OPENING EXPANDED

(2) Checking the "eye" pattern

1. Switch "ON" the POWER.

2. Connect an oscilloscope to TP1 (RF) and TP4 (VC).

3. Load the test disc.

4. Press the PLAY button.

5. Check to be sure that the "eye" pattern is at the center of

waveform and that the diamond shape is clearly defined.

6. Press the STOP button.

7. Turn off the POWER switch.

CD PLAYER ADJUSTMENTS

OSCILLOSCOPE

TP1

(RF)

TP4

(VC)

TAPE ADJUSTMENTS

R / P HEAD

RED WHITE

YELLOW EARTH

a. Replacing the head

1. After replacement, demagnetize the heads by using a

degausser.

2. Be sure to clean the heads before attempting to make any

adjustments.

3. Be sure both channels (1 and 2) are the same level.

(Using a dual-channels oscilloscope).

4. All wiring should be returned to the original position after

work is completed.

b. Adjusting head azimuth

1. Load a test tape (VTT-738, etc. :10kHz) for azimuth

adjustment.

2. Press the PLAY button.

3. Use a cross-tip screwdriver to turn the screw for normal

azimuth adjustment so that the left and right outputs are

maximized at the same phase during normal playback.

4. Press the STOP button.

d. Replacing the motor

MOTOR SPEED

ADJUSTMENT

c. Adjusting motor speed

1. Insert the test tape (MTT-111 or etc. 3,000 Hz).

2. Press the PLAY button.

3. Use a flat-tip screwdriver to turn the SVR to adjust so that

the frequency counter becomes 3,000 Hz.

4. Press the STOP button.

e. Checking the mechanism torques

•Clean the head, capstan and pinch roller before making any

measurement.

Measureent Take-up torque Back tension Tape tension

Cassette for PLAY : TW-2111A PLAY : TW-2111A Drive-power cassette

measurement F.FWD/REW : TW-2231 TW-2412

PLAY 30 ~ 70gr.cm 1.0 ~ 6.0gr.cm 80 gr or more

F.FWD/REW 55 gr or more - -

- 3 -

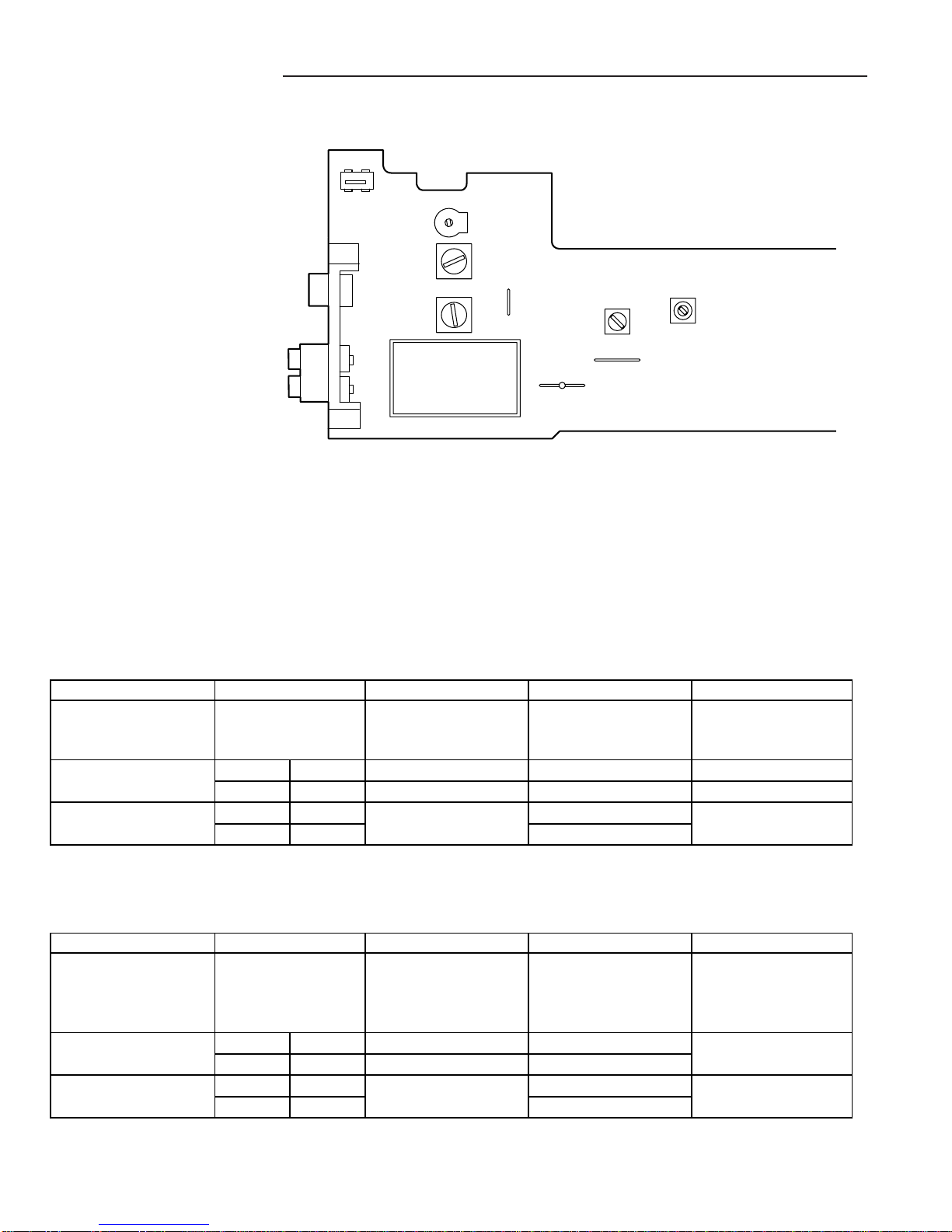

TUNER ADJUSTMENTS

• Use a plastic screw driver for adjustments.

• MODE : ST (Stereo)

• Speaker impedance : 6 ohm

• TUNING

FM : 87.5 - 108.0MHz

AM : 522 - 1710KHz

SG RF Level : 75 open Voltage dBµV

Antenna : 75 unbalanced , Modulation : 1 kHz

Dev. : ±22.5kHz(MONO) 22.5kHz(STEREO) ±6.75kHz(PILOT)

Ant.：75ΩunbalancedModulationfrequency:1kH

StandardInput:60dBDeviation:±22.5kHz(Mono)

Item Frequency Alignment Parts Remark

IF(0V)Alignment 98MHzINPUTLEVEL AlignmentVoltage CheckVoltage

FMANTSG=66dBμV IC2113,22pin(TP22,TP23) T2002 IC2113,22pin(TP22,TP23)

is0.0±0.05V is0.0±0.05V

Cover(Voltage)Alignment Low 87.5MHZ 1.00±0.5V(CheckOnly) L2002 CheckOnly

High 108.0MHZ 6.20±0.1V --- CheckOnly

Tracking(Voltage)Alignment Low 90.0MHZ Maximum --- ConfirmS/N=30dB

High 106.0MHZ ---

Ant.：IRELOOPANT

Modulationfrequency:1kHz

Modulation:30%

Item Frequency Alignment Parts Remark

IFAlignment

450kHz(at999kHz) Maximum T2001

XF215 SymmetricalWaveForm

Cover(Voltage)Alignment Low 522kHz 1.0±0.05V L2205

High 1710kHz 7.95±0.8V(Checkonly) --- AFMaximum

Tracking(Voltage)Alignment Low 603kHz Maximum L2204

High 1404kHz CT211 AFMaximum

CT211

L2204

L2205 T2001

VT TEST

J2403

T2002

TP22

J2409

TP23

L2101

- 4 -

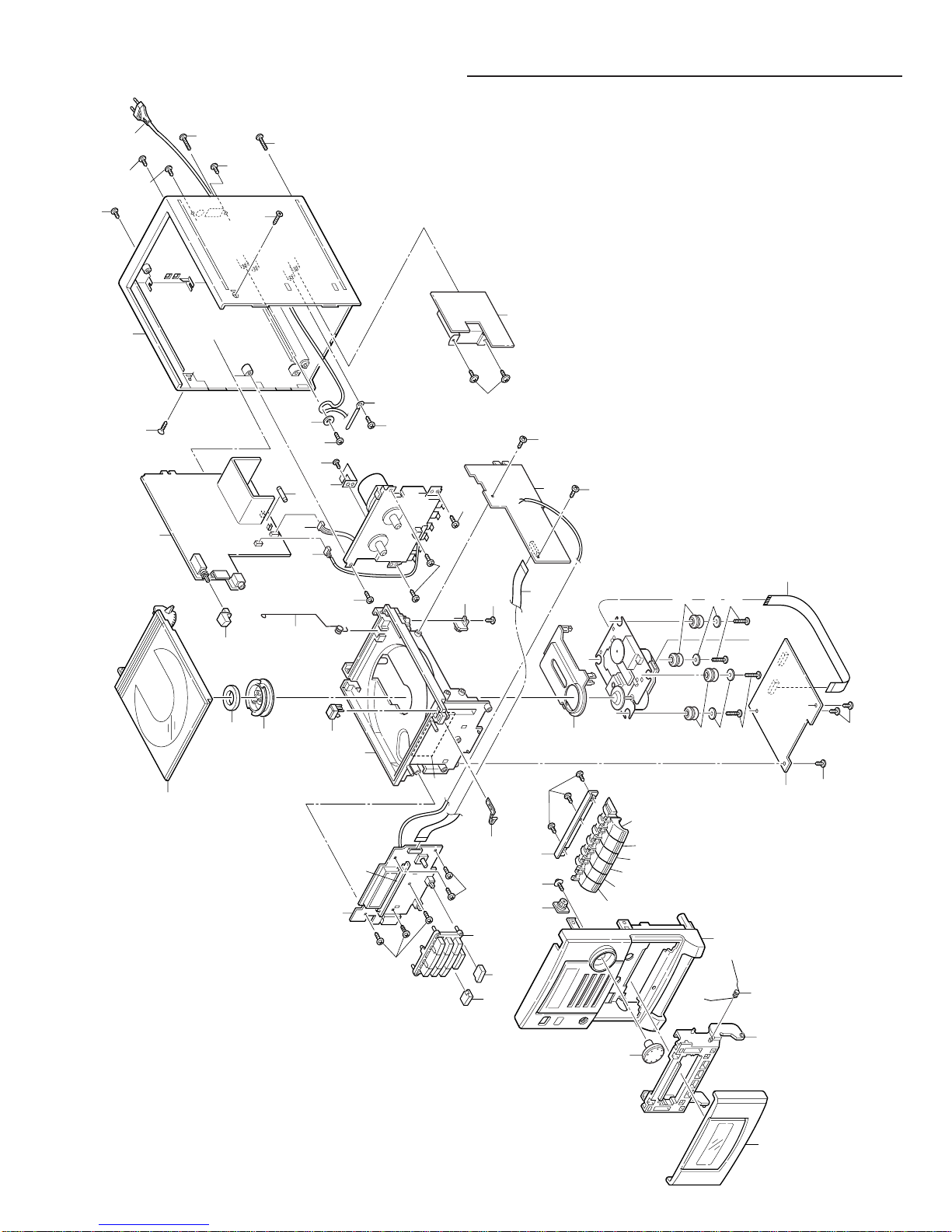

EXPLODED VIEW (CABINET & CHASSIS)

112 13

5678910

19 20 16 18

Y15

Y06 Y06

Y07

Y13

Y12

Y14

Y08

Y11Y0329

Y13Y14

Y04

Y10

Y09

Y05

Y16

Y10

Y07

Y13

Y01 Y01

30 30

73 57

- 5 -

PARTS LIST PRODUCT SAFETY NOTICE

EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE IEC

SYMBOL !

!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY CAN BE OF

SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !

!! , USE ONLY THE REPLACEMENT PARTS DESIGNATED,

OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE DESIGNATED IN THE PARTS LIST

IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO DETERMINE THAT EXPOSED

PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.

CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.

Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors.

Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.

PACKING & ACCESORIES

REF.NO. PART NO. DESCRIPTION

614 308 1487 CARTON CASE (AU)

614 308 1494 CARTON CASE (PA)

614 307 2423 CUSHION,REAR

614 307 2430 CUSHION,FRONT

614 308 1623 INSTRUCTION MANUAL (AU)

614 308 1630 INSTRUCTION MANUAL (PA)

614 231 6832 LABEL,SAFETY,CLASS1

645 041 1571 POLY SHEET-0340X0280*NC,SET

645 037 9833 POLY BAG-0180X0250*NC,

1AV0L90B00200

614 309 3435 NOTICE (AU)

645 005 1227 ASSY,ANTENA,LOOP

645 040 3217 REMOCON,RB-DA70

or 645 042 3604 REMOCON,RB-DA70

or 645 042 3611 REMOCON,RB-DA70

614 312 2173 ASSY,BOX,SPEAKER

645 006 4630 PLUG,ADAPTOR AC (PA)

or 645 017 2175 PLUG,ADAPTOR AC (PA)

CABINET & CHASSIS

REF.NO. PART NO. DESCRIPTION

1 614 307 1952 ASSY,DOOR,DECK

2 614 309 7969 ASSY,GEAR,CASSETTE

3 614 310 4940 ASSY,PANEL,FRONT

4 614 307 2188 KNOB,VOLUME

5 614 307 2195 KNOB,DECK,MECHA,REC

6 614 307 2201 KNOB,DECK,MECHA,PLAY

7 614 307 2218 KNOB,DECK,MECHA,REW

8 614 307 2225 KNOB,DECK,MECHA,FFWD

9 614 307 2232 KNOB,DECK,MECHA,STOP/EJECT

10 614 307 2249 KNOB,DECK,MECHA,PAUSE

11 614 307 2270 MOUNTING,DECK,KNOB

12 614 307 2263 LID,CASSETTE

13 614 308 5058 SPRING,DOOR,DECK

14 614 308 1197 ASSY,CABINET,REAR (AU)

14 614 308 1203 ASSY,CABINET,REAR (PA)

15 614 307 2003 BUTTON,POWER,1 KEY

16 614 307 2010 BUTTON,FUNCTION,10 KEYS

17 614 307 2027 BUTTON,CD OPEN,1 KEY

18 614 307 8784 LEVER

19 614 307 8722 BUTTON,PUSH,1 KEY

20 614 307 2034 BUTTON,BASS,1 KEY

21 614 311 7872 ASSY,LID,CD,1 KEY

22 614 303 0256 LATCH,MAGNET

23 614 307 8821 PULLEY

24 614 308 0534 SPRING,REC

25 614 307 2393 SPRING,DOOR CD

26 614 307 2072 COVER,PICK-UP

FIXING PARTS

REF.NO. PART NO. DESCRIPTION

Y01 411 021 3503 SCR S-TPG BIN 3X10,

F-PANEL+MTG DECK KNOB

Y02 411 020 8905 SCR S-TPG BRZ+FLG 3X10,GEAR

Y03 411 021 4005 SCR S-TPG BIN 3X12,REAR+STOPPER

Y04 411 020 9100 SCR S-TPG BRZ+FLG 3X12,

REAR+P-TRANS

Y05 411 021 3503 SCR S-TPG BIN 3X10,

C-REAR(ANT TERMINAL)

Y06 411 021 1806 SCR S-TPG BIN 2.6X10,MTG CD+DA11

Y07 411 092 0906 WASHER Z 2.6X10X0.5,MTG CD+DA11

Y08 411 021 3503 SCR S-TPG BIN 3X10,

REAR+DECK MECHA

Y09 411 021 4500 SCR S-TPG BIN 3X16,C-REAR

Y10 411 098 7800 SCR S-TPG FLT 3X12,

C-REAR(L/R SIDE)

Y11 411 126 1404 SCR S-TPG BIN 2X4,

SPRING DECK REC

Y12 411 021 6405 SCR S-TPG BIN 3X8,

MTG CD+ASSY,GEAR

Y13 411 021 3503 SCR S-TPG BIN 3X10,

MTG CD+FRONT PCB

Y14 411 021 3503 SCR S-TPG BIN 3X10,

MTG CD+TUNER PCB

Y15 411 021 3503 SCR S-TPG BIN 3X10,

MTG CD+CD PCB

Y16 411 021 3503 SCR S-TPG BIN 3X10,MTG CD+REAR

ELECTRICAL PARTS

REF.NO. PART NO. DESCRIPTION

51 !

!! 645 032 1887 CORD,POWER-1.74MK (AU)

51 !

!! 645 016 9939 CORD,POWER-1.74MK (PA)

52 614 310 5466 FLEXIBLE FLAT CABLE (CN102)

53 614 309 8454 ASSY,WIRE (CN103)

55 614 309 8805 ASSY,WIRE,MECHA SW-AMP (CN405)

56 614 309 8799 ASSY,WIRE,R/P HEAD-AMP (CN406)

57 614 310 5459 FLEXIBLE FLAT CABLE (CN604)

58 !

!! 423 016 7908 FUSE 250V 2.5A

59 !

!! 645 040 8113 POWER TRANSFORMER (AU)

59 !

!! 645 040 8120 POWER TRANSFORMER (PA)

614 310 6210 FLEXIBLE FLAT CABLE,

FRONT TU MAIN (CN403)

614 274 2013 CORD,ID CONNECTOR (E2101)

REF.NO. PART NO. DESCRIPTION

27 614 307 2287 MOUNTING,CD

28 614 310 1673 ASSY,GEAR,LID,CD

29 614 308 4914 STOPPER

30 614 310 3899 SPACER,MECHA

31 614 274 8190 LABEL,SAFETY,LASER PICK UP

- 6 -

PARTS LIST

AMPLIFIER P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

71 614 310 4094 ASSY,PWB,AMP,AMP-TU

(AU) (Only Initial)

71 614 310 4919 ASSY,PWB,AMP,AMP-TU

(PA) (Only Initial)

C4714 403 058 4608 POLYESTER 0.15U J 50V

C4716 403 350 8403 ELECT 1000U M 16V

or 403 313 4602 ELECT 1000U M 16V

C4814 403 058 4608 POLYESTER 0.15U J 50V

C4816 403 313 4602 ELECT 1000U M 16V

or 403 350 8403 ELECT 1000U M 16V

C4913 403 329 5907 ELECT 3300U M 25V

or 403 350 9301 ELECT 3300U M 25V

C4918 403 056 7502 POLYESTER 1000P J 50V

CN401 645 006 1875 PLUG,2P,SPEAKER

CN402 645 006 1875 PLUG,2P,SPEAKER

CN405 645 004 2904 PLUG,4P

CN406 645 005 8110 PLUG,4P

CN421 645 011 6384 JACK,PHONE D3.6,HEADPHONE

CN441 645 004 2881 PLUG,2P,POWER

CN490 645 012 2736 SOCKET,DIP 8P

CN491 645 012 5096 SOCKET,FPC 12P

CN492 614 309 8812 ASSY,WIRE

D4102 407 012 4406 DIODE 1SS133

D4951 !

!! 407 099 6003 ZENER DIODE MTZJ9.1B

D4953 407 012 4406 DIODE 1SS133

D4961 407 012 4406 DIODE 1SS133

D4962 407 012 4406 DIODE 1SS133

D4963 407 012 4406 DIODE 1SS133

D4964 407 012 4406 DIODE 1SS133

D4980 !

!! 407 098 3300 DIODE RL153-BF-S2

D4981 !

!! 407 098 3300 DIODE RL153-BF-S2

D4982 !

!! 407 098 3300 DIODE RL153-BF-S2

D4983 !

!! 407 098 3300 DIODE RL153-BF-S2

FCL41 !

!! 645 006 4760 HOLDER,FUSE

or !

!! 645 031 7903 HOLDER,FUSE

FCL42 !

!! 645 006 4760 HOLDER,FUSE

or !

!! 645 031 7903 HOLDER,FUSE

HS401 614 307 9866 HEAT SINK

IC410 409 384 3506 IC BA3314F

IC411 409 390 1107 IC LC75392

IC412 !

!! 409 295 7402 IC TA8229K

L4781 645 006 9864 INDUCTOR,80U (AU)

or 645 041 3094 INDUCTOR,80U (AU)

L4881 645 006 9864 INDUCTOR,80U (AU)

or 645 041 3094 INDUCTOR,80U (AU)

L4902 645 031 5893 TRANS,OSC,85KHZ,O.S.C

LG401 645 006 4432 FIXER

PR495 !

!! 645 014 2529 PROTECTOR,1.25A 125V

PR496 645 014 2536 PROTECTOR,1.5A 125V

Q4103 405 000 0508 TR DTA114ES

or 405 110 5400 TR KRA102M-A

Q4104 405 109 9204 TR KRC102M-A

or 405 000 3103 TR DTC114ES

Q4106 405 109 9204 TR KRC102M-A

or 405 000 3103 TR DTC114ES

Q4730 405 143 6504 TR KTA1267-GR

or 405 004 4601 TR 2SA608-F-SPA

or 405 004 5103 TR 2SA608-G-SPA

or 405 006 1806 TR 2SA933S-R

or 405 006 1905 TR 2SA933S-S

Q4751 405 151 4400 TR KTD1303

or 405 021 0204 TR 2SD1012-F-SPA

or 405 021 0600 TR 2SD1012-G-SPA

or 405 033 6706 TR 2SD1468S-R

or 405 033 6805 TR 2SD1468S-S

REF.NO. PART NO. DESCRIPTION

Q4830 405 004 5103 TR 2SA608-G-SPA

or 405 006 1806 TR 2SA933S-R

or 405 006 1905 TR 2SA933S-S

or 405 004 4601 TR 2SA608-F-SPA

or 405 143 6504 TR KTA1267-GR

Q4851 405 151 4400 TR KTD1303

or 405 021 0204 TR 2SD1012-F-SPA

or 405 021 0600 TR 2SD1012-G-SPA

or 405 033 6706 TR 2SD1468S-R

or 405 033 6805 TR 2SD1468S-S

Q4902 405 017 9709 TR 2SC3330-U

or 405 017 9600 TR 2SC3330-T

or 405 011 8609 TR 2SC1740S-S

or 405 143 8706 TR KTC3199-GR

or 405 011 8500 TR 2SC1740S-R

Q4903 405 011 8500 TR 2SC1740S-R

or 405 011 8609 TR 2SC1740S-S

or 405 143 8706 TR KTC3199-GR

or 405 017 9600 TR 2SC3330-T

or 405 017 9709 TR 2SC3330-U

Q4904 405 143 8706 TR KTC3199-GR

or 405 011 8500 TR 2SC1740S-R

or 405 011 8609 TR 2SC1740S-S

or 405 017 9600 TR 2SC3330-T

or 405 017 9709 TR 2SC3330-U

Q4951 !

!! 405 138 6403 TR KTD2058Y

or !

!! 405 095 1602 TR 2SD2061-E

or !

!! 405 095 1701 TR 2SD2061-F

or 405 158 2102 TR KTC2026-Y

R4000 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R4001 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R4002 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R4003 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R4004 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R4104 401 037 5707 MT-GLAZE 100K JA 1/10W

R4105 401 037 5608 MT-GLAZE 10K JA 1/10W

R4106 401 037 5608 MT-GLAZE 10K JA 1/10W

R4107 401 038 6505 MT-GLAZE 47K JA 1/10W

R4703 401 038 7502 MT-GLAZE 56 JA 1/10W

R4704 401 038 5102 MT-GLAZE 3.9K JA 1/10W

R4705 401 037 9309 MT-GLAZE 18K JA 1/10W

R4708 401 037 9309 MT-GLAZE 18K JA 1/10W

R4709 401 037 7909 MT-GLAZE 1.5K JA 1/10W

R4710 401 038 5102 MT-GLAZE 3.9K JA 1/10W

R4716 401 037 5400 MT-GLAZE 1K JA 1/10W

R4717 401 037 8005 MT-GLAZE 15K JA 1/10W

R4718 401 037 7800 MT-GLAZE 150 JA 1/10W

R4730 401 038 0800 MT-GLAZE 22K JA 1/10W

R4731 401 037 6902 MT-GLAZE 120K JA 1/10W

R4732 401 038 9308 MT-GLAZE 68K JA 1/10W (AU)

R4732 401 038 3702 MT-GLAZE 33K JA 1/10W (PA)

R4733 401 038 3603 MT-GLAZE 3.3K JA 1/10W

R4734 401 038 6406 MT-GLAZE 4.7K JA 1/10W

R4735 401 038 5102 MT-GLAZE 3.9K JA 1/10W

R4736 401 038 6505 MT-GLAZE 47K JA 1/10W

R4737 401 038 9209 MT-GLAZE 6.8K JA 1/10W

R4738 401 037 5400 MT-GLAZE 1K JA 1/10W

R4739 401 038 6505 MT-GLAZE 47K JA 1/10W

R4740 401 038 0800 MT-GLAZE 22K JA 1/10W

R4741 401 038 2200 MT-GLAZE 27K JA 1/10W

R4742 401 037 5608 MT-GLAZE 10K JA 1/10W

R4743 401 037 5707 MT-GLAZE 100K JA 1/10W

R4745 401 037 5608 MT-GLAZE 10K JA 1/10W

R4746 401 039 0502 MT-GLAZE 82K JA 1/10W

R4747 401 038 9308 MT-GLAZE 68K JA 1/10W

R4748 401 038 0800 MT-GLAZE 22K JA 1/10W

R4749 401 038 0800 MT-GLAZE 22K JA 1/10W

- 7 -

PARTS LIST

REF.NO. PART NO. DESCRIPTION

R4750 401 038 0800 MT-GLAZE 22K JA 1/10W

R4751 401 038 0800 MT-GLAZE 22K JA 1/10W

R4752 !

!! 402 071 1304 FUSIBLE RES 2.2 JA 1/4W

R4753 401 037 9408 MT-GLAZE 180K JA 1/10W

R4756 401 038 6406 MT-GLAZE 4.7K JA 1/10W

R4760 401 037 5608 MT-GLAZE 10K JA 1/10W

R4761 401 037 5400 MT-GLAZE 1K JA 1/10W

R4770 401 038 6505 MT-GLAZE 47K JA 1/10W

R4781 401 037 7800 MT-GLAZE 150 JA 1/10W

R4803 401 038 7502 MT-GLAZE 56 JA 1/10W

R4804 401 038 5102 MT-GLAZE 3.9K JA 1/10W

R4805 401 037 9309 MT-GLAZE 18K JA 1/10W

R4808 401 037 9309 MT-GLAZE 18K JA 1/10W

R4809 401 037 7909 MT-GLAZE 1.5K JA 1/10W

R4810 401 038 5102 MT-GLAZE 3.9K JA 1/10W

R4816 401 037 5400 MT-GLAZE 1K JA 1/10W

R4817 401 037 8005 MT-GLAZE 15K JA 1/10W

R4818 401 037 7800 MT-GLAZE 150 JA 1/10W

R4830 401 038 0800 MT-GLAZE 22K JA 1/10W

R4831 401 037 6902 MT-GLAZE 120K JA 1/10W

R4832 401 038 9308 MT-GLAZE 68K JA 1/10W (AU)

R4832 401 038 3702 MT-GLAZE 33K JA 1/10W (PA)

R4833 401 038 3603 MT-GLAZE 3.3K JA 1/10W

R4834 401 038 6406 MT-GLAZE 4.7K JA 1/10W

R4835 401 038 5102 MT-GLAZE 3.9K JA 1/10W

R4836 401 038 6505 MT-GLAZE 47K JA 1/10W

R4837 401 038 9209 MT-GLAZE 6.8K JA 1/10W

R4838 401 037 5400 MT-GLAZE 1K JA 1/10W

R4839 401 038 6505 MT-GLAZE 47K JA 1/10W

R4840 401 038 0800 MT-GLAZE 22K JA 1/10W

R4841 401 038 2200 MT-GLAZE 27K JA 1/10W

R4842 401 037 5608 MT-GLAZE 10K JA 1/10W

R4843 401 037 5707 MT-GLAZE 100K JA 1/10W

R4845 401 037 5608 MT-GLAZE 10K JA 1/10W

R4846 401 039 0502 MT-GLAZE 82K JA 1/10W

R4847 401 038 9308 MT-GLAZE 68K JA 1/10W

R4848 401 038 0800 MT-GLAZE 22K JA 1/10W

R4849 401 038 0800 MT-GLAZE 22K JA 1/10W

R4850 401 038 0800 MT-GLAZE 22K JA 1/10W

R4851 401 038 0800 MT-GLAZE 22K JA 1/10W

R4852 !

!! 402 071 1304 FUSIBLE RES 2.2 JA 1/4W

R4853 401 037 9408 MT-GLAZE 180K JA 1/10W

R4856 401 038 6406 MT-GLAZE 4.7K JA 1/10W

R4860 401 037 5608 MT-GLAZE 10K JA 1/10W

R4861 401 037 5400 MT-GLAZE 1K JA 1/10W

R4870 401 038 6505 MT-GLAZE 47K JA 1/10W

R4881 401 037 7800 MT-GLAZE 150 JA 1/10W

R4890 401 039 0205 MT-GLAZE 82 JA 1/10W

R4901 401 038 7403 MT-GLAZE 510K JA 1/10W

R4905 401 037 5202 MT-GLAZE 100 JA 1/10W

R4910 401 037 5608 MT-GLAZE 10K JA 1/10W

R4911 401 037 6506 MT-GLAZE 12 JA 1/10W

R4912 401 038 3504 MT-GLAZE 330 JA 1/10W

R4914 401 038 2101 MT-GLAZE 2.7K JA 1/10W

R4938 401 037 5608 MT-GLAZE 10K JA 1/10W

R4941 !

!! 402 081 0205 FUSIBLE RES 27 JA 1/4W

R4948 401 038 0701 MT-GLAZE 2.2K JA 1/10W

R4949 401 038 0701 MT-GLAZE 2.2K JA 1/10W

R4961 401 037 5608 MT-GLAZE 10K JA 1/10W

R4962 401 037 5400 MT-GLAZE 1K JA 1/10W

R4971 401 037 5202 MT-GLAZE 100 JA 1/10W

R4972 401 037 5400 MT-GLAZE 1K JA 1/10W

R4991 401 037 5608 MT-GLAZE 10K JA 1/10W

S4901 !

!! 645 009 8871 SWITCH,PUSH 2P-2T,POWERSW

S4905 645 040 8137 SWITCH,SLIDE 2P-2TX1,BEAT CCL

S4950 645 038 7586 SWITCH,PUSH,R/PSW

SA401 411 021 6405 SCR S-TPG BIN 3X8

SA402 411 021 6405 SCR S-TPG BIN 3X8

614 125 0236 CUSHION,FOR W207

FRONT P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

72 614 310 4100 ASSY,PWB,FRONT (Only Initial)

BR601 614 307 2164 HOLDER,LCD

C6200 403 259 0508 NP-ELECT 1U M 50V

CN601 645 012 5164 SOCKET,FPC 12P

CN602 614 016 8464 PLUG

CN603 645 012 5508 SOCKET,FPC 17P,FRONT-TU

D6901 407 012 4406 DIODE 1SS133

D6902 407 012 4406 DIODE 1SS133

IC601 409 475 7505 IC LC72336-9921

L6900 645 001 4550 INDUCTOR,10U K

or 645 031 7835 INDUCTOR,10U K

LCD60 645 038 7562 LCD

LS601 614 309 4180 DEC,SHEET,LCD_SHEET

Q6200 405 143 8706 TR KTC3199-GR

or 405 011 8500 TR 2SC1740S-R

or 405 011 8609 TR 2SC1740S-S

or 405 017 9600 TR 2SC3330-T

or 405 017 9709 TR 2SC3330-U

Q6201 405 143 8706 TR KTC3199-GR

or 405 011 8500 TR 2SC1740S-R

or 405 011 8609 TR 2SC1740S-S

or 405 017 9600 TR 2SC3330-T

or 405 017 9709 TR 2SC3330-U

R6001 401 038 7601 MT-GLAZE 560 JA 1/10W

R6002 401 038 9001 MT-GLAZE 680 JA 1/10W

R6003 401 039 0304 MT-GLAZE 820 JA 1/10W

R6004 401 037 6704 MT-GLAZE 1.2K JA 1/10W

R6005 401 038 7601 MT-GLAZE 560 JA 1/10W

R6006 401 038 9001 MT-GLAZE 680 JA 1/10W

R6007 401 039 0304 MT-GLAZE 820 JA 1/10W

R6008 401 037 6704 MT-GLAZE 1.2K JA 1/10W

R6009 401 037 9309 MT-GLAZE 18K JA 1/10W

R6010 401 037 5608 MT-GLAZE 10K JA 1/10W

R6011 401 037 5608 MT-GLAZE 10K JA 1/10W

R6012 401 037 5608 MT-GLAZE 10K JA 1/10W

R6100 401 037 5707 MT-GLAZE 100K JA 1/10W

R6101 401 037 5707 MT-GLAZE 100K JA 1/10W

R6102 401 037 5707 MT-GLAZE 100K JA 1/10W

R6103 401 037 5707 MT-GLAZE 100K JA 1/10W

R6104 401 037 5608 MT-GLAZE 10K JA 1/10W

R6105 401 037 5608 MT-GLAZE 10K JA 1/10W

R6106 401 037 5608 MT-GLAZE 10K JA 1/10W

R6107 401 038 6406 MT-GLAZE 4.7K JA 1/10W

R6108 401 038 6406 MT-GLAZE 4.7K JA 1/10W

R6109 401 038 6505 MT-GLAZE 47K JA 1/10W

R6110 401 037 5707 MT-GLAZE 100K JA 1/10W

R6111 401 038 6505 MT-GLAZE 47K JA 1/10W

R6112 401 037 5608 MT-GLAZE 10K JA 1/10W

R6113 401 037 5608 MT-GLAZE 10K JA 1/10W

R6120 401 037 8005 MT-GLAZE 15K JA 1/10W

R6121 401 038 0800 MT-GLAZE 22K JA 1/10W

R6122 401 039 0403 MT-GLAZE 8.2K JA 1/10W

R6123 401 038 0800 MT-GLAZE 22K JA 1/10W

R6200 401 038 0701 MT-GLAZE 2.2K JA 1/10W

R6201 401 038 2101 MT-GLAZE 2.7K JA 1/10W

R6300 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6301 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6302 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6303 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6304 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6305 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6306 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6307 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6308 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6309 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6310 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R6311 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

- 8 -

PARTS LIST

CD P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

73 614 307 8982 ASSY,PWB,CD (Only Initial)

CN111 645 040 0513 SOCKET,FPC 15P

or 645 026 2463 SOCKET,FFC 15P

CN113 645 005 8127 PLUG,6P,BASEMECHA

CN122 645 005 8134 PLUG,8P

D1402 407 099 5204 ZENER DIODE MTZJ5.1B

D1403 407 012 4406 DIODE 1SS133

D1404 407 012 4406 DIODE 1SS133

D1410 !

!! 407 098 3300 DIODE RL153-BF-S2

IC101 409 396 8100 IC LA9241ML

IC102 409 435 2106 IC LC78622NE

IC103 !

!! 409 372 9602 IC LA6541(until M0403001 for AU,

M0402001 for PA)

IC103 !

!! 409 486 8706 IC MM1469XH (M0403001 onward for

AU, M0402001 onward for PA)

L1451 645 001 4550 INDUCTOR,10U K

or 645 031 7835 INDUCTOR,10U K

PR140 !

!! 645 014 2499 PROTECTOR,0.4A 125V

Q1301 405 008 7103 TR 2SB808-G-SPA

or 405 008 6809 TR 2SB808-F-SPA

or 405 151 4509 TR KTA1270-Y

or 405 151 4608 TR KTA1270-O

REF.NO. PART NO. DESCRIPTION

Q1401 !

!! 405 009 5306 TR 2SB927-T

or !

!! 405 009 5207 TR 2SB927-S

or !

!! 405 158 2201 TR KTA1282

or !

!! 405 141 3604 TR KTA1273-Y

R1301 401 037 5400 MT-GLAZE 1K JA 1/10W

R1302 401 037 5103 MT-GLAZE 10 JA 1/10W

R1303 401 037 5707 MT-GLAZE 100K JA 1/10W

R1304 401 038 9209 MT-GLAZE 6.8K JA 1/10W

R1305 401 038 0701 MT-GLAZE 2.2K JA 1/10W

R1308 401 038 2200 MT-GLAZE 27K JA 1/10W

R1309 401 038 3504 MT-GLAZE 330 JA 1/10W

R1310 401 037 8005 MT-GLAZE 15K JA 1/10W

R1311 401 037 5707 MT-GLAZE 100K JA 1/10W

R1312 401 038 9209 MT-GLAZE 6.8K JA 1/10W

R1313 401 038 0800 MT-GLAZE 22K JA 1/10W

R1314 401 038 0800 MT-GLAZE 22K JA 1/10W

R1315 401 037 8005 MT-GLAZE 15K JA 1/10W

R1317 401 038 9308 MT-GLAZE 68K JA 1/10W

R1318 401 037 7909 MT-GLAZE 1.5K JA 1/10W

R1320 401 039 0403 MT-GLAZE 8.2K JA 1/10W

R1324 401 038 3702 MT-GLAZE 33K JA 1/10W

R1325 401 038 7809 MT-GLAZE 56K JA 1/10W

R1326 401 037 5400 MT-GLAZE 1K JA 1/10W

R1327 401 038 7809 MT-GLAZE 56K JA 1/10W

R1328 401 038 9209 MT-GLAZE 6.8K JA 1/10W

R1329 401 037 5608 MT-GLAZE 10K JA 1/10W

R1330 401 038 0909 MT-GLAZE 220K JA 1/10W

R1331 401 038 0909 MT-GLAZE 220K JA 1/10W

R1332 401 037 8005 MT-GLAZE 15K JA 1/10W

R1333 401 037 6803 MT-GLAZE 12K JA 1/10W

R1334 401 037 5400 MT-GLAZE 1K JA 1/10W

R1335 401 037 5608 MT-GLAZE 10K JA 1/10W

R1336 401 038 3504 MT-GLAZE 330 JA 1/10W

R1337 401 038 9209 MT-GLAZE 6.8K JA 1/10W

R1343 401 037 5707 MT-GLAZE 100K JA 1/10W

R1453 401 038 2101 MT-GLAZE 2.7K JA 1/10W

R1454 401 038 9001 MT-GLAZE 680 JA 1/10W

R1455 401 038 9308 MT-GLAZE 68K JA 1/10W

R1456 401 037 6704 MT-GLAZE 1.2K JA 1/10W

R1462 401 038 7601 MT-GLAZE 560 JA 1/10W

R1463 401 038 7601 MT-GLAZE 560 JA 1/10W

R1464 401 037 5400 MT-GLAZE 1K JA 1/10W

R1465 401 038 7601 MT-GLAZE 560 JA 1/10W

R1472 401 038 6406 MT-GLAZE 4.7K JA 1/10W

R1473 401 037 5707 MT-GLAZE 100K JA 1/10W

R1475 401 038 7601 MT-GLAZE 560 JA 1/10W

R1480 401 038 7601 MT-GLAZE 560 JA 1/10W

R1498 401 037 5202 MT-GLAZE 100 JA 1/10W

R1499 401 037 5202 MT-GLAZE 100 JA 1/10W

R1501 401 038 9209 MT-GLAZE 6.8K JA 1/10W

R1502 401 037 5608 MT-GLAZE 10K JA 1/10W

R1503 401 038 9209 MT-GLAZE 6.8K JA 1/10W

R1771 401 037 5400 MT-GLAZE 1K JA 1/10W

R1773 401 037 5707 MT-GLAZE 100K JA 1/10W

R1781 401 037 5400 MT-GLAZE 1K JA 1/10W

R1783 401 037 5707 MT-GLAZE 100K JA 1/10W

X1451 614 231 2667 RESONATOR

TUNER P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

74 614 310 4902 ASSY,PWB,TUNER (AU)(Only Initial)

74 614 310 4926 ASSY,PWB,TUNER (PA)(Only Initial)

CN201 645 038 7715 TERMINAL

or 614 025 4703 TERMINAL

CN202 645 012 5218 SOCKET,FPC 17P

CN203 614 221 8273 TERMINAL

REF.NO. PART NO. DESCRIPTION

R6501 401 037 5400 MT-GLAZE 1K JA 1/10W

R6502 401 037 5400 MT-GLAZE 1K JA 1/10W

R6905 401 037 5202 MT-GLAZE 100 JA 1/10W

R6906 401 038 6307 MT-GLAZE 470 JA 1/10W

R6907 401 038 6505 MT-GLAZE 47K JA 1/10W

S6000 614 220 5471 SWITCH,TACT
