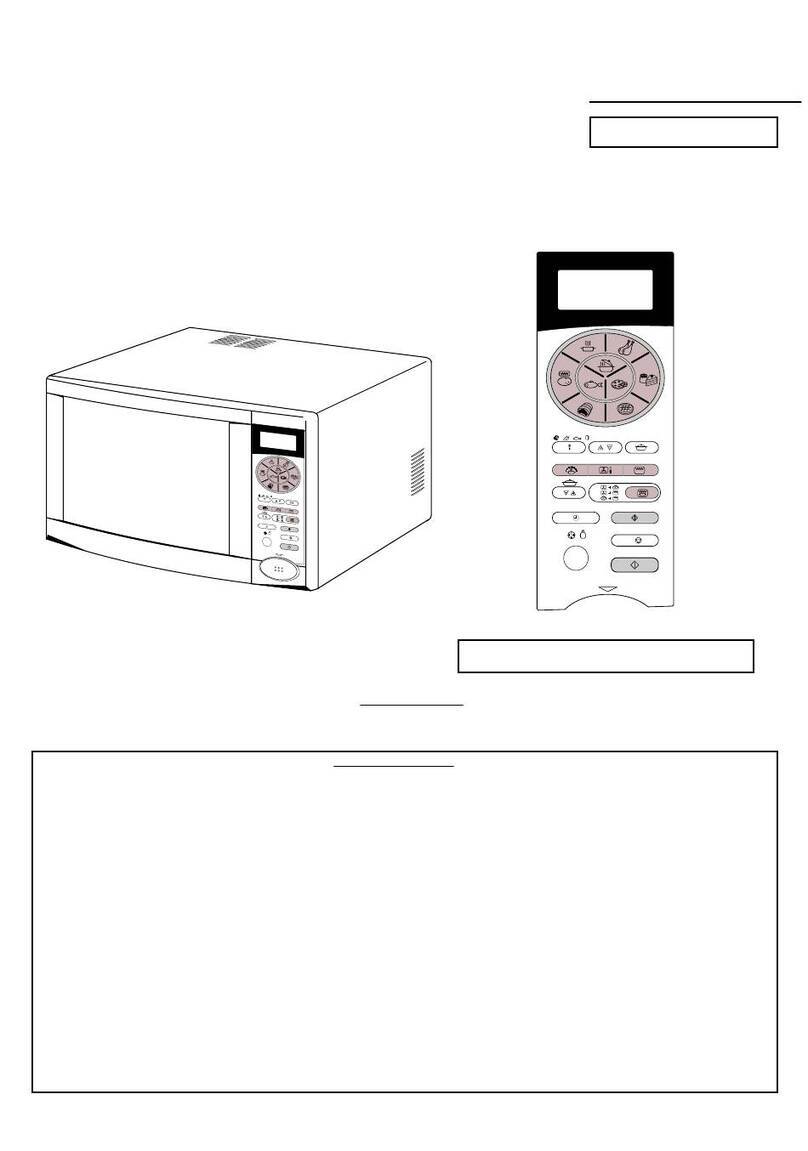

Sanyo EM-SL60C User manual

Product Code Model Suffix V/Hz/ Plug Color Cavity Volume Destination
143764849 EM-SL60C UK2 230/50/M3 Silver 0.9cft,Encoder,Convection U.K
143764859 EM-SL60C CONV 230/50/S2 Silver 0.9cft,Encoder,Convection SPAIN
FILE NO.
SERVICE MANUAL
REFERENCE No. SM0911021
Microwave Oven
RoHS
· This product does not contain any hazardous substances prohibited by the RoHS Directive.
WARNING
· You are requested to use RoHS compliant parts for maintenance or repair.
· You are requested to use lead-free solder.
EM-SL60C
Specifications subject to change without notice
EM-SL60C

2
SCHEMATIC DIAGRAM

3
EXPLODED VIEW

4
PARTS LIST
REF.NO. PARTS NO. DESCRIPTION Q'TY REMARK
1 MM56300600076R Gasket Door 1
2 MM51505800214R DECO.D/PANEL 1
3 MM51300101225R Panel Door 1
4 MM56300500035R Latch 1
5 MM56502400556R ASS'y Brkt Hinge *T 1
6 MM52010000012R Spring Latch 1
7 MM51500200108R Ass'y Door Frame 1
8 MM51300201861R Panel Control 1
9 MM51505800214R DECO.D/PANEL 1
10 MM51306003300R Button Door Open 1
11 MM57012800021R Screw ST3*8BBHC 7
12 MM51301600176R Knob Dial 1
13 MM51304900214R Window Display 1
14 MM51301900446R Button Row 1
15 MM51306100007R Lever Door Open 1
16 MM51202800622R Harness Main 1
17 MM56301102641R Lever Switch 1
18 MM51502701135R Insulator Heat*T 1
19 MM57012800002R Screw ST4*10TBHC 17
20 MM57012800003R Screw CT4*8TBHC 9
21 MM57012800014R Screw CT4*10HWBHC 2
22 MM57012800027R Screw ST4*12PWBHC 4
23 MM57012800105R Screw CT4*10TBHC 5
24 MM57012800016R Screw ST4*20TBHC 2
25 MM57012700002R Nut M4 5
26 MM57012800032R Screw ST4*10TDB 2
27 MM57012800009R Screw ST3*10PWTHC 1
28 MM57012500002R Spring Washer 4.1 1
29 MM51502600466R Case Out 1
30 MM51505701425R Cover *B 1
31 MM52100500503R Tray 1
32 MM52200100008R Coupler 1
33 MM52200200010R Ring Rotating Ass'y 1
34 MM51300800011R Guide Fan 1
35 MM51300900015R Fan 1
36 MM51501500010R Holder H.V.C 1
37 MM56502500868R Ass'y Brkt Hinge *U 1
38 MM51501400107R Base Plate 1
39 MM56302000004R Foot 4
40 MM52200700000R Sponge 1
41 MM51201700073R Heater Sheath *B 1
42 MM51201600003R Microswitch Monitor 1
43 MM51201600002R Microswitch Interlock 2
44 MM58600400229R Motor Fan 1
45 MM51502800636R Insulator Heat*B 1
46 MM51500900940R Cover Heater*B 1
47 MM51508200638R Fan Convection 1
48 MM51508201152R Fan Cooling 1
49 MM51510801151R Brkt Convection Motor 1
50 MM51511000742R Motor Axle Sleeve 1
51 MM52100600595R Fiber Ceramic 1
52 MM52012800101R Screw ST4*10TB SUS 13
53 MM57012800001R Screw ST4*8PBHC 1
54 MM51200600111R Motor Convenction 1
55 MM51200100068R Magnetron 1
56 MM56301302676R Board Latch 1
57 MM51200200355R H.V.Transformer 1
58 MM51200701304R H.V.Capacitor 1
59 MM52200400440R Cover Cavity Lamp 1

5
SANYO Electric Co., Ltd.
Osaka, Japan
PARTS LIST
Oct/’07
5
REF.NO. PARTS NO. DESCRIPTION Q'TY REMARK
60 MM51200900599R H.V.Diode 1
61 MM56203301087R Ass'y H.V.Fuse 1
62 MM51200300001R Motor Tray 1
63 MM51201300916R Thermostat 160/95 *V 1
64 MM51201300325R Thermostat 180/145 *H 1
65 MM51201300921R Thermostat 100/90 *H 1
66 MM58600500097R Lamp+Socket Lamp 1
67 MM51401000008R Senser Temperature 1
68 MM52200700003R Guide Air Outlet 1
69 MM56400101238R PCB Ass'y 1
70 MM56400601060R SUB PCB 1
71 MM56201200818R Fuse 1
72 MM56400300751R Filter Noise 1
73 MM51202800622R Harness Convection 1
74 MM51201700033R Heater Sheath *T 1
75 MM51201000365R Power Cord Ass'y 1 UK
MM56201000189R SPAIN
76 MM51500100370R Ass'y Cavity 1
77 MM53602100002R Cover Wave Guide 1
78 MM51500200108R Barrier Screen *O 1
79 MM51500200004R Barrier Screen *I 1
80 MM51505900265R Ass'y C/Panel 1
81 MM53602100055R Ass'y Door 1
82 MM51516800737R Supporter Heater *B 1
