Sapphire Pure PI-AM2RS690MHD User manual


SAPPHIRE PURE INNOVATION HDMI
Electronic Emission Notices
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device,pursuanttoPart15ofFCCRules.Theselimitsaredesignedtoprovidereasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with instructions contained in this manual, may cause harmful interference
to radio and television communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- REORIENTORRELOCATETHERECEIVINGANTENNA
- INCREASETHESEPARATIONBETWEENTHEEQUIPMENTANDTHERECEIVER
- CONNECTTHEEQUIPMENTINTOANOUTLETONACIRCUITDIFFERENTFROM
THATOFTHERECEIVER
- CONSULTTHEDEALERORANEXPERIENCEDAUDIO/TELEVISIONTECHNICIAN
NOTE: Connecting this device to peripheral devices that do not comply with Class B
requirements, or using an unshielded peripheral data cable, could also result in
harmful interference to radio or television reception.
The user is cautioned that any changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to
operate this equipment.
To ensure that the use of this product does not contribute to interference, it is
necessary to use shielded I/O cables.
Copyright
This manual is copyrighted with all rights reserved. No portion of this manual may be
copied or reproduced by any means.
While every precaution has been taken in the preparation of this manual, no responsibility
for errors or omissions is assumed. Neither is any liability assumed for damages resulting
from the use of the information contained herein.
Trademarks
All brand names, logos and registered trademarks mentioned are property of their
respective owners.

PI-AM2RS690MHDUser’sManual
TABLE OF CONTENTS
HARDWARECONFIGURATION .................................................................... 5
Key Features..................................................................................................5
MOTHERBOARDLAYOUT ............................................................................ 8
REARPANEL ................................................................................................ 9
AUDIOCONFIGURATION .............................................................................. 10
CONNECTORS ............................................................................................. 12
Floppy Disk Drive Connector: CN3........................................................ 12
Hard Disk Connectors: CN1.................................................................. 12
SPDIF Header - J29............................................................................... 13
TV Out Connector: J5 (optional)............................................................. 14
IEEE1394 Connector: J23/24 (optional)................................................ 15
Chassis Alarm Lead: JP12 (optional) ................................................... 16
Serial Port Header - COM ...................................................................... 16
Fan Power Connectors: CPUFAN1, SYSFAN1 (optional) ..................... 17
PowerLED: D25,D26 (optional)................................ .............................. 17
CD-IN Connector: J30 (optional) ........................................................... 18
Front Panel Audio Header: FP_S1 ........................................................ 19

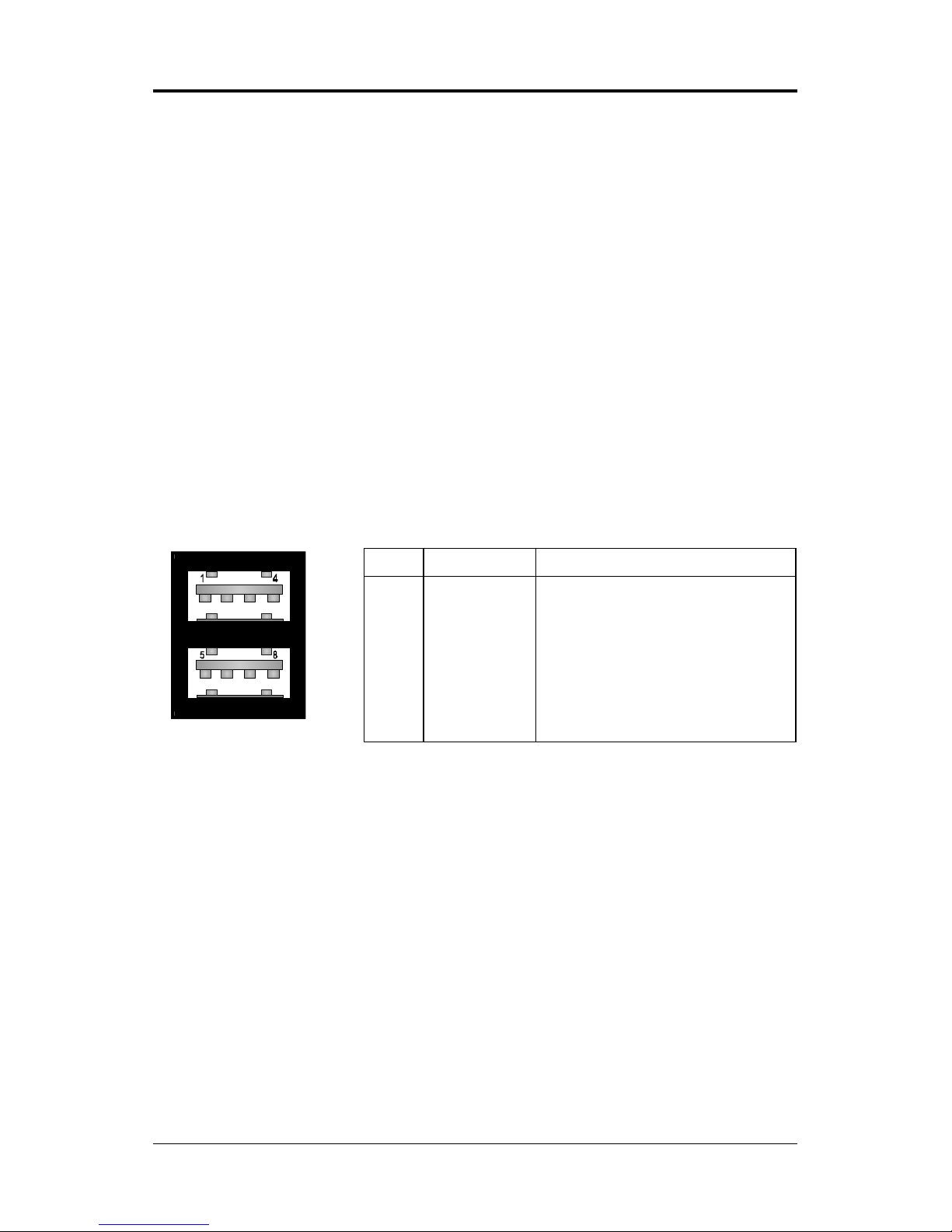

USB Connectors: FP_U1, FP_U2, FP_U3 (optional)............................ 20
Front Panel Headers: FP1 ..................................................................... 21
Serial ATA Hard Disk Connectors:
SATA1,SATA2,SATA3, SATA4 (optional)................................................. 22
JUMPERSETTING ....................................................................................... 24
JP9-CMOS Clear.................................................................................... 24
JP13-Onboard LAN Select..................................................................... 24
JP3-Onboard IEEE1394 Select ............................................................. 24
SLOTS ......................................................................................................... 25
CPUINSTALLATION .................................................................................... 26

!
SAPPHIRE PURE INNOVATION HDMI
MEMORYCONFIGURATIONS ...................................................................... 28
DDRII DIMM Sockets Location............................................................... 28
Installing DDRII DIMMs.......................................................................... 29
Memory Configurations ......................................................................... 29
BIOS SETUP ................................................................................................ 30
About the Setup Utility ............................................................................ 30
The Standard Configuration .................................................................. 30
Entering the Setup Utility........................................................................ 30
Main Menu.............................................................................................. 31
Standard CMOS Features ..................................................................... 32
Advanced BIOS Features....................................................................... 33
Advanced Chipset Features .................................................................. 33
Integrated Peripherals........................................................................... 33
Power Management Setup .................................................................... 33
PNP/PCI Configurations........................................................................ 33
PC Health Status ................................................................................... 33
Set Supervisor/User Password............................................................. 34
Save & Exit Setup ................................................................................... 34
Exit Without Saving................................................................................. 34
BIOS/FLASH Update Procedure ............................................................ 35
SETUP SATA RAID ...................................................................................... 36
Create a Bootable Logical Drive............................................................ 36
Create a Logical Drive ........................................................................... 37
One Logical Drive .................................................................................. 39
Two Logical Drives................................................................................. 39
DRIVERANDRAIDSOFTWAREINSTALLATION .......................................... 41
HDMISETUP ................................................................................................ 42

"
PI-AM2RS690MHDUser’sManual
REALTEKHDAUDIODRIVERSETUP........................................................... 44
Getting Started ....................................................................................... 44
Sound Effect........................................................................................... 44
Environment Simulation ........................................................................ 44
Equalizer Selection ................................................................................ 45
Frequently Used Equalizer Setting ........................................................ 45
Karaoke Mode........................................................................................ 45
Mixer ....................................................................................................... 46
Playback control ............................................................................... 46
Recording control............................................................................. 47
AudioI/O ........................................................................................... 48
Speaker Configuration ..................................................................... 49
Global Connector Settings............................................................... 50
S/PDIF .............................................................................................. 50
Speaker Calibration ......................................................................... 51
Microphone....................................................................................... 52
Noise Suppression.......................................................................... 52
Beam Forming ................................................................................. 52
Acoustic Echo Cancellation ............................................................. 52
Audio Demo ..................................................................................... 53
Information ....................................................................................... 53
APPENDIX .................................................................................................... 54

#
SAPPHIRE PURE INNOVATION HDMI
ARDWARE CONFIGURATION
Key Features :
Chipset
• AMD® RS690G+SB600 Chipset.
Processor
• Support for AMDTM K8 Processor in a Socket AM2 package.
• Support Hypertransport interface bus.
VRM (Voltage Regulator Modules) onboard
• Flexible motherboard design with onboard VRM, easy to upgrade
with future AMDTM K8 processors.
• 0.800V to 1.55V in 25mV steps.
System Memory
•A total of four 240 pin DDRII SDRAM sockets (optional).
• DIMM sizes from 64 Mbytes to 4Gbyte.
•Supports Dual Channel 128-bit Wide Memory Interface.
• Supports 533/667/800 DDRII SDRAM memory types.
System BIOS
•PnP,APM,ATAPI andWindows® 2000/XP.
• Full support of ACPI & DMI.
•Auto detects and supports LBA harddisk with capacities over 160GB.
•Easy to upgrade BIOS by end-user.
Plug and Play
•Supports Plug and Play specification 1.1.
•Plug and play for Windows® 2000, as well as Windows® XP.
•Fully steerable PCI interrupts.
Onboard VGA
• Integrated ATI PCIE X1250 graphic core.
• Supports CRT or TV Out display.
• Integrated DAC and CRT controllers.
• Full screen/full speed video playback.
• Up to 2048x1536, non-interlaced screen resolution for CRT.
• Support DVI-D port (via header) (optional)
TV Out (optional)
• Integrated TV encoder.
• 10-bit DAC with 4-tap filter.
• PAL/NTSC TV Out with Composite and S-Video outputs (via a header).
• ATI’s exclusive “Composite Dot Crawl” freeze option for PAL
and NTSC to improve the picture quality.
• TV-Out power management support.

$
PI-AM2RS690MHDUser’sManual
Expanded USB Support
• Includes 2 OHCI host controllers.
• Includes 1 EHCI USB2.0 Host Controller that supports all ports
(Bandwidth is shared between the all ports).
• This motherboard supports USB 2.0 only on Windows® 2000
(with SP4 or above) and Windows® XP (with SP1 or above) operation
systems.
PCI Express Graphics Interface
• One 16-lane PCI Express graphics port, fully compliant
with the PCI Express Base Specification revision 1.0a.
• A base PCI Express frequency of 2.5Gb/s only.
• PCI Express support and Enhanced Addressing Mechanism.
PCI Express X1 Ports
• Full PCI Express 1.0a compliant.
• One virtual channel support for full isochronous data transfers.
• Support for full 2.5Gb/s bandwidth in each direction per X1 lane.
Onboard I/O
• One onboard PCI fast IDE ports supporting up to 2 ATA, ATA2 , Ultra
ATA33/66/100/133 IDE HDDs, CD-ROMs, ZIP drives and LS-120
drives as boot drive.
• One ECP/EPP parallel port.
• One 16550 Compatible UART serial port (via a header).
• One floppy port which supports two FDD of 1.44MB, 2.88MB capacity.
• Ten USB ports (six ports via three headers).
• PS/2 keyboard support.
• PS/2 mouse support.
• One front panel sound connector.
• Infrared (IrDA) support via a header.
Onboard Realtek RTL8100C/RTL8110S PCI LAN (optional)
•Provides 32-bit performance, PCI bus master capability.
•Full compliance with IEEE 802.3u 100 Base-T specifications and
IEEE 802.3X Full Duplex Flow Control.
•Supports 10 Mb/s, 100 Mb/s and 1000 Mb/s (only for RTL8110S)
operation.
•Supports Wake-On-LAN function and remote wake-up.
•Supports ACPI, PCI Power management and PCI VPD.
Onboard DMI ( igh-Definition Multimedia Interface)
•Integrated 30-bit TMDS HDMI interface.
•Support EIA-861B uncompressed digital video modes.
•HDMI accepts 50Hz video formats, and that supports HDTV capability.
•Supports [email protected]/60Hz.

%
SAPPHIRE PURE INNOVATION HDMI
Power Management
• SupportsSMM, APMandACPI.
• Break switch for instant suspend/resume on system operations.
• Energy star “Green PC” compliant.
• Hardware monitoring circuit provides voltage, fan speed, etc. monitoring
(optional).
• External Modem Ring-in Wake-up support.
• Supports suspend-to-RAM (STR) (optional).
(Note: Make sure that the current of your 5VSB power supply is more than
1.5A. Please use a 300 watt power supply or greater.)
Onboard IEEE1394 (optional)
•Compliant with 1394 OHCI specifications v1.0 and v1.1.
• Integrated 400Mbit 2 port PHY.
Onboard DA Sound
•Integrated HDA controller with HDA codec.
• Support 16/20/24 bit PCM format for 7.1 sound play back.
• Support SPDIF-IN/OUT .
• Windows® 2000/xp ready.
Onboard Serial ATAII ost Controller (optional)
• Independent DMA operation on four ports.
• Data transfer rates of 300Mb/s.
• RAID feature support .
Expansion Slots
• 1 PCI Express X16 slot.
• 1 PCI Express X1 slot.
•2 PCI slots, - ver. 2.2 compliant (optional).
Static electricity can harm delicate components of the motherboard.
To prevent damage caused by static electricity, discharge the static
electricity from your body before you touch any of the computers
electronic components.

&
PI-AM2RS690MHDUser’sManual
NOTE
1) Be sure to check the cable orientation in order to match the coloured strip
to the pin 1 end of the connector.
2) When you start up the system, please wait for 5 seconds after you power
onAC.
3) Adding a metal spaced plate to the back of the Socket 940 is not
recommended as this will short motherboard components and damage
the system.
MOT ERBOARD LAYOUT
The following diagram shows the relative positions of the jumpers, connectors,
major components and memory banks on the motherboard.

'
SAPPHIRE PURE INNOVATION HDMI

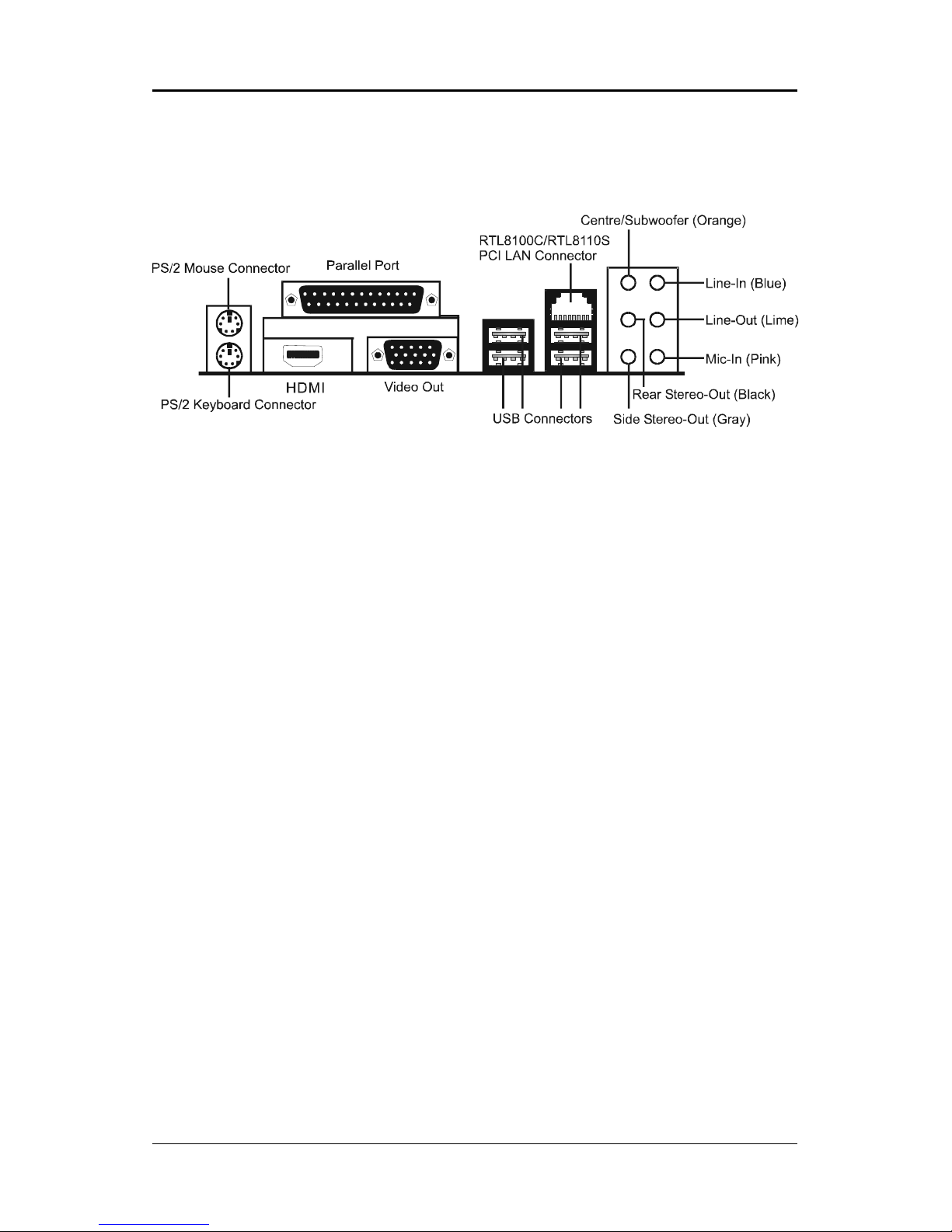

REAR PANEL
The back panel provides the following connectors:


PI-AM2RS690MHDUser’sManual
PIN SIGNAL DESCRIPTION
1 VCC +5V/5VSB (optional)
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V/5VSB (optional)
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
REAR PANEL
PS/2 Mouse Connector
The motherboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector.
PS/2 Keyboard Connector
The motherboard provides a standard PS/2® keyboard mini DIN connector for
attaching a PS/2® keyboard. You can plug a PS/2® keyboard directly into this
connector.
USB 2.0 Connector
The motherboard provides an OHCI (Open Host Controller Interface) Universal
Serial Bus root for attaching USB devices such as keyboard, mouse or other
USB-compatible devices. You can plug the USB device directly into the
connector.
USB 2.0 Connector DescriptionUSB 2.0 Connector
VIA VT6307 IEEE 1394 Connector (Optional)
The motherboard provides an IEEE 1394 Connector and allows you to connect
an IEEE 1394 device directly to the connector.


SAPPHIRE PURE INNOVATION HDMI
Video Out Connector (Optional)
The motherboard provides a Video out port to connect a 15-pin analog video
monitor.
SPDIF Connector (Optional)
The motherboard provides a S-Bracket (SPDIF) connector that allows you to
connect a S-Bracket (coaxial) for a Digital Interface (SPDIF).
LAN Jack (Optional)
The motherboard provides one standard RJ-45 jack for connecting to a Local
Area Network (LAN). You can connect a network cable to the LAN jack.
Parallel Port Connector: LPT1
The motherboard provides a 25-pin female centronic connector. A parallel port
is a standard printer port that supports Enhanced Parallel Port (EPP) and
Extended Capabilities Parallel Port (ECP) mode.
Audio Port Connector
Line_Out is a connector for speakers or headphones. Line_In is used for
external CD players, tape players, or other audio devices. Mic_In is the
microphone connector.
8 Channel D Audio
Option select of 2, 6, or 8 channel audio from onboard High Definition
compliant CODEC with 20-bit ADC and 24-bit DAC resolution.
- Supports CD-In, SPDIF-in and SPDIF-out.
- Optical & Coaxial SPDIF-out available on rear panel.
- Supports jack detection for easy audio device installation.
Rear panel audio jacks configuration:
Audio Jack Color 2 Channel 6 Channel 8 Channel
Blue Line-In Line-In Line-In
Lime Line-Out Front Stereo-Out Front Stereo-Out
Pink Mic-In Mic-In Mic-In
Gray -- -- Side Stereo-Out
Black -- Rear Stereo-Out Rear Stereo-Out
Orange -- Centre & Subwoofer Centre & Subwoofer


PI-AM2RS690MHDUser’sManual
CN3
CN1 1
1
Connectors
The motherboard provides connectors to connect to the FDD, IDE HDD, and
USB Ports and the CPU/System FAN etc.
Floppy Disk Drive Connector: CN3
The motherboard provides a standard floppy disk drive connector that supports
1.44M, 2.88M floppy disk types.
ard Disk Connectors: CN1
The motherboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/
133 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 33/66/
100/133function. Youcan connectup totwo harddisk drives,CD-ROMs, 120MB
Floppy (reserved for future BIOS) and other devices.
CN1 (Primary IDE Connector)
The first hard drive should always be connected to CN1. CN1 can connect a
Master and a Slave drive. You must configure the second hard drive to Slave
mode by setting the jumper accordingly.

!
SAPPHIRE PURE INNOVATION HDMI
SPDIF Header - J29
This header provides a SPDIF (Sony/Philips Digital Interface) output to digital
multimedia device through fiber or coaxial connector.
SPDIF-IN/OUT: J29
PIN SIGNAL DESCRIPTION
1 SPDIF-in SPDIF-in
2 SPDIF-out SPDIF-out
3NC NC
4NC NC
5NC NC
6NC NC
7 GND GND
8 GND GND
J29
1
2
SPDIF-in
SPDIF-out

"
PI-AM2RS690MHDUser’sManual
TV Out Connector - J5 (optional)
The motherboard provides TV Out connectors.
J5
1
J5 - Pin Definition
PIN Assignment
1C
2 GND
3 COMP/B
4Y
TV Out cable

#
SAPPHIRE PURE INNOVATION HDMI

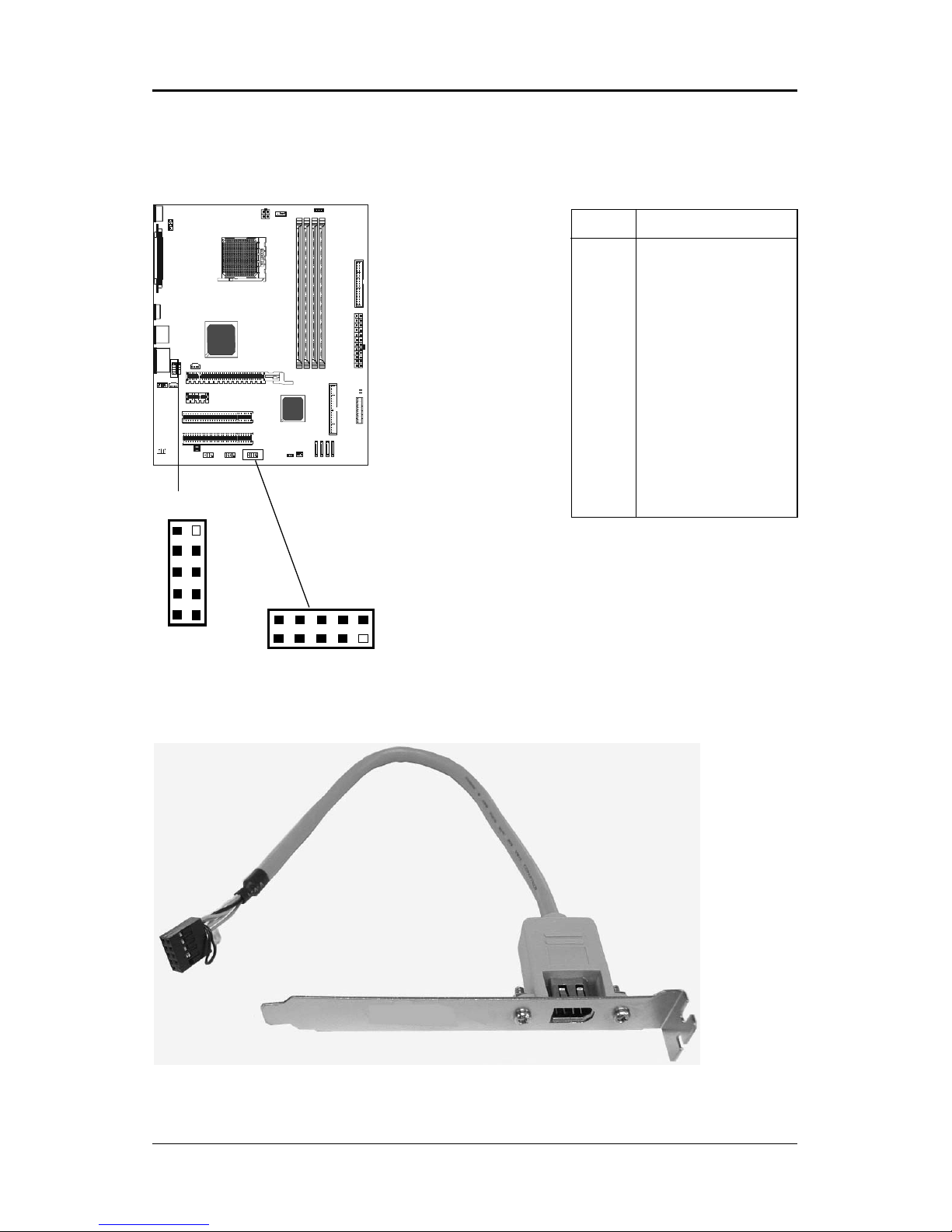

IEEE1394 Connector: J23/J24 (optional)
The motherboard provides two 1394 pin headers that allow you to connect
IEEE1394 ports.
J23
1
2
9
10
IEEE 1394 Cable (optional)
J23/J24 - Pin Definition
PIN Assignment
1TPA+
2TPA-
3 Ground
4 Ground
5 TPB+
6 TPB-
7 Cable power
8 Cable power
9 Key (no pin)
10 Ground
1
2
J24
9
10

$
PI-AM2RS690MHDUser’sManual

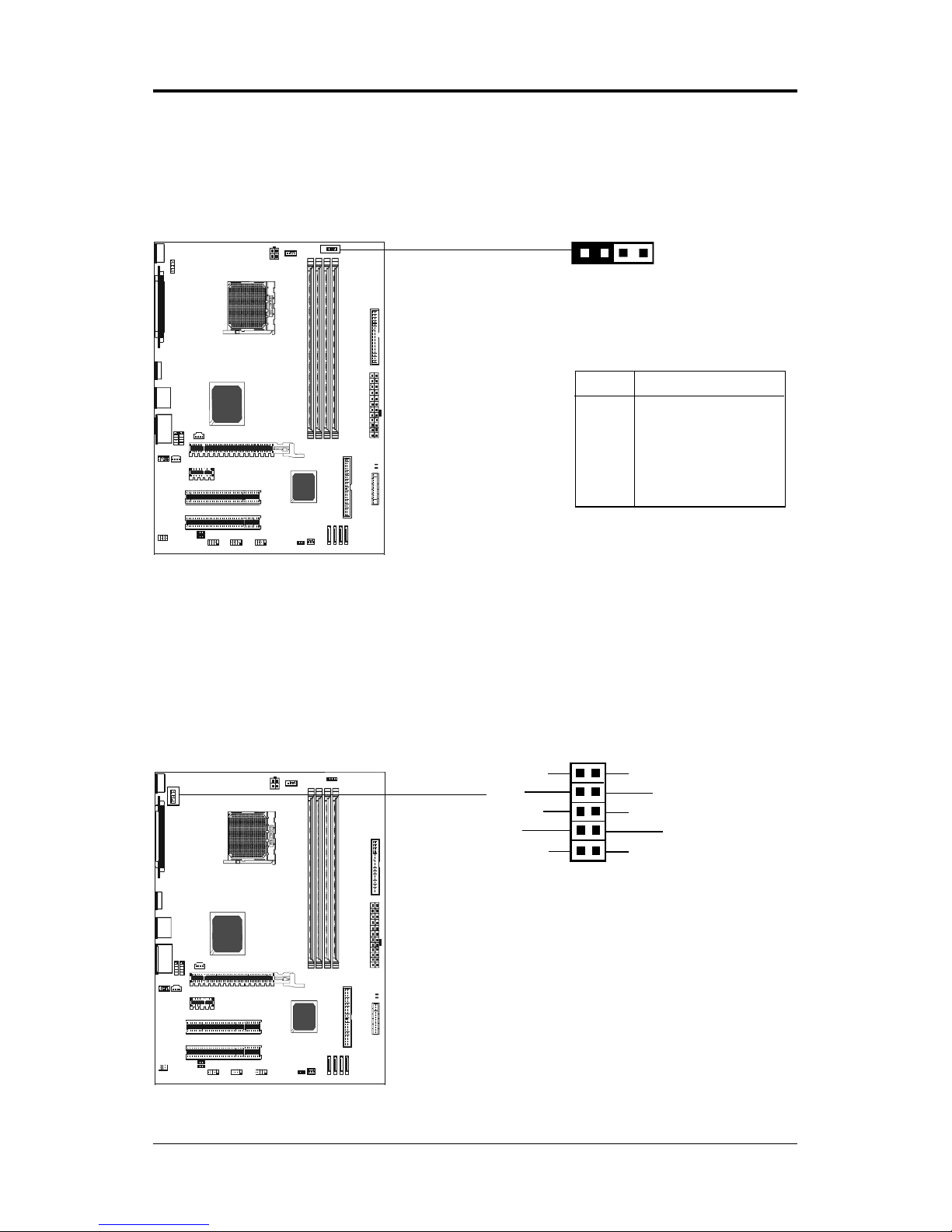

Chassis Alarm Lead: JP12 (optional)
This lead is for a chassis designed with an intrusion detection feature. This
requires an external detection mechanism such as a chassis intrusion sensor
or microswitch. When you remove any chassis component, the sensor triggers
and sends a high-level signal to this lead to record a chassis intrusion event.
JP12 1
PIN Assignment
1 +5VSB
2 KEY
3 Chassis Signal
4 GND
JP12 - Pin Definition
Note:
If you want to use “Chassis Alarm” Connector, you must remove 3-4 jumper.
1
3
5
7
9
2
4
6
8
10 RI RTS
GNDSOUT
DCD
NC
CTS
DSR
DTRSIN
COM
Serial Port eader - COM
The Port is 16550A high speed communication ports that send/receive 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to
the connectors.

%
SAPPHIRE PURE INNOVATION HDMI
Fan Power Connectors: CPUFAN1, SYSFAN1 (optional)
The CPUFAN1 (processor fan) and SYSFAN1 (system fan) support system
cooling fans using +12V via four-pin head connectors. When connecting the
wire to the connectors, always take note that the red wire is the positive and
should be connected to the +12V, the black wire is Ground and should be
connected to GND. If the motherboard has a System Hardware Monitor chipset
onboard, you must use a specially designed fan with speed sensor to take
advantage of the CPU fan control.
Power LED: D25, D26 (optional)
The green LED lights when the system is in the power-on state.
The red LED lights whenever AC mains power is attached, irrespective of
whether the system is power-on or power-off or standby mode.
SYSFAN1
CPUFAN1
1
1
D25- +5V_LED (Green)
D26- 5VSB_LED (Red)

&
PI-AM2RS690MHDUser’sManual

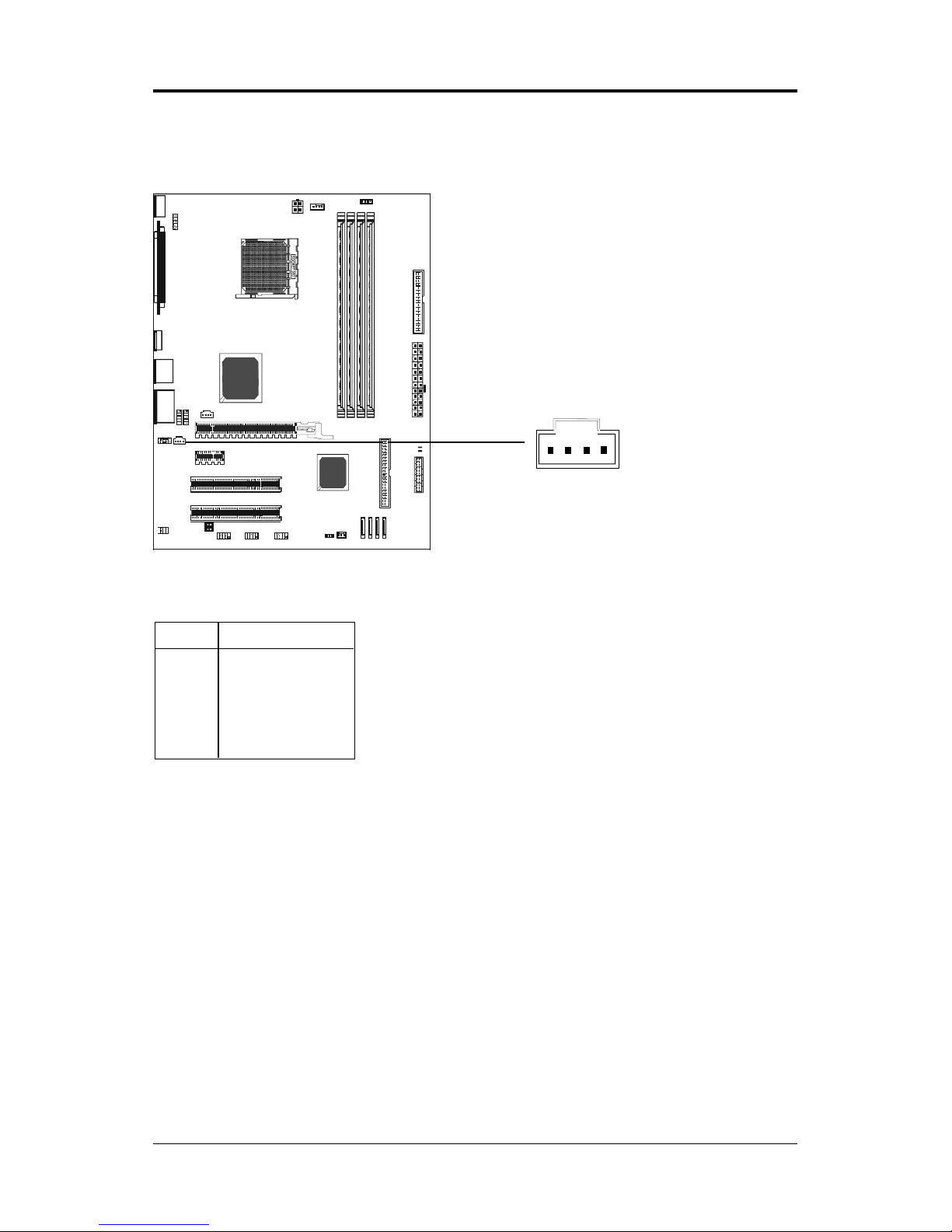

CD-IN Connector: J30 (optional)
The connector is for CD-ROM Drive.
J30
PIN Assignment
1 CD-L
2 GND
3 GND
4 CD-R
CDS1 : J30 - Pin Definition
1

'
SAPPHIRE PURE INNOVATION HDMI
PIN Assignment
1 MIC
2 GND
3 REF
4 POWER
5 Front Audio (R)
6 Rear Audio (R)
7 Reserved
8 Key (No pin)
9 Front Audio (L)
10 Rear Audio (L)

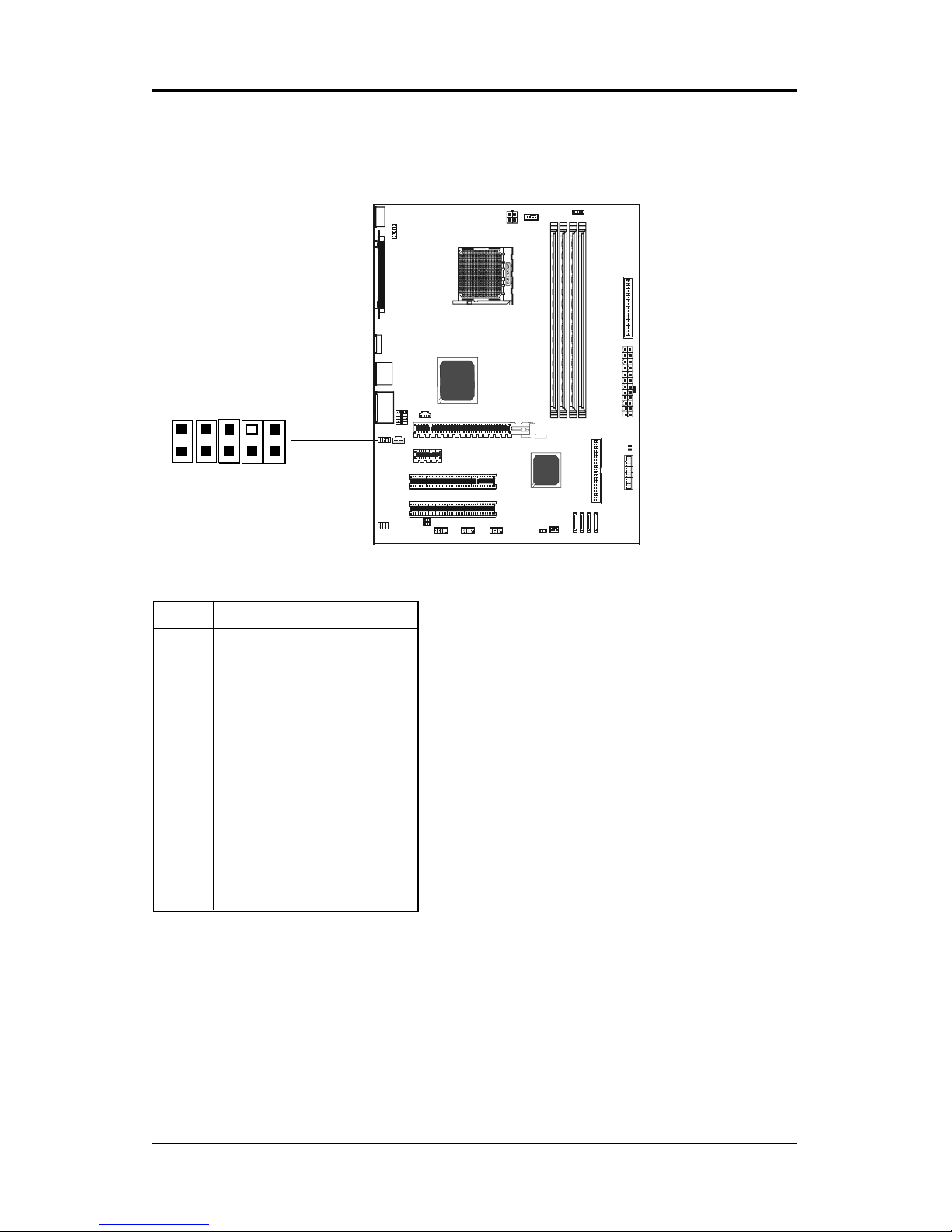

Front Panel Audio eader: FP-S1
This motherboard supports front panel microphone and speaker out ports.
If your computer case has these ports, connect them to FP-S1.
FP-S1 - Pin Definition
10
9
2
1
FP-S1


PI-AM2RS690MHDUser’sManual

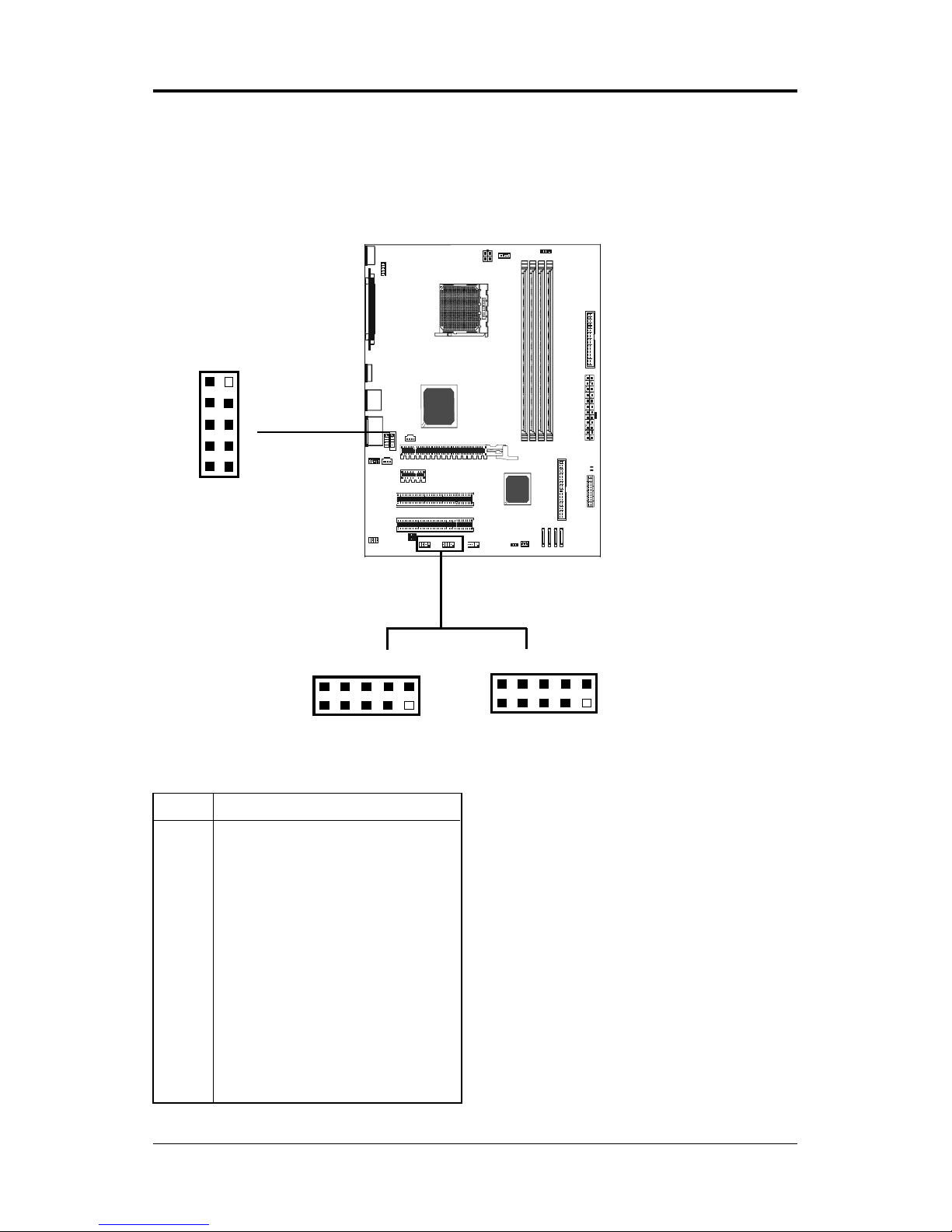

USB Connectors: FP-U1, FP-U2, FP-U3 (optional)
This motherboard has ten USB ports. Some computer cases have a special
module that mounts USB ports at the front of the case. If you have this kind of
case, use the auxiliary USB connector FP_U1/FP_U2/FP_U3 to connect the
front mounted ports to the motherboard.
PIN Assignment
1 VCC
2 VCC
3 USBP0-
4 USBP1-
5 USBP0+
6 USBP1+
7 GND
8 GND
9 KEY
10 OC#
FP-U1, FP-U2, FP-U3 USB Connector
10
9
2
1
FP-U1
10
9
2
1
FP-U2
10
9
2 1FP-U3
