Savant Shades Operating instructions
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
2
of
26
Contents
To access the link to the topics in this document, click the topic page.
Important Safety Information - Read First ..............................................................................................................................3!
1.!Introduction...................................................................................................................................................................................4!
2.!Deployment Checklist ...............................................................................................................................................................5!
3.!Box Contents and Specifications..........................................................................................................................................5!
4.!Status LED Descriptions...........................................................................................................................................................6!
5.!Provision the SSC-W485 Shade Controller (wireless) .................................................................................................8!
6.!Provision the SSC-002485 Shade Controller (wired).................................................................................................. 11!
7.!Blueprint Configuration (Add Controllers) ..................................................................................................................... 12!
7.1.!Add Shade Controller·······························································································································································································12!
7.2.!Add Shade Motor and Make Connections························································································································································13!
8.!Blueprint Configuration (Shade Manager)...................................................................................................................... 14!
8.1.!Discover Shade Motors····························································································································································································14!
8.2.!Configure Individual Motors ··················································································································································································15!
8.3.!Create Shade Motor Groups··················································································································································································17!
8.4.!Sync Configuration to the Shade Data Table ·················································································································································18!
8.5.!Save Configuration, Generate Services, and Upload Configuration ······································································································19!
9.!Additional Information...........................................................................................................................................................20!
Appendix A: Network Requirements ....................................................................................................................................... 21!
Appendix B: Provision SSC-W485 Controller using Embedded Web UI.................................................................. 22!
Appendix C: System Monitor ..................................................................................................................................................... 24!
Appendix D: Shade Data Table ................................................................................................................................................. 25!
Important Notice............................................................................................................................................................................. 26!
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
3
of
26
Important Safety Information - Read First
Before installing, configuring, and operating Savant equipment and other
vendor equipment, Savant recommends that each dealer, installer, etc. access
and read all the required technical documentation. Savant technical
documentation can be located by visiting Savant.com. Vendor documentation
is supplied with the equipment.
Read and understand all safety instructions, cautions, and warnings in this
document and the labels on the equipment.
Safety Classifications In this Document
Note:
Provides special information for installing, configuring,
and operating the equipment.
IMPORTANT!
Provides special information that is critical to
installing, configuring, and operating the equipment.
CAUTION!
Provides special information for avoiding situations
that may cause damage to equipment.
WARNING!
Provides special information for avoiding situations
that may cause physical danger to the installer, end
user, etc.
Electric Shock Prevention
ELECTRIC
SHOCK!
The source power poses an electric shock hazard
that has the potential to cause serious injury to
installers and end users.
ELECTRICAL
DISCONNECT
The source power outlet and power supply input
power sockets should be easily accessible to
disconnect power in the event of an electrical hazard
or malfunction.
Weight Injury Prevention
WEIGHT
INJURY!
Installing some of the Savant equipment requires two
installers to ensure safe handling during installation.
Failure to use two installers may result in injury.
Safety Statements
Follow all the safety instructions listed below and apply where relevant.
Additional safety information will be included where appropriate.
1.!Read these instructions.
2.!Keep these instructions.
3.!Heed all warnings.
4.!Follow all instructions.
5.!Do not use this apparatus near water.
6.!Clean only with dry cloth.
7.!Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8.!Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9.!Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
10.!Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11.!Only use attachments/accessories specified by the manufacturer.
12.!Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip
over.
13.!Unplug this apparatus during lightning storms or when unused for long
periods of time.
14.!Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15.!To completely disconnect this equipment from the AC mains, disconnect
the power supply cord plug from the AC receptacle.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
4
of
26
1.!Introduction
This guide will aid an integrator through the following:
-!Provision the shade controller to the local network. Both the SSC-W485 (wireless) and SSC-002485 (wired) are covered.
-!Add the motors to a Blueprint Configuration
-!Configure and calibrate motors using the Shade Manager in Blueprint
-!Create and Manager Shade Motor Groups.
It is important that you read this guide in its entirety prior to beginning the process.
1.1.!Required Items
Before starting the process, ensure the following items are available and if required, installed into the system:
Savant shades with shade motors installed using all required mounts............................................................................................................................
Shade fabric is installed onto shade tubes and installed in window .................................................................................................................................
When multiple shade motors are installed, the 10-shade power panel (SHA-POW10-10) must be installed and wired .............................
When a single shade motor is installed, a single 24V DC power source must be wired into the system ..........................................................
Unique ID (UID) of the SmartControl shade controller (wired or wireless controller) is documented ...............................................................
Unique ID is available on sticker on bottom of controller.
Savant Development Environment (SDE/MacBook®) .............................................................................................................................................................
RacePoint Blueprint da Vinci 8.5 or higher.
Network meeting Savant requirements........................................................................................................................................................................................
See Appendix A: Network Requirements
SSID and Passphrase for Wi-Fi Router or Switch to local network ...................................................................................................................................
Optional:
Node ID (UID) of each shade motor and where that shade motor is installed is documented..............................................................................
Node ID is available on sticker on side of motor.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
5
of
26
2.!Deployment Checklist
Follow these steps to successfully provision and program the Savant Shades solution into a Savant Pro System. This page should be used as a checklist to
record which steps have been completed.
1.!Verify all items in the Required items checklist are installed and powered ..........................................................................................................
See Required Items
2.!Review the Status LED descriptions for SSC-W485 and SSC-002485 ...................................................................................................................
See Status LED Descriptions
3.!Provision the SmartControl RS-485 Shade Controller to the Network ...................................................................................................................
See Provision the SSC-W485 (wireless) –-OR--
See Provision the SSC-002485 (wired)
4.!Add Shades to a RacePoint Blueprint Configuration......................................................................................................................................................
See Add Shade Controller to Blueprint
See Add Shade Motor to Blueprint and make connections
5.!Shade Manager ..............................................................................................................................................................................................................................
See Discover Shade Motors
See Configure Individual Motors
See Create Shade Motor Groups (optional)
See Sync Configuration to Shade Data Table
See Save Configuration, Generate Services, and Upload to Host
3.!Box Contents and Specifications
For Box Contents and Specifications, refer to the individual Quick Reference Guides (QRG) for each of the products used in the installation. Each QRG is
available on the Savant Customer Community.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
6
of
26
4.!Status LED Descriptions
The LED on the front of the shade controller indicates the state of the controller. Section 4.1 below shows the LED Sequencing for the different states for the
SSC-W485 wireless shade controller. Section 4.2 below describes the SSC-002485 wired shade controller. Understanding the various LED states assists a user
when adding the shade controller to the Savant Pro System as well as helps to troubleshoot any problems that can happen.

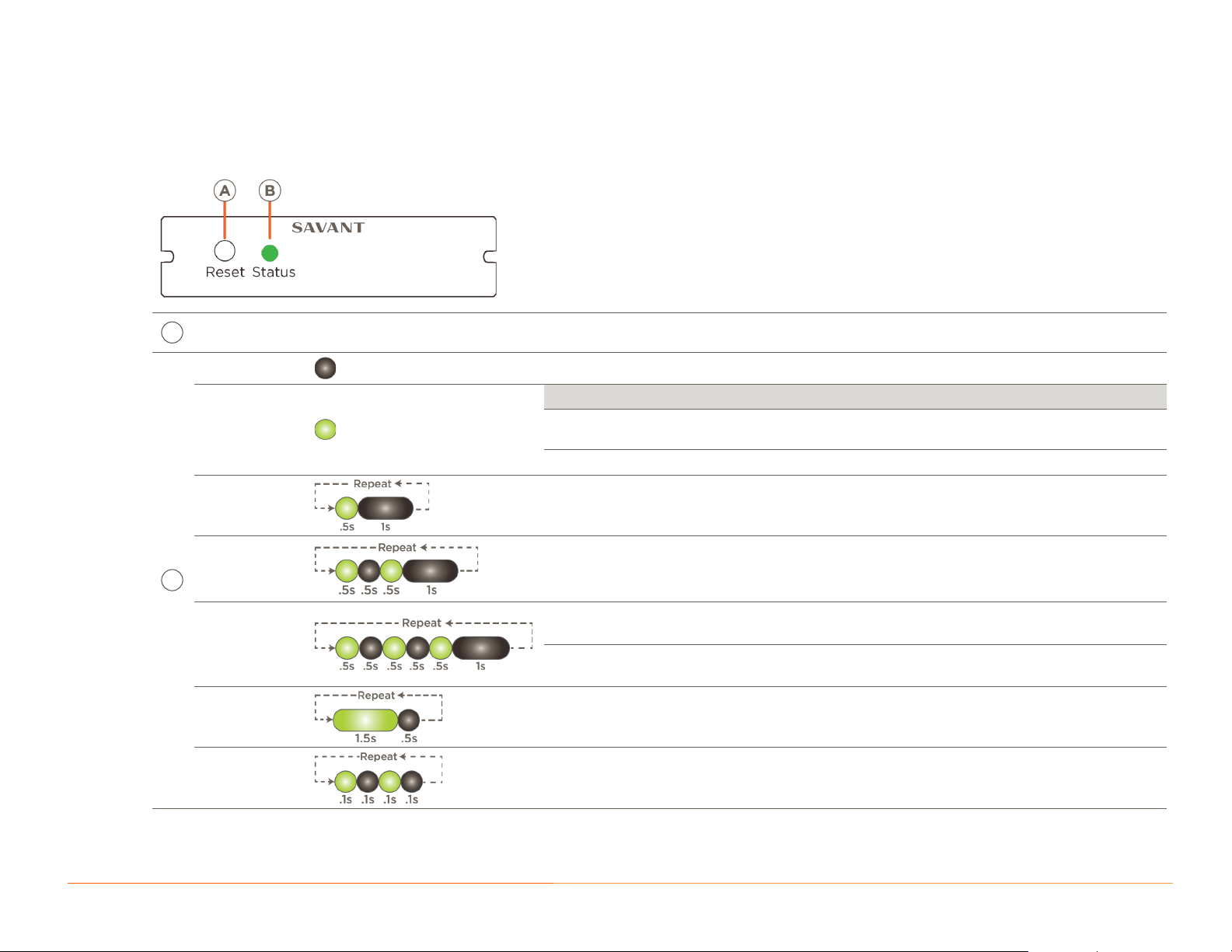

4.1.!Status LED Descriptions – SSC-W485 (wireless controller)
Reset
Clears the network settings. Press and hold the reset button while powered until the Status LED begins blinking green rapidly;
then release. After the reset, the controller will be in Provisioning Mode. See Rapid Blink below.
Off
No power applied. Power supply may not be plugged in.
Solid Green
A solid green LED could indicate one of the two states below
Normal Operation Mode. Controller was assigned an IP Address and is currently
communicating with the Savant Pro System Host.
Controller is communicating with the Savant Shade Manager in Blueprint.
Blinks Once
In Provisioning Mode and ready to be added to the local network. In this mode, no IP
Address is assigned.
Blinks Twice
Establishing connection with the local network.
Blinks Three
Times
During setup, the Blinks Three Times sequence indicates the shade controller was
provisioned to the local network and is trying to connect to the Savant Pro System Host.
During normal operation, the Blinks Three Times sequence can occur if communication
between the Shade Controller and Host is lost.
Short Off
Blink
Firmware is updating.
Rapid Blink
The reset button on the front panel was held down for at least five seconds and the
controller is performing a factory reset. After the reset, all network settings are cleared and
the factory defaults are restored.
A
B
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
7
of
26
4.2.!Status LED Descriptions – SSC-002485 (wired controller)
SSC – 002485 Shade Controller (wired)
Reset
Clears the network settings. Press and hold the reset button while powered until the Status LED begins blinking green rapidly;
then release. After the reset, the controller will be in Provisioning Mode. See Rapid Blink below.
Off
No power applied. Power supply may not be plugged in.
Solid Green
A solid green LED could indicate one of the two states below
Normal Operation Mode. Controller was assigned an IP Address and is currently
communicating with the Savant Pro System Host.
Controller is communicating with the Savant Shade Manager in Blueprint.
Blinks Once
In Provisioning Mode and ready to be added to the local network. In this mode, no IP
Address is assigned.
Blinks Twice
Assigned an IP Address and is communicating with the local network but not
communicating with the Savant System Host.
Blinks Three
Times
During setup, the Blinks Three Times sequence indicates the shade controller was
provisioned to the local network and is trying to connect to the Savant Pro System Host.
During normal operation, the Blinks Three Times sequence can occur if communication
between the Shade Controller and Host is lost.
Short Off
Blink
Firmware is updating.
Rapid Blink
The reset button on the front panel was held down for at least five seconds and the
controller is performing a factory reset. After the reset, all network settings are cleared and
the factory defaults are restored.
A
B
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
8
of
26

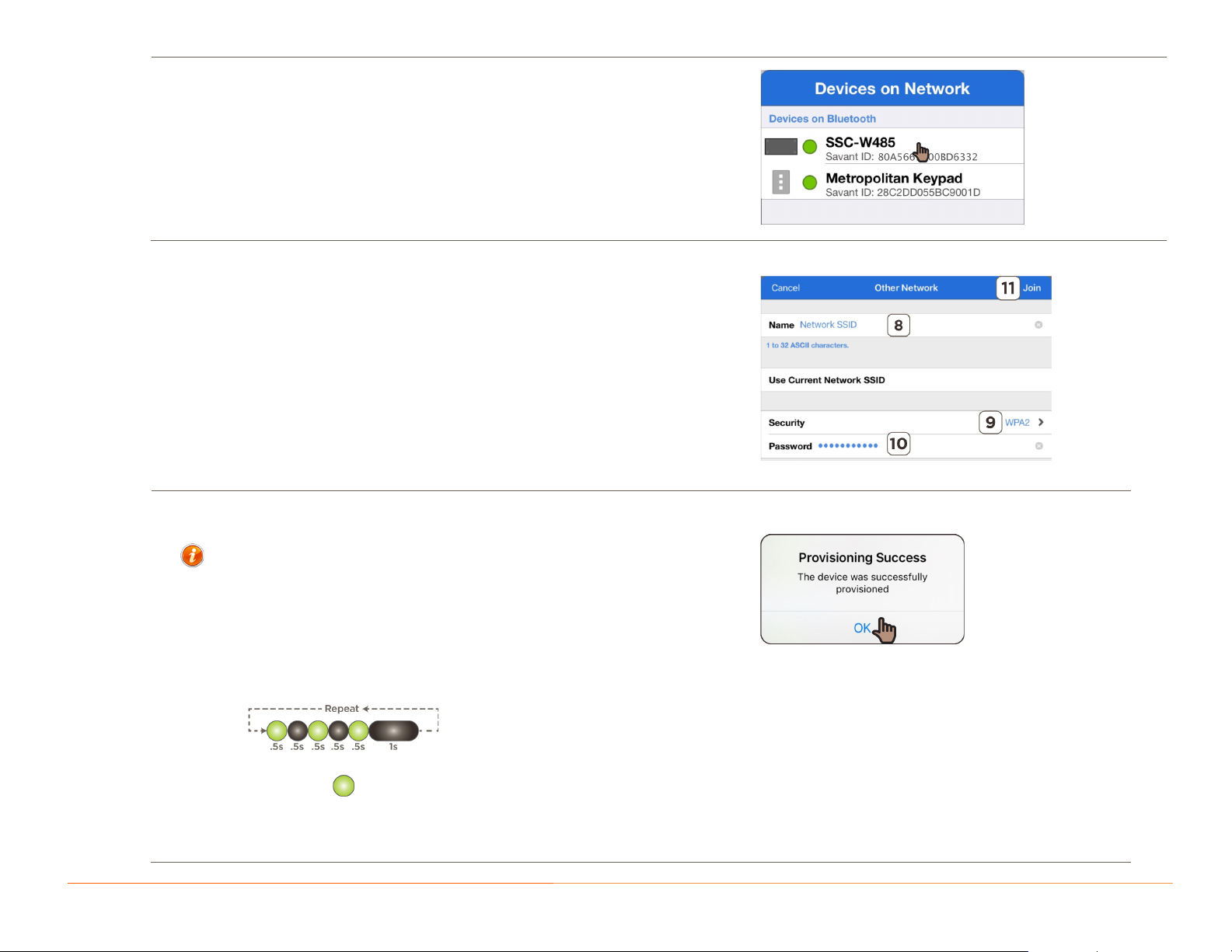

5.!Provision the SSC-W485 Shade Controller (wireless)
The SSC-W485 communicates with the Savant Pro Host using Wi-Fi over a wireless network. Follow sections 5.1 through 5.5 to connect the shade controller to
the local network. Read sections 5.1 through 5.3 to understand the provisioning process. Follow sections 5.4 and 5.5 for instructions on how to provision the
shade controller.
5.1.!Understanding the Network Provisioning Process
The diagram below demonstrates the provisioning process for the wireless SSC-W485 controller. Review the diagram for an understanding on how the
provisioning process works. If the shade controller in your network is the SSC-002485 wired type controller, skip this section and proceed to section 6:
Provision the SSC-002485 Shade Controller (wired).
1.!The SmartConnect Application communicates with the SSC-W485
using Bluetooth signaling and provisions the controller to the local
network.
2.!Once the controller is provisioned, it can communicate wirelessly
with the local network.
TIP! The SmartConnect Application only functions on the iOS
platform. Refer to Appendix B: Provision SSC-W485 Controller
using Embedded Web for information on provisioning without the
SmartConnect App.
5.2.!Provisioning Checklist
The following items are required to provision the SSC-W485 to the local network.
SSC-W485 wireless shade controller................................................................................................................................................................................
iOS Device with SmartConnect App (v1.6 or higher) installed ...............................................................................................................................
Network SSID and passphrase for the wireless router or switch in local network .........................................................................................
Unique ID (UID) of the SSC-W485 (obtained from sticker located on bottom of controller)...................................................................
Optional: rpmEmbScanner ...................................................................................................................................................................................................
(Can obtain provisioning status of the controller)
5.3.!SSID Guidelines
Savant Wi-Fi products can connect to a wireless network that meet the following SSID guidelines.
Maximum SSID Length
Maximum Passphrase Length
Wireless Standard
Supported SSID and Passphrase special characters.
32 characters
WPA/WPA2 = 8-50 characters
802.11 a/b/g/n
(2.4 Ghz)
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
9
of
26
5.4.!Install SmartConnect
To connect the SSC-W485 controller to the network, the Savant SmartConnect application must be installed and running on an iOS device such as an
iPhone® or iPad®. The SmartConnect Application can be downloaded from the Apple App Store to your iPhone or iPad.
-!From the Apple App Store search for Savant Systems LLC.
-!Locate the SmartConnect App and download/install onto your iOS device.
For more information about the SmartConnect Application, refer to the SmartConnect Reference Guide (009-1046-xx) on the Savant Customer
Community.
HELPFUL INFORMATION!
-!SmartConnect v1.6 is required to provision the SSC-W485.
-!The iOS device running SmartConnect does not need to be connected to the network that the shade controller is going to be added to if .
-!The SmartConnect Application only functions on the iOS platform. Refer to Appendix B: Provision SSC-W485 Controller using Embedded Web
for information on provisioning without the SmartConnect App.
-!During the provisioning process, ensure the controller is within 30 feet of the iOS device running the SmartConnect Application.
-!Savant recommends using DHCP reservation. Refer to the Owners Manual for the local router for information on setting DHCP reservations.
-!The iOS device that SmartConnect will be running on must support Bluetooth v4.0.
-!802.11r (fast roaming) is not supported on the SSC-W485. If using a router that supports fast roaming, fast roaming should be disabled.
5.5.!Provision the SSC-W485 wireless controller
1.!Connect 24V DC to the 24V In connection on the rear of the SSC-W485
controller.
Note: The source of the 24V DC can vary depending on the number of shade
motors in the system. Savant recommends using either the SHA-POW10-xx
power panel or the SHA-POWSINGLE-xx single shade power supply.
2.!By default, a new SSC-W485 controller is set at the factory to be in provisioning
mode. If the Status LED is blinking green, skip this step (See Blinks Once from
the table above). If the LED is blinking a different sequence, follow the bulleted
items below to set the controller to provisioning mode.
-!Press and hold the reset button for five seconds until the LED blinks green
rapidly, then release.
-!After the reboot (1 – 2 seconds), the Status LED begins blinking green
indicating it is in provisioning mode and ready to be added to the local
network (See Blinks Once from the table above).
3.!On the iOS device, tap the SmartConnect (Connect) icon .
4.!Locate the SSC-W485 in the Devices on Bluetooth section. Record the Savant ID
(UID) displayed. This UID will be used later in this procedure.
HELPFUL INFORMATION! When there is more than one SSC-W485 controller
listed, compare the UID displayed in SmartConnect with the UID on the label
on bottom of the controller.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
10
of
26
5.!Tap the SSC-W485 entry from the Devices on Bluetooth section of the App.
6.!In the Pick a Network window that opens, tap Join Other Network…(image not
shown).
7.!Populate the Name field with the SSID of the local Wi-Fi network
–or-
Select the Use Current Network SSID field. Select this field only if the iOS device
that the SmartConnect App is running on is connected to the network the Savant
Pro System is communicating with (the iOS device must be connected to the
local network for the Use Current Network SSID option to work).
8.!Tap Choose from the Security field and select the security configured on the
local network.
9.!Enter the password to the local network into the Password field.
10.!Tap Join when complete.
11.!A Provisioning Success window will open informing the user the device is
provisioned.
HELPFUL INFORMATION!
-!The SSC-W485 will now be listed in the Devices on WiFi section in
SmartConnect. The iOS device must be connected to the same network as
the shade controller for the shade controller to be available in the Devices
on WiFi section of SmartConnect.
-!With the SSC-W485 now provisioned, the Status LED will blink one of the
sequences described below.
Blinks Three times – The controller is connected to the local network and trying to connect to the
Savant Pro System Host. The SSC-W485 must be added to a Blueprint configuration and the
configuration must be uploaded to the Host. Follow the steps in the Blueprint Configuration
section below to do this.
Solid Green – The controller Is communicating with both the local network and with the Savant
Pro System Host. The configuration running on the Host has this controller in its configuration.
-!If the IP Address of the controller is required (possibly for troubleshooting or to verify DHCP reservation), the IP Address for the SSC-
W485 can be discovered using the rpmEmbScanner utility from the Savant Application Manager on the SDE/MacBook. To open the
utility, select Launch > rpmEmbScanner from the menu bar in the Savant Application Manager (SAM).
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
11
of
26
6.!Provision the SSC-002485 Shade Controller (wired)
The SSC-002485 shade controller is a wired controller and does not need to be provisioned through SmartConnect. Follow section 6.1 below to connect the
shade controller to the local network.
6.1.!Add SSC-002485 Shade Controller to the Local Network

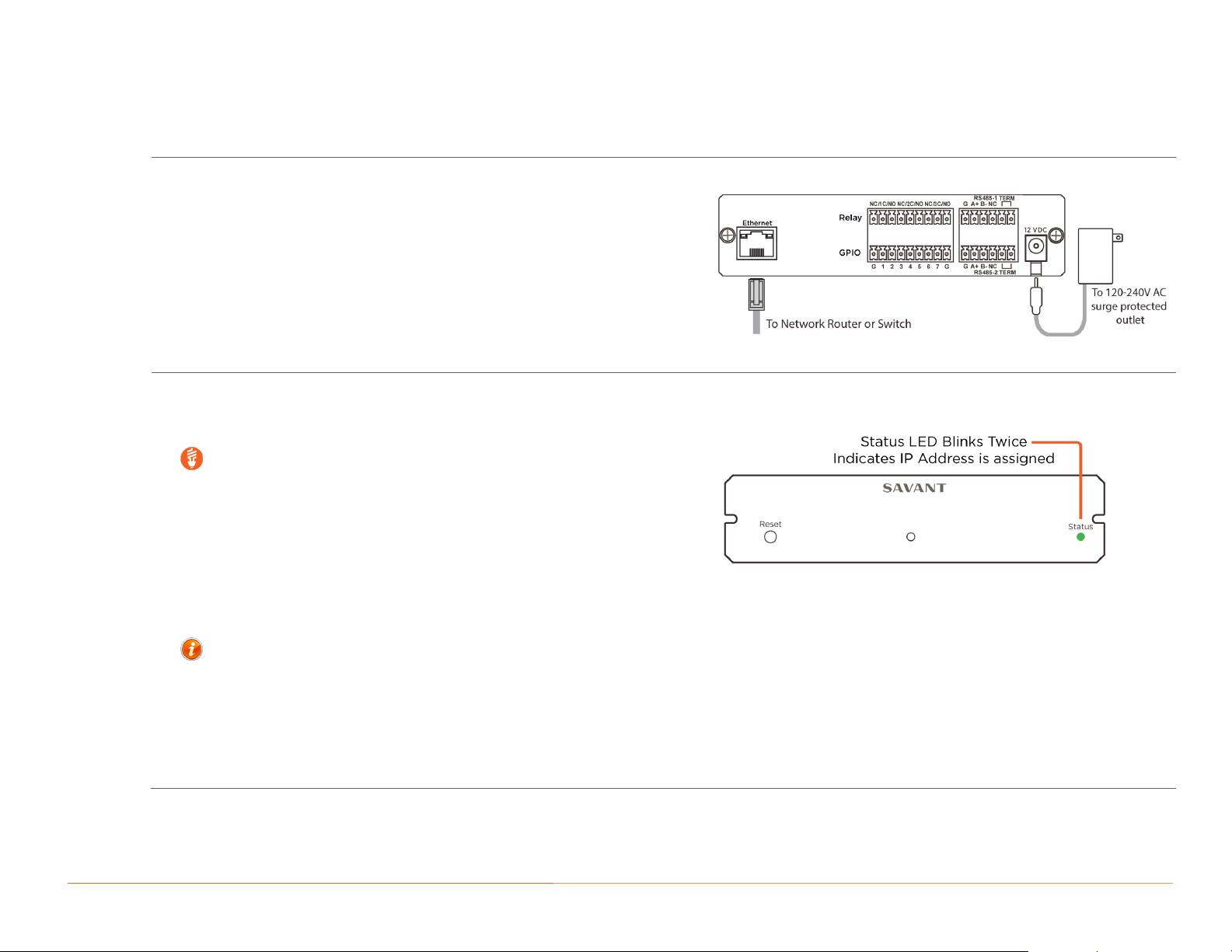

1.!Connect an RJ-45 Cat 5e/6/7 between the Ethernet port on the rear of the
shade controller and the local network router or switch.
2.!Connect the included 12V DC power supply into a surge protected 120-
240V AC 50/60Hz outlet.
3.!Once the controller is powered, it will go through some startup diagnostics
and automatically acquire an IP Address.
TIP! Savant recommends that DHCP reservation be configured on the
router in the local network. Using this method sets a static IP Address
for each device ensuring the IP Addresses will not change during a
power outage.
4.!Once an IP Address is assigned by the network router, the status LED on
the front panel will blink twice indicating it has been assigned an IP Address
and is trying to connect to the Savant Pro System Host. See Blinks Twice in
table above for reference.
HELPFUL INFORMATION!
-!Normal operation for the controller is when the Status LED is illuminated SOLID green (see Solid Green). A solid green LED indicates
the Savant Host has a configuration on it that includes this shade controller and the shade controller is currently communicating with
the Host. This process is described later in this document. For now, the LED will Blink Twice.
-!If the IP Address of the controller is required (possibly for troubleshooting or to verify DHCP reservation), the IP Address for the SSC-
002485 can be discovered using the rpmEmbScanner utility in the Savant Application Manager on the SDE/MacBook. To open the
utility, select Launch > rpmEmbScanner from the menu bar of the Savant Application Manager (SAM).
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
12
of
26
7.!Blueprint Configuration (Add Controllers)
Section 7 adds the shade controller and shade motor to a Blueprint configuration.
7.1.!Add Shade Controller
The steps below are the same for both the wireless (SSC-W485) and wired (SSC-002485) controllers.
1.!Open the Savant Application Manager (SAM) .
2.!Through SAM, open a RacePoint Blueprint configuration.
3.!Select Show Library from the Blueprint toolbar to open the Components
library.
4.!Enter SSC into the Search bar and a list of SmartControl controllers will
open. Select either the SSC-W485 (wireless) or SSC-002485 (wired)
controller.
5.!Drag the shade controller into either a shared equipment or user zone.
HELPFUL INFORMATION! Placing a component in the Shared
Equipment zone ensures that it will be accessible from any zone in
the Savant Pro App. Placing a component in a user zone limits its
availability to that zone only.
6.!In the window that opens, enter a unique name that describes the
component being added.
7.!Select Create to add the controller.
8.!Drag the shade controller from the component list to the layout window.
9.!Select Hide Library from the Blueprint toolbar to close the component
library.
10.!Double-click the shade controller to open its Inspector.
11.!Enter the 16 character UID for the controller into the Savant UID field.
TIP! The UID can be obtained from a sticker located on the bottom
of the controller or can be copy and paste from the
rpmEmbeddedScanner or Shade Manager window.
12.!Close the Inspector.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
13
of
26
7.2.!Add Shade Motor and Make Connections
To add a shade motor to a Blueprint configuration, do the following:
1.!Open the Components library again by selecting Show Library from the
Blueprint toolbar.
2.!Enter Savant Shade into the Search bar.
3.!Drag the shade into either a shared equipment or user zone.
HELPFUL INFORMATION! Placing a component in the Shared
Equipment zone ensures that it will be accessible from any zone in
the Savant Pro App. Placing a component in a user zone limits its
availability to that zone only.
4.!In the window that opens, enter a unique name that describes the
component being added.
5.!Select Create.
6.!Drag the shade motor into the layout window.
7.!Connect the RS485 1 port from the shade controller to the RS485 port
on the shade motor. Both the wired and wireless controllers are shown
in images to the right.
HELPFUL INFORMATION!
-!Each RS485 control port will support up to 40 shade motors.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
14
of
26
8.!Blueprint Configuration (Shade Manager)
The shade manager in Blueprint (Tools > Savant Shades) is where Blueprint discovers each of the shades that are wired into the system. From the shade
manager, the following can be achieved.
-!Discover each shade motor that is wired to the shade controller.
-!Label each shade motor.
-!Add each shade motor to a zone in the Blueprint configuration.
-!Change shade motor direction (standard or reverse).
-!Adjust upper and lower limits to shade travel.
-!Create Shade Groups and add motors to each group.
-!Adjust the speed that the shades travel.
-!Reset all data configured in the shade motors to factory default values.
8.1.!Discover Shade Motors
With the shade controller added to Blueprint, the shade controller and shade motor can be discovered and configured.
1.!Connect MacBook/SDE to the network that the shade controller is
connected to.
2.!From the Blueprint menu bar, select Tools > Savant Shades...
3.!Select the Scan button from the Shade Manager window that opens.
The shade manager will scan the local network for a shade controller.
4.!Select the Stop… button once the shade controller is found.
IMPORTANT!Once the shade manager connects to the shade
controller, the status LED on the shade controller will switch to solid
green indicating Blueprint is now communicating with controller.
During this time, the Host is not able to communicate with the
shade controller.
5.!Select the Connect button and the shade controller will search for any
shade motors that are wired to it. Depending on the number of shade
groups and shade motors configured in the system, the scan can take
up to 10 minutes or more (Max = 40 motors per shade controller).
6.!Each shade motor discovered will appear under the controller’s port.
When the discovery process stops, verify all the shade motors wired to
the controller are listed. In the image to the right, only one shade motor
is wired to the controller.
TIP! Select the Wink button to pulse the shade motor. Winking gives a
user a way to identify the shade motor.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
15
of
26
8.2.!Configure Individual Motors
Each shade motor that was discovered needs to be configured. Follow steps below to do this:
IMPORTANT!! Although not required, it is recommended that the shade with its fabric be completely installed before configuring the shade motors.
Upper and Lower limits for the shade fabric travel will be fine-tuned and require that the shade motor and fabric be installed in the window.
Set Motor Name and Zone
1.!Select one of the shade motors.
2.!Enter a Name to identify the motor. The name is automatically added to
the Label field in the Shade Data Table. This Label will then appear in
the Shade Service in the Savant Pro App once the updated
configuration is synced and uploaded to the Host.
3.!Verify the Node ID labeled on the side of the shade motor is displayed
in the NodeID field. This value is automatically populated.
HELPFUL! The Address (1) field in the Shade Data Table is also
automatically populated with the Node ID.
4.!From the Savant Zone field, select the zone where the shade is
installed. If the motor was configured to a specific user zone, only that
zone is available. For all zones to be available in the drop-down menu,
the shade motor should be in a Shared Equipment zone.
HELPFUL! Each time changes are made to either the Name or Savant
Zone fields, the updated data must be synced to the data table.
See section 8.4 below for information on syncing the data.
Set Shade Direction
1.!Select the Upper Limit disclosure triangle to expand this field.
2.!Select the Up or Down button and verify the shade moves in
the correct direction. Modify the Motor Direction field from Standard to
Reverse if shade is traveling in the wrong direction.
Nudges the shade up or down approximately 1/16 inch.
Moves the shade up or down approximately 4 ½inches.
Set Shade Upper and Lower Limit
1.!Using the Up buttons, set the upper limit of shade travel.
IMPORTANT! Do not press these buttons in rapid succession. Wait
for the motor to stop before pressing the buttons again.
2.!Select Save Upper Limit button once the upper limit is found.
3.!Using the Down buttons, set the lower limit of shade travel.
4.!Select Save Lower Limit button once the lower limit is found. At this
point the yellow circle beside the Upper/Lower Limit field will change
to a green circle with a check. This indicates the upper and lower limits
are programmed into the shade motor.
5.!Test the shade travel by selecting the Test Upper and Test Lower Limit buttons.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
16
of
26
Additional Motor Properties Information
Once the shade motor is working correctly, set any additional properties as
required. Refer to information below when configuring.
Motor Direction
See Set Shade Direction section above.
Up/Down Speed
Sets the speed the shade will travel when moving up
or down.
Slow Speed
This field is currently NOT USED in the Savant Pro
System. The speed of the shade is adjusted using the
Up/Down slider described above.
Shade Label
The label or value entered into this field is written to
the firmware in the shade motor. The label entered
can be used to keep track of shade motors in the
event the motors are changed or swapped.
App Software Info
Lists the version of firmware installed in the shade motor. The Savant Support Team may require this information when
troubleshooting a problem. The last six characters identify the version of firmware.
Example: Using the App Software Info number from image above (91424D450009)
Last Six characters: 450009
1.!The 45 is treated as a hex value so first convert the hex value 0x45 into ASCII = E.
2.!Last four digits are treated as decimal so 00 09 is treated as 09.
3.!Therefore, the firmware version is E09 for this example
Software Info
Lists the version of software installed in the shade motor. The Savant Support Team may require this information when
troubleshooting a problem.
Serial Number
Serial Number of the shade motor. The first six characters of the serial number are stamped on the shade as the Node ID.
Factory Reset
Resets the data stored in the shade motor to its factory default values. The reset can take up to 30 seconds and the motor may
pulse during the process. The following fields in the shade manager are reset when the Factory Reset button is selected:
Upper/Lower Limits, Motor Direction, Up/Down Speed, and Shade Label.
HELPFUL!
-!If motor seems to be behaving erratic and is not responding to control commands; the motor may need to be factory
reset.
-!Once reset, the colored circle in the Upper/Lower Limit field will switch to yellow indicating the shade motor is
currently set to its factory default values.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
17
of
26
8.3.!Create Shade Motor Groups
Once all motors are configured and operational, motor groups can be created. A motor group allows multiple shade motors to be grouped so they are all
controlled by the same entity/slider in the Savant Pro or TrueControl 11 Apps. The steps below describe how to create motor groups and add motors to
that group.
Add Shade Motor Group
The steps below will create a shade group and add three windows from the
Family Room zone.
1.!Select the add icon to add a new group.
IMPORTANT! The shade motors listed under the shade controller’s
RS-485 port are the only motors that can be added to the shade
group being created. Shade motors listed under a second RS-
485 port or a port associated with a separate controller can’t be
added to the group being created.
2.!Select the group.
3.!Enter a Name that describes the Shade Motor Group being created.
4.!Select the Savant Zone where the group will be added to in the
Savant Pro App.
5.!Add a check to each of the shades that will be added to the group.
IMPORTANT!When adding a check to each box, the check mark
may take a second or two to become established. This is normal
operation.
6.!Add additional shade motor groups as required.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
18
of
26
8.4.!Sync Configuration to the Shade Data Table
When shade configuration is complete and all groups are created, the data from the Shade Manager needs to be added to the Shade Data table.
1.!From the shade manager window,
select the shade controller and select
the Sync button.
IMPORTANT! When there is more
than one shade controller in the
system, each controller must be
synced. To s y n c e a c h c o n t r o l le r,
select either the controller itself or
pick a shade, shade group, or port,
associated with the controller and
then select Sync.
Pressing the Sync button in the Shade Manager rebuilds the shade data table each time the Sync button is pressed with the configuration set in the
Shade Manager. Any shade motors or shade groups added or deleted are then added or removed from the data table.
2.!In the data table that opens, verify the
settings in the table match what was
configured in the shade manager. For
more information on the Shade Data
Table, refer to Appendix D: Shade
Data Table
3.!Select Done when complete.
4.!Close the Shade Manager. After approximately 15-20 seconds, the Status LED on the shade controller should begin to blink indicating that the
Shade Manager is no longer connected. Refer to the Status LED Description section for the shade controller in your network (wired or wireless) to
determine the state of the shade controller.
HELPFUL INFORMATION! While open, the Shade Manager assumes control of the shade controller (described above in step 3 of section 8.1).
The Shade Manager must be closed before the Host can regain control of the shade controller. After the Shade Manager is closed, it can take
up to 20 seconds for the shade manager to drop the connection. The Shades service in the Savant Pro App will not function correctly if the
Shade Manager window is open.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
19
of
26
8.5.!Save Configuration, Generate Services, and Upload Configuration
With the shade controller and shade motor added and connected in Blueprint, the configuration needs to be uploaded to the Savant Pro System Host.
1.!Select File > Save from the Blueprint menu bar.
2.!Select the Generate Services icon from the Blueprint toolbar and answer the prompts. The State icon in the RacePoint Blueprint toolbar will
change to either blue or green indicating the services for the configuration are created.
3.!OPTIONAL: Select Update All UI Screens > Sync with Services (only if necessary) from the Blueprint toolbar to sync any user interfaces such as an
iPad® to the services. The State icon will change to green when complete.
4.!Select the Upload to Master icon from the Blueprint
toolbar and answer the prompts to upload the
configuration to the Savant Pro System Host.
5.!The System Monitor application will automatically open as
displayed in image to the right. Verify the path to the
configuration file is correct. Select Upload when satisfied.
The configuration will now upload to the Host. Once
uploaded, the shade controller can start communicating with
the Host and the Status LED will switch to solid green
indicating it is communicating with the Host.
HELPFUL INFORMATION! If at any time, the Shade Manager is opened to make modifications, the Shade Manager will assume communications
with the shade controller and the Host will not be able to communicate with the controller. The Shade Manager must be closed after
modifications are made for the Host to assume communications and the Savant Pro App Shade service to function correctly.
Shades Provisioning and Programming Guide
Copyright © 2017 Savant Systems, LLC
009-1525-01 | 170908
20
of
26
9.!Additional Information
Refer to the following documents located on the Savant Customer Community for additional information.
-!SmartControl RS-485 – Wi-Fi Shade Controller with 1 RS485 Quick Reference Guide (009-1553-xx)
-!SmartControl RS-485 – Wired Shade Controller with 2 RS485 Quick Reference Guide (009-1554-xx)
-!Shades Installation and Wiring Guide (009-1532-xx)
-!Shade Fabric Install Guide (009-1529-xx)
-!Ten Shade Power Panel with RS485 Pass Thru Quick Reference Guide (009-1527-xx)
-!Shade Wired Motor with Wired Control Quick Reference Guide (009-1512-xx)
-!Smart Connect Reference Guide (009-1049-xx)
-!Savant Application Manager (SAM) Reference Guide (009-1382-xx).
-!System Monitor Reference Guide (009-1421-xx).
Table of contents
