Savio RADIANCE RAD1000 User manual

Please review entire instructions thoroughly prior to installation.
RADIANCE
outdoor lighting
RAD1000 • RAD1020 • RAD2000 • RAD2020
TM
OPERATING MANUAL
4
Innovative, precision engineered solutions
Advanced water gardening products for healthy, clean living ponds.
SAV i O Engineering, Inc.
Albuquerque, New Mexico USA
http://www.savio.cc • email: [e-mail]
Customer Service Information
Skimmerfilters®
Water Master™ Pumps
Livingponds® Filters Pond Packages®
Uvinex™ system
Radiance™ Lighting
FilterWeirs™
Pond Free® Packages
Springflo Filter Media™
Black Foam
Waterfall Well™
4
warranty card
bezel
mount
angle adjustment
screw
operating manual
Savio Radiance Lighting is suitable for outdoor landscape illumination
or underwater use in ponds, fountains, streams. Radiance lights are
designed to be used with Savio’s 20 watt transformer or can be connected
to any approved 12V AC transformer approved for outdoor use.
glass lens
3 way splitter 20 watt transformer
LED
HALOGEN
(RADTR20)
(RADSP03)
universal
2 prong connector
07-SV-079
Important Safety Instructions
Water and electricity can be deadly when combined. This unit can pose
significant risk of bodily harm if used incorrectly. Please read and follow
these extremely important safety and handling instructions for your Savio
Radiance Lighting:
WARNING - ELECTRICAL SHOCK HAZARD.
• Always disconnect power from lights before servicing.
• Savio Radiance Lighting must be used with a 12V AC transformer with
wattage capacity greater than the sum of all light wattages on the circuit.
(example: Three 20 Watt lights on the same circuit would require a trans
former of at least 60 Watts or greater.)
• Cable connections should ALWAYS remain above water.
• Unplug lamp and allow to cool before replacing bulb. Do not operate
lamp unless the housing is intact and without the glass lens is in place.
• Follow all local electrical codes and NEC guidelines.
Warranty (Send in your warranty card)
To activate your warranty send in the enclosed warranty card or visit the
Savio website (www.savio.cc/warranty/ ). Savio Engineering, Inc. provides a
manufacturer’s limited warranty of 1 year from original purchase date. Warranty
is non-transferable. Within the warranty period SAViO will repair materials with
manufacturing deficiencies at their discretion. This warranty does not cover any
faults caused by improper use, installation and handling of the device or as a
result of wear and tear. Warranty is void if the product is not used in accordance
with instructions. For warranty claims, please contact your dealer. Savio is not
responsible for damage resulting from shipping. *Warranty is void if cord is
removed or cut. Halogen bulbs are considered normal wear items and are not
covered by warranty.
ACCESSORIES
COMPONENTS
Operating Capacities

Radiance Lights are designed to be used with a 12V AC outdoor
transformer. Low voltage transformers come in a variety of wattages
to accommodate your outdoor lighting needs. These transformers are
generally available at most hardware and specialty lighting stores. If
the transformer has a timer, set the timer per instructions included
with the unit for the desired ON and OFF times.
Warning! These lights are not designed or approved for use in
swimming pools, spas, and other human activity areas.

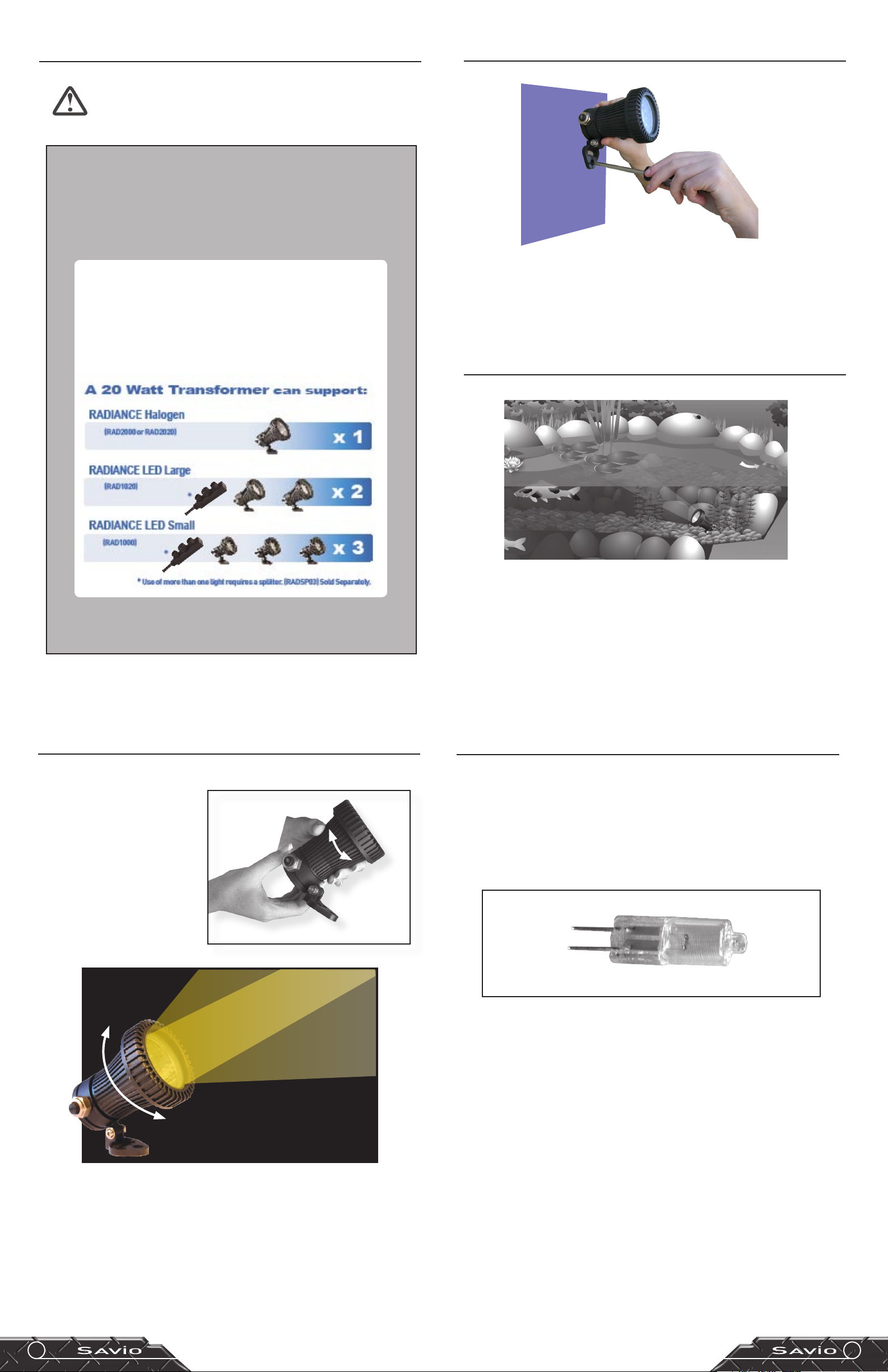

Calculating Wattage
When using multiple lights with a transformer, the transformer must
have a wattage capacity of at least of the sum total of all the lights on
the circuit. (Example: Three 20W lights would require a transformer of
at least 60 Watts or greater.) Failure to observe this recommendation
can result in poor performance and risk of fire or permanent damage
to equipment.
Bulb Replacement (LED)
There are no user serviceable parts in Savio LED lighting fixtures. LED lights are
extremely long lived under normal use. If a Savio LED light should fail within the
warranty period, return it for repair or replacement.
Bulb Replacement (HALOGEN)
12 Volt 20 Watt bulbs are available at any local hardware store.
To replace:
1. Disconnect the lamp or transformer from the power source.
Allow the unit to cool before replacing bulb, if necessary.
2. Remove the lamp bezel by unscrewing in a counterclockwise direction.
3. Remove the glass lens and seal.
4. Remove the bulb by pulling from its socket.
5. Installation is the reverse of removal.
Oil from your skin can damage halogen lamps, avoid touching the new bulb
during installation.
Installation
23
Mount the lighting fixture in the desired outdoor location. The adjustable
bracket is designed to be attached with screws to a post or siding.
Warning! When Halogen Lights are used above water, a minimum
distance of 20 inches from combustible materials must be observed.
For Outdoor Use
For Underwater Use
Placing a light in your pond will enhance the beauty of the water feature. Often the
best results can be achieved using lights to illuminate a specific portion of a water
feature, such as a waterfall cascade, plant grouping or underwater element. If
desired, you can attach the light to a ballast object to create a sturdy base.
When using lights in an underwater environment always use a GFCI protected
circuit to prevent the risk of electrocution.
Examine all parts while unpacking. Carefully inspect for damage
incurred during shipping. If the unit appears damaged, return it to
your dealer for replacement.
Bulb Replacement
G4 Base Bulb
RAD2020 Halogen Light has a variable beam that can be adjusted in size
from 10˚ to 40˚. To change the focus of the beam, hold the rear of the light
and twist the housing of the light firmly in a clockwise or counterclockwise
direction.
Optional Features
40˚
(RAD2020 Only)
10˚
EXAMPLE:
