Savoy 52-830-5RV-187 User manual

READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
CUL LISTED MODEL : AC-552
MODEL: 52-830-5RV-187
52-830-5RV-148
52-830-5RV-129
52-830-589-89
52-830-545-45
CEILING FAN
OWNER'S MANUAL

1

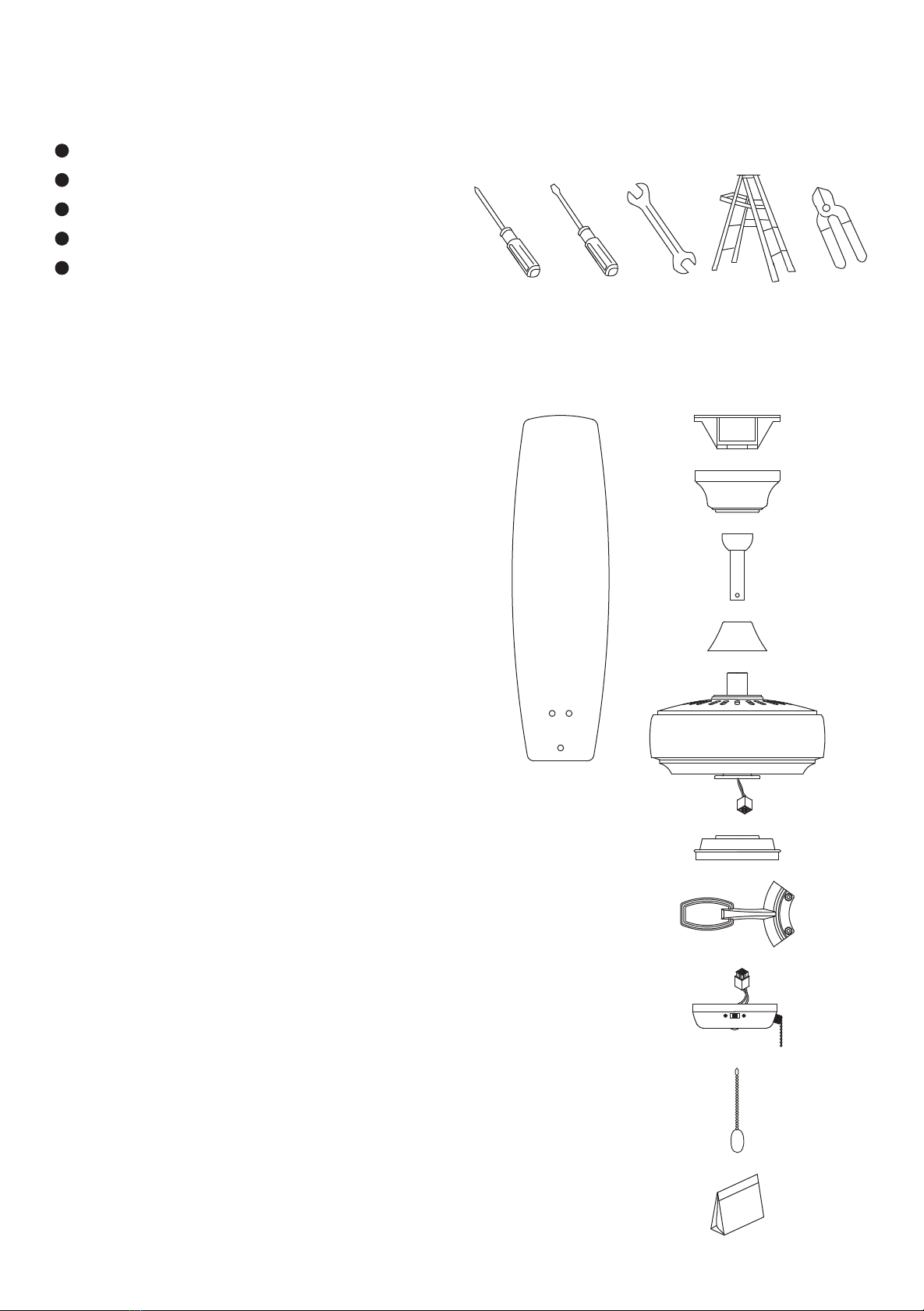

2. PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items;
a. Set of blades assembly (5)
b. Hanger bracket
c. Canopy
d. Downrod
e. Coupling cover
f. Fan motor assembly
g. Mounting plate
h. Set of blades bracket (5)
i. Switch housing
j. Pull chain and fob
k. Package hardware
1) Mounting hardware :
screws(2), lock washers(2),
star washers(2), wire nuts(3)
wood screws(2), washers(2)
2) Blade attachment hardware:
screws(16)
3) Blade arm hardware:
screws with lock washers (11)
4) Safety cable hardware:
wood screw, lock washer,
metal washer
5) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1. TOOLS AND MATERIALS
REQUIRED
a
b
c
d
e
f
g
h
i
j
k

1. To reduce the risk of electric shock,
insure electricity has been turned off
at the circuit breaker or fuse box
before beginning.
2. All wiring must be in accordance with
the National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: To reduce the risk of
electrical shock and fire, do not use
this fan with any solid-state fan speed
control device.
4. WARNING: To reduce the risk of
personal injury, use only the two steel
screws (and lock washers) provided
with the outlet box for mounting to
the outlet box. Most outlet boxes
commonly used for the support of
lighting fixtures are not acceptable for
fan support and may need to be
replaced, consult a qualified electrician
if in doubt.
5. The outlet box and support structure
must be securely mounted and
capable of reliably supporting a
minimum of 50 pounds. Use only CUL
Listed outlet boxes marked "FOR FAN
SUPPORT".
6. The fan must be mounted with a
minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
7. Do not operate reversing switch while
fan blades are in motion. Fan must be
turned off and blades stopped before
reversing blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to
the fan and other items, be cautious
when working around or cleaning the
fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth
will be suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor
and the equipment-grounding
conductor on one side of the outlet
box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the
fan must be CUL Listed and marked
suitable for use with the model fan you
are installing. Switches must be CUL
General Use Switches. Refer to the
Instructions packaged with the light
kits and switches for proper assembly.
2
3. SAFETY RULES
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX
MARKED "ACCEPTABLE FOR FAN
SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR
AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE
BLADES.

4. MOUNTING OPTIONS
If there isn't an existing CUL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able to
fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet
boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar as shown in
Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3

4
Figure 6
5. HANGING THE FAN
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; the standard
ceiling installation using the downrod with
ball and socket mounting and the
"close-to-ceiling" installation. The "close-to
-ceiling" installation is recommended in
rooms with less than 8-feet ceilings or in
areas where additional space is desired
from the floor to the fan blades.
STANDARD CEILING INSTALLATION
WARNING: When fixed the downrod, screw
tightened to hold downrod in place, do not
scew into the unused hole as show in figure
6-1.
Step 1. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket as shown in Fig. 5.
Step 2. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 3. Remove the hitch pin, lock pin and
set screws from the top of the motor
assembly.
Step 4. Route wires exiting from the top of
the fan motor through the canopy,
coupling cover and then through the ball/
downrod. (Fig. 6)
Step 5. Align the holes at the bottom of
the downrod with the holes in the collar on
top of the motor housing (Fig.6). Carefully
insert the hitch pin through the holes in
the collar and downrod. Be careful not to
jam the pin against the wiring inside the
downrod. Insert the locking pin through
the hole near the end of the hitch pin until
it snaps into its locked position, as noted in
the circle inset of Fig. 6.
Step 6. Tighten two set screws on top of
the fan motor firmly. (Fig. 6)
Step 7. Place the downrod ball into the
hanger bracket socket. (Fig. 7)
Figure 5
Downrod
Set screws
Lock pinHitch pin
Tab
Mounting screws
(supplied with
electrical box)
CUL Listed
electrical box
Hanger
bracket
Canopy
Coupling cover
Figure 7
Registration slot
Cotter Pin
Holes in Downrod
for Cotter Pin
Unused hole
in Downrod
Downrod
Screw tightened to hold
Downrod in place
Figure 6-1

5

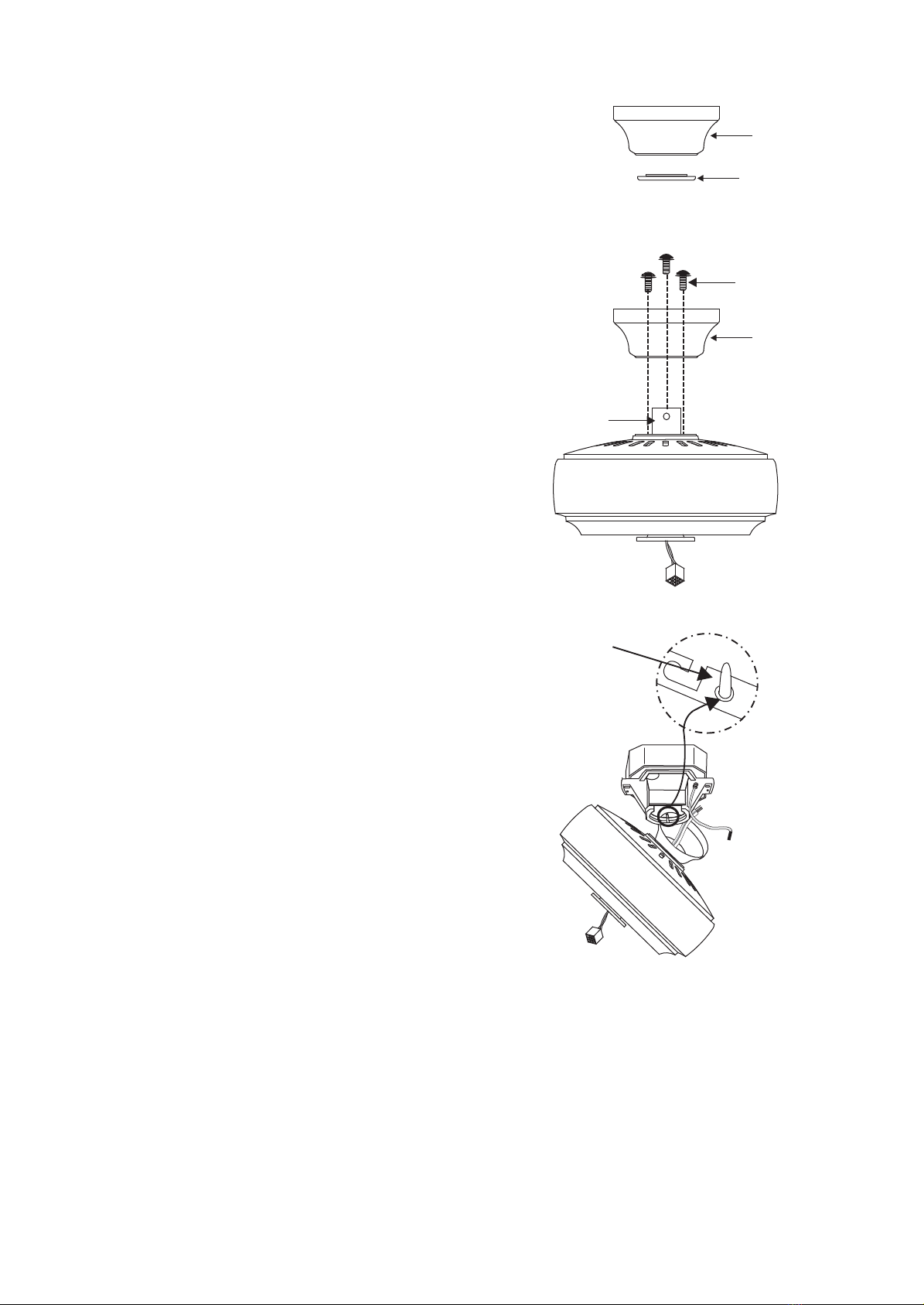

CLOSE-TO-CEILING INSTALLATION
1. Pass the 120-volt supply wires through
the center hole in the ceiling hanger
bracket as shown in Fig. 5.
2. Remove the decorative canopy cover
from the canopy. (Fig. 8)
3. Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box.
4. Remove three of the six screws and lock
washers (every other one) from the
collar of top motor. (Fig. 9)
5. Place the ceiling canopy over the collar
at the top of the motor. Align the
mounting holes with the holes in the
motor and fasten using the screws and
lock washers provided. (Fig. 9)
6. Tighten the mounting screws securely.
WARNING: Failure to completely tighten
the three screws in step 5 could result in
fan loosening and possibly falling.
7. Hang the fan on the hook of the hanger
bracket. Be certain that the canopy is
fully locked into hook as shown in Fig.
10. This will allow you to make the
electrical connections.
Figure 9
Figure 8
Figure 10
Canopy
Canopy
Decorative canopy
cover
Collar
Screw and lockwasher
(3 of 6 places)
Hook

6
6. INSTALLATION OF
SAFETY SUPPORT
An additional safety support is provided to
prevent the fan from falling. Secure the
safety cable to the ceiling joist with screw
and washer, as illustrated in Figure 11.
7. MAKE THE ELECTRIC
CONNECTIONS
Remember to disconnect the power.
Follow the steps below to connect the fan
to your household wiring. Use the wire
connecting nuts supplied with your fan.
Secure the connectors with electrical tape.
Make sure there are no loose strands or
connections.
Step 1. Connect the fan supply (black) wire
and light supply (blue) wire to the black
household supply wire as shown in Figure
12.
Step 2. Connect the neutral fan (white)
wire to the white neutral household wire.
Step 3. Connect the fan ground wire
(green) to the household ground wire.
Step 4. After connecting the wires, spread
them apart so that the green and white
wires are on one side of the outlet box and
the black and the blue wires are on the
other side.
Step 5. Turn the connecting nuts upward
and push the wiring into the outlet box.

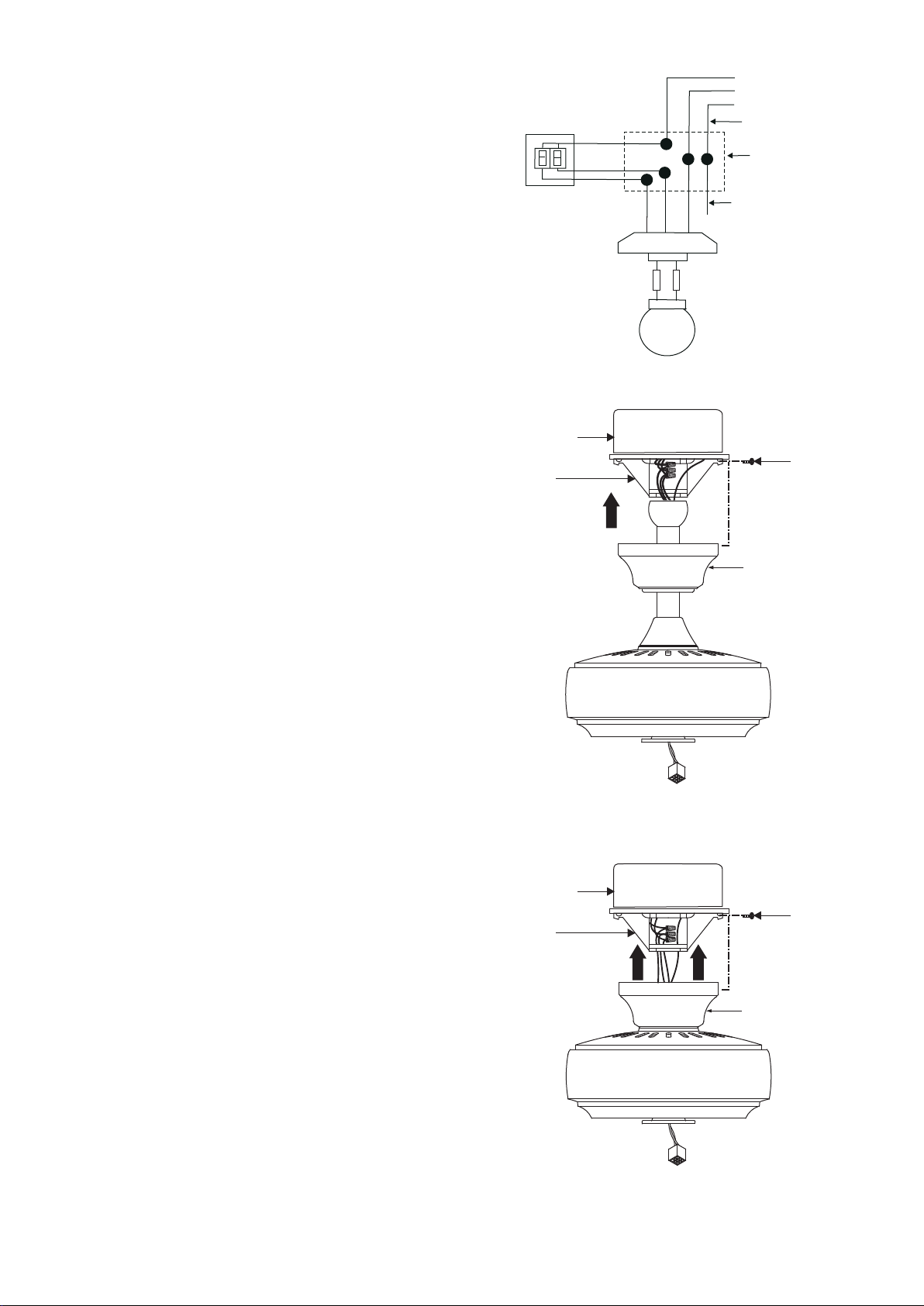

Figures 13 and 14 illustrate the wiring
connections for optional wall control. (The
wire color out of wall control may vary, see
wall control's installation manual for
correct wire connections.)
Hanger bracket Safety cable
Figure 11
Figure 12
Figure 13
BLK
WH
BLUE
BLK
WH
GRN
WIRING
BOX
WIRING
BOX
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
BLUE
BLK WH
WH
FAN
LIGHT
POWER LINES 120V
POWER LINES 120V
BLK
WH
BLUE
BLK
WH
FAN
LIGHT
BLK
BLUE WH
WH
LIGHT
SWITCH
GREEN GROUND
GREEN GROUND

7
8. FINISHING THE
INSTALLATION
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in
Figure 15. Make sure you place the wires
safely into the outlet box. Secure the
canopy to the hanger bracket with the four
screws with your fan.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the hook on the
hanger bracket. Secure the canopy to the
hanger bracket as shown in Figure 16 with
four screws included with your fan.
NOTE: LIGHT KITS ARE AVAILABLE AT YOU
SAVOY HOUSE RETAILER. THE FAN IS
ALREADY WIRED TO SUPPORT THE LIGHT
KIT OPTION.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY. MOUNT FAN ONLY ON AN OUTLET
BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.
Figure 14
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
POWER LINES 120V
GREEN
GROUND
WIRING
BOX
BLK
WH
BLUE
BLK
WH
FAN
LIGHT
WH
WH
BLUE
BLK
LIGHT FAN
Figure 15
Figure 16
Outlet box
Hanger
bracket
Screws
Outlet box
Hanger
bracket
Ceiling canopy
Screws
Ceiling canopy

8
9. ATTACHING THE FAN
BLADES
Caution: Remove 5 rubber packing
mounts and discard before installation.
Step 1. Attach the blade to the blade
bracket using the screws and rubber
washers as shown in Figure 17. Start screw
into bracket. Repeat for the two
remaining screws.
Step 2. Tighten each screw. Make sure
the blade is straight.
Step 3. Fasten blade assembly to motor
using the screws supplied. (Fig. 17)
Figure 18
Figure 17
10. INSTALLATING THE
MOUNTING PLATE
Step 1. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2
screws. (Do not remove)
Step 2. Place the key holes on the
mounting plate over the 2 screws
previously loosened from the mounting
ring, turn mounting plate until it locks in
place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one
previously removed. (Fig. 18)
Screws
Blade
Blade bracket
Screws
Rubber
washers
Mounting
plate
Mounting ring
Screws

9
11. INSTALLING THE
SWITCH HOUSING
NOTE: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at
fuse box. Turning power off using the fan
switch is not sufficient to prevent electric
shock.
Step 1. Remove the screws from the
mounting plate under the fan motor.

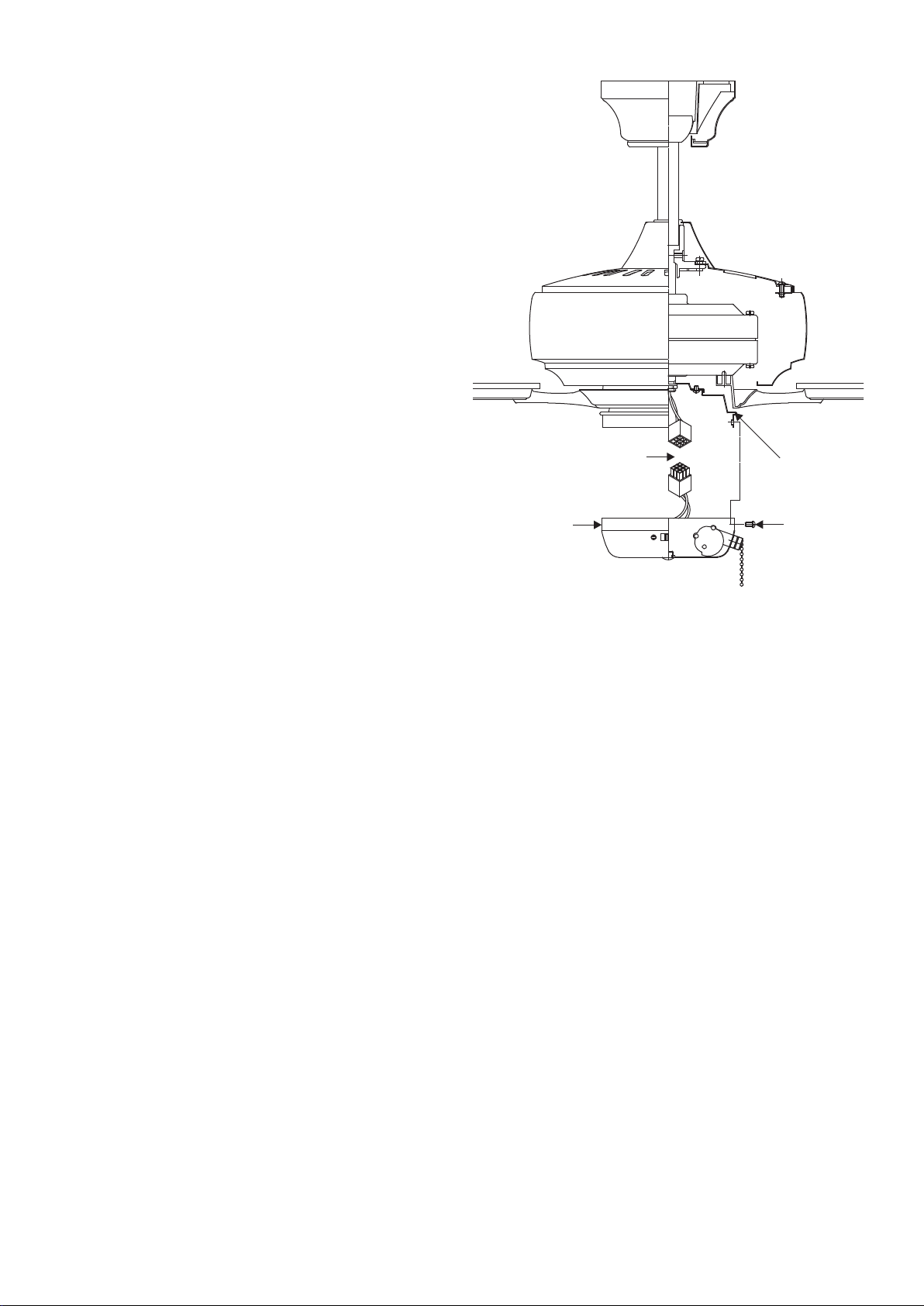

Step 2. While holding the switch housing
under your fan, snap together the wire
connection plug. (Figure 19)
Step 3. Raise the switch housing to the
mounting plate until the holes in switch
housing and mounting plate line up.
Reinsert screws to secure in place. (Figure
19)
Figure 19
Mounting plate
Connection plug
Screws
Switch housing

10
12. OPERATING YOUR FAN
NOTE: Wait for fan to stop before
changing the setting of the slide switch.
Turn on the power and check the
operation of your fan. The pull chain
controls the fan speed as follows: 1 pull-
High, 2 pulls-Medium, 3 pulls- Low, and 4
pulls-Off.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans and so on.
The slide switch controls directions:
forward (switch left) or reverse (switch
right)

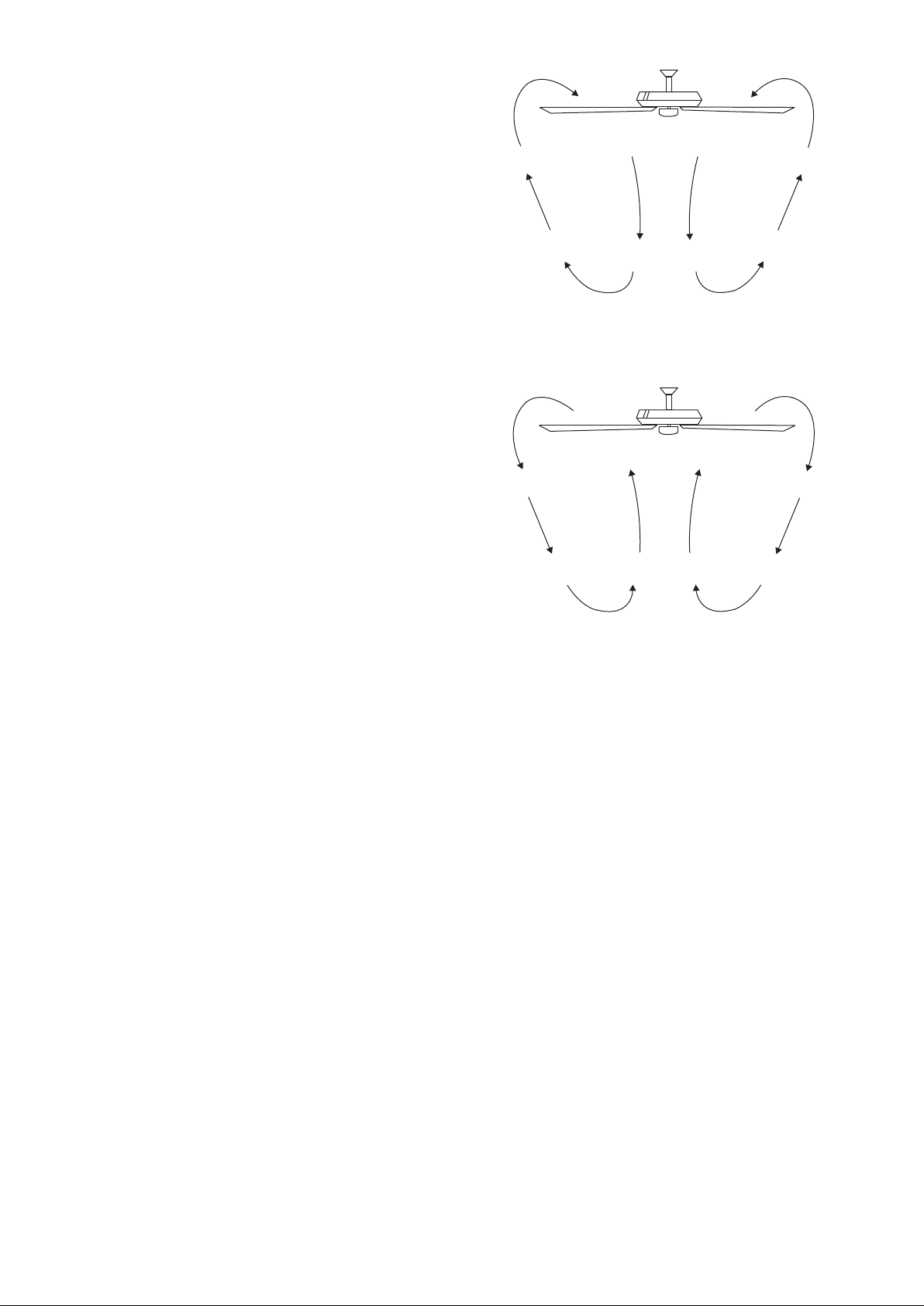

Warm weather - (Forward) A downward
airflow creates a cooling effect as
shown in Fig. 20. This allows you to set
your air conditioner on a warmer
setting without affecting your comfort.
Cool weather - (Reverse) An upward
airflow moves warm air off the ceiling
area as shown in Fig. 21. This allows you
to set your heating unit on a cooler
setting without affecting your comfort.
Figure 20
Figure 21

11
Problem
Fan will not start.
Fan sounds
noisy.
Solution
1.Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections
in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor
hub is tight.
3. Make sure wire nut connections are not rubbing against each other
or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a
new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the
glassware are tight. Check that light bulb is also secure.
6. Some fan motors are sensitive to signals from solid-state variable
speed controls. If you have installed this type of control, choose and
install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
13. TROUBLESHOOTING
