Savoy 52-854-5RV-234 User manual

READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
CUL LISTED MODEL : AG-962MC
MODEL: 52-854-5RV-234
52-854-5RV-CH
52-854-5RV-WH
CEILING FAN
OWNER'S MANUAL

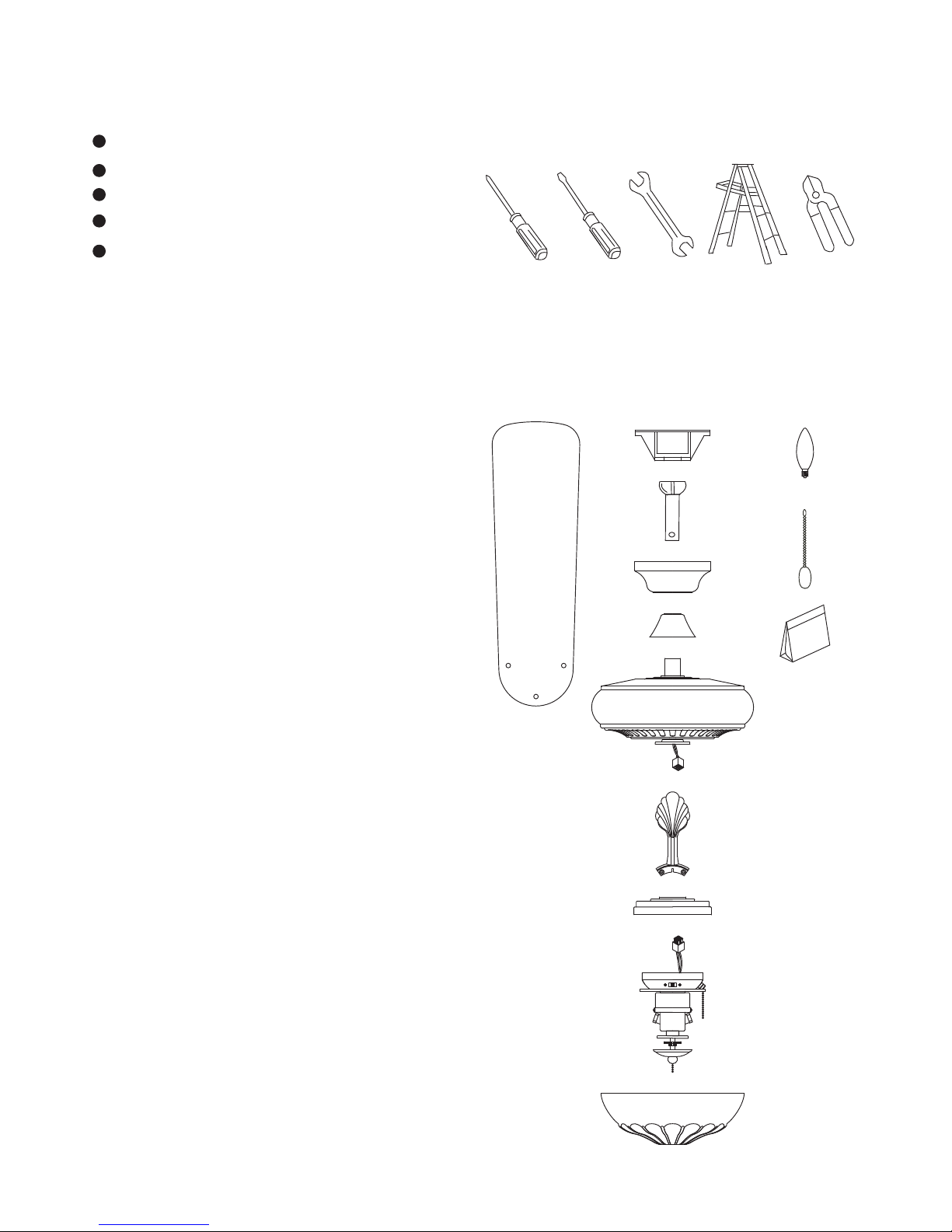

2. PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items;
a. Set of blades (5)
b. Hanger bracket
c. Downrod
d. Canopy
e. Coupling cover
f. Fan motor assembly
g. Set of blades bracket (5)
h. Mounting plate
i. Light kit
j. Glass shade
k. 60W candelabra bulbs (3)
l. Pull chains and fobs (2)
m. Package hardware
1) Mounting hardware :
screws (2), lock washers (2),
star washers (2), wire nuts (3)
wood screws (2), washers (2)
2) Blade attachment hardware:
screws (16), fiber washers (16)
3) Blade arm hardware:
screws with lock washers (11)
4) Safety cable hardware:
wood screw, lock washer,
metal washer
5) Extra plastic plug
6) Balance Kit
1
a
b
d
c
i
j
m
k
l
e
f
g
h
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1. TOOLS AND MATERIALS
REQUIRED

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections, spliced
conductors should be turned upward and
pushed carefully up into outlet box. The
wires should be spread apart with the
grounded conductor and the equipment-
grounding conductor on one side of the
outlet box.
12. Electrical diagrams are reference only. Light
kit that are not packed with the fan must be
CUL Listed and marked suitable for use with
the model fan you are installing. Switches
must be CUL General Use Switches. Refer to
the Instructions packaged with the light kits
and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.
ATTENTION
Under the Energy Policy Act of 2005,
federal regulations require all ceiling fans
with light kits manufactured or imported
after January 1, 2009, to limit the total
wattage consumed by the light kit to 190
watts. Therefore, this product is equipped
with a 190W limiting device. If lamping
exceeds 190 watts, the light kit will shut
off automatically until the proper wattage
of bulbs are installed. Reset the light kit by
turning it off, replacing the bulbs with the
correct wattage, and then turning the
light kit back on.

4. MOUNTING OPTIONS
If there isn't an existing CUL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able to
fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet
boxes.

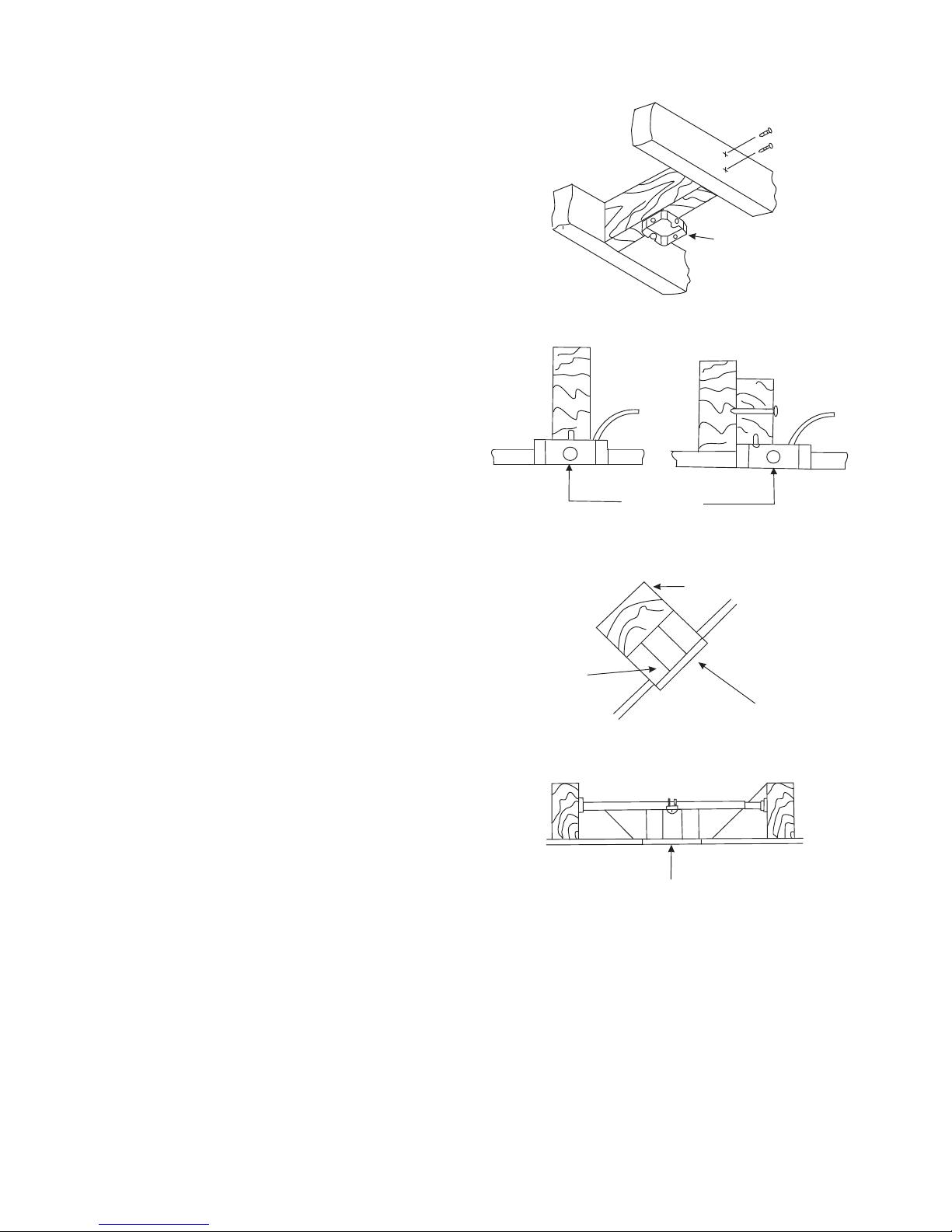

Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar as shown in
Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3
ANGLED CEILING
MAXIMUM 20° ANGLE

4
Figure 6
Figure 7
Registration slot
5. HANGING THE FAN
Figure 5
Downrod
Canopy
Coupling cover Set screws
Lock pin
Hitch pin
Tab
Mounting screws
(supplied with
electrical box)
CUL Listed
electrical box
Hanger
bracket
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; the standard
ceiling installation using the downrod with
ball and socket mounting and the "close-
to- ceiling" installation. The "close- to-
ceiling" installation is recommended in
rooms with less than 8-feet ceilings or in
areas where additional space is desired
from the floor to the fan blades.
STANDARD CEILING INSTALLATION
Step 1. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket as shown in Fig. 5.
Step 2. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 3. Remove the canopy ring from the
canopy. (Fig. 6)
Step 4. Remove the hitch pin, lock pin and
set screws from the top of the motor
assembly.
Step 5. Route wires exiting from the top of
the fan motor through the coupling cover
and canopy and then through the ball/
downrod. (Fig. 6)
Step 6. Align the holes at the bottom of
the downrod with the holes in the collar on
top of the motor housing (Fig.6). Carefully
insert the hitch pin through the holes in
the collar and downrod. Be careful not to
jam the pin against the wiring inside the
downrod. Insert the locking pin through
the hole near the end of the hitch pin until
it snaps into its locked position, as noted in
the circle inset of Fig. 6.
Step 7. Tighten two set screws on top of
the fan motor firmly. (Fig. 6)
Step 8. Place the downrod ball into the
hanger bracket socket. (Fig. 7)

5
Figure 8
Figure 9
Figure 10
Canopy
Collar
Screw and lockwasher
(3 of 6 places)
Canopy
CLOSE-TO-CEILING INSTALLATION
1. Remove the decorative canopy bottom
cover from the canopy by depressing
the three studs. (Fig. 8)
2. Pass the 120-volt supply wires through
the center hole in the ceiling hanger
bracket as shown in Fig. 5.
3. Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box.
4. Tighten the two screws on the outlet
box securely.
5. Remove three of the six screws and lock
washers (every other one) from the
collar of top motor. (Fig. 9)
6. Place the ceiling canopy over the collar
at the top of the motor. Align the
mounting holes with the holes in the
motor and fasten using the screws and
lock washers provided. (Fig. 9)
7. Tighten the mounting screws securely.
(Fig. 9)
WARNING: Failure to completely tighten
the three screws in step 6 could result in
fan loosening and possibly falling.
8. Hang the fan on the hook of the hanger
bracket. Be certain that the canopy is
fully locked into hook as shown in Fig.
10. This will allow you to make the
electrical connections.
Canopy bottom cover
Hook

6
6. INSTALLATION OF
SAFETY SUPPORT
An additional safety support is provided to
prevent the fan from falling. Secure the
safety cable to the ceiling joist with screw
and washer, as illustrated in Figure 11.
7. MAKE THE ELECTRIC
CONNECTIONS
Remember to disconnect the power.
Follow the steps below to connect the fan
to your household wiring. Use the wire
connecting nuts supplied with your fan.
Secure the connectors with electrical tape.
Make sure there are no loose strands or
connections.
Step 1. Connect the fan supply (black) wire
and light supply (blue) wire to the black
household supply wire as shown in Figure
12.
Step 2. Connect the neutral fan (white)
wire to the white neutral household wire.
Step 3. Connect the fan ground wire
(green) to the household ground wire.
Step 4. After connecting the wires, spread
them apart so that the green and white
wires are on one side of the outlet box and
the black and the blue wires are on the
other side.
Step 5. Turn the connecting nuts upward
and push the wiring into the outlet box.

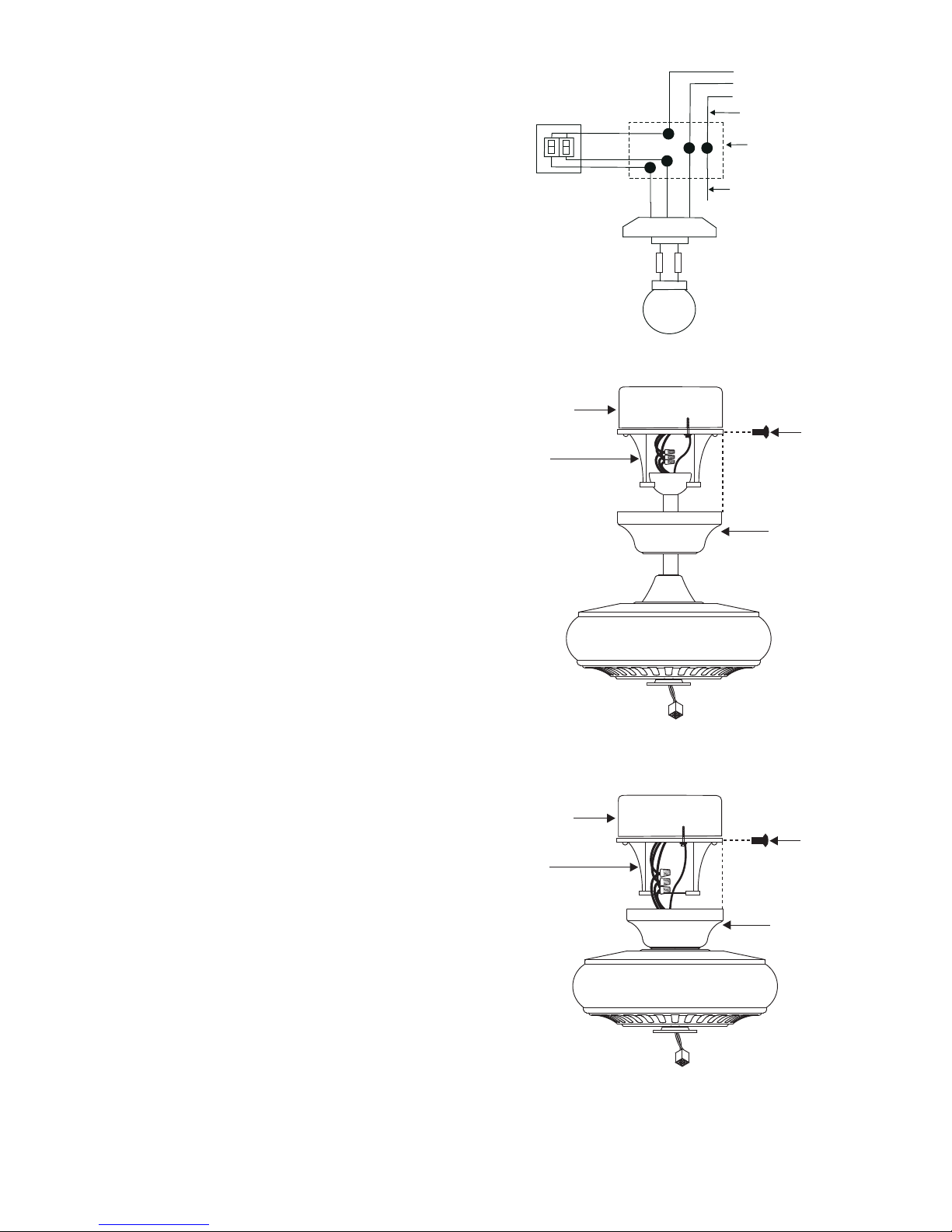

Figures 13 and 14 illustrate the wiring
connections for optional wall control. (The
wire color out of wall control may vary, see
wall control's installation manual for
correct wire connections.)
Hanger bracket Safety cable
Figure 11
Figure 12
Figure 13
BLK
WH
BLUE
BLK
WH
GRN
WIRING
BOX
WIRING
BOX
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
BLUE
BLK WH
WH
FAN
LIGHT
POWER LINES 120V
POWER LINES 120V
BLK
WH
BLUE
BLK
WH
FAN
LIGHT
BLK
BLUE WH
WH
LIGHT
SWITCH
GREEN GROUND
GREEN GROUND

7
Figure 16
NOTE: LIGHT KITS ARE AVAILABLE AT YOU
SAVOY HOUSE RETAILER. THE FAN IS
ALREADY WIRED TO SUPPORT THE LIGHT
KIT OPTION.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY. MOUNT FAN ONLY ON AN OUTLET
BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.
Figure 14
Figure 15
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
POWER LINES 120V
GREEN
GROUND
WIRING
BOX
BLK
WH
BLUE
BLK
WH
FAN
LIGHT
WH
WH
BLUE
BLK
LIGHT FAN
8. FINISHING THE
INSTALLATION
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in
Figure 15. Make sure you place the wires
safely into the outlet box. Secure the
canopy to the hanger bracket with the
four screws with your fan.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the hook on the
hanger bracket. Secure the canopy to the
hanger bracket as shown in Figure 16 with
four screws included with your fan.
Outlet box
Hanger
bracket
Canopy
Screws
Outlet box
Hanger
bracket
Canopy
Screws

8
9. ATTACHING THE FAN
BLADES
Caution: Remove 5 rubber packing mounts
and discard before installation.
Step 1. Attach the blade to the blade
bracket using the screws and fiber washers
as shown in Figure 17. Start screw into
bracket. Repeat for the two remaining
screws.
Step 2. Tighten each screw. Make sure the
blade is straight.
Step 3. Fasten blade assembly to motor
using the screws supplied. (Fig. 17)
Figure 17
Figure 18
10. INSTALLATING THE
MOUNTING PLATE
1. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2
screws. (Do not remove)
2. Place the key holes on the mounting
plate over the 2 screws previously
loosened from the mounting ring, turn
mounting plate until it locks in place at
the narrow section of the key holes.
Secure by tightening the 2 screws
previously loosened and the one
previously removed. (Figure 18)
Screws Blade
Blades bracket
Screws
Fiber
washers
Mounting
plate
Mounting ring
Screws

12. INSTALLING THE LIGHT
BULBS & GLASS SHADE
1. Install 3 x 60W candelabra bulbs
(provided). (Fig. 20)
2. Remove the decorative nut, glass cap and
metal nut from the light kit. Place glass
shade over the light kit stem, secure with
the metal nut (rubber side on the top)glass
cap and decorative nut. Do not overtighten.
Secure tightly the glass frame and
decorative nut. (Fig. 20)
3. Insert the 2 pull chain through the eyelet
in the shade and cap. (Fig. 20)
4. Restore power and your light kit is ready
for operation.
9

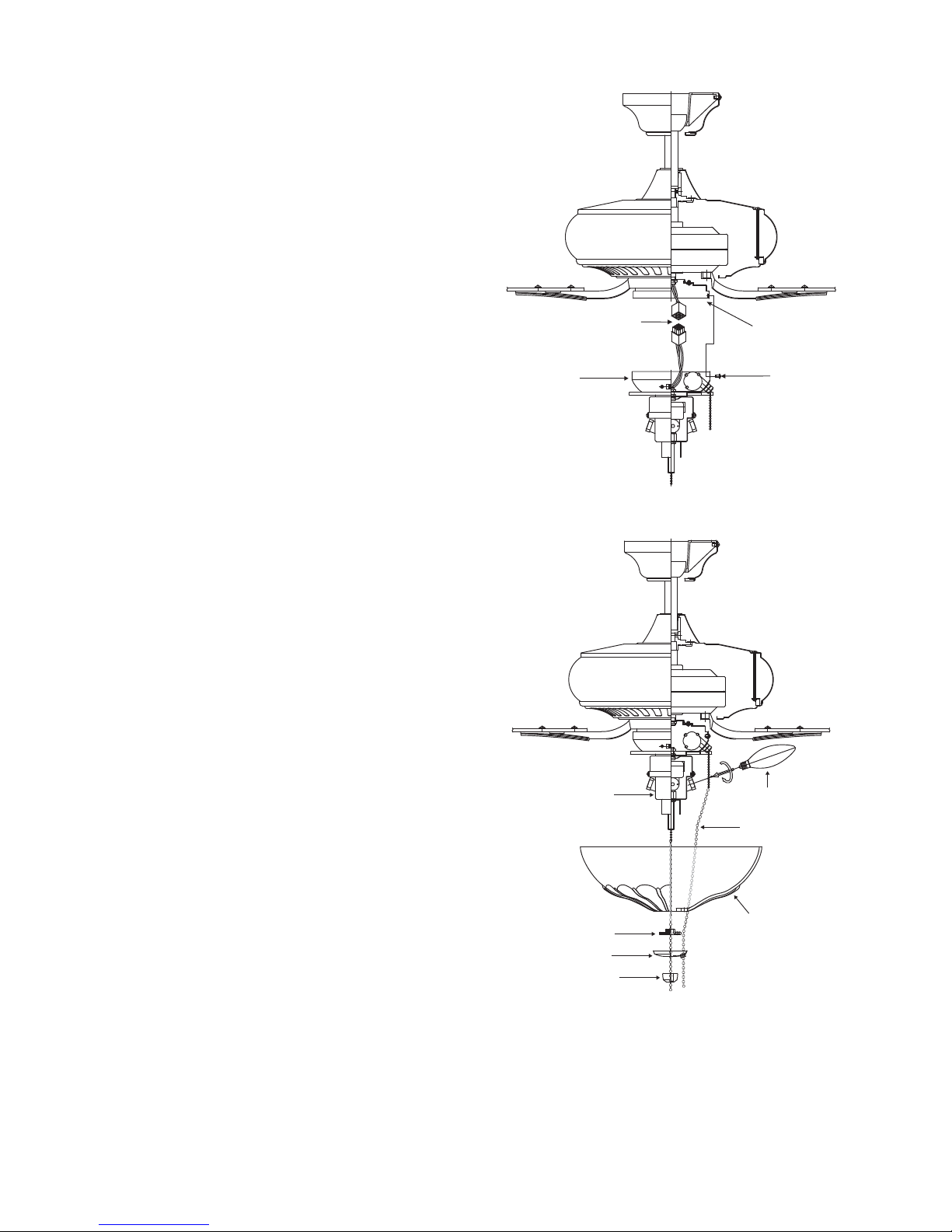

Figure 19
Figure 20
11. INSTALLING THE LIGHT
KIT
NOTE: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at fuse
box.
Step 1. Remove the 3 screws from the
mounting plate.
Step 2. While holding the light kit under
your fan, snap together the wire
connection plug. (Fig. 19)
Step 3. Install the light kit onto the
mountimg plate with 3 screws provided.
Be sure to tighten all screws. (Fig. 19)
Pull chain
Light kit Bulbs
Glass shade
Metal nut
Glass cap
Decorative nut
Mounting plate
Connection plugs
Light kit
assembly
Screws

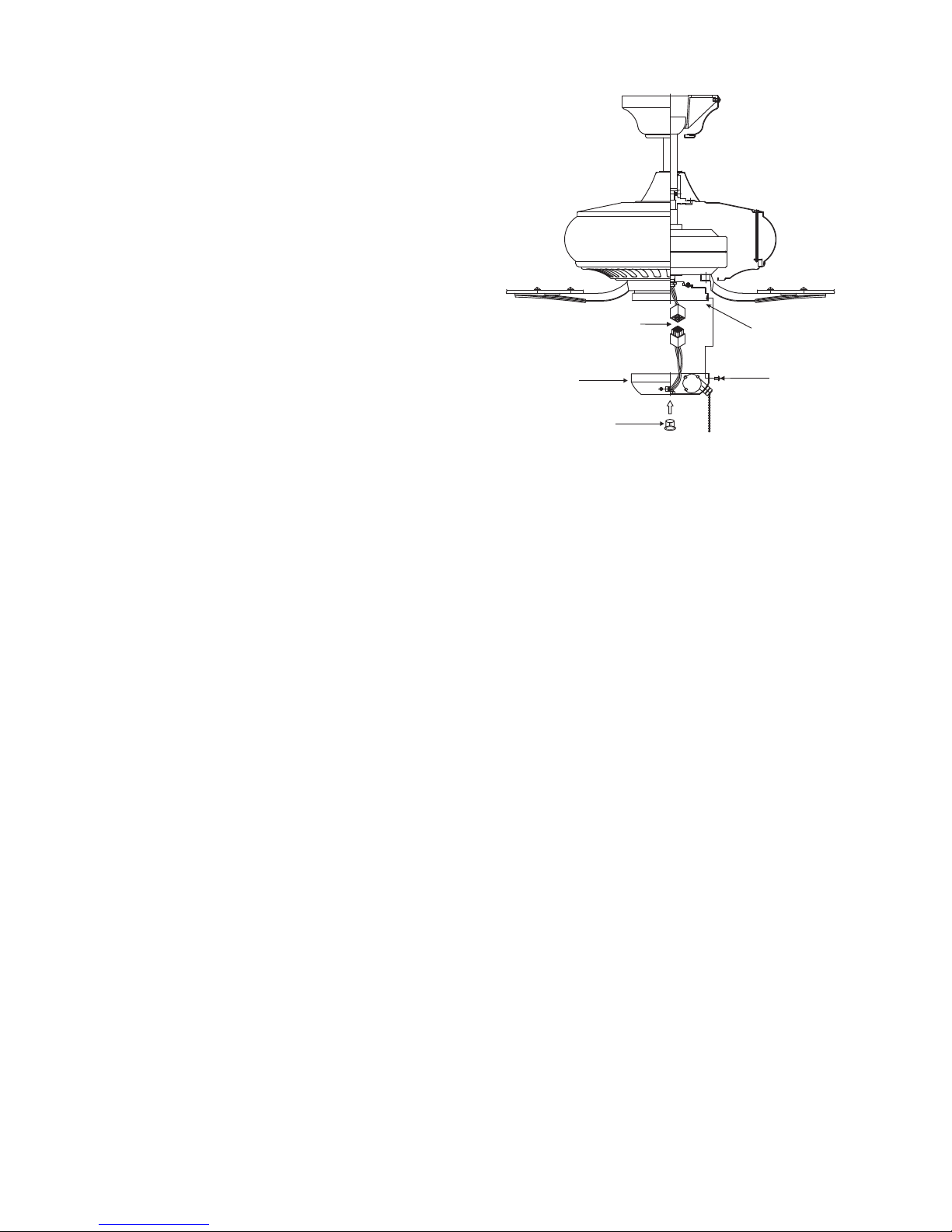

Figure 21
10
13. FAN WITHOUT LIGHT
KIT (OPTIONAL)
1. Disassemble the switch housing from
the light kit by removing nut and washer
on the center of switch housing, you can
keep the light kit for future use.
2. Attach the plastic plug to the switch
housing. (Fig. 21)
3. Raise and hold the switch housing close
to the ceiling fan and connect the
connection plugs from the switch housing
and fan. (Fig. 21)
4. Install the switch housing to the
mounting plate with screws provided. (Fig.
21)
Mounting plate
Connection plugs
Switch housing
Switch plug
Screws

11
Figure 22
Figure 23
14. OPERATING YOUR FAN
NOTE: Wait for fan to stop before
changing the setting of the slide switch.
Turn on the power and check the
operation of your fan. The pull chain
controls the fan speed as follows: 1 pull-
High, 2 pulls-Medium, 3 pulls- Low, and 4
pulls-Off.
Light pull chain it controls the light in "ON"
or "OFF".
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans and so on.
The slide switch controls directions:
forward (switch left) or reverse (switch
right)
Warm weather - (Forward) A downward
airflow creates a cooling effect as shown in
Fig. 22. This allows you to set your air
conditioner on a warmer setting without
affecting your comfort.
Cool weather - (Reverse) An upward
airflow moves warm air off the ceiling area
as shown in Fig. 23. This allows you to set
your heating unit on a cooler setting
without affecting your comfort.

12
15. TROUBLESHOOTING
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in
the switch housing. CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor
hub is tight.
3. Make sure wire nut connections are not rubbing against each other or
the interior wall of the switch housing. CAUTION: Make sure main
power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a
new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
6. Do not connect the fan with a wall mounted variable speed control (s).
7. Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are
unequal. Check this level by selecting a point on the ceiling above the
tip of one of the blades. Measure this distance. Rotate the fan until the
next blade is positioned for measurement. Repeat for each blade. The
distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side
by side) blades can redistribute the weight and possibly result in
smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
1. This unit is equipped with a wattage limiting device. Lamping in
excess of 190 watts will disable your ceiling fan's light kit. To reset your
light kit you must turn the power off and re lamp, keeping the
wattage under 190 watts. Restore power to your ceiling fan and
continue normal operation.
Problem
Fan will not start.
Fan sounds
noisy.
Fan wobble.
Lights shut off
and will not
come back on.
