SBP Sherwood User manual

Assembly Instructions - the Sherwood page: 1
Assembly instructions
Version: February 2022
User manual / Assembly instructions
Deponti Veranda
Type Nebbiolo
Version: EN –February 2022
www.deponti.com
www.sbpuk.info

Assembly Instructions - the Sherwood page: 2
Contents
1. Introduction 3
2. Safety precautions and warnings 3
3. Product description 5
4. Parts overview 6
4.1 Exploded view 6
4.2 Delivery inspection 6
4.3 Parts list 7
5. Preparation for assembly 9
5.1 Conditions for assembly 9

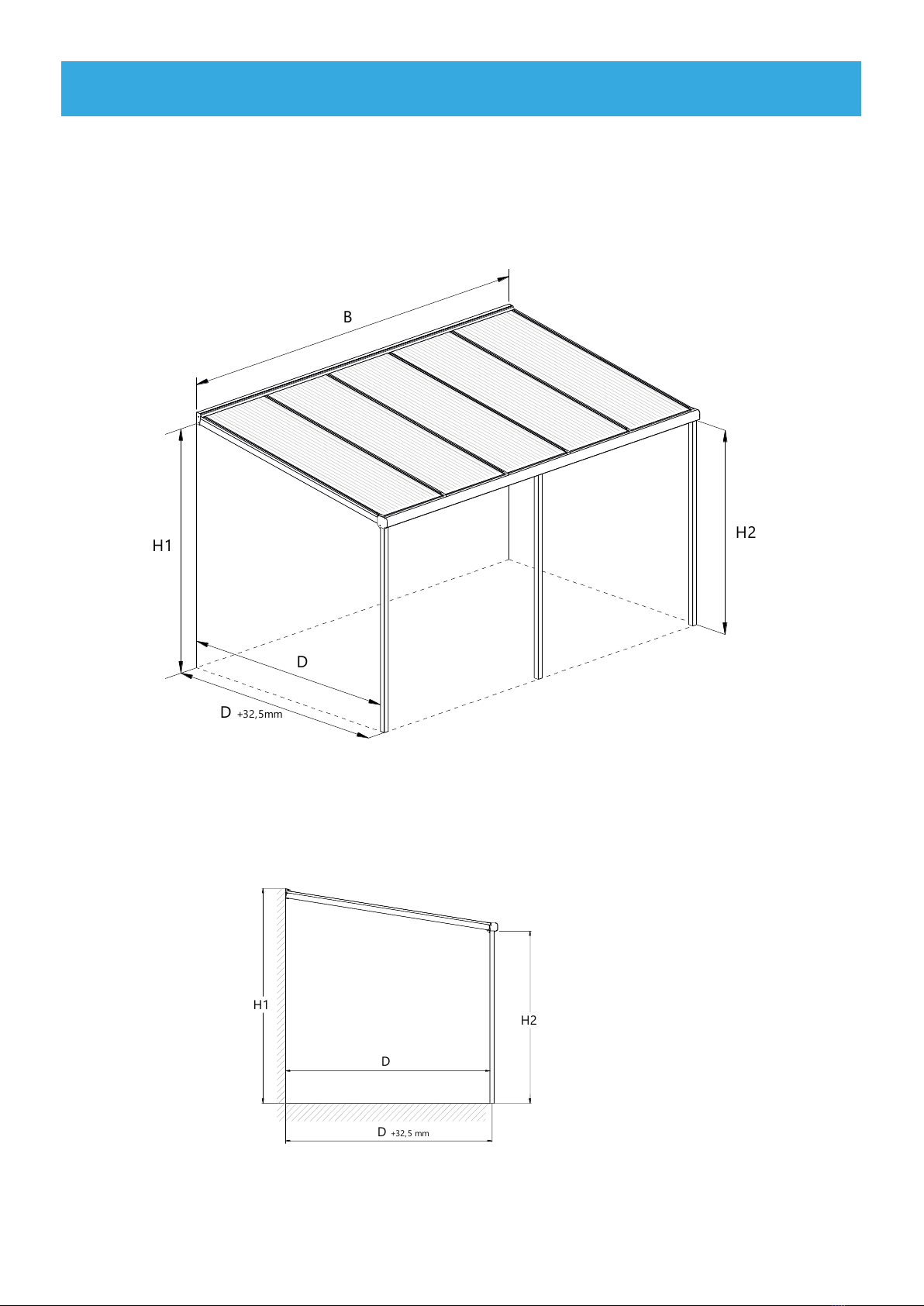

5.2 Measuring & determining dimensions 11
5.2.1 Height adjustments 12
5.2.2 Roof length 12
5.2.3 Roof width 13
6. Assembly 14

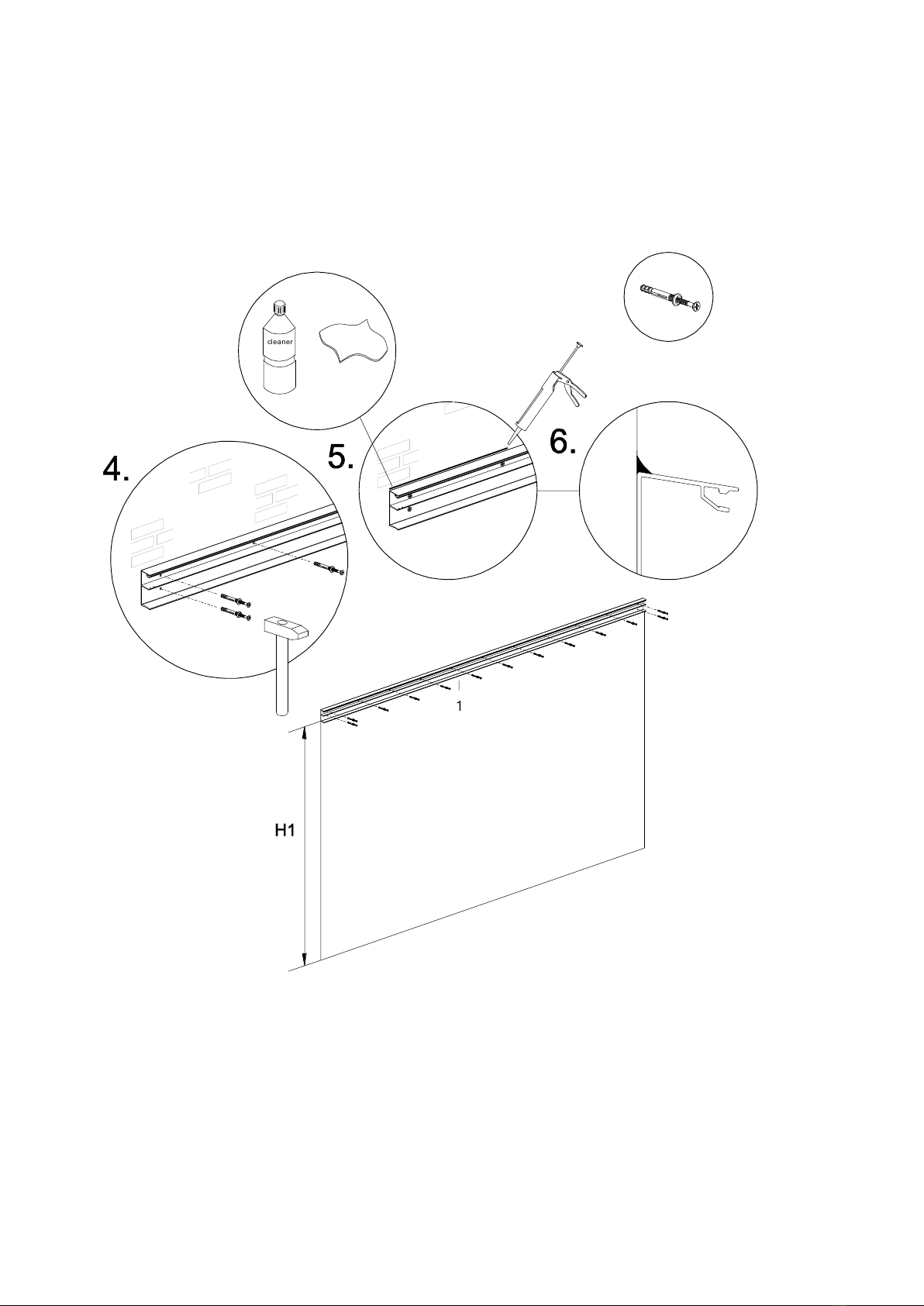

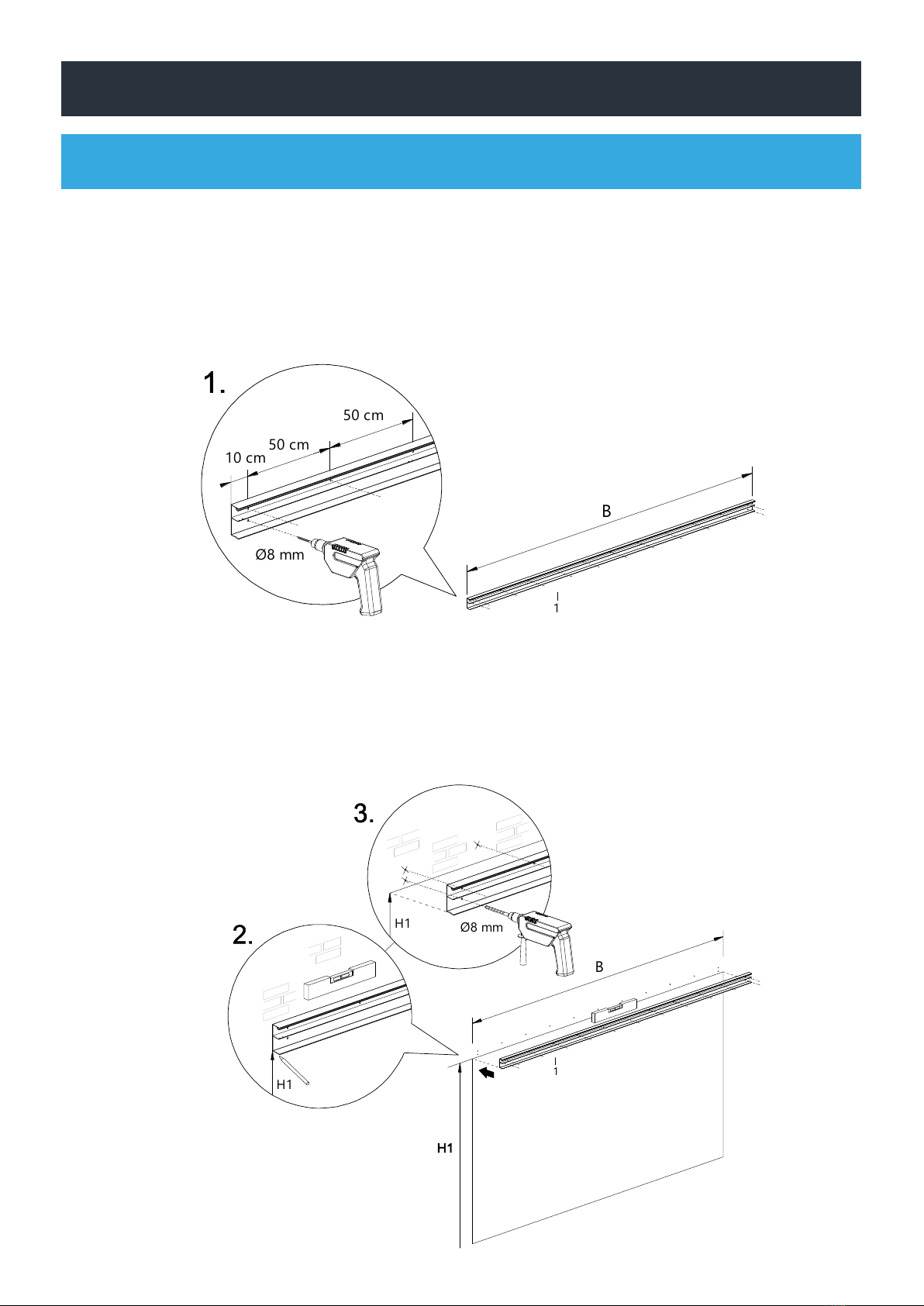

 6.1 Mountingthewallprole 14

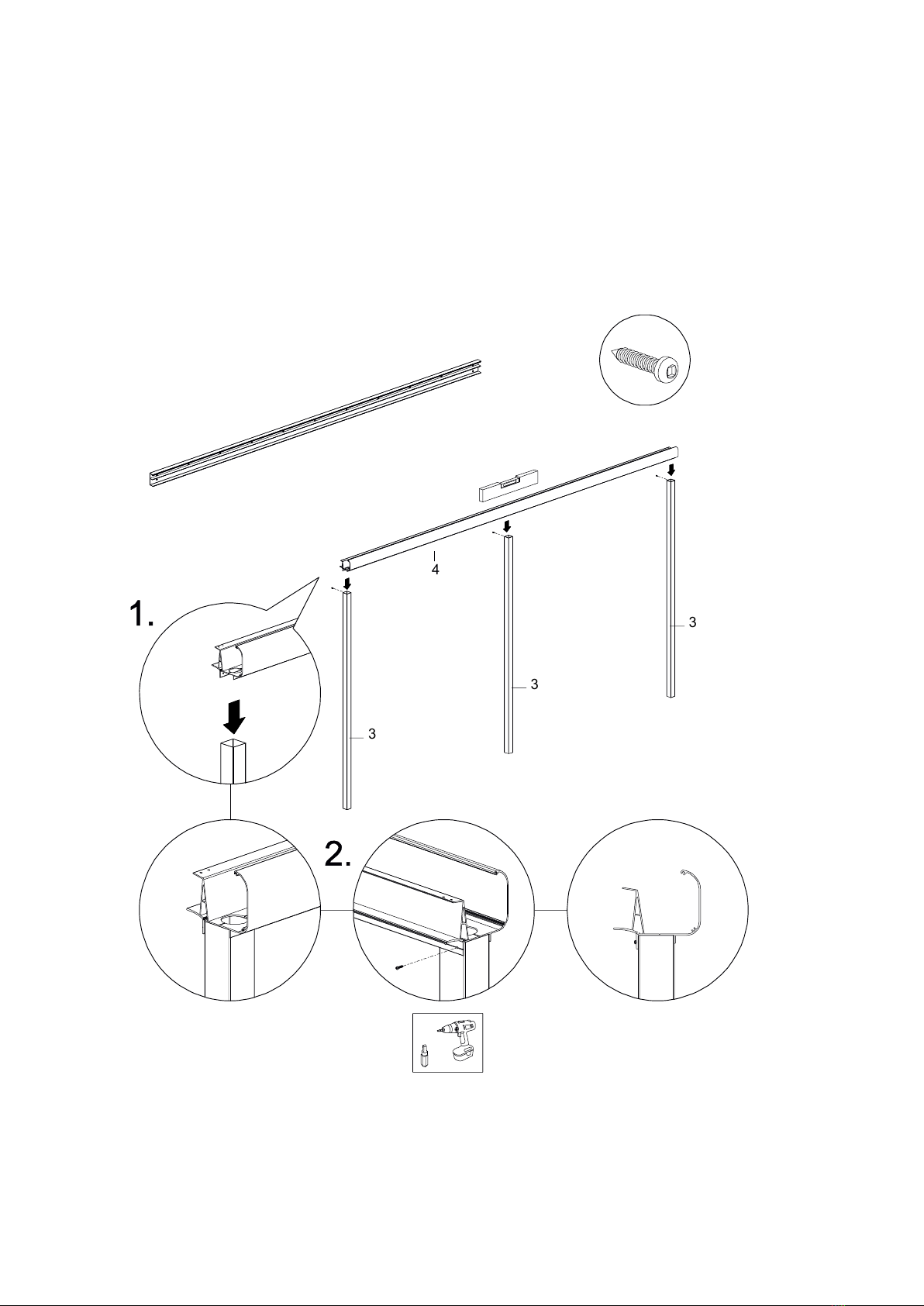

6.2 Installing posts, gutter and end beams 16
6.2.1 Installing posts 16

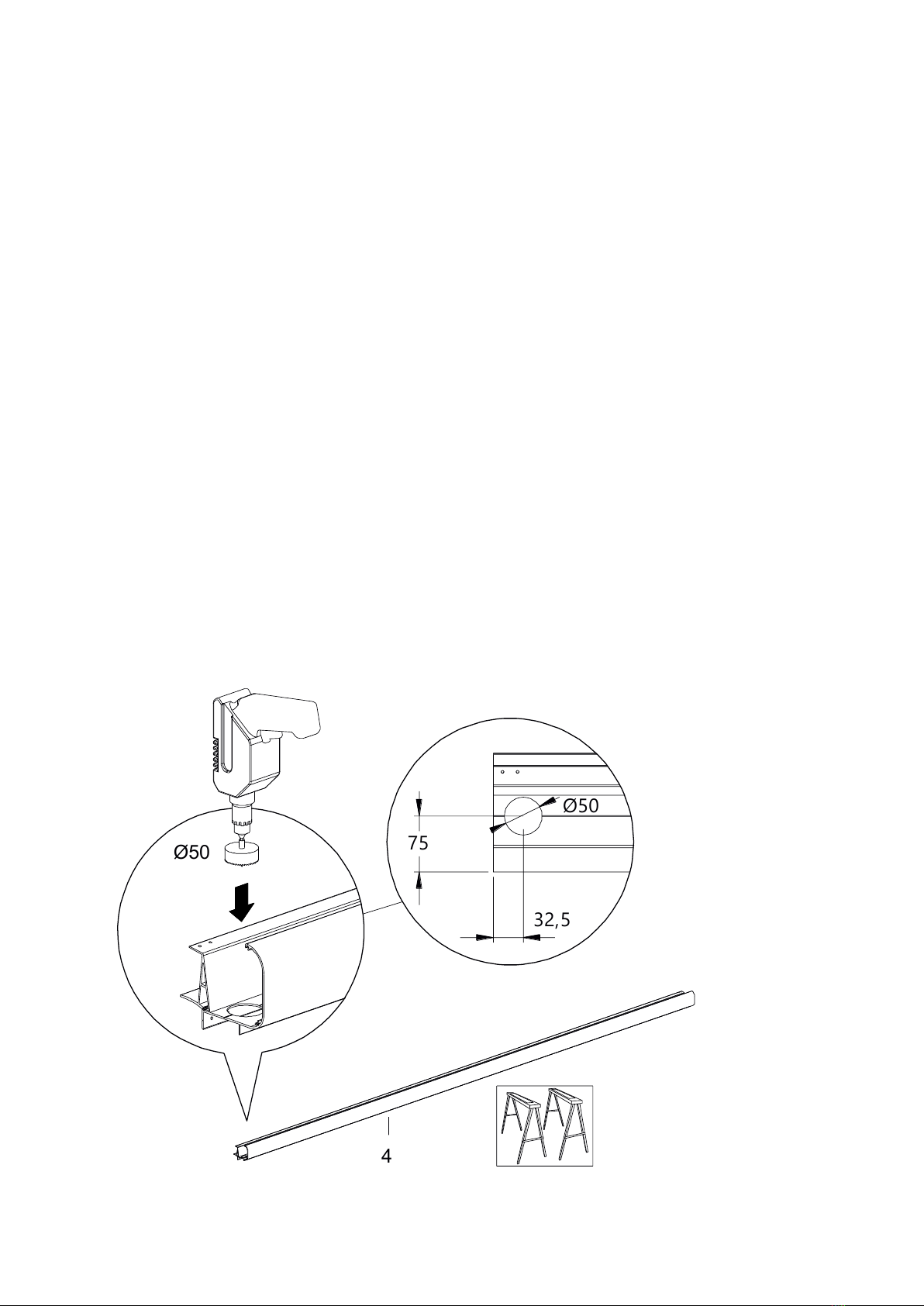

6.2.2 Pre-drilling the gutter (option) 18
6.2.3 Installing the gutter 19
6.2.4 Installing the end beams 20
6.4 Installing the middle beams 22
 6.5 Preparingandinstallingtheroongsheets 24
6.6 Finishing 28
7. Maintenance 32
8. Disposal of waste 32
9. Warranty conditions 32
10. Contact 32
KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE USE!
We also refer you to our General Terms and Conditions of Sale and Delivery which are available on request.
We accept no liability for any damage or injury resulting from a failure to carefully follow the instructions in this
manual or exercise due caution during transport, assembly, use and maintenance of the canopy. As a result of
our policy of continuous product improvement, certain product details may differ from what is described in this
manual. For this reason the instructions provided only serve as a guideline for installation of the product this
manual describes. This manual has been compiled with the utmost care, but we cannot be held responsible for
any errors in this manual or the consequences thereof. Furthermore, all rights are reserved and no part of this
manual may be reproduced in any way whatsoever.
Contents

Assembly Instructions - the Sherwood page: 3
Congratulations on the purchase of your canopy!
Before you can start enjoying your canopy it must be assembled properly. This manual provides clear instructions
for all the steps you must complete for correct assembly of your canopy. We recommend that you take the time
to read the entire manual before you begin assembly. Check whether you have received all the necessary parts
before you begin assembly. For your safety, follow all the applicable instructions. This also guarantees the safety
of the installed roof. If you should have any questions, please feel free to contact us.
This manual should be kept in a safe, dry and shady place. In the event of damage or loss, the user should obtain
another copy.
Important:
Please read the safety precautions and warnings before assembling the canopy.
• During assembly, carefully follow the instructions and guidelines as described in this
manual. Never change the order of the steps to be performed. If any aspect of the
assembly procedure is unclear, please contact us. We reserve the right to make technical
changes without written notice.
• We normally recommend that the canopy must be assembled by at least two people
(qualiedtechnicians/authorizedinstallers)workingtogether.
• Check the delivery immediately upon receipt. In the event of damage or an incomplete
delivery please contact us immediately.
• The materials must be stored in a dry, ventilated area, not exposed to direct sunlight.
• Open the packaging carefully. Make sure that you do not damage the product.
• To prevent damage to your canopy, place the parts on a smooth, clean surface. Place the
prolesonaatsurface,protectedfromsunandrain.
• Adding or removing parts, the use or installation of materials other than described in
this manual, may adversely affect the safety of the canopy and is therefore strongly
discouraged!
• Cordon off the assembly location so that others are kept at a safe distance.
 • Alwaysplacealadderonarm,stablesurface.
• Always wear the correct protective clothing (work gloves, dust mask, safety glasses, shoes
with non-slip soles, etc.) during installation or servicing.
 • Mountthesystemagainstarm,atwallandonaatandstablefoundation.Ensurethat
the wall and the ground are clean and dry.
1 Introduction
2. Safety precautions and warnings
!
!

Assembly Instructions - the Sherwood page: 4
• Never stand on the polycarbonate sheets. The polycarbonate sheets are strong, but
insufcientlyresistanttopointloads.Donotwalkonthem!
• Make sure all fasteners are properly tightened. Check this regularly.
• Make sure you have used sealant on the canopy so it is completely waterproof.
• You must maintain and clean your canopy at least once a year. During this yearly
maintenance make sure all fasteners are properly tightened.
 • Ensurethatyouconsultasuitablyqualiedgasengineerifyouareplacingthecanopynear
oraboveaboileruepoint.
2. Safety precautions and warnings
!

Assembly Instructions - the Sherwood page: 5
ThealuminiumcanopytypeSherwoodiscomposedofposts,gutterprole,wallprole,beams,polycarbonate
roongsheets,coverstripsandthenecessaryassemblymaterials.
The Sherwood canopy is available as standard in widths of 4045, 5045 or 6045 as a single section. The roof can
have a projection of 2500, 3000 or 3500mm.
Details
Colours RAL9001/RAL7024
Gutter standard half-round
Posts Square (65x65mm)
Roofcovering Polycarbonate(Opal/Clear/Ultra-clear/Solarcontrol)
Width(mm) 4045/5045/6045
Projection(mm) 2500/3000/3500
ASherwoodcanopycanbeinstalledonanyexistingfoundationorstonesurfacewitheachpostbeingxedtothe
ground using base plates which are then attached to the base of the posts.
Note: The type of fastener to be used for ground attachment depends on the type of surface (steel, concrete or
wood). Which types of fasteners are to be used must be determined by the installer, so fasteners are not included.
Rainwater discharge
TherearetwomethodstodischargerainwaterfromthegutteroftheSherwoodcanopy.Therstmethodisto
simply drill one or more holes at the position where one or several of the posts meet the gutter. The post(s) then
serve as rainwater discharge pipe and one or several holes can be drilled to the base of the post(s) to allow
rainwater to escape.
The second & preferred method is to use the downpipe outlet. This is inserted into a hole in the gutter where
youwishtotadownpipeunderneath,sealedtothebottomofthegutterandthenadownpipeisttedto
theundersideandledtoasuitabledrainagepoint.Ifabracketcannotbexedwithintherst300mmofthe
downpiperunthenwerecommendeithergluingthedownpipetotheundersideoftheoutletangeorxing
withascrewthroughthedownpipeintotheange.
3. Product description

Assembly Instructions - the Sherwood page: 6
The canopy shown in this manual is a 5x3 metre Sherwood. This merely serves as an example. The type and
number of components supplied depends on your order.
Note: Always carefully check the delivered items to ensure that the quantity and quality are correct. Any visible
defects must be reported within 24 hours of delivery.
4. Parts Overview
4.1 Exploded view
4.2 Delivery Inspection

Assembly Instructions - the Sherwood page: 7
4.3 Parts list
04. Gutter
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
01.Wallprole
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
03. Post square
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
06. End rafter
1x sealing rubber
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
06A. Middle rafter
2x sealing rubber
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
08. Condensation
prole
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
12.Wallprole
rubber
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
09. End cover strip
1x sealing rubber
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
10. Top cover strip
2x sealing rubber
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
13. Side cover
wallprole
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
02. Base plate
(option)
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x
sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
11. Sheet stopper
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)
05. Leaf catcher
50mm
www.deponti.com Assembly Manual –Nebbiolo Veranda page
8
XX
08. Polycarbonate
Sheet 980 mm
09. Anti-dust tape
(Perforated)
17. 2x Side cover
gutter profile
1x bag of screws
short 4.2x16 + bit
1x bag of screws
long 4.2x40
1x set frame fixing
screws
06. Leaf catcher
50mm
1x coloured sealant
07. Polycarbonate
Sheet 980 mm
www.deponti.com Assembly Manual –Nebbiolo Veranda page
8
XX
08. Polycarbonate
Sheet 980 mm
09. Anti-dust tape
(Perforated)
17. 2x Side cover
gutter profile
1x bag of screws
short 4.2x16 + bit
1x bag of screws
long 4.2x40
1x set frame fixing
screws
06. Leaf catcher
50mm
1x coloured sealant
14. Side cover
gutterprole
www.deponti.com Assembly Manual –Nebbiolo Veranda page
8
XX
08. Polycarbonate
Sheet 980 mm
09. Anti-dust tape
(Perforated)
17. 2x Side cover
gutter profile
1x bag of screws
short 4.2x16 + bit
1x bag of screws
long 4.2x40
1x set frame fixing
screws
06. Leaf catcher
50mm
1x coloured sealant

Assembly Instructions - the Sherwood page: 8
4.3 Parts list
1x bag of screws
long 4.2x40
1x coloured
sealant
1x bag of screws
short 4.2x16 + bit
1xsetframexing
screws
www.deponti.com Assembly Manual –Nebbiolo Veranda page
8
XX
08. Polycarbonate
Sheet 980 mm
09. Anti-dust tape
(Perforated)
17. 2x Side cover
gutter profile
1x bag of screws
short 4.2x16 + bit
1x bag of screws
long 4.2x40
1x set frame fixing
screws
06. Leaf catcher
50mm
1x coloured sealant
www.deponti.com Assembly Manual –Nebbiolo Veranda page
8
XX
08. Polycarbonate
Sheet 980 mm
09. Anti-dust tape
(Perforated)
17. 2x Side cover
gutter profile
1x bag of screws
short 4.2x16 + bit
1x bag of screws
long 4.2x40
1x set frame fixing
screws
06. Leaf catcher
50mm
1x coloured sealant
www.deponti.com Assembly Manual –Nebbiolo Veranda page
8
XX
08. Polycarbonate
Sheet 980 mm
09. Anti-dust tape
(Perforated)
17. 2x Side cover
gutter profile
1x bag of screws
short 4.2x16 + bit
1x bag of screws
long 4.2x40
1x set frame fixing
screws
06. Leaf catcher
50mm
1x coloured sealant
www.deponti.com Assembly Manual –Nebbiolo Veranda page
8
XX
08. Polycarbonate
Sheet 980 mm
09. Anti-dust tape
(Perforated)
17. 2x Side cover
gutter profile
1x bag of screws
short 4.2x16 + bit
1x bag of screws
long 4.2x40
1x set frame fixing
screws
06. Leaf catcher
50mm
1x coloured sealant
Rainwater discharge
pipe 60 mm
www.deponti.com Assembly Manual –Nebbiolo Veranda page
7
4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x
sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)

Assembly Instructions - the Sherwood page: 9
• Note: The optimal processing temperature for the sealant is +5 °C to +40 °C.
Ground & façade
 • Agoodatstablesurfaceisrequiredforconstructionofthecanopy.
• The location where the roof will be placed must be construction-ready and free of obstacles (garden
furniture,owerboxes,etc.)soinstallerscanperformtheirworkwithouthindrance.
• Any obstacles, including utility lines (such as power cables, etc.), roots and debris, must have been
removed from the ground.
• The façade must be free of sun shades, etc.
 • Theplacewherethewallprolewillbeplacedmustberm,evenandat.
Dimensions & slope
 • Thecanopyshouldbeinstalledwithaslopeof15.7cmpermetre.Theheightofthewallproleand
the passage height (distance from bottom of gutter to the ground) are completely dependent on each
other and determined by this slope.
• The maximum length of the roof is 4 metres. However, keep in mind the requirements concerning the
maximum free span and number of posts.
Posts & joined canopies
• Maximum distance between the posts is 4 metres.
• When canopies are joined, a post is always placed under the coupling.
• Do not discharge rainwater through a post where gutters are joined above.
Attachments at walls
• Due to expansion of the materials, the canopy may not be placed tightly between two walls; there must
be a gap of 1.5 mm per metre of width of the canopy.
Screws and drilling
• We supplies special 4.2x19 mm and 4.2x40 mm stainless steel screws with the canopy.
Note: Pre-drill a hole for each screw with a 3 mm drill bit!
If you continue to turn them after they are tight, the screw head may break off. It is
recommended that you screw carefully, with the torque limiter on your drill set properly.
Sealant
• We supplies sealant - we would recommend using butyl sealing tape
specially selected for the waterproof sealing of aluminium to aluminium or to most
common construction materials, such as walls, concrete, etc. Follow the instructions
on the tube.
• Note: This sealant is not suitable for sealing the polycarbonate sheets. If you need to seal your sheets,
because you have a rainwater discharge (downspout) pipe run through it for example,
we have special transparent sealant in our range.
5. Preparation for assembly
5.1 Conditions for assembly
!
!

Assembly Instructions - the Sherwood page: 10
Rubber seals
• A canopy is equipped with rubber seals. Before installation, the rubber seals for both the aluminium
cover strips and the beams must be cut to length.
• If the rubber seals are deformed, they can be straightened again with a little heat, from a hot air heater
or hair dryer for example.
Remove protective lm
 • Itisrecommendedthattheprotectivelmberemovedfromthealuminiumpartsandtheroongsheets
atthelastpossiblemoment,topreventdamage.Whenmountingtheroongsheets,however,the
edgesoftheprotectivelmmustbepulledbackafewcentimetrestowardsthemiddleofthesheetso
thelmdoesnotgetstuckintheproles;otherwiseitwillbedifculttoremovelater.
Warranty is void if the Sherwood canopy is not assembled and installed in accordance with the instructions.
5.1 Conditions for assembly

Assembly Instructions - the Sherwood page: 11
www.deponti.com Assembly Manual –Nebbiolo Veranda page
12
B: Length of wall profile and gutter profile.
H1: Height from ground to bottom of wall profile.
H2: Height from ground to bottom of gutter profile (= passage height).
D: Distance from back of wall profile to inside of post
D + 32,5 mm: Distance from back of wall profile to centre of rainwater discharge
pipe.
B
H1
D
D +32,5mm
H2
D
H1
H2
D
+32,5 mm
5.3 Measuring & determining dimensions
The Deponti veranda is available in a large range of sizes. Moreover, the roof has a modular design
and can be quickly and easily made to size. However, please note that our current and future
modular options are based on standard sizes. If you do not install your roof using the standard sizes,
your options will also have to be adapted to size.
5.2 Tools required for installation
Thecanopyhasamodulardesignandcanbequicklyandeasilyadaptedtosuitvariedsizes.Werecommendthat
such adjustments are carried out by an experienced professional to ensure that the structural integrity is not
compromised and that the system maintains both weather resistance and suitable drainage.
Thefollowingdetailsfordeterminingdimensionswillneedtobereconguredifyouarenotttinginthe
standardsizeprovided.
B: Lengthofwallproleandgutterprole.
H1: Heightfromgroundtobottomofwallprole.
H2: Heightfromgroundtobottomofgutterprole(=passageheight).
D: Distancefrombackofwallproletoinsideofpost
D+32,5mm: Distancefrombackofwallproletocentreofrainwaterdischarge
5.2 Measuring & determining dimensions
www.deponti.com Assembly Manual –Nebbiolo Veranda page
12
B: Length of wall profile and gutter profile.
H1: Height from ground to bottom of wall profile.
H2: Height from ground to bottom of gutter profile (= passage height).
D: Distance from back of wall profile to inside of post
D + 32,5 mm: Distance from back of wall profile to centre of rainwater discharge
pipe.
B
H1
D
D +32,5mm
H2
D
H1
H2
D
+32,5 mm
5.3 Measuring & determining dimensions
The Deponti veranda is available in a large range of sizes. Moreover, the roof has a modular design
and can be quickly and easily made to size. However, please note that our current and future
modular options are based on standard sizes. If you do not install your roof using the standard sizes,
your options will also have to be adapted to size.

Assembly Instructions - the Sherwood page: 12
5.2.1 Height adjustments
Acanopyisdesignedforaslopeof15.7cmpermetre.Allthestaticstrengthcalculations,aswellasallsizesand
dimensions in this manual, are based on this.
Theheightofthewallproleandthepassageheight(distancefrombottomofguttertotheground)are
completely dependent on each other and determined by this slope. However, these heights can be adjusted very
easily while maintaining the slope.
If you are going to install your canopy based on the standard dimensions, you can use the dimension table below.
Ifyouchoosetoplacethewallprolelowerormakethepassageheightofthegutterlower,youmust:
Subtractthesamenumberofcentimetresfrombothofthesemeasurements.Soifyourwallproleismounted30
cm lower, you must also shorten your posts by 30 cm.
If you want to reduce the passage height, you can easily shorten the length of the posts by making a square cut.
However,youmustthenalsomountthewallprolethesamedistanceloweronthewall.Thesameappliesifyou
decidetomountthewallproleloweronthewall.
Calculation example 1: You have a roof with a length of 300 cm and you want to reduce the standard passage
height from 250 cm to 220 cm. You therefore shorten your posts by 30 cm or you place the posts 30 cm in the
ground,sothebottomofyourgutterisataheightof220cm.Yourwallprolemustthereforebeloweredby30
cm,whichmeansthatthebottomofthewallprolemustbeplacedat296cm-30cm=266cm.
5.2.2 canopy projection
Thebasicdimensionsofthecanopyareapproximate.Theexactdimensionsfromtherearofthewallproleto
the inside of the upright can be found in the table above. Example: A 3 metre projection canopy is not exactly 3
metres.Checkthetableaboveforexactsizesincentimetres.
Projection Beam length Distance from back
of wall prole to
inside of post (D)
Height from ground
to bottom of gutter
prole (H2)
Height from ground
to bottom of wall
prole (H1)
2.5 metre 247 cm 244 cm 250 cm 288 cm
3 metre 297 cm 293cm 250cm 296cm
3.5metre 347cm 343cm 250cm 304cm

Assembly Instructions - the Sherwood page: 13
5.2.3 canopy width
The Sherwood range of canopies can be delivered in three standard widths.
Thegutterproleandwallprolearesuppliedinmultiplelengthsof4045,5045or6045mm.
Thecentre-to-centredistancebetweenroofbeamsis1000mm(1metre).Aroofwithveone-metresections
has a total width of 5045 mm. The extra 45 mm is the distance from the centre of the beam to the outside of the
beam, which is 22.5 mm; this extra width is at both ends, for a total of 45 mm.
Whenstandardsizesheetsareused,thetotalwidthoftheroofmustthereforealsoendwith45mm,e.g.4045,
5045 or 6045 mm.
www.deponti.com Assembly Manual –Nebbiolo Veranda page
14
HOH maat 1000 mm 22,5 mm22,5 mm
5000 mm
5045 mm
HOH maat 1000 mm HOH maat 1000 mm HOH maat 1000 mm HOH maat 1000 mm
5.3.3 Veranda width
Deponti verandas can be delivered in three standard widths.
The gutter profile and wall profile are supplied in multiple lengths of 4045, 5045 or 6045 mm.
The centre-to-centre distance between the beams of a Deponti veranda is 1000 mm (1 metre).
A roof with five one-metre sections has a total width of 5045 mm. The extra 45 mm is the distance
from the centre of the beam to the outside of the beam, which is 22.5 mm; this extra width is at both
ends, for a total of 45 mm.
When standard size sheets are used, the total width of the roof must therefore also end with 45 mm,
e.g. 4045, 5045 or 6045 mm.

Assembly Instructions - the Sherwood page: 14
Ifthewallproledoesnotneedtobeshortened,youcanmountitstraightaway.Otherwiseyoumustrstcutthe
wallproletothedesiredlength.Donotplacethesuppliedrubberstripinthewallproleyet;thisrubberstripis
ttedaftermounting.
1. Drillholesinthewallproleat50cmintervals.Beginapproximately10cmfromoneendandnish
approximately 10 cm from the other end. Use a metal drill bit with a diameter of 8 mm.
2. Nowmarkthewallwithalinetoindicatewherethebottomofthewallproleshouldbe.Placethewallprole
onthelineandthenmarktheholesthatyoupre-drilledinyourwallprole.
3. Nowuseaconcretedrillbitwithadiameterof8mmtodrilltheholes.Makesurethewallproleislevel.
6. Assembly
6.1 Mounting the wall prole
1
B
Ø8 mm
50 cm
50 cm
10 cm
B
H1
H1
Ø8 mm
1
6. Assembly
6.1 Mounting the wall profile
If the wall profile does not need to be shortened, you can mount it straight away. Otherwise you
must first cut the wall profile to the desired length. Do not place the supplied rubber strip in the wall
profile yet; this rubber strip is fit in place after mounting.
1. Drill holes in the wall profile at 50 cm intervals. Begin approximately 10 cm from one end and
finish approximately 10 cm from the other end. Use a metal drill bit with a diameter of 8 mm.
2. Now mark the wall with a line to indicate where the bottom of the wall profile should be.
Place the wall profile on the line and then mark the holes that you pre-drilled in your wall profile.
3. Now use a concrete drill bit with a diameter of 8 mm to drill the holes. Make sure the wall profile
is level.
1
B
Ø8 mm
50 cm
50 cm
10 cm
B
H1
H1
Ø8 mm
1
6. Assembly
6.1 Mounting the wall profile
If the wall profile does not need to be shortened, you can mount it straight away. Otherwise you
must first cut the wall profile to the desired length. Do not place the supplied rubber strip in the wall
profile yet; this rubber strip is fit in place after mounting.
1. Drill holes in the wall profile at 50 cm intervals. Begin approximately 10 cm from one end and
finish approximately 10 cm from the other end. Use a metal drill bit with a diameter of 8 mm.
2. Now mark the wall with a line to indicate where the bottom of the wall profile should be.
Place the wall profile on the line and then mark the holes that you pre-drilled in your wall profile.
3. Now use a concrete drill bit with a diameter of 8 mm to drill the holes. Make sure the wall profile
is level.

Assembly Instructions - the Sherwood page: 15
4. Fastenthewallprolewiththesuppliedframexingscrews(theseshouldonlybeusedifappropriateforthe
wall material).
5. Degreasethetopedgeofthewallprolealongthewallusingasuitableframecleaner.
6. Applysealanttothetopedgeofthewallprole(betweenthewallandthewallprole)tomakeagoodseal.
Strike off the sealant to make it smooth and waterproof.
www.deponti.com Assembly Manual –Nebbiolo Veranda page
16
cleaner
1
4. Fasten the wall profile with the supplied frame fixing screws (these should only be used if
appropriate for the wall material).
5. Degrease the top edge of the wall profile along the wall.
6. Apply sealant the top edge of the wall profile (between the wall and the wall profile) to make a
good seal. Strike off the sealant to make it smooth and waterproof.

Assembly Instructions - the Sherwood page: 16
6.2.1 Installing posts
Determine the positions of the posts on the ground.
Now mark a line on the ground to indicate the centre point of the posts, at a distance of L + 32.5 mm from the
rearofthewallprole.
If you are using the recommended base plates, position these at the centre of the posts. Make sure that the base
plates are positioned perfectly square and level.
Now drill holes in the ground and attach the base plates with two suitable ground screws.
6.2 Pre-installing the gutter, posts and end beams
www.deponti.com Assembly Manual –Nebbiolo Veranda page
17
½B-32,5 mm
D+32,5 mm
D+32,5 mm ½B-32,5 mm
2
2(optie)
(optie)
6.2 Pre-installing the gutter, posts and end beams
6.2.1 Installing posts
Determine the positions of the posts and the rainwater discharge post on the ground.
Now mark a line on the ground to indicate the centre point of the posts, at a distance of L + 32.5 mm
from the rear of the wall profile.
If you are using the optional base plates, position these at the centre of the posts. Make sure that the
base plates are positioned perfectly square and level.
Now drill holes in the ground and attach the base plates with two suitable ground screws.

Assembly Instructions - the Sherwood page: 17
1. Place the posts at the marked positions on the ground.
2.Placethepostsoverthe(U-shaped)oorplates.Makesurethepostsarelevel.
3. Attachthepoststotheoorplateswithtwoscrews-predrilling3mmholesandusing16mmscrews.
Note: Place the screws on the back side of the posts so they are out of sight.
Option: Rainwater discharge
If intending to discharge rainwater inside a post then drill a suitable hole or holes at the bottom of the relevant
post(s) to allow rainwater to escape.
½B-32,5 mm
½B-32,5 mm
D
2 (optie)
3
3
3
3
3
H2
1. Place the posts and the rainwater discharge post at the marked positions on the ground.
2. If you are using optional floor plates, place the posts over the (U-shaped) floor plates. Make sure
the posts are level.
3. Attach the posts to the floor plates with two screws.
Note: Place the screws on the back side of the posts so they are out of sight.
Option: Rainwater discharge
Use the hole saw to drill the hole for the rainwater discharge at the desired height near the bottom
of the rainwater discharge post. Place the 90° rainwater discharge sleeve in this hole in the rainwater
discharge post.
Place the PVC rainwater discharge pipe in the rainwater discharge post and connect it to the 90°
rainwater discharge sleeve.

Assembly Instructions - the Sherwood page: 18
6.2.2 Pre-drilling the gutter
If the standard gutter length is correct, you can pre-drill and install it straight away. If not, you must
rstcutthegutterproletothedesiredlength.
Pre-drilling hole(s) in the gutter prole for rainwater discharge
The rainwater discharge can be easily achieved by drilling one or more holes in the gutter at the position where
the post meets the gutter. The post then serves as rainwater discharge pipe.
The recommended method of discharge is to use a downpipe outlet and connect into the nearest suitable
rainwater drainage point at the property. The downpipe outlet is inserted into a suitable hole in the gutter
whereyouwishtotadownpipeunderneath,sealedtothebottomofthegutterandthenadownpipeistted
totheundersideandledtoasuitabledrainagepoint.Ifabracketcannotbexedwithintherst300mmofthe
downpiperunthenwerecommendeithergluingthedownpipetotheundersideoftheoutletangeorxing
withascrewthroughthedownpipeintotheange.
1. Placethegutteratandrmonatableorsawhorses.
2. Determine where the rainwater discharge post(s) or downpipe outlet will be located. Mark the position and
dimensions of the hole(s) in the gutter.
3. Carefully drill the hole(s) in the gutter with a hole saw
4. Ifusingthedownpipeoutletthenapplysealanttotheundersideandtintotheholeintheguttersoasealis
madeandtheangeprotrudesbelowthebottomoftheguttertobeinsertedintoadownpipe
www.deponti.com Assembly Manual –Nebbiolo Veranda page
19
75
32,5
Ø50
Ø50
4
6.2.2 Pre-drilling the gutter
If the standard gutter length is correct, you can pre-drill and install it straight away. If not, you must
first cut the gutter profile to the desired length.
Pre-drilling hole(s) in the gutter profile for rainwater discharge
The rainwater discharge can be easily achieved by drilling one or more holes in the gutter at the
position where the post meets the gutter. The post then serves as rainwater discharge pipe.
A range of rainwater discharge fittings are available for further connection (EPDM rubber drain ring,
50/60 mm leaf catcher, 60 mm rainwater discharge pipe and bend).
1. Place the gutter flat and firm on a table or sawhorses.
2. Determine where the rainwater discharge post (and optional leaf catcher or EPDM rubber drain
ring) will be placed, i.e. at the left or right end of the gutter. Mark the position and dimensions of the
hole for the leaf catcher or EPDM rubber drain ring in the gutter.
3. Now carefully drill the hole in the gutter with the hole saw (ø50-60 mm).
4. Fit the optional leaf catcher or EPDM rubber drain ring in the hole.

Assembly Instructions - the Sherwood page: 19
6.2.3 Installing the gutter
1. Nowplacethegutterproleontheposts.
2. Screwthepoststothegutterwithoneshortscrewthroughthelowerlipofthegutterproleandintothepost.
This way you can adjust the position of the gutter later, if necessary.
Note: ultimatelythepostswillbesecuredwithtwoscrews.Therstscrewshouldnotbeplacedinthemiddleof
the post but rather approximately a third of the way in from the edge.
www.deponti.com Assembly Manual –Nebbiolo Veranda page
20
3
3
3
4
6.2.3 Installing the gutter
1. Now place the gutter profile on the posts. Make sure the optional leaf catcher is positioned
properly in the PVC rainwater discharge pipe inside the post.
2. Screw the posts to the gutter with one short screw through the lower lip of the gutter profile and
into the post. This way you can adjust the position of the gutter later, if necessary.
Note: ultimately the posts will be secured with two screws. The first screw should not be placed in
the middle of the post but rather approximately a third of the way in from the edge. Be careful not to
drill and screw through the PVC pipe in one of the posts!

Assembly Instructions - the Sherwood page: 20
6.2.4 Installing the end beams
1. Carefullycutthepre-ttedrubbersealsintheendbeamstosize.
2. Placetheleftandrightendbeamsinboththegutterproleandthewallprole,onebyone.Makesurethat
theouteredgesoftheendbeamsareushwiththeendsofthegutterproleandwallprole.
www.deponti.com Assembly Manual –Nebbiolo Veranda page
21
?
7A
7A
D
?
6.2.4 Installing the end beams
1. Carefully cut the pre-fitted rubber seals in the end beams to size.
2. Place the left and right end beams in both the gutter profile and the wall profile, one by one.
Make sure that the outer edges of the end beams are flush with the ends of the gutter profile and
wall profile.
