SBP Kingfisher User manual

Assembly Instructions - the Kingsher page: 1
Assembly instructions
Version: February 2022
User manual / Assembly instructions
Deponti Retractable Roof Pergola
Type Verdeca
Version: EN –Januari 2022
www.deponti.com
www.sbpuk.info

Assembly Instructions - the Kingsher page: 2
Contents
1. Introduction 3
2. Safety precautions and warnings 3
3. Product description 5
4. Parts overview 6
4.1 Exploded view 6
4.2 Motorization 7
4.3 Hardware details 7
4.4 Delivery inspection 10
5. Preparation for assembly 11
5.1 Conditions for assembly 11
6. Assembly 12
6.1 Structure installation 12

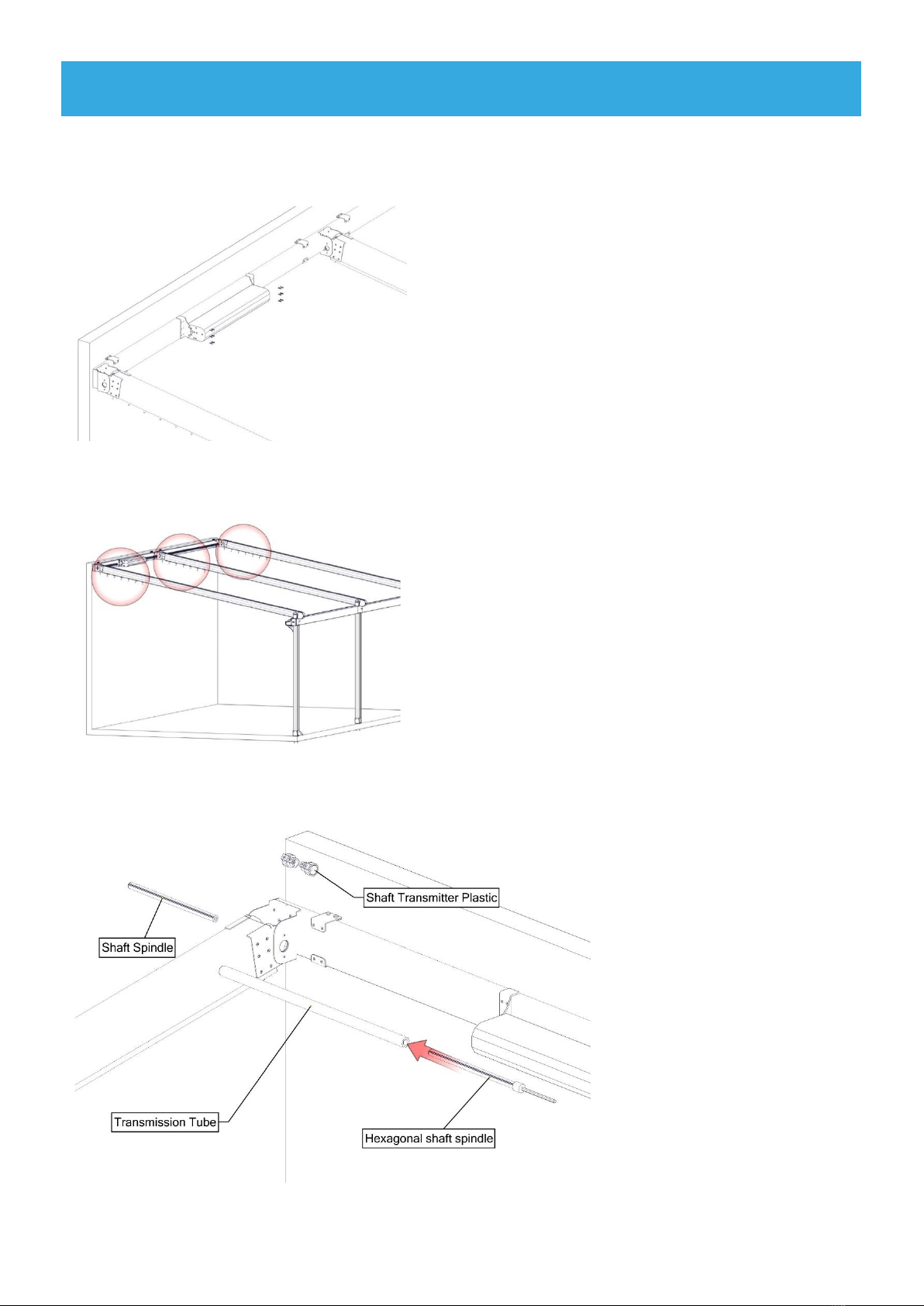

6.2 Installation of motor unit and fabric 17

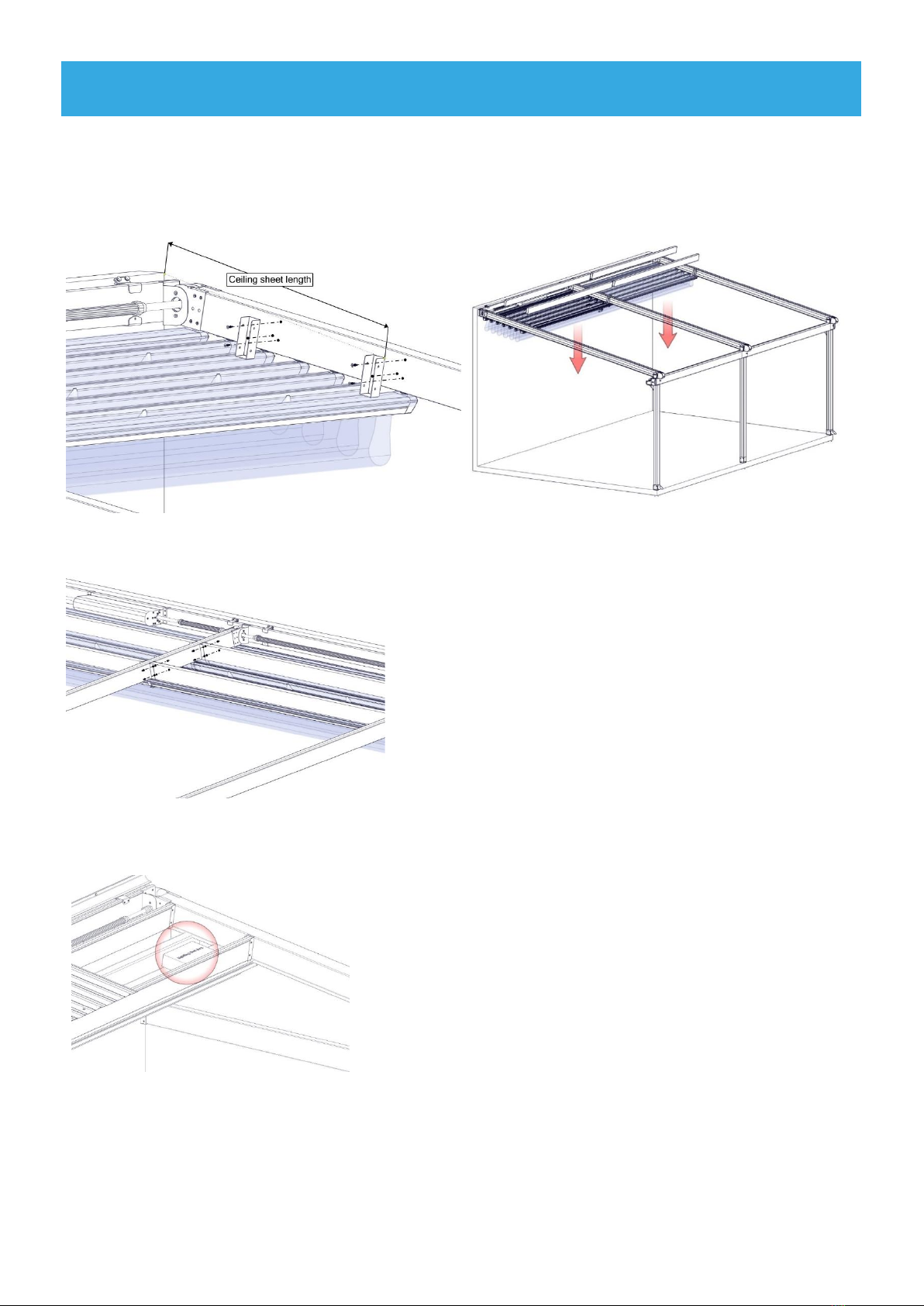

6.3 Installation of cross rafters and ceiling sheets 20
7. Programming instructions 22
7.1 Remote control 23
7.2 Programming the motor 24
7.3 Resetting the motor 24
7.4 Programming the LED control panel 25
7.5 Resetting the LED control panel 25
7.6 Using of the Remote control 25
8. FAQ 26
9 Maintenance 26
10. Warranty conditions 26
KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE USE!
We also refer you to our General Terms and Conditions of Sale and Delivery which are available on request.
We accept no liability for any damage or injury resulting from a failure to carefully follow the instructions in this
manual or exercise due caution during transport, assembly, use and maintenance of the canopy. As a result of
our policy of continuous product improvement, certain product details may differ from what is described in this
manual. For this reason the instructions provided only serve as a guideline for installation of the product this
manual describes. This manual has been compiled with the utmost care, but we cannot be held responsible for
any errors in this manual or the consequences thereof. Furthermore, all rights are reserved and no part of this
manual may be reproduced in any way whatsoever.
Contents

Assembly Instructions - the Kingsher page: 3
Congratulations on the purchase of your canopy!
Before you can start enjoying your canopy it must be assembled properly. This manual provides clear instructions
for all the steps you must complete for correct assembly of your canopy. We recommend that you take the time
to read the entire manual before you begin assembly. Check whether you have received all the necessary parts
before you begin assembly. For your safety, follow all the applicable instructions. This also guarantees the safety
of the installed roof. If you should have any questions, please feel free to contact us.
This manual should be kept in a safe, dry and shady place. In the event of damage or loss, the user should obtain
another copy.
Important:
Please read the safety precautions and warnings before assembling the canopy.
• During assembly, carefully follow the instructions and guidelines as described in this
manual. Never change the order of the steps to be performed. If any aspect of the
assembly procedure is unclear, please contact us. We reserve the right to make technical
changes without written notice.
• We normally recommend that the canopy must be assembled by at least two people
(qualied technicians/authorized installers) working together.
• Check the delivery immediately upon receipt. In the event of damage or an incomplete
delivery please contact us immediately.
• The materials must be stored in a dry, ventilated area, not exposed to direct sunlight.
• Open the packaging carefully. Make sure that you do not damage the product.
• To prevent damage to your canopy, place the parts on a smooth, clean surface. Place the
proles on a at surface, protected from sun and rain.
• Adding or removing parts, the use or installation of materials other than described in
this manual, may adversely affect the safety of the canopy and is therefore strongly
discouraged!
• Cordon off the assembly location so that others are kept at a safe distance.
• Always place a ladder on a rm, stable surface.
• Always wear the correct protective clothing (work gloves, dust mask, safety glasses, shoes
with non-slip soles, etc.) during installation or servicing.
• Mount the system against a rm, at wall and on a at and stable foundation. Ensure that
the wall and the ground are clean and dry.
1 Introduction
2. Safety precautions and warnings
!
!

Assembly Instructions - the Kingsher page: 4
• Make sure all fasteners are properly tightened. Check this regularly.
• You must maintain and clean your canopy at least once a year.
• Use plenty of water, soft material and a sponge for cleaning. Use only neutral cleansers. No
acids or alkalis. Solvents (washing-up liquid and glass cleaner) can be used for removing
greasy contamination.
• Dispose of the product in accordance with local laws and regulations.
• Ensure that you consult a suitably qualied gas engineer if you are placing the canopy near
or above a boiler ue point.
• We accept no liability for damage or injury caused by failure to strictly follow the safety
regulations and instructions in this manual or exercise due caution during assembly, use
and maintenance of the product and any related accessories. We are not responsible for
any form of damage.
2. Safety precautions and warnings
!

Assembly Instructions - the Kingsher page: 5
The Kingsher Canopy is a retractable system which has a tilted form. It consists of an aluminium structure and
fabric. This product requires a minimum slope value due to its characteristic feature and healthy drainage.
• Wind resistance is 11 Beaufort by all sides open and 7 Beaufort by side enclosure. Calculated for
products with a front height of 250 cm according to Eurocode EN 1991-1-4 Terrain Category 4.
• This system has limited snow load capacity which is 15 kg/m² therefore it should always be in
retracted position if snow is expected or it starts snowing.
• The belts are installed into each rail and driven by pulleys and single drive shafts to ensure
fabric movement.
• The Kingsher Canopy retractable system is operated by an electric motor via a radio control
transmitter.
Available dimensions of the Kingsher:
Width (mm): 4000 / 5000 / 6000
Projection(mm): 3000 / 3500 / 4000
This product requires a minimum slope value due to its characteristic feature to enable healthy drainage. The
slope depends on the product dimensions.
Below table is showing the minimum slope values [cm] for all available dimensions.
A greater slope can be used but it must be below 1:4 i.e. less than 1mm for every 4mm of projection.
*Optional: built-in LED lighting in the fabric
Application type:
The Kingsher must be mounted to a solid wall and is operated by a remote control which switches a single
motor to open and close the roof when required.
3. Product description
!
Width Central Rail Minimum height drop from rear to front
Projection
3000 3500 4000
4000 No 420 490 570
5000 Yes 260 300 350
6000 Yes 310 370 420

Assembly Instructions - the Kingsher page: 6
1 Wall prole 6 Fabric
2 Post 7 Cross rafter
3 Gutter 8 Side cover proles, ceiling sheets and wall nish prole
4Rafter 9 Plain footplate
5 Motor unit 10 Footplate with drainage

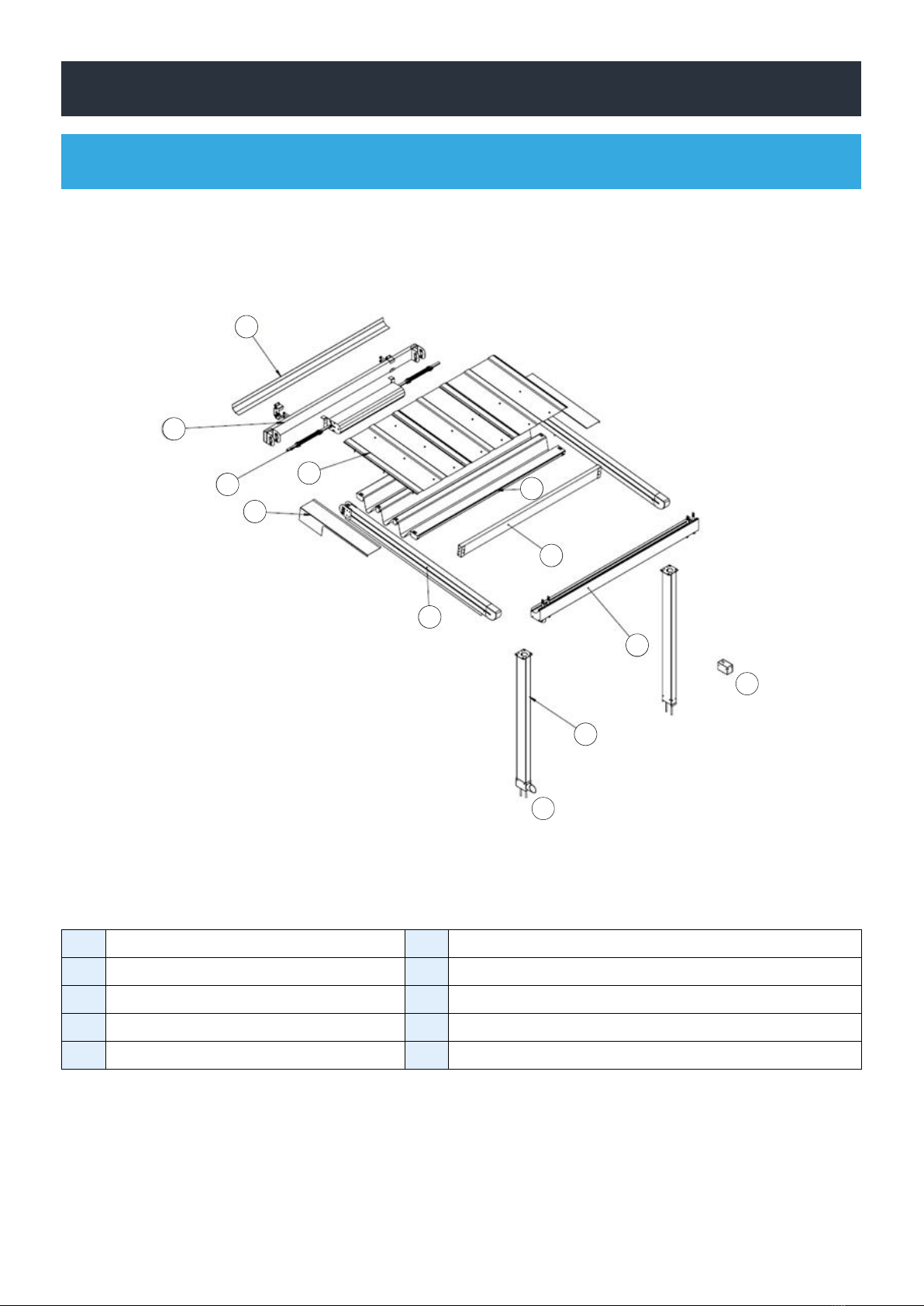

4. Parts Overview
4.1 Exploded view
www.deponti.com Assembly Manual –Verdeca Pergola page
6
4. Parts Overview
4.1 Exploded view
1Wall profile 5Motor unit
2Post 6 Fabric
3Gutter 7Cross rafter
4Rafter 8Side cover profiles, ceiling sheets and wall finish profile
9
3
2
10
7
6
4
8
8
1
5
8

Assembly Instructions - the Kingsher page: 7
The Kingsher canopy is operated using a single motor from Somfy.
The motor is controlled and operated by a remote control. The Somfy remote is provided.
Rafter - Wall prole connection
a. M8x16mm hexagonal head stainless steel bolt
b. M8 stainless steel washer
c. M8 stainless steel nut
Rafter - Gutter connection
4.2 Motorization
4.3 Hardware details
www.deponti.com Assembly Manual –Verdeca Pergola page
7
4.2 Motorization
The Verdeca pergola is using a single motor from Somfy.
The motor is controlled and operated by a remote control. The Somfy remote is provided.
4.3 Hardware details
Rafter - Wall profile connection
a. M8x16mm hexagonal head stainless steel bolt
b. M8 stainless steel washer
c. M8 stainless steel nut
Rafter - Gutter connection
www.deponti.com Assembly Manual –Verdeca Pergola page
7
4.2 Motorization
The Verdeca pergola is using a single motor from Somfy.
The motor is controlled and operated by a remote control. The Somfy remote is provided.
4.3 Hardware details
Rafter - Wall profile connection
a. M8x16mm hexagonal head stainless steel bolt
b. M8 stainless steel washer
c. M8 stainless steel nut
Rafter - Gutter connection

Assembly Instructions - the Kingsher page: 8

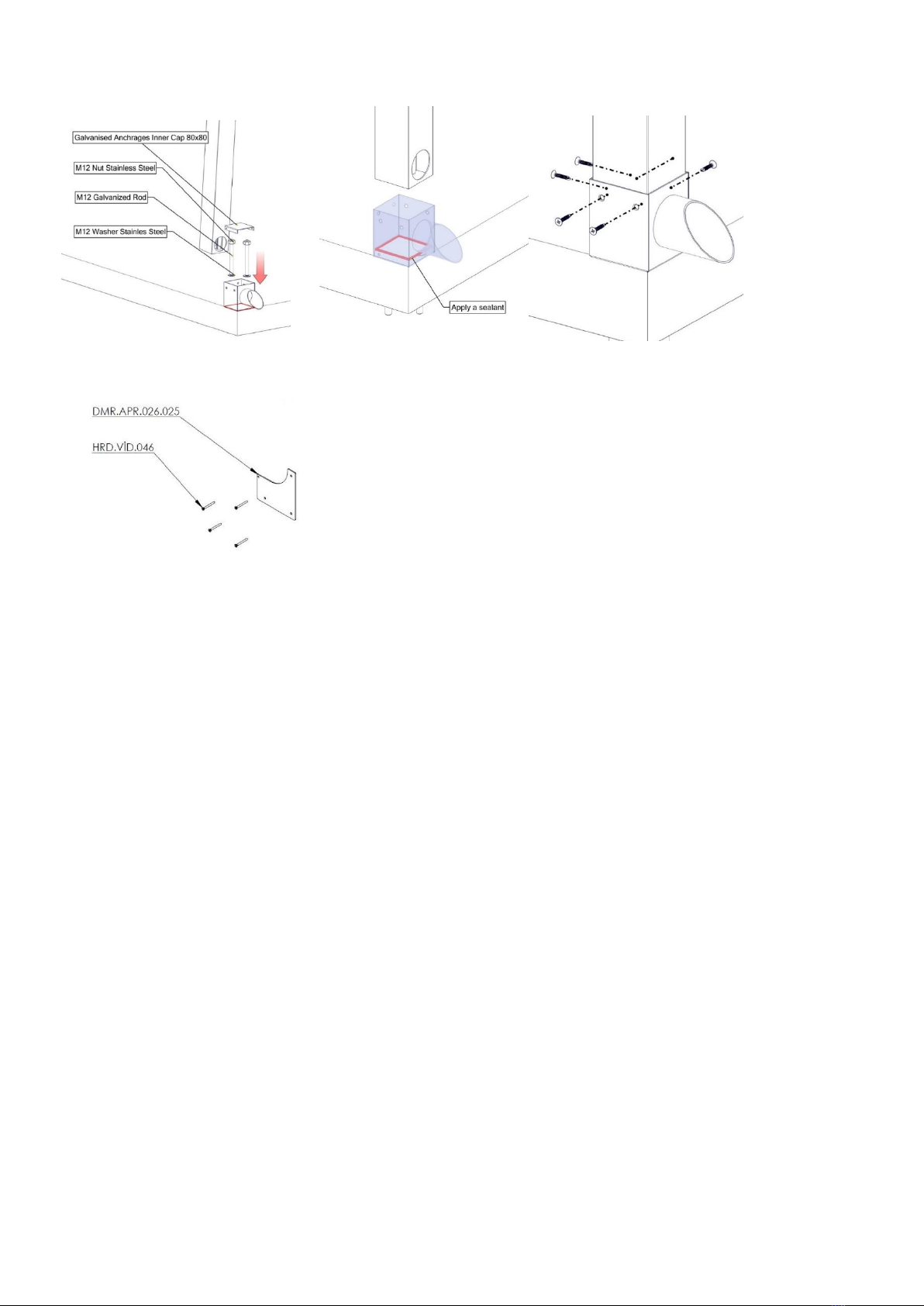

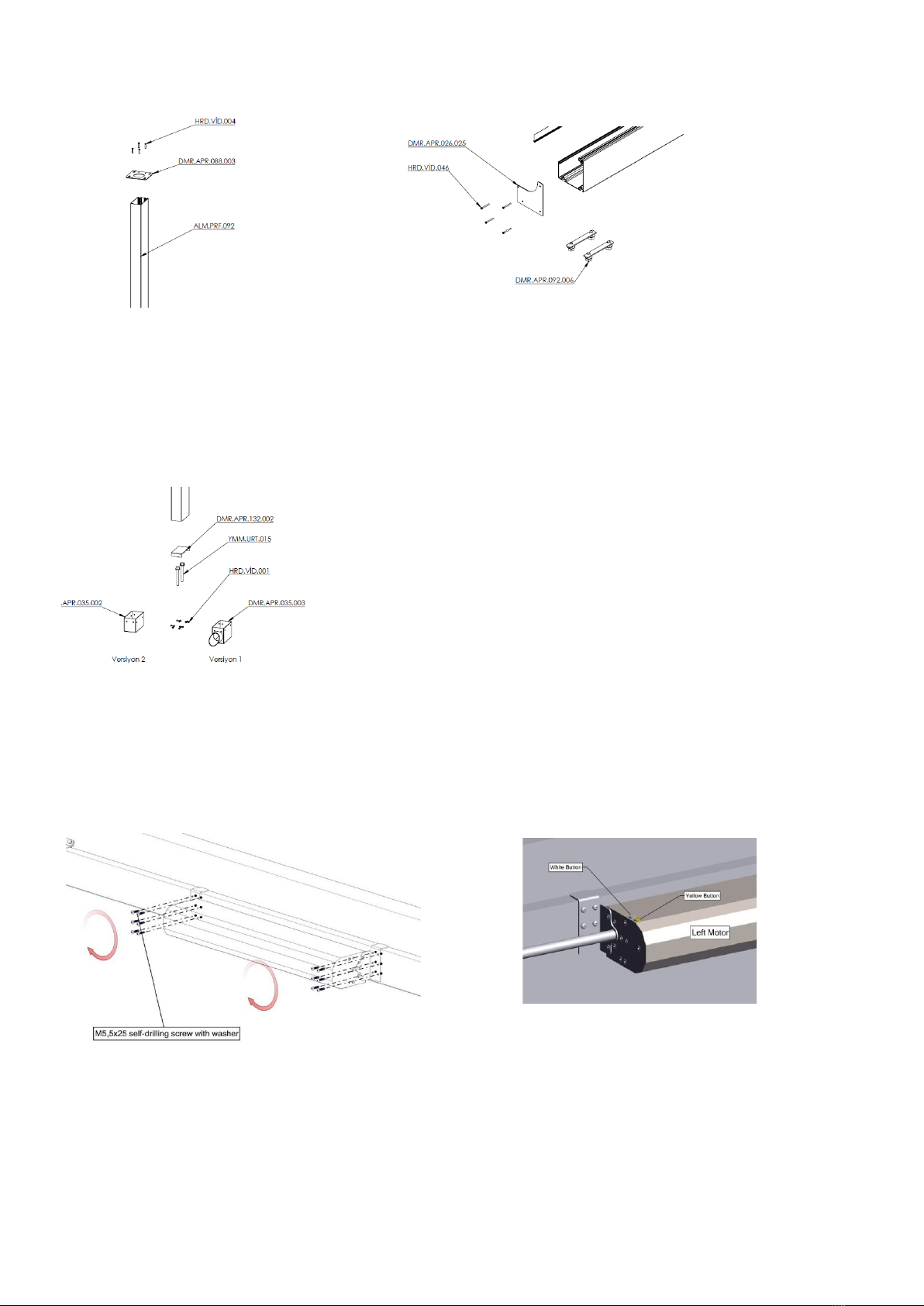

Post – Gutter connection
Pillar – Ground connection
Use materials suitable for your situation.
Motor unit – Wall prole connection
a. M5.5x25mm self-drilling screw with washer
www.deponti.com Assembly Manual –Verdeca Pergola page
8
Post –Gutter connection
Pillar –Ground connection
Use materials suitable for your situation.
Motor unit –Wall profile connection
a. M5.5x25mm self-drilling screw with washer
www.deponti.com Assembly Manual –Verdeca Pergola page
8
Post –Gutter connection
Pillar –Ground connection
Use materials suitable for your situation.
Motor unit –Wall profile connection
a. M5.5x25mm self-drilling screw with washer
www.deponti.com Assembly Manual –Verdeca Pergola page
8
Post –Gutter connection
Pillar –Ground connection
Use materials suitable for your situation.
Motor unit –Wall profile connection
a. M5.5x25mm self-drilling screw with washer

Assembly Instructions - the Kingsher page: 9
Fabric – Carrier (rafter) connection
M8 nut with sealant
Cross rafter – Rafter connection
a. M4.8x25mm self-drilling screw (3x)
b. M4.8x25mm self-drilling screw (6x)
www.deponti.com Assembly Manual –Verdeca Pergola page
9
Fabric –Carrier (rafter) connection
M8 nut with sealant
Cross rafter –Rafter connection
a. M4.8x25mm self-drilling screw (3x)
b. M4.8x25mm self-drilling screw (6x)
www.deponti.com Assembly Manual –Verdeca Pergola page
9
Fabric –Carrier (rafter) connection
M8 nut with sealant
Cross rafter –Rafter connection
a. M4.8x25mm self-drilling screw (3x)
b. M4.8x25mm self-drilling screw (6x)

Assembly Instructions - the Kingsher page: 10
Fabric cover sheet – Cross beam connection
a. M5. 5x25mm self-drilling screw with washer
The canopy shown is an example. The type and number of components supplied depends on your order.
Note:
• Boxes with red label: Electronic parts like Control Unit Box, Remote Controls.
• Boxes with blue label: Metal parts like U Brackets, Mounting brackets, Gutter caps, screws.
• Boxes with yellow label: Plastic parts like Rubber for the gutter, caps, motor shaft drive transmitter.
4.4 Delivery Inspection
www.deponti.com Assembly Manual –Verdeca Pergola page
10
Fabric cover sheet –Cross beam connection
a. M5. 5x25mm self-drilling screw with washer
4.4 Delivery Inspection
Always carefully check the delivered items against the accompanying delivery note to ensure that the
quantity and quality are correct. Any visible defects must be reported in writing within 7 days of
delivery.
Note:
• Boxes with red label: Electronic parts like Control Unit Box, Remote Controls.
• Boxes with blue label: Metal parts like U Brackets, Mounting brackets, Gutter caps, screws.
• Boxes with yellow label: Plastic parts like Rubber for the gutter, caps, motor shaft drive transmitter.

Assembly Instructions - the Kingsher page: 11
Ground & wall
• A good at stable surface is required for construction of the canopy.
• The location where the roof will be placed must be construction-ready and free of obstacles (garden
furniture, ower boxes, etc.) so installers can perform their work without hindrance.
• Any obstacles, including utility lines (such as power cables, etc.), roots and debris, must have been
removed from the ground.
• The façade must be free of sun shades, etc.
• The place where the wall prole will be placed must be rm, even and at.
Attachments at walls
• Due to expansion of the materials, the canopy may not be placed tightly between two walls; there must
be a gap of 1.5 mm per metre of width of the canopy.
Rubber seals
• A canopy is equipped with rubber seals.
• If the rubber seals are deformed, they can be straightened with a little heat, from a hot air heater or hair
dryer for example.
Warranty is void if the Kingsher Canopy is not assembled and installed in accordance with the instructions.
5. Preparation for assembly
5.1 Conditions for assembly

Assembly Instructions - the Kingsher page: 12

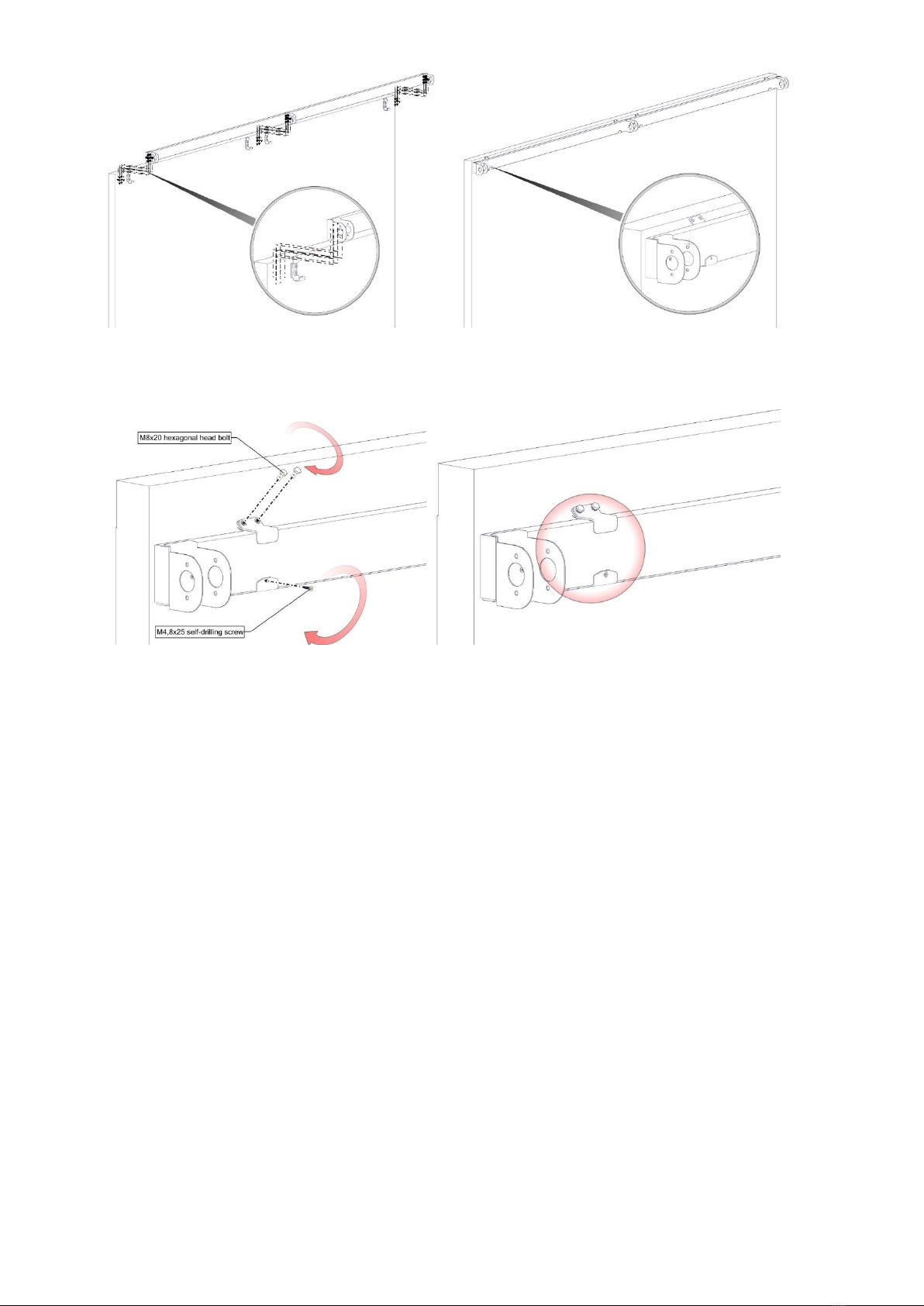

1. Wall bracket installation:
The wall brackets must be installed 35cm from the end of the rails.
2. Fasten the brackets to the wall/ Use the correct hardware for your situation. We suggest to use minimum
M12.
3. Install the wall prole on the wall mounting brackets.
NOTE: Don’t work alone. You may need someone else while placing of the back prole.
6. Assembly
6.1 Structure installation
www.deponti.com Assembly Manual –Verdeca Pergola page
13
6. Assembly
6.1 Structure installation
1. Wall bracket installation:
The wall brackets must be installed 35cm from the end of the rails.
2. Fasten the brackets to the wall/ Use the correct hardware for your situation. We suggest
to use minimum M12.
3. Install the wall profile on the wall mounting brackets.
NOTE: Don’t work alone. You may need someone else while placing of the back profile.
H [cm] = front height [cm] + slope [cm]
Standard front height is 250 cm
www.deponti.com Assembly Manual –Verdeca Pergola page
13
6. Assembly
6.1 Structure installation
1. Wall bracket installation:
The wall brackets must be installed 35cm from the end of the rails.
2. Fasten the brackets to the wall/ Use the correct hardware for your situation. We suggest
to use minimum M12.
3. Install the wall profile on the wall mounting brackets.
NOTE: Don’t work alone. You may need someone else while placing of the back profile.
H [cm] = front height [cm] + slope [cm]
Standard front height is 250 cm

Assembly Instructions - the Kingsher page: 13
4. Fasten and tighten the wall mounting bracket bolts
5. Next step is Pre-drilling hole(s) in the gutter prole for rainwater discharge. The rainwater discharge can be
easily achieved by drilling a hole in the gutter at the position where the post meets the gutter. The post then
serves as rainwater discharge pipe.
• Place the gutter on a at and rm surface.
• Determine where the rainwater discharge will be placed, i.e. at the left or right end of the gutter. Mark the
position and dimensions of the hole.
• Now carefully drill the hole in the gutter with the hole saw. (advised size ø60 mm).
www.deponti.com Assembly Manual –Verdeca Pergola page
14
4. Fasten and tighten the wall mounting bracket bolts
5. Next step is Pre-drilling hole(s) in the gutter profile for rainwater discharge. The rainwater
discharge can be easily achieved by drilling a hole in the gutter at the position where the post meets
the gutter. The post then serves as rainwater discharge pipe.
•Place the gutter on a flat and firm surface.
•Determine where the rainwater discharge will be placed, i.e. at the left or right end of the
gutter. Mark the position and dimensions of the hole.
•Now carefully drill the hole in the gutter with the hole saw. (advised size ø60 mm).
www.deponti.com Assembly Manual –Verdeca Pergola page
14
4. Fasten and tighten the wall mounting bracket bolts
5. Next step is Pre-drilling hole(s) in the gutter profile for rainwater discharge. The rainwater
discharge can be easily achieved by drilling a hole in the gutter at the position where the post meets
the gutter. The post then serves as rainwater discharge pipe.
•Place the gutter on a flat and firm surface.
•Determine where the rainwater discharge will be placed, i.e. at the left or right end of the
gutter. Mark the position and dimensions of the hole.
•Now carefully drill the hole in the gutter with the hole saw. (advised size ø60 mm).

Assembly Instructions - the Kingsher page: 14
6. Gutter and front posts:
The gutter and front posts should be connected to each other on ground
7. Post xing:
Dene the exact post position and mark it. Install the anchorage to the ground surface using correct hardware for
your situation.
Before you lift as shown in the image below. In this situation you may need some help since you must hold the
posts in position.
www.deponti.com Assembly Manual –Verdeca Pergola page
15
6. Gutter and front posts:
The gutter and front posts should be connected to each other on ground
7. Post fixing:
Define the exact post position and mark it. Install the anchorage to the ground surface using
correct hardware for your situation.
before you lift as you shown image at below. In this situation you may need some people
since you must hold to posts as carefully.
www.deponti.com Assembly Manual –Verdeca Pergola page
15
6. Gutter and front posts:
The gutter and front posts should be connected to each other on ground
7. Post fixing:
Define the exact post position and mark it. Install the anchorage to the ground surface using
correct hardware for your situation.
before you lift as you shown image at below. In this situation you may need some people
since you must hold to posts as carefully.
www.deponti.com Assembly Manual –Verdeca Pergola page
15
6. Gutter and front posts:
The gutter and front posts should be connected to each other on ground
7. Post fixing:
Define the exact post position and mark it. Install the anchorage to the ground surface using
correct hardware for your situation.
before you lift as you shown image at below. In this situation you may need some people
since you must hold to posts as carefully.

Assembly Instructions - the Kingsher page: 15
8. Slide the post on top of the stainless steel anchorage and screw tight.
9. Slide the rubber ap in and place gutter cover and fasten the screws.
10. Rafter placing: There are two types of rafters. One without gasket (only delivered if 3 posts are used – width
exceed 4.5 m) and two with gasket (this is located on the bottom of the rail). When you look from the front
side, the gasket must be inside of the system as you see at below picture.
NOTE: When fastening the rail bolts to the back beam and front beam you might need someone else
according to rail weight and length.
www.deponti.com Assembly Manual –Verdeca Pergola page
16
8. Slide the post on top of the stainless steel anchorage and screw tight.
9. Slide the rubber flap in and place gutter cover and fasten the screws.
10. Rafter placing: There are two types of rafters. One without gasket (only delivered if 3
posts are used –width exceed 4.5 m) and two with gasket (this is located on the bottom of
the rail). When you look from the front side, the gasket must be inside of the system as you
see at below picture.
NOTE: When fastening the rail bolts to the back beam and front beam you might need
someone else according to rail weight and length.
www.deponti.com Assembly Manual –Verdeca Pergola page
16
8. Slide the post on top of the stainless steel anchorage and screw tight.
9. Slide the rubber flap in and place gutter cover and fasten the screws.
10. Rafter placing: There are two types of rafters. One without gasket (only delivered if 3
posts are used –width exceed 4.5 m) and two with gasket (this is located on the bottom of
the rail). When you look from the front side, the gasket must be inside of the system as you
see at below picture.
NOTE: When fastening the rail bolts to the back beam and front beam you might need
someone else according to rail weight and length.

Assembly Instructions - the Kingsher page: 16
www.deponti.com Assembly Manual –Verdeca Pergola page
17
11. Check if the structure is level on all sides.
11. Check if the structure is level on all sides.

Assembly Instructions - the Kingsher page: 17
1. Install the motor box in the centre between two rafters.
2. All carriers must be on the back of the rails.
3. Place a hexagonal shaft spindle into the transmission tube.
6.2 Installation of motor unit and fabric
www.deponti.com Assembly Manual –Verdeca Pergola page
18
6.2 Installation motor unit and fabric
1. Install the motor box in the centre between two rafters.
2. All carriers must be on the back of the rails.
3. Place a hexagonal shaft spindle into the transmission tube.
www.deponti.com Assembly Manual –Verdeca Pergola page
18
6.2 Installation motor unit and fabric
1. Install the motor box in the centre between two rafters.
2. All carriers must be on the back of the rails.
3. Place a hexagonal shaft spindle into the transmission tube.
www.deponti.com Assembly Manual –Verdeca Pergola page
18
6.2 Installation motor unit and fabric
1. Install the motor box in the centre between two rafters.
2. All carriers must be on the back of the rails.
3. Place a hexagonal shaft spindle into the transmission tube.

Assembly Instructions - the Kingsher page: 18
4. Place the hexagonal shaft spindle and transmission tube into the motor as you see on the fure below.
5. Insert a shaft transmitter plastic on to the transmission tube on the inside of the system.
6. Place a shaft spindle through the rail and insert the shaft transmitter plastic on the spindle to connect to the
other spindle.
www.deponti.com Assembly Manual –Verdeca Pergola page
19
4. Place the hexagonal shaft spindle and transmission tube into the motor as you see on the
fifure below.
5. Insert a shaft transmitter plastic on to the transmission tube on the inside of the system.
6. Place a shaft spindle through the rail and insert the shaft transmitter plastic on the spindle
to connect to the other spindle.
www.deponti.com Assembly Manual –Verdeca Pergola page
19
4. Place the hexagonal shaft spindle and transmission tube into the motor as you see on the
fifure below.
5. Insert a shaft transmitter plastic on to the transmission tube on the inside of the system.
6. Place a shaft spindle through the rail and insert the shaft transmitter plastic on the spindle
to connect to the other spindle.
www.deponti.com Assembly Manual –Verdeca Pergola page
19
4. Place the hexagonal shaft spindle and transmission tube into the motor as you see on the
fifure below.
5. Insert a shaft transmitter plastic on to the transmission tube on the inside of the system.
6. Place a shaft spindle through the rail and insert the shaft transmitter plastic on the spindle
to connect to the other spindle.

Assembly Instructions - the Kingsher page: 19

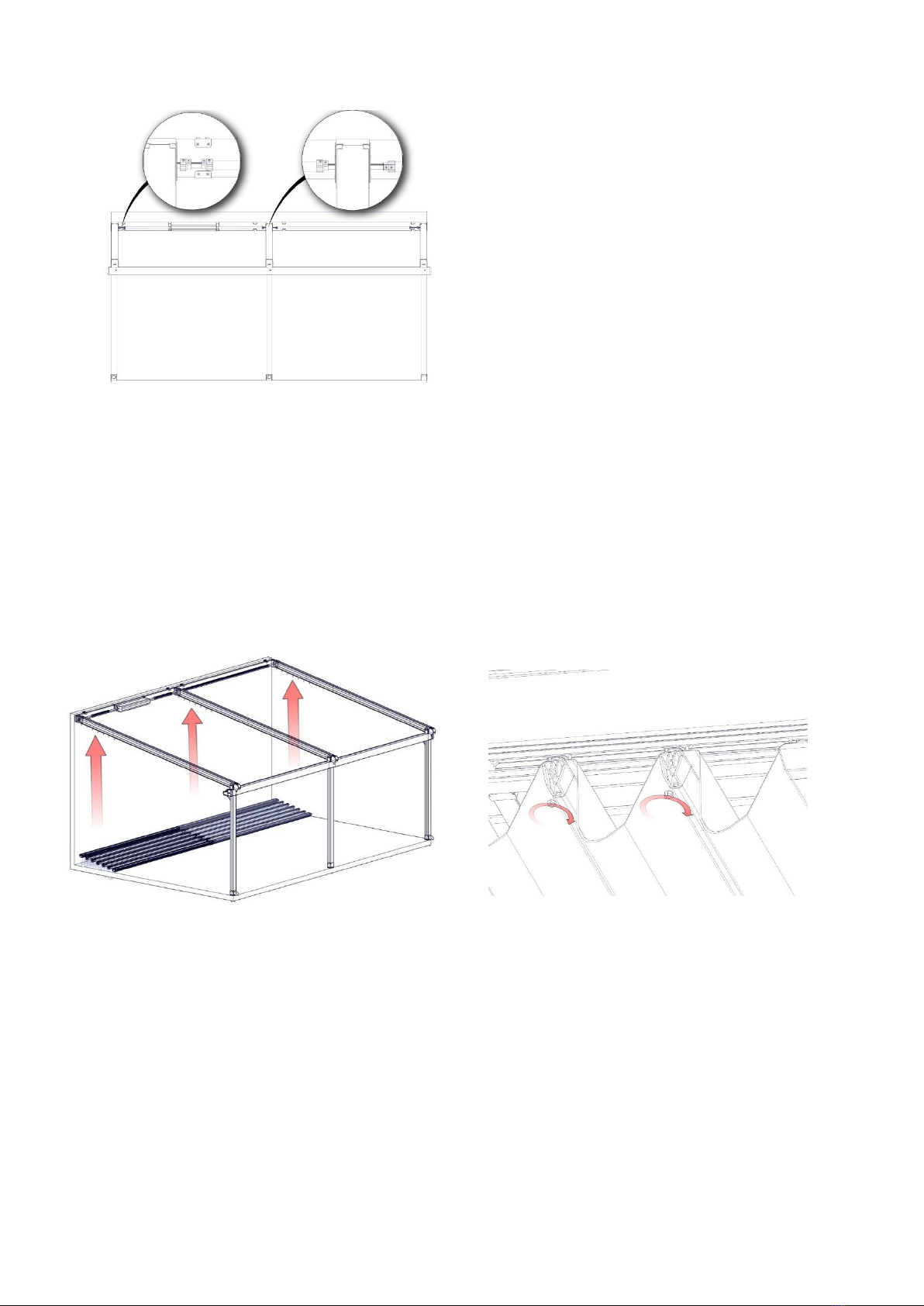

7. Fasten the bolts on the shaft transmitter plastic caps.
8. Install the fabric support proles with the fabric preinstalled on to the rafters. The fabric support proles go
rafter by rafter onto the carriers. They slide over the thread on the bottom of the carriers in place with the
nuts. While installing the fabric, you must fasten the nuts simultaneously on the fabric support proles.
NOTE: While installing the bolts, the gaskets are compressed to create a whole thigth seal. Getting the nuts
on could therefore be a challenge.
NOTE: We recommend using a lift or miltiple persons for installation as the fabric needs to go up as a whole
without damage.
www.deponti.com Assembly Manual –Verdeca Pergola page
20
7. Fasten the bolts on the shaft transmitter plastic caps.
8. Install the fabric support profiles with the fabric preinstalled on to the rafters. The fabric
support profiles go rafter by rafter onto the carriers. They slide over the thread on the
bottom of the carriers in place with the nuts. While installing the fabric, you must fasten the
nuts simultaneously on the fabric support profiles.
NOTE: While installing the bolts, the gaskets are compressed to create a whole thigth seal.
Getting the nuts on could therefore be a challenge.
NOTE: We recommend using a lift or miltiple persons for installation as the fabric needs to
go up as a whole without damage.
www.deponti.com Assembly Manual –Verdeca Pergola page
20
7. Fasten the bolts on the shaft transmitter plastic caps.
8. Install the fabric support profiles with the fabric preinstalled on to the rafters. The fabric
support profiles go rafter by rafter onto the carriers. They slide over the thread on the
bottom of the carriers in place with the nuts. While installing the fabric, you must fasten the
nuts simultaneously on the fabric support profiles.
NOTE: While installing the bolts, the gaskets are compressed to create a whole thigth seal.
Getting the nuts on could therefore be a challenge.
NOTE: We recommend using a lift or miltiple persons for installation as the fabric needs to
go up as a whole without damage.

Assembly Instructions - the Kingsher page: 20
1. Start with installing the cross rafters: In order to x the cross rafters, you should dene the U bracket position.
First you have to check the retractable length of the fabric is within the length of the side cover prole, if
correct you can install the U brackets according to that sizing.
2. OPTIONAL: You can install the optional LED control box to the cross beam.
6.3 Installation of cross rafters and ceiling sheets
www.deponti.com Assembly Manual –Verdeca Pergola page
21
6.3 Installation of cross rafter and ceiling sheets
1. Start with installing the cross rafters: In order to fix the cross rafters, you should define
the U bracket position. First you have to check the retractable length of the fabric is within
the length of the side cover profile, if correct you can install the U brackets according to that
sizing.
2. OPTIONAL: You can install the optional LED control box to the cross beam.
www.deponti.com Assembly Manual –Verdeca Pergola page
21
6.3 Installation of cross rafter and ceiling sheets
1. Start with installing the cross rafters: In order to fix the cross rafters, you should define
the U bracket position. First you have to check the retractable length of the fabric is within
the length of the side cover profile, if correct you can install the U brackets according to that
sizing.
2. OPTIONAL: You can install the optional LED control box to the cross beam.
