SCAN SCAN 1003-B User guide

1003-B
UK SCAN
ASSEMBLY AND INSTRUCTION MANUAL SCAN 1003-B
UK - ASSEMBLY AND INSTRUCTIONS MANUAL
SCAN 1003-B

1003-B
2
UK SCAN
SCAN 1003-B
You have purchased a product by one of Europe’s leading manufacturers of
wood-burning stoves, and we are sure that you will have years of pleasure from your
purchase.
To make the best possible use of your stove, it is important that you
follow our advice and instructions. Read through this Assembly and Instruction
Manual carefully before you start to assemble your stove.
CONGRATULATIONS
ON YOUR NEW SCAN
WOOD-BURNING STOVE

3
CONTENTS
¬¬ TECHNICAL DATA 4
Installation 4
Safety 4
Technical data and dimensions 5
Dimension sketch Scan 1003-B 6
Type plate 8
Product registrationumber 8
¬¬ ASSEMBLY 9
Tools needed for mounting of the stove 9
Loose parts 9
Disposal of packaging 9
Additional accessories 10
Load-bearing foundation 11
Floor plate 11
Existing chimney and pre-fabricated element chimney 11
Connection between stove and steel chimney 11
Requirements for chimney 11

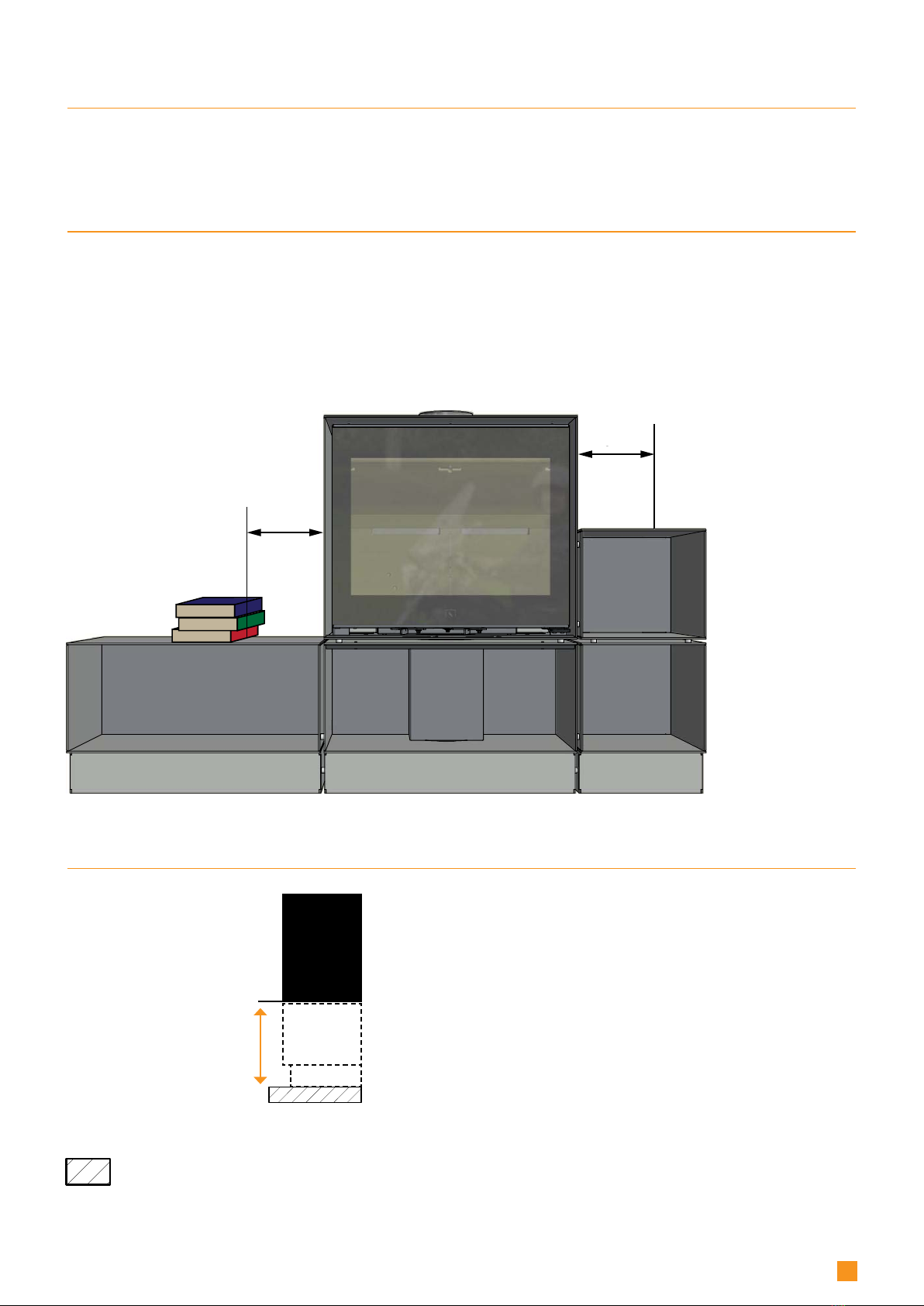

Storage of flammable material 12

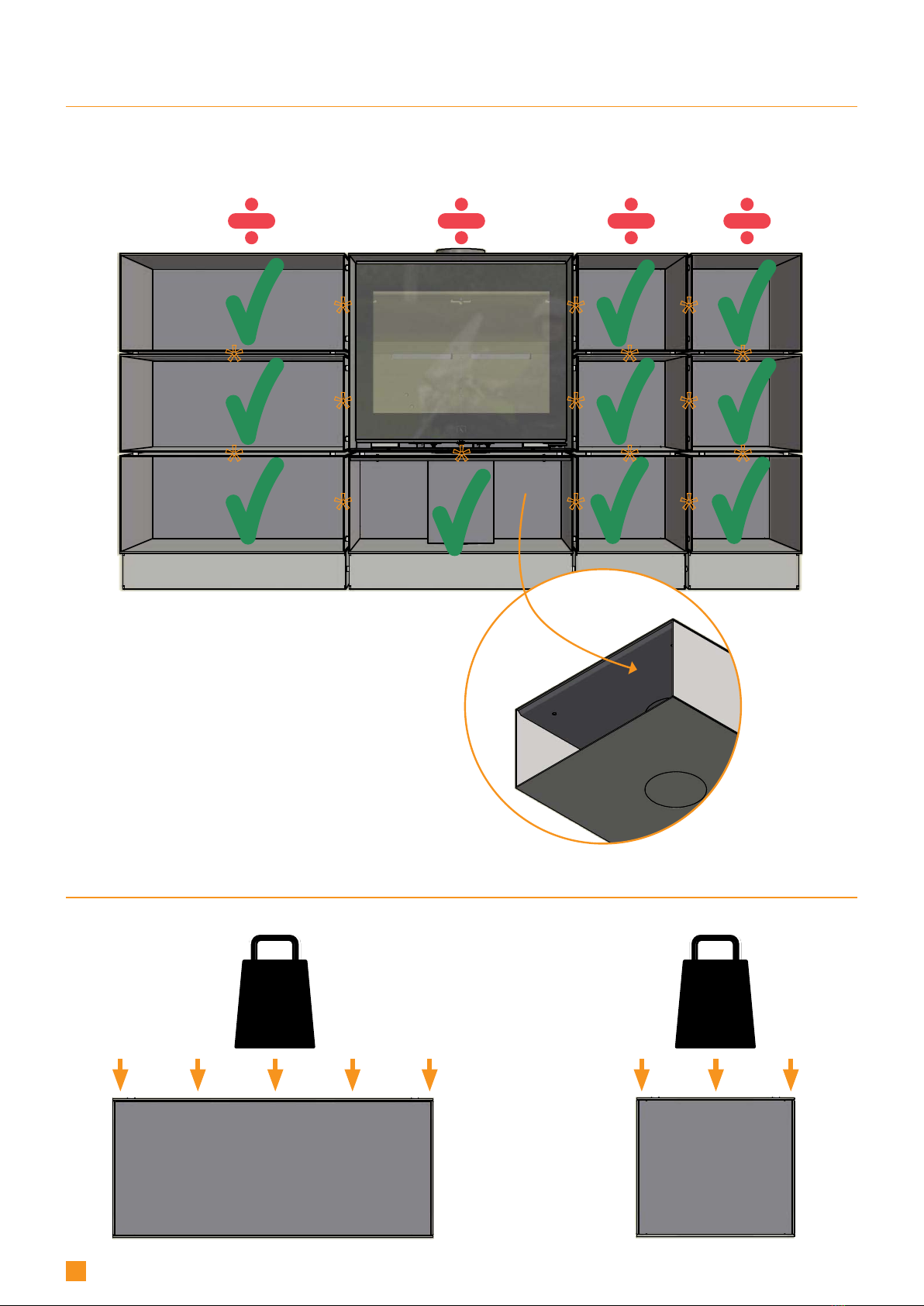

Carrying capacity 12

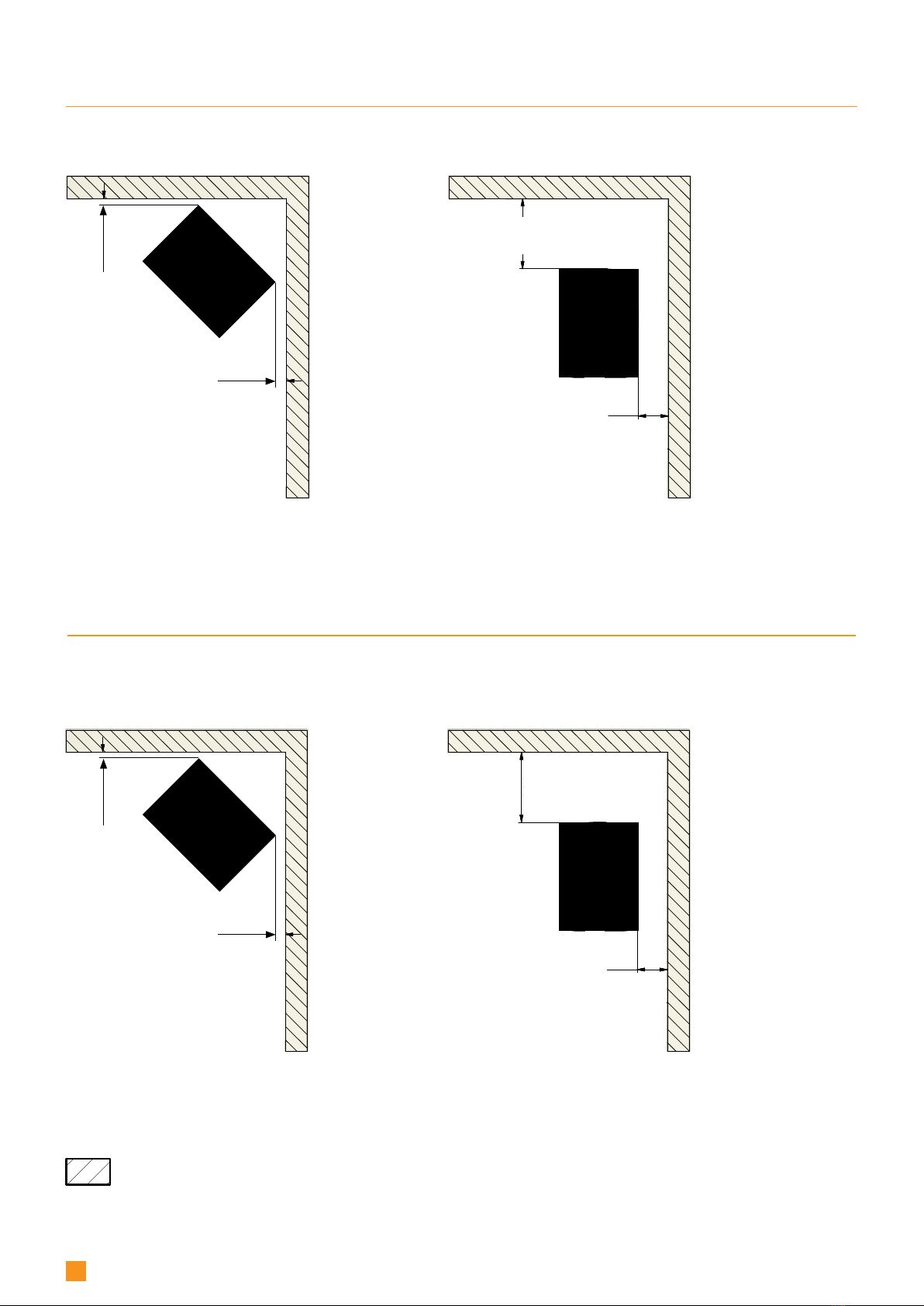

Safety distance 13
Operating the door 16

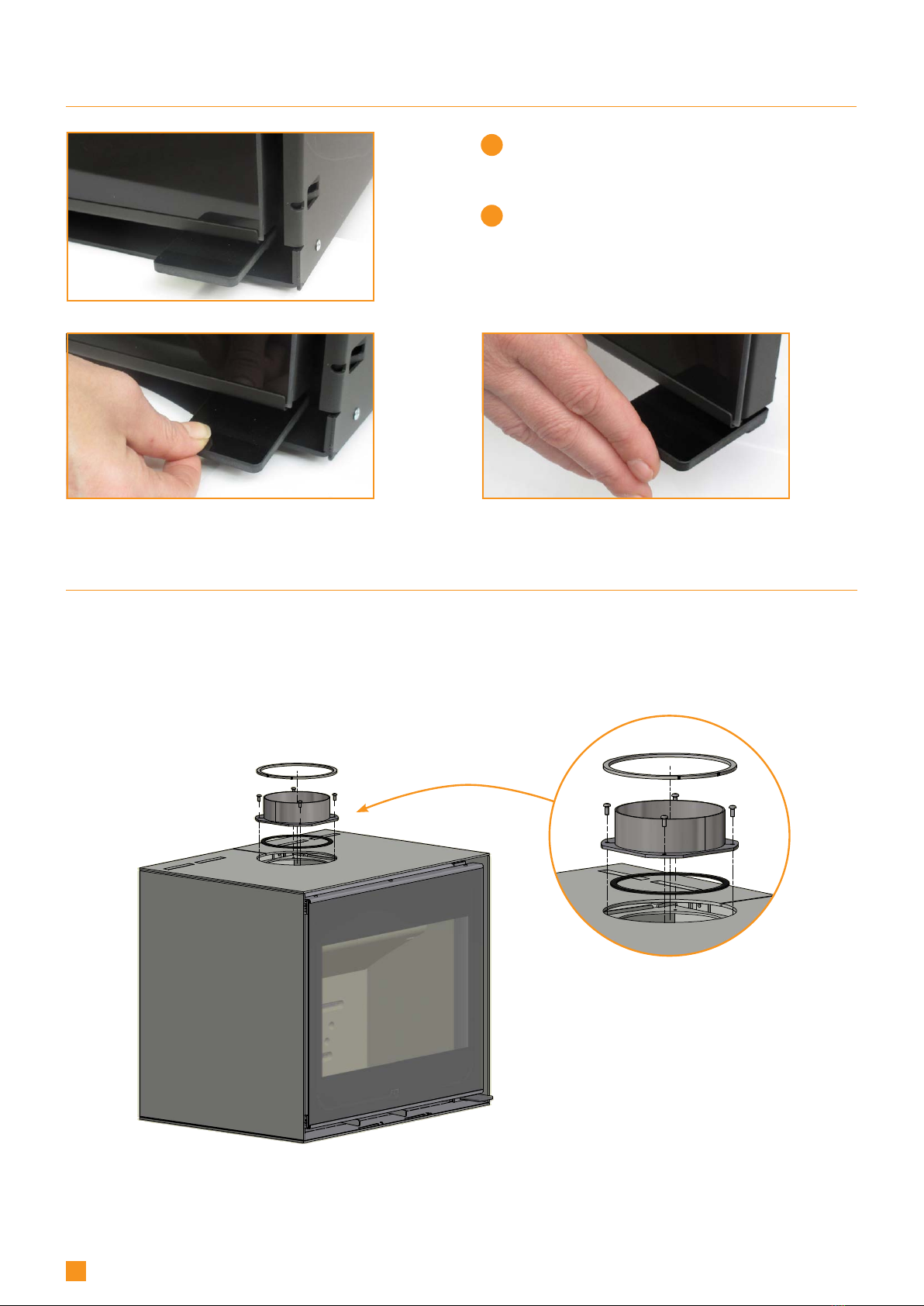

Fitting the flue connection piece 16
Fresh air intake 17
Closed combustion system 17

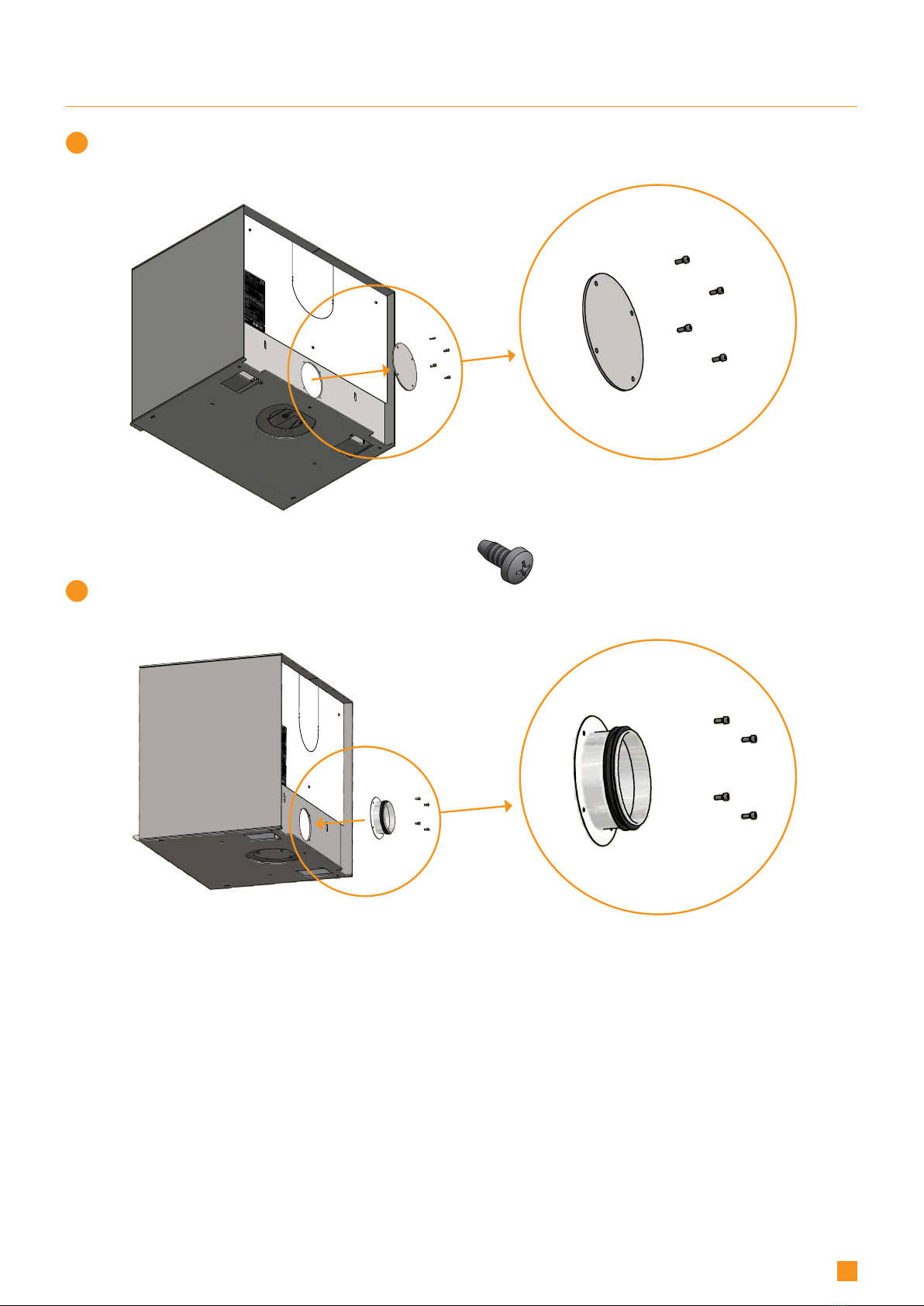

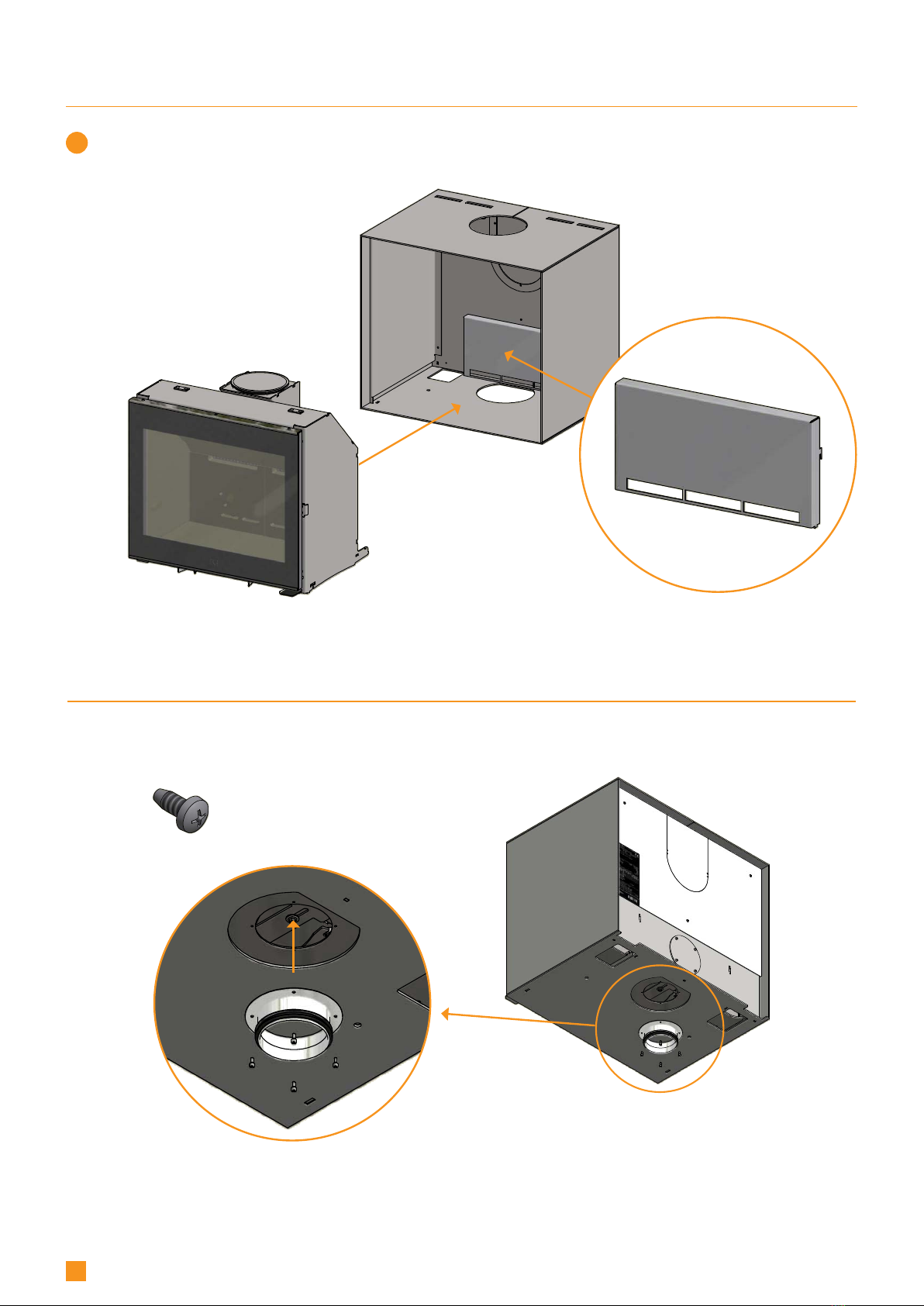

Mounting of external air supply 17
Mounting with plinth 20
Wall-hung model 21
Dimensional drawings of the wall brackets 21
Mounting of the wall bracket 22
Mounting of combustion chamber 24
Adjustment of the door 26
¬¬ INSTRUCTIONS FOR USE 27
CB-technology (Clean Burn) 27
Baffle plate 27
Primary air 27
Secondary air 27
¬¬ INSTRUCTIONS FOR HEATING 28
Environmentally friendly operation 28
Lighting 28
Continuous operation 29
Warning about over-firing 29
Using the stove in various weather conditions 29
Firing in the spring or autumn 29
General notes 29
The function of the chimney 30
Chimney fire 30
¬¬ HANDLING OF THE FUEL 31
Selecting wood/fuel 31
Preparation 31
Storing 31
Moisture 31
Use of the following as fuel is illegal 31
Calorific value of the wood 31
¬¬ MAINTAINANCE 32
Sweeping the chimney and cleaning the stove 32
Checking the stove 32
Servicing 32
Combustion chamber lining 32
Gaskets 32
Painted surfaces 32
Cleaning the glass 33
Baffle plates and combustion chamber lining 33
Disposal of stove parts 33
¬¬ TROUBLESHOOTING 34
¬¬ WARRANTY 35

4
YOU GET THE BEST USE OF
THE STOVE BY USING
A TOP-DOWN
LIGHTING METHOD
SEE
"INSTRUCTIONS FOR HEATING"
PLEASE NOTE!
TECHNICAL DATA
INSTALLATION
To ensure best-possible functionality and safety for your installation, we advise you to call a professional fitter. Your Scan
Dealer will be able to recommend a qualified fitter in your area. For information on Scan Dealers, please go to www.scan.dk
¬ The house owner is responsible for ensuring that installation and assembly are in accordance with national and local
building regulations as well as the information provided in this Assembly and Instruction Manual
¬ When you install any kind of fireplace or stove, you must inform the local building and housing authorities. In addition
you are obliged to have the installation inspected and approved by a local chimney sweep prior to commissioning
SAFETY
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as
intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case
if parts that are necessary for the operation and safety of the stove are dismantled or removed.
WARNING!
This product contains very strong magnets.
¬ When separating and putting together the magnets, we recommend that you let them glide on (or from) one another. In this way
you avoid squeezing your fingers and damaging the coating of the magnets
¬ Electronic components should be kept at a safe distance from the magnets to avoid them being influenced or damaged by
the magnetic field (pacemakers, hearing aids, computers, watches, measuring instruments, floppy discs, credit cards, mobile
phones etc.)

5
TECHNICAL DATA AND DIMENSIONS
Materials
Steel plate
Galvanised sheet
Ceramic stone/vermiculite
Chamotte
Robax glass
Scan 1003-B – Test in compliance with EN 13240
Combustion chamber Ceramic
stone
Vermi-
culite
CO Emission at 13% O20,09 0,07 %
CO Emission at 13% O21148 832 mg/Nm3
Dust @ 13% O229 27 mg/Nm3
Nox@ 13% O295 95 mg/Nm3
Efficiency 81 80 %
Energy efficiency index 108,5 107
Energy efficiency class A+ A+
Nominel output 7,2 7,2 kW
Chimney temperature
EN 13240 242 260 °C
Temperature in flue conn.
piece 290 312 °C
Amount of smoke 7,4 7,4 g/sec
Sub-pressure EN 13240 12 12 Pa
Recommended sub-pressure
in connecting piece 16-18 16-18 Pa
Required combustion air supply 22,5 22 m3/h
Fuel Wood Wood
Fuel consumption 2,4 2,4 kg/h
Amount of fuel required to light 2 2 kg
Amount of fuel, max. 3 3 kg
* Intermittent operation in this context means normal use of
a wood-burning stove. In other words, you should let the fire
die down until only the embers are left before refuelling.
Scan 1003-B is produced in accordance with type
approval for the product, which also covers the product’s
Assembly and Instruction Manual.
The Declaration of Performance (DoP) is available from
www.scan.dk
Surface treatment Senotherm
Max. wood length Scan 1003-B 50 cm
Weight Scan 1003-B (Ceramic stone) ca. 145 kg
Weight Scan 1003-B (Vermiculite) ca. 137 kg
Weight big box ca. 32 kg
Weight little box ca. 20 kg
Connecting piece internal diameter 144 mm
Connecting piece external diameter 148 mm
Approval type Intermittent
fuelling*
EN 13240 was carried out on the installation shown on page 13.

NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003024.idw
91003024
Målskitse Scan 1003-B
23-05-2019 KEN
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
649
564,5
572
324,5
324,5
188
291
93
479
82
93
143
D
A
B
C
E
D
6

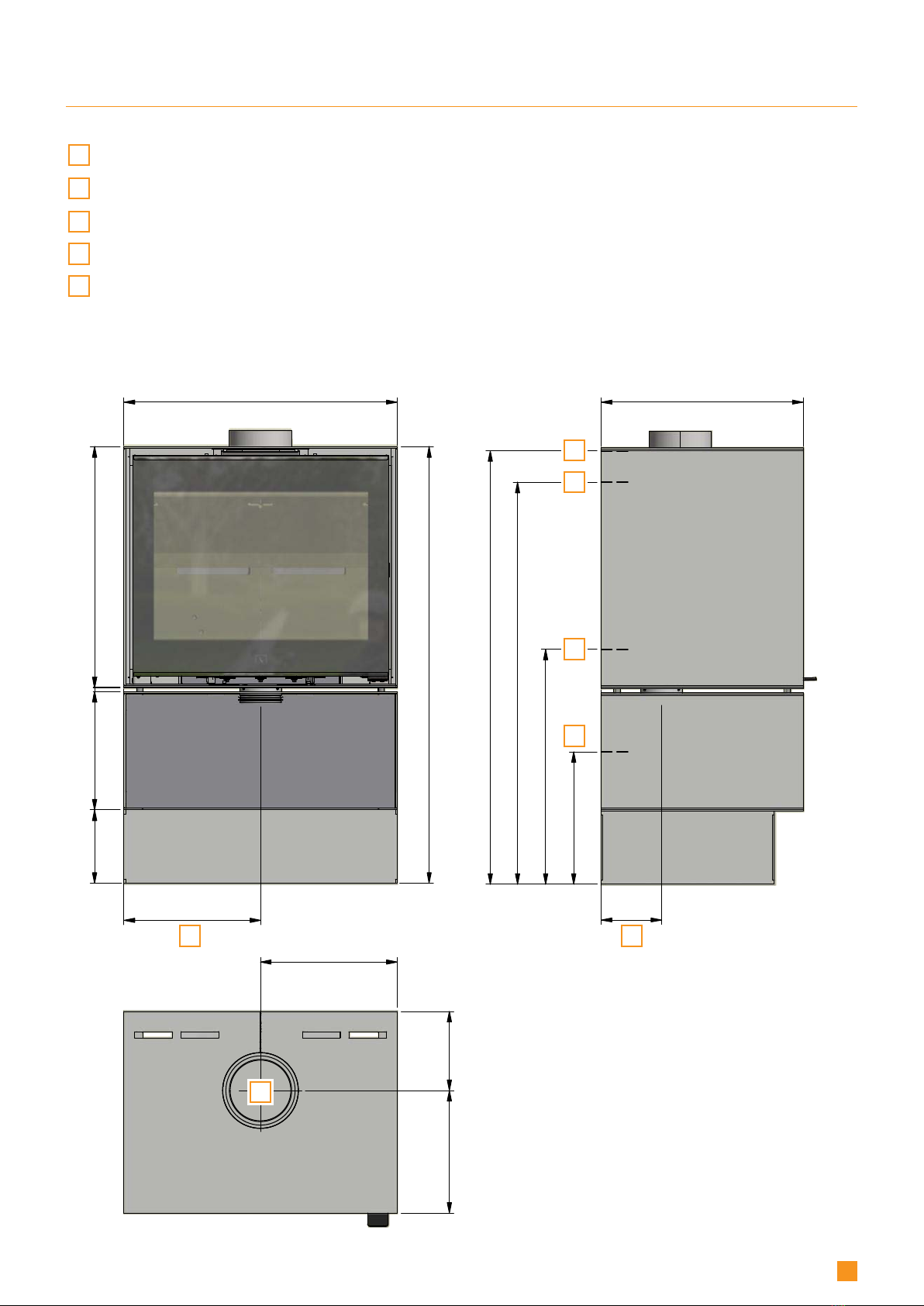

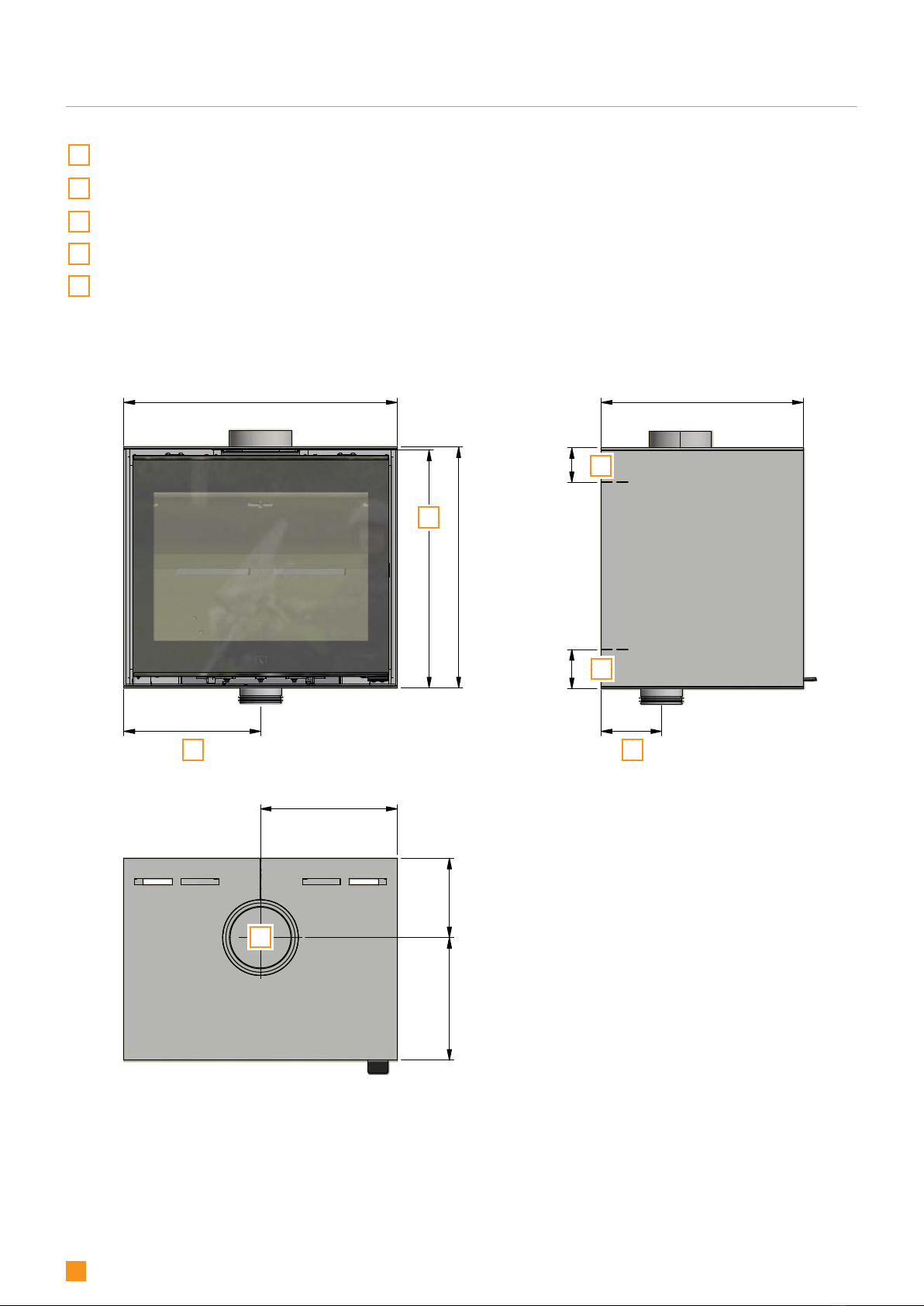

DIMENSION SKETCH SCAN 1003-B
ATop outlet
BRear outlet
CCentre external air supply, rear side
DCentre of external air supply, bottom
EHeight to the beginning of the connecting piece at top outlet
All measures are in mm

NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003025.idw
91003025
Målskitse Scan 1003-B med sokkel
23-05-2019 KEN
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
649
1037
324,5
324,5
188
291
93
479
955
558
143
572
10
281
174
314,5
314,5
1029,5
D
B
C
E
D
A
C
7
DIMENSION SKETCH SCAN 1003-B
ATop outlet
BRear outlet
CCentre external air supply, rear side
DCentre of external air supply, bottom
EHeight to the beginning of the connecting piece at top outlet
All measures are in mm

NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010003.idw
91010003
Ovn bag
23-05-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
8
Type plate Scan 1003-B (Ceramic stone) Type plate Scan 1003-B (Vermiculite)
PRODUCT REGISTRATIONUMBER
All Scan wood burning stoves are provided with a product registration number. Please make a note of this number at the rear
page of this manual; you will always need to quote it when contacting your dealer or Scan A/S.
The product registration number is located at the back of the stove.
TYPE PLATE
All Scan wood burning stoves are fitted with a type plate that specifies the approval standards and the distance to flammable
materials.
The type plate (Vermiculite) is located at the back of the stove.
The eco energy label and type plate (Ceramic stone) are in the box with the ceramic stones and must replace the existing labels.
Product registration number
Type plate

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003043.idw
91003043
Ovn påpalle
17-09-2019 KEN
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
9
ASSEMBLY
TOOLS NEEDED FOR MOUNTING OF THE STOVE
¬ Spirit level ¬ Cross tip screwdriver
¬ Flat head screwdriver ¬ Ø10 mm wall drill
¬ Open-end spanner
LOOSE PARTS
¬ Bricks for the bottom of the burn chamber ¬ Log guard
¬ Glove ¬ Connecting piece
¬ Gasket for connecting piece ¬ Screws for connecting piece 5 x 12 mm
¬ Connecting piece for fresh air inlet ¬ Screws for connecting piece/fresh air 4,2 x 6,5 mm
¬ Decor ring for top outlet ¬ Screw M5x6 (Only used in Norway)
¬ Baffle plates ¬ Burn chamber plates (side and rear)
¬ 3 pins Ø6 x 50 mm ¬ Eco energy label

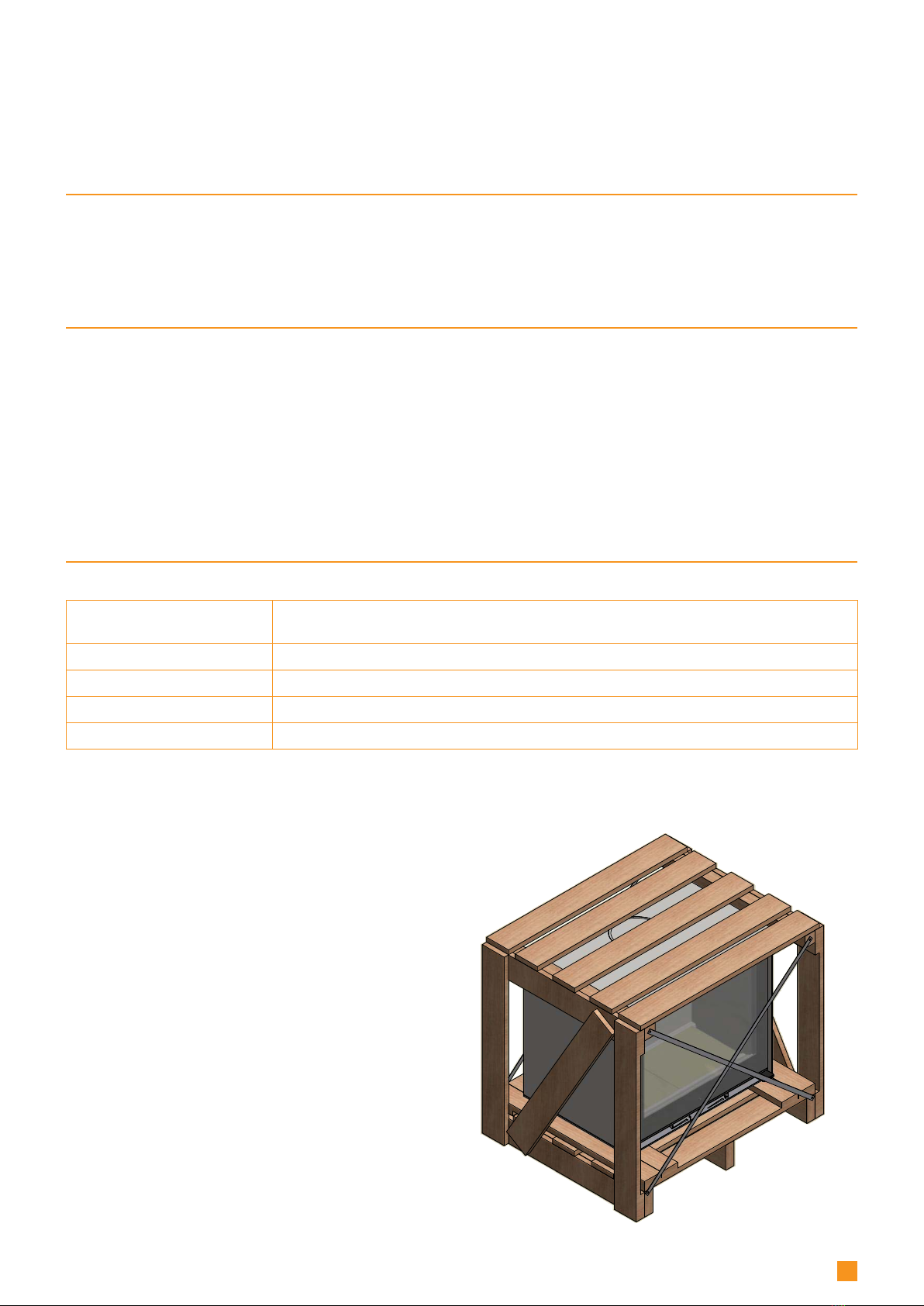

DISPOSAL OF PACKAGING
Your Scan stove may come supplied with the following packaging:
Wood packaging The wood packaging can be reused and after final use can be incinerated as a CO2neutral
product or sent for recycling.
Polystyrene top Send for recycling or waste disposal.
Foam Send for recycling or waste disposal.
Plastic bags Send for recycling or waste disposal.
Stretch/plastic film Send for recycling or waste disposal.

NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003026.idw
91003026
Mål kasser
24-05-2019 ken
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
DIM.:
Scan A/S
6
4
9
4
7
9
2
77
6
4
9
4
1
1
174
4
1
1
1
7
4
3
1
9
4
7
9
2
8
1
6
4
9
4
7
9
281
25
5
1
9
5
20
0
3
1
9
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010034.idw
91010034
vægbeslag løse
12-08-2016 mbp
Scan 1010
VÆGT:
AREAL:
N/A
N/A
10

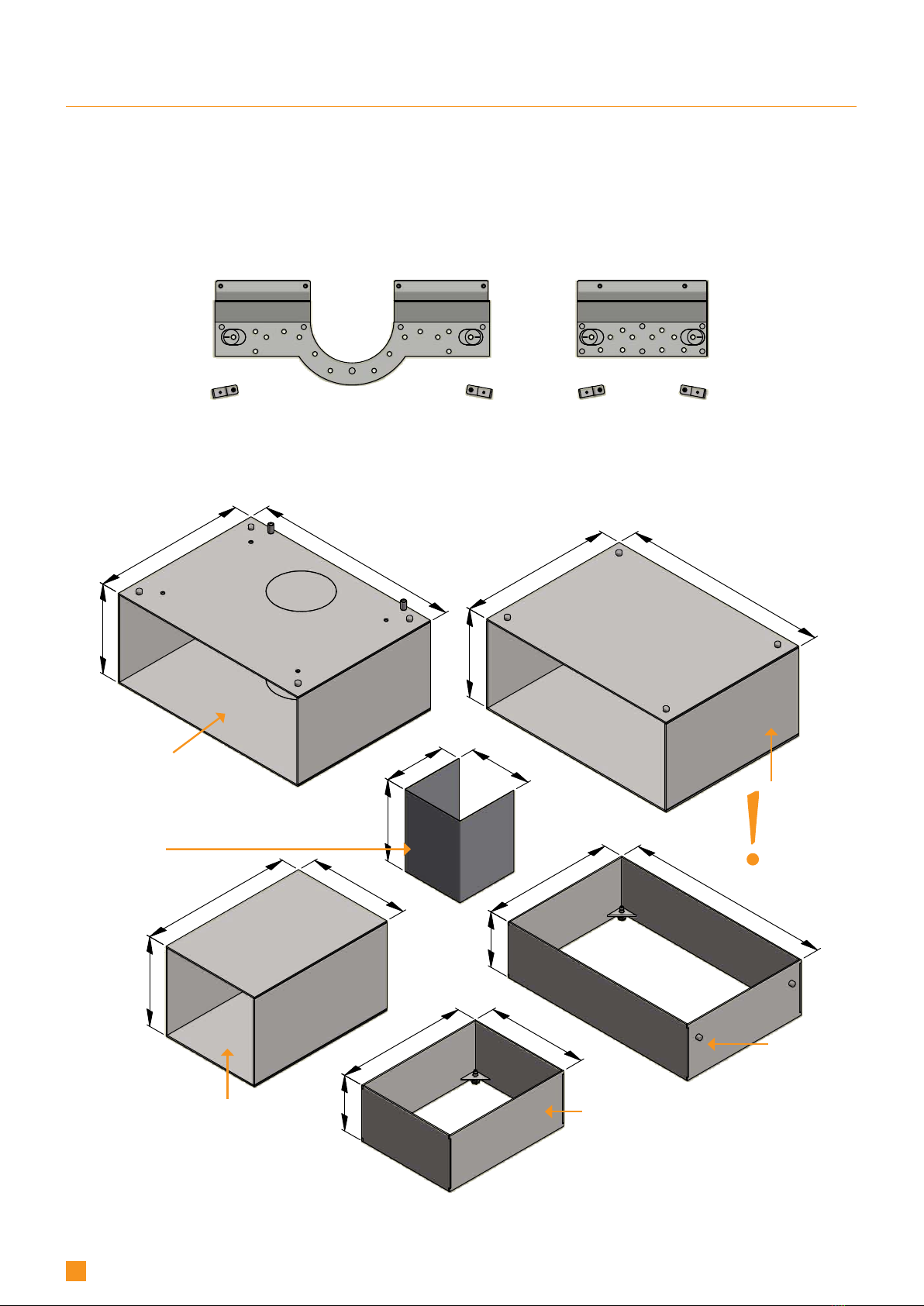

Large wall bracket Small wall bracket
Large module
- is not to be
used under
the stove!
Small module
Cover for
fresh air
inlet
Large module
with fresh air
inlet and heat
shield
Large plinth
Small plinth
ADDITIONAL ACCESSORIES
¬ Large/small module ¬ Large/small plinth
¬ Large/small wall bracket ¬ Protection glass for large/small module
¬ Magnets ¬ Cover for fresh air inlet
¬ Small floor plate (glass or steel) ¬ Large floor plate (glass or steel)

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010042.idw
91010042
opstilling med knærør
25-08-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010046.idw
91010046
ovn med 90 gr røgrør
21-09-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
11
LOAD-BEARING FOUNDATION
All items in our product range come under the category of lightweight fireplaces and stoves and do not normally require any rein-
forcement of the beam structure. They can be positioned on ordinary beams/floor.
You should of course make sure that the foundation on which the stove is positioned can indeed support the weight of the stove
and, where applicable, a steel chimney, if you have opted for this solution. In case of doubt about the carrying capacity of the
floor, please consult a building expert.
FLOOR PLATE
If you are placing the stove on a flammable floor, you must comply with the national and local regulations on the size of any
non-flammable subsurface required to cover the floor around the stove.
Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove.
The floor plate’s function is to protect the floor and flammable material against any sparks that may occur.
EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY
If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim-
ney sweep, for advice. These experts will also let you know if your chimney needs renovating.
¬ When connecting a pre-fabricated element chimney, follow the manufacturer’s connection instructions for the relevant
chimney type
CONNECTION BETWEEN STOVE AND STEEL CHIMNEY
Your Scan dealer, or local chimney sweep, can advise you on choosing a make and type of steel chimney. This ensures that the
chimney will match your wood-burning stove.
REQUIREMENTS FOR CHIMNEY
The chimney must have a diameter of min. 148 mm and be labelled T400 and G for soot testing. The length must be min. 4,5
metres.
If you opt to connect the stove with an elbow pipe, you should use a curved elbow, as this gives a better draught.
If you connect the stove with a sharp elbow pipe, the cleansing lid must be placed in the vertical part so that the
horizontal part can be cleaned through here.
The requirements to the chimney and the flue pipe in terms of safety distances must be met.
¬ Choosing the wrong length or diameter of chimney could impair functionality
¬ Always comply exactly with the instructions provided by the chimney supplier
Curved elbow pipe Sharp elbow pipe

NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010013.idw
91010013
opbevaring af brænde
30-05-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
*
*
= 10 mm
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1010\21010909.iam
21010909
assembly of fresh air box
12-04-2016 jm
Scan 1010
VÆGT:
AREAL:
N/A
N/A
DIM.:
*
*
*
*
*
*
*
*
* *
* **
*
*
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010043.idw
91010043
moduler
16-09-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
Max
MAX
285
KG
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010043.idw
91010043
moduler
16-09-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
KG
Max
MAX
285
KG
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003024.idw
91003024
Målskitse Scan 1003-B
23-05-2019 KEN
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
649
564,5
572
324,5
324,5
188
291
93
479
82
93
143
12
STORAGE OF FLAMMABLE MATERIAL
ATTENTION!! It is important to use the delivered magnets as distance pieces between the modules when using these in
connection with flammable materials.
CARRYING CAPACITY
You can store wood
under the stove in the
module with heat shield
and fresh air inlet

465
Min.
140 mm
Min.
140 mm
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580001.idw
90580001
Opstillingsafstand, hjørne, Scan 1008 03-03-2017
sr
Scan 80
Weight: Area:
N/A N/A
350mm
25 mm
25mm
Møbleringsafstand: 800 mm.
Brandbart materiale
Brandmur
F.eks. 50 mm. Jøtul firewall
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003017.idw
91003017
Uisoleret røgrør
14-01-2019 KEN
Scan 1003/1004
VÆGT:
AREAL:
N/A
N/A
175
75
25
500
200
1500
800
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003024.idw
91003024
Målskitse Scan 1003-B
23-05-2019 KEN
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
DIM.:
Scan A/S
649
564,5
572
324,5
324,5
188
291
93
479
82
93
143
Min.
175 mm
Min.
175 mm
13
SAFETY DISTANCE
European, national and local regulations concerning safety distances for wood-burning stoves and flue pipes must be complied
with.
If you connect the stove to a steel chimney, the safety distances of the steel chimney must also be respected.
DISTANCE TO FURNITURE
Distance to furniture from glass: 1500 mm.
You should however assess whether furniture or other items might become excessively dry due to being too close to the stove.
The wood-burning stove must be set up so that the stove itself, the flue pipe, and the chimney can all be cleaned.
Flammable material
All distances are in mm
All distances are minimum distances
Radiance distance to combustible objects outside the modules
Remember to place
a floor plate
DISTANCE TO COMBUSTIBLE FLOOR

NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064049.idw
90064049
Brændbar + uisoleret røgrør - Scan 64 uden sideglas
23-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
150
350
340
595
100
363
628
100
324
NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064049.idw
90064049
Brændbar + uisoleret røgrør - Scan 64 uden sideglas
23-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
150
350
340
595
100
363
628
100
324
50
50
50
50
500
500
150
50
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580001.idw
90580001
Opstillingsafstand, hjørne, Scan 1008 03-03-2017
sr
Scan 80
Weight: Area:
N/A N/A
350mm
25 mm
25mm
Møbleringsafstand: 800 mm.
Brandbart materiale
Brandmur
F.eks. 50 mm. Jøtul firewall
14
Parallel rear wall installation45° Corner installation
DISTANCE TO FLAMMABLE MATERIALS
DISTANCE TO FLAMMABLE MATERIALS, WITH INSULATED FLUE PIPE
These distances apply for an insulated flue pipe all the way down to the stove.
Parallel rear wall installation45° Corner installation
, WITH UNINSULATED FLUE PIPE
Flammable material
All distances are in mm
All distances are minimum distances

Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580001.idw
90580001
Opstillingsafstand, hjørne, Scan 1008 03-03-2017
sr
Scan 80
Weight: Area:
N/A N/A
350mm
25 mm
25mm
Møbleringsafstand: 800 mm.
Brandbart materiale
Brandmur
F.eks. 50 mm. Jøtul firewall
NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50 50
100
50
50
700
700
960
700
700
253
1000
0
NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50 50
100
50
50
700
700
960
700
700
253
350
1000
0
1300
200
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
50
100
50
50
700
700
960
700
700
253
1000
1000
0
0
15
Flammable material
Fire wall, e.g. 50 mm Jøtul Firewall, 110 mm brick
or other material with corresponding fireproof and
insulating abilities
All distances are in mm
All distances are minimum distances
Parallel rear wall installation45° Corner installation
DISTANCE TO FLAMMABLE MATERIALS
These distances apply for an insulated flue pipe all the way down to the stove.
, WITH UNINSULATED FLUE PIPE

B
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010051.idw
91010051
Scan 1010 - Montage røgstuds i topafgang
12-02-2018 ken
Scan 1010
VÆGT:
AREAL:
N/A
N/A
B
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010051.idw
91010051
Scan 1010 - Montage røgstuds i topafgang
12-02-2018 ken
Scan 1010
VÆGT:
AREAL:
N/A
N/A
A
C
D
B
16
OPERATING THE DOOR
2The door should be banged shut, as on a car.
Grip the handle (hold in a horizontal position)
and bang the door shut
1Push down the handle and the door will open
FITTING THE FLUE CONNECTION PIECE
The stove is prepared for a top flue outlet from the factory, but the connection piece can be turned around for a rear outlet.
The flue connection piece (A), gasket for the flue connection piece (B), screws (C) and cover ring (D) can be found in the stove’s
combustion chamber.

NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003039.idw
91003039
Ekstern forbrænding
28-05-2019 ken
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
DIM.:
Scan A/S
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010003.idw
91010003
Ovn bag
23-05-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
17
External air supply on
the rear of the cassette
External combustion air on
the bottom of the cassette
FRESH AIR INTAKE
In a well-insulated house, the air used up by the burning process has to be replaced. This particularly applies to houses with
mechanical ventilation. There are different ways of making sure that an air exchange takes place. The most important thing is to
ensure that there is a supply of air to the room where the wood stove is located. The external wall vent must be located as close
to the wood stove as possible, and you must be able to close it when you are not using the wood stove. Beware that the valve in
the outer wall cannot be covered by accident!
National and local building regulations must be followed with regard to the connection of fresh-air intake.
CLOSED COMBUSTION SYSTEM
You should use the closed combustion system for the wood-burning stove if you live in a newly-built, airtight home.
External combustion air is connected through a ventilation pipe via the wall or floor.
We recommend mounting a valve in the ventilation pipe in order to avoid condensate in the stove and the pipe system, which can
be closed when the oven is not in use. It can also be an advantage to insulate the ventilation pipe.
Minimum Ø 100 mm ventilation pipe, maximum length: 6 metres with a maximum of 3 bends. We recommend smooth steel pipes.
NOTE: If the stove has a fresh air connexion or closed combustion, the ventilation pipe must be open, when the stove
is in use!
MOUNTING OF EXTERNAL AIR SUPPLY
To dismount the cover plates for the Ø100 mm sleeve, use an ordinary screwdriver as shown below. Tilt the screwdriver and
loosen the cover plates.
1

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010036.idw
91010036
Frisklfuft bund
18-08-16 jm
Scan 1010
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003040.idw
91003040
Forbrændingsluftkasse
28-05-2019 ken
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
DIM.:
Scan A/S
2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001032.idw
91001032
Frisklufttilførsel bund af ovn
07-05-2012 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010036.idw
91010036
Frisklfuft bund
18-08-16 jm
Scan 1010
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003041.idw
91003041
Ovn uden kasse
21-08-2019 ken
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
DIM.:
Scan A/S
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003040.idw
91003040
Forbrændingsluftkasse
28-05-2019 ken
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
18
MOUNTING OF EXTERNAL AIR SUPPLY THROUGH THE BOTTOM OF THE CASSETTE
Mount the Ø100 mm sleeve
4 x self-tapping screws 4.2 x 6.5 mm
Hitch the combustion air box on the rear plate
of the cassette.
This box must always be mounted when
connecting the stove with external air supply.
IMPORTANT: Only use for connection with
external air supply!
Mount the atove in the cassette
MOUNTING OF EXTERNAL AIR SUPPLY
Combustion air box

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010037.idw
91010037
dækplade friskluft
18-08-16 jm
Scan 1010
VÆGT:
AREAL:
N/A
N/A
1
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001032.idw
91001032
Frisklufttilførsel bund af ovn
07-05-2012 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010038.idw
91010038
friskstuds bag
18-08-16 jm
Scan 1010
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010038.idw
91010038
friskstuds bag
18-08-16 jm
Scan 1010
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010036.idw
91010036
Frisklfuft bund
18-08-16 jm
Scan 1010
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010037.idw
91010037
dækplade friskluft
18-08-16 jm
Scan 1010
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010037.idw
91010037
dækplade friskluft
18-08-16 jm
Scan 1010
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010036.idw
91010036
Frisklfuft bund
18-08-16 jm
Scan 1010
VÆGT:
AREAL:
N/A
N/A
19
Dismount the cover plate at the rear and mount it in the bottom
MOUNTING OF EXTERNAL AIR SUPPLY ON THE REAR OF THE CASSETTE
Cover plate
4 x self-tapping screws 4.2 x 6.5 mm
Mount the Ø100 mm sleeve
Ø100 mm sleeve

NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003027.idw
91003027
Moduler
24-05-2019 KEN
Scan 1003-B
VÆGT:
AREAL:
N/A
N/A
DIM.:
Scan A/S
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010019.idw
91010019
Emb afbræk
10-06-2016 hms
Scan 1010
VÆGT:
AREAL:
0,04 kg
20656 mm^2
DIM.: Scan A/S
1
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010014.idw
91010014
sokkel magnet
31-05-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010014.idw
91010014
sokkel magnet
31-05-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010015.idw
91010015
justering af sokkel
08-06-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
A ( 0,40 : 1 )
A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1010\91010039.idw
91010039
indstil ben
23-08-2016 hms
Scan 1010
VÆGT:
AREAL:
N/A
N/A
2
3
AAA
B
C
DD
E
20
Press the two distance triangles out
of the packing. These are used for the
proper mounting of the magnets.
The magnets are to be found inside the
plinth at the delivery
It is important to adjust the plinths
before mounting the modules
First mount the module with fresh air inlet on the
plinth and then the stove. Place the magnets on the
next modules before mounting them.
Please follow the order below A, B, C, D, and E
MOUNTING WITH PLINTH
