The LCD Monitor
Your New LCD Monitor
Your LCD Monitor has been designed to be versatile, ergonomic and
user-friendly. The LCD Monitor is capable of displaying most
standards, from 640x350 VGA to 1680x1050 WSXGA+. The digital
controls located on the front panel allow the user to easily adjust the
Monitor’s display parameters, and the LCD Monitor’s small footprint
gives you more room in your workspace for other peripherals.
Lightweight and compact, the LCD Monitor is the perfect solution for
users on the go. You can use the LCD Monitor for everything from
making business presentations to playing computer games. The
Monitor also has a wall-mountable stand for added convenience.
The architecture of the LCD Monitor incorporates an LCD panel that
produces a clear display with low radiation emission. And with its low
power consumption, the LCD Monitor helps you reduce your power bill.
Unpacking
Before unpacking your LCD Monitor, prepare a suitable workspace
for your LCD Monitor and computer. Look for a stable, level and clean
surface near a wall outlet. Even though the LCD Monitor uses very
little power, you should put it in a location, which allows sufficient
airflow to ensure that the LCD Monitor and your computer do not
overheat. Set up your LCD Monitor so that the panel is not facing a
window where sunlight often comes in. The glare caused by sunlight
reflecting off of the LCD Monitor’s screen will make it difficult to use
the Monitor for viewing.

2 Rev.3
Note: Using a computer for an extended period of time with a poor workstation
set-up and incorrect working habits can cause health problems. The science of
ergonomics studies the relationship between health and a suitable working
environment. There is a section on ergonomics at the end of this chapter. For
more information on ergonomics, contact your nearest computer bookstore, or
local library. The Internet also has information on this and other subjects.
If you previously were using a CRT monitor instead of a LCD monitor,
please do not connect the LCD monitor to your computer yet. Please
use the CRT monitor and turn on your computer. Make sure your video
card’s refresh rate is at 60hz in the Display Setting’s Advance Menu
under the Display Adapter tab. Once that is achieved you can then turn
off the computer and plug your new LCD monitor in
After unpacking your LCD monitor, make sure the following items are included
in the box and are in good condition:
•LCD monitor
•Power Cord
•Monitor-To-PC Analog signal cable 15pin
•1.5M stereo Jack Audio Cable
•User’s manual
¾Monitor-To-PC DVI signal cable – Option
If you find that any item to be missing or appear to be damaged,
contact your dealer immediately. DO NOT throw away the packing
material or shipping carton in case you need to ship or store the LCD
monitor in the future.

3 Rev.3
Identifying Components
A. The LCD Monitor — Front View
Figure 1-1: The LCD Monitor Front View
1. Sceptre logo Indicator
This foursquare LED indicator blue lit when the power is on
and red lit when the LCD monitor is in power-saving mode.
2. Monitor Stand
3. LCD Screen
The LCD monitor is a 20.1-inch TFT 1680 x 1050 Wide
WSXGA+ screen.
4. LCD Monitor Control Panel
Refer to Chapter 2 for more details.
3
2
1
4

4 Rev.3
B. "Hot Keys" for Quick Adjustment of Monitor Settings
Figure 1-2: "Hot Keys"

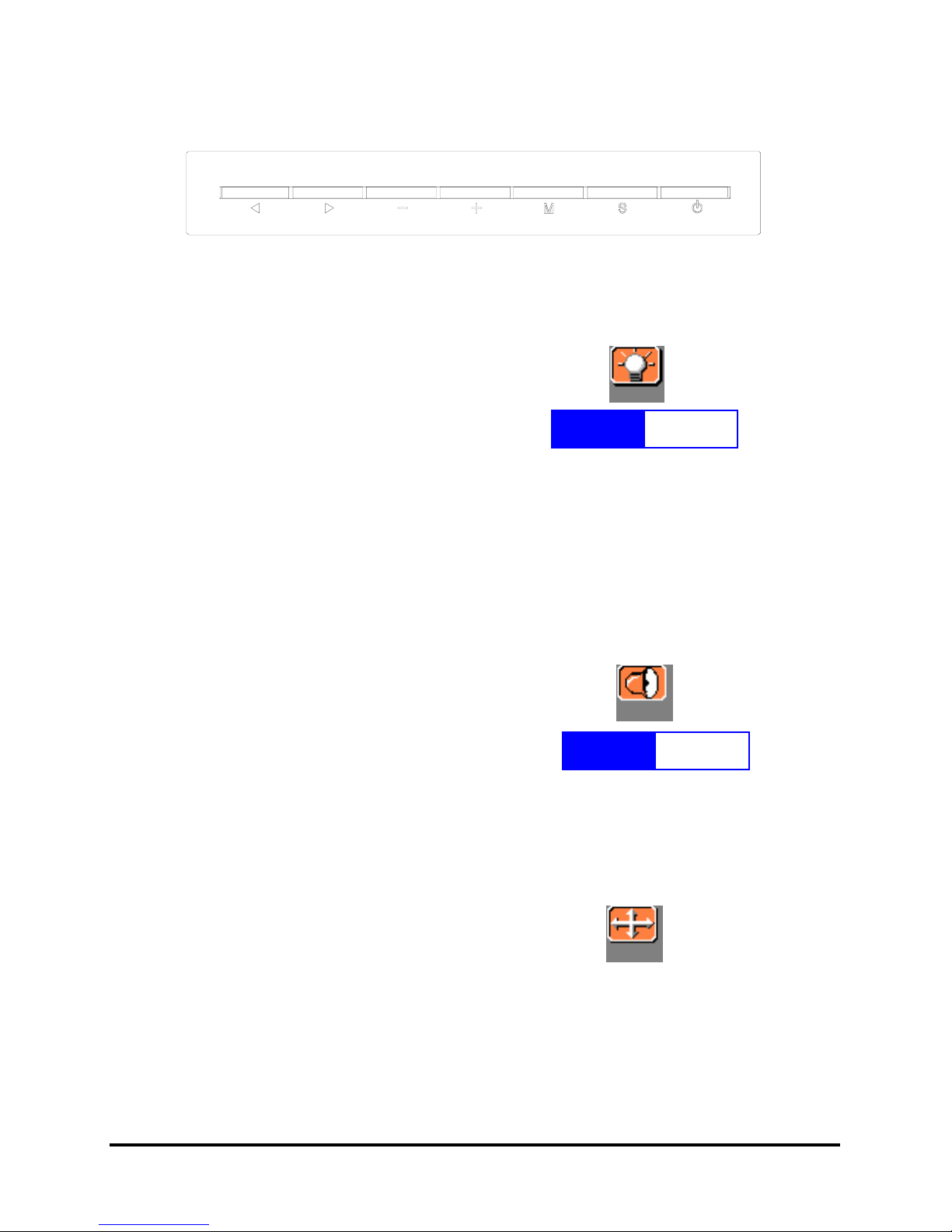

1. Brightness adjustment " Hot Key ":
Press this Zbutton to allow you to
adjust the brightness of the LCD
Monitor directly
< > 50
2. Source select “ Hot Key :
Press S button to allow you to change
the input source between DVI port and
RGB port, if the screen can’t detect
signal, then it will switch to the next
automatically
Source D-Sub
Source DVI
3. Volume adjustment “ Hot Key ”
Press this Ybutton to allow you to
adjust the volume of the LCD Monitor
directly
<> 50
4. Auto adjustment “ Hot Key “
Press this - button to allow you to do
the auto adjustment to get the
optimized view
( For VGA port only, DVI port can’t
adjustment )

5 Rev.3
Adjusting the Tilting Angle
The LCD Monitor’s angle settings range from 0°to 10°.
10
Figure 1-3: Tilting the Monitor
0 to 10

6 Rev.3
Connecting AC Power and PC Video Cable
Note: Turn off your PC and the LCD monitor before connecting your LCD
monitor to the computer.
Figure 1-4: PC conenction
Power Management System
This LCD Monitor complies with the VESA DPMS power management
proposal.
When the LCD Monitor is in power-saving mode or detects an incorrect
timing, the monitor screen will be blank and the power LED indicator change
to red lit.
DVI
VGA
Audio
AC-IN
AC Outlet
(Wall Socket) Monitor Power Cord

7 Rev.3

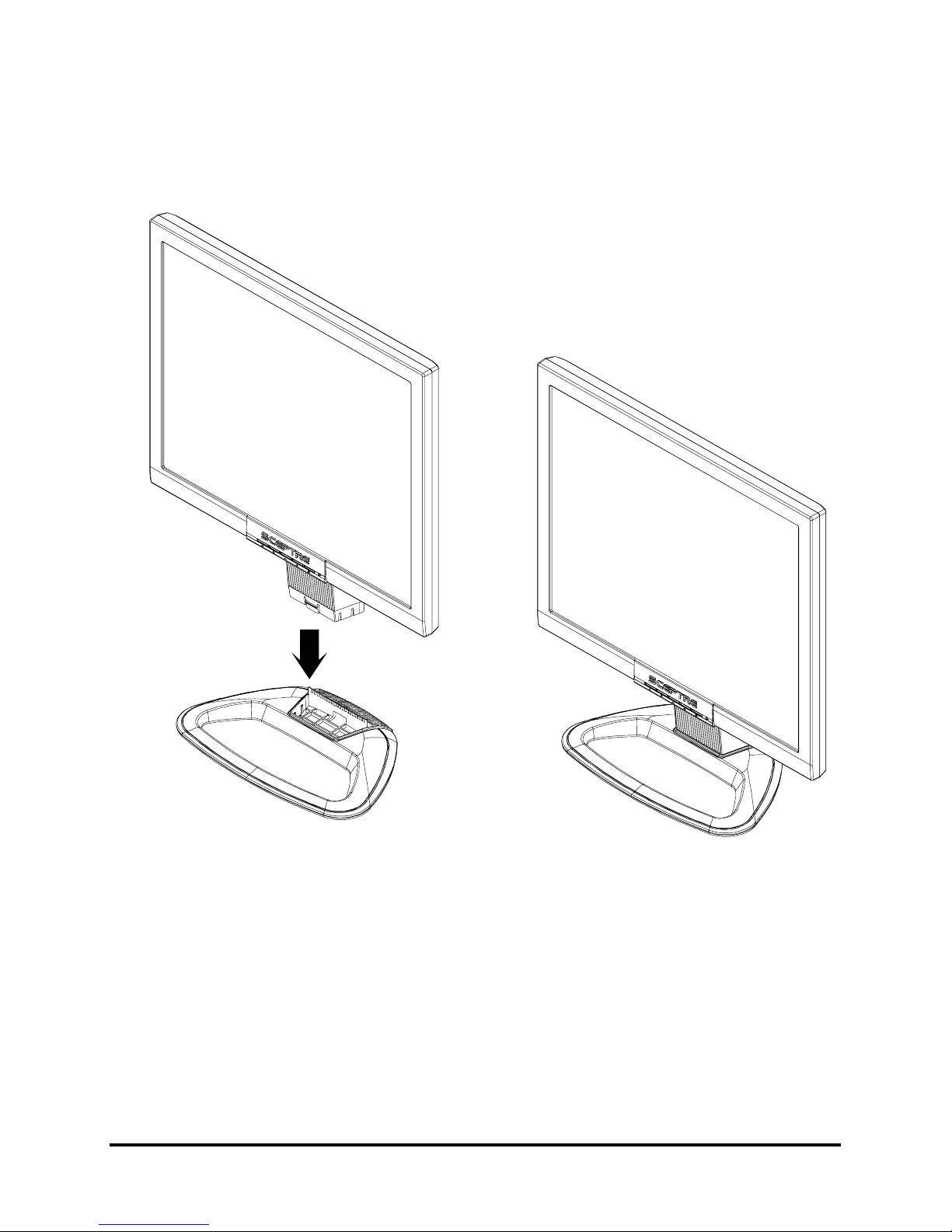

How to install the detacheable stand:
Please see the below drawing.

8 Rev.3
The Display Controls
The LCD Monitor’s Control Panel
Figure 2-1: The Control Panel
1. Hot key button Y&Z
These buttons let you to adjustment volume and brightness of
the LCD Monitor directly
2. Cursor Movement & Adjustment button - & +
These buttons let you move vertical across your settings
item or to change the setting value.
3. Menu: OSD Menu button
Press this button to display the OSD (On-Screen Display)
Menu or move to next sub-menu
4. Source: Source select hot key
Press this button to change the input source from D-Sub to
DVI
5. Power Switch
This button lets you turn power for the LCD monitor ON or
OFF.

9 Rev.3
Adjusting the Monitor’s Display
OSD Main Menu
1. Pressing the OSD Menu button causes the screen below to appear.
2. Use the - & + key to select the desired group, then press Menu key
to the sub-menu
3. Repeat step 2 to select the changed item, then press - & + to change the
value.
4. Move to Exit item, Press the Menu to return to the sub-menu item 3 to
another adjustment
The OSD Main Menu
OSD Main SCREEN

10 Rev.3
Auto Adjust Option
The Auto Adjust option lets the monitor determine and
select the settings that are most appropriate for your
system requirements.
Note: it only apply for Analog RGB input
Luminance -- Brightness and Contrast Adjustment.
Brightness -- Adjusts the Brightness value
Contrast -- Adjusts the Contrast value
Exit -- Return to the previous Menu

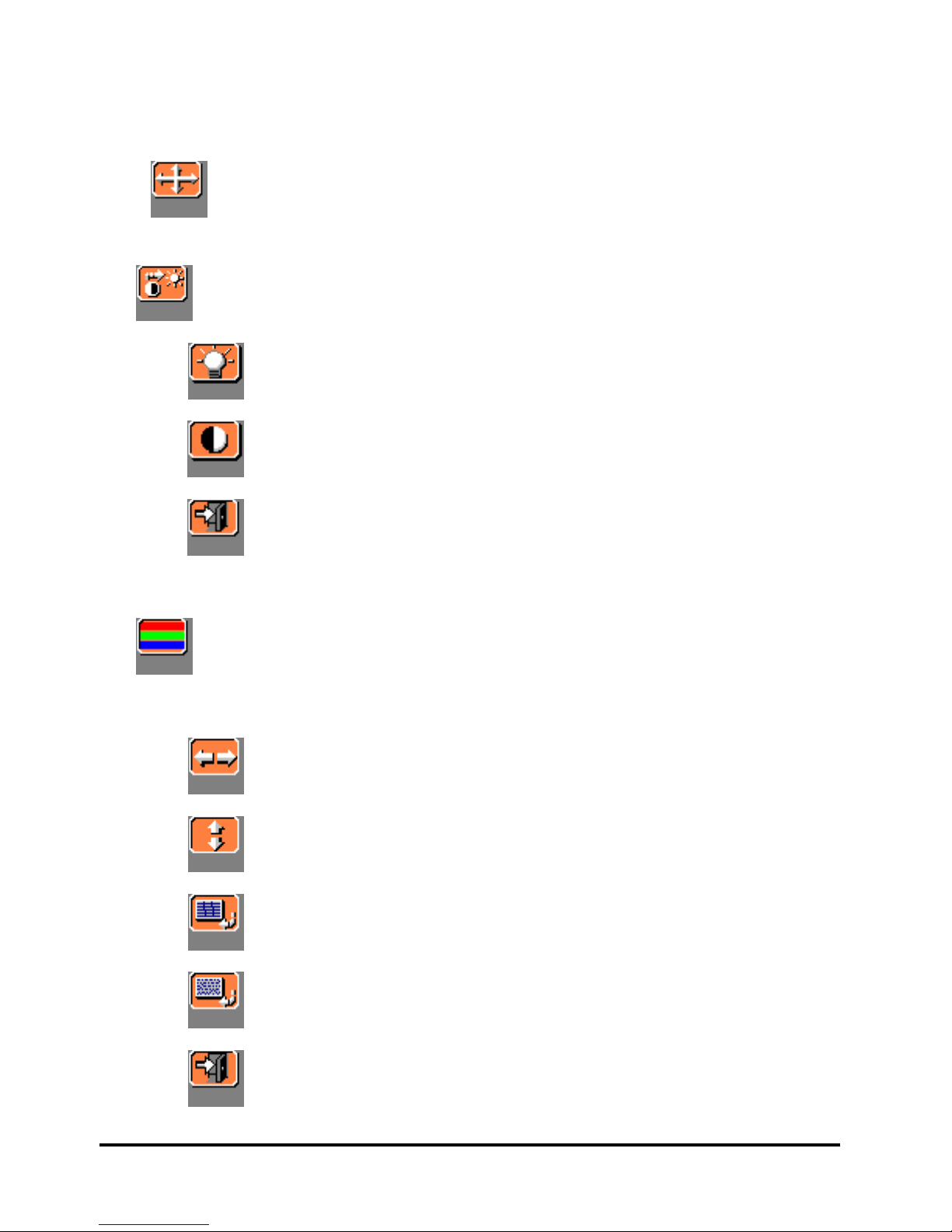

Geometry -- Display Quality Adjustment
( For VGA port only, DVI port can’t adjustment )
H. Position -- Moves the whole screen right or left
V. Position -- Moves the whole screen up or down
Pixel Clock -- Changes the screen viewing size
Phase -- Adjusts phase tracking to reduce display flicker
Exit -- Return to the previous Menu

11 Rev.3
Color -- Color Temperature Adjustment
Auto Color -- To adjust automatically the white balance display.
9300 -- Sets the color temperature to 9300K
6500 -- Sets the color temperature to 6500K
5800 -- Sets the color temperature to 5800K
User Preset
Red -- change Red gain for the color temperature
Green -- change Green gain for the color temperature
Blue -- change Blue gain for the color temperature
Exit -- Return to the previous Menu
Exit -- Return to the previous Menu
Volume -- Adjust the speaker volume

12 Rev.3
OSD – OSD Adjustment
H. Position -- Moves the OSD menu horizontally
V. Position -- Moves the OSD menu vertically
OSD Time -- Sets the OSD time ( 0 to 60 second )
Exit -- Return to the previous Menu
Language -- The supported languages include English, French,
German, Italian, Spanish, Japanese, Traditional
Chinese and Simple Chinese
Recall
Color Recall -- To reset the color settings to the factory default.
Recall All -- To reset the entire settings to the factory default.
Exit -- Return to the previous Menu

13 Rev.3
Miscellaneous
Input selection -- To switch between analog and DVI port for
PC signal input
Sharpness -- The sharpness value can be set at 1. 2. 3. 4. 5.
the factory default at 3.
Display Information
Exit -- Return to the previous Menu
Exit – Exit the OSD screen

14 Rev.3
Note:
1) No signal detected
When the monitor is ON and there is no video signal received, the following
message will be displayed
No signal detected!
2) Signal out of range
When the frequency range of the signal is out of the Monitor’s specifications,
(over 75HZ) the display will show the following message
Out of Range!

15 Rev.3
Appendix A
TFT LCD Monitor Specifications
Item Specification
LCD Panel 20.1" WSXGA+
Control
Functions
Power
Software Power switch with LED indicator
(ON/OFF)
Main Menu Submenu
Auto adjust
Luminance Brightness/Contrast/ /Exit
Geometry H.Position/V. Position/Pixel
Clock/Phase/Exit
Color Auto Color/9300K/6500K/5800K
User Preset(R,G,B, gain value)/Exit
Volume
OSD OSD H. Position// OSD V. Position/
OSD time/Exit
On-Screen
Display
(OSD)
Language English/French/German/Italian/
Spanish/Japanese/Traditional Chinese
/Simple Chinese
Recall Color Recall/Recall All/Exit
Miscellaneous Input Selection/Sharpness/Display
Information/Exit
Exit
Display Area
(mm)
433.44 x 270.9
(20.1" diagonal)
Display
Colors
16.2 M

16 Rev.3
Video
Interface
VGA Compatible Analog RGB
DVI compatible signal
Scanning Frequency
H/V, Hz
31K-80K
60-75
Power Management Meets VESA DPMS
Power Consumption
(ON/OFF, W)
45W/1W Max.
Dimensions
WxHxD
18.72 x 16.14 x 6.89 in.
(475.4 x 410 x 175mm)
Net Weight
(approx.)
16.256 lbs
(6.4 Kg)
Power Supply Universal Input AC Socket
Environment Operating Temperature: 32 to 104°F (0 to 40° C)
Relative Humidity: 10% to 90%
Regulatory FCC B DoC,UL/cUL,Energy star
