Schiller Steiner 75-70644A User manual
OP / PARTS MANUAL
MAN 4165651
Rev. A 08-2010
MODEL:
75-70644A
TURBINE BLOWER PB200
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some
of its constituents are known to the
State of California to cause cancer,
birth defects and other reproductive
harm.
Californie Proposition 65 Avertisse-
ment
Les échappements des moteurs diesel et
certains de leurs composés sont recon-
nus par l’Etat de Californie pour être
cancérigènes, provoquer des défauts con-
génitaux etd’autresdangersenmatièrede
reproduction.
ADVERTENCIA
AVERTISSEMENT
WARNING
The engine exhaust from this product
containschemicals knowntotheState
of California to cause cancer, birth
defects or other reproductive harm.
California Advertencia
de la Proposicion 65
El estado de California hace saber
que los gases de escape de los mo-
tores diesel y algunos de sus com-
ponentes producen cáncer, defectos
de nacimiento y otros daños en el
proceso de reproducción humana.
L’
é
mission du moteur de ce mat
é
riel
contient des produits chimiques que
l’Etat de Californie consid
è
re
ê
tre
canc
é
rig
è
nes,provoquerdesd
é
fauts
cong
é
nitaux et d’autres dangers en
mati
è
re de reproduction.
El estado de California hace saber
que los gases de escape de este
producto contienen productos quÍmi-
cos que producen cáncer, defectos
de nacimiento y otros daños en el
proceso de reproducción humana.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, wiring
insulation, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.
1
TURBINE
BLOWER
IMPORTANT MESSAGE
Thank you for purchasing this Schiller Grounds Care. Inc. product. You have purchased a world class product,
one of the best designed and built anywhere.
This product comes with an Owner/Operator's Manual. The useful life and good service you receive from this
product depends to a large extent on how well you read and understand this manual. Treat this product properly
and adjust it as instructed, and it will give you many years of reliable service.
See a Schiller Grounds Care. Inc. dealer for any service or parts needed. Schiller Grounds Care. Inc. service
ensures that you continue to receive the best results possible from Schiller Grounds Care. Inc. products. You
can trust Schiller Grounds Care. Inc. replacement parts because they are manufactured with the same high
precision and quality as the original parts.
Schiller Grounds Care. Inc. designs and builds its equipment to serve many years in a safe and productive man-
ner. For longest life, use this product only as directed in the manual, keep it in good repair and follow safety
warnings and instructions. You'll always be glad you did.
Schiller Grounds Care. Inc.
One Bob Cat Lane
Johnson Creek, WI 53038-0469
04-2011
TABLE OF CONTENTS FIGURES PAGE
DESCRIPTION / SPECIFICATIONS................................................................................................................2
SAFETY........................................................................................................................................................3, 4
DECALS...........................................................................................................................................................5
INSTALLATION ................................................................................................................................................6
OPERATION.....................................................................................................................................................7
SERVICE..........................................................................................................................................................8
PARTS SECTION.............................................................................................................................................9
MAIN FRAME......................................................FIGURE 1...................................................................10, 11
MOUNTING ASSEMBLY.....................................FIGURE 2...................................................................12, 13
DRIVE PARTS / HYDRAULICS...........................FIGURE 3...................................................................14, 15
TURBINE PARTS................................................FIGURE 4...................................................................16, 17
DECALS..............................................................FIGURE 5.........................................................................18
BELT CHART.......................................................FIGURE 6.........................................................................19
2
TURBINE
BLOWER
DESCRIPTION / SPECIFICATIONS
SPECIFICATIONS
Overall Width.....................................................................................................................................27"
Overall Height....................................................................................................................................33"
Overall Length...................................................................................................................................67"
Weight ...............................................................................................................................................235 lbs.
Weight on caster wheel.....................................................................................................................195 lbs.
Air ow...............................................................................................................................................8000 cfm
Wind speed........................................................................................................................................114 mph
Wind speed (deected to front) .........................................................................................................78 mph
Sound level (while seated in operator's seat)....................................................................................91 dBA
* These specications are subject to change without notice.
DESCRIPTION
The PB200 Turbine Power Blower is designed to attach to the quick-hitch of Steiner power units. Noise
pollution will not be a concern with this turbine power blower. Quiet but powerful, it quickly cleans walkways,
parking lots, leaves, debris, and more.
Features:
• Nozzle rotation 360 degrees continuous
• Nozzle rotation by hydraulic motor
• Kickstand for easy hookup
• Axial ow turbine design
• Quiet operation
• Direct airow to either side or front from operator’s seat
• Quick-Hitch, Front-Mount
• Caster Wheel follows ground contours
• Steel bumper protects nozzle
3
TURBINE
BLOWER
SAFETY
NOTICE !!!
Unauthorized modications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Schiller Grounds Care. Inc. strongly warns against,
rejects and disclaims any modications, add-on
accessories or product alterations that are not
designed,developed,testedandapprovedbySchiller
Grounds Care. Inc. Engineering Department. Any
Schiller Grounds Care. Inc. product that is altered,
modied or changed in any manner not specically
authorized after original manufacture–including the
additionof“after-market”accessoriesorcomponent
parts not specically approved by Schiller Grounds
Care. Inc.–will result in the Schiller Grounds Care.
Inc. Warranty being voided.
Any and all liability for personal injury and/or
property damage caused by any unauthorized
modications, add-on accessories or products not
approved by Schiller Grounds Care. Inc. will be
considered the responsibility of the individual(s) or
company designing and/or making such changes.
Schiller Grounds Care. Inc. will vigorously pursue
full indemnification and costs from any party
responsibleforsuchunauthorizedpost-manufacture
modications and/or accessories should personal
injury and/or property damage result.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word denitions:
The signal words below are used to identify levels
of hazard seriousness. These words appear in this
manualandonthesafetylabelsattachedtoSchiller
Grounds Care. Inc. machines. For your safety and
thesafetyofothers,readandfollowtheinformation
given with these signal words and/or the symbol
shown above.
DANGER indicates an imminently hazardous
situationwhich, if notavoided, WILL result in death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, COULD result in
death or serious injury.
CAUTIONindicatesapotentiallyhazardoussituation
which,ifnotavoided,MAY resultinminorormoderate
injury. It may also be used to alert against unsafe
practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage

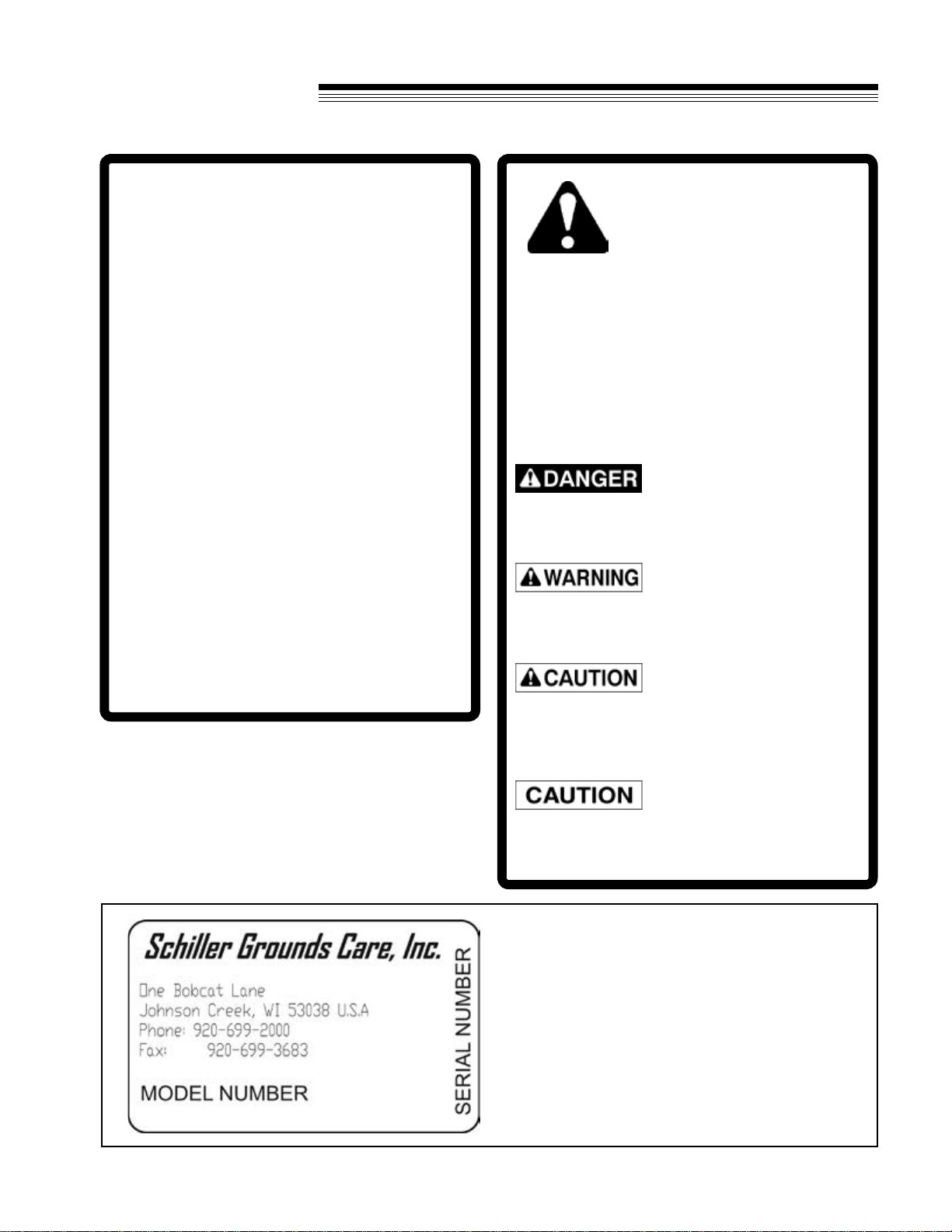

MODEL NUMBER: This number appears on
sales literature, technical manuals and price lists.
SERIAL NUMBER: This number appears only
on your mower. It contains the model number
followed consecutively by the serial number.
Use this number when ordering parts or seeking
warranty information.
4
TURBINE
BLOWER
SAFETY
GENERAL SAFETY
• Read and understand the owner’s manual,
before attempting to operate this machine.
• Operate all controls from the operator’s seat,
(if so equipped). NO RIDERS.
• Keep all shields in place and safety switches
adjusted properly.
• Do not leave equipment unattended. STOP
the engine and remove the key (if so
equipped).
• Do not allow minors or the inexperienced to
operate this machine.
• Never allow anyone to operate or service this
machine while under the inuence of alcohol
or drugs.
• Keep people and pets a safe distance
away from machines using power driven
attachments. Injury could result from ying
debris.
• Wear all the necessary protective clothing
and personal safety devices to protect your
head, eyes, ears, hands, and feet.
• Operate the machine only in daylight or in
good articial light.
OPERATING SAFETY
1. Do not attempt to work on unit or any
attachments with the engine running!
The tractor may coast when the engine stops.
Set the parking brake.
2. Before leaving the tractor seat:
1. Disengage PTO drive.
2. Set PARKING brake.
3. Stop Engine.
DO NOT ATTEMPT TO CLEAN INLET OR
OUTLET AREAS WITH BLOWER RUNNING.
DO NOT OPERATE WITH PERSONS IN THE
AREA. HIGH SPEED BLOWER MAY PROPEL
OBJECTS CAUSING POSSIBLE INJURY OR
DEATH.
5
TURBINE
BLOWER
DECALS
Location: Main Frame
Location: Turbine Housing
Location: Front of Bumper
Location: Discharge Nozzle
6
TURBINE
BLOWER
INSTALLATION
ATTACHING THE TURBINE POWER
BLOWER
• Open the quick hitch latches and drive the
tractor into position, aligning the quick hitch.
Be sure that both latches are fully engaged
and locked.
• Stop the engine! Do not attempt to install the
drive belt with the engine running.
• Put the belt over the drive pulley and engage
or adjust the double idler assembly.
• Attach the hydraulic hoses to the quick-
couplers. Route the hoses in a place where
they will not be damaged. If the hydraulic
lever movement seems backward, reverse
the hoses at the quick-couplers.
• Remove the clip pin from the support stand.
Rotate the stand to the highest setting
and insert clip pin. This stand is used to
dismount the blower and position it at the
correct height to simplify attaching the next
time.
• A rear weight bar with 2 weights is required
when this turbine power blower is attached to
the Model 410 or 430 power unit.
NOTE: Always remove rear weights when front
mounted attachment is removed!
7
TURBINE
BLOWER
OPERATION
OPERATING THE TURBINE POWER
BLOWER
Controls
• The Front Lift lever controls the lift. Normal
operation is to have the lever in the “FLOAT”
position.
• The Auxiliary Hydraulic lever controls
the position of the nozzle. It will rotate in
a continuous 360 degree rotation. The
downward position directs the airow in a
forward direction.
Always wear eye protection when operating this
blower.
Operating Instructions
• Rotate the nozzle downward for forward
ow of air. This is especially helpful when
working close to buildings.

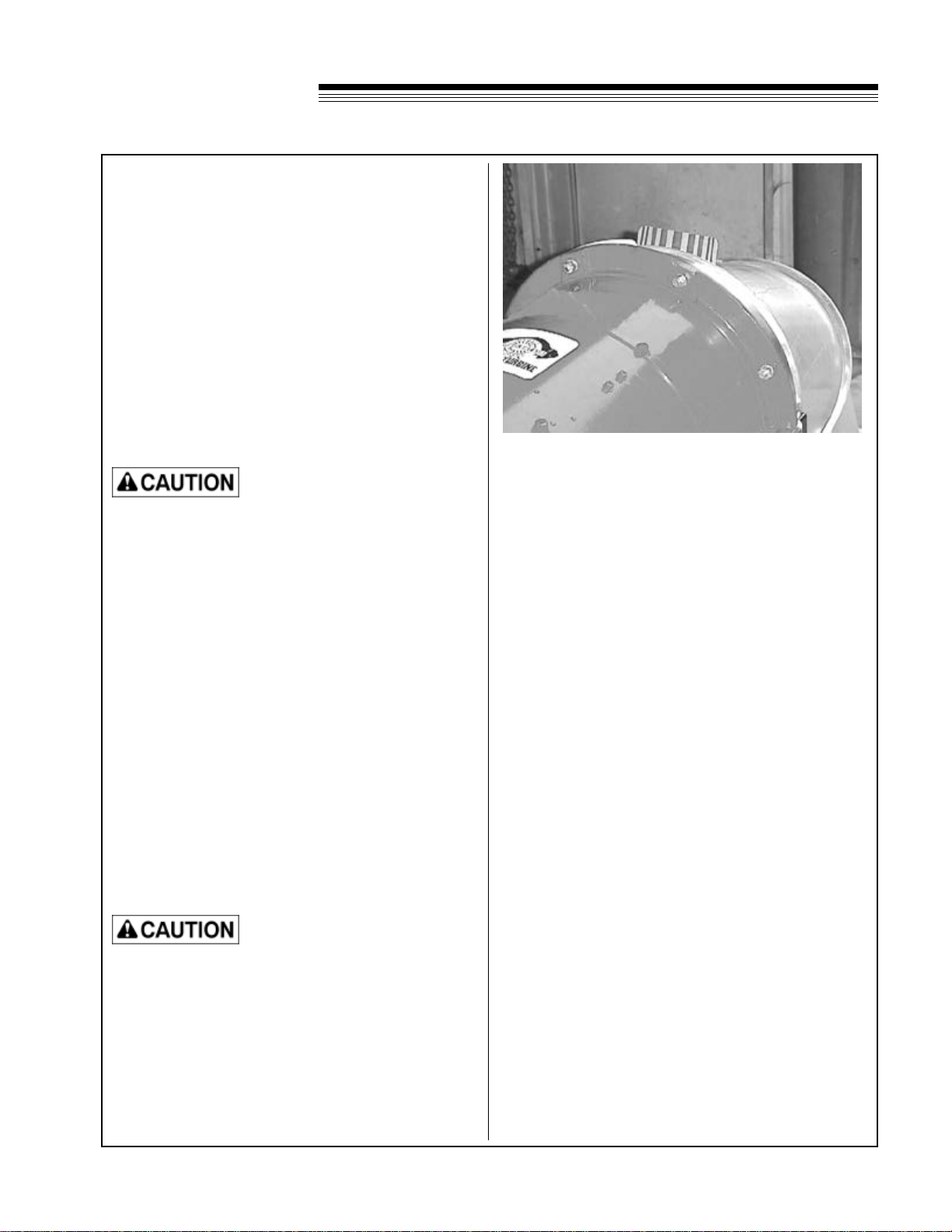

NOTE: When the nozzle is pointing straight down,
the positioning decal on top of the nozzle will be
centered. (See Photo 1)
• Observe the wind direction and work with
the wind whenever possible. The blower
works equally well when traveling forward
or reverse. When clearing large areas it is
advisable to use patterns which blow all the
debris in the same direction.
USE CAUTION WHEN OPERATING NEAR
PERSONS, PETS, AND LIGHTWEIGHT OBJECTS
WHICH MAY TIP OR ROLL WITH THE HIGH
VELOCITY OF THE BLOWER. NOTE THAT THE
VELOCITY IS OF HURRICANE RATING.
FLYING DEBRIS CAN ALSO CAUSE DAMAGE TO
PERSONS, AUTOS, WINDOWS, ETC.
Operator Warnings!
Visual check
• Check for damaged or missing parts or
fasteners each time the blower is operated.
Repair or replace.
• Do not operate if the nozzle or drive have
been modied in any way.
Chemical applications
• Use of the turbine blower to apply spray
chemicals is not recommended.
Bystanders
• Warn all bystanders to keep a safe distance
away while blower is in operation.
Machine stability
• A rear weight bar with 2 weights is required
when this unit is mounted on the Model 410
and 430 power units.
Nozzle
• Use care that the nozzle does not bump into
objects during operation. Do not operate with
damaged or bent nozzle.
Photo 1
8
TURBINE
BLOWER
SERVICE
SERVICE SCHEDULE
Daily:
• Check for any signs of loose bolts and
tighten as needed.
• Check inlet area and outlet nozzle for
collection of foreign material and clean as
needed.
25 hour:
• In addition to daily service, grease the two
bearings on the drive shaft, the caster swivel,
and caster wheel.
• Lubricate the nozzle base with a dry lubricant
spray such as teon or graphite.
NOTE: The turbine has sealed bearings and does
not require periodic lubrication.
ADJUSTMENTS
Turbine drive belt:
Remove the drive belt shield. Tighten the drive belt
by loosening the front bearing mount bolts, move the
drive shaft with the adjusting screw, and re-tighten
mount bolts. Replace the shield.
Nozzle rotation belt:
Remove the nozzle drive belt shield. Adjust the belt
by loosening the hydraulic motor mounting bolts,
and move the pump in the mounting slot. Replace
the shield.
9
TURBINE
BLOWER
PARTS SECTION
PARTS
SECTION
10
TURBINE
BLOWER
MAIN FRAME
FIGURE 1
9
11
TURBINE
BLOWER
ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
MAIN FRAME
FIGURE 1
1 4165649 S-MAIN FRAME 1
2 6110053.17 INTAKE SCREEN 1
3 6110015.17 STRAP-RETAINING 1
4 56-027 TRIM-4' 1
5 64139-04 BOLT-WLF 1/4-20X3/4 22
6 85010N S/B GREASE FITTING 1
7 4166688 BRACE 1
8 64-611.7 SHIELD-DRIVE PULLEY 1
9 4165469 SPACER-.76 X 1.25 X .188 1
10 4170936 KNOB-3 PRONG 1/4-20 1
11 4166687 GUARD 1
12 64123-54 BOLT, 5/16-18X3/4 1
13 64163-04 25/64X5/8X16GA WASHER 2
14 64229-02 LOCKNUT-NYLON 5/16-18 1
15 64141-2 NUT-WLF 1/4-20 4
16 6110010.17 GUARD-LOWER 1
17 6110011.17 INTAKE SCREEN-LOWER 1
18 53-060 HUB CAP 1
19 99-AC12NF NUT, 3/4 1
20 64163-06 WSHR-.768/.756X1.25X14 2
21 55-Z9504AB BALL BEARING-3/4ID 2
22 53-112 WHEEL-W/410-4 TIRE 1
55-G527 BEARING 1
23 6110059.7 FRAME-CASTER WHEEL 1
24 64141-4 NUT-WLF 3/8-16 1
25 64123-130 BLT-HEX 3/8-16X5-1/2 1
26 64163-16 WASHER-41/64 X 1-3/8 X 12 9
27 6110046 AXLE 1
12
TURBINE
BLOWER
MOUNTING ASSEMBLY
FIGURE 2
12
10
13
TURBINE
BLOWER
ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
MOUNTING ASSEMBLY
FIGURE 2
1 6110052.17 TURBINE MNTNG STAND 1
2 6110011.17 INTAKE SCREEN, LOWER 1
3 6110056.7 KICKSTAND 1
4 64139-21 BLT-WLF 3/8-16X3/4 4
5 64139-24 BLT-WLF 3/8-16 X 1 4
6 64163-87 WASHER, .391X1.375X12GA 2
7 99-F36 BOLT, LEG RETAINER 1
8 64141-13 NUT WLF 1/2-13 1
9 64168-1 COTTER-HAIRPIN .12X2-3/8 1
10 4165650 S-BUMPER 1
11 64141-2 NUT-WLF 1/4-20 4
12 64141-6 NUT, 5/16-18 4
13 4166802.17 GUARD-NOZZLE 1
14 21-135 MOTOR 1
21-136 SEAL KIT 1
15 64139-04 BOLT-WLF 1/4-20X3/4 5
16 6110051.17 DEFLECTOR CHUTE 1
17 64139-18 BLT-WLF 3/8-16X1-1/4 4
18 64163-67 WASHER-.516X1X12GA 1
19 64141-4 NUT-WLF 3/8-16 12
20 4165649 S-MAIN FRAME 1
14
TURBINE
BLOWER

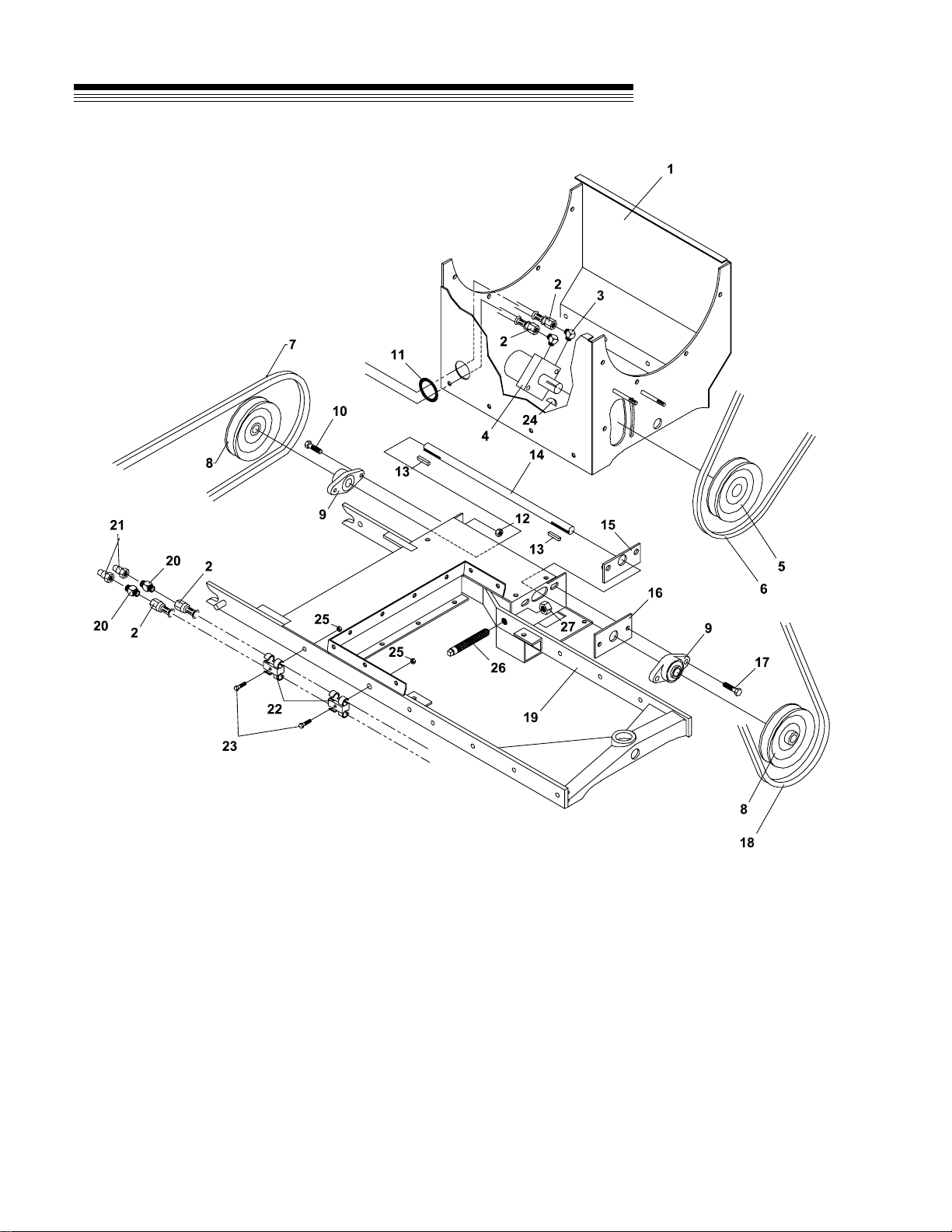

DRIVE PARTS / HYDRAULICS
FIGURE 3
15
TURBINE
BLOWER
ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
DRIVE PARTS / HYDRAULICS
FIGURE 3
1 6110052.17 TURBINE MNTG STAND 1
2 20-017 HOSE, 1/4 X 70 2
3 25-2503-10-6 FITTING-90 2
4 21-135 MOTOR-HYD 1
21-136 SEAL KIT 1
5 83-BS2816 PULLEY 1
6 81-A053 BELT-A53 1
7 SEE BELT CHART 1
8 83-BK5012 PULLEY-5" 2
9 55-FB23012 BEARING 2
10 64139-24 BLT-WLF 3/8-16 X 1 2
11 05-039 GROMMET-1-5/16IDX2OD 1
12 64141-4 NUT-WLF 3/8-16 2
13 64164-11 KEY-3/16X3/16X1-1/4 2
14 6110009 SHAFT-INPUT DRIVE 1
15 6110057.7 MOUNTING PLATE-BRG 1
16 6110030.7 SPACER-BRG PLATE 1
17 64262-013 BLT-FLNGE 3/8-16X1-1/2 2
18 81-B050 BELT-B50 1
19 4165649 MAIN FRAME 1
20 25-0103-4-6 FITTING-STR 2
21 23-004 QUICK COUPLER-MALE 2
22 4165751 CLAMP, HOSE 1/2" 2
23 64123-283 BLT-HEX, 1/4-20 X 1-3/4 2
24 64164-28 WOODRUFF KEY-1/4 X 1 1
25 64229-01 NUT-NYLON LOCK 1/4-20 2
26 6110014 BOLT-ADJ 5/8 1
27 99-E11 NUT, STEERING VALVE 1
16
TURBINE
BLOWER
TURBINE PARTS
FIGURE 4
17
TURBINE
BLOWER
ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
TURBINE PARTS
FIGURE 4
1 83-H20 BUSHING, 1-1/4" H 1
2 83-BK65H PULLEY-6.5" H BUSHING 1
3 81-B050 BELT-B50 1
4 6110022.17 SPACER-NOZZLE RING 1
5 87-14-138ER BASE-NOZZLE RING 1
6 81-A053 BELT-A53 1
7 87-14-1600 SLIDE-NOZZLE 2
8 6110042 BOLT 1
9 87-14-139 BANDS-CLAMP 3
10 87-14-137 ELBOW-45 2
11 87-14-136B NOZZLE-10" DIA RND 1
12 6110052.17 TURBINE MNTNG STAND 1
13 87-14-1660 WASHER 3
14 64123-14 BOLT,HEX3/8-24 X 1-3/4 3
15 64123-21 BLT-HEX 3/8-24X1-1/4 8
16 64006-03 LOCKWASHER-3/8 HEL 12
17 64025-04 NUT-3/8-24 12
18 87-14-221-D1 BELLMOUTH 1
19 64163-61 WSHR .81X.406X16GA 7
20 87-14-1605-A SPACER-3/8 X 1 X 3/16 2
21 87-14-924 BLOWER-TURBINE ASSY 1
* 00-290 DECAL-ROTATION POS IND 1
22 64164-10 KEY1/4X1/4X1-1/4 MACH 1
23 99-A06NF LOCKNUT, STOVER 3/8-24 4
24 64123-37 BOLT,HEX 3/8-24 X 1-1/2 4
25 6110047.17 BRACE-INTAKE SCREEN 1
* NOT ILLUSTRATED
18
TURBINE
BLOWER
ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
DECALS
FIGURE 5
1 00-093 DECAL-OWNER'S MANUAL 1
2 4116761 DECAL-MADE IN AMERICA 1
3 00-282 DECAL-CLOSE CLEARANCE 1
4 00-286 DECAL-EYE PROTECTION 1
5 00-375 DECAL-THROWN OBJ HAZ 3
6 87-BT-4X4 DECAL-BUFFALO TURBINE 1
7 00-290 DECAL-ROT POS IND 1
This manual suits for next models
1
Table of contents
Other Schiller Blower manuals
