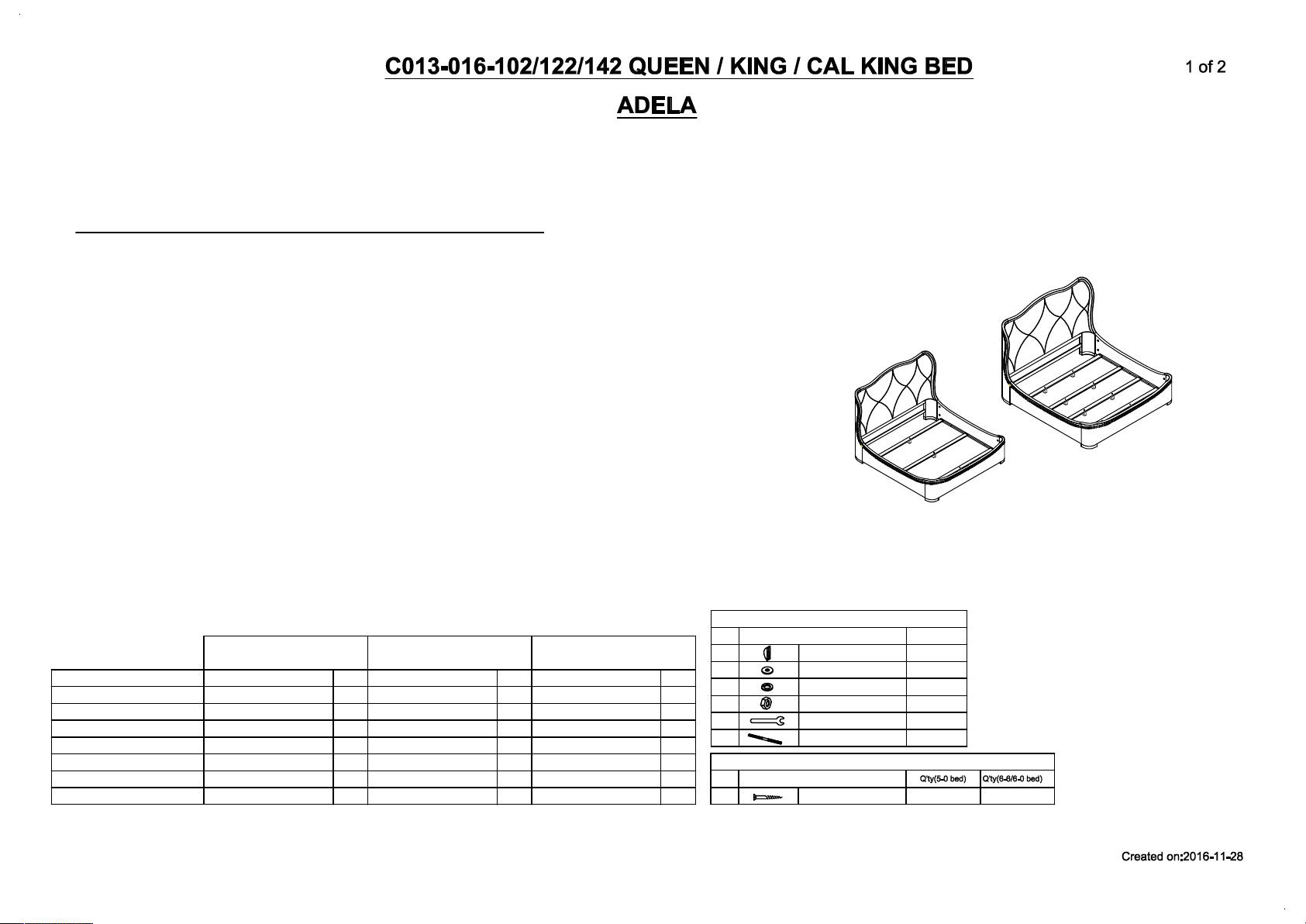

Schnadig Adela C013-016-102H User manual

TWO (2) PEOPLE AND PHILIP's SCREW DRIVER REQUIRED
ASSEMBLY INSTRUCTIONS
PLEASE UNPACK ALL PARTS AND CHECK THEM AGAINST PARTS LIST ON THIS INSTRUCTION SHEET BEFORE DISCARDING
PACKING AND CARTON!!
1) Connect the side rail and headboard/footboard by bolt (F).
2) Assemble the side rail and headboard/footboard using the curved washer (A),
flat washer (B), lock washer (C), and nut (D) tighten by wrench (E), as shown in Diagram A.
3) Assemble the support leg on the slat, as shown in Diagram B.
4) Mount the assembled support slats (done in step 3) onto the cleat of side rails with screws (G).
Use a Phillips Head Screwdriver to tighten screws, as shown in Diagram C.
1
8
8
8
Wrench
Nut
Bolt
Lock Washer
8
Flat Washer(5/16"Dia)
8 Curved Washer(5/16"Dia)
NO. Hardware List
A
B
C
D
E
Q'ty
RTA Hardware(7)
F
12
G
RTA Hardware(6)
Hardware List
NO.
Screw(4.2x32)
*** NOTE KEEP THIS SHEET!!! ***
In the unlikely event that you would need a replacement part for your table,
please contact your local authorized Schnadig International dealer. If you
need replacement hardware quickly, it could be purchased from your local
hardware store.
16
Cal King bed
1
2
1
1
QTY
4
Part No.Part No.
1
2
1
1
RTA Hardware(7)
Side rail (3)
Footboard (2)
Headboard (1)
Queen Bed
C013-016-102H/102F/102R
QTYPart No.Part Description
Slat (4) 3 4
QTY
1
1
2
1
King bed
RTA Hardware(6) 111
883
Support leg(5)
C013-016-102H
C013-016-102F
C013-016-102R
C013-016-102F-3067
C013-016-102F-30305
C013-016-102F-3001
C013-016-102R-3001
C013-016-122H
C013-016-122F-3067
C013-016-122F-30305
C013-016-122F-3001
C013-016-122F
C013-016-122H/122F/102R C013-016-122H/122F/142R
C013-016-122H
C013-016-142R
C013-016-122F
C013-016-102R
C013-016-102R-3001
C013-016-122F-3067
C013-016-122F-30305
C013-016-122F-3001
C013-016-142R-3001
