SCHWAN SC60E USER GUIDE
WARRANTY
PLEASE NOTE: As your Schwan appliance is always full of hot water,
we recommend a drained drip tray should be used in those applications
where any leakage could cause property damage.
WARRANTY PERIOD: For residential installations, the Warranty period is for
two years. For commercial installations, (maximum 8 staff), the Warranty
period is for one year.
Please keep all Purchase and Plumber’s installation Invoices as
verification of Warranty commencement date. The Warranty will be for
24 months (residential) or 12 months (commercial) from date of installation.
If you are unable to provide proof of installation date, then the Warranty will be
for 25 months (residential) or 13 months (commercial) from date of purchase.
WARRANTY COVERAGE: Schwan provides a comprehensive parts and
labour Repair or Replacement Warranty. Repair or Replacement will be at
Schwan’s discretion, and must be carried out by an authorised Schwan
Service Agent. The Warranty covers defects in materials and manufacturing
only, and repairs will normally be carried out in your home or commercial
premise free of charge during the warranty period.
However, in areas more than 25 km from an authorised Schwan Service
Agent, you may be charged for some travel and associated costs.
Alternatively, Schwan may require you to return your unit to Schwan so that
Schwan can provide you with a replacement unit free of charge. In this case,
Schwan will pay the necessary freight charges, and you will need to take
responsibility for the removal of the faulty unit, and installation of the
replacement unit.
Any product replaced or repaired under this Warranty will be covered by the
remaining portion of the original product’s Warranty period, or 6 months,
whichever is the greater.
WARRANTY EXCLUSIONS: This Warranty does not cover damage,
deterioration, or malfunction resulting from accident, misuse, neglect, abuse,
unauthorised modification, fire, water, lightning or other acts of nature,
incorrect installation, poor water quality, repair or attempted repair by anyone
other than an authorised Schwan Service Agent, or external causes such as
electric power fluctuation or failure.
Filter cartridges are not covered by this Warranty, as these are a consumable
item, and water conditions and usage vary, which can affect the effective life
of the filter.
LEGISLATION: Nothing in this Warranty overrides Schwan’s responsibilities
under the Consumer Guarantees Act for residential installations.
The owner agrees that the Consumer Guarantees Act does not apply
to commercial installations.
IN THE EVENT OF A MALFUNCTION, PLEASE CONTACT MERQUIP ON
0800 636 0 636 OR EMAIL [email protected]
MODEL: SC60E
SERIAL NUMBER:
TROUBLESHOOTING
• Check that your Schwan is correctly connected to
the power supply.
• Check that the power supply is live.
LCD SCREEN NOT LIT
• Check your Schwan is plugged in and the power supply is live.
• Check that the Status Icon situated on the front of the boiler
tank is glowing “Green”.
• Check temperature setting on LCD Screen.
• Element thermal cut-out may have tripped. Unplug the boiler tank.
Run hot tap for 5min. Allow boiler to cool for 1/2 hr. before restarting.
WATER IS NOT HOT
• Ensure minimum water pressure is no less than 240 kPa.
• Reduce temperature using the control panel.
• Make sure silicone hot outlet tube is not blocked,
kinked, or sagging.
• Expansion tank may be full. Run hot water for 30 seconds
and allow unit to reheat.
• If water flow is slow, the filter maybe blocked. Replace filter
as per “SCHWAN FILTER CHANGE INSTRUCTIONS”
on the previous page of this user guide.
HOT WATER OR STEAM IS SPURTING OUT OF
THE DISPENSER.
• Ensure minimum water pressure is no less than 240 kPa.
• Check that the water supply fully open.
• Check that the filter is fully tightened into the filter head.
• Filter may be blocked. Replace filter as per “SCHWAN
FILTER CHANGE INSTRUCTIONS” on the previous page
of this user guide.
HOT WATER DELAY IS LONGER THAN 5 SECONDS
AFTER TAP IS TURNED ON.
CAPACITY
• Your Schwan drinking water system is designed to deliver one
cup (170ml) per minute of hot water at between 80–90°C.
• A temporary drop in water temperature may be experienced if
this capacity is over drawn.
Instant Hot Cool Filtered Water

Press the Power On/Off Button on the Control Panel to switch the unit on.
The LCD Screen will light up, and the LED Indicator will glow.
Once the system is full of water and the power is turned on,
it will start heating.
The LCD Screen on the front of the unit will show the current tank
temperature by default.
Solid ‘C’ = Current Tank Temperature
Blinking ‘C’ = Set Temperature
For safety, your Schwan System
has a maximum allowable setting
of 98°C in the tank. It also comes
pre-adjusted to 98°C to simplify
installation set up.
Should you wish to adjust the
temperature, simply press the up
and down arrows on the front LCD
Screen - the red ‘C’ will blink to
show the desired set temperature.
SCHWAN USER GUIDE
Thank you for purchasing a SCHWAN SC60E filtered hot and cold drinking
water system. We are sure you will be thrilled with your new appliance,
and will enjoy the convenience it affords many times a day.
This user guide contains:
• Safety Precautions
• Instructions for use
• Filter change instructions
• A Trouble shooting Guide
• Warranty Conditions
• How to register your Schwan SC60E on-line
A document containing installation instructions is included separately, and this
user guide assumes that your Schwan SC60E has been installed according to
these instructions.
Please read the Safety Precautions and the Instructions for use carefully
before using your Schwan SC60E.
In the event of a malfunction please phone the Merquip help desk on
0800 636 0 636, or email [email protected].
SAFETY PRECAUTIONS
When installing and using all electrical appliances, basic safety precautions
should always be followed including the following:
ELECTRIC SHOCK HAZARD
• To prevent electric shock, do not place cord, plugs or appliance in water or
other liquid.
• Do not operate any appliance with a damaged cord, plug, or after the
appliance malfunctions.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
• Do not attempt to service this product. Repairs should be done by authorized
service personnel.
• Do not use outdoors or in damp areas.
FIRE HAZARD
• When installing the appliance, allow a minimum airspace of 100mm around
the front, sides, and top of the boiler tank for air circulation.
PERSONAL INJURY
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with
the appliance.
• This appliance is intended for use in household and similar applications,
such as light commercial (up to 8 staff), the hospitality industry, and related
residential type environments.
TURN OFF POWER AND WATER SUPPLY
WHEN NOT IN USE FOR 24 HRS. OR MORE.
AMBIENT FILTERED WATER
To dispense ambient filtered water, pull lever
marked with the Blue Icon forward.
BOILING FILTERED WATER
Your Schwan drinking water dispenser features
a Safety Catch to protect against accidental
operation of the hot tap.
To dispense Boiling filtered water, Push down on
the lever marked with the Red Icon to release the
safety catch, and then pull lever forward.

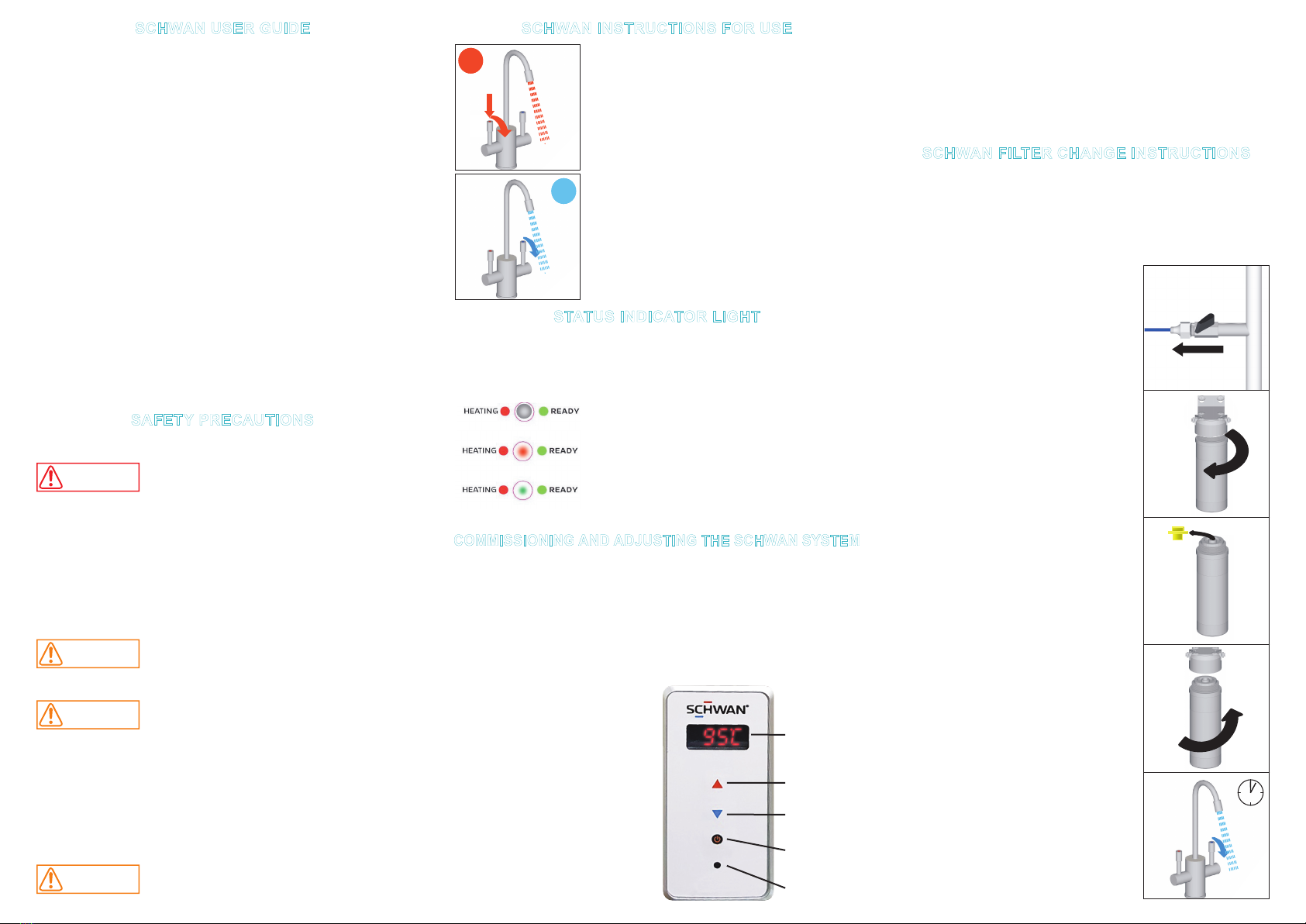

SCHWAN INSTRUCTIONS FOR USE
OFF – power supply to your Schwan has
been turned off or is disconnected.
RED – HEATING. Your Schwan is heating
the boiling water up to the set temperature.
GREEN – READY TO USE. Your Schwan
has stopped heating and hot water is at the
set temperature.
COMMISSIONING AND ADJUSTING THE SCHWAN SYSTEM
STATUS INDICATOR LIGHT
The STATUS LIGHT situated on the front face of your Schwan Boiling Tank
indicates whether the unit is “Heating” or is “Ready to use”.
A drop in temperature may be experienced if hot water is drawn off when in
heating status.
SCHWAN FILTER CHANGE INSTRUCTIONS
5 Min
2. Twist old filter to the left to remove.
3. Remove and discard the yellow cap
from the new filter cartridge.
4. Insert new filter cartridge into the filter
head and twist to the right until the “stop”
is reached
5. Run the cold water for 5 minutes to
clear any air bubbles and to condition the
filter for use.
ON
1. Leave water supply “ON”
(Filter has “auto shutoff” valve)
To ensure your Schwan drinking water system continues to provide
you with fresh filtered boiling and ambient drinking water, your Schwan
filter cartridge needs to be replaced at least every 12 months.
In some situations where there is a lot of sedimentation or chemicals in
the water supply, it may be advisable for the filters to be replaced more
frequently to avoid annoying slow water flow or chemical taste issues.
Once you have finished adjusting it, the screen reverts back
to displaying the current tank temperature and the red ‘C’ will
stay solid.
The LED Indicator will glow red when the unit is heating,
and green when the unit is at temperature.
LCD
Temperature
Readout
Increase
Temperature
Decrease
Temperature
Power
On/Off
Red/Green
LED Indicator
WARNING
DANGER
WARNING
WARNING
