Schweigen UM1390-12S User manual

www.schweigen.com.au
RANGEHOOD & INSTALLATION GUIDE
UM1390-12S
UM1390-12BS
Revision V2 01/10/21

Page 2
Index
1. Welcome 3
Your State Regulatory Authority 3
2. Important Safety Information 4
Before Installation 5
Product Use 6
Ducted or Recirculating? 6
Electrical Cord 6
3. Description 7
Rangehood 7
Cutout Size 7
4. Operation 8
Push Button Control Panel 8
Speed Control 8
Cleaning periods of metal lters — “C” Signal 8
5. Cleaning & Maintenance 9
Cleaning the Interior 9
Cleaning the Exterior 9
Filters 10
Replacing the Lights 11
6. Installation 12
Rangehood Size vs Cooktop Size 12
Overhead cabinet Rangehood Installation position 12
Mounting Instructions 13
Recommended Installation Height for Induction Cooktop 13
Mounting and Fixing Points 14
Installation Example 15
Ducting 16
Back Draft Fins (For applicable models) 16
System Overview 17
7. Condensation Information 18
Cooking with Induction Cooktops 18
8. Troubleshooting 19
Troubleshooting 19
Service 20
Faulty Installation 20
9. Specications 21
Dimensions 21
Technical Specications 21
10. Disclaimer 23

Page 3
1. Welcome
Thank you for purchasing your new Schweigen rangehood.
To get the maximum output from this unit, please read through this guide before use.
The guide contains important information on the use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your rangehood.
Please always retain your proof of purchase to aid in any warranty queries.
If you are unable to locate your warranty card, one is available to download from our website
www.schweigen.com.au.
This appliance and its packaging are produced by processes that minimise waste and respect
the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently
and dispose of the packaging in a responsible manner.
We trust that you will enjoy your new Schweigen rangehood.
Your State Regulatory Authority
Dierent Australian states have varying legislative requirements for the installation of rangehood
ducting. Some will insist on ducting being vented externally (i.e. not in to the ceiling cavity); others
will not. It is imperative that you check with your state building authority and/or private certier
to conrm their position.

Page 4
2. Important Safety Information
WARNING
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, neither the supplier, nor the retailer, will be
responsible for the costs associated with the repair, replacement, removal or
re-installation of the appliances.
1. There shall be adequate ventilation in the room when the rangehood is used at the same time
as appliances burning gas or other fuels.
2. There is a re risk if cleaning is not carried out in accordance with the instructions.
3. Do not ambé under the rangehood. This will damage the rangehood and will not be covered by warranty.
4. Do not ignite burners that give o intense, uncontrolled ames beneath the rangehood.
5. Make sure that no ames emerge from the sides of pans.
6. Do not leave packaging materials (bags, corner brackets, etc) within reach of children.
7. This appliance is not intended for use by person/s (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and/or knowledge. Unless the person has
been given supervision or instruction concerning the use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do not play with the appliance,
it is not a toy.
8. Exhaust air must not be discharged into an existing ue that is used for exhausting fumes from
appliances burning gas or other fuels.
9. Air exhaust must be installed in accordance with local laws. Regulations concerning the discharge
of air have to be fullled.
10. Accessible parts may become hot when used with cooking appliances.
11. Before performing any cleaning or maintenance operation, disconnect the rangehood from
the mains using the respective mains or sector switch or by unplugging it.
12. Do not use the rangehood without the grease lters.
13. Keep the grease lters clean and respect the recommended cleaning frequencies.
14. Turn the rangehood motor on before starting to cook.
15. Turn the rangehood motor o about 10-15 minutes after you nish cooking.
16. It is forbidden to use the rangehood as an aspirator.
17. Never cook foodstu directly over the ame or have the gas burners on under the rangehood
without using cookware.

Page 5
2. Important Safety Information
Before Installation
1. We recommend this appliance be installed or repaired by a qualied Schweigen Home Appliances
technician.
2. Please see our website www.schweigen.com.au for recommended installers.
3. It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the
warranty.
4. The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
5. Ensure that the location in which this appliance is installed, has good and permanent ventilation.
6. Please consult local laws and regulations and install in accordance.
7. Use an electrical connector with earth that is correct for your location.
8. Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
9. This appliance must be connected to an electricity supply with a ground connection.
10. Check that the installation and electrical connections are made by a qualied technician and that the
indicated instructions and local regulations in force are met, using materials that are compliant with
the applicable legislation.
11. The company will not be responsible for installations executed by non-qualied sta and
installations that fail to heed the applicable legislation on electrical safety (with regard to both
modes and materials).
12. The electrical technical data can be found inside the rangehood, after removing the grease lters.
13. The exible power cable supplied is already connected internally and emerges from the rangehood
near the air outlet tube.
14. Before installing the electrical connections, you should:
–Verify that the indicated electrical data coincide with the voltage values and frequency
of the electrical circuit in the house where the rangehood is to be installed;
–Check that the premises has electrical protection against short circuits and electrocution,
pursuant to the applicable legislation;
–Always switch o the current using the double-pole switch before maintenance and turn
the power on again for normal use only when the operation has been completed.

Page 6
2. Important Safety Information
Product Use
This product is designed for household use and should not be used for commercial applications.
After use, always ensure that all controls are in the “OFF” position.
When frying with a gas ame, take particular care not to allow the oil or grease in the pan to catch
re. (Flambé)
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged,
it must be replaced by the manufacturer.

Page 7
3. Description
Rangehood
1. For use with Isodrive®motor system
2. Male plug (main power 240V)
3. Single 200mm outlet
4. Reducer (for Isodrive®650 only)
5. Filter
6. Lights
NOTE:Filter and light quantity may vary from
model to model.
Important
Electronics MUST be accessible for service and/or maintenance once installed, failure to
do so, will result in any charges involved with accessing the part (removal of cabinetry etc.)
being forwarded to the customer.
1140mm approx.
370mm approx.
Dimensions may be subject to change.
Cutout Size
Use this as a guide only when designing your cabinet. We advise you to take the rangehood
to your cabinet maker so they can tailor the cabinet to t correctly.
1
2
3
4
5
6

Page 8
4. Operation
Schweigen silent rangehoods are recognised for their silent operation. Although this holds true for all
of our rangehoods with external motors, one must note that the rangehoods are silent when they are
used for regular cooking on the lower fan setting. Therefore, you will only hear the movement of air.

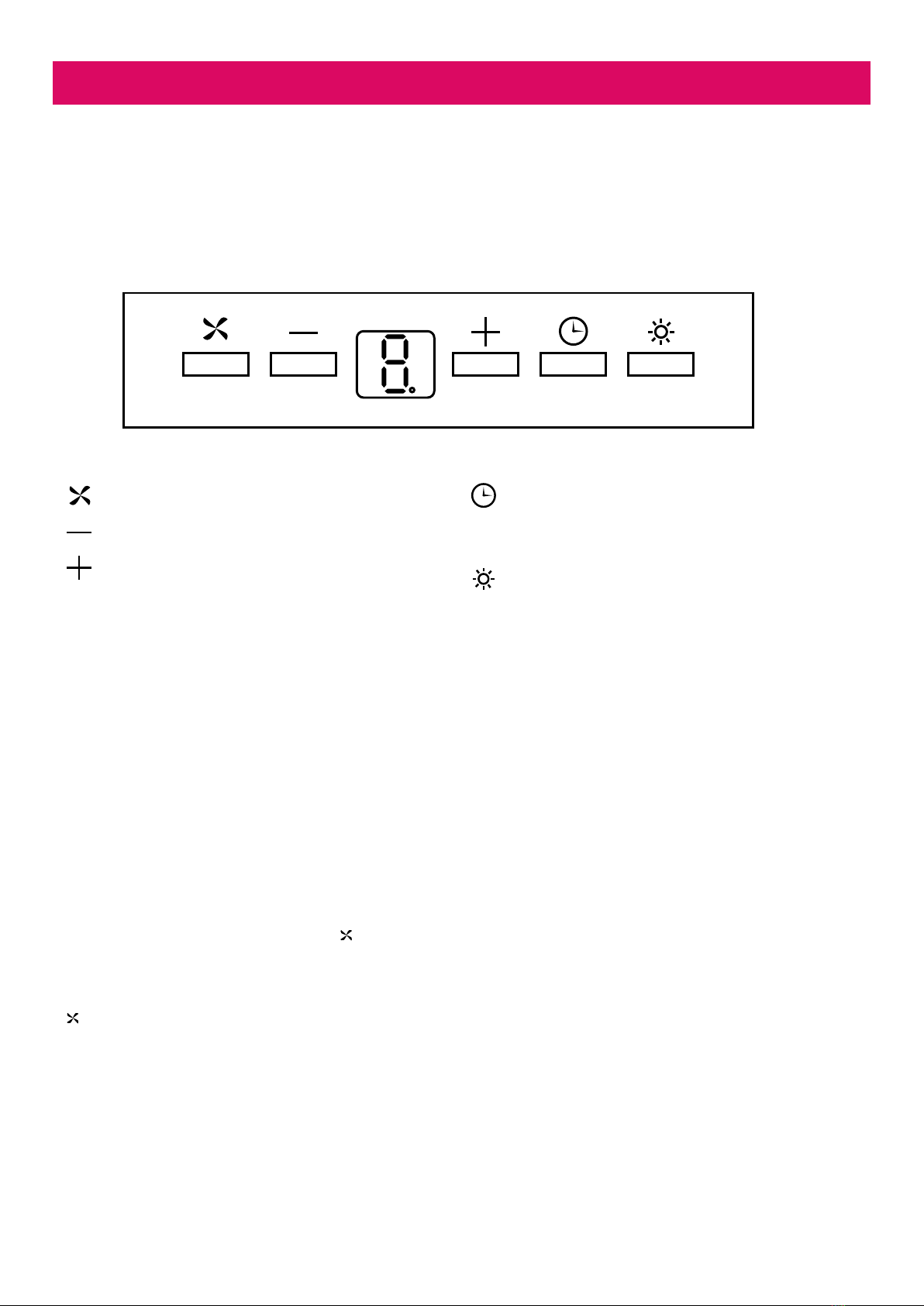

Push Button Control Panel
Press + to switch on the fan. The timer will only operate when the fan is switched on.
1 2 3
Turn on/o the rangehood
123
Press - to decrease the fan speed
123
Press + to increase the fan speed
123
Press to activate the 15 minutes timer
function, the display will ash and motor
will stop automatically after 15 minutes.
1 2 3
Turn on/o the light.
Speed Control
This undermount is equipped with a 3 speed mechanical control. Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speed for heavy frying or heavy cooking.
Cleaning periods of metal lters — “C” Signal
Filter should be cleaned when “C” signal appears on the display on average this is every 4 to 5 weeks
(or in accordance with the usage frequency). In order to remove “C” signal, after the lters are cleaned
and placed back to their place, press
123
button for more than 3 seconds, when the product is at o
position. The Letter “E” will appear on display and the product will operate as normal.
If you would like to continue using the product without deleting “C” signal, when you press the
1 2 3
button active speed will appear for 1 second, then “C” signal will appear once more and the motor
will continue operating.
NOTE: “C” signal will appear after you use the product for approximately 40 hours.
In order to use the rangehood eciently:
• Pay attention to metal lters’ cleaning periods.
• Use the product at medium speed if high suction power is not necessary.
• In order to ensure that ventilation occurs correctly, windows of the kitchen should be kept closed.
123

Page 9
5. Cleaning & Maintenance
Cleaning the Interior
Clean the interior of the rangehood with a damp cloth and a neutral detergent or denatured alcohol.
NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or
the motor with liquids or solvents
Cleaning the Exterior
We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
For better results, you can use high quality cleaning and protection products (e.g. Steel Kleen) to clean
your rangehood.
• The recommended detergent is a solution of water and a neutral
liquid soap.
• It is very important for the liquid soap to not contain granules
that could scratch the surface.
• First apply the solution to a soft cloth and then rub the cloth
over the rangehood. It is important to follow the direction of the
stained surface with the cloth (refer to gure on left).
• Do not pour any liquid directly on to the rangehood.
• The cloth must have no buttons, zips or fasteners that could
scratch the surface.
• It is strictly forbidden to use chemical solvents, aggressive,
grainy or abrasive products, naphtha, alcohol or similar products
that could damage the surface of the rangehood.
• The manufacturer will not be held responsible for functional or
aesthetic damage caused by cleaning with products which are
not suitable or using inadequate cleaning methods.
OK
Warning
Always switch o and disconnect power before cleaning.

Page 10
5. Cleaning & Maintenance
Filters
For this appliance to function eectively, regular maintenance is a must.
• The function of the lter is to absorb the grease particles given o during cooking.
• Clogged lters and heavy oil deposits restrict airow and may cause the motor to overheat
and become a re hazard.
• Filters should be cleaned every 3-6 weeks or after 40 hours of use.
• For induction cooktop, please aim to clean them at least every 10 days, depending on use.
• The lters can be washed by hand or in the dishwasher.
–Washing by hand - Immerse the lter in hot water and a suitable detergent and when clean,
rinse with plenty of hot water.
–Dishwasher - Put the lter in the dishwasher and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may change after several washes. This is normal and
it is not necessary to change the lters.
Please ensure the lters are completely dry before placing them back in position
and operating the rangehood.
Warning
• If the grease lters are very dirty, the motor will extract only a small quantity of air,
which reduces its eciency;
• The grease deposits that build up on the lter are highly ammable and COULD
EASILY CATCH FIRE.
• The manufacturer is exonerated from all responsibility in the event of re due to poor
maintenance of the grease lters.

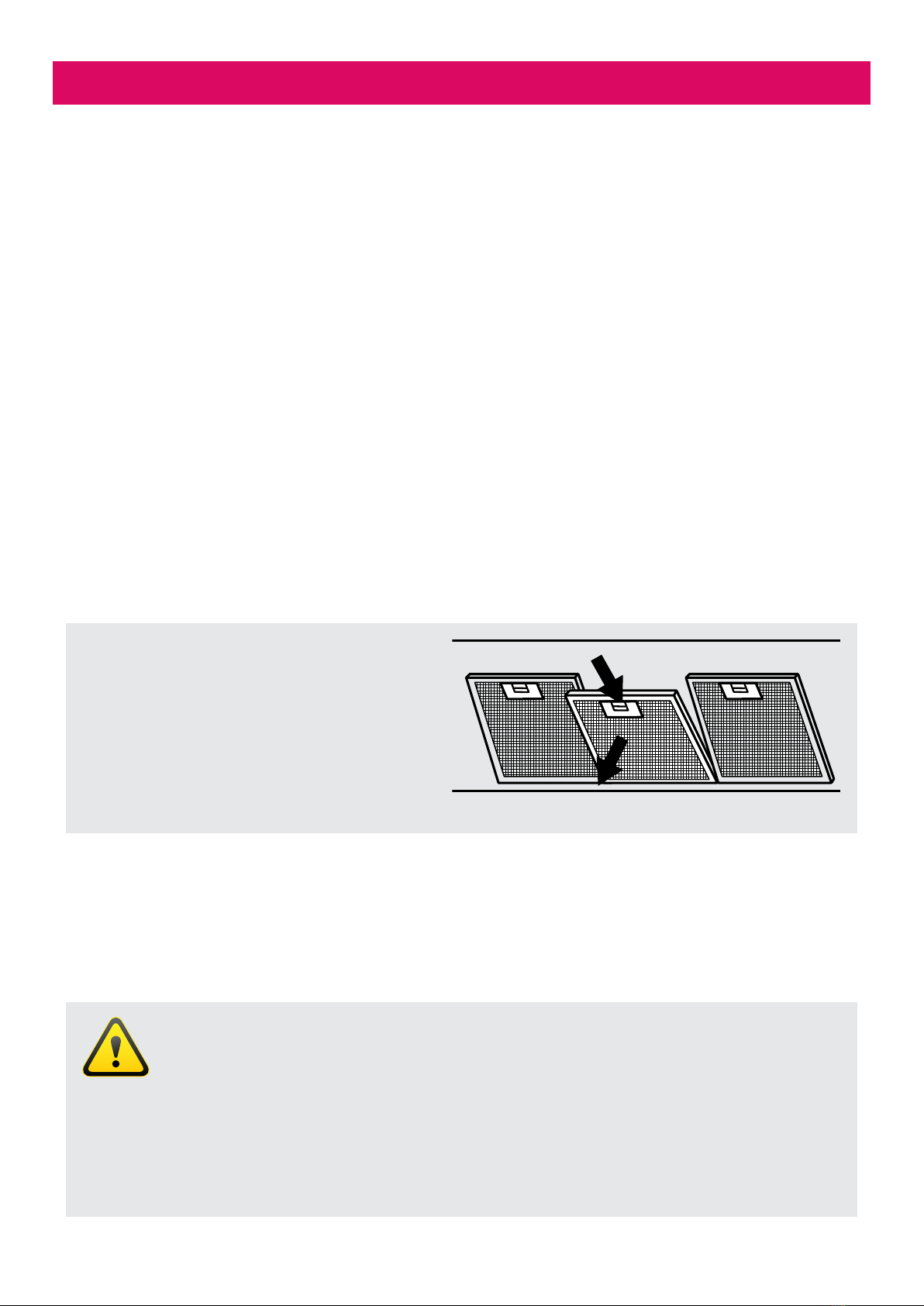

To remove the lter press handle and remove
it through the front guide; bend it slightly and
remove lter. To replace, perform the same
operation but in reverse.

Page 11
5. Cleaning & Maintenance
Replacing the Lights
Step 2
Gently turn light bulb anti-
clockwise, pull the light bulb
down and remove it from the
light holder.
Step 3
Insert a new light bulb by lining
up the pins of the light bulb with
the larger holes inside the light
holder. Once the pins are in place,
turn clockwise to secure the light
bulb.
Step 1
Remove the lters from
the rangehood.
Danger
Always switch o and disconnect power before replacing the lights. Failure to do so may
cause serious injury. Please be aware that the light bulb may retain heat for a short period
of time after being switched o.

Page 12
6. Installation

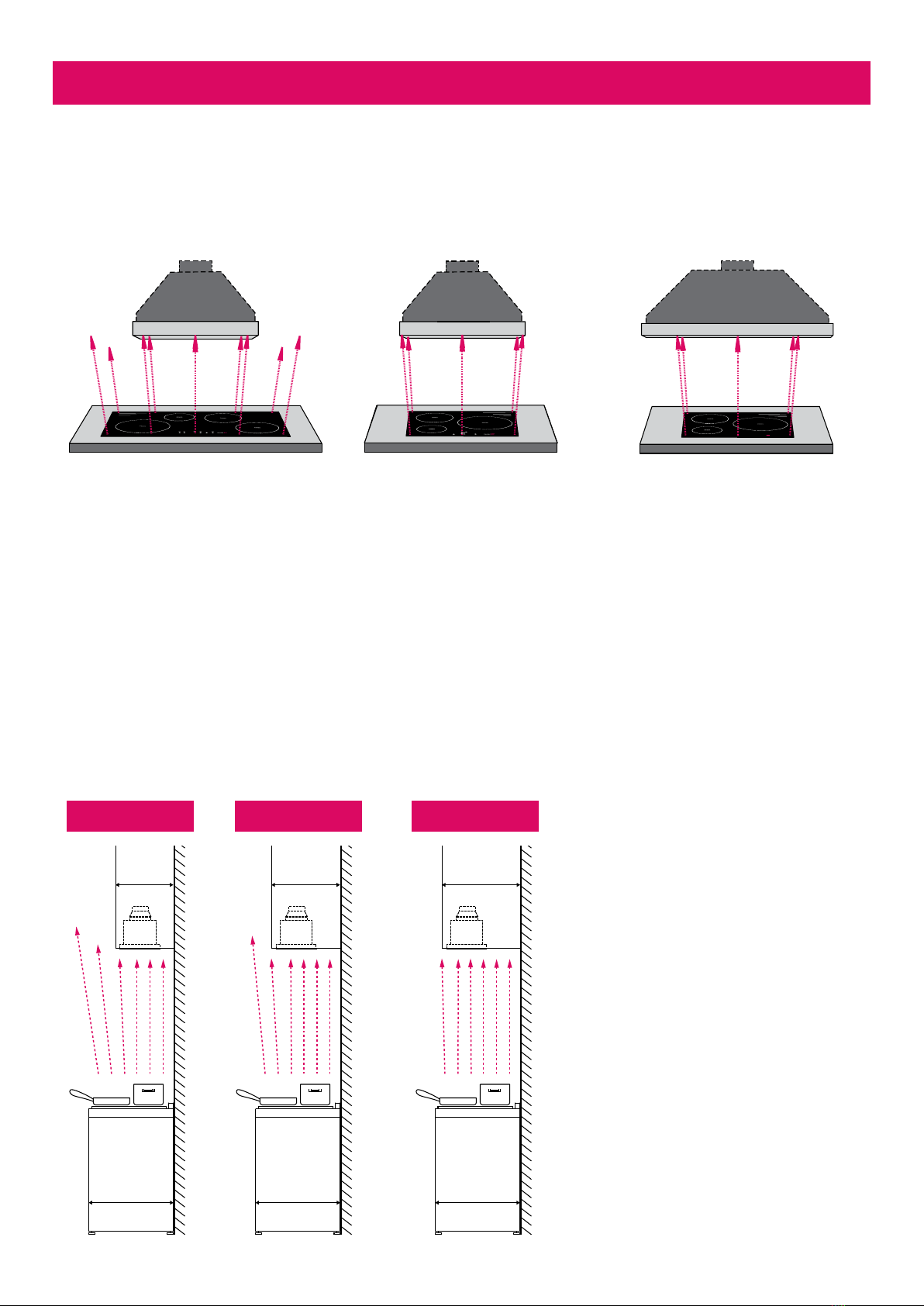

Rangehood Size vs Cooktop Size
In addition to the size, the height of the rangehood above the cooktop is important to obtain
the best performance.
INADEQUATE
Rangehood smaller than
cooking zone
ADEQUATE
Rangehood same size as
cooking zone
OPTIMAL
Rangehood larger than
cooking zone
Overhead cabinet Rangehood Installation position
It is important to consider the benchtop and overhead cabinetry depth before installing the rangehood.
The information below is to be used as a guide only, drawings are not to scale and do not account
for all circumstances.
The cooktop is centrally installed in the benchtop in the diagrams below.
GOOD
600mm 600mm 600mm
400mm
Side View Side View
BETTER
450mm
BEST
500mm
When the overhead cabinetry is
constructed and installed deeper
than standard, ensure the rangehood
is installed as close to the front
as possible. This will increase the
rangehood extraction results as there
is a greater coverage of the cooktop
surface area.
Side View

Page 13
6. Installation
Mounting Instructions
It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop.
This will greatly improve its performance.
Minimum height from the hob top surface to the underside face of the rangehood:
• 650mm electric cooktop
• 650mm gas cooktop
Any installation above 800mm will compromise the extraction performance.
Note: If the instructions for the gas cooktop specify a greater distance, this must be taken into account.
Recommended Installation Height for Induction Cooktop
To help avoid condensation, particular to cooking with an induction cooktop, Schweigen recommends
a height of between 700-750mm. Refer to page 18 for further information.
*IMPORTANT: If the user decides to install the
rangehood at a distance of less than minimum
height above the cooking surface, Schweigen
declines responsibility for damages suered
by the rangehood due to excess heat or damage
to objects, people and others caused directly
or indirectly by a malfunction, breakage or re.
Measurements are from the top of the trivets
to the lowest part of the rangehood, including
the button controls.
*Important: In addition to the information in this manual,
please check all relevant state requirememnts for minimum–
maximum heights, as well as regulations regarding the
expelling of air. Schweigen is not liable if your rangehood is
not installed in accordance with these legal requirements.

Page 14
6. Installation
Mounting and Fixing Points
The diagrams below are a guide for all mounting points.
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
Bottom View
Front View Side View
Mounting point A and
B need to be tighten
with slightly angled
screws to pull the
rangehood up tight
to the cabinet.
These support screws insert from the
inside of the cabinet.
A B
Wall Cabinet
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
Front
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
DANGER
Always switch o and disconnect the power supply before installing the rangehood.
Failure to do so may cause serious injury.
WARNING
Please remove lters before installation. Failure to do so may damage the clips.

Page 15
6. Installation
Installation Example
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
Support Frame
Step 2
Secure support frame to inside of cabinet.
Step 3
Secure the undermount into cavity using screws.
All screws are installed internally into a support
frame. See “Mounting and Fixing Points” for
more information.
Step 1
Insert support frame into cabinet. The support
will only be needed in certain circumstances.
NOTE: The support frame is not included. The
requirement of a support frame is dependent
on the type and location of installation. Please
contact your installer for more information.
Female Plug
(Isodrive®)
Male Plug
(Main power)
NOTE
Remove all plastic protection on the rangehood and lters before use.

Page 16
6. Installation
Ducting
Please DO NOT crush or kink the ducting.
1. Crushed or kinked ducting creates
sharp corners that creates turbulence.
This reduces the size and eciency
of the ducting, lowers extraction and
may cause excessive noise.
2. Sweeping curves and taut ducting
reduces resistance and turbulence.
The airow and extraction will be
more ecient and stronger.
Back Draft Fins (For applicable models)
The supplied ducting has been manufactured with an allowance for the back draft ns to operate without
hindrance. It is the smooth extended end of the ducting.
When installing Back Draft Fins, please ensure that you insert the Back Draft Fins onto the back draft base,
which are attached to the top of the motor outlet before installation. Then place the smooth extended edge
of the ducting into the back draft base and x securely.
Should your Back Draft Fins get stuck, this is not a warranty issue.
Back Draft Fins Back Draft Fins
open position Back Draft Fins ducting
Allowance for
Back Draft Fins
Back Draft Base

Page 17
6. Installation

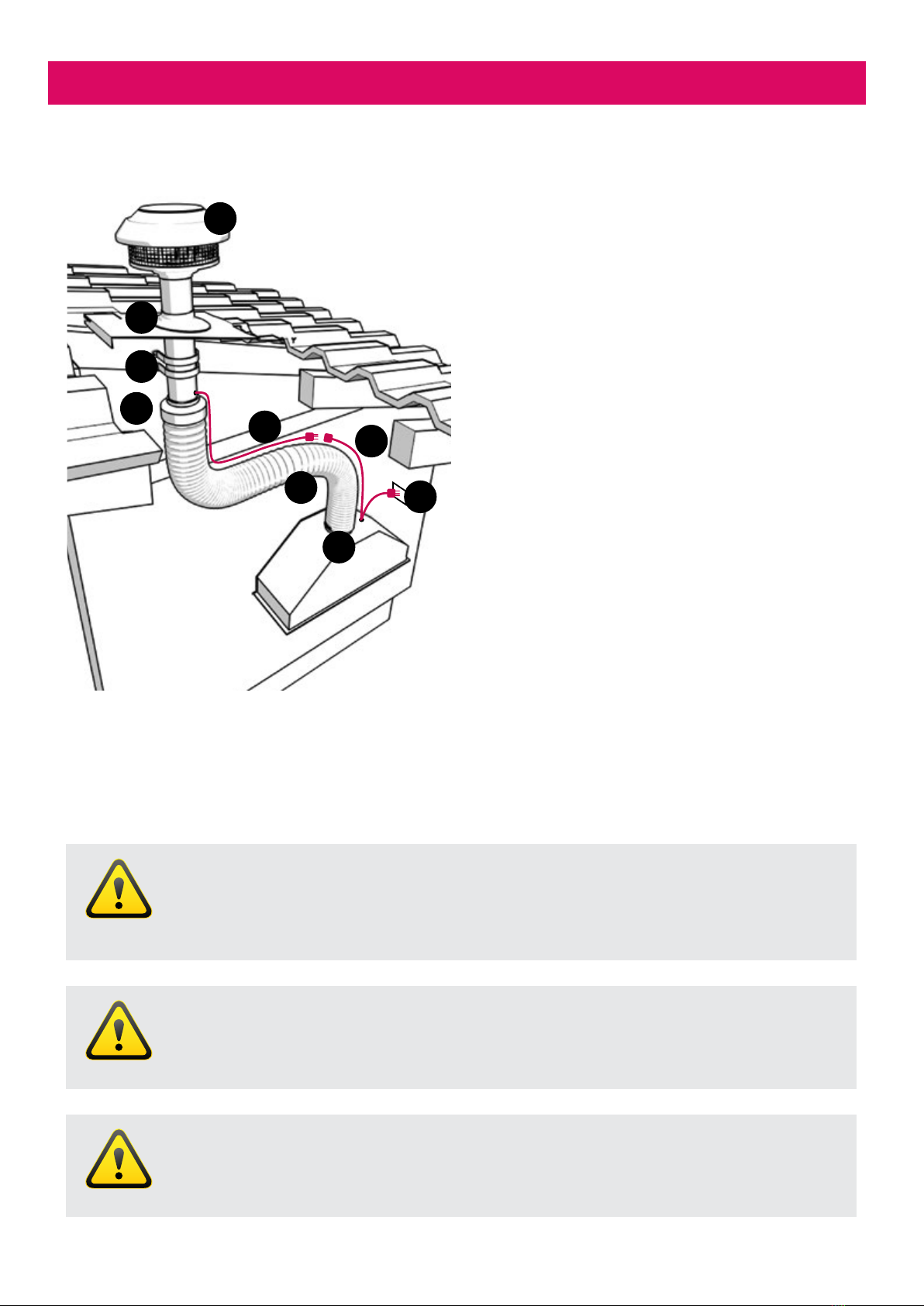

System Overview
1. Isodrive®Motor
2. Roof Seal Kit (Dektite) (Not supplied)*
3. Support Straps (Not supplied)*
4. Attach Flexi Duct to Bell-Mouth Adaptor
using ring clamp. Please DO NOT rip
the ducting.
5. Isodrive®Motor Power Lead (Male Plug)
6. Rangehood to Isodrive®Motor Lead
(Female Plug)
7. Main Power Lead (Male Plug, 10 Amp)
8. Flexi Ducting must be pulled taut.
DO NOT crush or kink the ducting.
9. Connect exi ducting to the outlet
on rangehood using ring clamp.
Please DO NOT rip the ducting.
Pictures are for illustrative purposes only, not to scale.
1
2
3
4
56
7
8
9
DANGER
All electrical wiring from the motor to the rangehood should be kept inside the roof space.
NOTE
The Isodrive®motor system does not include the roof seal kit, cable ties, ring clamp
or the support straps.
NOTE
The general power outlet for the rangehood should be located in an easy to access area.

Page 18
7. Condensation Information
Cooking with Induction Cooktops
Cooking with an induction or similar cooktop, may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn,
produces vapours rapidly. Because of this rapid process, the rangehood lters do not have enough
time to warm, which increases the chance of condensation forming.
There are many variables that may contribute to condensation forming, some of which include but
are not limited to:
• Variance in climate – geographical location
• Position of your home & kitchen – morning/afternoon sun
• Installation distance from cooktop to the rangehood
• Speed of food & liquid heating
• Filter size – larger canopy preferred
• Quality of pots or cookware you are using – high quality recommended
How to reduce the possibility of condensation forming:
• Ensure the rangehood is installed by a qualied professional, carefully following the installation guide
• Turn on the rangehood 5-10 minutes prior to cooking, and leave on for 10-15 minutes after cooking;
this helps clear remaining vapours from the ue.
• Start the cooking process at a low-to-medium setting and allow time for the rangehood to warm up.
• Clean lters regularly.
• Ensure constant airow in the cooking zone; this helps optimise the rate of extraction.
• Follow all induction cooktop manufacturer advice.
For further advice, tips or information regarding cooking with induction, please contact your induction
cooktop manufacturer.

Page 19
8. Troubleshooting
Troubleshooting
Before you contact the technical service department, make sure that the product is plugged in
and power is supplied.
• Do not take any action that will damage the product.
Check electric connection. Voltage of the electric network should be between 220 - 240V, rangehood should be connected to grounded plug and turned on. Check motor switch. Please ensure that there is power to the rangehood and the rangehood is switched on. Check lamp switch. Lamp switch should be at on position. Check lters. The lters should be washed regularly, see lter cleaning. Light bulbs should be rmly in position. Check light bulbs. Make sure they are not broken or faulty. Please make sure there is no obstruction in ducting or with the back draft ns. Check the outlet, make sure it is not blocked and you have the correct diameter ducting installed. Check Isodrive®installation manual, make sure the
exi ducting is installed correctly, eg. Length of ducting used, keep the ducting taut. Check the ducting has not come o the rangehood outlet or has been eaten through by rodents.
Rangehood does not work X X
Light does not work X X X X
Rangehood air exaction is weak X X X X
Rangehood does not direct air out
(through chimney) X X
Loud noise from the rangehood X X
IMPORTANT
Never attempt to repair this appliance by yourself. Always refer to a qualied Service
Technician.

Page 20
8. Troubleshooting
Faulty Installation
It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee
will be charged for any Schweigen technician that attends a call, whereby it is established that
the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be
installed in such a way that the service agent is unable to gain access to the appliance, the person/s
who own the premises or the property where the appliance resides — will be responsible to provide
access to the appliance at their expense.
Service
Lodging an Online Service Request
In the event that the failure is not due to the faults mentioned in the Troubleshooting section, you can
lodge an online Service Request. To lodge an online Service Request, visit our website www.schweigen.
com.au/service-and-warranty and click on the link and complete the service request form.
A service request will require the following information:
• The purchase date
• The rangehood model and motor type
(eg. Isodrive®650)
• The serial number or batch number (this number is on a sticker inside the rangehood).
• A copy of the purchase receipt (without a receipt your service request cannot be processed).
Alternatively, you can call Customer Service:
Australia 1300 881 693
New Zealand 0800 200 510
