INSTRUCTION MANUAL
GA900S
GA1200S
KLS9GLASSBLKS
KLS9GLASS
UNDERMOUNTED RANGEHOODS
Installation / Operation / Maintenance
(10.2020 / V8)

Page 2
Welcome 3
Important Safety Information 4
Description 7
Operation 8
Cleaning and Maintenance 10
Installation 14
Condensation Information 28
Troubleshooting 29
Technical Specications 31
Disclaimer 35
INDEX

Page 3
Thank you for purchasing this Schweigen IN
appliance.
To achieve the optimal performance from your
appliance, and to avoid the risk of accident or
damage, it is essential to read this manual before
installation and rst time use.
This guide contains important information on the
use and maintenance of the appliance, as well as
important safety notes.
Your appliance has been thoroughly checked for
safety and functionality before being packaged
and leaving the manufacturer.
Please keep this instruction manual in a safe
place so you can refer to it at any time.
IMPORTANT!
The appliance should only be
operated when you have read and
understood this manual thoroughly.
The appliance can be only used for the
purpose for which it was designed.
Any other use is deemed improper
and can be dangerous.
Installation and maintenance of
electrical appliances must only
be carried out by qualied and
authorised professionals familiar
with Australian Appliance Industry
regulations.
Upon collection or delivery of your
appliance, any damage or defects
must be reported within 48 hours
to your retailer or Schweigen
Customer Service, in order
to recognise any claim.
The manufacturer reserves the right
to introduce product improvements,
which do not aect the operation of
the appliance.
WELCOME
YOUR STATE REGULATORY AUTHORITY
Dierent Australian states have varying legislative requirements for the installation of
rangehood ducting. Some will insist on ducting being vented externally (i.e. not in to the
ceiling cavity); others will not. It is imperative that you check with your state building
authority and/or private certier to conrm their position.

Page 4
IMPORTANT SAFETY INFORMATION
Please read the instructions carefully. Only then
will you be able to operate your appliance safely
and correctly. Retain the instruction manual for
future use or for subsequent owners.
Check the appliance for damage after unpacking it.
Do not connect or install the appliance if it has been
damaged in transport.
Any damage must be reported within 48
hours.
There must be adequate ventilation in the room
when the rangehood is used at the same time as
appliances burning gas or other fuels.
The air must not be discharged into a ue that
is used for exhausting fumes from appliances
burning gas or other fuels.
Air exhaust systems must be installed in
accordance with local and federal laws.
There is a re risk if regular cleaning is not carried
out in conjunction with the instructions.
Do not ambé (ignite food while cooking) under the
rangehood. This will damage the rangehood and
will void warranty.
Do not ignite burners that give o intense
uncontrolled ames beneath the rangehood.
Flames beneath the pan must be contained at all
times and cannot exceed the width of the pan in
use.
Do not leave any packaging material (bags,
corner brackets etc.) within reach of children.
This appliance is not intended for use by person/s
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and/or
knowledge. Unless, the person is given supervision
or instruction concerning the safe usage of the
appliance by person/s responsible for their safety.
Children must be supervised to ensure that they do
not play with the appliance, it is not a toy.
Accessible parts may become hot when used with
cooking appliances.
Before performing any cleaning or maintenance,
disconnect the rangehood from the mains power,
using the respective mains or sector switch, or by
unplugging it.
Do not use the rangehood without the grease
lters.
Keep the grease lters clean and respect the
recommended cleaning frequencies.
It is forbidden to use the rangehood as an aspirator.

IMPORTANT SAFETY INFORMATION
Page 5
BEFORE INSTALLATION
We recommend this appliance be installed or
repaired by a qualied Schweigen Home Appliances
technician.
Please see our website www.schweigen.com.au
for a list of our recommended installers.
It is dangerous to modify any part of this appliance.
Modication of any kind will immediately void the
warranty.
The manufacturer declines all responsibility in case
of failure to adopt proper safety measures.
Ensure the location in which this appliance is
installed, has good and permanent ventilation.
Please consult local laws and regulations and install
in accordance.
Please use an earthed electrical connector that
coincides with relevant local laws and regulations.
Check that the power voltage in your area
corresponds to the appliance voltage indicated on
the rating label.
This appliance must be connected to an electrical
supply that has a grounded connection.
Check that the indicated instructions and local
regulations are met and carried out by a qualied
technician, using materials that are compliant with
the applicable legislation.
Schweigen will not be responsible for any
installations executed by non-qualied technicians
that fail to heed the applicable legislation on
electrical safety.
The electrical technical data can be found inside
the rangehood, after removing the grease lters.
The power cables supplied are already connected
internally and emerge from the rangehood near
the air outlet.
Before installing the electrical connections,
you should:
Verify that the indicated electrical data coincides
with the voltage values and frequency of the
electrical circuit in the house where the rangehood
is to be installed.
Check that the premises has electrical protection
against short circuits and electrocution.
Before commencing maintenance the current must
be turned o using the double-pole switch (mains
power switch). The power can only be turned
on for normal use, once the operation has been
completed.
Ensure the supply cord is not exposed to heat,
chemicals or sharp objects. If the supply cord is
damaged, it must be replaced by the manufacturer,
service agent or a similarly qualied person in order
to avoid a hazard.

IMPORTANT SAFETY INFORMATION
Page 6
PRODUCT USE
This product is designed for household use and
should not be used for commercial applications.
After use, always ensure that all controls are in
the “OFF” position.
When frying with a gas ame, take particular care
not to allow the oil or grease in the pan to catch
re. (Flambé)
DUCTED OR RECIRCULATING?
Ducted rangehoods (or extractor rangehoods)
extract the cooking fumes from the kitchen and
expel them from the space via ducting. Good design
practice would always see a re-rated ducting
system extend to the house exterior, rather than to
the ceiling cavity. When a rangehood is ducted only
into the ceiling space, the collection of humidity
and grease can present very real health issues and
re hazards.
Recirculating (or non-ducted or ltered) rangehoods
extract cooking fumes and pass them through
lters. As the name would suggest, they recirculate
this air back into the room. Recirculating rangehoods
are not as eective as removing fumes from a
kitchen space, but they are sometimes the only
option due to budgetary or building constraints.
Your client should be made aware of the requirement
to change and clean lters on a regular basis for the
optimum eciency of air ltering.
MAINTENANCE AND SERVICE
The rangehood surface should be cleaned with soft
cloth and non-corrosive detergent. Do not leave
the rangehood wet after cleaning or use, please
keep rangehood dry.
Important: Never attempt to repair this appliance
by yourself. Always refer to a qualied
Service Technician.
Always switch o the electricity and unplug the
connection before conducting maintenance
or cleaning.
ELECTRICAL CORD
Ensure the supply cord is not exposed to heat,
chemicals or sharp objects. If the supply cord is
damaged, it must be replaced by the manufacturer,
service agent or a similarly qualied person in order
to avoid
a hazard.

Page 7
1. Female plug, to be connected to Isodrive®motor
system only
2. Male Plug, to be connected to main power 240V
3. Single 200mm Outlet
4. Computer board*
5. Reducer
6. Filter
7. Cabinet door protection strip
8. Light
9. Rangehood mounting brackets
10. Instruction and screws pack
*IMPORTANT: The electronics MUST be accessible
for servicing once installed, failure to do so, will
result in any charges involved with accessing the
part (removal of cabinetry etc.) being forwarded to
the customer.
1. Female plug, to be connected to Isodrive®motor
system only
2. Male Plug, to be connected to main power 240V
3. Single 200mm Outlet
4. Computer board*
5. Reducer
6. Filters
7. Lights
8. Instruction and screws pack
*IMPORTANT: The electronics MUST be accessible
for servicing once installed, failure to do so, will
result in any charges involved with accessing the
part (removal of cabinetry etc.) being forwarded to
the customer.
DESCRIPTION
1
1
2
2
3
4
4
6
7
8
9
10
5
6
7
8
5
3
1
1
2
2
3
4
4
6
7
8
9
10
5
6
7
8
5
3
GA-900S and GA-1200SKLS-9GLASS and KLS-9GLASSBLKS

OPERATION
Page 8
For models KLS-9GLASS
and KLS-9GLASSBLKS.
The rangehood has a 4-speed electronic keypad.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speeds for heavy frying or heavy cooking.
Electrical Touch Keypad
To obtain the best performance, switch the
rangehood on a few minutes prior to cooking and
leave running for at least 10 minutes after you
have nished.
The buttons have the following functions:
A.- Light switch: Press this switch to turn the
lights on and o.
B.- ON / OFF / button – speed one: This button
turns the rangehood on and o. The rangehood
starts to operate at speed one.
C. D. E.- Speeds 2, 3 and 4, respectively.
F.- Timer: When the timer mode is in operation,
the timer button light will remain on. When this
button is pressed, the rangehood will continue to
operate for 10-15 minutes at the required speed,
and then switch o automatically.
This rangehood has a device that lets you know
when the grease lters must be cleaned. When
the timer button (F) ashes, this means the lters
must be washed (usually after 40 hours
of operation).
When the lters have been washed and re-mounted,
hold the timer button (F) down for a few seconds
to reset it and return the counter down to zero.
A B C D E F
OPERATION

OPERATION
Page 9
OPERATION
Electrical Tactile Keypad
To obtain the best performance, switch the
rangehood on a few minutes prior to cooking and
leave running for at least 10 minutes after you
have nished cooking.
The buttons have the following functions:
A.- Timer: When this function is activated, the
blue light will ash on the timer button. The
rangehood continues to operate for 10-15 minutes
at the required speed and then automatically
switches the motor o.
B.- Increase speed: This button increases the
aspiration speed. When at maximum speed, the
blue light will ash.
C.- ON / OFF: This button turns the rangehood on
and o. The rangehood will always turn on at the
same speed at which is was turned o.
D.- Reduce speed: This button reduces the
aspiration speed. When in operation, the low
speed button will be blue.
E.- Light: Press this button to turn the lights on
and o. When it is operating, the light is blue.
This rangehood has a device that lets you know
when the grease lters must be cleaned.
When the lamp on button “E” ashes, this means
the lters must be washed (usually after 40 hours
of operation).
When the lters have been washed and re-mounted,
hold the “E” button down for a few seconds to reset
it and return the counter down to zero.
A B C D E
For models, GA-900S and GA-1200S
The rangehood has a 4-speed electronic keypad.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speeds are for heavy frying or heavy cooking.

Page 10

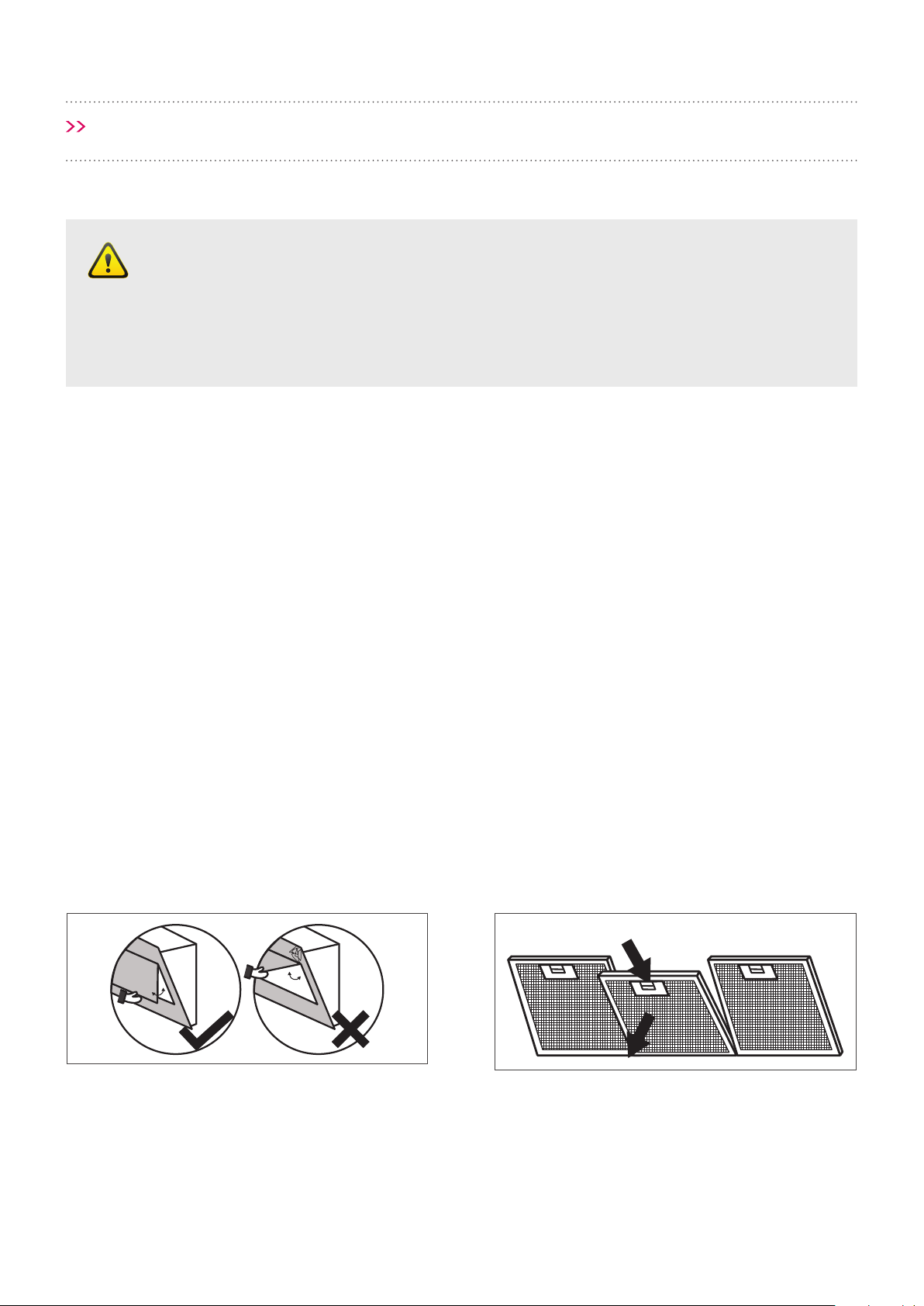

CLEANING AND MAINTENANCE
Latch A
Catch A
Figure 2Figure 1
FILTERS
• For your appliance to function eectively,
regular maintenance is a must.
• The function of the lter is to absorb the grease
particles emitted during cooking.
• Blocked lters and heavy oil deposits restrict
airow and may cause the motor to overheat and
become a re hazard.
• Filters should be cleaned every 3-6 weeks or
after 40 hours of use.
• Disconnect the electrical connection before any
maintenance or cleaning processes are carried
out.
• In ceiling-mounted rangehoods, the doors or
glass must be opened before accessing the
lters.
• To remove the lter, (open the glass panel, gure 1,
if required) press ‘Catch A’ towards the rear of
the rangehood (removing the pins from the
front guide), ease down slightly and remove.
To replace, perform the same operation but
in reverse, see gure 2.
• For an induction cooktop, please aim to clean
the lters at least every 10 days, depending
on frequency of use.
• The lters can be washed by hand or in the
dishwasher
Washing by hand - Immerse the lters in hot
water and a suitable detergent, when clean,
rinse with plenty of hot water.
Dishwasher - Put the lter in the dishwasher
and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may
change after several washes. This is normal and
it is not necessary to replace the lters.
WARNING
Always switch o and disconnect power to the rangehood before cleaning. The
manufacturer is exonerated from all responsibility in the event of re due to poor
maintenance of the lters and rangehood.
Cleaning and user maintenance shall not be made by children without supervision.

CLEANING AND MAINTENANCE
Page 11
SURFACES
The surface of the rangehood can be cleaned with
warm soapy water and a soft sponge / cloth.
• Never use abrasive detergents, scouring pads,
steel wool or solvents on ANY part of this
appliance.
• Rinse with clean water and ensure that the
appliance is completely dry after cleaning.
• For better results, you can use high quality
cleaning and protection products (eg. Steel
Kleen) to clean your rangehood.
• Always make sure the appliance is completely
dry after cleaning and never leave wet, this may
cause irreparable damage.
It is important to follow the direction of the surface
grain with the cloth (refer to gure below).
Do not pour any liquid directly onto the rangehood,
apply to a soft cloth rst.
The cloth must have no buttons, zips or fasteners
that can scratch the surface.
It is strictly forbidden to use chemical solvents,
aggressive, grainy or abrasive products, naphtha,
alcohol or similar products that could damage the
surface of the rangehood.
The manufacturer will not be held responsible for
functional or aesthetic damage caused by using
inadequate cleaning methods.
Cleaning the Interior
Clean the interior of the rangehood with a damp
cloth and a neutral detergent or denatured alcohol.
WARNING
Do not use denatured
alcohol on the exterior of the
rangehood. Do not clean the
electric parts or the motor with
liquids or solvents.

CLEANING AND MAINTENANCE
Page 12

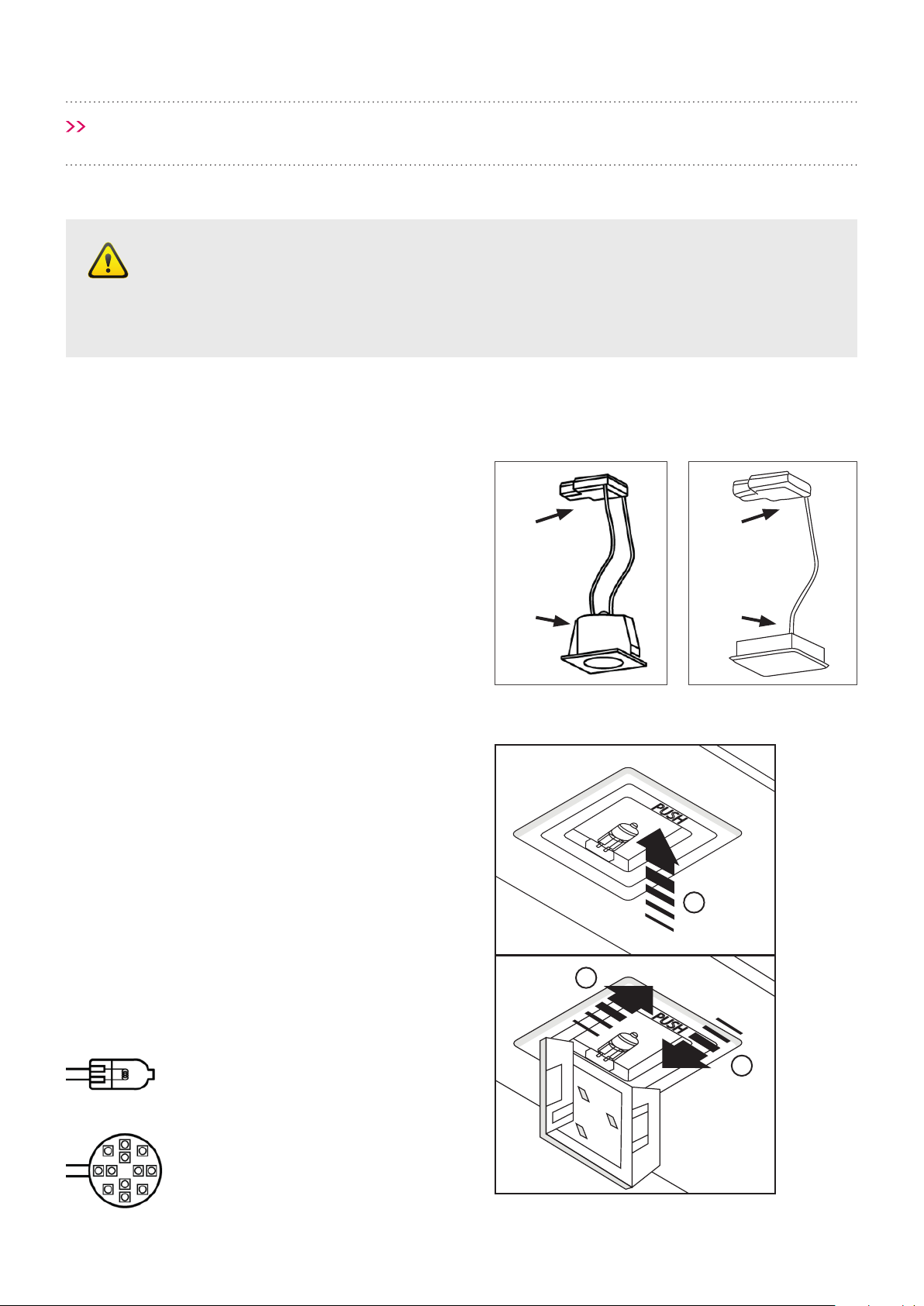

Halogen Bulb (G4)
LED Bulb (G4) [Optional]
1
2
3
Your rangehood may have multiple light types, please refer to the pictures below for light replacement
instructions.
TYPE 3 (Halogen G4HD, LED G4):
REPLACING THE HALOGEN OR LED
BULB MAX 20W, 12V
1. Press on the indicated zone “push” (1)
2. Open the light cover to an angle of 90º, DO NOT
force past 90º.
3. Insert a new 12V halogen bulb as indicated (2)
and (3), 50W maximum.
4. Close the light cover by pressing the part where
it says “push” (1), until it clicks shut.
NOTE: Never handle the glass of the lamp with
bare hands. Use a cloth or wear gloves when
handling the bulb to avoid contact with skin.
Type 3 — Halogen G4 HD, LED G4
TYPE 1 (LED Spot) & 2 (GLED Square):
REPLACING THE LED BULB
The life span of an LED bulb is at least 10 times that
of a halogen bulb. If the globe needs to be replaced,
proceed as follows:
1. Unplug the respective connector (A).
2. Press the tabs (B) inside the rangehood.
3. Remove the LED.
4. Put in the new LED and reinstall, as above, but
in reverse order.
A A
B B
Type 1 — LED Spot Type 2 — GLED Square
WARNING
Always switch o and disconnect the power cord before replacing any light bulbs.
Failure to do so may cause serious injury. Please be aware that the light bulb will retain
heat for a short period of time after being switched o.

CLEANING AND MAINTENANCE
Page 13

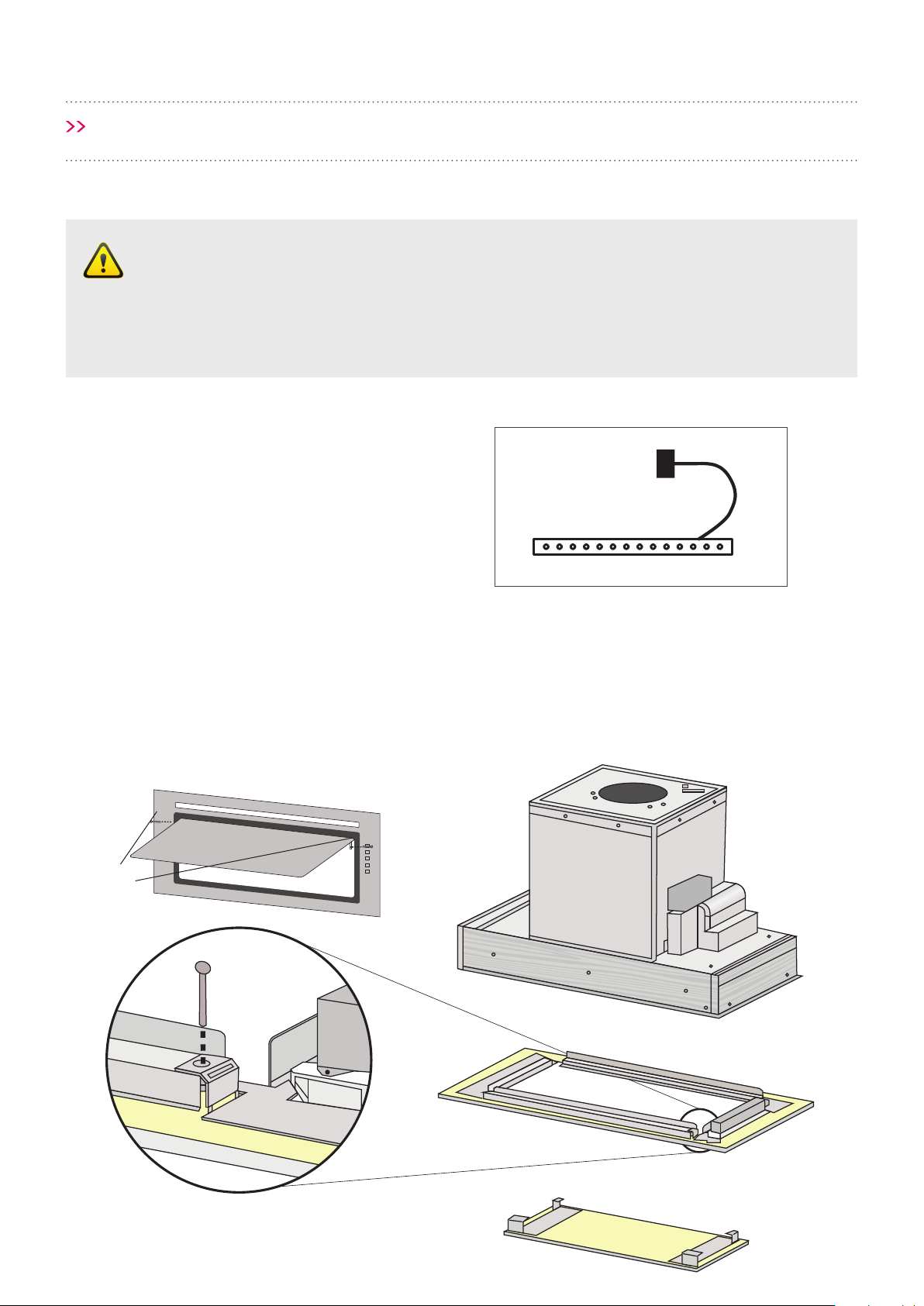

TYPE 4 (LED Strip TL):
REPLACING THE STRIP LIGHTING
1. Open the Perimeter Aspiration (P.A.) lter panel
and gently loosen the screws.
2. Remove the glass perimeter chassis by
removing the screws (A).
3. Disconnect the LED strip light and electronic
buttons including the connections.
4. By removing the screws, the LED light strip
will drop down.
5. Replace the LED strip.
NOTE: Always replace the lighting with
replacements that have the same electrical
requirements.
6. Repeat operation in reverse to re-assemble.
1
1
22
3
4
4
6
7
8
9
10
5
6
7
8
5
3
Type 4 — LED Strip TL
A
WARNING
Always switch o and disconnect the power cord before replacing any light bulbs.
Failure to do so may cause serious injury. Please be aware that the light bulb will retain
heat for a short period of time after being switched o. We recommend an approved
Technician performs this task

Page 14
INSTALLATION

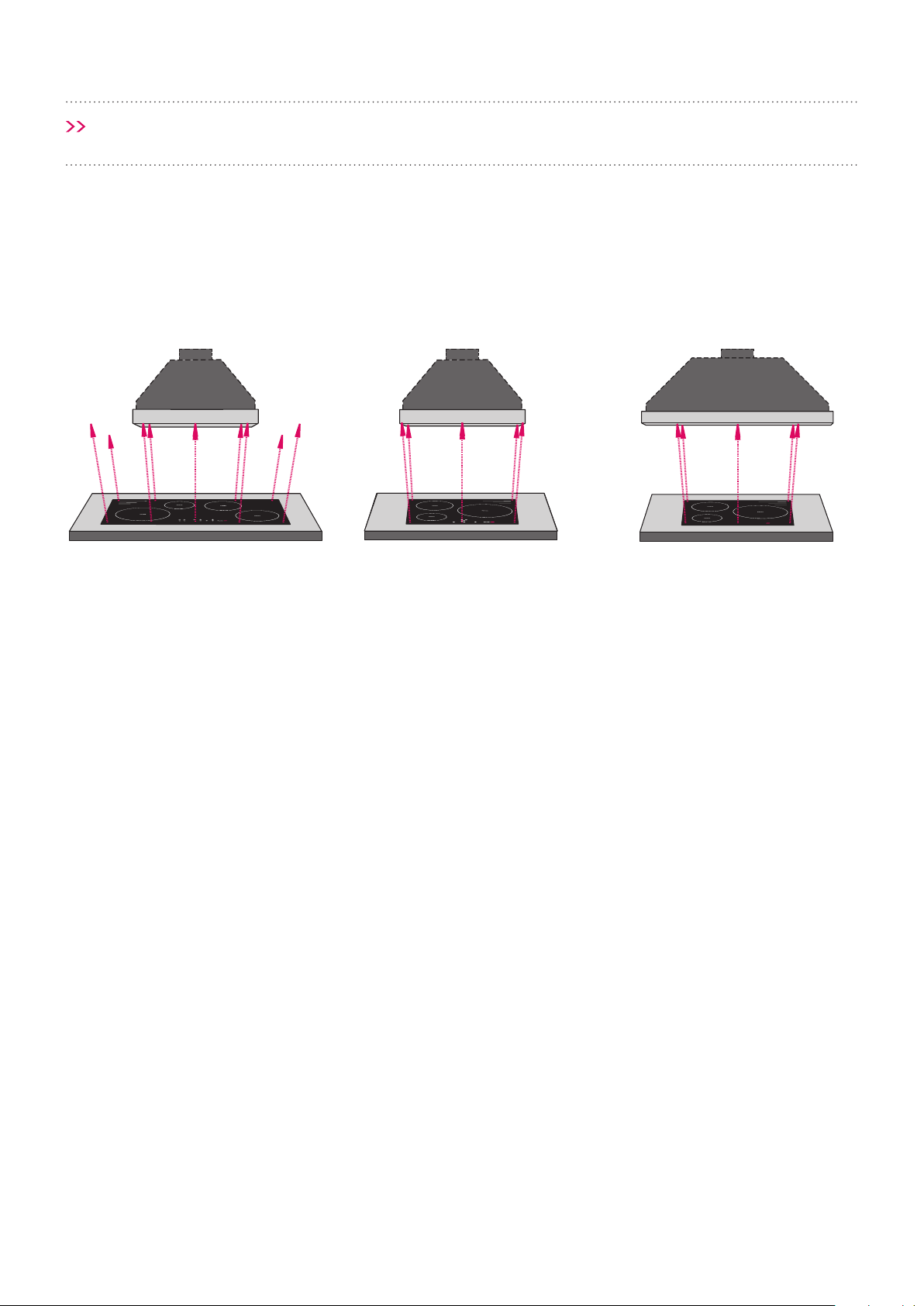

RANGEHOOD SIZE VS COOKTOP SIZE
In addition to the size, the height of the rangehood above the cooktop is important to obtain
the best performance.
INADEQUATE
Rangehood smaller than
cooking zone
ADEQUATE
Rangehood same size as
cooking zone
OPTIMAL
Rangehood larger than
cooking zone

INSTALLATION
Page 15

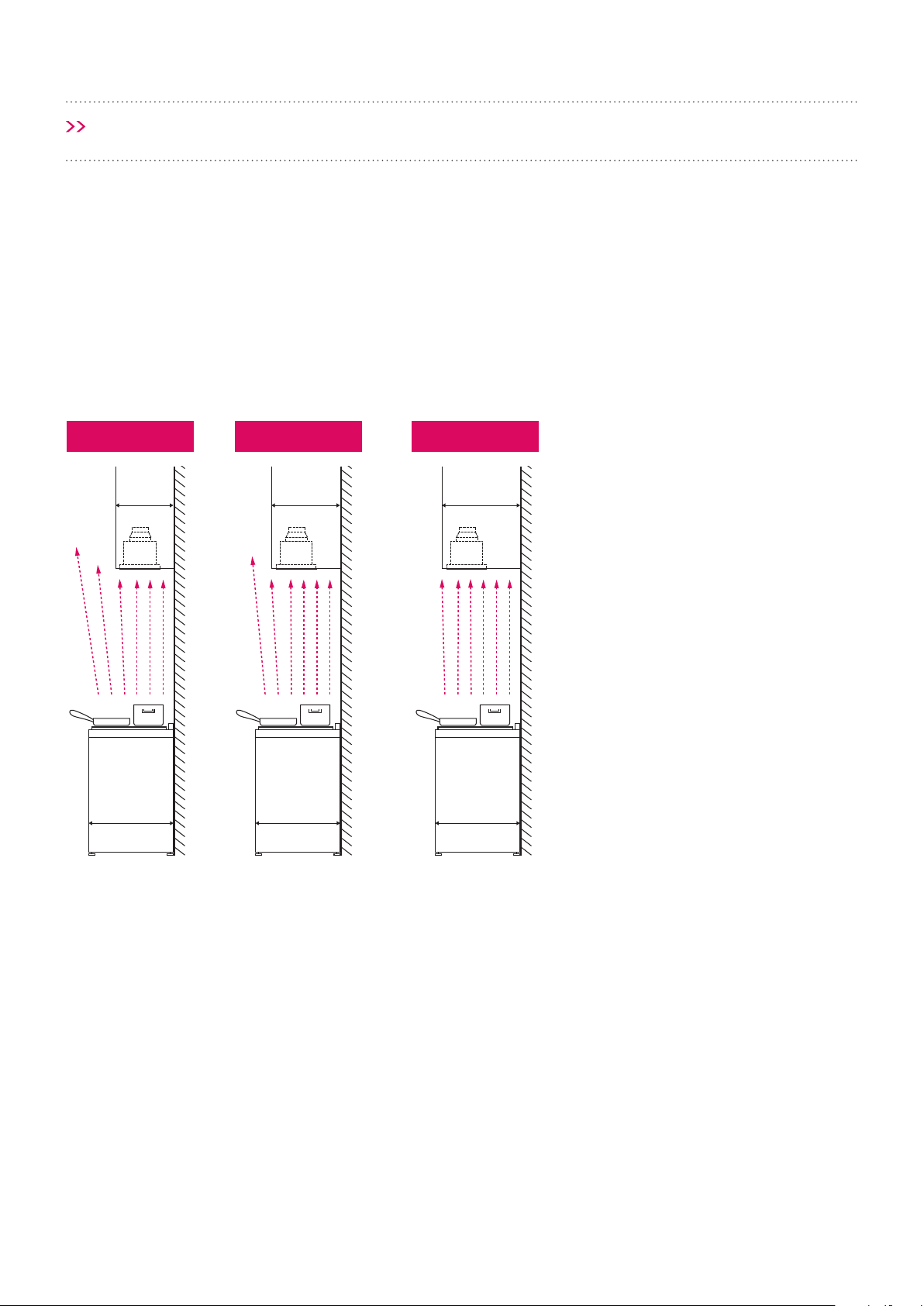

OVERHEAD CABINET RANGEHOOD INSTALLATION POSITION
It is important to consider the benchtop and overhead cabinetry depth before installing the rangehood.
The information below is to be used as a guide only, drawings are not to scale and do not account
for all circumstances.
The cooktop is centrally installed in the benchtop in the diagrams below.
GOOD
600mm 600mm 600mm
400mm
Side View Side View
BETTER
450mm
BEST
500mm
When the overhead cabinetry is
constructed and installed deeper than
standard, ensure the rangehood is
installed as close to the front as possible.
This will increase the rangehood
extraction results as there is a greater
coverage of the cooktop surface area.
Side View

INSTALLATION
Page 16
MOUNTING LAWS AND REGULATIONS
It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop. This will greatly
improve its performance.
Minimum height from the hob top surface to the underside face of the rangehood:
• 650mm electric cooktop
• 650mm gas cooktop
Any installation above 800mm will compromise the extraction performance.
Note: If the instructions for the gas cooktop specify a greater distance, this must be taken into account.
RECOMMENDED INSTALLATION HEIGHT FOR INDUCTION COOKTOP
To help avoid condensation, particular to cooking with an induction cooktop, Schweigen recommends
a minimum height of 700mm. Refer to page 24 for further information.
DANGER
Always switch o and disconnect mains power before installing the rangehood.
Failure to do so may cause serious injury.
*IMPORTANT: If the user decides to install the
rangehood at a distance of less than minimum
height above the cooking surface, Schweigen
declines responsibility for damages suered
by the rangehood due to excess heat or damage
to objects, people and others caused directly
or indirectly by a malfunction, breakage or re.
Measurements are from the top of the trivets
to the lowest part of the rangehood, including
the button controls.
IMPORTANT
Please check all State and Federal Laws in relation to the minimum–maximum heights,
regulations concerning the expelling of air and install your rangehood in accordance
with local laws and regulations.

Page 17
INSTALLATION
Installation for KLS-9GLASS and KLS-9GLASSBLKS
Step 1
Fix the rangehood mounting supports (A) to the
sides of the cabinet (B).
NOTE: The brackets need to be levelled and
secured, in order to hold the entire weight of the
undermount.
Step 2
Slide the undermount in from the front of
the cabinetry, onto the rangehood mounting
supports (A).
Line up the undermount bracket (C) with the holes
on bracket (A).
A
AC
B
A
IMPORTANT
Please read the installation guide thoroughly prior to installation. These models
have a dierent method of installation compared to standard undermounts.

Page 18
INSTALLATION
Step 3
Fit the undermount in place, using the installation
screws provided (E).
Step 4
Only install the reducer if you are connecting the
rangehood to the Isodrive®650 motor. DO NOT
install the reducer for any other motor system.
Step 5
Once the rangehood is tted into the cabinetry,
connect the male and female power connections
to the corresponding connections. Male to main
power, female to Isodrive®motor. The exi ducting
will attach to the outlet on the rangehood and the
Isodrive®motor.
NOTE: The electronics need to be accessible after
installation, in case a service is required.
Protecting the Cabinet Door — Optional
A reversible “L” shaped prole is provided for
optional cabinet door (D) protection.
D
“L” shaped
prole
Male power plug
connects to mains
Electronic control
system
Female power plug
connects to the
Isodrive®motor
Reducer to be connected to the
200mm opening (Isodrive®650
motor only)
E

Page 19
INSTALLATION
Installation for GA-900S and GA-1200S
Y+20mm
X+20mm
Step 2
Remove the lters from the undermount.
Step 3
To separate the fascia (A) and release it from the
undermount (D), remove the 4 locking screws (E)
The fascia will remain xed due to the magnets.
E
D
A
E
Filters
Step 1
Cut the cabinetry to the correct size in order to t
the undermount, see gure on the right.
NOTE: It is always best to use the rangehood as a
cutting guide, not the cabinet cut out diagram as
this is only a guide.

Page 20
INSTALLATION
Step 5
Once (D) has been rmly attached, x the fascia (A)
to the rangehood (D) the magnets (B) will hold the
fascia in place.
Step 4
Fix the undermount to the cabinetry with
appropriate screws, using the pre-drill holes in the
undermount body (C).
C
C
D
A
B
