Scilogex HP550-S User manual

7’’ Square Hotplate
12300245
User Manual
HP550-S
LED Digital 7”Square Hotplate
Please read the User Manual carefully before use, and follow all operating and
safety instructions!
We cannot be responsible to inform at real-time if the outline and specifications are
subject to change for improvement.

Contents
Preface.................................................................................1
Service.................................................................................1
Warranty..............................................................................1
1. Safety Instructions.......................................................2
2. Proper use....................................................................3
3. Inspection ....................................................................3
3.1 Receiving Inspection.............................................3
3.2 Listing of Items .....................................................3
4. Control.........................................................................4
4.1 Control elements....................................................4
4.2 Display...................................................................5
5. Trial run.......................................................................5
6. Working with external temperature sensor..................6
7. Residual heat warning .................................................6
8. Faults...........................................................................7
9. Maintenance and Cleaning..........................................7
10. Associated standards and regulations..........................8
11. Specifications ..............................................................9
12. Ordering information.................................................10

1
7”Square Hotplate
Preface
Welcome to the “7” Square Hotplate User Manual”. Users
should read this Manual carefully, follow the instructions
and procedures, and be aware of all the cautions when using
this instrument.
Service
When help needed, you can always contact the Service
Department of manufacturer for technical support.
Please provide the customer care representative with the
following information：
• Serial number（on the rear panel）
• Certification
• Description of problem (i.e., hardware or software)
• Methods and procedures adopted to resolve the problems
• Your contact information
Warranty
This instrument is warranted to be free from defects in
materials and workmanship under normal use and service,
for a period of 24 months from the date of invoice. The
warranty is extended only to the original purchaser. It shall
not apply to any product or parts which have been damaged
on account of improper installation, improper connections,
misuse, accident or abnormal conditions of operation.
For claims under the warranty please contact your local
supplier. You may also send the instrument directly to
manufacturer, enclosing the invoice copy and by giving
reasons for the claim.

2
7”Square Hotplate

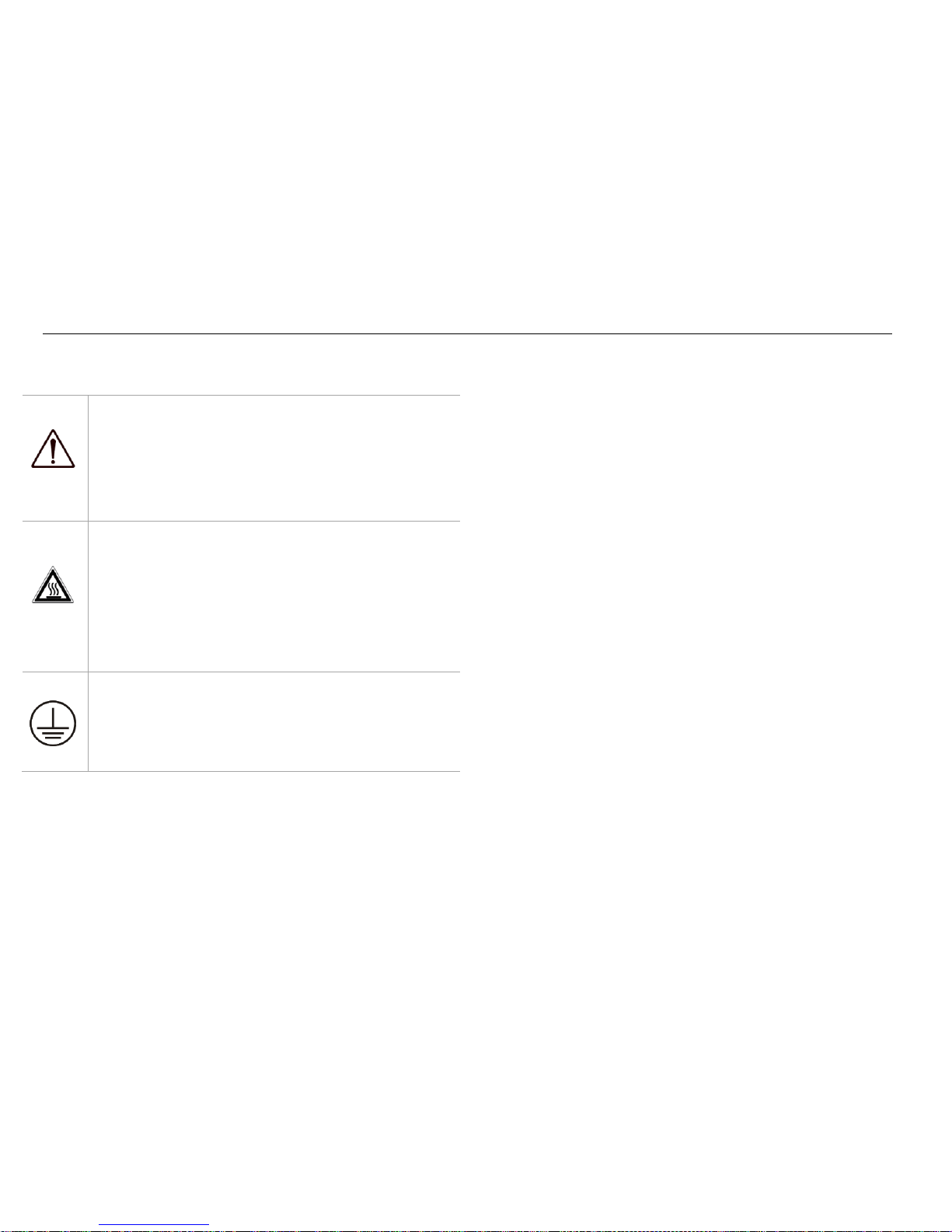

1. Safety Instructions
Warning!
•Read the operating instructions carefully
before use.
•Ensure that only trained staff works with the
instrument.
Risk of burn!
•Caution when touch the housing parts and
the hotplate which can reach temperature of
550°C.
•Pay attention to the residual heat after
switching off.
Protective ground contact！
•Make sure that socket must be grounded
(protective ground contact) before use.
• When working wear personal safety guards to avoid the
risk from:
- Release of toxic or combustible gases
• Set up the instrument in a spacious are on a stable, clean,
non-slip, dry and fireproof surface. Do not operate the
instrument in explosive atmospheres, with hazardous
substances or under water.
• Temperature must always be set to at least 50℃lower
than the fire point of the media used.
• Be aware of hazards due to unsafe container.
• Process pathogenic materials only in closed vessels.
• Check the instrument and accessories prior to each use.
Do not use damaged components. Safe operation is only
guaranteed with the accessories described in the
“Accessories” chapter. Accessories must be securely
attached to the device and can not come off by themselves.
Always disconnect the plug before fitting accessories.
• When the external temperature sensor needed, the tip of
the measuring sensor must be at least 5-10mm from vessel
bottom and wall.
• The instrument can only be disconnected from the main
power supply by pulling out the main or the connector plug.
• The voltage stated on the label must correspond to the
main power supply.
• Ensure that the main power supply cable does not touch
the hotplate. Do not cover the device.
• Forbid to put pressure and over heat media on the surface
of glass ceramic, that can be caused surface broken.
• The instrument may only be opened by experts.

3
7”Square Hotplate
2. Proper use
The instrument is designed for mixing and/or heating
liquids in schools, laboratories or factories.
•Observe the minimum distances between the devices,
between the device and the wall and above the assembly
(min. 100 mm)
>100mm
>100mm
Figure 1
This device is not suitable for using in residential areas or
other constraints mentioned in Chapter 1.
3. Inspection
3.1 Receiving Inspection
Unpack the equipment carefully and check for any damages
which may have arisen during transport. Please contact
manufacturer/supplier for technical support.
Note:
If there is any apparent damage to the system,
please do not plug it into the power line.
3.2 Listing of Items
The package includes the following items:
Items
Qty
Main unit
1
Power cable
1
User Manual
1
Table 1

4
7”Square Hotplate
4. Control

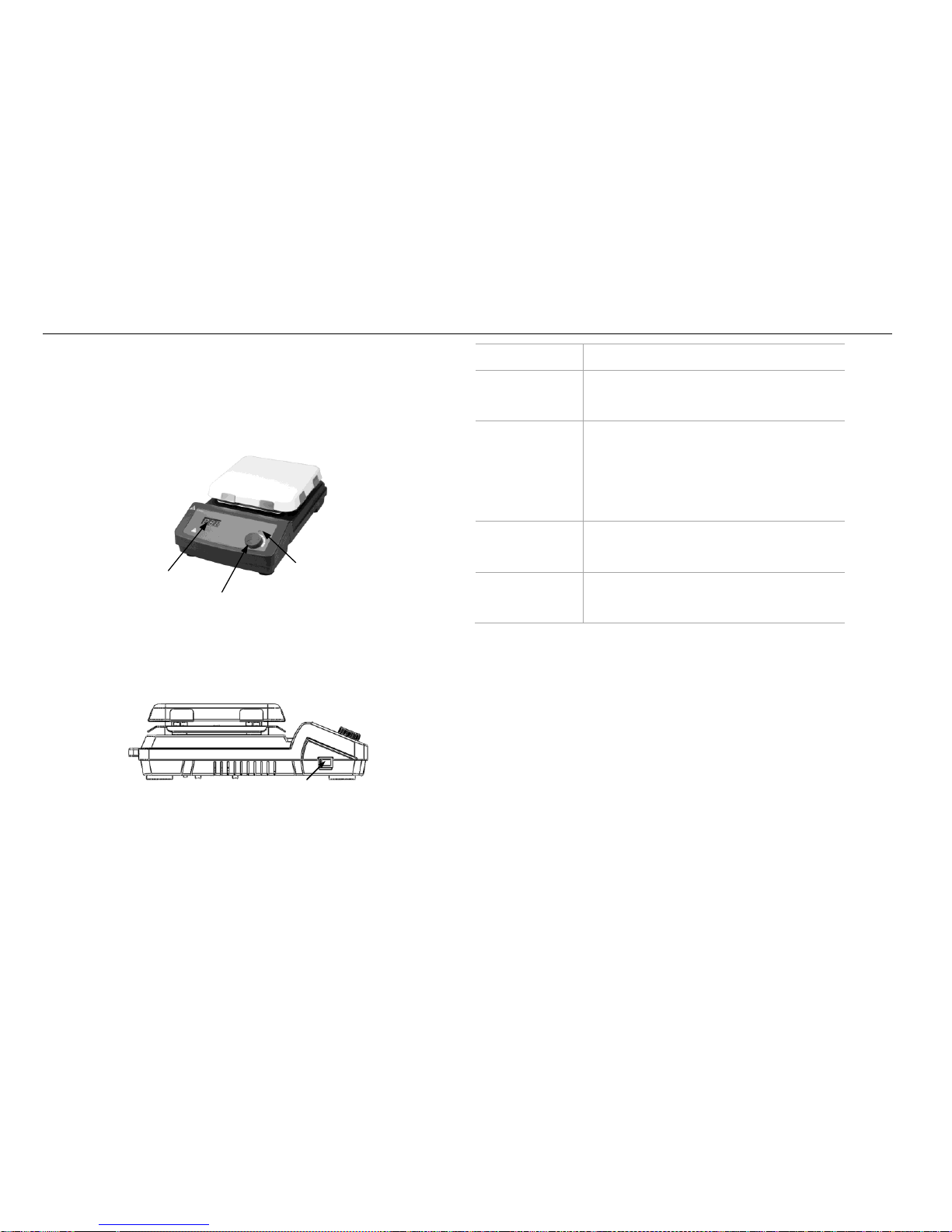

4.1 Control elements
LED Heat
Temperature Control Knob
LED Display
Figure 3
Power Switch
Figure 4
Items
Descriptions
Temperature
control knob
The heating function is switched
ON or OFF by rotating knob.
LED Display
If rotate the heating knob, LED
displays the temperature setting
value and shift to real value in the
duration of 5 seconds.
LED Heat
When the heating function is
switched ON, the LED Heat flash.
Power
Switch
Switch ON or OFF the instrument.
Table 2

5
7”Square Hotplate

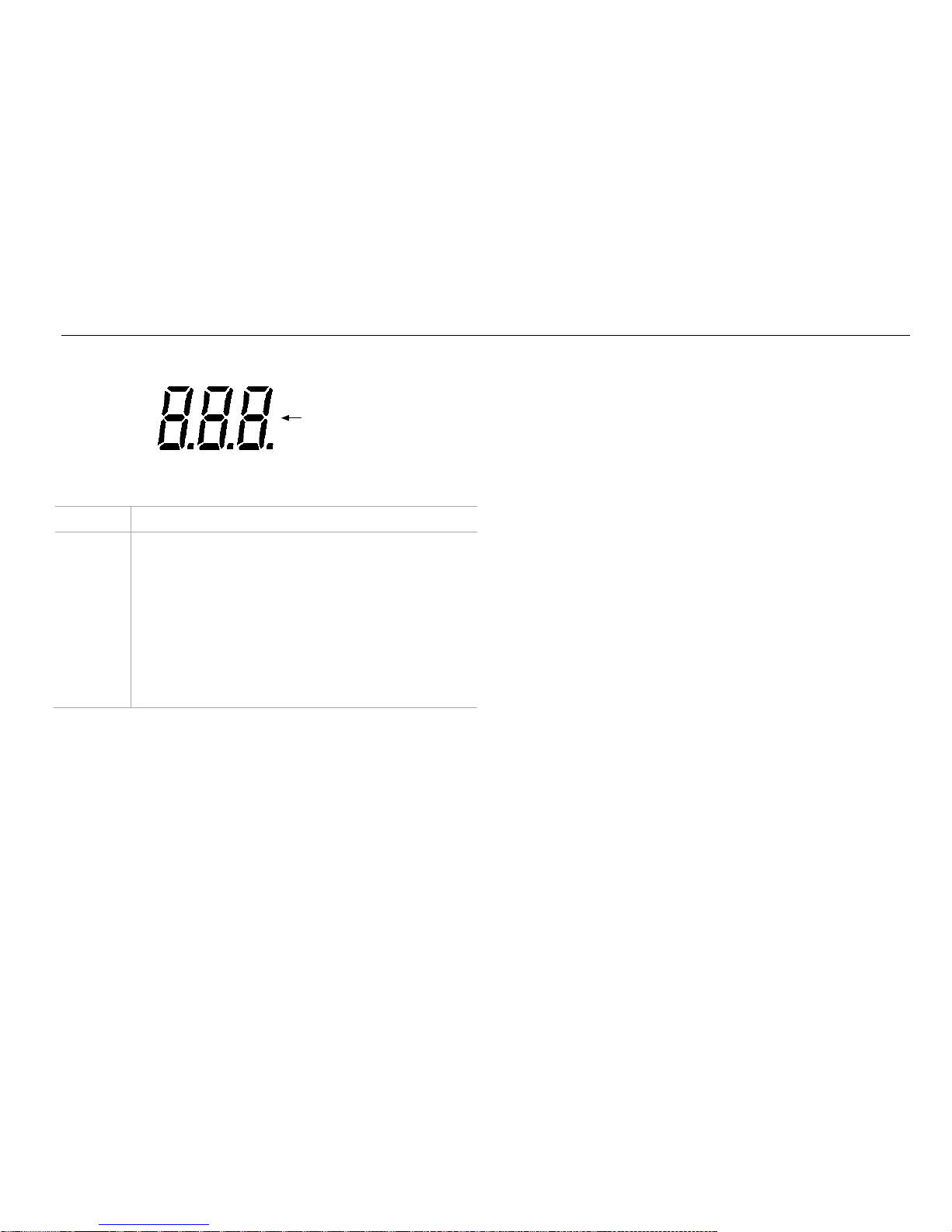

4.2 Display
Display area
Figure 5
Display
Descriptions
Display
area
When the heating function is switched ON and
rotate the stirring knob, LED displays the
temperature setting value and shifts to real value
in 5 seconds.
When the heating function is switched OFF and
the hotplate temperature is still above 50℃,
LED displays Hot, otherwise LED displays 0.
5. Trial run
• Make sure the required operating voltage and power
supply voltage match.
• Ensure the socket must be properly grounded.
• Plug in the power cable，ensure the power is on and begin
initializing.
• Place vessel on the work plate.
•Set the target temperature and start heating.
• Stop the heating functions.
If these operations above are normal, the device is ready to
operate. If these operations are not normal, the device may
be damaged during transportation, please contact
manufacturer/supplier for technical support.

6
7”Square Hotplate
6. Working with external
temperature sensor
Figure 6
The external temperature sensor PT1000 is the
Manufacture’s standard accessory. If the sensor is plugged
in and rotate the heating knob, LED displays the
temperature setting value and shifts to real value in 5
seconds. Safe circuit controls hotplate temperature.
Comparing with the temperature control of the hotplate, the
external temperature sensor can control the medium’s
temperature more precisely. The heating function will be
stopped automatically under abnormal conditions. Please
operate follow the instructions below:
•Switch OFF the instrument.
•Ensure the external temperature sensors is inserted in
the media heated.
•Switch ON the instrument and run heating function.
If the heating function did not work, please contact
manufacturer/supplier for technical support.
7. Residual heat warning
In order to prevent the risk of burns from a hotplate, digital
hotplate has a residual heat warning function. When the
heating function is switched off and the heating plate
temperature is still above 50°C, “Hot” will flash to warn
that there is a hazard of burns from the hotplate. When the
hotplate temperature drops to below 50°C, the unit will
automatically switch off. If users want to turn off the LCD
or LED immediately, just pull out the plug directly. When
the plug is pulled out, the residual heat warning function
cannot be run.

7
7”Square Hotplate
8. Faults
•Instruments can’t be power ON
-Check whether the power line is unplugged
-Check whether the fuse is broken or loose
•Fault in power on self test
-Switch OFF the unit, then switch ON and reset the
instruments to factory default setting.
•Unit cannot be powered off when switched off.
If these faults are not resolved, please contact
manufacturer/supplier.
9. Maintenance and Cleaning
•Proper maintenance can keep instruments working
properly and lengthen its lifetime.
•Do not spray cleanser into the instrument when
cleaning.
•Unplug the power line when cleaning.
•Only use recommended cleansers:
Dyes
Isopropyl alcohol
Construction materials
Water containing tenside /
Isopropyl alcohol
Cosmetics
Water containing tenside /
Isopropyl alcohol
Foodstuffs
Water containing tenside
Fuels
Water containing tenside
•Wear the proper protective gloves during cleaning of
the instrument.
•Before using other method for cleaning or
decontamination, the user must ascertain with the
manufacturer that this method will not harm the
instrument.
•Send in the case of service the instrument back in the
packaging carton. Storage packing is not sufficient for
the back dispatch. Use additionally a suitable
transportation packing.
•The enamel makes the hotplate easier to care for and
more resistant to acids and bases. Because of it,
however, the hotplate is also more susceptible to
extreme fluctuations in temperature and the force of
impact. This can result in cracks forming or the
coating flaking off.
Warning！
Cut off power when maintenance and cleaning.

8
7”Square Hotplate
10.Associated standards and
regulations
Construction in accordance with the following safety
standards:
EN 61010-1
UL 3101-1
CAN/CSA C22.2(1010-1)
EN 61010-2-10
Construction in accordance with the following EMC
standards:
EN 61326-1
Associated EU guidelines:
EMC-guidelines: 89/336/EWG
Instrument guidelines: 73/023/EWG
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.

9
7”Square Hotplate
11.Specifications
Items
Specifications
Voltage [VAC]
100-120/200-240
Frequency [Hz]
50/60
Power [W]
1010
Plate material
Glass ceramic
Dimensions of workplate (mm)
184×184
*Heating power [W]
1000
*Temperature range [°C]
RT-550, increment:
5
*Temperature display [°C]
LED
*Temperature display accuracy [°C]
±1
*Control accuracy of heating
temperature [°C]
±10
*The safety temperature of the
hotplate [℃]
580
*Temperature sensor in medium
PT1000
*Control accuracy of heating
temperature with temperature
sensor [℃]
±0.5
*Residual heat warning
50℃
Dimensions (mm)
215×360×112
Weight [kg]
3.8
Permitted ambient temperature [°C]
5-40
Permitted relative humidity
80%
Protection class acc. to DIN 60529
IP21
Table 3

10
7”Square Hotplate
12.Ordering information
Cat No.
Descriptions
51212101xxxx
HP550-S LED Digital 7’’ Square
Hotplate, glass ceramics hotplate, USA
plug, 100-120V, 50Hz/60Hz
51212112xxxx
HP550-S LED Digital 7’’ Square
Hotplate, glass ceramics hotplate, Cn
plug, 200-240V, 50Hz/60Hz
51212122xxxx
HP550-S LED Digital 7’’ Square
Hotplate, glass ceramics hotplate, Euro
plug, 200-240V, 50Hz/60Hz
51212132xxxx
HP550-S LED Digital 7’’ Square
Hotplate, glass ceramics hotplate, UK
plug, 200-240V, 50Hz/60Hz
Accessories
18900016
PT1000-A Temperature sensor for digital
hotplate model, length of 230mm
18900136
PT1000-B Glass coated temperature
sensor for digital hotplate model, length
of 230mm
18900017
Support clamp of PT1000

SCILOGEX, LLC
1275 Cromwell Ave. Suite C6
Rocky Hill, CT 06067 USA Tel:
1-860-436-9221
Fax:[phone]
[email protected]
www.scilogex.com
