1Welcome
Congratulations on purchasing your Scooterpac
Cabin Car Mk2
Plus , the most technically advanced
mobility scooter. With regular maintenance and proper
operation your Cabin Car will give you many years and
countless miles of rewarding experiences. This manual
contains the information that you and your authorised
Scooterpac service centre will need to keep your Cabin
Car in good working order.
If you have any questions, please contact the
Scooterpac dealer that supplied your Cabin Car and
they will be happy to help you.
This Cabin Car Mk2
Plus was originally supplied by:
Dealer Name ________________________
Address 1 ________________________
Address 2 ________________________
Town/City ________________________
Postcode ________________________
Phone Number ________________________
E-mail Address ________________________
Website ________________________

Scooterpac Cabin Car Mk2 Plus | User Manual 7
2Legal
The Scooterpac Cabin Car Mk2
Plus is designed to be operated by a single person, in accordance with the legal
requirements for operating a Class 3 invalid carriage in the jurisdiction in which it was sold. Operating the vehicle
outside of these limitations may invalidate your warranty.

Scooterpac Cabin Car Mk2 Plus | User Manual 8
3Safety
The Cabin Car should only be operated by a single person, who is not suffering from any condition which impairs
vision, hearing, eyesight or the ability to react to sudden changes in surroundings. If you suffer from any of the above, it
is recommended that you seek advice from your doctor before operating the Cabin Car.
•Only drive over obstacles and up kerbs at the lowest point and at right angles.
•Sudden turns or sudden changes in speed are not recommended.
•Avoid steep surfaces if there is a risk of skidding due to icy or wet surfaces.
•Avoid going over loose surfaces such as gravel.
•Always tackle gradients straight i.e. do not drive in zigzags.
•Do not turn the Cabin Car around on inclined surfaces.
•Do not drive the Cabin Car down steps.
•Always drive forwards down gradients, kerbs and other obstacles.
3.1 Anti-Tip Wheels
The Cabin Car is fitted with rear anti-tip wheels. These are an emergency failsafe that should never be relied upon in
normal operation. These are designed to stop the Cabin Car tipping backwards on a steep incline. Should you see any
damage to the wheels, you should cease using the car and take it to a certified mechanic who can ensure that the
chassis has not been damaged.

Scooterpac Cabin Car Mk2 Plus | User Manual 9
3.2 Safe Inclines
The Cabin Car can climb inclines of up to 12˚ without danger. On this 12˚ incline, the Cabin Car can stop, brake and
turn. It is possible to attempt steeper inclines, but we strongly suggest that you do not. To reduce the possibility of
tipping backwards on inclines, lessen the load on the back of the scooter by sliding the seat forward as much as
possible and leaning forward.
Figure 1 – Recommended gradients

Scooterpac Cabin Car Mk2 Plus | User Manual 10
4Introduction
Your Cabin Car is a high-tech piece of mobility equipment that will give you years of faithful service and enjoyment.
This manual introduces you to the operation, maintenance and care of your Cabin Car. If you have any questions, or are
unsure of anything, please contact the dealer your originally purchased the Cabin Car from. All maintenance work
should be carried out either by an authorised Scooterpac dealer or by a certified mechanic.

Scooterpac Cabin Car Mk2 Plus | User Manual 11
5Your Cabin Car
5.1 Intended Use
The Cabin Car is designed for use on smooth pavement or roadway, in accordance with local laws. The Cabin Car can
be used in wet and windy weather, but discretion should be used when planning a journey in adverse weather
conditions. If there is more than 1cm of water standing on the pavement, extra care should be taken as the car may
have reduced ability to grip and steer. Under no circumstances should more than one person operate the vehicle at
one time.

Scooterpac Cabin Car Mk2 Plus | User Manual 12
5.2 Unintentional Movement
The Cabin Car should be stationary before either door is opened. When the car is switched on, it will remain stationary
until one of the following:
1. The forward or reverse lever is pulled.
2. The freewheel function is engaged.
If the vehicle is moving, the door should be fully closed with the driver inside the vehicle. Do not attempt to operate
from outside the vehicle.
If the vehicle is moving an emergency stop can be performed by letting go of the throttle levers and firmly pulling the
hand-operated brake lever on the right-hand side of the tiller.

Scooterpac Cabin Car Mk2 Plus | User Manual 13
6Exterior Guide

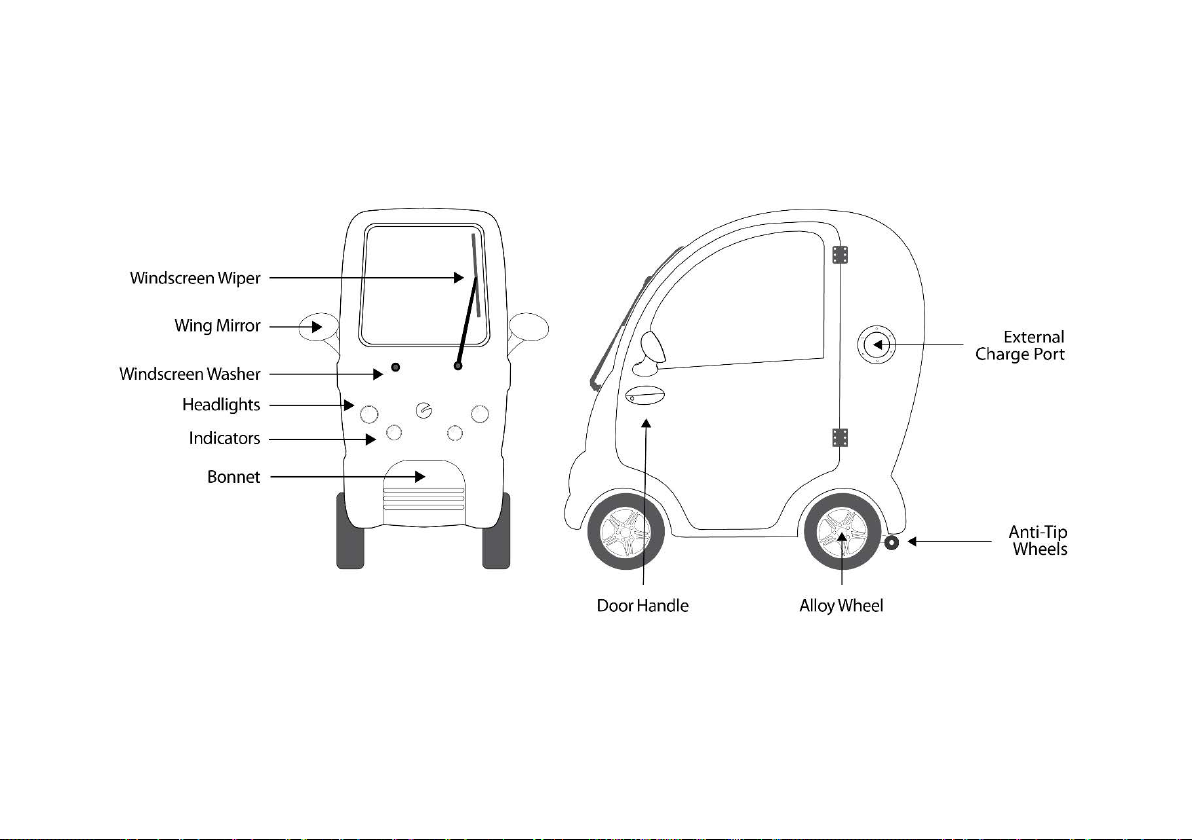

Figure 2 – Exterior guide

Scooterpac Cabin Car Mk2 Plus | User Manual 14
7Interior Guide

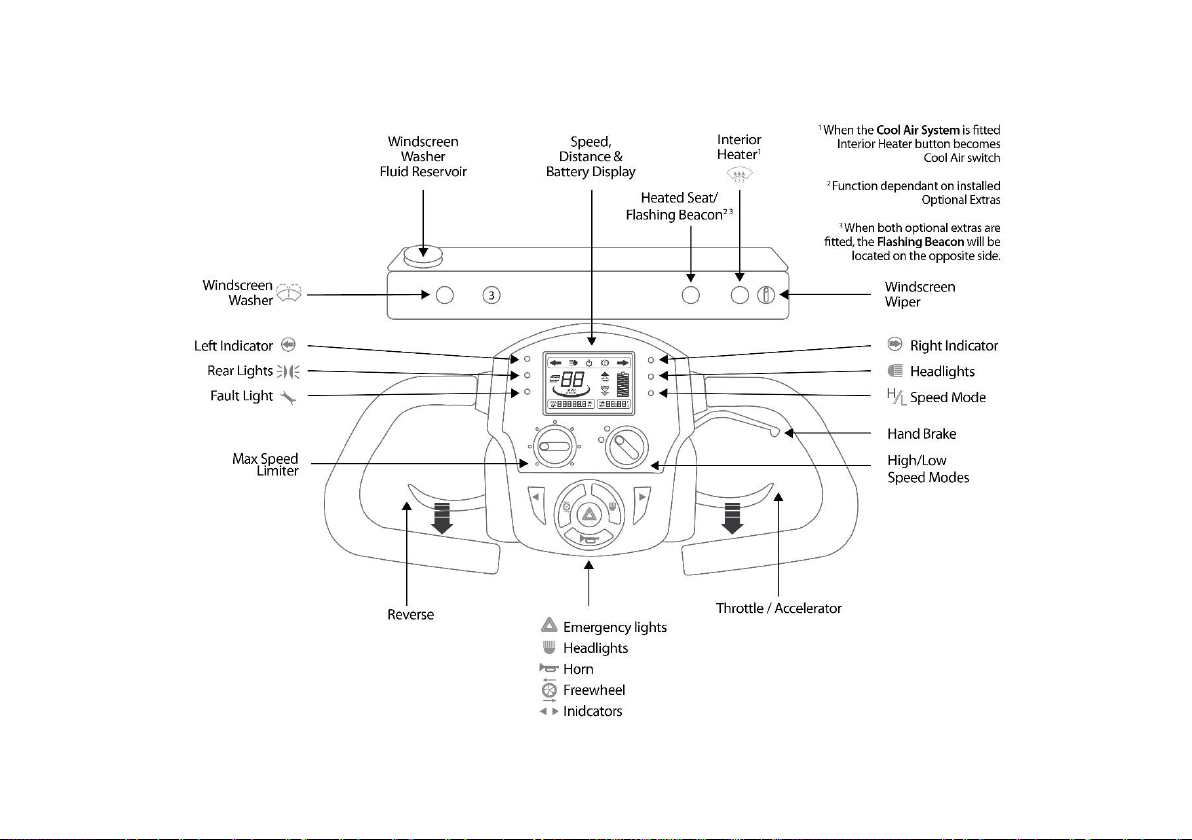

Figure 3 – Digital Tiller guide

Scooterpac Cabin Car Mk2 Plus | User Manual 15
8Operating Your Cabin Car
8.1 Entering the Vehicle
The vehicle can be entered from both the nearside and offside doors First ensure that the Cabin Car is stationary on
smooth, level ground. Fully open one of the doors and enter the vehicle. When you are safely and comfortably seated,
pull the door closed behind you using the handle mounted beneath the window. It is not recommended that you lock
the car when seated inside, as this may delay your escape in an emergency.
8.2 Keys & Fobs

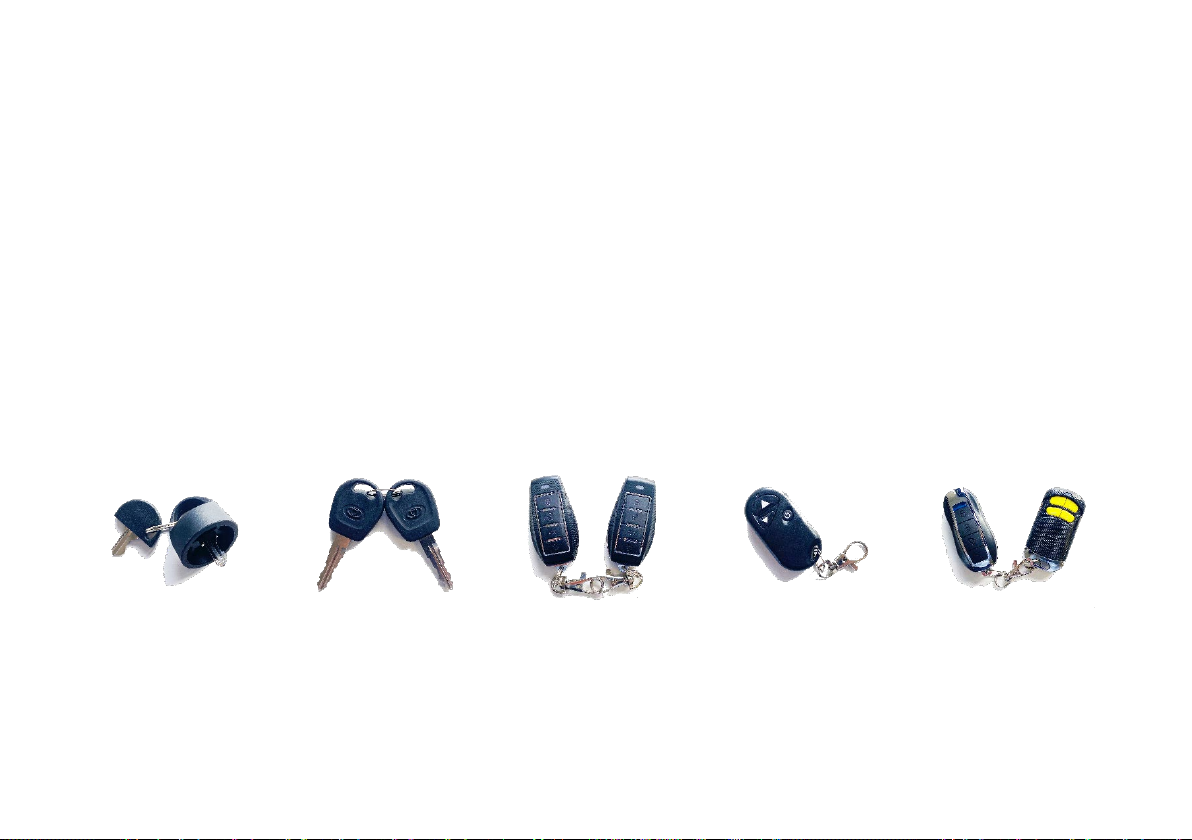

The Cabin Car is delivered with several keys which operate various functions:
Ignition
Keys
x2
Door Locking
Keys
x2
Remote Central
Locking Keys
x2
Follow-Me-Home
Lights Fob
x1
Alarm System Fobs
x2
(Optional)

Scooterpac Cabin Car Mk2 Plus | User Manual 16
8.3 Seat Adjustments
It is important to adjust the seat into a good position that allows you to
comfortably operate all the vehicle controls.
Forward/Backwards
To move the seat forwards or backwards, grasp the black lever on the
right-hand side underneath the seat whilst sitting down.
Push firmly against the floor with your feet or pull on the handles
mounted to the doors.
TOP TIP – Do not use the control tiller to push or pull yourself.
Backrest Adjustment
The pitch of the seat can be changed by the lifting lever located on the
right-hand side of the seat when seated.

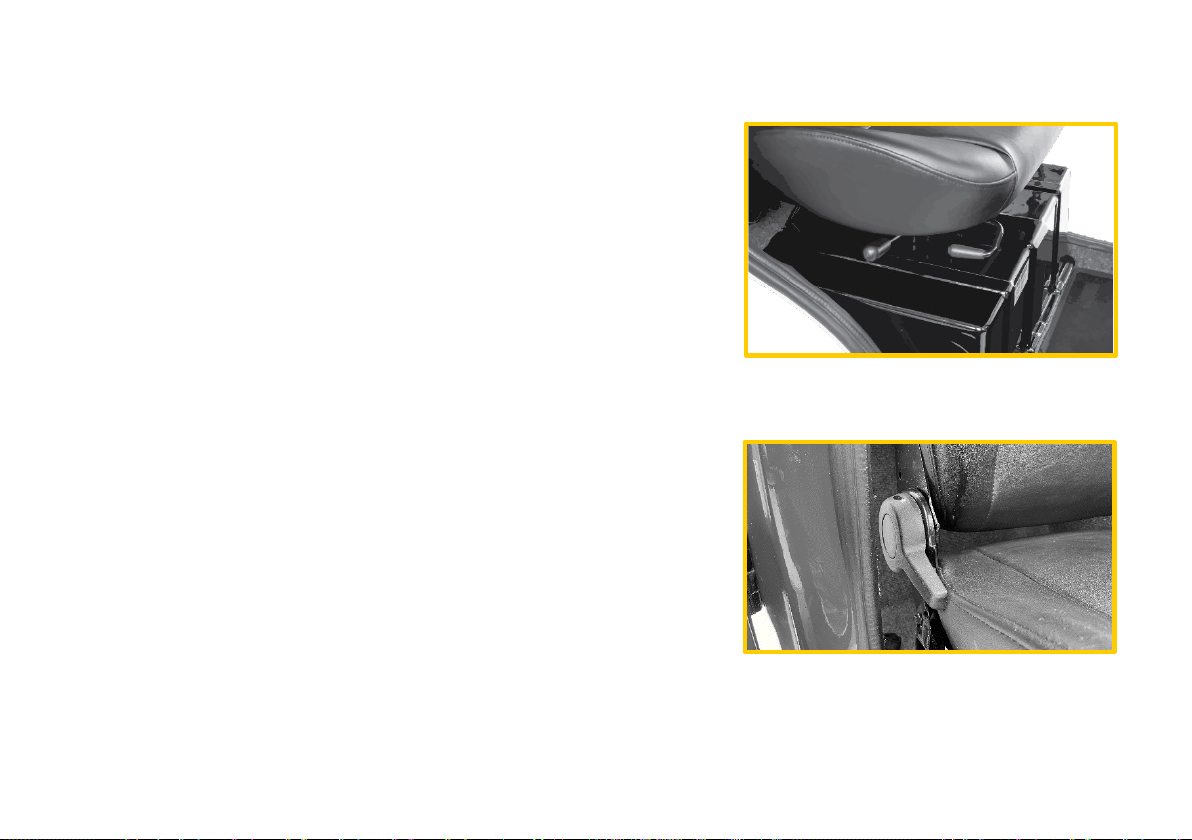

Figure 4 – Pull black handle to adjust the
seating position
Figure 5 – Pull black handle to adjust the
backrest

Scooterpac Cabin Car Mk2 Plus | User Manual 17
8.4 Tiller Adjustments
The angle of the tiller can be adjusted by pressing the lever down on
the front of the tiller.
The entire tiller assembly can then pitch forwards and backwards to
find a comfortable driving position. Release the lever to secure your
preferred position.
Be aware that lowering the tiller too far may make it difficult to steer.
Try to find a position that allows a good view of the digital control
panel and allows full left and right movement of the steering.

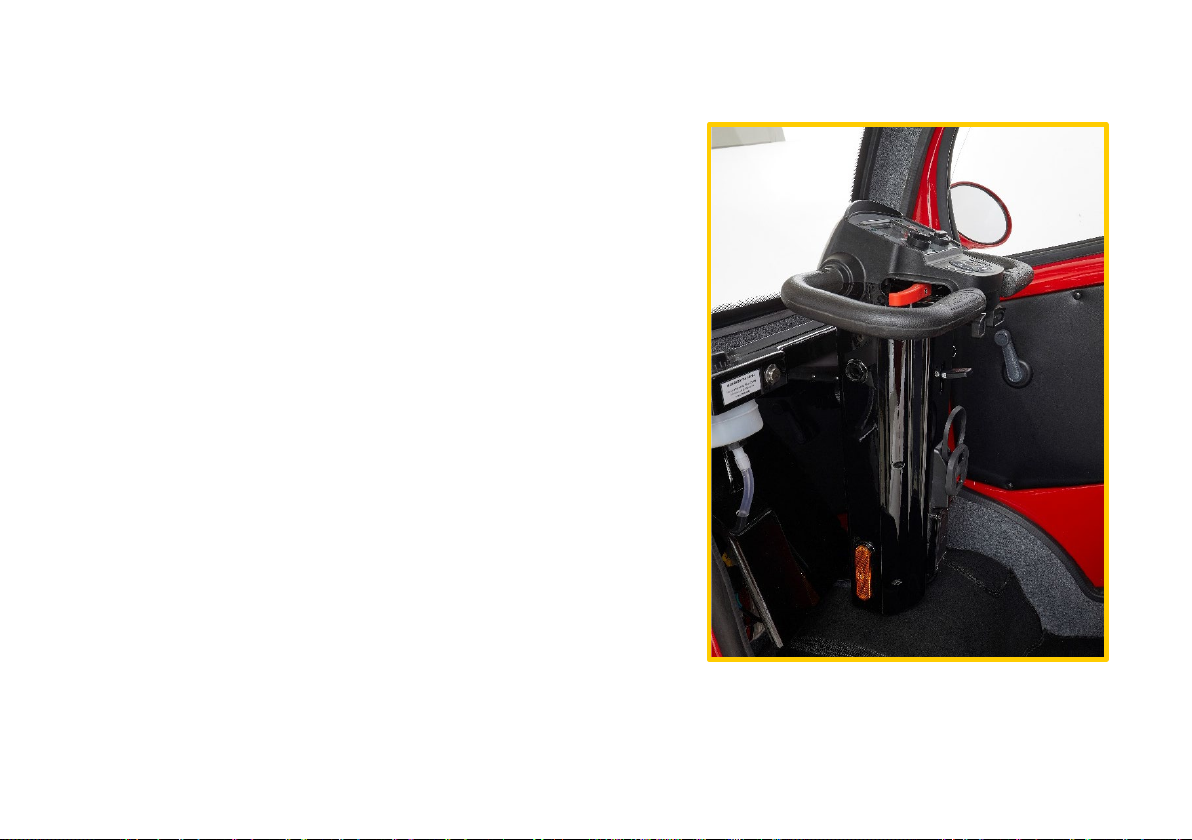

Figure 6 – Press the black handle
down to adjust tiller pitch

Scooterpac Cabin Car Mk2 Plus | User Manual 18
8.5 Steering
The Cabin Car is fitted with a mechanical steering column that should always be operated with both hands. When the
car is stationary the steering may feel a little heavy or stiff. Steering will become lighter whilst the vehicle is in motion.
For the most accurate steering the car should be moving forwards or backwards at a controllable speed. Gently push
one side of the tiller away from you, allowing the car to begin turning. Make sure that you are continually observing
your surroundings during any manoeuvre.

Scooterpac Cabin Car Mk2 Plus | User Manual 19
8.6 Acceleration & Braking
8.6.1 Speed Controls
The Cabin Car has several methods for controlling speed; the High and Low Speed Modes, the Max Speed Limiter and
the Throttle Levers.
8.6.1.1 High and Low Speed Modes
The high (“H”) and low (“L”) speed modes are controlled by the right-hand dial on the tiller.
The two settings place the car in either a 4mph or 8mph mode. These modes correspond to
the “pavement” and “road” speeds that are determined by the UK government. “H” setting is
8mph and for road use only. “L” setting is for 4mph and for pavement use only.
When using the pavement in the UK, the 4mph mode should be engaged to prevent the
Cabin Car from moving too fast. On the road the 8mph setting should be engaged.
8.6.1.2 Max Speed Limiter
The left-hand dial controls the speed at which you would like the car to travel or matching
your speed to someone walking. This function is particularly useful when operating the car
in tight areas.
Turn the dial clockwise to go faster and counterclockwise to move slowly.
Figure 8 – Max Speed Limiter
Figure 7 – H/L Speed Mode
Control

Scooterpac Cabin Car Mk2 Plus | User Manual 20
8.6.1.3 Throttle Levers
Acceleration and deceleration are controlled by the red and green levers on the tiller. They are designed to prevent
both the forward and reverse functions from being activated at the same time.
To move forward, gently squeeze the green lever. The car will accelerate up to the maximum allowable speed set by
the speed controls.
To slow down or stop, release the accelerator and the car will stop. In an emergency the handbrake can be applied by
pulling the brake handle located on the right of the handlebars.
Reverse mode can be activated by pulling the red lever when the car is stationary. For more information on reverse
mode please see 8.6.3 Reversing.
8.6.2 Freewheel Function
Occasionally you may need to move the Cabin Car without engaging the motor. This can be achieved by pressing and
holding the “Freewheel” button. The car must be switched on, with keys in the ignition and power to the main display.
Press and hold the button marked with this symbol:
Release the button to re-engage the brakes:
For your own safety, only operate this function when on a flat surface. When in freewheel mode care must be taken to
manoeuvre the car safely as there is no brake function.
TOP TIP – The car will continue to roll if pushed.
