Chad Valley CV 6V POWERED 3 WHEEL SCOOTER Owner's manual

CV 6V POWERED 3 WHEEL SCOOTER
Age: 6 Years +
Maximum user
weight: 40kg
Important – Please read these instructions fully before assembly or use
Warning!
1.Not Suitable for children under 36 months. Choking hazard due to small parts
2. Not to be used in traffic
3. Adult assembly required
4. Protective equipment should be worn
5. This toy is unsuitable for children under 6 years due to its maximum speed.
798/6488

Table of Contents
Assembly & User Instructions - Please keep for future reference
Safety and Warnings 1-2
Before You Start 3
Assembly 4-6
Before You Ride 7
Riding 7
Hardware Maintenance 7
Disposal Of Battery 8
Troubleshooting 9
Safety and Warnings
WARNING: Riding an electric scooter can be a dangerous
activity. Certain conditions may cause components tofail without
fault of the manufacturer. Scooter can and is intended to move
and it is therefore possible to lose control, fall off and/or get into
dangerous situations that no amount of care, instruction or expertise
can eliminate. If such a thing does occur you can become seriously
injured or die, even when using safety equipment and other safety
precautions. RIDE AT YOUR OWN RISK AND ALWAYS USE
COMMON SENSE.
This manual contains many warnings and cautions concerning the
consequences of failing to inspect, maintain or properly use your
electric scooter. Since any incident can result in serious injury or
even death, we do not repeat the warning of possible serious injury
or death each time such a possibility is mentioned in this manual.
APPROPRIATE RIDING ATTIRE
Always wear proper protective equipment such as:
•Approved safety helmet. (Helmet may be legally required by local
law or regulation in your area.)
•Elbow pads and knees pads
•Long sleeved shirt, long pants
•Gloves
•Lace up shoes with rubber soles, never ride barefooted or in
sandals, and insure that shoelaces are tied and kept out of the way
of the wheels and drive system.
RIDER USE AND PARENTAL SUPERVISION
RIDER MUST NOT EXCEED THE WEIGHT LIMIT OF 40 kg.
Rider weight does not always mean a person’s size is
This manual contains extremely important safety information. It is
your responsibility tocompletely review this information and make
sure that all riders understand all warnings, cautions, instructions
and safety topics and assure that all riders are able tosafely and
responsibly use this scooter. We advise that you periodically review
and reinforce all information in this manual with all riders, and that
you inspect and maintain your scooter to insure their safety.
The recommended rider age is 6 and older. Any rider that is unable
t. A
parent’s decision to allow their child to use scooter should be based
on the child’s maturity, skill and their ability tofollow rules.
This scooter is intended for use only by persons who are,
at a minimum, completely competent and comfortable while
operating this product.
WARNING:
RIDING PRACTICES AND CONDITIONS
Read the instruction carefully and assemble the scooter
accordingly prior to use.
This scooter must be assembled by an adult!
Special care should be taken to instruct children in safely
riding this scooter.
Check and secure all fasteners before every ride.
To reduce the risk of injury, CHILDREN MUST BE
SUPERVISEDBY AN ADULT WHILE RIDING THIS
SCOOTER.
Ride on smooth, level paved surfaced away from motor
vehicles. Do not ride on streets or roadways.
Be sure the rider keeps both hands on the handlebars for
proper control.
Do not allow the rider to wear anything that obstructs hearing,
visibility or function.
Do not allow the scooter to be operated on or near slopped
driveways, alleys, hills, ditches, swimming pool areas, near
steps, sand, gravel, dirt, leaves or any other hazardous area.
Avoid sharp bumps, drainage grates and sudden surface
changes which may cause scooter to be suddenly stopped.
Do not ride at night or times of limited visibility.
Do not use scooter in public lanes

Assembly & User Instructions - Please keep for future reference
Safety and Warnings
Use protection equipment: helmet, gloves, kneepads, and
elbow pads.
Be cautious when using the product, as it requires much skill
in order to avoid accidents brought about by falls or collisions
by the users or third parties.
Do not touch the motor when in use or directly after use as it
can become very hot.
gear, wheels and all other moving components.
Do not use the scooter in wet weather. Never ride on it
through water, and never immerse it in water; electrical and
drive could be damaged by water or create other possible
unsafe conditions.
For safety use, it is not suitable for children under 6 years.
User weight more than 40kg may damage the scooter.
Be sure the rider keeps both hands on the handlebars and stand on
the center of the deck at all times while riding.
Do not activate the go button unless you are on the scooter and in a
safe environment that is suitable for riding.
Do not attempt or perform stunts or tricks on this electric scooter. This
product is not made to withstand abuse from jumping, curb grinding or
any other type of misuse or stunts.
Never allow more than one person at atime to ride the scooter.
Never use near steps, water, or swimming pools.
Never ride while using a cell phone or wearing headphones.
Never hitch on to or with another vehicle or pull anyone or anything.
Never immerse the scooter in water; electrical and drive components
could be damaged by water or create other possible unsafe
conditions.
without loose debris, such as sand, leaves, rocks or gravel. Water,
mud, ice, bumpy, uneven, slick, or rough surfaces could impair traction
and contribute to possible loss of control. Avoid excessive speeds that
can occur from downhill rides which could cause loss of control.
Do not ride at night or in areas of limited visibility.
Before each ride the following checks will need to beperformed
to the scooter:
•That all components are properly secured and are functioning
•Components shall be maintained and repaired in accordance with
the manufacturers authorized replacement parts with installation
performed by dealers or other skilled individuals.
Disconnect the battery charger and unplug from scooter
when not in use.
Do not exceed recommended charging time.
Always disconnect the battery charger from the scooter prior
to wiping down and cleaning with any liquid.
FAILURE TO HEED TO THE WARNINGS LISTED ABOVE
INCREASES RISKOF POTENTIAL SERIOUS INJURY.
USE THE APPROPRIATE CAUTIONWHEN RIDING AND
ALWAYS WEAR PROTECTIVE GEAR.
THERMALFUSE
This product is equipped with a built in thermal fuse that
will activate if the motor is overloaded. This self-resetting
fuse will automatically reduce power tothe motor when it
becomes overloaded. Overloading of the fuse can occur
from any one or a combination of the following:
•Rider exceeds the maximum weight limit
•Riding up steep inclines
•Pulling or towing anything behind the scooter
WARNING:
unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the
equipment.
USING THE BATTERY CHARGER
The battery charger should be regularly examined for damage to the
cord, plug, enclosure and other parts. Inthe event of such damage,
if any is found, the scooter should not be charged until the battery
charger has been repaired or replaced.
Use only with the supplied recommended battery charger.
Always pay attention to the charger when charging.
The battery charger is not atoy and should be operated by an a dult.
s.

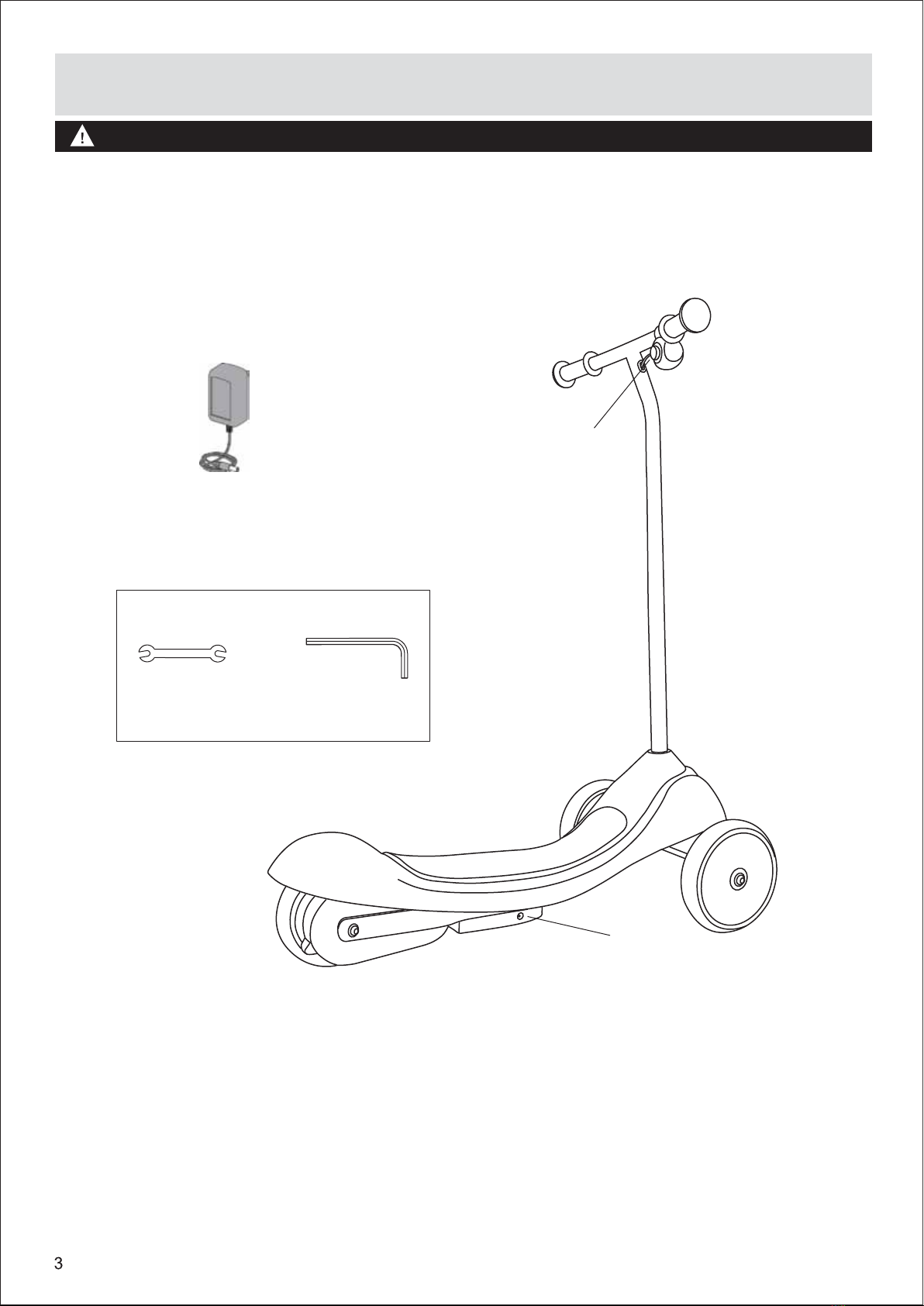

Before You Start
WARNING: This scooter must be assembled by an adult! Remove all packing and items from the display box.
•Allow up to 20 minutes for assembly, not including initial charge time.
•Allow up to 10 hours for the initial charge (see page 6 for charging information).
Estimated Assembly Time
battery charger
(included)
charging
port
Go Button
Required Tools
10mm wrench
(included)
5mm hex wrench
(included)

Remove deck cap
cover removing
4 tabs from slots
underneath the deck.
Release the bolt
and nuts from scooter
Step 2
Slide deck cap cover (A)
onto stem tube (B).
Insert stem tube (B)
into steer tube (C)
and align holes (D).
Step 3
Step 1

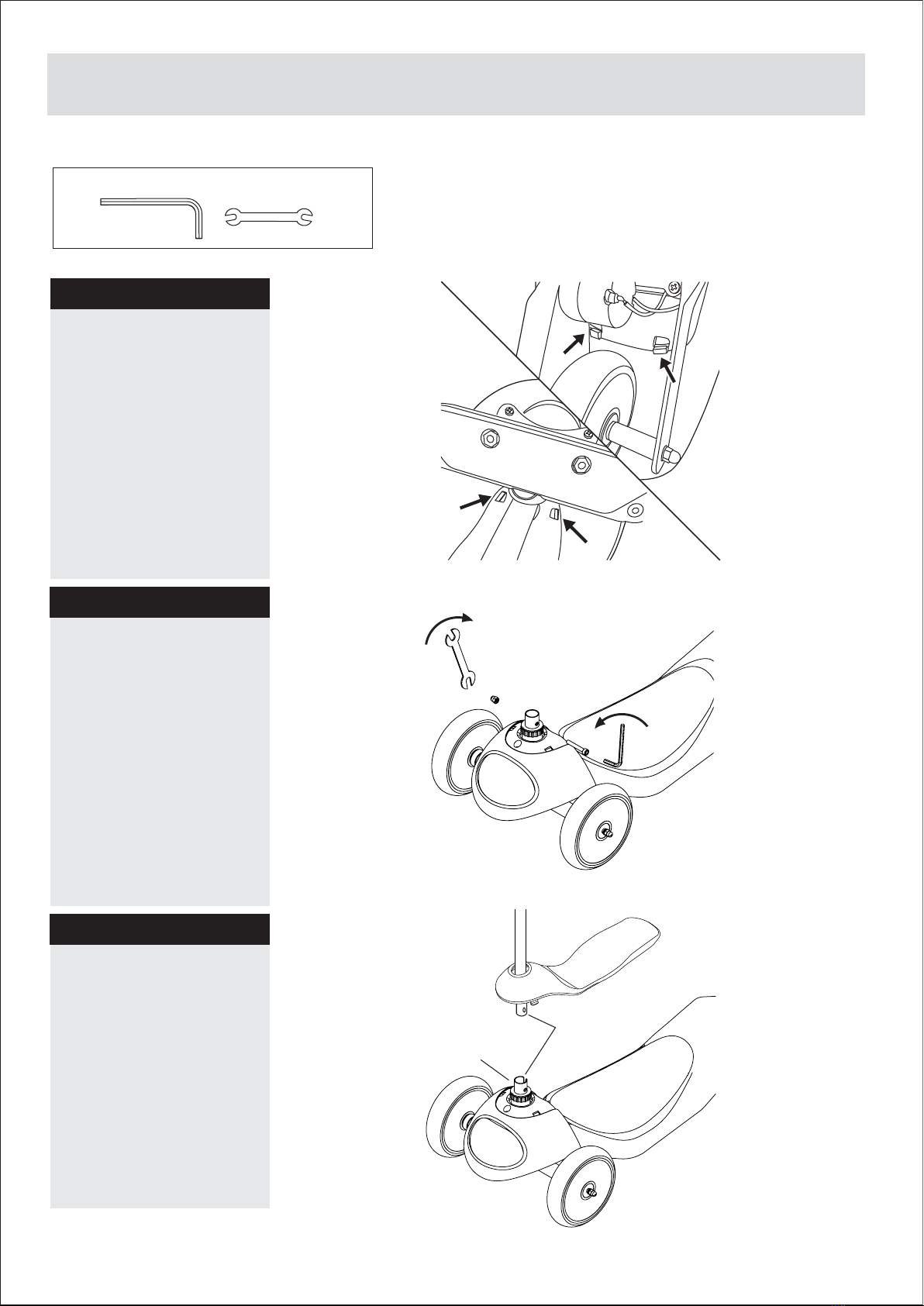

Assembly Instructions
Handlebar Steer Tube Assembly
Tools required : 5mm hex wrench, 10mm wrench
4
B
C
D
A

Assembly Instructions
Install bolt and nut
hardware into steer/stem
tube hole and tighten
securely with the
supplied 10mm wrench
and 5mm hex wrench.
Connect wire
plug “a” to wire plug “b”.
Step 5
Slide deck cap cover
down onto deck and
insert the 4 tabs into
the deck slots.
Step 6
Step 4
5
a
b

Assembly Instructions
Plug the battery
charger (c) into a wall
power outlet. The light
on the battery charger
housing should illuminate.
Plug charger into
scooter port (d).
Step 8
Step 7
WARNING: Batteries must be fully charged before you ride your electric scooter.
Battery and Charging
Required components: Battery charger
• Initial battery charge time- 10 hours
• Recharges after initial charge- Up to 8 hours
• When scooter is not in regular use batteries need to be charged on a monthly basis to maximize performance.
WARNING:
you have charged the battery for at least 10 hours. Failure to
follow these instructions may damage your product and void your
warranty.
LED light that indicates the charge status. Refer to the illustration
on the charger unit for the actual “charging” and “charged” status
indication. Your charger may get warm during use; this is normal
and is no cause for concern.
Note: Batteries must be recharged at least once a month even
when the scooter is not in use. Failure to do so may result in
batteries that will no longer accept a charge.
6
c
d

Before You Ride
Riding
Hardware Maintenance
Before you ride always check and for the following:
Safety Gear
Always wear proper protective gear such as:
•Approved safety helmet. (Helmet may be legally required by local law or regulation in your area.)
•Elbow pads and knees pads
•Long sleeved shirt, long pants
•Gloves
•Lace up shoes with rubber soles.
Go Button
Make sure that before GoButton is pressed that you are in an open and safe area to ride,
you are balanced on the scooter and have both hands on the handlebar controls.
Press GoButton to engage motor, release Go button tostop.
Frame, Fork and Handlebars
Check for cracks or broken connections. Although broken frames are rare,
it is possible for aggressive rider to run into a curb or wall and bend or break aframe.
Get in the habit of inspecting your scooter on a regular basis.
Tires
Periodically inspect the wheels for excess wear.
Safety Gear
Always wear proper protective gear such as an approved safety helmet.
Elbow pads and knee pads are recommended. Always wear athletic
shoes (lace up shoes with rubber soles), never ride barefooted or in sandals,
Battery
Never store the product in freezing or below freezing temperatures! Freezing will permanently damage the battery.
and keep shoelaces tied and out of the way of the wheels, motor and drive system.
WARNING: Always ensure that you are in a safe open area to ride before you press the Go Button. Never
press the Go Button without being on the scooter in a balanced, ready to ride position with both hands on the
handlebars; once the button is pressed the scooter will move.
Failure to follow these instructions may damage your scooter and void your warranty.
7

Disposal Of Battery
• Your sealed lead-acid battery must be recycled or disposed of in an environmentally sound manner.
• Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
• Do not dispose of a lead-acid battery in your regular, household trash. The incineration, land filling or mixing of sealed
lead-acid batteries with household trash is prohibited by law.
• Return an exhausted battery to your local approved lead-acid battery recycle, such as a local seller of automotive batteries.
• Contact your local waste management officials for other information regarding the environmentally sound
recycling and disposal of lead-acid batteries.
• The battery must be charged only by adult .Please charge the product before using!
• The toy should not be connected to excessive powers (more than the quantity specified herein), and it should not
be operated during charging process.
• Any rechargeable battery must only be charged under adult's supervision.
• Battery charger shall regularly check the wires, plugs. casing and other parts for damage and found damage
should stop using and restored.
• Open the battery cover on the remote control, and put two pieces of batteries,paying attention to batteries polarity.
Replace the battery cover and lock with screws (please replace the battery according to the above steps and should
be done by adult) .
• All batteries should be inserted with the correct polarity.
• Non-rechargeable battery should not be charged, please remove any running-off battery from the toy.
• Do not use old and new batteries together, or mix different types of batteries.
• The battery charger used with the toy are to be regularly examined for damage to the cord, plug, enclosure
and other parts, and in the event of such damage, they must not be used until that damage had been repaired.
8

Troubleshooting
Scooter will not run.
Scooter run time is short.
Scooter suddenly stops working.
Scooter runs sluggishly.
Battery is not charged. Fully charge the battery. First charge should be 10 hours
and up to 8 hours for recharges.
Wires or connectors are
loose or unplugged.
Battery requires charging.
Loose plug or wire.
Thermal Fuse activated.
Battery will not accept full
charge.
Check to ensure that charger is tightly plugged into
both the wall and the scooter. Check all scooter plugs
and connections are correctly attached.
Fully charge the battery. First charge should be 10 hours
and up to 8 hours for recharges.
Check to ensure that battery charger is tightly plugged
into both the wall and the scooter.
Check all wires and connectors to make sure they are
connected and tight.
The Thermal Fuse will automatically activate via a power
Ride only on solid, flat, clean and dry surfaces such as
reduction when the motor is overloaded.
An excessive overload (steep incline or too heavy of a
rider) could have caused the motor to overheat and
activated the Thermal Fuse. Scooter may run sluggishly
but will return to full power after a few moments.
Battery may need to be replaced. Even with proper care,
rechargeable batteries do not last forever. The average
rechargeable battery life is 1 to 2 years depending on
scooter conditions and use.
Problem Possible Cause Solution
Scooter is overloaded.
Unsuitable riding
conditions.
Make sure you do not overload the scooter by exceeding
the 40 kg. Maximum weight limit, going up steep
inclines or towing objects behind the scooter. Avoid
overloading the scooter as this will prematurely wear out
the batteries and components.
pavement or level ground.
If you need help or have damaged or missing parts, call the Customer Helpline: [phone]
Produced for Chad Valley Toys. Country of origin: Made in China
Address: 489 - 499 Avebury Boulevard, Central Milton Keynes, MK9 2NW.
www.argos.co.uk/chadvalley
9
