Scott DRX950 - S User manual

DVD/VCD/CD/MP3/MPEG4/XVID CAR RADIO WITH 7” SCREEN
USB/SD/MMC INTERFACE
ESP ANTI-SHOCK SYSTEM
AM/FM RDS-TA/AF/PTY
160 WATT POWER
DETACHABLE PANEL
USER MANUAL AND INSTALLATION INSTRUCTIONS

CONTENTS
CONTENTS ………………………………………………………………………………………...…………GB 1
ACCESSORIES ………………………………………………………………………………………………… GB 2
PRECAUTION ………………………………………………………………………………………………… GB 3
INSTALLATION/REMOVAL AND ELECTRICAL CONNECTIONS
DUAL ZONE MODE SETUP…………………………………………………………………………………….. GB 5
FRONT PANEL ………………………………………………………………………………………………… GB 9
BASIC OPERATION …………………………………………………………………………………………. GB 10
REMOTE CONTROL ………………………………………………………………………………………. GB12
TOUCH SCREEN CONTROLS……………………………………………………………………………… GB17
RADIO OPERATION …………………………………………………………………………………………. GB21
DVD/VCD/CD/MP3/MPEG4/XVID OPERATION ………………………………………………………… GB24
DVD SETUP …………………………………………………………………………………….………. GB34
TECHNICAL SPECIFICATIONS ……………………………………………………………………………. GB39
TROUBLESHOOTING…………………………………………………………………………………………. GB41
-GB 1-

ACCESSORIES
Nut x 1
Washer x 1Small metal
strip x 1
Mounting
Bracket x1
(already mounted
on the unit)
Removable Trim Ring
X1 (already mounted on
the unit)
Rubber X1 Remote Control X1 Release key X2 AV in Cable x1
+
V
O
L / S
E
L
User manual X1 USB cable X1 screws X 4ISO Wire connector X1 Removable control panel X1
(Already mounted on the unit)
-GB 2-

PRECAUTION
This unit is designed and manufactured with the user’s safety in mind; however any improper use or operation may result in
ertain dangers. It is therefore highly recommended to read this manual thoroughly and adhere to the following precautions.c
AS FETY PRECAUTIONS
∗To prevent an electrical shock, do not open the housing of the unit. In any case of malfunctioning, only have the unit
serviced by an approved and qualified service centre.
∗Do not expose to any water or to a very humid environment. Do not operate the unit when your hands are wet as this
may cause a short circuit.
affic conditions.∗For safe driving, keep the volume low in order to concentrate on tr
∗Do not clean the unit with alcohol, only clean with a soft dry cloth.
∗If the unit has been kept at a high temperature or in a high humidity environment, cool down the car interior before
turning on the unit.
∗Do not use the unit for a long time without running the vehicle engine, as this may drain the battery and the vehicle’s
engine may not be able to start.
g and make sure the unit is working properly.∗Before final installation in the dashboard opening, connect the wirin
∗Only use parts provided with the unit to ensure proper installation.
∗Do not route wiring in places that the heat may melt the wiring insulation.
When replacing the fuse, ensure that the new fuse has the capacity recommended by the manufacturer.∗
-GB 3-

PRECAUTION
PO ERATION PRECAUTIONS
∗Do not operate the player with scratched, bent or broken discs. When a disc is not loaded properly, do not force it into
the disc loader.
as this may cause damage or a short circuit.∗Never insert any other objects into the disc loader like a coin or pin, etc
∗Do not use different disc formats other than 8 cm or 12cm round discs.
country.∗Please dispose of used batteries according to the regulations in your
∗If the unit is disconnected to the battery, it will lose memorized data.
∗If the source disc has poor sound quality due to scratches, dirt or a bad recording, the playback sound quality may be
poor.
Remote control:
it may become jammed under the brake or accelerator pedals.* Do not let the remote control fall onto the floor, where
at the battery.* Do not short-circuit, disassemble or he
e.* Do not dispose of the battery in a fir
Dispose of used batteries properly.*
it for the first time.IMPORTANT: Please adjust the touch effect on the TFT screen when you use the un
For more details, please refer to “SYSTEM SETUP – 5. SYSTEM: Touch Adjust”.)(
-GB 4-

NSTALLATION/REMOVAL AND ELECTRICAL CONNECTIONSI
NOTE of over 30° from to the horizontal): The unit should be installed horizontally (do not go beyond an angle
Before the final installation, first complete the electrical connections.
DIN FRONT-MOUNT
nstallation of the unitI
1. Metal Sleeve
Install the metal sleeve in the dashboard.
For optimum performance of the CD player, the unit should be positioned as
horizontally as possible (do not go beyond 30° from the horizontal). Fix the
metal sleeve into place by pushing the metal tabs outwards using screwdriver.
Then complete the electrical connections (page 7)
2. Front Mounting
Slide the main unit into the metal sleeve until the springs at either side of the
radio snap into the sleeve openings.
3. Removing the Radio
Insert the release keys supplied with the unit into the grooves at both sides of
the unit until you hear a click sound. Then remove the unit from the dashboard
by pulling the release keys towards you.
-GB 5-

ATTACHING & REMOVING THE DETACHABLE FRONT PANEL
Removing the detachable front panel
∗Press the REL button to unlock the front panel.
∗Push the front panel to right and pull the left side of the front panel away from the unit,
as shown in the figure：
Attaching the detachable front panel
∗First insert the right side of the front panel as shown in the figure and gently push the
left side of the front panel onto the unit until you hear a click sound, which confirms
that the front panel is firmly attached.
Note: Remove the protective plastic film from the screen in order to ensure optimum use of the touch screen.
-GB 6-

ELECTRICAL CONNECTIONS
Most vehicles are fitted with ISO connectors behind the dashboard, which makes it easier to connect your car radio. These
connections can be found in the dashboard where the car radio will be fitted. Use these cables to connect the car radio. If
your car is not fitted with these ISO connectors, we strongly advise you to consult your car dealer or a specialist to obtain
the right adaptor. Once you have these cables, you will need to connect your loudspeakers and the power supply to the ISO
connector, following the connection instructions below.
-GB 7-

NOTES:
INCORRECT CONNECTIONS OR USE WILL VOID THE WARRANTY.
The manufacturer cannot be held responsbile if the unit malfunctions due to incorrect connections.
- For safety reasons, the brown wire must be connected to the parking brake contact in order to activate the video display on the unit’s
screen.
The video display is activated permanently on the rear monitor.
- It is possible to connect a reversing camera (composite video) to the input provided for this purpose. In order to activate the reversing
camera display, please also ensure that the orange cable is connected to the reversing contact or reversing light so that the unit
automatically enters reversing camera mode when the reverse gear is engaged.
DUAL ZONE mode setup
This unit is equipped with a DUAL ZONE mode which allows the user, when one or two rear monitor(s) are (is) connected, to
simultaneously obtain DVD, USB, SD or AUX mode on the rear monitor and radio mode on the unit.
In this case, the DUAL AUDIO OUT output must be used to obtain the sound for the DVD, the USB device, the SD card or auxiliary
source on the rear monitor.
Main source and source selected to display on the rear monitor(s) (refer to the “SYSTEM SETUP” section)
In any source menu, press the icon located at the top left of the screen to display the system setup menu. Next, press the source
directly to select the front or rear zone.
1. When the unit is in radio mode, you can select any source for the rear monitor.
2. When the unit is in a mode other than radio mode, the rear monitors will display the same source as the one selected on the unit.
Controlling the unit or rear monitor
Press the IR-F/R button on the remote control to control the unit or the rear monitor.
Note: This function is switched off when the rear monitor is not available.
-GB 8-

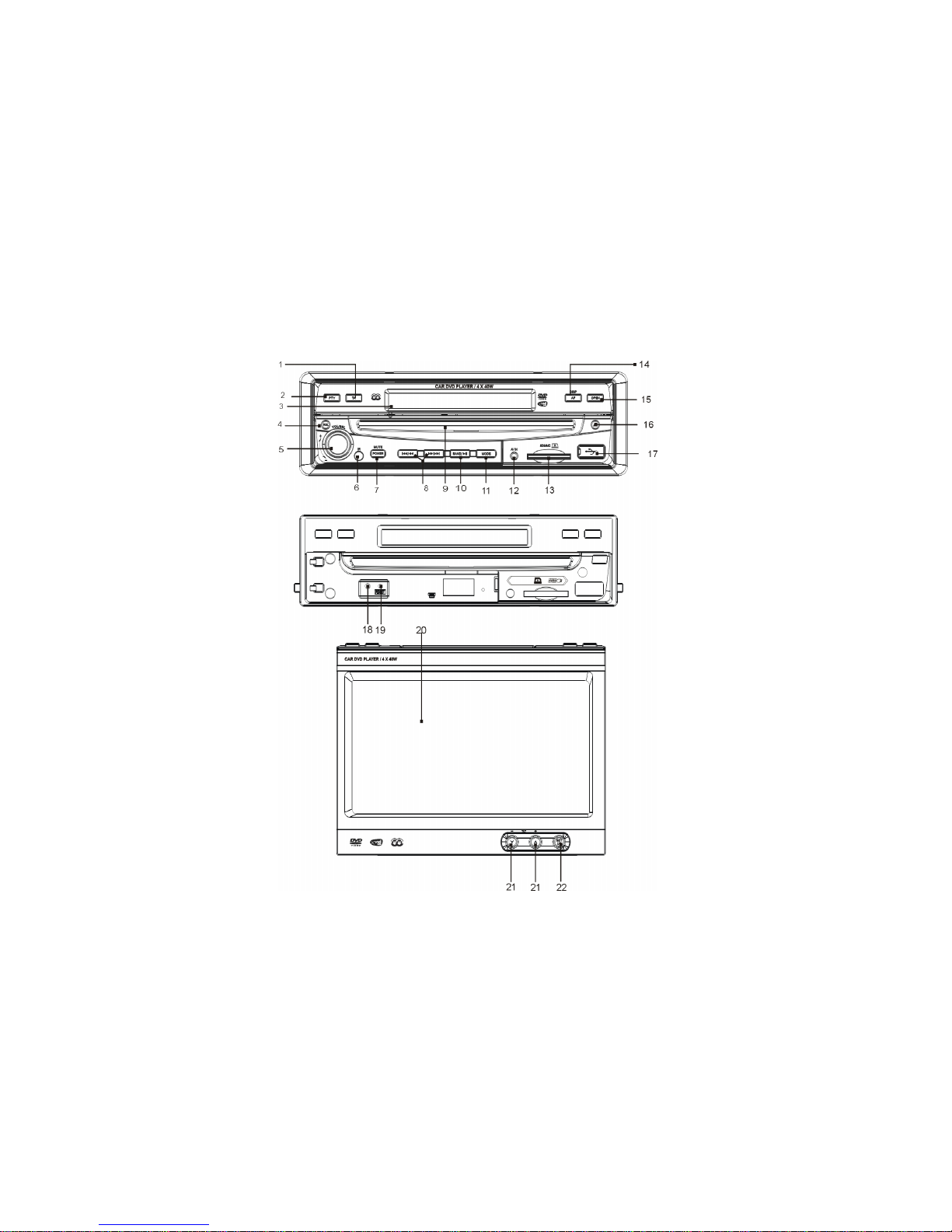

FRONT PANEL
-GB 9-

BASIC OPERATION
1. TA (Traffic Announcement)
In radio mode, press the TA button to turn the traffic announcement function on /off.
2. PTY (Program Type)
In radio mode, press once to seek a station by program type. Press it repeatedly to select a program type.
3. LCD screen
4. REL button
Press this button to unlock the detachable front panel.
5. VOL/SEL
+/- button
Adjust the volume by turning the button clockwise or counter clockwise. Press this button briefly to display the menu. You
can choose one of the following settings: L-front/R-front/L-rear/R -rear/ Sub woof / Bass / Middle / Treble / TILT / Volume.
Rotate the button to adjust the desired settings.
6. IR window
Receives the infrared signal from the remote control.
7. POWER/MUTE
Press this button to turn on the unit. Press and hold down the button for 1 second to turn off the unit.
When the unit is switched on, press the button briefly to shut off the sound output. Press it again to resume the previous
sound level.
8.
,
buttons
In radio mode, press one of these buttons to seek a station automatically. Hold down one of the buttons to seek a station
manually.
In DVD/USB/CARD mode press these buttons to select the previous or next file. Hold down the button for 2 seconds to
fast forward or fast rewind.
9. Disc Loading Slot
10. BAND/
In radio mode, press this button repeatedly to select the one of the following frequency bands:
FM1/FM2/FM3/MW1/MW2.
In play mode, press this button to pause or resume playback.
11. MODE button
Press this button to select one of the following sources: RADIO/DVD/SD/USB/AV1/AV2.
-GB 10-

12. AV IN (audio/video in)
Connect the jack on the AV cable (supplied) to the AV IN input on the detachable front panel of the unit. You can then
connect an external audio/video device to this adaptor, using a suitable A/V cable if necessary, then press the MODE
button to switch to AV1 mode.
BASIC OPERATION
13. SD/MMC card slot
Insert an SD/MMC card. The unit will read the files from the SD/MMC card automatically.
NOTE: If the unit does not eject the SD/MMC card when it is pressed, just pull it out manually.
14. AF/DISP button (alternative frequencies/information display)
In radio mode, press this button to turn the alternative frequencies function on/off.
Hold down this button to display the following information: the current time, source selected for the main display, source
selected for the front and rear displays and available media.
15. OPEN
Press to open or close the TFT screen.
16.
Press the button to eject a disc when it is loaded into the unit.
※
Press this button for a longer time to force the disc to eject if there is a malfunction while the disc is loading.
17. USB port
Insert a USB device, and the unit will automatically play the files on the device.
18. Anti-theft LED indicator
This indicator will flash when the detachable control panel is removed.
19. RESET
Insert a sharp object such as a pencil into the RESET button to reset the unit.
20. TFT touch screen
21.
/
- TILT+
Press one of these buttons to adjust the angle of the TFT screen.
22. SETUP
In DVD mode, press the button to display the DVD setup menu. Hold down this button to display the system setup menu.
In other modes, press the SETUP button to display the system setup menu.
-GB 11-

Use and care of the remote control
Point the remote control to the IR window on the
ble front panel for operation.
-GB 12-
REMOTE CONTROL
1. POWER
2. MODE
3. BAND/P/N (band/TV system: PAL/NTSC)
4. AMS/ANGLE (store stations automatically/angle
5. TITLE
6. [ /] [ /] [▲/▼/◄/►]/ENTER
7. (Stop)
8. VOL- /VOL+/SEL (select)
9. MUTE
10. PROG/A-B (program/repeat A-B)
11. EQ (equalizer)
r buttons12. 0-9, 10+ numbe
DI play)13. SP (dis
14. (Eject)
front/rear in Dual Zone mode)15. IR-F/R (
16. SETUP
LOC (subtitles/local stations)17. SUB-T/
M18. ENU
19. (play/pause)
20. /PTY (slow/program type)
21. ST/AUDIO (stereo/audio)
alternative frequencies)22. ZOOM/AF (zoom/
23. LOUD (loudness)
dom/traffic announcement)24. RDM/TA (ran
LEAR25. RPT/C
26. GOTO
Installing the battery
Slide the tray out on the back of the remote control and
insert the battery with polarity (+) on top as shown.
detacha
Notes:

Using the battery incorrectly can cause malfunctions. Take
note of the following points for the remote control:
children. Shou* Keep the battery out of the reach of
ons ld the ult a doctor.battery be swallowed, immediately c
REMOTE CONTROL OPERATION
* Use one CR2025 (3V) lithium battery
* Remove the battery if the remote control is not to be
used for a month or longer.
1. POWER
Press to turn the unit on or off.
2. MODE
utton to select one of the following sources: RADIO/DVD/SD/USB/AV1/AV2.Press this b
3. BAND/P/N
In radio mode, press this button to select a frequency band. In DVD/VCD mode, press it to select one of the following TV
AUTO or NTSC.systems: PAL,
4. AMS/ANGLE
In radio mode, press this button briefly to scan through the preset stations. Press it for a longer time to automatically
store stations.
mode, press it to change the viewing angle (if different angles are available on the disc).In DVD
5. TITLE
In DVD playback mode, pr tton to display the title menu.ess the bu
6. [ /] [ /] [▲/▼/◄/►]/ENTER
In the setup menu, use the ▲/▼/◄/►buttons as cursors and then press ENTER to access the selected item or confirm
the selection.
In radio mode, press the /buttons to go from one preset station to another. Press the or button to seek a
.station automatically Hold down the or button to seek a station manually.
In DVD/USB/CARD mode press the /buttons to select the previous or next file. Press the /buttons to fast
forward or fast rewind.
7. (stop)
Press to stop playback.
8. VOL-/VOL+ /SEL (select)
o point 5 in the “BASIC OPERATION” section.Refer t
9. MUTE
nd output. Press it again to resume the previous sound level.Press this button to shut off the sou
10. PROG/A-B (program/repeat A-B)
-GB 13-

In DVD/VCD/CD mode, press this button to set programmed playback.
de, press this button to repeat a specific section (A-B) on a disc.In DVD/VCD mo
11. EQ (equalizer)
et equalizer mode.Press this button to select a pres
REMOTE CONTROL OPERATION
12. 0-9, 10+ (number buttons)
In radio mode, press the number buttons (1-6) to select a preset station. Hold down one of these buttons to store a
station under the corresponding preset number.
During playback, press the number buttons to select a chapter or track directly. Press the 10+ button to select a track or
umber higher than 9. Press this button repeatedly to increase the number by ten (e.g. 1_, 2_, 3_, etc.).chapter with a n
13. DISP (display)
In DVD mode, press to display the following information: time elapsed or time remaining for the current title, time
elapsed or time remaining for the current chapter, display off.
In VCD/CD mode: time elapsed for the current track, time remaining for the current track, time elapsed for the disc, time
remaining on the disc, display off.
In MP3 mode: time remaining for the current track or time elapsed for the current track. Hold down this button to display
e ollowing information: the current time, front and rear monitor sources and available media.th f
14.
Press this button to eject a disc.
own this button to open or close the TFT screen.Hold d
15. IR-F/R
Press this button to control the front or rear unit.
tion is disabled when no units are connected at the rear.This func
16. SETUP
this button to display the system setup menu.In DVD mode, press this button to display the DVD setup menu. Hold down
to display the system setup menu.In other modes, press the SETUP button
17. LOC/SUB-T (local stations/subtitles)
In FM radio mode, press this button to receive the local stations only (strong signal). “LOC: ON” (local: on) is displayed.
Press this button again to turn off this function.
DVD playback, press this button to change the subtitle language.During
18. MENU
enu.In DVD mode, press this button to display the DVD m
-GB 14-

I radio mode, prn ess it to display RDS/RADIO menu.
19. (play/pause)
Press to start playback or resume playback.
REMOTE CONTROL OPERATION
20. /PTY (slow/program type)
In DVD mode, press this button to playback in slow motion forwards or backwards, in the following sequence:
e, press this button once to seek a station by program type. Press it repeatedly to select a program type. In radio mod
21. AUDIO/ST
eception.In FM radio mode, press this button to select stereo or mono r
In DVD mode, press this button to select the audio language.
In VCD mode, press this button to select one of the following audio outputs: MONO LEFT, MONO RIGHT, MIX-MONO
or STEREO.
22. ZOOM/AF
In DVD/VCD mode, press to enlarge or reduce the picture size as follows:
-GB 15-
mode, press this button to turn the AF function on/off.In radio
23. LOUD
f.Press to turn the loudness function on/of
24. RDM/TA (random/traffic information)
s randomly.In playback mode, press it to play tracks or chapter
In radio mode, press to turn the TA function on/off.
s, hold down the button to turn the TA function on/off.In other mode
25. RPT/CLEAR
playback mode.In playback mode, hold down this button repeatedly to select a repeat
igit entry, press the button to clear the digit you have entered.During d
26. GOTO
In radio mode, press this button and then use the number buttons to enter a frequency.
In DISC mode, press the GOTO button and the ▲/▼cursors to select one of the following options and then press the
ENTER button to go to the chosen option.
CH TIME, REPEAT, TIME DISP.DVD mode: TITLE, CHAPTER, AUDIO, SUBTITLE, ANGLE, TT TIME,

-GB 16-
VCD mode: TRACK, DISC TIME, TRACK TIME, REPEAT, TIME DISP.
In CD mode: press the GOTO button to select one of the following fields: “DISC GOTO: _ _:_ _”, “TRACK GOTO: _ _:_
_” or “SELECT _ _/total track number”. Then press the number buttons to select a time or track number.
In MP3/MPEG4 mode, press the GOTO button to highlight the track or time and then press the number buttons to select
k or time.a trac
Note:
The GOTO function may not work for some discs (for example discs containing MP3 files).

TOUCH SCREEN CONTROLS
Besides using the unit and remote control to perform
operatio
screen.
ns, you can also do so by using the TFT touch

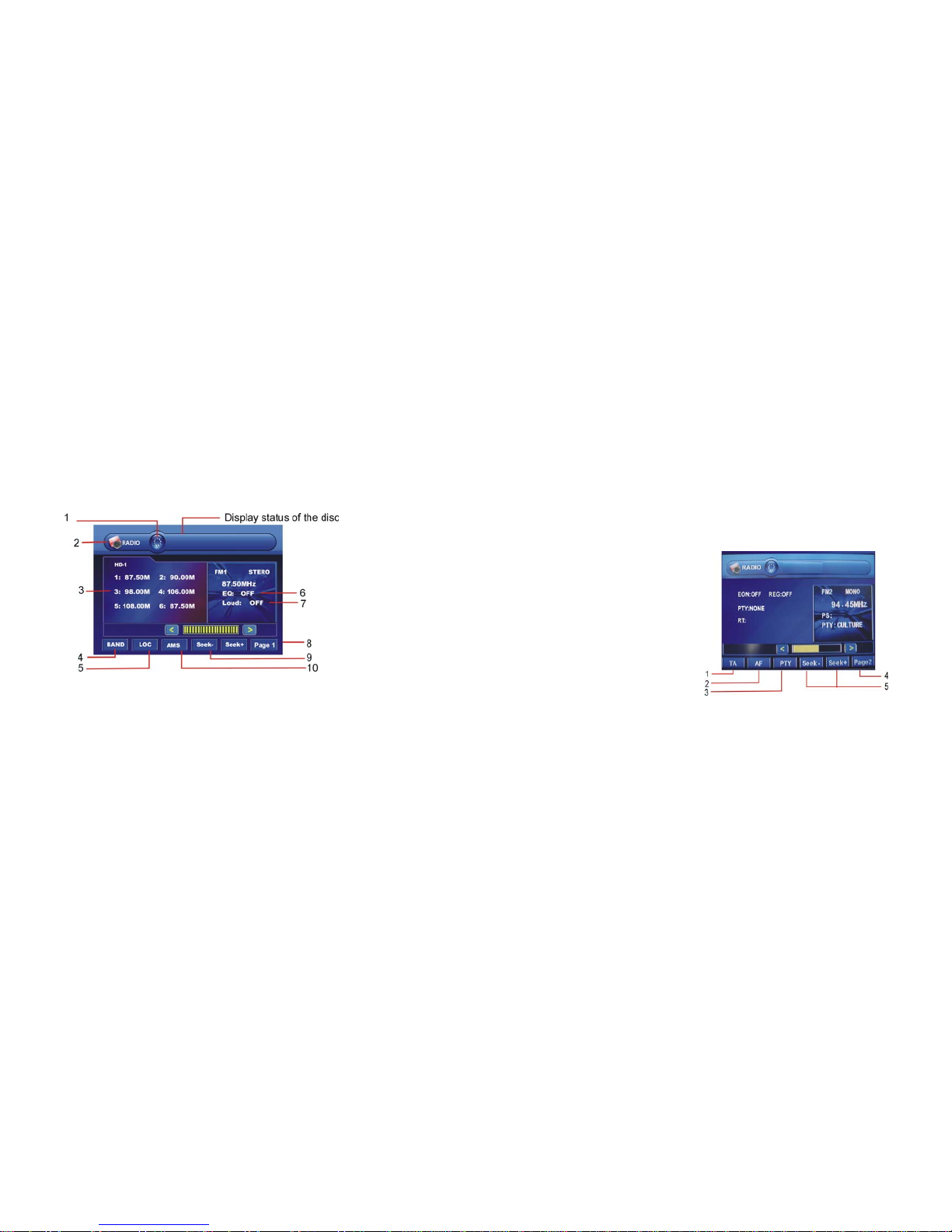

RADIO
A description of the different icon functions follows
below:
1. This icon allows you to dim the screen backlight (two
3
bers to store the current
lect one of the following bands:
cal or distant stations.
levels).
2. Display the system setup menu.
. Touch these icons to select one of the 6 preset stations.
wn one of the 6 numHold do
frequency under that preset station number.
4. BAND
seThis icon allows you to
FM1/FM2/FM3/MW1/MW2.
(local stations)5. LOC
Select lo
6. EQ
Select a preset equalizer mode: POP, CLASSIC, ROCK,
OFF.
7. LOUD
loudness function on/off.Turn the
8. Page1
enu. (Refer to “RDS” for detail)Go to the RDS m
9. SEEK-/SEEK+
Seek a station automatically. Hold down to seek a
manually.station
10. AMS
Touch briefly to scan through the preset stations. Hold
own this icon to seek and store stations automatically.d
RDS
1. TA (traffic announcement)
Turn the Traffic
Announcement function on/off.
2. AF (alternative
frequencies)
n/off.Turn the AF function o
3. PTY (program type)
This icon allows you to turn the PTY function on. Press
epeatedly to select a program type.
this icon r
4. Page 2
This icon allows you to display the RADIO menu. (Refer
ction for more details)to the “RADIO” se
5. SEEK-/SEEK+
These icons allow you to seek a station automatically.
ually.Hold down to seek a station man
EON (Enhanced Other Networks)
ON: The unit keeps searching for alternative frequencies.
If the current station does not broadcast traffic information,
-GB 17-

-GB 18-
the unit will automatically receive a station that broadcasts
traffic information when it is available.
OFF: Select this option to disable the EON function.
REG (Regional)
ON: The unit ignores the regional variants of broadcasts.
OFF: The unit receives the regional variants of broadcasts.
TOUCH SCREEN CONTROLS
Playback
In DVD/USB/SD/MMC mode, press the lower part of the
TFT screen to display the following menu:
SYSTEM SETUP
In any source menu, press the icon at left top corner to
return to the system setup menu. If no operation is
performed in 5 seconds, the unit will return to the previous
source menu.
1. Front (front monitor)
Press the icon to select the corresponding source: RADIO,
DVD, USB, SD or AUX.
Press the icons on the bottom row to select a setting: Front,
Rear, Audio, Video, Sys (System) or Exit.
6. NEXT
Skip to next element.
2. Rear
1. PLAY
Start playback.
2. PAUSE
Pause playback.
3. STOP Stop playback.
4. SETUP
Display the DVD SETUP menu.
5. PREV
Skip to previous element.

SYSTEM SETUP
If another monitor is connected to the unit (for example
for passengers sitting at the rear of the vehicle), you can
select a separate source from the source selected for the
main TFT screen, except radio and AUX modes.
3. Audio
This sub-menu offers the following options: Volume, L-
front, R-front, L-rear, R-rear, Subwoofer Bass, Middle and
Treble can be adjusted. Press the c/dbuttons to select a
setting and then touch the <and >buttons to adjust the
setting.
4. Video
Bright: Adjust the screen brightness.
Hue: Adjust the screen hue.
Contrast: Adjust the screen contrast.
Sharp: Adjust the screen sharpness.
5. SYSTEM
Clock Sys: Select 12-hour or 24-hour clock display.
Key Beep
ON: Enable button beep sound.
-GB 19-
OFF: Disable beep sound.
