Scotts 2020-16s User manual

OWNER’S MANUAL

16 in. - 20 VOLT LITHIUM-ION REEL MOWER

2.0Ah Lithium-ion Battery

Model 2020-16S

Your lawn mower has been engineered and manufactured to our high standard for dependability, ease of operation,

and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.

WARNING: To reduce the risk of injury, the user must read and understand the owner’s manual before using

this product.

Thank you for your purchase.

SAVE THIS MANUAL FOR FUTURE REFERENCE

CA Compliant

Charger Included

(Model No.

CHL82000)

BATTERY MUST BE CHARGED

BEFORE FIRST USE. TWO TO

THREE INITIAL CHARGING/

DISCHARGING CYCLES MAY BE

REQUIRED TO ACHIEVE MAXIMUM

RUN TIME/CAPACITY.

DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING,

ASSEMBLY, PARTS, SERVICE QUESTIONS? GO TO

SCOTTS.AMERICANLAWNMOWER.COM OR CALL 1-800-618-7474

BETWEEN 8:00 AM—5:00 PM EST FOR ASSISTANCE.

800951

 Introduction…………………………………..…………………………………………...2

 Important Safety Instructions.………………………...……………………………...3-4

 Symbols……………………………………..…………………………………………... 5

 Features…………………………………………………………………………………. 6

 Assembly…………………………………………………………………...…….…...7-9

 Operation…………………………………...……………………………...……….10-11

 Charging the battery pack……………………………………………………………..12

 Maintenance………………………………..………………………………...…….13-14

 Troubleshooting…...…...………………………………….…………………….……. 15

 Parts and Service.………………………….…………………………………………..16

 Notes…………………………………………………………………………………….17

 Warranty………………………………………..………………………...……Back Page

INTRODUCTION

This product has many features for making its use more pleasant and enjoyable. Safety, performance,

and dependability have been given top priority in the design of this product making it easy to maintain

and operate.

TABLE OF CONTENTS

WARNING:

To avoid serious injury, do not attempt to use this product until you read thoroughly and understand

completely the owner‘s manual. If you do not understand the warnings and instructions in the owner‘s

manual, do not use this product. Call Scotts customer service for assistance.

WARNING:

The operation of any power tool can result in foreign objects being thrown into your eyes,

which can result in severe eye damage. Before beginning power tool operation, always wear

safety goggles or safety glasses with side shields and, when needed, a full face shield. We

recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses

with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.

SAVE THESE INSTRUCTIONS

Model 2020-16S

RecommendedAmbientTemperatureRange

MowerOperation 41 °F - 104 °F (5 °C - 40 °C)

MowerStorage 32 °F - 100 °F (0 °C - 38 °C)

BatteryCharging 39 °F - 104 °F (4 °C - 40 °C)

ChargerOperation 39 °F - 104 °F (4 °C - 40 °C)

BatteryStorage 32 °F - 104 °F (0 °C - 40 °C) for 3 months before charging is required.

BatteryDischarging 32 °F - 104 °F (0 °C - 40 °C)

Refer to the recommended ambient temperature range for appliance and battery use and

storage, and for charging system during charging.

Thoroughly inspect the area where the product is to be used

and remove all stones, sticks, wires, and other foreign objects.

Blades coming in contact with a “live” wire may make exposed

metal parts of the product “live” and could give the operator an

electric shock.

Before use, always visually inspect to ensure blades, blade

bolts, and cutter assembly are not worn or damaged. If any

parts are damaged or missing, please call 1-800-618-7474 for

assistance.

Always wear safety glasses or eye shields during operation or

while performing an adjustment or repair to protect eyes from

foreign objects that may be thrown from the product.

Never attempt to make any adjustments while the product is

running.

Secure long hair so it is above shoulder level to prevent

entanglement in moving parts.

Ensure before each use that all controls and safety devices

function correctly. Do not use the product if the “off” switch does

not stop the product.

BATTERY TOOLS USE AND CARE

Recharge only with Scotts 20V charger (CHL82000). A

charger that is suitable for one type of battery pack may create

a risk of ﬁre when used with another battery pack.

Use appliances only with Scotts 20V lithium-ion battery

packs (BL82120). Use of any other battery packs may create a

risk of injury and ﬁre. See Charger Manual.

When battery pack is not in use, keep it away from other metal

objects, like paper clips, coins, keys, nails, screws or other

small metal objects, that can make a connection from one

terminal to another. Shorting the battery terminals together may

cause burns or a fire.

Under abusive conditions, liquid may be ejected from the

battery; avoid contact. If contact accidentally occurs, flush with

water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

Do not use a battery pack or tool that is damaged or modified.

Damaged or modified batteries may exhibit unpredictable

behavior resulting in fire, explosion or risk of injury.

Do not expose a battery pack or tool to fire or excessive

temperature. Exposure to fire or temperature above 130°C may

cause explosion.

Follow all charging instructions and do not charge the battery

pack or tool outside the temperature range specified in the

instructions. Charging improperly or at temperatures outside the

specified range may damage the battery and increase the risk

of fire.

REEL MOWER SAFETY WARNINGS

Always use the product in the daylight or with good artificial

light.

Do not operate the product on wet grass or in the rain.

INTENDED USE

The powered reel mower is only intended for use outdoors. The

product is designed for domestic lawn mowing. Both wheels

should touch the ground while mowing. It is a

pedestrian-controlled walk-behind mower designed to be

pushed by hand. The product should never be operated with the

wheels off the ground. It should not be ridden on. It should not

be pulled while powered by the battery. It should not be used to

cut anything other than domestic grass lawns. Do not use the

product for any other purpose.

GENERAL SAFETY RULES

TRAINING

Read, understand, and follow all instructions on the product and

in this manual before operating the product. Be thoroughly

familiar with the controls and the proper use of the product.

Know how to stop the product and disengage the controls

quickly.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety. Children should be

supervised to ensure that they do not play with the appliance.

Keep bystanders, children and pets 15 ft. away from the area of

operation. Stop the product if anyone enters the area.

Keep in mind that the operator or user is responsible for

accidents or hazards occurring to other people or their property.

PREPARATION

While operating the product, always wear adequate garments

and non-skid safety footwear. Avoid wearing clothing that is

loose fitting or that has hanging cords or ties; they can be

caught in moving parts.

IMPORTANT SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS FOR PEDESTRIAN-CONTROLLED

MOWERS

Model 2020-16S

WARNING:

The product is capable of amputating hands and feet, and

throwing objects. Failure to observe all safety instructions could

result in serious injury.

WARNING:

When using the product, the safety rules must be followed. For

your own safety and that of bystanders, please read these

instructions before operating the product. Please keep the

instructions safe for later use.

WARNING:

The product should only be operated with the Scotts 20V,

lithium-ion battery pack. When using battery-operated

products, basic safety precautions should always be followed

to reduce the risk of re, leaking batteries and personal injury.

ADDITIONAL BATTERY SAFETY WARNINGS

RESIDUAL RISKS

Even when the product is used as prescribed, it is still

impossible to completely eliminate certain residual risk factors.

The following hazards may arise during use, and the operator

should pay special attention to avoid the following:

 injury caused by vibration

- Always use the right tool for the job. Do not use the reel

mower for any job except that for which it is intended.

 injury caused by noise

- Exposure to noise can cause hearing injury. Wear ear

protection and limit exposure.

 injury from contact with the blades

 injury caused by thrown objects

RISK REDUCTION

It has been reported that vibrations from handheld tools may

contribute to a condition called Raynaud’s Syndrome.

Symptoms may include tingling, numbness and blanching of the

ngers, usually apparent upon exposure to cold. Hereditary

factors, exposure to cold and dampness, diet, smoking and

work practices are all thought to contribute to the development

of these symptoms. There are measures that can be taken by

the operator to possibly reduce the effects of vibration:

 Keep your body warm in cold weather. When operating the

product, wear gloves to keep the hands and wrists warm. It

is reported that cold weather is a major factor contributing

to Raynaud’s Syndrome.

 After each period of operation, exercise to increase blood

circulation.

 Take frequent work breaks. Limit the amount of exposure

per day.

If you experience any of the symptoms of this condition,

immediately discontinue use and see your physician.

WARNING: Cancer and Reproductive Harm –

www.P65Warnings.ca.gov.

Always be sure of your footing, and keep a firm hold on the

handles. Walk; never run.

Mow across the face of slopes, never up and down.

Exercise extreme caution when changing direction on slopes.

Do not use the product near drop-offs, ditches, excessively

steep slopes, or embankments. Poor footing could cause a

slip-and-fall accident.

Use caution when reversing or pulling the product towards you.

Turn off the product and allow the blade to stop if the product

has to be tilted for transportation when crossing surfaces other

than grass, and when transporting the product to and from the

work area.

Never use the product with defective guards or shields, or

without safety devices, for example, deflectors and/ or grass

collectors, in place.

Turn on the product carefully according to instructions and keep

hands and feet away from blades. Do not put hands or feet near

or under rotating parts.

Do not put hands or feet near or under rotating parts. Keep

clear of the discharge opening at all times. Do not put any

objects into openings.

Do not transport the product while the power source is running.

To reduce the risk of injury associated with contacting rotating

parts, always turn off the product and remove the battery pack.

Make sure all moving parts have come to a complete stop:

 whenever leaving the product unattended (including

disposal of grass clippings)

 before clearing blockages or unclogging discharge chute

 before checking, cleaning, or working on the product

 before removing the grass catcher or opening the grass

discharge chute cover

 after striking a foreign object; inspect the product for dam-

age and make repairs as necessary before restarting and

operating the product

 If the product starts to vibrate abnormally (check

immediately)

– inspect for damage, particularly the blades

– replace or repair any damaged parts

– check for and tighten any loose parts

Remove the safety key and keep it away from children when

leaving the product unattended.

Remove the safety key when maintaining or transporting the

product.

IMPORTANT SAFETY INSTRUCTIONS

Model 2020-16S

WARNING:

If the product is dropped, suffers heavy impact or begins to

vibrate abnormally, immediately stop the product and inspect

for damage or identify the cause of the vibration. Any damage

should be properly repaired or replaced by an authorized

service centre.

WARNING:

To reduce the risk of re, personal injury, and product damage

due to a short circuit, never immerse your tool, battery pack or

charger in uid or allow a uid to ow inside them. Corrosive or

conductive uids, such as seawater, certain industrial

chemicals, and bleach or bleach-containing products, etc., can

cause a short circuit.

Some of the following symbols may be used on this product. Please study them and learn their

meaning. Proper interpretation of these symbols will allow you to operate the product better

and safer.

SYMBOL DESIGNATION/EXPLANATION

V Voltage

hrs Time

WARNING！Precautions that involve safety

To reduce the risk of injury, user must read and understand owner’s manual before

using this product.

CAUTION!Always wear eye and ear protection.

DANGER! objects may be thrown out at high speed when motor is running. Do not

walk in front of running machine.

Beware of sharp blades. Blades continue to rotate after the motor is switched off.

Keep hands and feet away.

Do not mow when children or other spectators are in the mowing area.

Do not operate on inclines greater than 15°. Mow across the face of slopes, never up

and down.

Do not expose to rain or damp condition.

Remove the key before carrying out all maintenance work.

Look behind while backing up.

Do not open or remove safety shields while engine is running. Keep safety devices

(guard, shields, switches etc.)in place and in proper working order.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated

with this product.

SYMBOL SIGNAL MEANING

DANGER Indicates an imminently hazardous situation, which, if not

avoided, will result in death or serious injury.

WARNING Indicates a potentially hazardous situation, which, if not

avoided, could result in death or serious injury.

CAUTION Indicates a potentially hazardous situation, which, if not

avoided, may result in minor or moderate injury.

CAUTION (Without Safety Alert Symbol) Indicates a situation that

may result in property damage.

Model 2020-16S

FEATURES

PRODUCT SPECIFICATIONS

2020-16S

*Battery…………………...20V 2.0Ah Lithium-ion Battery

Input………………………………………….. 20V DC only

Cutting Width……………………………………... 16 inch

Height Adjustments……………………..1.54 in. to 2.8 in.

Wheel Size………………………8.5 in. front, 2.2 in. rear

Weight………………………………..31.9 lbs ( 14.45 kg)

Grass Catcher

Handle

Lock

Knobs

Upper

Handle

Safety Lock-out

Button

* This product contains a rechargeable lithium-ion battery. Battery must be recycled. Do not dispose of this

product in fire. Battery inside this product may explode or leak. Before disposing of damaged or worn out

battery packs contact your local waste disposal agency or the local Environmental Protection Agency for

information and specific instructions. Take the battery to a local recycling and/or disposal center for disposal.

Never throw the battery pack away in a standard receptacle or have it incinerated.

Model 2020-16S

Bail Wire

Power

Cord

Center

Handle

Lower

Handle

Height

Adjustment

Knob

Handle

Lock

Knob

LED Lights

UNPACKING

This product requires assembly.

 Carefully remove the product and any accessories from

the box. Make sure that all items listed in the packing

list are included.

 Inspect the product carefully to make sure no breakage

or damage occurred during shipping.

 Do not discard the packing material until you have

carefully inspected and satisfactorily operated the

product.

 If any parts are damaged or missing, please call

1-800-618-7474 for assistance.

PACKING LIST

WARNING:

Do not insert switch key until assembly is complete.

Failure to comply could result in accidental starting

and possible serious injury.

WARNING:

Do not attempt to modify this product or create

accessories not recommended for use with this

product. Any such alteration or modification is

misuse and could result in a hazardous condition

leading to possible serious personal injury.

WARNING:

If any parts are damaged or missing do not operate

this product until the parts are replaced. Failure to

heed this warning could result in serious personal

injury.

DANGER:

To prevent accidental starting do not make any

adjustments or installations with the switch key

inserted or batteries installed.

ASSEMBLY

WARNING:

Never operate the mower without the proper safety

devices in place and working. Never operate the

mower with damaged safety devices. Failure to heed

this warning can result in serious personal injury.

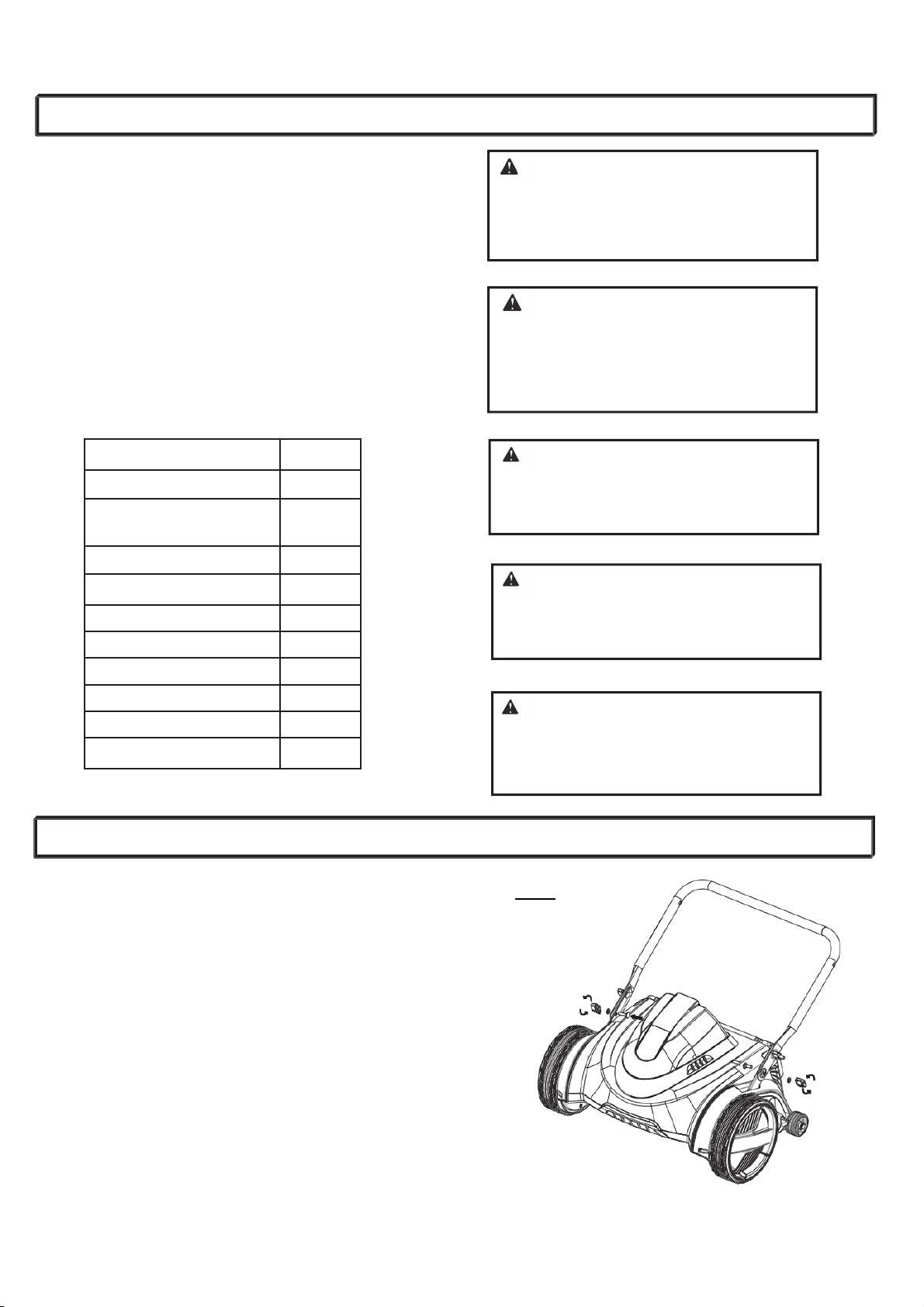

Description Quantity

Reel Lawn Mower 1

Switch Key (contained in

Hardware bag)

Upper Handle Assembly 1

Center Handle 1

Lower Handle 1

Hardware Bag 1

Grass Catcher 1

20V 2.0Ah Battery 1

20V Charger 1

Owner‘s manual 1

Model 2020-16S

ASSEMBLY

INSTALLING AND ADJUSTING HANDLE ASSEMBLY

See Figures 1 - 2

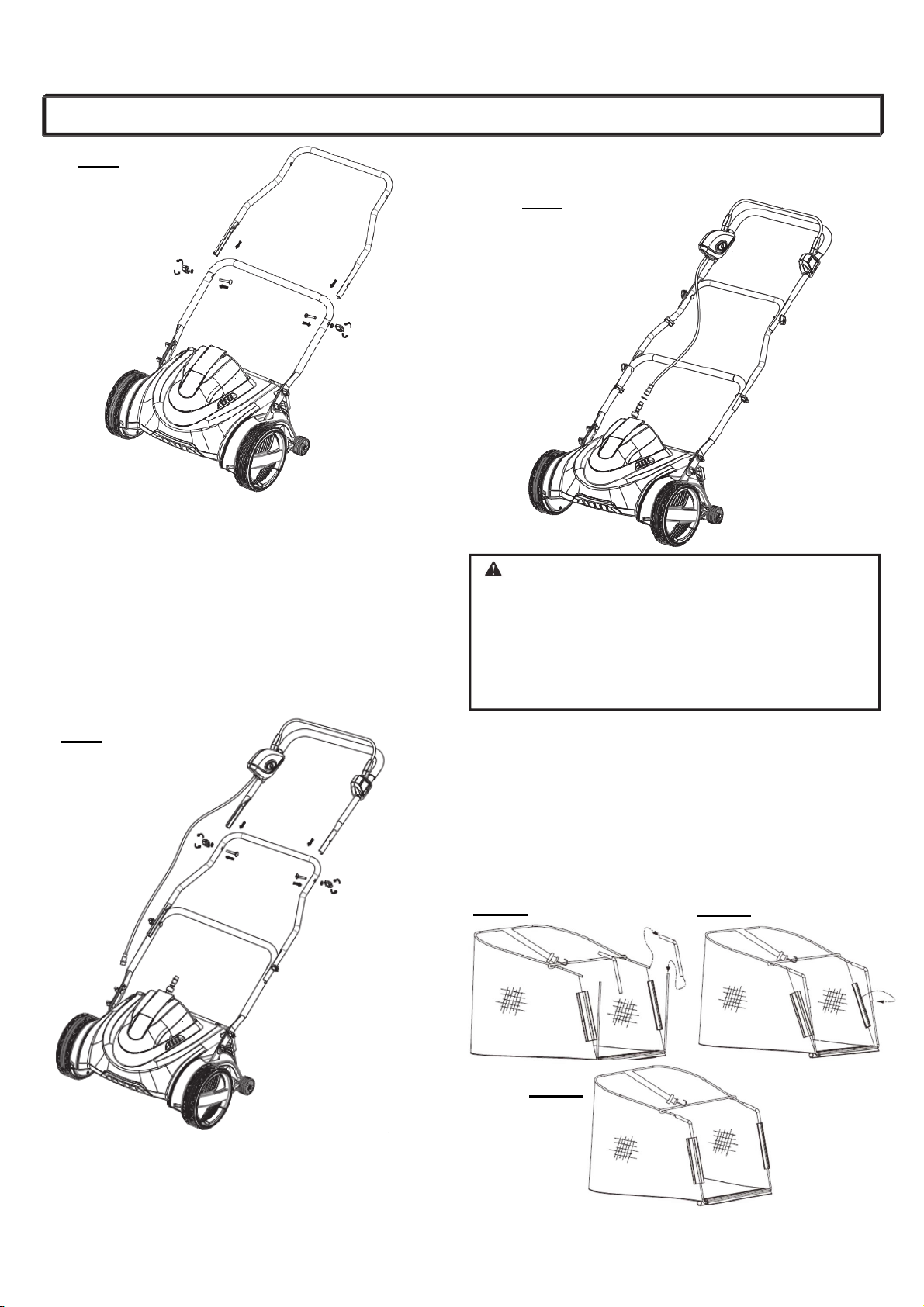

To install lower handle (Fig.1):

 Align the holes on the lower handle with the holes on

the supporting connection standing out of the deck.

Insert the bolts through the holes and secure them with

washers and handle lock knobs.

To install center handle (Fig.2):

 Line up the holes on both center handle and lower han-

dle and thread the bolts into the holes and secure them

by curved washers and handle lock knobs.

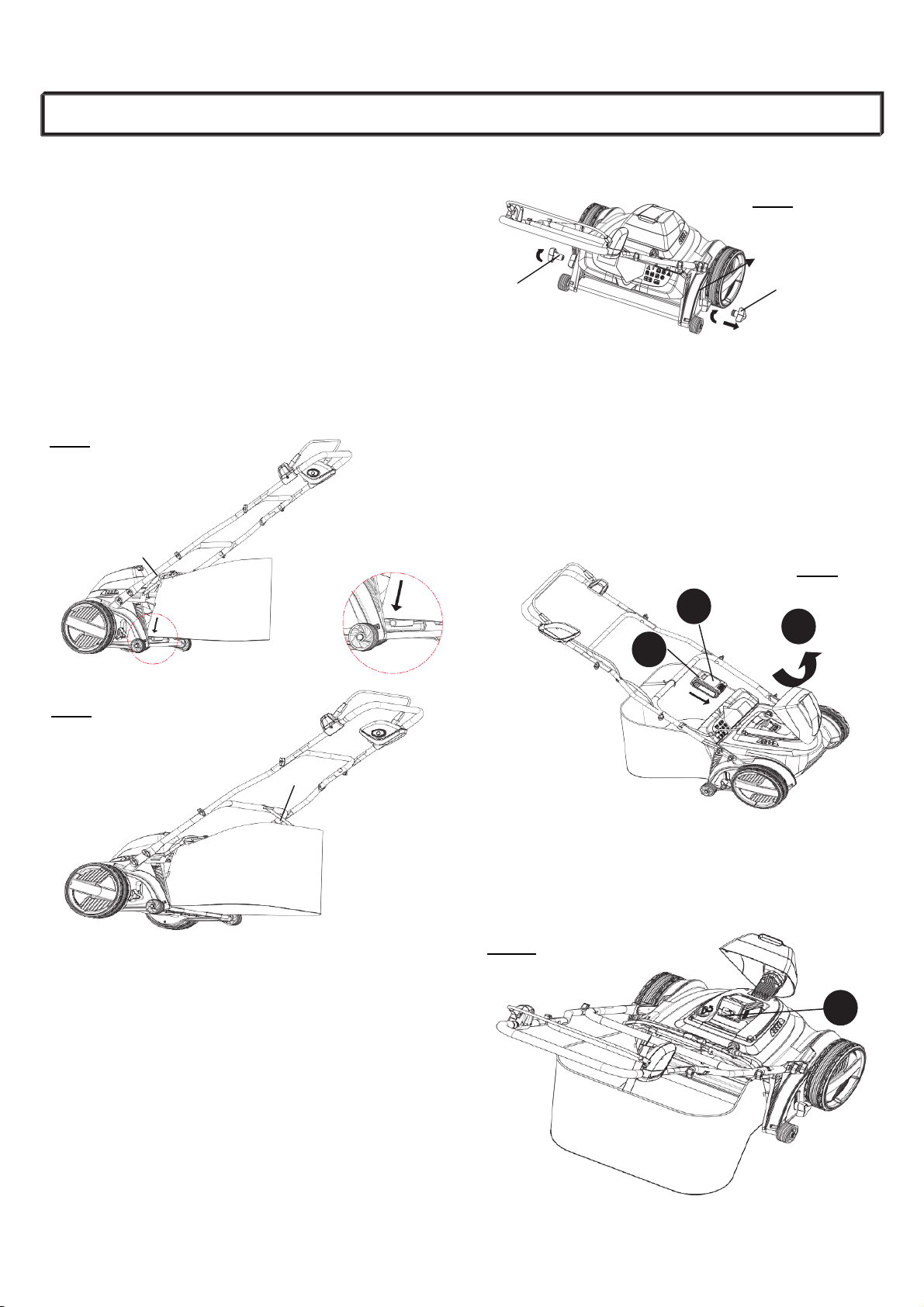

Fig. 1

ASSEMBLY

DANGER:

Do not allow any part of the power cord on the mower or

extension cord to become pinched or trapped when

assembling or raising the handles. A pinched live power cord

can cause the handles to become electrically energized.

Contact with electrically live conductive parts will result in

death by electrocution, electric shock, and/or serious personal

injury.

Model 2020-16S

Fig. 2

Fig. 3

To install upper handle assembly (Fig.3-4):

 Position the upper handle as shown and insert the lock

bolt through the matching holes at the bottom of the upper

handle and the top of the center handle.

 Thread the upper handle lock knob onto the curved

washer and lock bolt.

 Repeat for other side.

 To secure the upper handle in place, tighten the upper

handle knobs. Avoid pinching or trapping any power cords.

 Screw the threaded nut over the thread portion of the

plug to ensure the connection is waterproof.

Fig. 4

ASSEMBLING THE GRASS CATCHER (Fig.5):

 Insert the long end of the L shaped steel tube downward

into the front catcher frame; repeat for the opposite side.

(Fig.5-1)

 Connect the short side of the L shaped steel tube with

the side catcher frame.(Fig.5-2)

 Snap the formed plastic groove over the connected

catcher frame.(Fig.5-3)

Fig. 5-1 Fig. 5-2

Fig. 5-3

To connect the power cord

 Plug the power cord extended from the upper

handle switch box tightly into the terminal

protruded from main body.

ASSEMBLY

CUTTING HEIGHT ADJUSTMENT

See Figure 8

When shipped, the wheels on the mower are set to a low-cutting

position. Before using the mower for the first time, raise the

cutting position to the height best suited for your lawn. The

average lawn should be between 1-1/2 in. to 2 in. during cool

months and 2 in. or higher during hot months.

To adjust the cutting height:

 Remove switch key and battery pack.

 To raise or lower the cutting height, loosen the height

adjustment lock knob (A) on the left side and then pull out

the height adjustment knob (B) on the right side. Move it up

and down to best suit your need. Once the best height is

achieved, release the knob on the right and re-tighten

the lock knob on the left. C is the highest blade setting.

INSTALLING THE GRASS CATCHER

(For Rear Bagging Operation)

See figure 6-7

 Remove switch key and battery pack.

 Lift the rear flap (A).

 There are two sections of formed plastic grooves at

the front underside of the catcher. Snap the formed

section over the support tube, between the trailing

wheels of the mower.

 Adjust the strap (B) to its appropriate length and then

attach hook to handle to suit your height and technique.

 Release the rear flap.

 Reinstall switch key and battery pack when you are

ready to mow.

Model 2020-16S

INSTALLING/REMOVING BATTERY PACK

See figure 9-10

To Install Battery Pack

 Lift and hold up the battery cover (1).

 Align the battery (2) with the mower’s battery port.

 Make sure the battery release button (3) snaps in

place and that battery is fully seated and secure in

the mower before beginning operation.

 If the machine is not going to be used immediately,

remove the battery.

To Remove Battery Pack

 Release the bail wire to stop the mower.

 Open the battery cover. Press the battery release

button (3) on the battery.

 Remove battery from the mower.

Fig. 6

Fig. 7

A B

Fig. 8

Fig. 9

 Reinstall switch key and battery pack when you are

ready to mow.

Fig. 10

WARNING:

Always wear safety goggles or safety glasses with side

shields when operating this product. Failure to do so

could result in objects being thrown into your eyes,

resulting in possible serious injury.

WARNING:

Do not use any attachments or accessories not

recommended by the manufacturer of this product. The

use of attachments or accessories not recommended

can result in serious personal injury.

APPLICATIONS:

You may use this product for the purpose listed below:

 Mowing your lawn

OPERATION

STARTING/STOPPING THE MOWER

See figure 11

To start the mower:

 Raise the battery cover.

 Install battery pack.

 Insert the switch key into (1) the slot beside the

battery port. Turn it counterclockwise to ON

position.

 Lower the battery cover.

 Press and hold the safety lock-out button (2).

 While continuing to hold the start button, pull the

bail wire (3) toward the handle. Once the motor

starts, release the button.

To stop the mower:

 Release the bail wire.

Model 2020-16S

NOTICE:

Before each use，inspect the entire product for

damaged, missing or loose parts such as screws, nuts,

bolts, caps, etc. Tighten securely all fasteners and

caps and do not operate this product until all missing or

damaged parts are replaced. Please contact customer

service or an authorized service center for

assistance.

WARNING:

Always remove battery pack and switch key from the

tool when you are assembling parts,making

adjustments,cleaning or when not in use.This will

prevent accidental starting that could cause serious

personal injury .

This product will accept Scotts 20V lithium-ion battery

packs only.

For complete charging instructions, refer to the Owner‘s

manuals for your battery pack and charger models.

WARNING: Always remove battery pack from your tool

when you are assembling parts, making adjustments,

cleaning, carrying, transporting or when not in use.

Removing battery pack will prevent accidental starting

that could cause serious personal injury.

NOTE: To avoid serious personal injury, always remove

the battery pack and keep hands clear of the safety lock-

out button when carrying or transporting the tool.

WARNING: Make sure the latch on the tool snaps in

place and the battery pack is fully seated and secure in

the battery port before beginning operation. Failure to

securely seat the battery pack could cause the battery

pack to fall out, resulting in serious personal injury.

SWITCH KEY

In order to prevent accidental start-up or unauthorized

use of your cordless mower, a removable switch key has

been incorporated into the design of your mower. The

mower will be completely disabled when the switch key

has been removed from the mower.

DANGER: Rotating blades can cause serious injury. To

prevent serious injury, remove the switch key when the

mower is unattended, or when adjusting, cleaning,

servicing, transporting, lifting, or storing the mower.

Fig. 11

MOWING TIPS

 Make sure the lawn is clear of stones, sticks, wires

and other objects that could damage the reel mower

blades or motor. Such objects could be accidentally

thrown by the mower in any direction and cause

serious personal injury to the operator and others.

 For a healthy lawn, always cut off one-third or less

of the total length of the grass.

 When cutting heavy grass, reduce walking speed

to allow for more effective cutting and a proper

discharge of the clippings.

 Do not cut wet grass. It will stick to the underside

of the deck and prevent proper mulching of grass

clippings.

 New or thick grass may require a narrower cut.

Cutting grass in circles has better effect than

cutting back and forth.

NOTE: Always stop mower, allow blades to completely

stop, remove the switch key and remove the battery pack

from the battery port before cleaning underneath the

mower.

SLOPE OPERATION

WARNING: Slopes are a major factor related to slip and

fall accidents that can result in severe injury. Operation

on slopes requires extra caution. If you feel uneasy on a

slope, do not mow it. For your safety, do not attempt to

mow slopes greater than 15 degrees.

 Mow across the face of slopes, not up and down.

Exercise extreme caution when changing direction

on slopes.

 Watch for holes, ruts, rocks, hidden objects, or

bumps which can cause you to slip or trip. Tall grass

can hide obstacles. Remove all objects such as

rocks, tree limbs, etc., which could be tripped over or

thrown by the blade.

 Always be sure of your footing. A slip and fall

can cause serious personal injury. If you feel you are

losing your balance, release the switch control bail

wire immediately.

 Do not mow near drop-offs, ditches, or

embankments; you could lose your footing or

balance.

EMPTYING THE GRASS CATCHER

 Stop mower and allow blades to completely stop.

 Open battery cover.

 Remove switch key and battery pack.

 Lift the rear discharge flap.

 Lift the grass catcher by its support rod to remove

from mower.

 Empty grass clippings.

 Lift the rear discharge flap and reinstall the grass

catcher as described earlier in this manual.

 Reinstall switch key and battery pack when you are

ready to mow.

OPERATION

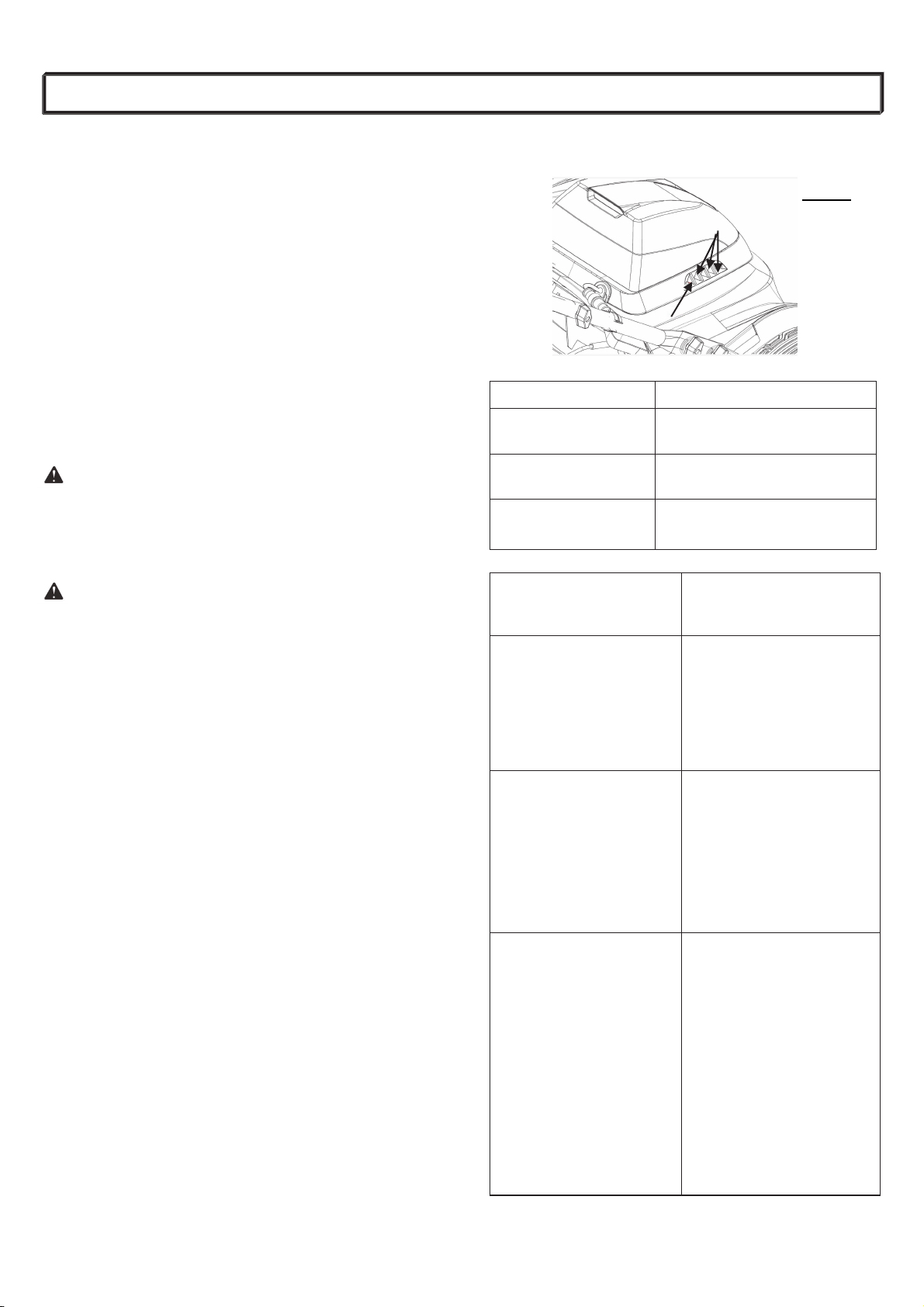

LED LIGHTS ON MOTOR COVER (See figure 12)

The three (3) green lights indicate battery capacity

remaining. One red light or red plus green lights indicate

faults.

BATTERY CHARGE LEVEL INDICATORS

FAULT STATUS INDICATORS

Model 2020-16S

Fig. 12

Red Indicator Light

Green Indicator Lights

LED lights - Green Battery Status

All green LED lights

on Full charged (80-100%)

Two green LED

lights on Battery is 35% - 80% charged

One green LED light

Battery capacity is less than

35%

Red LED on. All other

LEDs off

Battery charge is nearly

depleted. Battery should

be charged.

Red LED flashing. All

other LEDs off

Battery pack or motor is

overheated. Stop mower

and allow components to

cool for 15

minutes. Increase the

mowing height or reduce

the mowing speed.

Red LED on. One green

light flashing Mower is overloaded.

Electronic system

temperature is too high.

Stop mower and allow to

cool for 15 to 30

minutes. Increase the

mowing height or reduce

the mowing speed.

All LEDs flashing (1

Red and 3 green)

Reel is blocked or

obstructed, or there is a

short circuit in the

electronic system.

Remove key and battery

before attempting to

remove obstruction.

If reel is not blocked,

remove key and battery

from the mower and call

customer service helpline

at 1-800-618-7474 for

assistance.

CHARGING THE BATTERY PACK

Charge the battery pack only with the charger provided.

Allow at least 60 minutes of charge time for 2.0Ah battery

before initial use of the mower.

Make sure the power supply is normal household voltage,

120 volts, 60Hz, AC only.

The battery charger should be operated in temperatures

between 39 and 104 degrees F (4 °C and 40 °C).

The battery should be charged in a cool, dry place.

Two to three initial charging/discharging cycles may be

required to achieve maximum run time/capacity.

DO NOT attempt to open the charger or the unit. There are no

customer serviceable parts inside. Call customer service

helpline at 1-800-618-7474 for assistance.

DO NOT incinerate battery packs even if they are severely

damaged or completely worn out. They can explode in a fire

causing injury.

DO NOT charge appliance in rain, or in wet locations.

Use the battery charger indoors only.

Disconnect charger from the power supply when not in use to

prevent damage to the charger during a power surge.

When fully charged, the battery can be safely stored in

temperatures down to -4 degrees F (-20 degrees C) for a

period of up to four weeks, before requiring charging. Fully

charge battery pack every 90 days.

If over a period of time the battery pack quickly runs down

after a full 60 minutes charging period, a replacement battery

pack is needed.

To prevent permanent damage to the battery, never store in a

discharged condition.

WINTER STORAGE - Fully recharge before storage and then

again every 90 days.

Since the battery will not develop a memory, it does not have

to be fully discharged before recharging.

A small leakage of liquid from the battery cells may occur

under extreme usage, charging or temperature conditions.

This does not indicate a failure. However, if the outer seal is

broken and this leakage gets on your skin.

a. Wash quickly with soap and water.

b. Neutralize with a mild acid such as lemon juice or

vinegar.

c. If the battery liquid gets in your eyes, flush them with

clean water for a minimum of 10 minutes and seek

immediate medical attention.

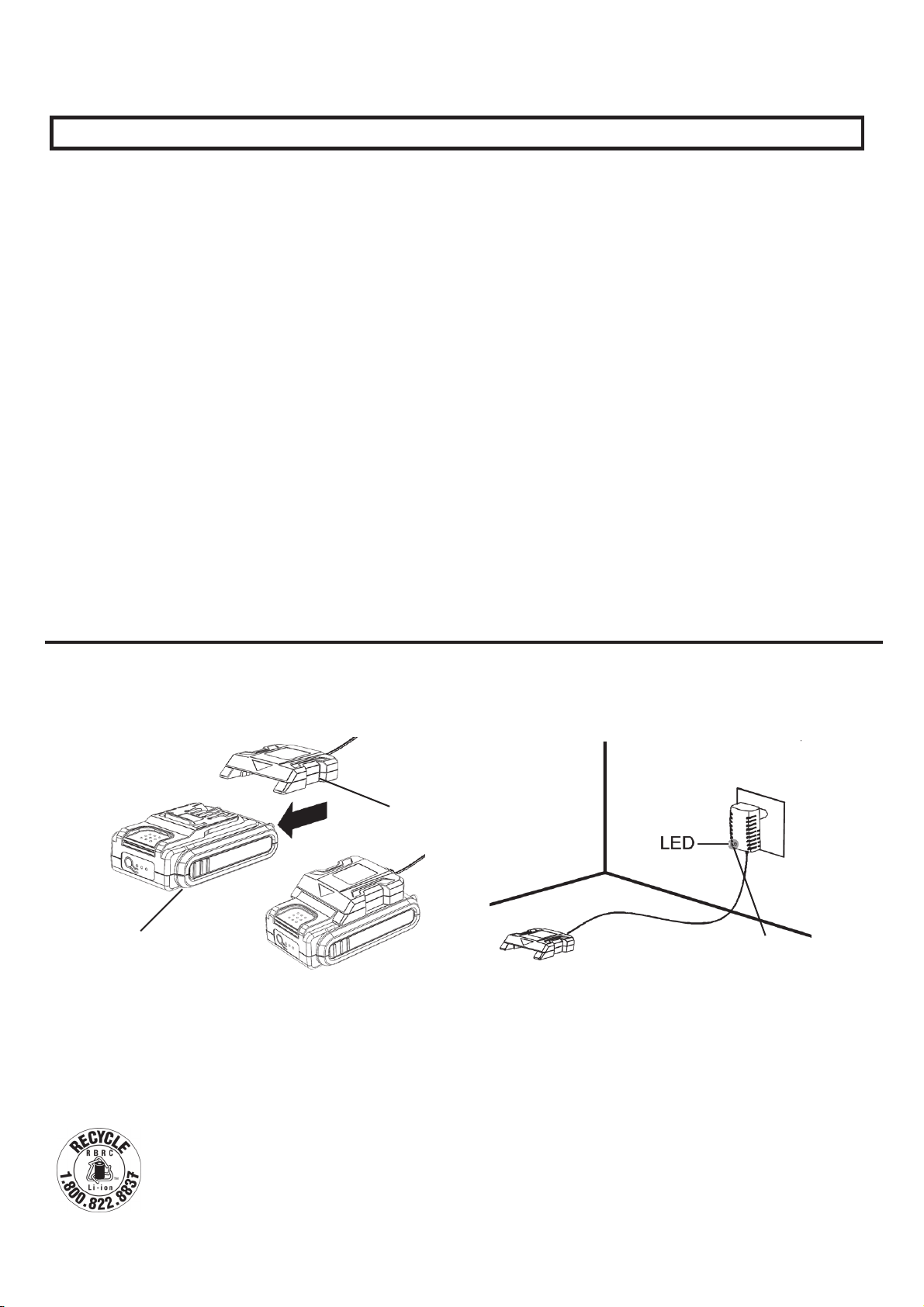

TO CHARGE - SEE CHARGER MANUAL FOR COMPLETE INSTRUCTIONS

BATTERY DISPOSAL

Remove the battery pack from the tool, cover the terminals with heavy duty adhesive tape. Do not attempt to destroy or disassemble battery pack

or remove any components. This product contains lithium-ion batteries which must be recycled or disposed of properly. Local, state or federal

laws may prohibit disposal of these batteries in the municipal solid waste or rural trash pick up systems.

The RBRC seal on the Li-Ion battery pack indicates that the cost to recycle the battery pack at the end of its useful life has already

been paid by The Great States Corporation/American Lawn Mower Company. It is illegal to place spent Li-Ion batteries in the local

municipal solid waste or in the trash. RBRC in cooperation with The Great States Corporation/American Lawn Mower Company

has provided an environmentally friendly and easy way to recycle spent Li-Ion batteries. Just contact your local recycling center or

call 1.800.8.BATTERY for information on where to drop off the spent battery.

Model 2020-16S

Constant Red = Battery is charging

Constant Green = Battery is fully charged

Battery Pack

Charger

WARNING:

When servicing, use only identical replacement parts.

Use of any other parts may create a hazard or cause

product damage.

DANGER:

Before performing any maintenance, make sure the

battery is removed from the battery compartment and the

switch key is removed. Failure to heed this warning could

result in serious personal injury.

WARNING:

Do not at any time let brake fluids, gasoline,

petroleum-based products, penetrating oils, etc., come

in contact with plastic parts. Chemicals can damage,

weaken, or destroy plastic which may result in serious

personal injury.

WARNING:

Always protect hands by wearing heavy gloves and/or

wrapping the cutting edges of the blade with rags and

other material when performing blade maintenance.

Failure to heed this warning could result in serious

personal injury.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most

plastics are susceptible to damage from various types

of commercial solvents and may be damaged by their

use. Use clean cloths to remove dirt, dust, oil, grease,

etc.

WARNING:

Always wear safety goggles or safety glasses with side

shields during power tool operation or when blowing

dust. If environment is dusty, also wear a dust mask.

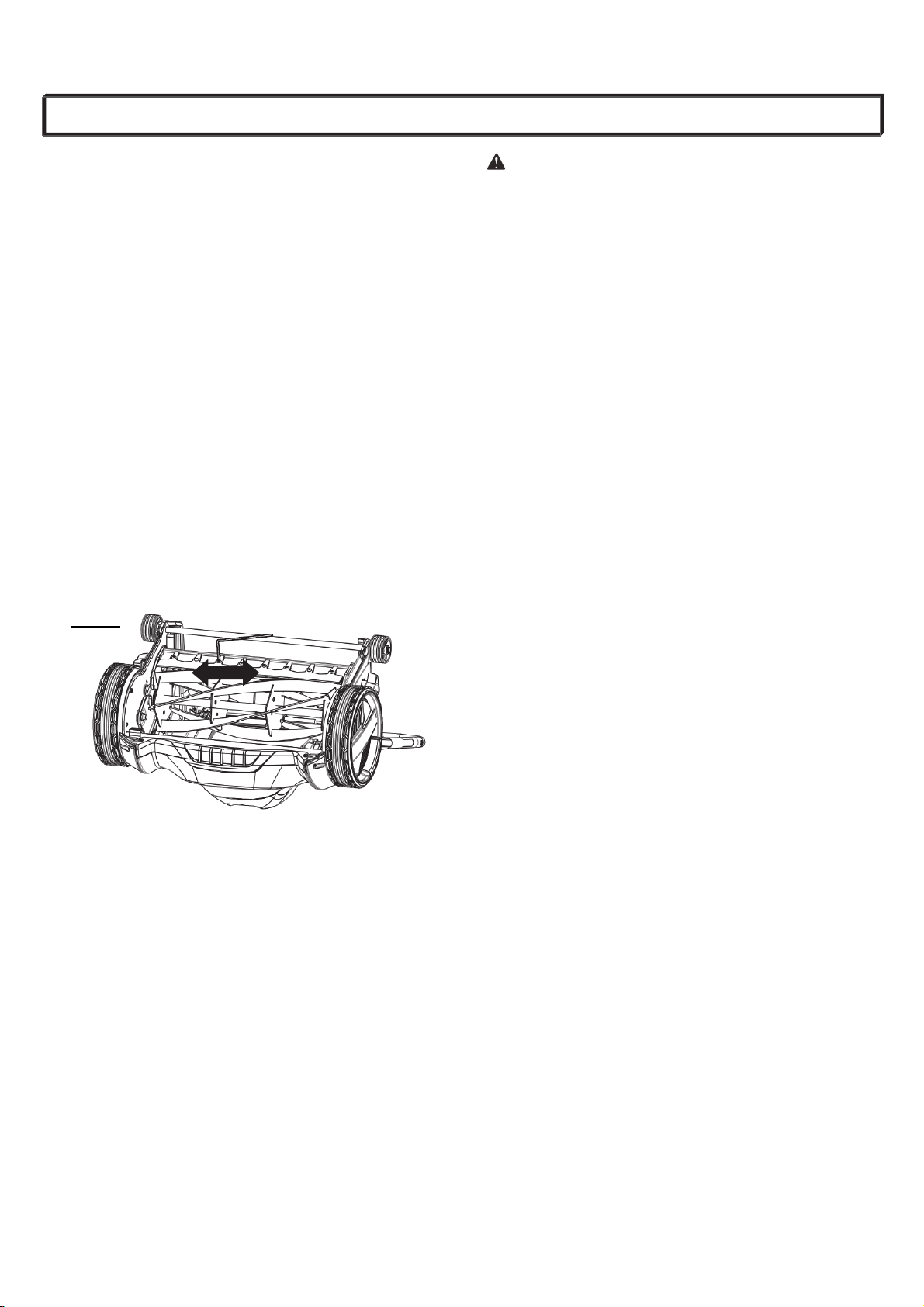

ADJUSTING THE CUTTING BLADE

See Figure 13

NOTES:

The blades have been preadjusted before leaving the

factory.

Do not adjust unless absolutely needed.

Misalignment can occur resulting in blades that are too

lose or too tight. If this happens, you will notice a rough,

uneven cut or a mower that is hard to push.

Make adjustment to the position of the cutter bar by using

a hex wrench to turn the eight adjusting bolts located on

the bottom of the cutter bar.

Adjusting the bolts is a very sensitive procedure. 1/16th of

a turn is considered a major adjustment.

Loosening the blades

The cutting bar blade is moved further from the cutting

reel.

 Stop the motor and remove the switch key. Allow the

blade to come to a complete stop. Remove battery

from the battery compartment.

 Use hex wrench to turn the adjusting bolts

counterclockwise.

Tightening the blades

The cutting bar is moved closer to the cutting reel.

 Stop the motor and remove the switch key. Allow the

blade to come to a complete stop. Remove battery

from the battery compartment.

 Use hex wrench to turn the adjusting bolts clockwise.

Periodically check all nuts and bolts for proper

tightness to ensure safe operation of the mower.

Remove any buildup of grass and leaves on or around

the motor cover. Wipe the mower clean with a dry cloth

occasionally. Do not use water.

LUBRICATION

All of the bearings in this product are lubricated with a

sufficient amount of high grade lubricant for the life of

the unit under normal operating conditions. Therefore,

no further bearing lubrication is required.

At the beginning and end of each mowing season:

 Lubricate the springs on the rear discharge flap

with light oil.

 Lubricate the height adjustment knob and related

hardware with light oil.

MAINTENANCE

Model 2020-16S

SHARPENING THE BLADE

When the mower is properly lubricated and adjusted,

sharpening should not be necessary for several years.

However, the following steps will allow you to do the

procedure yourself at relatively little expense.

 Spread a thin layer of lapping compound on the front

edge of the reel blades.

 Adjust the cutter bar so that the cutter bar blade has

light but firm contact with the reel blades across the

full width of the cutter bar.

 Push the mower backward on a smooth surface

( such as a sidewalk or paved driveway). Continue to

do this until the reel blades rotate relatively free and

front edge of the cutter bar blade is polished.

MAINTENANCE

Model 2020-16S

BATTERY MAINTENANCE

It is recommended to charge the mower every 3

months for optimum performance when not in use. If

the battery has been in storage for a long time without

recharging, it will be in a low charge state.

Checking adjustments

 During the adjustment process, use double

sheets of paper(ie., newspaper or writing)

between the cutter bar blade and the reel

blades.

Carefully turn the reel blades by hand to verify

the paper can be cut. All blades should slice the

paper evenly the entire length of the cutter bar

while the reel spins freely with minimal

obstruction or resistance.

 Turn the corresponding adjusting bolt clockwise

when the paper is not being cut. Turn the

corresponding adjusting bolt counterclockwise

when the reel is too tight.

 After adjustment, if the mower has an intermittent

cut, or if the reel is being obstructed by too

much contact between the reel blades and cutter

bar blade, adjustments should be made to the

corresponding bolts where the condition is

occurring.

Fig. 13

NOTE: It is recommended to use and industrial or

valve lapping compound between 100-240 grit. This

is usually available at an industrial or automotive

supply store.

If professional sharpening is required, consult your

local yellow pages for reel mower repair services.

STORING THE MOWER

 Remove the switch key and battery, and store in

a secure location out of the reach of children.

 Remove the grass catcher.

 Before storage, wipe any dirt or debris from the

battery area.

 Turn mower on its side and clean grass

clippings that have accumulated on the

underside of the mower deck.

 Wipe the mower clean with a dry cloth.

 Check all nuts, bolts, knobs, screws, fasteners,

etc., for tightness.

 Inspect moving parts for damage, breakage and

wear. Have repairs made on any damaged or

missing parts.

 Uninstall the handle assembly as described

earlier in this manual.

 Store mower indoors in a clean, dry place out of

the reach of children.

 Do not store near corrosive materials such as

fertilizer or rock salt.

TROUBLESHOOTING

Model 2020-16S

Problem Possible cause Solution

The mower fails to start The safety key is not inserted in the slot.

The battery pack is depleted.

The battery pack is not attached to the

mower.

Battery or mower circuitry is too hot.

Mower deck is clogged with grass and

debris.

Insert the safety key.

Charge the battery pack.

Attach the battery pack to the mower.

Allow the battery pack or mower to cool down.

Clean the mower deck and make certain that

the blade has freedom of movement.

The mower cuts unevenly. Dull blade.

The cutting height is not set properly.

Sharpen or replace blade.

Raise the blade to a higher setting.

Mower stops while

mowing.

The battery pack is depleted.

Mower is in overload condition.

Mower deck is clogged with grass and

debris.

Battery or mower circuitry is too hot.

Charge the battery pack.

Raise cutting height or slow down the mowing.

Unclog mower deck. Raise cutting height, or

cut a narrow swath.

Allow the battery pack or mower to cool down.

Excessive vibration Cutting blade is loose.

Bent cutting blade.

Bent reel shaft.

Tighten the blade bolt.

Replace the blade.

Contact the service center at 1-800-618-7474.

Handle not in position Handle knobs not tightened. Tighten handle knobs.

PARTS AND SERVICE

For parts or service, please call 1-800-618-7474 or visit us online at

scotts.americanlawnmower.com. Be sure to provide all relevant information when you

call or visit.

REPAIR PARTS (KITS/ ITEMS)

The model number of this tool is found on a plate or label attached to the housing.

Please record the serial number in the space provided below.

MODEL NUMBER___2020-16S ____

SERIAL NUMBER_______________

Always mention the model number when ordering kits/items for this tool.

No. Kit/ Item Number Description

1 LRM-HK-1 Lithium Reel Handle Kit

2 LRM-WK-1 Lithium Reel Front Wheel Kit

3 LRM-WK-2 Lithium Reel Rear Wheel Kit

4 BL82120 20V 2.0Ah Battery

5 CHL82000 20V Charger

CALL US FIRST !!

Call us first with questions about operating or maintaining your product

at 1.800.618.7474 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time,

or get assistance on scotts.americanlawnmower.com.

Model 2020-16S

NOTES

____________________________________________________________________

Model 2020-16S

Rev. 05/22/20

American Lawn Mower Company

The Great States Corporation

7444 Shadeland Station Way

Indianapolis, IN 46256, USA

Phone 1-800-618-7474

scotts.americanlawnmower.com

OWNER’S MANUAL

16 in. - 20 VOLT LITHIUM-ION CORDLESS REEL MOWER

2.0Ah Lithium-ion Battery

Model 2020-16S

 3 Year limited warranty on all Scotts 20V lithium ion power tools from date of purchase when used for personal, household, or family use.

 1 Year limited warranty on all Scotts 20V lithium ion batteries and chargers from date of purchase when used for personal, household, or

family use.

The Great States Corp. (GSC) warrants to the original owner that this Scotts product and service part is free from defects in materials and

workmanship and agrees to repair or replace any defective product or part for the warranty period as stated above.

 Warranty voided if used for commercial or industrial purposes or any other improper use as determined by GSC.

 Warranty does not include repairs necessary due to operator’s abuse or negligence (including overloading the product beyond capacity or

immersion in water), or the failure to assemble, operate, maintain or store the product according to the instructions in the owner’s manual.

 This warranty does not cover

 Wear items, including but not limited to - drive belts & gears, tines, cutting blades, mower blades, saw chains, mulching blades,

blower fans, spool covers, trimmer line, blower and vacuum tubes, guide bars, high pressure hoses, wheels, handles, augers, worn

bags, power cables, and other items subject to wear over time.

 Wear on batteries, including but not limited to – drops, wear and breakage on charger, exposure to extreme temperature swings (hot

or cold), battery left on charger too long, battery left uncharged for too long, and misuse or abuse of the battery.

 This warranty does not cover damage caused by cold, heat, rain, excessive humidity or other environmental extremes.

 This warranty does not cover normal deterioration of the exterior finish or normal wear and tear on the products including, but not limited to

scratches, cracks, dents, or damage caused by outside chemicals.

 This warranty is not transferable and only applies to new products sold directly from an authorized retailer. This warranty does not apply to any

product, new or used, purchased through unauthorized third-party channels. For information on authorized dealers, contact our customer

support hotline at 1-800-618-7474 (Mon-Fri 8am-5pm Est)

 Any incidental, indirect or consequential loss, damage, or expense that may result from any defect or malfunction of the products is not covered

by the warranty.

 The warranty does not include installation, assembly or normal adjustments explained in the owner‘s manual. The expense of delivering the

product to the vendor and the expense of returning the product or replacement parts to the owner is not covered by the warranty.

Additional Warranty Limitations

Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitation may not apply to you. Products

sold damaged or incomplete, sold ―as is, or sold as reconditioned are not covered under the warranty.

Damage or liability caused by shipping, improper handling, improper assembly, incorrect voltage, improper wiring, improper maintenance, improper

modification or the use of accessories and/or attachments not specifically recommended is not covered by this warranty.

Proof of purchase, original dated sales receipt, must accompany all warranty claims.

For claims go to scotts.americanlawnmower.com or call our customer support hotline from 8am-5pm EST, Mon-Fri at

1-800-618-7474

WARRANTY POLICY

Scotts Warranty policy

In a continued commitment to improve quality, the Manufacturer reserves the right to make

component changes or design changes when necessary.

MANUAL DEL OPERARIO

40,6 cm (16 pulg.) - 20 VOLTIOS CORTADORA SIN CABLE CON BATERÍA DE IONES DE LITIO

Batería de litio 2,0 Ah

Modelo 2020-16S

Su cortadora fue diseñada y fabricada de acuerdo con nuestros altos estándares de confiabilidad, facilidad de

operación y seguridad para el operario. Si se la trata con cuidado, le otorgará años de óptimo rendimiento y

resistencia.

ADVERTENCIA: Para reducir el riesgo de sufrir alguna lesión, el usuario debe leer y comprender el manual

del operario antes de usar este producto.

Muchas gracias por su compra.

GUARDE ESTE MANUAL PARA CONSULTAS FUTURAS

DEBE CARGAR LA BATERÍA ANTES

DE UTILIZARLA POR PRIMERA VEZ.

ES POSIBLE QUE SE NECESITEN DE

DOS A TRES CICLOS DE CARGA/

DESCARGA INICIALES PARA

OBTENER LA MÁXIMA CAPACIDAD O

TIEMPO DE FUNCIONAMIENTO.

Cargador Cumple con CA

está incluido (Modelo No.

CHL82000)

NO DEVUELVA ESTE PRODUCTO A LA TIENDA. ¿TIENE PREGUNTAS

SOBRE FUNCIONAMIENTO, MONTAJE, PIEZAS O SERVICIO

TÉCNICO? IR A SCOTTS.AMERICANLAWNMOWER.COM O LLAME AL

1-800-618-7474 ENTRE LAS 8:00 AM Y LAS 5:00 PM, HORA DEL ESTE

DE LOS ESTADOS UNIDOS.

800951

 Introducción ....................................................................................................... 2

 Instrucciones de seguidad importantes .......................................................... 3-4

 Símbolos ............................................................................................................ 5

 Características ................................................................................................... 6

 Montaje .......................................................................................................... 7-9

 Funcionamiento ......................................................................................... 10-11

 Carga del paquete de baterías……………………………………………………..12

 Mantenimiento ........................................................................................... 13-14

 Solución de problemas .................................................................................... 15

 Piezas y servicio .............................................................................................. 16

 Garantía ........................................................................................ Contraportada

INTRODUCCIÓN

Este producto presenta muchas características para que su uso sea placentero y agradable.

La seguridad, el rendimiento y la confiabilidad han sido la máxima prioridad durante el diseño de

este producto, a fin de que resulte fácil de mantener y operar.

ÍNDICE

ADVERTENCIA:

Para evitar lesiones serias, no intente usar este producto hasta después de haber leído atentamente y

comprendido en su totalidad el manual del operario. Si no comprende las advertencias e instrucciones del

manual, no use el producto. Comuníquese con el centro de atención al cliente de Scotts para recibir

asistencia.

ADVERTENCIA:

El uso de cualquier herramienta eléctrica puede hacer que objetos extraños sean

arrojados hacia sus ojos, lo que provocaría una lesión seria. Antes de empezar a operar la

herramienta, siempre colóquese gafas de seguridad con protectores laterales y, si fuera

necesario, un protector completo para la cara. Le recomendamos usar una máscara de

visión amplia encima de las gafas de seguridad estándar con protectores laterales. Siempre

use protección para los ojos que cumpla con la norma ANSI Z87.1.

GUARDE ESTAS INSTRUCCIONES

Modelo 2020-16S

Consulte el rango de temperatura ambiente recomendado para el uso y almacenamiento de

electrodomésticos y baterías, y para cargar el sistema durante la carga.

Rango de temperatura ambiente recomendado

Operación del cortacésped 5 °C - 40 °C (41 °F - 104 °F)

Almacenamiento de cortacésped 0 °C - 38 °C (32 °F - 100 °F)

Batería cargando 4 °C - 40 °C (39 °F - 104 °F)

Operación del cargador 4 °C - 40 °C (39 °F - 104 °F)

Almacenamiento de batería 0 °C - 40 °C (32 °F - 104 °F)

durante 3 meses antes de la carga se requiere.

Descarga de la batería 0 °C - 40 °C (32 °F - 104 °F)

Table of contents

Languages:

Other Scotts Lawn Mower manuals

Popular Lawn Mower manuals by other brands

Toro

Toro Greensmaster 1018 Operator's manual

Toro

Toro 21180 Operator's manual

Mowox

Mowox EM 3440 PX(-Li) Original operating instructions

Craftsman

Craftsman 944.360480 owner's manual

Craftsman

Craftsman 917.376233 owner's manual

Toro

Toro Groundsmaster 3500-D Operator's manual

AL-KO

AL-KO Classic 3.2E User instructions

Craftsman

Craftsman 917.276906 Operator's manual

Worx

Worx landroid wg791E Original instructions

Gravely

Gravely ZT HD 44 Operator's manual

Craftsman

Craftsman 247.203750 Operator's manual

Columbia

Columbia RZT L Series Operator's manual

Dolmar

Dolmar PM-4602 SC instruction manual

Ariens

Ariens Razor Push Service guide

Ruris

Ruris RXR300 manual

Bosch

Bosch UniversalRotak 450 Original instructions

Toro

Toro Groundsmaster 30689 installation instructions

GGP ITALY

GGP ITALY MP1 504 Series Operator's manual

Scotts 2020-16S User manual

Popular Lawn Mower manuals by other brands
