Manufactured by John Deere D
K9 Lawn Tractor
S2546
OPERATOR’S MANUAL
North American
Litho in U.S.A.

Introduction
INTRODUCTION
Introduction
THANK YOU for purchasing a Scotts product.
Read this manual and your attachment manual thoroughly.
Failure to do so could result in personal injury or equipment
damage.
This manual should be considered a permanent part of
your machine and should remain with the machine when
you sell it.
Product warranty is provided as part of John Deere’s
support program for customers who operate and maintain
their equipment as described in this manual. The product
warranty is explained on the warranty certificate you
received from your dealer.
Measurements in this manual are metric units and their
U.S. customary equivalents. RIGHT-HAND and LEFT-
HAND sides are determined by facing in the direction the
machine will travel when going forward. When you see a
broken line arrow (------>), it indicates the part it is pointing
to is hidden.
Record identification numbers below. Be sure to record all
the numbers to help in tracing the machine if it is stolen.
You also need to give these numbers to your dealer when
you order parts.
DATE OF PURCHASE:
_______________________________
DEALER NAME:
____________________________________
DEALER PHONE:
___________________________________
TRACTOR SERIAL NUMBER (A), (Under seat):
__ __ __ __ __ __ __ __ __ __ __ __ __
ENGINE SERIAL NUMBER (B), (Right side of engine):
__ __ __ __ __ __ __ __ __ __ __ __ __
cWARNING:The Engine Exhaust
from this product contains chemicals
known to the State of California to
cause cancer, birth defects or other
reproductive harm.
CALIFORNIA Proposition 65 Warning
A
B

TableofContents
TABLE OF CONTENTS
OMGX10722 K9
All information, illustrations and
specifications in this manual are based
on the latest information at the time of
publication. The right is reserved to
make changes at any time without
notice.
COPYRIGHT© 1999
Deere & Co.
John Deere Worldwide Commercial and
Consumer Equipment Division
Horicon, WI
All rights reserved
Tab l e o f Co nte nts
Contents
Assembly...............................................................................................................................................1
Safety Signs...........................................................................................................................................3
Controls ................................................................................................................................................. 5
Operating Machine ................................................................................................................................6
Operating Mower ................................................................................................................................. 16
Replacement Parts............................................................................................................................. 20
Service Machine Safely.......................................................................................................................21
Service Interval Chart..........................................................................................................................22
Service Engine .................................................................................................................................... 24
Service Steering and Brakes............................................................................................................... 29
Service Mower.....................................................................................................................................31
Service Electrical................................................................................................................................. 36
Service Miscellaneous.........................................................................................................................40
Removing Mower.................................................................................................................................44
Installing Mower...................................................................................................................................45
Troubleshooting ..................................................................................................................................47
Storing Machine................................................................................................................................... 51
Specifications.......................................................................................................................................53
Warranty .............................................................................................................................................. 55
Index....................................................................................................................................................59
Service Literature ...............................................................................................................................61

Assembly - Page 1
ASSEMBLY
Assembly
Identify Parts
Connect and Check Battery
NOTE: Do not remove the BLACK negative (–)
protective cap at this time.
1. Remove and discard the RED positive (+) protective cap
from the positive (+) battery terminal.
2. Connect RED positive (+) cable (A) to battery with 6mm
hex head bolt and 6 mm flange nut. Tighten securely. Apply
petroleum jelly or silicone spray to terminal to prevent
corrosion. Install the red terminal cover.
3. Remove and discard the BLACK (–) protective cap from
the negative battery terminal.
4. Connect silver braided grounding cable (B) to the
negative (–) terminal (C) with remaining 6 mm hex head
bolt and 6 mm flange nut and tighten securely. Apply
petroleum jelly or silicone spray to terminal to prevent
corrosion.
A Operator’s Manual
B Safety Video
C Bag of Hardware
DKey
Bag of Hardware:
• 2 - M8x16 Bolts - Battery
• 2 - M8x16 Nuts - Battery
cCAUTION: Avoid injury. Prevent Battery
Explosions:
- Keep sparks, lighted matches, and open flame
away from the top of battery. Battery gas can
explode.
- Never check battery charge by placing a metal
object across the posts. Use a volt-meter or
hydrometer.
-Donotchargeafrozenbattery;itmay
explode. Warm battery to 16° C (60° F)
IMPORTANT: Avoid machine damage. This
battery comes fully charged. If the mower is not
used by the Service Expiration Date indicated on the
battery, charge the battery. (See Charging the
Battery in the Service - Electrical section.)
cCAUTION: Avoid injury. DO NOT attempt to
open, add fluid or service battery. Any attempt
to do so will void warranty and lead to possible
injury.
B
CA

Assembly - Page 2
ASSEMBLY
Checking Tire Pressure
1. Check tires for damage.
2. Check tire pressure with an accurate gauge.
3. Add or remove air, if necessary:
cCAUTION: Avoid injury. Explosive separation
of a tire and rim parts can cause serious injury
or death:
- Do not attempt to mount a tire without the
proper equipment and experience to perform
the job.
- Always maintain the correct tire pressure. Do
not inflate the tires above the recommended
pressure. Never weld or heat a wheel and tire
assembly. The heat can cause an increase in air
pressure resulting in a tire explosion. Welding
can structurally weaken or deform the wheel.
- When inflating tires, use a clip-on chuck and
extension hose long enough to allow you to
stand to one side and NOT in front of or over
the tire assembly.
- Check tires for low pressure, cuts, bubbles,
damaged rims or missing lug bolts and nuts.
Tire Size Pressure-kPa (psi)
Front: 15-Inch 97 kPa (14 psi)
Rear: 20-Inch 69 kPa (10 psi)

Safety Signs - Page 3
SAFETY SIGNS
Safety Signs
Safety-Alert Symbol
Read and recognize safety information. Be alert to the
potential for personal injury when you see this safety-alert
symbol.
On your machine safety labels, the words DANGER,
WARNING, and CAUTION are used with this safety-alert
symbol. DANGER identifies the most serious hazards.
In this manual, the word CAUTION and this symbol call
attention to safety messages.
Certification
Your mower has been certified by an independent
laboratory for compliance with American National Standard
B-71.1, “Safety Specifications” for Power Lawn Mowers,
Lawn and Garden Tractors, and Lawn Tractors.
Machine Safety Labels
DANGER
AVOID SERIOUS INJURY OR DEATH
• Do not mow when children or others are around
• Do not mow in reverse
• Look down and behind before and while backing
• Never carry children
WARNING
AVOID SERIOUS INJURY OR DEATH
• Drive up and down slopes, not across
• Avoid sudden turns
• If machine stops going uphill, stop blade and back down
slowly
• Keep safety devices (guards, shields, and switches) in
place and working
• Read operator’s manual
• When leaving machine:
–Stop engine
–Set park brake
–Remove key
DANGER/POISON
SHIELD EYES.
EXPLOSIVE GASES CAN CAUSE BLINDNESS OR
INJURY.
NO
•SPARKS
•FLAMES
•SMOKING
SULFURIC ACID CAN CAUSE BLINDNESS OR SEVERE
BURNS
FLUSH EYES IMMEDIATELY WITH WATER.
GET MEDICAL HELP FAST.
MAINTENANCE-FREE
KEEP OUT OF THE REACH OF CHILDREN. DO NOT TIP.
DO NOT OPEN BATTERY!
M96445

Safety Signs - Page 4
SAFETY SIGNS

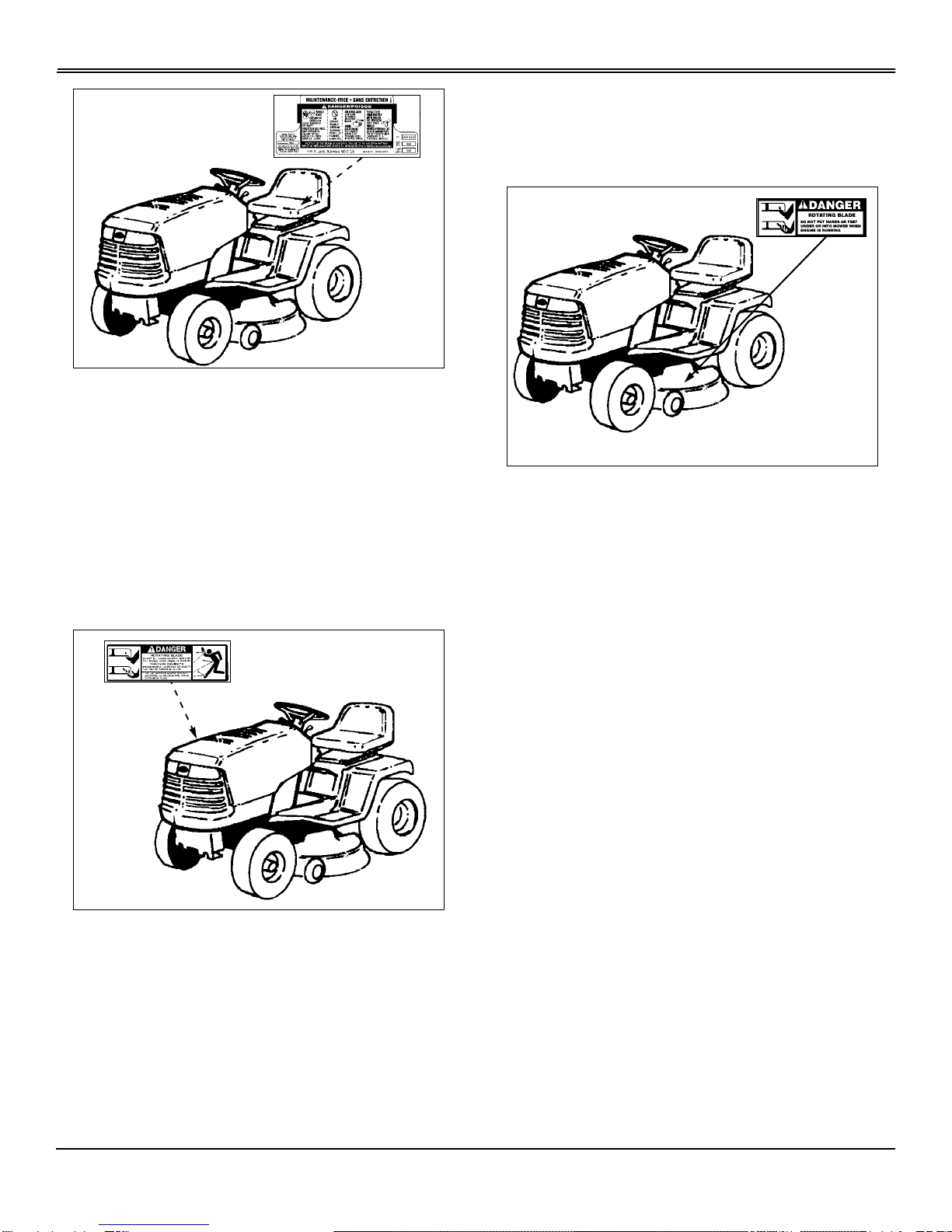

Picture Note: Located on Battery under seat
DANGER
ROTATING BLADE
DO NOT PUT HANDS OR FEET UNDER OR INTO
MOWER WHEN ENGINE IS RUNNING
THROWN OBJECTS
BEFORE MOWING, CLEAR AREA OF OBJECTS THAT
MAYBETHROWNBYBLADE
DO NOT OPERATE MOWER WITHOUT DISCHARGE
CHUTE OR ENTIRE GRASS CATCHER IN PLACE
Picture Note: Located on Right-Hand side of deck
DANGER
ROTATING BLADE
DO NOT PUT HANDS OR FEET UNDER OR INTO
MOWER WHEN ENGINE IS RUNNING
Picture Note: Located on Left-Hand side of deck
M96445
M96445
M96445

Controls - Page 5
CONTROLS
Controls
Tractor Controls

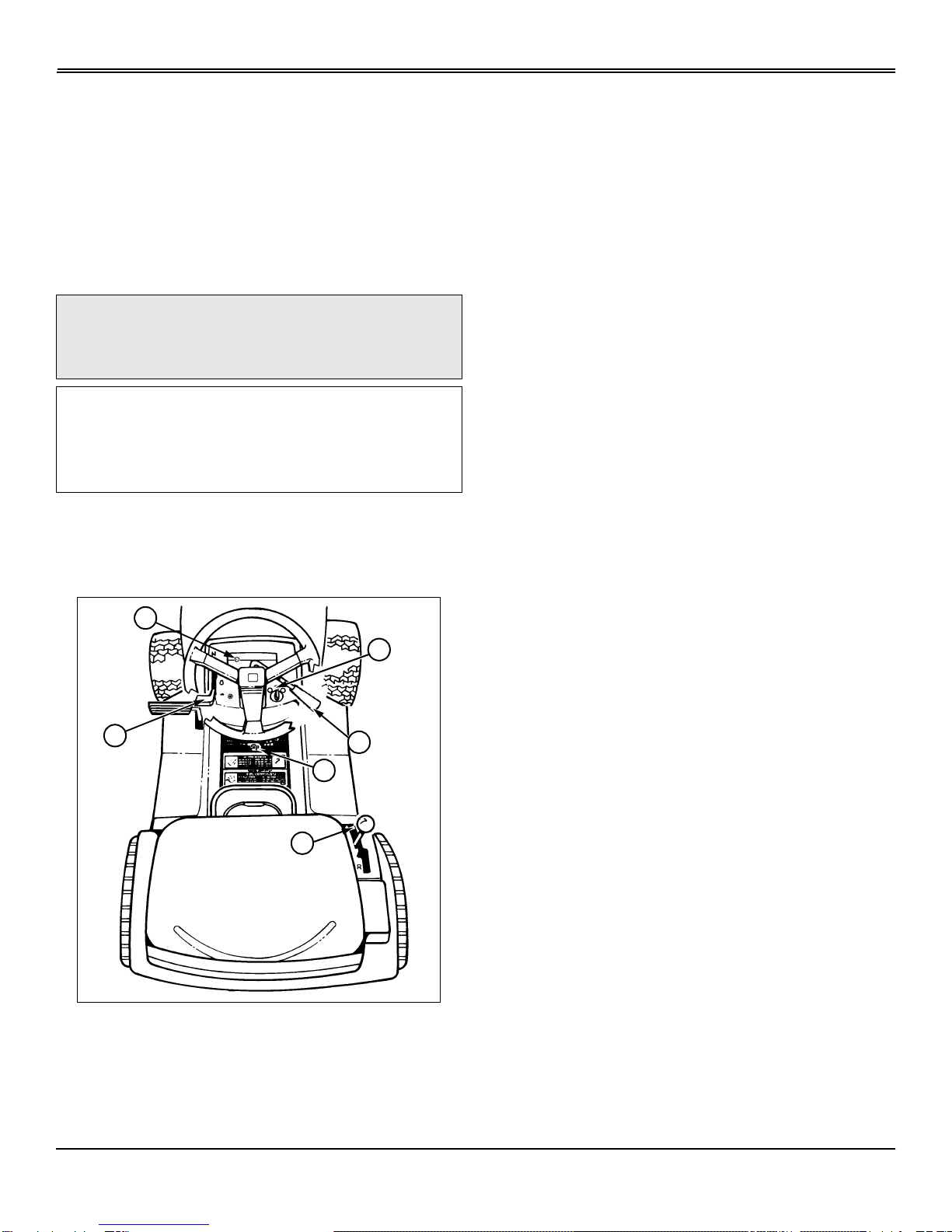

A - Throttle Control
B - Foot Pedal - Brake/Return to Neutral
C - Reverse Implement Option Switch
D - Attachment Lift Lever
E - Locking Lever
F - Transmission Shift Lever
G - Park Brake
H-PTODriveLever
I - Ignition Switch
J - Choke Control
D
EF
G
H
I
C
A
B
J

Operating Machine - Page 6
OPERATING MACHINE
Operating Machine
Operate Safely
• In addition to reading your Operator’s Manual, view your
Mowing Safety Video.
• Check brake action before you operate. Adjust or
servicebrakesasnecessary.
• Inspect machine before you operate. Be sure hardware
is tight. Repair or replace damaged, badly worn, or missing
parts. Be sure guards and shields are in good condition
and fastened in place. Make any necessary adjustments
before you operate.
• Clear work area of objects that might be thrown. Keep
people and pets out of the work area. Stop machine if
anyone enters the area.
• If you hit an object, stop the machine and inspect it.
Make repairs before you operate. Keep machine and
attachments properly maintained and in good working
order.
• DO NOT leave machine unattended when it is running.
• Only operate during daylight or with good artificial light.
• Be careful of traffic when operating near or crossing
roadways.
• Do not wear radio or music headphones while operating
the machine. Safe operation requires your full attention.
• Older adults are involved in a large percentage of riding
mower accidents involving injury. These operators should
evaluate their ability to operate a mower safely enough to
protect the operator and others from serious injury.
Park Safely
• Stop machine on a level surface, not on a slope.
• Disengage mower blades.
• Lower attachments to the ground.
• Engage park brake.
• STOP engine.
• Remove key.
• Before you leave the operator’s seat, wait for engine and
all moving parts to STOP.
Rotating Blades are Dangerous - Protect
Children and Prevent Accidents
PROTECT CHILDREN:
• Never assume that children will remain where you last
saw them. Children are attracted to mowing activity, stay
alert to the presence of children.
• Keep children in the house when you are operating the
machine.
• Turn machine off if a child enters the mowing area.
• Use extra care when you come to blind corners, shrubs,
trees, or other objects that may block your vision.
• DO NOT let children or an untrained person operate the
machine.
• DO NOT carry or let children ride on machine or any
attachment. DO NOT tow children in a cart or trailer.
HELP PREVENT SERIOUS OR FATAL ACCIDENTS:
• Be alert at all times, drive forward carefully. People
especially children can move quickly into the mowing area
before you know it.
• Back carefully. Disengage mower blades and look
behind the machine carefully, especially for children, before
you back up.
• DO NOT mow in reverse unless it is absolutely
necessary.
• Disengage mower blades when you are not mowing.
• DO NOT operate machine if you are under the influence
of drugs or alcohol.

Operating Machine - Page 7
OPERATING MACHINE
Avoid Tipping
• DONOTdrivewheremachinecouldsliportip.
• Stay alert for holes and other hidden hazards in the
terrain.
• Keep away from drop-offs.
• Slow down before you make a sharp turn or operate on
aslope.
• When pulling loads or using heavy equipment, use only
approved hitches, limit loads to those you can safely
control, and use counterweights or wheel weights when
required per this manual or your attachment manual.
• Drive up and down a hill—not across. Be careful when
you change direction on a slope.
• DO NOT stop when going up hill or down hill. If machine
stops going up hill, DISENGAGE mower blades and back
down slowly.
• DO NOT mow wet grass. Reduced traction could cause
sliding.
• DO NOT try to stabilize the machine by putting your foot
on the ground.
Keep Riders Off
• Only allow the operator on the machine. Keep riders off
even if blades are shut off.
• Riders on the machine or attachment may be struck by
foreign objects or thrown off the machine causing serious
injury.
• Riders obstruct the operator’s view resulting in the
machine being operated in an unsafe manner.
Wear Appropriate Clothing
• Wear close fitting clothing and safety equipment
appropriate for the job.
• Loud noise can cause impairment or loss of hearing,
wear a suitable protective device such as earplugs.

Operating Machine - Page 8
OPERATING MACHINE
Transport Safely
• Use safety lights and devices. Slow moving machines
when driven on public roads are hard to see, especially at
night. Avoid personal injury or death resulting from a
collision with a vehicle.
• Whenever driving on public roads, use flashing warning
lights and turn signals according to local regulations. Extra
flashing warning lights may need to be installed.
Adjusting Seat
1. Pivot seat forward on its mounting bracket.
2. Loosen front seat knobs (A).
3. Slide forward or rearward on mounting bracket to
desired position.
4. Tighten seat knobs.
5. Lower seat.

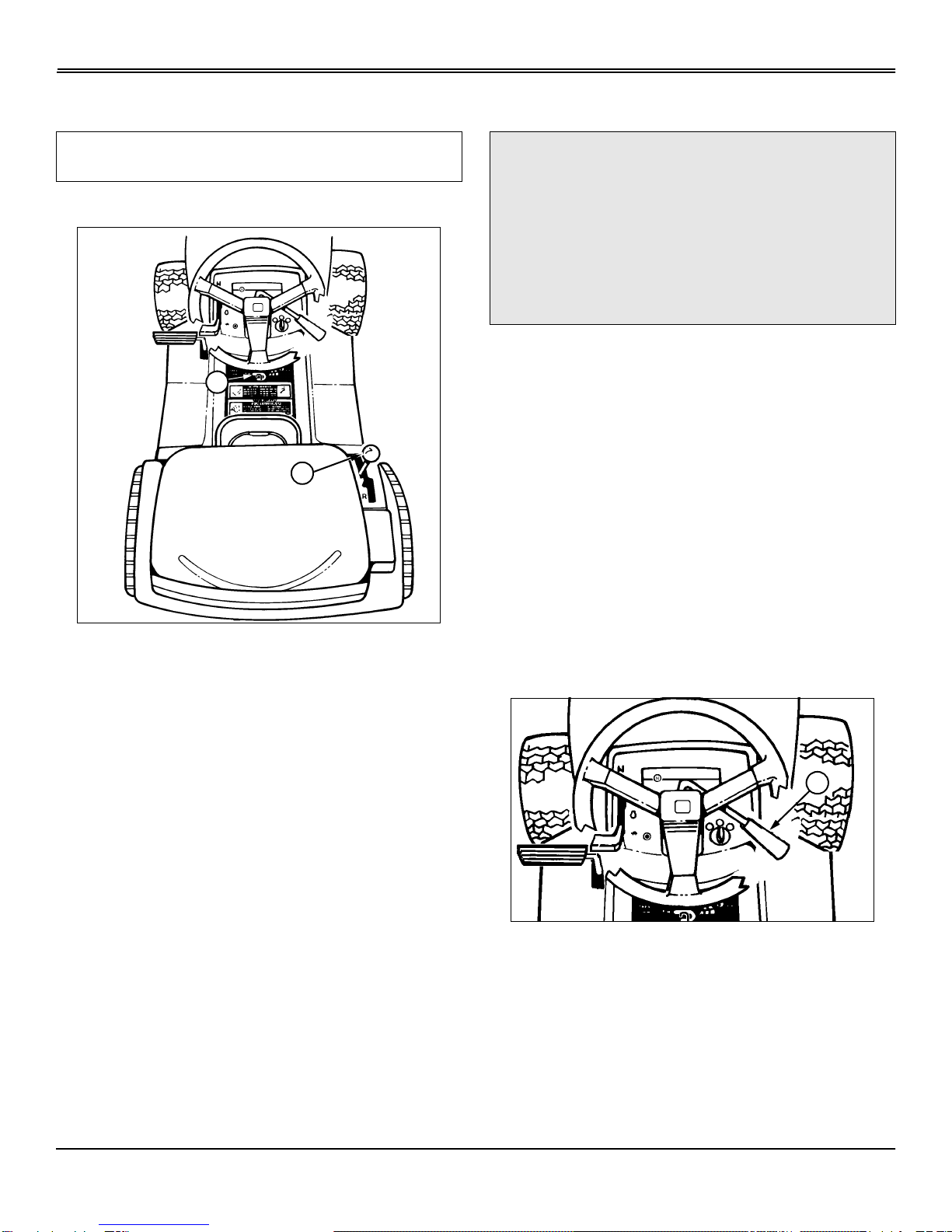

Using the Park Brake
LOCKING PARK BRAKE:
1. Push and hold foot pedal (A) all the way down.
2. Move park brake lever (B) forward, then to the left to lock
position.
3. Remove foot from pedal. Pedal should not return to the
up position.
M96454
A
cCAUTION: Avoid injury. Always LOCK park
brake before getting off tractor or leaving
tractor unattended.
A
B

Operating Machine - Page 9
OPERATING MACHINE
UNLOCKING PARK BRAKE
1. Push and hold foot pedal (A) all the way down.
2. Move park brake lever (B) to the right, then to the rear.
3. Remove foot from pedal. Pedal should return to the up
position.
Starting Engine
NOTE: Engine will not start unless: PTO lever is
DISENGAGED, park brake is LOCKED or brake pedal
pushed down. The transmission shift lever should be
in N (NEUTRAL) position.
1. Move transmission shift lever (A) to N (NEUTRAL)
position.
2. Lock the park brake (B).
3. Pull PTO lever (C) all the way back to the (OFF)
position.
4. Push throttle lever (D) up to the FAST (r) position and
pull out choke knob (E). As the engine begins to run
smoothly, push the choke knob in until it is fully seated.
5. Turn ignition key (F) to start position to crank the engine.
Crank engine until it starts, but no longer than 5 seconds.
6. Release key to run position when engine starts. If
engine does not start, release key to run position and wait
10 seconds before cranking the engine again.
7. Let engine run for a couple of minutes to warm-up
before operating tractor.
Using Throttle Control
Always operate the engine at FULL (r)THROTTLE.
Operating the engine at less that full throttle reduces the
battery charging rate and reduces fan cooling efficiency of
the engine.
Full throttle offers the best bagging and mower
performance.
Cold Weather Starting Tips
Always use fresh winter grade fuel.
Do not crank engine for more than 30 seconds in any single
attempt.
During first minute of operation engine may be operated in
partial choke to allow smoother running. As engine warms
slowly reduce engine speed to the full throttle detent
position.
Allow engine to run for a few minutes before using tractor to
allow automatic transmission oil to warm. Sluggish
transmission response in cold weather indicates that oil has
not warmed to allow optimum performance.
cCAUTION: Avoid injury. Start engine ONLY
outdoors or in a well ventilated place. Exhaust
fumes are dangerous.
IMPORTANT: Avoid machine damage. Do not
operate starter more than 20 seconds at a time, or
you may damage it. If engine does not start: Wait
two minutes before you try again. See
Troubleshooting section.
A
F
D
B
C
E

Operating Machine - Page 10
OPERATING MACHINE

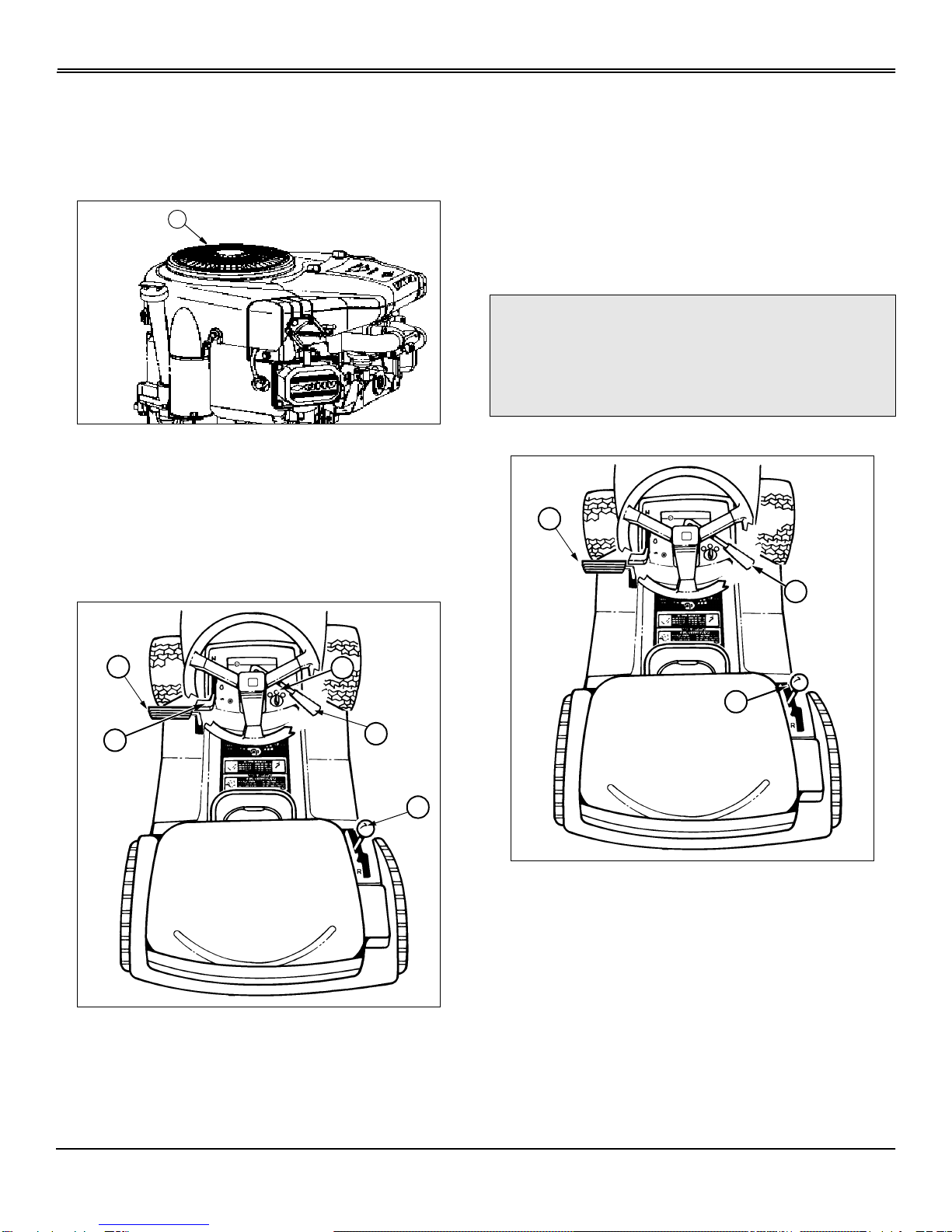

Warming and Idling Engine
WARMING ENGINE:
• Run Engine at half speed for 2–3 minutes.
IDLING ENGINE:
• Engine is air-cooled and needs a large volume of air to
keep cool. Keep air intake screen (A) on top of engine
clean.
• Avoid unnecessary engine idling.
Stopping Engine
1. Push down on foot pedal (A).
2. Move transmission shift lever (B) to N (NEUTRAL)
position.
3. Pull PTO lever (C) all the way back to the rearward
(OFF) position.
4. Move throttle lever (D) to SLOW (t) position. Let engine
run at low throttle a few seconds.
5. Turn key (E) to OFF position.
6. Remove key.
7. LOCK the park brake.
Using Travel Controls
TO TRAVEL FORWARD:
Move shift lever (A) to the right and forward to desired
FORWARD speed.
M96455
A
E
D
A
C
B
cCAUTION: Avoid injury:
• Before moving forward or rearward, make sure
area is clear of bystanders, especially children.
• Disengage mower or attachment before
backing up.
A
C
B

Operating Machine - Page 11
OPERATING MACHINE
TO TRAVEL IN REVERSE:
NOTE: The engine and mower will stop as the shift
lever is moved to the R (REVERSE) position with
mower engaged.
1. Pull PTO lever (C) all the way back to the rearward
(OFF) position.
2. Look behind the vehicle to be sure there are no
bystanders nearby.
3. Move shift lever (A) rearward to the R (REVERSE)
position.
FOR EMERGENCY STOPPING:
1. Push foot pedal (B) fully to stop machine. Transmission
shift lever (A) will automatically return to NEUTRAL.
Using Reverse Implement Option
NOTE: Operating the mower while backing up is
strongly discouraged. The Reverse Implement Option
should be used ONLY when operating another
attachment or when the operator deems it necessary to
reposition the machine with the mower engaged.
1. Stop the machine FORWARD travel with mower
engaged.
2. Look behind the vehicle to be sure there are no
bystanders.
3. Push and hold in the reverse implement switch (A)
while:
4. Move the drive lever to the R (REVERSE) position.
NOTE: If the engine and mower stop while
repositioning the machine, return mower engagement
lever to the OFF position and restart the machine. (See
Starting The Engine in this section.) Begin again with
Step 2.
5. As the machine begins to move rearward, release the
reverse implement switch and reposition the machine.
6. Resume FORWARD travel. The mower should continue
operating.
7. Repeat Steps 1 through 5 to reposition the machine
again.
cCAUTION: Avoid injury. Before moving forward
or rearward, make sure area is clear of
bystanders, especially children.
A

Operating Machine - Page 12
OPERATING MACHINE

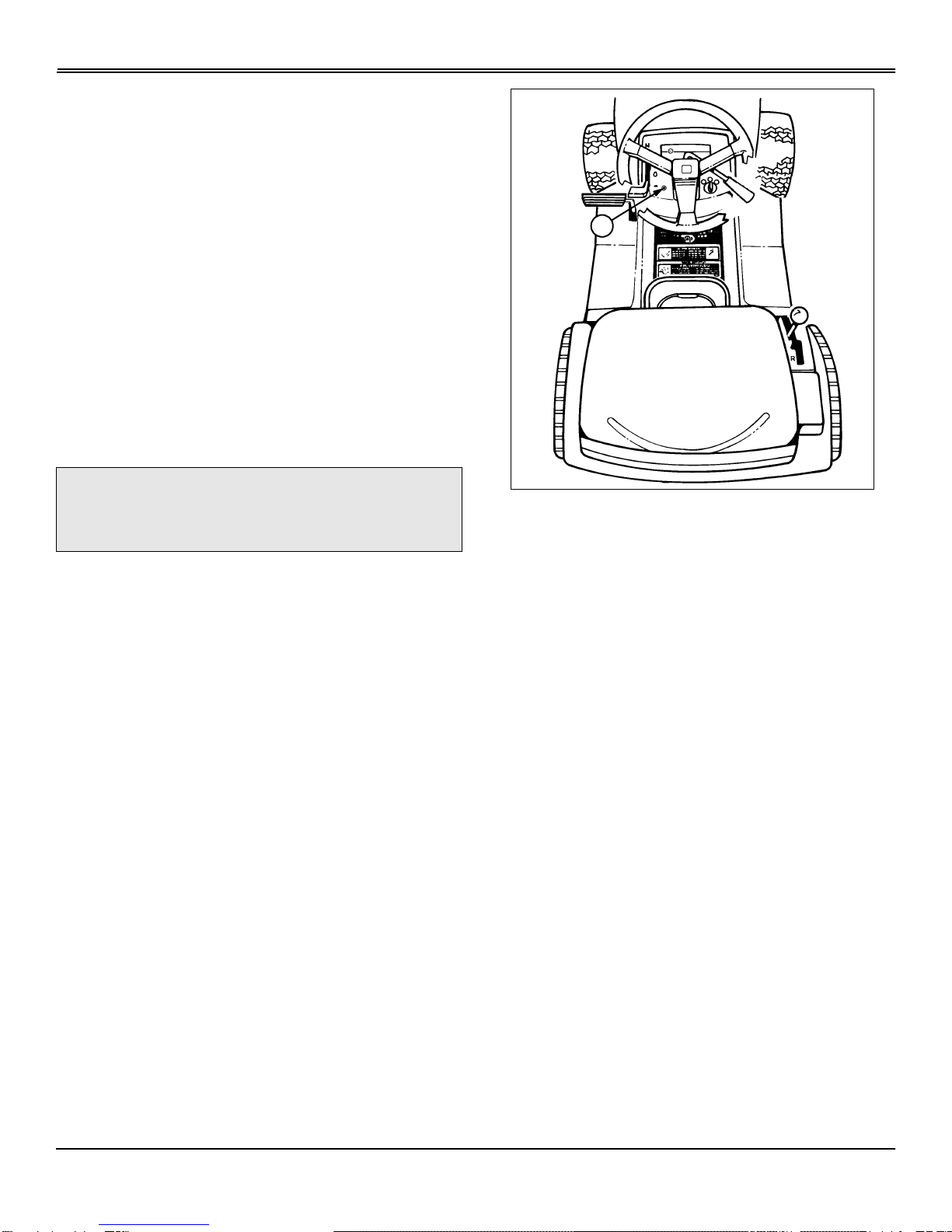

Pushing Machine
To move machine when engine is STOPPED:
1. Unlock the park brake (A).
2. Put transmission shift lever (B) in N (Neutral).
3. Push machine to desired location.
Daily Operating Checklist
• Test safety systems.
• Check tire pressure.
• Check fuel level.
• Check engine oil level.
• Remove grass and debris from machine.
Testing Safety Systems
Use the following checkout procedure to check for normal
operation of machine.
If there is a malfunction during one of these procedures,
DO NOT operate machine. (See your Authorized Service
Center for service.)
Perform these tests in a clear open area. Keep bystanders
away.
NOTE: Your Lawn Tractor is equipped with a
ELECTRONIC SAFETY INTERLOCK. Engine will not
start unless: PTO lever is DISENGAGED. Brake pedal is
depressed OR parking brake is set.
Test 1
1. Operator on seat.
2. Unlock the park brake.
3. Pull PTO lever (A) back to DISENGAGE.
4. Try to start engine.
5. Engine MUST NOT start. If engine starts, there is a
problem with your safety interlock circuit. (See your
Authorized Service Center.)
IMPORTANT: Avoid transmission damage, DO
NOT tow machine.
B
A
cCAUTION: Avoid injury. Engine exhaust fumes
can cause sickness or death.
If it is necessary to run an engine in an
enclosed area, remove the exhaust fumes from
the area with an exhaust pipe extension.
If you do not have an exhaust pipe extension,
open the doors and get outside air into the
area.
A

Operating Machine - Page 13
OPERATING MACHINE
Test 2
1. Operator on seat.
2. Lock the park brake.
3. Push PTO lever (A) forward to ENGAGE.
4. Try to start engine.
5. Engine MUST NOT start. If engine starts, there is a
problem with your safety interlock circuit. (See your
Authorized Service Center.)
Test 3
1. Operator on seat.
2. Lock the park brake.
3. Pull PTO lever (A) back to DISENGAGE.
4. Start engine and move throttle lever (B) to HALF-
SPEED (R)position.
5. Push PTO lever (A) forward to ENGAGE.
6. Move throttle lever to FAST (r) speed position.
7. Raise up off of seat. DO NOT get off tractor.
8. Engine will begin to stop. If engine does not begin to
stop, there is a problem with your safety interlock circuit.
(See your Authorized Service Center.)
Test 4
1. Operator on seat.
2. Push brake pedal down.
3. Pull PTO lever (A) back to DISENGAGE.
4. Put transmission shift lever (B) in N (NEUTRAL)
position.
5. Start engine and move throttle lever (C) to FAST (r)
speed position.
6. Release brake slowly.
7. Raise up off of seat. DO NOT get off tractor.
8. Engine will begin to stop. If engine does not begin to
stop, there is a problem with your safety interlock circuit.
(See your Authorized Service Center.)
Test 5
1. Operator on seat.
2. Lock the park brake.
A
A
B
CA

Operating Machine - Page 14
OPERATING MACHINE
3. Pull PTO lever (A) back to DISENGAGE.
4. Start engine and move throttle lever (B) to FAST (r)
speed position.
5. Raise up off of seat. DO NOT get off tractor.
6. Engine MUST remain running. If engine does stop,
there is a problem with your safety interlock circuit. (See
your Authorized Service Center.)
Test 6
1. Lock the park brake (A).
2. Put transmission shift lever (B) in N (Neutral).
3. Try to push machine manually.
4. Park brake MUST prevent machine from moving. If
machine moves, parking brake needs to be adjusted. (See
your Authorized Service Center.)
Test 7
Test Reverse Implement Option:
1. Start engine.
2. Push PTO lever (A) forward to ENGAGE.
3. Look behind the vehicle to be sure there are no
bystanders.
4. Begin REVERSE travel by moving the transmission shift
lever to R (REVERSE) position.
Mower and engine should stop operation. If mower or
engine continues to operate as tractor begins travel in
REVERSE, do not continue to operate mower. (See your
Authorized Service Center for service.)
Avoid Damage to Plastic and Painted
Surfaces
• DO NOT wipe plastic parts unless rinsed first. (See
Correct Cleaning Care in Service-Miscellaneous section.)
• Insect repellent spray may damage plastic and painted
surfaces. Do not spray insect repellent near machine.
• Be careful not to spill fuel on machine. Fuel may
damage surface. Wipe up spilled fuel immediately.
A
B
B
A
C
cCAUTION: Avoid injury. Before moving
rearward, make sure area is clear of
bystanders, especially children.
A

Operating Machine - Page 15
OPERATING MACHINE
Avoid Using Ground Engaging Equipment
This tractor is not intended for use with ground engaging
equipment such as a rear tiller, disk, blade or plow.
Using Front Weights
Install front wheel weights, two required, for better stability
and steering control when you use equipment such as the
rear-mounted grass bagger or dumpcart.
See your Authorized Service Center for Front Weights.
Remove front wheel weights when not required.
Using Rear Wheel Weights
Use of rear wheel weights is recommended for improved
traction when an attachment, such as snowthrower or blade
is used.
See your Authorized Service Center for Rear Weights.
Using Tire Chains
Tire chains are recommended for use with snowthrower
and, under certain conditions, the front blade.
See your Authorized Service Center for Tire Chains.
Transporting
Do not tow machine.
Use a heavy-duty trailer to transport your machine.
Raise mower deck to highest position when transporting to
trailer.
Disengage PTO.
Drive forward onto trailer.
Lower mower or any attachment to trailer deck.
LOCK park brake.
Be sure trailer has all the necessary lights and signs
required by law.
Fasten machine to trailer with heavy-duty straps, chains, or
cables. Both front and rear straps must be directed down
and outward from tractor.
IMPORTANT: Avoid machine damage. This tractor
is NOT intended for use with ground engaging
equipment. Use of such equipment could result in
damage to transmission components.
cCAUTION: Avoid injury. Tractor front wheel
weights improve stability in most slope
operation. To avoid injury, add front wheel
weights for better front-end stability and
steering when using a rear mounted
attachment.

Operating Mower - Page 16
OPERATING MOWER
Operating Mower
Operate Mower Safely
• In addition to reading your Operator’s Manual, view your
Mowing Safety Video.
Check Ground Conditions
• Clear mowing area of objects that might be thrown.
Keep people and pets out of mowing area.
• Study mowing area. Set up safe mowing pattern. Do not
mow under conditions where traction or stability is doubtful.
• First, test drive area with PTO lever DISENGAGED and
mower lowered. Slow down when you travel over rough
ground.
Avoid Injury From Contacting Blades
Before you dismount to unplug or adjust mower:
• DISENGAGE PTO lever to stop mower blades.
• STOP the engine.
• LOCK the park brake.
• Remove key.
• Wait for mower blades to STOP.
• Keep hands, feet and clothing away from mower deck
when engine is running.
• DISENGAGE PTO lever to stop mower bladeswhen you
are not using mower.
Using Lift Lever to Raise and Lower Mower
1. Push down on lift lever (A) slightly and hold locking lever
(B)downwiththumb.
2. Move lift lever (A) DOWN to LOWER mower or UP to
RAISE mower.
3. Release locking lever lock (B) to keep lift lever (A) in
position.
Adjusting Cutting Height
Cutting height can be adjusted from 38 – 102 mm (1-1/2 –
4in).
Check tractor tire pressure. (See Checking Tire Pressure in
Service Miscellaneous section.)
To adjust cutting height:
1. Push down on lift lever (A) slightly and hold locking lever
(B)downwiththumb.
2. Move lift lever (A) to desired cutting height.
3. Release locking lever (B) to keep lift lever (A) in position.
4. Adjust gage wheels to match cut height desired. (See
Adjusting Mower Gage Wheels below.)
A
B
A
B

Operating Mower - Page 17
OPERATING MOWER
Adjusting Mower Gage Wheels
1. Check tractor tire pressure. Inflate tires to the correct
pressure. (See Checking Tire Pressure in Service -
Miscellaneous section.)
2. Raise mower lift lever to TRANSPORT (upper) position
and adjust cutting height. (See Adjusting Cutting Height in
this section.)
3. Remove bolt (A), bushing (B), washer (C), and nut (D).
4. Move lift lever down to desired MOWING position.
5. Move mower gage wheels, one on each side, to one of
four holes for desired position. On 46-Inch Mower Deck,
move front and rear gage wheels.
6. Bottom of gage wheels should be approximately 6-13
mm (1/4-1/2 in) from the ground when properly adjusted.
7. Install bolt and tighten with nut.
Adjusting Mower Level (Side-to-Side)
NOTE: A deck leveling gauge (Part Number TY15272)
to aid in deck leveling may be obtained through your
local Authorized Service Center at a nominal cost.
1. Park tractor on a hard, level surface.
2. Stop engine and remove key.
3. CHECK: Tire pressures must be correct. (See Checking
Tire Pressure in Service – Miscellaneous section.)
4. Adjust cutting height to middle position.
5. Turn left blade parallel to tractor axle. Hold drive belt and
turn right blade parallel to axle.
6. Measure from each outside blade tip (A) to the level
surface. The difference between measurements must not
be more than 3 mm (1/8 in).
cCAUTION: Avoid injury, before you adjust gage
wheels: STOP engine, remove key, and wait for
blades to STOP.
IMPORTANT: Avoid machine damage. Mower
gage wheels must not ride on ground to support
mower weight. Adjust gage wheels each time you
change cutting height.
M88571
D
A
B
C
cCAUTION: Avoid injury, before you adjust
mower: STOP engine, remove key, and wait for
blades to STOP.
Be careful, sharp edges on mower blades.
Always wear gloves when handling mower
blades.
A
A
A
M40161
