Scuba Force Bright User manual

BRIGHT
CANISTER & LIGHT SET

©2019 SCUBA FORCE | Doc. No. 01-2021 Rev. 1 26.07.2021 Page 2 of 17
BRIGHT CANISTER AND LIGHT SET INSTRUCTION MANUAL
Inhaltsverzeichnis
1. INTRODUCTION............................................................................................................................................3
COPYRIGHT............................................................................................................................................................3
2. WARNING, CAUTION AND REMARKS ...........................................................................................................4
WARNING .............................................................................................................................................................4
CAUTION...............................................................................................................................................................4
REMARKS ..............................................................................................................................................................4
TECHNICAL SUPPORT .......................................................................................................................................4
3. SCOPE OF DELIVERY .....................................................................................................................................5
3.1 SCOPE OF DELIVERY –LAMP SET ..........................................................................................................................5
3.2 SCOPE OF DELIVERY -CANISTER SET......................................................................................................................6
4. TECHNICAL SPECIFICATION ..........................................................................................................................7
4.1 CANISTER ........................................................................................................................................................7
4.2 LAMP HEAD .....................................................................................................................................................8
4.3 PROTECTION CASE.............................................................................................................................................8
5. CHARGING OF THE BATTERY ........................................................................................................................9
5. 1PREPARATION..................................................................................................................................................9
5.2 GENERAL NOTES ON THE HANDLING OF LITHIUM-ION BATTERIES .............................................................................11
5.2.1 HAZARDS WHEN DEALING WITH LITHIUM-ION BATTERIES:...................................................................................11
MECHANICAL LOADS .............................................................................................................................................11
CHEMICAL REACTIONS ...........................................................................................................................................11
THERMAL LOADS,RISK OF FIRE................................................................................................................................11
5.2.2 SAFETY INSTRUCTIONS FOR LITHIUM-ION BATTERIES...........................................................................................12
RISKS/DANGERS ...................................................................................................................................................12
CORRECT INTERACTION ..........................................................................................................................................12
PERSONAL SAFETY IN CASE OF ACCIDENTS .................................................................................................................12
FLUID LEAKAGE ....................................................................................................................................................12
FIRE FIGHTING MEASURES......................................................................................................................................12
6. ASSEMBLY..................................................................................................................................................13
7. CONTROLLING............................................................................................................................................14
8. MOUNTING................................................................................................................................................15
9. CONNECTING .............................................................................................................................................15
10. CARE AND MAINTENANCE .......................................................................................................................16
11. CERTIFICATION AND DISPOSAL ................................................................................................................16

©2019 SCUBA FORCE | Doc. No. 01-2021 Rev. 1 26.07.2021 Page 3 of 17
BRIGHT CANISTER AND LIGHT SET INSTRUCTION MANUAL
1. Introduction
This manual describes the unique functions and features of the SCUBA FORCE battery tank
and lamp set, as well as the optional accessories. The more familiar you are with your new
equipment, the more you will enjoy your diving experience. By following the instructions in
this manual, you will understand how your battery tank or lamp set works, how to make the
most of its features, and how to ensure that it is optimally suited to your needs.
All SCUBA FORCE battery tanks and lamp sets are made from highest quality materials using
only the latest computer-aided design and manufacturing techniques to ensure their highest
performance and reliability.
In case the instruction manual is not available or lost, it can be downloaded from our
website.
Copyright
All rights, as well as technical changes reserved. In addition, the reprinting, translation or
photomechanical reproduction (photocopy, microcopy) of extracts requires the prior
consent of SCUBA FORCE.
www.scubaforce.eu
SCUBA FORCE
Dive2gether.net Tauchsport GmbH
Reststrauch 197
41199 Mönchengladbach
Tel.: [phone]
Email: [email protected]
•TRADEMARK NOTICE:
The SCUBA GFORCE logo is a registered trademark of dive2gether.net Tauchsport GmbH.

©2019 SCUBA FORCE | Doc. No. 01-2021 Rev. 1 26.07.2021 Page 4 of 17
BRIGHT CANISTER AND LIGHT SET INSTRUCTION MANUAL
A WARNING identifies a procedure or situation that, if not avoided,
could result in serious injury, or possibly worse.
2. Warning, Caution and Remarks
Please pay special attention to all information that is marked with Warning, Caution and
Remark according to the following symbols:
Warning
Caution
Remarks
Technical Support
In case of any uncertainties concerning this manual, or in case you do not get sufficient
answers from your diving center or diving instructor, please do not hesitate to contact us.
ANOTE emphatically refers to important issues, notes and
reminders.
CAUTION points out a situation or way of usage that may damage the
product and, as a result cause injury to the user.

©2019 SCUBA FORCE | Doc. No. 01-2021 Rev. 1 26.07.2021 Page 5 of 17
BRIGHT CANISTER AND LIGHT SET INSTRUCTION MANUAL
1
2
3
4
5
6
3. Scope of Delivery
3.1 Scope of Delivery –Lamp Set
The BRIGHT lamp set includes:
1. Charger
2. Charging cable with US adapter
3. Lamp head with goodman handle and E/O cord
4. Spare O-rings (1 set)
5. Battery tank incl. battery (we also refer to the body made from Delrin as canister)
6. Protection case

©2019 SCUBA FORCE | Doc. No. 01-2021 Rev. 1 26.07.2021 Page 6 of 17
BRIGHT CANISTER AND LIGHT SET INSTRUCTION MANUAL
5
3
2
1
4
3.2 Scope of Delivery - Canister Set
The BRIGHT battery set includes:
1. Charger
2. Charging cable with US adapter
3. Spare O-rings (1 set)
4. Battery tank incl. battery (we also refer to the body made from Delrin as canister)
5. Protection case

©2019 SCUBA FORCE | Doc. No. 01-2021 Rev. 1 26.07.2021 Page 7 of 17
BRIGHT CANISTER AND LIGHT SET INSTRUCTION MANUAL
4. Technical Specification
4.1 Canister
Weight
1740 gr
Length
250 mm
Length incl. bend protection
310 mm
Diameter
68 mm
Length E/O Cord
ca. 90 cm
Material - Body
Polyoxymethylen (Delrin)
Material - Head
Anodised Aluminium
A h
23,8
W h
257
Operating time X-Heat System
100 %
ca. 210 Minutes
75 %
ca. 279 Minutes
50 %
ca. 419 Minutes
Battery
Lithium Ions 3S7P
Dimming
100 / 75 / 50 %
Controlling
Piezzo Switch
Voltage
10,8 V

©2019 SCUBA FORCE | Doc. No. 01-2021 Rev. 1 26.07.2021 Page 8 of 17
BRIGHT CANISTER AND LIGHT SET INSTRUCTION MANUAL

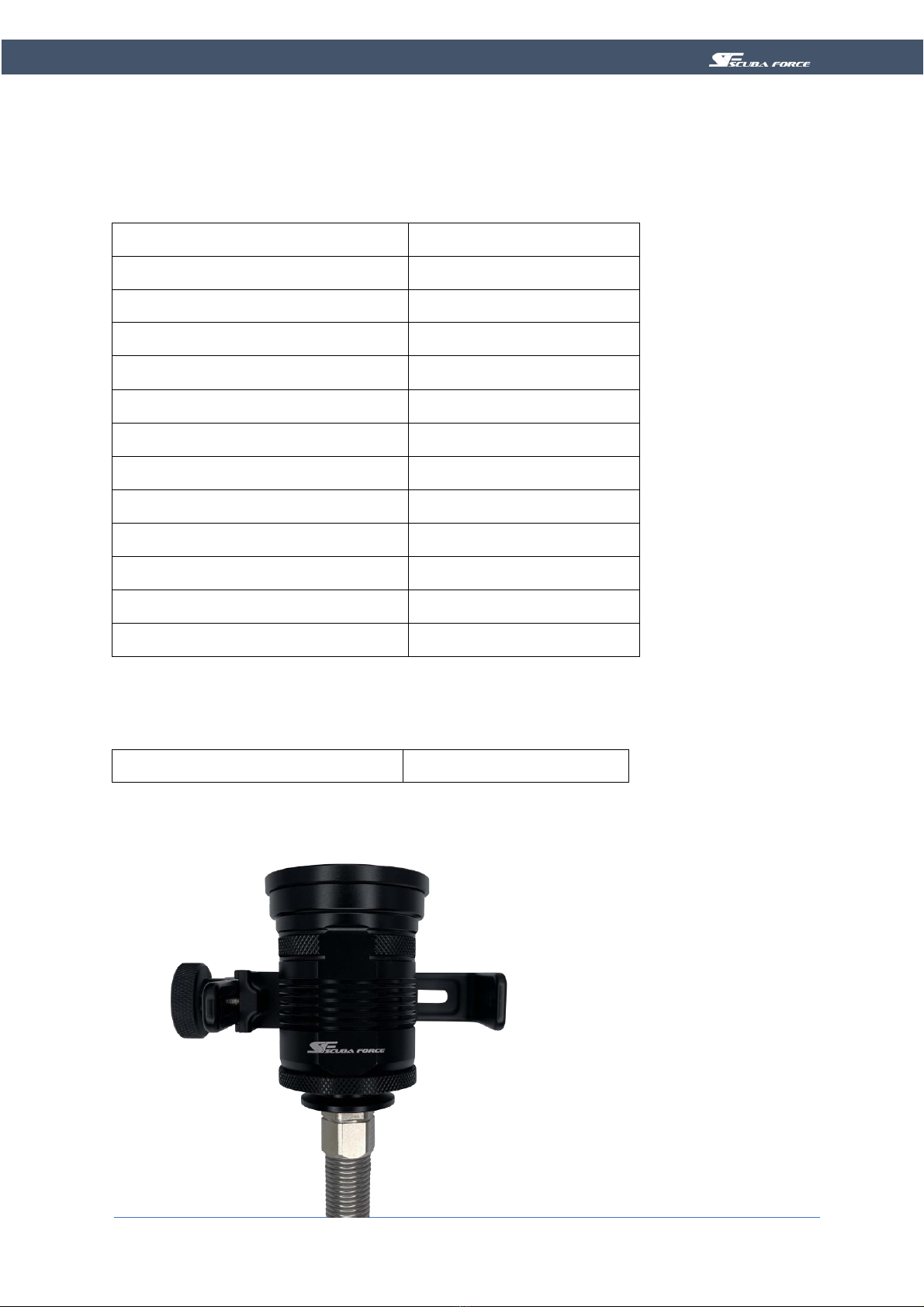

4.2 Lamp Head
4.3 Protection Case
Weight
480 gr
Length
80 mm
Length incl. bend protection
140 mm
Diameter
55 mm
Length E/O Cord
ca. 25 cm
Material
Anodised Aluminium
Operating time - 100 %
ca. 400 Minutes
Operating time - 75 %
ca. 550 Minutes
Operating time - 50 %
ca. 830 Minutes
LED
CREE XHP70
Lumen
4000
Beam angle
8 °
Measurments
35 x 25 x 8 cm
Measurments
35 x 25 x 8 cm

©2019 SCUBA FORCE | Doc. No. 01-2021 Rev. 1 26.07.2021 Page 9 of 17
BRIGHT CANISTER AND LIGHT SET INSTRUCTION MANUAL

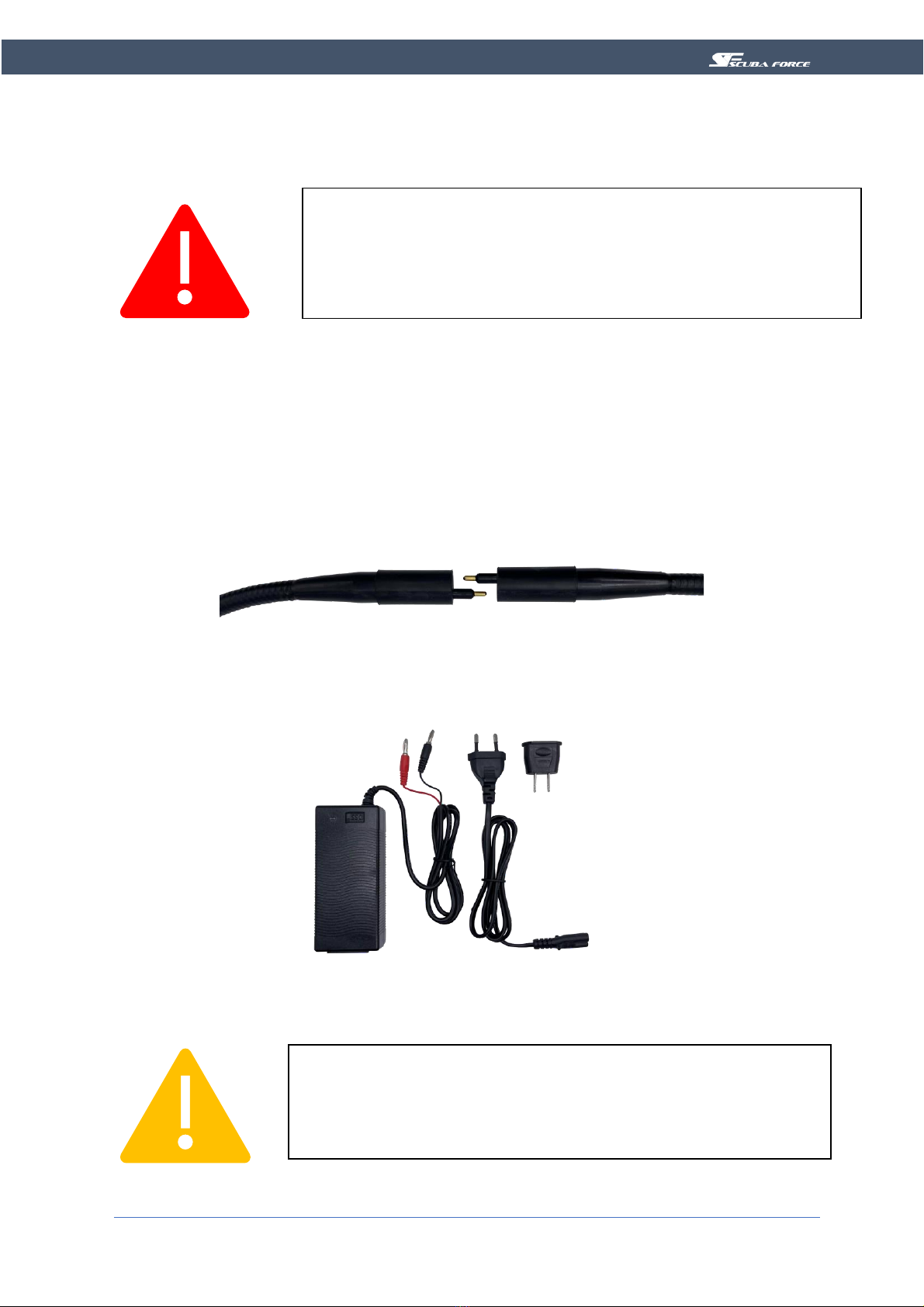

Please, only use the provided charger to charge the battery. The
use of unsuitable chargers can irreparably damage the battery.
Damage caused by incorrect charging is not covered by the
warranty.
5. Charging of the Battery
5. 1 Preparation
The battery must be removed from the canister before charging. To do this, disconnect the
lamp head from the battery tank (if in use). To do this, simply use the E/O cords.
The head of the battery tank is opened counterclockwise. Once you have unscrewed the
canister, you can separate the battery tank from the head. That way, the charging sockets
are exposed and accessible.
Handling lithium-ion batteries requires great care.
On the following pages you will find many instructions that you must
follow.
Incorrect interaction with lithium-ion batteries can lead to serious
injury or even death.

©2019 SCUBA FORCE | Doc. No. 01-2021 Rev. 1 26.07.2021 Page 10 of 17
BRIGHT CANISTER AND LIGHT SET INSTRUCTION MANUAL
Colored marks and labels help to connect the charger correctly.
Red belongs to red. The charging plug and charging cable at the
charger are red and belong on the side of the battery, also
highlighted in red.
When connecting the charger, it is important to pay attention to the correct polarity. The
red cable is the positive pole. The battery also has a red label on the positive side (see photo
below). Connect the charger to the battery first, before plugging the charger into the socket.
The battery has an integrated electronic system (balancer). This protects the battery during
the charging process and during actual use. On the head side of the battery is an LED display
that provides information about the state of charge. The display consists of 5 LEDs, one LED
each stands for 20% of charge.
By pressing the dot, the display will be
activated. In the picture on the left, all 5
LEDs are lit, which means that the
battery is fully charged.
