ASSEMBLY MANUAL
Code : SEA 362
Specications:
Wingspan--------------- 85.0 in (215.9 cm).
Wing area--------------- 775.0 sq.ins (59.0 sq.dm).
Weight------------------- 16.8lbs (7.6 kg).
Length------------------- 59.2 in (150.3 cm).
Engine/Motor size----- 35-40cc gasoline.
Radio--------------------- 8 channels with 9 servos.
Motor 160/ 2700watt/ ESC 70A-100A/ Lipo 9s-10s.
Electric propeller 18x8-20x10.

Cessna 208 Grand Caravan 85 inch wingspan 35-40cc Instruction Manual.
2
ank you for choosing the CESSNA 208 GRAND CARAVAN ARTF by SG MODELS
. e 85’’ CESSNA GRAND CARAVAN was designed with the intermediate/advanced
sport yer in mind. It is a semi scale airplane which is easy to y and quick to assem-
ble. e airframe is conventionally built using balsa, plywood to make it stronger than
the average ARTF, yet the design allows the aeroplane to be kept light. You will nd that
most of the work has been done for you already. e motor mount has been tted and
the hinges are pre-installed. Flying the CESSNA 208 GRAND CARAVAN is simply a joy.
is instruction manual is designed to help you build a great ying aeroplane. Please read
this manual throughly before starting assembly of your CESSNA 208 GRAND CARAVAN
Use the parts listing below to indentify all parts.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is ca-
pable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & REPONSIBILITY.
If you are inexperienced with basic R/C ight we strongly recommend you contact your R/C
supplier and join your local R/C model Flying Club. R/C Model Flying Clubs oer a variety
of training procedures designed to help the new pilot on his way to successful R/C ight.
ey will also be able to advise on any insurance and safety regulations that may apply.
INTRODUCTION
WARNING
KIT CONTENTS
1
2
2 2
3
3
54
12
13 16
11
17
10
8
9
7
6
14
15

3
KIT CONTENTS
SEA362 CESSNA 208 GRAND CARAVAN
85 INCH WINGSPAN 3540CC
1. Fuselage
2. Wing set (3)
3. Tail set (2)
4. Canopy
5. Cowling
6. Wing tube
7. Cockpit and Pilot
8. Landing gear
9. Nose gear
10. Fuel tank
11. Pushrod set
12. Ep Motor box
13. Led light set
14. Windows
15. Cargo Pod
16. Spinner
17. Fiberglassed covers set
ADDITIONAL ITEMS REQUIRED
TOOLS & SUPPLIES NEEDED
in cyanoacrylate glue.
Medium cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
read-lock.
Paper towels.
�35-40cc gasoline engine.
�Computer radio 8 channel with 9
servos.
�Glow plug to suit engine.
�Propeller to suit engine.
�Protective foam rubber for radio
system.
LED LIGHT SET
Please see pictures below.
2.
1.
3.

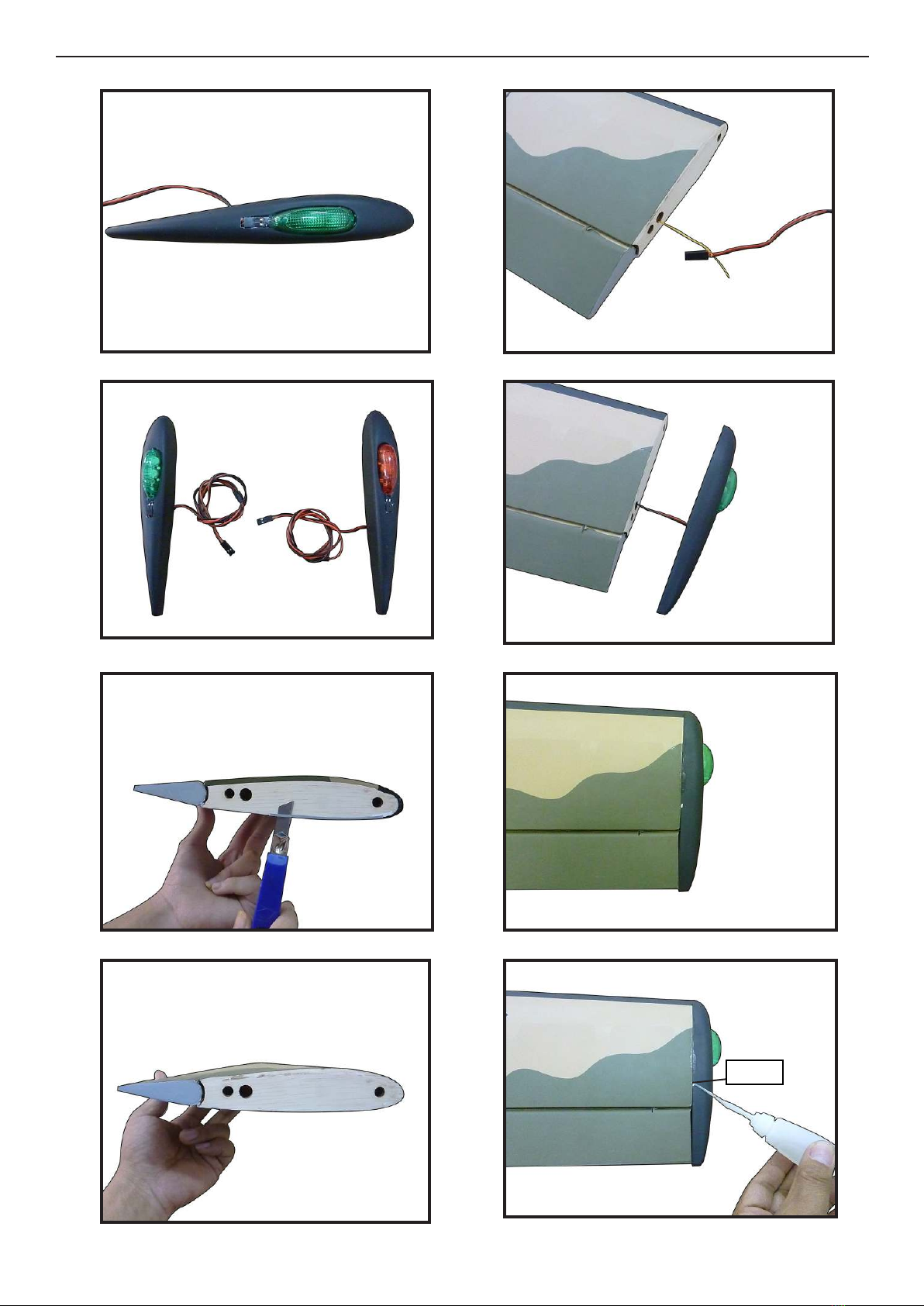

One white light and one green light for
the right wing tip, one white light and one
red light for the le wing tip.

Cessna 208 Grand Caravan 85 inch wingspan 35-40cc Instruction Manual.
4
9.
8.
10.
11.
4.
5.
6.
7.

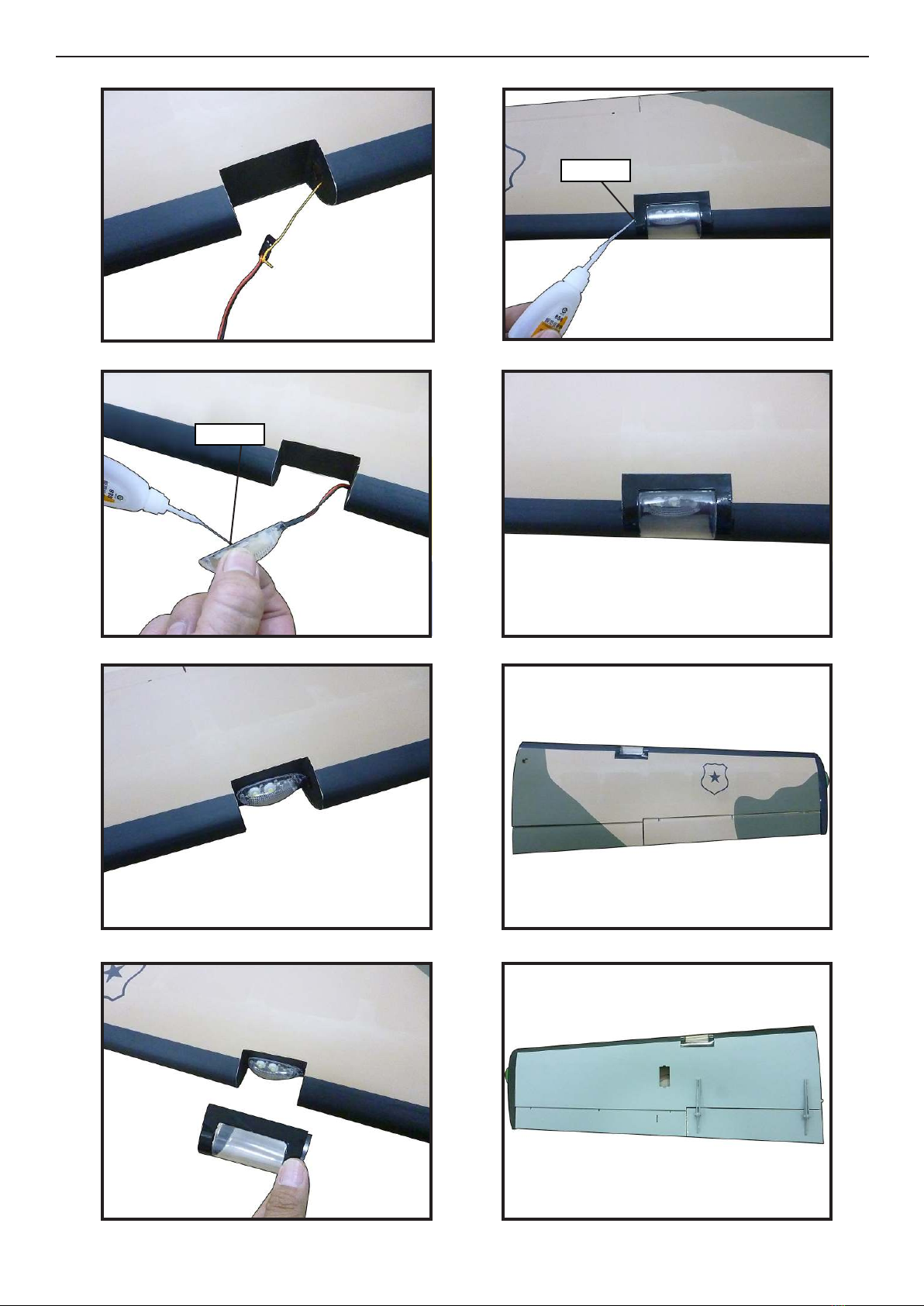

silicone sealant.
silicone sealant.

5
12.
13.
14.
15.
17.
16.
18.
19.
Epoxy.

Cessna 208 Grand Caravan 85 inch wingspan 35-40cc Instruction Manual.
6
20.
21.25.
22.26.
23.27.
24.
C/A glue.
C/A glue.

7
6.
7.
INSTALL THE AILERONS
CONTROL HORN
Fiberglass control horn.
Epoxy.
1.
5.
2.
3.
4.
Epoxy.
Epoxy.
Ailerons control horn.

Cessna 208 Grand Caravan 85 inch wingspan 35-40cc Instruction Manual.
8
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.
INSTALLING THE AILERON SERVOS
Minimum servo spec.
Torqu e : 115.3 oz-in (8.3 kg-cm) @ 4.8V;
157.8 oz-in (11.3 kg-cm) @ 6.0V
180.1 oz-in (12.9 kg) @ 7.4V
Set the aileron hatch in place and use a
Phillips screw driver to install it with four
wood screws.
5.
6.
Use dental oss or heatshrunk tube to
secure the connection so they cannot be-
come unplugged.
7.
1.
4.
2.
3.

9
AILERON PUSHROD INSTALLATION
2.
3.
8.
1.
65mm.
1.
INSTALL FLAP CONTROL HORN
Fiberglass control horn.
2.
3.
4.
Epoxy.

Cessna 208 Grand Caravan 85 inch wingspan 35-40cc Instruction Manual.
10
INSTALLING THE FLAP PUSHROD
3.
2.
85mm.
4.
5.
7.
1.
5.
6.
Epoxy.
Epoxy.
Please see below pictures.

11
7.
6.
8.
9.
LANDING GEAR INSTALLATION
Locate items needed for landing gear
installation.
1.
2.
3.

Cessna 208 Grand Caravan 85 inch wingspan 35-40cc Instruction Manual.
12
9.5.
8.4.
10.6.
11.7.
2x8mm.
4x25mm.

13
12.
13.
16.
15.
17.
18.14.
19.
3x4mm.

Cessna 208 Grand Caravan 85 inch wingspan 35-40cc Instruction Manual.
14

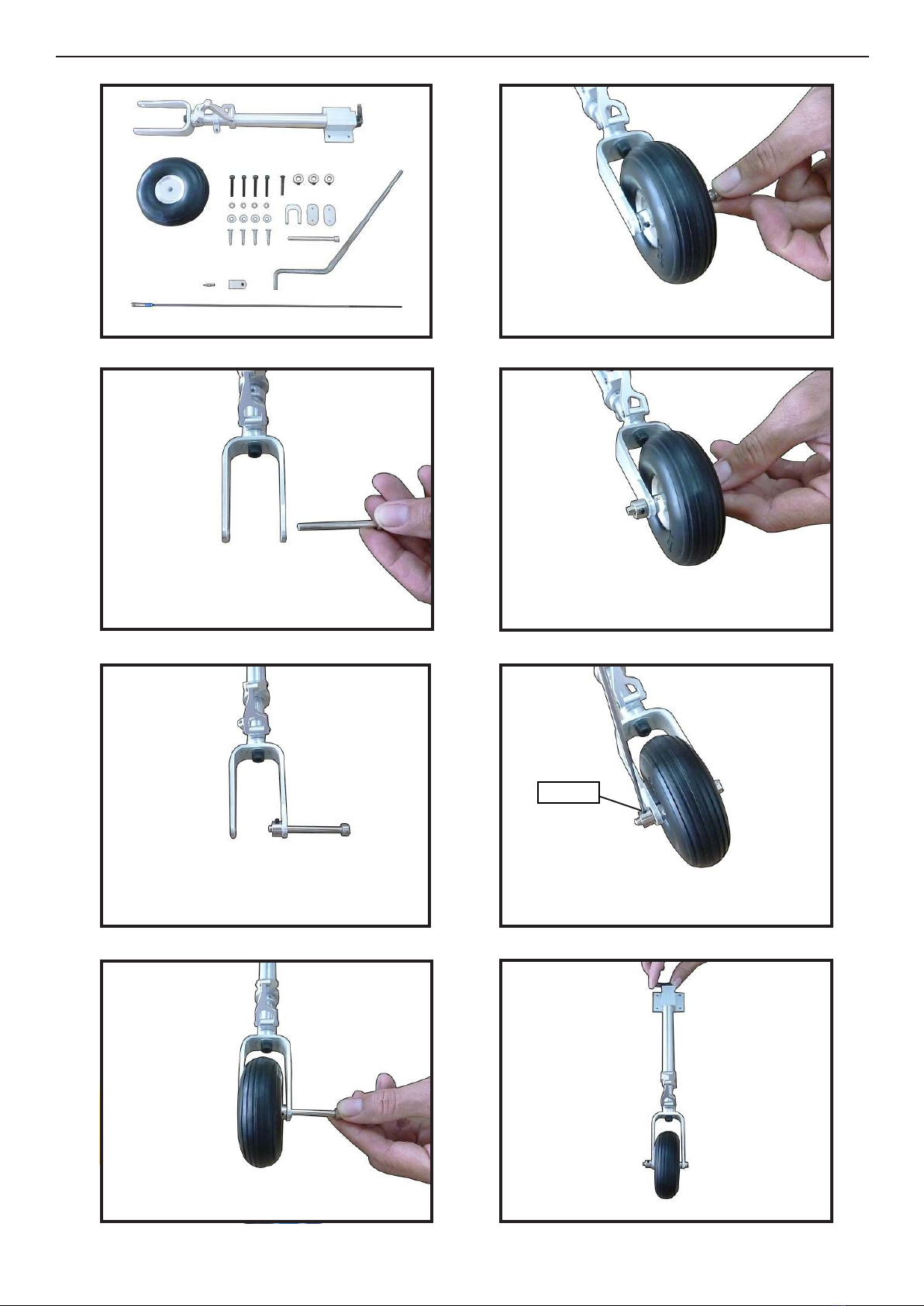

NOSE GEAR INSTALLATION
Locate the parts needed to attach the
nose gear.
20.24.
21.25.
22.26.
23.
3x4mm.

15
1.
2.
5.
4.
6.
7.3.
8.
3x4mm.

Cessna 208 Grand Caravan 85 inch wingspan 35-40cc Instruction Manual.
16
9.
10.
13.
12.
14.
15.11.
16.
M3x20mm.
M3x15mm.

17
17.
18.
21.
20.
22.
23.19.
24.
3x20mm

Cessna 208 Grand Caravan 85 inch wingspan 35-40cc Instruction Manual.
18
25.
26.
29.
28.
30.
27.
Install the switch into the precut hole in
it the side, of the fuselage.
3/32” Hole.
Trim and cut.
1.
2.
INSTALLING THE RECEIVER SWITCH
Epoxy.

19
2.
.
Switch.
3.
1.
INSTALLING THE ENGINE SWITCH
Trim and cut.
Switch.
INSTALLING THE STOPPER
ASSEMBLY
Using a modeling knife, carefully cut
o the rear portion of one of the 3 nylon
tubes leaving 1/2” protruding from the
rear of the stopper. is will be the fuel
pick up tube.
Using a modeling knife, cut one length
of silicone fuel line. Connect one end of
the line to the weighted fuel pick up and
the other end to the nylon pick up tube.
Carefully bend the second nylon tube up at
a 45º angle. is tube is the vent tube.
Test t the stopper assembly into the tank.
It may be necessary to remove some of the
ashing around the tank opening using a
modeling knife. If ashing is present, make
sure none falls into the tank.
1.
With the stopper assembly in place, the
weighted pick-up should rest away from the
rear of the tank and move freely inside the
tank. e top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
When satised with the alignment of the
stopper assembly tighten the 3 x 20mm ma-
chine screw until the rubber stopper expands
and seals the tank opening. Do not over-
tighten the assembly as this could cause the
tank to split.
FUEL TANK INSTALLATION
1.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once the
tank is installed inside the fuselage, it may be
dicult to determine which is which.

Cessna 208 Grand Caravan 85 inch wingspan 35-40cc Instruction Manual.
20
MOUNTING THE ENGINE
Please see images below.
1.
6.
Vent tube.
Fuel pick up tube. Fuel ll tube.
Connect the lines from the tank to the
engine and muer. e vent line will
connect to the muer and the line from
the clunk to the carburetor.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should ow
through easily.
2.
3.
4.
5.
Epoxy.
Epoxy.
Balsa wood.
