Jetson Safara User manual

Safara Max
Electric Ride-On.
A guide for your ride.
IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE.
MODEL: JSAFX-NAV
Designed in Brooklyn | Made in China

Jetson's top two riding rules:
Be safe. Have fun!

3
Table of Contents
Safety Warnings
Specs & Features
What’s in the Box
Front Bumper Assembly
Fear Bumper Assembly
Side Fenders Assembly
Steps Assembly
Front Axle Assembly
Front Wheel Assembly
Rear Axle Assembly
Rear Wheel Assembly
Dashboard Assembly
Steering Rod Assembly
Steering Wheel Assembly
Dual Seats Assembly
Side Mirrors Assembly
Rear Tailstock Assembly
Using the Remote Control
Using the Steering Wheel
A Guide to Your Dashboard
Charging the Safara Max
Helmet Safety
Care & Maintenance
...............................................................................................................4
..............................................................................................................7
..............................................................................................................8
....................................................................................................10
......................................................................................................12
.....................................................................................................14
..............................................................................................................16
........................................................................................................18
........................................................................................................21
........................................................................................................25
.........................................................................................................29
.......................................................................................................32
....................................................................................................34
.................................................................................................38
.......................................................................................................41
....................................................................................................44
..................................................................................................46
.................................................................................................49
.................................................................................................50
................................................................................................51
..................................................................................................52
................................................................................................................53
........................................................................................................54

4
• Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety
instructions. The user will be responsible for any loss or damage caused by improper use.
• Please check the drive system and frame before riding to ensure safety.
• Before each cycle of operation, the operator shall perform the preoperation checks speciied by the manufacturer:
That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition;
That the braking system is functioning properly; That any and all Haze guards, chain guards, or other covers or guards supplied
by the manufacturer are in place and in serviceable condition; That tires are in good condition and have suicient tread
remaining; The area that the product is to be operated should be safe and suitable for safe operation.
• Components shall be maintained and repaired in accordance with the manufacturer’s speciications and using only the
manufacturer’s authorized replacement parts with installation performed by dealers or other skilled persons.
• Don’t allow hands, feet, hair, body parts, clothing, or similar articles to come in contact with moving parts, wheels, or drive
train, while in use.
• This product should not be used by children or persons with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction (IEC 60335-1/A2:2006).
• Unsupervised children should not play with the product (IEC 60335-1/A2:2006).
• Adult supervision is required.
• The rider should not exceed 130lb.
• Never use near motor vehicle.
• Units shall not be operated to perform racing, stunt riding, or other maneuvers, which may cause loss of control, or may cause
uncontrolled operator/passenger actions or reactions.
• Avoid sharp bumps, drainage grates, and sudden surface changes. May suddenly stop.
• Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet weather impairs traction, braking, and visibility.
• Avoid riding around lammable gas, steam, liquid, or dust that could cause ire.
• Operators shall adhere to all of the manufacturer’s recommendations and instructions, as well as comply with all laws and
ordinances: Units without headlights shall be operated only with adequate daylight conditions of visibility, and; Owners shall
be encouraged to highlight (for conspicuity) using lighting, relectors, and for low-riding units, signal lags on lexible poles.
• Do not ride at night.
• Only ride the product with adequate daylight conditions for visibility.
• Persons with the following conditions shall be cautioned not to operate: Those with heart conditions; Pregnant women;
Persons with head, back, or neck ailments, or prior surgeries to those areas of the body; and persons with any mental or
physical conditions that may make them susceptible to injury or impair their physical dexterity or mental capabilities to
recognize, understand, and perform all of the safety instructions and to be able to assume the hazards inherent in unit use.
• Do not ride after drinking or taking prescription medication.
• Do not carry items when riding.
Safety Warnings

5
• Never operate the product while barefoot.
• Always wear shoes and keep shoelaces tied.
• Make sure your feet are always placed securely on the deck/pedal.
• Operators shall always use appropriate protective equipment, including but not limited to: a helmet with appropriate
certiication, protective clothing, knee pads, and elbow pads.
• Always give way to pedestrians.
• Be alert to things in front and far away from you.
• Do not allow distractions when riding, such as answering the phone or engaging in any other activities.
• When riding the product along with other riders, always keep a safe distance to avoid a collision.
• When turning, be sure to maintain your balance.
• Riding with improperly adjusted brakes is dangerous and can result in serious injury or death.
• Applying brakes too hard or too suddenly can lock up a wheel, which could cause you to lose control and fall. Sudden or
excessive application of the brake may result in injury or death.
• If the brake loosens, please adjust with the hexagon wrench, or please contact the Jetson Care Team.
• Replace worn or broken parts immediately.
• The area that the product is to be operated should be safe and suitable for safe operation.
• Check whether all safety labels are in place and understood before riding.
• The owner shall allow the use and operation of the unit after a demonstration that such operators can understand and operate
all components of the unit before use.
• Recommended for indoor use.
• Use caution when changing the batteries. Do not change batteries near lammable materials. Remove batteries from the
ride-on & remote when not in use for long periods of time.
• Prolonged exposure to UV rays, rain, and the elements may damage the enclosure materials. Store indoors when not in use.
MODIFICATIONS
Do not attempt to disassemble, modify, repair, or replace the product or any components of the unit without instruction from
the Jetson Care Team. This will void any warranty, and can lead to malfunctions which may cause injury.
ADDITIONAL OPERATION PRECAUTIONS
• Do not lift the product o the ground while it is on and the wheels are in motion. This can result in freely spinning wheels,
which may cause injury to yourself or others nearby.
• Do not jump on or o the product, and do not jump while using it.
• Always keep your feet irmly planted on the pedals while in operation.

6
MAINTENANCE PRECAUTIONS
For all maintenance repairs and needs beyond the capability of the consumer, which may include but not be limited to: such
as proper maintenance of brakes, control cables, bearing adjustments, wheel adjustments, lubrication, relectors, tires and
handlebar and seat adjustments, please contact the Jetson Care Team for assistance at:
ridejetson.com/support
US & Canada 1-[phone]
DISPOSAL OF USED BATTERY
Battery may contain hazardous substances which could endanger the environment and human health. This
symbol marked on the battery and/or packaging indicates that used battery shall not be treated as municipal
waste. Batteries should be disposed of at an appropriate collection point for recycling. By ensuring the used batteries are
disposed of correctly, you will help prevent potential negative consequences for the environment and human health. The
recycling of materials will help to conserve natural resources. For more information about recycling of used batteries,
please contact your local municipality waste disposal service.
NOTICE OF COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
WARNING: Changes or modiications to this unit not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.
FCC ID:
California Proposition 65
WARNING:
This product can expose you to a chemical such as Cadmium that is known to the state of California to cause cancer or birth
defects or other reproductive harm. For more information go to www.p65warnings.ca.gov/product

7
• MAX SPEED IN FAST MODE: UP TO 5 MPH
• MAX SPEED IN LOW MODE: UP TO 1.9 MPH
• MAX RANGE: 5 MILES
• RUN TIME: 12 HOURS
• BATTERY: RECHARGEABLE 24V, 7AH
• REMOTE CONTROL BATTERIES: 2 AAA BATTERIES NOT INCLUDED
• STEERING WHEEL BATTERIES: 2 AA BATTERIES NOT INCLUDED
• MOTOR: 40W X2
• PRODUCT WEIGHT: 80.3 LBS
• PRODUCT DIMENSIONS: L60” × W35.5” × H30”
• TIRE SIZE: 13.2” × 5.9”
• CHARGER OUTPUT: DC24V
• INITIAL CHARGE TIME: 1518 HOURS
• WEIGHT LIMIT: 130 LB FOR 2 RIDERS COMBINED
• RECOMMENDED AGE: 38 YEARS OLD
Specs & Features
ONE-YEAR GENERAL LIMITED WARRANTY
All new Jetson products, excluding parts and accessories, are warranted against defects in materials and workmanship
for a period of one year from the date of original retail purchase when used in accordance with Jetson's user manuals
(refer to ridejetson.com/support).
Under this warranty, you will be able to direct your claims to Jetson even in situations where you purchased the
Jetson Product from one of our authorized retailers.
To read the full terms of our warranty, visit ridejetson.com/warranty.

8

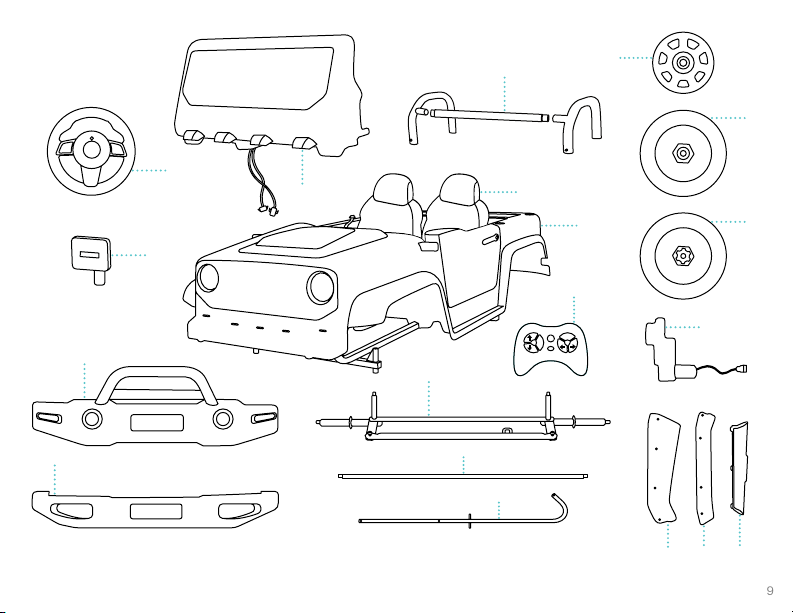

What’s in the Box
NUT
PREATTACHED
(7X)
BOLT
PREATTACHED
(1X)
WASHER
8 PREATTACHED,
1 NOT PREATTACHED
(9X)
SCREW
(36X)
PIN
(1X)
PIN
(1X)
HARDWARE/TOOLS INCLUDED:
WRENCH
SCREWDRIVER
A. BODY
B. SEAT WITH SEATBELT (2X)
C. DASHBOARD
D. STEERING WHEEL
E. SIDE MIRROR (2X)
F. FRONT BUMPER
G. REAR BUMPER
H. FRONT AXLE
I. REAR AXLE
J. STEERING ROD
K. FRONT FENDER (2X)
L. REAR FENDER (2X)
M. STEP (2X)
N. GEAR BOX (2X)
O. FRONT WHEEL (2X)
P. REAR WHEEL (2X)
Q. HUB CAP (4X)
R. REAR TAILSTOCK—SIDE FRAME (2X) & ROD
S. REMOTE CONTROL
* ADULTS MUST ASSIST CHILDREN IN THE INITIAL ADJUSTMENT PROCEDURES OF THE PRODUCT.

M
P
S
9
D
E
PLEASE NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT.
G
F
H
R
N
O
P
C
KL M
A
B
Q
S
I
J

10
1.1 Front Bumper Assembly
1. Getting Started
• TURN THE VEHICLE BODY UPSIDEDOWN.
• AFFIX THE FRONT BUMPER ALONG THE FRONT OF THE VEHICLE BODY.
ALIGN AND INSERT EACH OF THE 7 PEGS INTO THE 7 SCREWHOLES AND EACH OF THE 5 TABS INTO THE TAB INSERTS.
PEGS
TAB
SCREW HOLES
TAB INSERTS
FRONT BUMPER F

11
SCREW
• INSERT 7 SCREWS AND TIGHTEN WITH THE SCREWDRIVER.

12

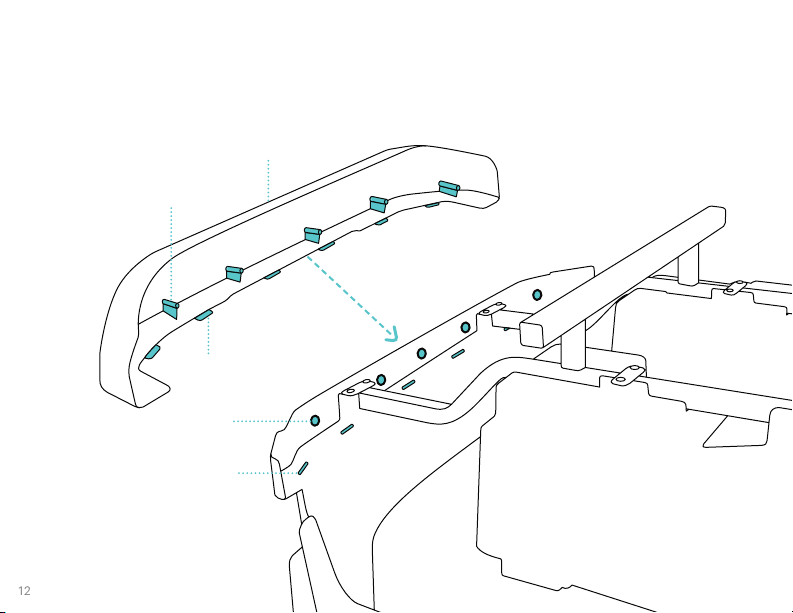

1.2 Rear Bumper Assembly
• AFFIX THE REAR BUMPER ALONG THE BACK OF THE VEHICLE BODY.
ALIGN AND INSERT EACH OF THE 5 PEGS WITH THE 5 SCREW HOLES AND EACH OF THE 6 TABS WITH THE 6 TAB INSERTS.
SCREW HOLES
PEGS
TAB
REAR BUMPER G
TAB INSERTS

13
• INSERT 5 SCREWS AND TIGHTEN WITH THE SCREWDRIVER.
SCREW

14
1.3 Side Fenders Assembly
• AFFIX EACH FENDER ALONG THE SIDE EDGES OF THE VEHICLE BODY, ALIGNING WITH SCREW HOLES.
FRONT FENDER K FRONT FENDER K
REAR FENDER L REAR FENDER L

15
• THERE ARE 4 FENDERS TOTAL. FOR EACH FENDER, INSERT 4 SCREWS AND TIGHTEN WITH A SCREWDRIVER.
SCREW
FRONT FENDER K FRONT FENDER K
REAR FENDER L REAR FENDER L

16

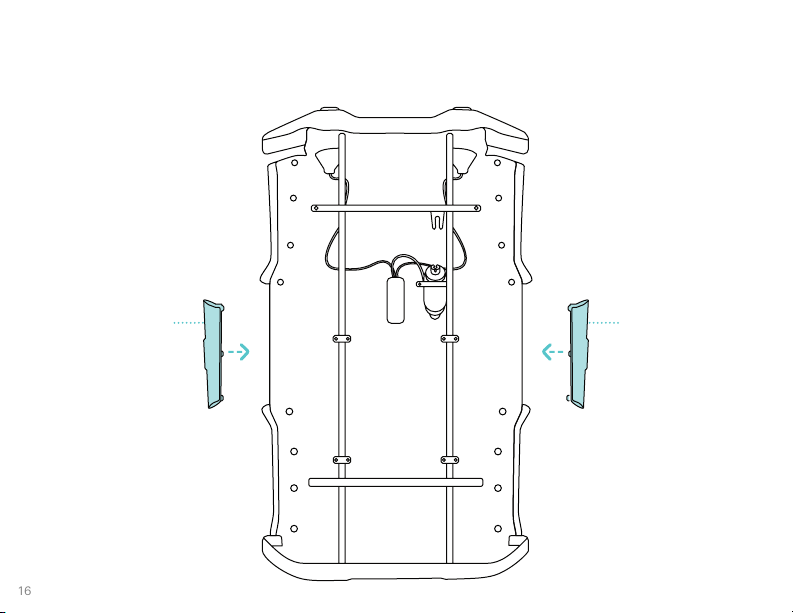

1.4 Steps Assembly
• AFFIX EACH STEP ALONG THE SIDE EDGES OF THE VEHICLE BODY, ALIGNING AND INSERTING EACH OF THE 3 TABS AND
ALIGNING THE 3 SCREW HOLES.
STEP MSTEP M

17
• FOR EACH STEP, INSERT 3 SCREWS AND TIGHTEN WITH A SCREWDRIVER.
SCREW
STEP M
STEP M

18

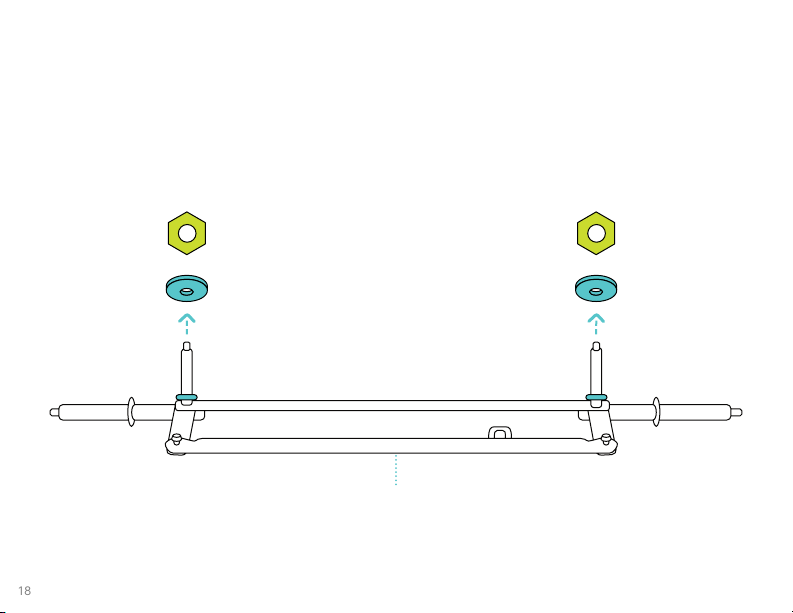

1.5 Front Axle Assembly
• THE TWO ARMS ON THE FRONT AXLE EACH HAVE 2 WASHERS AND 1 NUT PREATTACHED.
REMOVE 1 WASHER AND THE NUT FROM EACH ARM.
FRONT AXLE H
