Seagull Models HARRIER 3D User manual

Hand-made Almost Ready to Fly R/C Model Aircraft
ASSEMBLY MANUAL
MadeinVietnam.
Kit features
• Ready-made—minimalassembly&finishingrequired.
• Ready-coveredcovering.
• Factory-installed enginemount.
• Photo-illustratedstep-by-stepAssemblyManual.
HARRIER 3D
Specifications
Wingspan----------------------------------------60.5in----------------------------154cm.
Wing area-------------------------------- 948.38 sq.in-------------------- 61.18 sq.dm.
Approximate flying weight--------------------7-8lbs--------------------- 3.17-3.62kg.
Length-----------------------------------------------66in------------------------167.64cm.
Recommended engine size--------- .61-1.00 cu. in---------------------- 2-stroke.
--------- .91-1.10 cu.in----------------------- 4-stroke.
Radio System required 4 channel with 6 servos.
Flying skill level Intermediate/advanced.

HARRIER 3D Instruction Manual
2
INTRODUCTION
ThankyouforchoosingtheHarrier3DARTFbySEAGULLMODELS.TheHarrier3Dwasdesigned
withtheintermediate/advancedsport flyer in mind. Itisa 3D airplane whichiseasytoflyandquick
toassemble.Theairframeisconventionallybuiltusingbalsa,plywoodandveneertomakeitstronger
thanthe average ARTF, yet thedesign allowsthe aeroplane tobe kept light.You willfind that most
oftheworkhasbeendoneforyoualready. Themotormounthasbeenfittedandthehingesarepre-
installed . Flying the Harrier 3D is simply a joy.
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your Harrier 3D . Use the parts listing below to
identify all parts.
WARNING
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesignedtohelpthenewpilotonhiswayto successful R/C flight. They will also be able
to advise on any insurance and safety regulations that may apply.
ADDITIONAL ITEMS REQUIRED
.61-1.00 2-stroke engine
.91-1.10 4-stroke engine
Computer radio with six servos
Glow plug to suit engine
Propeller to suit engine
Protective foam rubber for radio
system
Silicone fuel line
TOOLS & SUPPLIES NEEDED
Thick cyanoacrylate glue
30 minute epoxy
5 minute epoxy
Hand or electric drill
Assorted drill bits
Modellingknife
Straight edge ruler
2mm ball driver
Phillips head screwdriver
220 grit sandpaper
90° square or builder’s triangle
Wire cutters
Masking tape & T-pins
Thread-lock
Paper towels
PARTS LISTING
FUSELAGE ASSEMBLY
(1) Fuselage
(1) Canopy hatch
WING ASSEMBLY
(1) Right wing half with pre-installed
aileron
(1) Left wing half with pre-installed
aileron
(2) Aluminium dihedral brace
Tail section assembly
(1) Vertical stabilizer with pre-
installedrudder
(1) Horizontal stabilizer with pre-
installed elevator halves
Some more parts.
HARDWAREPACK

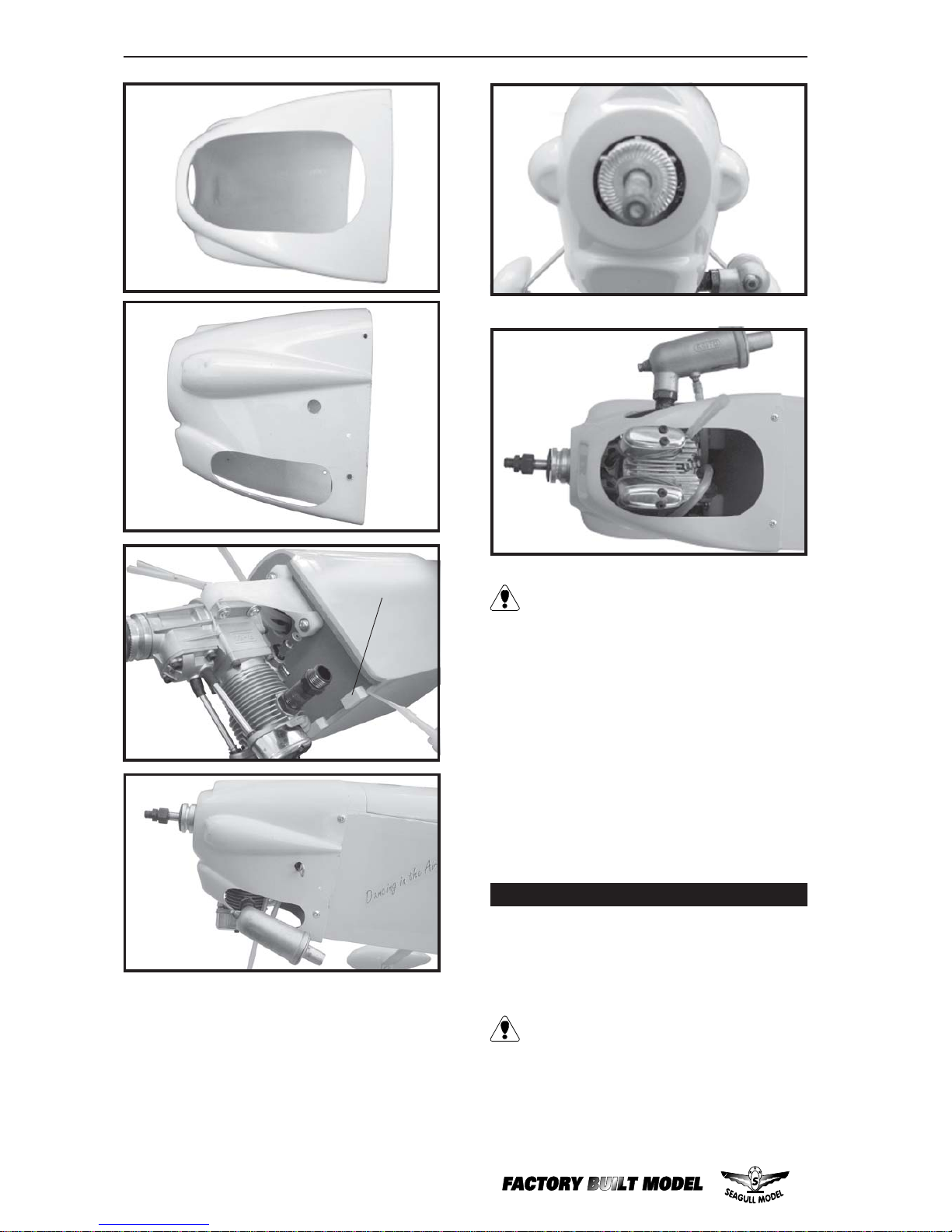

COWLING

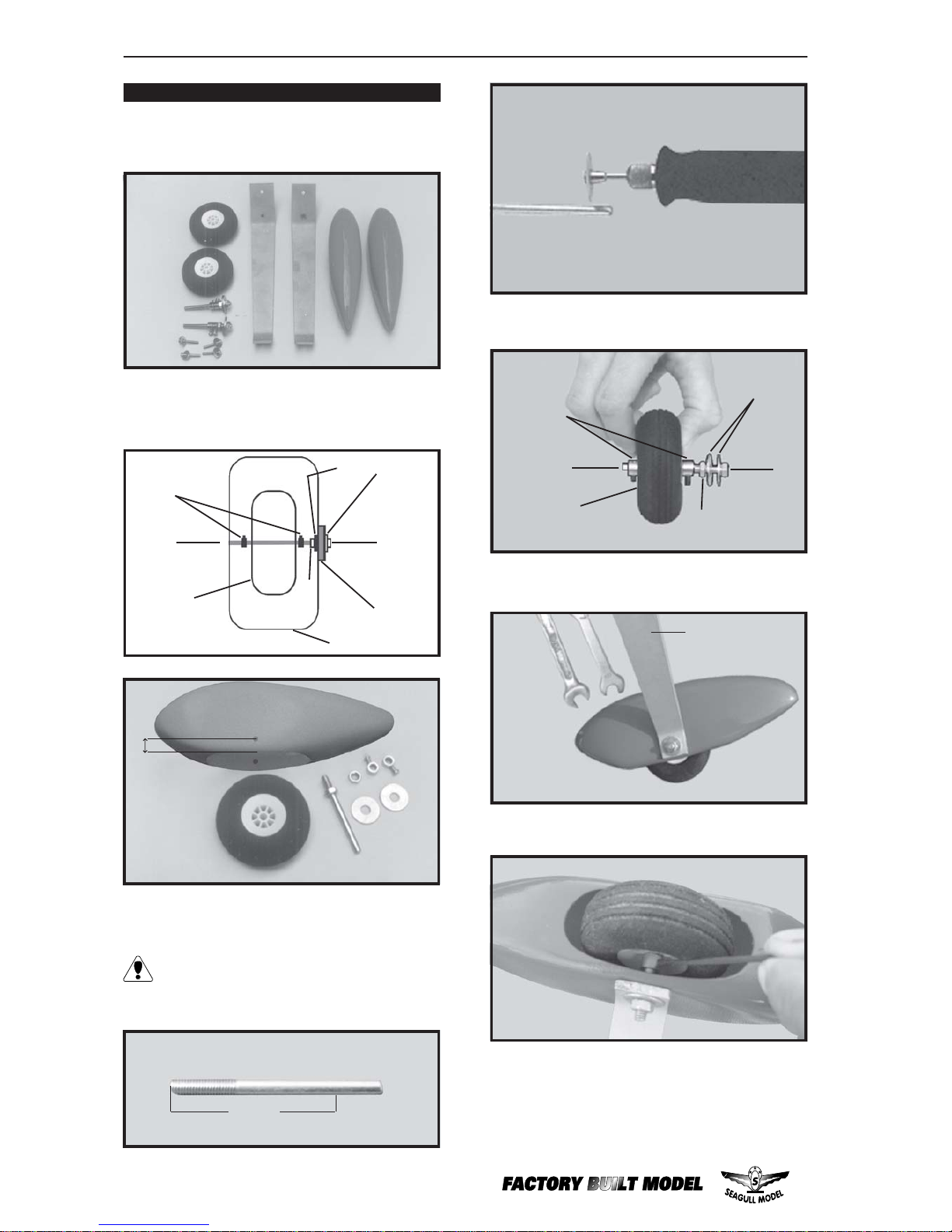

Landing gear.....

HARRIER 3D Instruction Manual
3
NOTE: To avoid scratching your new aero-
planewesuggestthatyoucoveryour
workbench with an old towel. Keep a
couple of jars or bowls handy to hold
the small parts after you open the
bags.
Pleasetrialfitallparts.Makesureyou
have the correct parts and that they
fit and are aligned properly before
gluing! This will ensure proper as-
sembly as the Harrier 3D is made
from natural materials and minor ad-
justments may have to be made.
The paint and plastic parts used in
this kit are fuel proof. However, they
arenottolerantofmanyharshchemi-
cals including the following: paint
thinner, cyano-acrylate glue accel-
erator,cyanoacrylategluede-bonder
andacetone.Donot let thesechemi-
calscome incontact withthe colours
onthecoveringand the plasticparts.

HARRIER 3D Instruction Manual
4
4)Deflect the aileron and completely
saturate each hinge with thin C/A glue. The
aileronsfrontsurfaceshould lightly contact the
wing during this procedure. Ideally, when the
hinges are glued in place, a 1/64” gap or less
will be maintained throughout the lengh of the
aileron to the wing panel hinge line.
Note:
The control surfaces, including the
ailerons, elevators, and rudder, are
prehinged with hinges installed, but the
hinges are not glued in place. It is
imperativethat you properly adhere the
hingesin place per the steps that follow
usinga high-qualitythin C/A glue.
1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
2)Removeeach hinge from thewingpanel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the aileron
untiltheT-pinis snugagainst the aileron.This
will help ensure an equal amount of hinge is
oneithersideofthehingelinewhentheaileron
is mounted to the wing panel.
HINGINGTHE AILERONS
Note:
The hinge is constructed of a special
material that allows the C/A to wick or
penetrateanddistributethroughout the
hinge, securely bonding it to the wood
structureof the wingpanel and aileron.
3) Slide the aileron on the wing panel until
there is only a slight gap. The hinge is now
centered on the wing panel and aileron.
Remove the T-pins and snug the aileron
against the wing panel.A gap of 1/64” or less
shouldbe maintained betweenthe wing panel
andaileron.
5)Turn the wingpanel over anddeflect the
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge,makingsure that the C/Apenetratesinto
both the aileron and wing panel.
6) Using C/A remover/debonder and a
papertowel, remove anyexcessC/A glue that
may have accumulated on the wing or in the
aileronhinge area.

HARRIER 3D Instruction Manual
5
8)Afterbothailerons are securelyhinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Note:Work the aileron up and down several
times to “work in” the hinges and check
for proper movement.
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
1) Carefully remove the elevator from one
of the horizontal stabilizer panels. Note the
position of the hinges.
2) Remove each hinge from the horizontal
stabilizerpaneland elevator andplace a T-pin
in the center of each hinge. Slide each hinge
intothe elevatoruntil theT-pinis snug against
the elevator. This will help ensure an equal
amount of hinge is on either side of the hinge
line when the elevator is mounted to the
horizontal stabilizer panel.
HINGINGTHE ELEVATORS
3) Slide the elevator on the horizontal
stabilizer panel until there is only a slight gap.
The hinge is now centered on the horizontal
stabilizer panel and elevator. Remove the T-
pins and snug the elevator against the
horizontal stabilizer panel. A gap of 1/64” or
less should be maintained between the
horizontal stabilizer panel and elevator.
4)Deflect the elevator and completely
saturate each hinge with thin C/A glue. The
elevators front surface should lightly contact
thehorizontal stabilizer during this procedure.
Ideally, when the hinges are glued in place, a
1/64”gaporlesswillbemaintainedthroughout
the lengh of the elevator to the horizontal
stabilizer panel hinge line.
Note: The hinge is constructed of a special
material that allows the C/A to wick or
penetrateanddistributethroughout the
hinge, securely bonding it to the wood
structure of the horizontal stabilizer
paneland elevator.
5) Turn the horizontal stabilizer panel over
and deflect the elevator in the opposite
directionfromthe opposite side.ApplythinCA
glue to each hinge, making sure that the C/A
penetratesintoboth the elevatorandhorizontal
stabilizer panel.

HARRIER 3D Instruction Manual
6
6) Using C/A remover/debonder and a
papertowel, remove anyexcessC/A glue that
may have accumulated on the horizontal
stabilizer or in the elevator hinge area.
8) After both horizontal stabilizer are
securely hinged, firmly grasp the horizontal
stabilizer panel and elevator to make sure the
hingesaresecurely gluedandcannotbepulled
out. Do this by carefully applying medium
pressure,trying toseparate theelevator from
thehorizontalstabilizer panel. Usecautionnot
to crush the horizontal stabilizer structure.
7) Repeat this process with the other
horizontalstabilizerpanel,securelyhingingthe
elevator in place.
Using a small weight (Weighted fuel pick-up
workswell)andthread, feedthestring through
the wing as indicated.
INSTALLING THEAILERON SERVOS
Attacha12 inchservoleadtotheaileronservo.
Attachthestring to the servoleadandcarefully
thread it though the wing. Once you have
thread the lead throught the wing, remove the
string so it can use for the other servo lead.
Tape the servo lead to the wing to prevent it
from falling back into the wing.

HARRIER 3D Instruction Manual
7
Because the size of servos differ,
you may need to adjust the size of
the precut opening in the mount. The
notch in the sides of the mount allow the
servo lead to pass through.
2) Install the aileron servo into the servo
mount, withthe output shafttowards thelead-
ing edge of the wing, using the wood screws
provided with your radio system. Drill 1mm
pilot holes through the mount.
Repeat the procedure for the other wing
half.
AILERON LINKAGE
INSTALLINGTHEAILERONLINKAGE
1) Using a ruler & pen to draw a straight
line as below picture.


2) Locate the nylon control horns,nylon
control horn backplates and two machine
screws.


3) Position the aileron horn on the bot-
tom side of aileron. The clevis attachment
holesshouldbepositioned over thehingeline.


 4)Usinga1.5mmdrillbitandthecontrol
horns as a guide, drill the mounting holes
through the aileron halves.
 6)Thread one nylon adjustable control
horn on to each aileron control rod. Thread
the horns on until they are flush with the ends
of the control rods.
 
 
  5)Mount the control horns by inserting
the bolts through the control horn bases and
aileron halves, then into the mounting
backplates.Do Not overtightenthe nuts orthe
backplates may crush the wood.
1) Install the rubber grommets and brass
colletsonto theaileronservo. Testfitthe servo
into the aileron servo mount.
(2)2MMx30mm.
ControlHorn.
MountingScrews. Mounting Plate.
Straightline.

HARRIER 3D Instruction Manual
8
PARTSREQUIRED
FUEL TANK
{1} Molded Nylon FuelTank
{1} Preassembled StopperAssembly
{1} Metal Weighted Pick-Up
{1} Silicon tube
INSTALLING THE STOPPERASSEMBLY
 1) Using a modeling knife, carefully cut off
the rear portion of one of the 3 nylon tubes
leaving 1/2” protruding from the rear of the
stopper. This will be the fuel pick up tube.
2) Usinga modeling knife,cut onelength
of silicon fuel line. Connect one end of the
line to the weighted fuel pickup and the other
end to the nylon pickup tube.
3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.

HARRIER 3D Instruction Manual
9
5) With the stopper assembly in place, the
weighted pickup should rest away from the
rearofthe tankandmovefreelyinsidethetank.
Thetop of thevent tubeshould rest justbelow
the top of the tank. It should not touch the top
of the tank.
6) When satisfied with the alignment of the
stopper assembly tighten the 3mm x 20mm
machine screw until the rubber stopper ex-
pands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.
Carefully use a lighter or heat gun to
permenently set the angle of the vent tube.
Important: When the stopper assembly is in-
stalled in the tank, the top of the vent tube
should rest just below the top surface of the
tank. It should not touch the top of the tank.
4) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
Slide the tank into the fuselage from inside so
that the neck is at the top of the fuselage and
itlocates through theengine bulkhead. Gently
secure it to the top horizontal former with a
cable tie.
Blow through one of the lines to ensure
thefuel lines have not becomekinked in-
sidethefueltankcompartment. Airshouldflow
througheasily.
You should mark which tube is the vent and
which is the fuel pickup when you attach fuel
tubing to the tubes in the stopper. Once the
tank is installed inside the fuselage, it may be
difficult to determine which is which.
Attach the silicone fuel and pressure pipes to
the tank. The lower pipe is the ‘feed’ and the
upper two the ‘pressure and fill’. The fill pipe
is the next pipe.

HARRIER 3D Instruction Manual
10
WHEELAND WHEELPANTS
1)Assembleand mounting thewheelpants
as shown in the following pictures.
 2) Follow diagram below for wheel pant
installation:
3) You have to trim each axle using a toll
cutting and cut-off wheel.
 4) A drop of C/A glue on the wheel collar
screws will help keep them from coming lose
duringoperation.
Repeat the process for the other wheel.
WheelCollar.
Axle.
Wheel. Nut.
Wheel Pant.
LandingGear.
Nut.
(2)Washer.
8 mm.
(2)Wheel Collar.
Axle.
Wheel. Nut.
Nut.
(2)Washer.
Landing gear.
Caution when cutting the axles and wear
protective goggles.
46mm

HARRIER 3D Instruction Manual
11
MOUNTINGTHEENGINE
1)Trial fit your engine on the motor mount.
The engine should be positioned so there is
ample clearance in the cowling for spinner
backplate mounted to the prop drive shaft.
2)Marking 4 points on the plastic motor
mount.
3)Screw 4 pilot holes with 5 mm diameter.
4) Secure your engine on the motor mount
by mounting with 4 bolts, 8 washers, and 4
nuts provided.
A drop C/A glue on the bolt threads will help
prevent loosening in flight.
 5) Attach the Z-Bend in the pushrod wire
to the throttle arm on the carburetor. You will
need to remove the throttle arm from the car-
buretor to be able to attach the Z-bend. When
complete, reattach the throttle arm to the car-
buretor.
PARTS REQUIRED
COWLING
{1} Molded Fiberglass Cowling
{4} 3mm x 12mm Wood Screws
1) Slide the fiberglass cowl over the en-
gineandline up thebackedge of the cowlwith
the marks you made on the fuselage.
INSTALLINGTHE MAIN LANDING GEAR
1) The blind nuts for securing the landing
gearare already mountedinside the fuselage.
2) Using the hardware provided, mount
the main landing gear to the fuselage.
131mm

HARRIER 3D Instruction Manual
12
 2) While keepingthebackedge of the cowl
flushwith the marks,align the frontof thecowl
withthe crankshaft of the engine. The front of
the cowl should be positioned so the crank-
shaft is in nearly the middle of the cowl open-
ing.Usethespinner backplate as a guide.Hold
the cowl firmly in place using pieces of mask-
ingtape.
Because of the size of the cowl, it may
be necessary to use a needle valve ex-
tensionforthehigh speed needle valve. Make
this out of sufficient length 1.5mm wire and
install it into the end of the needle valve. Se-
cure the wire in place by tightening the set
screw in the side of the needle valve.
3) Install the muffler and muffler extension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
and fuel filler valve. Secure the cowl to fuse-
lage using the 3mmx12mm screws (4).
1) Install the spinner backplate, propeller
andspinner cone. The spinnercone isheld in
place using two 3mm x 12mm wood screws.
The propeller should not touch any part
of the spinner cone. If it does, use a
sharp modeling knife and carefully trim away
the spinner cone where the propeller comes
in contact with it.
This item is not included.
INSTALLING THE SPINNER
Hardwood block.

HARRIER 3D Instruction Manual
13
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
THROTTLESERVOINSTALLTION
1) Install adjustable servo connector in
the servo arm.
3)Secure theservos with the screws pro-
vided with your radio system.
2) Installthe rubber grommets and brass
colletsonto the throttleservo. Test fit the servo
into the aileron servo mount.
 3) Secure the servos with the screws pro-
vided with your radio system.
 4) Install the pushrod throttle.
1) Locate and cut out the covering film
fromthe servo holesin bothsides of fuselage. Adjustable Servo connector.
Servo arm.
ELEVATOR - RUDDER SERVO
INSTALLATION
2) Installthe rubber grommets and brass
colletsonto the aileronservo. Test fit theservo
into the aileron servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.

HARRIER 3D Instruction Manual
14
2)Usingamodelingknife,carefullyremove
thecoveringat mounting slotof horizontal sta-
bilizer ( both side of fuselage).
 6) Using a modeling knife, carefully re-
move the covering that overlaps the stabilizer
mounting platform sides in the fuselage. Re-
move the covering from both the top and the
bottom of the platform sides.
 7) When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 Minute Epoxy. Apply a thin layer to the
topand bottom ofthe stabilizer mountingarea
and to the stabilizer mounting platform sides
in the fuselage. Slide the stabilizer in place
and realign. Double check all of your mea-
surementsoncemore before theepoxycures.
Holdthestabilizerinplacewith T-pins or mask-
ing tape and remove any excess epoxy using
a paper towel and rubbing alcohol.
 8) After the epoxy has fully cured, re-
movethe masking tape or T-pins used tohold
the stabilizer in place. Carefully inspect the
glue joints. Use more epoxy to fill in any gaps
that may exist that were not filled previously
and clean up the excess using a paper towel
and rubbing alcohol.
When cutting through the covering to remove
it, cut with only enough pressure to only cut
through the covering itself. Cutting into the
balsa structure may weaken it.
3) Slidethe stabilizerintoplaceinthepre-
cut slot in the rear of the fuselage. The stabi-
lizer should be pushed firmly against the front
of the slot.
4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.

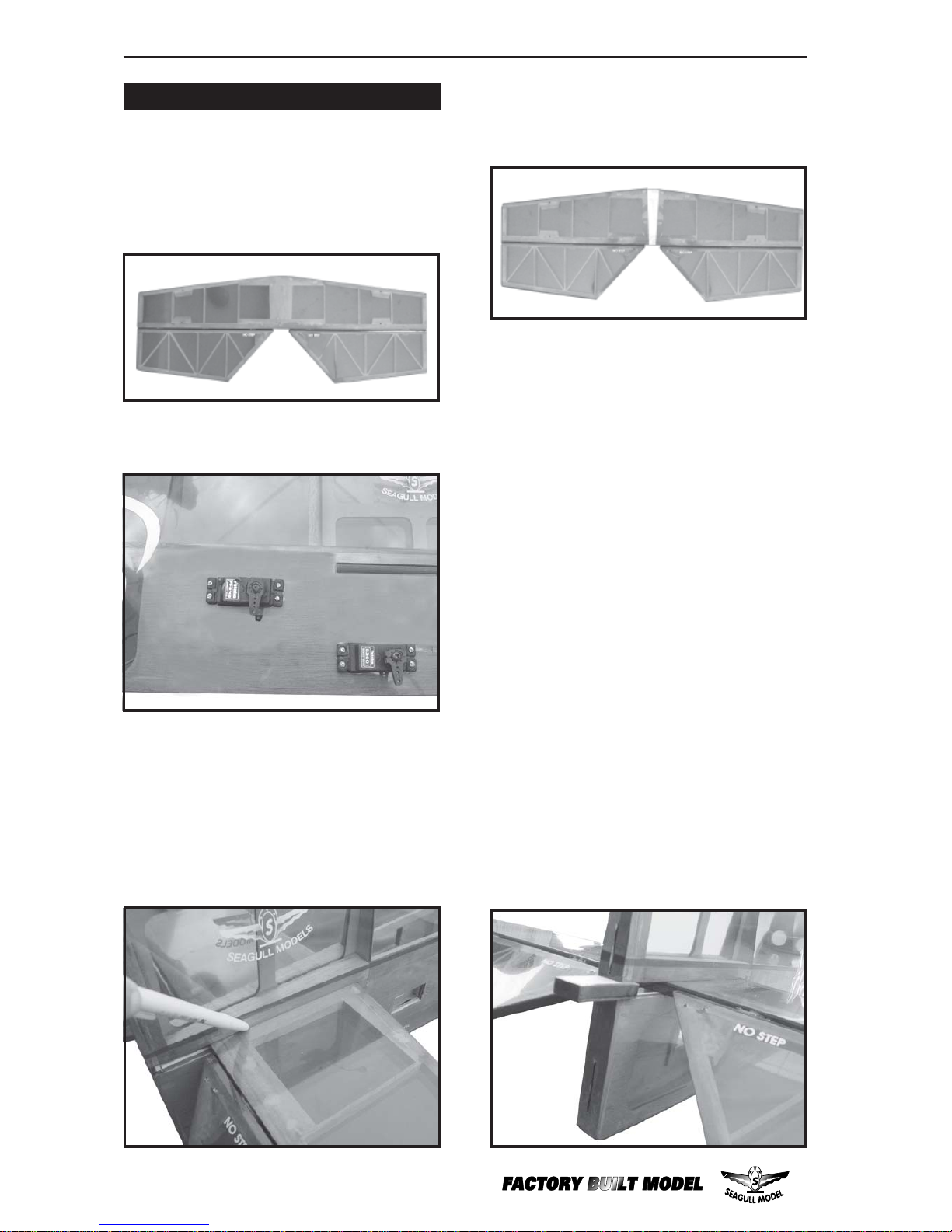

HORIZONTAL STABILIZER
1) Using a ruler and a pen, locate the
centerlineof thehorizontalstabilizer,atthetrail-
ing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge
of the stabilizer.
 5) Removethe stabilizer. Usingthe lines
youjust drew as a guide,carefully removethe
covering from between them using a model-
ingknife.

HARRIER 3D Instruction Manual
15
CONTROL HORN INSTALLTION
1) Locate the two nylon control horns, two
nylon control horn backplates and four
machine screws.
2) Position the elevator horn on the both
sideof elevator.The clevis attach-mentholes
should be positioned over the hinge line.
HINGINGTHE RUDDER
1)Carefully remove therudder from oneof
the fuselage panel. Note the position of the
hinges.
2) Remove each hinge from the fuselage
panelandrudderandplaceaT-pininthecenter
ofeachhinge.Slide each hinge intotherudder
until the T-pin is snug against the rudder. This
will help ensure an equal amount of hinge is
oneithersideofthehingeline when the rudder
is mounted to the fuselage .
3) Slide the rudder on the fuselage panel
until there is only a slight gap. The hinge is
nowcenteredonthefuselagepanelandrudder.
Remove the T-pins and snug the rudder
against the fuselage panel. A gap of 1/64” or
less should be maintained between the
fuselage panel and rudder.
4)Deflect the rudder and completely
saturate each hinge with thin C/A glue. The
rudder front surface should lightly contact the
fuselage during this procedure. Ideally, when
the hinges are glued in place, a 1/64” gap or
less will be maintained throughout the lengh
of the rudder to the fuselage panel hinge line.
Note: The hinge is constructed of a special
materialthat allowstheC/Atowick orpenetrate
and distribute throughout the hinge, securely
bondingittothewoodstructureofthe fuselage
panel and rudder.
5)Turn thefuselagepanel over anddeflect
the rudder in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge,makingsure that the C/Apenetratesinto
the rudder and fuselage panel.
6) Using C/A remover/debonder and a
papertowel, remove anyexcessC/A glue that
may have accumulated on the fuselage or in
the rudder hinge area.
Work the rudder up and down several
times to “work in” the hinges and check
for proper movement.
Note:
2MM x 20MM.

HARRIER 3D Instruction Manual
16
3) Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the elevator halves.
ControlHorn.
MountingScrews. Mounting Plate.
 3) Connect the elevator and rudder servos
to your radio’s receiver and turn on the sys-
tem. Set the trim tabs on the transmitter to
neutraland centerthe servoarms. The eleva-
tor and rudder servo arms should be perpen-
dicular to the servos.
4) One at a time, hold the pushrods in po-
sition over the respective servos to check for
proper servo direction. If any servo turns in
the wrong direction, switch your radio’s re-
versingswitches as necessaryto achieve the
correct direction.
 4) Mount the control horns by inserting the
bolts through the control horn bases and
elevator halves, then into the mounting
backplates. Do not overtighten the nuts or the
backplates may crush the wood.
 5) Position the rudder control horn on the
leftsideoftheairplane.Mount the control horn
parallel with the horizontal stabilizer.
 6)Install the rudder controlhorn using the
same method as with the elevator control
horns.
2) Elevator pushrods assembly follow
pictures below.
1) Thread one nylon adjustable control
horn on to each aileron control rod. Thread
the horns on until they are flush with the ends
of the control rods.
ELEVATOR-RUDDER PUSHROD INSTALLATION
Elevatorcontrol horn.
Rudder control horn.
13mm.

HARRIER 3D Instruction Manual
17
1)Set the tail wheel assembly in place on
the plywood plate. The pivot point of the tail
wheel wire should be even with the rudder
hinge line and the tail wheel bracket should
be centered on the plywood plate.
2 Using a pen, mark the locations of the
two mounting screws. Remove the tail wheel
bracket and drill 1mm pilot holes at the loca-
tions marked.
MOUNTING THE TAIL WHEEL BRACKET
3) Secure the tail wheel bracket in place
using two 3mm x 15mm wood screws. Be
careful not to overtighten the screws.
1) Align the tailwheelwiresothatthewire
is parallel with the bottom of the rudder. The
controlclasp hasa predrilledhole throughthe
topofit. Slide this holeontothe tail wheelwire
while sliding the clasp over the bottom of the
rudder.
MOUNTING THE CONTROL CLASP
2) Using a ruler and a pen place a mark
onto the bottom of the rudder, in front of the
rearedgeofthetailwheelwire. Thebackedge
of the clasp should line up with this mark.
Youmayfinditnecessarytobendthetailwheel
wire down slightly so it lines up with the clasp
withoutbinding.
3) While holding the clasp firmly in place,
use a pen and outline the clasp onto the rud-
der.
4) Remove the clasp, and using a model-
ing knife, remove the covering from inside the
lines you drew. Use 220 grit sandpaper and
carefullyroughen theinside surfaceof theny-
lon clasp.
INSTALLING TAIL STRUST SUPPORT
Tail strut system assembly follow pictures
below:
5) Rudder pushrods assembly follow
picture below.
5) Slide the clasp back into position and
carefullyglue itintoplaceusingKwikBondThin
C/A. Holdtheclaspinplaceuntilthegluecom-
pletely cures. Rescue the clap with bolt and
nut as picture below.
M3 x 4cm.
M3 x 4cm.

HARRIER 3D Instruction Manual
18
LOCK CABLE.
M3 x 4cm.
M3 x 4cm.
M3x 3cm.
UPPER AND BOTTOM OF
HORIZONTAL FIN.
M3x 3cm.
CABLE.
CABLE
LOCK.
M3 x 4cm. M3 x 4cm.

HARRIER 3D Instruction Manual
19
FUSELAGE
BOTTOM.
UPPER
OFFUSELAGE.
See pictures detail ( pic. 1-2) ATTACHMENT WING-FUSELAGE
See pictures below:
Picture 2:
M3nut.
M3Clevis.
Picture 1:
M3Clevis.
M3nut.
Picture 1:
LOCK CLEVIS.

HARRIER 3D Instruction Manual
20
CANOPY HATCH
 1)Plugthesix servo leadsandtheswitch
lead into the receiver. Plug the battery pack
lead into the switch also.
 2 Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
INSTALLING THE RECEIVERAND BATTERY
 3)Position the battery pack in the fuel
tank compartment and the receiver just be-
hind the fuel tank . Use extra foam pieces to
hold them in position.
Antenna Rubber
Band
Modified
ServoArm
Cut
When balancing the airplane you may
need to move the battery or receiver for-
ward or after to achieve proper balance.
 4)Usinga1/16”drillbit,drillaholethrough
the side of the fuselage, near the receiver, for
the antenna to exit. Route the antenna out of
the fuselage and secure it to the vertical stabi-
lizer using a rubber band and a modified servo
arm. See picture as below.
INSTALLING THE SWITCH
Installthe switchinto the precuthole in the
fuselage side. Use the two screws provided
with the switch to secure it in place. Drill two
3/32” holes through the tray for the screws to
pass through.
Wing bolts( 4 pcs).
Switch.
