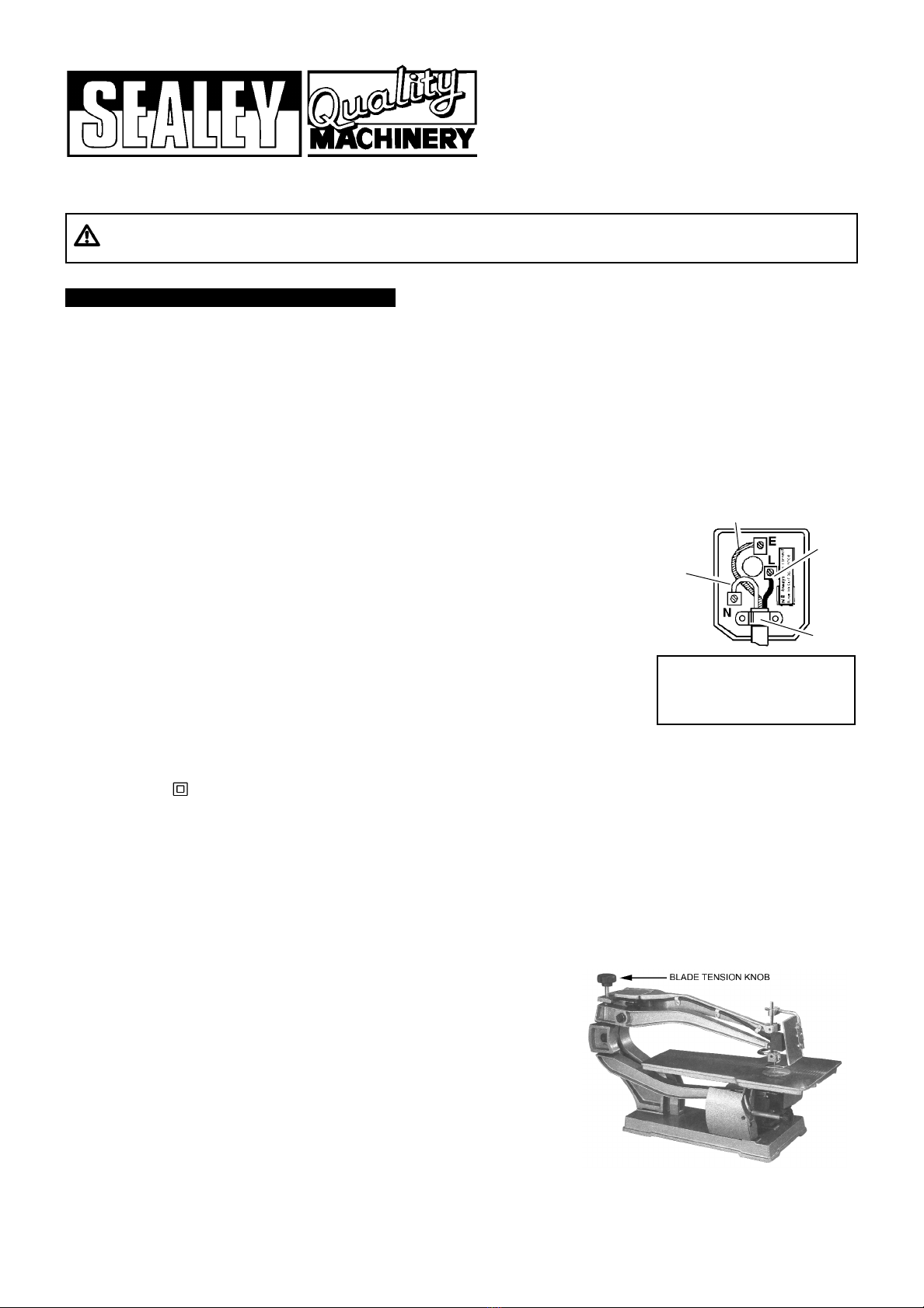

Sealey Quality MACHINERY SM44 User manual

1.1. ELECTRICAL SAFETY. pWARNING! It is the users responsibility to read, understand and comply with the following:
You must check all electrical equipment and appliances to ensure they are safe before using. You must inspect power supply leads, plugs and
all electrical connections for wear and damage. You must ensure the risk of electric shock is minimised by the installation of appropriate safety
devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD
(Residual Current Device) is used with all electrical products. It is particularly important to use an RCD with portable products that are plugged
into an electrical supply not protected by an RCCB. If in doubt consult a qualified electrician. You may obtain a Residual Current Device by
contacting your Sealey dealer. You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by
a qualified electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance,
and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure the insulation on all cables and the product itself is safe before connecting to the mains power
supply. See 1.1.1. & 1.1.2. above and use a Portable Appliance Tester (PAT).
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply, leads, plugs for wear and damage and all electrical connections
to ensure that none is loose.
1.1.6. Important: Ensure the voltage marked on the product is the same as the electrical power supply
to be used, and check that plugs are fitted with the correct capacity fuse. A 13 amp plug may require
a fuse smaller than 13 amps for certain products (subject to 1.1.10. below) see fuse rating at right.
1.1.7. DO NOT pull or carry the powered appliance by its power supply lead.
1.1.8. DO NOT pull power plugs from sockets by the power cable.
1.1.9. DO NOT use worn or damaged leads, plugs or connections. Immediately replace or have repaired by
a qualified electrician. A U.K. 3 pin plug with ASTA/BS approval is fitted. In case of damage, cut off
and fit a new plug according to the following instructions (discard old plug safely).
(UK only - see diagram at right). Ensure the unit is correctly earthed via a three-pin plug.
a) Connect the GREEN/YELLOW earth wire to the earth terminal E.
b) Connect the BROWN live wire to live terminal L.
c) Connect the BLUE neutral wire to the neutral terminal N.
After wiring, check there are no bare wires, that all wires have been correctly connected, that the cable outer insulation
extends beyond the cable restraint and that the restraint is tight.
Double insulated products are often fitted with live (BROWN) and neutral (BLUE) wires only. Double insulated products are always marked with
this symbol . To re-wire, connect the brown & blue wires as indicated above. DO NOT connect the brown or blue to the earth terminal.
1.1.10. Some products require more than a 13 amp electrical supply. In such a case, NO plug will be fitted. You must contact a qualified electrician
to ensure a 30 amp fused supply is available. We recommend you discuss the installation of a industrial round pin plug and socket with your electrician.
1.1.11. Cable extension reels. When a cable extension reel is used it should be fully unwound before connection. A cable reel with an RCD
fitted is recommended since any product which is plugged into the cable reel will be protected. The section of the cores of the cable
is important. We suggest 1.5mm2section cable as a minimum, but to be absolutely sure that the capacity of the cable reel is suitable
for this product and for others that may be used in the other output sockets, we recommend the use of 2.5mm2section cable.
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
SM44 - (1) - 030102
1. SAFETY INSTRUCTIONS
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
Blue
Neutral
wire
Yellow & Green
Earth wire
Cable
restraint
FUSE RATING
THIS PRODUCT MUST BE FITTED WITH A
5 AMP FUSE
Brown
Live
wire
1.2 GENERAL SAFETY
pWARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
Familiarise yourself with the application and limitations of the saw, as well as the specific potential hazards involved.
pWARNING! Disconnect the saw from the mains power and ensure the cutting blade is
at a complete standstill before attempting to change blades, service or perform any
maintenance.
üMaintain the saw in good condition (use an authorised service agent).
üReplace or repair damaged parts. Use genuine parts only. Non-authorised parts may
be dangerous and will invalidate the warranty.
pWARNING! Keep all guards and holding screws in place, tight and in good working
order. Check regularly for damaged parts. A guard or any other part that is damaged
should be repaired or replaced before the machine is used. The safety guard is a mandatory
fitting where the saw is used in premises covered by the Health & Safety at Work Act.
üLocate saw in a suitable working area, keep area clean and tidy and free from
unrelated materials. Ensure there is adequate lighting.
üKeep the saw clean and blades sharp for best and safest performance.
üEnsure there are no flammable or combustible materials near the work area.
pWARNING! Always wear approved eye or face protection when operating the saw. Use a face or dust mask if dust is generated.
üMaintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
üRemove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery and contain and/or tie back long hair.
üIf possible connect saw to a vacuum cleaner to remove dust at source.
fig. 1
INSTRUCTIONS FOR: SCROLL SAW
MODEL: SM44

üKeep children and unauthorised persons away from the working area.
üCheck moving parts alignment on a regular basis.
üRemove adjusting keys and wrenches from the machine and its vicinity before turning it on.
üAvoid unintentional starting.
û DO NOT use the saw for any purpose other than that for which it is designed.
ûDO NOT operate the saw if any parts are damaged or missing as this may cause failure or possible personal injury.
pWARNING! DO NOT cut any materials containing asbestos.
ûDO NOT switch the saw on whilst the blade is in contact with the workpiece.
ûDO NOT attempt to cut a workpiece so small that you have to remove the finger guard.
üAlways provide additional support, at table height, for large workpieces.
ûDO NOT use the saw out of doors.
ûDO NOT get the saw wet or use in damp or wet locations or areas where there is condensation.
ûDO NOT allow untrained persons to operate the saw.
ûDO NOT allow children to operate the saw.
ûDO NOT operate the saw when you are tired, under the influence of alcohol, drugs or intoxicating medication.
ûDO NOT leave the saw operating whilst unattended.
ûDO NOT pull the cable from the power supply.
üUse a qualified person to lubricate and maintain the saw.
üWhen not in use switch off the saw, remove plug from the power supply and ensure the machine is childproof.
SM44 - (1) - 030102
2. INTRODUCTION & SPECIFICATION
3. ASSEMBLY
2.1. Introduction The SM44 is a Scroll Saw for cutting intricate shapes in wood, plastic and thin metal sheet. It is supplied with a safety
guard and an integral blower to keep the cut-line free of saw dust.
2.2. Specification Throat Depth . . . . . . . . . .457mm
Max. Cut . . . . . . . . . . . . . .50mm
Stroke . . . . . . . . . . . . . . . .16mm
Cuts per min. . . . . . . . . . . . .1420
Table Size . . . . . . .254 x 440mm
Table Tilt . . . . . . . . . . .0 - 30Oleft
Motor Power . . . . . . . . . . .100W
Motor Input . . . . . . . . . . . . .230V
s s
s
IMPORTANT! DO NOT attempt to lift saw by holding the upper blade arm as this will cause
damage. Lift by the base only.
pWARNING! DO NOT plug saw into mains until assembly is complete and saw has been
firmly mounted to work surface. ( See fig.6 for dimensions of mounting centres.)

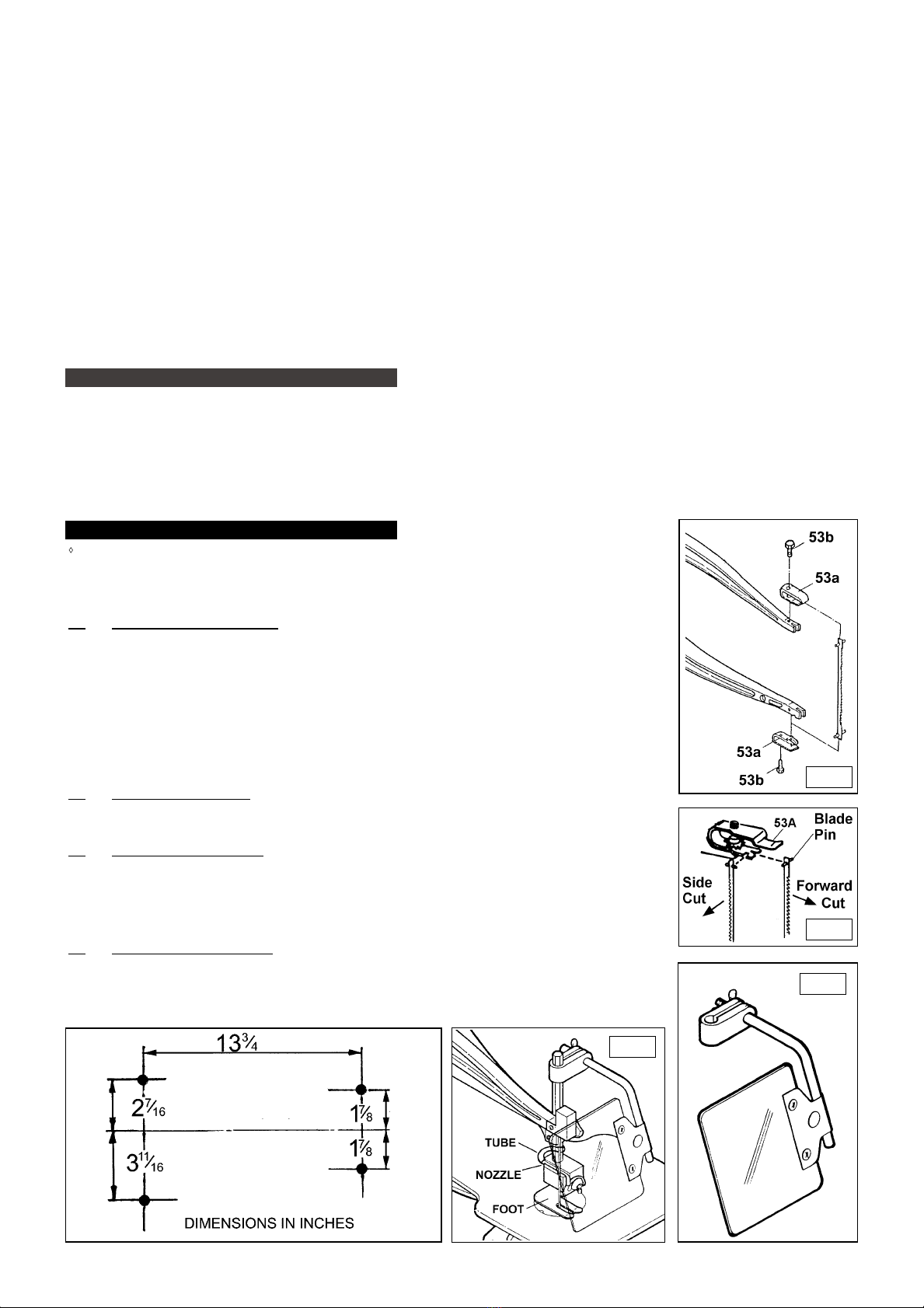

3.1 Fitting / changing the blade.
3.1.1 Remove tension on blade arm by turning tension knob anticlockwise. ( See fig.1 ).
3.1.2 Blade may be fitted either with teeth facing forward or to left hand side, see fig.3.
3.1.3 With blade teeth pointing downward, insert blade through table access hole and engage end of
blade in lower blade holder, see fig.2. Keeping an upward tension on the blade locate upper
end in the upper blade holder. Push blade holder down slightly to achieve this.
3.1.4 Tension blade by turning tension knob clockwise. Use only finger effort, DO NOT use tools.
3.1.5 Grasp upper blade holder and manually move blade up and down a couple of times to check
that blade pins are correctly located in holders.
3.2 Fitting the blade guard.
3.2.1 Fit blade guard ( as shown in fig.4 ) to the upper end of the rod supporting the adjustable foot
as seen in fig.5.
3.3 Bench mounting the saw.
3.3.1 Mount saw to a firm work surface utilising the four mounting holes in the base. Drill four 9mm
holes through the work surface in accordance with the dimensions shown below in fig.6. If
required, noise and vibration can be further reduced by mounting the saw on a dense foam or
rubber pad (approx.12mm thick). If this is done, do not over-tighten the mounting bolts in order
leave some cushioning effect in the pad.
3.4 Connection of dust blower.
3.4.1 Ensure that the dust blower tube is connected to the nozzle on the adustable foot as shown in fig.5.
fig. 3
fig. 2
fig. 6
fig. 4
fig. 5

PROBLEM CAUSE SOLUTION
Breaking blades
Motor will not
operate
Vibration
Blade run-out
1) Incorrect tension
2) Over-worked blade
3) Wrong blade
4) Twisting blade with workpiece
1) Power supply fault
2) Motor fault
1) Mounting or mounting surface
2) Loose table
3) Loose motor
1) Blade holder(s) misaligned
1) Adjust blade tension.
2) Feed workpiece more slowly.
3) Use narrow blades for thin, wide blades for thick workpieces.
4) Avoid side pressure, or twist, on blade.
1) Check power supply and fuses.
2) Contact local authorised Service Agent.
1) Ensure mount bolts are tight. The more solid the surface the
less the vibration.
2) Tighten table lock knob and pivot screws.
3) Tighten motor mounting screws.
1) Loosen blade holder screw(s) and realign.
6. TROUBLESHOOTING
5. MAINTENANCE
5.1. Keep table clean to give easy and smooth movement of workpiece.
5.2. Every 50 hours of use oil the lower arm bearings with SAE20 oil. Access bearings from rear of machine.
pWARNING! Ensure you read, understand and apply the safety instructions in Section 1.
Should you have no experience of using a scroll saw, it is recommended that you practice until you have familiarised yourself
with the applications and limitations of the saw, at the same time being fully aware of the potential hazards involved.
Keep alert. DO NOT allow familiarity (from frequent use) to cause a careless mistake. Remember, a careless second is sufficient
to inflict serious damage or injury.
pWARNING! All necessary adjustments to the saw should be with the machine disconnected from the mains supply.
4. OPERATION
SM44 - (1) - 030102
01284 757500
E-mail: [e-mail]
01284 703534
Sole UK Distributor, Sealey Group,
Bury St. Edmunds, Suffolk.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of product. WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required
for any claim. INFORMATION: Call us for a copy of our latest catalogue on 01284 757525 and leave your full name and address including your postcode.
Declaration of Conformity We, the sole importer into the UK, declare that the product listed here is
in conformity with the following standards and directives.
The construction file for this product is held by the Manufacturer and may be inspected on request by contacting Jack Sealey Ltd.
For Jack Sealey Ltd. Sole importer into the UK of Sealey Quality Machinery.
Scroll Saw
Model: SM44
73/23/EEC Low Voltage Directive (S.I. 1994/3260)
89/336/EEC EMC Directive (S.I. 1992/2372 & Amendments).
98/37/EC Machinery Directive (S.I. 1992/3073)
93/68/EEC CE Marking Directive
Signed by Mark Sweetman 3rd January 2002
4.1 Normal flat cutting.
4.1.1 Set blade to front or side cutting as required. ( Refer to fig.3 )
4.1.2 When cutting with the table in the normal flat position the slot in the circular table insert
( through which the blade passes ) should be aligned with the cutting line of the blade. If
you change the blade from front to side cutting you must rotate the insert through 900so
that the slot remains in line with the blade
4.1.3 Adjust foot ( See fig.5 ) to just clear workpiece (so that fingers cannot touch blade) and
align blower tube to keep cut line visible.
4.2 Cutting at an angle.
4.2.1 Set blade to front cutting only.
4.2.2 Cutting at an angle should always be done with the blade in the forward cutting position.
In this instance rotate the circular table insert B so that the slot is sideways onto the
blade so that there is clearance for the blade to move when the table is at its maximum
tilt. ( See fig.7 ).
4.2.3 Loosen knob C and rotate cutting table A to the desired angle with reference to the scale
provided ( 0 to 300 ). Retighten knob C.
4.2.4 Adjust foot ( See fig.5 ) to just clear workpiece (so that fingers cannot touch blade) and align blower tube to keep cut line visible.
4.3. Plug saw into mains and switch on.
4.3.1 Workpiece may now be guided slowly into the blade taking care to keep the workpiece pressed down firmly onto the table. Take care
not to bend or twist the blade as this will cause it to break.
pWARNING! DO NOT attempt to saw with the table at an angle if the blade is in the side-cut position.
fig. 7
