Sears Kenmore 758.154200 User manual

READ AND SAVE THESE iNSTRUCTiONS
Operator's Manual
®
WHOLE HOUSE HUMIDIFIER
14 Gallon Output with
innovative Twin Fan Technology
Model 758.154200
CAUTION: Before using this
product, read this manual and
follow all its Safety Rules and
Operating instructions.
•Safety
• Assembly
• Operation
•Maintenance
•Parts
• EspaSol, p. 17
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
Part No. $P6644 Printed in Canada

_!_ONEYEAR FULL WARRANTY ON KENMORE HUMIDIFIER "_!
if any part of this humidifier fails due to a defect in material or workmanship
within one year from the date of purchase, or if the humidifier motor fails due
to a defect in material or workmanship during the second year from the date
of purchase, RETURN THE HUMIDIFIER TO THE NEAREST SEARS PARTS &
REPAIR CENTER, and it will be repaired free of charge. This warranty does not
include humidifier filters, which are expendable parts that can wear out from
normal use in less than one year.This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

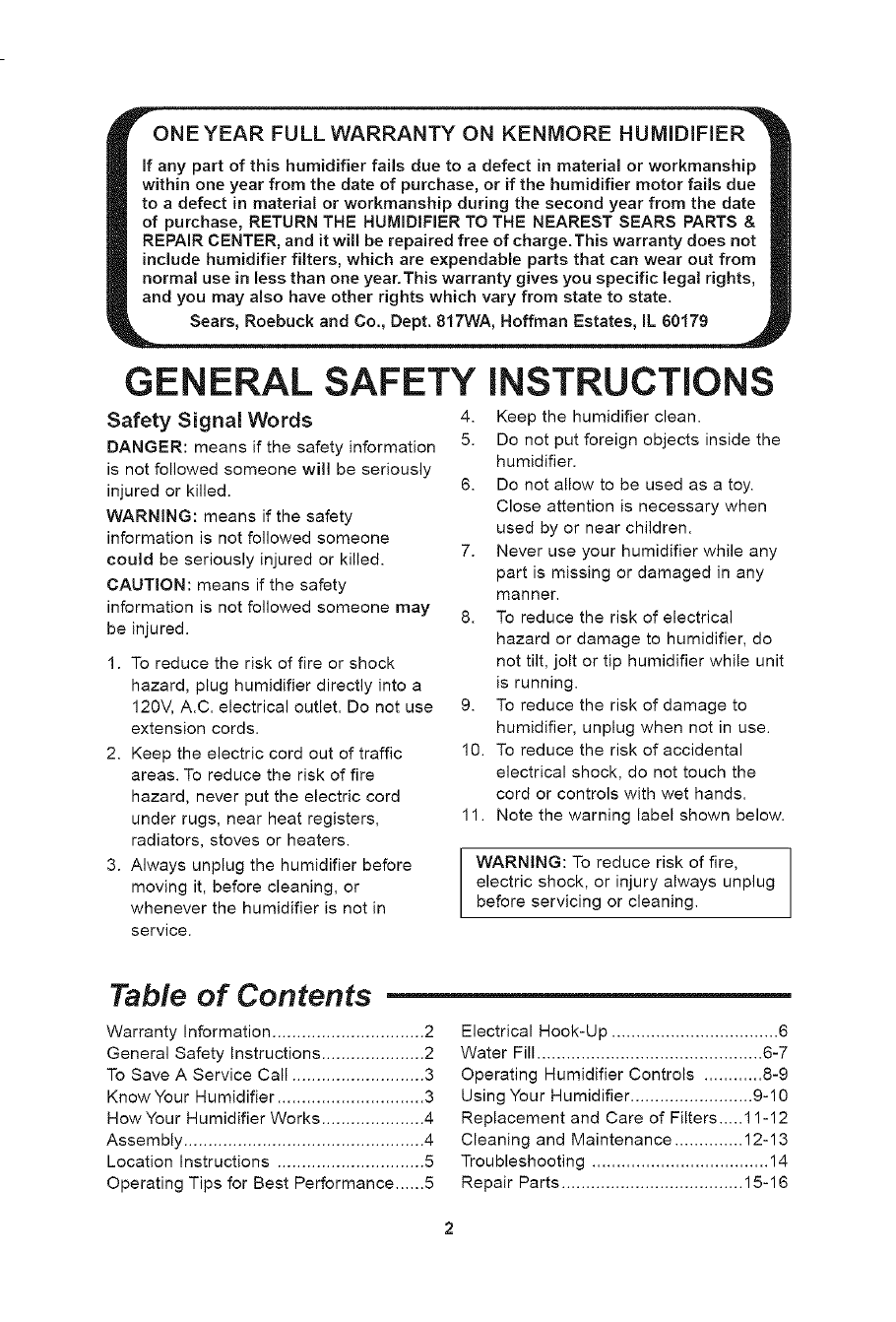

GENERAL SAFETY
Safety Signal Words 4.
DANGER: means if the safety information 5.
is not followed someone will be seriously
injured or killed. 6.
WARNING: means if the safety
information is not followed someone
could be seriously injured or killed. 7.
CAUTION: means if the safety
information is not followed someone may 8.
be injured.
1. To reduce the risk of fire or shock
hazard, plug humidifier directly into a
120V, A.C. electrical outlet. Do not use
extension cords.
2. Keep the electric cord out of traffic
areas. To reduce the risk of fire
hazard, never put the electric cord
under rugs, near heat registers,
radiators, stoves or heaters.
3. Always unplug the humidifier before
moving it, before cleaning, or
whenever the humidifier is not in
service.
INSTRUCTIONS
Keep the humidifier clean.
Do not put foreign objects inside the
humidifier.
Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
Never use your humidifier while any
part is missing or damaged in any
manner.
To reduce the risk of electrical
hazard or damage to humidifier, do
not tilt, jolt or tip humidifier while unit
is running.
9. To reduce the risk of damage to
humidifier, unplug when not in use.
10. To reduce the risk of accidental
electrical shock, do not touch the
cord or controls with wet hands.
11. Note the warning label shown below.
WARNING: To reduce risk of fire,
electric shock, or injury always unplug
before servicing or cleaning.
Table of Contents
Warranty Information ............................... 2
General Safety Instructions ..................... 2
To Save A Service Call ........................... 3
Know Your Humidifier .............................. 3
How Your Humidifier Works ..................... 4
Assembly ................................................. 4
Location Instructions .............................. 5
Operating Tips for Best Performance ...... 5
Electrical Hook-Up .................................. 6
Water Fill .............................................. 6-7
Operating Humidifier Controls ............ 8-9
Using Your Humidifier ......................... 9-10
Replacement and Care of Filters.....11-12
Cleaning and Maintenance .............. 12-13
Troubleshooting .................................... 14
Repair Parts ..................................... 15-16

To Save A Service Call
Check the following if your humidifier is
not operating.
1. Is power cord attached to outlet?
2. Is there electrical power to outlet?
3. Is airflow control in operating position?
4. Is humidity control set high enough?
5. Is the cabinet sitting on a level
surface?

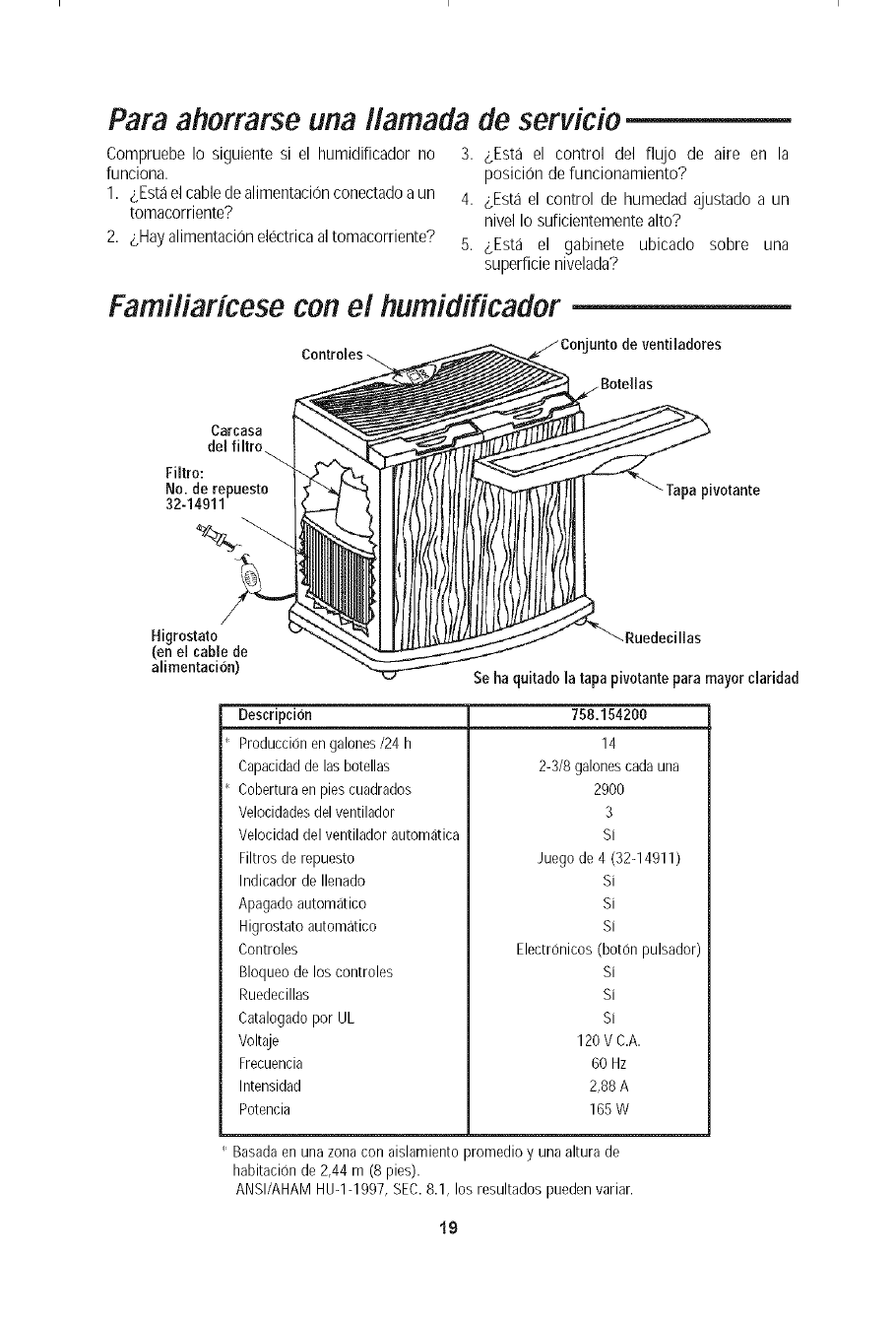

Know Your Humidifier
Controls zj Fan Assembly
Filter
Housing..
Filters:
Replacement
Filter 32=14911
4z__ _\--..
" Pivoting Lid
Humidistat
(On Power
Cord)
Description
Gallon Output/24 hrs
Capacity of Bottles
Sq. Ft. Coverage
Fan Speeds
Auto Fan Speed
Replacement Filters
Refill Indicator
Auto Shut Off
Auto Humidistat
Controls
Casters
Pivoting Lid Removed For Clarity
758.154200
14
2-3/8 Gallons Each
2900
3
Yes
Set of 4 (32-14911)
Yes
Yes
Yes
Electronic (Push Button)
Control Lock
Casters
UL Listed
Volts
Hertz
Amps
Watts
Yes
Yes
Yes
120 A.C.
6O
2.88
165
Based on an area with average insulation and an 8 foot
ceiling height
ANSI/AHAM HU-1-1997, SEC. 8.1, results may vary.
3

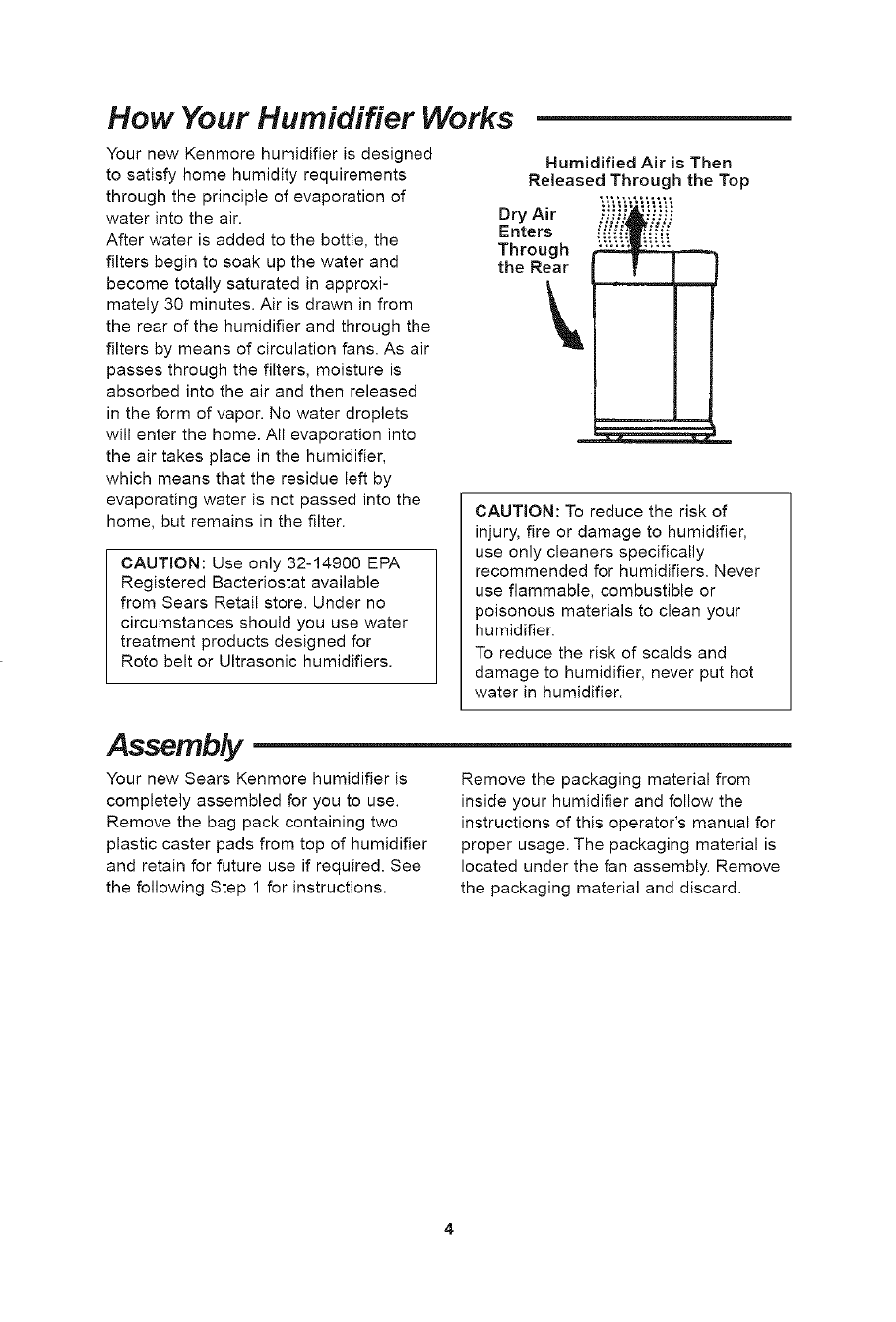

How Your Humidifier Works
Your new Kenmore humidifier is designed
to satisfy home humidity requirements
through the principle of evaporation of
water into the air.
After water is added to the bottle, the
filters begin to soak up the water and
become totally saturated in approxi-
mately 30 minutes. Air is drawn in from
the rear of the humidifier and through the
filters by means of circulation fans. As air
passes through the filters, moisture is
absorbed into the air and then released
in the form of vapor. No water droplets
will enter the home. All evaporation into
the air takes place in the humidifier,
which means that the residue left by
evaporating water is not passed into the
home, but remains in the filter.
CAUTION: Use only 32-14900 EPA
Registered Bacteriostat available
from Sears Retail store. Under no
circumstances should you use water
treatment products designed for
Roto belt or Ultrasonic humidifiers.
Humidified Air is Then
Released Through the Top
Dry Air _.."_ii"'_i_ii
Enters
Through
the Rear
CAUTION: To reduce the risk of
injury, fire or damage to humidifier,
use only cleaners specifically
recommended for humidifiers. Never
use flammable, combustible or
poisonous materials to clean your
humidifier.
To reduce the risk of scalds and
damage to humidifier, never put hot
water in humidifier.
Assembly
Your new Sears Kenmore humidifier is
completely assembled for you to use.
Remove the bag pack containing two
plastic caster pads from top of humidifier
and retain for future use if required. See
the following Step 1 for instructions.
Remove the packaging material from
inside your humidifier and follow the
instructions of this operator's manual for
proper usage. The packaging material is
located under the fan assembly. Remove
the packaging material and discard.

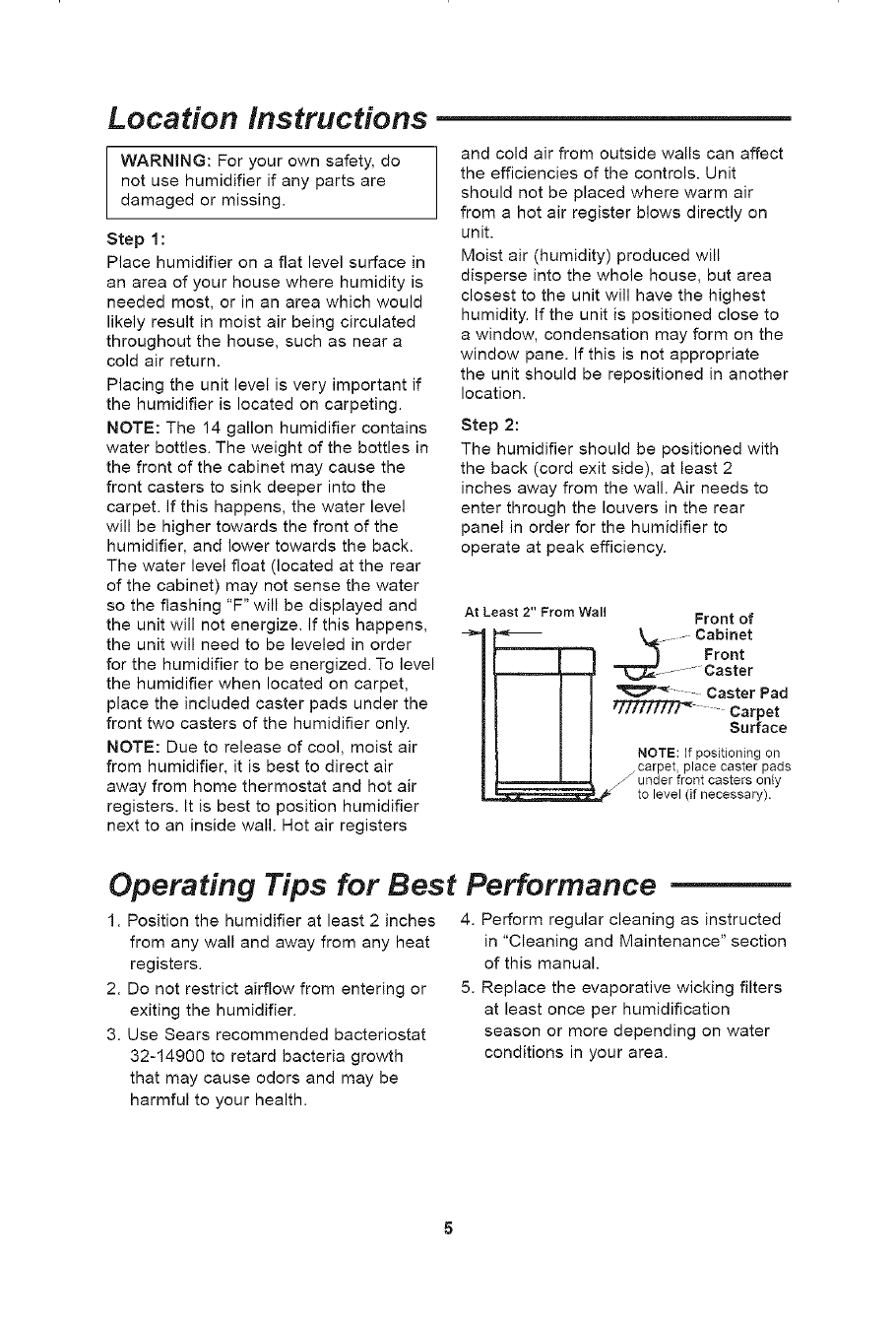

Location Instructions
WARNING: For your own safety, do
not use humidifier if any parts are
damaged or missing.
Step 1:
Place humidifier on a flat level surface in
an area of your house where humidity is
needed most, or in an area which would
likely result in moist air being circulated
throughout the house, such as near a
cold air return.
Placing the unit level is very important if
the humidifier is located on carpeting.
NOTE: The 14 gallon humidifier contains
water bottles. The weight of the bottles in
the front of the cabinet may cause the
front casters to sink deeper into the
carpet. If this happens, the water level
will be higher towards the front of the
humidifier, and lower towards the back.
The water level float (located at the rear
of the cabinet) may not sense the water
so the flashing "F" will be displayed and
the unit will not energize. If this happens,
the unit will need to be leveled in order
for the humidifier to be energized. To level
the humidifier when located on carpet,
place the included caster pads under the
front two casters of the humidifier only.
NOTE: Due to release of cool, moist air
from humidifier, it is best to direct air
away from home thermostat and hot air
registers. It is best to position humidifier
next to an inside wall. Hot air registers
and cold air from outside walls can affect
the efficiencies of the controls. Unit
should not be placed where warm air
from a hot air register blows directly on
unit.
Moist air (humidity) produced will
disperse into the whole house, but area
closest to the unit will have the highest
humidity. If the unit is positioned close to
a window, condensation may form on the
window pane. If this is not appropriate
the unit should be repositioned in another
location.
Step 2:
The humidifier should be positioned with
the back (cord exit side), at least 2
inches away from the wall. Air needs to
enter through the louvers in the rear
panel in order for the humidifier to
operate at peak efficiency.
At Least 2" From Wall Front of
._ ....... Cabinet
Front
...... -Caster
Caster Pad
tffffffZTf_ Carpet
Surface
NOTE: If positioning on
_ carpet, place caster pads
under front casters only
to level (if necessary).
Operating Tips for Best Performance
1. Position the humidifier at least 2 inches
from any wall and away from any heat
registers.
2. Do not restrict airflow from entering or
exiting the humidifier.
3. Use Sears recommended bacteriostat
32-14900 to retard bacteria growth
that may cause odors and may be
harmful to your health.
4. Perform regular cleaning as instructed
in "Cleaning and Maintenance" section
of this manual.
5. Replace the evaporative wicking filters
at least once per humidification
season or more depending on water
conditions in your area.

Electrical Hook-Up
Locate nearest 120V A.C. wall socket in
the location desired, preferably on inside
wall. With the humidifier in the desired
location, route the electrical cord safely
so no one will trip or upset the humidifier.
Plug in the electrical cord.
WARNING: To reduce the risk of fire
or shock hazard, humidifier should
be plugged into a 120V A.C. outlet.
Do not use extension cords.
To reduce the risk of electrical shock, this
humidifier has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse plug. If it still does not fit, contact
a qualified electrician to install the proper
outlet. Do not change the plug in any way.

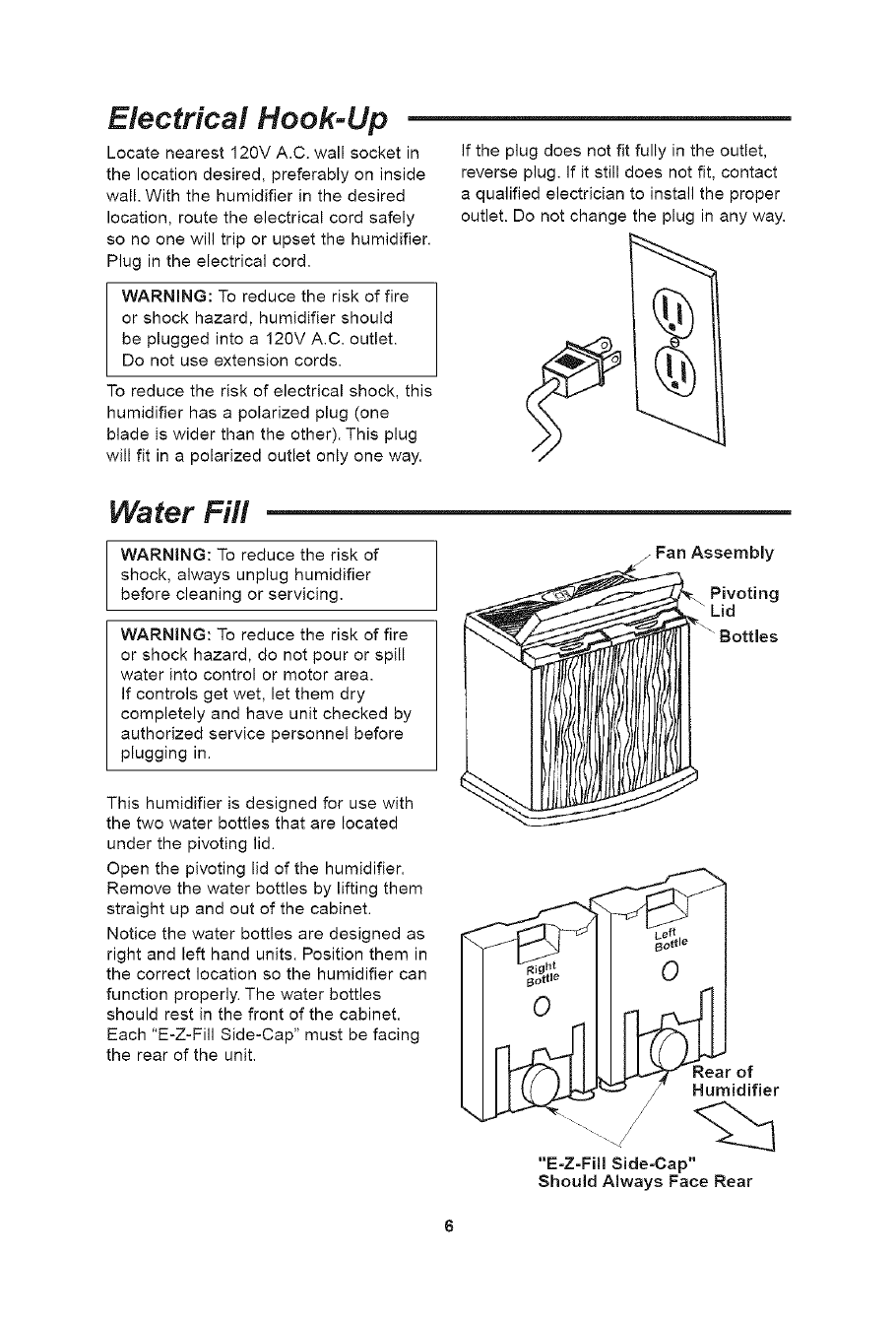

Water Fill
WARNING: To reduce the risk of
shock, always unplug humidifier
before cleaning or servicing.
WARNING: To reduce the risk of fire
or shock hazard, do not pour or spill
water into control or motor area.
If controls get wet, let them dry
completely and have unit checked by
authorized service personnel before
plugging in.
This humidifier is designed for use with
the two water bottles that are located
under the pivoting lid.
Open the pivoting lid of the humidifier.
Remove the water bottles by lifting them
straight up and out of the cabinet.
Notice the water bottles are designed as
right and left hand units. Position them in
the correct location so the humidifier can
function properly. The water bottles
should rest in the front of the cabinet.
Each "E-Z-Fill Side-Cap" must be facing
the rear of the unit.
/Fan Assembly
.Pivoting
Lid
"E-Z=Fi!l Side-Cap"
Should Always Face Rear

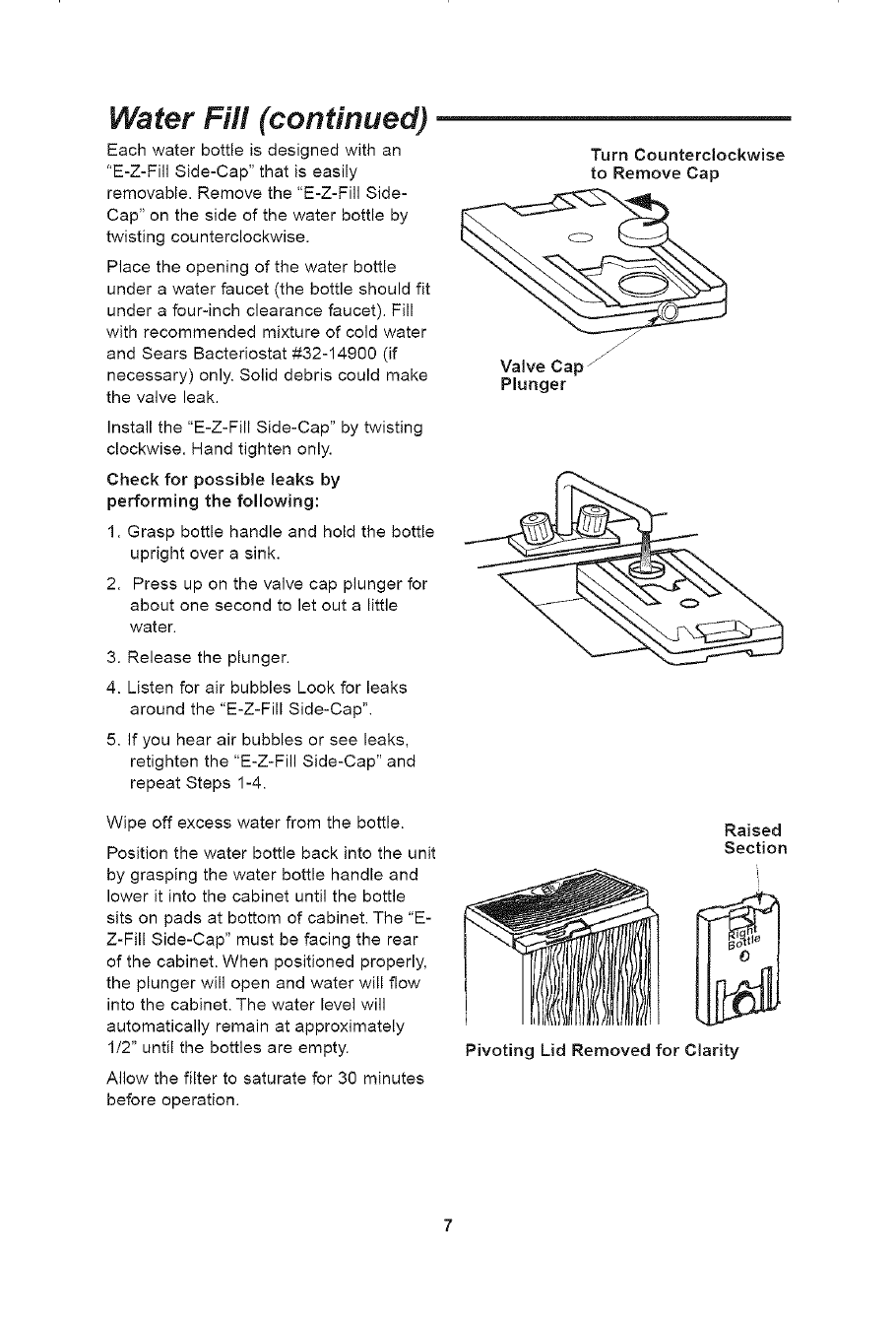

Water Fill (continued)
Each water bottle is designed with an
"E-Z-Fill Side-Cap" that is easily
removable. Remove the "E-Z-Fill Side-
Cap" on the side of the water bottle by
twisting counterclockwise.
Place the opening of the water bottle
under a water faucet (the bottle should fit
under a four-inch clearance faucet). Fill
with recommended mixture of cold water
and Sears Bacteriostat #32-14900 (if
necessary) only. Solid debris could make
the valve leak.
Turn Counterclockwise
to Remove Cap
Install the "E-Z-Fill Side-Cap" by twisting
clockwise. Hand tighten only.
Check for possible leaks by
performing the following:
1. Grasp bottle handle and hold the bottle
upright over a sink.
2. Press up on the valve cap plunger for
about one second to let out a little
water.
3. Release the plunger.
4. Listen for air bubbles Look for leaks
around the "E-Z-Fill Side-Cap".
5. If you hear air bubbles or see leaks,
retighten the "E-Z-Fill Side-Cap" and
repeat Steps 1-4.
Valve Cap _
Plunger
Wipe off excess water from the bottle.
Position the water bottle back into the unit
by grasping the water bottle handle and
lower it into the cabinet until the bottle
sits on pads at bottom of cabinet. The "E-
Z-Fill Side-Cap" must be facing the rear
of the cabinet. When positioned properly,
the plunger will open and water will flow
into the cabinet. The water level will
automatically remain at approximately
1/2" until the bottles are empty.
Allow the filter to saturate for 30 minutes
before operation.
Raised
Section
Pivoting Lid Removed for Clarity

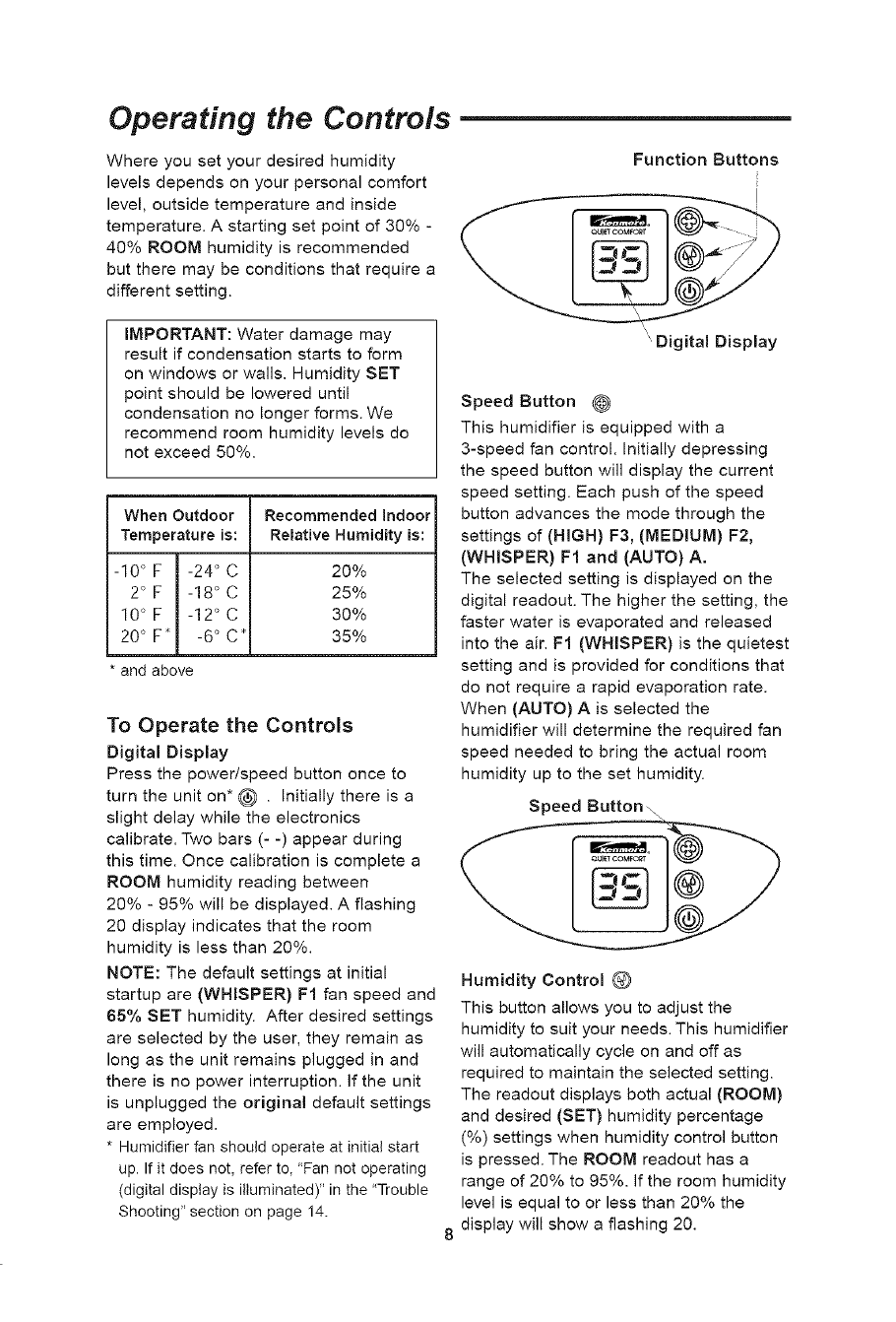

Operating the Controls
Where you set your desired humidity
levels depends on your personal comfort
level, outside temperature and inside
temperature. A starting set point of 30% -
40% ROOM humidity is recommended
but there may be conditions that require a
different setting.
IMPORTANT: Water damage may
result if condensation starts to form
on windows or walls. Humidity SET
point should be lowered until
condensation no longer forms. We
recommend room humidity levels do
not exceed 50%.
When Outdoor Recommended Indoor
Temperature is: Relative Humidity is:
-10°F -24 °C 20%
2° F -18 ° C 25%
10° F -12 ° C 30%
20° F_ -6 ° C_ 35%
* and above
To Operate the Controls
Digital Display
Press the power/speed button once to
turn the unit on* _ . Initially there is a
slight delay while the electronics
calibrate. Two bars (- -) appear during
this time. Once calibration is complete a
ROOM humidity reading between
20% - 95% will be displayed. A flashing
20 display indicates that the room
humidity is less than 20%.
NOTE: The default settings at initial
startup are (WHISPER) FI fan speed and
65% SET humidity. After desired settings
are selected by the user, they remain as
long as the unit remains plugged in and
there is no power interruption. If the unit
is unplugged the original default settings
are employed.
* Humidifier fan should operate at initial start
up. If it does not, refer to, "Fan not operating
(digital display is illuminated)" in the "Trouble
Shooting" section on page 14.
Function Buttons
' Digital Display
Speed Button @
This humidifier is equipped with a
3-speed fan control. Initially depressing
the speed button will display the current
speed setting. Each push of the speed
button advances the mode through the
settings of (HIGH) F3, (MEDIUM) F2,
(WHISPER) FI and (AUTO) A.
The selected setting is displayed on the
digital readout. The higher the setting, the
faster water is evaporated and released
into the air. FI (WHISPER) is the quietest
setting and is provided for conditions that
do not require a rapid evaporation rate.
When (AUTO) A is selected the
humidifier will determine the required fan
speed needed to bring the actual room
humidity up to the set humidity.
Speed Button\ \
Humidity Control O
This button allows you to adjust the
humidity to suit your needs. This humidifier
will automatically cycle on and off as
required to maintain the selected setting.
The readout displays both actual (ROOM)
and desired (SET) humidity percentage
(%) settings when humidity control button
is pressed. The ROOM readout has a
range of 20% to 95%. If the room humidity
level is equal to or less than 20% the
display will show a flashing 20.

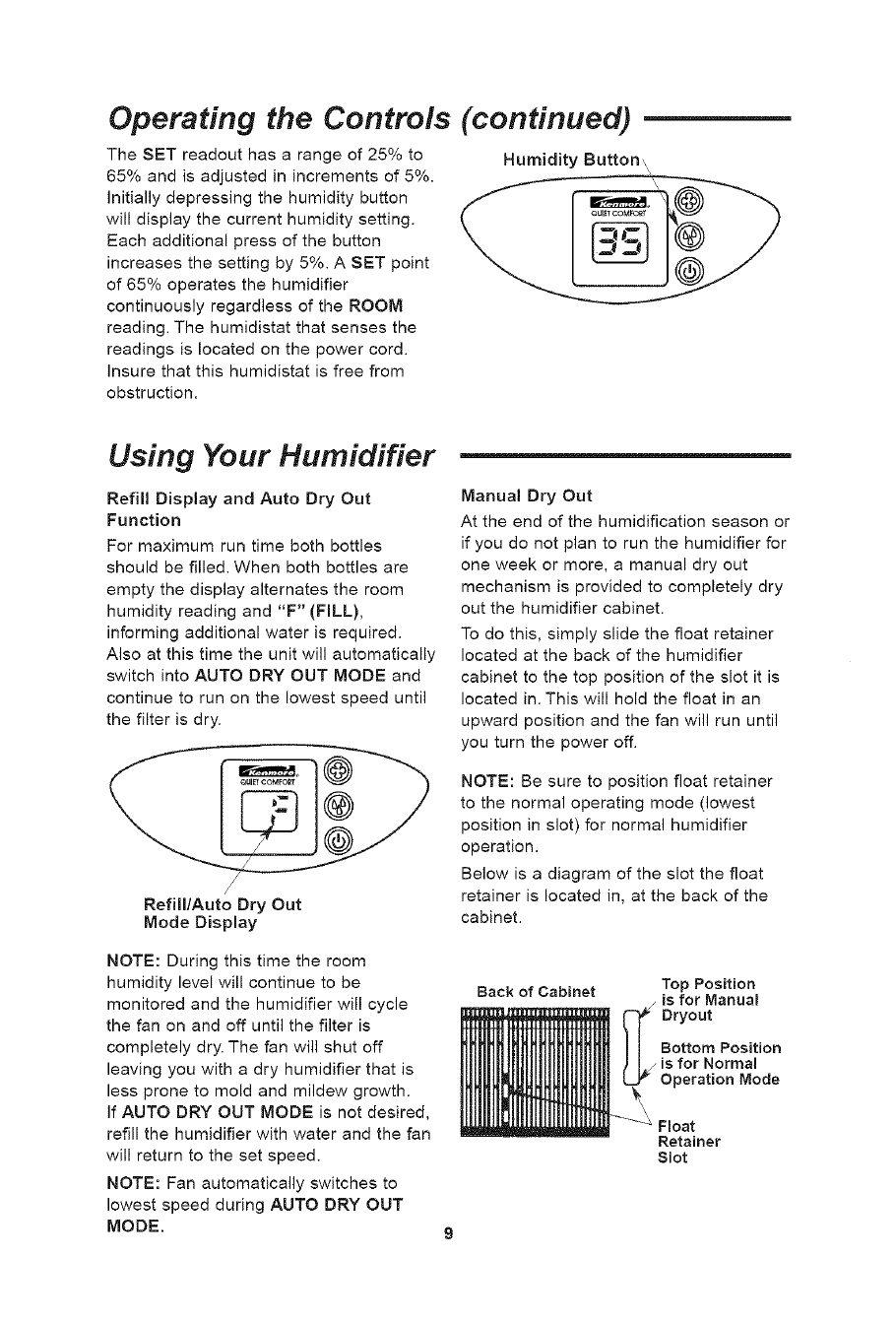

Operating the Controls
The SET readout has a range of 25% to
65% and is adjusted in increments of 5%.
initially depressing the humidity button
will display the current humidity setting.
Each additional press of the button
increases the setting by 5%. A SET point
of 65% operates the humidifier
continuously regardless of the ROOM
reading. The humidistat that senses the
readings is located on the power cord.
Insure that this humidistat is free from
obstruction.
(continued)
Humidity Button,,
Using Your Humidifier
Refill Display and Auto Dry Out
Function
For maximum run time both bottles
should be filled. When both bottles are
empty the display alternates the room
humidity reading and "F" (FILL),
informing additional water is required.
Also at this time the unit will automatically
switch into AUTO DRY OUT MODE and
continue to run on the lowest speed until
the filter is dry.
__ QUlE_COMFO_
Refill/Auto Dry Out
Mode Display
NOTE: During this time the room
humidity level will continue to be
monitored and the humidifier will cycle
the fan on and off until the filter is
completely dry. The fan will shut off
leaving you with a dry humidifier that is
less prone to mold and mildew growth.
if AUTO DRY OUT MODE is not desired,
refill the humidifier with water and the fan
will return to the set speed.
NOTE: Fan automatically switches to
lowest speed during AUTO DRY OUT
MODE.
Manual Dry Out
At the end of the humidification season or
if you do not plan to run the humidifier for
one week or more, a manual dry out
mechanism is provided to completely dry
out the humidifier cabinet.
To do this, simply slide the float retainer
located at the back of the humidifier
cabinet to the top position of the slot it is
located in. This will hold the float in an
upward position and the fan will run until
you turn the power off.
NOTE: Be sure to position float retainer
to the normal operating mode (lowest
position in slot) for normal humidifier
operation.
Below is a diagram of the slot the float
retainer is located in, at the back of the
cabinet.
Back of Cabinet Top Position
is for Manual
Dryout
Bottom Position
J is for Normal
Operation Mode
Float
Retainer
Slot

Using Your Humidifier (continued)
Check Filter Indicator
The ability of any humidifier to efficiently
supply humidity output relies heavily on the
condition of the filter. As the filter loads with
impurities it gradually loses its wicking
capability. When this happens, moisture
output is reduced and the humidifier has to
work longer to satisfy the selected setting.
This humidifier has a check filter reminder
timed to appear after 720 hours of motor
operation. When the display shows an
alternating "CF" and "room humidity"
setting at 5 second intervals it is a
reminder to check the filter condition.
NOTE: Some areas have high water
mineral content causing the need for more
frequent filter changes.
Refer to "Replacement and Care of Filter"
on page 1I. If a build-up of deposits or
severe discoloration is evident replace the
filter to restore maximum efficiency.
Control Lock Out
To avoid unwanted tampering with the
humidifier settings the controls can be
locked.
Activation Procedure
After the humidifier functions have been
set up, press and hold the power button
down for 5 seconds. The display will show
"CL" for 5 seconds; release the power
button and the control will resume the
display of the room humidity. The
humidifier will continue to function with
the locked in settings. If buttons are
operated while "CL" is active, the "CL" is
displayed and settings are unaffected.
Deactivation Procedure
To deactivate the "CL" function simply
press and hold the power button for 5
seconds. "CU' will flash and then resume
the display of room humidity.
Check Filter Display
Humidistat
The humidistat located on the power cord
senses the percentage of humidity in the
air. It causes the humidifier to cycle on
and off to maintain the selected humidity
SET point. The fan will turn on if the
"ROOM" reading falls 3% below the SET
point and will continue to run the
humidifier until a reading of 1% above the
SET point is achieved. The fan will turn
off until the ROOM reading falls 3%
below the SET point again.
NOTE: Be sure humidistat, which is
located on the power cord, is free from
obstructions and is away from any hot air
source.
10

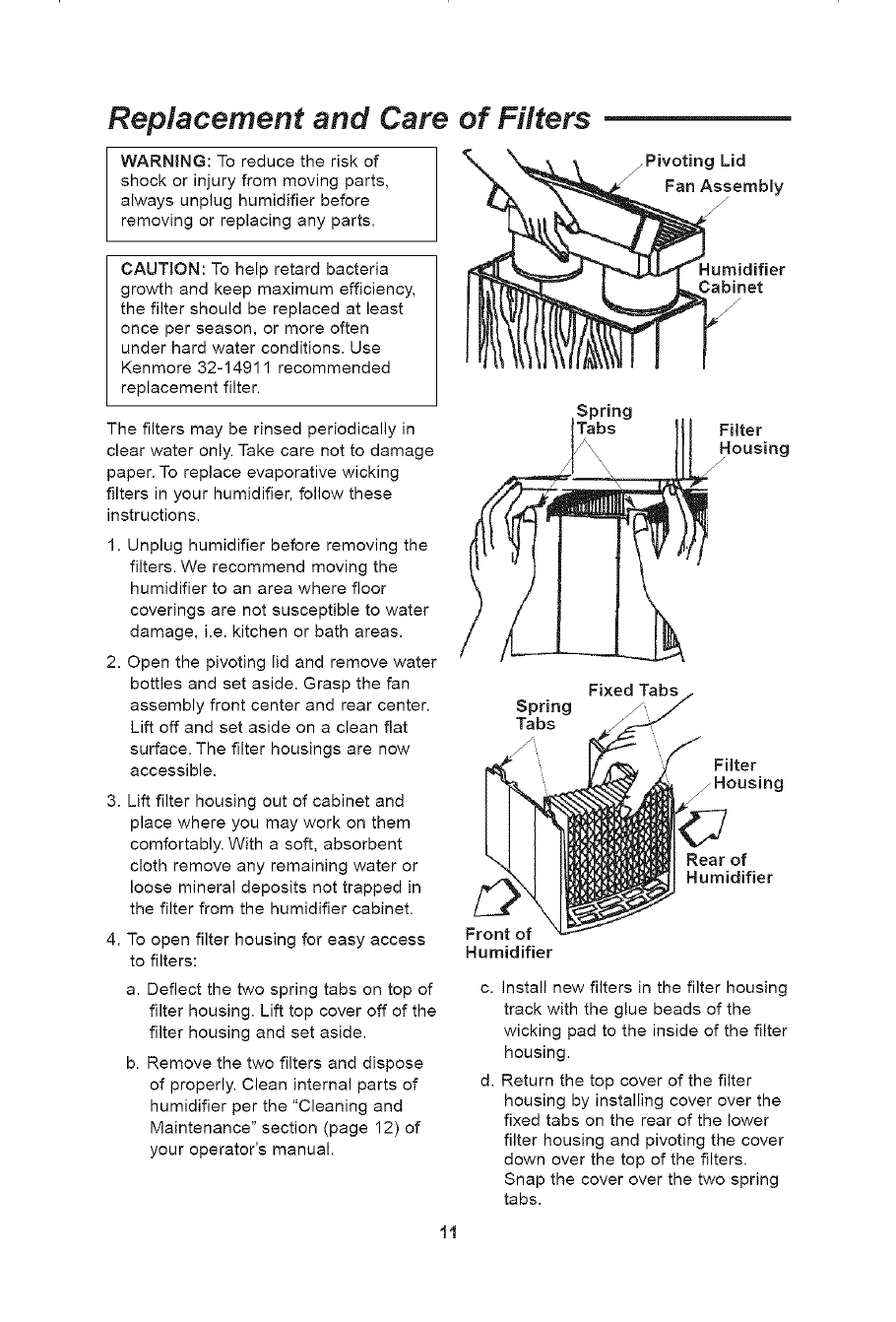

Replacement and Care of Filters
WARNING: To reduce the risk of
shock or injury from moving parts,
always unplug humidifier before
removing or replacing any parts.
jPivoting Lid
Fan Assembly
CAUTION: To help retard bacteria
growth and keep maximum efficiency,
the filter should be replaced at least
once per season, or more often
under hard water conditions. Use
Kenmore 32-14911 recommended
replacement filter.
The filters may be rinsed periodically in
clear water only. Take care not to damage
paper. To replace evaporative wicking
filters in your humidifier, follow these
instructions.
1. Unplug humidifier before removing the
filters. We recommend moving the
humidifier to an area where floor
coverings are not susceptible to water
damage, i.e. kitchen or bath areas.
2. Open the pivoting lid and remove water
bottles and set aside. Grasp the fan
assembly front center and rear center.
Lift off and set aside on a clean flat
surface. The filter housings are now
accessible.
3. Lift filter housing out of cabinet and
place where you may work on them
comfortably. With a soft, absorbent
cloth remove any remaining water or
loose mineral deposits not trapped in
the filter from the humidifier cabinet.
4. To open filter housing for easy access
to filters:
a. Deflect the two spring tabs on top of
filter housing. Lift top cover off of the
filter housing and set aside.
b. Remove the two filters and dispose
of properly. Clean internal parts of
humidifier per the "Cleaning and
Maintenance" section (page 12) of
your operator's manual.
Humidifier
J
J
Spring
Tabs Filter
Housing
Fixed Tabs
Front of
Humidifier
Install new filters in the filter housing
track with the glue beads of the
wicking pad to the inside of the filter
housing.
Return the top cover of the filter
housing by installing cover over the
fixed tabs on the rear of the lower
filter housing and pivoting the cover
down over the top of the filters.
Snap the cover over the two spring
tabs.
li

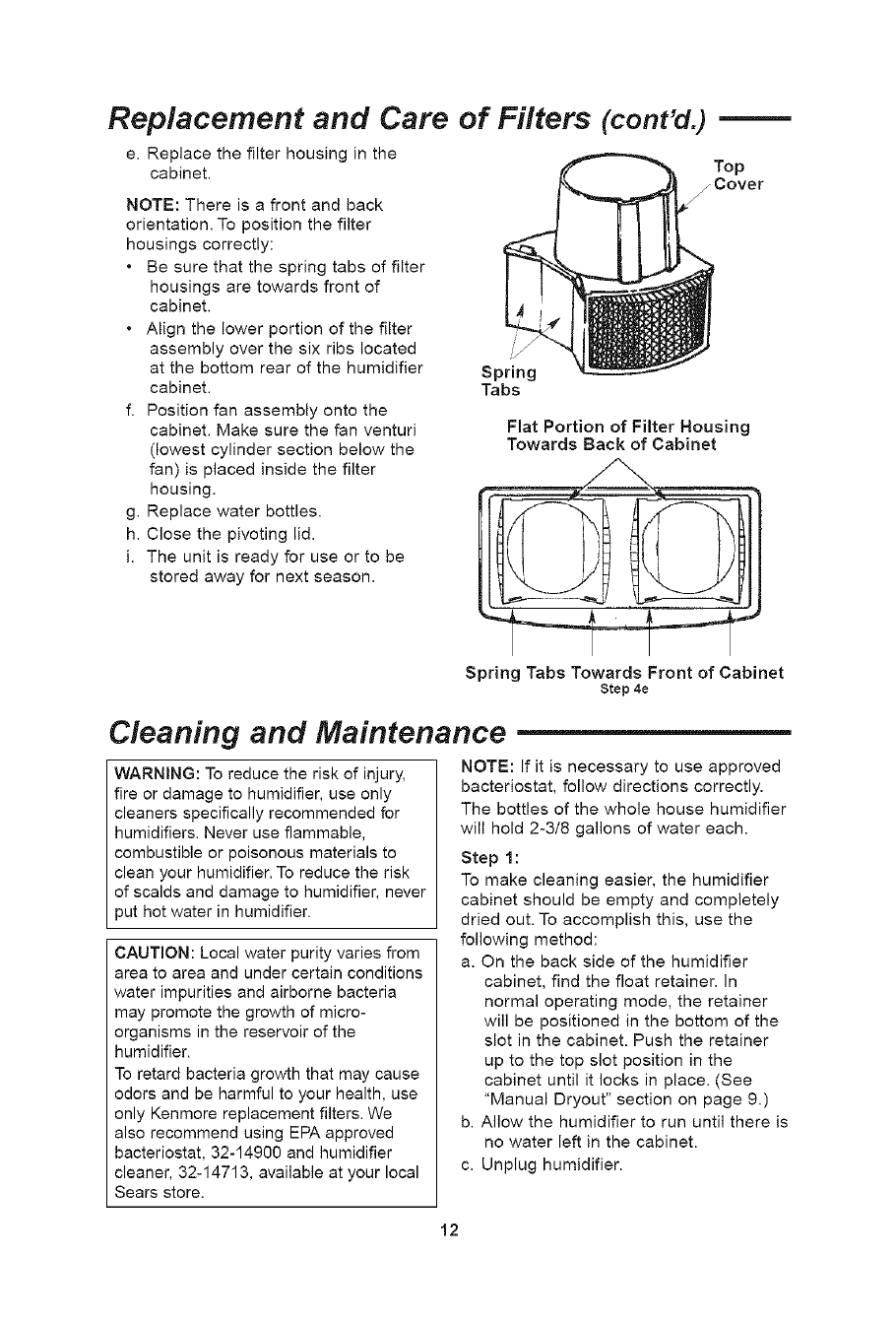

Replacement and Care of Filters (cont'd.)
e. Replace the filter housing in the
cabinet.
NOTE: There is a front and back
orientation. To position the filter
housings correctly:
• Be sure that the spring tabs of filter
housings are towards front of
cabinet.
• Align the lower portion of the filter
assembly over the six ribs located
at the bottom rear of the humidifier
cabinet.
f. Position fan assembly onto the
cabinet. Make sure the fan venturi
(lowest cylinder section below the
fan) is placed inside the filter
housing.
g. Replace water bottles.
h. Close the pivoting lid.
i. The unit is ready for use or to be
stored away for next season.
Top
j Cover
Spring
Tabs
Flat Portion of Filter Housing
Towards Back of Cabinet
Spring Tabs Towards Front of Cabinet
Step 4e
Cleaning and Maintenance
WARNING: To reduce the risk of injury,
fire or damage to humidifier, use only
cleaners specifically recommended for
humidifiers. Never use flammable,
combustible or poisonous materials to
clean your humidifier. To reduce the risk
of scalds and damage to humidifier, never
put hot water in humidifier.
CAUTION: Local water purity varies from
area to area and under certain conditions
water impurities and airborne bacteria
may promote the growth of micro-
organisms in the reservoir of the
humidifier.
To retard bacteria growth that may cause
odors and be harmful to your health, use
only Kenmore replacement filters. We
also recommend using EPA approved
bacteriostat, 32-14900 and humidifier
cleaner, 32-14713, available at your local
Sears store.
NOTE: If it is necessary to use approved
bacteriostat, follow directions correctly.
The bottles of the whole house humidifier
will hold 2-3/8 gallons of water each.
Step 1:
To make cleaning easier, the humidifier
cabinet should be empty and completely
dried out. To accomplish this, use the
following method:
a. On the back side of the humidifier
cabinet, find the float retainer. In
normal operating mode, the retainer
will be positioned in the bottom of the
slot in the cabinet. Push the retainer
up to the top slot position in the
cabinet until it locks in place. (See
"Manual Dryout" section on page 9.)
b. Allow the humidifier to run until there is
no water left in the cabinet.
c. Unplug humidifier.
12

Cleaning and Maintenance (cont'd.)
WARNING: To reduce the risk of shock,
always unplug humidifier before cleaning
or servicing. If humidifier is not unplugged,
fan could start after housing is removed.
Step 2:
To Remove Parts
a. Open the pivoting lid and remove water
bottles and set aside. Grasp the fan
assembly front center and rear center.
Lift off and set aside on a clean flat
surface. The filter housings are now
accessible.
b. Before removing the internal parts of
the humidifier cabinet, we recommend
moving the humidifier to an area
where floor covers are not susceptible
to water damage, i.e.; kitchen or bath
area. Lift the filter housing assemblies
out of the cabinet and set to the side.
c. Remove the water level float from the
humidifier cabinet by pinching the float
retainer to release it from the cabinet.
The cabinet should be empty before
cleaning. The cabinet consists of the
lower areas of the humidifier where
the filters are during normal operation
time.
d. Empty cabinet of any remaining water.
e. Proceed to "Bi-Weekly Maintenance" or
"End of Season Maintenance".
f. Remove old filters and dispose of
properly as described on pages 11-12.
Step 3:
Install new filters (purchase the correct
evaporative wicking filter pads 32-14911
for your humidifier) into the location
where the old filters were positioned.
Install the filter housings with the new
filters into the correct location. Reinstall
the water level float.
NOTE: Float retainer should be
positioned in normal operating mode.
Assure that it is positioned in the bottom
of the slot in the back of the cabinet (See
page 9 for diagram of slot).
Position the fan assembly on top of the
cabinet and return the humidifier to the
desired location for use.
Refill humidifier bottles with fresh cool
water and return them to the cabinet.
Plug the unit into a 120 volt A.C. power
outlet and set the controls per the
"Operating Humidifier Controls" section
(page 8) of this manual.
Bi-Weekly Maintenance
Removing Scale
1. Fill the reservoir with water and
add one 8 oz. cup of undiluted
white vinegar. Let solution stay for
20 minutes.
2. Clean all interior surfaces with soft
brush. Dampen soft cloth with
undiluted white vinegar and wipe
out reservoir to remove scale.
3. Rinse thoroughly with clean warm
water to remove scale and cleaning
solution before disinfecting the
reservoir.
Disinfecting Humidifier
Cabinet and Water Bottles
1. Fill humidifier cabinet with 1
teaspoon chlorine bleach in 1
gallon of water. Let solution stay for
20 minutes, carefully swishing
every few minutes. Wet all surfaces
normally exposed to water.
2. Empty humidifier cabinet after 20
minutes. Rinse with water until
bleach smell is gone. Allow unit to
dry out completely.
Water bottles should be cleaned in
the same manner.
of Season Maintenance
Follow "Bi-Weekly Maintenance"
instructions at end of humidification
season.
Remove and throw away filters.
Let humidifier dry completely before
storing. Do not store with water inside
cabinet or water bottles.
Store in cool, dry location.
Install a new filters in clean humidifier
before next season begins.
"Bi-Weekly Maintenance" procedure is
also recommended if you do not plan
to run the humidifier for one week or
more.
3.
End
1.
2.
3.
4.
5.
6.
13

Troubleshooting
Trouble Probable Cause Remedy
Digital display not illuminated • No Power. • Check 120 volt power source
• Power button has not been • Press power button once to turn
depressed, on
Fan not operating (digital • ROOM humidity level is not 3% or • Raise SET humidity level if
display is illuminated) more below SET humidity level, desired
• Reservoir is empty. • Increase fan speed.
• Fill humidifier with water
i Fan running continuously,
unit will not shut off • Float is obstructed.
• SET humidity level is 65%.
• ROOM humidity level has not
reached 1% or more above SET
humidity level.
• Free float from obstruction
• A SET humidity percentage
of 65% operates fan
continuously. Adjust SET
level between 25% -60%.
• Continue to run until desired
humidity level is achieved This
may take up to 48 hours initially
Poor evaporation of water. ° Check filter message "CF" is • Change to a fresh new filter
flashing NOTE: Local water purity varies
° Mineral buildup on filter, from area to area.
Neither bottle emptying. ° Bottle cap plunger missing post in • Check orientation of bottles
bottom of cabinet Reposition so that bottle cap
° Dirty filters plunger (stem) is depressed by
post in bottom of cabinet.
• Change to fresh new filters
(32-14911)
Bottles continues to empty ° Air is entering water bottle. • Check "E-Z-FHi Side-Caps" and
valve assembly caps to ensure
tightness
• Check for leak in water bottle
• Ensure gaskets for"E-Z-Fi{I Side-
Caps" are in place
Left bottle not emptying ° Right bottle contains water • The humidifier is designed so that
right bottle empties first
Refill display "F" is on before ° Unit is not set up on a level • Position unit level (Some carpet
bottles are empty surface. (Float will not sense water padding may allow unit to sit lower
at the front of the cabinet.) in the front than rear with the
additional weight of water bottles
in the front of the cabinet Install
caster pads under front casters
(see page 5)
Display blinks or fan moves slightly • Normal • No action required
when humidifier is plugged in.
Fan operating slower than speed • Humidifier is in "Dry Out Mode" • Humidifier automatically switches
registered on digital display, fan to (WHISPER) F1 when "F" is
flashing
Humidifier not shutting off during • Filter not dry • During "Dry Out Mode", the
"Dry Out Mode" humidifier will continue to run on
(WHISPER) F1 speed as required
for up to 2 hours.
Alternating "F" and room humidity • Reservoir is empty. • Fill humidifier with water
displayed
Alternating "CF" and room humidity • Filter may be dirty • Replace filter.
displayed
CAUTION: Use only 32-14900 EPA Registered Bactebostat available from Sears Retail store.
Use of other water treatment products may damage the filter elements. Under no circumstances should you use
water treatment products designed for Roto belt or Ultrasonic humidifiers.
14

Repair Parts
Parts List for Kenmore Humidifier
Model No. 758.154200
II _15
15

Repair Parts
Parts List for Kenmore Humidifier
Model No. 758.154200
Always order by part number - Not by key number
Key
No Part No. Description
1 828741-2 Lid, Stationary
2 828855-1 Lid, Pivoting
3 831680 Control Assembly
4 824690 "E-Z-Fill Side-Cap"
5 828192 Bottle, Left (IncludesKeyNos.4& 7)
6 828726 Bottle, Right (IncludesKeyNos.4 &7)
7 509229-1 Cap,Valve Assembly
8 828199-9 Cabinet
9 823726 Rail, Kick
10 STD601107 • Screw, Pan Hd.Ty "AB" #10 x 3/4
11 828515 Caster,Twin Wheel
12 830560-1 Support, Filter Lower
13 32-14911 tFilter, Evaporative
14 828534 Support, Motor
15 828115-1 Motor
16 822406-1 Fan
17 828197 Support, Upper Filter
18 824101 Retainer,Float
19 828200-3 Float,Water Level
20 828920 Pad,Caster(Two)
-- SP6644 Operator's Manual (notillustrated)
NOTE: Any attempt to repair the control assembly or motor
may create a hazard unless repair is done by a qualified
service technician. Repair service is available at your nearest
Sears store.
* Standard Hardware Item - May be purchased locally
1- Stock item - May be secured through the Hardware
Department of most Sears retail stores.
16

LEAY GUARDE ESTAS INSTRUCCIONES
IVlanualdel usuario
®
HUMIDIFICADOR PARA TODA LA CASA
Produccionde 14 galonescon
tecnoiogiainnovadorade ventiiadoresgemeios
Modeio 758.154200
PRECAUCION: Antesde utilizareste
producto,leaestemanual y siga
todaslasnormas de seguridade
instruccionesde utilizaci0n.
• Seguridad
•Ensambiaje
• Utilizacion
• Mantenirniento
• Piezas
Sears,Roebuckand Co.,HoffmanEstates,IL60179U.S.A.
www.sears.com
No. de piezaSP6644 Impreso en Canada

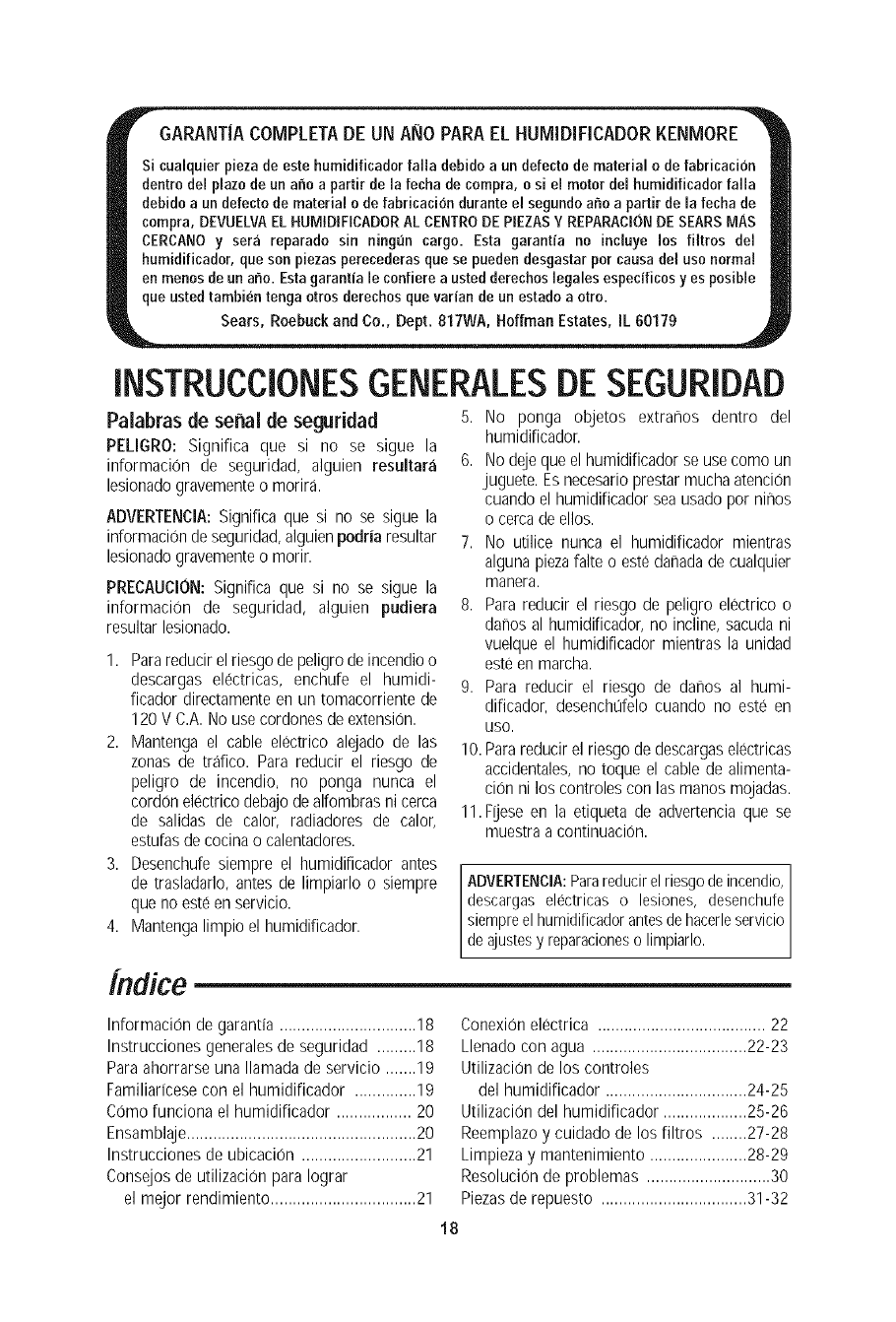

_"GARANTiA COMPLETA DE UN ANO PARA EL HUMIDIFICADORKENMORE "_II
Si cualquier pieza de estehumidificador falla debido a un defecto de material o de fabricacion
dentro del plazo de un ano a part# de la fecha de compra, o si el motor del humidificador falla
debido a un defecto de material o de fabrieaci6n durante el segundoano a partir de la fecha de
compra, DEVUELVAELHUMIDIFICADORALCENTRODEPIEZASY REPARACl0NDE SEARSMAs
CERCANO y sera reparado sin ningun cargo. Esta garantfa no induye los filtros del
humidificador, que son piezas pereeederas que se pueden desgastar por causa del uso normaJ
en menos de un ano. Estagarantia le confiere a usted derechos legales especificos yes posible
que usted tambien tenga otros dereehos que varian de un estado a otto.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
INSTRUCCIONESGENERALESDE SEGURIDAD
Palabras de senal de seguridad
PELIGRO: Significa que si no se sigue la
informacion de seguridad, alguien resultara
lesionadogravementeo morir&
ADVERTENCIA:Significa que si no se sigue la
informaciondeseguridad,alguienpodria resultar
lesionadogravementeo morir.
PRECAUCION:Significa que si no se sigue la
informacion de seguridad, alguien pudiera
resultarlesionado.
1. Parareducirelriesgo depeligrode incendioo
descargas electricas, enchufe el humidi-
ficador directamenteen un tomacorrientede
120 V C.A.No usecordonesde extension.
2. Mantenga el cable electrico alejado de las
zonas de trafico. Para reducir el riesgo de
peligro de incendio, no ponga nunca el
cordon electricodebajode alfombrasni cerca
de salidas de calor, radiadores de calor,
estufasde cocinao calentadores.
3. Desenchufesiempre el humidificador antes
de trasladarlo, antesde limpiarlo o siempre
que no este enservicio.
4. Mantengalimpio el humidificador.
5. No ponga objetos extrarhos dentro del
humidificador.
6. Nodeje queel humidificador seusecomo un
juguete. Esnecesarioprestar muchaatencion
cuando el humidificador seausadopor nirhos
o cercade ellos.
7. No utilice nunca el humidificador mientras
alguna piezafalte o estedafiada decualquier
manera.
8. Parareducir el riesgo de peligro eledrico o
danos al humidificador,no incline, sacudani
vuelque el humidificador mientras la unidad
este enmarch&
9. Para reducir el riesgo de danos al humi-
dificador, desenchdelo cuando no este en
USO.
10. Parareducir el riesgode descargaseleetrieas
aceidentales,no toque el cable de alimenta-
cion ni los controlescon las manos mojadas.
11. Fijeseen la etiqueta de advertencia que se
muestraa continuacion.
ADVERTENCIA:Parareducirel riesgodeincendio,
descargas electricas o lesiones, desenchufe
siempreel humidificadorantesdehacerleservicio
deajustesy reparacionesolimpiarlo.
indice
Informacion de garantia ...............................18
Instrucciones generales de seguridad .........18
Paraahorrarse una Ilamadade servicio .......19
Familiaricesecon el humidificador ..............19
Comofunciona el humidificador ................. 20
Ensamblaje....................................................20
Instrucciones de ubicacion ..........................21
Consejosde utilizacion para Iograr
el mejor rendimiento................................. 21
Conexionelectrica ...................................... 22
Llenadocon agua ...................................22-23
Utilizacion de los controles
del humidificador ................................24-25
Utilizacion del humidificador ...................25-26
Reemplazoy cuidado de los filtros ........27-28
Limpieza y mantenimiento ......................28-29
Resolucion de problemas ............................30
Piezasde repuesto .................................31-32
18

Para ahorrarse una Ilamada de servicio
Compruebe Io siguiente si el humidificador no
funciona.
1. &Estael cabledealimentacionconectadoa un
tomacorriente?
2. _,Hayalimentacionelectricaaltomacorriente?
3. gEsta el control del flujo de aire en la
posiciOnde funcionamiento?
4. gEstael control de humedadajustado a un
nivelIo suficientementealto?
5. gEsta el gabinete ubicado sobre una
superficie nivelada?
Familiaricese con el humidificador
unto de ventiladeres
Carcasa
del filtro_
Filtro:
No. de repueste
32-14911 Tapa pivotante
Higrestato
(en el cable de
alimentacion)
_Ruedecillas
Seha quitado la tapa pivotante para mayor claridad
Descripci6n
Produccion engalones/24 h
Capacidadde las botellas
Coberturaen piescuadrados
Velocidadesdel ventilador
Veloeidad del ventilador automatica
Filtros de repuesto
Indicador de Ilenado
Apagado automatico
Higrostato automatieo
Controles
758.154200
14
2-3/8 galonescada una
2900
3
Si
Juego de 4 (32-14911)
Si
Si
Si
Eleetr0nicos (boron pulsador)
Bloqueo de los controles
Ruedeeillas
Catalogadopor UL
Voltaje
Frecuencia
Intensidad
Poteneia
Si
Si
Si
120 VC.A.
60 Hz
2,88 A
165 W
Basadaen una zona con aislamiento promedio y una altura de
habitacion de 2,44 m (8 pies).
ANSI/AHAM HUqq997, SEC.8.1, los resultados pueden variar.
19

Como funciona el humidificador
Su nuevo humidificador Kenmoreesta diseflado
para satisfacer los requisitos de humedad del
hogar atravesdelprincipio dela evaporaciOndel
aguaenel aire.
Despuesde anadir agua a la botella, los filtros
comienzan a absorber el agua y se saturan
totalmenteen aproximadamente30 minutos. Se
haceentrar airede la parte trasera del humidi-
ficador y a travesde los filtros por medio de los
ventiladoresdecirculacion. A medidaque el aire
pasaa travesde los filtros, absorbehumedad,la
cual se liberaa continuacionen forma de vapor.
No entrarangotitas de agua en la casa. Todala
evaporaciOnal aire tiene lugar en el humidi-
ficador,Io cualsignifica que los residuosdejados
porel aguaqueseevaporano sepasana lacasa,
sino que permanecenen elfiltro.
PRECAUCION:Utilicet_nicamenteun bacterios-
tato registrado por EPA 32-14900, el cual
se puede obtener en una tienda minorista
Sears. En ninguna circunstancia debe usted
usar productos de tratamiento de agua
disenadospara humidificadoresde rotocorrea
o ultrasonicos.
Luego,seexpulsaaire humidificado
atravesde la parlesuperior
a rese o Vi@i"'@i
entraa traves _.."_[[i_
dela parte
trasera
PRECAUCION:Parareducir el riesgo de lesio-
nes, incendioo darhosal humidificador, utilice
unicamente limpiadores recomendadosespe-
cificamente para humidificadores. No utilice
nunca materialesinflamables, combustibles o
tOxicosparalimpiar el humidificador.
Parareducir el riesgode escaldadurasy danos
al humidificador,no ponga nuncaaguacaliente
en el humidificador.
Ensamblaje
Su nuevo humidificador Sears Kenmore esta
ensambladocompletamente para que usted Io
use. Saqueel paquetede bolsaque contienedos
almohadillaspara ruedecillade plastico,situado
en la parte de arriba del humidificador, y
retengalopara uso futuro, en caso de que sea
necesario.Consulte el Paso 1 que aparecemas
adelanteparaobtener instrucciones.
NOTA:Saqueelmaterialde empaquetamientodel
interiordel humidificadory sigalasinstrucciones
contenidas en este manual del usuario para
utilizar correctamente el humidificador. El
material de empaquetamiento esta ubicado
debajo del conjunto de ventiladores. Saque el
materialdeempaquetamientoy desechelo.
2O
