SF..AIRIS
OWner'S
Model No.
758.144115
FOR YOUR
READ
ALL mNSTRUCTIONS
CAREFULLY
QUIETCOMFORT
WHOLE HOUSE
HUMIDHFIER
11 Gallon Output with
Digita_ Readout
• Operating _nstructions
• Parts List
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Part No. SP6520 Printed in Canada

FULL ONE YEAR WARRANTY ON HUMmDmFIER
_fwithin one (1) year from the date of purchase, this humidifier falls due to a defect in
material or workmanship, Sears will repair it, free of charge. If within two (2} years from
the date of purchase, the motor fails due to defect in materia_ or workmanship, Sears
witl repair it free of charge.
This warranty service is available by simply returning the humidifier to the nearest Sears
Service Center/Department throughout the United States.
This warranty applies only while this product is used in the United States.
This warranty gives you specific _egal rights, and you may also have other rights which
vary from state to state.
Sears Roebuck and Co. D1817 Hoffman Estates IL 60179

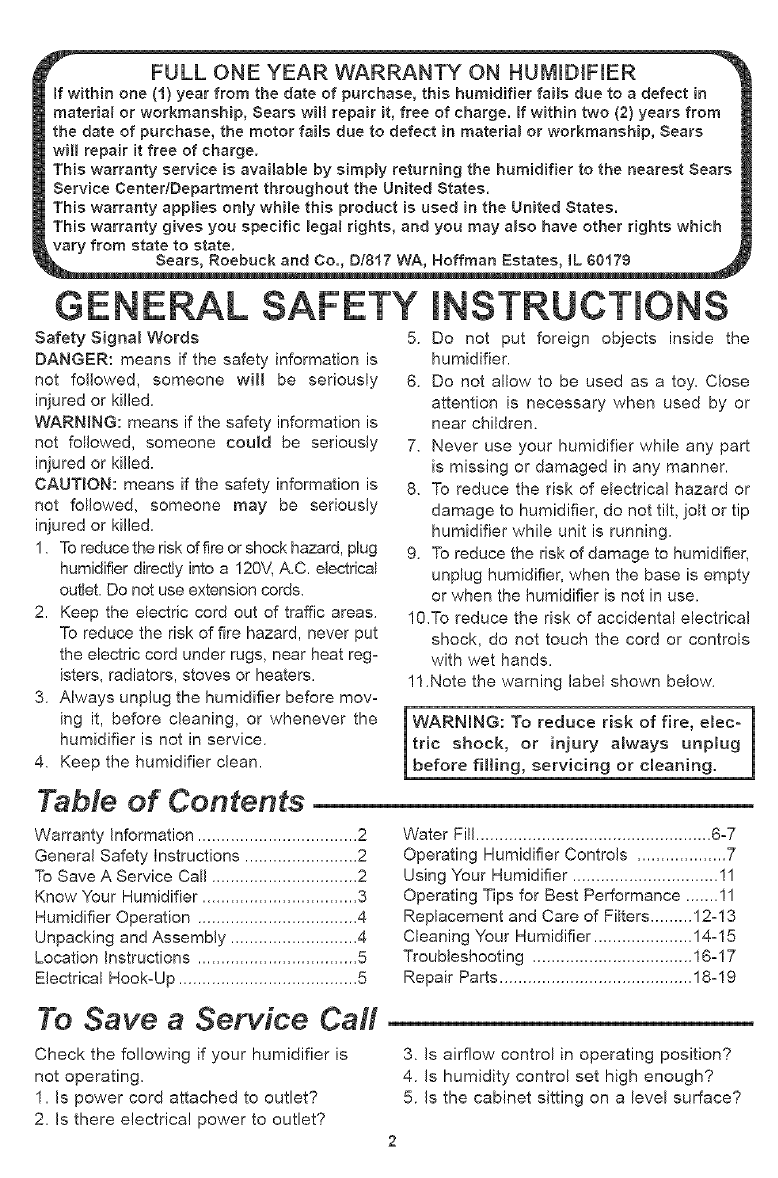

GENERAL SAFETY
Safety Signal Words 5.
DANGER: means if the safety information is
not followed, someone will be seriously 6.
injured or killed.
WARNING: means if the safety information is
not followed, someone could be seriously 7.
injured or killed.
CAUTION: means if the safety information is 8.
not followed, someone may be seriously
injured or killed.
1. To reduce the risk of fire or shock hazard, plug 9.
humidifier directly into a !20V, A.C. electrical
outlet. Do not use extension cords.
2. Keep the electric cord out of traffic areas.
To reduce the risk of fire hazard, never put
the electric cord under rugs, near heat reg=
isters, radiators, stoves or heaters.
3. Always unplug the humidifier before mov=
ing it, before cleaning, or whenever the
humidifier is not in service.
4. Keep the humidifier clean.
Table of Contents
Warranty Information .................................. 2
General Safety instructions ........................ 2
To Save A Service Call ............................... 2
Know Your Humidifier ................................. 3
Humidifier Operation .................................. 4
Unpacking and Assembly ........................... 4
Location Instructions .................................. 5
Electrical Hook=Up ...................................... 5
iNSTRUCTiONS
Do not put foreign objects inside the
humidifier.
Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
Never use your humidifier while any part
is missing or damaged in any manner.
To reduce the risk of electrical hazard or
damage to humidifier, do not tilt, jolt or tip
humidifier while unit is running.
To reduce the risk of damage to humidifier,
unplug humidifier, when the base is empty
or when the humidifier is not in use.
1O.To reduce the risk of accidental electrical
shock, do not touch the cord or controls
with wet hands.
11.Note the warning label shown below.
_
WARNING: To reduce risk of fire, elec-
l tNc shock, or injury always unplug
|before filling, servicing or cleaning.
Water Fill .................................................. 6-7
Operating Humidifier Controls ................... 7
Using Your Humidifier ............................... !1
Operating Tips for Best Performance ....... !1
Replacement and Care of Filters ......... 12=13
Cleaning Your Humidifier ..................... 14=15
Troubleshooting .................................. 16=17
Repair Parts ......................................... 18=19
To Save a Service Calt
Check the following if your humidifier is 3_ Is airflow control in operating position?
not operating. 4. Is humidity control set high enough?
1. Is power cord attached to outlet? 5. Is the cabinet sitting on a level surface?
2. Is there electrical power to outlet? 2

Know Your Humidifier
Fan Assembly
Bottle Handles
Speed Controm
Casters
Base
Description
Ga!lon Output/24 hrs
Capacity of Bottle
Capacity of Base
Sq. Ft. Coverage
Fan Speeds
Replacement Filter
Power Light
Fill Light
Auto Humidistat
42-14411
11
1,9 Gal!ons
2.0 Gallons
2300
4
42:14906
Yes
Yes
Yes
Auto Shut Off
Controls
Casters
CUL Listed
Volts
Hertz
Amps
Watts
Yes
Electronic (Push Button)
Yes(4)
Yes
120 A,C.
60
0,80
80
* Based on an area with average insulation
and an 8 foot ceiling height.

Humidifier Operation __
Your new Sears humidifier is designed to Humidified air is
satisfy home humidity requirements then reteased
through the principle of evaporation of through the top
water in the air.
After water is added to the humidifier, the
filter begins to soak up the water and will Dry air
become saturated in approximately 30 enters
minutes. Air drawn in through the open- through the
ings in the lower housing passes through _ouvers in
the filter by means of a circulation fan. the housing
As air passes through the filter, moisture
is absorbed into the air and then
released in the form of vapor. No water
droplets will enter the home. All evapora-
tion into the air takes place in the humidi-
fier, which means that the residue left by
evaporating water is not passed into the
home, but remains in the filter.
This natural process of evaporation helps
eliminate the chance of white dust in the
humidified output air.
CAUTmON: Use onJy 42°14900 EPA
Registered Bacteriostat availabJe
from SEARS Retail store. Under no
circumstances should you use water
treatment products designed for
Roto belt or Ultrasonic humidifiers.
CAUTmON: To reduce the risk of
injury, fire or damage to humidifier,
use only cleaners specifically recom-
mended for humidifiers. Never use
flammable, combustible or poiso-
nous materials to cJean your humidi-
fier. To reduce the risk of scalds and
damage to humidifier, never put hot
water in humidifier.
Unpacking and Assemb
Your new Sears Kenmore humidifier is
supplied with four swivel casters for ease
of maneuverability. Remove the casters
from the top of the packing materia!
inside the carton. The casters press into
the bottom of the base at the locations
shown. To make assembly easier remove
the water bottle, housing assembly and
filter and flip the base upside to install.
See steps 2-4 of "Replacement and Care
of Filters" section on page 12 for proce-
dure. Take care not to damage the floats
or base assembly if choosing this method
of assembly. Press casters into location
beside X.
Note: Casters should be installed manu-
ally. Do not use any tools to install them.
Once installed return the unit to its origi-
nal state and proceed to "Location
Instructions.

Location Instructions --
iWARNING: For your own safety, do
not use humidifier if any parts are
_damaged or mss ng.
Step 1
Place humidifier on a flat level surface in
an area of house where most humidity is
needed, or one which would likely result
in moist air being circulated throughout
the house such as near a cold air return.
Placing the unit level is very important.
Special attention should be given to unit's
level if the humidifier is located on car-
peting. Moist air (humidity) produced will
disperse into the whole house, but the
area closest to the unit will have the high°
est humidity. If the unit is positioned close
to a window, condensation may form on
the window pane. If this is not appropri-
ate the unit should be repositioned in
another location.
NOTE: Due to release of coo!, moist air
from humidifier, it is best to direct air
away from home thermostat and hot air
registers. It is best to position humidifier
next to an inside wall. Hot air registers
and cold air from outside walls can affect
the efficiencies of the controls. Unit
should not be placed where warm air
from a hot air register blows directly on
unit.
l Step 2
The humidifier should be positioned with
the back (cord exit side) and left side, at
least 2 inches away from the wall Air
needs to enter through all of the louvers
in the housing assembly in order for the
humidifier to operate at peak efficiency.
\"\\_\
Note: Be sure humidistat located
approximately 4 inches outside humidi-
fier body on power cord is free from
obstruction and away from any hot air
register.
Electrical Hook-Up
Locate nearest 120V A.C. wall socket in
the location desired, preferably on inside
wall. With the humidifier in the desired
location, route the electrical cord safely
so no one wil! trip or upset the humidifier.
Plug in the electrical cord.
WARNING: To reduce the risk of fire ]
1
or shock hazard, humidifier shoumd
be plugged into a 120V A.C. outlet.
Do not use extens on cords.
To reduce the risk of electrical shock, this
humidifier has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse plug. If it still does not fit, contact
a qualified electrician to install the proper
outlet. Do not change the plug in any way.

Water Fill
WARNING: To reduce the risk of
shock, always unplug humidifier
before cleaning or servicing.
WARNING: To reduce the risk of fire
or shock hazard, do not pour or spH[
water into control or motor area.
If controls get wet, let them dry
comp[etemy and have unit checked by
authorized service personnel before
plugging in.
This humidifier is designed for use with
the water bottle located to the right of the
upper grill. The water bottle holds 1,9 gal-
lons of water. The humidifier should be
positioned where it will be operating,
To fill the whole house humidifier, grasp
the bottle handle at the top of the bottle
and lift it straight up and away from
humidifier base. Take care not to bump
or damage spring valve assembly on
bottom of bottle.
NOTE: If it is desired to use approved
bacteriostat, follow directions correctly.
The bottle of the whole house humidifier
will hold 1.9 gallons of water,
The water bottle is designed with an 'E-Z-
Fill Side-Cap". Remove the 'E-Z-Fill Side-
Cap" on the side of the water bottle by
twisting counterclockwise,
Place the opening of the water bottle
under a water faucet and fill. If desired,
add Sears liquid bacteriostat (stock num-
ber 42-14900) to help control the build up
of bacteria and algae, Do not use solid
water treatments, Solid debris could make
the lower valve leak.
Install the ' E-Z-Fill Side-Cap" by twisting
clockwise, Hand tighten only,
Check for possible leaks by perform°
ing the following:
1, Grasp bottle handle and hold the bottle
upright over a sink.
2, Press up on valve plunger for about
one second to let out a little water.
3, Release the plunger.
Spring Valve Assembly
//
Z
,'_ l _ Bottle
/
.- Base

4. Listen for air bubbles. Look for leaks
around the ' E-Z-Fill Side-Cap" and
valve plunger.
5. If you hear air bubbles or see leaks,
retighten the "E-Z-Fill Side-Cap" and
repeat steps 1-4.
Wipe off excess water from the bottle.
Position the water bottle back into the
humidifier base to the right of the grille.
The "E-Z-Fill Side-Cap" must be facing
outward. When positioned properly, the
plunger will open and water will flow into
the base. The base will hold the entire
contents of the water bottle. Allow up to
one minute for the water to flow into the
base. Once the bottle is empty, remove it
and refill it as mentioned earlier. Return it
to the right side of the grille. The humidifi-
er is now filled to capacity.
The water bottle may be filled at anytime
as necessary during operation. To benefit
from less frequent filling let the humidifier
exhaust both the water from the bottle
and base before filling.
The unit is now ready for operation.
BottBe
Base
Operating Humidifier Controls
The operating controls of your Kenmore
Quiet Comfort whole house humidifier
are located towards the front of the
humidifier.
Familiarize yourself with the controls.
Reference the diagram of the control
area for the correct nomenclature used in
this manual.
ROOM humidity reading between 25% -
95% will be displayed. A flashing 25 dis-
play indicates that the room humidity is
less than 25 %.
Digital Display
To Operate the Controls
Power Button /Light
When the unit is plugged in and the
power button is pressed once the red
power light will come on. The power light
will stay on until the power button is
pressed again turning the unit off or until
the unit is unplugged.
Digital Display
The digital display will also show readouts
when the unit is turned on. Initially there
is a slight delay while the electronics cali-
brate. Two bars (- -) flash during this
time. Once calibration is complete a
Refill On
Light Light
Note: The default settings at initial start-
up are WHSPER fan speed and 65%
SET humidity. After desired settings are
selected by the user, they remain as
defaults as long as the unit remains
plugged in and there is no power interrup-
tion. If the unit is unplugged the original
default settings are employed.

Operating Humidifier Controls (cont'd)
Speed Button
This humidifier is equipped with a 4=
speed fan contro!, Each push of the
speed button advances the mode through
the settings of WHSPER, NIGH, MEDIo
UM and LOW. The selected setting is dis=
played on the digital readout. The higher
the setting, the faster water is evaporated
and released into the air.
WHSPER is the quietest setting and is
provided for conditions that do not require
a rapid evaporation rate,
Humidity Control
The +/- buttons allows you to adjust the
humidity to suit your needs. This humidi-
fier wil! automatically cycle on and off as
required to maintain the selected setting.
The readout displays both actual (ROOM)
and desired (SET) humidity percentage
(%) settings. The ROOM reading is the
larger display of the two, The ROOM
readout is displayed in 1% increments
and has a range of 25% to 95%. If the
room humidity level is equal to or less
than 25% the display will show a flashing
25.
:_"u_-'_'_ Humidity
,u.,: l: Bo,,o.,
The SET readout has a range of 30% to
65% and is adjusted in increments of 5%,
Each press of the
(+) button increases the setting by 5%
and conversely each press of the ( =)
button decreases the setting by 5%, A
SET point of 65% operates the humidifier
continuously regardless of the ROOM
reading.
The humidistat that senses the readings
is located on the power cord. insure that it
is free from obstruction,
Constal_t Or, Setting

Operating Humidifier Controls (cont'd)
Refill Light
The humidifier base and bottle hold approxi_
mately 2 gallons of water each. The bottle
empties into the base during operation.
When the base empties the amber REFILL
light will illuminate informing additional water
is required. Also at this time the unit will
automatically switch into "DRY OUT MODE"
and continue to run on WNmSPER speed
until the filter is dry. The message "DRY
OUT MODE" will appear on the digital dis-
play and the fan speed will switch to WNmSo
PER speed. Note: The digital display will
still show the speed the humidifier was oper_
ating in before the REFILL light turned on
even though the fan is operating at WHISo
PER speed. During this time the room
humidity level will continue to be monitored
and the humidifier will cycle the fan on and
off as required. If DRY OUT MODE is not
desired, refill the humidifier with water.
Note: Once the dry out cycle is complete the
fan will shut off and the REFILL light will
stay illuminated. The humidifier will automati-
cally start again when it is refilled.
Bottle Empty hdicator
This humidifier employs a "double fill" bottle
system. If the base is empty the contents of
the bottle will completely empty into it. The
bottle can be refilled and returned to the unit.
The humidifier is now capable of providing
its maximum run time between fills. Once
the bottle empties a flashing "BOTTLE
EMPTY" message will appear on the display
panel. The unit will continue to run as pro-
grammed but the option of refilling the bottle
is presented. Once filled the flashing mes-
sage will turn off.
Refill Light

Humidifier Operations
Check Fi_terIndicator
The ability of any humidifier to efficiently sup-
ply humidity output reIies heavily on the condi-
tion of the filter.As the filter loads with trapped
impurities found in water it gradually loses its
wicking capability.When tNs happens mois-
ture output is red_._cedand the humidifier has
to work longer to satisfy the selected setting.
When such a condition occurs, a flashing
"CHECK FILTER" message wilt be displayed.
If the condition persists for more then 24 hours
shut off the humidifier,disconnect the power
and check the condition of the filter.
Ifa buildup of deposits and severe discol-
oration is evident replace the filter to restore
maximum efficiency,
i
Check Filter
Numidistat
The humidistat located on the power cord
senses the percentage of humidity in the
air. It causes the humidifier to cycle on
and off to maintain the selected humidity
SET point. The fan will turn on if the
'ROOM" reading falls 3% below the SET
point and wil! continue to run the humidifi-
er until a reading of 1% above the SET
point is achieve& At this point the fan will
stop. The fan will remain off until the
ROOM reading falls 3% below the SET
point again.
Dry Out Mode
When both the water bottle and the base
are empty the amber REFILL light will
illuminate and the humidifier will automat°
ically switch into DRY OUT MODE The
message DRY OUT MODE will appear on
the digital display and the fan speed will
automatically switch to WHISPER speed.
Note: The digital display will show the
speed the humidifier was operating in
before the REFILL light turned on even
though the fan is operating on WHISPER
speed. During this time the humidifier will
continue to cycle the fan on and off as
required until the filter is completely dry
thus producing no moisture output. Once
dry, the fan will shut off leaving you with a
Note: Be sure humidistat located approxi-
mately 4 inches outside humidifier body
on power cord is free from obstruction
and away from any hot air register.
Dry Out Mode
10
Note: Fan automatically switches to
"WHISPER" speed during "DRY OUT MODE"
Display wH_ still show programmed speed.
i.e: HiGH
dry humidifier that is less prone to mold
and mildew growth. The amber Refill light
will be illuminated and the humidifier is
ready for cleaning or refilling as desired.
