Sears Kenmore electric laundry center User manual

nmore Product Registration ................................... Cover
Important Safety Instructions .......................... 2-3
Washing Procedures ........................................ 4-6
Stain Removal ................................................... 6-7
Common Washing Problems .............................. 8
Drying Procedures ............................................... 9
Dryer Features ................................................... 10
Common Drying Problems ................................ 10
Care and Cleaning ........................................ 11-12
Avoid Service Checklist ................................. 12-14
Warranty ............................................................ 15
Laund Service ................................................................ 16
Read all instructions before using
this appliance. This book
contains valuable information
about
•Operation
•Care
•Service
Keep it in a safe place.
Read and Save These Instructions
Record Your Model and Serial Numbers
The model and serial numbers of your Laundry Center are
found inside the dryer door. Record and retain these numbers.
Model Number:
Serial Number:
Purchase Date:
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
P/N 131786800 (9809)

For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediatelycallyourgassupplierfrom a neighbor's phone. Followthegassupplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Important Safety Instructions
Read all instructions before using this laundry center,
To reduce the risk of fire, electrical shock, or
injury to persons when using this laundry center, comply
with the basic warnings listed below,
[] Failure to comply with these warnings could result in
serious personal injuries,
Prevent Fire
Do not wash or dry items that have been
previously cleaned in, soaked in, or spotted with gasoline,
cleaning solvents, kerosene, cooking oils, waxes, etc, Do not
store these items on or near the laundry center, These
substances give off vapors or chemical reactions that could
ignite or explode,
Do not put oily or greasy rags or clothing on
top of the laundry center, These substances give off vapors
that could ignite the materials,
Do not add gasoline, cleaning solvents, or
other flammable or explosive substances to the wash water,
Thesesubstances give off vapors that could ignite or explode,
Under certain conditions, hydrogen gas may
be produced in a hot water system that has not been used
for 2 weeks or more, HYDROGEN GAS IS EXPLOSIVE. If
the hot water system has not been used for such a period,
before using the washer, turn on all hot water faucets and
let the water flow from each for several minutes, This will
release any accumulated hydrogen gas, Hydrogen gas is
flammable; do not smoke or use an open flame during this
time,
To prevent fire, do not use heat to dry items
containing plastic, foam rubber or similarly textured rubber-
like materials, or items containing feathers or down, UseAir
Fluff (No Heat) only,
Clean the dryer lint screen before or after
each load, The interior of the dryer, lint screen housing and
exhaust duct should be cleaned approximately every 18
months by qualified service personnel, An excessiveamount
of lint build-up inthese areascould result in inefficient drying
and possible fire, SeeCare and Cleaning, pages 11-12,
Printed in U,S,A,
Do not operate the dryer if the lint screen is
blocked, damaged or missing, Fire hazard, overheating and
damage to fabrics can occur, If your dryer has a drying rack,
always replace the lint screen when finished using the drying
rack,
Keep area around the exhaust opening and
surrounding areas free from the accumulation of lint, dust
and dirt,
Do not obstruct the flow of ventilating air, Do
not stack or place laundry or throw rugs against the front or
back of the laundry center,
Do not spray any type of aerosol into, on or
near laundry center at any time,
Do not use fabric softeners or products to
eliminate static unless recommended bythe manufacturer of
the fabric softener or product,
Failure to comply with these warnings could result in fire,
explosion, serious bodily injury and/or damage to the rubber
or plastic parts of the laundry center,
Protect Children
Do not allow children to play on or in the
laundry center, Close supervision of children is necessary
when the laundry center is used near children, As children
grow, teach them the proper, safe use of all appliances,
Destroy the carton, plastic bag and other
packing materials after the laundry center is unpacked,
Children might usethem for play, Cartons covered with rugs,
bedspreads or plastic sheets can become airtight chambers,
Keep laundry products out of children's reach,
To prevent personal injury, observe all warnings on product
labels,
Before the laundry center is removed from
service or discarded, remove the washer lid and dryer door to
prevent accidental entrapment,
Failure to comply with these warnings could result in
serious personal injuries,

Avoidfirehazardor
electricalshock,Donotuseanadaptor
plugor extensioncordor remove
groundingprongfromelectricalpower
cord,Failureto followthiswarning
cancauseseriousinjury,fireordeath,
NOTE: Do not under
any circumstances
remove grounding
prong from plug.
Grounding type
wall receptacle
Power supply
cord with 3-prong
grounding plug
CORRECT
Use this way ONLY
Do not use or mix
liquid chlorine bleach with other
household chemicals such as toilet
cleaners, rust removers, acid or
products containing ammonia.
These mixtures can produce
dangerous fumes which can cause
serious injury or death.
Note: The instructions appearing in
this Owner's Guide are not meant to
cover every possible condition and
situation that may occur, Common
sense and caution must be practiced
when installing, operating and
maintaining any appliance,
Prevent Injury
To prevent shock hazard and assurestability during operation, the
laundry center must be installed and electrically grounded by a qualified service
person in accordance with local codes, Installation instructions are packed in the
laundrycenter for the installer's reference, Referto INSTALLATIONINSTRUCTIONS
for detailed grounding procedures, If the laundry center is moved to a new
location, have it checked and reinstalled by a qualified service person,
To prevent personal injury or damage to the laundry center, the
electrical power cord must be plugged into a properly grounded and polarized 3-
prong outlet, The third grounding prong must never be removed. Never
ground the laundry center to a gas pipe. Do not use an extension cord or
an adaptor plug.
Follow package directions when using laundry products, Incorrect
usage can produce poisonous gas--resulting in serious injury or death,
• Do not combine laundry products for use in 1 load unless specified on the
label,
• Do not mix chlorine bleach with ammonia or acids such as vinegar,
To prevent serious personal injury and damage to the laundry
center:
• All repairs and servicing must be performed by an authorized servicer
unless specifically recommended in this Owner's Guide, Use only authorized
factory parts,
• Do not tamper with controls,
• Do not install or store the laundry center where it will be exposed to the
weather,
ALWAYS disconnect the laundry center from the electrical
supply before attempting any service or cleaning, Failure to do so can result in
electrical shock or injury,
Do not use any type spray cleanser when cleaning dryer interior,
Hazardous fumes or electrical shock could occur,
To prevent injury, do not reach into the washer while parts are
moving, Before loading, unloading or adding items, push in the cycle selector
knob and allow the tub to coast to a complete stop before reaching inside,
_To prevent injury, do not reach into the dryer ifthe drum ismoving,
Wait until the dryer has stopped completely before reaching into the drum,
11_ A thermal limiter switch automatically turns off the dryer motor in the unlikely
event of an overheated situation (electric dryers only), A service technician must
replace the thermal limiter switch after correcting the fault,
[] The washer is equipped with an electrical overload protector, The motor will
stop if it becomes overheated, The washer will automatically restart after a cool
down period of up to 30 minutes, if the washer hasnot been manually turned off
during this time,
Failureto comply with these warnings could result in serious personal injuries,
This Owner's Guide provides general operating instructions for your laundry
center, It also contains information about features for several other models,
Your laundry center may not have every feature included,
Use the laundry center only as instructed in this Owner's Guide and the
Operating Instructions included with your laundry center,
SAVE THESE INSTRUCTIONS

Washing Procedures
Sort laundry into loads that can be
washed together,
• Follow the guidelines below for preparing the wash load,
• Read Washer Operating Instructions for operating your specific model,
• Always read and follow fabric care and laundry product labels.
To reduce the risk of fire, electrical shock, or injury to persons, read
Important Safety Instructions, pages 2-3, before operating this washer,
,Sort laundry into loads that can be washed together.
Sort items by recommended water temperatures, wash time, and agitate/spin
speeds,
• Separate white, light, and colorfast items from dark and noncolorfast
items,
• Separate items which shed lint from items which attract lint, Permanent
press,synthetic, knit and corduroy items will pick up lint from towels, rugs
and chenille bedspreads,
•Separate heavily soiled items from lightly soiled items
• Separate lacy, sheer and loosely knit items from sturdy items
Empty pockets,
,Prepare items for washing.
• Empty pockets,
• Brush off lint and dirt, Shake out rugs and beach towels,
• Close zippers,fasten hooks, tiestrings and sashes,and remove nonwashable
trims and ornaments,
• Remove pins, decorative buttons, belt buckles, and other objects which
could be damaged, This also helps protect other items in the wash load,
• Mend rips and tears to prevent further damage during washing,
• Placedelicate items such as bras, shoulder pads, hosiery, and belts in a
mesh bag to prevent tangling during the wash cycle,
• Turn knit items inside out to prevent pilling,
Placedelicateitemsin a meshbag,
Bleach Dispenser (some models)
,
,
,
Pretreat stains and heavy soil.
See Stain Removal, pages 6-7, for details,
Add a measured amount of detergent to the wash tub
before adding the laundry load.
Follow detergent manufacturer's directions, The amount required depends on
type of detergent, load size and soil level, and water hardness,
If desired, add liquid bleach to Bleach Dispenser (some models).
• Before adding the wash load, add liquid bleachto bleach dispenser located
in left front corner under the lid:
• 3/4 cup (180 ml) for small loads
• 1 cup (240 ml) for large loads
• 1-1/4 cups (300 ml) for extra-large loads,
• Then add 1 cup (240 ml) water to flush the dispenser,
• Do not use powdered bleach in the bleach dispenser,
For models without a bleach dispenser, dilute the recommended amount
of liquid chlorine bleach in 1 quart (,95 L) water, Add it to wash water after
a few minutes of agitation, Do not pour bleach directly on wash load.

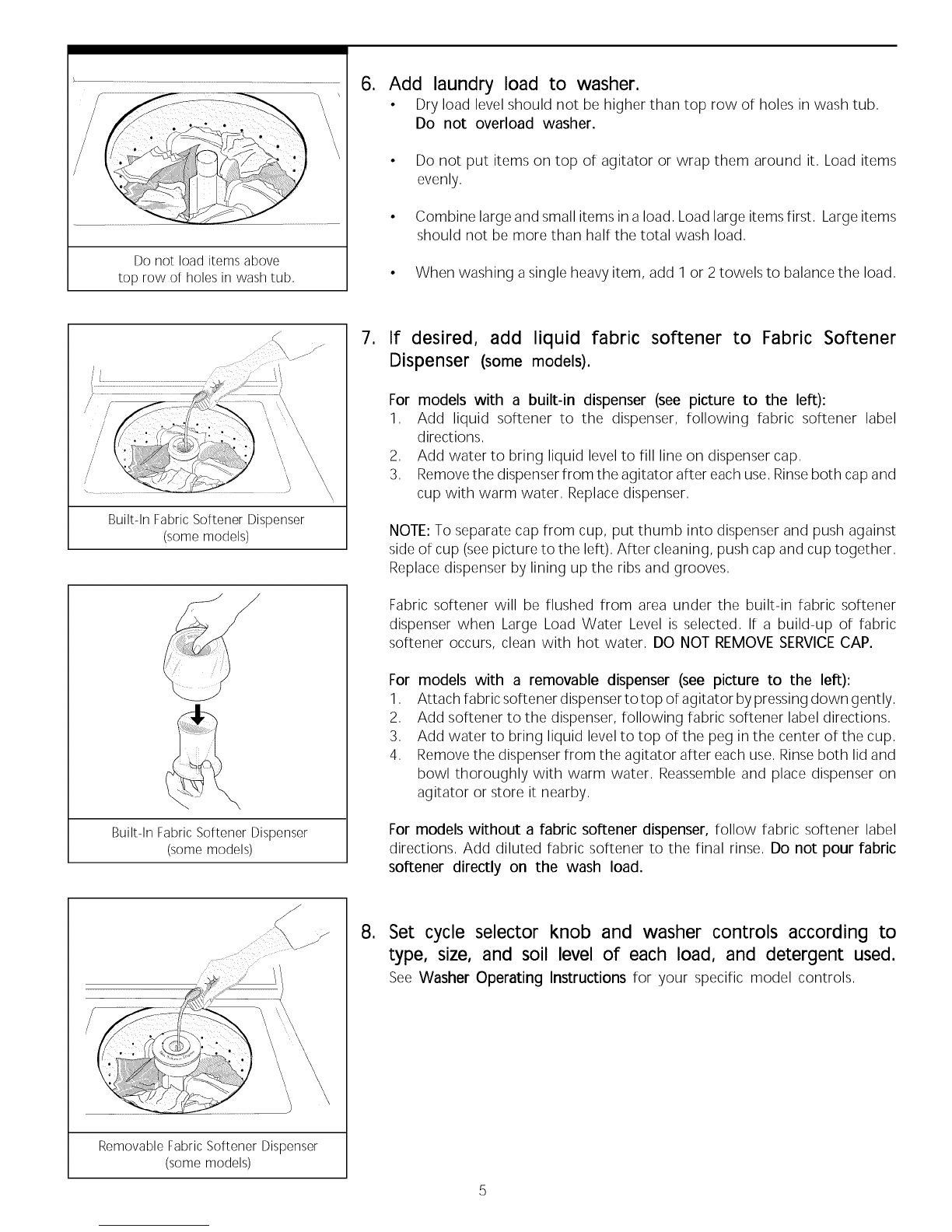

Do not load items above
top row of holes in wash tub,
6. Add laundry load to washer.
• Dry load level should not be higher than top row of holes in wash tub,
Do not overload washer.
• Do not put items on top of agitator or wrap them around it. Load items
evenly.
• Combine large and small items in a load. Load large items first. Large items
should not be more than half the total wash load.
• When washing a single heavy item, add 1 or 2 towels to balance the load.
\,
Built-InFabricSoftenerDispenser
(somemodels)
Built-In Fabric Softener Dispenser
(some models)
RemovableFabricSoftener Dispenser
(somemodels)
7. If desired, add liquid fabric softener to Fabric Softener
Dispenser (some models).
For models with a built-in dispenser (see picture to the left):
1. Add liquid softener to the dispenser, following fabric softener label
directions.
2. Add water to bring liquid level to fill line on dispenser cap.
3. Removethe dispenser from the agitator after each use. Rinseboth cap and
cup with warm water. Replace dispenser.
NOTE:To separate cap from cup, put thumb into dispenser and push against
side of cup (seepicture to the left). After cleaning, push cap and cup together.
Replace dispenser by lining up the ribs and grooves.
Fabric softener will be flushed from area under the built-in fabric softener
dispenser when Large Load Water Level is selected. If a build-up of fabric
softener occurs, clean with hot water. DO NOT REMOVE SERVICECAP.
For models with a removable dispenser (see picture to the left):
1. Attach fabric softener dispensertotop of agitator bypressing down gently.
2. Add softener to the dispenser, following fabric softener label directions.
3. Add water to bring liquid level to top of the peg in the center of the cup.
4. Removethe dispenser from the agitator after each use. Rinseboth lid and
bowl thoroughly with warm water. Reassemble and place dispenser on
agitator or store it nearby.
For models without a fabric softener dispenser, follow fabric softener label
directions. Add diluted fabric softener to the final rinse. Do not pour fabric
softener directly on the wash load.
,Set cycle selector knob and washer controls according to
type, size, and soil level of each load, and detergent used.
See Washer Operating Instructions for your specific model controls,

Washing Procedures
(continued)

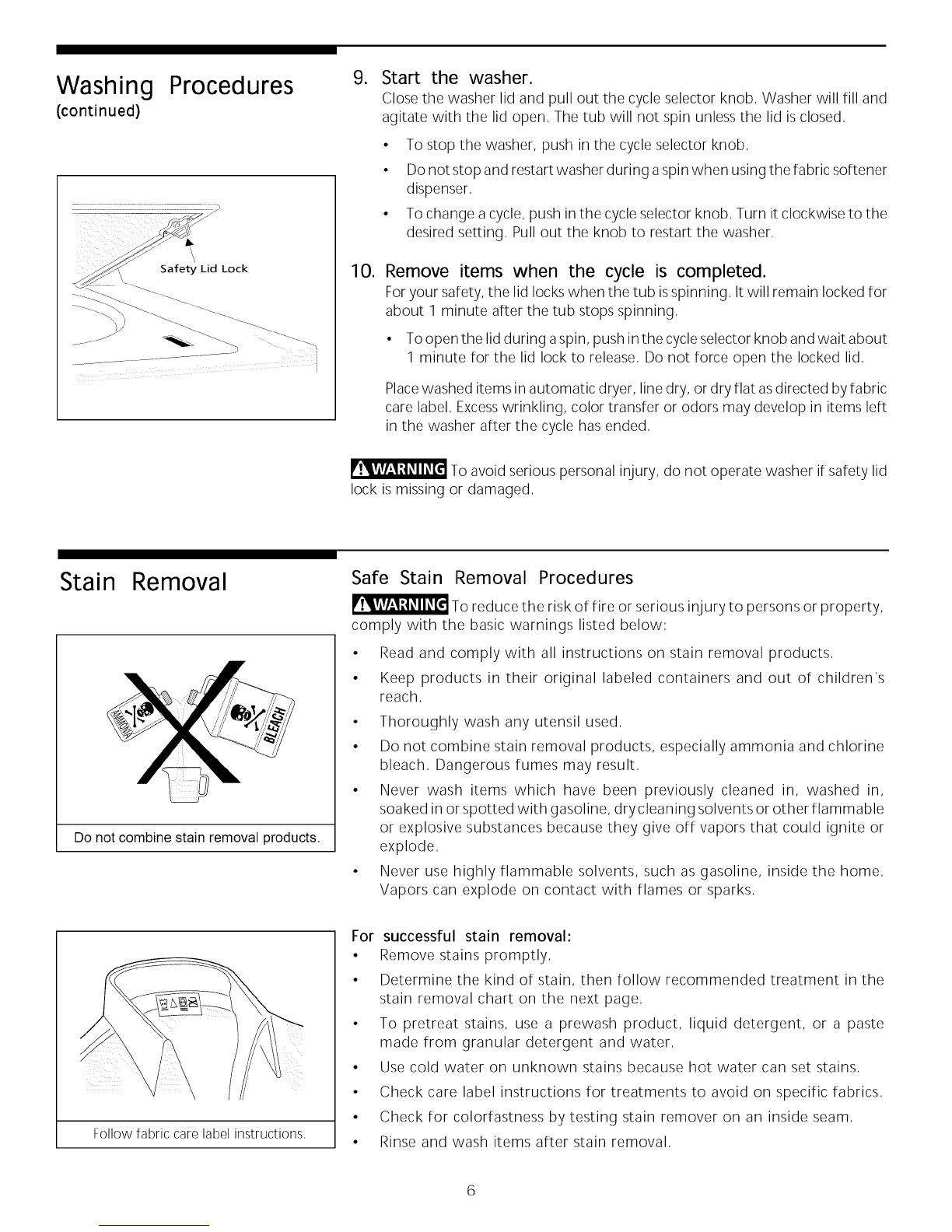

Safety Lid Lock
.Start the washer.
Close the washer lid and pull out the cycle selector knob Washer will fill and
agitate with the lid open The tub will not spin unless the lid is closed
• To stop the washer, push in the cycle selector knob
• Do not stop and restart washer during aspin when usingthe fabric softener
dispenser
• Tochange a cycle, push in the cycle selector knob Turn it clockwise to the
desired setting Pull out the knob to restart the washer
10. Remove items when the cycle is completed.
Foryour safety, the lid lockswhen the tub isspinning It will remain locked for
about 1 minute after the tub stops spinning
• Toopen the lid during aspin, push in the cycle selector knob and wait about
1 minute for the lid lock to release Do not force open the locked lid
Placewashed items in automatic dryer, line dry, or dry flat asdirected by fabric
care label, Excesswrinkling, color transfer or odors may develop in items left
in the washer after the cycle has ended,
To avoid serious personal injury, do not operate washer if safety lid
lock is missing or damaged,
Stain Removal
Do not combine stain removal products.
Safe Stain Removal Procedures
To reduce the risk of fire or serious injury to persons or property,
comply with the basic warnings listed below:
• Read and comply with all instructions on stain removal products
• Keep products in their original labeled containers and out of children's
reach
• Thoroughly wash any utensil used
• Do not combine stain removal products, especially ammonia and chlorine
bleach Dangerous fumes may result
• Never wash items which have been previously cleaned in, washed in,
soaked in or spotted with gasoline, dry cleaning solvents or other flammable
or explosive substances because they give off vapors that could ignite or
explode
• Never use highly flammable solvents, such as gasoline, inside the home
Vapors can explode on contact with flames or sparks
Follow fabric care label instructions
For successful stain removal:
• Remove stains promptly
• Determine the kind of stain, then follow recommended treatment in the
stain removal chart on the next page
• To pretreat stains, use a prewash product, liquid detergent, or a paste
made from granular detergent and water
• Use cold water on unknown stains because hot water can set stains
• Check care label instructions for treatments to avoid on specific fabrics
• Check for colorfastness by testing stain remover on an inside seam
• Rinse and wash items after stain removal

Stain Removal
STAIN TREATMENT
Adhesive tape, chewing Apply ice. Scrape off excess. Placestain face down on paper towels. Saturate with prewash stain remover or
gum, rubber cement nonflammable dry cleaning fluid.
Baby formula, dairy Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more. Wash.
products, egg
Beverages (coffee, tea, soda, Pretreat stain. Wash using cold water and bleach safe for fabric.
juice, alcoholic beverages)
Blood Rinsewith cold water. Rubwith bar soap. Or, pretreat or soak with product containing enzymes. Wash using bleach
safe for fabric.
Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Presswith warm iron until wax isabsorbed.
Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable dry cleaning fluid.
Hand wash to remove solvent. Wash using bleach safe for fabric.
Chocolate Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Collar or cuff soil, cosmetics Pretreat with prewash stain remover or rub with bar soap.
Dye transfer on white fabric Use packaged color remover. Wash using bleach safe for fabric.
Grass Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Grease, oil, tar (butter, fats, Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply
salad dressing, cooking oils, nonflammable dry cleaning fluid to back of stain. Replacetowels under stain frequently. Rinsethoroughly. Wash using
car grease, motor oils) hottest water safe for fabric.
Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured alcohol or
nonflammable dry cleaning fluid.
Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water before washing. Badly mildewed
fabrics may be permanently damaged.
Mud Brush off dry mud. Pretreat or soak with product containing enzymes.
Mustard, tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Nail polish May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain.
Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
Paint, varnish WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed. OIL BASED
AND VARNISH: Use solvent recommended on can label. Rinsethoroughly before washing.
Perspiration Use prewash stain remover or rub with bar soap. Rinse. Wash using nonchlorine bleach in hottest water safe for fabric.
Rust, brown or yellow For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate detergent and
discoloration nonchlorine bleach. Do not use chlorine bleach because it may intensify discoloration.
Shoe polish LIQUID: Pretreat with a paste of granular detergent and water. PASTE:Scrape residue from fabric. Pretreat with
prewash stain remover or nonflammable dry cleaning fluid. Rinse. Rub detergent into dampened area. Wash using
bleach safe for fabric.
Urine, vomit, mucus, feces Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.

Common Washing Problems
Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage, For satisfactory
washing results, follow these suggestions provided by The Soap and Detergent Association,
PROBLEM POSSIBLE CAUSES SOLUTIONS
Blue stains • Detergent or liquid fabric softener
did not dissolve or disperse.
Discoloration,
graying
• If caused by detergent, mix 1 cup (240 ml)
white vinegar with 1 quart (.95 L)water in a
plastic container. Soak item 1 hour. Rinse.
• It caused by fabric softener, rub stains with
bar soap. Wash.
PREVENTIVE MEASURES
• Add detergent before wash load. Then start
washer.
• Dilute fabric softener with water.
• Not enough detergent.
• Wash water temperature too low.
• Incorrect sorting.
• Rewash with correct amount of detergent
and hottest water safe for fabric. Add
bleach safe for fabric.
• Sort items by soil level and color.
• Use correct amount of detergent, hottest
water and bleach safe for fabric.
Greasy, oily stains
Holes, tears, or
snags
• Not enough detergent.
• Undiluted liquid fabric softener
poured directly on fabric.
• Treat with prewash stain remover or liquid
detergent.
• Increase detergent and water temperature.
Rewash.
• Rub fabric softener stains with bar soap.
• Use correct amount of detergent and
hottest water safe for fabric.
• Do not pour liquid fabric softener
directly on fabric. See package directions
or Washing Procedures for proper diluting.
• Incorrect use of chlorine bleach.
• Unfastened zippers, hooks, buckles.
• Rips, tears and broken threads.
• Overloading the washer.
• Degradation of fabric.
• May be irreversible if rips, tears and seams
cannot be mended. • Never pour chlorine bleach directly on fabric.
• Check condition of items before washing.
See Washing Procedures for preparing
and loading the wash load.
Lint • Incorrect sorting.
• Tissues left in pocket.
• Overloading the washer.
• Not enough detergent.
• Undissolved detergent has left
residue.
• Static cling is attracting lint.
• Load washed too long.
• Reduce load size. Rewash using correct
water temperature, water level, and amount
of detergent.
• Add nonprecipitating water conditioner to
wash water.
• Add liquid fabric softener to final rinse.
• Dry load in dryer.
• Remove lint with lint brush or roller.
• See Washing Procedures for sorting and
preparing the wash load.
• Do not overload washer.
• Use correct amount of detergent, water
temperature and water level.
Pilling
(Fibers break off, ball
up and cling to
fabric)
• Pilling is normal with synthetic and
permanent press fabrics. This isdue
to abrasion from normal wear.
• Use a lint brush or shaver to remove pills. • Use fabric softener in the washer to
lubricate fibers.
• When ironing, use spray starch or fabric
finish on collars and cuffs.
• Turn items inside out to reduce abrasion.
Residue or powder
on dark items;
Stiff, harsh fabrics.
• Undissolved detergent.
• Some nonphosphate granular
detergents can combine with hard
water minerals to form a residue.
• Reduce load size.
• Add dissolved detergent to tub. Rewash
load.
• Mix 1 cup (240 ml)white vinegar to 1 gallon
(3.8 L)warm water in plastic container. Soak
item. Rinseand rewash.
• Increase water temperature using hottest
water safe for fabric.
• Do not overload washer.
• Use liquid detergent or use nonprecipitating
water conditioner with nonphosphate
granular detergent.
Wrinkling • Overloading the washer. • Reduce load size.
• Rinse in cold water with liquid fabric
softener.
• Do not overload washer.
• Remove items from washer as soon as cycle
is completed.
• Use liquid fabric softener.
Yellow buildup of
body soil on
synthetic fabrics
• Agitation time too short.
• Wash water temperature too low.
• Not enough detergent.
• Soak in detergent booster or product
containing enzymes.
• Wash in hot water (120°F/49°C) using full
permanent press cycle. Increase detergent.
Add bleach safe for fabric.
• Or, treat with color remover.
• Wash synthetics frequently using water at
least 100°F (37°C) and correct water level.
Yellow or brown
rust stains • Iron or manganese in water supply,
water pipes, or water heater. • To restore discolored load oHwhites, use
rust remover safe for fabric.
Do not use chlorine bleach to remove
rust stains. It may intensify
discoloration.
• Use nonprecipitating water softener.
• Before washing, run hot water for a few
minutes to clear lines.
• Drain water heater occasionally.
• For an ongoing problem, install an iron filter
in your water supply system.

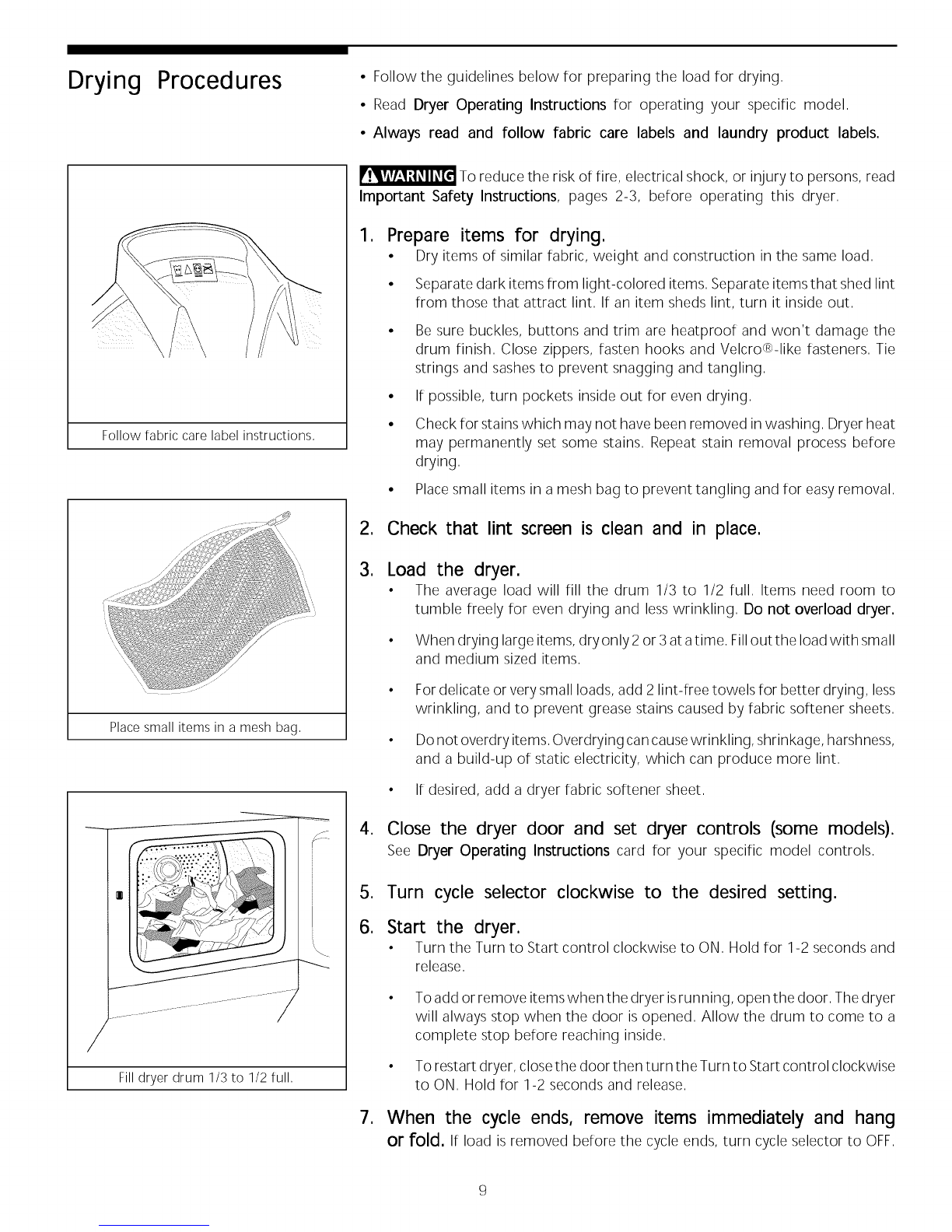

Drying Procedures
Follow fabric care label instructions,
Placesmall items in a mesh bag,
/
Fill dryer drum 1/3 to 1/2 full,
• Follow the guidelines below for preparing the load for drying,
• Read Dryer Operating Instructions for operating your specific model,
• Always read and follow fabric care labels and laundry product labels.
To reduce the risk of fire, electrical shock, or injury to persons, read
Important Safety Instructions, pages 2-3, before operating this dryer,
,Prepare items for drying,
• Dry items of similar fabric, weight and construction in the same load,
• Separate dark items from light-colored items, Separate items that shed lint
from those that attract lint, If an item sheds lint, turn it inside out,
Be sure buckles, buttons and trim are heatproof and won't damage the
drum finish, Close zippers, fasten hooks and Velcro®-Iike fasteners, Tie
strings and sashesto prevent snagging and tangling,
If possible, turn pockets inside out for even drying,
Check for stains which may not have been removed in washing, Dryer heat
may permanently set some stains, Repeat stain removal process before
drying,
Placesmall items in a mesh bag to prevent tangling and for easy removal,
2, Check that lint screen is clean and in place,
,Load the dryer.
• The average load will fill the drum 1/3 to 1/2 full, Items need room to
tumble freely for even drying and less wrinkling, Do not overload dryer.
• When drying large items, dryonly 2 or 3 at atime, Filloutthe load with small
and medium sized items,
• Fordelicate or very small loads, add 2 lint-free towels for better drying, less
wrinkling, and to prevent grease stains caused by fabric softener sheets,
• Donot overdry items, Overdrying cancausewrinkling, shrinkage, harshness,
and a build-up of static electricity, which can produce more lint,
• If desired, add a dryer fabric softener sheet,
4. Close the dryer door and set dryer controls (some models).
See Dryer Operating Instructions card for your specific model controls,
5. Turn cycle selector clockwise to the desired setting.
6, Start the dryer,
• Turn the Turn to Start control clockwise to ON, Hold for 1-2 seconds and
release,
,
To add or remove items when the dryer isrunning, open the door, Thedryer
will always stop when the door is opened, Allow the drum to come to a
complete stop before reaching inside,
To restart dryer, closethe door then turn the Turn to Start control clockwise
to ON, Hold for 1-2 seconds and release,
When the cycle ends, remove items immediately and hang
or fold. If load is removed before the cycle ends, turn cycle selector to OFF,

Dryer Features
The convenience hanger is located above
and to the left of the dryer door,
®
\II II
Usethe drying rack to dry items
which should not be tumbled,
Convenience Hanger (some models)
The Convenience Hanger islocated above and to the left of the dryer door, Pull out
on the handle until the hanger stops (approximately 12 inches),Usefor hanging dried
clothes, Maximum capacity is30 pounds,
Cycle Signal Control (some models)
When the CycleSignal Control isON, a signal will sound atthe end of eachcycleand
during the Wrinkle-Rid setting (some models), The volume is adjustable on some
models,
Drum Light (some models)
A drum light will come on whenever the door isopened to illuminate the dryer drum
during loading and unloading, Closing the door turns off the light,
Drying Rack (some models)
Usethe drying rack to dry items which should not be tumble dried,
1, Open the dryer door and remove the lint screen,
2, Insert drying rack into the dryer drum, Placethe front bar underthe lipofthe lint
screen opening,
3, Placeitems to be dried on top of rack, Weight should not exceed 10 Ibs, Leave
space between items, but do not let items hang over the sides or through the
grids, Do not tumble other items when using the drying rack,
4, Select atimed dry setting best suited for items being dried, Useonlythe Air Fluff
(no heat)temperature setting for items containing plastic, foam rubber, rubber-
like materials, feathers or down,
5, When items are dry, remove the rack and replace the lint screen, If lint screen
isnot in place,tumbling itemscould enter the exhaust system and causedamage
to the dryer,
Common Drying Problems
Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and scum, and fabric damage,
For satisfactory drying results, follow these suggestions provided by The Soap and Detergent Association,
PROBLEM
Greasy, oily
stains
Lint
Pilling
(Fibers break off,
ball up and cling
to fabric.)
POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES
• Fabric softener sheet. • Rub fabric softener stains with bar soap. • Add a few bath towels to small loads for proper
Rinse and rewash, tumbling.
• Some "silk-like" fabrics should be air dried.
• Use proper drying temperature.
• Place fabric softener sheet on top of load before
starting the dryer.
• Overloading.
• Overdrying causes static
electricity.
• Lint screen not clean when
cycle began.
• Lint is attached to "pills."
• Reduce load size and rewash using liquid
fabric softener in the final rinse.
• Or, add a fabric softener sheet and
tumble without heat.
• Use lint brush or roller to remove lint.
• Do not overload dryer.
• Use fabric softener in washer or dryer to reduce
static electricity.
• Remove items when they are slightly damp to
avoid overdrying.
• Check that lint screen isclean and in place.
• Pilling is normal with synthetic
and permanent press fabrics.
This is due to abrasion from
normal wear.
• Use a lint brush or shaver to remove pills. • Use fabric softener to lubricate fibers.
• When ironing, use spray starch or fabric finish on
collars and cuffs.
• Turn items inside out to reduce abrasion.
Shrinking
Wrinkling
• Overdrying. • Irreversible condition. • Follow fabric care label directions.
• If shrinking is a concern, check load often.
• Remove items while slightly damp.
• Block knits into shape.
• Lay flat to complete drying.
• Overloading.
• Leaving items in dryer after
cycle ends.
• Reduce load size and tumble at medium • Do not overload dryer.
or low heat for 5-10 minutes. • Remove items as soon as cycle ends.
• Remove items immediately. Hang or fold.
10

Care and Cleaning
Clean lint screen after every load,
(
Wash lint screenoccasionally,
Usecare with laundry
products, They can damage finish on
the laundry center,
To reduce risk of fire or serious injury to persons or property, comply
with the basic warnings listed in Important Safety Instructions, pages 2-3, and
those listed below,
• Before cleaning the washer or dryer interior, unplug the electrical power
cord to avoid electrical shock hazards,
• Do not use any type spray cleanser when cleaning dryer interior, Hazardous
fumes or electrical shock could occur,
Inside the Washer
• Remove items from the washer as soon as the cycle ends, Excesswrinkling,
color transfer, and odors may develop in items left in the washer,
• Dry the washer top, the area around the lid opening, and the underside of the
lid, These areas should always be dry before the lid is closed,
• Before cleaning the washer interior, unplug the electrical power cord to
avoid electrical shock hazards,
When extremely soiled items have been washed, a dirty residue may remain on
the tub, Removethis by wiping the tub with anonabrasive household cleanser,
Rinsethoroughly with water,
The agitator ortub may become stained from fabric dye, Clean these parts with
a nonabrasive household cleanser, This prevents dye transfer to future loads,
Inside the Dryer
• Clean the dryer lint screen after every load, Lint build-up in the screen restricts
air flow, which causes longer drying times, The screen islocated at the bottom
of the door opening, Remove by pulling straight up, Remove the lint and
replace the screen,
Occasionally a waxy build-up may form on the lint screen from using dryer-
added fabric softener sheets, To remove this build-up, wash the lint screen in
warm, soapy water, Dry thoroughly and replace, Do not operate the dryer
without the lint screen in place,
•If the dryer drum becomes stained from noncolorfast fabrics, clean the drum
with a damp cloth and a mild liquid household cleanser, Remove cleanser
residue before drying the next load,
Every 18 months an authorized servicershould clean the dryer cabinet interior
and exhaust duct, These areas can collect lint and dust over time, An excessive
amount of lint build-up could result in inefficient drying and possible fire
hazard,
Outside
• When laundering is completed, wipe cabinet with a damp cloth, Turn water
faucets off to prevent pressure build-up in the hoses,
Clean the cabinet with mild soap and water, Never use harsh, gritty or
abrasive cleansers. If the cabinet becomes stained, clean with diluted chlorine
bleach [1/2 cup (120 ml) in 1 quart (,95 L)water], Rinseseveral times with clear
water,
Removeglue residue from tape or labelswith a mixture of warm water and mild
detergent, Or, touch residue with the sticky side of the tape or label,
Before moving the laundry center, place a strip of cardboard or thin
fiberboard under the front leveling legs to prevent floor damage,
11

Care and Cleaning
(continued)
Follow
Winterizing
Instructions
for cold
weather care.
Winterizing Instructions
If the laundry center is stored in an area where freezing can occur or moved in
freezing temperatures, follow these winterizing instructions to prevent damage to
the laundry center:
1, Turn off water supply faucets,
2, Disconnect hoses from water supply and drain water from hoses,
3, Plug electrical cord into a properly grounded electrical outlet,
4, Add 1 gallon nontoxic recreational vehicle (RV)antifreeze to empty wash tub,
Close lid,
5, Set cycle selector knob at a spin setting, Pull out knob and let washer spin for
1 minute to drain out all water, Not all of the RVantifreeze will be expelled,
6, Push in knob, unplug electrical power cord, dry tub interior, and close lid,
7, Store washer in an upright position,
8, To remove antifreeze from washer after storage, run empty washer through a
complete cycle using detergent, Do not add wash load.
Avoid Service Checklist
Before calling for service, review this list, It may save both time and expense, The list includes common concerns that are not the
result of defective workmanship or materials in this laundry center,
OCCURRENCE POSSIBLE CAUSE SOLUTION
WASHER- NOISE
"Clunking" or gear sounds. A certain amount of "clunking" or gear
sounds are normal in a heavy-dutywasher, This is normal,
Rattling and clanking noise. ForeJgnobjectssuchascoinsorsafetypins Stop washer and check tub, If noise continues after
may be in tub or pump, washer is restarted, objects may be in pump, Call your
authorized servicer,
Beltbucklesand metal fasteners are hitting To prevent unnecessary noise and damage to tub, fasten
wash tub, fasteners and turn items inside out,
Squealing sound or hot Washer is overloaded,
rubber odor. Do not overload washer, Stop washer and reduce load,
Thumping sound. Heavywash loads may produce athumping This isusually normal, Ifsound continues, washer isprobably
sound, out of balance, Stop washer and redistribute wash load,
Vibrating noise, Laundry center is not resting on a solid, Movelaundrycentersoitrestsfirmlyonsolidfloor, Additional
firm floor, floor bracing may be needed, Adjust leveling legs, See
INSTALLATION INSTRUCTIONS for details,
Shipping bolt and block have not been See INSTALLATION INSTRUCTIONS for removing shipping
removed during installation, bolt and block,
Wash load unevenly distributed in tub, Stop washer and rearrange wash load,
WASHER - OPERATING
Washer does not start. Electrical power cord may not be plugged
in or connection may be loose, Make sure plug fits tightly in wall outlet,
Housefuse blown, circuit breakertripped,
or a power outage has occurred, Reset circuit breaker or replace fuse, Do not increase fuse
capacity, If problem isa circuit overload, have it corrected
by a qualified electrician, If problem is a power outage,
call local electric company,
Water supply faucets are not turned on, Turn on water supply faucets,
12

OCCURRENCE
WASHER - OPERATING
(continued)
POSSIBLE CAUSE SOLUTION
Washer does not start Cycle selector is not in correct position, Move indicator clockwise slightly, Pull out knob,
(continued). Motor is overheated, Washer motor will stop if it becomes overheated, It will
automatically restart after a cool down period of up to
30 minutes (if washer has not been manually turned
of0,
Washer won't spin. Lid is not completely closed, Close lid completely, Safety lid lock must not be broken,
Residue left in tub. Heavily soiled items, Wipe tub with a nonabrasive household cleanser, then
rinse, Shake or brush excess dirt and sand from items
before washing,
WASHER - WATER
Wash load too wet after Washer is overloaded, Do not overload washer, See Washing Procedures,
spin. Load is out of balance, Rearrange load to allow proper spinning,
Drain hose is kinked, Straighten drain hose,
Water does not enter Water supply is not adequate in area, Check another faucet in the house, Wait until water
washer or it enters slowly, supply and pressure increase,
Water supply faucets are not completely open, Fully open hot and cold faucets,
Water is being used elsewhere in the house, Water pressure mustbe atleast 30 psi (260 kPa),Avoid
running water elsewhere while washer is filling,
Water inlet hoses are kinked, Straighten hoses,
Water level does not cover Improper water level selection (for Select higher water level/load size,
load. models with water level/load size control),
Washer is overloaded, Do not overload washer, When control isset at highest
fill level, dry load level should not be higher than top
row of circular holes in wash tub,
Warm or hot water is not Hot water heater is set too low or is a Measure hot water temperature at nearby faucet with
hot enough, distance from laundry center, candyor meatthermometer, Watertemperatureshould
be at least 130°F (70°C), Adjust water heater as
necessary,
Hot water is being used elsewhere in
the house, Avoid using hot water elsewhere before or during
washer use, There may not be enough hot water
available for proper cleaning, If problem persists, your
hot water system may be unable to support more than
1 use at a time,
Water in washer does not Drain hose is kinked or clogged, Clean and straighten the drain hose,
drain or drains slowly.
Water leaks. Fill hose connection at faucet or washer, Check and tighten hose connections, Install rubber
sealing washers provided,
House drain pipes are clogged, Unclog drain pipes, Contact plumber if necessary,
Oversudsing, Use less detergent,
Incorrect wash and rinse Hot and cold water hoses are connected Connect hot water hose to hot water faucet and cold
temperatures, to wrong supply faucets, water hose to cold water faucet,
Water is entering washer Drain hose standpipe is incorrect height, Standpipe must be a minimum of 33" (83,82 cm) high
but tub does not fill. to prevent siphoning, See INSTALLATION
INSTRUCTIONS,
13

POSSIBLE CAUSE SOLUTIONOCCURRENCE
DRYER
Dryer does not start. Electrical powercord Jsnotsecurelyplugged Make sure the plug fits tightly in wall outlet,
in or plug may be loose,
Housefuseblownorcircuitbreakertripped, Reset circuit breaker or replace fuse,
Make sure electrical line is not overloaded and the dryer
is on a separate circuit,
Thermal limiter tripped, Call authorized service person for replacement,
Dryer runs but won't There are 2 house fuses in the dryer circuit, Replace fuse,
heat. If 1 of the 2 fuses is blown, the drum may
turn but the heater will not operate,
Gas supply valve is not open (gas models), Checkto makesuresupplyvalveisopen, SeelNSTALLATION
INSTRUCTIONS for procedure,
Dryer does not have enough air supply to See INSTALLATION INSTRUCTIONS,
support the burner flame (gas models),
LP gas supply tank is empty or there has Refill or replace tank,
been a utility interruption of natural gas
(gas models), Dryer should heat when utility service is restored,
Drying cycle takes too Lint screen is clogged with lint, Make sure all lint has been removed from the dryer lint
long, outside of the dryer screen before starting each cycle,
feels too hot or smells hot. Exhaust duct must be at least 4 inches in diameter and
made of rigid or flexible metal,
When in place, the duct must have no more than two 90 °
bends and must not exceed length listed in INSTALLATION
INSTRUCTIONS,
Drying time will be 20% longer than drying on a 240 volt
circuit,
See Drying Procedures, page 9,
Clean out any obstruction,
Exhaust duct requirements have not been
met,
Electric dryer is connected to a 208 volt
circuit,
Drying procedures have not been followed,
Outside exhaust hood or exhaust duct may
be clogged or restricted,
High humidity, Use a dehumidifier near the dryer,
Excessive wrinkling. Dryer is overloaded, Do not overload, See Drying Procedures, page 9,
Items left in dryer too long, Remove items as soon as cycle ends,
Insufficient sorting of items, See Drying Procedures, page 9,
Drying temperature too high, Follow fabric care label instructions,
14

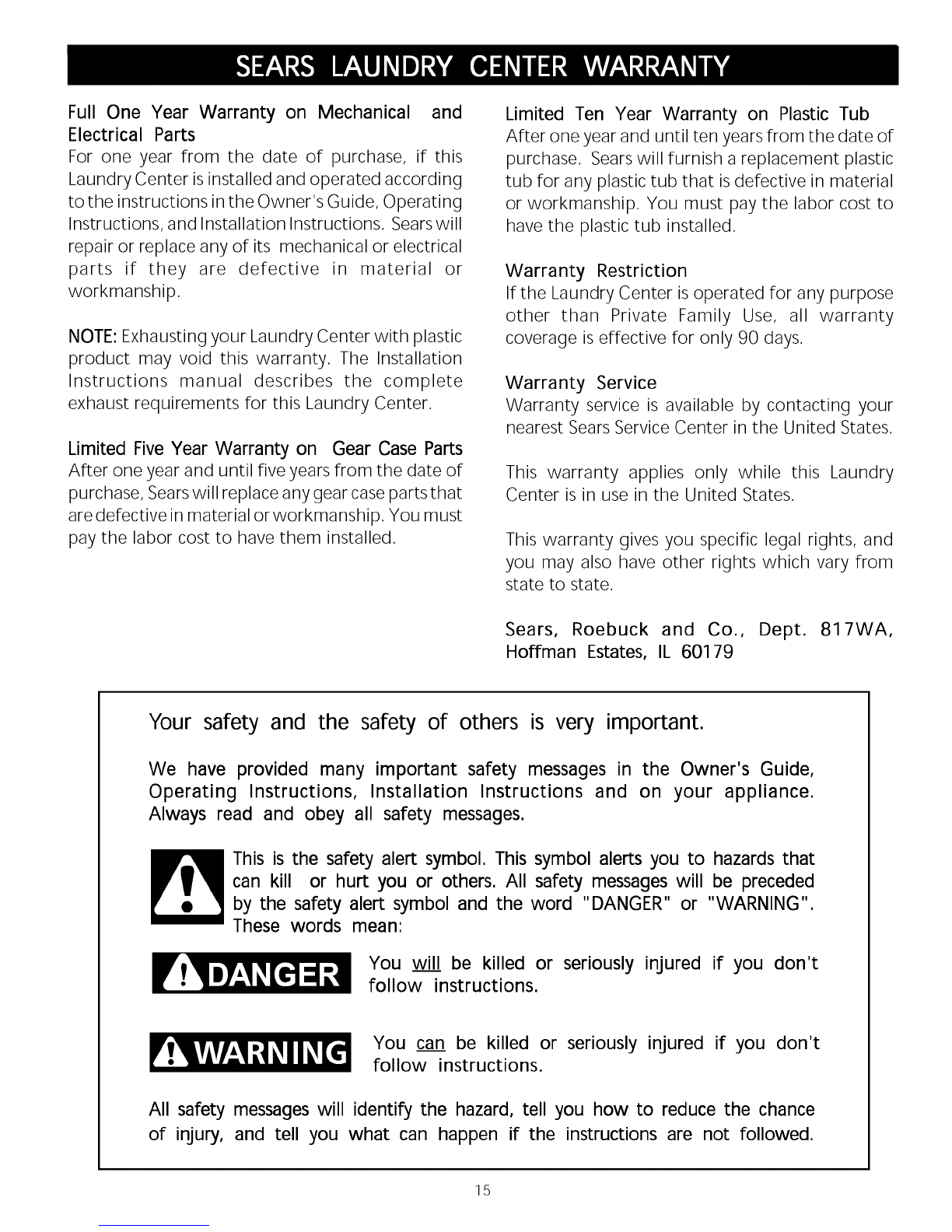

Full One Year Warranty on Mechanical and
Electrical Parts
For one year from the date of purchase, if this
Laundry Center isinstalled and operated according
to the instructions in the Owner's Guide, Operating
Instructions, and Installation Instructions. Searswill
repair or replace any of its mechanical or electrical
parts if they are defective in material or
workmanship.
NOTE: Exhausting your Laundry Center with plastic
product may void this warranty. The Installation
Instructions manual describes the complete
exhaust requirements for this Laundry Center.
Limited Five Year Warranty on Gear Case Parts
After one year and until five years from the date of
purchase, Searswill replace any gear case parts that
are defective in material orworkmanship. You must
pay the labor cost to have them installed.
Limited Ten Year Warranty on Plastic Tub
After one year and until ten years from the date of
purchase. Sears will furnish a replacement plastic
tub for any plastic tub that is defective in material
or workmanship. You must pay the labor cost to
have the plastic tub installed.
Warranty Restriction
If the Laundry Center is operated for any purpose
other than Private Family Use, all warranty
coverage is effective for only 90 days.
Warranty Service
Warranty service is available by contacting your
nearest Sears Service Center in the United States.
This warranty applies only while this Laundry
Center is in use in the United States.
This warranty gives you specific legal rights, and
you may also have other rights which vary from
state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL 60179
Your safety and the safety of others is very important.
We have provided many important safety messages in
Operating Instructions, Installation Instructions and
Always read and obey all safety messages.
the Owner's Guide,
on your appliance,
This is the safety alert symbol. This symbol alerts you to hazards that
can kill or hurt you or others. All safety messages will be preceded
by the safety alert symbol and the word "DANGER" or "WARNING"
These words mean:
You will be killed or seriously injured if you don't
follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance
of injury, and tell you what can happen if the instructions are not followed.
15

For in-home major brand repair service:
Call 24 hours a day, 7 days a week
1-800-4- MY-H OMESM(1-800-469-4663)
Para pedir servicio de reparacibn a domicilio -1-800-676-5811
In Canada for all your service and parts needs call -1-800-665-4455
Au Canada pour tout le service ou les pieces
For the repair or replacement parts you need:
Call 7 am -7 pm, 7 days a week
1-800-366-PART (1-800-366-7278)
Para ordenar piezas con entrega a domicilio-1-800-659-7084
For the location of a Sears Parts and Repair Center in your area:
Call 24 hours aday, 7days a week
1-800-488-1222
For information on purchasing a Sears Maintenance Agreement
or to inquire about an existing Agreement:
Call 9 am -5 pm, Monday -Saturday
1-800-827-6655
TheServiceSideof SearsSM
16
