CONGBATULATIONS on your purchase of a Sears 16/6
Garden Tractor. lt has been designed, engineered and manu-
factured to give you dependability and performance. Should
you experience any problem you cannot easily remedy,
please contact your nearest Sears, Roebuck and Co. or Simp-
sons Sears Limited store. They have competent, well-trained
technicians and the proper tools and parts to service or repair
this unit.
Please read and retain this manual. The instructions will enable
you to assemble, operate and maintain your Tractor properly.
Always observe the "RULES FOR SAFE OPERnttOtt".
YOUR IUEW
1f6IA GARDEN TRAGTOR
FEATURES...
CRAFTSMAN OVEHHEAD VALVE 16 H.P. ENGINE cool
running performance and long lire with plenty oI power to
take on a variety oI yard, gardening or snow removal tasks-
SAFETY INTERLOCK SYSTEM*allows engine to start only
when tractor Clutch-Brake Pedal is depressed and Attachment
Clutch Lever is in "OFF" position.
ALL GEAR TRANSMISSION-'SiX speeds forward, two ieverse
speeds-to let you select the proper match for the terrain and
the job. Auto-type differential helps guard against turf scuff-
ing.
CONTROL PANEL-with Throttle, Choke, Light Switch, lg-
nition Switch, Ammeter and Electric Lift Switch for Three
Point Hitch conveniently grouped for ease of use.
ATTA.CHMENT VE RSATIL|TY-{andles a large variet} of
Sears Yard and Garden Tractor Attachments including
42 AND 48 INCH I\,IOWERS with three "higtr lift" btades
to lift grass up for level cuts.
LITTER WHISK LAWN SWEEPER is more efficient than
conventional lawn sweepers because of its wheel-less design;
only the rotary brush touches the ground.
SELF POWERED ROTO SPADER prepares soil lor new
lawns and qardens with a 30 to 38 inch wide tiiling path.
OTHER SOIL TILLAGE ATTACH lVlE NTS including Plow,
Disc Harrow, Drag Harrow and Cultivator.
CHEVRON TIRES for added traclion in loose soil, gravel
SNOW BLOWER handles wet, heavy or powdery snow with
ease.
another free manual from www.searstractormanuals.com

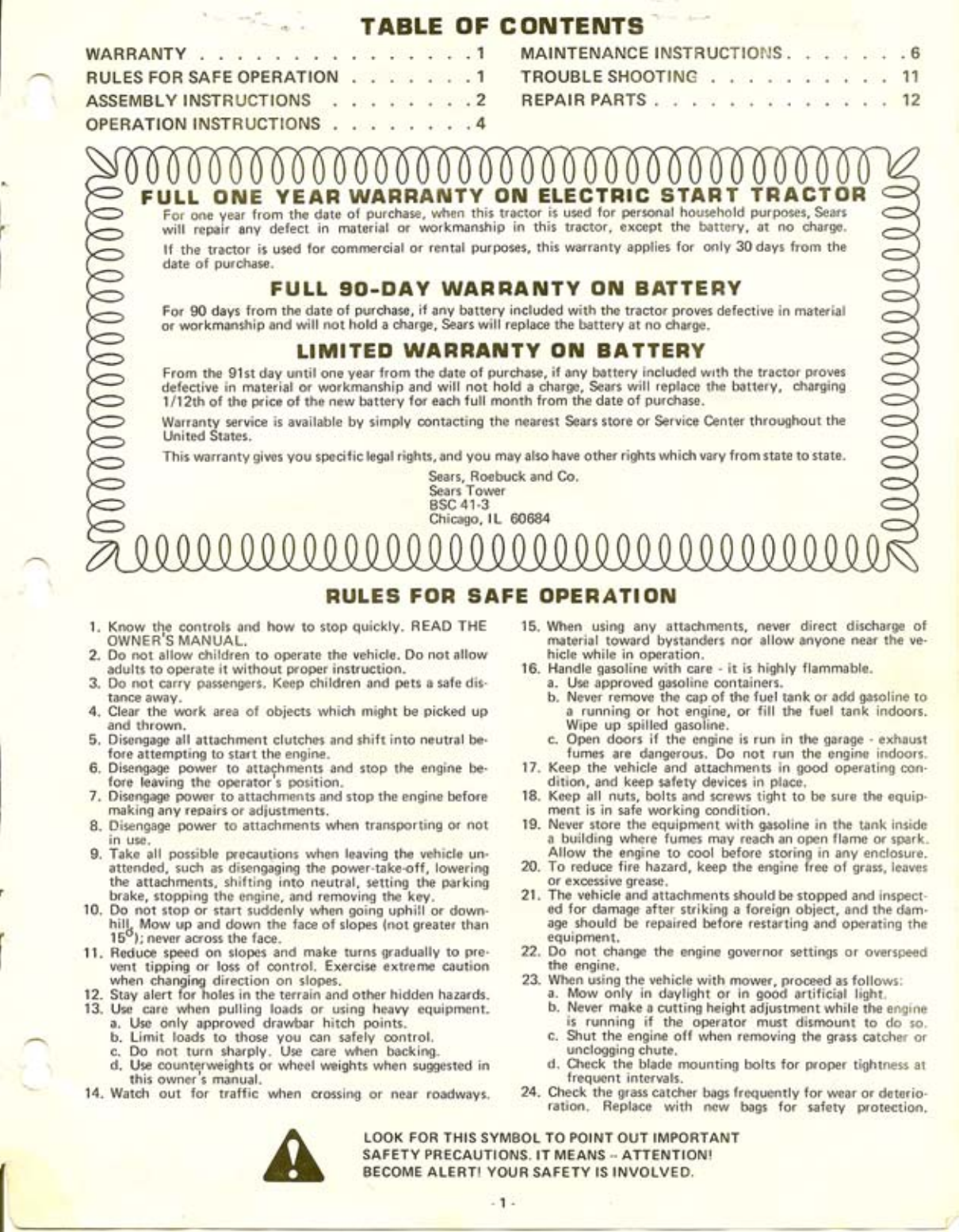

TABLE OF
WARRANTY .1
RULES FOR SAFE OPERATION . 1
ASSEMBLY INSTRUCTIONS
OPERATION I NSTRUCTIONS
GONTENTS.
MAINTENANCE INSTRUCTIONS
TROUBLE SHOOTING
REPAIR PARTS .
NULES FOR SAFE OPENATION
. .4
LOOK FOR THIS SYMAOL TO POINT OUT IMPORTANT
SAFETY PRECAUTIONS. IT MEANS,- ATTENTION!
BECOME ALERT! YOUR SAFETY IS INVOLVED.
.6
11
12
r
1. Know the controls and how 10 stop quickly. READ THE
OWNER,S MANUAL.
2. Do not allow children to operate the vehicle. Do not allow
adults to operate it without proper instruction.
3. Do not carry passengers. Keep children and pets a safe dis-
tance away.
4. Clear the work area of objects which might be picked up
and thrown.
5. Disengage all attachment clutches and shift into neutral be-
fore attempting to start the engine.
6. Disengage power to attaehments and stop the engine be-
fore leaving the operator's position.
7. Disengage power to attachments and stop the engine before
making any repairs or adjustments.
8. Disengage power to attachments when transporting or not
tn use.
9. Take all possible precautions when leaving the vehicle un-
attended, such as disengaging the power-take-off, lowering
the attachments. shifting into neutral, setting the parking
brake, stopping the engine, and removing the key.
10. Do not stop or start suddenly when going uphill or down-
hill NIow up and down the face ol slopes (not greater than
15"); never across the face.
'11. Reduce speed on slopes and make turns gradually to pre-
vent tipping or loss of control. Exercise extreme cautionvent tipping or loss of control. Exercise extreme caution
when changing direction on slopes.
Stav alert for holes in the terrain and other hidden hazards-
Stay alertStay alert for holes in the terrain and other hidden hazards.
Use care when pulling loads or using heavy equipment.
a. Use only approved drawbar hitch points-
b. Limit loads to those you can safely control.
c, Do not turn sharply. Use care when backing.
d. Use counterweights or wheel weights when suggested in
thrs owner s manual.
14. Watch out for traffic when c(ossinq or near roadwavs.
15. When using any attachments, never direct discharge of
materia! toward bystanders nor allow anyone near the ve-
hicle while in operation.
'16. Handle gasoline with care - it is highly flammable.
a. Use approved gasoline containers-
b- Never remove the cap of the fuel tank or add gasoline to
a running or hot engine, or fill the fuel tank indoors.
Wipe up spilled gasoline.
c. Open doors if the engine is run in the garage - exhaust
fumes are dangerous. Do not run the engine indoors.
17. Keep the vehicle and attachments in good operating con-
dition, and keep safety devices in place.
18. Keep all nuts, bolts and screws tight to be sure the equip-
ment is in safe working condition.
'19. Never store the equipment with gasoline in the tank inside
a building where fumes may reach an open flame or spark.
Allow the engine to cool before storing in any enclosure.
20. To reduce fire hazard, keep the engine free of grass, leaves
or excessive grease.
21. The vehicle and attachments should be stopped and inspect-
ed for damage after striking a foreign object, and the dam-
age should be repaired before restarting and operating the
equipment.
22. Do not change the engine governor settings or overspeed
the engine.
23. When using the vehicle with mower, proceed as follows;
a. Mow only in daylight or in good artificial light.
b. Never make a cutting height adiustment while the engine
is running if the operator must dismount to do so.
c. Shut the engine off when removing the grass catcher or
unclogging chute.
d. Check the blade mounting bolts for proper Lightness at
frequent intervals.
24. Check the grass catcher bags frequently for wear or deterio-
ration. Replace with new bags for safety protection.
12.
13.
FULL ONE YEAN WABRANTY ON ELEGTBIC START TNACTOR
For one year from the date of purchase, when this tractor is used for personal household purposes, Sears
will repair any defect in material or workmanship in this tractor. except the battery, at no charge.
lf the tractor is used for commercial or rental purposes, this warranty applies for only 30days from the
date of purchase.FULL gO.DAY WAERANTY ON BATTEPY
For 90 days from the date of purchase, if any battery included with the tractor proves defective in material
or workmanship and will not hold a charge, Sears will replace the battery at no charge.
LIMITED WANEAilTY ON BATTEBY
From the 91st day until one year from the date of purchase, if any battery included wrth the tractor proves
defective in material or workmanship and will not hold a charge, Sears will replace the battery, charging
1/12th of the price of the new battery for each full month from the date of purchase.
Warranty service is available by simply contacting the nearest Sears store or Service Center throughout the
United States.
This warranty gives you specific Iegal rights, and you may also have other rights which vary from state to state-
Sears, Roebuck and Co.
Sears Tower
BSC 41-3
Chicaqo, lL 60684
,1-
another free manual from www.searstractormanuals.com

CUT AWAY VIEW t--u.rr.o,
BATTERY
TUBE
BATTERY
CELL
To assemble and.adiust yoLr Tracto-r you will need:
one 7/16". 9/16" and 3/4" wrench
ASSEMEIY
1. Remove Shipping Wires, Battery, Steering Wheel and Bag of
Parts.
2. Filling and charging Battery {before installing): NOTE: SEE
DETAILED INSTRUCTIONS PACKAGED WITH BAT.
TERY,
A WEAR EYE AND FACE .HIELD-
a. Fill Battcry wilh r)loctrolytc to lx)tt()rr)s ol llllxrs ll,rolls
(Fiq. 1) NOTE: DO NOT OVERFILL. OVERFILLING
WILL RESULT IN DAMAGE TO TRACTOR,
WASH HANDS OR CLOTHING IMMEDI.
ATELY IF ACCIDENTALLY IN CONTACT
WITH ELECTROLYTE-
b. Check level of electrolyte alter 30 minutes. Add addi
tional eiectro,yte if necessary. NOTE: Tighten Vent
Caps securely,
c. Charge Battery at a rate not exceeding three ampcr{rs
for about two and one half hours.
DO NOT SMOKE. FUMES FROM CHARG.
ED E LECTROLYTE ARE EXPLOSIVE.
d. Neutralize excess electrolyte for disposal by adding it to
Jour inches of water in a five gailon plastic container-
Stir with a wooden or plastic paddle while addiog bak-
ing soda until the addition of nrore soda causes no more
foaming.
3. lnstall Battery usinq:
s.
TTERY CABLE
WASHER
.HEX BOLT
BATTERY CLAMP
BATTE RY SUPPORT Battery Clamp, two Wing Nuts, two Battery Bolts,
C\*-, @ @
four Flat Washers, two Hex Bolts and two Hex Nuts found
in Bag of Parts.
a. Push down and slightly spread rear sides of Hood to re-
lease Hood Latches. Lift Hood from rear sides {Fig. 2}.
b. Remove tape from Plastic Tray. Position Plastic Tray so
that drain hole in Tray is over round hole in Battery
Support.
c. Place Battery in Plastic Tray (Battery Terminals to rear
of Tractor) (Fig. 3).
d. Hook one Battery Bolt into slot on the left side of
Battery Support (Fig. 3). Fasten Battery Clamp (inner
slot) to Battery Bolt with a Flat Washer and Wing Nut.
e. Hook remaining Battery Bolt to right side of Battery
Support and fasten Battery Clamp to it with a Flat
Washer and Wing Nut (Fig. 4). Tighten Wing Nuts
securely.
f. Secure RED Battery Cable to Positive (+) Battery Ter-
minal as follows: Bolt (Head to rear of tractor), Washer,
Battery Terminal, Battery Cable and Nut. Tighten Nut
securelV (Fig. 3). Place Boot over Terminal (Fig.5).
POSITIVE TERMINAL MUST BE CON.
NECTED FIRST TO PREVENT SPARKS
FROM ACCIDENTAL GROUNDING.
Secure BLACK Ground Cable to Negative (') Battery
Terminal with Hex Bolt. Washer and Hex Nut {Fig. 5).
Tighten Nut Securely,
BA TT E R\.'
-r--'--iiii e n vl
\ supponr
\ sror
another free manual from www.searstractormanuals.com

4.lnstall Steering Wheel using:
oc
Flat Washer, Lockwasher, and
of Steerinq Shaft; on end
-
Woodrulf Key, and Steering Wheel Cap found in Bag of
Parts.
a- Remove Hex Bolt, Lockwasher and Flat Washer ,rom
Steering Shaft lFig. 6).
b. lnsert Woodruff Kev in Kevway of Steering Shaft and
slide Steering Wheel over Shait and Key. NOTE: BE
SURE WOODRUFF KEY IS SECURE IN STEERING
SHAFT.
c. Fasten with Flat Washer, Lockwasher and Hex Bolt (Fiq.
6t. I rgnren secu.cly
d. Insert Steering Wheel Cap in place.
INITIAL ADJUSTMENTS
1. Reduce Tire pressure to 12 pounds in tront and rear Tires.
(Tires were overlnflated for shipping purposes).
2.Seat position may b(i .rcljusted forward or backward by
loosening Nut in Scat Plate (Fig.7). NOTE WHEN RE
TIGHTEN ING NUT AFTE R ADJUSTMENT, I\IAKE SURE
SEAT PLATE HAS NOT TWISTED OUT OF ALIGN'
MENT WITH SEAT SPRING.
3. A spark arrestor mLrftler is available as an accessory part for
vo.. lr,,.ror C", ck l, qa r,,rlrrr,' m',11\ .n y.r,r o,r d.
INITIAL SERUICE
NOTE: BE CAREFUL NOT TO ALLOW DIRT TO ENTER
THE ENCINE WHEN CHECKING OR ADDING OIL OR
FUEL,
l.Check Engine Oil Level with Tractor on level ground.
Wipe dipstick (Fig.8) clean, push it in tight for a few sec'
onds, remove and read Oil Level. lf necessary, add Oil until
"FULL" mark is reached. ln summer use S.A.E. 30 (SC,
SD or SE) Oil. ln winter (below 32oF.) use S.A.E. 1OW3O
(SC. SD or SE) or low4o (SC. SD or SE). ln extreme cold
(below ooF.) use S.A.E. 5W2O (SC, SD or SE). NOTE:
DO NOT OVERFILL.
2. Fill Fuel Tank (Fiq. 7) with fresh regular grade lead free or
leaded gasoline. Capacity is 3 1/4 gallons. NOTE: DO
NOT SWITCH FROM LEADED TO LEAD.FREE GASO.
LINE,
FILL TO BOTTOM OF GAS TANK FILL.
ER NECK. DO NOT OVERFILL. WIPE
OFF ANY SPILLED OIL OR FUEL.
q
Bolr assembled
ENGINE OIL
DIPSTiCK
,3-
another free manual from www.searstractormanuals.com

PARKING BRAK
LEVER
FIGUBE9
OPEPATIOil
STANTING THE ENGINE
1. P ace Parkrng Brake Lever ill lockecl position (Fiq. g).
2. Place Attachrnent Clurch Lever in "OFF" position (Fiq. l0i.
3.Place Gear Shift Lever in netltral "N" positon (Fig. l1).
4.Move Range Shift Lever to "N" neutral pos tion (Fig. 11).
5.Push Clutch-Brake Padal into brake position (Fig. 12).
6. l\,4ove Throttle Conrrol Lever to middle position (Fig. 13).
7. Prlt Chok" out (Fig. '13).
8.Turn lgnition Key to "START" position Llntil Engine starts
(Fig. 13). Release key into "ON" position.
NOTE: DO NOT RUN STARTER CONTINUOUSLY
FOR MOR€ THAN THIRTY SECONDS AT A TIME. If
engine does not start after several attempts, move throttle
Control Lever to "FAST" position, wait a few minutes, and
try again.
NOTE: The Electric Lift Switch (Fig. 13) raises or lowers
an attachment when used with a Three Point Hitch (optional
equipment).
WARMING UP THE ENGINE
Move Throttle Control Lever to slow position. Push Choke
in as engine warms. NOTE: ALLOW ENGINE TO WARM
UP FOR A FEW MINUTES BEFORE OPERATING.
When restarting a warm engine, move Throttle Control Lever
to middle position, Choke may not have to be used.
ALWAYS WEAR SUBSTANTIAL FOOT.
WEAR AND AVOID LOOSE FITTING
CLOTHING THAT COULD GET CAUGHT
IN MOVING PARTS.
LEARN TO START, STOP AND REVERSE
YOUR TRACTOR IN A LARGE. OPEN
SPACE.
oFF PostrtoN i,f t.t'
ATTACHMENT
CLUTCH LEVER
FIGURE'IO
GEAR SHIFT
LEV E
REVERSE
l^l ii. "r
, )y l:: :1
/ lo" "ll
tlrt I
RANGF SHIFT II
LEVEB oll
\ /;"'ll
^ \1 T HIGH
--11+^) NEUTRAL
\
another free manual from www.searstractormanuals.com

TRACTOR OPERATION
1.With engine running and warm, place Throttle Lever in
middle position.
2. Push Clutch-Brake Pedal down to brake position.
3. Move cear Shift Lever to "2ND" and Range Shift Lever to
" Low".
4. R"l"us" Parking Brake.
5. Release Clutch-Brake Pedal SLOWLY to start forward
movement.
6. l{ ground travel is too slow move Throttle Lever to {ast posi
tion or press Clutch'Brake pedal and shift ro a different
gear. NOTE: ALWAYS SELECT A GROUND TRAVEL
SPEED THAT WILL SUIT THE TERRAIN AND THE
ATTACHI\4ENT BEING USED.
TNACTON OPERATION OiI HILLS
l.Choose one of the lowest qears BEFORE starting up or
down hills.
DO NOT DRIVE UP OR DOWN HILLS
WITH SLOPES GREATER THAN 150.AND,
DO NOT DRIVE ACROSS ANY SLOPE.
2.Avoid \hitrinq or \toppinU on hills.
a. lf slowing is necessary, move Throttle C.ntrolto middle
position.
b. lf stopping is necessary, push Clutch-Brake Pedal quick.
ly to brake position to prevent rolling.
c. Engage Parking Brake and shilt 10 lowest speed rang..
d. Partially release Clutch-Brake Pedal Lrntil forward move-
ment begins.
e. Release Park ing Brake.
f. Completely release Clutch-Brake Pedal
3.[,4a ke all turnc gradually.
STARTING YOUN TNACTOR
WITH A LOW BATTERY
lf your Battery is too low to start the engine, it should be
recharged. lf "Jumper Cables" are Lrsed {or emergency startinq
fottow thls procedurei NoTE: YoUR TRACTOR tS EoUIP
PED WITH A 12 VOLT NEGATIVE GROUNDED SYSTEM,
THE OTHER VEHICLE IVIUST ALSO BE A 12 VOLT
NEGATIV E GROUNDED SYSTEI\,I,
LEAD,ACID BATTERIES GENEBATE EX.
PLOSIVE GASSES.KEEP SPARKS, FLAME,
AND SMOKING MATERIALS AWAYFROM
BATTERIES. ALWAYS SHIELD EYES
AROUND BATTERIES.
l.Connect each end of the RED cable to the POSITIVE (+)
terminals of each battery (takinq care not to short aqainst
chassis ).
2.Connect one end o{ rhe BLACI< cable to rhe NEGATTVE
( )rerminal of "GOoD" battery.
3.Connect the orher end of the cabte to ENGINE BLOCK
or good CHASSIS GROUND on lractor (awav from Gas
Tank or Battery).
4.D.,conno' I .dblP\ r. r(v€.,e urdel
a. Enqine Block or chassis
b. Negative terminal of "GOOD" batt"'v
c. Posltive terminals
DO NOT USE YOUR TRACTOR BAT,
TERY TO START OTHER VEHICLES.
BRING TRACTOR TO COMPLETE STOP
BEFORE SHI FTING GEARS.
NEVER PLACE YOUR HANDS OR FEET
IN OR UNDER ANY POWERED ATTACH.
MENT OR NEAR ANY MOVING PART
WHILE TRACTOR OR ANY POWERED
ATTACHMENT IS RUNNING-
STOPPING YOUB TPACTOR
1. Reduce Throttle Lever to "SLoW" position.
2.Push Clutch-Brake Pedal into Brake posttion.
3. Release Attachment Clutch.
4. Move Gear ShiIt Lever to netrtral "N".
5.Place Parkrng Brake in "l OCK" posrrron.
6. lutch-Braketi. Release Clut
A
7, Turn lqnition
A
MAKE SURE PARKING BRAKE WILL
HOLD TRACTOR SECURE.
Key to "OFF" positiorr.
REMOVE KEY WHEN LEAVING TRAC.
TOR TO PREVENT UNAUTHORIZED USE.
TNANSPONTIiIG YOUN TRACTON
For pushinq or towing yoLrr tractor, place Gear ShifI Lever
and Range Shifl Lever in neutral position (Fig. 11). NOTE:
DO NOT TOW YOUR TRACTOR FASTER THAN SIX
IV] IL ES PER HOUR. .5
another free manual from www.searstractormanuals.com

A
FIEST
MAIilTEiIATCE
To keep your tractor running better,longer; perform necessary
service using the following Maintenance Schedule.
Each time you start your tractor, check your Ammeter (Fig.
l4). The needle should move towards the + (charging) mark
indicating the battery is being charged as you operate the
tractor. DISCONNECT SPABK PLUG WIRE TO
PREVENT ACCIDENTA L STARTING BE-
FORE MAKING ANY INSPECTION, AD.
JUSTMENT (EXCEPT CARBURETOR} OR
REPAIR.
o
4 HOUPS:
1. curcr v.BELT TENsroN
A new V-Belt may stretch after the first few hours oI opera'
Iion. lf Clutch Brake Pedal, ln drive position (Fig. 15), is
considerably to the front or rear of the vertical position,
the V-Belt is out of adjustment and must be re'tensioned.
a. Secure Clutch Brake pedal in brake posltion (relaxing
V-Belt tension) by tieing to Iront axle.
b. Hold Nut on inside of Flat ldler and loosen Flat ldler
Bo lt.
c. l\,4ove Flat ldler in frame slot 1/4 inch down (to tighten),
rrp {to loosen) V-Belt tension. Tighten Bolt.
d. Releare Clutch Bra[e Pedal. lt shorrld return to approxi
mately vertical position.
CHECK TO MAKE SURE TRACTOR DOES
NOT START WITHOUT FULLY DEPRES-
SING CLUTCH.BRAKE PEDAL.
NOTE: FOR LONGER V-BELT LIFE. AI-WAYS KEEP
BELT TENSIONED PROPERLY, START TRACTOR
IV]OVEIV]ENT WITH THROTTLE CONTROL IN MIDDLE
POSITION, AND ALWAYS REPLACE WITH SEARS
V.B E LTS.
2.cHaruce ENGTNE orL
Changing Oil alter the first two hours will help eliminate
break-in residue which miqht be damaqing to your Engine.
Note: Be careful not to allow dirt to enter the Engine
when chanqinq oil.
a. Drain Oil with Engine warm. Unscrew Oil Drain Cap
(Fig. '16) and catch Oil in a suitable container. Replace
Ca p.
b. Refill Engine Oil (Fig. 17). ln summer use S.A.E. 30
(SC, SD or SE) Oil. ln winter {below 32oF.) use S.A.E.
'10W30 (SC, SD or SE) or 10W40 (SC, SD or SE). ln ex'
treme cold (below ooF.) use S.A.E. 5W20 (SC, SDor
SE). Capacity is 3- 1/2 pints. NOTE: DO NOT OVER
FILL.
FNEOUETUTLY:
,I. cHEcK BATTERY
a. Electrolyte solution level in each Battery Cell should tre
even with bottoms of tubes in cells (Fig. 18). Add dis-
tilled water i, necessary. NOTEi DO NOT OVERFILL.
b. Keep Battery and Terminals clean. Refer to page 10.
c. Keep Battery bolts tight.
d. Keep Vent Caps tight and small Vent holes in caps
open.
e. Recharge SLOWLY at 3 amperes iI specific gravity of
electrolyte falls below 1.225.
2. cHEcK TrRE PH EssuRE
Tire pressure in {ront and rear Tires should be l2 pounds.
3. clearu AtR scREEN
Air Screen and Guard (Fig. 21) must be kept free of dirt
and chaff to prevent Engine damage from overheating.
RETAINEB SPRING
IDLER BEARING
FLAT
IOI ER
1_r
,,)=:\
il e[' j
P
BELT
GU ID€ O pEorr 'IT GUABD
e ='- ^e ^C
FlGltRF l5 -.'-/
UT
--fi14 OIL DBAIN PLUG
kvENrcaP
BATTERY
TUAE
AATTE RY
CELL
CI.IT AWAY VIFW
It
I
,,o, * J tx&
li
ll
l-ll
1a
another free manual from www.searstractormanuals.com

fJ
EVERY FJ HOT.IRS:
l,cnecr ENGTNE otL LEVEL
A fi,',,i?1"fi:'x,'^,l,?it: o'|L LEVEL
Several minutes after stopping Engine, check Engine Oil
Level with Tractor on level qround. Wipe dipstick (Fig. 17)
clcan, push it down tight for a few seconds, remove and read
Oil Levet. lf necessary, add Oii until "FULL" mark is
reached. ln summer use S.A.E:30 (SC, SD or SE) Oil. ln
winter (below 32oF.1 u5s S.A.E. 10W30 (SC, SD or SE) or
10W40 (SC, SD or SE). ln exlreme cold (below ooF.) use
S.A.E. 5W20 (SC, SD or SE). NOTE: DO NOT OVER.
FILL.
2. Luantcare sTEERtNG AND FRoNT wHEELs
There are six Grease Fittings on your Tractor (Fig. 19).
Using a Gre€se Gun, give each Grease Fittinq two shots o,
Extreme Prc,ssure Lubricatinq Grease Anttlex No. I (Avail-
al)le at your local Sears Servico Centerj.
3. otL Prvor PotNTs
Place several drops of SAE 30 Oil at points where parts
move against {,ach other, especially:
a. ldler Bearing (Fig. 15)
Remove Plastic Cap.
Remove Retainer Spriog lrom ldler ShaIt.
, lvlove ldler and Shaft outward and lubricate ex-
posed Shaft.
RetuIn ldler and Shaft to original position, replace
Retainer Spring, and reposition Cap.
l). Front Axle Prvot (Fig.'19)
rnfa
EUENYZF] HOURS:
{EVERY 15 HOURS IF OPERATING
IN VERY DUSTY CONDITIONS}
l.cLEAN ArR FTLTER & FoAM PRE-CLEANER
a. Unscrew Wing Nut (Fiq. 20) to remove Air Filter Cover
Paper Air Filter Element and Foam pre-Cleaner.
b. Clean dust Irom Paper Air Filter Element by gently tap
ping Element on a flat surface_
c. Wash Foam Prc-Cleaner in dctergent and water.
d. Rinse, s{lueezc (rathcr than twjst) and allow to dry thor_
oughly.
c. Coat with three tablespoons of S_A.E. 30 Engine Oil,
knead to distribute evenly, ancl s(lueeze out excess.
f. Check Paper Air Filter EI€iment. Replace if excessively
dirry.
q. Re Assemble Air Filter and reposition on Tractol.
NOTE: NEVER RUN ENGINE WITH AIR CLEANER
REI\4OVED,
2.crrnru ArR scnEEN
Aii Soeen and Guard (Fiq. 21) must allow free flow of air
to prevorlt Engrne darn:rge from overheating. Remove Air
Screen and Guard and clenn with a wire brush to remove
{li[t arrd chaff and stubborn dried gL]m aod fibers.
3.cxaruce ENGTNE otL
'l-lie l)cst time to change Engine Oil is at thc end of a days
operat;on wheD all dirt and toreign material is suspended
in thc hot Oil. Refcl to pagc 6.
STEE R ING G EAA
\ SECTOR ANO ARM
GREASE FITTING
STEERING
BELL CRANK
GBEASE FITTING
FBONT SPINOLE
GREASE FITTING
(LEFT & RIGHT}
FRONT WHE EL
GREASE FITTITlG
(L€FT & BIGHT)
FIGUR E 19
AIB SCREEN
AND GUABD
FIG UR E 21
'f,[,6
-7 -
another free manual from www.searstractormanuals.com

----
$
FIGURE 22
TRANSAXLE
FILLER PLUG
GURE 23
EvERY 5l[]]xouns,
1, cLEAN ENGTNE cooLtNG FtNs
Remove any dust, dirt or oil from Engine Cooling Fins
lFis. 22) to prevent Engine damage from overheating.
2. cHEcK TRANSAXLE otL LEVEL
a. Block up Rear Axle securely or use a Sears Tractor Jack.
Remove Left rear wheel by removing E-Ring.
b. Remove Filler Plug (Fig. 23) from Transaxle. Oil Level
should be even with Filler Ptug threads. Add S.A.E. 30
l\4otor Oil if necessary.
c. Check Pressure Relief Valve located on B-H- side near
top (Fig. 26). lt should spring completely closed when
pulled out by hand.
d. Reposition wheel. Secure with E-Ring.
evenvfl00 xouns:
1. CLEAN SPARK PLUGS AND RESET GAp
Wire brush carbon deposits Irom Spark Plug Electrodes and
reset gap at .025 inch. {Fig. 24). Replace Spark Plugs iI
they show signs of foulinq or elect(ode erosion.
2. LUBRTCATE BALL JotNTs
a. l\4ove Rubber Boots to expose Ball Joants on Tie Rods
and Steerinq Link (Fig.27).
b. Coat Ball Joints with Silicone Spray Lubricant.
c. Reposition Rubber Boots.
evenvZ00xouns:
REPLACE PAPER AIR FILTER ELEMENT
Reler to paqe 7.
evenv4ECIxouns:
CHANGE TRANSAXLE OIL
a. Block up Rear Axle securely or use a Sears Tractor Jack.
Remove Left Rear Wheel by removing E-Ring.
b. Drain Transaxle Oil by removing Drain Plug (Fig. 25) and
catching Oil in suitable container. Replace Drain Plug.
c. Befill Transaxle with S.A.E. 30 l\4otor Oil. Capacity is 5
quarts. Pressure Relief Valve located on R.H. side near
top may be held open to allow Transaxle to fill more
quickly.
d. Check Pressure Relief Valve. lt should spring c..npletely
closed when pulled out by hand and released.
e. Reposition wheel. Secure with E'Ring.
.O25" FEELER
FIGUR E 25
I,
another free manual from www.searstractormanuals.com

AS NEEOEO:
1, n:place rN LtNE FUEL FTLTER
lf fuel frlter is cloqqe(1, obstructrlq fu(r Ilow to carl)ur{rtor,
replacement is require(1.
a. With Engine cool, remove and plug Fuel Llne Sections
as removed from both ends of Fuel Fllter (Fig. 26).
b. Place new Fuel Filter in position in Fuel Line (arrow
on side of Filter in direction of fuel flowi.
BE SURE THERE ARE NO FUEL LINE
LEAKS AND THAT FUEL LINE IS IN
PROPER POSITION IN HOSE CLAMPS.
2.roe.rru ADJUsTMENT
l1 any parts in Front Axle or Steering Mechanism are being
ret)laced, Tie Rod adiustment is required.
a. Loosen Jam Nuts \Fig.21) al each end of Tie Rod Ad
justment Sleeves.
b. Adiust both Tie Rods so that Tie Rod Joints measure
from 10 to '10 'l18 inches from center to ceoter.
c. Tighten Jam Nuts, making sure Tie Rod Joints are par
allel (180o) to each o1her. This adjustment secures
proper front Wheel Toe.in and sleering oppration.
3.gnaxe ADJUsTMENT
lf Clutch-Brake Pedal (Fiq.28) has morc than approximate-
ly 4 inches of travel Irom vertical to {ull brake position
then brake adjustment is necessary.
a. Loosen Jam Nut (Fig. 28) in order to turn turnbuckle
clockwise (from in front of tractor) one turn at a time
until Clutch-Brake Pedal regains 4 inches of travel.
b. Tighten Jam Nut against Turnbuckle.
4.peRrrruc BRAKE ADJUsTMENT
lf Parking Brake will not hold tractor, Parking Brake ad-
iuslment is necessary.
a. Loosen Parking Brake Hex Nuts (Fiq.28).
b. Place Parking Brake Lever in locked positron.
c. Hold Clutch-Brake Pedal in brake posit on and tighten
first Hex Nut finger tight against Bushing.
d. Release Clutch Brake Pedal and turn first Hex Nui lwo
turns more against BUshing.
e. Tighten second Hex NLrt against first Hcx Nut.
5. CARBUREToR ADJUsTMENT
lI Engine lacks power or does not idle properly, the Car-
buretor may need adl'ustment.
a. Main Fuel (High Speed) Screw (Fig. 29) should not re-
quire adjustment. lf resetting is necessary, turn clock-
wise, closing finger tight ONLY, then turn counterclock-
wise 1 - 1/8 turn.
b. Turn ldle Adjusting Needle (Fig. 29) clockwise, closing
Jinger tight ONLY, and then turn counterclockwise
two turns.
c. Start Engine and allow to warm for five minutes.
d. Make final adjustments with Engine running and Gear
Shift Lever in Neutral position.
- Turn ldle Adiusting Needle counterclockwise until
Engine runs "rough" then clockwise until Engine
begins to miss. Return Screw to a point midway be'
tween these extremes.
.. Throttle Stop Screw (Fig- 29) should not require ad-
justment. l{ resetting is necessary, set to obtain the
slowest engine speed that will allow smooth accelera-
tion.
6. Rg.TeNstoN v.erLr
It may be occasionally necessarv to re'tension V-belt. (See
page 6). CHECK TO MAKE SURE TRACTOR DOES
NOT START WITHOUT FULLY DEPRES.
stNG CLUTCH-BRAKE PEDAL. .9.
FUE
HOSE
1.)*
E/l
TtE ROD TIE ROD
BUSHINO
TH BOTTLE SIOP SCREW
J,'ffi\
:1 IT'I F AD.IUSTI/IENT
:J.:..(HIGH SPEED)
i.i-i, ADJUSTMENT
another free manual from www.searstractormanuals.com

WASHER
FIGUR E 30
7. clrar BATTERY AND TERMTNALs
Corrosion and dirt on the Battery and Terminals cause
the Battery to "leak" power and hinders the operation of
the charger.
a. Remove the Battery from the Tractor and wash with
four tablespoons of baking soda to one gallon of water.
NOTE: BE CAREFUL NOT TO GET THE SODA
SOLUTION INTO THE CELLS. Rinse the Battery with
plain water, drv and reinstallon Tractor.
b. Clean ternrinals with a wire brush until briqht. Re'
place Battery Cables. Coat terminal connections with
Vasoline.
8.rr n s cnRe
a. [Maintain tire pre6sure in frontBnd rear tires of '12 pounds.
b. Keep tires free oI gasoline, oil. or insect control chemi-
cals which can destroy rubber.
c. Avoid stumps, stones, deep ruts and other hazards that
may cause tire damage.
d. Removing front wheel for tire repair (Fig.30).
'' Block up tront axle securely or use a Sears Tractor
Jack
.. Remove Hex Bolt and Dust Cap.
-- Remove Nut, Wear Washer, Pin and Washer ta allow
wheel removal.
'- Repair tire and reassemble.
e. Removing rear wheel for tire repair (Fig.31):
- Block up rear axle securely or use a Sears Tractor
Jack.
.. Remove E.Ring to allow wheel removal.
- RepIir tire and reassemble. Snap E-Ring securely in
axle qroove.
9.rrrursH
Keep tractor Iinish free of qasoline, oil, insect chemicals or
battery electrolVte. Protect painted surfaces with Automo'
tive type wax.
a*,*o\
FIGURE 31
SERUICE RECOBO
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE -6Iffi
*xbxY%$iz;\vA?.Y.
{.9i'%%i%:%V
Check Engine Oil Level A
Chanqe Engine oit t
Oil Pivot Points u
Lubricate Front Wheels & Steering 7
Check Transaxle Oil Level v
Chanqe Transaxle oit t
Clean Air Screen v v
Clean Air Filter & Foam Pre-Cleaner v
Replace Paper Air Filter Elemenl t
Clean Engrne Cooling Fins v
Clean Spark Plug & Reset Gap v
Check Batterv Levels t
Check Tire Pressure 7
- 10 -
another free manual from www.searstractormanuals.com

TNOUBLE SHOOTING
POSSIBLE CAUSE POSSIBLE REMEDY
WI LL NOT START
Clutch-Brake Pe(lal in drive position
Attachment Clutch Lever in "ON" position
No qasoline in Fuel Tank, clogged Fuel Filter
or Fllel Line
Biown Fuse
Dead Batterv
Press Perl: I into brake posrt otr
Move Lever to "OFF" oosition
Fill Tank with Gasoline. Check Fuel L ne,
and Carburetor (clean f necessary)
Check for fault and replace Fuse
Recharge or replace Battery
I uel Fittur
HARD TO START
Choked imt)rot)erly, flooded Engine Push Choke in, place Throttle Control in rnid(llc posi
tion and run starter several times to clear out gas
Cloqqed Fuel Filter Remove and replace
Clogged Fuel Tank Remove and clean
Dirtv Air Cleaner Remove and clean
Spark PIug dirty or improper gap Clean, adjust gap or replace
Defectave Battery Recharge or replace
Detective lgnition or loose wiring Check the wiring and Spark Plug
Water in qasoline or old fuel Drain Fuel Tank and Carburetor, use fresh fLrel and
clean Spark Plug
lmproper Carburetor adjustment lvlake necessary adjustments
ENGINE MISSES OR LACKS POWER
Engine overload ShiIt to a lower gear or reduce load
Clogged Fuel Filrer Remove and replace
Clogged Fuel Tank Remove and clean
Partially plugged Air Cleaner Remove and clean
lmproper Carburetor adjustment l\,4ake necessary adiustments
Dir1y Air Screen Clean Air Screen and Cy,inder Fins
Low oil level or dirty oil Add or change oil
Spark Plug dirty, improper gap or wrong type Clean, reset gap or replace
Faulty iqnition Check Spark Plug and for loose wires
Poor compression Major Engine overhaul
Oil in qasoline Drain and refill Gas Tank and Carburetor
Clean Air Screen
Add or change oil
Clean Cy linder F ins
Remove and clean Muf{ler
Remove and clean
Use fresh ruel and adlust Carburetor
ENGINE OVERHEATS
Dirty Air Screen
Low oil level or dirtv oil
Dirty Engine
Partially plugged IVluff ler
Partially pluqged Air Cleaner
Stale Juel or improper Carburetor adjustment
NO LIGHTS
No Headlights or Tailliqht with Light Switch Knob Check Light Fuse under dash, replace Taillight Bulb
pulled out or Sealed Beam Headlights
WON'T CHARGE
Blown Fuse Check lor faul{ and replace
Delective Battery Replace
STORAGE
1. erucrrue orl
Drain (with engine warm) and replace with clean engine oil.
Refer to page 6.
2. ruEL svstglr
a. Drain fuel tank and carburetor by allowing the engine to
run outol gasoline. NOTE: GASOLINE LEFT lN YOUR
ENGINE WILL LEAVE GUIVI DEPOSITS CLOGGING
FUEL SYSTEIN
b. Dispose oI gasoline if not to be used. NOTE: GASO-
LINE STORED FOR SEVERAL |llONTHS LOSES
ITS VOLATILITY (ABILITY TO BURN EFFECT.
IVELY).
3.cvurruoen
a. Remove Spark Pluq.
b. Pour one ounce of oil through spark plug hole into cy
linder.
c. Turn ignition key to "START" position for a few
seconds to distribute oil.
d. Replace Spark Pluq.
4.garrenv
a.
b.
Remove battery if tractor is not Lrsed reglrlarly during
winter months- Store in cool, dry place {above 5OoF}.
NOTE: DO NOT STORE BATTERY DIRECTLY ON
CEIVI ENT SUR FACE.
Check electrolyte charge each month and recharge if
below 1.225 specilic gravity. NOTE: BATTERIES NOT
IN USE FOR SEVERAL I/ONTHS AND NOT KEPT
FULLY CHARGED, PRODUCE SULPHUR DEPOSITS
ON PLATES WHICH CANNOT BE REI\,IOVED BY
RECHARGING.
5.cerueRel cLEAr!tNG
-11 - Clean engine, battery, finish, etc. of all foreign matter.
another free manual from www.searstractormanuals.com

-: 78 e) rrTl
.s79 E81 L! 82 Ef84
[-D 80 - a a
aa
u. a +79
.\=
REPAIR PARTS 16/6 GARDEN TRACTOR-.MODEL NUMBER 917.25170
MAIN FRAME, DASH AND GBI LL
ABCD
71
w!
W>
@'<-rz
i2 ef-57
er -^ 56
L
En
a
€E86
[f! gs
,r--o,
E
Bru
a
r:F86
K
f#88
4
4
a
E!gs
o
Bru
a
a
c-96
me7
Yw'w
M
H*
/\
/\
\\\\
\4?
43
ffi
BB CC DD EE
6} rrl rr-Tt +
=111 ,j11s H fis H po
=-112 a A =
- 113 .s79 a = mir+ u;so : 99 = 3l
- 96-
m;;mn'
R
4A99
ll
a
a
a
a
g)100
HJ
WB
arg =121
.s e6 [TaTl122
NP
ff-l ss 96
Z e5 rrrts,
a
e96
STUVWXYZAA
@ru @ro, p,o, p,o.Poo p,ou p,*p,* f,,o
=aa===a
A A *116: A
ffif5;; --'10ffi39 ffilf *''g'1'o'
4
5
6
,8
-9
.//./..<.--_-
1,"';-'" -'
'1--- -afr$
66
' //i
///" I
-12-
another free manual from www.searstractormanuals.com

REPAIB PABTS
16/6 GARDEN TRACTOR-MODEL NUMBER 917.25170
MAIN FRAME, DASH AND GRILL
r
a
KEY PART
NO. NO.
1 2676R
2 9413R
3 9414R
4 2672R
5 8768H
6 2754R
9598R
7937 R
7938R
267 4R
2673R
7830R
704R
2949R
7819R
7907 R
9852R
7900R
7899R
634A846
' 24 9396E
26 6344104 Engine Pulley (lnc. Key No.94)
27 6g4A792 Mounting Plate and Guide Ass'y.
28 8704H 1
29 4939M
30 9011H
31 6344660 B-ellclard W4ldmetrl-
3r----3ZJgH- ---Splir Spacer
36 634A820 Hood Latch Ass'y.
37 A457R Support Bumper
38 6344818 Battery Support Bracket (lnc- Key 39) 100
39 7756R Bearing 101
40 8006R Cap - ldler Shaft 1O2
41 7905R Cover - R.H. 103
42 4379H Handle Grip 104
43 7945R Attachment Clutch Lever
44 5002P E-Rins 105
45 634A785 HangerWeldment R.H. - Front
46 7944R Belt Tightener Arm 106
47 7948R Return Spring 107
48 7810H Locknut 3/8 - 24 UNF 108
' +g 634AA14 Hanger Weldment - Rear 109
50 634A7a7 Drawbar and Weldnuts 1 10
I 51 6344355 Hanger Weldment - L.H. - Front
52 8591 R Choke Control 111
53 7932R Throttle Controi (lnc. Key 61 , 62 & 63) 112
55 9634R Decal (Shift Pattern) 113
56 6344888 Chassis Ass'y. (lnc. Key 57 & 58) 1'14
57 6468H Bearins 115
58 4766H Bearins 116
59 634A7A2 Enoine Mount Ass'y. 117
61 8205R Throttle Wire & Casing 118
62 A2O4R Clamp 119
63 8203R Throttle Control Lever 12O
64 634AA74 Dashboard (lnc. Key No's. 66 and 67) 121
65 94O2R Battery Support '122
DESCRIPTION
Grill - Upper
Decal, Hood - L.H. .qear
Decal. Hood - R.H. Rear
GrillScreen - Upper
lVlounting Clip
Grill Screen - Center
Decal, Front - R.H.
Grill - Lower
Grill Side
Grill Screen - L.H.
Grill Screen - R.H.
Grommet
Air lnlet Screen
Gasket IMuff ler
Muffler
Panel Brace
Decal, Front - L.H.
GrillCable
Grill Brace
Engine - '16 H.P. Craftsman Model
No. 143.670032
Sq. Kev 114 x 2
KEY
NO.
71
'7q
76
7a
7q
80
84
85
86
87
88
91
92
93
on
95
96
98
99
PART
NO. DESCRIPTION
7
I
10
11
1'
13
14
15
It)
17
21
22
Spacer
Retainer Spring
Belt Retainer
Clip - Dashboard
Clip - Dashboard, Center
Battery Heat Shield
Hood Seal
Battery Tray
sTD522515
1 605H
srD522507
sTD523107
sTD551 131
sTD601003
6040P
sTD523710
srD551 137
sTD541037
sTD551037
3154P
347 H
sTD5231 12
sTD51 1005
srD523712
5557P
61P
7906R Cover - L.H.
7731R Bracket - Battery Support
78358 Bracket Rectifier
6344680 Hood Ass'y.
8028R Decal - lnstruction
9878R Decal - Wiring
STD551025 *Washer 9/32 x 5/8 x 16 Ga.
sTD551l25 *Lockwasher 1/4
STD541025 *Hex Nut 1/4 - 20 UNC
STD611005 "Phillips Pan Hd. Thd. Cutting Screw
10 - 16 x 1/2
*Hex Bolt 1/4-20x'l -'l/2 Gr.5
Locknut 1/4 - 20 UNC
*Hex Bolt 114 -2O x3/4
*Hex Bolt 5116 - 18 x 3/4
*Lockwasher 5/16
*Phillips Pan Hd. Thd. cutting Screw
10 - 24 x 3/8 Type T
Slotted Fil. Hd. Machine Screw w/Lock-
washer 114 - 28 x 314
STD551O37 *Washer 1 1/32 x 1 1/16 x 16 Ga.
STD523110 "Hex Bolt 5/16 - 18 x 'l
STD54I031 "Hex Nut 5/16 - 18 UNC
4538P Hex Socket Hdless. Set Screw
5/16-1ax112
*Hex Bolt 3/8'16 x 1
*Lockwasher 3/8
*Hex Nut 3/8 - 16 UNC
*Washer 13/32 x 13/16 x 16 Ga.
Slt. Fil. Hd. lVachine Screw
1/4-2Ox2-1/4
Huglock Nut 1/4 - 20 UNC
"Hex Bolt 5/16 - 18 x'l - 114
*Slt. Truss Hd. Mach. Screw 10'24x1/2
*Hex Bolt 3/8 - 16 x 1 - 1/4 Gr. 5
Hex Washer Hd. Thd. Cutting Screw
1/4 - 20 x 1l2Type 1
Sq. Neck Short Shoulder Carriage
Bolt 3/8 - '16 x 1 Gr. 5
3035P Hex Bolt 7/16 - 14 x 1 '1/4
STD551 143 *Lockwasher 7/16
STD523707 *Hex Bolt 3/8 - 16 x 3/4
5394H Locknut 3/8 -'16 UNC
STD551210 *Hex Slt. Hd. Machine Screw w/Sems
lnt. Tooth Lockwasher 10 - 32 x 1/4
53P Sq. Neck Carriage Bolt 10 - 24 x 112
STD5510'10 *Washer 7/32 x 7/16 x 18 Ga.
STD551110 *Lockwasher No. 10
STD541010 *Hex Nut 10 - 24 UNC
STD522505 *Hex Bolt 1/4-2Ox1/2
STD55]210 *Ext. Tooth Lockwasher No. 10
STD523107 *Hex Bolt 5/1 6 - 18 x 3/4 Gr. 5
STD523707 *Hex Bolt 3/8 - 16 x 7/8
sTD523715 *Hex Bott 3/8 - 16 x 1 - 1 /2
STD533107 "Sq. Neck Carriage Bolt 5/16 - 18 x 3/4
STD523108 *Hex Bolt 5/16' 18 x 7/8
'1685H Locknut 5/16 - 18 UNC
"STANDARD HAR DWAB E..PU RCHASE LOCALLY
66 1998R
67 8571R
68 9687R
69 7A74R
70 8855R
l- - 13 -
another free manual from www.searstractormanuals.com

REPAIR PARTS16/6 GARDEN TRACTOR_MODEL NUMBER 917.25170
STEERING AND FINAL DRIVE @+'..-.-.-1
q,.- -- 2
zg"
,, /'--
,a/
zu/-
s-;
D.. e"
\ \16
s-a
,'<D \
\_ \,s %=:,
V,.
li
AA
AB
E*B*
=a
-49 -_ 51
l'GN 49 eF 52
ms3
FG
ftu
i': 58 } l 5e
Esz u
[D 53
2A
D
ar-Tt
=55
a
s52
[D ss
17
M
;-
Il ro
L:
N
.r-.f]]
=73
=
EE 52
Dse
t=c= 52
E! ss
@4e
H
[Tlt 53
--!F
II
Er fI
=60 E60
aa
<E 61 <: 6',1
ED oz
PO
|J, ffi
E= 46 \= 't4
==
<F52 =
KL
HE
ll u. Zuu
-:- 64 A
=83 re!4e
r!66
RS
rrum
Zsa Zas
aa
€57 €57
15
76
77
78
33 --
o__2,;z:.?.
;o- -' ./.,
,ee@,i '-
-14-
another free manual from www.searstractormanuals.com

REPAIR PARTS:
16/6 GARDEN TRACTOR--MODEL NUMBER 917.25170
STEERING AND FINAL DRIVE
KEY PART DESCRIPTION KEY PART DESCRIPTION
NO. NO. NO. NO.
- 1 9597R Steeringwheel lnsert 46 STD533710 *Sq. Neck Carriage Bolt3/8 - 16x 1Gr.5
2 STD523710 *Hex Bolt3/8- 16x 1 47 STD551037 *Washer 13/32 x 13/16x 16Ga.
- 3 STD551137 *Lockwasher 3/8 48 '1519P Washer 15/32 x 1 x 12 Ga.
4 STD55'1043 *WasherT/16x 1x 10Ga. 49 5394H Locknut 3/8 - 16 UNC
5 7893R Steerinswheel 50 5fD523712 *HexBolt 318-16x1'1/4
6 STD582o75 *E-Rins 51 STD551037 *Washer 13/32 x 13/'16 x 11 Ga.
7 9007H Cap 52 STD551137 *Lockwasher 3/8
8 5949H Rubber Bushing 53 STD541037 *Hex Nut 3/8 - 16
9 7903R Foot Rest - L.H. 54 3252P Hex Bolt 3/8 - 16 x 1 - 112
9A 9596R Decal (Clutch-Brake) 55 STD523707 *Hex Bolt 3lA-16x7lA
10 8900R Decal {Attach. Clutch) 56 STD523107 "Hex Bolt 5116 - 1a x3l4
11 79O4R Foot Rest - R.H. 57 STD551 131 *Lockwasher 5/16
12 1553P Washer 57164 x 1-1l4x 16Ga. 58 STD533707 *Sq.NeckCarriageBolt3/8-16x3/4
13 98581\41 Woodruff Key 3/16 x 5/8 59 1304H Hub Bolt
14 634A775 Steering Shaft and Pinion 60 3034P Hex Bolt 7/16' 14 x 1
15 7987R Control Knob 61 STD551'143 *Lockwasher 7/16
16 6442H Shift Rod Bracket 62 STD541043 *Hex Nut 7/16 -14
17 STD561B20 *Cotter Pin 3/16 x 1 63 STD522507 *Hex Bolt 1/4 -2Ox3/4
18 634A22A Belt Guide 64 STD55I025 *Washer 9/32 x 5/8 x 16 Ga.
'19 6477H Range Shift Rod 65 STD551125 *Lockwasher 1/4
20 9594R Transmission Bracket 66 STD541025 *Hex Nut 1 /4 - 20 UNC
21 8357R Fuel Tank Pad 61 9297 R Clip, Fuel Line
22 794R Rear Tire 23 x 9.50 - 12 68 9547R Rubber Grommet
23 795R Tire Valve 69 STD523108 *Hex Bolt 5/16 - 18 x 7/8
24 2893R Rear Wheel 7O STD532507 *Short Shoulder Sq. Neck Carriage
I zs 9428R Fender - R.H. Bolt 5/16 - 18 x 3/4
26 634A692 Wheel Hub - Rear 71 STD551037 *Washer 11/32 x 11116 x 16 Ga.
27 7563R Axle Thrust Washer 72 1685H Lock Nut 5/1 6 - 18 UNC
28 5845R E'Ring 73 STD523707 *HexBolt3/a-16x3/4
29 9427R Fender'L.H. 74 STD535012 *Carriase Bolt'll2-13x1-1/4Gr.5
30 2656R Bracket-Tail Light 75 STD551075 *Washer3/4x 1-118x11 Ga.
3'f 6344823 Seat Stop and Bracket 76 STD551050 *Washer 17132x 1-1/2x11Ga.
32 634Aa24 Fuel Tank Retainer and Pads 77 STD551150 *Lockwasher 1/2
33 8141H Seat Spring Reinforcement 78 STD541050 *Hex Nut 1/2'13 UNC
34 7898R Seat Spring - 9383R Owners Manual
35 634A776 Seat Plate Weldment
36 6344532 SEAI BTACKCI WEIdMENt *STANDABD HAR DWAR E--PU RCHASE LOCALLY
37 TaqR Pivot Seat Bracket
38 9544R Seat
39 7886R Fuel Gauge
40 7885R Fuel Tank
41 6999R Hose Clamp
42 2751R Clip - Fuel Line
43 83738 Fuel Line
44 7741R Fuel Filter
45 7895R Steering Shaft Spacer
. 15.
another free manual from www.searstractormanuals.com

16/6 GARDEN TRACTOR.-MODEL NUMBER 917.25170
)- 12
J
r - ...-_ .,
/)
(.-- / .-
" (."
BEPAIB PABTS
BRAKE AND CLUTCH
49
J
E
: E:
CED 68
E-H"H
#:: 6..*
_ 16 _
u,puuH*H.,
==
:
B
H
CD sa -E 57
s*-'
*/;
2a 29
I-
another free manual from www.searstractormanuals.com

REPAIR PARTS:
BRAKE AND CLUTCH
16/6 GARDEN TRACTOR.-MODEL NUMBEB 917.25170
KEY PART DESCRIPTION KEY PART DESCRIPTION
NO. NO. NO. NO.
1 8156H Foot Pedal Cover 37 634AtS4 tdler Bracket Weldment
4 9008H Spring 38 634A86 tdler. Bott & Nut (tnc. Key No's. 52 & 54)
5 634A757 Foot Pedal Shaft Weldmenr 39 STD58105O *E-Ring
6 STD581062 *E-Rins 40 626,4314 Sreering Arm Assembty
7 1527 P \Nasher 21132 x7lBx16Ga. 41 STDS4IO43 "Hex NutT/16,14 UNC
8 STD561210 *Cotter Pin 1/8 x 3/4 42 STDbblt43 *Lockwasher 7/16
I 22O2R BrakeRod-Front 43 STD551043 *Washer 15/32x t1l16x 16Ga.
10 64'l7H Turnbuckle 44 6635H Flat ldler
11 STD54I037 "Hex Nur3/8- 16UNC 4b 1S2OP Washer.469 t.D.x 1-.t/8x 11Ga.
'12 7a23R Safety Start Actuator 46 6479H1 Belt Finser
14 22O1R Bushing 47 3262P Hex Bolt 7/16- 14x2-1/2
15 STD551037 "Washer 13/32 x 13/16 x 11 Ga. 4A 6474H V-Belt
16 2263R Spring Washer 49 6461H2 Pulley, Transmission
'17 2197R Parking Brake Yoke 52 STD623710 *Fin. Hex Bolt 3/8 - 24 x 1
18 115H Roll Pin 53 STD551037 *Washer 13/32x l3l16x 16Ga.
19 6344489 Lock Bracket Assembly 54 STD541537 *Hex Jam Locknut 3/8 - 24 UNF
20 2221R Parking Brake Spacer 55 4501 P Sq. Hd. Set Screw 5 /16 - 1a x 1/2
21 SSS9H Spring Washer 56 STD523707 *Hex Bolt 3/8 - 16 x 7/8
22 4379H Handle Grip 57 STD551137 *Lockwasher 3/8
23 6264341 Parking Lock Handle Assembly 58 3164P Flat Hd. Nlachine Screw - Undercut
24 7810H Gripco Centerlock Nut 3/8 - 24 UNF 3/a - 16 x3l4
25 6264365 Brake Rod Assembly 59 STD5325O7 *Sq. Neck Carriage Boltl/4-20x5/8
26 6344167 Brake Band and Lining 60 STD551125 *Lockwasher1/4
27 6344168 Brake Bracket Assembly 61 STD541O25 *Hex Nut 1/4 - 20
28 9204H Lock Nur 1/2 - 20 UNF 62 STD5231O8 *Hex Bott b/16 - 18 x 7/8
29 764aH1 Brake Drum 63 1685H Locknut 5/16 - 18 UNC
30 6344838 Brake Arm Assembly 64 3244P Hex Bott 1/4 - 28 x 5/8 Gr. E
31 98581\41 Woodruff Key 65 9071H Hustock Nut 1/4 - 28 UNF
32 9288R Clutch Rod 66 3326P Hex Hd. lMach. Screw 6 - 32 x.l
33 STD561820 *Cotter Pin 1/4 x 1 67 STD551OO8 *Flat Washer S/32 x 3/8 x 20 Ga.
34 6486H Spring 68 b62p Center Locknut 6 - 32 UNC
35 1587P Washer17l32x1-1/'t6x21Ga.
36 4939M Retainer Spring *STANDARD HAR DWAR E..PURCHASE LOCALLY
.17.
another free manual from www.searstractormanuals.com

REPAIR PARTS:
SCHEMATIC DIAGRAM
AMMETER
16/6 GARDEN TRACTOR--MODEL NUMBER 917.25170
BATTERY
STARTER
NEUTRAL
SAFE SW. \-.. SOLENOID
PROTECTION
RESISTOR
ATTACHMENT
SAFE. SW.
M
G
RECTIFIER
UP-DOWN
SWITCH
IGNITlON
SWITCH L
CHASSIS
GROUND
,18 -
FUSE
POslTloN CIRCUIT
OFF M-G
RUN B.L
START B-S
56f,j6' PLUG
STATE
IGNIT!ON
LIGHT
SWITCH
m
>a (-N7) [div:
another free manual from www.searstractormanuals.com
