Sears 790.46582500 Manual

46582500.eps la20bg0034.eps B79046582500.eps LA20CT0032.eps D79046592500.eps
318271901.eps
REPAIR
PARTS
LIST
790.46582500
790.46584500
790.46589500
For Parts or Service:
Call
1-800-4-MY-HOME®
(1-800-469-4663)
Or Visit
www.sears.com
30-INCH SLIDE-IN ELECTRIC RANGE
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown on the nameplate.
The nameplate is located on the left side of the range and is visible
when the oven door is open.
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
P/N 318203203 Publication number 5995443784

790.4658
04/05 2

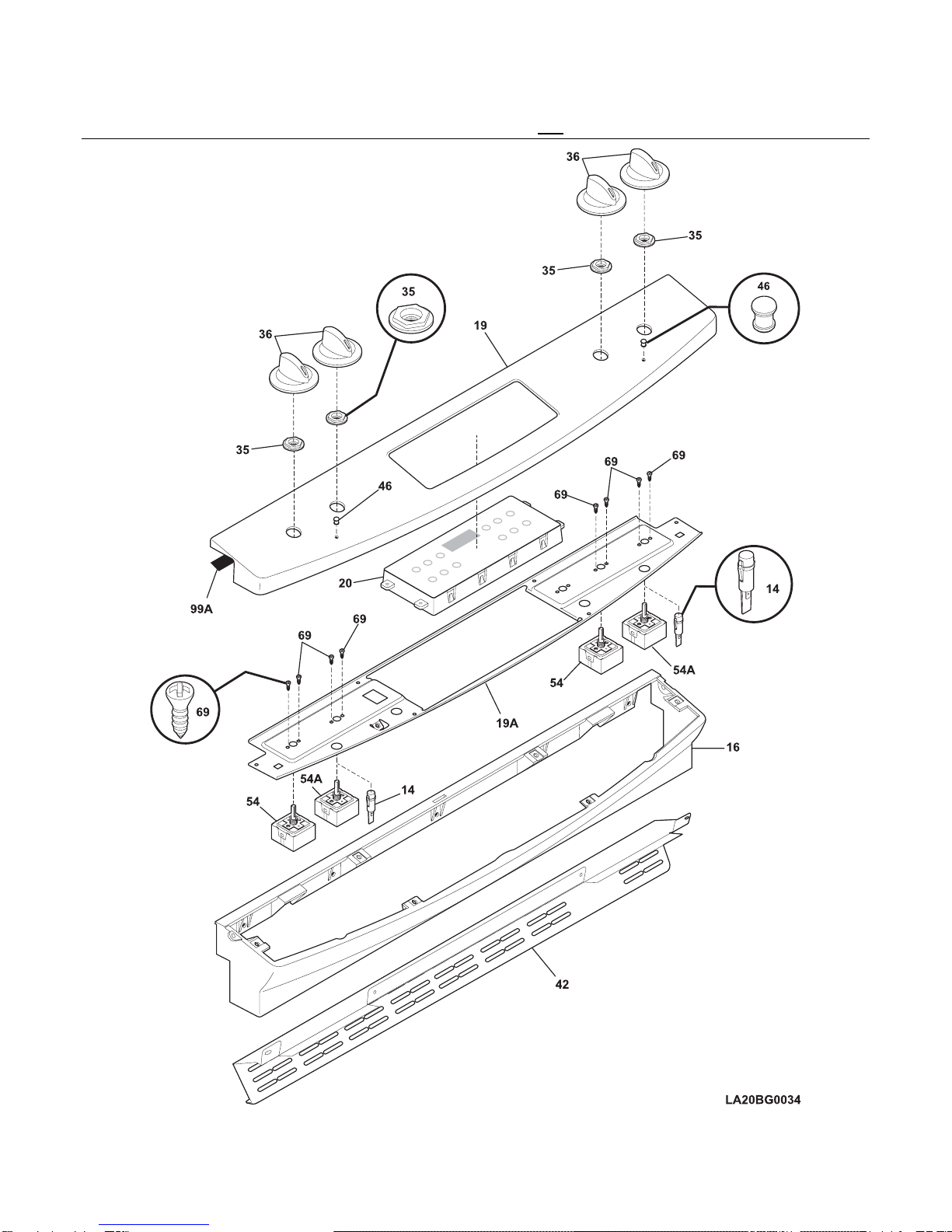

BACKGUARD
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.4658
# Functional Parts 3 04/05
* Non-Illustrated Parts
BACKGUARD
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4658 (790.46582500)
B790.4658 (790.46584500)
C790.4658 (790.46589500)
POS. NO PART NO. DESCRIPTION
14 # 318293900 A B C Light, indicator, 125v, (2)
16 318296600 A - - Console, assy., white
16 318296601 - B - Console, assy., bisque
16 318296602 - - C Console, assy., black
16* 5304447071 A B C Clip, console, (2)
19 318297500 A - - Panel, control, white
19 318297501 - B - Panel, control, bisque
19 318297502 - - C Panel, control, black
19A 318289701 A B C Panel, control mtg.
20 # 318296800 A - - Clock/Timer, electronic, ES335, white, w/overlay
20 # 318296801 - B - Clock/Timer, electronic, ES335, bisque, w/overlay
20 # 318296802 - - C Clock/Timer, electronic, ES335, black, w/overlay
20* 316419307 A - - Overlay, clock, white, ES335
20* 316419308 - B - Overlay, clock, bisque, ES335
20* 316419306 - - C Overlay, clock, black, ES335
35 318183101 A - - Support, glass, white, (4)
35 318183102 - B - Support, glass, bisque, (4)
35 318183100 - - C Support, glass, black
36 316442415 A - - Knob, control, white
36 316442417 - B - Knob, control, bisque
36 316442416 - - C Knob, control, black
42 318298011 A B C Trim, vent, black, upper
46 318228300 A B C Lens, indicator light
54 # 318220080 A B C Switch, surface unit, single
54A# 318220081 A B C Switch, surface unit, large
69 5303323134 A B C Screw, 8-32 x 0.188
99A 318313200 A B - Gasket, grey
99A 318313201 - - C Gasket, black
* 318301100 A B C Wiring Harness, backguard
* # 318224810 A B C Harness, wiring, timer
* # 318224815 A B C Harness, wiring, infinite switch
* 5995443784 A B C Repair Parts List
* 318203800 A B C Use & Care Guide
* 318127019 A B C Service Data Sheet
* 318271901 A B C Wiring Diagram
* 318201610 A B C Instructions, installation
* 5303300265 A B C Screw, 8-18 x 0.500, chrome, (3)

790.4658
04/05 4

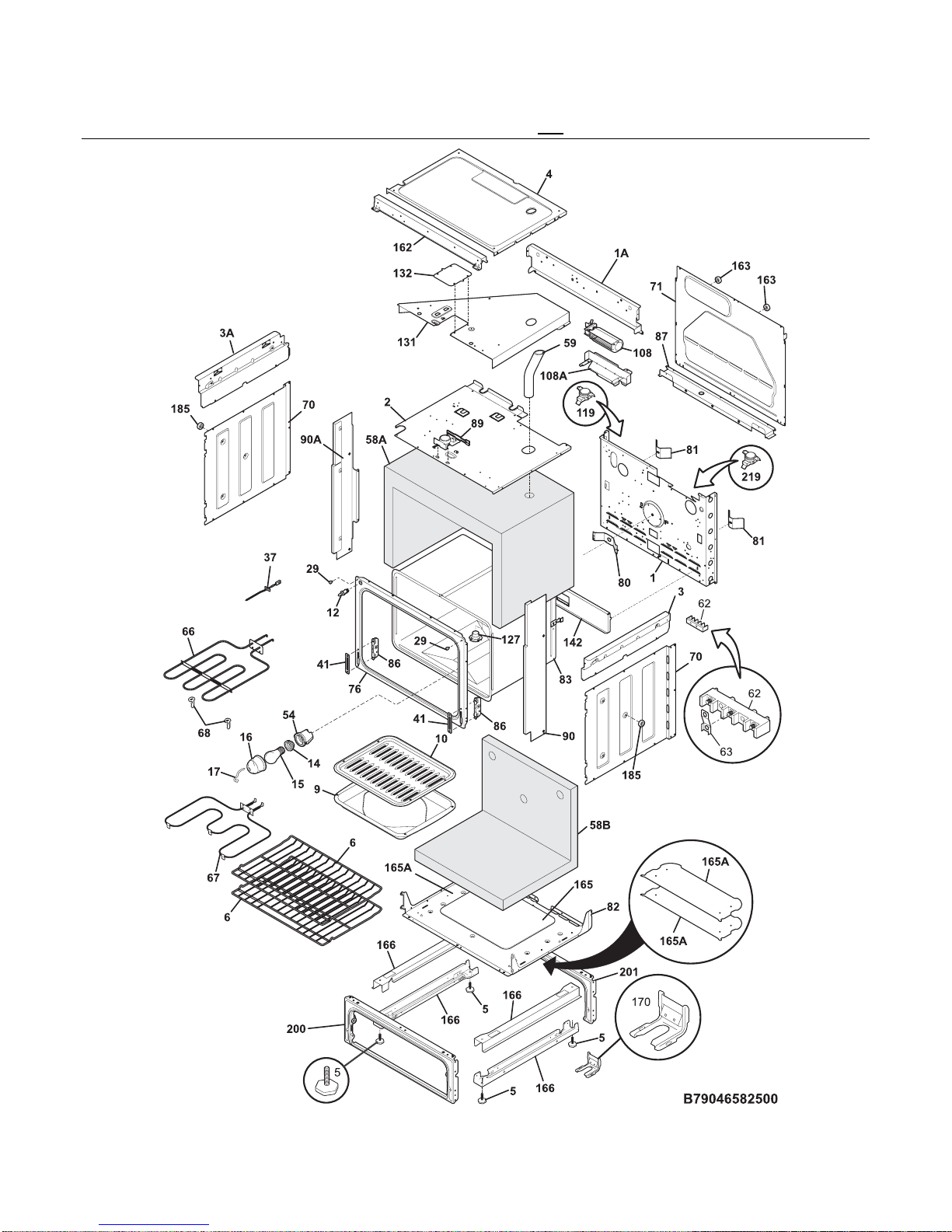

BODY
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.4658
# Functional Parts 5 04/05
* Non-Illustrated Parts
BODY
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4658 (790.46582500)
B790.4658 (790.46584500)
C790.4658 (790.46589500)
POS. NO PART NO. DESCRIPTION
1 318259202 A B C Back, main
1A 318225110 A B C Panel, main back, upper
2 318258900 A B C Shield, insulation, upper
3 318225210 A B C Panel, bodyside, upper RH
3A 318225211 A B C Panel, bodyside, upper LH
4 318073906 A B C Panel, subtop
5 318175503 A B C Screw, leveling
6 318262504 A B C Rack, oven
9 5303317977 A B C Pan, broiler
10 5303317976 A B C Insert, broiler pan
12 # 318089917 A B C Switch, light
14 318224000 A B C Receptacle, oven light
15 5303013071 A B C Bulb/Lamp, oven light
16 3201911 A B C Cover, oven light, glass
17 5304400195 A B C Retainer, light cover
29 318147411 A B C Bumper, (2)
37 # 316217002 A B C Probe, oven temp
41 5303310526 A B C Cover, hinge cutout
* 5303323137 A B C Screw, 10-32 x 17/32
54 318222400 A B C Housing, oven light
58A 318285055 A B C Insulation, oven wrapper
58B 318285056 A B C Insulation, oven back
59 318072572 A B C Tube, vent, oven
62 5303935061 A B C Terminal Block Kit
62* 5303323139 A B C Screw, 10-24 x 0.906
62* 5303323144 A B C Nut, 10-32
63 318264200 A B C Plate, grounding strap
66 # 318255600 A B C Element, broil, 2750W
67 # 318255401 A B C Element, bake, 3400W
68 5304403015 A B C Support, element hanger
70 318259100 A B C Shield, insulation, sides, (2)
71 318260006 A B C Panel, rear box
76 318056217 A B C Front, oven
80 5303320846 A B C Plate, oven mtg
81 318192400 A B C Spring, oven
* 5303323129 A B C Screw, 8 X 0.750
82 318258707 A B C Shield, insulation, lower
83 318261403 A B C Liner, oven assy
86 5303310524 A B C Receptacle, hinge
87 318260603 A B C Bracket, cable mtg.
89 # 318261202 A B C Motor, latch assy
90 318296902 A - - Panel, filler, white, RH
90 318296906 - B - Panel, filler, bisque, RH
90 318296904 - - C Panel, filler, black, RH
90A 318296903 A - - Panel, filler, white, LH
90A 318296907 - B - Panel, filler, bisque, LH
90A 318296905 - - C Panel, filler, black, LH
108# 318073018 A B C Motor, blower

790.4658
04/05 6
BODY
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.4658
# Functional Parts 7 04/05
* Non-Illustrated Parts
BODY
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4658 (790.46582500)
B790.4658 (790.46584500)
C790.4658 (790.46589500)
POS. NO PART NO. DESCRIPTION
* 08016432 A B C Screw, truss head, 8-18 x 0.375
108A 318251300 A B C Bracket, fan support
119# 318005202 A B C Switch, thermal cutout
127 318317100 A B C Adapter Assembly, vent tube, w/converter
131 318272900 A B C Box, vent
132 318003000 A B C Plate, shield
142 318123910 A B C Deflector
162 318225810 A B C Box, extension
163 318014110 A B C Spacer
165 318322600 A B C Plate, shield
165A 318326500 A B C Shield, heat
166 318298400 A B C Bracket, base support, (4)
170 318335501 A B C Anti-tip & accessories
185 318165800 A B C Spacer, (2)
200 318335600 A B C Frame & Wheel Assembly, black
201 318298210 A B C Frame, drawer
219# 318003606 A B C Thermostat, safety
* # 318224926 A B C Harness, wiring, main
* 318235300 A B C Connector assy., w/3 lugs, & instructions
* 5304400192 A B C retainer wire
* 3051050 A B C Screw, shoulder
* 3201861 A B C Screw, 6 x 0.375, (4)
* 5303211311 A B C Screw, 8 x 0.500
* 5303307980 A B C Screw, 8-32 x 0.437
* 5303323277 A B C Screw, 8-18 X 13/32
* 5303324184 A B C Screw, 8-18 x 5/16, black, (4)
* 5304415832 A B C Screw, 8-18 x 0.406
* 5304436875 A B C Screw, 8-18 X 1/2, black

790.4658
04/05 8

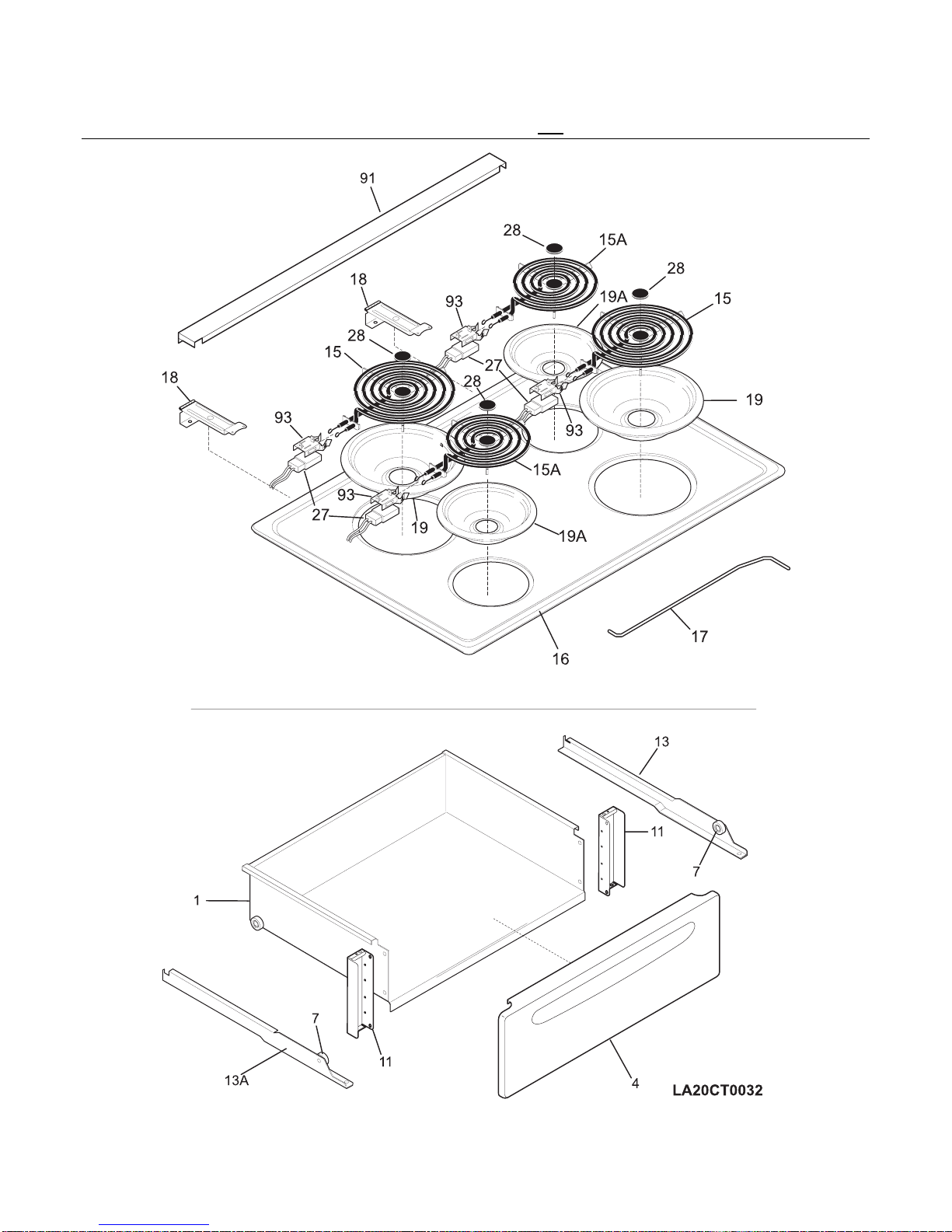

TOP/DRAWER
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.4658
# Functional Parts 9 04/05
* Non-Illustrated Parts
TOP/DRAWER
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4658 (790.46582500)
B790.4658 (790.46584500)
C790.4658 (790.46589500)
POS. NO PART NO. DESCRIPTION
1 318107105 A B C Drawer
4 318298901 A - - Panel, drawer, white, front
4 318298902 - B - Panel, drawer, bisque, front
4 318298903 - - C Panel, drawer, black, front
7 318014800 A B C Spacer
* 5303325171 A B C Washer, plastic
11 318298601 A B C Bracket, drawer support, (2)
13 318018100 A B C Channel, drawer, RH
13A 318018101 A B C Channel, drawer, LH
15 # 5303012223 A B C Element, surface, 8", large
15A# 08067762 A B C Element, surface, 6", small
16 318225602 A - - Main Top, white
16 318225603 - B - Main Top, bisque
16 318225601 - - C Main Top, black
17 3051554 A B C Rod, support, main top panel
18 318227710 A B C Hinge, maintop, (2)
19 318067052 A - - Pan, surface element, large, gray
19 318067070 - B - Pan, surface element, large, bisque
19 318067050 - - C Pan, surface element, large, black
19A 318067042 A - - Pan, surface element, small, gray
19A 318067060 - B - Pan, surface element, small, bisque
19A 318067040 - - C Pan, surface element, small, black
27 # 5303912666 A B C Terminal Block Kit, surface element
28 3017801 A B C Medallion, stainless steel, surf elem
28 5303017715 A B C Medallion, 1 1/2"dia, black, surface element
91 318304301 A - - Trim, filler, white, rear
91 318304302 - B - Trim, filler, bisque, rear
91 318304303 - - C Trim, filler, black, rear
93 318122500 A B C Support, terminal block, (4)
* # 318301000 A B C Wiring Harness, surface units
* 5304400192 A B C retainer wire
* 5303325173 A B C Cap, plug
* 5303211311 A B C Screw, 8 x 0.500
* 5303300265 A B C Screw, 8-18 x 0.500, chrome, (3)
* 5303311333 A B C Screw, 8-32 x 3/8, (4)

790.4658
04/05 10
DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.4658
# Functional Parts 11 04/05
* Non-Illustrated Parts
DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4658 (790.46582500)
B790.4658 (790.46584500)
C790.4658 (790.46589500)
POS. NO PART NO. DESCRIPTION
3 318260201 A B C Trim, oven door, black, upper
3A 318260401 A B C Trim, oven door, side, (2)
4 318261305 A - - Glass Assy., oven door, white, outer, w/trim
4 318261306 - B - Glass Assy., oven door, bisque, outer, w/trim
4 318261304 - - C Glass Assy., oven door, black, outer, w/trim
6 318260500 A B C Baffle, door
7 318285057 A B C Insulation, oven door
7A 318285062 A B C Insulation, oven door
8 316117500 A B C Glass, oven door, heat barrier
9 318259601 A B C Liner, oven door
10 5304416408 A B C Screw, 10-24 x 1.750, handle mtg
12 318053130 A B C Seal, oven door
17 316402403 A B C Spacer, door glass, (2)
23 318024722 A B C Hinge, oven door, (2)
* 5304415832 A B C Screw, 8-18 x 0.406
29 318014402 A B C Spacer, door
39 316209700 A - - Handle, door, white
39 316209702 - B - Handle, door, bisque
39 316209701 - - C Handle, door, black
40 318242700 A B C Bracket, glass holder, (2)
56 5304436875 A B C Screw, 8-18 X 1/2, black
64 318165800 A B C Spacer, (2)
* 316221000 A B C Label, anti-tip

790.4658
04/05 12
WIRING DIAGRAM

® Registered Trademark /
TM
Trademark /
SM
Service Mark of Sears Brands, LLC
® Marca Registrada /
TM
MarcadeFábrica/
SM
MarcadeServiciodeSearsBrands,LLC
MC
Marque de commerce /
MD
Marque déposée de Sears Brands, LLC © Sears Brands, LLC
Get it fixed, at your home or ours!
Your Home
For repair – in your home –of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME
®(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
®
(1-888-784-6427)
Au Canada pour service en français:
1-800-LE-FOYER
MC
(1-800-533-6937)
www.sears.ca
