Sears 790.46781903 Manual

79046782900.jpg C79046783901.eps B79046782902.eps T79046782902.eps
D79045582902.eps 318550141-1.eps 318550141-2.eps
REPAIR
PARTS
LIST
790.46781903
790.46782903
790.46789903
For Parts or Service:
Call
1-800-4-MY-HOME®
(1-800-469-4663)
Or Visit
www.sears.com
30-INCH SLIDE-IN ELECTRIC RANGE
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown on the nameplate.
The nameplate is located on the left side of the range and is visible
when the oven door is open.
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Publication number 5995592697

790.4678
04/11 2
BACKGUARD
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.4678
# Functional Parts 3 04/11
* Non-Illustrated Parts
BACKGUARD
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4678 (790.46781903)
B790.4678 (790.46782903)
C790.4678 (790.46789903)
POS. NO PART NO. DESCRIPTION
14 # 318293901 A B C Light, indicator, 125v, (2)
16 318296600 A B - Console, assy., white
16 318296602 - - C Console, assy., black
19 318297520 A B - Panel, control, white
19 318297521 - - C Panel, control, black
19A 318289715 A B C Panel, control mtg.
20 # 318296820 A B - Clock/Timer, electronic, ES335, white, w/overlay
20 # 318296822 - - C Clock/Timer, electronic, ES335, black, w/overlay
20* 318214518 A B - Overlay, control, white, ES335
20* 318214517 - - C Overlay, control, black, ES335
20* 5304453707 A B C Screw, 8-18 X 1/2
35 318183101 A B - Support, glass, white, (4)
35 318183100 - - C Support, glass, black
36 318921137 A B - Knob, control, white, single
36 318921138 - - C Knob, control, black, single
36A 318921140 A B - Knob, control, white, dual
36A 318921141 - - C Knob, control, black, dual
42 318574701 A B C Support, control panel, black
* 5303211311 A B C Screw, 8-18 x 0.500
* 5304436875 A B C Screw, 8-18 X 1/2, black, (3)
46 318228301 A B C Lens, indicator light
54 # 318293830 A B C Switch, infinite, (2)
54B# 318191027 A B C Switch, infinite, dual
55 318402901 A B C Bushing, switch
69 5303323134 A B C Screw, 8-32 x 3/16, (8)
99A 318313230 A B - Gasket, grey
99A 318313231 - - C Gasket, black
* # 318228873 A B C Harness, wiring, main, backguard
* # 318224876 A B C Harness, wiring, timer
* # 318231880 A B C Harness, wiring, jumper
* 5995592697 A B C Repair Parts List
* 318205806 A B C Owners Manual
* 318127081 A B C Service Data Sheet

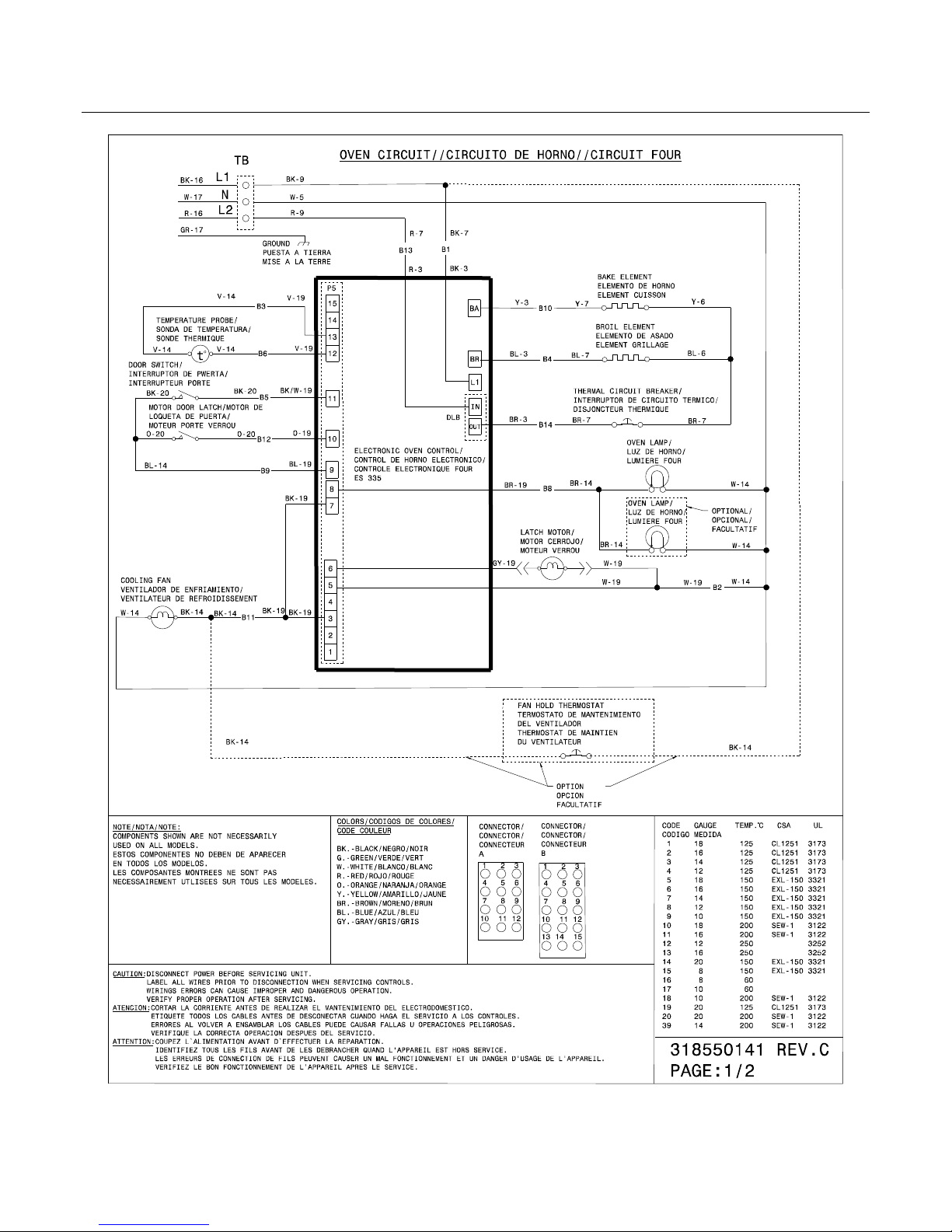

* 318550141 A B C Wiring Diagram
* 318201617 A B C Instructions, installation
* 5303300265 A B C Screw, 8-18 X 1/2, (4)
* 5303323136 A B C Screw ground

790.4678
04/11 4
BODY
CAUTION: Use the Kenmore part number to order part, not the illustration number.
119
108
1A
70
71
81
57
81
1
80
58A
37
76
29 24
29 127
86
86
6
6
B79046782902
70
2
3A
3
12
83
90
90A
59
10
9
131
66
68
54
14
15
16
17
62
89
87
87A
62
63
166A
166
166A
166
170
5
200
201
5
5
5
58B
165
82
141
8
8A
67

790.4678
# Functional Parts 5 04/11
* Non-Illustrated Parts
BODY
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4678 (790.46781903)
B790.4678 (790.46782903)
C790.4678 (790.46789903)
POS. NO PART NO. DESCRIPTION
1 318259220 A B C Back, main
1A 318225110 A B C Panel, main back, upper
* 5303324184 A B C Screw, 8-18 x 5/16, black
2 318570500 A B C Panel, insualtion, top
3 318225210 A B C Panel, bodyside, upper RH
3A 318225211 A B C Panel, bodyside, upper LH
* 318531701 A B C Spacer, (2)
5 318175508 A B C Screw, leveling, w/tee nut
6 318345306 A B C Rack, oven, (2)
8 318262001 A B C Cover, element
8A 318318600 A B C Bracket, element, hidden bake
9 5303317977 A B C Pan,broiler OPTIONAL ACCESS0RY
10 5303317976 A B C Insert, broiler pan OPTIONAL ACCESS0RY
12 # 316445501 A B C Switch, oven light, door frame
14 318224000 A B C Receptacle, oven light
* 318368501 A B C Seal, housing, flat washer
15 316538901 A B C Lamp, oven light
16 318406100 A B C Lens, oven light, glass
17 5304400195 A B C Retainer, light cover
24 318913116 A B C Trim, vent, black, upper
29 316517600 A B C Spacer, oven door
37 # 318562500 A B C Sensor, oven temp probe
54 318222400 A B C Housing, oven light
* 5304415832 A B C Screw, 8-18 x 0.406
57 318402800 A B C Plate, cover
58A 318386113 A B C Insulation, oven wrapper
58B 318133791 A B C Insulation, oven back, back/bottom
59 318570600 A B C Duct, cooling fan
59* 318579001 A B C Bracket, wire
62 5303935061 A B C Terminal Block Kit
62* 5303323139 A B C Screw, 10-24 x 0.906
62* 5303323144 A B C Nut, 10-32
63 318264200 A B C Plate, grounding strap
* 5303323136 A B C Screw ground
66 # 318255600 A B C Element, broil, 2750W
67 # 318254906 A B C Element, bake, 3400W, 8 pass
68 5304403015 A B C Support, hanger, broil element
70 318259105 A B C Shield, insulation, sides, (2)
71 318260007 A B C Panel, rear box
76 318056292 A B C Front, oven
80 5303320846 A B C Plate, oven mtg
* 318091102 A B C Bracket, glass or wire
81 318192400 A B C Spring, oven
* 5303323129 A B C Screw, 8 X 0.750
82 318258765 A B C Shield, insulation, lower
83 318261446 A B C Liner, oven assy
86 318561100 A B C Receptacle, hinge, (2)
86* 5304461333 A B C Screw, 10-32 x 17/32

790.4678
04/11 6
BODY
CAUTION: Use the Kenmore part number to order part, not the illustration number.
119
108
1A
70
71
81
57
81
1
80
58A
37
76
29 24
29 127
86
86
6
6
B79046782902
70
2
3A
3
12
83
90
90A
59
10
9
131
66
68
54
14
15
16
17
62
89
87
87A
62
63
166A
166
166A
166
170
5
200
201
5
5
5
58B
165
82
141
8
8A
67

790.4678
# Functional Parts 7 04/11
* Non-Illustrated Parts
BODY
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4678 (790.46781903)
B790.4678 (790.46782903)
C790.4678 (790.46789903)
POS. NO PART NO. DESCRIPTION
87 318260627 A B C Bracket, cable mtg.
87A 318111806 A B C Plate, cord set mtg
89 # 318261221 A B C Motor, latch assy
* 5304417153 A B C Screw, shoulder, 8-18 X 1/2, (4)
90 318296902 A B - Panel, filler, white, RH
90 318296904 - - C Panel, filler, black, RH
90A 318296903 A B - Panel, filler, white, LH
90A 318296905 - - C Panel, filler, black, LH
108# 318575600 A B C Motor, cooling fan
119# 318578506 A B C Thermostat, cooling fan, 105 deg.
127 318317105 A B C Adapter Assembly, vent tube, w/converter
131 318574800 A B C Bottom, cooling duct
141# 318005229 A B C Switch, thermal cutout
165 318322600 A B C Plate, shield
* 08002868 A B C Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box
166 318298410 A B C Bracket, base support, (2)
166A 318298403 A B C Bracket, base support, lower, (2)
170 318335500 A B C Anti-tip & accessories
200 318335600 A B C Frame & Wheel Assembly, black
201 318298230 A B C Frame, drawer, black
* # 318384492 A B C Wiring Harness, main
* 318235300 A B C Connectorassy., w/3 lugs, & instructions
* 5304400192 A B C Retainer, wiring
* 3051050 A B C Screw, shoulder
* 5303211311 A B C Screw, 8-18 x 0.500
* 5303323277 A B C Screw, 8-18 X 13/32
* 5304436875 A B C Screw, 8-18 X 1/2, black, (3)
* 5304440988 A B C Screw, 10-16 x 3/4
* 5304454881 A B C Screw, #8-18 x 3/8, (10)

790.4678
04/11 8
TOP/DRAWER
CAUTION: Use the Kenmore part number to order part, not the illustration number.
46A
46
15B
15B
15A
52C
52A
15
16
91
51
165
52C
52A
T79046782902
1
4
11
11
7
7
13
13A
90
90

790.4678
# Functional Parts 9 04/11
* Non-Illustrated Parts
TOP/DRAWER
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4678 (790.46781903)
B790.4678 (790.46782903)
C790.4678 (790.46789903)
POS. NO PART NO. DESCRIPTION
1 318107105 A B C Drawer
4 318298906 A B - Panel, drawer, white, front
4 318298908 - - C Panel, drawer, black, front
7 318332200 A B C Roller, nylon
11 318298600 A B C Bracket, drawer support, (2)
13 318018100 A B C Channel, drawer, RH
13A 318018101 A B C Channel, drawer, LH
15 # 316418401 A B C Element, dual, 9", surface, 1200W/2500W, radiant
15A# 316465002 A B C Element, surface, 6"/9", 1400/3000W, radiant
15B# 318198830 A B C Element, surface, 6", 1200W, (2), radiant
16 318590607 A - - Main Top, assembly, white/black
16 318590606 - B - Main Top, assembly, white
16 318590608 - - C Main Top, assembly, black
46 318568200 A B C Box, burner, RH
46A 318568201 A B C Box, burner, LH
51 # 318044828 A - - Light, indicator, 125v
51 # 318044831 - B C Light, indicator, natural, (4)
* # 318231876 A B C Harness, wiring, pilot light
52A 318122006 A B C Spring, element mtg, small
52C 318122010 A B C Spring, element mtg, 3000W
90 318368001 A B C Channel, glass protector, (2)
91 318304301 A B - Trim, filler, white, rear
91 318304303 - - C Trim, filler, black, rear
165 318227520 A B C Plate, mounting
* # 318228970 A B C Harness, wiring, cooktop
* # 318532147 A B C Ground wire, w/terminal
* 316459400 A B C Pad, cleaning
* 316112100 A B C Cleaner, glass
* 5303211311 A B C Screw, 8-18 x 0.500
* 5303300265 A B C Screw, 8-18 X 1/2, (4)

790.4678
04/11 10
DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.
4
42
64
10
10
56A
3
29
29
56A
56A
56A
56A
3A
3A
6
7
7
7A
7A
9
12
17
17
23
23
39
8
8
D79045582902
56
56
56

790.4678
# Functional Parts 11 04/11
* Non-Illustrated Parts
DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4678 (790.46781903)
B790.4678 (790.46782903)
C790.4678 (790.46789903)
POS. NO PART NO. DESCRIPTION
3 318260201 A B C Trim, oven door, black, upper
3A 318260401 A B C Trim, oven door, side, (2)
4 318403502 A B - Glass Assy., oven door, white, outer, w/trim & badge
4 318304124 - - C Glass Assy., oven door, black, upper, w/trim & badge
6 318260527 A B C Baffle, door, lower
7 318372000 A B C Insulation, 13.25 X 2.375, 1" thick, (2)
7A 318372002 A B C Insulation, 24 x 2.375, 1" thick, (2)
8 316117502 A B C Glass, oven door, heat barrier
9 318411650 A B C Liner, oven door
10 5304416408 A B C Screw, 10-24 x 1.750
12 318053132 A B C Gasket, oven door seal
17 318264712 A B C Spacer, glass, (2)
23 318567113 A B C Hinge, oven door, (2)
29 318014405 A B C Spacer, door
39 318372416 A B - Handle, door, white, w/spacer
39 318372417 - - C Handle, door, black, w/spacer
42 318382301 A B C Bracket, glass retainer, (4)
56 5304436875 A B C Screw, 8-18 X 1/2, black, (3)
56A 5304476599 A B C Screw, 8-18 x 3/8
64 318165800 A B C Spacer
* 316221000 A B C Label, anti-tip
* 5304461333 A B C Screw, 10-32 x 17/32

790.4678
04/11 12
WIRING DIAGRAM

790.4678
# Functional Parts 13 04/11
* Non-Illustrated Parts
WIRING DIAGRAM

® Registered Trademark /
TM
Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada /
TM
Marca de Fábrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros países
MC
Marque de commerce /
MD
Marque déposée de Sears Brands, LLC
Get it fixed, at your home or ours!
Your Home
For troubleshooting, product manuals and home solutions advice:
www.managemyhome.com
For repair – in your home – of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME®(1-800-469-4663)
Call anytime, day or night(U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
®
(1-888-784-6427)
www.sears.com
Au Canada pour service en français:
1-800-LE-FOYER
MC
(1-800-533-6937)
www.sears.ca
