Sears Kenmore Refrigerator Safety User manual

....,] /.....
"" SEARS
.....Kenmore
r

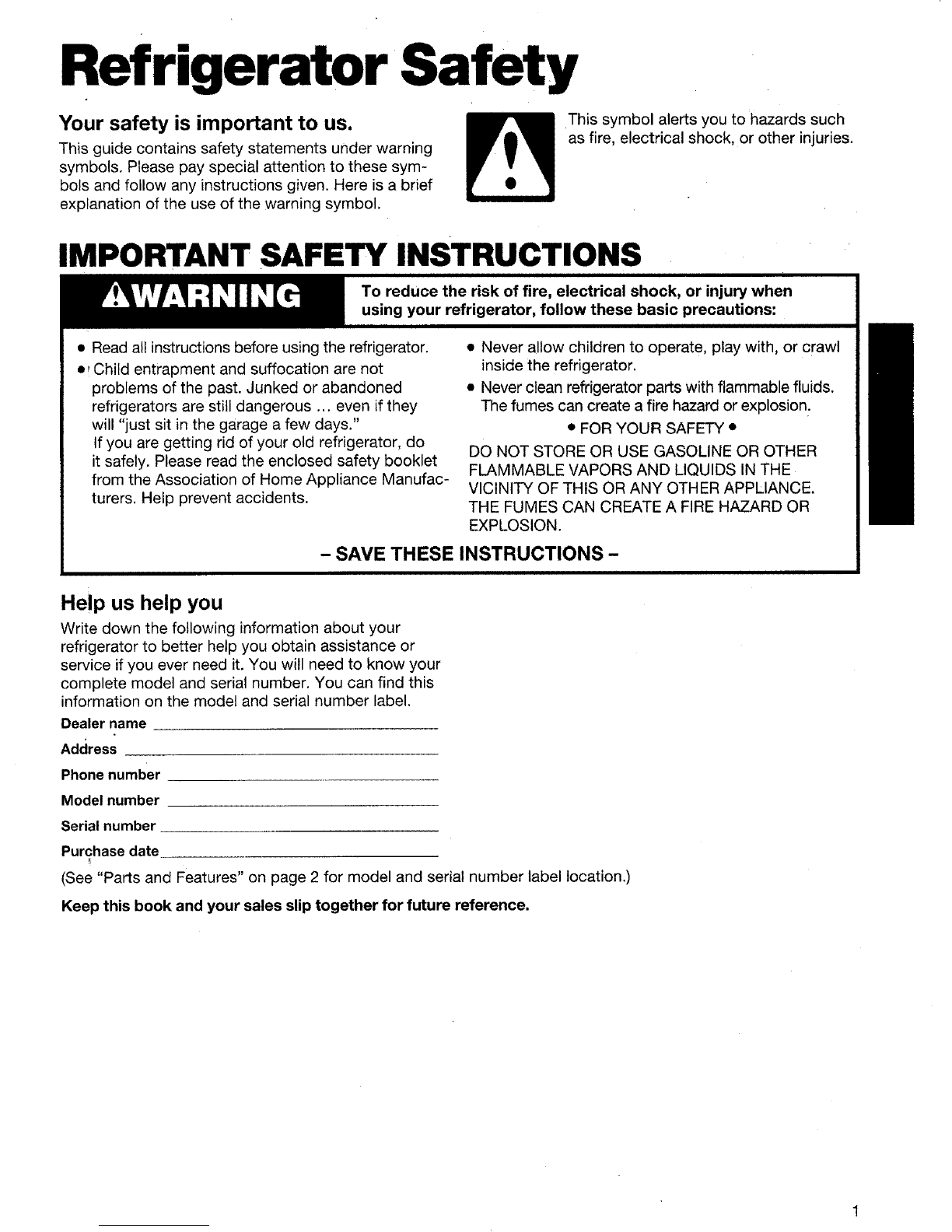

Refrigerator Safety
Your safety is important to us.
This guide contains safety statements under warning
symbols. Please pay special attention to these sym-
bols and follow any instructions given. Here is a brief
explanation of the use of the warning symbol.
This symbol alerts you to hazards such
as fire, electrical shock, or other injuries.
IMPORTANT SAFETY INSTRUCTIONS
•Read all instructions before using the refrigerator.
=, Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators are still dangerous ... even if they
will "just sit in the garage a few days."
if you are getting rid of your old refrigerator, do
it safely. Please read the enclosed safety booklet
from the Association of Home Appliance Manufac-
turers. Help prevent accidents.
•Never allow children to operate, play with, or crawl
inside the refrigerator.
• Never clean refrigerator parts with flammable fluids.
The fumes can create a fire hazard or explosion_
• FOR YOUR SAFETY •
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
THE FUMES CAN CREATE A FIRE HAZARD OR
EXPLOSION.
- SAVE THESE INSTRUCTIONS -
i
Help us help you
Write down the following information about your
refrigerator to better help you obtain assistance or
service if you ever need it. You will need to know your
complete model and serial number. You can find this
information on the model and serial number label.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
(See "Parts and Features" on page 2 for model and serial number label location.)
Keep this book and your sales slip together for future reference.

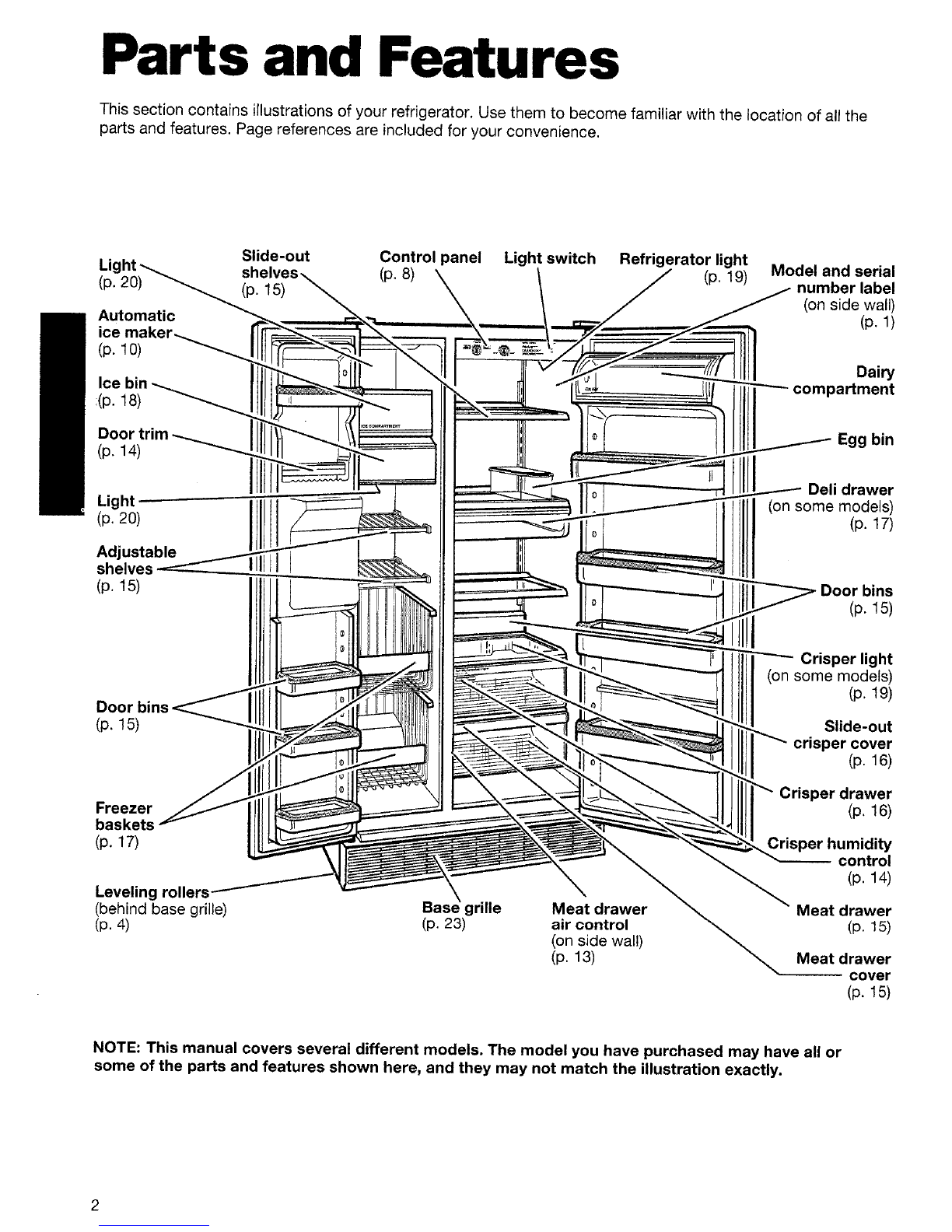

Parts and Features
This section contains illustrations of your refrigerator. Use them to become familiar with the location of all the
parts and features. Page references are included for your convenience.
Li Slide-out Control panel Light switch Refrigerator light
(p. 20) (p. 15) (p. 8) (p. 19) Modelnumberandseriallabel
Automatic (on side wall)
ice (p. 1)
(p. 1O) z___
Ice
:(p. 18)
Door
(p. 14)
Light
(p. 20)
Adjustable
shelves
(p. t5)
(p. 15)
Dairy
compartment
Egg bin
Dell drawer
(on some models)
(p. 17)
Door bins
(p. 15)
Crisper light
(on some models)
(p. 19)
Slide-out
crisper cover
(p. 16)
Crisper drawer
(p. 16)
Freezer
baskets
(p. 17) dity
control
(p. 14)
Leveling rollers
(behind base grille) grille Meat drawer Meat drawer
(p. 4) (p. 23) air control (p. 15)
(on side wall)
(p. 13) Meat drawer
-- cover
(p. 15)
NOTE: This manual covers several different models, The model you have purchased may have all or
some of the parts and features shown here, and they may not match the illustration exactly.

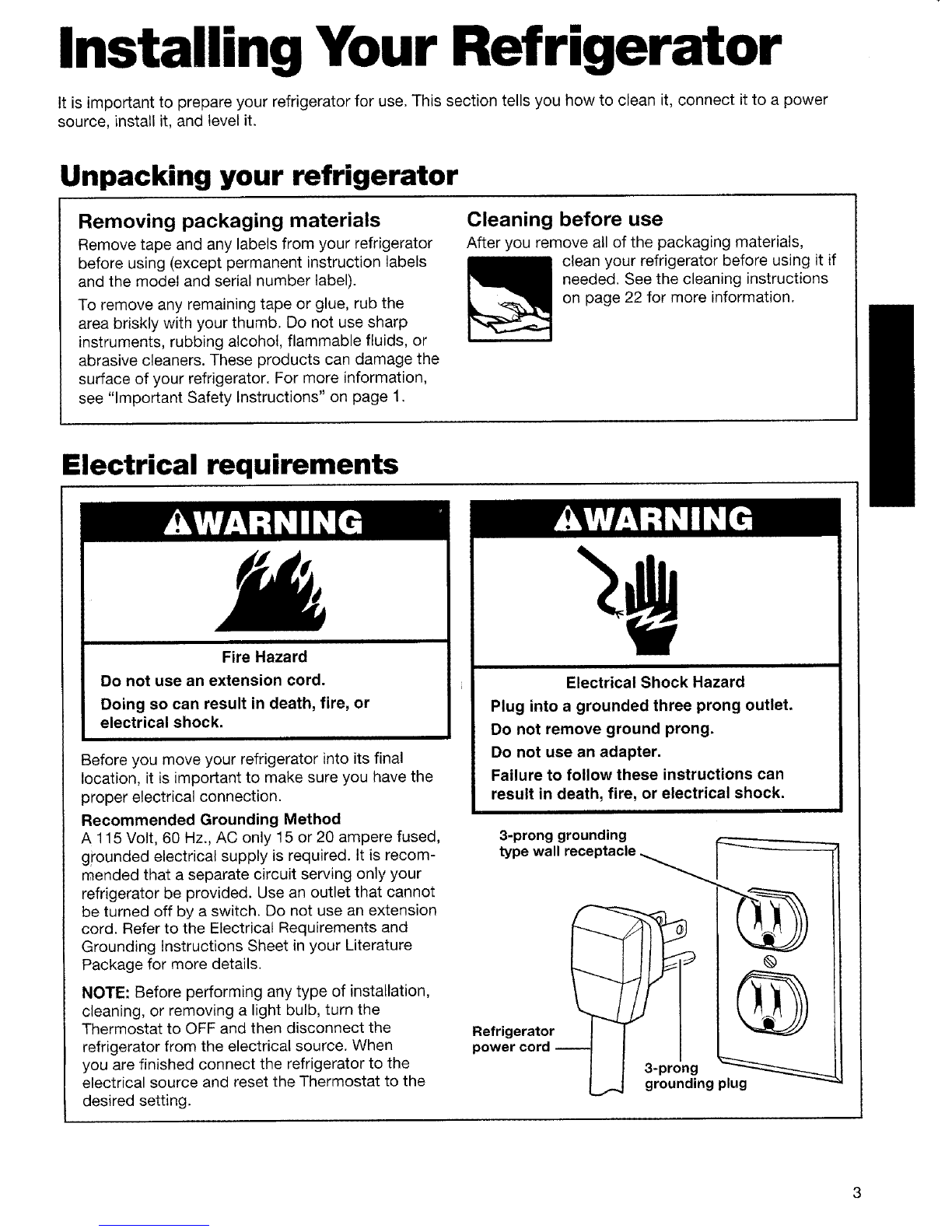

Installing Your Refrigerator
It is important to prepare your refrigerator for use. This section tells you how to clean it, connect it to a power
source, install it, and level it.
Unpacking your refrigerator
Removing packaging materials
Remove tape and any labels from your refrigerator
before using (except permanent instruction labels
and the model and serial number label).
To remove any remaining tape or glue, rub the
area briskly with your thumb. Do not use sharp
instruments, rubbing alcohol, flammable fluids, or
abrasive cleaners. These products can damage the
surface of your refrigerator. For more information,
see "Important Safety Instructions" on page 1.
Cleaning before use
After you remove all of the packaging materials,
clean your refrigerator before using it if
needed. See the cleaning instructions
on page 22 for more information.
Electrical requirements
Fire Hazard
Do not use an extension cord.
Doing so can result in death, fire, or
electrical shock.
Before you move your refrigerator into its final
location, it is important to make sure you have the
proper electrical connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused,
grounded electrical supply is required. It is recom-
mended that a separate circuit serving only your
refrigerator be provided. Use an outlet that cannot
be turned off by a switch. Do not use an extension
cord. Refer to the Electrical Requirements and
Grounding Instructions Sheet in your Literature
Package for more details.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the
Thermostat to OFF and then disconnect the
refrigerator from the electrical source. When
you are finished connect the refrigerator to the
electrical source and reset the Thermostat to the
desired setting.
Electrical Shock Hazard
Plug into a grounded three prong outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these instructions can
result in death, fire, or electrical shock.
3-prong grounding ._
type wall receptacle _
Q
Refrigerator
power cord ----_ !
I I 3-prong p_lug _
L._ grounding

Space requirements
To ensure proper ventilation for your refrigerator,
allow for a 1/2-inch(1.25 cm) space on each side
and at the top. For models that have ice and water
dispensers, make sure you leave some extra space
at the back to allow for the water line connections.
NOTE: Do not install the refrigerator near an oven,
radiator, or other heat source, nor in a location
where the temperature will fall below 55°F (13°C).
,11,
i/r-_
1/2-inch /
minimum at <,,.
top and sides "_
I
Leveling and door alignment
If the refrigerator is not leveled during installation,
the doors may be misaligned and not close or seal
properly, causing cooling, frost, or moisture
problems. It is very important for the refrigerator
to be level in order to function properly.
Move the refrigerator into its final position. Use a
level on top of the refrigerator to check that it is
level from side-to-side and front-to-back. If the
refrigerator is not level or the doors are uneven,
level the refrigerator using the instructions below.
NOTE: If your refrigerator has an automatic ice
maker, level it before attaching the ice maker to a
water supply. If you move the refrigerator after the
water line has been hooked up you may loosen or
disconnect the fittings.
1. Roll out the refrigerator and use a level to check
the floor at the back from side-to-side. Use
shims as needed to bring the floor near the wall
to level if it is uneven. Roll the refrigerator back
into place with the rear rollers on top of any
shim(s) used so that the rear of the refrigerator
is bevel.
2. With the rear already level and the refrigerator in
place, use the front leveling screws to level the
refrigerator from side-to-side and front-to-back.
Open the refrigerator door and remove the base
grille to find the two leveling screws. They are
part of the Front Roller assemblies which are
found at the base of the refrigerator on either side.
Right to raise;
left to lower
Use a screw-
driver to adjust
Front Roller
Leveling screw
NOTE: The leveling screw on the freezer side
raises or lowers the freezer door. The leveling
screw on the refrigerator side raises or lowers the
refrigerator door.

Leveling and door alignment (cont.)
3. To level your refrigerator, you may either turn
the screw clockwise to raise the lower door or
turn the screw counterclockwise to lower the
higher door. Place a level on top of the refrig-
erator to check adjustments. Use a screw driver
to adjust the leveling screw. (See diagram.)
NOTE: Having someone push against the top of
the refrigerator takes some weight off the
leveling screws and rollers. This makes it easier
to adjust the screws.
4. Open and close doors after each adjustment.
Make sure the doors are even. If not, repeat
steps 3 and 4.
5. Reinstall the base grille.
Attaching the ice maker to a water supply
Read all directions carefully before
you begin.
Electrical Shock Hazard
Unplug the refrigerator before installing
ice maker.
Failure to do so can result in death or
electrical shock.
INSTALLATION REQUIREMENTS:
• All installations must be in accordance with local
plumbing code requirements.
•Use copper tubing only and check for leaks.
•Install ice maker tubing in areas where
temperatures are above freezing.
•It may take up to 24 hours for your ice maker to
begin producing ice.
• If operating the refrigerator before installing the
water connection, turn ice maker to the OFF
position to prevent operation without water.
Valve selection
Your appliance dealer has a kit available with a
1/4-inchsaddle type shut-off valve, a union, and
copper tubing. Before purchasing, make sure a
saddle type valve complies with your local plumb-
ing codes. Do not use a piercing type or ¾8-inch
saddle valve which reduces water flow and
clogs more easily.
Cold water supply
The ice maker water valve contains a flow washer
which is used as a water pressure regulator. The
ice maker needs to be connected to a cold water
line with water pressure limitations of 20-120 psi.
If a problem occurs, call your utility company or a
licensed plumber.
INSTALLATION IS NOT WARRANTED
BY REFRIGERATOR OR ICE MAKER
MANUFACTURER.
Tools needed:
• Standard screwdriver
• 7,46-inchand 1/2-inch#pen-end wrenches or
two adjustable wrenShes
• 1/4-inch nut driver
• 1/4-inch drill bit
• Hand drill or electric drill (properly grounded)

Attaching the ice maker to a water supply (cont.)
Connecting to water line
1. Find a 1/?-inch to 11/4-inch vertical COLD water
pipe near the refrigerator.
NOTE: Horizontal pipe will work, but the follow-
ing precaution must be taken: Drill on the top
side of the pipe, not the bottom. This will help
keep water away from the drill. This also keeps
normal sediment from collecting in the valve.
2. Measure from connection on rear of refrigerator
to water pipe. Add 7 feet (2.1 m) to allow for
moving refrigerator for cleaning. This is the
length of 1/4-inchO.D. copper tubing you will
need for the job (length from connection to
water pipe PLUS 7 feet [2.1 m]). Be sure both
ends of copper tubing are cut square.
3. Turn OFF main water supply. Turn ON nearest
faucet long enough to clear line of water.
4. Using a grounded drill, drill a 1/4-inch hole on the
cold water pipe you have selected.
5. Fasten shut-off valve to cold water pipe with pipe
clamp. Be sure outlet end is solidly in the ¼-inch
drilled hole in the water pipe and that washer is
under the pipe clamp. Tighten packing nut.
Tighten the pipe clamp screws carefully and
evenly so washer makes a watertight seal. Do not
overtighten or you may crush the copper tubing,
especially if soft (coiled) copper tubing is used.
Now you are ready to connect the copper tubing.
6. Slip compression sleeve and compression nut on
copper tubing as shown in diagram. Insert end of
tubing into outlet end squarely as far as it will go.
Screw compression nut onto outlet end with
adjustable wrench. Do not overtighten. Turn ON
main water supply and flush out tubing until
water is clear. Turn OFF shut-off valve on the
water pipe, Coil copper tubing.
Vertical cold
water pipe
Packing
nut
\
Washer
Water
shut-off
valve*
1/4-inch O,D,
copper tubing
(length from
inleton rear
of refrigerator
to water pipe
plus 7 feet
[2,1 m])
* Controls water supply
Compression Compression
sleeve nut TO REFRIGERATOR --)

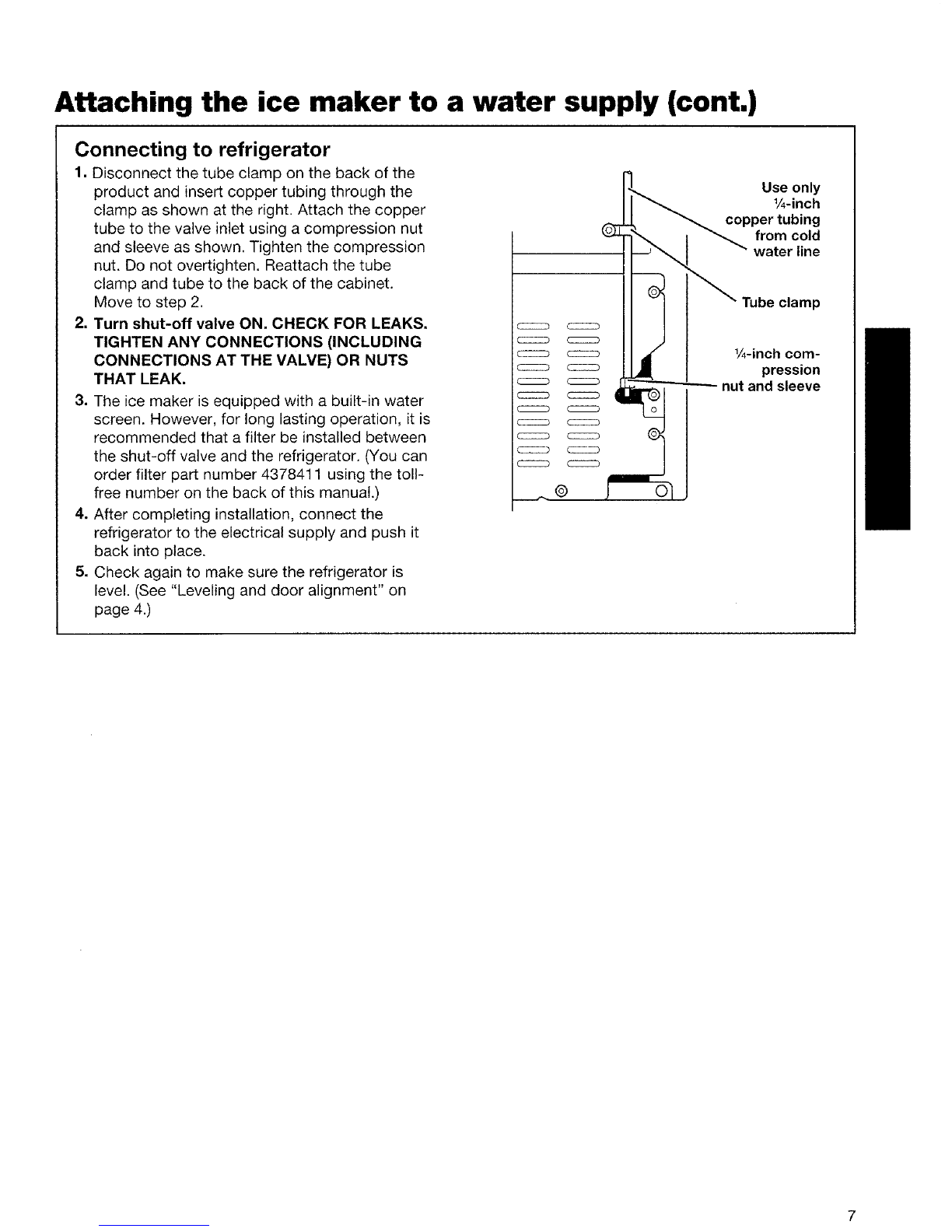

Attaching the ice maker to a water supply (cont.)
Connecting to refrigerator
1. Disconnect the tube clamp on the back of the
product and insert copper tubing through the
clamp as shown at the right. Attach the copper
tube to the valve inlet using a compression nut
and sleeve as shown. Tighten the compression
nut. Do not overtighten. Reattach the tube
clamp and tube to the back of the cabinet.
Move to step 2.
2. Turn shut-off valve ON. CHECK FOR LEAKS.
TIGHTEN ANY CONNECTIONS (INCLUDING
CONNECTIONS AT THE VALVE) OR NUTS
THAT LEAK.
3. The ice maker is equipped with a built-in water
screen. However, for long lasting operation, it is
recommended that a filter be installed between
the shut-off valve and the refrigerator. (You can
order filter part number 4378411 using the toll-
free number on the back of this manual.)
4. After completing installation, connect the
refrigerator to the electrical supply and push it
back into place.
5. Check again to make sure the refrigerator is
level. (See "Leveling and door alignment" on
page 4.)
C:ZZZZC3
CCCZCD
CCZCZD CCZZZD
CZCCZD
CZZCD CCCCC)
CZZC:Z) CCCZZD
CCCZD CZZZZZ3
CCCC_
Use only
1/4-inch
copper tubing
from cold
water line
Tube clamp
1/4-inch com-
pression
nut and sleeve

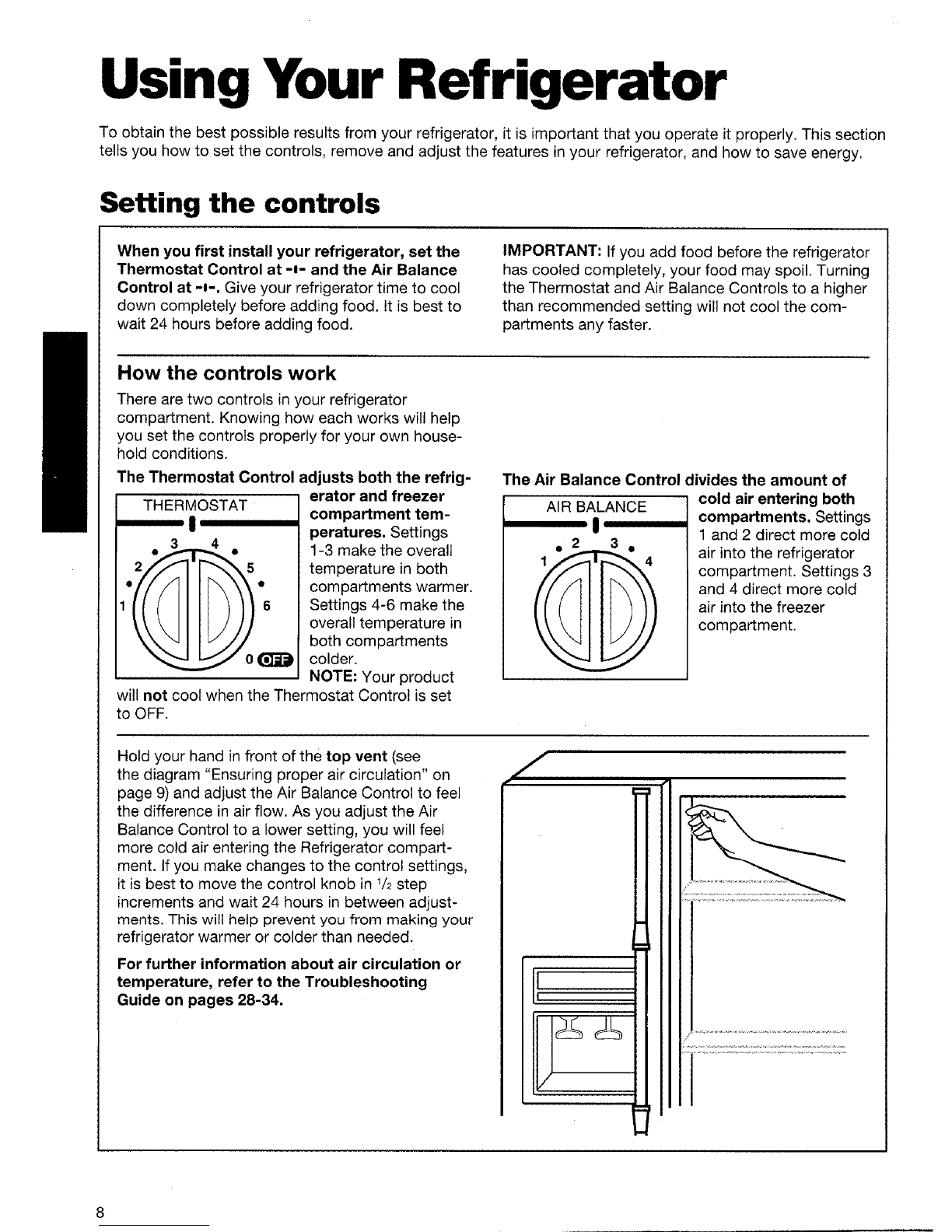

Using Your Refrigerator
To obtain the best possible results from your refrigerator, it is important that you operate it properly. This section
tells you how to set the controls, remove and adjust the features in your refrigerator, and how to save energy.
Setting the controls
When you first install your refrigerator, set the
Thermostat Control at -i- and the Air Balance
Control at -i-. Give your refrigerator time to cool
down completely before adding food. It is best to
wait 24 hours before adding food.
IMPORTANT: If you add food before the refrigerator
has cooled completely, your food may spoil. Turning
the Thermostat and Air Balance Controls to a higher
than recommended setting will not cool the com-
partments any faster.
How the controls work
There are two controls in your refrigerator
compartment. Knowing how each works will help
you set the controls properly for your own house-
hold conditions.
The Thermostat Control adjusts both the refrig-
THERMOSTAT erator and freezer
compartment tem-
peratures. Settings
1-3 make the overall
temperature in both
compartments warmer.
Settings 4-6 make the
overall temperature in
both compartments
colder.
NOTE: Your product
will not cool when the Thermostat Control is set
to OFF.
The Air Balance Control divides the amount of
AIR BALANCE
Icold air entering both
compartments. Settings
1 and 2 direct more cold
air into the refrigerator
compartment. Settings 3
and 4 direct more cold
air into the freezer
compartment.
Hold your hand in front of the top vent (see
the diagram "Ensuring proper air circulation" on
page 9) and adjust the Air Balance Control to feel
the difference in air flow. As you adjust the Air
Balance Control to a lower setting, you will feel
more cold air entering the Refrigerator compart-
ment. If you make changes to the control settings,
it is best to move the control knob in 1/2step
increments and wait 24 hours in between adjust-
ments. This will help prevent you from making your
refrigerator warmer or colder than needed.
For further information about air circulation or
temperature, refer to the Troubleshooting
Guide on pages 28-34.
/
.....i ..........................................................................................

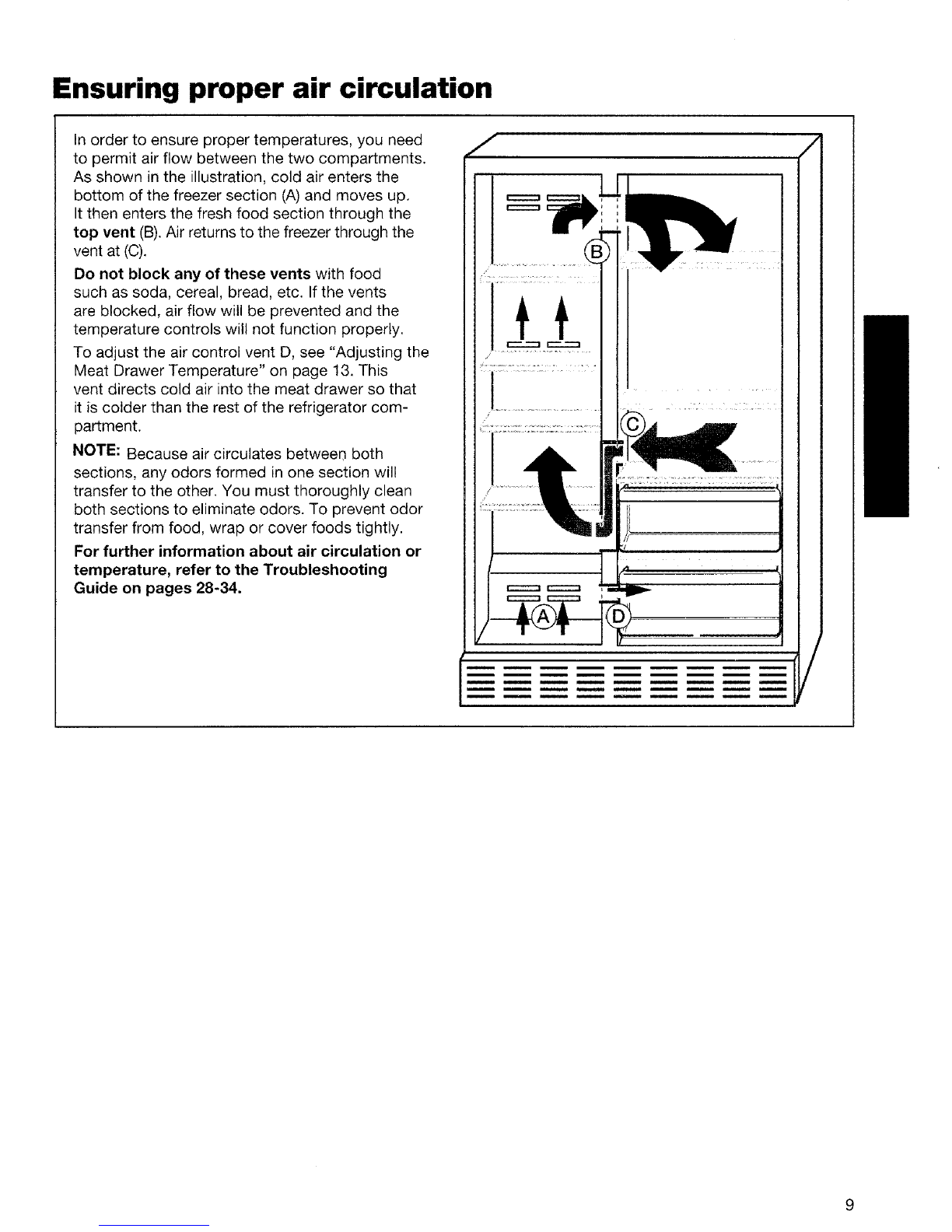

Ensuring proper air circulation
In order to ensure proper temperatures, you need
to permit air flow between the two compartments.
As shown in the illustration, cold air enters the
bottom of the freezer section (A) and moves up.
It then enters the fresh food section through the
top vent (B).Air returns to the freezer through the
vent at (C).
Do not block any of these vents with food
such as soda, cereal, bread, etc. If the vents
are blocked, air flow will be prevented and the
temperature controls will not function properly.
To adjust the air control vent D, see "Adjusting the
Meat Drawer Temperature" on page 13. This
vent directs cold air into the meat drawer so that
it is colder than the rest of the refrigerator com-
partment.
NOTE: Because air circulates between both
sections, any odors formed in one section will
transfer to the other. You must thoroughly clean
both sections to eliminate odors. To prevent odor
transfer from food, wrap or cover foods tightly.
For further information about air circulation or
temperature, refer to the Troubleshooting
Guide on pages 28-34.

Using the automatic ice maker
Before you turn the ice maker on, be sure that it is
attached to a water supply. Instructions for the ice
maker water supply hookup are on pages 5-7 of
this manual.
• The ON/OFF lever is a wire signal arm. Push the
arm down to start making ice automatically, and
push it up to shut off the ice maker.
• It is normal for the ice to be attached at the
corners. It will break apart easily.
• The ice maker will not operate until the freezer is
cold enough to make ice. This can take as long
as 24 hours.
REMEMBER:
• The quality of your ice will be only as good as the
quality of the water supply that the ice maker is
hooked up to.
• Avoid connecting the ice maker to a softened
water supply. Water softener chemicals (such as
salt) can damage the ice maker mold and lead to
poor quality ice. If a softened water supply
cannot be avoided, make sure the water softener
is operating properly and is well maintained.
Signal arm
Ejector arm
Off
On
10

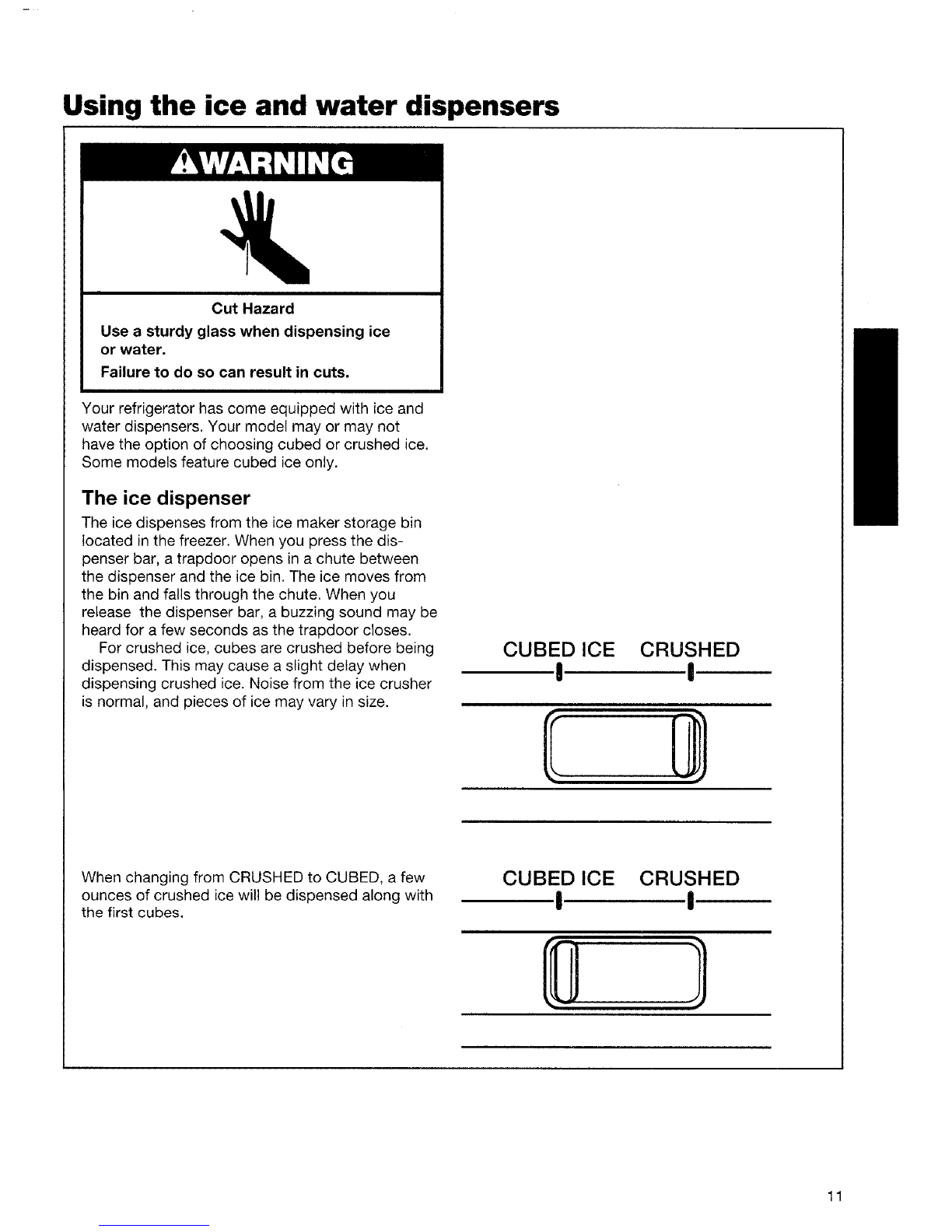

Using the ice and water dispensers
Cut Hazard
Use a sturdy glass when dispensing ice
or water.
Failure to do so can result in cuts.
Your refrigerator has come equipped with ice and
water dispensers. Your model may or may not
have the option of choosing cubed or crushed ice.
Some models feature cubed ice only.
The ice dispenser
The ice dispenses from the ice maker storage bin
located in the freezer. When you press the dis-
penser bar, a trapdoor opens in a chute between
the dispenser and the ice bin. The ice moves from
the bin and falls through the chute. When you
release the dispenser bar, a buzzing sound may be
heard for a few seconds as the trapdoor closes.
For crushed ice, cubes are crushed before being
dispensed. This may cause a slight delay when
dispensing crushed ice. Noise from the ice crusher
is normal, and pieces of ice may vary in size.
CUBEDICE CRUSHED
"1 I
When changing from CRUSHED to CUBED, a few
ounces of crushed ice will be dispensed along with
the first cubes.
CUBEDICE CRUSHED
I I
11

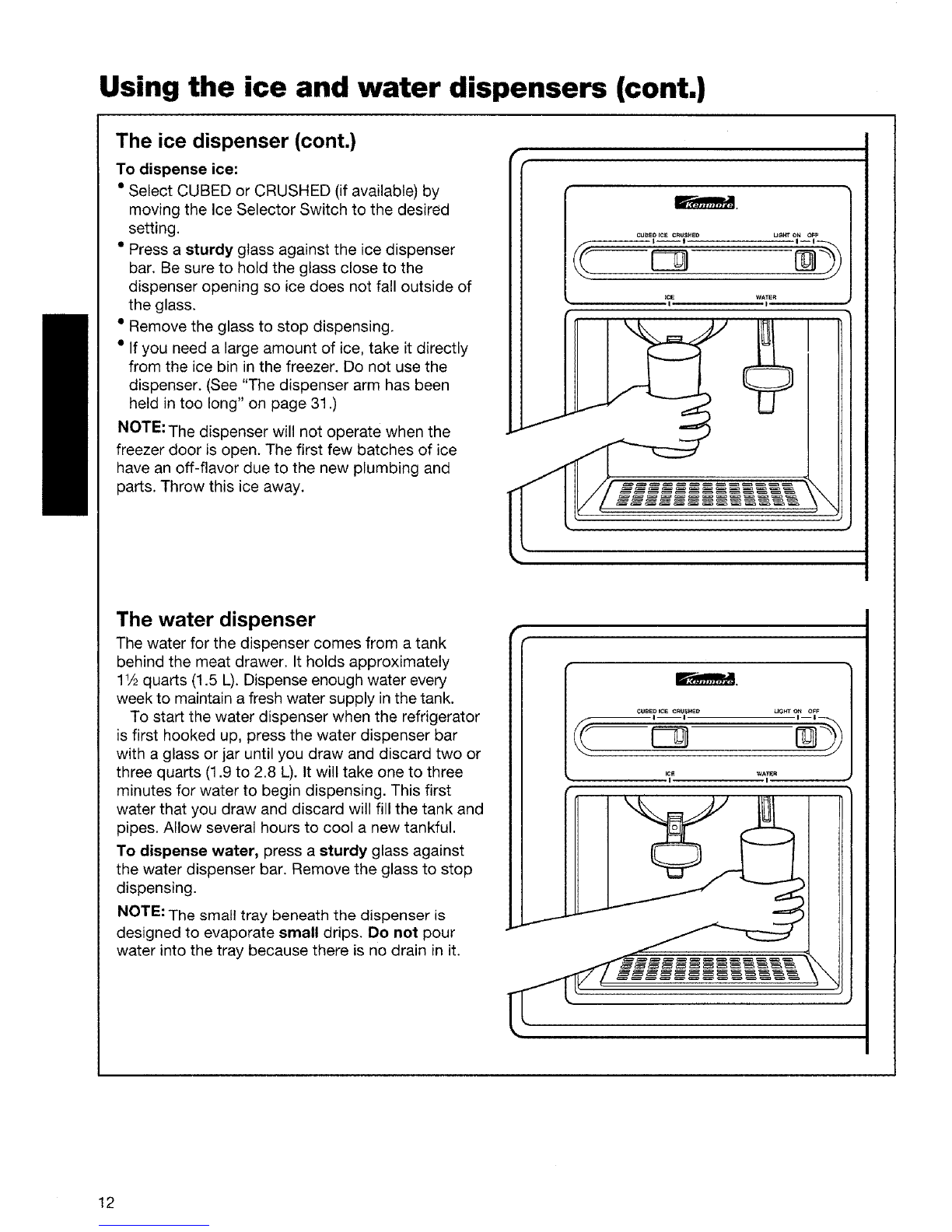

Using the ice and water dispensers (cont.)
The ice dispenser (cont.)
To dispense ice:
•Select CUBED or CRUSHED (if available) by
moving the Ice Selector Switch to the desired
setting.
• Press a sturdy glass against the ice dispenser
bar. Be sure to hold the glass close to the
dispenser opening so ice does not fall outside of
the glass.
• Remove the glass to stop dispensing.
• If you need a large amount of ice, take it directly
from the ice bin in the freezer. Do not use the
dispenser. (See "The dispenser arm has been
held in too long" on page 31 .)
NOTE: The dispenser will not operate when the
freezer door is open. The first few batches of ice
have an off-flavor due to the new plumbing and
parts. Throw this ice away.
CUBEDIC_ CRUSHEO
I--t
The water dispenser
The water for the dispenser comes from a tank
behind the meat drawer. It holds approximately
11/2quarts (1.5 L). Dispense enough water every
week to maintain a fresh water supply in the tank.
To start the water dispenser when the refrigerator
is first hooked up, press the water dispenser bar
with a glass or jar until you draw and discard two or
three quarts (1.9 to 2.8 L). It will take one to three
minutes for water to begin dispensing. This first
water that you draw and discard will fill the tank and
pipes. Allow several hours to cool a new tankful.
To dispense water, press a sturdy glass against
the water dispenser bar. Remove the glass to stop
dispensing.
NOTE: The small tray beneath the dispenser is
designed to evaporate small drips. Do not pour
water into the tray because there is no drain in it. \
12

Using the
The dispenser light
To turn on the night light, slide dispenser LIGHT
switch to the left.
ice and water dispensers (cont.)
LIGHT ON OFF
On models without crushed ice, the light switch
isa vertical plunger type. Push up on the switch to
turn the light on, and push up again to turn the
light off.
See page 20 for directions on changing the
dispenser light bulb.
Adjusting the meat drawer temperature
The meat drawer is cooled from cold air that flows
in from the freezer
compartment through
a vent in the wall of
the refrigerator (See
"Ensuring proper air
circulation" vent D on
page 9.) This helps to
keep the meat drawer
colder than the rest of
the refrigerator for
better storage of meats.
To adjust the temperature, slide the control from
side to side to let more or less cold air into the meat
drawer. Set the control toward Cold for a slightly
cooler temperature, or toward Colder for a much
cooler temperature.
NOTE: Putting the control on the coldest setting
may cause freezing or ice crystals, depending on
the items you have in the meat drawer.
13

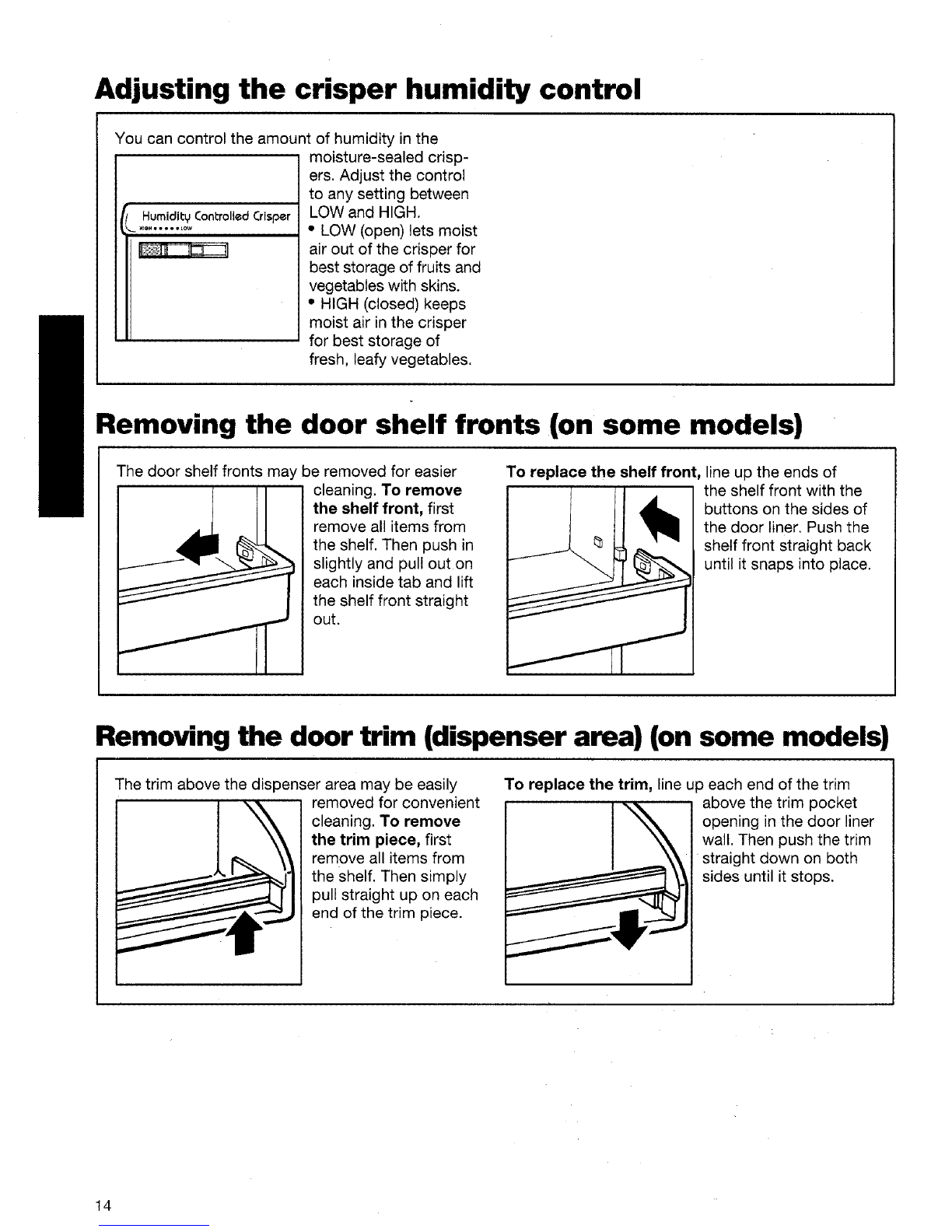

Adjusting the crisper humidity control
You can control the amount
Humidity Controlled Crisper
_e., o• o,Low
of humidity in the
moisture-sealed crisp-
ers. Adjust the control
to any setting between
LOW and HIGH.
*LOW (open) lets moist
air out of the crisper for
best storage of fruits and
vegetables with skins.
•HIGH (closed) keeps
moist air in the crisper
for best storage of
fresh, leafy vegetables.
Removing the door shelf fronts (on some models)
The door shelf fronts may be removed for easier
cleaning. To remove
the shelf front, first
remove all items from
the shelf. Then push in
slightly and pull out on
each inside tab and lift
the shelf front straight
out.
To replace the shelf front line up the ends of
the shelf front with the
buttons on the sides of
the door liner. Push the
shelf front straight back
until it snaps into place.
Removing the door trim (dispenser area) (on some models)
The trim above the dispenser area may be easily
removed for convenient
cleaning. To remove
the trim piece, first
remove all items from
the Shelf. Then simply
pull straight up on each
end of the trim piece.
To replace the trim, line up each end of the trim
above the trim pocket
opening in the door liner
wall. Then push the trim
straight down on both
sides until it stops.
14

Adjusting the door bins
The door bins are removable for easy cleaning and
adjusting. To remove
the bin, simply lift the
bin up and pull straight
out. To replace the
bin, slide it in above the
desired support button
and push down until
"'---_ it stops.
Adjusting the refrigerator shelves
The shelves in your refrigerator are adjustable to
match the way you use them. Glass shelves are
strong enough to hold bottles, milk, and other heavy
food items.
To remove a shelf, first remove all items from the
shelf. Then tilt up the front of the shelf and lift it at
the back. Pull the shelf straight out.
To replace a shelf, guide the rear shelf hooks into
the slots of the shelf supports on the back liner of
the refrigerator. Tilt the front of the shelf up until
the rear hooks drop into the slots and then lower
the front of the shelf into position.
NOTE: On some models, certain shelves may slide
out to provide an easier reach to items at the back.
Removing the meat drawer and cover
To remove the meat drawer:
•Slide the meat drawer straight out to the stop.
•Lift the front slightly and slide it out the rest of
the way.
•Replace in the reverse order.
To remove the cover:
•Remove the meat drawer and the crisper.
• Lift the front of the cover off of the supports and
remove it by pulling up and out.
To replace the cover:
• Fit the back of the cover into the notch
supports on the walls of the refrigerator and
lower it into place.
• Replace the meat drawer and crisper.
15

Removing the crisper and crisper cover
The crisper and its cover are designed for easy
removal and cleaning.
To remove the crisper, slide it straight out to the
stop and lift the front. Then slide it out the rest of
the way.
Replace the crisper in the reverse order.
To remove the cover, hold it firmly with both
hands, lift the front out of the supports and pull it
up and out.
To replace the cover, fit the back of the cover into
the notch supports on the walls of the refrigerator
and lower the front into place.
16

Removing the crisper cover extension
In order to prevent food items from falling behind
your crisper, some models have a crisper cover
extension that covers the gap between the back
wall and the back side of the crisper. You may
want to remove the extension when cleaning.
To remove the crisper cover extension, simply
lift up on the front of the extension and pull it off of
the supports.
To reinstall the crisper cover extension, fit it
back onto the supports on the side walls and rest
the front on the crisper cover.
Removing the deli drawer
The deli drawer provides a convenient place to
store raisins, nuts, spreads, and other small items
at normal refrigerator temperatures.
To remove the deli drawer, slide the deli drawer
straight out to the stop, lift the front, and slide the
drawer out the rest of the way.
Replace the deli drawer in the reverse order.
Pull out to the
stop, lift the front,
and pull again
Removing the freezer basket (plastic bin on some models)
The freezer basket can be used to store bags of
frozen fruits and vegetables that can slide off
freezer shelves.
For easy removal of the freezer basket, slide it out
to the stop, lift the front, and slide it out the rest of
the way.
To replace the basket, position it on the slides,
making sure that the
wire stops clear the
front of the slides, and
slide it in all the way.
17

Removing the freezer shelf
The freezer shelf is removable for easy cleaning, or
to create more open space in the freezer compart-
ment for storage of large or bulk items.
To remove the shelf, lift the shelf off of the sup-
__ orts and slide out of
the shelf support holes.
Replace in the reverse
_li order.
Removing the ice maker storage bin
3. Lift up the front of the storage bin and pull it out.There are several reasons why you may need to re-
move, empty, and clean the ice maker storage bin.
• The ice dispenser has not, or will not, be used for
a week or more.
• A power failure causes the ice in the bin to melt
and freeze together.
• The ice dispenser is not used regularly.
•Ice tastes off-flavored. (See Troubleshooting guide
on page 33.)
If any of these conditions apply to you, follow the
instructions on removing the ice bin.
To remove the ice bin:
1. Pull the covering panel out from the bottom and
then slide it back
toward the rear.
4. Empty the ice bin. Use warm water to melt the ice
if necessary. Never use anything sharp to break
up the ice in the bin. This can cause damage to the
bin and the dispenser mechanism.
5. Wash with a mild detergent and rinse well. Do
not use harsh or abrasive cleaners or solvents.
When you replace the bin, make sure it is pushed
in all the way or the dispenser will not work. Then
push the signal arm down to the ON position to
restart ice production. Make sure the door is
closed tightly.
2. Lift the signal arm so it clicks into the OFF (up)
i position. Ice can still be
dispensed, but no more
can be made.
18

Changing the light bulbs
Electrical Shock Hazard
Unplug the refrigerator before removing a
light bulb.
Failure to do so can result in death or
electrical shock.
Your refrigerator has several light bulbs. This sec-
tion shows you where they are located and tells you
how to change them if they burn out. Before you
change any light bulb in your refrigerator, be sure to
turn the Thermostat Control to OFF and unplug the
refrigerator. After you have replaced the bulb, plug
the refrigerator in and reset the Thermostat Control
to the desired setting.
NOTE; Not all commercial appliance bulbs will fit
your refrigerator. Be sure to replace the bulb with
one of the same size and shape.
Refrigerator light
1. Reach behind the Control Panel and remove
the bulb.
2. Replace the bulb with a 40-watt appliance bulb. I
_ __erator light
Crisper light
(on some models)
1. Pull the top of the light shield forward until
it snaps free and lower until the light bulb
is visible.
2. Replace the bulb with a 40-watt appliance bulb.
3. Pull the top of the light shield up over the bulb
and snap it onto the side wall supports.
NOTE: To remove light shield for cleaning, remove
the crisper and the crisper cover. Then release the
bottom of the shield from the lower side wall
supports. Pull the light shield out and wash it with
warm water and a liquid detergent. Dry the cover
and replace it in the reverse order.
_-__ Crisper light
19
