Sears Kenmore 795.7306 Series User manual

Grab-N-Go

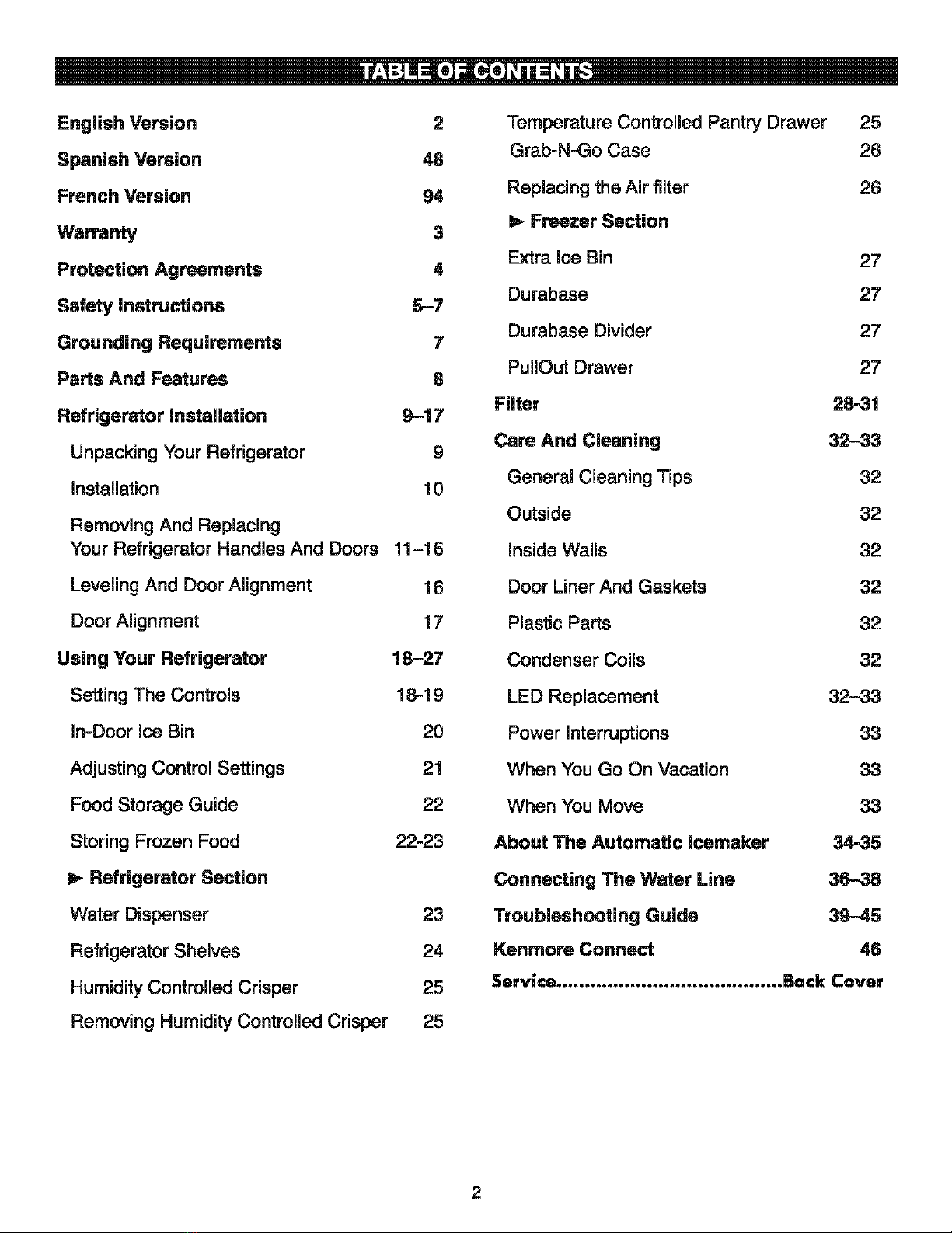

TABLE OF CONTENTS
English Version 2 Temperature Controlled Pantry Drawer 25
Spanish Version 48 Grab-N-Go Case 26
French Version 94 Replacing the Air filter 26
Warranty 3
..,. Freezer Section
Protection Agreements 4 Extra Ice Bin 27
Safety Instructions 5-7
Durabase 27
Grounding Requirements 7 Durabase Divider 27
Parts And Features 8 PullOut Drawer 27
Refrigerator Installation 9-17
Filter 28-31
Unpacking Your Refrigerator 9 Care And Cleaning
32-33
Installation 10
General Cleaning Tips 32
Removing And Replacing Outside 32
Your Refrigerator Handles And Doors 11-16 Inside Walls 32
Leveling And Door Alignment
16
Door Liner And Gaskets 32
Door Alignment
17
Plastic Parts 32
Using Your Refrigerator 18-27
Condenser Coils 32
Setting The Controls 18-19 LED Replacement 32-33
In-Door Ice Bin
20 Power Interruptions 33
Adjusting Control Settings 21
When You Go On Vacation 33
Food Storage Guide 22 When
You Move 33
Storing Frozen Food 22-23
About The Automatic lcemaker 34-35
..,. Refrigerator Section Connecting The Water
Line
36-38
Water Dispenser 23 Troubleshooting Guide
39-45
Refrigerator Shelves 24 Kenmore Connect 46
Humidity Controlled Crisper 25 Service............•.........•.................Back Cover
Removing Humidity Controlled Crisper 25
2

BOTTOM FREEZER REFRIGERATOR WARRANTY
KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date
of sale this appliance is warranted against defects in material or
workmanship when it is correctly installed, operated and maintained according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option
of seller.
To arrange for warranty service, caii1-800-4-MY-HOME® (1-800-469-4663)
This warranty applies for only90 DAYS from the sale date in the United States, and is void in Canada, if
this appliance is ever used for other than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters,
belts, screw-in base light bulbs and bags.
2. A service technician to instruct the user
in correct product installation, operation
or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to
all instructions supplied with the product.
5. Damage to
or failure of this product resulting from accident, abuse, misuse or use for otherthan its
intended purpose.
6. Damage to
or failure of this product caused by the use of detergents, cleaners, chemicals or utensils
other than those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made
to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement
as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular
purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for
incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation
of incidental or consequential damages, or limitation on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used
in the United States or Canada*.
This warranty gives you specific legal rights, and you mayalso have other rights which vary from state to
state.
• In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover
user or servicer travel and transportation expenses if this product is located in a remote area (as defined
by Sears Canada Inc.) where an authorized servicer is not available.
Sears
Brands Management Corporation, Hoffman Estates, ll 60179
Sears Canada Inc.,
Toronto, Ontario, Canada M5B 2C3
3

PROTECTION AGREEMENTS
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore® product is designed and manufactured for
years of
dependable operation. But like all products,
it may require preventive maintenance or repair from
time to time. That's when having a Moster Protection
Agreement can save you money
and aggravation.
The Master Protection Agreement also helps extend
the life of your new product. Here's what the
Agreement* includes:
• Parts
and labor needed to help keep products
operating properly
under normal use, not just defects.
Our coverage goes well beyond the product warranty.
No deductibles, no functional failure excluded from
coverage-- real protection.
• Expert service by a force of more than
10,000
authorized Sears service technicians, which means
someone you
can trust will be working on your product.
• Unlimited service calls and nationwide service, as
often as you wont us, whenever you wont us.
• "No-lemon" guarantee -replacement of your covered
product
if four or more product failures occur within
twelve months.
• Product replacement if your covered product can't be
foxed.
• Annual Preventive Maintenance Check at your request
-no extra charge.
• Fast help by phone- we call it Rapid Resolution
-phone support from a Sears representative on all
products. Think af us as a "talking owner's manual."
• Power surge protection against electrical
damage due
to power fluctuations.
• $250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator
or freezer.
• Rental reimbursement if repair of your covered
product takes longer than promised.
• 25% discount off the regular price of any non-covered
repair service
and related installed parts.
Once you purchase the Agreement, a simple phone call
is all that it lakes to schedule service. You can call a!
any time day or night, or schedule a service appointment
online.
The Master Protection Agreement is a risk free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund or a prorated refund
anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply.
For prices
and additional information in the
U.S.A. c:alll-800-827-6655.
*Coverage in Canada varies on some items. For full
details call
Sears Canada all-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items,
in the U.S.A. or Canada call
1-800-4-MY-HOME;®.
PRODUCT RECORD
In the space below, record the date of purchase, model and serial number of your product. You will find the
model and serial number printed on an identification label located on the right-hand side of the refrigerator
compartment. Have these items of information available whenever you contact Sears concerning your product.
Model No. ________________ __
Date of Purchase-------------------
Serial No. -------------------
Save these instructions and attach your sales receipt for future reference.
4

will
can
may

&WARNING
• Before replacing a burned-out light bulb, unplug
the refrigerator or turn off power at the circuit
breaker orfuse box in order to avoid contact with a
live wire filament. (A burned-out light bulb may
break when being replaced.)
NOTE: Some models have LED interior lighting
and service should be performed by a qualified
technician.
•When you are finished, reconnect the refrigerator to
the electrical source and reset the controls
(Thermostat, Refrigerator Control, and or Freezer
Control, depending on the model) to the desired
setting.
•This refrigerator must be properly installed in
accordance with the
Attention Installer
Instructions that were taped to the front of the
refrigerator.
·After your refrigerator is in operation, do not touch
the cold surfaces in the freezer compartment when
hands are damp or
wet Skin may adhere to the
extremely cold surfaces.
• In refrigerators with automatic icemakers, avoid
contact with the moving parts
of the ejector
mechanism, orwith the heating element that
releases the cubes. DO NOT place fingers or
hands on the automatic icemaking mechanism
while the refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of
Agriculture in Home and Garden Bulletin No. 69
says:
...
You maysafely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are
still cold-below 4°C.
...Thawed ground meats, poultry orfish that have
anyoff-odor or off-color should not be refrozen and
should not be eaten. Thawed ice cream should be
discarded. If the odor or color of any food is poor
or questionable, dispose of it. The food may be
dangerous to eat.
Even partial thawing and refreezing reduces the
eating quality of foods, particularly fruits,
vegetables and prepared foods. The eating quality
of red meats is affected less than that of many
other foods. Use refrozen foods as soon as
possible to save as much of their quality as you
can.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
·This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
& DANGER: RISK OF CHILD ENTRAPMENT
Junked or abandoned refrigerators are
dangerous...even
if they will sit for just a few days. If
you are getting rid of your old refrigerator, please
follow the instructions at right to help prevent
accidents (Child entrapment and suffocation).
6
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
• Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside.

CFC DISPOSAL
Your old refrigerator may have a cooling system that
used CFCs (chlorofluorocarbons). CFCs are
believed to harm stratospheric ozone.
If you are throwing away your old refrigerator, make
sure the CFC refrigerant is removed for proper
disposal by a qualified servicer. If you intentionally
release this CFC refrigerant, you can be subject to
fines and imprisonment under provisions of
environmental legislation.
GROUNDING REQUIREMENTS
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
A WARNING
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must
be properly grounded. Have the wall outlet and
the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
Ensure proper
ground exists
before use.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its
own individual properly grounded electrical outlet
rated for 115 Volts, 60 Hz, AC only, and fused at 15
or20 amperes. This provides the best performance
and also prevents overloading house wiring circuits
which could cause a fire hazard from overheated
wires. It is recommended that a separate circuit
serving only this appliance be provided.
Use a receptacle which cannot be turned off with a
switch or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is
encountered, it is your personal responsibility and
obligation to have it replaced with a properly
grounded three-prong wall outlet.
7
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
Do not use an adapter plug.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, disconnect the
refrigerator from the electrical source.
NOTE: Some models have LED interior lighting and
service should be performed by a qualified
technician.
When you are are finished, reconnect the refrigerator
to the electrical source and reset the control
(Thermostat, Refrigerator Control, or Freezer
Control, depending on the model) to the desired
setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use
of an extension cord. However, if you still elect to use
an extension cord, it is absolutely necessary that it
be a UL-Iisted (USA), 3-wire grounding type
appliance extension cord having a grounding type
plug and outlet, and that the electrical rating of the
cord be 15 amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.

Grab-N-Go Case
Cheese & Butter Bin
Condiment Bin
L
E
C
M
F
G
H
Q
D
O
N
P
I
J
K
R
C
PARTS AND FEATURES
Use this page to become more familiar with the parts and features. Page references are included foryour
convenience.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all
ofthe items listed below. The locations
of the features shown below may not match your model.
0 Refrigerator Light 0 Durabase
@ Filter (Inside) 43 Divider Ice Bin
@ Fixed Door Bin 0 Door Bins
0 Refrigerator Shelves @ Water Tank Cover
@ Ice Room ID Air Filter Type
(Ice Maker and Ice Bin) (!) Kenmore Connect
C) HumidityControlled Crisper ~
@ Temperature Controlled 0
Pantry Drawer O
ffi Extra Ice Bin
0 Pullout Drawer
8

Remove tape and any temporary labels from your
refrigerator before using.
Do not remove any warning-type labels, the model
and serial number label, or the Tech Sheet that is
located under the front of the refrigerator.

REFRIGERATOR INSTALLATION
INSTALLATION
·To minimize noise and vibration, the refrigerator
MUST be installed on a solidly constructed floor.
•Carpeting and soft tile surfaces are not
recommended.
• Never install the refrigerator on a platform or
weakly supported structure.
1.
To avoid vibration, the unit must be leveled.
If required, adjustthe leveling legs
to compensate
for unevenness
of the floor. The front should be
slightly higher than the rear to aid in door closing.
Leveling legs can be turned easily
by tipping the
cabinet slightly. Turn the leveling legs clockwise
( ~ ) to raise the unit, counterclockwise ( t.,. )
to lower it.
(See Leveling and Alignment: on page 17.)
2. Install this appliance in an area where the
temperature
is between 55°F (13°C) and 11 ooF
(43°C.) If the temperature around the appliance is
too
low or high, cooling ability may be adversely
affected.
3. Too small a distance from adjacent items may
result in lowered freezing capability and increased
electricity consumption charges. Allow at least 24
inches (61 em) in front ofthe refrigerator to open
the doors.
c
2" (5.08 em) ...., 1--
10
PRIOR TO USE
1.Clean your refrigerator thoroughly and wipe off all
dustaccumulated during shipping.
2. Install accessories such
as ice cube bin, drawers,
shelves, etc., in their proper places. They are
packed together
to prevent possible damage
during shipment.
3. Let your refrigerator run for at least 2 or3 hours
before putting food in it. Check the flow
of cold air
in the freezer compartment to ensure proper
cooling. Your refrigerator is now ready for use.

REFRIGERATOR INSTALLATION
NOTE: Removing the doors is the recommended procedure when it is necessary to move the refrigerator through
a
narrow opening. If it is necessary to remove the handles, follow the directions below.
HOW TO REMOVE DOOR HANDLES
NOTE: Handle appearance may vary from
the illustrations on this page.
1. Removing Refrigerator Handle
•Loosen the set screws with a 3/32"
(2.5mm) Allen wrench and remove the
handle.
NOTE: If the handle mounting fasteners
need
to be tightened or removed, use a
1/4" (6.4mm) Allen wrench.
2. Removing Freezer Drawer Handle
•Loosen the set screws located on
the lower side
of the handle with a 1/8"
(3.1 mm) Allen wrench and remove
the handle.
NOTE: If the handle mounting fasteners
need
to be tightened or removed, use
a 1/4" (6.4mm) Allen wrench.
Mounting ----J""'---~
Fasteners
Wrench
11

REFRIGERATOR INSTALLATION
HOWTO REPLACE DOOR HANDLES
NOTE: Handle appearance may vary from
the illustrations on this page.
1. Replacing Refrigerator Door Handle
• Place the handle on the door, fitting it over the
mounting fasteners and tighten the set screws
with a 3/32" (2.5mm) Allen wrench.
NOTE: If the handle mounting fasteners need
to be tightened or removed use a 1/4" (6.4mm)
Allen wrench.
2. Replacing Freezer Drawer Handle
• Place the handle on the door, fitting it over the
mounting fasteners and tighten the set screws
on the
bottom ofthe handle with a 1/8"
(3.1 mm) Allen
wrench.
NOTE: If the handle mounting fasteners need to be
tightened
or removed use a 114" (6.4mm) Allen
wrench.
A WARNING
When assembling or disassembling the handles:
·Grasp the handle firmly to ensure it will notdrop or
cause injury.
• Prevent the handle from swinging toward nearby
people or animals.
• Insertthe bracket hole
of the handle into the stopper
bolt of the doorexactly, then assemble the set
screws to fix the handle in place.
• Checkfor any gap between the doorand handle
after the handle is fixed in place.
12
Mounting
Fasteners

REMOVING AND REPLACING
REFRIGERATOR DOORS
To remove the left refrigerator door:
On the back of the refrigerator, press back on the
release ring ofthe fitting (see 3 in figure below) and
pull out the water tube in the direction ofthe arrow.
A CAUTION: Before you begin, remove food and
bins from the doors.
1. Open the door.
Remove the top hinge cover screw (1).
2. Use a flat-head screwdriver to prybackthe hooks
(not shown) on the front underside
of the cover
(2). Lift up the cover.
3. Remove the cover. Pull out the tube (3).
4. Disconnect all the wire harnesses (4).
5. Remove the grounding screw(5).
13
REFRIGERATOR INSTALLATION
6. Rotate hinge lever (6) counterclockwise. Lift the
top hinge (7) free
of the hinge lever latch (8).
A CAUTION: When lifting the hinge free ofthe latch,
be careful that the doordoes not fall forward.
7. Lift the doorfrom the middle hinge pin and remove
the door.
8. Place the door, inside facing up,
on a
nonscratching surface.
To remove the right refrigerator door:
(2)
1. Open the door. Remove the top hinge cover
screw
(1 ). Lift up the cover (2).
2. Remove the cover.
3. Rotate the hinge lever (3) clockwise. Liftthe top
hinge (4) free of the hinge lever latch (5).
A CAUTION: When lifting the hinge free ofthe latch,
be careful that the doordoes not fall forward.
A WARNING
Electrical Shock Hazard
•Disconnect electrical supply to the refrigerator
before installing. Failure to do
so could result in
death
or serious injury.
• Do not put hands or feet or other objects into the
air vents, base cover,
or bottom of the
refrigerator.
You may be injured or receive an
electrical shock.
•Be careful when you workwith the hinge, base
cover, and stopper.
You may be injured.

REFRIGERATOR INSTALLATION
Reinstalling the Refrigerator Door
~Left Door
1. Lower the door onto the middle hinge pin (1 0).
2. Fit the top hinge (7) over the hinge lever latch (8) and into
place. Rotate the lever (6) clockwise to secure the hinge.
~Right Door
1. Lowerthe door onto the middle hinge pin (9).
2. Fit
the top hinge (4) over the hinge lever latch (5) and into
place. Rotate the lever (3) counterclockwise to secure
hinge.
3. Install the grounding screw (5) and connectthe two 3. Hooktab on
the switch side of corner under the edge of
wire harnesses (4). wire opening in cabinet top. Position cover (2) into
4. Push the water supply tube into the hole on the top
case and pull it out on the backplate.
5. Insert the water supply tube (3) into the connector
tube until you see only one scale mark. (Fully insert
the tube over 5/8" (15 mm)).
6. Hooktab on door switch side of cover (2) under
edge ofwire opening in cabinet top. Position cover
into place. Insert and tighten cover screw
(1 ).
&CAUTION
Collet ------,
Tube--~
14
place. Insert and tighten the cover screw (1 ).
(2)
After inserting, pull the tube to
make sure that it is secure
and reinsert the clip.

~_MFL62184409_~o] 2011.4.27 4:27PM l>JiolA-115
HOW TO REMOVE AND INSTALL THE
FREEZER DRAWER
IMPORTANT: To avoid possible injury or product or
property damage, you will need two people to
perform the following instructions.
1. Removing Freezer Drawer
• Pull the draweropen to full extension. Remove the
lower basket CD by lifting basket from rail system.
• Remove the screws ® of the rail on both sides.
15
REFRIGERATOR INSTALLATION
•With both hands, hold both sides ofthe door and
pull it up to separate it from the rails.
£.CAUTION: When you remove the drawer, do not
hold the handle. The handle may come off and it
could cause personal injury.
•With both hands, hold each rail and push it in
to allow both rails to slide in simultaneously.

~_MFL62184409_~o] 2011.4.27 4:27PM l>JiolA-116
REFRIGERATOR INSTALLATION
HOW TO REMOVE AND INSTALL THE
FREEZER DRAWER (cont.)
2.1nstalling Freezer Drawer
·With both hands, pull out each rail simultaneously
until both rails are fully extended.
• Hookdoorsupports CD into rail tabs @.
•Lower door into final position and tighten the
screws®.
•With the drawer pulled out to full extension, insert
the lower basket@ in the rail assembly.
16
£ WARNING: If the Durabase divider is removed,
there is enough open space for children or pets to
crawl inside.
£ WARNING: To prevent accidental child and pet
entrapment or suffocation risk, DO
NOT allow
them to touch or go nearthe freezer drawer.
£ WARNING: DO NOT step or sit down on freezer
drawer.

LEVELING AND DOOR ALIGNMENT
Leveling
After installing, plug the refrigerator's power cord into a
3-prong grounded outlet and
push the refrigerator into the
final position.
Your refrigerator has
two front leveling legs--one on the
right and one on the left. Adjust the legs
to alter the tilt
from front-to-bock or side-to-side. If your refrigerator
seems unsteady, or you want the doors to close more
easily, adjust the refrigerator's tilt using the instructions
below:
NOTE:
Tools Required:
11
/16" wrench or flat blade
screwdriver.
1. Turn the leveling leg to the left to raise that side of
the refrigerator or to the right to lower it. It may take
several turns of the leveling leg to adjust the tilt of the
refrigerator.
NOTE: Having someone push backward against the top of
the refrigerator takes some weight off of the leveling legs.
This makes it easier to adjust the legs.
2. Open both doors again and check to make sure that
they close easily.
If the doors do not close easily, tilt
the refrigerator slightly more to the rear by turning
both leveling legs to the left. It may take several more
turns, and you should turn both leveling legs the same
amount.
NOTE: Your refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of the other. You may have to
exert slight pressure on the doors to get them to close
completely.
17
REFRIGERATOR INSTALLATION
Door Alignment
The left refrigerator door has an adjustable nut, located
on the bottom hinge, to raise and lower the door for
proper alignment.
If the space between your doors is uneven, follow the
instructions below
to align the doors evenly:
Use the wrench (included with the Use & Care Guide) to
turn the nut in the door hinge to adjust the height. To the
right
to raise or to the left to lower the height.
The right refrigerator door does not have an adjustable nut.
If the space between your doors is uneven, follow the
instructions belowto align the right door:
1. With one hand, lift up both the inner and outer door
sections of the right door to raise them at the middle
hinge. (Opening the door may make lifting it easier)
2.
With the other hand, use pliers to insert the snap
ring on
the middle hinge of the inner door section
as shown. Do not insert the ring on the hinge of the
outer door section.
3. Insert additional snap rings until the right door is
aligned. (Two snap rings are provided with the unit.)

USING YOUR REFRIGERATOR
SETTING THE CONTROLS
AIRFLOW
Be sure not to block vents while packing your refrigerator.
Doing
so will restrict airflow and may cause the
refrigerator temperature to become too warm or cause
interior moisture buildup. (See
air flow diagram below.)
Temperature
•The refrigerator control is preset at 37°F (3°C) and
the freezer control is preset at 0°F (-18°C}. These
are the recommended temperature settings for
normal use and conditions. Wait 24 hours for the
refrigerator and freezer to reach these
temperatures.
• The Refrigerator Temp Control range is from
33°F to 46°F(1°C to 8°C). The lower the number
setting, the colder the refrigerator compartmentwill
become.
• The Freezer Temp Control range is from -6°F to
8°F (-21°C to -13°C). The lower the number
setting, the colderthe freezer compartment will
become.
18
NOTE: When changing control settings, wait 24
hours before making additional adjustments.
After
24 hours, adjust the compartments
temperatures as desired.
Dispenser
•When you press the Water
button, the Water icon will light
up.
•When you press the Ice Select
button, eitherthe cube or
crushed ice icon will light up.
• Some dripping may occur after
dispensing. It is recommended
to hold your cup beneath the
dispenserfor a few seconds
after dispensing to catch all
of
the drops.
Ice
s.loot
15
El
.A. CAUTION: The control display is operated by
touch. Excessive moisture on the display may
cause a malfunction. Please keep display clean
and dry.
.A. WARNING: The dispenserwill not workif any
door is left open.
Ultra Ice
o When you touch the Ultra Ice button, the graphic
[ • ] will light up in the display and will remain on
for 24 hours. Itwill automatically shut off after
24 hours have passed.
You can stop this function manually
by touching the
button one more time.
o This function increases both icemaking and
freezing capabilities.
Filter Reset
o When the waterfilter indicator ( J~L.) turns on,
you have to change the water filter. After changing
the filter, press and hold the Ultra Ice (Filter Reset)
button for 3 seconds to turn the indicator light off.
You need to change the water filter approximately
every 6 months.

Light
·When you press light button, the dispenser light
will tum
on.
Air Filter ~-
The Air Filter helps remove odors
from the refrigerator.
The Air Filter
has two settings, Auto and MAX. In
Auto mode, the Air Filter will cycle
on and off in increments of ten
minutes on and one hundred
and
ten minutes off. If set to the MAX
mode, the Air Filter will stay on
continuously for four hours, cycling
on and off in increments of ten
minutes on and five minutes
off. After four hours, the
Air Filter will switch to Auto mode.
• Auto mode is the default mode.
• Press the Air Filter button once for MAX mode ~"""
Air Filter Reset ~"""
0\ANGE ,._ FI.TEl
When the CHANGE AIR FILTER icon turns on, the air
filter needs to be replaced. After replacing the air
filter, press and hold the Air Filter button for three
seconds
to turn the icon light off. It is recommended
to change the air filter approximately every 6 months.
Door Alarm
• When power is connected to the refrigerator, the
door alarm
is initially set to Clf;)l> (ON) and the door
alarm display will show C<(j> (ON).
When you press the I
.:=. I button, the display will
change to IJ. (OFF) and the door alarm function
will be deactivated.
• When either the refrigerator orthe freezer door is
left open for more than 60 seconds, the alarm tone
will sound to let you know the dooris open.
• When you close the door, the door alarm will stop.
Lock
• When power is initially connected to the
refrigerator, the Lock function
is off.
• If you want to activate the Lock function to lock
other buttons, press and hold the 1 .:::._ 1 button for
approximately three seconds. The--~- sign will be
displayed and the Lockfunction is now enabled.
• When the Lock function
is activated no other
buttons will work. The dispenser pad
is also
deactivated.
• To disable the Lock function, press and hold
the I _:.=- 1button for 3 seconds or more.
USING YOUR REFRIGERATOR
Temperature ModeeF <->°C)
•If you want to convert oF to oc orvice versa, press
and hold the I
>; I button and 1 •o::, I button at the
same time for 5 seconds or more.
19
AcAUTION
Demo Mode (Retail Stores)
The Demo Mode disables all cooling in the refrigerator
and freezer sections to conserve enegy while on
display in a retail store.
1. To activate:
With the refrigerator door opened, press and hold
the Refrigerator Temp and Ultra Ice buttons at the
same time for 5 seconds. The control panel will beep
to confirm that the Demo Mode is activated.
2. To deactivate:
With the refrigerator door opened, press and hold
the Refrigerator Temp and Ultra Ice buttons at the
same time for 5 seconds. The control panel will beep
to confirm that the Demo Mode is deavtivated.
Caution When Closing the Door
AcAUTION
To reduce the risk of door scratches and breaking the
door mullion, make sure that the refrigerator
door
mullion is always folded in.
If moisture gathers on the refrigerator door mullion at
any point, turn off the Energy Saver mode until the
issue is resolved.

USING YOUR REFRIGERATOR
IN-DOOR ICE BIN
A CAUTION
Keep hands and tools out of the ice compartment
door and dispenser chute. Damage
or personal
injury may result.
The icemaker will stop producing ice when the ice
bin is full. If you need more ice, empty the ice bin
into the extra ice bin in the freezer compartment.
During use, the ice can become uneven causing the
icemaker
to misread the amount of ice cubes and
stop producing ice. Shaking the ice bin to level the
ice within it can reduce this problem.
NOTE: Storing cans or other items in the ice bin will
damage the icemaker.
Keep the ice compartment doorclosed tightly. If the
ice compartment door is notclosed tightly, the cold
air in the ice bin will freeze food in the refrigerator
compartment. This could also cause the icemaker to
not produce ice.
NOTE: Ifthe On/Off switch on the icemaker is set to
Off
(0) for an extended time, the ice compartment
will gradually warm up to the temperature of the
refrigeratorcompartment.
To prevent ice cubes from
melting and leaking from the dispenser, ALWAYS
emptythe ice bin when the icemaker is set
to Off (0)
for more than a few hours.
A CAUTION
When handling the
ice bin, keep hands
awayfrom the blade
area to avoid
personal injury.
1. Pull or push the door handle to open or close the
Ice Compartment.
20
2. To remove the in-door ice bin, grip the front
handle, slightly lift the lower part, and slowlypull
out the bin as shown.
3.
To reinstall the in-door ice bin, slightly slant the bin
during replacement
to avoid contact with the
icemaker.
4. Avoid touching the Ice-detecting sensor when
replacing the ice bin. Seethe label on the ice
compartment doorfor details.
