SEAl, S
OWNER'S
MANUAL
MODEL NO.
934.55116690 VIDEO
CASSETTE
RECORDER
Record the Model Number and Serial Num-
ber of your VCR. The Model Number and
the Serial number are on the rear panel.
Model No.
Serial No.
Keep these numbers for future use.
3 ¸

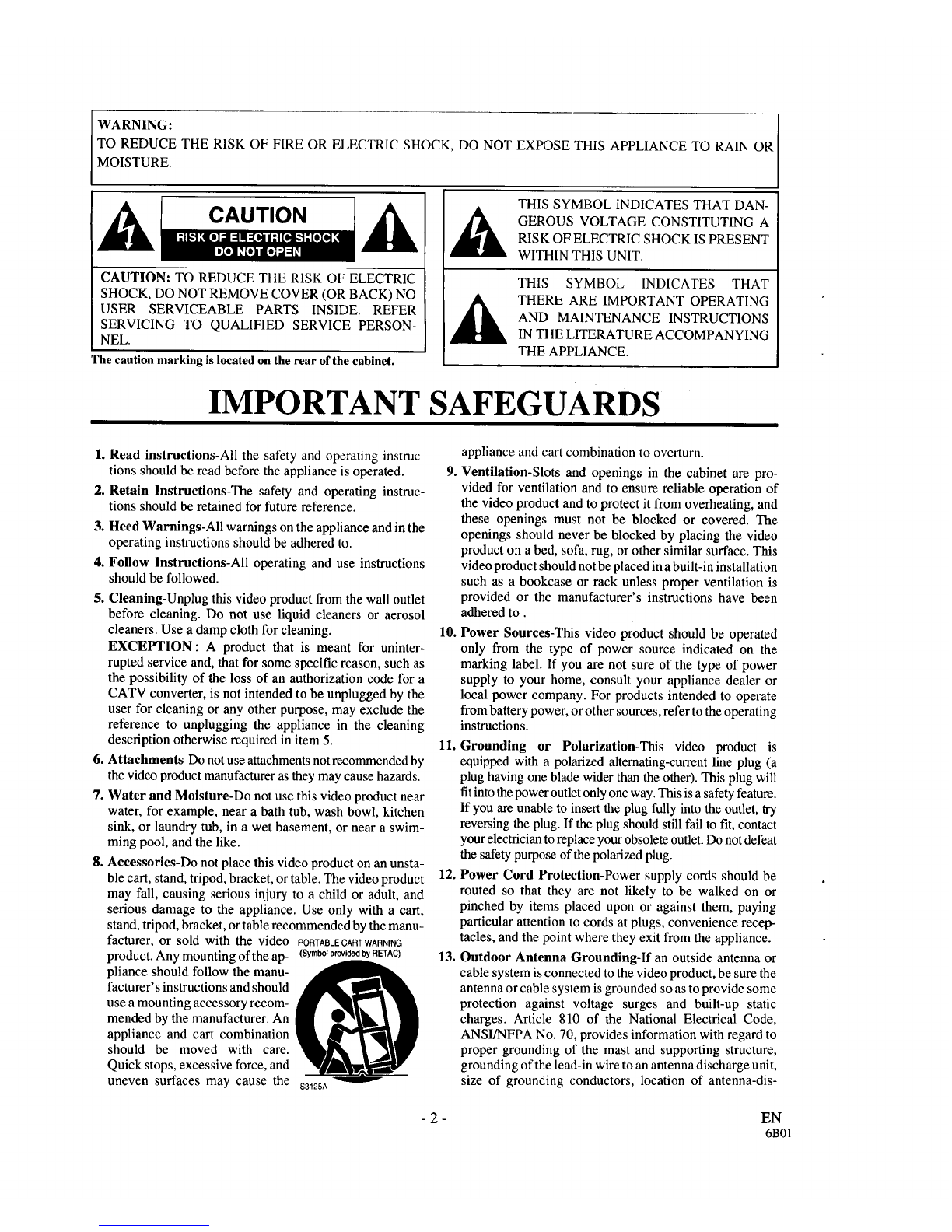

WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSON-
NEL.
The caution marking is located on the rear of the cabinet.
THIS SYMBOL INDICATES THAT DAN-
GEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRESENT
WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS
IN THE LITERATURE ACCOMPANYING
THE APPLIANCE.
IMPORTANT SAFEGUARDS
1. Read instructions-All the safety and operating instruc-
tions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instruc-
tions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions
should be followed.
5. Cleaning-Unplug this video product from the wall outlet
before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninter-
rupted service and, that for some specific reason, such as
the possibility of the loss of an authorization code for a
CATV converter, is not intended to be unplugged by the
user for cleaning or any other purpose, may exclude the
reference to unplugging the appliance in the cleaning
description otherwise required in item 5.
6. Attachments-Do not use attachments not recommended by
the video product manufacturer asthey may cause hazards.
7. Water and Moisture-Do not use this video product near
water, for example, near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a swim-
ming pool, and the like.
8. Accessories-Do not place this video product on an unsta-
ble cart, stand, tripod, bracket, or table. The video product
may fall, causing serious injury to a child or adult, and
serious damage to the appliance. Use only with a cart,
stand, tripod, bracket, or table recommended by the manu-
facturer, or sold with the video PORTABLECARTWARNING
product. Any mounting of the ap-
pliance should follow the manu-
facturer' s instructions and should
use a mounting accessory recom-
mended by the manufacturer. An
appliance and cart combination
should be moved with care.
Quick stops, excessive force, and
(Symbolprovidedby RETAC)
uneven surfaces may cause the S3125A
9.
10.
appliance and cart combination to overturn.
Ventilation-Slots and openings in the cabinet are pro-
vided for ventilation and to ensure reliable operation of
the video product and to protect it from overheating, and
these openings must not be blocked or covered. The
openings should never be blocked by placing the video
product on a bed, sofa, rug, or other similar surface. This
video product should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is
provided or the manufacturer's instructions have been
adhered to.
Power Sources-This video product should be operated
only from the type of power source indicated on the
marking label. If you are not sure of the type of power
supply to your home, consult your appliance dealer or
local power company. For products intended to operate
from battery power, or other sources, refer to the operating
instructions.
ll. Grounding or Polarization-This video product is
equipped with a polarized alternating-current line plug (a
plug having one blade wider than the other). This plug will
fitinto the power outlet only one way. This is a safety feature.
If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not defeat
the safety purpose of the polarized plug.
12. Power Cord Protection-Power supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
13. Outdoor Antenna Grounding-If an outside antenna or
cable system is connected to the video product, be sure the
antenna or cable syslem is grounded so asto provide some
protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code,
ANSUNFPA No. 70, provides information with regard to
proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit,
size of grounding conductors, location of antenna-dis-
- 2 - EN
6B01

FIGURE A
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT-._,._
NEC -NATIONAL ELECTRICAL CODE
$2898A
charge unit, connection to grounding electrodes, and re-
quirements for the grounding electrode. (Fig. A)
14. Lightning-For added protection for this video product
during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This
will prevent damage to the video product due to lightning
and power-line surges.
15. Power Lines-An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact with
them might be fatal.
16. Overloading-Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.
17. Object and Liquid Entry-Never push objects of any kind
into this video product through any openings as they may
touch dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never spill liquid
of any kind on the video product.
18. Servicing-Do not attempt to service this video product
yourself as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
19. Damage Requiring Service-Unplug this video product
from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
AN t _-NNA
LEAD IN
WIRE
_,,, ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
_,_l.___.- GROUNDING CONDUCTORS
(NECSECTION810-21)
GROUND CLAMPS
POWERSERVICEGROUNDING
=,. ELECTRODE SYSTEM
(NEC ART 250, PART H)
b. If liquid has been spilled, or objects have fallen into the
video product.
c. If the video product has been exposed to rain or water.
d. If the video product does not operate normally by follow-
ing the operating instructions. Adjust only those controls
that are covered by the operating instructions as an im-
proper adjustment of other controls may result in damage
and will often require extensive work by a qualified
technician to restore the video product to its normal op-
eration.
e. If the video product has been dropped or damaged in any
way.
f. When the video product exhibits a distinct change in
performance-this indicates a need for service.
20. Replacement Parts-When replacement parts are re-
quired, be sure the service technician has used replace-
ment parts specified by the manufacturer or have the same
characteristics as the original part. Unauthorized substitu-
tions may result in fire, electric shock or other hazards.
21. Safety Check-Upon completion of any service or repairs
to this video product, ask the service technician to perform
safety checks to determine that the video product is in
proper operating condition.
22. Heat-This video product should be situated away from
heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
EN
-3- 6B01

IAI: LI , t)l CON'ILr TS
•IMPORTANT SAFEGUARDS ............................ 2
•PRECAUTIONS ................................................... 5
LOCATION .......................................................... 5
AVOID THE HAZARDS OF ELECTRICAL
SHOCK AND FIRE ............................................. 5
WARNING ........................................................... 5
•FEATURES .......................................................... 6
•SUPPLIED ACCESSORIES ............................... 6
•VIDEO CASSETTE TAPE .................................. 7

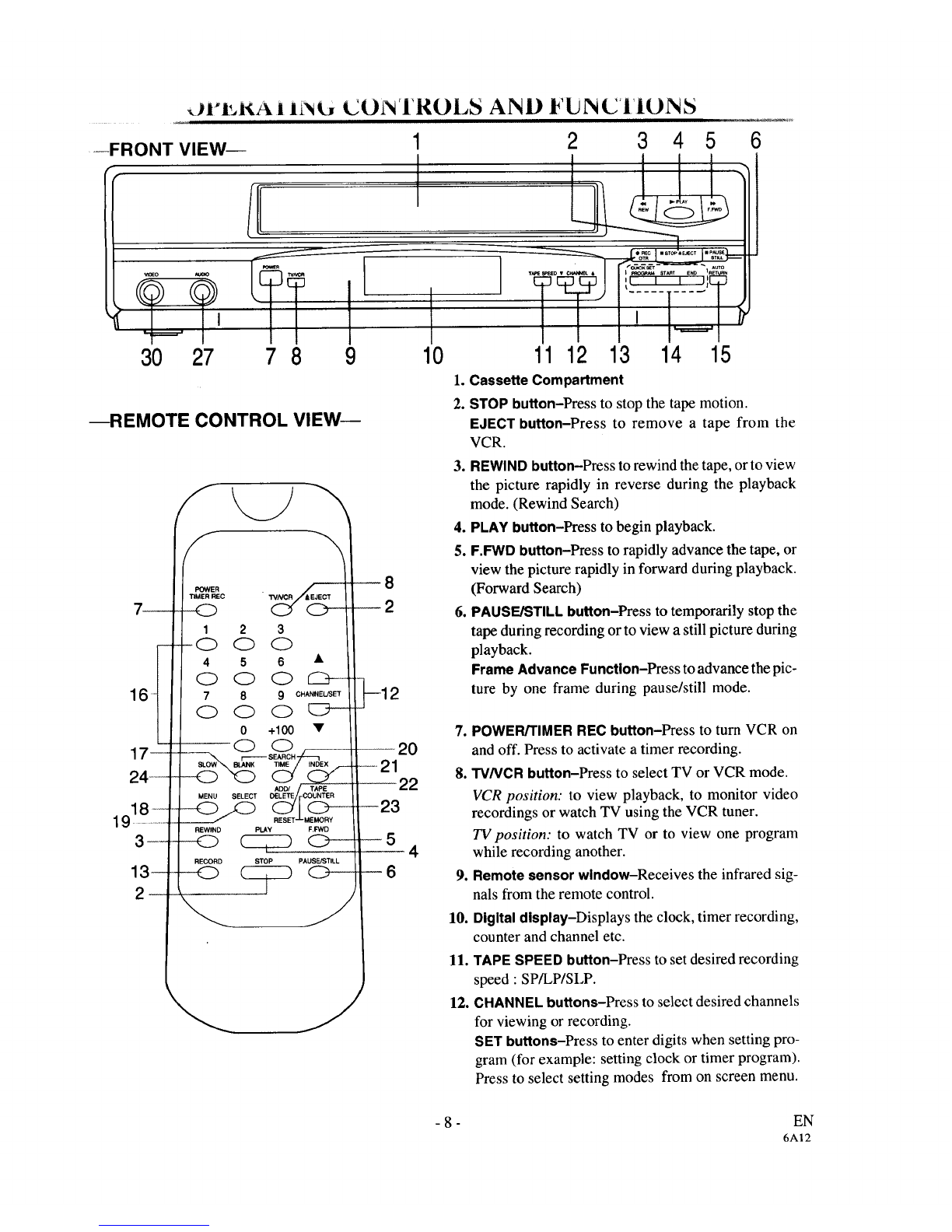

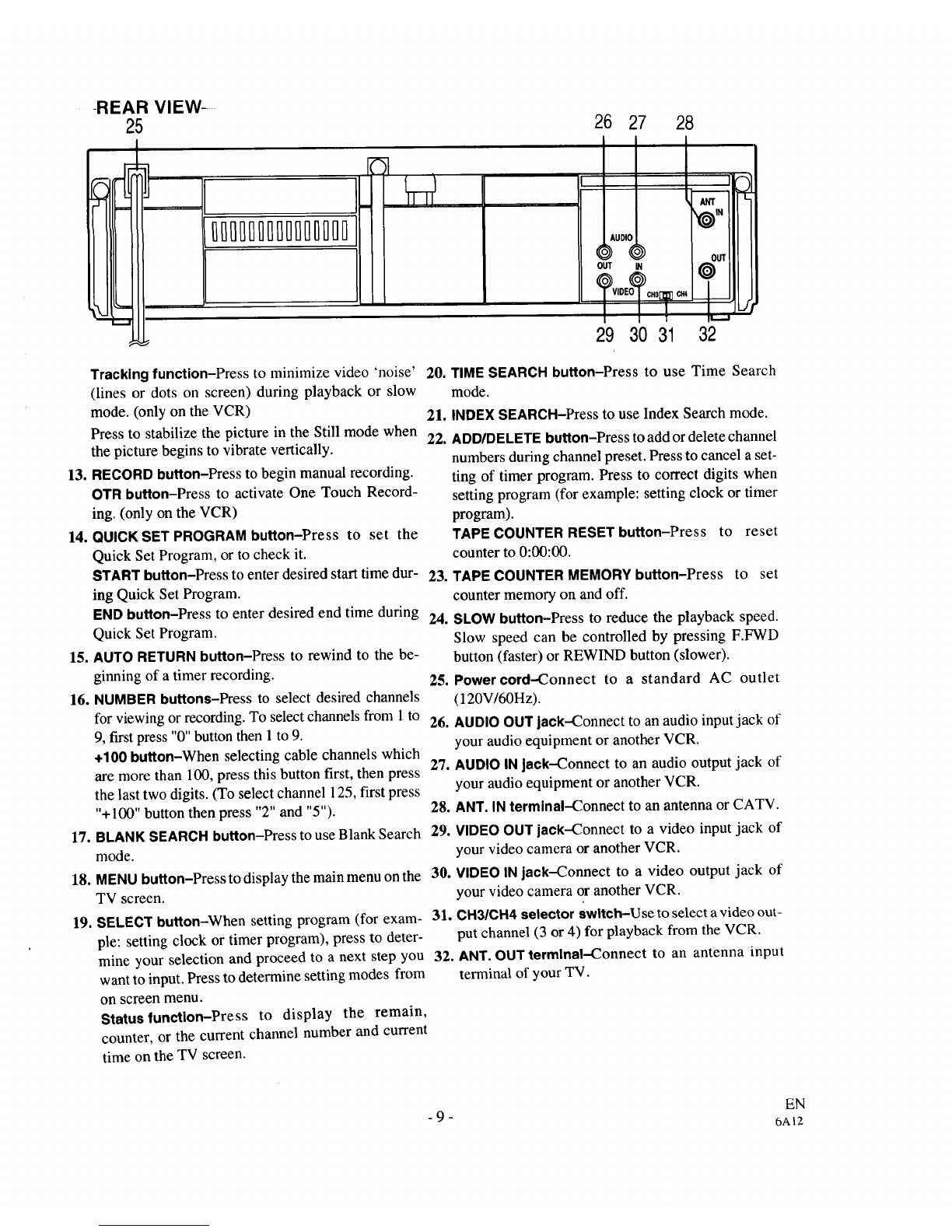

•OPERATING CONTROLS AND FUNCTIONS.. 8
•PREPARATION FOR USE ............................... 10
CABLE CONNECTIONS .................................. 10
SETrING A VIDEO CHANNEL ...................... 11
CONNECTING TO INPUT JACKS .................. 11
A/V TERMINALS .............................................. 11
INSTALLING THE BATTERIES ..................... 11
•PRESET FOR USE............................................ 12

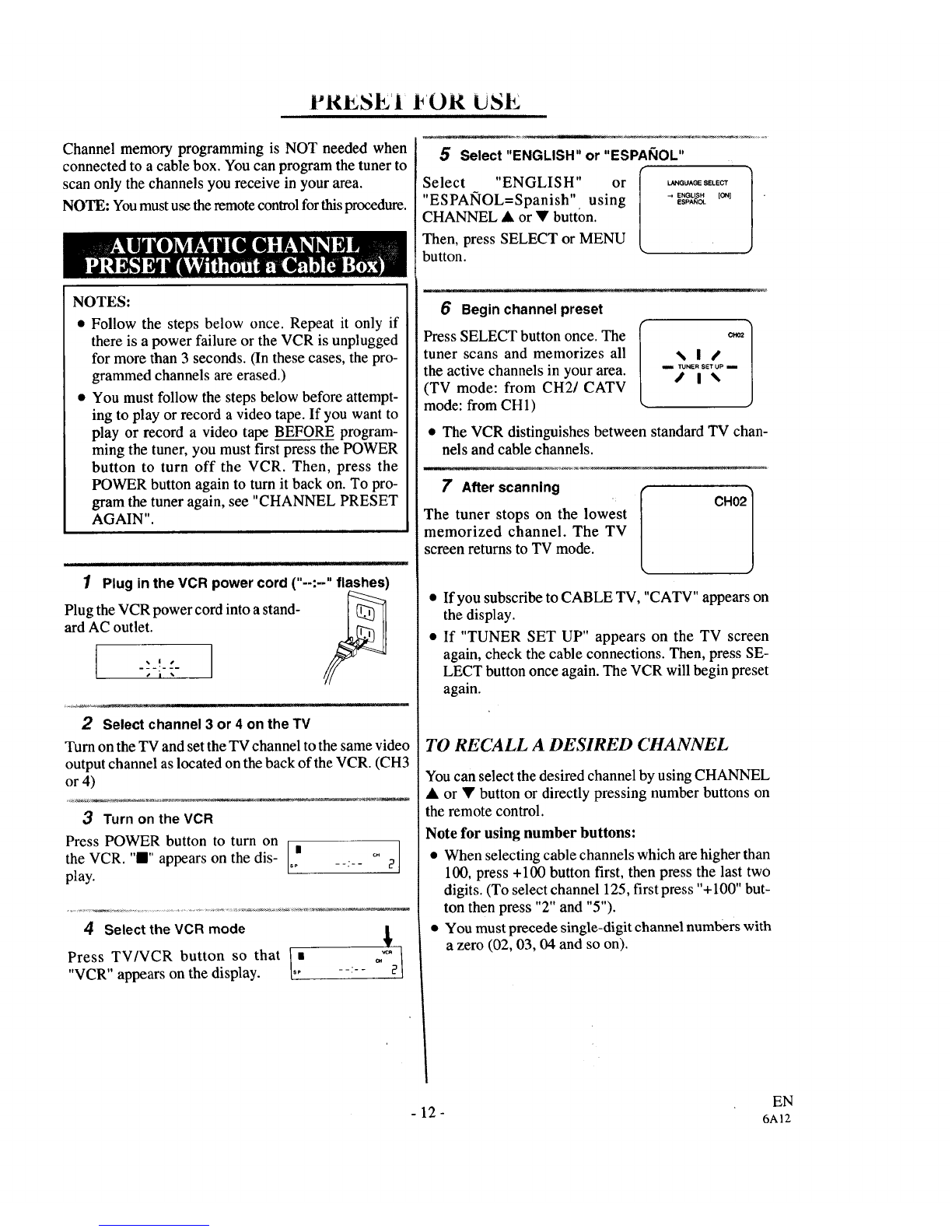

AUTOMATIC CHANNEL PRESET
(Without aCable Box) ........................................ 12
TO DELETE PRESET CHANNEL ................... 13
CHANNEL PRESET AGAIN ............................ 13

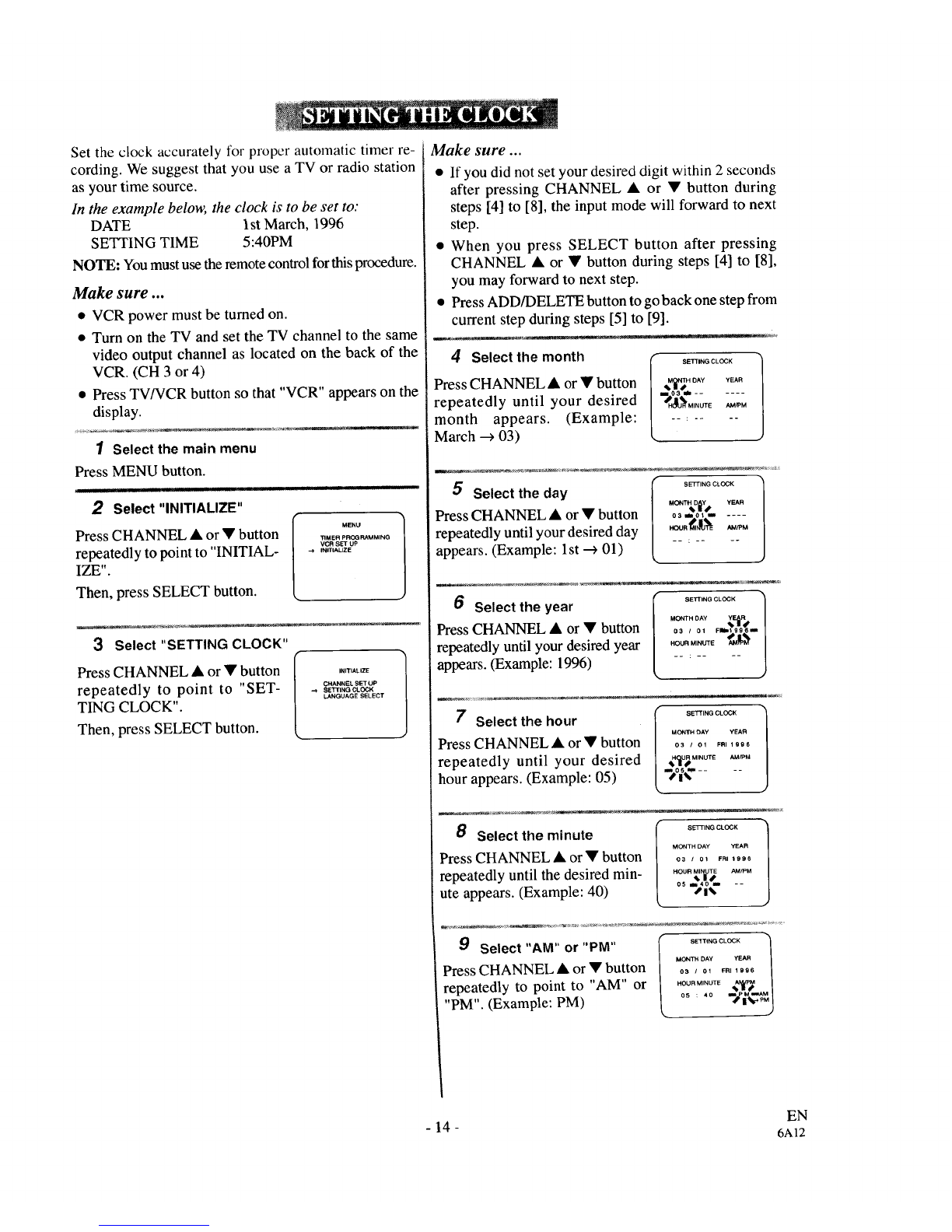

SETTING THE CLOCK ................................... 14
SELECTING THE LANGUAGE ...................... 15
•ON SCREEN DISPLAY. .................................... 15
•PLA YBACK ........................................................ 16

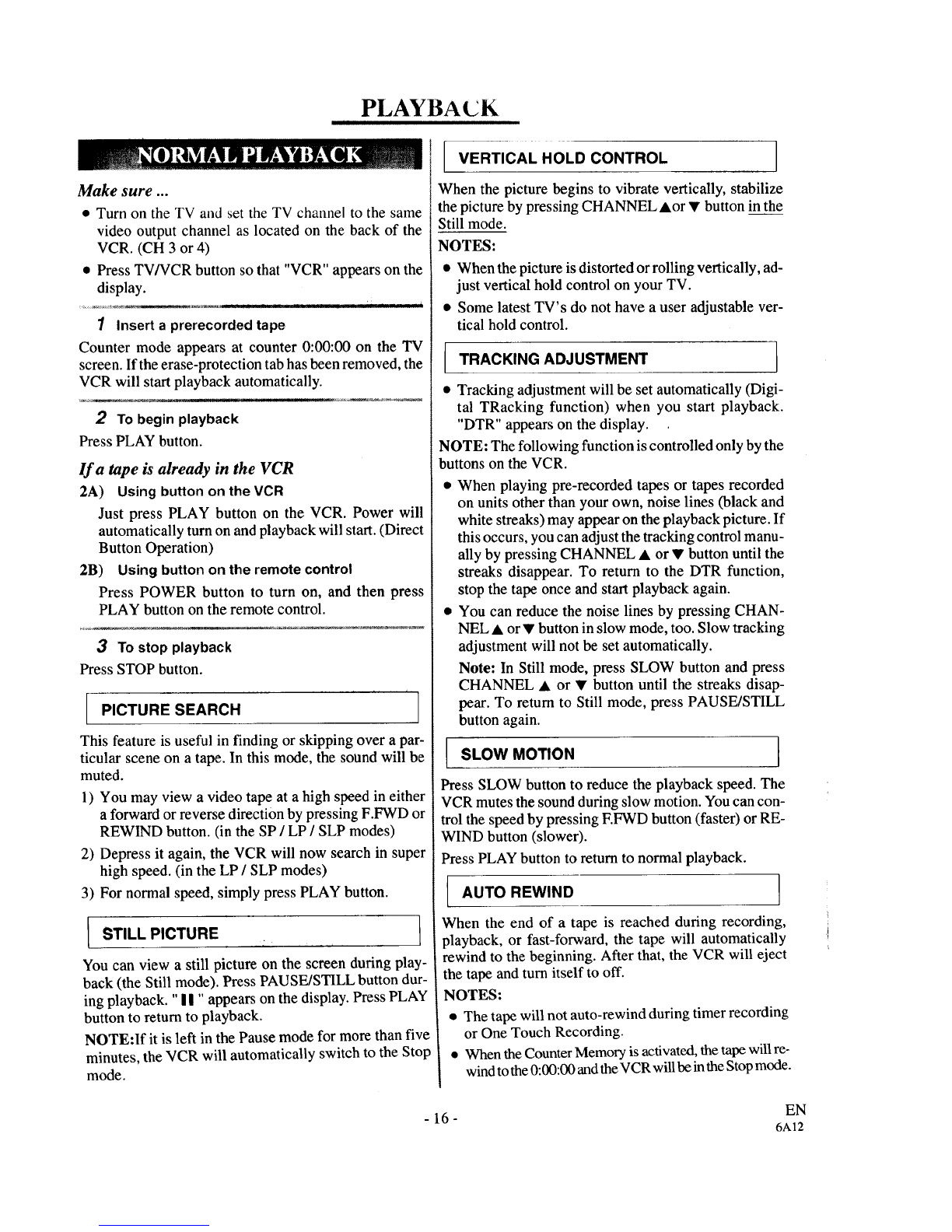

NORMAL PLAYBACK .................................... 16
•SPECIAL PLAY BACK ...................................... 17
AUTO REPEAT PLAYBACK .......................... 17
RENTAL PLAY ................................................. 17
•SEARCH ............................................................. 18
COUNTER MEMORY ...................................... 18
TIME SEARCH .................................................. 18
INDEX SEARCH .............................................. 19
BLANK SEARCH .............................................. 19
•RECORDING ..................................................... 20
VIEWING AND RECORDING THE SAME
PROGRAM ......................................................... 20
SKIPPING SOME MATERIALS DURING
RECORDING ..................................................... 20
RECORDING ONE PROGRAM WHILE
VIEWING ANOTHER ....................................... 21
TO MONITOR THE PROGRESS OF YOUR
RECORDING ..................................................... 21
OTR (One Touch Recording) ............................. 21
TIMER RECORDING ....................................... 22
AUTOMATIC TIMER RECORDING ............... 22
QUICK SET PROGRAM ................................... 24
HINTS FOR TIMER RECORDING
(AUTOMATIC TIMER &
QUICK SET PROGRAM) ................................. 25
AUTO RETURN ................................................ 25
JUST-IN TIME RECORDING ........................... 26
•SETTING THE REMAINING TIME... ............ 27
•COPYING A VIDEO TAPE............................... 28
•TROUBLESHOOTING GUIDE ....................... 29
•MAINTENANCE ............................................... 30
•SPECIFICATIONS ............................................ 30
- 4 - EN
6A12

t'RECAUIIONS
For safe operation and satisfactory performance of your
VCR, keep the following in mind when selecting a place •
for its installation: •
• Shield it from direct sunlight and keep it away from
sources of intense heat.
• Avoid dusty or humid places.
• Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes
at the top and bottom of the VCR. Do not place the
unit on a carpet because this will block the ventilation
holes.
• Install unit in a horizontal position.
• Avoid locations subject to strong vibration.
• Do not place the VCR near strong magnetic fields.
• Do not move the unit from a cold to a hot place or
vice versa.
• Do not place the VCR directly on top of the TV.
Do not handle the power cord with wet hands.
Do not pull on the power cord when disconnecting it
from AC wall outlet. Grasp it by the plug.
If, by accident, water is spilled on your VCR, unplug
the power cord immediately and take the unit to a
Sears Authorized Service Center for servicing.
Do not put your fingers or objects into the VCR cas-
sette holder.
Do not place anything directly on top of the VCR.
Moisture condensation may occur inside the unit when
it is moved from a cold place to a warm place, or after
heating a cold room or under conditions of high humid-
ity. Do not use the VCR at least for 2hours until its inside
is dry.
FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications
to this equipment may cause harmful interference unless the modifications are expressly approved in the
instruction manual. The user could lose the authority to operate this equipment if an unauthorized change
or modification is made.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted
material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication,
use or other acts which infringe upon the rights of copyright owners.
The serial number of this product may be found on the back of the VCR. No others have the same serial number
as yours. You should record the number and other vital information here and retain this book as a permanent record
of your purchase to aid identification in case of theft.
Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
EN
- 5 -6A12

FEAI'UR.ES
Rotary 4-head Record/Playback System
Bilingual on-screen menu display select-
able in English or Spanish
Infrared remote control
Real time counter-This shows the elapsed record-
ing or playback time in hours, minutes, and seconds.
The "-" indication will appear when the tape is re-
wound further than the tape counter position
"0:00:00".
181 channel capability PLL frequency syn-
thesizer tuner with direct station call- (A con-
verter may be necessary to view scrambled cable
channels.)
Auto operation features
• Auto power on system when inserting a tape
•Auto counter reset when inserting a tape
• Auto rewind when the end of a tape is reached (not
in the case of timer recording).
Playback features
• Direct button operation
• 2 step picture search operation ; at a high speed /at a
super high speed
• Still picture
• Digital auto tracking (DTR)
• Auto repeat playback
• Rental play mode
• Time search
• Blank search
• Index search
• Slow motion
• Tape remainder
Recording features
Three different tape speeds : SP/LP/SLP
OTR (One Touch Recording)
Automatic timer recording including Daily &
Weekly
Quick Set Program
Auto return
Just-In-Time Recording
Edit Search
SUPPLIED ACCESSORIES
Coaxial Cable Batteries
(AA x 2)
Remote Control Unit
PART NO.
(N9086UD)
• If you need to replace these accessories, please refer to the PART NO. under the illustrations and contact the
Sears parts department for ordering.
• Depending on your antenna system, you may need different types of Combiners (Mixer) or Separators (Splitter).
Contact your local electronics store for these items.
- 6 - EN
6A12

vIDEO CA iSE*.I**I'E IAI E
This VCR will operate with any cassette that has the VHS mark. For best results, we recommend the use of
high-quality tapes. Do not use poor quality or damaged tapes.
PRECAUTIONS
• Avoid moisture. Moisture condensation may occur
on the tape if it is moved from a cold place to a warm
place. Before using a tape with these conditions, to
avoid a damage of the tape and your VCR, wait until
the tape has warmed to room temperature and the
moisture has evaporated.
• Avoid extreme heat, high humidity and magnetic
fields.
• Do not tamper with the cassette mechanism.
• Do not touch the tape with your fingers.
INSERTING A CASSETTE
Insert the cassette in the direction as shown. Push in
gently, but continuously, on the center-back of the cas-
sette until it is drawn into the VCR.
The VCR will automatically turn on.
Inl lJ LI J"_lUl
tt_l "_ J
CORRECT f _D.
WRONG
THREE DIFFERENT TAPE SPEEDS
Before recording, select the tape speed from :SP mode
(Standard Play), LP mode (Long Play) or SLP mode
(Super Long Play).
The table below shows the maximum recording/play-
back time using T60, T120 or T160 tapes in each mode.
Tape Speed
Type oftape
SP mode
LP mode
SLP mode
Recording/Playback Time
T60 T120 T160
1 hour 2 hours 2-2/3 hours
2 hours 4 hours 5-1/3 hours
3 hours 6 hours 8 hours
REMOVING A CASSETTE
1) In the Stop mode, press EJECT button on the remote
control or press STOP/EJECT button on the VCR.
The cassette will be ejected.
2) Pull the cassette out of the cassette compartment.
3) Store the cassette in its case as shown.
ERASE PREVENIION
You can prevent accidental
erasing of recording by
breaking off the tab on the
back edge of the cassette.
If you decide to record on
the tape again, cover the
hole with a plastic tape.
EN
-'7 - 6A12

OIq_KA | ii_b _O_'I'ROI_S AND FUN_IIONb
---FRONT VIEW--
I
30 27
6
Ill
LTT
78 9
1
I
1
10
lo
2 3 4 5
11 12 13 14 15
Cassette Compartment
--REMOTE CONTROL VIEW-- 2. STOP button-Press to stop the tape motion.
EJECT button-Press to remove a tape from the
VCR.
__
16 "I
17--
24..__--
1918 :ii_::
3----
13--
2
f/-
POWER
TIMER REC "rVNCR
1 2 3
-O O C>
4 5 6 •
OOO
7 8 9 CHAN.EUS_
OOo
0 +100 •
MENU SELECT
REWIND PLAY
RECORD STOP
-<D
F.FWD
PAUSE/STILL
--20
21
4
6
3. REWIND button-Press to rewind the tape, or to view
the picture rapidly in reverse during the playback
mode. (Rewind Search)
4. PLAY button-Press to begin playback.
5. F.FWD button-Press to rapidly advance the tape, or
view the picture rapidly in forward during playback.
(Forward Search)
6. PAUSE/STILL button-Press to temporarily stop the
tape during recording or to view a still picture during
playback.
Frame Advance Function-Press to advance the pic-
ture by one frame during pause/still mode.
7. POWER/TIMER REC button-Press to turn VCR on
and off. Press to activate a timer recording.
8. TV/VCR button-Press to select TV or VCR mode.
VCR position: to view playback, to monitor video
recordings or watch TV using the VCR tuner.
TV position: to watch TV or to view one program
while recording another.
9. Remote sensor window-Receives the infrared sig-
nals from the remote control.
10. Digital display-Displays the clock, timer recording,
counter and channel etc.
11. TAPE SPEED button-Press to set desired recording
speed : SP/LP/SLP.
12. CHANNEL buttons-Press to select desired channels
for viewing or recording.
SET buttons-Press to enter digits when setting pro-
gram (for example: setting clock or timer program).
Press to select setting modes from on screen menu.
- 8 - EN
6A12

-REAR VIEW-
25 26 27 28
[ ]l]t]l]O rlNDI]l]l]rl --%
,,01"
AUDI OUT
OUT IN 0
VIDEO_ c:t3 CH4
29 30 31 32
Tracking function-Pressto minimize video 'noise' 20.
(lines or dots on screen) during playback or slow
mode. (only on the VCR) 21.
Press to stabilize the picture in the Still mode when 22.
the picture begins to vibrate vertically.
13. RECORD button-Press to begin manual recording.
OTR button-Press to activate One Touch Record-
ing. (only on the VCR)
14. QUICKSET PROGRAM button-Press to set the
Quick Set Program, or to check it.
START button-Press to enter desired start time dur- 23.
ing Quick Set Program.
END button-Press to enter desired end time during 24.
Quick Set Program.
15. AUTO RETURN button-Press to rewind to the be-
ginning of a timer recording. 25.
16. NUMBER buttons-Press to select desired channels
for viewing or recording. To select channels from 1to 26.
9, first press "0" button then 1 to 9.
÷100 button-When selecting cable channels which 27.
are more than 100, press this button first, then press
the last two digits. (To select channel 125, first press
"+100" button then press "2" and "5"). 28.
17. BLANK SEARCH button-Press to use Blank Search 29.
mode.
18. MENUbutton-Press to display the main menu on the 30.
TV screen.
19. SELECT button-When setting program (for exam- 31.
pie: setting clock or timer program), press to deter-
TIME SEARCH button-Press to use Time Search
mode.
INDEXSEARCH-Press to use Index Search mode.
ADDIDELETE button-Press to add or delete channel
numbers during channel preset. Press to cancel a set-
ting of timer program. Press to correct digits when
setting program (for example: setting clock or timer
program).
TAPE COUNTER RESET button-Press to reset
counter to 0:00:00.
TAPE COUNTER MEMORY button-Press to set
counter memory on and off.
SLOW button-Press to reduce the playback speed.
Slow speed can be controlled by pressing F.FWD
button (faster) or REWIND button (slower).
Powercord--Connect to a standard AC outlet
(120V/60Hz).
AUDIO OUT jack--Connect to an audio input jack of
your audio equipment or another VCR.
AUDIO INjack--Connect to an audio output jack of
your audio equipment or another VCR.
ANT. INterminal--Connect to an antenna or CATV.
VIDEOOUT jack--Connect to a video input jack of
your video camera or another VCR.
VIDEOIN jack-Connect to a video output jack of
your video camera or another VCR.
CH3/CH4 selector switch-Use to select avideo out-
put channel (3 or 4) for playback from the VCR.
mine your selection and proceed to a next step you 32. ANT.OUT terminal--Connect to an antenna input
want to input. Press to determine setting modes from terminal of your TV.
on screen menu.
Status function-Press to display the remain,
counter, or the current channel number and current
time on the TV screen.
EN
- 9 - 6A12

Iq{EPARAIlON l_OR USE
For some of the most common types of connections, see the following drawings. Use only one connection. For
any further complex connections, please contact your local dealer or other qualified persons. (You may need
additional accessories which are not supplied).
1Disconnect the antenna or cable from your TV. 2Connect the antenna or cable to the ANT.iN
jack of your VCR.
[VHF/UHF combination antenna]
[VHFantenna] [UHFantenna]
[Indoor antenna]
_OR
OR
UHFNHFcombiner
(notsupplied)
mUHF 1]
• (3°°°hm)/q _i
_-_VHF i [ OR
i"_"(75ohm)y
[Cable box or Cable company]
[Back oftheVCR
__ f
ANT
_)IN
OUT
@
I...-I
3Connect one end of the coaxial cable (sup-
plied) to the ANT.OUT jack of your VCR.
[Backof theVCR
ANT
Ogl
(_,= "
II =.
CH3_CH4 __ J
4Connect the other end of the coaxial cable
(supplied) to the UHF/VHF antenna jacks.
[Backofthe
UHFNHF combiationTV
OR
Coaxialcable(supplied)
[Backof the
"___. ' UHFNHF separated TV
OR "_'_ UHF/VHF separator _=
,)/ (not supplied) II f'/-_"_
Coaxial cable (supplied) I .... L_--_-_-_ _
EN
-10- 6A12

If your TV does not have A/V terminals,"
When the VCR is in the Playback mode or when the
TV/VCR button is in the VCR position, your TV will
receive the signals from the VCR on either channel 3 or
4.
To use the VCR with your TV, set the selector switch to
CH3 or CH4, whichever is not used or least used for
normal broadcasts in your area. Then set your TV to that
same channel.
CH3 CH4
I..... .... I...... 4 ,... ju I
jacks.
NOTE: You can use the audio and video input jacks on
the front panel of VCR instead of using jacks on the
back.
[Anothersource] Toanaudio
outputjack [BackoftheVCR]
adaptercord .Iout _ I
otc.
Toanvideooutputjack
INPUT SELECT
To use the external input jacks, select the "LI" or "L2"
position.
If you use the audio and video input jacks on the back
of the unit, press 0, 0, 1with number buttons to select
the "L1" position.
When you cop), a video tape, or watch a program re-
corded on an another source, use audio/video input
If your TV has AN input jacks, you may connect your
VCR's AUDIO/VIDEO OUTPUT jacks to the
audio/video input jacks on back of your TV.
Direct audio/video connections usually result in abetter
picture and sound quality for tape playback. Please see
your TV's owner's manual for A/V input connections.
AudioNideo"Y"adaptercord [BackoftheVCR]
I LAuDIoJvJDEorI
1) Open the battery compartment cover by pressing the
cover on the remote unit in the direction of the arrow.
2) Insert 2 "AA" penlight batteries into the battery com-
partment in the direction indicated by the polarity
(+1-)markings.
3) Replace the cover.
If you use the audio and video input jacks on the front Note to CAT¥ system installer
o1'the unit, press 0, 0, 2 with number buttons to select This reminder is provided to call the CATV system
the L2 position, installer's attention to Article 820-40 of the NEC that
You can select "LI", "L2" as a channel by using the provides guidelines for proper grounding and, in par-
CHANNEL "&," or "V" button, ticular, specifies that the cable ground shall be con-
nected to the grounding system of the building, as
Note: "LI" and "L2" are found before the lowest memo- close to the point of cable entry as practical.
rized channel. (Example: CH2)
EN
- 11 - 6A12

i i I OK UZ E
Channel memory programming is NOT needed when
connected to a cable box. You can program the tuner to
scan only the channels you receive in your area.
NOTE: Youmust use the remote control forthis procedure.
NOTES:
• Follow the steps below once. Repeat it only if
there is a power failure or the VCR is unplugged
for more than 3 seconds. (In these cases, the pro-
grammed channels are erased.)
• You must follow the steps below before attempt-
ing to play or record a video tape. If you want to
play or record a video tape BEFORE program-
ming the tuner, you must first press the POWER
button to turn off the VCR. Then, press the
POWER button again to turn it back on. To pro-
gram the tuner again, see "CHANNEL PRESET
AGAIN".
,iijrlll ijjj i R:
1Plug in the VCR power cord ("-:-" flashes)
ardPlUgACtheoutlet.VCR,,poweri!," cord into a stand-
2Select channel 3 or 4 on the TV
Turn on the TV and set the TV channel to the same video
output channel as located on the back of the VCR. (CH3
or 4)
3Turn on the VCR
Press POWER button to turn on r,
the VCR. "m" appears on the dis- L"s --:-- °" ?
play.
4Select theVCR mode _/
Press TV/VCR button so that l a o_
"VCR" appears on the display. 0.....
5Select "ENGLISH" or "ESPAhlOL"
Select "ENGLISH" or
"ESPAlqOL=Spanish" using
CHANNEL • or • button.
Then, press SELECT or MENU
button.
LANGUAGE SELECT
ENGL H
ESPA_SC__ [ON}
6Beginchannel preset
Press SELECT button once. The
tuner scans and memorizes all
the active channels in your area.
(TV mode: from CH2/CATV
mode: from CH1)
• The VCR distinguishes between standard TV chan-
nels and cable channels.
7After scanning
The tuner stops on the lowest
memorized channel. The TV
screen returns to TV mode.
CH02
•If you subscribe toCABLE TV, "CATV" appears on
the display.
• If "TUNER SET UP" appears on the TV screen
again, check the cable connections. Then, press SE-
LECT button once again. The VCR will begin preset
again.
TO RECALL A DESIRED CHANNEL
You can select the desired channel by using CHANNEL
• or • button or directly pressing number buttons on
the remote control.
Note for using number buttons:
• When selecting cable channels which are higher than
100, press +100 button first, then press the last two
digits. (To select channel 125, first press "+ 100" but-
ton then press "2" and "5").
• You must precede single-digit channel numbers with
a zero (02, 03, 04 and so on).
EN
-12- 6A12

The channels you no longer receive orseldom watch can
be deleted from the memory. (Of course, you can add
the deleted channel into the memory again.)
NOTE" You must use the remote control for this procedure.
Make sure ...
• VCR power must be turned on.
• Turn on the TV and set the TV channel to the same
video output channel as located on the back of the
VCR. (CH 3 or 4)
• Press TV/VCR button so that "VCR" appears on the
display.
1Select the main menu
Press MENU button. The main
menu appears on the TV screen.
MENU
TIME R PROGRAMMING
VCR SET UP
INITIALIZE
6Delete it from memory
Press ADD/DELETE button so that "DELETE" flashes
on the TV screen.
• To delete another channel, repeat steps [5] and [6].
• If you press ADD/DELETE button again, the chan-
nel is memorized again.
- DELETED -
7' Exitthe preset mode
PressMENU buttontoreturn toTV mode.
NOTE: To confirm that channel(s) has been deleted or
- MEMORIZED -
2Select"INITIALIZE"
Press CHANNEL • or • button
repeatedly to point to "INITIAL- 13MER PROGRAMMING
VCR SET UP
INITIALIZE
added, press CHANNEL • or • button.
MENU
TIMER PROGRAMMING
VCR SET UP
INITIALIZE
Press MENU button. The main
1Select the main menu
IZE".
Then, press SELECT button.
3Select "CHANNEL SET UP"
Press CHANNEL • or • button
repeatedly to point to "CHAN-
NEL SET UP".
Then, press SELECT button.
INITIALIZE
CHANNEL SET UP
SETTIt4G CLOCK
LANGUAGE SELECT
menu appears on the TV screen.
2Select "INITIALIZE"
Press CHANNEL • or • button
repeatedly to point to "INITIAL-
IZE".
Then, press SELECT button.
MENU
TIMER PRCGRAMMING
VCR SET UP
_NITIALIL;'E
4Select "ADD/DELETE CH"
Press CHANNEL • or • button
repeatedly to point to "ADD/DE-
LETE CH".
Press SELECT button.
CHANNELSET UP
/V IONJ
CAW
ADD/DELetE CH
5Enter the desired channel number
_m_D_mdlD%11ELETE CH '_
Press the number buttons or ,-_.,_
CHANNEL • or • button re- "_,'_
peatedly until your desired chan-
nel number appears. (Example:
CH02)
3Select "CHANNEL SET UP"
Press CHANNEL • or• button
repeatedly to point to "CHAN-
NEL SET UP".
Then, press SELECT button.
INITIALIZE
CHANNEL SET UP
SETTING CLOCK
LANGUAGE SELECT
4Select "TV" or "CATV"
CHANNEL SET UP
Press CHANNEL • or• button _ _, to,_
CAW
repeatedly to point to "TV" or ..........
"CATV".
5Begin channel preset
Press SELECT button once. After scanning, the tuner
stops on the lowest memorized channel.
- 13 - EN
6A12

Set the clock accurately for proper automatic timer re-
cording. We suggest that you use a TV or radio station
as your time source.
In the example below, the clock is to be set to:
DATE I st March, 1996
SETTING TIME 5:40PM
NOTE: You must use the remote control for this procedure.
Make sure ...
• VCR power must be turned on.
• Turn on the TV and set the TV channel to the same
video output channel as located on the back of the
VCR. (CH 3 or 4)
• Press TV/VCR button so that "VCR" appears on the
display.
1Select the main menu
Press MENU button.
u IL ,ll
2Select "INITIALIZE"
Press CHANNEL • or •button
repeatedly to point to"INITIAL-
IZE".
Then, press SELECT button.
I i i i
IMENU
TIMER PROGRAMMING
VCR SET UP
INITIALIZE
3 Select "SETTING CLOCK"
Press CHANNEL • or • button
repeatedly to point to "SET-
TING CLOCK".
Then, press SELECT button.
INITIALIZE
CHANNEL SET UP
SETTINQ CLOCK
LANGUAGE SELECT
Make sure ...
•If you did not set your desired digit within 2 seconds
after pressing CHANNEL • or • button during
steps [4] to [8], the input mode will forward to next
step.
• When you press SELECT button after pressing
CHANNEL • or • button during steps [4] to [8],
you may forward to next step.
• Press ADD/DELETE button to go back one step from
current step during steps [5] to [9].
4Select the month
Press CHANNEL • or • button
repeatedly until your desired
month appears. (Example:
March --->03)
ISETTING CLOCK
??=
5Select the day _ _,N_OLoo_
Press CHANNEL • or• button l MON_,_ ....
repeatedly until your desired day _'_" _
appears. (Example: 1st --->01) .......
0Se,eot,heyearI s......1
Press CHANNEL • or • button MON..... _]_' 1
repeatedly until your desired year "_"I_E
appears. (Example: 1996) : --
7Select the hour [ MON,_O_ffOL_AR
Press CHANNEL • or • button ...... ,.....
repeatedly until your desired 4t_9..... _ "_'_
hour appears. (Example: 05) _"s°_" ....
8Select the minute s_,,6cLocN
MONTH DAY YEAR
Press CHANNEL • or Ybutton o_.... ......
repeatedly until the desired rain- _ou_ ,_.
ute appears. (Example: 40) ,'l_ --
9Select "AM" or "PM" ,O_,_"_CL°_=%.._,IDA_YEA,
PressCHANNEL •or Vbutton ............
HOUR MINUTE M
repeatedly to point to "AM" or ,,_3
"PM". (Example: PM) ..... .s_
EN
-14- 6A12

_Li _5_ _ _h_ ¸_;_ck
Press MENU or SELECT button.
Although seconds are not displayed, they begin count-
ing from 00 when you press MENU or SELECT button.
Use this feature to synchronize the clock with the correct
time.
NOTES:
• When unplugging the AC-cord or if there is a power
failure for more than 3 seconds, "- - : - -" flashes on
the display.
• If the display shows an abnormal reading or no read-
ing, unplug the power cord for more than 3 seconds.
Then plug it back in.
TO CHANGE CLOCK SETTING
If you want to change the clock,
1) Press MENU button.
2) Press CHANNEL • or • button repeatedly to point
to "INITIALIZE".
Then, press SELECT button.
3) Press CHANNEL • or • button repeatedly to point
to "SETTING CLOCK".
Then, press SELECT button.
4) Select a digit you want to change using SELECT but-
ton or ADD/DELETE button.
5) Enter correct numbers using CHANNEL • or •
button.
6) Press MENU button to return to original mode.
If you want to change the language on the TV screen,
follow the steps below:
1Selectthe main menu
Press MENU button.
2Select "INITIALIZE"
Press CHANNEL • or _' button
repeatedly to point to "INITIAL-
IZE".
Then, press SELECT button.
MENU
"rIMER PROGPJtMMING
VCR SET UP
INITIALIZE
3Select "LANGUAGE SELECT"
Press CHANNEL • or • but- ,........
CHANNEL SET UP
ton repeatedly to point to "LAN- S_,,,N_C_o_
LANGUAGE SELECT
GUAGE SELECT",
Then, press SELECT button.
4Select "ENGLISH" or "ESPAI_iOL"
Select "ENGLISH" or
"ESPAlqOL= Spanish" using
CHANNEL • or • button.
LANGUAGE SELECT
ENGL
ESPAN_HoL [ON]
5Exit the Language select
Press MENU button to return to TV mode.
ON SCREEN DISPLAYi ill
To check the Remain, Count, Clock and Channel num-
ber on the TV screen and display, press SELECT button.
Each time you press SELECT button, TV screen and
display will change as the illustration:
<OFF mode>
÷ll 1
<REMAIN mode>_ 'Pressonce
I II mm CHvcR
_ 0:3q
P REMAIN 0:aT -X130
<COUNT mode> _Press once
c.H
_ 0:12:3q '
p o:12:34
<CLOCK mode> _r Press once
|_ FmCH
Press s_ 5:qO r,_ _-'
once
-15- EN
6A12

PLAYBACK
Make sure ...
• Turn on the TV and set the TV channel to the same
video output channel as located on the back of the
VCR. (CH 3 or 4)
•Press TV/VCR button so that "VCR" appears on the
display.
1Insert a prerecorded tape
Counter mode appears at counter 0:00:00 on the TV
screen. If the erase-protection tab has been removed, the
VCR will start playback automatically.
2To begin playback
Press PLAY button.
lf a tape is already in the VCR
2A) Using button on the VCR
Just press PLAY button on the VCR. Power will
automatically turn on and playback will start. (Direct
Button Operation)
2B) Using button on the remote control
Press POWER button to turn on, and then press
PLAY button on the remote control.
3Tostopplayback
Press STOP button.
PICTURE SEARCH
This feature is useful in finding or skipping over a par-
ticular scene on a tape. In this mode, the sound will be
muted.
1) You may view a video tape at a high speed in either
a forward or reverse direction by pressing F.FWD or
REWIND button. (in the SP /LP /SLP modes)
2) Depress it again, the VCR will now search in super
high speed. (in the LP /SLP modes)
3) For normal speed, simply press PLAY button.
STILL PICTURE I
You can view a still picture on the screen during play-
back (the Still mode). Press PAUSE/STILL button dur-
ing playback. "| |" appears on the display. Press PLAY
button to return to playback.
NOTE:If it is left in the Pause mode for more than five
minutes, the VCR will automatically switch to the Stop
mode.
VERTICAL HOLD CONTROL
When the picture begins to vibrate vertically, stabilize
the picture by pressing CHANNEL Aor •button in the
Still mode.
NOTES:
• When the picture is distorted or rolling vertically, ad-
just vertical hold control on your TV.
• Some latest TV's do not have a user adjustable ver-
tical hold control.
TRACKING ADJUSTMENT
• Tracking adjustment will be set automatically (Digi-
tal TRacking function) when you start playback.
"DTR" appears on the display.
NOTE: The following function is controlled only by the
buttons on the VCR.
• When playing pre-recorded tapes or tapes recorded
on units other than your own, noise lines (black and
white streaks) may appear on the playback picture. If
this occurs, you can adjust the tracking control manu-
ally by pressing CHANNEL •or • button until the
streaks disappear. To return to the DTR function,
stop the tape once and start playback again.
• You can reduce the noise lines by pressing CHAN-
NEL • or • button in slow mode, too. Slow tracking
adjustment will not be set automatically.
Note: In Still mode, press SLOW button and press
CHANNEL • or • button until the streaks disap-
pear. To retum to Still mode, press PAUSE/STILL
button again.
SLOW MOTION I
Press SLOW button to reduce the playback speed. The
VCR mutes the sound during slow motion. You can con-
trol the speed by pressing EFWD button (faster) or RE-
WIND button (slower).
Press PLAY button to return to normal playback.
AUTO REWIND
When the end of a tape is reached during recording,
playback, or fast-forward, the tape will automatically
rewind to the beginning. After that, the VCR will eject
the tape and turn itself to off.
NOTES:
• The tape will not auto-rewind during timer recording
or One Touch Recording.
• When the Counter Memory is activated, the tape will re-
wind to the 0:00:00 and the VCR will be in the Stop mode.
EN
-16- 6A12

PEICIAI, PLAY BACK
Make sure ...
•VCR power must be turned on.
• Turn on the TV and set the TV channel to the same
video output channel as located on the back of the
VCR. (CH 3 or 4)
• Press TV/VCR button so that "VCR" appears on the
display.
•You must use the remote control for the following
procedure.
The VCR has the auto repeat function that allows you
to repeat a tape indefinitely without touching the PLAY
button.
• Insert a prerecorded tape.
1Select the main menu
Press MENU button.
2Select "VCR SET UP"
Press CHANNEL • or • button
repeatedly to point to "VCR SET
UP".
Then, press SELECT button.
MENU
TIMER PROGRAMMING
VCR SET UP
INITIALIZE
3Select "REPEAT PLAY"
Press CHANNEL • or• button
repeatedly to point to "REPEAT
PLAY". IVCR SET UP
TAPE SELECT -T130
REPEAT PLAY
RENTAL
AUTO RETURN
4Begin Auto repeat playback
PressSELECT buttonsothat[ON] will appearnextto
"REPEAT PLAY" on the TV screen.
Repeat playback will start automatically.
NOTES:
• Once you select the repeat play mode, it stays in ef-
fect even after you turn off the VCR.
• When the Counter Memory is activated, the tape will re-
wind to 0:00:00 and the VCR will be in the Stop mode.
• If the Rental mode is set [ON], the "RENTAL
PLAYI_" display has priority.
This function enables you to improve the picture quality
when playing back worn cassettes such as those rented
from a video shop.
• Insert rental tape into VCR and begin playback.
ISelect the main menu
Press MENU button during playback.
2Select "VCR SET UP"
PressCHANNEL • or•button
repeatedly to point to "VCR SET
UP".
Then, press SELECT button.
3Select "RENTAL"
Press CHANNEL • or • button
repeatedly to point to "RENT-
AL".
Then, press SELECT button.
MENU
TIMER PROGRAMMING
VCR SET UP
INITIALIZE
IVCR SET UP
TAPE SELECT -T130
REPEAT PLAY
RENTAL
AUTO RETURN
TO STOP PLAYBACK
Press STOP button.
TO EXI THE A UTO REPEAT MODE
4Select "RENTAL" to [ON]
Press SELECT button so that "RENTAL ON" will ap-
pear on the TV screen.
NOTES:
• Once you select the rental play mode, it stays in effect
even after you turn off the VCR.
• Selecting ON or OFF must be done in the play mode
only.
Repeat steps [1] to [3]. Then, press SELECT button.
[ON] will then disappear from the menu. Press MENU
button to return to TV mode.
TO STOP PLA YBACK
Press STOP button.
TO EXIT THE RENTAL PlAY MODE
Repeat steps [1] to [3]. Then, press SELECT button so
that "RENTAL OFF" appears on the TV screen.
- 17 - EN
6A12

_EARCH
Make sure ...
• VCR power must be turned oil.
• Turn on the TV and set the TV channel to the same
video output channel as located on the back of the
VCR. (CH 3 or 4)
•Press TV/VCR button so that "VCR" appears on the
display.
• You must use the remote control for the following
procedure.
• A video cassette must be inserted in the VCR for
these functions to work.
This feature can be used to memorize a beginning point
that you want to review. And you can search it easily by
rewinding or fast forwarding.
• Insert a prerecorded tape.
• If the counter is not displayed, the Counter Mem-
ory will not be activated. Press SELECT button
so that the counter appears on the TV screen.
1Stop a tape at your desired point
Rewind or fast forward the tape to the beginning point
at which you want to review.
2Reset the counter to 0:00:00
Press TAPE COUNTER RESET button.
3Selectthe Counter Memory mode
Press TAPE COUNTER MEM-
ORY button so that "M" appears
on the TV screen. M 0:12:30 1
T
4Begin recording or playback
Press RECORD or PLAY button.
Press STOP button when recording or playback is com-
pleted.
5To activate the Counter Memory
Press REWIND (or EFWD) button. The tape will auto-
matically stop when the counter returns to 0:00:00.
TO EXIT "HIE COUNTER MEMORY
When the counter appears on the TV screen, press
TAPE COUNTER MEMORY button once and then
the SELECT button twice so that the "M" and the
counter disappears from the TV screen.
The Time Search function makes it possible to quickly
advance the tape to your desired position from any po-
sition by entering the exact amount of playback time of
the part that you want to skip.
Example: To watch a program after 2 hour 50 minutes
from present position to forward direction.
1Select "TIME SEARCH"mode
Press TIME SEARCH button.
2Enter your desired time
Press CHANNEL • or • button
repeatedly until your desired
time appears. (Example: "2:50"
for 2 hours 50 minutes)
3Begin Time Search
Press REWIND or EFWD button. The VCR begins re-
winding or fast forwarding to the specified point.
The time counts down as the searching progresses.
4After Time Search
When 0:00 is reached, the VCR will start playback auto-
matically.
NOTES:
• Time Search can be set up to 9 hours 59 minutes
(9:59).
• This function will not operate in recording mode.
• Procedures must be followed within 30 seconds,
from steps [1] to [2]. Otherwise the Time Search
mode will be cancelled.
•Press STOP button to exit the Time Search mode.
EN
-18- 6A12

Thisfeatureprovidesamethodofindexingthe starting
point so that it can be easily returned to in either fast
forward or rewind mode.
• The index mark will be made automatically when the
RECORD button is pressed. It will also be marked at
the starting point of Timer recording and OTR.
• The index mark is not recorded if the PAUSE/STILL
button is pressed and released during recording.
•The time gap between making the index marks on the
tape should be greater than 1 minute for SP recording,
2 minutes for LP recording and 3 minutes for SLP
recording.
Example: You are
watching program num-
ber 4 and want to fast
forward to program
number 7. You must
skip three programs.
CURRENT pLAYBACK PROGRAM
IP,o.lI.= 21.= 3_ p,osIPro.,IP,O.7I
4 3 2 1 1 2 3
INDEX MARK
1Select "INDEX SEARCH" mode
Press INDEX SEARCH button.
2Enter your desired number
Press CHANNEL • or • button f'N'_m_A"CN
repeatedly until the number of | _o_
programs that you want to skip
appears. (Example: "03" for 3
programs)
3Begin Index Search
Press REWIND or F.FWD button. The VCR begins re-
winding or fast forwarding to the beginning of desired
program.
Note: Every time an index signal is skipped, the number
in the program indicator decreases by one.
4After Index Search
When the preset program is reached, the VCR will start
playback automatically.
NOTES:
• Index Search can be set up to 20.
• This function will not operate in recording mode.
• Procedures must be followed within 30 seconds,
from steps [1] to [2]. Otherwise the Index Search
mode will be cancelled.
• Press STOP button to exit the Index Search mode.
This function enables you to search for the unrecorded
portion of the tape in the forward direction.
• Tape must be fully rewound.
1Select "BLANK SEARCH" mode
Press BLANK SEARCH button.
The VCR begins fast forwarding
to the beginning of the blank part
of the tape.
BLANKSEARCH
2After Blank Search
The VCR will automatically stop.
- 19- EN
6A12

KI t OKDi N tJ
Make sure .,,
• VCR power must be turned on.
• Turn on the TV and set the TV channel to the same
video output channel as located on the back of the
VCR. (CH 3 or 4)
• Press TV/VCR button so that "VCR" appears on the
display.
• Insert a cassette tape with its erase prevention tab in
place. (If necessary, rewind or fast forward the tape
to the point at which you want to begin recording.)
1Select the channel to be recorded
numUer°n* ere-I 1
mote control or the CHANNEL
• or • button.
NOTE: When you record with a cable converter box,
the VCR channel must be selected to 3 or 4 then the
actual channel that you wish to record must be selected
on the cable converter box.
2Select the tape speed _"
Press TAPE SPEED button on
the VCR to select the desired
tape speed (SP/LP/SLP).
3Begin recording
Press RECORD button. The red
"O" appears on the display. REC
SP
4Stop recording
Press STOP button when recording is completed.
f
Press PAUSE/STILL button to |"-"_--
temporarily stop recording. L
Press PAUSE/STILL or RE-
CORD button to resume record-
lng.
NOTES:
• To prevent tape damage, after five minutes, the VCR
will automatically switch to the Stop mode. You may
review the time remaining with "11" marks on the TV
screen. Each "=="mark shows one minute.
To edit an unwanted segment from the already re-
corded portion of tape, press and hold REWIND but-
ton during the Pause mode until you have reached the
beginning of the unwanted segment. (If you rewind
past the beginning of the unwanted segment, press
and hold F.FWD button during the Pause mode until
you have reached it.) (Edit Search
EN
-20 - 6A12
