Sears LXI series 580.55114490 User manual

|IIII$
OWNERS
MANUAL
MODEL NO.
580.55114490
KNOW YOUR UNIT
Read this booklet so you will be
able to enjoy all the features in
your video cassette player.
Record in space provided
below the Model No. and the
Serial No. as found on the rear
of your video cassette player.
Model No.
Serial No.
Retain this information for
future reference.
I¥11S
VIDEO CASSE'n'E
PLAYER
Operation
Sears, Roebuck and Co., Hoffman Estates, U60179. U.S.A.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE,
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be
of sufficient magnitude to constitute a risk of
electric shock to persons.
DEW (MOISTURE CONDENSATION)
The VCP has a built-in a humidity eliminator unit to
dry the metal surfaces, when humidity is high, to
prevent damage to the tape. When the VCP is
moved from a cold area to a warm area, a lot of
moisture forms on the metal surfaces. The DEW
indicator will light and the VCP will not operate
except for the EJECT mode. If this occurs, connect
the power cord to the AC line, press "POWER"
ON/OFF button on and wait for the VCP to dry out.
(DEW light goes out.)
WER" ON/OFF button_
"Note to CATV system installer: this reminder is provided to call the CATV system installer's attention to
Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building, as close to the point of cable entry
as practical."
-1-

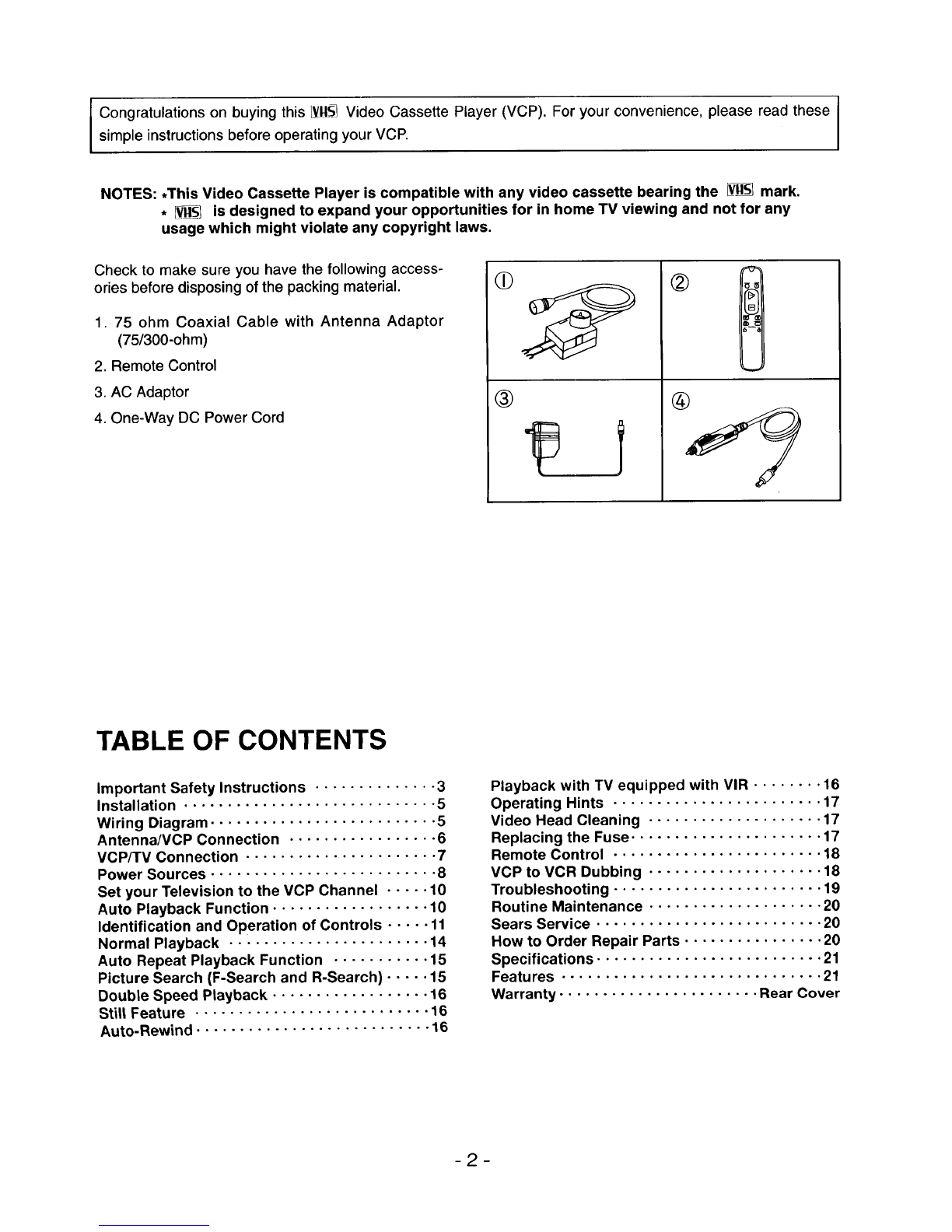

I Congratulations on buying this _g_£ Video Cassette Player (VCP). For your convenience, please read thesesimple instructions before operating your VCP.
NOTES: ,This Video Cassette Player is compatible with any video cassette bearing the _Vg_ mark.
,_is designed to expand your opportunities for in home TV viewing and not for any
usage which might violate any copyright laws.
Check to make sure you have the following access-
ories before disposing of the packing material.
1. 75 ohm Coaxial Cable with Antenna Adaptor
(75/300-ohm)
2. Remote Control
3. AC Adaptor
4. One-Way DC Power Cord ®®
TABLE OF CONTENTS
Important Safety Instructions .............. 3
Installation ............................. 5
Wiring Diagram .......................... 5
Antenna/VCP Connection ................. 6
VCP/TV Connection ...................... 7
Power Sources .......................... 8
Set your Television to the VCP Channel ..... 10
Auto Playback Function .................. 10
Identification and Operation of Controls ..... 11
Normal Playback ....................... 14
Auto Repeat Playback Function ........... 15
Picture Search (F-Search and R-Search) ..... 15
Double Speed Playback .................. 16
Still Feature ........................... 16
Auto-Rewind ........................... 16
Playback with TV equipped with VIR ........ 16
Operating Hints ........................ 17
Video Head Cleaning .................... 17
Replacing the Fuse ...................... 17
Remote Control ........................ 18
VCP to VCR Dubbing .................... 18
Troubleshooting ........................ 19
Routine Maintenance .................... 20
Sears Service .......................... 20
How to Order Repair Parts ................ 20
Specifications .......................... 21
Features .............................. 21
Warranty ....................... Rear Cover
-2-

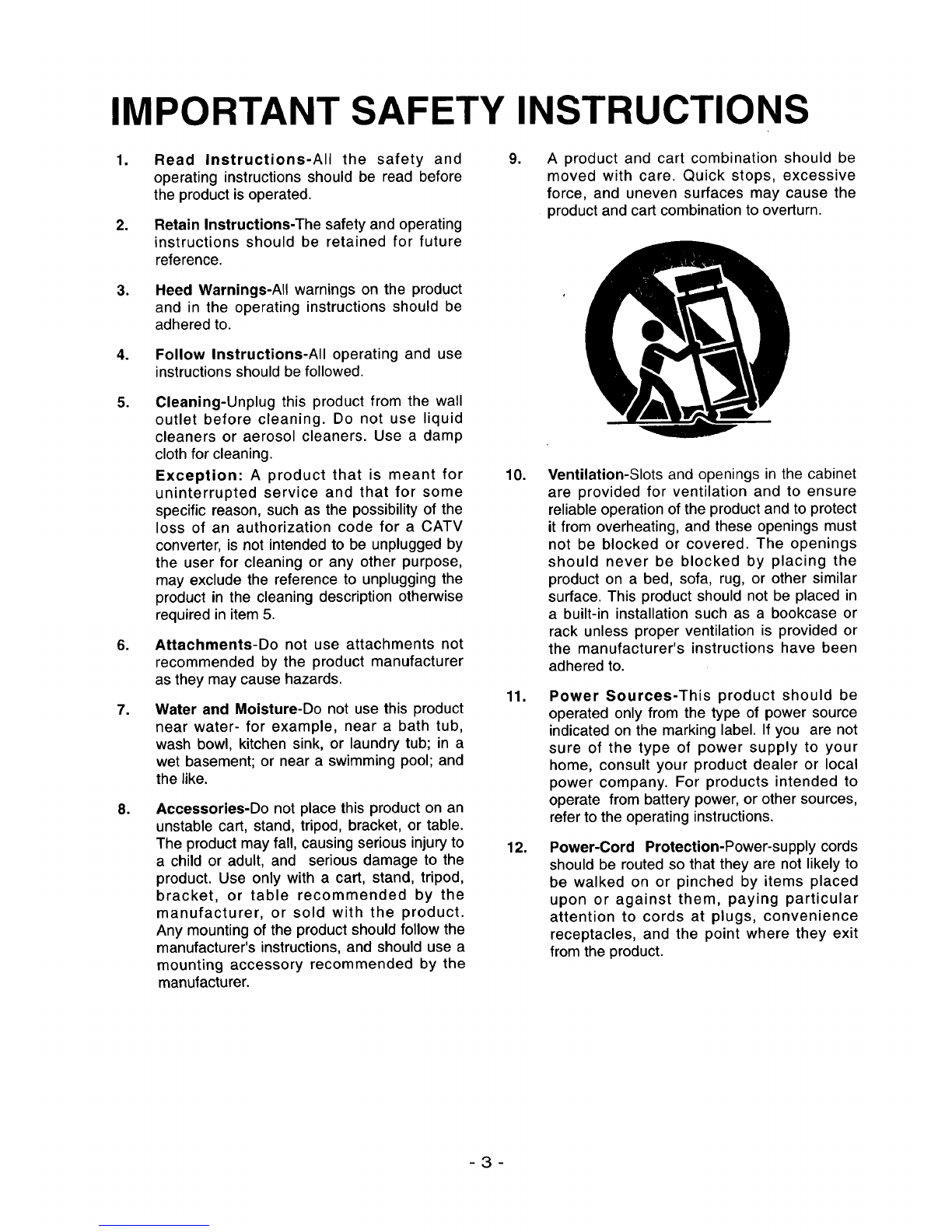

IMPORTANT SAFETY INSTRUCTIONS
1. Read Instructions-All the safety and 9.
operating instructions should be read before
the product is operated.
.
=
.
°
.
=
°
Retain Instructions-The safety and operating
instructions should be retained for future
reference.
Heed Warnings-All warnings on the product
and in the operating instructions should be
adhered to.
Follow Instructions-All operating and use
instructions should be followed.
Cleaning-Unplug this product from the wall
outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
Exception: A product that is meant for
uninterrupted service and that for some
specific reason, such as the possibility of the
loss of an authorization code for a CATV
converter, is not intended to be unplugged by
the user for cleaning or any other purpose,
may exclude the reference to unplugging the
product in the cleaning description otherwise
required in item 5.
Attachments-Do not use attachments not
recommended by the product manufacturer
as they may cause hazards.
Water and Moisture-Do not use this product
near water- for example, near a bath tub,
wash bowl, kitchen sink, or laundry tub; in a
wet basement; or near a swimming pool; and
the like.
Accessories-Do not place this product on an
unstable cart, stand, tripod, bracket, or table.
The product may fall, causing serious injury to
a child or adult, and serious damage to the
product. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer, or sold with the product.
Any mounting of the product should follow the
manufacturer's instructions, and should use a
mounting accessory recommended by the
manufacturer.
A product and cart combination should be
moved with care. Quick stops, excessive
force, and uneven surfaces may cause the
product and cart combination to overturn.
10.
11.
12.
Ventilation-Slots and openings in the cabinet
are provided for ventilation and to ensure
reliable operation of the product and to protect
it from overheating, and these openings must
not be blocked or covered. The openings
should never be blocked by placing the
product on a bed, sofa, rug, or other similar
surface. This product should not be placed in
a built-in installation such as a bookcase or
rack unless proper ventilation is provided or
the manufacturer's instructions have been
adhered to.
Power Sources-This product should be
operated only from the type of power source
indicated on the marking label. If you are not
sure of the type of power supply to your
home, consult your product dealer or local
power company. For products intended to
operate from battery power, or other sources,
refer to the operating instructions.
Power-Cord Protection-Power-supply cords
should be routed so that they are not likely to
be walked on or pinched by items placed
upon or against them, paying particular
attention to cords at plugs, convenience
receptacles, and the point where they exit
from the product.
-3-

13. Outdoor Antenna Grounding-If an outside
antenna or cable system is connected to the
product, be sure the antenna or cable system
is grounded so as to provide some protection
against voltage surges and built-up static
charges. Article 810 of the National Electrical
Code ANSI/NFPA 70, provides information
with regard to proper grounding of the mast
an supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size
of grounding conductors, location of antenna-
discharge unit, connection to grounding
electrodes, and requirements for the
grounding electrode. See Figure 131.1.
FIGURE 131.1
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
ANTENNA
__ oRou.D. -.-.
CLAMP
DISCHARGE UNIT
_°'_° _ _ GROUNDINGCONOUOTOR_
LESI%I_IV/_NT _ /_ _C SECTION 810-21)
_ POWER SERVICE GROUNDING
-- _ ELECTRODE SYSTEM
NEC-NATIONAL ELECTRICAL CODE (NEC ART 250 PART H)
$2898A
14.
15.
16.
Lightning-For added protection for this
product during a lightning storm, or when it is
left unattended and unused for long periods of
time, unplug it from the wall outlet and
disconnect the antenna or cable system. This
will prevent damage to the product due to
lightning and power-line surges.
Power Lines-An outside antenna system
should not be located in the vicinity of
overhead power lines or other electric light or
power circuits, or where it can fall into such
power lines or circuits. When instaling an
outside antenna system, extreme care should
be taken to keep from touching such power
lines or circuits as contact with them might be
fatal.
Overloading-Do not overload wall outlets and
extension cords as this can result in a risk of
tire or electric shock.
17.
18.
19.
20.
21.
22.
23.
Object and Liquid Entry-Never push objects
of any kind into this product through openings
as they may touch dangerous voltage points
or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on
the product.
Servicing-Do not attempt to service this
product yourself as opening or removing
covers may expose you to dangerous voltage
or other hazards. Refer all servicing to
qualified service personnel.
Damage Requiring Service-Unplug this
product from the wall outlet and refer
servicing to qualified service personnel under
the following conditions:
a. When the power-supply cord or plug is
damaged.
b. If liquid has been spilled, or objects have
fallen intothe product.
c. If the product has been exposed to rain or
water.
d. If the product does not operate normally by
following the operating instructions. Adjust
only those controls that are covered by the
operating instructions as an improper
adjustment of other controls may result in
damage and will often require extensive
work by a qualified technician to restore
the productto its normal operation.
e. If the product has been dropped or the
cabinet has been damaged.
f. When the product exhibits adistinct
change in performance-this indicates a
need for service.
Replacement Parts-When replacement parts
are required, be sure the service technician
has used replacement parts specified by the
manufacturer or have the same charact-
eristics as the original part. Unauthorized
substitutions may result in fire, electric shock,
or other hazards.
Safety Check-Upon completion of any
service or repairs to this product, ask the
service technician to perform safety checks to
determine that the product is in proper
operating condition.
Wall or Ceiling Mounting-The product
should be mounted to a wall or ceiling only as
recommended by the manufacturer.
Heat-Theproductshould besituated away
from heat sources such as radiators, heat
registers, stoves, or other products (including
amplifiers) that produce heat.
-4-

INSTALLATION
Placing your VCP on the top of or under the TV receiver may result in interference appearing on the TV screen
when the VCP is on. If this occurs, move the VCP to a position alongside the TV receiver.
WIRING DIAGRAM
To use your VCP connect it with your TV receiver and antenna system as illustrated below.
Antennas
o! VCP
DEW TAPE iN REW PLAY i_ 1 AUTO REPEAT
r--] r_ r_ r'_ [223
_ I;_T,_o_--_._Y_--oT_"l
o!
TV !ii!_ii
]•See "ANTENNA/VCP CONNECTION" on page 6.
- See "VCPFFV CONNECTION" on page 7.
-5-

ANTENNA/VCP CONNECTION
ANTENNAS WITH SEPARATE VHF LEADS
VHF Antenna
VCP
75-ohm Coaxial (round) Cable
300-ohm Twin-lead Flat Cable
ii ii
UUUUUUUUUUUUU
0
To "ANT IN"
c_)_a Adaptor (300-ohm to 75-ohm) (not supplied)
J
1. Disconnect the antenna leads from the rear of the
TV receiver.
2. Connect the VHF lead to "ANT IN" on the VCP. If
the cable is round (75-ohm), it will connect directly
to the "ANT IN" terminal.
If it is the flat type (300-ohm), connect it to Antenna
Adaptor (300-ohm to 75-ohm) (not supplied) and
_lip the,Adapt_r nnto the. "ANT IN" terminal.

VCP/TV CONNECTION
OR
t
75-ohm Coaxial Cable
with Antenna Adaptor
(accessory number 1.)
To "RF OUT"
ii rl
UUUUIUUU
11111
11111
rl
UUUUU J
"0
1. Connect the 75-ohm Coaxial Cable with
Antenna Adaptor (accessory number 1) to "RF
OUT" on the VCP. Connect the other end to the
VHF antenna terminal of the TV, as illustrated
above.
-7-

POWER SOURCES
WHEN USING THE /_.C /_O/_P'TOR
=@ [
UIIrlIIIIUU
IU_D_
UUUUUU
VCP
.J
"0
AC 120V
AC ADAPTOR
(Supplied)
1. Plug the AC adaptor power cord intoAC electrical
outlet.
2. Connect one end of the AC adaptor to th_ 13(":,!N
jack _n the, rp,ar nf the.Imit
NOTE: This adaptor is for use with an AC 120V
¢,_lrrp,nt nnly (AC Adaptor: !4V, 850mA)

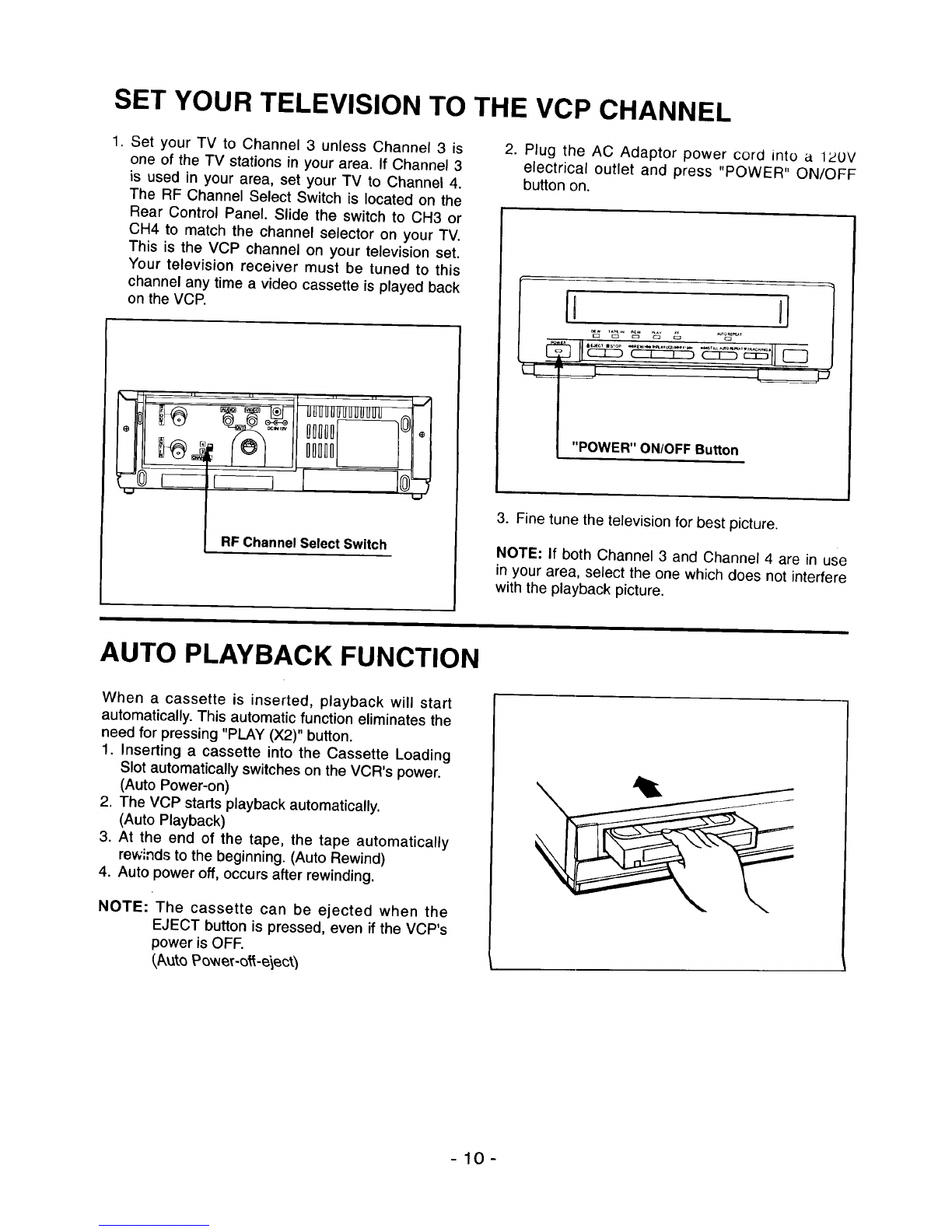

SET YOUR TELEVISION TO THE VCP CHANNEL
1. Set your TV to Channel 3 unless Channel 3 is
one of the TV stations in your area. If Channel 3
is used in your area, set your TV to Channel 4.
The RF Channel Select Switch is located on the
Rear Control Panel. Slide the switch to CH3 or
CH4 to match the channel selector on your TV.
This is the VCP channel on your television set.
Your television receiver must be tuned to this
channel any time a video cassette is played back
on the VCP.
__ J
0o nn
_o
'_j 10
RF Channel Select Switch
2. Plug the AC Adaptor power cord into a 120V
electrical outlet and press "POWER" ON/OFF
button on.
I tl
"POWER" ON/OFF Button
3. Fine tune the television for best picture.
NOTE: If both Channel 3 and Channel 4 are in use
in your area, select the one which does not interfere
with the playback picture.
AUTO PLAYBACK FUNCTION
When a cassette is inserted, playback will start
automatically. This automatic function eliminates the
need for pressing "PLAY (X2)" button.
1. Inserting a cassette into the Cassette Loading
Slot automatically switches on the VCR's power.
(Auto Power-on)
2. The VCP starts playback automatically.
(Auto Playback)
3. At the end of the tape, the tape automatically
rewlnds to the beginning. (Auto Rewind)
4. Auto power off, occurs after rewinding.
NOTE: The cassette can be ejected when the
EJECT button is pressed, even if the VCP's
power is OFF.
(,/kutoPo_Ner-ot_-e'\ect_
-10-

IDENTIFICATION AND OPIEHATION OF CONTROLS
Now that you have experienced the simple operation of your VCP, let's get familiar with the complete operation
of your VCP and all its capabilities.
J FRONT J
"POWER" ON/OFF Button and Light
Press to turn the power on. The "POWER" light will
illuminate. To turn the unit off, press the button
again.
"DEW" Indicator
This indicator lights if excessive
moisture condenses in the unit. If the
DEW indicator is ON, the unit will not
operate. If this happens, leave the unit
ON and let it remain at room
temperature until this indicator goes off.
"TAPE IN" Indicator
Lights to indicate a cassette
is loaded.
Cassette Loading Door
When a cassette is inserted, loading will be
completed automatically and the Cassette indicator
will light.
NOTES:
1. Power is turned on automatically when the
cassette is loaded.
2. When a cassette is inserted, playback will start
automatically.
("AUTO PLAYBACK FUNCTION")
CAUTION: Do not put your finger or other
objects behind the Cassette Door because of the
risk of injury. Particulary, keep small children
away from the unit.
/
! IN REW PLAY FF AUTO REPEAT
r--] I-7 r--1 r--I r--I r--1
PO _AEJECT • STOP _I_IREW/[_ I,.PLAY(X2) I,t,-FF/_ I,,-NISTILL AUTO REPEAT VTRACKING&
( I I )
"EJECT" Button
Press this button to eject a cassette which is loaded
in the VCP.
NOTE: If this button is pressed, when the VCP is
turned off, the power will turn on automatically and
the cassette will be ejected and then the power will
be turned off automatically. (This automatic function
eliminates the need for pressing "POWER" ON/OFF
button.)
"TRACKING" Control Buttons
Adjusts for best picture during
playback.
REMOTE CONTROL RECEIVER
This sensor window receives the signals from the
wireless remote control.
-11 -

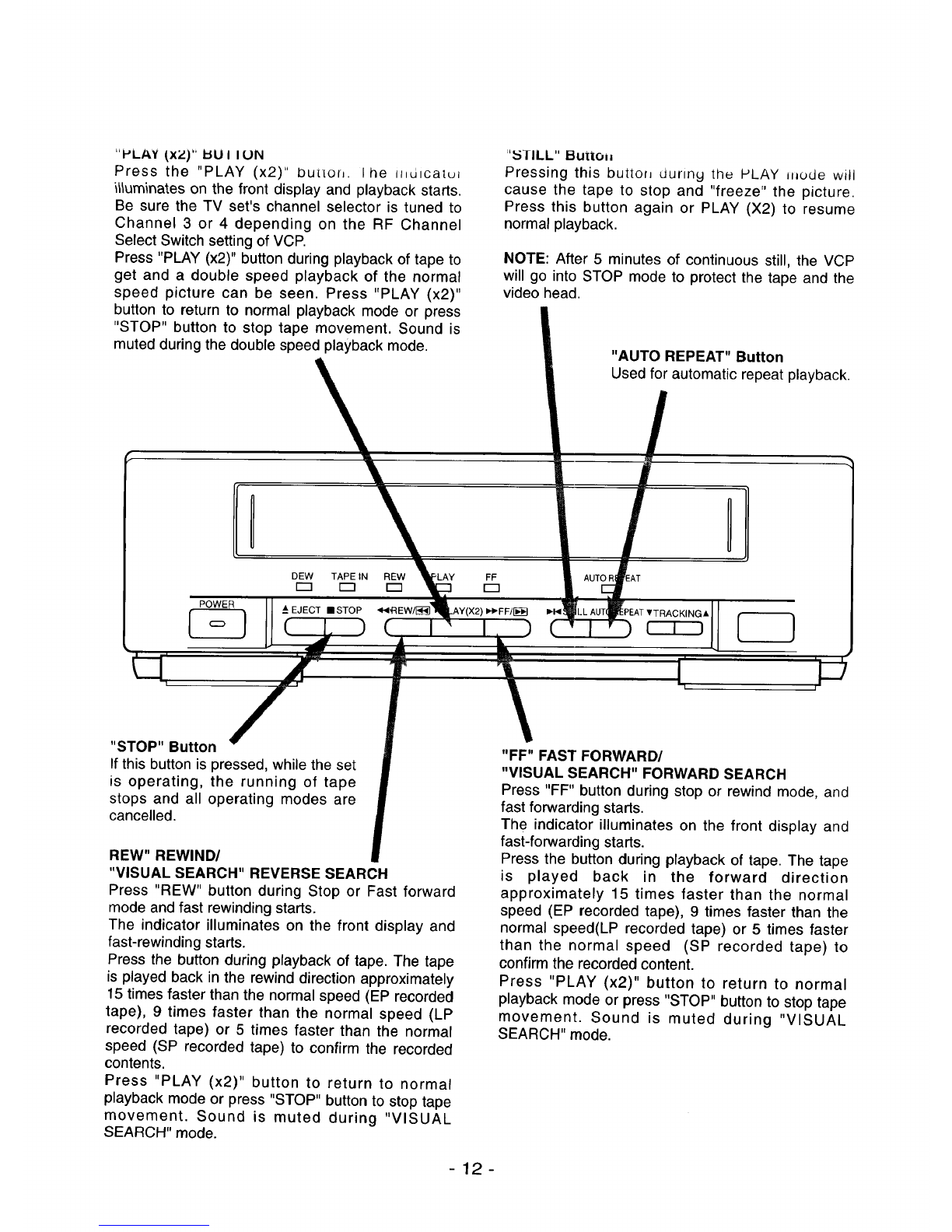

"PLAY (xz)" _UI tUN
Press the "PLAY (x2)" bu[[on. I he il_dicatu_
illuminates on the front display and playback starts.
Be sure the TV set's channel selector is tuned to
Channel 3 or 4 depending on the RF Channel
Select Switch setting of VCP.
Press "PLAY (x2)" button during playback of tape to
get and a double speed playback of the normal
speed picture can be seen. Press "PLAY (x2)"
button to return to normal playback mode or press
"STOP" button to stop tape movement. Sound is
muted during the double speed playback mode.
"_STILL" Butio/J
Pressing this button duriny the PLAY ilJode will
cause the tape to stop and "freeze" the picture.
Press this button again or PLAY (X2) to resume
normal playback.
NOTE: After 5 minutes of continuous still, the VCP
will go into STOP mode to protect the tape and the
video head.
"AUTO REPEAT" Button
Used for automatic repeat playback.
r
I
"STOP" Button
If this button is pressed, while the set
is operating, the running of tape
stops and all operating modes are
cancelled.
/
EAT
"-'PEATTTRACKINGA
i
REW" REWIND/
"VISUAL SEARCH" REVERSE SEARCH
Press "REW" button during Stop or Fast forward
mode and fast rewinding starts.
The indicator illuminates on the front display and
fast-rewinding starts.
Press the button during playback of tape. The tape
is played back in the rewind direction approximately
15 times faster than the normal speed (EP recorded
tape), 9 times faster than the normal speed (LP
recorded tape) or 5 times faster than the normal
speed (SP recorded tape) to confirm the recorded
contents.
Press "PLAY (x2)" button to return to normal
playback mode or press "STOP" button to stop tape
movement. Sound is muted during "VISUAL
SEARCH" mode.
"FF" FAST FORWARD/
"VISUAL SEARCH" FORWARD SEARCH
Press "FF" button during stop or rewind mode, and
fast forwarding starts.
The indicator illuminates on the front display and
fast-forwarding starts.
Press the button during playback of tape. The tape
is played back in the forward direction
approximately 15 times faster than the normal
speed (EP recorded tape), 9 times faster than the
normal speed(LP recorded tape) or 5 times faster
than the normal speed (SP recorded tape) to
confirm the recorded content.
Press "PLAY (x2)" button to return to normal
playback mode or press "STOP" button to stop tape
movement. Sound is muted during "VISUAL
SEARCH" mode.
12-

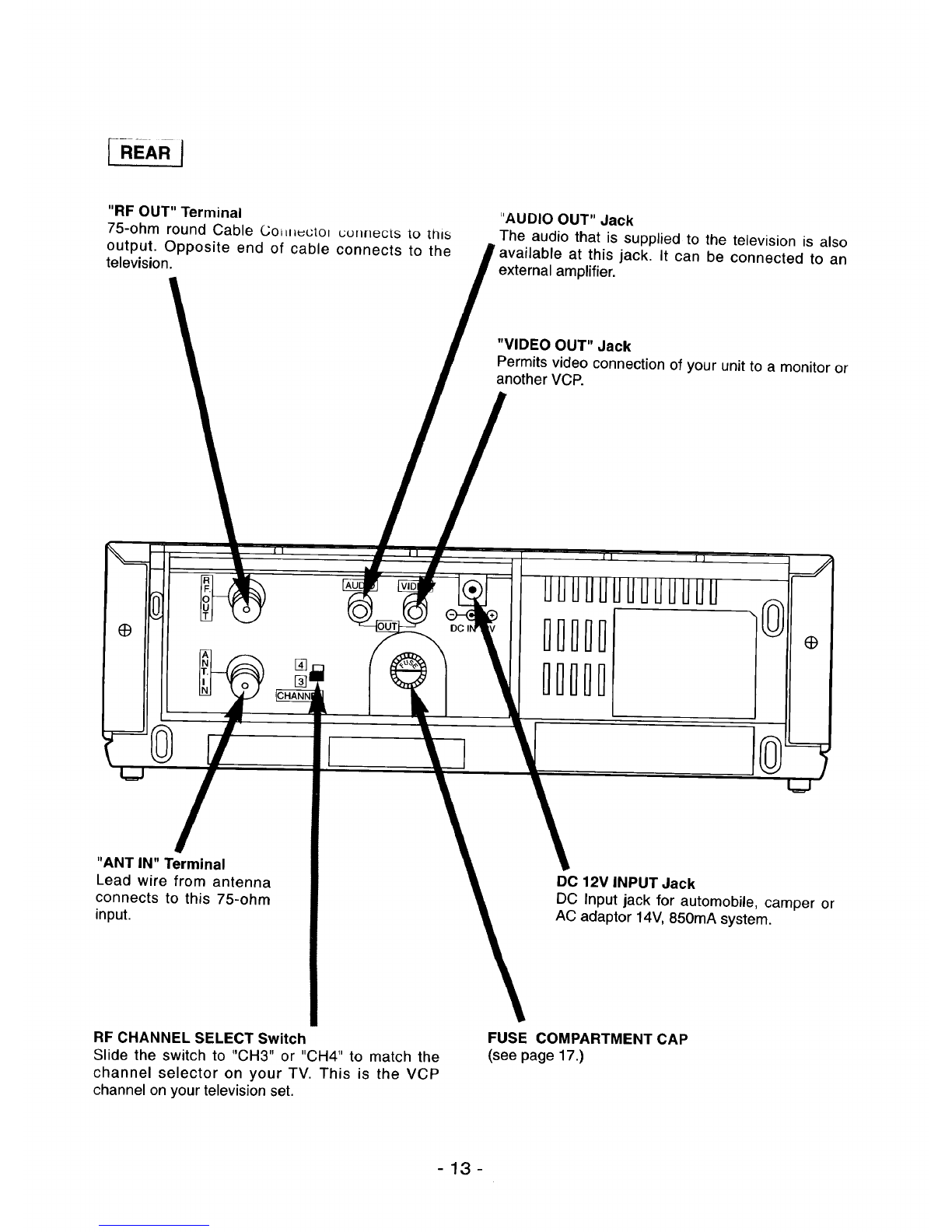

"RF OUT" Terminal
75-ohm round Cable L;ok.=ecto=uurmects to trlis
output. Opposite end of cable connects to the
television.
"AUDIO OUT" Jack
The audio that is supplied to the television is also
available at this jack. It can be connected to an
external amplifier.
"VIDEO OUT" Jack
Permits video connection of your unit to a monitor or
another VCP.
L=J
"ANT IN" Terminal
Lead wire from antenna
connects to this 75-ohm
input.
11111
11111
I1 0J
0J
L=J
DC 12V INPUT Jack
DC Input jack for automobile, camper or
AC adaptor 14V, 850mA system.
RF CHANNEL SELECT Switch
Slide the switch to "CH3" or "CH4" to match the
channel selector on your TV. This is the VCP
channel on your television set.
FUSE COMPARTMENT CAP
(see page 17.)
-13-

NORMAL PLAYBACK
A
STILL A.REPEA_
L]I._Jin_ul[ aptuJuuulded vidlbu ud_ette, lhu
cassette indicator will light. At this time, the VCP
is automatically turned on (AUTO POWER ON).
[_ Turn the TV set ON, and select channel 3 or 4,
the same as the VCP's output channel.
Press the PLAY(X2) button once.
•"PLAY" indicator will light on the VCP indicator
panel.
Press the STOP button to stop playback.
• The unit has AUTOMATIC REWIND. At the
very end of the tape, the VCP will
automatically stop and rewind the tape.
•TRACKING CONTROL
®AUTO TRACKING
Usually, automatic tracking function adjusts the
picture.
The AUTO TRACKING function works in the
following cases.
• A tape is played back for the first time.
•Streaks or snow appear because of scratches
on the tape.
MANUAL TRACKING
If noise appears on the screen during playback,
press either "V" or "A" until the noise on the
screen is reduced or eliminated.
'TRACKINGA
-14-

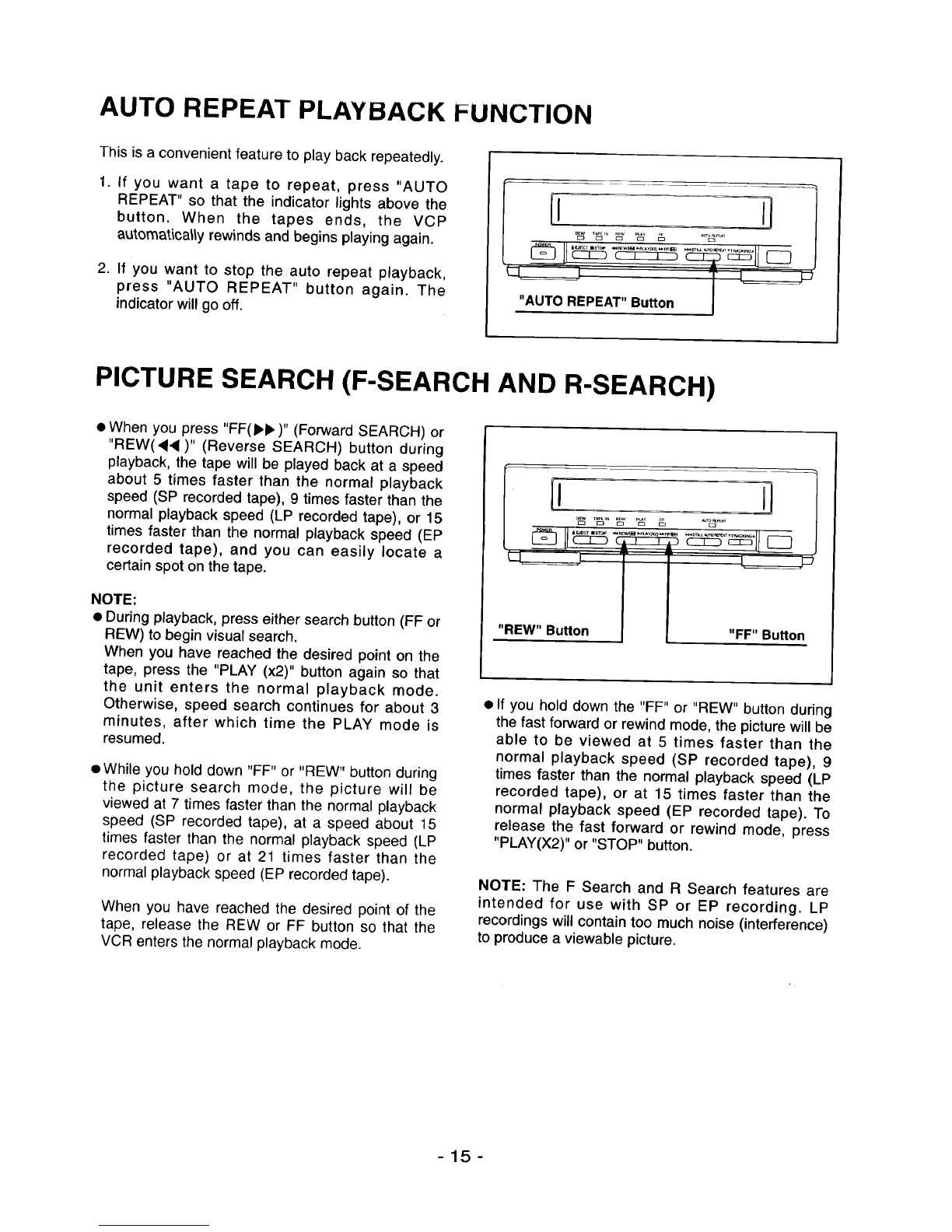

AUTO REPEAT PLAYBACK PUNCTION
This is a convenient feature to play back repeatedly.
1. If you want a tape to repeat, press "AUTO
REPEAT" so that the indicator lights above the
button. When the tapes ends, the VCP
automatically rewinds and begins playing again.
2. If you want to stop the auto repeat playback,
press "AUTO REPEAT" button again. The
indicator will go off.
II ij
"AUTO REPEAT"Button
PICTURE SEARCH (F-SEARCH AND R-SEARCH)
eWhen you press "FF(,_)" (Forward SEARCH) or
"REW(<, )" (Reverse SEARCH) button during
playback, the tape will be played back at a speed
about 5 times faster than the normal playback
speed (SP recorded tape), 9 times faster than the
normal playback speed (LP recorded tape), or 15
times faster than the normal playback speed (EP
recorded tape), and you can easily locate a
certain spot on the tape.
NOTE-
•During playback, press either search button (FF or
REW) to begin visual search.
When you have reached the desired point on the
tape, press the "PLAY (x2)" button again so that
the unit enters the normal playback mode.
Otherwise, speed search continues for about 3
minutes, after which time the PLAY mode is
resumed.
• While you hold down "FF" or "REW" button during
the picture search mode, the picture will be
viewed at 7 times faster than the normal playback
speed (SP recorded tape), at a speed about 15
times faster than the normal playback speed (LP
recorded tape) or at 21 times faster than the
normal playback speed (EP recorded tape).
When you have reached the desired point of the
tape, release the REW or FF button so that the
VCR enters the normal playback mode.
"REW" Button "FF" Button
• If you hold down the "FF" or "REW" button during
the fast forward or rewind mode, the picture will be
able to be viewed at 5 times faster than the
normal playback speed (SP recorded tape), 9
times faster than the normal playback speed (LP
recorded tape), or at 15 times faster than the
normal playback speed (EP recorded tape). To
release the fast forward or rewind mode, press
"PLAY(X2)" or "STOP" button.
NOTE: The F Search and R Search features are
intended for use with SP or EP recording. LP
recordings will contain too much noise (interference)
to produce a viewable picture.
-15-

DOUBLE SPEED PLAYBACK
When "PLAY (x2)" button is pressed during playback
mode, a double speed playback picture of the
normal speed (SP or EP recorded tape) can be
seen. Press "PLAY (X2)" button to return to the
normal playback mode, and the VCR will continue
playback.
NOTES:
1. During double speed playback, a certain amount
of noise may appear on the screen. If so, press
"TRACKING" (,,A ,, or " • ") button to find the
position at which the least amount of noise
occurs.
2. The double speed playback feature is intended
for use with SP or EP recordings. The LP recor-
ding will contain too much noise (interference) to
produce a viewable picture.
/"PLAY (X2)" Button
STILL FEATURE
When "STILL" button is pressed during playback, a
still picture can be seen.
To start again press "PLAY(X2)" button and the VCP
will continue playback.
NOTES:
1. When the still mode continues for more than
about 5 minutes, the VCP will automatically
change stop mode to protect the tape.
2. A tape recorded at LP mode will contain more
noise and streaking than a tape recorded at SP
or EP mode.
{! Jl
"STILL" Button
AUTO-REWIND
In the record, playback or fast forward mode the VCP automatically rewinds the tape at the end of tape. The
VCP will stop at the beginning of the tape.
PLAYBACK WITH TV EQUIPPED WITH VIR
If your television receiver is equipped with _/IF_,it may be necessary to turn the VIR OFF when playing back the
video tape. Otherwise the color may be too bright, too faint or even change.
-16-

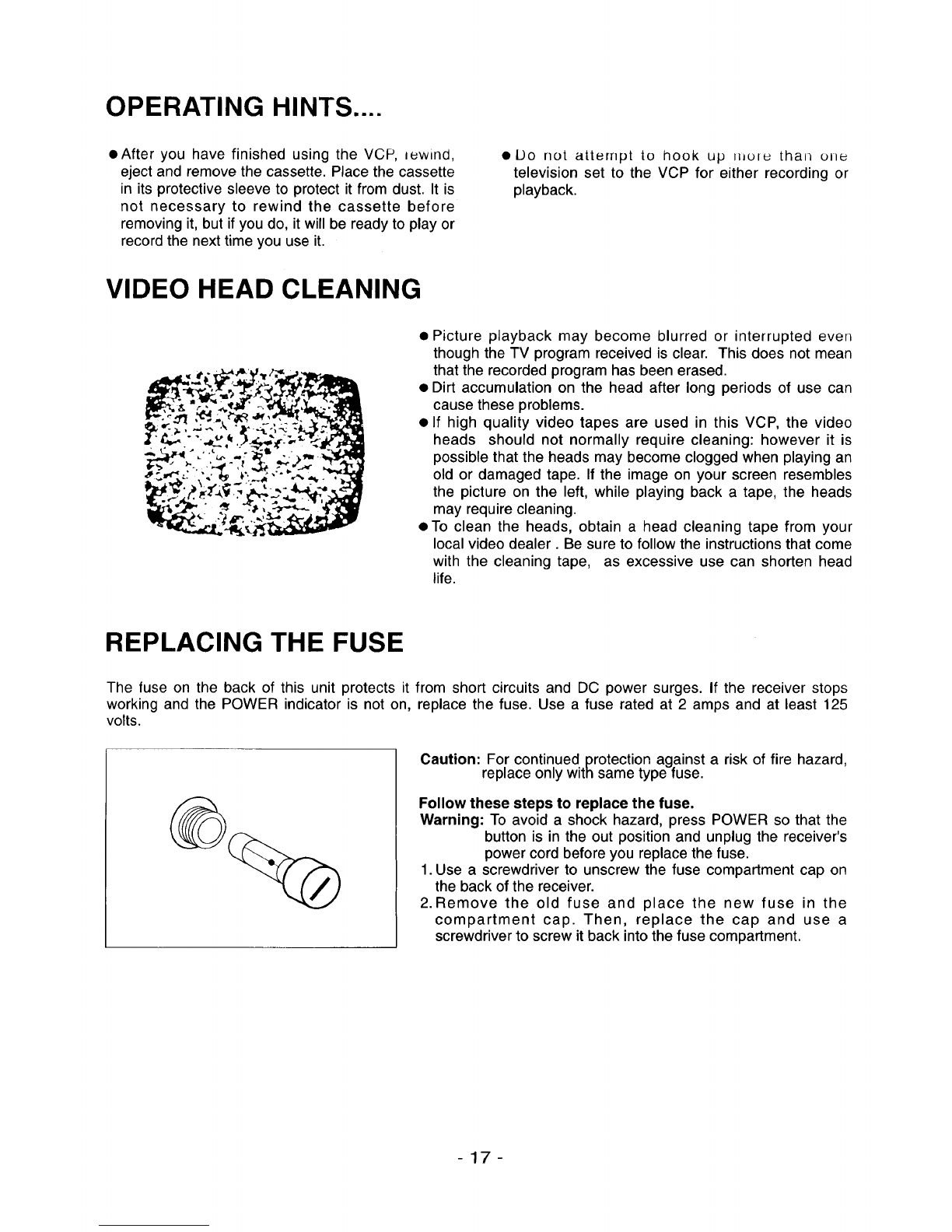

OPERATING HINTS ....
oAfter you have finished using the VCP, _ewind,
eject and remove the cassette. Place the cassette
in its protective sleeve to protect it from dust. It is
not necessary to rewind the cassette before
removing it, but if you do, it will be ready to play or
record the next time you use it.
•Do not attempt to hook up thoto than oJ_e
television set to the VCP for either recording or
playback.
VIDEO HEAD CLEANING
41_'_L.. _ ,=it. -ira ... 1_t.
li_ "_.4". ' _ " .,w ,,,4P.,'q]LIJ
• Picture playback may become blurred or interrupted even
though the TV program received is clear. This does not mean
that the recorded program has been erased.
• Dirt accumulation on the head after long periods of use can
cause these problems.
• If high quality video tapes are used in this VCP, the video
heads should not normally require cleaning: however it is
possible that the heads may become clogged when playing an
old or damaged tape. If the image on your screen resembles
the picture on the left, while playing back a tape, the heads
may require cleaning.
e To clean the heads, obtain a head cleaning tape from your
local video dealer. Be sure to follow the instructions that come
with the cleaning tape, as excessive use can shorten head
life.
REPLACING THE FUSE
The fuse on the back of this unit protects it from short circuits and DC power surges. If the receiver stops
working and the POWER indicator is not on, replace the fuse. Use a fuse rated at 2 amps and at least 125
volts.
Caution: For continued protection against a risk of fire hazard,
replace only with same type fuse.
Follow these steps to replace the fuse.
Warning: To avoid ashock hazard, press POWER so that the
button is in the out position and unplug the receiver's
power cord before you replace the fuse.
1. Use a screwdriver to unscrew the fuse compartment cap on
the back ofthe receiver.
2. Remove the old fuse and place the new fuse in the
compartment cap. Then, replace the cap and use a
screwdriver to screw it back intothe fuse compartment.
-17-

REMOTE CONTROL
Aim the remote control at the receiver on the trullt
panel of the VCP.
NOTES:
1. Ifthe range is short, try new batteries.
2. An object in between the VCP and remote
control may block the invisible light beam and
operation will not be possible.
•Be sure to install two "AAA" size batteries (not
supplied) before use.
• Be aware of the polarity.
VCP TO VCR DUBBING
pO_R EJECT
STILL A,REPEAT
- "POWER" ON/OFF Button
"EJECT" Button
"PLAY" Button
"STOP" Button
"REW(ind)" Button
"F(ast) F(orward)" Button
"A.REPEAT" Button
"STILL" Button
, "TRACKING" Buttons
If you wish to exchange or copy some of your friend's favorite home recordings, the following instructions can
be used to connect one VCP to another VCR for this purposed.
AUDIO IN VIDEO4N VHF OUT
AUDIO OUT VIDEO OUT
VHF Antenna terminal
TV set(Used for monitoring)
1.Connect VIDEO OUT/AUDIO OUT of VCP 1 to
VIDEO IN/AUDIO IN of VCR 2.
2. Set Input Select Button of VCR 2 to AN mode.
3. Play the tape on VCP 1 and record it on VCR 2.
NOTE: If you connect the "VHF/UHF OUTPUT"
connector of VCR 2 to the "TV ANT" connector, as
illustrated, and press the "VCR/TV" selector to turn
the indicator on, the picture being dubbed by VCR 2
canbemonitored.
-18-

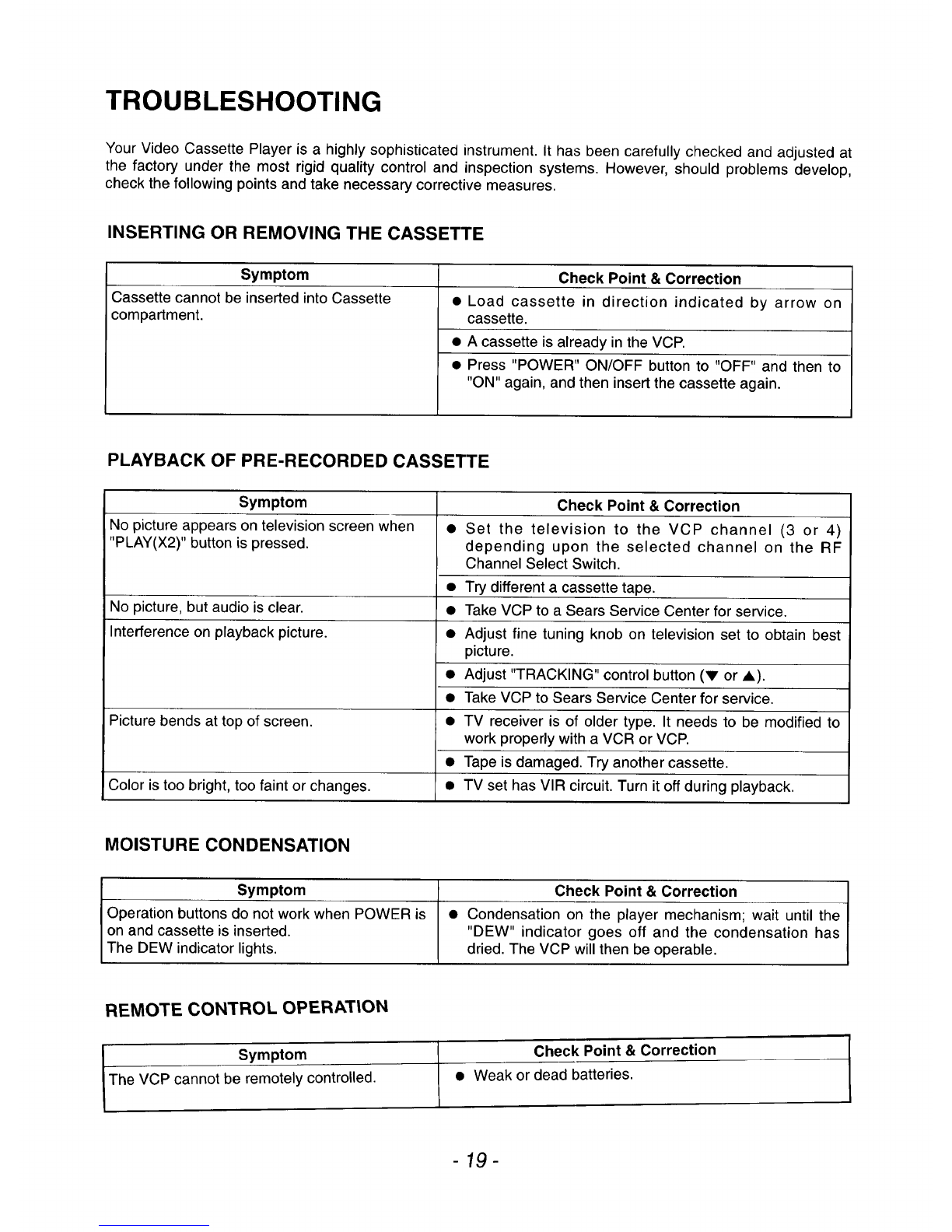

TROUBLESHOOTING
Your Video Cassette Player is a highly sophisticated instrument. It has been carefully checked and adjusted at
the factory under the most rigid quality control and inspection systems. However, should problems develop,
check the following points and take necessary corrective measures.
INSERTING OR REMOVING THE CASSETTE
Symptom
Cassette cannot be inserted into Cassette
compartment.
Check Point & Correction
• Load cassette in direction indicated by arrow on
cassette.
• A cassette is already in the VCP.
•Press "POWER" ON/OFF button to "OFF" and then to
"ON" again, and then insert the cassette again.
PLAYBACK OF PRE-RECORDED CASSETTE
Symptom
No picture appears on television screen when •
"PLAY(X2)" button is pressed.
No picture, but audio is clear. •
Interference on playback picture. •
Picture bends at top of screen.
Color istoo bright, too faint or changes. •
MOISTURE CONDENSATION
Symptom Check Point & Correction
Operation buttons do not work when POWER is •Condensation on the player mechanism; wait until the
on and cassette is inserted. "DEW" indicator goes off and the condensation has
The DEW indicator lights, dried. The VCP will then be operable.
REMOTE CONTROL OPERATION
Symptom Check Point & Correction
The VCP cannot be remotely controlled. • Weak or dead batteries.
Check Point & Correction
Set the television to the VCP channel (3 or 4)
depending upon the selected channel on the RF
Channel Select Switch.
Try different a cassette tape.
Take VCP to a Sears Service Center for service.
Adjust fine tuning knob on television set to obtain best
picture.
Adjust "TRACKING" control button (V or A).
Take VCP to Sears Service Center for service.
TV receiver is of older type. It needs to be modified to
work properly with a VCR or VCP.
Tape is damaged. Try another cassette.
TV set has VIR circuit. Turn it off during playback.
-19-
