Seats 712294 User manual


SeatsIncorporatedP/N712294Revision00
SIX-WAY MEMORY
POWER UNIT
USER MANUAL

Seats Incorporated
1515 Industrial Street
Reedsburg, WI 53959
[phone] / Toll Free: 1-800-443-0615


SeatsIncorporatedP/N712294Revision00
Contents
Introduction.............................................................................................................3
SafetyAlertSignals...................................................................................................3
Six‐WayMemoryPowerUnitComponents.............................................................4
TransmissionLineConnection.................................................................................5
ProgrammingtheMemorySystem..........................................................................6
UsingtheProgrammedMemoryUnit......................................................................8
ChangingaProgrammedLocation...........................................................................8
Troubleshooting.......................................................................................................9
Maintenance..........................................................................................................10















SeatsIncorporatedP/N712294Revision00
Introduction

ThankyouforpurchasingtheSix‐WayMemoryPowerUnitfromSeats
Incorporated.Thisproductwasdesignedtoprovidemanyyearsofworry‐free
service.Shouldyouexperiencedifficultyduringtheoperationormaintenanceof
theproduct,pleasecallourCustomerServiceDepartment.Donotattemptto
alterormodifythedesignoftheSix‐WayMemoryPowerUnit.
ThismanualprovidesstepbystepinstructionstoproperlyoperateyourSix‐Way
MemoryPowerUnit.Itisimportanttoreadandfollowalldirectionscarefully.
Itemsrequiringspecialattentionarelabeledthroughoutthismanualasshow
below.
SafetyAlertSignals





SeatsIncorporatedP/N712294Revision00

Six‐WayMemoryPowerUnitComponents

SeatsInc.PartNumberDescription Image
782213Six‐WayPowerUnit

782240MemorySwitchand
HarnessAssembly

782241MemoryControlModule








SeatsIncorporatedP/N712294Revision00
TransmissionLineConnection

1. Atransmissionsafetyfeatureisdesignedintothecontrolmoduleto
preventthememorysystemfrombeingactivatedwhilethevehicleisin
motion.Thissafetyfeatureneedstobeconnectedforproperoperationof
thesix‐waymemorypowerunit.Thevehiclehasatransmissionenabled
signallinethatneedstobeconnectedtothewhiteorpinkpigtailwires
locatedattheswitchconnectorofthecontrolmodule(seeFigure1).
Ifyourvehicleprovidesa+12VsignalwhilethetransmissionisNOT
engaged,connectthetransmissionenabledsignalwiretothepinkpigtail.
IfthevehicleprovidesaGROUNDsignalwhenthetransmissionisNOT
engaged,connectthetransmissionenabledsignalwiretothewhitepigtail.



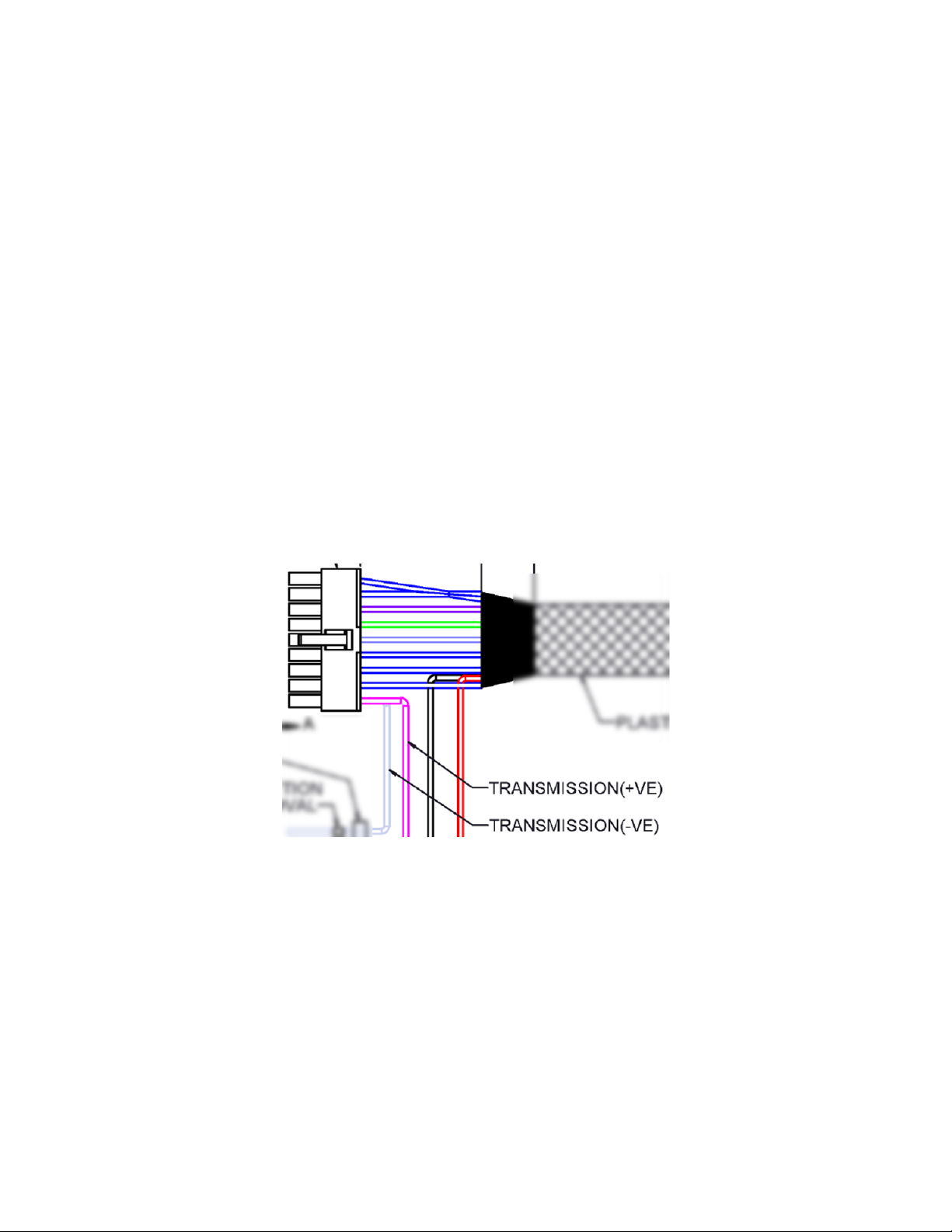

Figure1:TransmissionLineConnection
2. Oncethisfeatureisconnected,allsix‐waymemoryfunctionswilloperate
correctlywhenthevehicleisparked.Ifthevehicleisingear,memory
positionscannotbeactivated.However;allotherfeatureswilloperate,
includingthemanualpoweradjustmentofthepowerunit.



SeatsIncorporatedP/N712294Revision00
ProgrammingtheMemorySystem

Thememorysystemofthissix‐waypowerunitallowstheusertoprogramthe
seattoautomaticallyadjusttotheirspecificneedswiththepressofabutton.


Figure2:ManualControlPanel

Inorderfortheseatto“remember”anyposition,thesix‐waymemorypowerunit
mustbeprogrammedandstoredinthememorycontrolmodule.

1. Usingthefrontpaddleswitch,thecontrolstick,andtherearpaddleswitch
(Figure2),movetheseatintothedesiredseatingposition.Theseatadjust
controlsareasfollows:

FrontPaddleSwitch

Controlsthefrontmotor.

Up:Raisesthefrontof
theunit.
Down:Lowersthefront
oftheunit.
ControlStick

Controlsup,down,forward,and
rearwardoperation

Up:Raisesentireunit.
Down:Lowerstheunit.
Forward:Movesunit
forward.
Rearward:Movesunit
rearward.
RearPaddleSwitch

Controlstherearmotor.

Up:Raisestherearof
theunit.
Down:Lowerstherear
oftheunit.



SeatsIncorporatedP/N712294Revision00

Figure3:MemoryControlPanel

2. Whenthepowerunitispositionedtothedesiredlocation,pressandhold
theProgramSwitchfor3seconds.Allofthegreenmemorypositionslights
willflash.TheProgramSwitchcanbereleasedandthisindicatesthe
systemisreadytosetapositiontomemory.
3. Whileallthegreenlightsareflashing,presstheMemorySwitchyouwishto
program.Forinstance,toprogramposition“one”,pressMemorySwitch
Button1.ThegreenlightabovetheMemorySwitchwillilluminateandthe
powerunitisnowprogrammedtothelocation.
4. Repeatsteps1‐3toprogramothermemorylocations.TheSix‐Way
MemoryPowerUnitcanholdupto(4)programmedlocations.






SeatsIncorporatedP/N712294Revision00
UsingtheProgrammedMemoryUnit

Tomovethepowerunittoaprogrammedlocation,pressoneoftheMemory
Switchbuttonsthathasbeenpresettoalocation.Whenthebuttonispressed,
theseatwillautomaticallyadjusttotheprogrammedposition.
NOTE:Thepowerunitwillnotmovetoaprogrammedlocationwhenthe
vehicleisingear.Ifthepowerunitistravellingtoaselectedmemorylocation
whenthevehicleisplacedingear,itwillcompletetheoperation.
ChangingaProgrammedLocation

Tochangeapreviouslyprogrammedmemorylocation,followthestepsinthe
section“ProgrammingtheMemorySystem”.
NOTE:Movingthepowerunittoanewlocationandprogrammingthenew
locationwilloverrideanypre‐existingprogrammingfortheselectedmemory
switch.








SeatsIncorporatedP/N712294Revision00
Troubleshooting

Theamber(power)andgreen(memory)lightindicatorsactasatroubleshooting
guidefortheuser.PleaserefertothislistshouldanyproblemsoccurwiththeSix‐
WayMemoryPowerUnit.
Key: •On ○Off *Flashing

AmberLightGreenLights
(flash)
ProblemSolution
••Seatisnotinprogrammed
memorylocation.

○ ○ SleepModeStartvehicleandputintogearor
pressanycontrolbuttonto
deactivate“SleepMode”.
○ ○ NoPowertoSeatControl.1. Check30Ampfuse.
Replacewithappropriate
fuseifblown.
2. Powercabledisconnected.
Checkwiringforcable
disconnections.
3. Vehiclebatterydead.
**
(Any/All)
Duringpower‐up:Green
flashinglightsindicatethat
thosememorylocations
arenotset.
Setmemorylocation.
**
(One)
Ifwhenmemorybuttonis
pressed:Memoryatthat
locationisnotset.
Setmemorylocation.
**
(One)
Ifaftertraveltoalocation:
Powerunitstalledbefore
achievingprogrammed
location.
1. Movepowerunitwith
manualcontrolsandthen
pressthedesiredmemory.
2. Manuallymoveseatto
desiredlocationandreset
thememorylocation.



SeatsIncorporatedP/N712294Revision00
NOTE:Tocheckthefuse,opentheinlinefusecapasshowninFigure4and
inspectthefuse.Ifthefuseisdiscoloredorthefusehasblown,replacewith
another30AmpAutomotiveFuse

Figure4:Inline30AmpFuse
Maintenance

TheSix‐WayMemoryPowerUnithasbeendesignedtobemaintenancefree
throughoutthelifeoftheunit.Noadditionalmaintenanceisnecessary.
Thememorycontrolpanelcanbecleanedwithamildinteriorautomotive/
householdcleanerandadampcloth.Donotremovethecontrolpanelwhile
cleaning.
Whenthecleaningthecontrolpanelormemorymodule,besurewaterand/or
cleaningchemicalsdonotgetinsidethepanelormodule.Additionalwateror
cleaningchemicalsintheunitcancauseprematurecorrosionand/orfailuretothe
electricalcomponents.
