SECO-LARM Enforcer EV-N6506-3W4Q User manual

IP Covert PIR Camera
EV-N6506-3W4Q
Web Administration Manual
 H.265/MJPEG, Dual Stream IP Camera
 1/2.8" 5MP Sony CMOS
 D-WDR (Digital Wide Dynamic Range)
 3.7mm Covert pinhole lens
 True Day & Night function with ICR module
 12VDC operation, 802.3af PoE
 ONVIF Profile S
 1440p Resolution
 2DNR (2D Digital Noise Reduction)
 3DNR (3D Digital Noise Reduction)

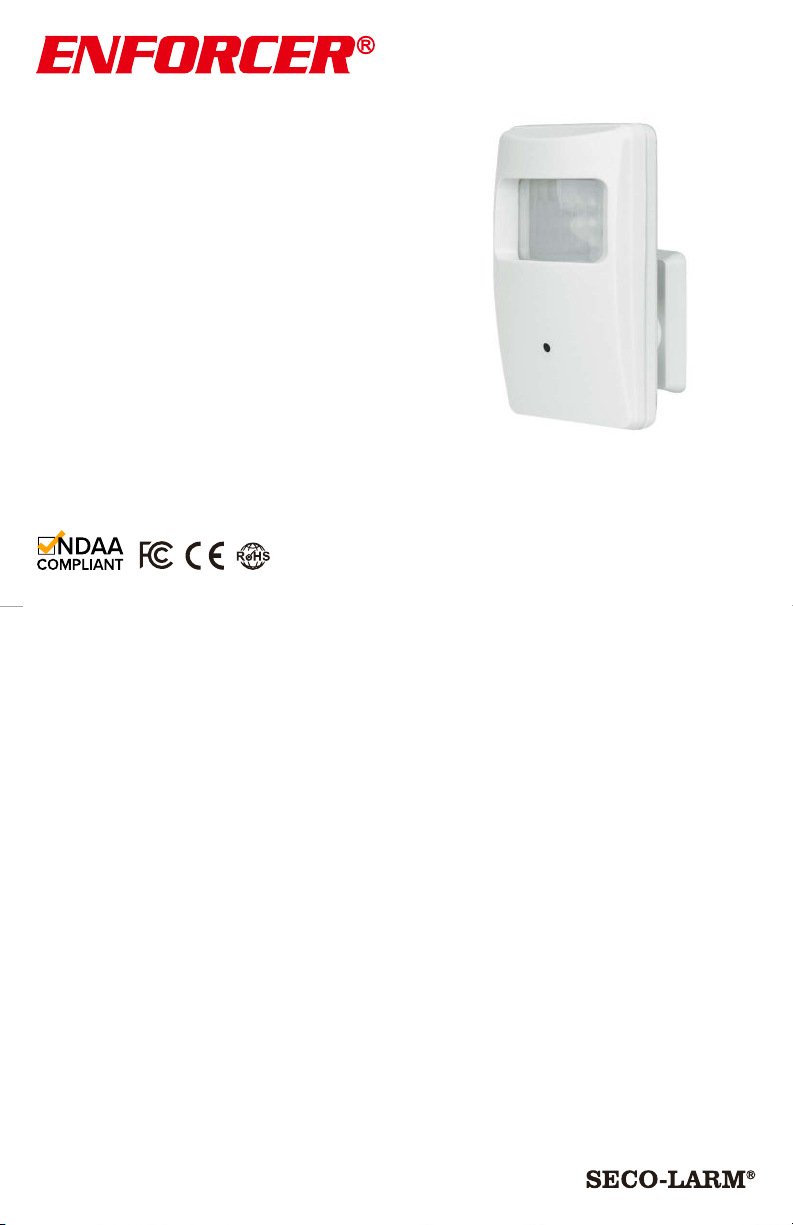

 Camera is hidden in a non-functioning PIR sensor housing.

IP Covert PIR Camera
2 SECO-LARM U.S.A., Inc.
Programmable Features
................................
...
2
Accessing the IP Camera Interface .................. 3
IP Camera Interface ......................................... 3
Color Settings ................................................... 4
Playback Settings ............................................. 4
Alarm ................................................................ 4
Remote Setting-Alarm ...................................... 5
Remote Setting-Alarm-Intelligent Alert ............. 5
Remote Setting-Alarm-Video Blind ................... 6
Remote Setting-Alarm-Vehicle Detection ......... 7
Remote Setting-Alarm-Video Loss ................... 8
Remote Setting-Alarm-Abnormal ...................... 9
Remote Setting-System .................................... 9
Remote Setting-System-General .................... 10
Remote Setting-System-Encode .................... 11
Remote Setting-System-Network ................... 12
Remote Setting-System-NetService ............... 13
Remote Setting-System - Display ................... 14
Remote Setting-System-RS232 ..................... 15
Remote Setting-System-Camera param. . 16~17
Remote Setting-Advanced ............................. 17
Remote Setting-Advanced-Account ............... 18
Remote Setting-Advanced-AutoMaintain ....... 18
Remote Setting-Advanced-Default ................. 19
Remote Setting-Advanced-Import Export ....... 19
Remote Setting-Advanced-Reboot ................. 19
Remote Setting-Advanced-Upgrade .............. 20
Remote Setting-Info ....................................... 20
Remote Setting-Info-Log ................................ 20
Remote Setting-Info-Version .......................... 21
Troubleshooting .............................................. 22
Warranty ......................................................... 22
Table of Contents
Program Features
 Exposure – Adjust the shutter speed,
automatic gain control (AGC), and defog
settings.
 Digital Wide Dynamic Range (D-WDR)
– Provide clear images even under
circumstances where backlight illumination
can vary.
 Back Light Compensation (BLC) –
Adjust the exposure to properly display the
subject in front of bright light sources.
 White Balance – Adjust the color
temperature/image color.
 Day & Night – Adjust the level of
ambient light that triggers the camera to
switch between color and B/W modes.
 Digital Noise Reduction – (DNR) Adjust
for less interference on the screen in an
area with low illumination.
D-WDR OFF D-WDR ON
BLC OFF BLC ON
DNR OFF DNR ON

IP Covert PIR Camera
SECO-LARM U.S.A., Inc. 3
Accessing the IP Camera Interface
Login Screen
1. To access the IP Camera interface, input the IP
address of the front-end device into the URL
address bar of the Microsoft Edge browser
(default IP address: 192.168.1.10).
2. VideoPlayTool installation is required when the
IP camera interface is first accessed. Follow the
prompts to install VideoPlayTool.
3. Refresh the page.
4. In the following login screen, input the default
Username (Default: admin) and Password
(Default: Leave Blank).
5. Click "Login" to proceed.
IP Camera Interface
Once within the IP Camera interface, the following tabs are made available:
 Live – The Live tab provides the primary live camera feed and limited settings for adjusting
the camera's image.
 Playback –The playback settings allow for full replay and review of the recorded video.
 Alarm – Display all alarm notifications
 Remote Setting – The Remote Setting tab allows for full configuration of the IP camera's
settings.
 Local Setting – The Local Setting tab allows for search and review of programmed alarms.
 Log Out – Press the Log out tab to log out completely of the IP camera interface.

IP Covert PIR Camera
4 SECO-LARM U.S.A., Inc.
Color Settings
To open the Color panel, click the button. The
Image Settings panel allows for adjustment of the video
image's brightness, contrast, hue, and saturation.
 Brightness – Adjust the brightness of the video image.
 Contrast – Adjust the contrast of the video image.
 Saturation – Adjust the saturation of the video image.
 Hue – Adjust the Hue of the video image.
Playback Settings
The playback settings allow for full replay and review of recorded video.
 PlayBack – Choose between Remote or Local
playback.
 Query Mode – Select to search for video by
Name or by specific Time.
 Type – Select the type of video or picture to
search for.
 Start Time – Select the beginning video
recording time to search.
 End Time – Select the ending video recording
time to search.
 Stream – Mainstream only.
 Channel – Channel 1 only.
Alarm
Alarm Type
The alarm log records the camera’s alarm
features. Displaying the alarm type, date, time,
device, and channel. Use the checkboxes to
select the alarm type to be displayed.
Operation
 Prompt – Check the display operation
log.

IP Covert PIR Camera
SECO-LARM U.S.A., Inc. 5
Remote Setting – Alarm
 Intelligent Alert – Configure alerts.
 Video Blind – Configure settings pertaining to camera
being blinded (spray painted or covered).
 Vehicle Detection – Configure vehicle detection.
 Video Loss – Configure settings for loss of video.
 Abnormal – Configure settings for abnormalities (IP
conflicts, NetAbort).
Remote Setting – Alarm – Intelligent Alert
 Enable – Toggle to enable.
 Human Detect – Check to detect
humans only.
 Sensitivity – Select the sensitivity
from Lowest to Highest (default =
middle).
 Rule – Select the area to monitor.
 Period – Set the schedule to monitor.
 MD Intervals – Set the desired
intervals in seconds (default = 2
seconds).
 Snapshot Channel – Default = 1.
 PTZ Activation – Not supported.
 Send Email – Check to send alert
using email.
 FTP Upload – Check to send alert to a
FTP server.
 Mobile reported – Not supported.
 Write log – Check to write to the log
file.
 Alarm Sound – Check to enable
sound.
 Alarm Interval – Set the Alarm
Interval in seconds (default = 0).
 Refresh – Reload current page.
 Save – Click save.

IP Covert PIR Camera
6 SECO-LARM U.S.A., Inc.
Remote Setting – Alarm – Video Blind
 Enable – Toggle to enable.
 Sensitivity – Select the sensitivity from Lowest to Highest (default = Middle).
 Period – Set the schedule to monitor.
 Snapshot channel – Default = 1.
 PTZ activation – Not supported.
 Send email – Check to send alert using email.
 FTP upload – Check to send alert to a FTP server.
 Mobile reported – Not supported.
 Write log – Check to write to the log file.
 Refresh – Reload current page.
 Save – Click save.

IP Covert PIR Camera
SECO-LARM U.S.A., Inc. 7
Remote Setting – Alarm – Vehicle Detection
 Channel – Select channel to use (default = CH01).
 Enable – Toggle to enable.
 Period – Set the schedule to monitor.
 Tour – Default = 1.
 PTZ Activation – Not supported.
 Send Email – Check to send alert using email.
 Mobile reported – Not supported.
 Write log – Check to write to the log.
 Refresh – Reload current page.
 Save – Click save.

IP Covert PIR Camera
8 SECO-LARM U.S.A., Inc.
Remote Setting – Alarm – Video Loss
 Enable – Check to enable.
 Period – Set the schedule to monitor.
 Snapshot Channel – Default = 1.
 PTZ Activation – Not supported.
 Send Email – Check to send alert using email.
 FTP upload – Check to send alert to a FTP server.
 Mobile reported – Not supported.
 Write log – Check to write to the log file.
 Refresh – Reload current page.
 Save – Click save.

IP Covert PIR Camera
SECO-LARM U.S.A., Inc. 9
Remote Setting – Alarm – Abnormal
 Event Type:
o IP Conflict – Will alert when another device has the same IP as camera.
o NetAbort – Will alert when camera is disconnected from the network.
 Enable – Toggle to enable.
 Refresh – Reload current page.
 Save – Click save.
Remote Setting – System
 General – General configurations.
 Encode – Encoding configurations.
 Network – Network configurations.
 NetService – Services available.
 Display – OSD configurations.
 PTZ Config – PTZ configurations.
 RS232 – Serial port configurations.
 Camera param. – Advanced camera configurations.
 Color param. – Advanced color configurations.

IP Covert PIR Camera
10 SECO-LARM U.S.A., Inc.
Remote Setting – System – General
 Time Zone – Select time zone.
 System Time – Enter date and time.
 Date Format – Select the format to display the date.
 DST – Check for Daylight Savings Time.
 Date Separator – Select character to use to separate the date.
 Time Format – Select between 12-hour or 24-hour clock.
 Language – Select language.
 HDD Full – Select to either overwrite (default) or stop recording when hard drive is full.
 Dev No – Set the number for the DVR (default = 0).
 Video Standard – Select between PAL or NTSC.
 Auto Logout – Set a time limit in minutes to automatically log off (default = 0).
 MachineName – Set MachineName (default = LocalHost).
 Refresh – Reload current page.
 Save – Click save.

IP Covert PIR Camera
SECO-LARM U.S.A., Inc. 11
Remote Setting – System – Encode
Set encoding parameters for both Main stream and Sub stream.
 Compression – Select between H.265 or H.265X.
 Resolution – Select between 2MP, 4MP, or 5MP.
 Frame Rate (fps) – Select the frames per second.
 Bit Rate Type – Select between VBR or CBR.
 Quality – Select between Worst and Best (default is good).
 Bit Rate (Kb/S) – Set the Bit rate.
 I Frame Interval – Set the I frame interval (default = 2).
 Video/Audio – Check to record video or audio.
 Static Encode Config – Select profile between Baseline, Main Profile, and High profile. High
profile takes up more space for the stream, but the picture quality is better.
 Smart Encode – Select to use smart encoding on H.265+.
 Refresh – Reload current page.
 Save – Click save.

IP Covert PIR Camera
12 SECO-LARM U.S.A., Inc.
Remote Setting – System – Network
 Net Card – Select network adapter.
 DHCP Enable – Check to enable
DHCP (default = enable).
 Adaptive IP – Check to enable
Adaptive IP (default = enable).
 IP Address – Enter IP Address for
camera (default IP is assigned by
DHCP).
 Subnet Mask – Enter subnet mask.
 Gateway – Enter default gateway.
 Primary DNS – Enter primary DNS
server address.
 Secondary DNS – Enter secondary
DNS server address.
 Media Port – Enter TCP steaming port
(default = 34567).
 HTTP Port – Enter HTTP port (default
= 80).
 Onvif Port – Enter Onvif port (default
= 8899).
 MAC Address – Displays camera mac
address.
 Onvif Check – Check to enable Onvif
Check.
 HS download – Check to enable High
Speed download.
 Refresh – Reload current page.
 Save – Click save.
Transfer Policy:
 Adaptive – For lower bandwidth network. Preview screen automatically adjusts to sub
stream.
 Quality Preferred – For higher bandwidth network. Preview screen stays in mainstream.
 Fluency Preferred – Changes the encoder settings and lowers the stream without reducing
frame rate to ensure a smoother video.
 Network Priority – Limits the users that can view the camera simultaneously. Users with
higher bandwidth will take priority.

IP Covert PIR Camera
SECO-LARM U.S.A., Inc. 13
Remote Setting – System – NetService
NetService displays the network services available. Double click each option listed below to
configure:
 IP Filter – Blacklist and Whitelist services.
 DDNS – Configure dynamic DNS.
 EMAIL – Use email to send alerts or other services.
 NTP – Set the time server.
 UPNP – Allows devices in your network to discover each other.
 FTP – Configure the file server.
 AlarmServer – Configure an alarm server.
 RTSP – Real Time Streaming Protocol – used to stream camera video over network.
 Cloud – Set up a third-party cloud provider.
 Mobile reported – Not supported.
 Serial pass-through – Configure RS232 settings.
 Refresh – Reload current page.
 Save – Click save.

IP Covert PIR Camera
14 SECO-LARM U.S.A., Inc.

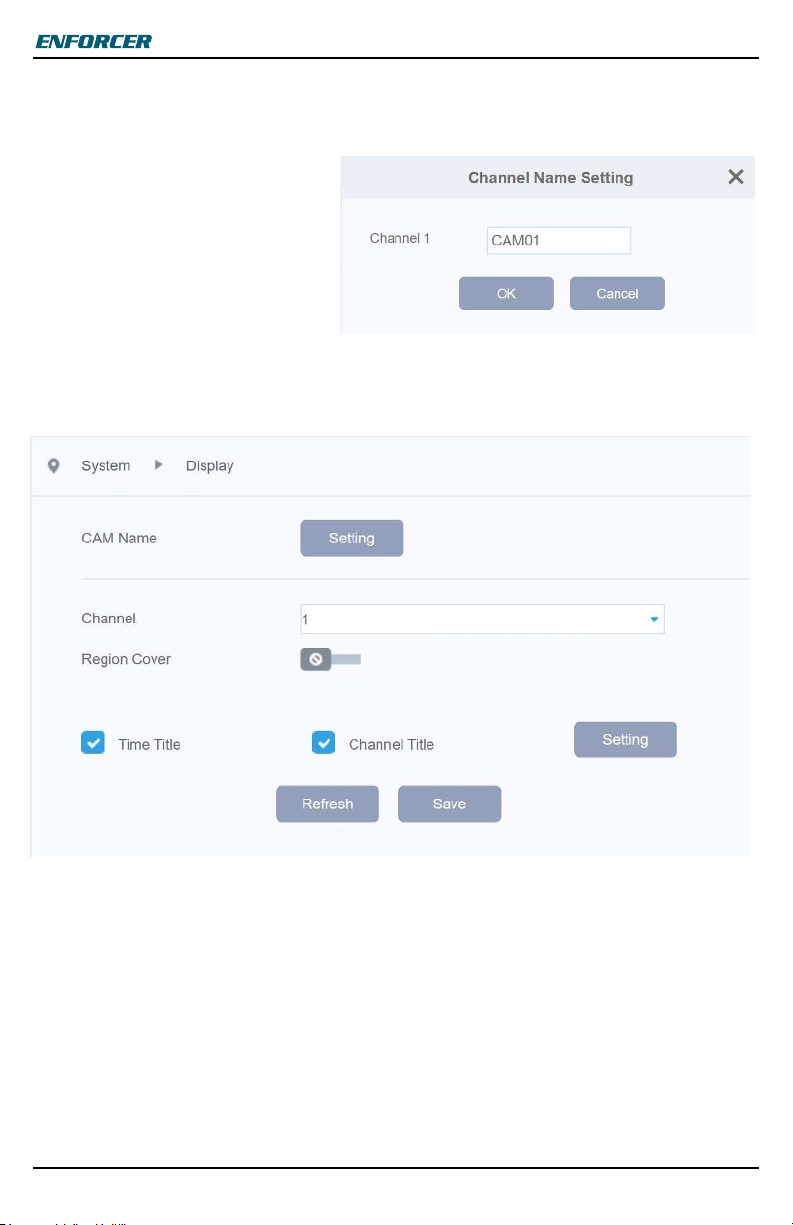

Remote Setting – System – Display
 CAM Name – Click Setting and Enter camera name.
 Channel – Select channel to use (default = 1).
 Region Cover – Check to enable
region cover.
 Time Title – Check the display
time on screen.
 Channel Title – Check to display
channel on screen.
 Setting – Configure the position
of the user interface.
 Refresh – Reload current page.
 Save – Click save.
NOTE: Setting: System – PTZ Config: Not Supported.

IP Covert PIR Camera
SECO-LARM U.S.A., Inc. 15
Remote Setting – System – RS232
 Function – Select between NONE, Transparent, GPS, and InteractCmd function.
 Baud rate – Set baud rate (max 115200) (default = 115200).
 Data Bits – Set data bits (5 – 8) (default = 8).
 Stop Bits – Set stop bits (1 – 2) (default = 1).
 Parity – Set parity (None, Odd, Even, Mark, Space) (default = None).
 Refresh – Reload current page.
 Save – Click save.

IP Covert PIR Camera
16 SECO-LARM U.S.A., Inc.

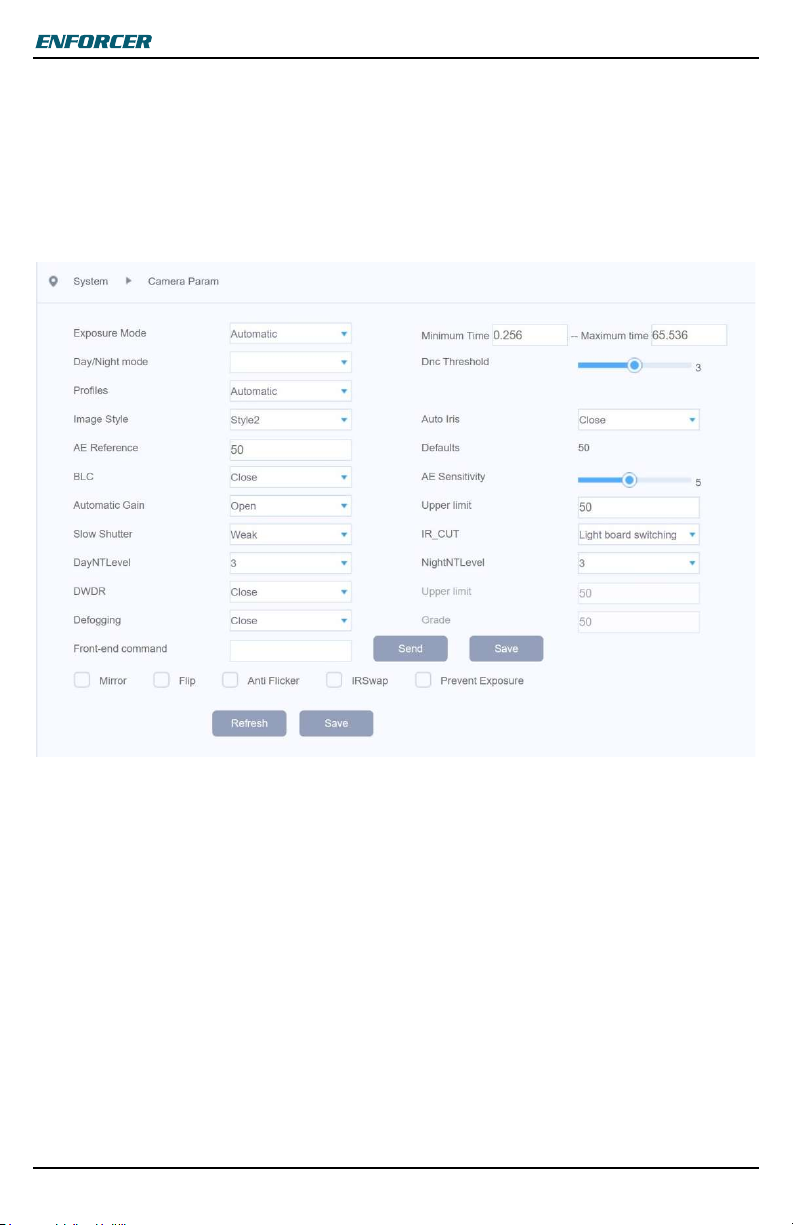

Remote Setting – System – Camera param:
 Exposure mode – Set the exposure time. Can choose between Automatic (default) and
Manual.
 Day/Night mode (default = blank):
o Smart Alert – Enable smart alert.
o Intelligent Variable – Enable Intelligent Variable.
o Intelligent Infrared – Enable Intelligent Infrared.
 Profiles – Set the white balance for Indoor, Outdoor, Automatic (default = Automatic).
 Image Style – Choose between Style 1, Style 2, and Style 3 (default = Style 2).
 AE Reference – Set the AE reference (default = 50).
 BLC – Turn backlight compensation Open (On) or Close (Off) (default = Close).
 Automatic Gain – Turn automatic gain control Open (On) or Close (Off) (default = Open).
 Slow Shutter – Set the shutter speed No, Weak, In, Strong (default = Weak).
 DayNTLevel – Set Day time NT Level (0~5, default = 3).
 DWDR – Turn digital wide dynamic range Open (On) or Close (Off) (default = Close).
 Defogging – Turn defogging Open (On) or Close (Off) (default = Close).
 Front end command – Send a communication to front end.
o Send
o Save
 Mirror – Check to mirror image.
 Flip – Check to flip image.

IP Covert PIR Camera
SECO-LARM U.S.A., Inc. 17
Remote Setting – System – Camera param (Continued)
 Anti-Flicker – Check to enable Anti-Flicker.
 IRSwap – Check to enable IRSwap.
 Prevent Exposure – Check to reduce red face exposure.
 Minimum time – Set the Minimum time in seconds (default = 0.256).
 Maximum time – Set the Maximum time in seconds (default = 65.536).
 Dnc Threshold – Set the Dnc Threshold (default = 3).
 Auto Iris – Choose between Close (Off) and Open (On) (default = Close).
 AE Sensitivity – Adjust sensitivity (default = 5).
 Upper limit – Set the upper limit for D-WDR (default = 50, max = 100).
 IR_Cut – Set the IR Cut to light board switching or automatic switching.
 NightNTLevel – Set NightNTLevel (0~5, Default = 3).
 Refresh – Reload current page.
 Save – Click save.

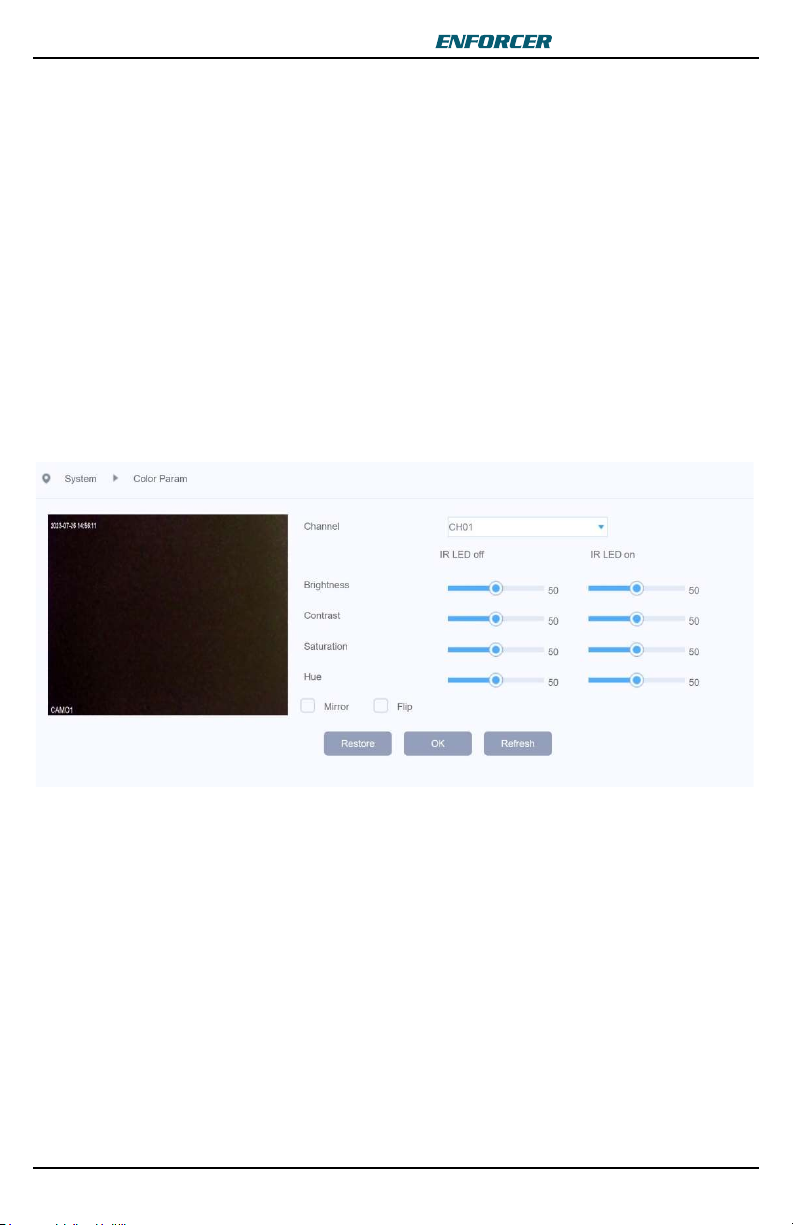

 Channel – Select channel to use
(default = CH01).
 Brightness – Adjust the brightness of
the video image.
 Contrast – Adjust the contrast of the
video image.
 Saturation – Adjust the saturation of
the video image.
 Hue – Adjust the Hue of the video
image.
 Mirror – Check to mirror the image.
 Flip – Check to flip the image.
 Restore – Restore default settings.
 Refresh – Reload current page.
 OK – Click OK to save.

IP Covert PIR Camera
18 SECO-LARM U.S.A., Inc.

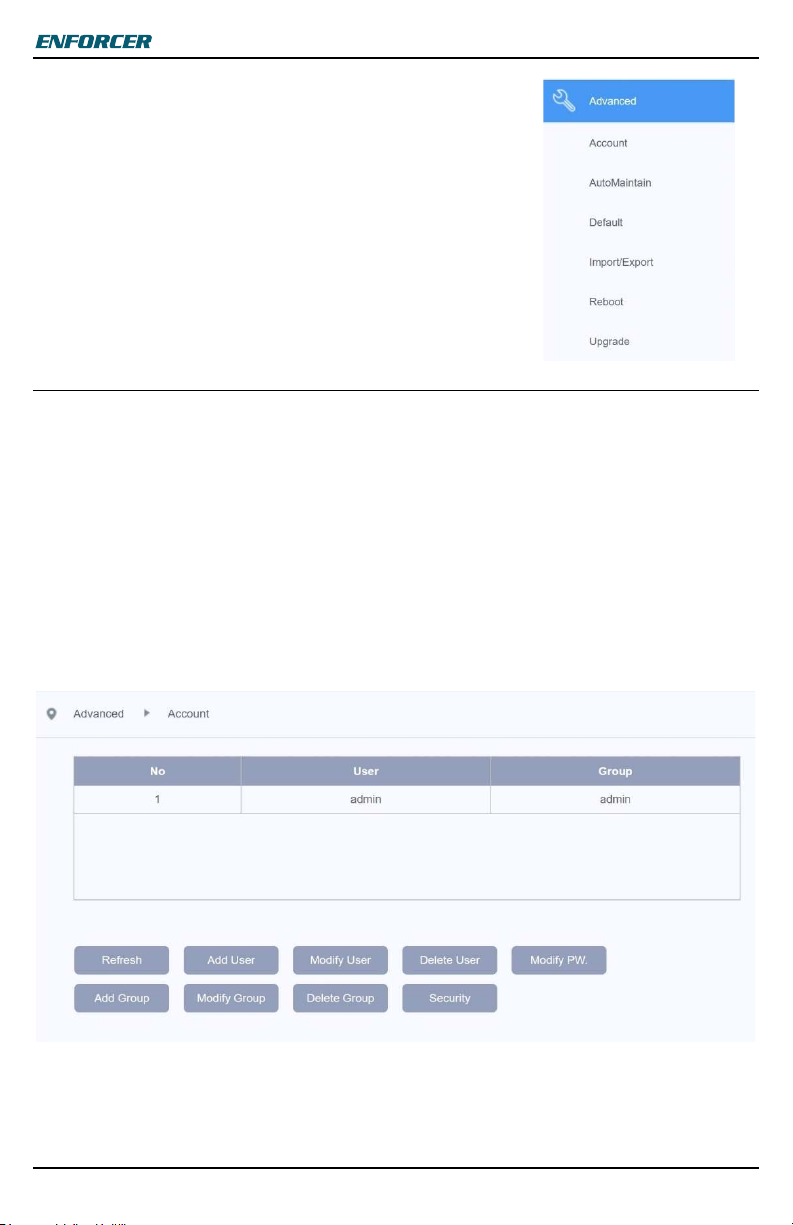

Remote Setting – Advanced
 Account – Manage account settings.
 AutoMaintain – Manage automatic reboot and automatic
delete settings.
 Default – Restore factory defaults.
 Import Export – Manage import and export config files.
 Reboot – Reboots the camera.
 Upgrade – Manage upgrade on firmware.
Remote Setting – Advanced – Account
 Refresh – Refresh list.
 Add User – Add user.
 Modify User – Set the permission for user.
 Delete User – Delete user.
 Modify PW – Change password.
 Add Group – Add user group.
 Modify Group – Set the permissions for the user group.
 Delete Group – Delete user group.
 Security – Configure secret questions in case password is forgotten.

IP Covert PIR Camera
SECO-LARM U.S.A., Inc. 19

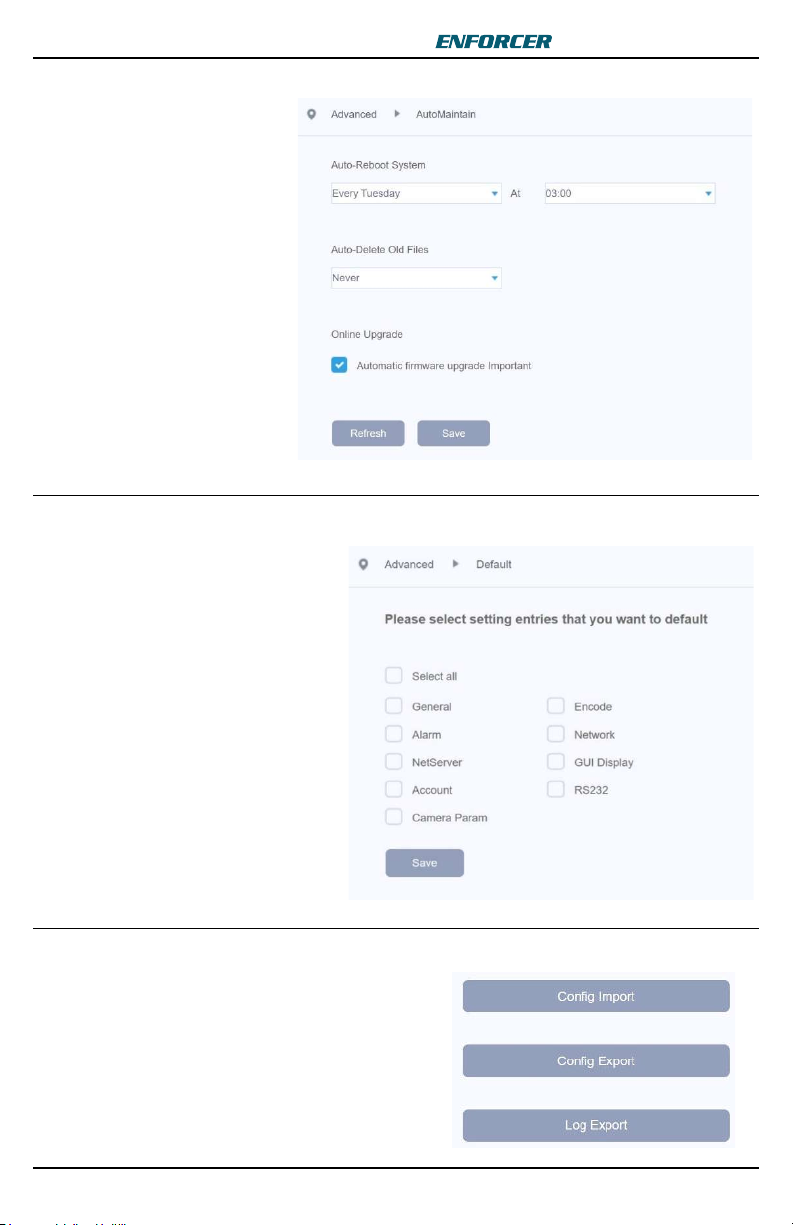

Remote Setting – Advanced – AutoMaintain
 Auto-Reboot System –
Select a day and time to
auto reboot.
 Auto-Delete Old Files –
Select the number of days
old a file needs to be in
order to auto-delete.
 Online Upgrade – Check
to automatically check for
upgrade.
 Refresh – Reload current
page.
 Save – Click save.
Remote Setting – Advanced – Default
Select the settings to default back to
factory settings.
Click Save to save.
Remote Setting – Advanced – Import Export
 Config Import – Click to import config file.
 Config Export – Click to export config file.
 Log Export – Click to export log file.

IP Covert PIR Camera
20 SECO-LARM U.S.A., Inc.

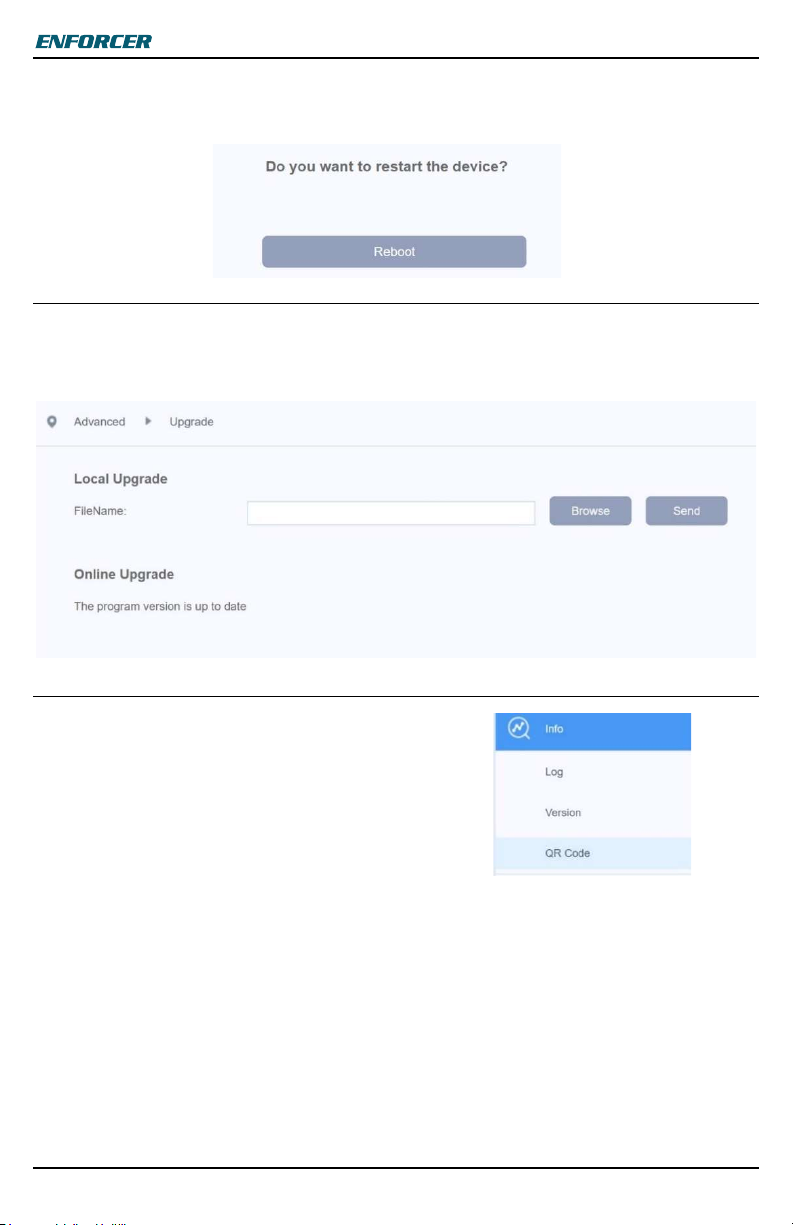

Remote Setting – Advanced – Reboot
Click "Reboot" to reboot the camera.
Remote Setting – Advanced Upgrade
 Browse – Select firmware update file.
 Send – Click Send to start the upgrade process.
Remote Setting – Info
 Log – View Log file.
 Version – View software version.
 QR Code – Not supported.
