Security + WhisperDrive 248754 User manual

CHAMBERLAIN _
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.chamberlain.com
SI ( URITI',I,
GARAGE DOOR OPENER
_Model 248754
For Residential Use Only
Owner's Manual
•Please read this manual and the enclosed safety materials carefully!
•Fasten the manual near the garage door after installation.
•The door WILL NOT CLOSE unless The Protector System® is connected
and properly aligned.
•Periodic checks of the opener are required to ensure safe operation.
•The model number label is located on the left side panel of your opener.

TABLE OF CONTENTS
Introduction 2- 7
Safety symbol and signal word review ............... 2
Preparing your garage door ....................... 3
Tools needed .................................. 3
Planning ................................... 4-5
Carton inventory ................................ 6
Hardware inventory ............................. 7
Assembly 8-11

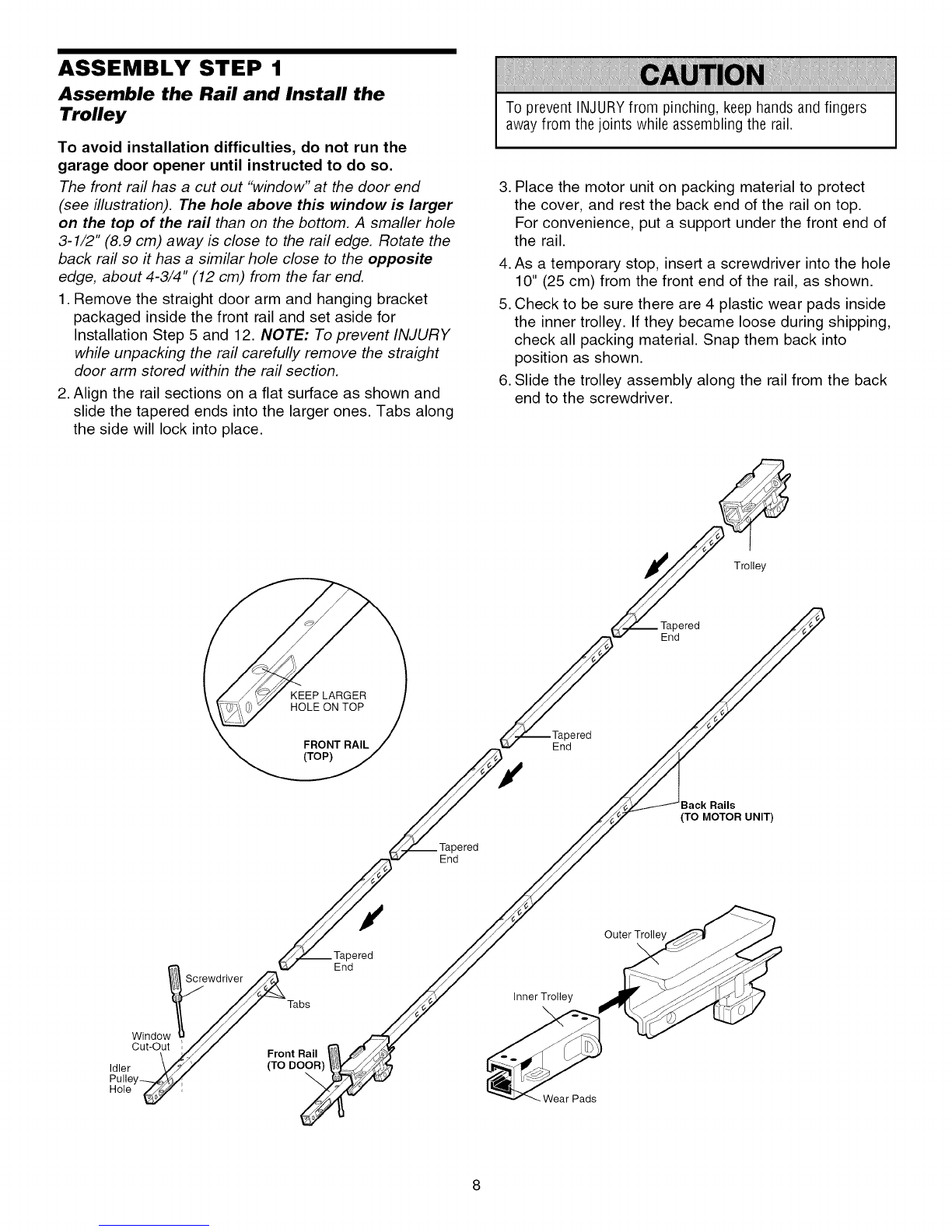

Assemble the rail and install the trolley .............. 8

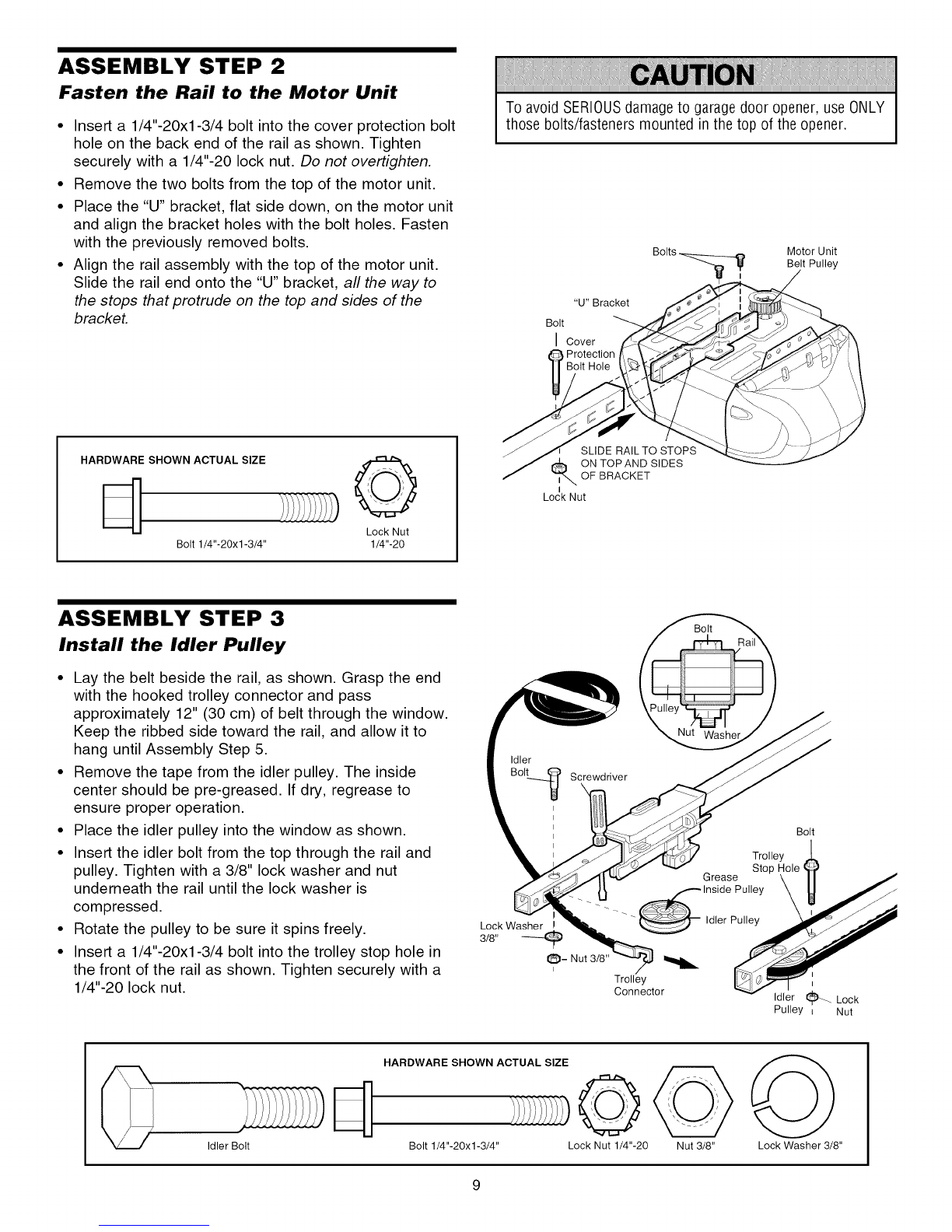

Fasten the rail to the motor unit .................... 9
Install the idler pulley ............................ 9
Install the belt and attach the belt cap retainer ....... 10
Set the tension ................................ 11
Installation 11-26
Installation safety instructions .................... 11

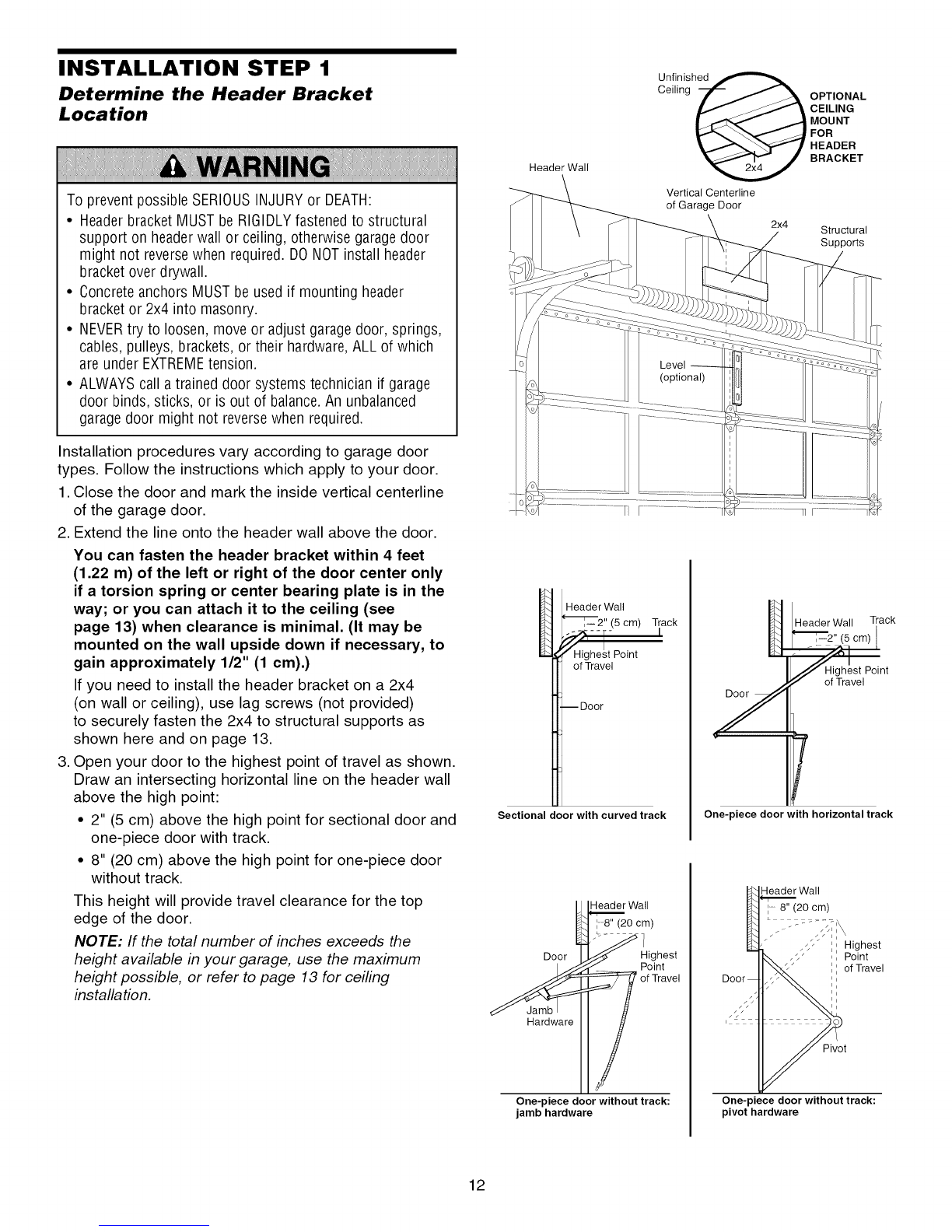

Determine the header bracket location ............. 12

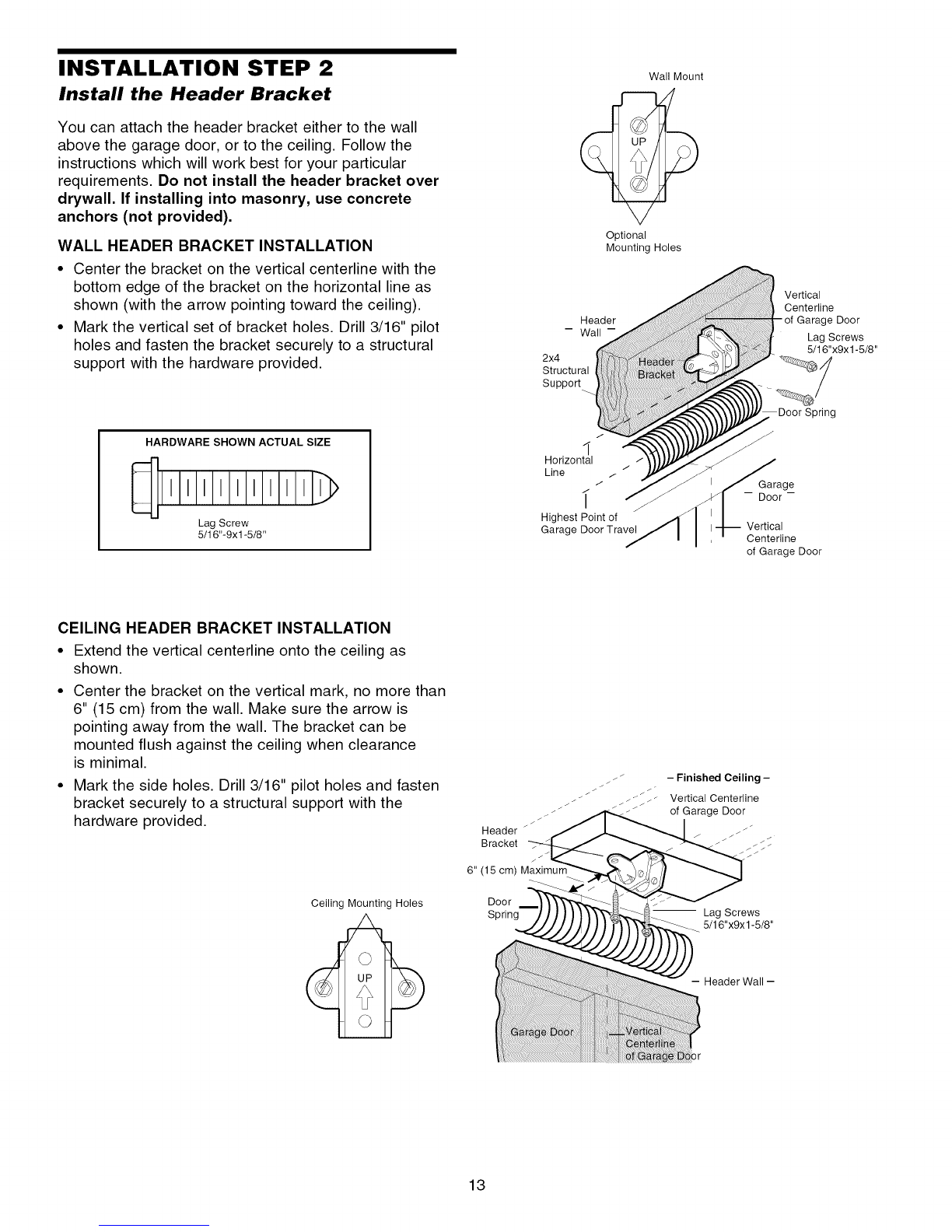

Install the header bracket ........................ 13

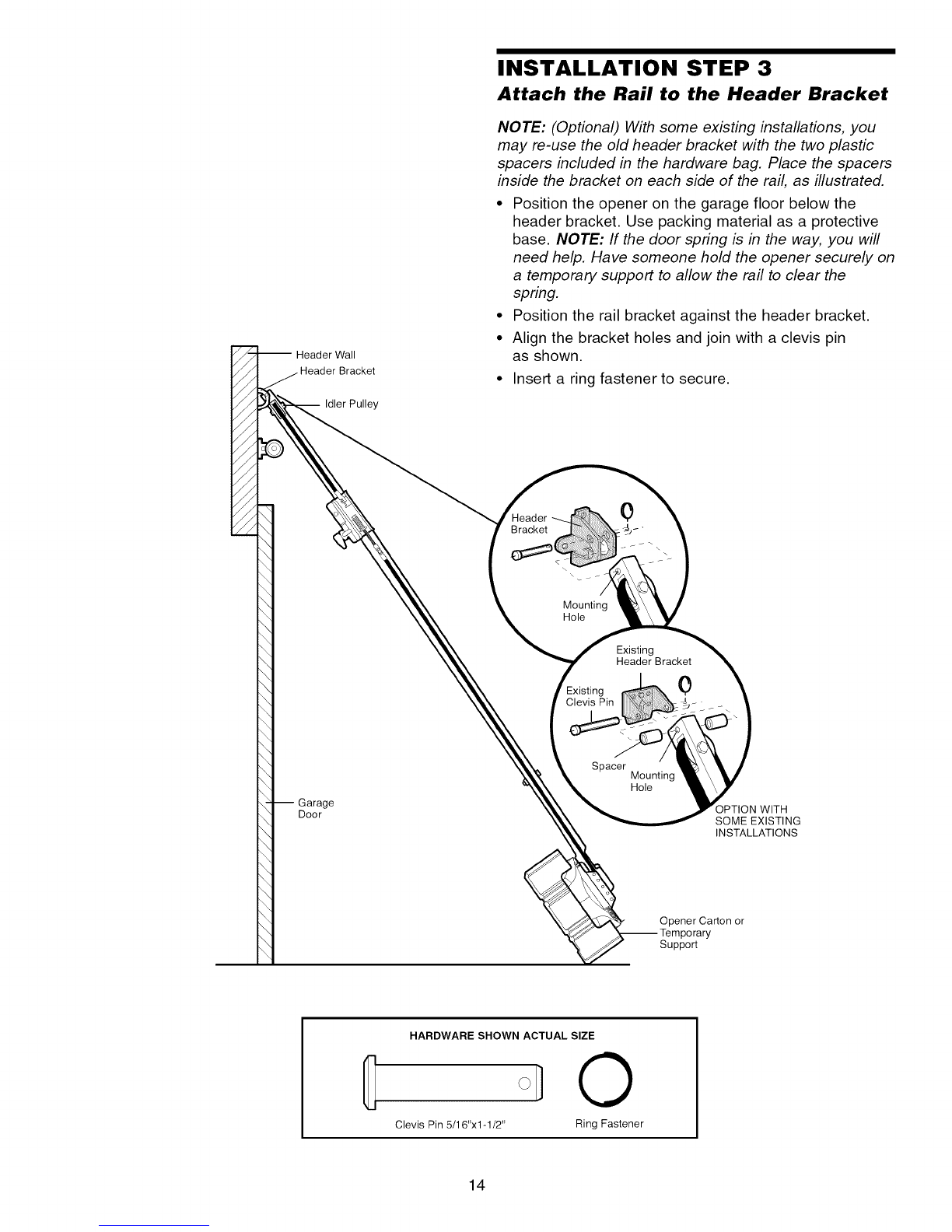

Attach the rail to the header bracket ............... 14

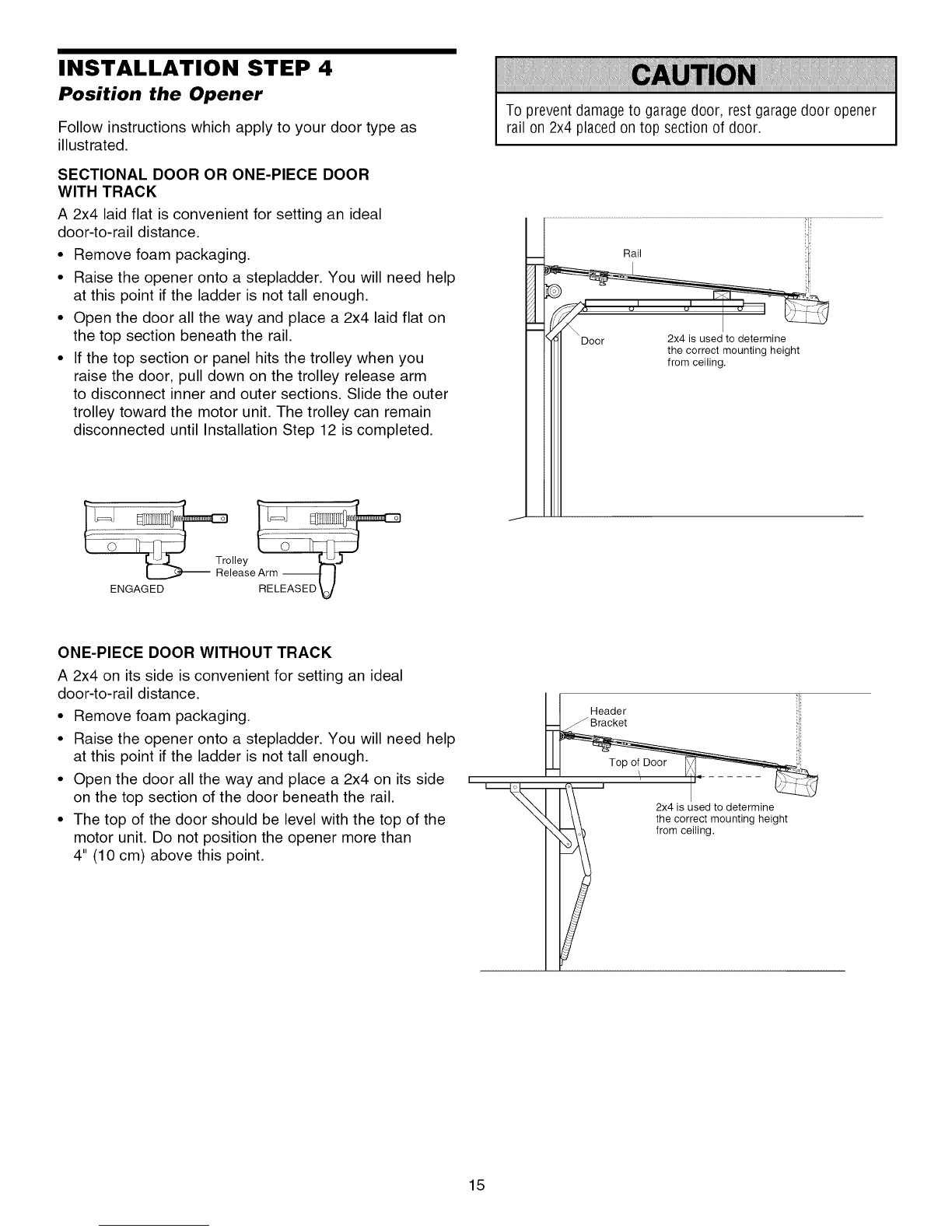

Position the opener ............................. 15
Hang the opener ............................... 16
Install the door control .......................... 17
Install the battery .............................. 18
Install the lights ................................ 18
Attach the emergency release rope and handle ...... 19
Electrical requirements .......................... 20
Install The Protector System ® ................. 21-23
Fasten the door bracket ...................... 24-25
Connect the door arm to the trolley ............. 26-27
Adjustment 28-30
Program the travel limits ........................ 28
Setting the force ............................... 29
Test the safety reversal system ................... 30
Test The Protector System ®...................... 30
Operation 31-37
Operation safety instructions ..................... 31
Using your opener ............................. 31
Using the wall-mounted door control ............... 32
Care of your opener ............................ 33
To open the door manually ...................... 33
Battery backup ................................ 34
Having a problem? (Troubleshooting) .............. 35
Diagnostic chart ............................... 36
Programming 37-38
To add or reprogram a hand-held remote control ..... 37
To erase all codes from motor unit memory ......... 37
3-Button remotes .............................. 37
To add, reprogram or change a
Keyless Entry PIN ............................. 38
Repair Parts 39-40
Rail assembly parts ............................ 39
Installation parts ............................... 39
Motor unit assembly parts ....................... 40
Accessories 41
Notes 42.43
Repair Parts and Service
Warranty
44
44
INTRODUCTION
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal Words
on the following pages, they will alert you to the
possibility of serious injury or death if you do not
comply with the warnings that accompany them. The
hazard may come from something mechanical or from
electric shock. Read the warnings carefully.
When you see this Signal Word on the following pages, it
will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not comply
with the cautionary statements that accompany it. Read
them carefully.

Preparing your garage door
Before you begin:
•Disable locks.
• Remove any ropes connected to garage door.
• Complete the following test to make sure your
garage door is balanced and is not sticking or binding:
1. Lift the door about halfway as shown. Release the
door. If balanced, it should stay in place, supported
entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
To prevent possible SERIOUSINJURYor DEATH:
• ALWAYScall a trained door systems technician if garage
door binds, sticks, or is out of balance.An unbalanced
garagedoor may not reversewhen required.
• NEVERtry to loosen, move or adjust garagedoor, door
springs, cables,pulleys, brackets or their hardware,ALL of
which are under EXTREMEtension.
• DisableALL locks and removeALL ropes connectedto
garagedoor BEFOREinstalling and operating garagedoor
opener to avoid entanglement.
To prevent damageto garage door and opener:
• ALWAYSdisable locks BEFOREinstalling and operating
the opener.
• ONLYoperategaragedoor opener at 120V, 60 Hzto avoid
malfunction and damage.
Sectional Door
One-Piece Door Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
Stepladder
Level (optional) Pencil
Tape Measure
Wire Cutters
Drill 3/16", 5/16"
_[_ and 5/32"
1/2", 5/8", 7/16", 9/16"
and 1/4"
Hack Saw
Screwdriver
Adjustable End Wrench

Planning
Identify the type and height of your garage door. Survey
your garage area to see if any of the conditions below
apply to your installation. Additional materials may be
required. You may find it helpful to refer back to this
page and the accompanying illustrations as you proceed
with the installation of your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
• Installation Step 1 - Look at the wall or ceiling above
the garage door. The header bracket must be securely
fastened to structural supports.
• Installation Step 5 - Do you have a finished ceiling in
your garage? If so, a support bracket and additional
fastening hardware may be required.
• Installation Step 11 - Depending upon garage
construction, extension brackets or wood blocks may
be needed to install sensors.
• Installation Step 11 - Alternate floor mounting of the
safety reversing sensor will require hardware not
provided.
Do you have an access door in addition to the garage
door? If not, Model 7702CB Emergency Key Release
is required. See Accessories page.
Look at the garage door where it meets the floor. Any
gap between the floor and the bottom of the door must
not exceed 1/4" (6 mm). Otherwise, the safety reversal
system may not work properly. See Adjustment Step 3.
Floor or door should be repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforcement
is required (Installation Step 12).
• The opener should be installed above the center of the
door. If there is a torsion spring or center bearing plate
in the way of the header bracket, it may be installed
within 4 feet (1.2 m) to the left or right of the door
center. See Installation Steps 1 and 12.
• If your door is more than 7 feet (2.1 m) high, see rail
extension kits listed on Accessories page.
SECTIONAL DOOR INSTALLATION
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 24 for details.
FINISHED CEILING
Support bracket &
fastening hardware
is required.
See page 16.
Header Wall
Extension
OR
Torsion Spring
unit
Vertical
Centerline
of Garage Door
Wall-
mounted
Door
Control
Safety Reversing Sensor
Gap between floor
and bottom of door
must not exceed 1/4" (6 mm).
Safety
Reversing
Sensor
Door
©
Header CLOSED POSITION
Bracket Trolley
/Stop Bolt Trolley ,
Garage
Door to/ "--] Belt
ring /!_"'X I
/_ / Stooirght I-_ g y> Emer enc Release
_/JJJ/t u-_ _" /_j Arm | Rope & Handle
I I_ _J_ Curved
4eader _ _, Door
Nail Ix_ " Arm
Sarage _ Door
)oo_r_ --{- " Bracket
/

Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
•Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to the
information relating to sectional doors in Installation
Step 12.
• Depending on your door's construction, you may need
additional mounting hardware for the door bracket
(Step 12).
Without a properly working safety reversal system, persons
(particularly small children) could be SERIOUSLYINJURED
or KILLED bya closing garagedoor.
• Thegap betweenthe bottom of the garagedoor and the
floor MUST NOTexceed 1/4" (6 mm). Otherwise,the safety
reversal system may not work properly.
• Thefloor or the garage door MUSTbe repairedto eliminate
the gap.
ONE-PIECE DOOR WITHOUT TRACK
FINISHED CEILING
_ Header Wall
ap between floor
Safety Reversing Sensor
Rail
J
Access
Door
C
1
Support bracket
& fastening
hardware is required.
See page 16.
Safety Reversing
Sensor
and bottom of door must not exceed 1/4" (6 ram).
Wall-mounted
Door Control
Motor Unit
CLOSED POSITION
Trolley Stop Bolt Belt Trolley
• _racKet _ Y I Emergency
__1 I-- Release
i_ irght i_m_ed _ ROpe & Handle
_ Garage
_,_ Door
CLOSED POSITION
Trolley Stop Bolt Belt Trolley
J J. I _1 ,
z i _L_ _-"
HeaderCorved
Bracket DoorArm -_- [_ - Rail
!
Door I i Emergency
_/¢_ Bracket Straiqht Release
_///I Door Rope &
//'J,,l_ Garage ^_ Handle
_I Door ..... J_
Reversing
Sensor

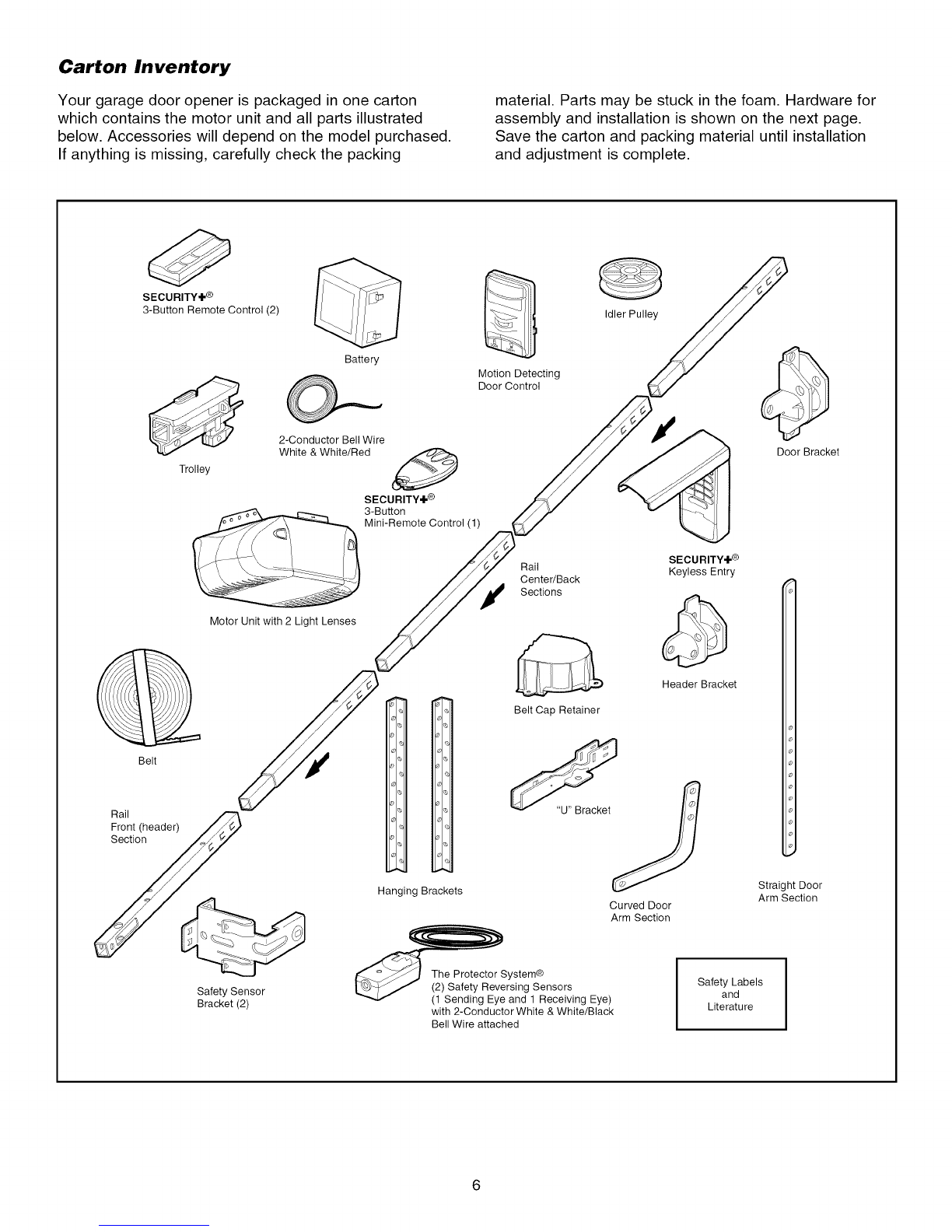

Carton Inventory
Your garage door opener is packaged in one carton
which contains the motor unit and all parts illustrated
below. Accessories will depend on the model purchased.
If anything is missing, carefully check the packing
material. Parts may be stuck in the foam. Hardware for
assembly and installation is shown on the next page.
Save the carton and packing material until installation
and adjustment is complete.
SECURITY+ ®
3-Button Remote Control (2)
Trolley
Battery
2-Conductor Bell Wire
White & White/Red
Motor Unit with 2 Light Lenses
SECURITY+ ®
3-Button
Mini-Remote Control (1)
Motion Detecting
Door Control
Rail
Center/Back
ySections
@
Idler Pulley
SECURITY+ ®
Keyless Entry
Header Bracket
Belt
Rail
Front (header)
Section
Safety Sensor
Bracket (2)
Belt Cap Retainer
Hanging Brackets
__ntn_g_SR_ns° isi ng Eye)
with 2-Conductor White & White/Black
Bell Wire attached
"U" BracketJ
Curved Door
Arm Section
Safety Labels
and
Literatu re
Door Bracket
Straight Door
Arm Section

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
ASSEMBLY HARDWARE
Nut
Spring/Trolley Nut (1) 3/8" (1)
Bolt 1/4"-20xl-3/4" (2)
@
Lock Nut
1/4"-20 (2) Lock Washer
3/8" (1)
©
Trolley Threaded Shaft (1)
Master
Link (2) Idler Bolt (1)
INSTALLATION HARDWARE
Carriage Bolt
1/4"-20x 1/2" (2)
0
Lag Screw
5/16"-9xl -5/8" (2)
Lag Screw
5/16"-18xl -7/8" (2)
1/4"-14x5/8" (2)
o]
Clevis Pin
5/16"x1-1/2" (1)
Wing Nut Ring
1/4"-20 (2) Fastener (3)
Hex Bolt
5/16"-18x7/8" (4)
Screw
6ABx1-1/4" (2)
Drywall Anchors (2)
E ol
Clevis Pin
5/16"x1" (1)
Nut 5/16"-18 (8) Handle
Lock Washer 5/16" (7) Insulated Staples (30)
Screw 6-32x1" (2)
Spacer (2)
o]
Clevis Pin
5/16"x1-1/4" (1)
Rope

ASSEMBLY STEP 1
Assemble the Rail and Install the
Trolley
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
The front rail has a cut out "window" at the door end
(see illustration). The hole above this window is larger
on the top of the rail than on the bottom. A smaller hole
3-1/2" (8.9 cm) away is close to the rail edge. Rotate the
back rail so #has a similar hole close to the opposite
edge, about 4-3/4" (12 cm) from the far end.
1. Remove the straight door arm and hanging bracket
packaged inside the front rail and set aside for
Installation Step 5 and 12. NOTE: To prevent INJURY
while unpacking the rail carefully remove the straight
door arm stored within the rail section.
2. Align the rail sections on a flat surface as shown and
slide the tapered ends into the larger ones. Tabs along
the side will lock into place.
To prevent INJURYfrom pinching, keephandsand fingers
away from the joints while assembling the rail.
3. Place the motor unit on packing material to protect
the cover, and rest the back end of the rail on top.
For convenience, put a support under the front end of
the rail.
4. As a temporary stop, insert a screwdriver into the hole
10" (25 cm) from the front end of the rail, as shown.
5. Check to be sure there are 4 plastic wear pads inside
the inner trolley. If they became loose during shipping,
check all packing material. Snap them back into
position as shown.
6. Slide the trolley assembly along the rail from the back
end to the screwdriver.
_ered
End
3ered
End
Trolley
Tapered
End
Back Rails
(TO MOTOR UNIT)
3ered
End Inner Trolley

ASSEMBLY STEP 2
Fasten the Rail to the Motor Unit
•Insert a 1/4"-20xl-3/4 bolt into the cover protection bolt
hole on the back end of the rail as shown. Tighten
securely with a 1/4"-20 lock nut. Do not overtighten.
• Remove the two bolts from the top of the motor unit.
• Place the "U" bracket, flat side down, on the motor unit
and align the bracket holes with the bolt holes. Fasten
with the previously removed bolts.
• Align the rail assembly with the top of the motor unit.
Slide the rail end onto the "U" bracket, all the way to
the stops that protrude on the top and sides of the
bracket.
To avoid SERIOUSdamageto garagedoor opener, use ONLY
those bolts/fasteners mounted in the top of the opener.
"U" Bracket
Bolt
I Cover
Bolts Motor Unit
Belt Pulley
HARDWARE SHOWN ACTUAL SIZE
__1_ Lock Nut
Bolt 1/4"-20x 1-3/4" 1/4"-20
SLIDE RAIL TO STOPS
ON TOPAND SIDES
OF BRACKET
I
Lock Nut
ASSEMBLY STEP 3
Install the Idler Pulley
• Lay the belt beside the rail, as shown. Grasp the end
with the hooked trolley connector and pass
approximately 12" (30 cm) of belt through the window.
Keep the ribbed side toward the rail, and allow it to
hang until Assembly Step 5.
• Remove the tape from the idler pulley. The inside
center should be pre-greased. If dry, regrease to
ensure proper operation.
• Place the idler pulley into the window as shown.
• Insert the idler bolt from the top through the rail and
pulley. Tighten with a 3/8" lock washer and nut
underneath the rail until the lock washer is
compressed.
• Rotate the pulley to be sure it spins freely.
• Insert a 1/4"-20xl-3/4 bolt into the trolley stop hole in
the front of the rail as shown. Tighten securely with a
1/4"-20 lock nut.
Lock Washer
3/8" O-
Grease
___ __lnside Pulley
_ Idler Pulley
Trolley
Connector
Bolt
I
I
(_ Lock
Pulley t Nut
Idler Bolt
HARDWARE SHOWN ACTUAL SIZE
Bolt 1/4"-20x1-3/4" Lock Nut 1/4"-20 Nut 3/8" Lock Washer 3/8"

ASSEMBLY STEP 4
Install the Belt and Attach the Belt
Cap Retainer
1. Pull the belt around the idler pulley and toward the
trolley. The ribbed side must contact the pulley.
2. Hook the trolley connector into the retaining slot on
the trolley as shown.
3. With the trolley against the screwdriver, dispense the
remainder of the belt along the rail length toward the
motor unit and around the belt pulley. The belt pulley
teeth must engage the belt.
4. Check to make sure the belt is not twisted and the
FLAT side of the trolley threaded shaft is facing the
rail. Connect the trolley threaded shaft with the master
link, as illustrated:
• Push pins of master link bar through holes in end of
belt and trolley threaded shaft.
• Push master link cap over pins and past pin
notches.
• Slide clip-on spring over cap and onto pin notches
until both pins are securely locked in place.
5. Insert the trolley threaded shaft through the hole in
the trolley. Be sure the belt is not twisted, and the
FLAT side of the trolley threaded shaft faces the rail.
6. Hold the belt at the trolley shaft as you thread the
spring nut by hand onto the shaft until finger tight
against the trolley. Do not use any tools.
7. Remove the screwdriver.
8. Position the belt cap retainer over the motor unit belt
pulley as shown and fasten to the mounting plate with
8x3/8" hex screws provided.
Master Link
Clip-On Spring
Master Link Cap
Trolley
Connector
Idler Pulley
Retaining
Slot
To avoid possible SERIOUSINJURYto fingers from moving
garagedoor opener:
• ALWAYSkeephand clearof belt pulley while
operating opener.
• Securelyattach belt pulleycover BEFOREoperating.
HARDWARE SHOWN ACTUAL SIZE
Hex Screw 8x3/8"
Spring/Trolley Nut
Hole
.::..
Pin ._
Notch /
Trolley Master
Threaded Link Bar
Shaft
8x3/8" Hex Screws
Belt Cap Retainer
Belt Pulley
Plate
10

ASSEMBLY STEP 5
Set the Tension
•Insert a screwdriver tip into one of the nut ring slots
and brace it firmly against the trolley.
• Place a 7/16" open end wrench on the square end.
Rotate the nut about 1/4 turn until the spring releases
and snaps the nut ring against the trolley.
This sets the spring to optimum belt tension.
You have now finished assembling your garage door
opener. Please read the following warnings before
proceeding to the installation section.
Square
End
I,
Trolley
Nut Rin(
I BEFORE _ IAFTER RELEASE
1-1/4"
(2.5 cm) (3.18 cm)
Nut Rin(
INSTALLATION
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READAND FOLLOWALL INSTALLATIONWARNINGSAND
INSTRUCTIONS.
2. Install garage door opener ONLYon properly balancedand
lubricated garage door. An improperly balanceddoor may
not reversewhen required and could result in SEVERE
INJURYor DEATH.
3.ALL repairs to cables,spring assemblies and other
hardwareMUSTbe madeby a trained door systems
technician BEFOREinstalling opener.
4. DisableALL locks and remove ALL ropes connectedto
garagedoor BEFOREinstalling opener to avoid
entanglement.
5. Install garage door opener 7 feet (2.1 m) or more
abovefloor.
6. Mount emergency releasehandle6 feet (1.8 m)
abovefloor.
7. NEVERconnect garagedoor opener to power source until
instructed to do so.
8. NEVERwear watches, rings or loose clothing while
installing or servicing opener.They could be caught in
garagedoor or opener mechanisms.
9. Install wall-mounted garagecontrol console:
• within sight of the garagedoor.
• out of reachof children at minimum height of
5 feet (1.5 m).
• awayfrom ALL moving parts of the door.
10. Placeentrapment warning label on wall next to garage
control console.
11. Placemanual release/safetyreversetest label in plain view
on insideof garagedoor.
12. Uponcompletion of installation, test safety reversal
system. Door MUSTreverseon contact with a
1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.
13.To avoid SERIOUSPERSONALINJURYor DEATHfrom
electrocution, disconnect ALL electric and battery power
BEFOREperforming ANYservice or maintenance.
11

INSTALLATION STEP 1
Determine the Header Bracket
Location
To prevent possible SERIOUSINJURYor DEATH:
•HeaderbracketMUST be RIGIDLYfastened to structural
support on headerwall or ceiling, otherwise garagedoor
might not reversewhen required. DONOTinstall header
bracket overdrywall.
• Concreteanchors MUSTbe usedif mounting header
bracket or 2x4 into masonry.
• NEVERtry to loosen, move or adjust garagedoor, springs,
cables,pulleys, brackets, or their hardware,ALL of which
are under EXTREMEtension.
• ALWAYScall a trained door systems technician if garage
door binds, sticks, or is out of balance.An unbalanced
garagedoor might not reversewhen required.
Installation procedures vary according to garage door
types. Follow the instructions which apply to your door.
1. Close the door and mark the inside vertical centerline
of the garage door.
2. Extend the line onto the header wall above the door.
You can fasten the header bracket within 4 feet
(1.22 m) of the left or right of the door center only
if a torsion spring or center bearing plate is in the
way; or you can attach it to the ceiling (see
page 13) when clearance is minimal. (It may be
mounted on the wall upside down if necessary, to
gain approximately 1/2" (1 cm).)
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13.
3. Open your door to the highest point of travel as shown.
Draw an intersecting horizontal line on the header wall
above the high point:
• 2" (5 cm) above the high point for sectional door and
one-piece door with track.
• 8" (20 cm) above the high point for one-piece door
without track.
This height will provide travel clearance for the top
edge of the door.
NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum
height possible, or refer to page 13 for ceiling
installation.
Header Wall
Unfinished
Ceiling
Vertical Centerline
of Garage Door
2x4
OPTIONAL
CEILING
MOUNT
FOR
HEADER
BRACKET
Structural
Supports
Header Wall
*_-L--i2" (5 cm) Track
Highest Point
of Travel
--Door
Sectional door with curved track
Y
Header Wall Track
_'_-_-_2" (5 cm)
_ of Travel
One-piece door with horizontal track
r Wall
Door_ Hightest
i ° Tr ve
One-piece door without track:
jamb hardware
Header Wall
:8" (20 cm)
JO_ i', Highest
, Point
:' of Travel
Pivot
One-piece door without track:
pivot hardware
12

INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements. Do not install the header bracket over
drywall. If installing into masonry, use concrete
anchors (not provided).
WALL HEADER BRACKET INSTALLATION
•Center the bracket on the vertical centerline with the
bottom edge of the bracket on the horizontal line as
shown (with the arrow pointing toward the ceiling).
• Mark the vertical set of bracket holes. Drill 3/16" pilot
holes and fasten the bracket securely to a structural
support with the hardware provided.
HARDWARE SHOWN ACTUAL SIZE
Lag Screw
5/16"-9x 1-5/8"
Header
- Wall
2x4
Structural
Support
/
1
Horizontal
Line
Highest Point of
Garage Door Travel
Wall Mount
Optional
Mounting Holes
Vertical
Centerlinee Door
Lag Screws
5/16"x9x 1-5/8"
Garage
-- Door-
Vertical
Centerline
of Garage Door
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as
shown.
• Center the bracket on the vertical mark, no more than
6" (15 cm) from the wall. Make sure the arrow is
pointing away from the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 3/16" pilot holes and fasten
bracket securely to a structural support with the
hardware provided.
Ceiling Mounting Holes
/
Header /
Bracket
6" (15 cm) Maximurr
Door
Spring
- Finished Ceiling -
Vertical Centerline
of Garage Door
-- Lag Screws
5/16"x9x1-5/8"
- Header Wall -
13

-- Header Wall
Idler Pulley
INSTALLATION STEP 3
Attach the Rail to the Header Bracket
NOTE: (Optional) With some existing installations, you
may re-use the old header bracket with the two plastic
spacers included in the hardware bag. Place the spacers
inside the bracket on each side of the rail, as illustrated.
• Position the opener on the garage floor below the
header bracket. Use packing material as a protective
base. NOTE: If the door spring is in the way, you will
need help. Have someone hold the opener securely on
a temporary support to allow the rail to clear the
spring.
• Position the rail bracket against the header bracket.
• Align the bracket holes and join with a clevis pin
as shown.
• Insert a ring fastener to secure.
Door
Bracket
\
Mounting
Hole
Clevis Pin
Spacer
0
Existing
Header Bracket
0
Mounting
Hole
DPTION WITH
SOME EXISTING
INSTALLATIONS
Opener Carton or
Support
HARDWARE SHOWN ACTUAL SIZE
Clevis Pin 5/16"x1-1/2" Ring Fastener
14

INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR
WITH TRACK
A 2x4 laid flat is convenient for setting an ideal
door-to-rail distance.
• Remove foam packaging.
• Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 laid flat on
the top section beneath the rail.
• If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the outer
trolley toward the motor unit. The trolley can remain
disconnected until Installation Step 12 is completed.
To prevent damageto garage door, rest garagedoor opener
rail on 2x4 placedon top section of door.
!ii
oo
ENGAGED
ONE-PIECE DOOR WITHOUT TRACK
A 2x4 on its side is convenient for setting an ideal
door-to-rail distance.
• Remove foam packaging.
• Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 on its side
on the top section of the door beneath the rail.
• The top of the door should be level with the top of the
motor unit. Do not position the opener more than
4" (10 cm) above this point.
I12x4 is used to determine
the correct mounting height
from ceiling.
15

INSTALLATION STEP 5
Hang the Opener
Three representative installations are shown. Yours may
be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished ceilings
(Figures 2 and 3), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided.
1. Measure the distance from each side of the motor unit
to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18xl -7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the door
(or in line with the header bracket if the bracket is not
centered above the door).
7. Remove the 2x4. Operate the door manually. If the
door hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
HARDWARE SHOWN ACTUAL SIZE
Hex Bolt
5/16"- 18x7/8" Nut 5/16"- 18 Lock Washer 5/16"
To avoid possible SERIOUSINJURYfrom a falling garage
door opener,fasten it SECURELYto structural supports of
the garage.Concreteanchors MUST be usedif installing ANY
brackets into masonry.
Figure_ Structural
Lag Screws
Measu re 5/16"-18xl -7/8"
Bolt 5/16"- 18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Figure 3
Lag Screws
5/16"-18xl -7/8"
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Not Provided)
Bolt 5/16"- 18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
16

INSTALLATION STEP 6
Install the Door Control
Locate door control within sight of door, at a minimum
height of 5 feet (1.5 m) where small children cannot
reach, away from moving parts of door and door
hardware. If installing into drywall, drill 5/32" holes and
use the anchors provided. For pre-wired installations
(as in new home construction), it may be mounted to a
single gang box (Figure 2).
1. Strip 7/16" (11 mm) of insulation from one end of bell
wire and connect to the two screw terminals on back of
door control by color: white wire to 2 and white/red
wire to the 1.
2. Remove cover by gently prying at slot in top of the
cover with a small flat head screwdriver. Fasten with
6ABx1-1/4" self-tapping screws (drywall installation) or
6-32xl" machine screws (into gang box) as follows:
• Install bottom screw, allowing 1/8" (3 mm) to protrude
above wall surface.
• Position bottom of door control on screw head and
slide down to secure. Adjust screw for snug fit.
• Drill and install top screw with care to avoid cracking
plastic housing. Do not overtighten.
• Insert top tabs and snap on cover.
3. (For standard installation only) Run bell wire up wall
and across ceiling to motor unit. Use insulated staples
to secure wire in several places. Do not pierce wire
with a staple, creating a short or open circuit.
4. Strip 7/16" (11 mm) of insulation from end of bell wire.
Connect bell wire to the quick-connect terminals as
follows: white to white and white/red to red.
5. Position the antenna wire as shown.
6. Use tacks or staples to permanently attach entrapment
warning label to wall near door control, and manual
release/safety reverse test label in a prominent
location on inside of garage door.
NOTE: DO NOT connect power and operate opener at
this time. The trolley will travel to the full open position
but will not return to the close position until the sensor
beam is connected and properly aligned.
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution:
• DisconnectALL electric and battery power BEFORE
performing ANYservice or maintenance.
• ConnectONLYto 24 VOLTlow voltage wires.
To prevent possible SERIOUSINJURYor DEATHfrom a
closing garage door:
• Install door control within sight of garage door, out of reach
of children ata minimum height of 5 feet (1.5 m), and away
from ALL moving parts of door.
• NEVERpermit children to operate or playwith door control
push buttons or remote controls.
• Activate door ONLYwhen it can be seenclearly, is properly
adjusted,and there are no obstructions to door travel.
• ALWAYSkeepgarage door in sight until completely closed.
NEVERpermit anyoneto cross pathof closing garage door.
Outside Keylock Accessory Connections
To opener quick-connect terminals: white to white;
wh te/red to red.
HARDWARE SHOWN ACTUAL SIZE
(standard installation)
(pre-wired)
_ I_tSaU_tsed
Drywall Anchors
Figure 1Figure 2
STANDARD WALL MOUNT PRE-WIRED INSTALLATION_
To Replace
InsertTop '[I_ v°'tBe"W'rel___l\_ I__-'I
Tabs F,!st. (( 24
_ To Replace ___
"" Insert Top _r_._ _"
Tabs First _ _'k_\_
oONF "___
I _ _ Detector
Push Bar Cover Switch
: _ Detector ON
Push Bar Cover Ds_t_hr I oONF
rr _ Top
I_ _ Mounting
Hole
,_-,,,,,,_L_" _ Terminal
,41 Screws
Bellll _ II Bottom
Wire | _ Mounting
kL_mr_r J) Hole
(BACK VIEW)
Door Control Connections
Strip wire 7/16" (11 mm)
(7/16" (11 ram}}
To insert or release wire,
3ush in tab with screwdriver tip
Red White Grey
17

INSTALLATION STEP 7
Install the Battery Backup
•Make sure motor unit is unplugged
• Using a Phillips head screwdriver, remove the battery
cover on the motor unit
• Partially insert battery into motor unit with terminals
facing out
• Connect the red (+) and black (-) wires from motor
unit to corresponding terminals on battery
• Replace battery cover
ALWAYSwear protective gloves and eyeprotection when
changing the battery or working around the battery
compartment
Battery Battery Cover
INSTALLATION STEP 8
Install the Lights
• Press the release tabs on both sides of lens Gently
rotate lens back and downward until the lens hinge is
in the fully open position Do not remove the lens
• Install a 100 watt maximum light bulb in each socket
Light bulb size should be A19, standard neck only The
lights will turn ON and remain lit for approximately
4-1/2 minutes when power is connected Then the
lights will turn OFF
• Reverse the procedure to close the lens
• Use A19, standard neck garage door opener bulbs for
replacement
NOTE: Use only standard light bulbs. The use of short
neck or speciafity light bulbs may overheat the endpanel
or light socket.
To prevent possible OVERHEATINGof the endpanel or light
socket:
• DONOTuse short neck or specialty light bulbs.
• DONOTuse halogen bulbs. UseONLYincandescent.
To prevent damageto the opener:
• DONOTuse bulbs larger than IOOW.
• ONLYuseA19 size bulbs.
Release Tab
100 Watt (Max) ( _
Standard Light Bulb
100 Watt Light Bul_
(Max)
Standard
/
/
/
H//
Lens
Hinge
18

INSTALLATION STEP 9
Attach the Emergency Release Rope
and Handle
•Thread one end of the rope through the hole in the top
of the red handle so "NOTICE" reads right side up as
shown. Secure with an overhand knot at least
1" (2.5 cm) from the end of the rope to prevent
slipping.
• Thread the other end of the rope through the hole in
the release arm of the outer trolley.
• Adjust rope length so the handle is 6 feet (1.8 m)
above the floor. Ensure that the rope and handle clear
the tops of all vehicles to avoid entanglement. Secure
with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal the cut
end with a match or lighter to prevent unraveling.
To prevent possible SERIOUSINJURYor DEATHfrom a
falling garagedoor:
• If possible,use emergency releasehandleto disengage
trolley ONLYwhen garage door is CLOSED.Weakor
broken springs or unbalanceddoor could result in an open
door falling rapidly and/or unexpectedly.
• NEVERuseemergency releasehandle unless garage
doorway is clear of persons and obstructions.
• NEVERusehandle to pull door open or closed. If rope knot
becomes untied, you could fall.
Trolley
I
Emergency _ _ Overhand
Knot
Release Handle _ )_..j
19

INSTALLATION STEP 10
Electrical Requirements
To avoid installation difficulties, do not run the
opener at this time.
To reduce the risk of electric shock, your garage door
opener has a grounding type plug with a third grounding
pin. This plug will only fit into a grounding type outlet. If
the plug doesn't fit into the outlet you have, contact a
qualified electrician to install the proper outlet.
RIGH_
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution or fire:
• DisconnectALL electric and battery power BEFORE
performing ANY serviceor maintenance.
• Garagedoor installation and wiring MUSTbe in compliance
with ALL local electrical and building codes.
• NEVERusean extension cord, 2-wire adapter,or change
plug in ANYway to make it fit outlet. Besure the opener
is grounded.
PERMANENT WIRING
CONNECTION
If permanent wiring is required by your local code,
refer to the following procedure.
To make a permanent connection through the 7/8" (2 cm)
hole in the top of the motor unit:
• Remove the motor unit cover screws and set the cover
aside.
• Remove the attached 3-prong cord.
• Connect the black (line) wire to the screw on the brass
terminal; the white (neutral) wire to the screw on the
silver terminal; and the ground wire to the green
ground screw. The opener must be grounded.
• Reinstall the cover.
To avoid installation difficulties, do not run the
opener at this time.
Ground Tab
Green
Ground Screw
Ground Wire Wire
White Wire Black Wire
20
