Sedna Aire CM Series Guide

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 1 10/2012
CM - Multi Split Series
R-410A Ultra High Efficiency Cassette Indoor unit
Cassette: 2,5 – 5 kw Capacity
Sedna Aire now offers ductless Multi split heat pumps that use the more efficient and
environmentally friendly refrigerant (R-410A). The ductless system allows very easy
integration into existing surroundings without major investment in ducts or radiators. It
contains one outdoor and up to five indoor unit Wall mounted and/or Cassettes) and is
especially dedicated to straight forward applications where more than one indoor unit are
needed.
The new CM Series of Sedna Aire heat pumps offers outstanding performance as well as
environmental protection. These models with their high efficient compressors in DC-Inverter
technology offer when matched with our SolarcoolTM panel efficiency rates 2-3 times better
than current comparables best-in class systems: EER: 8 for Cooling and
COP: 8 for Heating.
Cassettes are available for assembly in ceilings allowing luxury design and air distribution in
all 4 directions. They are available in Euro-Grid (CMC-12/18) and non-Euro-Grid (CMC24).
The manual explains the use and installation of the indoor cassettes only. The use and
installation of the outdoor systems is described in other manuals
SolarCoolTM…The Hotter it Gets, The Better It Works!

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 2 10/2012
Table of Contents
Topic Page
1. Name and descriptions of the parts 3
2. Instructions before installation and use 4
3. Remote control description and manual 6
4. Battery change 7
5. Users notes 7
6. Emergency operation for lost/damaged remote control 7
7. How to operate the unit 8
8. Care and maintenance 9
9. Trouble shooting 11
10. Location of installation 13
11. Dimensions of cassette unit 14
12. Installation of indoor cassette unit 15
13. Electrical wiring 18
14. Installation of front cover panel 18
15. Checks and test run 20
16. Warranty 20
IMPORTANT
The installation and especially the connection between the outdoor unit
and the Solarpanel shall be only performed by trained and skilled service
personnel having the appropriate instruments. Sedna Aire does not take
over any responsibility for direct and indirect damages causing from
installation by unskilled and/or untrained persons.

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 3 10/2012
1. NAME AND DESCRIPTION OF THE PARTS - CASSETTE
Composing parts
System overlook
Air intake
Air Outlet
Remote
Control
Drain-
hose
Zoom in Display
Timer
Compressor
Operation
Timer
Comp
Oper
Drainage equipment for discharging
condensate water from indoor unit
when cooling
Drainage hose
Guide louver (placed in
air outlet vent)
Connecting pipe
Air inlet grille
Air outlet vent
Air filter, purifier
( in air inlet grille)

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 4 10/2012

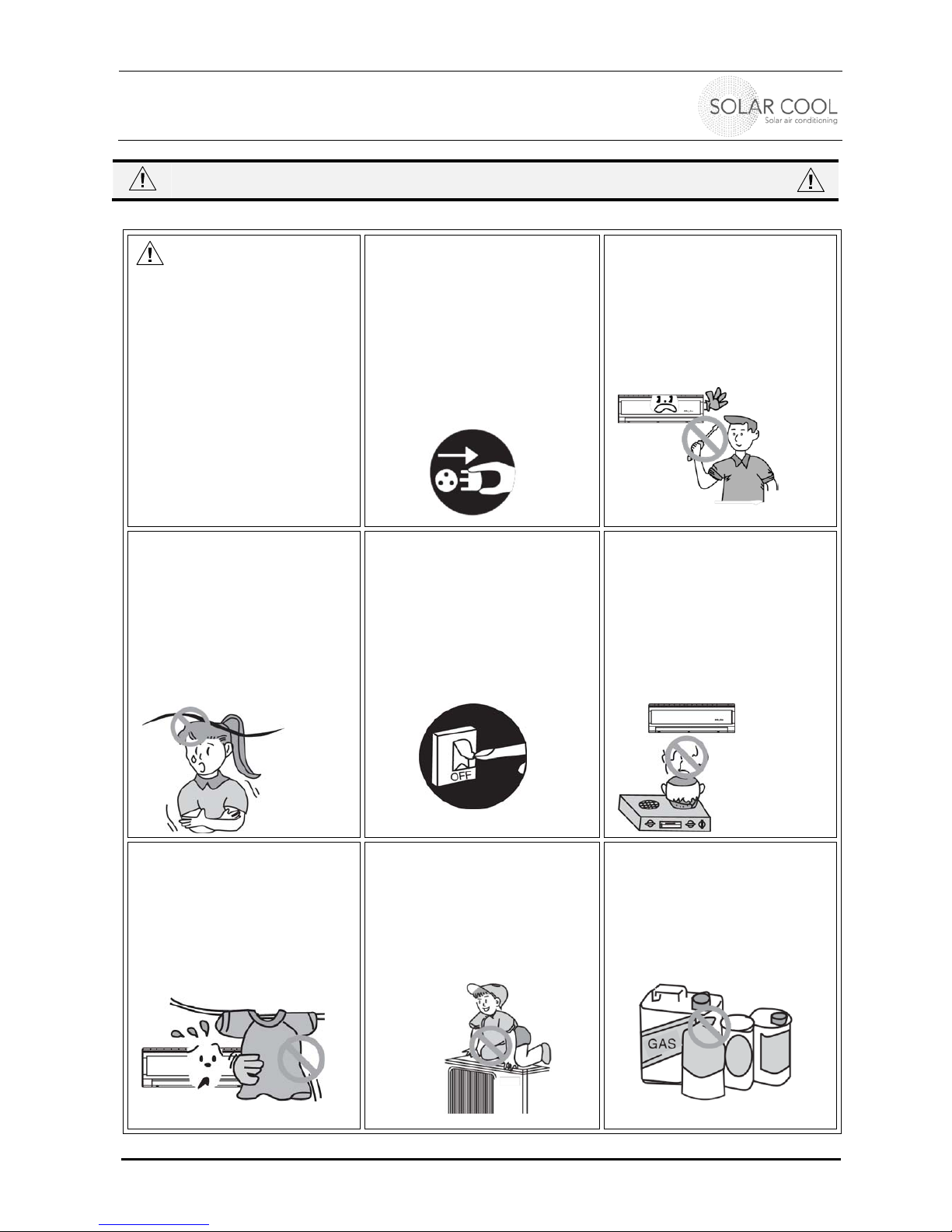

2. INSTRUCTIONS BEFORE INSTALLATION AND USE
Earth: The Ground
wire of your outdoor
and indoor units must be
wired to the earth of your
electricity supply acc. To
local electrical building
codes. If this lacks, please
ask your service personnel
to install it. Don’t connect
the earth wire to gas pipes,
water pipes, drainage pipes
or any other improper
conductors.
★ Air conditioners are
to operate at 200-230V / 1
phase. All other voltages
are not permitted. They
may destroy the unit. Be
sure to have switched off
the power supply when you
are not using the unit for a
longer time
★
Don’t attempt to
repair the air conditioner
by yourself
Wrong repair may cause
an electric shock and may
kill you
★ Don’t apply cold
wind over longer time on
you
It may cause a cold and
harm your health,
especially over night when
you sleep.
★
If your detect unusual
phenomenons like smell
or burning smoke, turn
off immediately the unit. It
may cause damage,
electrical shocks and
impact your health.
★
Don’t place a heater
near the indoor unit of
the air conditioner. Air
flow from the combustion
can cause insufficient
heating up by the indoor
unit.
★ Don’t block the inlet
and outlet openings of
indoor and outdoor unit.
It can decrease the air
conditioning capacity or a
malfunction
★
Don’t step on the top
of the outdoor unit and
place something heavy
on it. Falling off the outdoor
unit may cause damage to
you and somebody else
★
Keep flammable
sprays and liquids at
least 1 m away from the
units.
It may cause fire or
explosion

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 5 10/2012
★ Please check, if the
planned stand is firm
If it is not, the unit may fall
down and cause injury
★ Select an appropriate
temperature depending
on outside temperature
Setting very low tempera-
tures consumes very much
electricity and money
★ Adjust direction of
airflow appropriately
Direct air flow by adjusting
the louvers for vertical and
horizontal direction by use
of remote control
★ Don’t leave windows
and doors open for a
longer time while running
the unit.
It can decrease the air
conditioning capacity
★
Don’t blow the air
directly to and plants.
It may impact their health,
when not properly
controlled
★
Don’t damage the
power and signal cords.
Don’t damage or cut the
cords. If this has happened,
contact service center or
other trained and skilled
electricians, since wrong
repairs may kill you.
★ Don’t splash water on
the indoor units.
It can cause an electric
shock and kill you
★
Don’t insert your
hands or stick into the air
intake or outlet vents
It destroy the air guidance
and unit.
★
Don’t use the air
conditioner for any other
as not designed purposes
like, drying clothes, food,
etc. It may overheat and
the unit may be damaged.
Max 5 °C
difference bet-
ween in and
out
Louver left/
right adjust-
ment
Louver Top/
down adjust-
ment

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 6 10/2012
2. REMOTE CONTROL DESCRIPTION AND MANUAL
Actual remote control may vary, but functionality remains
1 Turns unit on and off
2 Adjusts Temperature setting: (not in
Auto mode)
+ to increase temperature, hold 2 sec.
for fast change
- to decrease temperature
3 Change operation mode:
press the mode button until you see the
desired mode
- Auto, sets automatically
- Cool
- Dry
- Fan
- Heat
4 “I Feel” Enhanced Comfort:
Press the button to switch this function
on or off: Then the temperature sensor
in the remote control and not in the wall
unit will master the control.
5 Air Function:
Press to turn on or off
6 Swing Function: Press to set up&down swing
angle of air guide louvers. Various static
angles or a dynamic oscillating angle of the
louver may be chosen: The first sign on the
upper left row indicates the oscillating mode,
while the others install a static angle.
7 24 Hour timer: Switch TIMER ON/TIMER OFF
on or off. After pressing disappears and
“ON” blinks. 00:00 is displayed. Press within 5
sec. “+” or “-“ to set time. Every press changes
time by 1 min. Holding down the “+” “-“ buttons
rapidly changes the time setting by 1 min. and
then 10 min. After having set, press TIMER-
ON/TIMER OFF within 5 sec. to confirm your
input
8 Display light on/off: Switch display light on/off
9 Displays set temperature, room temperature or
outdoor temperature. The temperature control
range for the indoor unit is 16°C to 30°C.
10 “One Touch” sleep function: Press to set the
unit to sleeping mode or wake it up again (in
Cool, Dry, Heat mode)
11 Turbo Fan
Press the button to cool or heat faster
12 Indoor fan delay: Press to set a fan delay ( )
of 10 min. after you have turned off unit in
order to dry unit (only COOL& DRY mode)
13 Clock setting - to set current time
When pressed once, the clock setting mode
appears and blinks. Same logic as for the
timer setting. After having set, confirm your
choice by pressing “CLOCK” and then will
be constantly displayed
14 Plasma Ion Generator (if available)
Press the button to switch on or off
15 Adjustable 3-speed fan
Press the button and “+” or “-“ to increase or
decrease the desired fan speed
Lock: Press “+” and “-“ simultaneously to lock or
unlock. If locked, is displayed. When you press
any button, blinks 3 times
°F ↔°C: Switch unit off and press simultaneously
MODE and “-“

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 7 10/2012
4. BATTERY CHANGE
1 Press lid and remove it
2 Take old batteries out
(2 AAA dry cells)
3 Insert new batteries
(2 AAA dry cells)
4 Insert lid again
NOTE
Don’t mix new and used batteries
Remove batteries when unit is not be used for a longer time
The batteries hold for appx. one year under usual conditions
The remote control should be 1 m away from television or audio device, since it could interact
under unfavorable conditions with them
Displace batteries correctly. They are not standard household waste.
5. USERS NOTES
The entire capacity of the indoor unit shall not exceed the capacity of the outdoor unit by 150%
over a longer time. Otherwise it will reduce the overall capacity
A breaker(Fuse) needs to be installed for each indoor unit and the capacity has to be according
to the indoor unit’s electrical parameters. All indoor units are required to be centrally controlled
by one switch, which enables to cut off electrical power in case of an emergency. The breakers
act as short circuit prevention and to avoid abnormal overloads
The main switch must be accessible easily and at all times
Switch of power before cleaning and maintenance of the indoor units
After having turned off the indoor units, they will continue to work for 20-70 sec. to deplete the
residual cool/heat in the unit’s evaporator, while preparing for next operation. This is normal
When the selected mode for the indoor unit does not correspond to the mode of the outdoor
unit, the malfunction light will blink on the indoor unit or remote control. Change the operation
mode or the indoor unit will stop after 5 sec without entry. The cooling mode is compatible with
the Dry mode and the Fan mode is compatible with all modes.
6. EMERGENCY OPERATION FOR LOST/DAMAGED REMOTE CONTROL
When the remote control is lost or damaged, apply following steps by putting the buttons at the
display of the cover panel at the cassette (only for CMC24)
When unit is turned off: Press AUTO. The unit
begins to run in cooling mode with the fan at
high speed. Temperature will be set at 26°C
When unit is turned off: Press TEST. The unit
begins to run in heating mode with the fan at
high speed. Temperature will be set at 20°C
When unit runs in COOL Mode: press AUTO
When unit runs in HEAT Mode: press TEST

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 8 10/2012
7. HOW TO OPERATE THE UNIT
1 Connect the unit with power and set eventual breaker on. The unit starts. Note: When unit is
powered off, the guide louver of the indoor unit will close
2 When you press the ON/OFF button, the Power/Run indicator switches over to green and
shows the running mode (Cool, Heat, Auto). The air conditioner starts now to run.
3 Press the MODE button to switch between the various running modes.
4 Press the SWING button to start or stop the automatic swing mode of the indoor units
5 Press the FAN button to set the desired fan speed.
6 Press the + or - button to set the desired room temperature.
7 Press the SLEEP button to set the unit to sleep
8 Press the TIMER button to set a predefined start and Stop time, for example when you are not
around and want to get it started half an hour before you return
9 Press + and - simultaneously and you may lock or unlock the remote control. A lock sign
appears in the display
10 Switch unit off. Then press Mode and - simultaneously and you may switch between °F or °C
Note:
In the AUTO mode the unit will automatically adjust its running mode according to the
room
temperature .
SPECIAL FUNCTIONS
Dehumidifying (only in cooling mode)
Moisture in the indoor unit will be removed after the unit has stopped. This is intended to avoid
mildew in the indoor unit.
When having set X-FAN on: After turning off the unit (On/Off button), the fan in the indoor
unit will continue for further 10 min. If you want to stop that too, press X-FAN again.
When having set X-FAN off: After turning off the unit (On/Off button), the unit will stop at
once.
Auto Run
In the AUTO mode the unit will automatically adjust its running mode according to the
room temperature . The preset temperature will not be displayed.
Defrost:
When the outdoor temperature is low but the humidity is high, the heat exchanger of outdoor
unit may be frosted after the air conditioner has run for a period of time. This will decrease the
heating effect. To set this mode on, switch unit off. Press Mode and X-Fan buttons
simultaneously for switching on or off and store it to the control. If the unit is under defrost
mode, H1 will appear instead of a shown temperature. If you choose heating, the H1 will appear
and flicker for 5s. Press + or - and H1 will disappear and the preset temperature show up.
Both the indoor fan and outdoor fan will be stopped during auto defrost.
During defrost, steam might flow from the indoor unit.
The defrosting is carried out until it is completed. All other programs are stacked and will
resume upon completion of the defrost process.
Dew at the air outlet:
lf the unit runs for a longer time in the cooling mode together with an ambient relative
humidity higher than 80% (door and windows are open), dew might drop out near the air
outlet.

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 9 10/2012

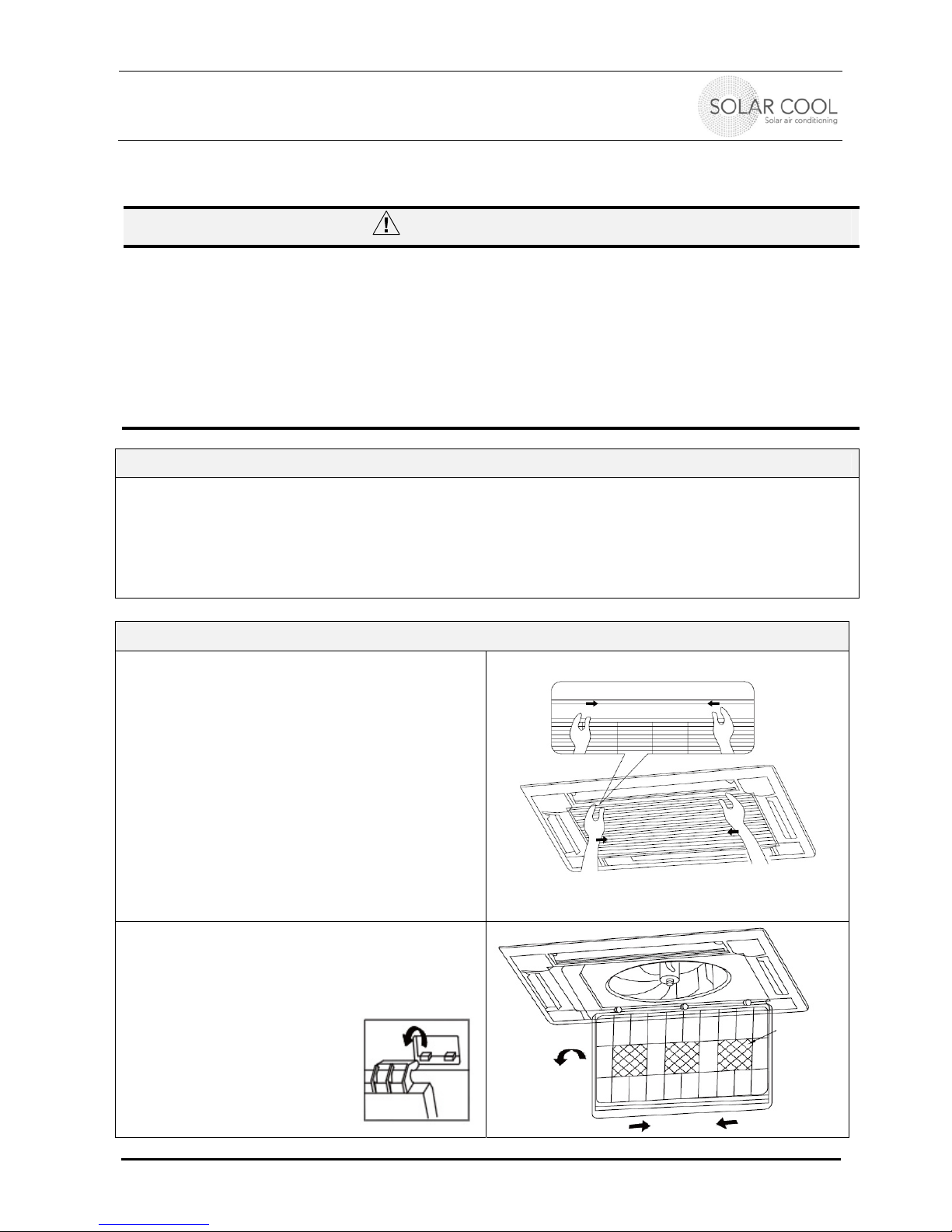

8. CARE AND MAINTENANCE
CAUTION
Turn off power and pull out the power plug before cleaning the air
conditioner.
Never spray or sprinkle water on the indoor unit for cleaning. You may
get an electrical shock which could kill you
Volatile liquids /e.g. thinner or gasolines) will damage the air
conditioner. So wipe the units with a dry soft cloth or slightly
moistened with water or cleanser.
Clean the front panel
When the indoor unit front panel is dirty, please use a cloth which is slightly moistened with warm
water/cleanser under 40 °C, then dry it and wipe off the dirty spots.
NOTE:
The indoor units contains microcomputer components and circuit board in the display which are very
sensitive against water. So don’t put any water into the interior of the indoor unit.
Clean the air filters in the indoor unit (at least all 6 months recommended)
Take out the air filters:
Open air inlet grill: Loosen the 2 screws on
the air inlet grill. Pull the 2 handles on the
air inlet grill at the same time in the
direction shown in the image right and pull
the grille slowly down
Disassemble the air filter
Disassemble grille
Use As shown right, pull the handle at the
rear side of the grille, raise it and
disassemble
Purifier

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 10 10/2012

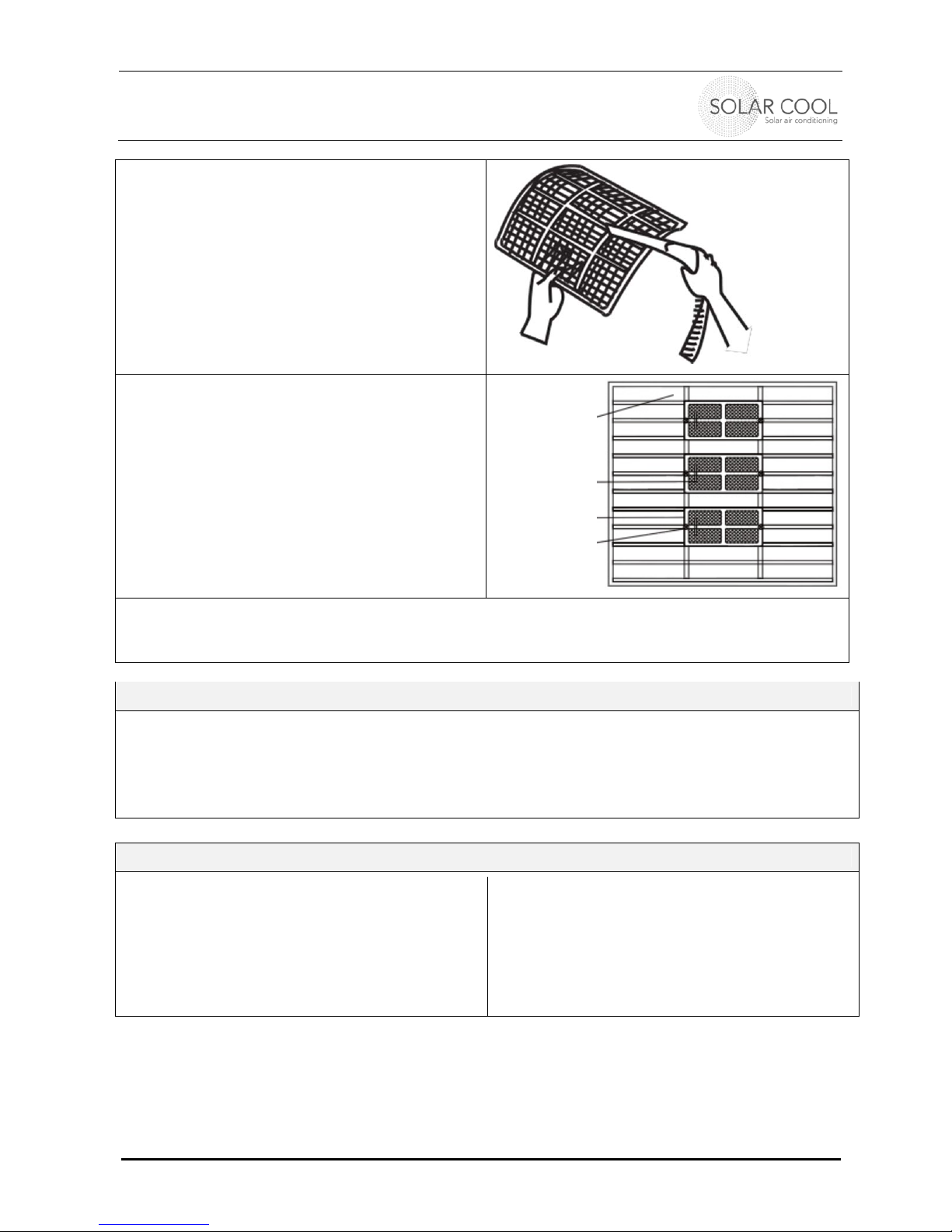

Clean the filter
Use a vacuum cleaner for removing the
dust from the filter or
Wash them with water and a mild cleanser
and dry them in the shade (no full sun
exposure)
NOTE: Never use water above 45°C to wash
filter. This can cause deformation or
discoloration. Never parch it by fire, since this
could cause a fire or deformation.
Eventually change purifiers
For absorbing CO, CO2, benzene, aldehydes and
odors. They can adsorb soluble materials with a
particle size smaller than 1µm in air like dust,
pollen bacteria etc. Usage time is 6 months and
need to be changed:
Unscrew fixing bolts on purifier and take
purifier out
Install new filters in frame and reinsert
purifiers in the air filter
Reinsert the filter
Fix the purifiers on the filter, install filter on the several bulges on top of the grille. Pull the handle
behind the grille toward inside to fix the filter. Close the air inlet grill analogue to step 1
Repetitive maintenance of indoor unit
Turn power off
Clean air inlet grill
Clean air inlet filter
Change air purifier filter
Clean outlet vent and surface panel
Maintenance before and after usage season
Before season
Check inlet and outlet vents for blockages
Check if earthing wire is connected properly
Check if air filter is clean and installed well
Check whether the batteries in your remote
control or still operational
Turn on main power 2 hours before use
After season
Clean filter and body
Clean outlet vent and surface panel
Cut off main power supply of air conditioner
Purifier
A
ir Filter
Stand for
p
u
rifi
e
r
Fix bolt of
p
urifier

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 11 10/2012
9. TROUBLE SHOOTING
Don’t try to repair the air conditioner by yourself. It may cause an
electric shock and kill you or damage the unit. Contact authorized service center.
Following checks prior to contact may save you money
Fault Cause analysis
Air conditioner does not run upon
immediate restart after a stop

Breaker switched off or power cut-off ?
To protect the air conditioner upon immediate restart
after a stop, the microcomputer controller will delay
the unit for 3 minutes before the air conditioner will
run.
Air conditioner starts and stops again
immediately
Inlet or outlet vents blocked ?
Air conditioner blows out bad smell
when it
is initially started.
The air conditioner itself has no bad smell. lf any, is the
bad smell accumulated from environment. Solution:
Clean the air filter . lf still any problem, the air
conditioner shall be cleaned (Please contact Authorized
Service Center)
You may hear "water flowing" noise
when the
air conditioner is running.
When the air conditioner is started, or the compressor is
started or stopped during running or the air conditioner is
stopped, sometimes you may hear "hua-hua" or "di-du-
di-du" noise. This is the flowing sound of refrigerant
other than fault.
Sometimes a thin fog will flow out of
the
outlet when air conditioner is
running in cooling mode.
This might occur when indoor temperature
and humidity
are high. This is because the indoor air is quickly cooled
down.
After a period of time, the fog will disappear with the
decrease of indoor temperature and humidity.
You may hear a slight crack when the
air conditioner is started or stopped.
This is the sound of friction caused by expansion of panel
or other parts due to the change of temperature.
Air conditioner does not run.

Check if power failure?
Has circuit protection device has tripped?
ls the voltage too high or too low? (To be tested by
professional technicians).
ls timer function correctly
used?
Air conditioner has poor cooling (or
heating)
effect.

Air inlet or outlet of outdoor unit blocked?
Air filter clogged by dust?
All doors and windows closed?
Air flow set to "LOW FAN"?
Any other heating source in the
room?

Improper temperature setting ?

Direct exposure to sun ?
lndoor unit gives out noise.

The sound that the fan or compressor relay is
switching (close/open).
Air conditioner may give out sounds under defrost
or when it is stopped. This is caused due to inverse
flow of refrigerant in the unit.
H1: Defrosting

Is normal

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 12 10/2012
Don’t try to repair the air conditioner by yourself. It may cause an
electric shock and kill you or damage the unit. Contact authorized service center.
Following checks prior to contact may save you money
Fault Cause analysis
Remote controller cannot execute
control.

Remote controller sometimes cannot execute control
if the air conditioner is subject to abnormal inter-
ference or frequent switch of functions.
To resume
normal operation, just pull out the power and reinsert
it properly.
Is the remote control too far away from indoor unit or
blocked by any obstacles?
Check the battery in remote controller for power. lf
low power, replace the battery.
Check, if remote controller is damaged.
Water leaks from indoor unit.

Air humidity is too high.
Condensing water overflows.
Joint of indoor unit drain pipe is loose.
Water leaks from outdoor unit.

Under cooling mode, water might condense
on pipe or pipe joint due to cooling.
Defrosted water flows out under heating or defrost
(auto defrost) mode.
Under cooling mode, water attached on heat
exchanger will drip.
No air blows out from indoor unit.

When the temperature of indoor heat exchanger is
low during heating process, the indoor unit will stop
air blowing to prevent blowing of
cold air (within 3
minutes).
In HEAT mode: when outdoor temperature is low or
humidity is high and much frost on the heat
exchanger has developed, unit switches into
automatic defrost mode. Indoor unit stops blowing air
for 3-12 min. During this water may flow out or steam
will appear
Under dehumidify mode, the fan of indoor unit might
be stopped sometimes to prevent evaporation of
condensing water and inhibit the rise of temperature
Moisture exists on outlet grill.

lf the air conditioning is long running under high
humidity, moisture might condense on the grill and
drop down.
In the case of following events, please contact authorized service center
Air conditioner gives out shrill noise during running .
Air conditioner gives out bad smell during running.
Water leaks indoors.
Air break switch or leakage protection switch trips
frequently .
Liquids or water are poured into the machine or
remote controller.
Abnormal overheating of
power cord and plug.
STOP THE AIR CONDITIONER AND
PULL OUT THE POWER PLUG

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 13 10/2012

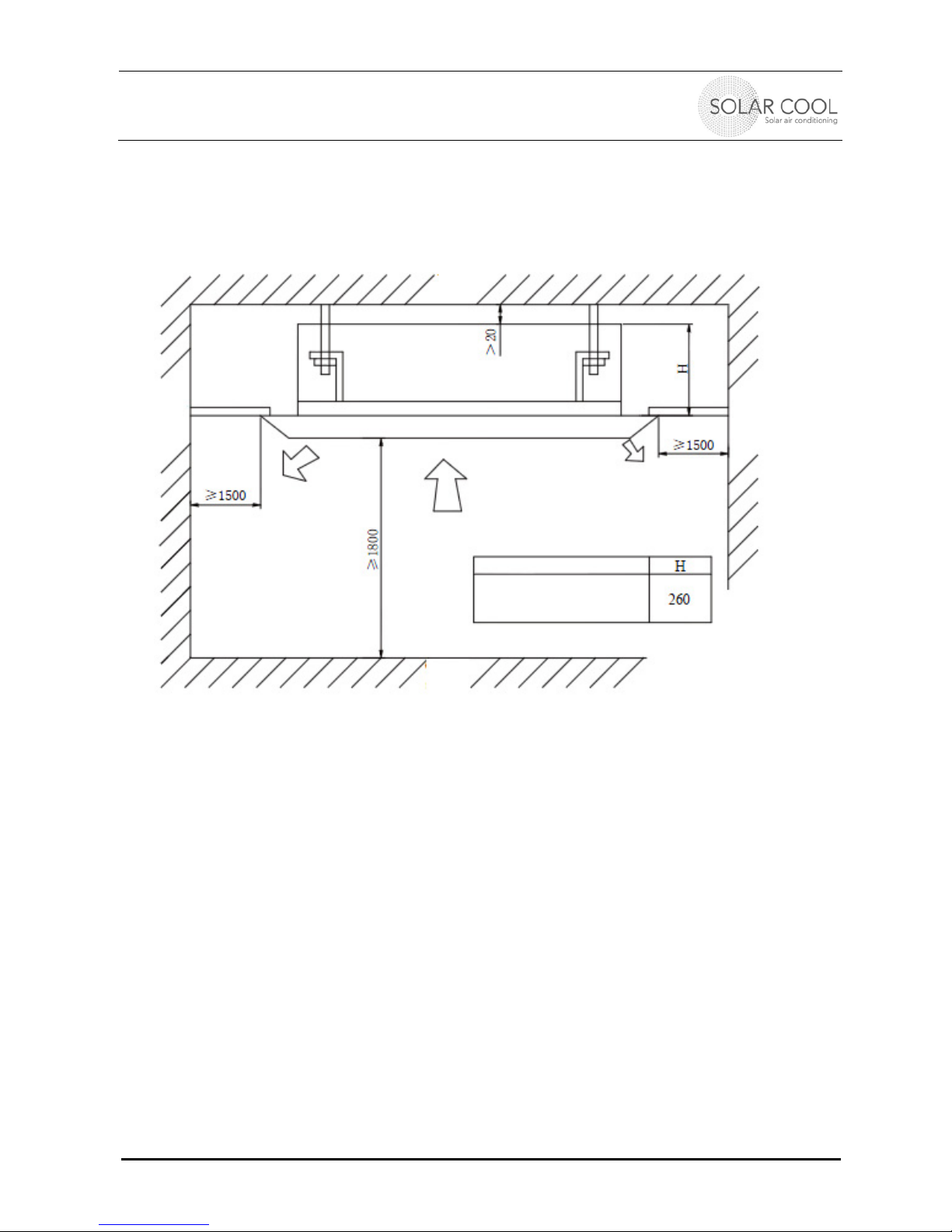

10. LOCATION OF INSTALLATION
Choose a proper location for the indoor and outdoor unit
The intake and outlet should not be covered, so that the outflowing air can reach all the parts of
the room
Make sure that installation meets schematic diagram of installation spaces
Make sure the cassette may hang horizontally after installation
Install in a location, from where the condensation water can be drained easily out and that
allows a short and easy connection to the outdoor unit
Avoid close heat sources, steam or flammable gas
Choose a location which is strong enough to withstand the weight and vibration of the unit
Allow enough clearance space to have access for routine maintenance e.g. replacing the filters.
The height of the installation should be min. 1,8 m above the floor.
Install cassette in middle of the room to allow optimal air distribution into all corners
Stay away at least 1m from other electric appliances like TV, audio devices etc.
Do not locate the indoor unit in the immediate proximity of a laundry, bath, shower, or swimming
pool.
Make sure you can access the plug after having installed the indoor unit.
NOTE : Normally there is lot of dust and lampblacks in the detached ceiling of dining rooms and
kitchen, where the cassette will be installed. This may reduce the capacity of the cassette and lead
to water leakages and abnormal operations of the water pump. So following precaution shall be
done:
Make sure the exhaust over the cooker has enough capacity to suck up all cooking particles
(esp. grilling and BBQ)
Keep the cassette as far from the kitchen as possible
Units: mm
Ceiling
Wall Wall
Ground
Model
CMC12, CMC18,
CMC24

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 14 10/2012
11. DIMENSIONS OF CASSETTE UNIT
CMC12, CMC18
CMC24
The decorated covers of the cassette shall overlap the ceiling by min. 20 mm:
950 (Cover of cassette)
890 (Ceiling opening)
840 (Indoor unit)
680
780
950 (Cover of cassette)
890 (Ceiling opening)
840 (Indoor unit)
Refrigerant pipe
Hoisting screw
650
570
400
570 604 650

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 15 10/2012

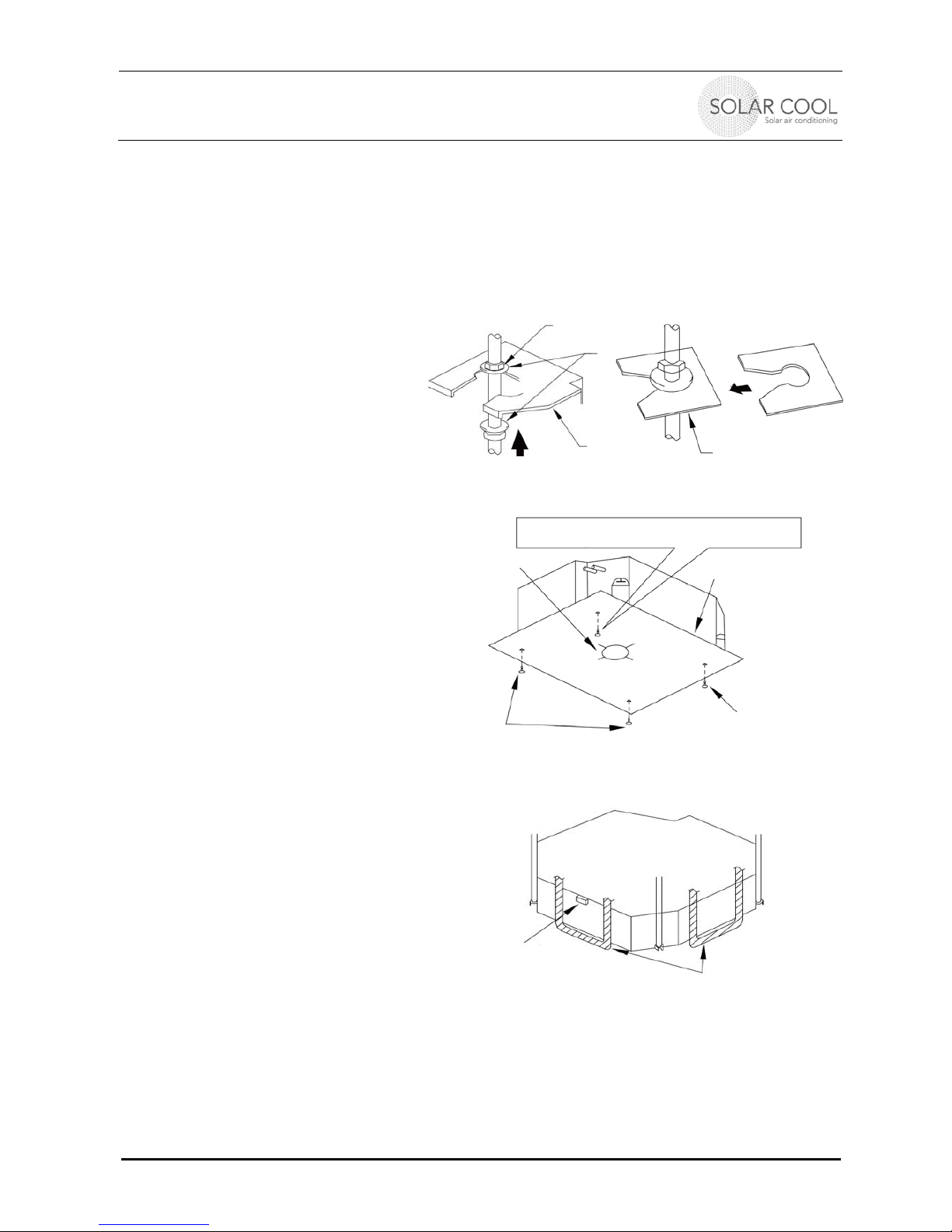

12. INSTALLATION OF INDOOR CASSETTE UNIT
Install mounting rods and unit
Open the detached ceiling wide enough that you may work without hassle. Clean the area around the
opening from dust and dirt. Make sure that you can place the drain hose and wire to the desired locations
Attach the threaded hoisting rods in the ceiling above using appropriate screws and dowels. Make sure the
rods can take up the weight of the cassettes (rods to be supplied by installer)
Thread upper nut and washer and
lower nut/gasket on rod.
Check helping installation cardboard
with openings in ceiling
Central mark of the ceiling opening is
marked on the cardboard
Install helping installation cardboard on
unit
Hang the unit onto the desired location
using the rods and gaskets
IMPORTANT - Check if the unit is horizontal – if not turn nuts until unit is horizontal. If the unit is not
horizontal water may leak, since the included water level switch does not work properly
Remove the gasket anchor cardboard to avoid breaking of the gasket and tighten the nuts
Remove the helping installation cardboard
Nut
washe
r
hoisting Gasket anchor plate
insert
One bolt at the angle of outlet pipe is fixed on the
angle of drainage slot
Center of ceiling
opening Installation cardboard
Bolt (attachment)
Bolt (attachment)
Water leveler Polyethylen pipe

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 16 10/2012

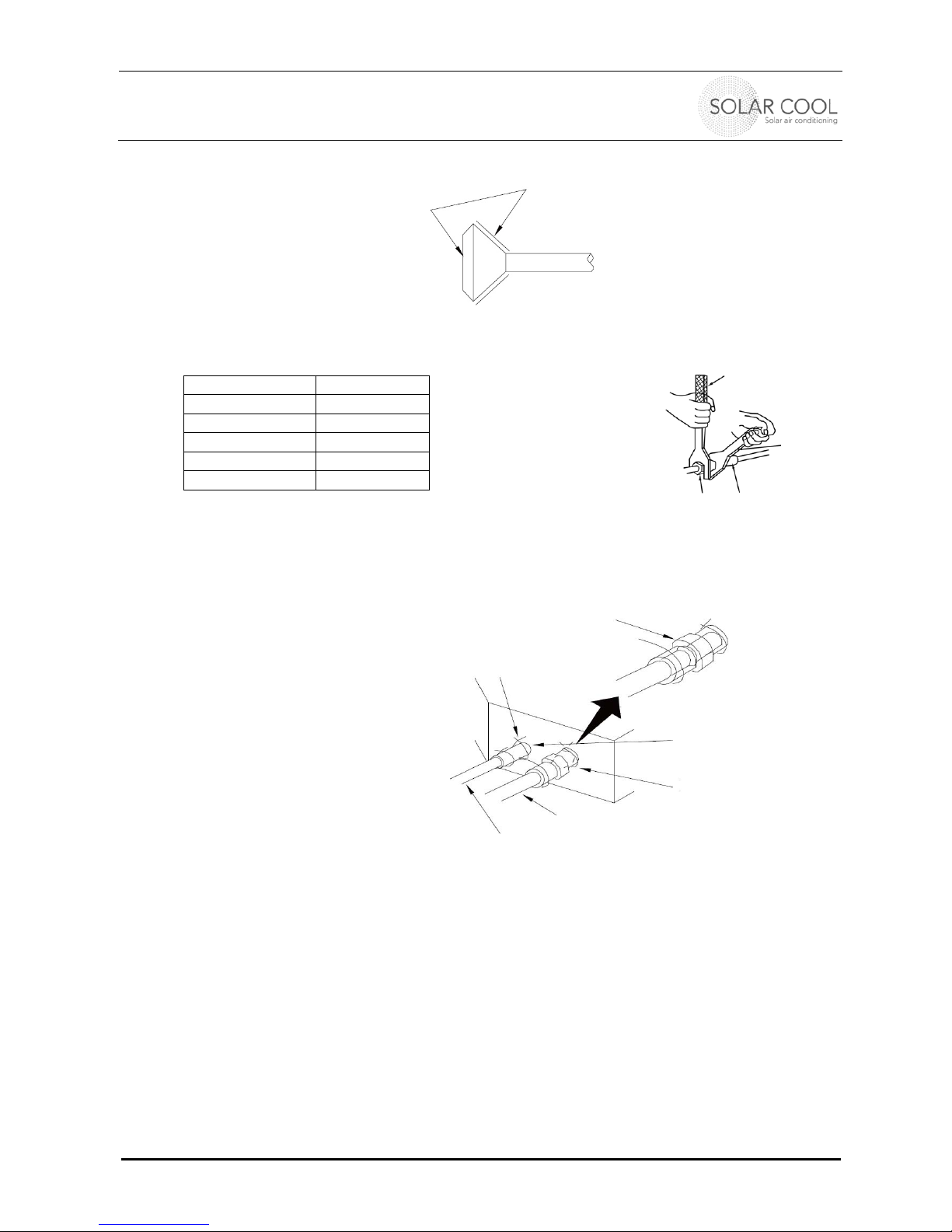

Connect refrigerant pipes
Lubricate inside and outside of the
flare nut with freeze tolerant motor oil
and connect gas and liquid pipes by
hand
The taper end of the connecting pipe must be in line with the corresponding taper face of the valve joint.
Tighten the nut of the connecting pipe and then use spanner to tighten the nut.
Hexagon nut Torque (Nm)
Ø 6 - (1/4”) 15 – 30
Ø 9,5 - (3/8”) 30 – 35
Ø 12 - (1/2”) 45 – 50
Ø 16 - (5/8”) 60 – 65
Ø 19 - (3/4”) 70 – 75
NOTE:
Connect the connecting pipe to the indoor unit first and then connect it to the outdoor unit. Pay attention to the
bending and Iayout when preparing the connecting pipe in order not to harm it. Do not screw the joint nut too
tightly, otherwise leakage will be caused.
 Check the connection for leakage. Use water-soap solution
Insulate gas pipes and their
connection to prevent condensation
and water leaks by covering provided
insulation sheet completely around the
connection and nut
Fasten the isolation sheet against
tear-off
NOTE: PLEASE FOLLOW THIS INSTUCTION. OTHER WISE CONDENSATE DEVELOPS, DROPS AND
DAMAGES THE CEILING
Install drain pipe/hose
During cooling condensate occurs and must be drained
The diameter of the drain hose must be at least of the same size as the drain pipe from the cassette
The slope of the drain pipe/hose must be min 1% (1cm/1m) and go ALWAYS down. No intermediate
bows and inclines are allowed
The drain hose shall be at short as possible
Install a siphon at the end of the hose to avoid bad smell
Provide an uprising hose straight at the beginning of the hose to prevent backflow of the condensate into
the unit
Lubricate here
S
p
anner
Flare nut Join
t
Torque wrench
Insulation sheet around nut
and connection
Liquid pipe Gas pipe
Isolation sheet
Thread fastener (4x)
Isolation sheet

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 17 10/2012
The raise should be formed with rectangular angles not exceeding a height of 280 mm
The hose shall be hung up at rods hanging from the ceiling at a distance of 1-1,5 m by using the clamps
Insert the hose into the clamp and tighten the clamp
Isolate the drain hose against the clamp
Isolate the hose AND the surrounding clamp against condensation
When you install more cassettes, connect the drain hose serial from the highest to the lowest that always
a negative slope downwards exists
Drain hose
Drain hose
Clamp
Ceiling
Correct Wrong
Clamp
Isoalting sheet Drain hose
Isoalting sheet
Clamp
> 100 mm 1% slope

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 18 10/2012

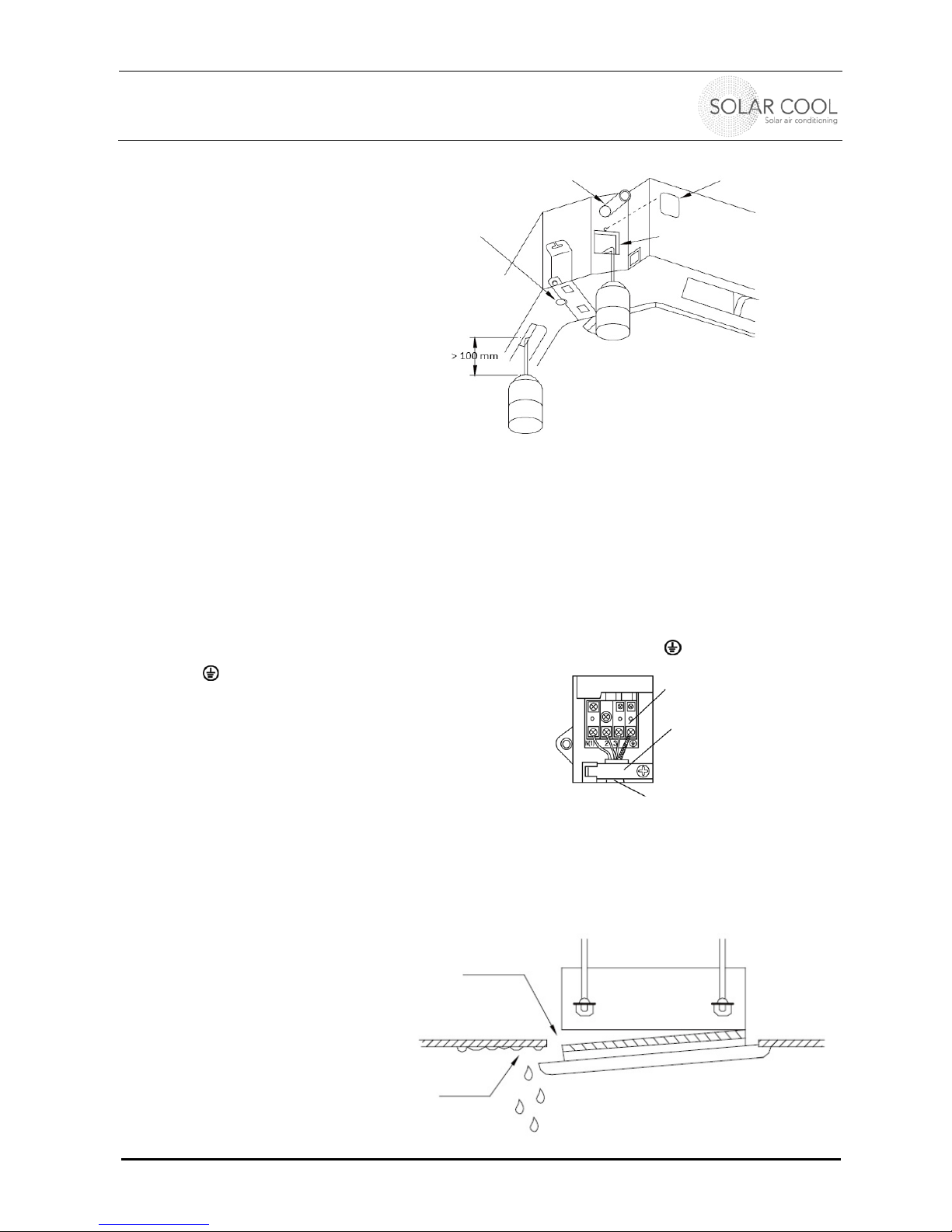

 Check proper function of drain.
Remove cover of test openings and
fill water (600 ml) slowly through
the opening and check for:
oWork of drainage pump
o Removal of water
o
Potential leaks
The drain pipe/hose must be isolated with suitable material (5-10mm) to avoid condensation at the
outside of the drain hose . Fire prevention class M1
Are bows or inclines inevitable, install a separate condensate pump with level control acting and
regulating on its own.
13. ELECTRICAL WIRING
Electrical connection of indoor and outdoor units
Remove the cover of the electric box
Pass the power cable through and pull it into the box. Connect the Neutral wire of the power connection
cables to the "N (1) "terminal of the terminal board, connect the Signal wire to the "2" terminal, and
connect the L- wire to the "3" terminal and connect the earthing wire to the earth terminal
Earthing MUST be done. If not it may harm and kill the
user
Fix the cable with the clamp the section of power cable with
protective pipe into pressing groove and close the cover
plate. Tighten the fixing screws to clamp the connecting
cable.
Put the cover panel back into position
The wire diameter of all wires must be min. 1,0 mm²
14. INSTALLATION OF FRONT COVER PANEL
The cover panel must cover the unit
and the surrounding ceiling by min 20
mm
Gaps are not allowed and may cause
bypasses of airflow and low
efficiencies
Improper attachment may cause water
leakage and harm people and property
Drain hose Cover of test
opening
Test opening
Drain vent for
repair use (plastic
cover included)
Water bottle with pipe
(appx 100 mm)
Water bottle with pipe
(appx 100 mm)
Outlet vent terminal
Terminal
N(1) - 2 - 3 - Earth/Ground)
Wire clam
p
To outdoor unit
A
ir leaks
Water drops
Front Cover Panel

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 19 10/2012
Orientate the cover panel so
that the swing flap motor lies
in the same corner as the
refrigerant pipes
(1) Mount the panel temporarily
on the indoor unit. Hang the
latch over the hook which is
on the opposite side of the
swing flap motor
(2) Hang the other 2 remaining
latches to the hooks. Be
careful not to let the swing
motor cable caught in the
sealing material
(3) Screw the 4 hexagonal
head screws under the
latches about 15mm in. The
panel rises.
(4) Adjust the panel by turning
it along the arrows shown
below so that it closes all
gaps
(5) Tighten the screws until the
sealing material between
panel and indoor unit is 5-8
mm thick
Make sure no gaps between ceiling and cover panel occur. They are critical and can deteriorate much the
cooling capacity due to air flow bypasses
Wire the cover panel with indoor unit (Swing flap motor and display
Raise indoor unit by screwing nuts on hanging
rods through holes in pane. Make sure you don’t
harm any connections
A
void gaps !
Body Panel
Hook
Latch
Refrigerant pipes
Swing flap motor
Body Panel

INSTALLATION MANUAL AND USERS GUIDE
Multi Split Series – Ductless Split – Cassette Indoor unit
04006020101 © Sedna Aire Europe GmbH 20 10/2012
15. CHECKS AND TEST OPERATION
Preparation
Do not switch on the power before all installation work is completed.
Confirm that the control line is correctly installed and all electrical lines are firmly connected.
Perform all necessary checks to avoid longer installation time and ensure satisfied customer:
oGas leakage
oThermal insulation
oSmooth drainage
oVoltage and grounding
oFree inlet and outlet at vents
Document your settings and piping lengths
Open the shutoff valves of the big and small connecting pipes.
Remove all foreign articles, especially metal scraps, line ends and forceps, from the unit.
Test run
Connect to the power supply, press the "ON/OFF" key on the remote controller, and the air-conditioning
unit starts to operate.
Press the Mode key, select the operating modes such as Cool, Heat, Fan, Swing mode and observe if the
operation is normal.
16. WARRANTY
Your HVAC comes with a warranty of 2 years for
all parts. In order for your warranty to be
effective, you must complete out this form and
return it to Sedna Aire Europe. For full warranty
coverage it needs an approval and signature from
the certified and qualified service personnel.
It is the responsibility of the owner to provide
sufficient prove for its purchase and installation.
We recommend to keep all documentations over
the full warranty period.
Location of installation
Country
Town
Street
Purchaser name
Purchase Date
Model
Serial No
Owner’s phone
Owner’s email
Owner’s signature
Dealer’s name
Installer’s name
Installer’s address
Installer’s signature/stamp
Limited warranty by Sedna Aire Europe
Valid is the warranty claim as published on the Homepage of Sedna Aire Europe at the time of purchase date. Sedna Aire hereby
warrants to the consumer that all units are free from defects in materials and workmanship, and will replace or repair system
components in accordance with the terms of this Limited Warranty.
The terms of this warranty are effective from the date of
installation, and apply only to products purchased and installed
within Europe and Turkey. The installer shall be responsible for
installation in accordance
with the Sedna Aire Installation Manual and all building/electrical codes in effect at the time of installation.
All transportation, service Iabor and diagnostic calls other
than those specifically allowed by this Warranty are excluded.
This Warranty shall not apply to damaged system components caused by transportation, improper installation, service
or alteration,
acts of God, improper electrical supply or refrigerant charge, corrosive atmosphere,
m1suse or failure to properly maintain equipment.
This Warranty does not apply to
field-supplied and installed components for this system.
If the warranty offered by Sedna Aire Europe on its Homepage differs from that written here, the always better for the customer applies.
For details see www.sednaaireeurope.com
All European certifications passed: CE CB EMC EMF GS LFGB RoHS
Sedna Aire has a policy of continuous product and product data improvement and it reserves the right to change design
and specifications without notice. SolarcoolTM is a trademark of Sedna Aire Europe
